Manitou MLT735 Operator's Manual

Download

MANITOU AMERICAS, INC.

One Gehl Way

P. O. Box 179

West Bend, WI 53095-0179 U.S.A

Website: www.us.manitou.com

For parts orders contact your Manitou dealer or call:

Manitou Americas Parts Department. 262-334-6653

Fax (254) 867--6504

MLT735 120 LSU

S6-E3

Operator Manual

Catalog No. 51900002

In. Rel. 04-2011

THIS OPERATOR’S MANUAL MUST BE KEPT IN THE LIFT TRUCK AND MUST BE READ AND UNDERSTOOD

BY OPERATORS.

0 - ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS

1 - OPERATING & SAFETY INSTRUCTION

2 - DESCRIPTION

3 - MAINTENANCE

4 - ATTACHMENT ENGAGEMENT

5 - ELECTRICAL & HYDRAULIC SCHEMATIC

RELEASE: 04/11

Initial Release

THE TEXTS AND ILLUSTRATIONS IN THIS DOCUMENT MUST NOT BE REPRODUCED EITHER WHOLLY OR IN PART.

ROUGH TERRAIN FORKLIFT TRUCK

GENERAL SAFETY STANDARDS

Contents

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS

STUDY THE OPERATOR/SERVICE MANUALS

The information in this manual provides general instructions for the safe operation and maintenance of your forklift truck. This information is vital and must be clearly understood by the operator and serviceman. Study this manual and the Rough Terrain Forklift Safety Manual (part no. 422494) thoroughly and carefully before operating or servicing your forklift. Contact your dealer or Manitou North America, Inc. if you have any questions concerning your forklift, its operation, service or parts. Keep both manuals in the literature box on the forklift available for reference. If either manual becomes illegible or is missing, contact your dealer for replacements immediately. This manual cannot cover every situation that might result in an accident. It is the responsibility of the operator to always remain alert for potential hazards and be prepared to avoid them!

ADDITIONAL RECOMMENDED LITERATURE:

ANSI / ITSDF B56.6 is the national consensus standard for rough terrain forklift trucks. It contains rules about forklift safety, maintenance, safe operation, training, and supervision. Forklift owners should learn this standard and make it available for their operators, service personnel, and supervisors. These standards can be obtained, free of charge, from the Industrial Truck Standards Development Foundation (ITSDF) on their website at www.itsdf.org. The following references are examples from the standard, addressing forklift operators:

A.) OPERATOR TRAINING QUALIFICATIONS

1.) The user shall ensure that operators understand that safe operation is the operator’s responsibility. The user shall ensure that operators are knowledgeable of, and observe, all safety rules and practices.

2.) Create an effective operator training program centered around user company’s policies, operating conditions, and rough terrain forklift trucks. The program should be presented completely to all new operators and not be condensed for those claiming previous experience.

3.) Information on operator training is available from several sources, including rough terrain forklift truck manufacturers, users, government agencies, etc.

4.) An operator training program should consist of the following: a.) careful selection of the operator, considering physical qualifications, job attitude, and aptitude; b.) emphasis on safety of stock, equipment, operator, and other personnel; c.) citing of rules and why they were formulated; d.) basic fundamentals of rough terrain forklift truck and component design as related to safety, e.g., in.-lb (N-m) loading, mechanical limitations, center of gravity, stability, etc.; e.) introduction to equipment, control locations, and functions. Explain how they work when used properly and problems when used improperly. f.) supervise practice on operating course remote from normal activity and designed to simulate actual operations, e.g., lumber stacking, elevating shingles to the roof, etc.; g.) oral, written, and operational performance tests and evaluations during and at completion of the course; h.) refresher courses, which may be condensed versions of the primary course, and periodic “on job” operator evaluation; i.) understanding of nameplate data and operator instructions and warning information appearing on the rough terrain forklift truck.

B.) GENERAL SAFETY PRACTICES

1.) Rough terrain forklift trucks can cause injury if improperly used or maintained.

2.) Only authorized operators trained to adhere strictly to all operating instructions shall be permitted to oper-

ate rough terrain forklift trucks. Unusual operating conditions may require additional safety precautions, training, and special operating instructions.

3.) Modifications and additions which affect capacity or safe operation shall not be preformed without the man-

ufacturer’s prior written approval. Where such authorization is granted, capacity, operation, and maintenance instruction plates, tags, or decals shall be changed accordingly.

4.) If the rough terrain forklift truck is equipped with front end attachment(s) or optional forks, the user shall see

that the truck is marked to identify the forks or attachment(s), show the approximate weight of the truck and fork or attachment combination, and show the capacity of the truck with forks or attachment(s) at maximum elevation with load laterally centered.

5.) The user shall see that all nameplates and caution and instruction markings are in place and legible.

6.) The user shall consider that changes in load dimension may affect rough terrain forklift truck capacity.

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

B.) GENERAL SAFETY PRACTICES (cont.)

7.) Where steering can be accomplished with either hand and the steering mechanism is of a type that pre-

vents road reactions from causing the handwheel to spin (power steering or equivalent), steering knobs may be used. When used, steering knobs shall be of a type that can be engaged by the operator’s hand from the top and shall be within the periphery of the steering handwheel.

8.) Experience has shown that rough terrain forklift trucks which comply with stability requirements are stable

when properly operated. However, improper operation, faulty maintenance, or poor housekeeping may contribute to a condition of instability and defeat the purpose of the requirements.

9.) Users shall give consideration to special operating conditions. The amount of forward and rearward tilt to

be used is governed by the application. Although the use of maximum rearward tilt is allowable under certain conditions, such as traveling with the load lowered, the stability of a rough terrain forklift truck as determined by standardized tests does not encompass consideration for excessive tilt at high elevations or the operation of trucks with excessive off-center loads.

10.) Some of the conditions which may affect stability are ground and floor conditions, grade, speed, loading

(rough terrain forklift trucks equipped with attachments behave as partially loaded trucks even when operated without a load on the attachment), dynamic and static forces, improper tire inflation, and the judgement exercised by the operator.

C.) OPERATING SAFETY RULES AND PRACTICES

1.) Safe operation is the responsibility of the operator.

2.) This equipment can be dangerous if not used properly . The operator shall develop safe working habits and

also be aware of hazardous conditions in order to protect himself, other personnel, the rough terrain forklift truck, and other material.

3.) The operator shall be familiar with the operation and function of all controls and instruments before under-

taking to operate the rough terrain forklift truck.

4.) Before operating any rough terrain forklift truck, truck operators shall have read and be familiar with the

operator’s manual for the particular truck being operated.

5.) Before starting to operate the rough terrain forklift truck:

a.) be in operating position and fasten seat belt; b.) place directional controls in neutral; c.) apply brakes; d.) start engine.

6.) Do not start or operate the rough terrain forklift truck, any of its functions, or attachments from any place

other than the designated operator’s position.

7.) Keep hands and feet inside the operator’s designated area or compartment. Do not put any part of the

body outside the operator compartment of the rough terrain forklift truck.

8.) Never put any part of the body into the mast structure or between the mast and the rough terrain forklift

truck.

9.) Never put any part of the body within the reach mechanism of the rough terrain forklift truck or other attach-

ments.

10.) Understand rough terrain forklift limitations and operate the truck in a safe manner so as not to cause injury

to personnel. 1 1.) Do not allow anyone to stand or pass under the elevated portion of any rough terrain forklift truck, whether empty or loaded.

12.) Do not permit passengers to ride on rough terrain forklift trucks.

13.) Check clearance carefully before driving under electrical lines, bridges, etc.

14.) A rough terrain forklift truck is attended when the operator is less than 25 ft (7.6m) from the truck, which

remains in his view.

15.) A rough terrain forklift truck is unattended when the operator is 25ft (7.6m) or more from the truck, which

remains in his view, or whenever the operator leaves the truck and it is not in his view.

16.) Before leaving the operator’s position:

a.) bring rough terrain forklift truck to a complete stop; b.) place directional controls in neutral; c.) apply the parking brake; d.) lower load-engaging means fully, unless supporting an occupied elevated platform; e.) stop the engine; f.) if the rough terrain forklift truck must be left on an incline, block the wheels; g.) fully lower the load-engaging means.

17.) Maintain a safe distance from the edge of ramps, platforms, and other similar working surfaces.

18.) Do no move railroad cars or trailer with a rough terrain forklift truck.

III

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

C.) OPERATING SAFETY RULES AND PRACTICES (cont.)

19.) Do not use a rough terrain forklift truck for opening or closing railroad car doors.

20.) In areas classified as hazardous, use only rough terrain forklift trucks approved for use in those areas.

21.) Report all accidents involving personnel, building structures, and equipment to the supervisor or as

directed.

22.) Do not add to, or modify, the rough terrain forklift truck.

23.) Do not block access to fire aisles, stairways, and fire equipment.

24.) For rough terrain forklift trucks equipped with a differential lock, the lock should not be engaged when driv-

ing on the road or at high speeds or when turning. If the lock is engaged when turning, there could be loss of steering control.

25.) Observe all traffic regulations including authorized speed limits. Under normal traffic conditions, keep to

the right, maintain a safe distance, based on speed of travel, from the truck ahead; and keep the truck under control at all times.

26.) Yield the right-of-way to pedestrians and emergency vehicles such as ambulances and fire trucks.

27.) Do not pass another truck traveling in the same direction at intersections, blind spots, or at other danger-

ous locations.

28.) Slow down and sound the audible warning device(s) at cross-aisles and other locations where vision is

obstructed.

29.) Cross railroad tracks at an angle wherever possible. Do not park closer than 6 ft (1.8m) to the nearest rail

of a railroad track.

30.) Keep a clear view of the path of travel and observe other traffic, personnel, and safe clearances.

31.) If the load being carried obstructs forward view, travel with the load trailing.

32.) Ascend or descend grades slowly and with caution.

a.) When ascending or descending grades in excess of 5%, loaded rough terrain forklift trucks should be driven with the load upgrade. b.) Unloaded rough terrain forklift trucks should be operated on all grades with the load-engaging means downgrade. c.) On all grades, the load and load-engaging means shall be tilted back, if applicable, and raised only as far as necessary to clear the road surface. d.) Avoid turning, if possible, and use extreme caution on grades, ramps, or inclines; normally

travel straight up or down.

33.) Under all travel conditions, operate the rough terrain forklift truck at a speed that will permit it to be brought

to a stop in a safe manner.

34.) Travel with load-engaging means or load low and, where possible, tilted back. Do not elevate the load

except during stacking.

35.) Make starts, stops, turns, or direction reversals in a smooth manner so as not to shift load and/or overturn

the rough terrain forklift truck.

36.) Do not indulge in stunt driving or horseplay.

37.) Slow down for wet and slippery surfaces.

38.) Before driving over a dockboard or bridge plate, be sure that it is properly secured. Drive carefully and

slowly across the dockboard or bridge plate, and never exceed its rated capacity.

39.) Do not drive rough terrain forklift trucks onto any elevator unless specifically authorized to do so.

Approach elevators slowly, and then enter squarely after the elevator car is properly leveled. Once on the elevator, neutralize the controls, shut off engine, and set brakes. It is advisable that all other personnel leave the elevator before truck is allowed to enter or leave.

40.) Avoid running over loose objects on the roadway surface.

41.) When negotiating turns, reduce speed to a safe level, and turn steering handwheel in a smooth sweeping

motion. Except when maneuvering at a very low speed, turn the steering handwheel at a moderate, even rate.

42.) Use special care when traveling without load, as the risk of lateral overturning is greater.

43.) Improper use of stabilizer controls (if so equipped) could cause rough terrain forklift truck upset. Always

lower the carriage before operating stabilizer controls.

44.) For rough terrain forklift trucks equipped with lateral leveling:

a.) Always level the frame before raising the boom or mast, with or without a load. b.) Lateral leveling should not be used to position an elevated load; instead, lower the load and reposition the rough terrain forklift truck.

45.) Handle only stable or safely arranged loads.

a.) When handling off-center loads which cannot be centered, operate with extra caution. b.) Handle only loads within the capacity of the rough terrain forklift truck. c.) Handle loads exceeding the dimensions used to establish rough terrain forklift truck capacity with extra caution. Stability and maneuverability may be adversely affected.

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

C.) OPERATING SAFETY RULES AND PRACTICES (cont.)

46.) When attachments are used, extra care shall be taken in securing, manipulating, positioning, and trans-

porting the load. Operate rough terrain forklift trucks equipped with attachments as partially loaded trucks when not handling a load.

47.) Completely engage the load with the load-engaging means. Fork length should be at least two-thirds of

load length. Where tilt is provided, carefully tilt the load backward to stabilize the load. Caution should be used in tilting backward with high or segmented loads.

48.) Use extreme care when tilting load forward or backward, particularly when high tiering. Do not tilt forward

with load-engaging means elevated except to pick up or deposit a load over a rack or stack. When stacking or tiering, use only enough backward tilt to stabilize the load.

49.) The handling of suspended loads by means of a crane arm (boom) or other device can introduce dynam-

ic forces affecting the stability of a rough terrain forklift truck. Grades and sudden starts, stops, and turns can cause the load to swing and create a hazard if not externally stabilized. When handling suspended loads:

a.) do not exceed the truck manufacturer’s capacity of the rough terrain forklift truck as equipped for handling suspended loads. b.) only lift the load vertically and never drag it horizontally; c.) transport the load with the bottom of the load and the mast as low as possible; d.) with load elevated, maneuver the rough terrain forklift truck slowly and cautiously, and only to the extent necessary to permit lowering to the transport position; e.) use tag lines to restrain load swing whenever possible.

50.) At the beginning of each shift and before operating the rough terrain forklift truck, check its condition,

giving special attention to:

a.) tires and their inflation pressure b.) warning devices c.) lights d.) lift and tilt systems, load-engaging means, chains, cables, and limit switches

e.) brakes f.) steering mechanism g.) fuel system(s)

51.) If the rough terrain forklift truck is found to be in need of repair or in any way unsafe, or if it contributes to

an unsafe condition, the matter shall be reported immediately to the user’s designated authority, and the truck shall not be operated until it has been restored to safe operating condition.

52.) If during operation the rough terrain forklift truck becomes unsafe in any way, the matter shall be reported

immediately to the user’s designated authority, and the truck shall not be operated until it has been restored to safe operating condition.

53.) Do not make repairs or adjustments unless specifically authorized to do so.

54.) When refueling, smoking in the area shall not be permitted, the engine shall be stopped, and the opera-

tor shall not be on the rough terrain forklift truck.

55.) Spillage of oil or fuel shall be carefully and completely absorbed or evaporated and fuel tank cap replaced

before restarting engine.

56.) Do not use open flames when checking electrolyte level in storage batteries, liquid level in fuel tanks, or

the condition of LPG fuel lines and connectors.

57.) Do not lift personnel with the forklift. If the forklift must be used to lift people, precautions for the protec-

tion of the personnel must be taken (see ITSDF B56.6, chapter 5.15 Elevating Personnel).

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

D.) SUSPENDED LOADS

A jib or truss boom should ONLY be used to lift and place loads when the machine is stationary and the frame is level. Transporting suspended loads must ALWAYS be done slowly and cautiously, with the boom and load as low as possible. Use taglines to restrict loads from swinging, to avoid overturn.

The handling of suspended loads by means of a truss boom or other similar device can introduce dynamic forces affecting the stability of the machine that are not considered in the stability criteria of industry test standards. Grades and sudden starts, stops and turns can cause the load to swing and create a hazard.

Guidelines for “Free Rigging / Suspended Loads”

1. DO NOT exceed the rated capacity of the telescopic handler as equipped for handling suspended loads. The weight of the rigging must be included as part of the load.

2. During transport, DO NOT raise the load more than 12 inches (305 mm) above the ground, or raise the boom more than 45 degrees.

3. Only lift the load vertically – NEVER drag it horizontally.

4. Use multiple pickup points on the load when possible. Use taglines to restrain the load from swinging and rotating.

5. Start, travel, turn and stop SLOWLY to prevent the load from swinging. DO NOT exceed walking speed.

6. Inspect rigging before use. Rigging must be in good condition and in the U.S. comply with OSHA regulation §1910.184, “Slings,” or §1926.251, “Rigging equipment for material handling.”

7. Rigging equipment attached to the forks must be secured such that it cannot move either sideways or fore and aft. The load center must not exceed 24 inches (610 mm).

8. DO NOT lift the load with anyone on the load, rigging or lift equipment, and NEVER lift the load over personnel.

9. Beware of the wind, which can cause suspended loads to swing, even with taglines.

10. DO NOT attempt to use frame-leveling to compensate for load swing.

WARNING

U.S. OSHA regulations effective November 8, 2010 (29 CFR Part 1926, Subpart CC - Cranes and Derricks in Construction) include requirements for employers that use powered industrial trucks ("forklifts") configured to hoist (by means of a winch or hook) and move suspended loads horizontally. In par ticular, this regulation applies to any rough-terrain forklift (e.g., "telescopic handler") equipped with a jib or truss boom with a hook (with or without a winch), or a hook assembly attached to the forks. [Note: This regulation is in addition to the OSHA regulation that requires specific forklift operator training: §1910.178(l).]

When a forklift / telescopic handler is configured and used for hoisting, the employer must ensure that:

1. Forklift, lift equipment and rigging have been inspected (each shift, month and year) and are in good, safe condition and properly installed.

2. An operator's manual and applicable load charts are on the forklift.

3. Work zone ground conditions can support the equipment and load. Any hazardous conditions in the work area have been identified, and the operator notified.

4. Equipment is being used within its rated capacity and in accordance with the manufacturer's instructions.

5. Operator and crew members have been trained in the safe use and operation of the equipment, including how to avoid electrocution.

6. During use, no part of the equipment, load line or load will be within the minimum clearance distance specified by OSHA [10 feet (3.0 m), and more for lines rated over 50 kV] of any energized power line, and any taglines used are non-conductive.

7. In addition, for lift equipment with a rated capacity greater than 2000 lbs. (907 kg), the employer must ensure that:

a.) An accessible fire extinguisher is on the forklift;

b.) Monthly and annual inspections are performed and documented, and records retained (three months for monthly, one year for annual);

c.) Before November 10, 2014, operators must have had the additional training and qualification / certification required by OSHA regulations §1926.1427 and §1926.1430.

Note: Refer to the full text of the OSHA crane regulation (29 CFR Part 1926, Subpart CC) for a detailed description

VII

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

CONCLUSION:

1.) ATTEND OPERATOR TRAINING CLASSES

The forklift operator must clearly understand all instructions concerning the safe operation of the forklift and all safety rules and regulations of the work site. They must have successfully completed a training coarse in accordance with the Powered Industrial Truck Standard (29 CFR 1910.178) as described by the Occupational Safety and Health Administration (OSHA). They must be qualified as to their visual, hearing, physical, and mental ability to operate the equipment safely. NEVER use drugs or alcohol while operating a forklift! NEVER operate or allow anyone to operate a forklift when mental alertness or coordination is impaired! An operator on prescription or over-the-counter drugs must consult a medical professional regarding any side effects of the medication that may impair their ability to safely operate the forklift.

2.) CREATE A MAINTENANCE PROGRAM

OSHA recommends a maintenance log, listing repairs requested and completed, for each forklift. Also, “lock out tag procedures” should be utilized. If the forklift malfunctions; park it safely, remove the key, tag “Do Not Use”, and report the problem to the proper authority or authorized service personnel immediately.

ROUGH TERRAIN FORKLIFT TRUCK GENERAL SAFETY STANDARDS (cont.)

2.) CREATE A MAINTENANCE PROGRAM (cont.)

For the best forklift performance and operation, a maintenance program is required. Use the hour meter on the instrument panel to keep maintenance properly scheduled (see SECTION TWO - “Servicing Schedule”). For repairs on major components (engine, transmission, etc.), contact your nearest dealer for a Repair Manual. Do not operate a forklift that is damaged or does not function properly. Only authorized personnel may make repairs or adjustments to the lift truck. After repairs, the lift truck must be tested for safe operation before returning to service.

3.) FORKLIFT KNOWLEDGE

Forklift trucks can cause serious injury if improperly used or maintained. Study all of the manuals provided for your forklift model. Learn the locations and meanings of all safety decals. If any decals are illegible or missing, have them replaced immediately. Make sure all safety features provided by the original manufacturer are in place and function properly. Do not operate a forklift with damaged, missing or unsafe components. Have it repaired by authorized service personnel. Learn the functions of all controls, gauges, indicator lights, etc. on the forklift. Know the speed/gear ranges, braking and steering capabilities, load ratings and clearances. When referring to the location of forklift components, the terms “left”, “right”, “front”, and “rear” are related to the operator seated normally, facing forward in the operator’s seat. If you have any questions about the forklift, consult your supervisor. Failure to fully understand or obey safety warnings can result in serious injury or death!

4.) WORK SITE KNOWLEDGE

Before operating on a work site, learn the rules for movement of people, forklifts and all other traffic. Check the size, weight, and condition of the loads you will be expected to handle. Verify that they are properly secured and safe to transport. Learn where the loads are to be placed, planning your route for a safe approach, watching for hazardous conditions. Will a signal man be required to help place the load? Remove any debris which may cause tire damage or rupture. Plan your route around problem areas or have them corrected. Inform the supervisor of any unsafe conditions observed at the site. Examples of hazards: power lines, cables, low clearance structures, garage doors, telephone pole guide lines, fencing, loose lumber, building materials, drop-offs, trenches, rough/soft spots, oil spills, deep mud, steep inclines, railroad tracks, curbs, etc.. NEVER approach power lines, gas lines or other utilities with the forklift! Always verify that local, state/provincial and federal regulations have been met. Report any accidents involving personnel, building structures, and equipment to the supervisor immediately. Always remain alert - conditions are constantly changing at the work site!

TECHNICAL SUPPORT

All data provided in this manual is subject to production changes, addition of new models, and improved product designs. If a question arises regarding your forklift, please consult your dealer or Manitou-NA, Inc. for the

latest information. When ordering service parts or requesting technical information, be prepared to quote the applicable Model/Serial Numbers.

VIII

SAFETY MESSAGES

NOTE THE SAFETY ALERT SYMBOL (SHOWN BELOW). IT IDENTIFIES POTENTIAL HAZARDS WHICH, IF NOT AVOIDED MAY RESULT IN INJURY OR DEATH!

the safety messages places throughout this manual; providing special instructions, telling you when to take precautions and to identify potential hazards. The safety messages are highlighted and outlined in a box similar to those shown in the examples below.

SAFETY ALERT SYMBOL

Also, observe

NOTE or NOTICE

Provides information, special instructions or references about the lift truck.

IMPORTANT

Precautions which must be taken to avoid damage to the lift truck.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury. May also alert unsafe practices.

WARNING

Indicates a potentially hazardous situation which, if not avoided, may result in death or

serious injury!

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury.

CALIFORNIA PROPOSITION 65 WARNING

Diesel Engine Exhaust and some of its constituents are known to the State of California to cause cancer, birth defects or other reproductive harm.

WARNING: Battery posts, terminals and related accesories and related accessories contain lead and lead compounds. Wash hands after handling.

SAFETY DECALS

The purpose of this chapter is to introduce you to the safety messages, decals, and nameplates found on your forklift truck. The decals are identified by name, part number, location, and a brief description. (The forklift model logos, and other misc. decals not shown, can be found in your forklift parts manual.) The decals illustrated may not be exactly the same as those installed on your forklift; installation of the decals varies depending on the forklift model, series, decal updates, etc.. The size and location of some decals limit the amount of information that can be placed upon it. For this reason, additional detailed information not found on the decals is provided through-out this manual.

Every decal placed on the lift truck is important; they are constant reminders of safety and instructions that should never be taken for granted. Even experienced operators can be seriously injured or killed by ignoring, refusing to enforce, or forgetting to follow safe operating procedures! Do not assume you know all safety issues concerning the decals. Before operating the lift truck; learn the meaning(s) of the decals as described in this manual. If any decal becomes illegible or missing, have it replaced immediately! Always replace decals using the same decal part no., unless otherwise specified by the manufacturer. For replacement decals not found in your parts manual, contact your nearest dealer. If you have any questions, contact your supervisor or nearest dealer for advice before operating your forklift!

801011

Before Starting - 801011

(Boom equipped models). Location: on the brake fluid cover panel (to the left and below the dash panel).

Safety Instructions - 420792

(Mast equipped models). Location: on or near the operator manual storage case, and/or on the dash panel.

Instructions for the forklift operator; before operating the forklift.

Use of Seat Belt - 801012

(Boom equipped models). Location: to the right of the operator, near the hydraulic control lever.

Instructs the operator to always wear the seat belt during operations, and never jump from an over-turning forklift.

SAFETY DECALS

Emergency and Parking Brake - 801010

Location: near the park brake lever. Identifies the Emergency/Parking Brake Lever.

Alarm Must Sound - 496162

Location: on the dash, in direct view of the operator. The backup alarm must sound when the forklift is placed in reverse gear.

No Riders - 420732

Location: on the cab entrance(s), and on or near wheel fenders and engine cover.

Informs: riders are not allowed on the forklift.

Clear of Raised Boom - 801006

(Boom equipped models). Location: on both sides of the boom nose.

Keep away from unsupported boom.

Clear of Power Lines - 801007

(Boom equipped models). Location: on both sides of the boom nose.

Keep away from power lines.

SAFETY DECALS

Use of Frame Leveling - 801013

(Boom equipped models). Location: to the right of the operator near the hydraulic control lever.

Frame leveling notice; load must be lowered.

Attachment and Boom Safety - 801009

(Boom equipped models). Location: on both sides of the boom nose.

Important reminders of attachment and boom safety.

Hydraulic Coupling - 234805

Location: near the quick-disconnect adapters. Stop the engine and release hydraulic pressure before changing

attachments.

Rotating Fan and Belt(s) - 801008

Location: on the radiator near the fan, and on any fan belt/pulley cover(s). Keep hands and clothing away from rotating fan and belts.

XII

SAFETY DECALS

221322

234800

Gear Shift Pattern - 33460

(4-speed transmission models). Location: near the gear shift lever. Identifies the gear shift pattern of the forklift transmission.

Steering Mode - 184276

(4 wheel steer equipped models). Location: near the steering mode selection lever. Identifies the steering mode selection.

Mineral Oil (Brake Reservoir) - 221322 or 234800 has been replaced by 164091.

Location: near the brake fluid reservoir where applicable. Refer to the Operator/Service Manual for the correct brake fluid

(mineral oil) to be used in the brake system.

XIII

SAFETY DECALS

Hydraulic Oil - 234798 or 76573

Location: on the hydraulic tank or filler cap. Identifies the hydraulic reservoir (tank) or filler cap.

Hydraulic Oil - 61024

Location: on the hydraulic tank. Identifies the hydraulic reservoir (tank).

Anti-Freeze - 234799

Location: on the radiator, near the radiator filler cap. Indicates required minimum to maximum anti-freeze protection (-22

Diesel Fuel - 161101

Location: on the fuel tank, near the filler cap. Identifies the fuel tank, and use of diesel fuel.

No Step - 496735

Location: varies, depending on the forklift model. Instructs personnel not to use the designated area as a step.

F to -400F).

Do Not Tow - 494918

(Hydrostatic equipped models). Location: on the dash, in view of the operator.

Towing the forklift will damage the transmission; refer to the operator’s manual.

XIV

SAFETY DECALS

Attachment Warning - 421016

(Boom equipped models). Location: on the boom coupler, near where the retaining shaft is installed.

Reminder to operator; install attachment retaining shaft and safety pin before operations.

Hook Here - 24653

Location: at points provided on the forklift, where straps or chains may be attached to secure the forklift to a trailer during transport.

Fork Safety - 426641

(Mast equipped models). Location: on the front and back side of the mast’s outer rails, at eye level (4 required).

Instructs personnel not to travel beneath or upon the lift truck forks.

Pinch Point, Large, 2.5 x 4.5 in. - 426643 Pinch Point, Small, 1.5 x 2.75 in. - 426642

(Mast equipped models). Location: on the front and rear sides of the mast cross bracing.

Keep fingers away from the mast crossbracing.

HAND THROTTLE DANGER - 804784

(Boom equipped models, option). Location: Near the hand throttle mechanism. Reminder to operator; set parking brake before operating hand throttle.

Disengage hand throttle before leaving the forklift.

SAFETY DECALS

Acid in Battery - 801014

Location: in or near the battery storage compartment.

Addresses battery hazards.

Jump Start Battery - 801015

Location: in or near the battery storage compartment.

Jump start instructions.

Attachment Plate - 425995

Location: on the optional removeable forklift attachment. Important manufacturer information about the attachment. Record this information for use

when contacting the maufacturer for parts and service.

Overhead Guard Data Plate - B6109

Location: attached to the overhead guard. Overhead guard conformity.

496550

Forklift Data Plate - 496550

(Boom equipped models)

Forklift Data Plate - 283688

Location: within the operator’s compartment. Important forklift truck identification. Record

this information for use when contacting the manufacturer for parts and service.

MANITOU BF 44158 ANCENIS CEDEX FRANCE

MODELE MODEL

Année de fabrication Year of manufacture Anno di fabbricazione Año de fabricacion

Puissance ISO/TR14396 Power ISO/TR14396 Potenza ISO/TR14396 Potencia ISO/TR14396

Effort vertical max. Vertical max. effort (on trailer hook) Carico max. verticale (sul gancio di traino) Esfuerzo vertical max. (sobre el gancho de remolque)

Pression des pneumatiques (Bar) Tyre pressure (Bar) Pressione per pneumatici (Bar) Presion de los neumáticos (Bar)

Avant

Anteriore

Front

Adelante

283688

MODELLO

MODELO

(sur accrochage remorque)

daN

Arrière

Posteriore

Rear

Trasero

SERIE SERIES

N° de série Serial Nr

Número de serie

Masse à vide Unladen mass

Numéro d'homologation Homologation number Numero d'omologazione Contraseña homologacion

Capacité maxi nominale Nominal maximum capacity Capacità maxi nominale Capacidad máximo nominal

Effort de traction Tractive effort Forza di traino Esfuerzo de traccion

N°283688

SERIE SERIE

Numero di serie

Massa a vuoto Masa en vacio

daN

XVI

1 - OPERATING

CONTENTS

AND SAFETY INSTRUCTIONS

1-1

1-2

1-3

TABLE OF CONTENTS

INSTRUCTIONS TO THE COMPANY MANAGER

THE SITE THE OPERATOR THE LIFT TRUCK

A - THE LIFT TRUCK’S SUITABILITY FOR THE JOB B - ADAPTATION OF THE LIFT TRUCK TO STANDARD ENVIRONMENTAL CONDITIONS C - MODIFICATION OF THE LIFT TRUCK D - FRENCH ROAD TRAFFIC RULES

THE INSTRUCTIONS THE MAINTENANCE

(or see current legislation in other countries)

INSTRUCTIONS FOR THE OPERATOR

PREAMBULE GENERAL INSTRUCTIONS

A - OPERATOR’S MANUAL B - AUTHORIZATION FOR USE IN FRANCE C - MAINTENANCE D - MODIFICATION OF THE LIFT TRUCK E - LIFTING PEOPLE

OPERATING INSTRUCTIONS UNLADEN AND LADEN

A - BEFORE STARTING THE LIFT TRUCK B - DRIVER’S OPERATING INSTRUCTIONS C - ENVIRONMENT D - VISIBILITY E - STARTING THE LIFT TRUCK F - DRIVING THE LIFT TRUCK G - STOPPING THE LIFT TRUCK H - DRIVING THE LIFT TRUCK ON THE PUBLIC HIGHWAY

INSTRUCTIONS FOR HANDLING A LOAD

A - CHOICE OF ATTACHMENTS B - MASS OF LOAD AND CENTRE OF GRAVITY C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE D - TRANSVERSE ATTITUDE OF THE LIFT TRUCK E - TAKING UP A LOAD ON THE GROUND F - TAKING UP AND LAYING A HIGH LOAD ON TYRES G - TAKING UP AND LAYING A HIGH LOAD ON STABILIZERS H - TAKING UP AND LAYING DOWN A SUSPENDED LOAD I - TRAVELLING WITH A SUSPENDED LOAD

PLATFORM OPERATING INSTRUCTIONS

A - AUTHORISATION FOR USE B - SUITABILITY OF THE PLATFORM FOR THE JOB C - PRECAUTIONS WHEN USING THE PLATFORM D - USING THE PLATFORM E - ENVIRONMENT F - MAINTENANCE

INSTRUCTIONS FOR USING THE RADIO-CONTROL

(or see current legislation in other countries)

1-4

1 - 4 1 - 4 1 - 4

1 - 4 1 - 4 1 - 5 1 - 5

1 - 5 1 - 5

1-6

1 - 6 1 - 6

1 - 6 1 - 6 1 - 6 1 - 6 1 - 7

1 - 8

1 - 8 1 - 8 1 - 9

1 - 9 1 - 10 1 - 10 1 - 11 1 - 12

1 - 14

1 - 14 1 - 14 1 - 14 1 - 15 1 - 15 1 - 16 1 - 18 1 - 20 1 - 20

1 - 21

1 - 21 1 - 21 1 - 21 1 - 21 1 - 21 1 - 22

1 - 23

MAINTENANCE INSTRUCTIONS OF THE LIFT TRUCK

GENERAL INSTRUCTIONS MAINTENANCE LUBRICANT AND FUEL LEVELS HYDRAULIC ELECTRICITY WELDING WASHING THE LIFT TRUCK

IF THE LIFT TRUCK IS NOT TO BE USED FOR A LONG TIME

INTRODUCTION PREPARING THE LIFT TRUCK PROTECTING THE I.C. ENGINE PROTECTING THE LIFT TRUCK BRINGING THE LIFT TRUCK BACK INTO SERVICE

1-24

1 - 24 1 - 24 1 - 24 1 - 24 1 - 24 1 - 25 1 - 25

1-26

1 - 26 1 - 26 1 - 26 1 - 26 1 - 27

INSTRUCTIONS TO THE COMPANY MANAGER

THE SITE

- Proper management of lift truck’s area of travel will reduce the risk of accidents: . ground not unnecessarily uneven or obstructed, . no excessive slopes, . pedestrian traffic controlled, etc.

THE OPERATOR

- Only qualified, authorized personnel can use the lift truck. This authorization is given in writing by the appropriate person in the

establishment with respect to the use of lift trucks and must be carried permanently by the operator.

On the basis of experience, there are a number of possible situations in which operating the lift truck is contra-indicated. Such foreseeable abnormal uses, the main ones being listed below, are strictly forbidden.

- The foreseeable abnormal behaviour resulting from ordinary neglect, but does not result from any wish to put the machinery to any improper use.

- The reflex reactions of a person in the event of a malfunction, incident, fault, etc. during operation of the lift truck.

- Behaviour resulting from application of the «principle of least action» when performing a task.

- For certain machines, the foreseeable behaviour of such persons as: apprentices, teenagers, handicapped persons, trainees tempted to drive a lift truck, operator tempted to operate a truck to win a bet, in competition or for their own personal experience. The person in charge of the equipment must take these criteria into account when assessing whether or not a person will makea suitable driver.

THE LIFT TRUCK

A - THE TRUCK’S SUITABILITY FOR THE JOB

- MANITOU has ensured that this lift truck is suitable for use under the standard operating conditions defined in this operator’s

manual, in accordance to ASME B56.6 - 2002

- Before commissioning, the company manager must make sure that the lift truck is appropriate for the work to be done, and

perform certain tests (in accordance with current legislation).

B - ADAPTATION OF THE LIFT TRUCK TO STANDARD ENVIRONMENTAL CONDITIONS

- In addition to series equipment mounted on your lift truck, many options are available, such as: road lighting, stop lights, flashing

light, reverse lights, reverse buzzer alarm, front light, rear light, light at the jib head, etc… (as model of lift truck).

- The operator must take into account the operating conditions to define the lift truck’s signalling and lighting equipment.

Contact your dealer.

- Take into account climatic and atmospheric conditions of the site of utilisation. . Protection against frost (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL). . Adaptation of lubricants (ask your dealer for information). . I.C. engine filtration (see: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).

For operation under average climatic conditions, i.e.: between - 15 °C and + 35 °C, correct levels of lubricants in all the circuits are checked in production. For operation under more severe climatic conditions, before starting up, it is necessary to drain all the circuits, then ensure correct levels of lubricants using lubricants properly suited to the relevant ambient temperatures. It is the same for the cooling liquid.

- A lift truck operating in an area without fire extinguishing equipment must be equipped with an individual extinguisher. There are

solutions, consult your dealer.

Your lift truck is designed for outdoor use under normal atmospheric conditions and indoor use in suitably aerated and ventilated premises. It is prohibited to use the lift truck in areas where there is a risk of fire or which are potentially explosive (e.g. Refineries, fuel or gas depots, stores of inflammable products…). For use in these areas, specific equipment is available (ask your dealer for information).

- Our trucks comply with Directive 2004/108/EC concerning electromagnetic compatibility (EMC), and with the corresponding

harmonized norm EN 12895. Their proper operation is no longer guaranteed if they are used within areas in which the electromagnetic fields exceed the limit specified by that norm (10 V/m).

- Directive 2002/44/EC requires company managers to not expose their employees to excessive vibration doses. There is no

recognized code of measurement for comparing the machines of different manufacturers. The actual doses received can therefore be measured only under actual operating conditions at the user's premises.

- The following are some tips for minimizing these vibration doses:

• Select the most suitable lift truck and attachment for the intended use.

• Adapt the seat adjustment to the operator's weight (according to lift truck model) and maintain it in good condition, as well as the cab suspension. Inflate the tires in accordance with recommendations.

• Ensure that the operators adapt their operating speed to suit the conditions on site.

• As far as possible, arrange the site in such a way as to provide a flat running surface and remove obstacles and harmful potholes.

1-4

1-5

C - MODIFICATION OF THE LIFT TRUCK

- For your safety and that of others, you must not change the structure and settings of the various components used in your lift truck (hydraulic pressure, calibrating limiters, I.C. engine speed, addition of extra equipment, addition of counterweight, unapproved attachments, alarm systems, etc.) yourself. In this event, the manufacturer cannot be held responsible.

D - FRENCH ROAD TRAFFIC RULES

(or see current legislation in other countries)

- Only one certificate of conformity is issued. It must be kept in a safe place.

THE INSTRUCTIONS

- The operator’s manual must always be in good condition and kept in the place provided on the lift truck and in the language used by the operator.

- The operator’s manual and any plates or stickers which are no longer legible or are damaged, must be replaced immediately.

THE MAINTENANCE

- Maintenance or repairs other than those detailed in part: 3 - MAINTENANCE must be carried out by qualified personnel (consult your dealer) and under the necessary safety conditions to maintain the health of the operator and any third party.

Your lift truck must be inspected periodically to ensure that it remains in compliance. The frequency of this inspection is defined by current legislation in the country in which the lift truck is used.

INSTRUCTIONS FOR THE OPERATOR

PREAMBLE

WHENEVER YOU SEE THIS SYMBOL IT MEANS:

WARNING ! BE CAREFUL ! YOUR SAFETY OR THE SAFETY OF THE LIFT TRUCK IS AT RISK.

The risk of accident while using, servicing or repairing your lift truck can be restricted if you follow the safety instructions and safety measures detailed in these instruction.

- Only the operations and manœuvres described in these operator’s manual must be performed. The manufacturer cannot predict all possible risky situations. Consequently, the safety instructions given in the operator’s manual and on the lift truck itself are not exhaustive.

- At any time, as an operator, you must envisage, within reason, the possible risk to yourself, to others or to the lift truck itself when you use it.

Failure to respect the safety and operating instructions, or the instructions for repairing or servicing your lift truck may lead to serious, even fatal accident.

GENERAL INSTRUCTIONS

A - OPERATOR’S MANUAL

- Read the operator’s manual carefully.

- The operator’s manual must always be in good condition and in the place provided for it on the lift truck.

- You must report any plates and stickers which are no longer legible or which are damaged.

B - AUTHORISATION FOR USE IN FRANCE

(or see current legislation in other countries)

- Only qualified, authorized personnel can use the lift truck. This authorization is given in writing by the appropriate person in the establishment with respect to the use of lift trucks and must be carried permanently by the operator.

- The operator is not competent to authorise the driving of the lift truck by another person.

C - MAINTENANCE

- The operator must immediately advise his superior if his lift truck is not in good working order or does not comply with the safety notice.

- The operator is prohibited from carrying out any repairs or adjustments himself, unless he has been trained for this purpose. He must keep the lift truck properly cleaned if this is among his responsibilities.

- The operator must carry out daily maintenance (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).

- The operator must ensure tyres are adapted to the nature of the ground (see area of the contact surface of the tyres in the chapter: 2 - DESCRIPTION: FRONT AND REAR TYRES). There are optional solutions, consult your dealer.

. SAND tyres. . LAND tyres. . Snow chains.

Do not use the lift truck if the tyres are incorrectly inflated, damaged or excessively worn, because this could put your own safety or that of others at risk, or cause damage to the lift truck itself. The fitting of foam inflated tyres is prohibited and is not guaranteed by the manufacturer, excepting prior authorisation.

D - MODIFICATION OF THE LIFT TRUCK

1-6

1-7

E - LIFTING PEOPLE

- The use of working equipment and load lifting attachments to lift people is:

• either forbidden

• or authorized exceptionally and under certain conditions (see current regulations in the country in which the lift truck is used).

- The pictogram posted at the operator station reminds you that:

• Left-hand column

- It is forbidden to lift people, with any kind of attachment, using a non PLATFORM-

fitted lift truck.

• Right-hand column

- With a PLATFORM-fitted lift truck, people can only be lifted using platforms

- MANITOU sells equipment specifically designed for lifting people (OPTION PLATFORM lift truck, contact your dealer).

OPERATING INSTRUCTIONS UNLADEN AND LADEN

A - BEFORE STARTING THE LIFT TRUCK

- Carry out daily maintenance (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).

- Make sure the lights, indicators and windscreen wipers are working properly.

- Make sure the rear view mirrors are in good condition, clean and properly adjusted.

- Make sure the horn works.

B - DRIVER’S OPERATING INSTRUCTIONS

- Whatever his experience, the operator is advised to familiarize himself with the position and operation of all the controls and instruments before operating the lift truck.

- Wear clothes suited for driving the lift truck, avoid loose clothes.

- Make sure you have the appropriate protective equipment for the job to be done.

- Prolonged exposure to high noise levels may cause hearing problems. It is recommended to wear ear muffs to protect against excessive noise.

- Always face the lift truck when getting into and leaving the driving seat and use the handle(s) provided for this purpose. Do not jump out of the seat to get down.

- Always pay attention when using the lift truck. Do not listen to the radio or music using headphones or earphones.

- Never operate the lift truck when hands or feet are wet or soiled with greasy substances.

- For increased comfort, adjust the seat to your requirements and adopt the correct position in the driver’s cab.

Under no circumstances must the seat be adjusted while the lift truck is moving.

- The operator must always be in his normal position in the driver’s cab. It is prohibited to have arms or legs, or generally any part of the body, protruding from the driver’s cab of the lift truck.

- The safety belt must be worn and adjusted to the operator’s size.

- The control units must never in any event be used for any other than their intended purposes (e.g. climbing onto or down from the lift truck, portmanteau, etc.).

- If the control components are fitted with a forced operation (lever lock) device, it is forbidden to leave the cab without first putting these controls in neutral.

- It is prohibited to carr y passengers either on the lift truck or in the cab.

1-8

1-9

C - ENVIRONMENT

- Comply with site safety regulations.

- If you have to use the lift truck in a dark area or at night, make sure it is equipped with working lights.

- During handling operations, make sure that no one is in the way of the lift truck and its load.

- Do not allow anybody to come near the working area of the lift truck or pass beneath an elevated load.

- When using the lift truck on a transverse slope, before lifting the jib, follow the instructions given in the paragraph: INSTRUCTIONS FOR HANDLING A LOAD: D - TRANSVERSE ATTITUDE OF THE LIFT TRUCK.

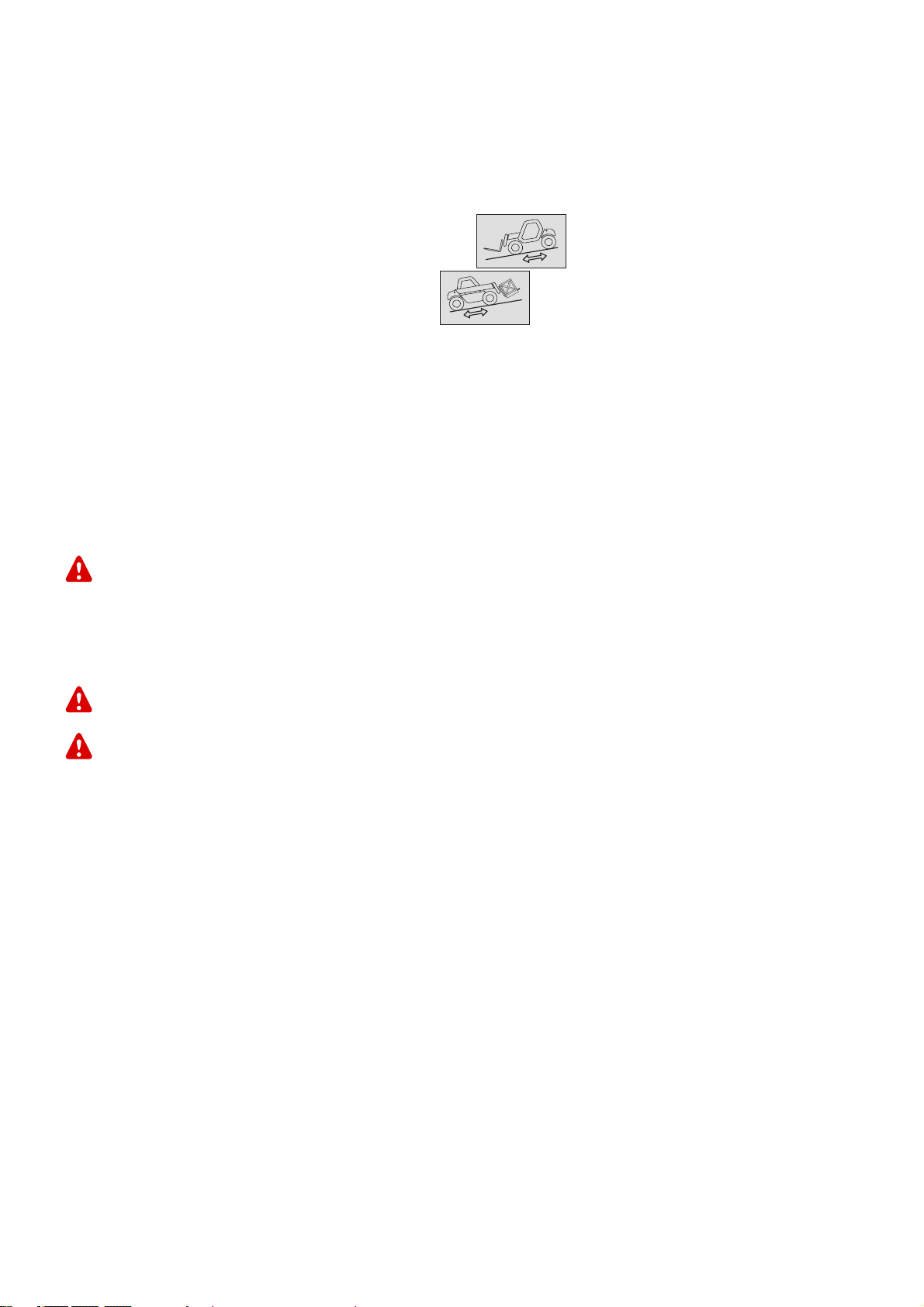

- Travelling on a longitudinal slope:

• Drive and brake gently.

• Moving without load: Forks or attachment facing downhill.

• Moving with load: Forks or attachment facing uphill.

- Take into account the lift truck’s dimensions and its load before trying to negotiate a narrow or low passageway.

- Never move onto a loading platform without having first checked:

• That it is suitably positioned and made fast.

• That the unit to which it is connected (wagon, lorry, etc.) will not shift.

• That this platform is prescribed for the total weight of the lift truck to be loaded.

• That this platform is prescribed for the size of the lift truck.

- Never move onto a foot bridge, floor or freight lift, without being certain that they are prescribed for the weight and size of the lift truck to be loaded and without having checked that they are in sound working order.

- Be careful in the area of loading bays, trenches, scaffolding, soft land and manholes.

- Make sure the ground is stable and firm under the wheels and/or stabilizers before lifting or removing the load. If necessary, add sufficient wedging under the stabilizers.

- Make sure that the scaffolding, loading platform, pilings or ground is capable of bearing the load.

- Never stack loads on uneven ground, they may tip over.

If the load or the attachment must remain above a structure for a long time, there is the risk that it will rest on the structure because of the jib descending owing to the oil in the cylinders cooling down. To eliminate this risk:

- Regularly check the distance between the load or the attachment and the structure and readjust this if necessary.

- If possible use the lift truck at an oil temperature as close as possible to ambient temperature.

- In the case of work near aerial lines, ensure that the safety distance is sufficient between the working area of the lift truck and the aerial line.

You must consult your local electrical agency. You could be electrocuted or seriously injured if you operate or park the lift truck too close to power cables.

In the event of high winds, do not carry out handling work that jeopardizes the stability of the lift truck and its load, particularly if the load catches the wind badly.

D - VISIBILITY

- The safety of people within the lift truck’s working area, as well as that of the lift truck itself and the operator are depend on good operator visibility of the lift truck’s immediate vicinity in all situations and at all times.

- This lift truck has been designed to allow good operator visibility (direct or indirect by means of rear-view mirrors) of the immediate vicinity of the lift truck while traveling with no load and with the jib in the transport position.

- Special precautions must be taken if the size of the load restricts visibility towards the front:

- moving in reverse,

- site layout,

- assisted by a person directing the maneuver (while standing outside the truck’s area of travel), making sure to keep this person clearly in view at all times.

- in any case, avoid reversing over long distances.

- Certain special accessories may require the truck to travel with the jib in the raised position. In such cases, visibility on the right hand side is restricted, and special precautions must be taken:

- site layout,

- assisted by a person directing the maneuver (while standing outside the truck’s area of travel).

- If visibility of your road is inadequate, ask someone to assist by directing the maneuver (while standing outside the truck’s area of travel), making sure to keep this person clearly in view at all times.

- Keep all components affecting visibility in a clean, properly adjusted state and in good working order (e.g. windscreens, windows, windscreen wipers, windscreen washers, driving and work lights, rear-view mirrors).

E - STARTING THE LIFT TRUCK

SAFETY INSTRUCTIONS

The lift truck must only be started up or maneuvered when the operator is sitting in the driver’s cab, with his seat belt adjusted and fastened.

- Never tr y to start the lift truck by pushing or towing it. Such operation may cause severe damage to the transmission. If necessary, to tow the lift truck in an emergency, the transmission must be placed in the neutral position (see: 3 - MAINTENANCE: G OCCASIONAL MAINTENANCE).

- If using an emergency batter y for start-up, use a battery with the same characteristics and respect battery polarity when connecting it. Connect at first the positive terminals before the negative terminals.

Failure to respect polarity between batteries can cause serious damage to the electrical circuit. The electrolyte in the battery may produce an explosive gas. Avoid flames and generation of sparks close to the batteries. Never disconnect a battery while it is charging.

INSTRUCTIONS

- Check the closing and locking of the hood(s).

- Check that the cab door is closed.

- Check that the forward/reverse selector is in neutral.

- Turn the ignition key to the position I to activate the electrical system and the preheat.

- Whenever you switch on the lift truck, per form the automatic check on the longitudinal stability limiter and warning device system (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS). Do not use the lift truck if it does not conform to the regulations.

- Check the fuel level on the indicator.

- Turn the ignition key fully: the I.C. engine should then start. Release the ignition key and let the I.C. engine run at idle.

- Do not engage the starter motor for more than 15 seconds and carry out the preheating between unsuccessful attempts.

- Make sure all the signal lights on the control instrument panel are off.

- Check all control instruments when the I.C. engine is warm and at regular intervals during use, so as to quickly detect any faults and to be able to correct them without any delay.

- If an instrument does not show the correct display, stop the I.C. engine and immediately carry out the necessary operations.

F - DRIVING THE LIFT TRUCK

SAFETY INSTRUCTIONS

Operators’ attention is drawn to the risks involved in using the lift truck, in particular:

- Risk of losing control.

- Risk of losing lateral and frontal stability of the lift truck. The operator must remain in control of the lift truck. In the event of the lift truck overturning, do not try to leave the cabin during the incident. YOUR BEST PROTECTION IS TO STAY FASTENED IN THE CABIN.

- Observe the company’s traffic regulations or, by default, the public highway code.

- Do not carry out operations which exceed the capacities of your lift truck or attachments.

- Always drive the lift truck with the forks or attachment to the transpor t position, i.e. at 300 mm from the ground, the jib retracted and the carriage sloping backwards.

- Only carry loads which are balanced and properly anchored to avoid any risk of a load falling off.

- Ensure that palettes, cases, etc, are in good order and suitable for the load to be lifted.

- Familiarise yourself with the lift truck on the terrain where it will be used.

- Ensure that the service brakes are working properly.

- The loaded lift truck must not travel at speeds in excess of 12 km/h.

- Drive smoothly at an appropriate speed for the operating conditions (land configuration, load on the lift truck).

- Do not use the hydraulic jib controls when the lift truck is moving.

- Never change the steering mode whilst driving.

- Do not manoeuvre the lift truck with the jib in the raised position unless under exceptional circumstances and then with extreme caution, at very low speed and using gentle braking. Ensure that visibility is adequate.

- Take bends slowly.

- In all circumstances make sure you are in control of your speed.

- On damp, slippery or uneven terrain, drive slowly.

- Brake gently, never abruptly.

- Only use the lift truck’s forward/reverse selector from a stationar y position and never do so abruptly.

- Do not drive with your foot on the brake pedal.

- Always remember that hydrostatic type steering is extremely sensitive to movement of the steering wheel, so turn it gently and not jerkily.

- Never leave the I.C. engine on when the lift truck is unattended.

- Do not leave the cab when the lift truck has a raised load.

- Look where you are going and always make sure you have good visibility along the route.

1-10

1-11

- Use the rear-view mirrors frequently.

- Drive round obstacles.

- Never drive on the edge of a ditch or steep slope.

- It is dangerous to use two lift trucks simultaneously to handle heavy or voluminous loads, since this operation requires particular precautions to be taken. It must only be used exceptionally and after risk analysis.

- The ignition switch has an emergency stop mechanism in case of an operating anomaly occurring in the case of lift trucks not fitted with a punch-operated cut-out.

INSTRUCTIONS

- Always drive the lift truck with the forks or attachment to the transpor t position, i.e. at 300 mm from the ground, the jib retracted and the carriage sloping backwards.

- For lift trucks with gearboxes, use the recommended gear (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

- Select the steering mode appropriate for its use and/or working conditions (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS) (as model of lift truck).

- Release the parking brake.

- Shift the forward/reverse selector to the selected direction of travel and accelerate gradually until the lift truck moves off.

G - STOPPING THE LIFT TRUCK

SAFETY INSTRUCTIONS

- Never leave the ignition key in the lift truck during the operator’s absence.

- When the lift truck is stationar y, or if the operator has to leave his cab (even for a moment), place the forks or attachment on the ground, apply the parking brake and place the forward/reverse selector in neutral.

- Make sure that the lift truck is not stopped in any position that will inter fere with the traffic flow and at less than one meter from the track of a railway.

- In the event of prolonged parking on a site, protect the lift truck from bad weather, particularly from frost (check the level of antifreeze), close and lock all the lift truck accesses (doors, windows, cowls…).

INSTRUCTIONS

- Park the lift truck on flat ground or on an incline lower than 15 %.

- Set the forward/reverse selector to neutral.

- Apply the parking brake.

- For lift trucks with gearboxes, place the gear lever in neutral.

- Retract entirely the jib.

- Lower the forks or attachment to rest on the ground.

- When using an attachment with a grab or jaws, or a bucket with hydraulic opening, close the attachment fully.

- Before stopping the lift truck after a long working period, leave the I.C. engine idling for a few moments, to allow the coolant liquid and oil to lower the temperature of the I.C. engine and transmission. Do not forget this precaution, in the event of frequent stops or warm stalling of the I.C. engine, or else the temperature of certain parts will rise significantly due to the stopping of the cooling system, with the risk of badly damaging such parts.

- Stop the I.C. engine with the ignition switch.

- Remove the ignition key.

- Lock all the accesses to the lift truck (doors, windows, cowls…).

H - DRIVING THE LIFT TRUCK ON THE PUBLIC HIGHWAY

(or see current legislation in other countries)

SAFETY INSTRUCTIONS

- Operators driving on the public highway must comply with current highway code legislation.

- The lift truck must comply with current road legislation. If necessary, there are optional solutions. Contact your dealer.

INSTRUCTIONS

- Make sure the revolving light is in place, switch it on and verify its operation.

- Make sure the lights, indicators and windscreen wipers are working properly.

- Switch off the working headlights if the lift truck is fitted with them.

- Select the steering mode “HIGHWAY TRAFFIC” (as model of lift truck) (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

- Retract entirely the jib and put the attachment at 300 mm from the ground.

- Place the slope correctors in the central position, i.e. the transverse shaft of the axles parallel to the chassis (as model of lift truck).

- Lift up the stabilizers to the maximum and turn the blocks inwards (as model of lift truck).

Never move in neutral (forward/reverse selector or gear lever in neutral or transmission cut-off button pressed) to preserve the lift truck engine brake. Failure to respect this instruction on a slope will lead to excessive speed which may make the lift truck uncontrollable (steering, brakes) and cause serious mechanical damage.

1-12

1-13

DRIVING THE LIFT TRUCK WITH A FRONT-MOUNTED ATTACHMENT

- You must comply with current regulations in your countr y, covering the possibility of driving on the public highway with a frontmounted attachment on your lift truck.

- If road legislation in your country authorizes circulation with a front-mounted attachment, you must at least:

• Protect and report any sharp and/or dangerous edges on the attachment (see: 4 - ADAPTABLE ATTACHMENTS IN OPTION ON THE RANGE: ATTACHMENT SHIELDS).

• The attachment must not be loaded.

• Make sure that the attachment does not mask the lighting range of the forward lights.

• Make sure that current legislation in your countr y does not require other obligations.

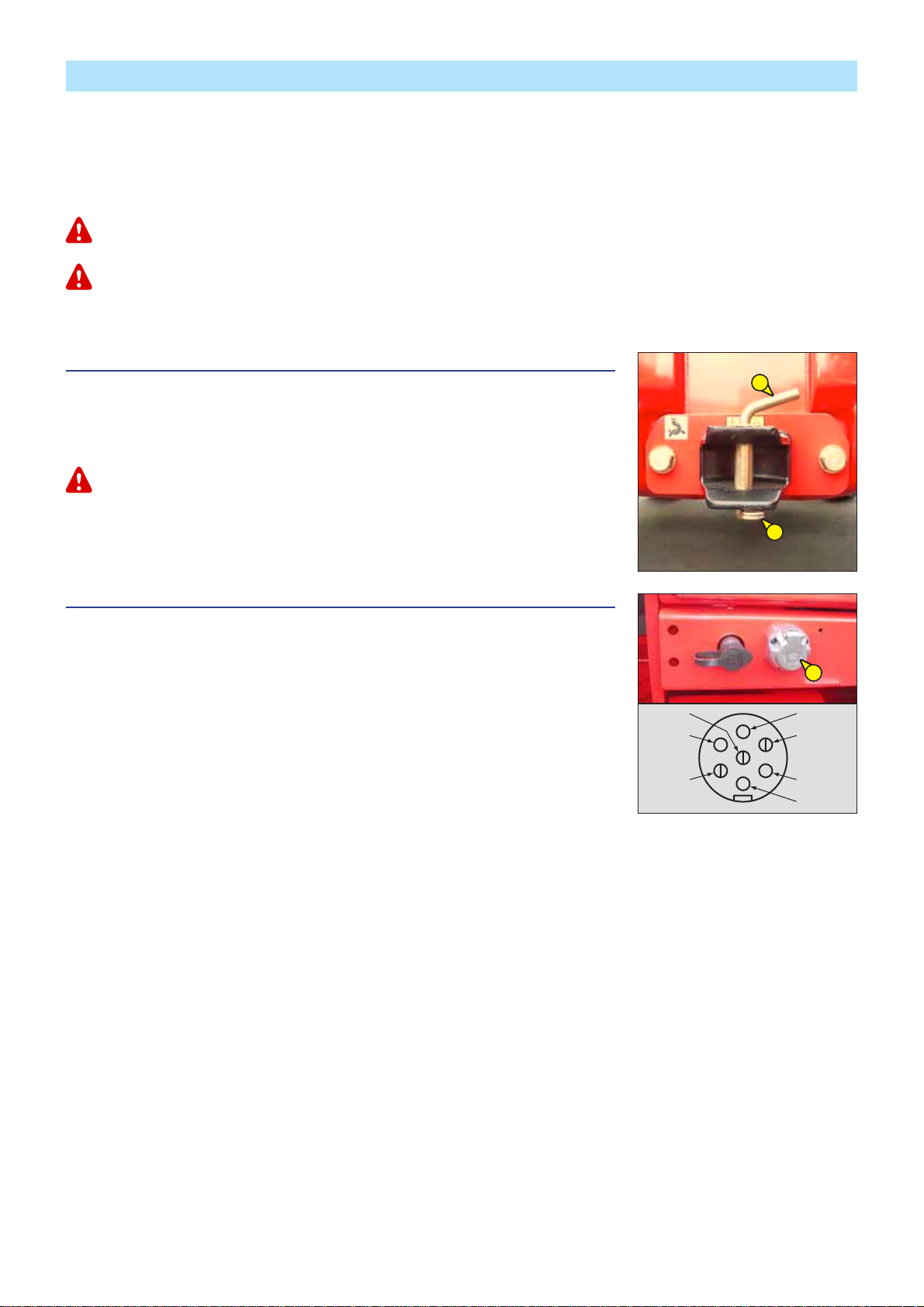

OPERATING THE LIFT TRUCK WITH A TRAILER

- For using a trailer, observe the regulations in force in your country (maximum travel speed, braking, maximum weight of trailer, etc.).

- Do not forget to connect the trailer’s electrical equipment to that of the lift truck.

- The trailer’s braking system must comply with current legislation.

- If pulling a trailer with assisted braking, the tractor lift truck must be equipped with a trailer braking mechanism. In this case, do not forget to connect the trailer braking equipment to the lift truck.

- The vertical force on the towing hook must not exceed the maximum authorised by the manufacturer (consult the manufacturer’s plate on your lift truck).

- The authorised gross vehicle weight must not exceed the maximum weight authorised by the manufacturer (see: 2 - DESCRIPTION: CHARACTERISTICS).

IF NECESSARY, CONSULT YOUR DEALER.

500 mm

INSTRUCTIONS FOR HANDLING A LOAD

A - CHOICE OF ATTACHMENTS

- Only attachments approved by MANITOU can be used on its lift trucks.

- Make sure the attachment is appropriate for the work to be done (see: 4 - ADAPTABLE ATTACHMENTS IN OPTION ON THE RANGE).

- If the lift truck is equipped with the Single side-shift carriage OPTION (TSDL), use only the authorised attachments (see: 4 - ADAPTABLE ATTACHMENTS IN OPTION ON THE RANGE).

- Make sure the attachment is correctly installed and locked onto the lift truck carriage.

- Make sure that your lift truck attachments work properly.

- Comply with the load chart limits for the lift truck for the attachment used.

- Do not exceed the rated capacity of the attachment.

- Never lift a load in a sling without the attachment provided for the purpose, as the sling risks to slip (see: INSTRUCTIONS FOR HANDLING A LOAD: H - TAKING UP AND LAYING DOWN A SUSPENDED LOAD).

B - MASS OF LOAD AND CENTRE OF GRAVITY

- Before taking up a load, you must know its mass and its centre of gravity.

- The load chart for your lift truck is valid for a load in which the longitudinal position of the centre of gravity is 500 mm from the base of the forks (fig. B1). For a higher centre of gravity, contact your dealer.

- For irregular loads, determine the transverse centre of gravity before any movement (fig. B2) and set it in the longitudinal axis of the lift truck.

It is forbidden to move a load heavier than the effective capacity defined on the lift truck load chart.

For loads with a moving centre of gravity (e.g. liquids), take account of the variations in the centre of gravity in order to determine the load to be handled and be vigilant and take extra care to limit these variations as far as possible.

C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE

This device gives an indication of the longitudinal stability of the lift truck, and limits hydraulic movements in order to ensure this stability, at least under the following operating conditions:

• when the lift truck is at a standstill,

• when the lift truck is on firm, stable and consolidated ground,

• when the lift truck is performing handling and placing operations.

- Move the jib ver y carefully when approaching the authorized load limit (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

- Always watch this device during handling operations.

- In the event that "AGGRAVATING" hydraulic movements are cut-off, only per form de-aggravating hydraulic movements in the following order (fig. C): if necessary, raise the jib (1), retract the jib as far as possible (2) and lower the jib (3) to set down the load.

The instrument reading may be erroneous when the steering is at its maximum limit or the rear axle oscillated to its limit. Before lifting a load, make sure that the lift truck is not in either of these situations.

1-14

1-15

D - TRANSVERSE ATTITUDE OF THE LIFT TRUCK

Depending on the model of lift truck

The transverse attitude is the transverse slope of the chassis with respect to the horizontal. Raising the jib reduces the lift truck’s lateral stability. The transverse attitude must be set with the jib in down position as follows:

1 - LIFT TRUCK WITHOUT SLOPE CORRECTOR USED ON TYRES

- Position the lift truck so that the bubble in the level is between the two lines (see: 2 DESCRIPTION: INSTRUMENTS AND CONTROLS).

2 - LIFT TRUCK WITH SLOPE CORRECTOR USED ON TYRES

- Correct the slope using the hydraulic control and verify the horizontality via the level. The

bubble in the level must be between the two lines (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

3 - LIFT TRUCK USED ON STABILIZERS

- Set the two stabilizers on the ground and raise the two front wheels of the lift truck (fig. D1).

- Correct the slope using the stabilizers (fig. D2) and make sure the truck is horizontal by checking the level. The bubble of the level must be between the two lines (see: 2

- DESCRIPTION: INSTRUMENTS AND CONTROLS). In this position, the two front wheels must be off the ground.

E - TAKING UP A LOAD ON THE GROUND

- Approach the lift truck perpendicular to the load, with the jib retracted and the forks in a horizontal position (fig. E1).

- Adjust the fork spread and centering in connection with the load (fig. E2) (optional solutions exist, consult your dealer).

- Never lift a load with a single fork.

Beware of the risks of trapping or squashing limbs when manually adjusting the forks.

- Move the lift truck forward slowly (1) and bring the forks to stop in front of the load (fig. E3), if necessary, slightly lift the jib (2) while taking up the load.

- Bring the load into the transport position.

- Tilt the load far enough backwards to ensure stability (loss of load on braking or going downhill).

FOR A NON-PALLETIZED LOAD

- Tilt the carriage (1) for wards and move the lift truck slowly forwards (2), to inser t the fork under the load (fig. E4) (block the load if necessary).

- Continue to move the lift truck forwards (2) tilting the carriage (3) (fig. E4) backwards to position the load on the forks and check the load’s longitudinal and lateral stability.

F - TAKING UP AND LAYING A HIGH LOAD ON TYRES

You must not raise the jib if you have not checked the transverse attitude of the lift truck (see: INSTRUCTIONS FOR HANDLING A LOAD: D - TRANSVERSE ATTITUDE OF THE LIFT TRUCK).

REMINDER: Make sure that the following operations can be performed with good visibility

(see: OPERATIONS INSTRUCTIONS UNLADEN AND LADEN: D - VISIBILITY).

TAKING UP A HIGH LOAD ON TYRES

- Ensure that the forks will easily pass under the load.

- Lift and extend the jib (1) (2) until the forks are level with the load, moving the lift truck (3) forward if necessary (fig. F1), moving very slowly and carefully.

- Always think about keeping the distance necessar y to fit the forks under the load, between the pile and the lift truck (fig. F1) and use the shortest possible length of jib.

- Stop the forks in front of the load by alternately extending and retracting the jib (1) or, if necessary, moving the lift truck forward (2) (fig. F2). Put the handbrake on and set the forward/reverse selector to neutral.

- Slightly lift the load (1) and incline the carriage (2) backwards to stabilize the load (fig. F3).

- Tilt the load sufficiently backwards to ensure its stability.

- Watch the longitudinal stability limiter and warning device (see: INSTRUCTIONS FOR HANDLING A LOAD: C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE). If it is overloaded, replace the load in the place from which it was taken.

- If possible lower the load without shifting the lift truck. Lift the jib (1) to release the load, retract (2) and lower the jib (3) to bring the load into the transport position (fig. F4).

- If this is not possible, back up the lift truck (1), manoeuvring very gently and carefully to release the load. Retract (2) and lower the jib (3) to bring the load into the transport position (fig. F5).

1-16

1-17

LAYING A HIGH LOAD ON TYRES

- Approach the load in the transport position in front of the pile (fig. F6).

- Put the handbrake on and set the forward/reverse selector to neutral.

- Lift and extend the jib (1) (2) until the load is above the pile, while keeping an eye on the longitudinal stability limiter and warning device (see: INSTRUCTIONS FOR HANDLING A LOAD: C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE). If necessary, move the lift truck (3) forward (fig. F7), driving very slowly and carefully.

- Place the load in a horizontal position and lay it down on the pile by lowering and retracting the jib (1) (2) in order to position the load correctly (fig. F8).

- If possible, release the fork by alternately retracting and raising the jib (1) (fig. F9). Then set the forks into transport position.

- If this is not possible, reverse the lift truck (1) ver y slowly and carefully to release the forks (fig. F10). Then set them into transport position.

F10

G - TAKING UP AND LAYING A HIGH LOAD ON STABILIZERS

Depending on the model of lift truck

You must not raise the jib if you have not checked the transverse attitude of the lift truck (see: INSTRUCTIONS FOR HANDLING A LOAD: D - TRANSVERSE ATTITUDE OF THE LIFT TRUCK).

REMINDER: Make sure that the following operations can be performed with good visibility (see: OPERATIONS INSTRUCTIONS UNLADEN

AND LADEN: D - VISIBILITY).

USING THE STABILIZERS The stabilizers are used to optimise the lift truck’s lifting per formances (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

POSITION THE STABILIZERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND LADEN)

- Set the forks in transport position in front of the elevation.

- Stay far enough away to have room for the jib to be raised.

- Put the handbrake on and put the gearshift lever into neutral.

- Set the two stabilizers on the ground and lift the two front wheels of the lift truck (fig. G1), while maintaining its transverse stability.

RAISE THE STABILIZERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND LADEN)

- Raise both stabilizers fully and at the same time.

SETTING THE STABILIZERS WITH THE JIB UP (UNLADEN AND LADEN)

This operation must be exceptional and performed with great care.

- Raise the jib and retract the telescopes completely.

- Set the lift truck in position in front of the elevation (fig. G2) moving ver y slowly and carefully.

- Put the handbrake on and put the gearshift lever into neutral.

- Move the stabilizers very slowly and gradually as soon as they are close to the ground or in contact with it.

- Lower the two stabilizers and lift the two front wheels of the lift truck (fig. G3). During this operation, transverse attitude must be permanently maintained: the bubble in the level must be kept between the two lines.

SETTING THE STABILIZERS WITH THE JIB UP (UNLADEN AND LADEN)

This operation must be exceptional and performed with great care.

- Keep the jib up and retract the telescopes completely (fig. G3).

- Move the stabilizers very slowly and gradually as soon as they are in contact with the ground and when they leave the ground. During this operation, the transverse attitude must be permanently maintained: the bubble in the level must be kept between the two lines.

- Raise both stabilizers completely.

- Release the parking brake and reverse the lift truck (1) ver y slowly and carefully, to release it and lower the forks (2) into transport position (fig. G4).

1-18

1-19

TAKING UP A HIGH LOAD ON STABILIZERS

- Make sure the forks will fit easily under the load.

- Check the position of the lift truck with respect to the load and make a test run, if necessary, without taking the load.

- Raise and extend the jib (1) (2) until the forks are at the level of the load (fig. G5).

- Block the forks in front of the load by alternately using the controls to extend and lower the jib (1) (fig. G6).

- Lift the load slightly (1) and tilt the carriage (2) backwards to stabilise the load (fig. G7).

- Monitor the longitudinal stability limiter and warning device (see: INSTRUCTIONS FOR HANDLING A LOAD: C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE). If it is overloaded, set the load down in the place from where it was taken.

- If possible lower the load without moving the lift truck. Raise the jib (1) to release the load, retract (2) and lower the jib (3) to set the load into transport position (fig. G8).

LAYING A HIGH LOAD ON STABILIZERS

- Raise and extend the jib (1) (2) until the load is above the elevation (fig. G9), while monitoring the longitudinal stability limiter and warning device (see: INSTRUCTIONS FOR HANDLING A LOAD: C - LONGITUDINAL STABILITY LIMITER AND WARNING DEVICE).

- Position the load horizontally and release it by lowering and retracting the jib (1) (2) to position the load correctly (fig. G10).

- Release the forks by alternating retracting and raising the jib (3) (fig. G11).

- If possible, set the jib in transport position without moving the lift truck.

G10

G11

H - TAKING UP AND LAYING DOWN A SUSPENDED LOAD

WARNING: Failure to follow the above instructions may lead the lift truck to loose stability and overturn.

MUST be used with a lift truck equipped with an operational hydraulic movement cut-out device.

CONDITIONS OF USE

- The length of the sling or the chain shall be as short as possible to limit swinging of the load.

- Lift the load vertically along its axis, never by pulling sideways or lengthways.

HANDLING WITHOUT MOVING THE LIFT TRUCK

- Whether on stabilisers or on tyres, the lateral attitude must not exceed 1 % and the longitudinal attitude must not exceed 5%, the bubble of the level must be held at “0”.

- Ensure that the wind speed is not higher than 10 m/s.

- Ensure that there is no one between the load and the lift truck.

I - TRAVELLING WITH A SUSPENDED LOAD

- Before moving, inspect the terrain in order to avoid excessive slopes and cross-falls, bumps and potholes, or soft ground.

- Ensure that the wind speed is not higher than 10 m/s.

- The lift truck must not travel at more than 0.4 m/s (1.5 km/h, i.e., one quar ter walking speed).

- Drive and stop the lift truck gently and smoothly to minimise swinging of the load.

- Carr y the load a few centimetres above the ground (max. 30 cm) the shortest possible jib length. Do not exceed the offset indicated on the load chart. If the load begins to swing excessively, do not hesitate to stop and lower the jib to set down the load.

- Before moving the lift truck, check the longitudinal stability limiter and warning device (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS), only the green LEDs and possibly the yellow LEDs should be lit.

- During transport, the lift truck operator must be assisted by a person on the ground (standing a minimum of 3 m from the load), who will limit swinging of the load using a bar or a rope. Ensure that this person is always clearly in view.

- The lateral attitude must not exceed 5%, the bubble in the level must be kept between the two “MAX.” marks

- The longitudinal attitude must not exceed 15%, with the load facing uphill, and 10%, with the load facing downhill.

- The jib angle must not exceed 45°.

- If the first red LED of the longitudinal stability limiter and warning device (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS) comes on while travelling, gently bring the lift truck to a stop and stabilise the load. Retract the telescope to reduce the offset of the load.

1-20

1-21

PLATFORM OPERATING INSTRUCTIONS

For PLATFORM-fitted lift trucks

Installation of the platform on the lift truck is only possible if the shields “operating the platform” of the lift truck and the platform are identical (see: 2

- DESCRIPTION: OPERATING THE PLATFORM).

A - AUTHORISATION FOR USE

- Operation of the platform requires fur ther authorisation in addition to that of the lift truck.

B - SUITABILITY OF THE TRUCK FOR USE

- MANITOU has ensured that this lift truck is suitable for use under the standard operating conditions defined in this operator’s manual, with a STATIC test coefficient of 1.25 and a DYNAMIC test coefficient of 1.1, as specified in harmonised standard EN 280 for “mobile elevating work platforms”.

- Before commissioning, the company manager must make sure that the platform is appropriate for the work to be done, and perform certain tests (in accordance with current legislation).

C - PRECAUTIONS WHEN USING THE PLATFORM

- Wear clothes suited for operating the platform, avoid loose clothes.

- Never operate the platform when hands or feet are wet or soiled with greasy substances.

- Always pay attention when using the platform. Do not listen to the radio or music using headphones or earphones.

- For increased comfort, adopt the correct position at the platform’s operator station.

- The platform’s guard rail exempts the operator from wearing a safety harness under normal operating conditions. As a result, you are responsible deciding whether to wear a safety harness.

- The controls must not be used for any other than their intended purpose (e.g. getting in and out of the lift truck, coat hanger etc.).

- Safety helmets must be worn.

- The operator must always be in the normal operator’s position. It is prohibited to have arms or legs, or generally any par t of the body, protruding from the basket.

- Ensure that any materials loaded onto the platform (pipes, cables, containers, etc.) cannot fall out. Do not pile these materials to the point where it is necessary to step over them.

D - USING THE PLATFORM

- However experienced they may be, operators must acquaint themselves with the emplacement and operation of all control instruments prior to operating the platform.

- Check before operating that the platform has been correctly assembled and locked onto the lift truck.

- Check before operating the platform that the access gate has been properly locked.

- The platform should be operated in an area free of any obstructions or danger when it is lowered to the ground.

- The operator using the platform must be aided on the ground by a person with adequate training.

- You should stay within the limits set out in the platform load chart.

- The lateral stresses are limited pressure (see: 2 - DESCRIPTION: CHARACTERISTICS).

- It is strictly forbidden to hand a load from the platform or the lift truck jib without a specially designed attachment (see: INSTRUCTIONS FOR HANDLING A LOAD: H - TAKING UP AND LAYING DOWN A SUSPENDED LOAD).

- The platform cannot be used as a crane or a lift for permanently transpor ting people or materials, nor as jacks or supports.

- The lift truck must not be moved with one (or more) person(s) in the platform.

- It is forbidden to transpor t people on the platform using the hydraulic controls in the lift truck’s driver’s cab (except in case of rescue).

- The operator must not get in or out of the platform when it is not on ground level (jib retracted and in the down position).

- The platform must not be fitted with attachments that increase the unit’s wind load.

- Do not use ladders or improvised structures in the platform to gain extra height.

- Do not climb onto the sides of the platform to gain extra height.

E - ENVIRONMENT

Operating the platform close to electricity cables is forbidden. Maintain the specified safe distances.

NOMINAL VOLTAGE

50 < U < 1000 2,30 M

1000 < U < 30000 2,50 M 30000 < U < 45000 2,60 M 45000 < U < 63000 2,80 M 63000 < U < 90000 3,00 M

90000 < U < 150000 3,40 M 150000 < U < 225000 4,00 M 225000 < U < 400000 5,30 M 400000 < U < 750000 7,90 M

DISTANCE ABOVE THE

GROUND OR THE FLOOR

IN METRES

Operation of the platform is strictly forbidden in the event of wind speeds of over 45 km/h.

- The following scale is given for an empiric evaluation of the wind speed:

BEAUFORT scale (wind speed at a height of 10 m from flat ground)

Force Type of wind

0 1

Calm

Light air

Light breeze

Gentle breeze

Moderate

breeze

Fresh breeze

Strong breeze

Near gale

Gale

Strong gale

Storm

Violent

storm

Hurricane

Speed

(knots)

0 - 1 0 - 1 < 0,3 1 - 3 1 - 5 0,3 - 1,5

4 - 6 6 - 11 1,6 - 3,3

7 - 10 12 - 19 3,4 - 5,4

11 - 16 20 - 28 5,5 - 7,9

17 - 21 29 - 38 8 - 10,7

22 - 27 39 - 49 10,8 - 13,8

28 - 33 50 - 61 13,9 - 17,1

34 - 40 62 - 74 17,2 - 20,7

41 - 47 75 - 88 20,8 - 24,4

48 - 55 89 - 102 24,5 - 28,4

56 - 63 103 - 117 28,5 - 32,6

64 + 118 + 32,7 +

Speed

(kph)

Speed (m/s)

Effects on Land Sea condition

Smoke rises vertically. Sea like a mirror. The wind bends the smoke. Ripples but without foam crests. The wind can be felt on the face, shakes the leaves. The wind continuously shakes the leaves and twigs. The wind raises dust and scraps of paper, shakes the twigs.

Leafy shrubs sway.

Shakes thick branches, metal wires hum, it becomes difficult to keep an umbrella open.

Whole trees sway, it is difficult to walk against the wind.

Breaks the branches of trees, it is almost impossible to walk against the wind.

Causes slight damage to buildings (stacks, tiles, etc..).

Rare inland, uproots trees, causes considerable damage to buildings.

Very rare, causes extensive devastation.

Causes very serious catastrophes.

Small but evident wavelets.

Large wavelets Perhaps scattered white horses.

Small waves. Fairly frequent white horses.

Small waves form on inland waters. Moderate waves, many white horses.

Large waves begin to form, white foam crests, probably spray.

Sea heaps up and white foam blown in streaks along the direction of the wind.

Moderately high waves, crests begin to break into spindrift.

High waves. Dense foam along the direction of the wind. Crests of waves begin to roll over. Spray may affect visibility.

Very high waves with long overhanging crests. Visibility affected.

Exceptionally high waves that may hide medium sized ships. Visibility affected.

The air is filled with foam and spray. Sea completely white with driving spray. Visibility very seriously affected.

F - MAINTENANCE

Your platform must be periodically inspected to ensure its continued compliance. The inspection frequency is defined by the current legislation in the country in which the platform is used.

1-22

1-23

INSTRUCTIONS FOR USING THE RADIO-CONTROL

For lift trucks with RC radio control

HOW TO USE THE RADIO-CONTROL

SAFETY INSTRUCTIONS

- This radio-control consists of electronic and mechanical safety elements. It cannot receive commands from another transmitter because the internal encoding is unique to each radio-control.

If it is used improperly or incorrectly, there is a risk of danger to:

- The physical and mental health of the user or others.

- The lift truck and other neighbouring items.

Everyone working with this radio-control:

- Must be qualified in line with current regulations and therefore appropriately trained.

- Must follow this instruction manual as closely as possible.

- The system is used to control the lift truck remotely via radio waves. Commands are also transmitted if the lift truck is out of sight (behind an obstacle or a building for example), this is why:

• After stopping the truck and removing the key button (only possible when it is stationar y), always place the transmitter in a safe, dry place.

• Before per forming any installation, servicing or repair work, always switch of f power sources (in particular, electric welding devices and electric head units on hydraulic distributors must be disconnected at each section).

• Never remove or alter the safety devices (such as the hand-guard frame, key, emergency stop button, etc.).

Never drive the lift truck if it is not continuously and perfectly within view of the operator!

- Before leaving the transmitter, the operator must make sure that it cannot be used by an unauthorized third person: either by removing the key button from the transmitter or locking it in an inaccessible place.

- The user must ensure that the instruction manual is accessible at all times and that operators have read and understood it.

INSTRUCTIONS

- Take up position in a stable place with no risk of slipping.

- Before using the transmitter, make sure there is nobody within the working area.

- Only use the transmitter with its carrying device or installed correctly on the platform.

When you remove the transmitter, remove the accumulator and key button so that it cannot be used accidentally or deliberately by anyone else.

PROTECTIVE DEVICES

- The lift truck will be immobilised within 450 milliseconds (approx. 0.5 second) at most:

• If the transmitter emergency stop button (50 milliseconds), or the one on the lift is pressed.

• If the transmission distance of the radio waves is exceeded.

• If the transmitter is faulty.

• If an interfering radio signal is received from elsewhere.

• If the accumulator is removed from its housing in the transmitter.

• If the accumulator reaches the end of its autonomy.

• If the transmitter is switched off by turning the key button to stop.

- These protective devices are provided for the safety of personnel and proper ty and must never be altered, removed or bypassed in any way whatsoever!

- The hand-guard frame prevents external action on a manipulator (if the transmitter falls, for example, or if the operator leans on a guard-rail).

- An electronic safety device prevents radio transmission from being initiated if the manipulators are not mechanically and electrically at rest and if the internal combustion engine speed selector is not set to idle.

In an emergency, press the transmitter emergency stop button immediately ; then follow the manual’s instructions (see: 2 - DESCRIPTION: INSTRUMENTS AND CONTROLS).

MAINTENANCE INSTRUCTIONS OF THE LIFT TRUCK

GENERAL INSTRUCTIONS

- Ensure the area is sufficiently ventilated before starting the lift truck.

- Wear clothes suitable for the maintenance of the lift truck, avoid wearing jewellery and loose clothes. Tie and protect your hair, if necessary.

- Stop the I.C. engine and remove the ignition key, when an intervention is necessary.

- Read the operator’s manual carefully.

- Carry out all repairs immediately, even if the repairs concerned are minor.

- Repair all leaks immediately, even if the leak concerned is minor.

- Make sure that the disposal of process materials and of spare parts is carried out in total safety and in a ecological way.

- Be careful of the risk of burning and splashing (exhaust, radiator, I.C. engine, etc.).

MAINTENANCE

- Per form the periodic service (see: 3 - MAINTENANCE) to keep your lift truck in good working conditions. Failure to perform the periodic service may cancel the contractual guarantee.

MAINTENANCE LOGBOOK

- The maintenance operations carried out in accordance with the recommendations given in par t: 3 - MAINTENANCE and the other inspection, servicing or repair operations or modifications performed on the lift truck or its attachments shall be recorded in a maintenance logbook. The entry for each operation shall include details of the date of the works, the names of the individuals or companies having performed them, the type of operation and its frequency, if applicable. The part numbers of any lift truck items replaced shall also be indicated.

LUBRICANT AND FUEL LEVELS

- Use the recommended lubricants (never use contaminated lubricants).

- Do not fill the fuel tank when the I.C. engine is running.

- Only fill up the fuel tank in areas specified for this purpose.

- Do not fill the fuel tank to the maximum level.

- Do not smoke or approach the lift truck with a flame, when the fuel tank is open or is being filled.

HYDRAULIC

- Any work on the load handling hydraulic circuit is forbidden except for the operations described in part: 3 - MAINTENANCE.

- Do not attempt to loosen unions, hoses or any hydraulic component with the circuit under pressure.

BALANCING VALVE: It is dangerous to change the setting and remove the balancing valves or safety valves which may be fitted to your lift truck cylinders. These operations must only be performed by approved personnel (consult your dealer).

The HYDRAULIC ACCUMULATORS that may be fitted on your lift truck are pressurized units. Removing these accumulators and their pipework is a dangerous operation and must only be performed by approved personnel (consult your dealer).

ELECTRICITY

- Do not short-circuit the starter relay to start the IC engine. If the forward/reverse selector is not in neutral and the parking brake is not engaged, the lift truck may suddenly star t to move.

- Do not drop metallic items on the battery.

- Disconnect the battery before working on the electrical circuit.

1-24

1-25

WELDING

- Disconnect the battery before any welding operations on the lift truck.

- When carr ying out electric welding work on the lift truck, connect the negative cable from the equipment directly to the part being welded, so as to avoid high tension current passing through the alternator.

- Never carry out welding or work which gives off heat on an assembled tyre. The heat would increase the pressure which could cause the tyre to explode.

- If the lift truck is equipped with an electronic control unit, disconnect this before starting to weld, to avoid the risk of causing irreparable damage to electronic components.

WASHING THE LIFT TRUCK

- Clean the lift truck or at least the area concerned before any intervention.

- Remember to close and lock all accesses to the lift truck (doors, windows, cowls…).

- During washing, avoid the articulations and electrical components and connections.

- If necessary, protect against penetration of water, steam or cleaning agents, components susceptible of being damaged, particularly electrical components and connections and the injection pump.

- Clean the lift truck of any fuel, oil or grease trace.

FOR ANY INTERVENTION OTHER THAN REGULAR MAINTENANCE, CONSULT YOUR DEALER.

IF THE LIFT TRUCK IS NOT TO BE USED FOR A LONG TIME

INTRODUCTION

The following recommendations are intended to prevent the lift truck from being damaged when it is withdrawn from service for an extended period. For these operations, we recommend the use of a MANITOU protective product, reference 603726. Instructions for using the product are given on the packaging.

Procedures to follow if the lift truck is not to be used for a long time and for starting it up again afterwards must be performed by your dealership.

PREPARING THE LIFT TRUCK

- Clean the lift truck thoroughly.

- Check and repair any leakage of fuel, oil, water or air.

- Replace or repair any worn or damaged parts.

- Wash the painted surfaces of the lift truck in clear and cold water and wipe them.

- Touch up the paintwork if necessary.

- Shut down the lift truck (see: OPERATING INSTRUCTIONS UNLADEN AND LADEN).

- Make sure the jib cylinder rods are all in retracted position.

- Release the pressure in the hydraulic circuits.

PROTECTING THE I.C. ENGINE

- Fill the tank with fuel (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).

- Empty and replace the cooling liquid (see: 3 - MAINTENANCE: F - EVERY 2000 HOURS SERVICE).

- Leave the I.C. engine running at idling speed for a few minutes, then switch off.

- Replace the I.C. engine oil and oil filter (see: 3 - MAINTENANCE: D - EVERY 500 HOURS SERVICE).

- Add the protective product to the engine oil.

- Run the I.C. engine for a short time so that the oil and cooling liquid circulate inside.

- Disconnect the battery and store it in a safe place away from the cold, after charging it to a maximum.

- Remove the injectors and spray the protective product into each cylinder for two seconds with the piston in low neutral position.

- Turn the crankshaft once slowly and refit the injectors (see I.C. engine REPAIR MANUAL).

- Remove the intake hose from the manifold or turbocharger and spray the protective product into the manifold or turbocharger.

- Cap the intake manifold or turbocharger hole with waterproof adhesive tape.

- Remove the exhaust pipe and spray the protective product into the exhaust manifold or turbocharger.

- Refit the exhaust pipe and block the outlet with waterproof adhesive tape.

NOTE: The spray time is noted on the product packaging and must be increased by 50 % for turbo engines.

- Open the filler plug, spray the protective product around the rocker arm shaft and refit the filler plug.

- Cap the fuel tank using waterproof adhesive tape.

- Remove the drive belts and store them in a safe place.

- Disconnect the engine cut-off solenoid on the injection pump and carefully insulate the connection.

PROTECTING THE LIFT TRUCK

- Set the lift truck on axle stands so that the tyres are not in contact with the ground and release the handbrake.

- Protect cylinder rods which will not be retracted, from corrosion.

- Wrap the tyres.

NOTE: If the lift truck is to be stored outdoors, cover it with a waterproof tarpaulin.

1-26

1-27

BRINGING THE LIFT TRUCK BACK INTO SERVICE

- Remove the waterproof adhesive tape from all the holes.

- Refit the intake hose.

- Refit and reconnect the battery.

- Remove the protection from the cylinder rods.

- Perform the daily service (see: 3 - MAINTENANCE: A - DAILY OR EVERY 10 HOURS SERVICE).

- Put the handbrake on and remove the axle stands.

- Empty and replace the fuel and replace the fuel filter (see: 3 - MAINTENANCE: D - EVERY 500 HOURS SERVICE).

- Refit and set the tension in the drive belts (see: 3 - MAINTENANCE: C - EVERY 250 HOURS SERVICE).

- Turn the I.C. engine using the starter, to allow the oil pressure to rise.

- Reconnect the engine cut-off solenoid.

- Lubricate the lift truck completely (see: 3 - MAINTENANCE: SERVICING SCHEDULE).

Make sure the area is adequately ventilated before starting up the lift truck.

- Start up the lift truck, following the safety instructions and regulations (see: OPERATING INSTRUCTIONS UNLADEN AND LADEN).

- Run all the jib’s hydraulic movements, concentrating on the ends of travel for each cylinder.

1-28

2 - DESCRIPTION

CONTENTS

2-1

2-2

TABLE OF CONTENTS

IDENTIFICATION OF THE LIFT TRUCK

CHARACTERISTICS MLT 735 Turbo LSU Série 6-E

DIMENSIONS AND LOAD CHART MLT 735 -120 LSU Série 6-E

2-6

2-8

2-10

2-12

2-36

2-40

2-3

IDENTIFICATION OF THE LIFT TRUCK

MANITOU BF - 44158 ANCENIS CEDEX FRANCE

Type / Type / Tipo / Tipo / Typ

N° d'homologation / Homologation N° / N° di omologazione / N° de homologación / Homologatonsnummer

N° d'identification / Identification N° / N° d'identificazione / N° de identificación / Identifizierungsnummer

Masse totale admissible / Total permissible mass Massa totale ammissibile / Peso total admisible / Zulässige Gesamtmasse

Masse maximale sur essieu AV / Maximum mass on front axle Massa complessiva su assale anteriore / Peso máximo sobre eje delantero / Maximale Achslast vorne

Masse maximale sur essieu AR / Maximum mass on rear axle Massa complessiva su assale posteriore / Peso máximo sobre eje trasero / Maximale Achslast hinten

MASSE REMORQUABLE ADMISSIBLE / PERMISSIBLE TOWABLE MASS

MASSA RIMORCHIABILE AMMISSIBILE / PESO REMOLCABLE ADMISIBLE / ZULÄSSIGE ANHÄNGEMASSE

- Masse remorquable non freinée

- Towable mass with no braking

- Massa rimorchiabile non frenata

- Peso remolcable sin frenado

- Nichtgebremste Anhängemasse

- Masse remorquable avec freinage indépendant

- Towable mass with independent braking

- Massa rimorchiabile con freno indipendente

- Peso remolcable con frenado independiente

- Anhängemasse mit unabhängiger Bremsung

- Masse remorquable avec freinage à inertie

- Towable mass with inertial braking

- Massa rimorchiabile con freno inerziale

- Peso remolcable con frenado de inertia

- Anhängemasse bei Auflaubremsung

- Masse remorquable avec freinage assisté (Hydraul. ou pneumat.)

- Towable mass with assisted braking (Hydraulic or pneumatic)

- Massa rimorchiabile con servofreno (idraulico o pneumatico)

- Peso remolcable con frenado asistido (hydráulico o neumática)

- Anhängemasse bei Hilfskraftbremsung (hydraulisch oder pneumatisch)

N°283316

As our policy is to promote a constant improvement of our products, our range of telescopic lift trucks may undergo certain modifications, without obligation for us to advise our customers.

When you order parts, or when you require any technical information, always specify:

NOTE: For the owner’s convenience, it is recommended that a note of these numbers is made in the spaces provided, at the time

of the delivery of the lift truck.

LIFT TRUCK MANUFACTURER’S PLATE (FIG. A)

- Model

- Series

- Serial Nr

- Year of manufacture

For any further technical information regarding your lift truck refer to chapter: 2 - DESCRIPTION: CHARACTERISTICS.

I.C. ENGINE (FIG. B)

- I.C. engine Nr

MANITOU BF 44158 ANCENIS CEDEX FRANCE

MODELE

MODELLO

MODEL

Année de fabrication Year of manufacture Anno di fabbricazione Año de fabricacion

Puissance ISO/TR14396 Power ISO/TR14396 Potenza ISO/TR14396 Potencia ISO/TR14396

Effort vertical max.

(sur accrochage remorque)

Vertical max. effort (on trailer hook) Carico max. verticale (sul gancio di traino) Esfuerzo vertical max. (sobre el gancho de remolque)

Pression des pneumatiques (Bar) Tyre pressure (Bar) Pressione per pneumatici (Bar) Presion de los neumáticos (Bar)

Avant

Anteriore

Arrière

Front

Adelante

Rear

MODELO

daN

Posteriore

Trasero

SERIE SERIES

N° de série Serial Nr

Masse à vide Unladen mass

Numéro d'homologation Homologation number Numero d'omologazione Contraseña homologacion

Capacité maxi nominale Nominal maximum capacity Capacità maxi nominale Capacidad máximo nominal

Effort de traction Tractive effort Forza di traino Esfuerzo de traccion

N°283688

Numero di serie

Número de serie

Massa a vuoto Masa en vacio

SERIE SERIE

daN

GEAR BOX (FIG. C)

- Type

- MANITOU reference

- Serial Nr

ANGLE GEARBOX (FIG. D)

- Type

- MANITOU reference

- Serial Nr

2-6

FRONT AXLE (FIG. E)

N$241415

MODELE

N$ dans la série

Année fabrication

Masse à vide

C d G / Tablier

Cap. Nominale

Pression de service

AVERTISSEMENT : RESPECTEZ LA CAPACITE DE L'ENSEMBLE

"CHARIOT ET EQUIPEMENT"

A vide / En charge : mm

MANITOU BF 44158 ANCENIS CEDEX FRANCE

FRONT AXLE (FIG. E)

- Type

- Serial Nr

- MANITOU reference

REAR AXLE (FIG. F)

- Type

- Serial Nr

- MANITOU reference

CAB (FIG. G)

- Type

- Serial Nr

BOOM (FIG. H)

- MANITOU reference

- Date of manufacture

PLATE MANUFACTURER OF THE ATTACHMENT (FIG. I)

- Model

- Serial Nr

- Year of manufacture

2-7

CHARACTERISTICS

MLT 735 -120 LSU Série 6-E3

I.C. ENGINE

Type PERKINS 1104D-E44TA NJ38698 Fuel Diesel Number of cylinders 4 in line Suction Supercharged Injection system Direct Ignition sequence 1,3,4,2 Capacity cm3(cu/in) 4400(268.5) Bore and stroke mm(in) 105 x 127(4 x 5) Compression ratio 16,2:1 Nominal rating loaded rpm 2200 Rating slow unladen rpm 930 Max. rating unladen rpm 2360 Power ISO/TR 14396 cv- kW 124 - 91 Power SAE J 1995 cv- kW 124 - 91 Maximum torque ISO/TR 14396 Nm 490 to 1400 rpm Air cleaner μm 3 Type of cooling By water Fan Puller

TRANSMISSION

Gear box TURNER

Type Mechanical Forward/reverse selector Electro-hydraulic Torque converter SACHS Number of forward speeds 4

Number of reverse speeds 4 Angle gear box TURNER Front axle DANA

Differential Limited slip Rear axle DANA

Differential Without locking Drive wheels 4RM Permanent

Switch for 2/4 drive wheels No Front tyres MICHELIN

Size 460-70 R24 159A8 TL

Pressure bar(psi) 3,4(49) Rear tyres MICHELIN

Size 460-70 R24 159A8 TL

Pressure bar(psi) 3,4(49)

ELECTRIC CIRCUIT

Battery Alternator 12 V - 85 A

Type Denso Ai115 Starter 12 V - 4,2 kW

Type AZF

BRAKE CIRCUIT

Service brake Hydraulic power brake

Type of brake Multidisk brake immersed in oil

Type of control Foot-operated for the front and rear axles Parking brake Mechanical

Type of brake Discon gear-box output

Type of control Manual

SOUND AND VIBRATION

Level of sound pressure in the driver’s cab LpA

(according to standard NF EN 12053)

Level of sound power ensured in the LwA environment

(according to directive 2000/14/EC modified by directive 2005/88/EC)

Average weighted acceleration on driver’s body

(according to standard NF EN 13059)

The average weighted acceleration transmitted to the driver’s hand/arm system

(according to standard ISO 5349-2)

Standard Option

dB 79

m/s2

m/s2(ft/s2) < 2,5(<8.2)

12 V - 2 x 74 Ah - 2 x 680 A EN

106 (measured)

107 (ensured)

2-8

HYDRAULIC CIRCUIT

Hydraulic pump

Type Variable volume pistons

Capacity cm3(cu/in) 63(3.8)

Max. rating capacity unladen l/mn(gl/min) 149(39.4)

Flow rate at 1600 rpm l/mn(gl/min) 101(26.7) Filtration

Return μm 15

Suction μm 125 Maximum service pressure bar (psi) 2

Telescoping circuit bar (psi) 200/270 (2900/3316)

Lifting circuit bar (psi) 270/270 (3316)

Tilt circuit bar (psi) 190/270 (2756/3316

Attachment circuit bar (psi) 270 (3316)

Steering circuit bar (psi) 140 (2030)

HYDRAULIC MOVEMENTS

Longitudinal stability limiter and warning device Electronic Lifting motions (boom retracted)

Unladen lifting s - m/mn (ft/mn) 6,7 - 40,2 (41-132)

Laden lifting s - m/mn (ft/mn) 7,3 - 36,9 (24-121)

Unladen lowering s - m/mn (ft/mn) 4,8 - 56,1 (16-184)

Laden lowering s - m/mn (ft/mn) 4,6 - 58,5 (15-192) Telescoping motions (boom raised)

Unladen extending s

Laden extending s - m/mn (ft/mn) 7,3 - 22,8 (24-75)

Unladen retracting s - m/mn (ft/mn) 5,7 - 28,4 (19-93)

Laden retracting s - m/mn (ft/mn) 5,5 - 29,5 (18-97) Tilting movements

Unladen digging

Forward tilting unladen s - °/s 2,35 - 62,3

- m/mn (ft/mn) 7,1 - 22,2 (23-73)

s - °/s 3,0 - 48,8

1st casing

70 (3915)

SPECIFICATIONS AND WEIGHTS

Speed of movement for lift truck in standard configuration on flat ground (except particular conditions)

Front unladen 1 km/h (mph) 5

2 km/h (mph) 8,6(5.3)

3 km/h (mph) 18,2(11.3)

4 km/h (mph) 25,0(15.5)

Rear unladen 1 km/h (mph) 5,3(3.3)

2 km/h (mph) 8,6(5.3)

3 km/h (mph) 18,2(11.3)

4 km/h (mph) 25,0(15.5) Standard attachment PFB

Weight of attachment (without fork) kg (lbs) 95 (209)

Weight of forks (each one) kg (lbs) 72,5 (160) Rated capacity with standard attachment kg (lbs) 3500 (7716) Tipping load at maximum reach on tyres kg (lbs) 1490 Distance from the centre of gravity from the load to the lug of the forks Standard lifting height mm (in) 6860 (270) Lift truck weight without attachment kg (lbs) 6860 (15124) Lift truck weight with standard attachment

Unladen

At rated load kg (lbs) 10600 (23369) Weight per axle with standard attachment (transport position)

ont unladen kg (lbs) 3445 (7595) Rear unladen kg (lbs) 3655 (8058) Front rated load kg (lbs) 9370 (20657) Rear rated load kg (lbs) 1230 (2712)

Weight per axle with standard attachment (boom extended)

ont rated load kg (lbs) 7630 (16821) Rear rated load kg (lbs) 620

Contact pressure on the ground for the whole sur face of each stabilizer at maximum load when tilting

Drag strain on the coupling hook

Unladen (sliding) daN (lbf) 5465 (12286) At rated load (transmission setting) daN (lbf) 7820 (17580)

Pull strain with open carrier

(according to standard ISO 8313)

mm (in) 500 (20)

kg (lbs) 7100 (15653)

kg/cm2 -

daN (lbf) 3700 (8318)

,3(3.3)

(3284)

(1367)

2-9

DIMENSIONS AND LOAD CHART

A B C C1 D D1 D2 E F F1 G G1 G2 I J K L N O P2 P3 R S T U1 U2 V V1 V2 W Y Z

mm (in.)

mm (in.) mm (in.)

mm (in.)

(°)

mm (in.)

(°)

1200 (47.2) 2810 (110.6) 1192 (46.9) 1287 (50.7) 4791 (188.6) 4886 (192.4) 4165 (164.0) 5991 (235.8) 1935 (73.6) 1935 (73.6) 450 (17.7) 435 (17.1) 435 (17.1) 789 (31.1)

980 (34.1)

1260 (49.6) 45 (1.8) 1715 (67.5) 125 (4.9) 38 53 3685 (145) 7712 (303.6) 3575 (140.7) 2295 (90.4) 2545 (100.2) 4885 (192.3) 1310 (51.8) 3919 (154.3) 2402 (94.6) 12 133,7

2-10

INSTRUMENTS AND CONTROLS

MLT ... LSU ...

2-12

DESCRIPTION

1 - DRIVER’S SEAT 2 - SAFETY BELT 3 - CONTROL AND SIGNAL LIGHTS PANEL 4 - EMERGENCY STOP BUTTON 5 - EMERGENCY EXIT 6 - SWITCHES 7 - LIGHT SWITCH, HORN AND INDICATOR SWITCH 8 - FRONT AND REAR WINDSCREEN WIPER SWITCH 9 - IGNITION SWITCH 10 - FUSES AND RELAYS IN THE CAB 11 - FUSES AND RELAYS UNDER THE ENGINE HOOD (NOT ILLUSTRATED) 12 - DIAGNOSTIC SOCKET 13 - ACCELERATOR PEDAL 14 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF 15 - GEAR LEVER AND TRANSMISSION CUT-OFF 16 - PARKING BRAKE LEVER 17 - FORWARD/NEUTRAL/REVERSE GEAR SELECTION 18 - STEERING SELECTION 19 - HYDRAULIC CONTROLS AND TRANSMISSION CUT-OFF 20 - FUNCTION FILES 21 - LEVEL INDICATORS 22 - HEATER CONTROL 22 - AIR CONDITIONING CONTROLS (OPTION AIR CONDITIONING) 23 - CAB FILTER VENTILATORS 24 - WINDSCREEN DEMISTER VENTS 25 - HEATING VENTS 26 - BRAKE FLUID RESERVOIR AND WINDSCREEN WASHER ACCESS PANEL 27 - STEERING WHEEL REGULATING HANDLE 28 - DOOR LOCK 29 - LOCKING HANDLE FOR UPPER HALF-DOOR 30 - UNLOCKING BUTTON FOR UPPER HALF DOOR 31 - HANDLE FOR REAR WINDOW OPENING 32 - DOCUMENT HOLDER 33 - SUN VISOR 34 - OVERHEAD LIGHT 35 - HOOK 36 - CIGAR LIGHTER 37 - ARMREST AND STORAGE 38 - CAR RADIO (OPTION) 39 - INSIDE REAR-VIEW MIRROR (OPTION) (NOT ILLUSTRATED) 40 - TOOL BOX (NOT ILLUSTRATED) 41 - NUMBER PLATE (NOT ILLUSTRATED) 42 - NUMBER PLATE LIGHTING (NOT ILLUSTRATED) 43 - REAR REFLECTORS (NOT ILLUSTRATED) 44 - FRONT LIGHTS (NOT ILLUSTRATED) 45 - REAR LIGHTS (NOT ILLUSTRATED) 46 - FLASHING LIGHT (NOT ILLUSTRATED)

only for MLT ... -120 ...

except for MLT 1035 L Turbo LSU Série 6-E3

NOTE: All the terms such as: RIGHT, LEFT, FRONT, REAR are meant for an observer seated on driver’s seat and looking

in front of him.

2-13

1 - DRIVER’S SEAT

DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.

WEIGHT ADJUSTMENT (FIG. A)

It is advised that the weight be adjusted when the driver is not sitting in the cab.

- Refer to graduation 1 of the seat.

- Turn handle 2 depending on the driver’s weight. NOTE: To avoid any health problems, it is recommended that the weight should be checked

and adjusted before starting up the lift truck.

SEAT HEIGHT ADJUSTMENT (FIG. B)

- Raise the seat to the desired position, until you hear the ratchet click. If you raise the seat above the last notch (stop), the seat drops down to the lowest position.

SEAT BACK-REST ANGLE ADJUSTMENT (FIG. C)

The back-rest angle of the seat may be adjusted to suit the individual.

- Press the left-hand button while pushing on the seat or relaxing pressure on the seat to find a comfortable position.

SEAT DEPTH ADJUSTMENT (FIG. D)

The depth of the seat may be adjusted to suit the individual.

- Press the right-hand button while raising or lowering the seat to find the desired position.

EXTENDING THE HEAD-REST (FIG. E)

- The height of the back-rest can be adjusted by pulling it upwards (the notches will click) up to the stop.

- The head-rest can be removed by applying sufficient pressure to pull it off the stop.

2-14

LUMBAR ADJUSTMENT (FIG. F)

This increases the comfort of the seat and the driver’s freedom of movement.

- Turn the handle either left or right to adjust the height or depth of the lumbar support.

ADJUSTMENT OF THE ANGLE OF THE BACK-REST (FIG. G)

- Support the back-rest, pull the lever and position the back-rest to find the desired position.

If you do not support the back-rest when making adjustments, it swings completely forwards.

LONGITUDINAL ADJUSTMENT (FIG. H)

- Adjust the locking lever until you reach the position required. This then locks and the seat will not shift into another position.

MAINTENANCE (FIG. I)

Dirt may adversely affect the correct functioning of the seat. For this reason, make sure your seat is always clean.

- To clean or change the cushions, simply remove them from the seat frame.

A rocking head-rest increases the risk of an accident !

Avoid wetting the cushion fabric when cleaning. Check the resistance of the fabric on a small hidden area before using any fabric or plastic cleaner.

2-15

1 - BASIC PNEUMATIC DRIVER’S SEAT (OPTION)

DESIGNED FOR MAXIMUM COMFORT, THIS SEAT CAN BE ADJUSTED AS FOLLOWS.

WEIGHT ADJUSTMENT (FIG. A)

It is advised that you adjust the seat according to your weight when sitting.

- Switch on lift truck ignition.

- Push or pull lever 1 until green appears in display 2 indicating correct adjustment according to your weight.

NOTE: To avoid any health problems, it is recommended that the weight should be checked

and adjusted before starting up the lift truck.

SEAT HEIGHT ADJUSTMENT (FIG. B)

When weight adjustment has been carried out, you can then modify seat height.

- Keep the ignition on in the lift truck.

- Push or pull lever 1 until green appears and adjust the height of the seat while checking that the green in display 2 remains visible.

To avoid causing any damage, do not activate the compressor for over 1 minute.

SEAT BACK-REST ANGLE ADJUSTMENT (FIG. C)

The back-rest angle of the seat may be adjusted to suit the individual.

- Press the left-hand button while pushing on the seat or relaxing pressure on the seat to find a comfortable position.

SEAT DEPTH ADJUSTMENT (FIG. D)

The depth of the seat may be adjusted to suit the individual.

- Press the right-hand button while raising or lowering the seat to find the desired position.

EXTENDING THE HEAD-REST (FIG. E)

- The height of the back-rest can be adjusted by pulling it upwards (the notches will click) up to the stop.

- The head-rest can be removed by applying sufficient pressure to pull it off the stop.

2-16

LUMBAR ADJUSTMENT (FIG. F)

This increases the comfort of the seat and the driver’s freedom of movement.

- Turn the handle either left or right to adjust the height or depth of the lumbar support.

ADJUSTMENT OF THE ANGLE OF THE BACK-REST (FIG. G)

- Support the back-rest, pull the lever and position the back-rest to find the desired position.

If you do not support the back-rest when making adjustments, it swings completely forwards.

HORIZONTAL SHOCK ABSORBER (FIG. H)

In certain conditions (e.g. driving with a trailer) it is advised that a horizontal shock absorber be used. The driver’s seat is thus better able to absorb jerks in the direction of travel.

- Position 1: Horizontal shock absorber fitted.

- Position 2: Horizontal shock absorber removed.

LONGITUDINAL ADJUSTMENT (FIG. I)

- Adjust the locking lever until you reach the position required. This then locks and the seat will not shift into another position.

SERVICING (FIG. J)

Dirt may adversely affect the correct functioning of the seat. For this reason, make sure your seat is always clean.

- To clean or change the cushions, simply remove them from the seat frame.

A rocking head-rest increases the risk of an accident !

Avoid wetting the cushion fabric when cleaning. Check the resistance of the fabric on a small hidden area before using any fabric or plastic cleaner.

2 - SAFETY BELT

- Sit correctly on the seat.

- Check that seat belt is not twisted.

- Place the seat belt at hip level.

- Attach the seat belt and check that it locks.

- Adjust the seat belt to your body shape without squeezing your hip and without over-slack.

In no event should the lift truck be used if the seat belt is defective (fixing, locking, cuts, tears, etc.). Repair or replace the seat belt immediately.

2-17

3 - CONTROL AND SIGNAL LIGHTS PANEL

STOP

RPM x 100

A1 A2 A3 A4

CONTROL INSTRUMENTS

A - I.C. ENGINE WATER TEMPERATURE

Temperature zone:

A1 - Blue zone (0° - 50°) 122 °F Use the lift truck with moderation, wait for temperature to increase before normal operation. A2 - Green zone (50° - 100°) 122 °F - 212 °F Use lift truck normally A3 - White/red zone (100° - 105°) 212 °F - 221 °F Use lift truck with moderation, monitor the temperature. A4 - Red zone (105° - 120°) 221 °F - 248 °F Stop the lift truck, look for the cause of overheating.

NOTE: Red indicator

light comes on between zone A3 and A4.

B - HOUR METER AND REV COUNTER

C - FUEL LEVEL

Red zone C1 indicates that you are using the reserve supply and that time of use is limited.

D - CLOCK

SIGNAL LIGHTS

A permanently lit or flashing warning lamp, with the engine running, is the sign of an operating fault. The lighting of some lamps may be accompanied by an audible signal. Do not ignore this warning, consult your dealer without delay. If one of the warning lamps comes on while the lift truck is in motion, stop the lift truck under the safest possible conditions.

When activating the electrical system of the lift truck, all the red and orange lamps and the panel’s buzzer must light to indicate their good working order. If one of the red lamps or the buzzer does not function, carry out the necessary repairs.

NOTE:

only for:

MLT ... -120 ...

ORANGE I.C. ENGINE PREHEATING INDICATOR LIGHT

Preheating is necessary. When the lift truck is switched on, the lamp comes on for 2 seconds and off as soon as preheating is ended. Start the lift truck’s I.C. engine.

ORANGE I.C. ENGINE WARNING INDICATOR LIGHT

If the lamp comes on or flashes while the lift truck is in operation, a diagnostic fault has been detected. The lift truck will operate in reduced mode. Consult your dealer without delay.

RED I.C. ENGINE STOPPED INDICATOR LIGHT

STOP

If the lamp comes on or flashes, when the lift truck is running, stop the I.C. engine immediately and consult your dealer.

RED STEERING SYSTEM OIL PRESSURE WARNING INDICATOR LIGHT

If the lamp comes on when the lift truck is running, stop the I.C. engine immediately and look for the cause (possible leak, etc.).

NOTE: The indicator lights

STOP

go off after engine preheating.

2-18

RED GEAR BOX OIL PRESSURE WARNING INDICATOR LIGHT

The lamp and buzzer come on when there is an abnormal drop in gear box pressure, in forward gear. Stop the I.C engine and look for the cause (gear box oil level, possible leak, radiator, etc.). NOTE: The signal light operates in forward travel conditions only, the signal should not be taken into account when the I.C.

engine is running at idle or is stopped.

RED CLUTCH PRESSURE WARNING INDICATOR LIGHT

The lamp and buzzer come on when there is an abnormal drop in pressure in the gear box. Stop the I.C engine and look for the cause (gear box oil level, possible leak, radiator, etc.). NOTE: Since this light only operates while driving, do not take the information into consideration when the lift truck has

stopped or is idling.

RED TRANSMISSION OIL TEMPERATURE FAULT NDICATOR LIGHT

The lamp and buzzer come on when the gearbox oil temperature is abnormally high. Stop the I.C engine and look for the cause (gear box oil level, possible leak, radiator, etc.).

RED BRAKING OIL LEVEL WARNING INDICATOR LIGHT

If the lamp and the buzzer come on, when the lift truck is running, stop the I.C. engine immediately and look for the cause (braking oil level, possible leak, etc.). In the event of an abnormal dropping of the level, consult your dealer.

RED PARKING BRAKE LAMP

This lamp comes on when the parking brake is applied.

BATTERY CHARGE WARNING INDICATOR LIGHT

If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause (electric circuit, alternator belt, alternator, etc.).

RED I.C. ENGINE OIL PRESSURE WARNING INDICATOR LIGHT

If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause (engine oil level, possible leak, etc.).

RED I.C. ENGINE WATER TEMPERATURE WARNING INDICATOR LIGHT

If the lamp and the buzzer come on when the lift truck is running, stop the I.C. engine immediately and look for the cause (coolant level, possible leak, radiator, etc.).

RED AIR FILTER OR HYDRAULIC RETURN FILTER CLOGGED INDICATOR LIGHT

The lamp and buzzer come on when the air filter cartridge or the hydraulic return oil filter cartridge is clogged up. Stop the I.C. engine and carry out the necessary repairs (see cleaning and replacement requirements in chapter: 3 - MAINTENANCE: FILTERS CARTRIDGES AND BELTS).

GREEN DIRECTION INDICATOR LAMP

GREEN SIDELIGHTS LAMP

GREEN LOW BEAM LAMP

BLUE MAIN BEAM LAMP

2-19

4- EMERGENCY STOP BUTTON

- In the event of danger, it lets you stop the I.C. Engine and thereby cut out all hydraulic movements.

- Pull the button to disable it before restarting the lift truck.

Be ready for hydraulic movements suddenly stopping when you press this button.

5 - EMERGENCY EXIT

EMERGENCY HAMMER

Use the emergency hammer to break one of the windows in the event that it is impossible to exit the cab by the door or by opening the rear window.

6 - SWITCHES

NOTE: The location of the switches may vary depending on the options.

A - OPTION ELECTRICAL JIB PROVISION ELECTROVALVE AT JIB HEAD

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

B - OPTIONAL BLUE FRONT AND REAR WORKING LIGHTS

C - WHEEL ALIGNMENT LAMPS

D - WARNING LIGHTS

E - REAR FOG LIGHTS

F - SELF-CLEANING FAN OPTION

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

G - STEERING SELECTION

H - TRANSMISSION CUT-OFF

The switch selects transmission cut-off to the ser vice brake pedal or the hydraulic controls lever.

NOTE: In all cases transmission cut-off can be activated using the GEAR lever.

MLT... POWERSHIFT ...)

- Position 1: With the indicator light on, transmission cut-off is by means of the ser vice

brake pedal and the forward/neutral/reverse gear lever.

- Position 2: Indicator light off, transmission is cut-off from forward/neutral/reverse gear

selector.

(except for

A B C

E F G H

MLT ... POWERSHIFT ...

USE OF TRANSMISSION CUT-OFF Transmission cut-off to brake pedal (position 1).

• When loading.

Transmission cut-off to hydraulic controls lever (position 2).

• When driving.

• For inching and continuous stopping and starting (delicate handling). In order to optimise hydraulic movements, cut off transmission to the hydraulic controls lever.

• Starting on a slope.

2-20

I - REVOLVING LIGHT

J - FRONT AND REAR WORKING LIGHTS

K - JIB HEAD LIGHT OPTION

L - OPTION

M - SIDE WINDSCREEN WIPER + ROOF WINDSCREEN WIPER OPTION

N/O - OPTION HYDRAULIC TOWING HOOK WITH SINGLE OR DUAL EFFECT REAR

HYDRAULIC PREDISPOSITION

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

I J K L M

P - ATTACHMENT HYDRAULIC LOCKING DEVICE OPTION

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

Q - OPTION JIB SUSPENSION

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

R - NEUTRALIZATION OF HYDRAULIC MOVEMENTS

When driving on the road, it is highly recommended (mandatory in Germany) that you cut-off all the hydraulic movements. The lamp shows when it is in use.

S - TILTING CORRECTOR

MLT 1035 L Turbo LSU Série 6-E3

See: 2 - DESCRIPTION: 20 - HYDRAULIC CONTROLS AND TRANSMISSION CUT-OFF.

T - DISABLING 6TH GEAR

See: 2 - DESCRIPTION: 16 - GEAR SELECTOR.

N O P Q R

MLT 1035 L Turbo LSU Série 6-E3

U - GEAR INDICATOR

See: 2 - DESCRIPTION: 16 - GEAR SELECTOR.

V - ATTACHMENT EASY HYDRAULIC CONNECTION OPTION

See: 2 - DESCRIPTION: DESCRIPTION AND USE OF THE OPTIONS.

W - OPTION

2-21

MLT ... POWERSHIFT ...

7- LIGHT SWITCH, HORN AND INDICATOR SWITCH

The switch controls the visual and sound alarms.

A - All lights are off, the direction indicators do not flash. B - The right hand direction indicators flash. C - The left hand direction indicators flash. D - The sidelights and the rear lights are on. E - The dipped headlights and the rear lights are on. F - The main beam headlights and the rear lights are on. G - Headlight signal.

Pressing the switch sounds the horn. NOTE: The positions D - E - F - G can be carried out without the ignition being on.

8 - FRONT AND REAR WINDSCREEN WIPER SWITCH

FRONT WINDSCREEN WIPER

A - Front windscreen wiper off. B - Front windscreen wiper low speed setting. C - Front windscreen wiper high speed setting. D - Front windscreen wiper intermittent setting.

REAR WINDSCREEN WIPER

E - Rear windscreen wiper off. F - Rear windscreen wiper on.

NOTE: These functions will only work when the ignition is switched on.

F E G

9 - IGNITION SWITCH

MLT ... -120 ...

The key switch has five positions:

P - Ignition off, parking position. O - Ignition switched off and I.C. engine stopped. I - Ignition and pre-heating. II - Not used. III - The I.C. engine starts, return to position I as soon as the key is released.

MLT ... Turbo ...

The key switch has five positions:

P - Ignition off, parking position. O - Ignition switched off and I.C. engine stopped. I - Ignition on. II - Heating. III - The I.C. engine starts, return to position I as soon as the key is released.

2-22

10 - FUSES AND RELAYS IN THE CAB

STOP

F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14

F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25

K1K0

20A25A max.30A10A max. 15A max.10 A15A 7.5A 7.5A max. 15A max. 5A 10A 15A max.15A 10A

15A max.10A10A max.15A15A max.7,5A max. 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A

OPT.

LSU

OPT.

OPT. OPT.

HYD.

ECU

OPT.

OPT.OPT.OPT.

OPT.

N$291213

25A5A

F31F32

SPU

DIAG

OPT.

- Lift up the fuse and relay access panel 1.

NOTE: A sticker on the inside of the access panel gives a clear display of the use of the

components described below.

Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been repaired.

F1 - Hydraulic control unit (7,5A).

MLT … LSU

- OPTION. F2 - Working tail light (15A). F3 - Rear windscreen wiper (10A).

- Roof windscreen wiper (10A).

- Side windscreen wiper (10A). F4 - Engine stop electrovalve (10A).

- Engine stop electrovalve (15A).

- Engine control unit (10A).

MLT … Turbo LSU MLT 731 Turbo

MLT … -120 LSU

F5 - Revolving light (7,5A). F6 - Wheel alignment (5A).

- OPTION. F7 - Longitudinal stability limiter and warning device (7,5A).

- “Aggravating” hydraulic movement cut-off deactivation (7,5A).

- OPTIONAL Blue front and rear working lights (15A). F8 - Forward/neutral/reverse selector (15A).

- Transmission cut-off (15A).

- Reversing lights (15A).

- OPTION Reverse buzzer alarm (15A).

F9 - Control panel (5A).

F10 - Sound alarm (10A).

- Stop switch (10A). F11 - OPTION Working lights on jib head (15A). F12 - Flashing unit (10A). F13 - Ventilation/heating (30A). F14 - Cigar lighter (10A).

- OPTION. F15 - Hydraulic movement control unit (20A). F16 - Diagnostic socket (5A).

- OPTION. F17 - OPTION CLEANFIX self-cleaning fan (10A).

- OPTION FINTRONIC anti-start system (10A).

- OPTION MODCOD / MODCLÉ Anti-theft system (10A).

- OPTION Rear hydraulic predisposition (10A).

- OPTION Two rear hydraulic predispositions (15A). F18 - Front working lights (15A). F19 - OPTION. F20 - OPTION Pneumatic seat (10A).

- OPTION. F21 - Front windscreen wiper and front windscreen washer (10A). F22 - OPTION Jib suspension (10A).

- OPTION Electrical jib provision (5A).

- OPTION Head jib electrovalve (7,5A) F23 - Right sidelight (7,5A).

- Dashboard lighting (7,5A). F24 - Left sidelights (7,5A)

- Number plate lighting (7,5A). F25 - Right indicators (7,5A). F26 - Left indicators (7,5A). F27 - Low beam (15A).

- Low beam indicator light (15A).

- Rear fog light (15A). F28 - Main beam (15A).

- Main beam headlamp (15A). F29 - Warning lights (15A).

- Roof light (15A).

- Anti-theft device provision (15A).

- Clock (15A).

- Rev counter (15A).

F30 - Lights, horn and indicator switch (25A).

2-23

F31 - Starter (25A).

STOP

F15F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14

F30F26 F27 F28 F29F16 F17 F18 F19 F20 F21 F22 F23 F24 F25

K1K0

20A25A max.30A10A max. 15A max.10 A15A 7.5A 7.5A max. 15A max. 5A 10A 15A max.15A 10A

15A max.10A10A max.15A15A max.7,5A max. 7.5A7.5A 15A7.5A 15A 15A15A 25A7.5A

OPT.

LSU

OPT.

OPT. OPT.

HYD.

ECU

OPT.

OPT.OPT.OPT.

OPT.

N$291213

25A5A

F31F32

SPU

DIAG

OPT.

F32 - Diagnostic socket (5A).

- Hydraulic movement control unit (5A).

K0 - OPTION. K1 - Transmission cut-off relay. K2 - Transmission cut-off relay.

except MLT ... POWERSHIFT ...

K3 - Reverse gear relay. K4 - Forward gear relay.

except MLT ... POWERSHIFT ...

K5 - Buzzer. K6 - OPTION. K7 - OPTION. K8 - Safety system starting switch relay.

K9 - Flashing unit. K17 - Indicator module relay. K18 - Neutral security system switch relay.

K18

K17

F32

F31

- Lift the lid 2 of the tool box for access to fuse. F33 - Hydraulic control unit (1A).

MLT … LSU

- Remove the les casings 3 and 4 of the hydraulic control for access to relays.

K10 - OPTION Jib suspension cut-off. K11 - OPTION Jib suspension supply.

F33

K11

K10

2-24

11 - FUSES AND RELAYS UNDER THE ENGINE HOOD

Remove casing 1 and cover 2 for access to fuses and relays.

Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been repaired.

F40 - Key switch (40A).

- Key switch (80A).

F41 - Key switch (40A).

- Engine control unit (30A).

MLT … Turbo MLT … -120 MLT … Turbo

MLT … -120

F42 - Preheating I.C. engine (80A). F43 - Alternator (80A).

- Alternator (100A).

MLT … Turbo

MLT … -120

F47 - OPTION Fuel decongealant (15A).

K15 - OPTION Diesel decongealant.

MLT … Turbo

K16 - Engine preheating relay.

MLT … Turbo

F42

F43

F40

K16

F41

MLT ... Turbo ...

F42

F41

F43

F40

K16

MLT ... 120 ...

12 - DIAGNOSTIC CONNECTOR

MLT 735 -120 LSU Série 6-E3

2-25

13 - ACCELERATOR PEDAL

14 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF

The pedal applies on the front and rear wheels by an hydraulic brake system, and allows the lift truck to be slowed down and stopped. Depending on the position of the transmission cut-off switch, it enables the free travel to cut off transmission (see: 2

- DESCRIPTION: 5 - SWITCHES).

15 - GEAR LEVER AND TRANSMISSION CUT-OFF

4 2

In order to change speeds, it is necessary to cut the transmission by pressing the button 1 on the lever.

1st gear: to the right, backwards. 2nd gear: to the right, forwards. 3rd gear: to the left, backwards. 4th gear: to the left, forwards.

USING THE GEARS ON THE GEAR BOX

- On these lift trucks with a torque conver ter, it is not necessary to automatically start up in 1st speed and progress up the gears.

The choice of transmission gear ratio should be made carefully according to the nature of the work being carried out. A poor choice may result in the extremely rapid rise of the transmission oil temperature through excessive slipping of the converter, which could lead to serious damage to the transmission (it is essential to stop and change the working conditions if the transmission oil temperature indicator light comes on). This poor choice may also result in a reduction in the lift truck’s performance in forward gear. When the forward force increases, the forward speed in the r gear (for example, in 3rd gear) may be lower than the forward speed that could be obtained with the r-1 gear (in 2nd instead of 3rd).

In general, we would advise you to use the following gears according to the nature of the work being carried out.

• ON THE ROAD:

Set off in 3rd gear and go up to 4th if the conditions and state of the road permit it. In hilly areas, set off in 2nd gear and go up to 3rd if the conditions and state of the road permit it.

• WITH A TRAILER ON THE ROAD:

Set off in 2nd gear and go up to 3rd if the conditions and state of the road permit it.

• HANDLING:

3rd gear. 2nd gear in restricted spaces.

• LOADING (reclaiming with bucket, manure fork, etc.):

2nd gear.

• EARTH MOVING:

1st gear.

3 1

2-26

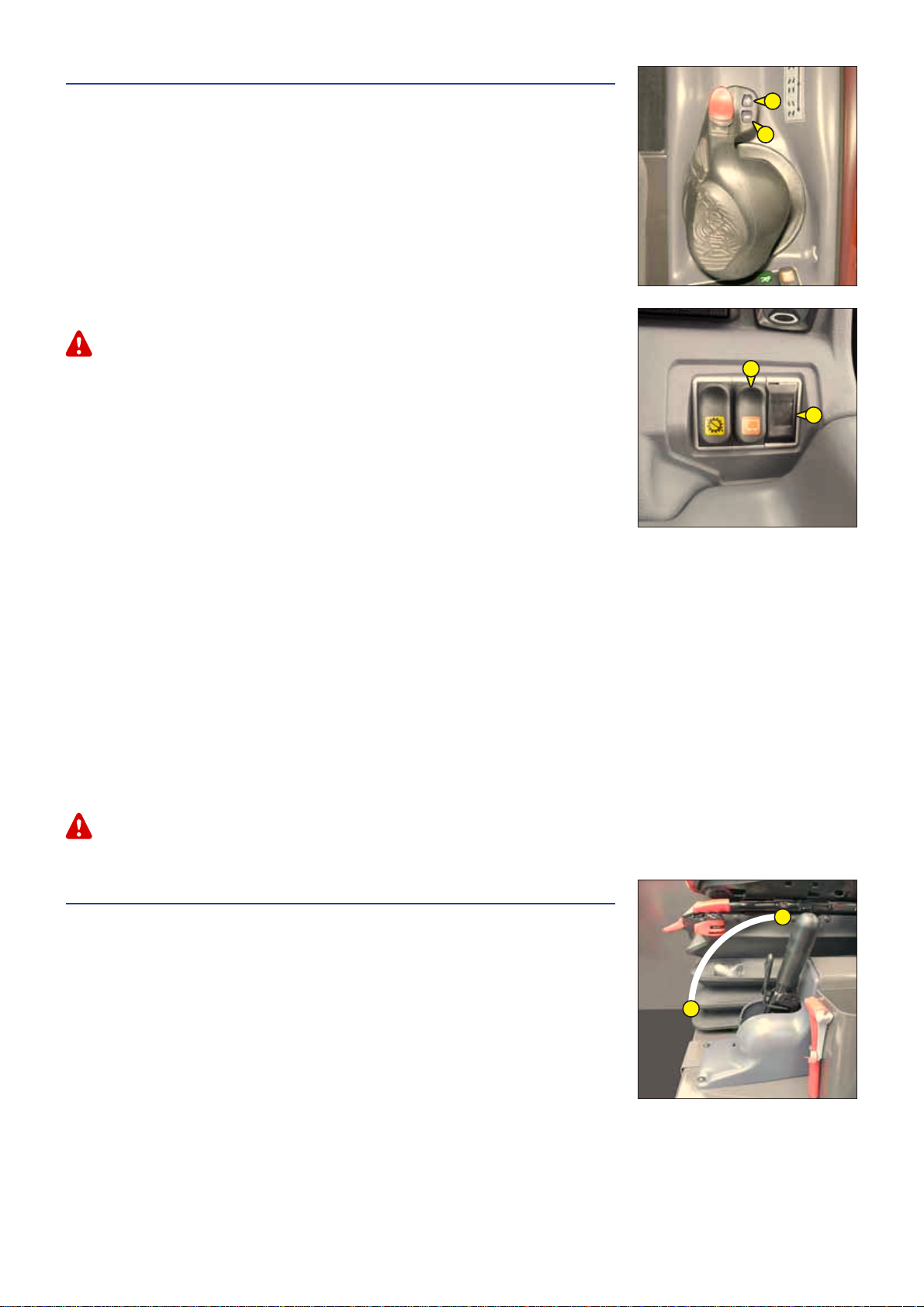

15 - GEAR SELECTOR

The gear is selected by means of buttons 1 and 2. The selected gear is indicated on the dial 3. There are 6 forward and 3 reverse gears available.

NOTE: When reversing, the selected gear remains the same, except for the 4th, 5th and

6th gears in forward motion which become 3rd gear in reverse motion.

USING THE GEARS ON THE GEAR BOX

- On these lift trucks with a torque converter, it is not necessary to automatically star t up in 1st speed and progress up the gears.

In general, we would advise you to use the following gears according to the nature of the work being carried out.

• ON THE ROAD:

Set off in 4th gear and go up to 5th and 6th if the conditions and state of the road permit it. In hilly areas, set off in 3rd gear and go up to 4th and 5th (the use of 6th gear is prohibited) if the conditions and state of the road permit it.

• WITH A TRAILER ON THE ROAD:

Set off in 2nd gear and go up through the gears to 5th if the conditions and state of the road permit it.

• HANDLING:

3rd, 4th or 5th gear (the use of the 6th gear is prohibited). 2nd gear in restricted spaces.

• LOADING (reclaiming with bucket, manure fork, etc.):

2nd gear.

• EARTH MOVING:

1st gear.

SWITCH FOR DISABLING 6TH GEAR

Switch 4 serves to enable or disable 6th gear and must be used when required for the task to be performed. When the lamp is lit, 6th gear is disabled.

This device must be used during handling, when towing a trailer and in hilly areas, to reduce the risk of the gear box overheating. Disabling 6th gear also guarantees that the speed limit will not be exceeded when towing a trailer.

16 - PARKING BRAKE LEVER

To prevent accidental loosening or release, the lever is fitted with safety locking.

- To apply the parking brake, pull the lever backwards (position A).

- To loosen the parking brake, release and push the lever forwards (position B).

2-27

17 - FORWARD/NEUTRAL/REVERSE GEAR SELECTION

FORWARD: Push the knob forward (position A). REVERSE: Pull the knob backwards (position B).

NEUTRAL: The knob must be in the intermediate position to star t the lift truck (position

C).

When operating this control, the lift truck should be travelling at slow speed and not accelerating.

NOTE: The reverse lights indicate that the lift truck is running in reverse motion. An

OPTIONAL audible reversing alarm can also be fitted.

SAFETY FOR MOVING THE LIFT TRUCK

Authorisation to move the lift truck is controlled by an electronic unit. The operator must observe the following sequence to move the truck forwards or backwards:

1 - sit down correctly in the driver’s seat, 2 - release the parking brake, 3 - engage forward or reverse movement.

To stop the lift truck, he must observe the following sequence:

1 - Set the forward/reverse selector to neutral, 2 - engage the parking brake, 3 - get out of the lift truck.

NOTE: If the operator leaves the driving cab with forward or reverse engaged, a continuous alarm will sound. While this alarm

sounds, the operator can simply sit back in the seat and continue advancing or reversing. If the alarm becomes discontinuous, the operator must sit back in the seat, put the forward/reverse selector back in neutral and select forward or reverse if he wishes to continue moving.

18 - STEERING SELECTION

A - GREEN WHEEL ALIGNMENT LAMPS

These lamps come on to indicate the alignment of the wheels in relation to the lift truck. Lamp A1 for the front wheels and lamp A2 for the rear wheels.

Before selecting one of the three possible steering positions, bring all 4 wheels into alignment with regards to the lift truck axle. Never change the steering mode whilst driving.

B - STEERING SELECTION LEVER

B1 - Front drive wheels (highway traffic).

B2 - Front and rear drive wheels in opposite direction (short steering lock).

B3 - Front and rear drive wheels in the same direction (crab steering).

C - SWITCH FOR ALIGNMENT OF THE WHEELS

This switch enables the use or not of the device for alignment of the wheels. The indicator light indicates its use.

CONTROL FOR ALIGNMENT OF THE WHEELS

- Connect the switch (signal light ON).

- Shift the steering selection lever B into position B2 (short steering lock).

- Turn the steering wheel and bring the rear wheels into alignment until lamp A2 lights up.

- Shift the steering selection lever B into position B1 (highway traffic).

- Turn the steering wheel and bring the front wheels into alignment until lamp A1 lights

up.

Before driving on roads, it is necessary to check the alignment of the rear wheels and to drive in front wheel steer. The control of the alignment of the rear wheels must be regularly done with the help of the green lamps, while driving the lift truck. In case of anomalies, consult your dealer.

2-28

19 - HYDRAULIC CONTROLS AND TRANSMISSION CUT-OFF

Do not attempt to alter the hydraulic system pressure by interfering with the pressure regulating valve. In the event of suspected malfunction, contact your dealer. ANY ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.

Use the hydraulic controls carefully without jerking, to avoid accidents caused byshaking the lift truck.

NOTE: When driving on the road, it is highly recommended (mandatory in Germany) that you cut-off all the hydraulic movements

(see: 2 - DESCRIPTION 7 - SWITCHES).

NOTE: If necessary use the steering to reset the hydraulic

control steering accumulator.

A - Lifting and tilting control lever. B - Telescoping control button. C - Attachment control button. D - Jib head electrovalve option control button.

LIFTING THE LOAD

- The lever A backwards when lifting.

- The lever A forwards when lowering.

TILT OF CARRIAGE

- The lever A to the left for reverse tilt.

- The lever A to the right for forward tilt.

TELESCOPING

- Button B forwards for extending.

- Button B backwards for retracting.

ATTACHMENT

- The button C forwards or backwards.

OPTION ELECTRIC PREDISPOSITION ON ELECTROVALVE

JIB AT HEAD JIB

- Button D (see: 2 - DESCRIPTION: DESCRIPTION AND USE OF ELECTRICAL AND HYDRAULIC OPTIONS).

TILTING CORRECTOR

- Button E to the left to tilt the lift truck to the left.

- Button E to the right to tilt the lift truck to the right.

NOTE: Tilt can be corrected up to a carriage articulation axle height of 3m50 above the

ground, with the jib retracted.

N°255968

2-29

20 - FUNCTION FILES

These files contain the description of the hydraulic controls and the load charts for the attachments used on the lift truck.

21 - LEVEL INDICATOR

Except for MLT 1035 L Turbo LSU Série 6-E3

Enables the operator to check that the lift truck is in the horizontal position.

21 - LEVEL INDICATORS

Only for MLT 1035 L Turbo LSU Série 6-E3

A - TILT INDICATOR

When the two marks are aligned, the chassis is parallel with the front axle.

B - SPIRIT LEVEL

Enables the operator to check that the lift truck is in the horizontal position.

22 - HEATER CONTROL

A - HEATING FAN CONTROL

This 3-speed control regulates warm or cold air through the heating ventilators.

B - HEATING TEMPERATURE CONTROL

Allows the temperature inside the cab to be adjusted.

B1 - With the valve closed, the fan delivers fresh air. B2 - With the valve opened completely, the fan delivers warm air.

The intermediate positions allow the temperature to be adjusted.

B1B2

2-30

22 - AIR CONDITIONING CONTROLS (OPTION AIR CONDITIONING)

The air conditioning only comes on when the forklift truck has been started up. When using your air conditioning, you must work with the doors and windows closed. In winter: So as to ensure correct operation and complete efficiency of the air conditioning unit, start up the compressor once a week, if only for a short spell, so as to lubricate the internal seals. In cold weather: Warm the I.C. engine before switching on the compressor, so as to allow the coolant that has collected in the liquid state at the lowest point of the compressor circuit to turn into gas under the effect of the heat given off by the I.C. engine, as the compressor is liable to be damaged by coolant in the liquid state.

If your air conditioning does not seem to be working properly, have it examined by your dealer (see: 3 - MAINTENANCE: F - EVERY 2000 HOURS OF SERVICE). Never try to repair any possible problems by yourself.

DESCRIPTION OF THE AIR CONDITIONING CONTROLS

A - Air conditioning system ON/OFF control switch with indicator lamp. Only works when control switch “C” set to 1, 2 or 3. B - Air temperature control. C - Air flow and fan speed control. When this control is set to “0” the air conditioning system will not work.

NOTE: Possible losses of water under the lift truck are due to condensate discharges caused by the drying effect of the

installation, especially with high outside temperatures and high relative humidity. For the air conditioning to perform properly, the air intakes must not be blocked by frost, snow or leaves. When the facility is running, at least one of the cab air grilles must be open so as to avoid any risk of freezing to the evaporator.

HEATING MODE

The controls must be adjusted in the following way:

A - Control with signal light off. B - At the required temperature. C - To the desired position 1, 2 or 3.

CBA

CONDITIONED AIR MODE

The controls must be adjusted in the following way:

A - Control with signal light on. B - At the required temperature. C - To the desired position 1, 2 or 3.

DEMISTING MODE

The controls must be adjusted in the following way:

A - Control with signal light on. B - At the required temperature. C - To the desired position 1, 2 or 3.

NOTE: Direct the ventilators onto the cab’s windows for increased efficiency.

23 - CAB FILTER VENTILATORS

See: 3 - MAINTENANCE: D - EVERY 500 HOURS SERVICE.

24 - WINDSCREEN DEMISTER VENTS

For optimum effectiveness, close the heating ventilators.

25 - HEATING VENTS

These heating vents enable the air to be directed to the interior of the cabin and onto the side windows.

2-31

26 - BRAKING OIL AND WINDSCREEN WASHER TANK ACCESS PANEL

- Loosen screw 1 and lift up the braking oil and windscreen washer tank access panel (see: 3 - MAINTENANCE: B - EVERY 50 HOURS OF SERVICE).

27 - STEERING WHEEL REGULATING HANDLE

This handle enables the angle and height of the steering wheel to be adjusted.

- Pull handle 1 to adjust the steering wheel.

- Push in handle 1 to lock the steering wheel in the desired position.

28 - DOOR LOCK

Two keys are provided with the lift truck to enable the cabin to be locked.

29 - LOCKING HANDLE FOR UPPER HALF-DOOR

30 - UNLOCKING BUTTON FOR UPPER HALF DOOR

31 - HANDLE FOR REAR WINDOW OPENING

EMERGENCY EXIT

Use the rear window as an emergency exit, in the event that it is impossible to leave the cab by the door or by opening the windscreen.

NOTE: There is an OPTIONAL rear window stay.

2-32

32 - DOCUMENT HOLDER

Ensure that the operator’s manual is in its place in the document holder.

33 - SUN VISOR

34 - OVERHEAD LIGHT

35 - HOOK

36 - CIGAR LIGHTER

For 12 V appliance and max. amperage 10A.

2-33

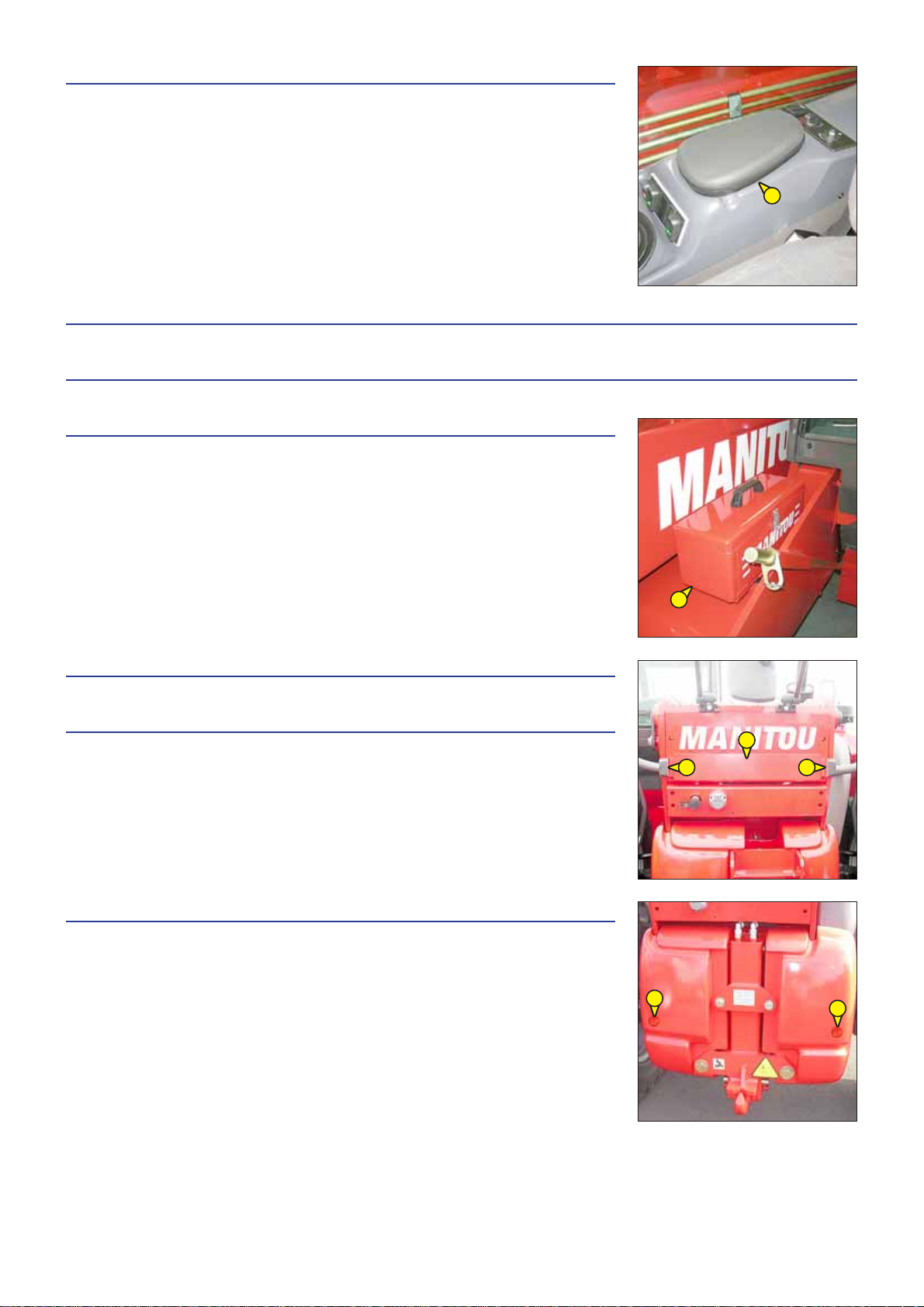

37 - ARMREST AND STORAGE

- Lift the armrest 1 to access the storage.

38 - CAR RADIO (OPTION)

39 - INSIDE REAR-VIEW MIRROR (OPTION)

40 - TOOL BOX

Except for MLT 1035 L Turbo LSU Série 6-E3

41 - NUMBER PLATE

42 - NUMBER PLATE LIGHTING

43 - REAR REFLECTORS

43 43

2-34

44 - FRONT HEADLIGHTS

A - Left front indicator. B - Left front dipped headlight. C - Left front main beam. D - Left front sidelight. E - Right front indicator. F - Right front dipped headlight. G - Right front main beam. H - Right front sidelight.

45 - REAR LIGHTS

A - Left rear indicator. B - Left rear stoplight. C - Left tail light. D - Left rear reverse light. E - Left rear fog light. F - Right rear fog light. G - Right rear reverse light. H - Right tail light. I - Right rear stoplight. J - Right rear indicator.

F G H I HA B C D E

46 - REVOLVING LIGHT

STANDARD

The revolving light pivots for space-saving on the lift truck and can be detached to prevent theft.

- Loosen nut 1 and remove the revolving light.

- Protect mounting 2 with cap 3.

OPTIONAL AIR CONDITIONING

The magnetic revolving light must be clearly visible on the roof of the cab and plugged-in to socket 1.

2-35

TOWING PIN AND HOOK

1 2

3 4

Located at the rear of the lift truck, this device is used to attach a trailer. Its capacity is limited for each lift truck by the Authorized Gross Vehicle Weight, tractive force and maximum vertical force on the coupling point.

- To use a trailer, see current regulations in your country (maximum running speed, braking, maximum weight of trailer, etc.).

- Verify the trailer’s condition before using it (tyre condition and pressures, electrical connection, hydraulic hose, brake system…).

Do not tow a trailer or attachment which is not in perfect working order. Using a trailer in poor condition may affect the lift truck’s steering and braking, and hence safety.

If a third party helps in coupling or uncoupling the trailer, this person must be permanently visible to the driver and wait until the lift truck has stopped, the handbrake is on and the I.C. engine is switched off before performing the operation.

NOTE: A rear-view mirror allows the lift truck to approach more closely to the trailer ring.

A - COUPLING FITTING

COUPLING AND UNCOUPLING THE TRAILER

- To couple the trailer, position the lift truck as close as possible to the trailer ring.

- Put the handbrake on and switch off the I.C. engine.

- Remove the clip 1, lift the trailer pin 2 and place or remove the trailer ring.

Be careful not to get your fingers caught or crushed during this operation. Do not forget to put clip 1 back in place. When uncoupling, make sure that the trailer is supported independently.

B - REAR ELECTRIC SOCKET

- Connect the male plug to the female socket 1 on the lift truck and make sure the lights of he trailer or the light bar are working properly.

1 - Rear left-hand indicator light. 2 - Rear fog lights. 3 - Earth. 4 - Rear right hand indicator light. 5 - Right rear light. 6 - Rear stop lights. 7 - Left rear light and number plate.

2-36

C - TRAILER BRAKE SYSTEM.

- Connect the brake hose to the provided brake unit 1 on the lift truck.

- Make sure the trailer brakes are working properly and test the effects of braking before taking the trailer onto the public highway.

D - CHASSIS-MOUNTED FRONT TOWING HOOK

COUPLING AND UNCOUPLING THE TRAILER

- To couple the trailer, position the lift truck as close as possible to the trailer ring.

- Put the handbrake on and switch off the I.C. engine.

- Remove the clip 1, lift the trailer pin 2 and place or remove the trailer ring.

Be careful not to get your fingers caught or crushed during this operation. Do not forget to put clip 1 back in place. When uncoupling, make sure that the trailer is supported independently.

E - COUPLING LADDER (OPTIONAL)

COUPLING AND UNCOUPLING THE TRAILER

- To couple the trailer, position the lift truck as close as possible to the trailer ring.

- Put the handbrake on and switch off the I.C. engine.

ON THE FIXED PIN

- Remove pin 1, remove rod 2 and raise latch 3.

- Insert or remove the trailer ring, lower latch 3 and refit rod 2.

Be careful not to get your fingers caught or crushed during this operation. Do not forget to put clip 1 back in place. When uncoupling, make sure that the trailer is supported independently.

ON THE COUPLING LADDER

- Set the coupling fitting 4 according to the height of the trailer ring.

Do not forget to put rods and clip back in place.

- Remove the clip 5, lift the trailer pin 6 and place or remove the trailer ring.

Be careful not to get your fingers caught or crushed during this operation. Do not forget to put clip 5 back in place. When uncoupling, make sure that the trailer is supported independently.

MLT 1035 L Turbo LSU Série 6-E3

2-37

F - HYDRAULIC TOWING HOOK (OPTION)

Never use the tow hook to raise the rear of the lift truck (when changing the rear wheel for example).

- Raise the hydraulic tow hook to release the hook lock 1 by pressing the upper part of switch 2.

- Pull the knob 3, retain this position and press the lower part of switch 2 to lower the tow hook.

- Release knob 3.

- Couple or uncouple the trailer.

When uncoupling, make sure that the trailer is supported independently.

- Raise the trailer hook by pressing the upper part of switch 2 and then lower the hook to verify that the lock pin is in proper contact with hook 1 lock.

G - AUTOMATIC TRAILER HOOK (OPTION)

COUPLING THE TRAILER

- Remove the automatic towing pin using lever 1.

- Move the lift truck backwards so that the trailer ring slots into the automatic hook.

NOTE: The pin closes automatically when the trailer ring touches the end of the fitting.

The pin can be lowered by hand using lever 1.

UNCOUPLING THE TRAILER

When uncoupling, make sure that the trailer is supported independently.

- Remove the pin using lever 1 to uncouple the trailer.

2-38

2-39

DESCRIPTION AND USE OF THE OPTIONS

1 - BATTERY CUT-OFF 2 - REVERSE BUZZER ALARM 3 - PREHEATING ELEMENT 4 - CLEANFIX SELF-CLEANING FAN 5 - MODCOD ANTI-THEFT SYSTEM 6 - FINTRONIC ANTI-START SYSTEM 7 - MODCLÉ ANTI-START SYSTEM 8 - ATTACHMENT HYDRAULIC CONTROL FORCED OPERATION 9 - JIB SUSPENSION 10 - ATTACHMENT EASY HYDRAULIC CONNECTION 11 - PROVISION FOR ELECTRICAL JIB 12 - JIB HEAD ELECTROVALVE 13 - HYDRAULIC ATTACHMENT LOCKING 14 - JIB HEAD ELECTROVALVE + HYDRAULIC ATTACHMENT LOCKING 15 - MACH2 QUICK-RELEASE COUPLER ON ACCESSORY CIRCUIT 16 - QUICK-RELEASE COUPLER MACH2 ON ATTACHMENT CIRCUIT + HYDRAULIC ATTACHMENT LOCKING 17 - EXTERIOR DRAIN BACK 18 - LIFTING RING ON SINGLE CARRIAGE 19 - ANGULAR SECTOR ON JIB 20 - SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION 21 - DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION + SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL

PREDISPOSITION

22 - HYDRAULIC TOWING HOOK + SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION

2-40

1 - BATTERY CUT-OFF

MLT ... -120 ...

2 - REVERSE BUZZER ALARM

3 - PREHEATING ELEMENT

Enables the engine to be kept warm during prolonged periods of stoppage and thus improves engine starting.

SUPPLY CHARACTERISTICS OF PREHEATING SYSTEM:

• Rated range of power: 220-240V; 50-60Hz

• Current consumed: 4,5A

• Equipment in class 1

• Equipment connectable only on feeder circuit TT or TN

• Category of insulation 2

ENVIRONMENTAL CONDITIONS FOR USE:

• Maximum ambient temperature for using preheating: +25°C

• Pollution level 2

MLT ... Turbo ...

CONDITIONS FOR CONNECTION AND USE OF PREHEATING:

- The preheating system should not be used for an external ambient temperature higher than + 25°C.

- It is essential that the power supply to the preheating system is:

• Effected with a cable that conforms to the installation standards in force and contains a protective earth conductor.

• Contains an appropriate sectioning system.

• Incorporate an appropriate safety system against short circuits (fuses or circuit breaker) and a differential circuit breaker with 30 mA sensitivity.

- Only connect to and disconnect from the power supply while the unit is off and the I.C. engine is stopped.

4 - CLEANFIX SELF-CLEANING FAN

This system, operated by switch 1, cleans the radiator core and the grille of the engine cover by reversing the air flow.

When in use, beware of the risk of projection into the eyes.

Position A: The indicator light is on, the fan

operates in self-cleaning mode for a few seconds once every 3 minutes.

Position B: The indicator light is off, the fan is

in normal operating mode.

2-41

5 - MODCOD ANTI-THEFT SYSTEM

OPERATION

- Switch on the lift truck: the red indicator 1 will flash.

- Enter your user code followed by “V” to validate: the green indicator 2 will come on.

- Start the lift truck within the next 60 seconds; otherwise the anti-theft system will be reactivated and the red indicator 1 will flash.

NOTE: If you make a mistake when entering the code, press key “A” to cancel and

re-enter the code in full. If you wait more than 5 seconds between key presses or do not complete entering the code, the anti-theft system will be reactivated and the red indicator will flash.

6 - FINTRONIC ANTI-START SYSTEM

OPERATION

- Switch on the lift truck and set the black key A next to the antenna B (maximum 80 mm).

- Wait a few seconds for red led C to go out before starting the lift truck.

NOTE: You can restart the lift truck within 20 seconds of stopping it: after this time,

the anti-start system reacts and led C flashes red.

2 1

7 - MODCLÉ ANTI-START SYSTEM

OPERATION

- Switch on lift truck ignition, red led 1 will flash.

- Apply key 2 to its base 3, and withdraw the moment the system emits a continuous beep, and led 1 turns green.

- Start the lift truck within the next 20 seconds; otherwise the anti-theft system will be reactivated and red led 1 will flash.

NOTE: You can restart the lift truck within 20 seconds of stopping it; after this time,

the anti-start system reacts and red led 1 flashes.

2-42

8 - ATTACHMENT HYDRAULIC CONTROL FORCED OPERATION

This OPTION must only be used with an attachment requiring continuous hydraulic movement of type: brush, supply bucket, mixer, spray… It is strictly forbidden in handling operations and at all other events (winch, crane boom, crane boom with winch, hook, etc.).

CONTINUOUS HYDRAULIC MOVEMENT OF THE ATTACHMENT

- Make sure the potentiometer C is set to 0%.

- Switch button A to the front or the back (depending on the type of attachment), press button B and release button A. The red indicator 1, flashes to indicate that it is in operation.

- Set the required flowrate using potentiometer C.

- To stop continuous hydraulic movement of the attachment, move switch A forwards or backwards or press button B. Indicator 1 goes out.

- Set potentiometer C to 0%.

Never leave the driver’s cab without resetting the potentiometer C to 0%. Before starting the lift truck, make sure the potentiometer is set to 0%.

NOTE: If the operator leaves the driver’s cab, the continuous hydraulic movement will

automatically stop and must be restarted.

9 - BOOM SUSPENSION

The boom is suspended to reduce shaking of the lift truck on rough ground (e.g. moving straw in a field).

OPERATION

- Set the forks or attachment on the ground and relieve the front wheels a few centimetres only.

- Press switch 1 set to position A, the visual indicator comes on indicating that boom suspension is activated.

- Press switch 1 set to position B, the visual indicator goes out indicating that boom suspension is deactivated.

Boom suspension is active to a lifting height of 3m00 from the axis of articulation of the carriage with respect to the ground with the boom retracted. When you move beyond this height or make another hydraulic movement (tilting, telescoping, attachment), boom suspension is momentarily deactivated and the visual indicator of switch 1 goes out.

- When the I.C. engine is off, boom suspension is automatically deactivated.

2-43

10 - ATTACHMENT EASY HYDRAULIC CONNECTION

For easily connecting and disconnecting the attachment.

OPERATION

- Press for two seconds on push-button 1 to release the attachment circuit hydraulic pressure.

- Connect or disconnect the rapid connectors of the hydraulic attachment (see: 4 - OPTIONAL ATTACHMENTS FOR USE WITH THE RANGE: PICKING UP THE ATTACHMENTS).

11 - PROVISION FOR ELECTRICAL JIB

Enables an electrical function to be used at the head

of the jib foot.

ELECTRIC JIB FUNCTION CONTROL

- Set switch 1 to position B (indicator light on).

- Hold button 2 down and button 3 forwards or backwards.

NOTE: Set switch 1 to position A (indicator light

off) controls the hydraulic attachment line (see: 2 - DESCRIPTION: 20 - HYDRAULIC AND TRANSMISSION CUT-OFF CONTROLS).

12 - JIB HEAD ELECTROVALVE

Enables use of two hydraulic functions on the attachment circuit.

To make connection of the rapid connectors easier, decompress the hydraulic circuit by pressing button 1 on the electrovalve.

ATTACHMENT LINE L1 CONTROL

- Set switch 2 to position A (indicator light off).

- Push button 3 forward or backward.

ATTACHMENT LINE L2 CONTROL

- Set switch 2 to position B (indicator light on).

- Hold button 4 down and push button 3 forwards or backwards.

2-44

13 - HYDRAULIC ATTACHMENT LOCKING

Enables the attachment to be locked onto the carriage and a hydraulic attachment to be used by the same hydraulic circuit.

ATTACHMENT LOCKING CONTROL

- Set valve 1 to position A and place switch 2 in position B (indicator light on).

- Push button 3 forward to lock the attachment and backward to release it.

After locking the attachment, return switch 2 to position A (indicator light off) to prevent accidental release of the attachment.

HYDRAULIC ATTACHMENT CONTROL

- Set valve 1 to position B and press switch 2 in position B (indicator light on).

- Push button 3 forward or backward.

14 - JIB HEAD ELECTROVALVE + HYDRAULIC ATTACHMENT LOCKING

The addition of these two options on the attachment line allows two hydraulic functions to be used and locks the attachment onto the carriage.

To make connection of the rapid connectors easier, decompress the hydraulic circuit by pressing button 1 on the electrovalve.

ATTACHMENT LINE L1 CONTROL

- Set switch 2 to position A (indicator light off).

- Push button 3 forward or backward.

ATTACHMENT LINE L2 CONTROL + HYDRAULIC ATTACHMENT LOCKING

LOCKING AN ATTACHMENT

- Set valve 4 to position A.

- Set switch 2 to position B (indicator light on).

- Hold button 5 down and push button 3 for ward to lock the attachment and backward to release it.

Once the attachment is locked, return valve 4 to position B to prevent accidental release of the attachment.

HYDRAULIC ATTACHMENT

- Set switch 2 to position B (indicator light on).

- Hold button 5 down and push button 3 forwards or backwards.

2-45

15 - MACH2 QUICK-RELEASE COUPLERS ON ACCESSORY CIRCUIT

Enables the use of a hydraulic attachment fitted with MACH2 quick-release couplers.

CONNECTING A HYDRAULIC ATTACHMENT

- Lower lever 1 and valve 2 and connect the MACH2 quick-release couplers on the attachment.

- Lift up lever 1 to lock the connection.

NOTE: A foolproofing device prevents the connection inversion.

DISCONNECTING A HYDRAULIC ATTACHMENT

- Lower lever 1 and disconnect the MACH2 quick-release couplers from the attachment.

- Lift up lever 1.

16 - MACH2 QUICK-RELEASE COUPLER MACH2 ON ATTACHMENT CIRCUIT +

HYDRAULIC ATTACHMENT LOCKING

Enables the locking of the attachment on the carriage to be controlled and a hydraulic attachment with MACH2 quick-release couplers to be used (see: 2 - DESCRIPTION: 14 - HYDRAULIC ATTACHMENT LOCKING and 15 - MACH2 QUICK-RELEASE COUPLERS ON ATTACHMENT CIRCUIT).

17 - EXTERIOR DRAIN BACK

Enables connection of a hydraulic attachment for which drain-back is required.

2-46

18 - LIFTING RING ON SINGLE CARRIAGE

CONDITIONS OF USE

Follow the instructions given in the instruction manual (see: 1 - OPERATING

AND SAFETY INSTRUCTIONS: INSTRUCTIONS FOR HANDLING LOADS).

- The lifting ring must be used WITHOUT FORKS AND ATTACHMENTS, but the angle of inclination of the carriage must be same as when the forks are used in the horizontal position.

- Do not change the angle of the carriage while using the lifting ring.

- The lifting hook, the chains and slings shall have a minimum capacity of 3000 kg with a factor of safety against breakage of 4.

N°265284

Kg Kg

Kg Kg Kg

Kg Kg

HANDLING WITH NO MOVEMENT OF THE LIFT TRUCK

- Whether on stabilisers or on tyres, the lateral attitude must not exceed 1 % and the longitudinal attitude must not exceed 8,75 % (5°).

- The bubble of the level indicator must remain within the outer circle and be centred in the longitudinal direction.

HANDLING WITH MOVEMENT OF THE LIFT TRUCK

- The lateral attitude must not exceed 8,75 % (5°). The bubble must remain within the outer circle.

2-47

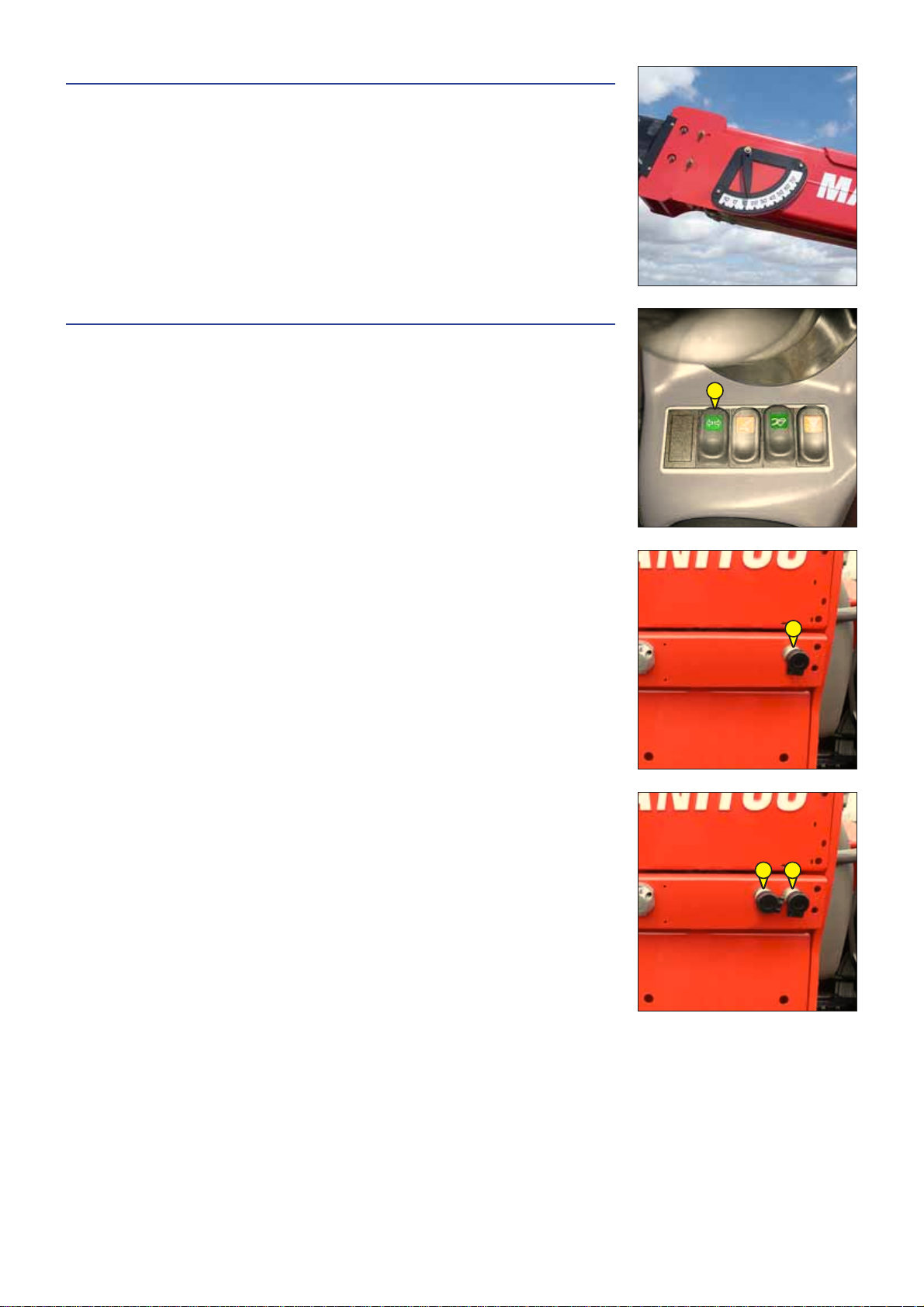

19 - ANGULAR SECTOR ON JIB

The angular sector displays the jib angle, and thus improves the reading of the load charts.

20 - SINGLE OR DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION

Enables the use of a hydraulic attachment at the rear of the lift truck (e.g. a trailer with hydraulic tipping).

SINGLE EFFECT HYDRAULIC CONTROL L1

- Press switch 1 downwards to supply the rear hydraulic attachment.

DUAL EFFECT HYDRAULIC CONTROL L1

- Press switch 1 upwards or downwards to supply the rear hydraulic attachment.

L1 L1

2-48

21 - DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION + SINGLE

OR DUAL EFFECT REAR HYDRAULIC CONTROL PREDISPOSITION

Enables the use of a hydraulic attachment at the rear of the lift truck or another hydraulic attachment at the rear of the lift truck.

DUAL EFFECT L1 AND SINGLE EFFECT L2 REAR HYDRAULIC CONTROL

DUAL EFFECT ATTACHMENT L1

- Set switch 1 to position A (indicator light off).

- Press switch 2 upwards or downwards to supply the rear hydraulic attachment.

SINGLE EFFECT ATTACHMENT L2

- Set switch 1 to position B (indicator light on).

- Press switch 2 downwards to supply the rear hydraulic attachment.

L2 L1 L1

DUAL EFFECT L1 AND DUAL EFFECT L2 REAR HYDRAULIC CONTROL

DUAL EFFECT ATTACHMENT L1

- Set switch 1 to position A (indicator light off).

- Press switch 2 upwards or downwards to supply the rear hydraulic attachment.

DUAL EFFECT ATTACHMENT L2

- Set switch 1 to position B (indicator light on).

- Press switch 2 upwards or downwards to supply the rear hydraulic attachment.

L2 L1 L1L2

2-49

22 - HYDRAULIC TOWING HOOK + SINGLE OR DUAL EFFECT REAR HYDRAULIC

CONTROL PREDISPOSITION

Enables the use of the trailer eye (see: 2 - DESCRIPTION: TRAILER PIN AND HOOK) or a hydraulic attachment at the rear of the lift truck.

HYDRAULIC TRAILER HOOK + SINGLE EFFECT REAR HYDRAULIC CONTROL L1

HYDRAULIC TRAILER HOOK

- Set switch 1 to position A (indicator light off).

- Press switch 2 upwards or downwards to use the hydraulic trailer hook (see: 2 - DESCRIPTION: TRAILER PIN AND HOOK: F - HYDRAULIC TRAILER HOOK).

SINGLE EFFECT ATTACHMENT L2

- Set switch 1 to position B (indicator light on).

- Press switch 2 downwards to supply the rear hydraulic attachment.

HYDRAULIC TRAILER HOOK + DUAL EFFECT REAR HYDRAULIC CONTROL L1

HYDRAULIC TRAILER HOOK

- Set switch 1 to position A (indicator light off).

- Press switch 2 upwards or downwards to use the hydraulic trailer hook (see: 2 - DESCRIPTION: TRAILER PIN AND HOOK: F - HYDRAULIC TRAILER HOOK).

DUAL EFFECT ATTACHMENT L2

- Set switch 1 to position B (indicator light on).

- Press switch 2 upwards or downwards to supply the rear hydraulic attachment.

L1 L1

2-50

2-51

Manitou MLT735 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
