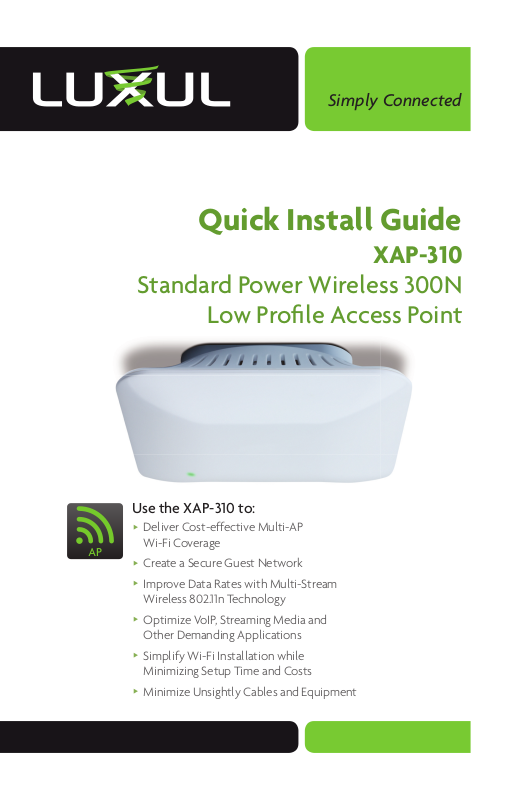

Luxul XAP-310 User Manual

Simply Connected
Quick Install Guide
XAP-310
Standard Power Wireless 300N
Low Profi le Access Point
Use the XAP-310 to:
Deliver Cost-effective Multi-AP Wi-Fi Coverage
Create a Secure Guest Network
Improve Data Rates with Multi-Stream Wireless 802.11n Technology
Optimize VoIP, Streaming Media and Other Demanding Applications
Simplify Wi-Fi Installation while Minimizing Setup Time and Costs
Minimize Unsightly Cables and Equipment
XAP-310
Quick Install Guide
Quick Install Guide
Model Number: XAP-310 Wireless 300N Low Profile Access Point
FCC ID: W59XAP310 IC: 8584A-XAP310
© 2015 Luxul. All Rights Reserved.
No part of this publication may be modified or adapted in any way, for any purposes without permission in writing from Luxul. The material in this manual is subject to change without notice. Luxul reserves the right to make changes to any product to improve reliability, function, or design. No license is granted, either expressly or by implication or otherwise under any Luxul intellectual property rights. An implied license only exists for equipment, circuits and subsystems contained in this or any Luxul product.
DOCUMENT CONVENTIONS
These graphical alerts are used in this document to indicate notable situations:
NOTE: Tips, hints, or special requirements that you should take note of.
CAUTION: Care is required. Disregarding a caution can result in data
loss or equipment malfunction.
WARNING!: Indicates a condition or procedure that could result in
personal injury or equipment damage.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CONTACT LUXUL
Sales
P: 801-822-5450 E: sales@luxul.com
2
14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
Technical Support
P: 801-822-5450 E: support@luxul.com
LUX-QIG-XAP-310 029150954
PACKAGE CONTENTS
The following items should be included in the box:
One: XAP-310 Wireless AP
One: Mounting Bracket and Hardware
One: PoE Injector and Power Cord
One: Ethernet Cables
One: Quick Install Guide
NOTE: If any of the listed items are missing or damaged, please contact
the reseller from whom you purchased for return/replacement.
HARDWARE DESCRIPTION
XAP-310 LED
XAP-310 front LED
Simply Connected
XAP-310 LED Indicators
Name Status Function
Power
On The XAP-310 is powered and working properly.
Off The XAP-310 is not receiving power or the LED has been
turned off in the AP’s software interface.
Blinking The XAP-310 is booting up.
XAP-310 Rear Ports
XAP-310 Rear Ethernet port
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
3
XAP-310
Quick Install Guide
PoE Injector LED Indicators
Name
PWR
Status Function
On Power is connected to the injector
Off Injector is not receiving power
PREPARING FOR INSTALLATION
System and Power Requirements
Computer with supported Web browser. Minimum supported web browser versions include: I.E. 9.0, Firefox 7, Safari 5.0, Chrome 14 and up. The Web browser is used to confi gure the XAP-310.
The POE injector power supply requires AC100V ~ 240V, 50Hz ~ 60Hz.
XAP-310 INSTALLATION
Access Point Placement
The XAP-310 access point is designed for simple and effi cient installation and setup. It can be mounted on the ceiling, wall or placed on a desktop or other fl at surface. Because the signal generated by the XAP-310 is omnidirectional, the unit should be mounted on a ceiling or wall directly in the center of the desired cover-
age area.
XAP-310 Coverage Pattern
Ceiling and Wall Mounting
The XAP-310 comes with a square mounting bracket to mount it to the wall or ceiling. Use the Mounting Pattern (Page 6-7) for mounting bracket alignment.
4
14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
LUX-QIG-XAP-310 029150954
XAP-310 mounted on a ceiling XAP-310 mounted on a wall
Desktop Installation
Place on any fl at surface
Simply Connected
XAP-310 on a desktop or fl at surface
Connecting the Ethernet Cable
With the XAP-310 properly mounted, you can now plug the Ethernet Cable into the RJ-45 connector.
NOTE: Category-5, super Category-5 or Category-6 unshielded twisted
pair (CAT5/CAT5e/CAT6 UTP) cables can be used. For best results, it is recommended that Category-6 shielded twisted pair be used to ensure stable data transmission at highest data rates.
Connecting to the Power Source
The XAP-310 is PoE ready and supports 802.3af PoE. A PoE injector is included with the device. To apply power, simply connect the opposite end of the Ethernet cable to which the access point is already connected to the provided PoE injector or other PoE switch or injector. An Ethernet cable length of up to 300 feet can be used. DO NOT yet apply power to the PoE injector or switch.
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
5
MOUNTING PATTERN
XAP-310
Quick Install Guide
PoE Injector Setup
Data In: Connect an Ethernet cable from your router or switch to the Data In port of the included PoE Injector
Data & PWR Out: Connect an Ethernet cable from the Data & PWR Out port of the included PoE Injector to the PoE Port of the XAP-310
AC Power: Connect the included AC Cord to the Power Input of the Included Injector first and then to the AC outlet.
NOTE: The XAP-310 is not a router and will need to be connected to a
network with a router in order to deliver Internet access.
XAP-310
DATA & PWR OUT
DATA IN
POE
Injector
From your Router or Switch
The PoE Injector combines power and data to the XAP-310
CAUTION: Because the XAP-310 is a High-Powered access point it is
NOTE: The XAP-310 is designed to work with any 802.3af power
NOTE: The XAP-310 can also be powered by direct AC power. Contact
normal for it to be warm to the touch
source.
Luxul to purchase an AC Power Adapter.
Power
Source
8
14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
LUX-QIG-XAP-310 029150954
Simply Connected
CONFIGURATION
Default IP Address
The XAP-310 is not equipped with an internal DHCP server. If connected to a Luxul Router, configuration will be automatic. Otherwise, the IP address of the computer for login and configuration will need to be manually configured. The table below lists the default parameters of the XAP-310.
Parameter:
Default IP address:
Default user name:
Default password:
Default Value
192.168.0.10
admin
admin
The Luxul XAP-310 default IP addresss is 192.168.0.10. If the IP address of your router is not set to the 192.168.0.X network, a temporary static IP address must be set on the computer being used for configuration. To do so, set the IP address of the com­puter to the 192.168.0.X range and then use the default IP address of your XAP-310 as the Gateway/Router. Once configured, set the computer IP configuration back to “Obtain Automatically/DHCP.”
NOTE: Go to http://luxul.com/how-to-videos for videos about
changing the IP address of your Operating System.
Connect a Client Device
Connecting a Wireless Client Device: Connect the client device to the XAP-310 default wireless network Luxul310. Wireless network will run in Open Security mode. A passphrase is not required until Wireless Security is configured.
Connecting an Ethernet Device: Use Ethernet cable to connect your computer or device to one of the XAP-310 LAN ports.
Login
Login to the XAP-310 with the following steps:
1. Open a Web browser, and enter 192.168.0.10. The access point login screen will appear.
2. Enter the user name and password (default user name and default password are both set as “admin”), and then click “OK” to login to the access point configuration interface.
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
9
XAP-310
Quick Install Guide
ADVANCED SETTINGS
For advanced settings information go to luxul.com
WARNINGS AND SAFETY INFORMATION
Verify that the electrical circuits have appropriate grounding and overload protection.
Attach only approved power cords to the device.
Verify there is adequate ventilation around the device, and that ambient temperatures meet equipment operation specifications.
The XAP-310 is designed for indoor use only. DO NOT place this outdoors.
DO NOT install in or near hot or humid places, such as a kitchen or bathroom. Take care to minimize exposure to excessive heat or moisture.
Small parts and plastic bags used for packaging may be harmful to small children. KEEP All ACCESSORIES OUT OF THE REACH OF CHILDREN!
The XAP-310 may become hot when in use for extended time periods. This is normal and is not a malfunction. DO NOT install where it will be exposed to paper, cloth or other flammable materials.
REGULATORY COMPLIANCE
The device complies with internationally recognized standards covering human exposure to elec­tromagnetic fields from radio devices. This equipment also complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
Unauthorized antennas, modifications, or attachments could cause damage and may violate regula­tory approvals. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate the equipment.
The equipment version marketed in the U.S. is restricted to usage of channels 1-11 only.
Health and Safety Recommendations
Warnings for the use of Wireless Devices: Please observe all warning notices with regard to the usage of wireless devices
Potentially Hazardous Atmospheres: You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc. and areas where the air contains chemicals or particles (such as grain, dust, or metal powders).
Safety in Hospitals: Wireless devices transmit radio frequency energy and may affect medical electrical equipment. When installed adjacent to other equipment, it is advised to verify that the adjacent equipment is not adversely affected.
RF Exposure Guidelines
Safety Information: The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices.
10
14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685 | luxul.com | 801-822-5450
LUX-QIG-XAP-310 029150954
Simply Connected
Warning: Exposure to Radio Frequency (RF) Radiation:
The radiated output of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized.
The end user must avoid any extended human RF exposure directly in front of the device, up to a distance of 20cm, when unit is on.
When servicing the equipment and selecting a location for the antennas, it is important to note that a minimum distance of 20cm is required between personnel and the device or antenna to comply with the radio frequency exposure limit.
The antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
The following safety precautions should be observed:
Do not touch or move the antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is connected; this behavior may cause damage to the radio.
FCC Statement—Wireless FCC 2.4GHz 802.11bgn
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
© 2015 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
11
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ­ment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
NOTE: (1)The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable
Hereby, Luxul, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020, declares that this Luxul XAP-310 is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC.
For a copy of this report send a self addressed stamped envelope to: Luxul CE, 14203 Minuteman Drive, Suite 201, Draper, Utah, 84020.
Industry Canada (RSS-Gen Issue 4)
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interfer­ence, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compli­ance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l’exemption des limites courantes d’évaluation dans la section 2.5 de RSS 102 et la conformité à l’exposition de RSS-102 rf, utilisateurs peut obtenir l’information canadienne sur l’exposition et la conformité de rf.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmit­ter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu’aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps.
CAN ICES-3(B)/NMB-3(B)
Information on this document supersedes all previous versions. Products and documents
subject to change without notice. Products may be discontinued without notice.
LUX-QIG-XAP-310 029150954
14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685
luxul.com | 801-822-5450
