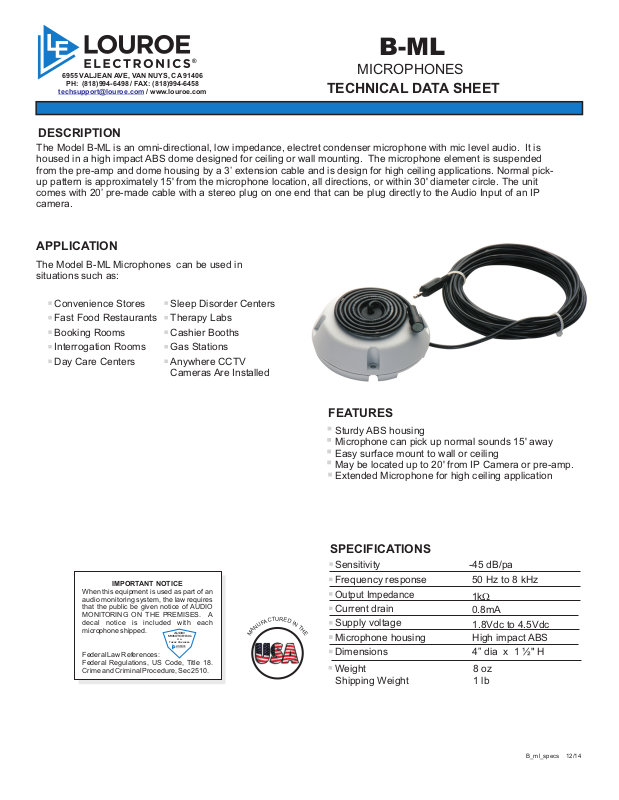

B-ML
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
TECHNICAL DATA SHEET
DESCRIPTION
The Model B-ML is an omni-directional, low impedance, electret condenser microphone with level audio. It is
housed in a high impact ABS dome designed for ceiling or wall mounting. The microphone element is suspended
from the pre-amp and dome housing by a 3’ extension cable and is design for high ceiling applications. Normal pickup pattern is approximately 15' from the microphone location, all directions, or within 30' diameter circle. The unit
comes with 20’ pre-made cable with a stereo plug on one end that can be plug directly to the Audio Input of an IP
camera.
APPLICATION
The Model B-ML Microphones can be used in
situations such as:
MICROPHONES
mic
Convenience Stores
Fast Food Restaurants
Booking Rooms
Interrogation Rooms
Sleep Disorder Centers
Therapy Labs
Cashier Booths
Gas Stations
Day Care Centers Anywhere CCTV
Cameras Are Installed
IMPORTANT NOTICE
When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l n otice is included with each
microphone shipped.
Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.
AUDIO
MONITORING
On
These Premises
®
FEATURES
Sturdy ABS housing
Microphone can pick up normal sounds 15' away
Easy surface mount to wall or ceiling
May be located up to 20' from IP Camera or pre-amp.
Extended Microphone for high ceiling application
SPECIFICATIONS
Sensitivity
Frequency response
Output Impedance
Current drain
R
U
T
E
D
C
A
I
F
U
N
A
M
N
T
H
E
Supply voltage
Microphone housing High impact ABS
Dimensions
Weight
Shipping Weight
-45 dB/pa
50 Hz to 8 kHz
1kW
0.8mA
1.8Vdc to 4.5Vdc
4” " dia x 1 ½ H
8 oz
1 lb
B_ml_specs 12/14
