Louroe Electronics ASK-4 KIT #501 User Manual

L

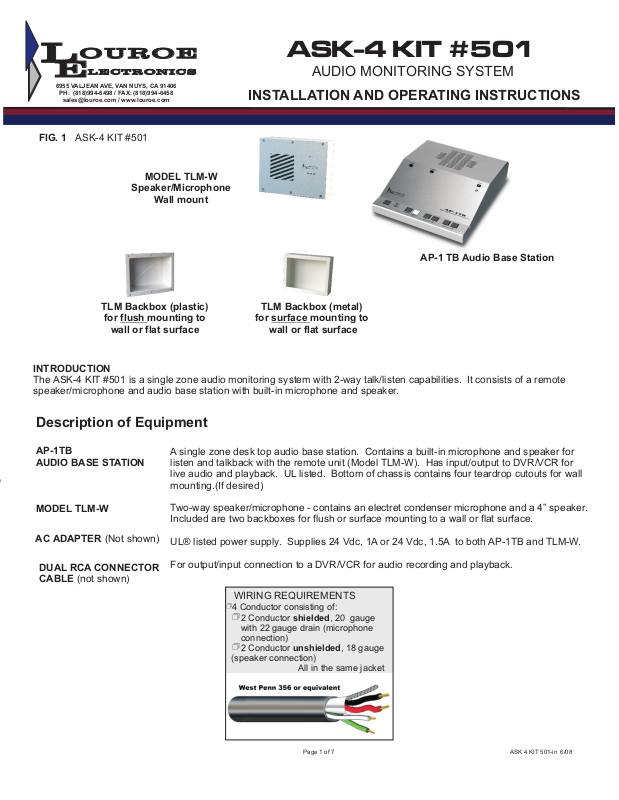

FIG. 1 ASK-4 KIT #501

OUROE

E

6955 VALJEAN AVE, VAN NUYS, CA 91406

LEC TRON ICS

PH: [phone] / FAX: [phone]

[e-mail] / www.louroe.com

Speaker/Microphone

ASK-4 KIT #501

AUDIO MONITORING SYSTEM

INSTALLATION AND OPERATING INSTRUCTIONS

MODEL TLM-W

Wall mount

AP-1 TB Audio Base Station

TLM Backbox (plastic)

for flush mounting to

wall or flat surface

INTRODUCTION

The ASK-4 KIT #501 is a single zone audio monitoring system with 2-way talk/listen capabilities. It consists of a remote
speaker/microphone and audio base station with built-in microphone and speaker.

TLM Backbox (metal)

for surface mounting to

wall or flat surface

Description of Equipment

AP-1TB
AUDIO BASE STATION

MODEL TLM-W

AC ADAPTER

DUAL RCA CONNECTOR
CABLE (not shown)

(Not shown)

A single zone desk top audio base station. Contains a built-in microphone and speaker for
listen and talkback with the remote unit (Model TLM-W). Has input/output to DVR/VCR for
live audio and playback. UL listed. Bottom of chassis contains four teardrop cutouts for wall
mounting.(If desired)

Two-way speaker/microphone - contains an electret condenser microphone and a 4” speaker.
Included are two backboxes for flush or surface mounting to a wall or flat surface.

UL® listed power supply. Supplies 24 Vdc, 1A or 24 Vdc, 1.5A to both AP-1TB and TLM-W.

For output/input connection to a DVR/VCR for audio recording and playback.

WIRING REQUIREMENTS

+

4 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)

+

2 Conductor unshielded, 18 gauge

(speaker connection)

All in the same jacket

Page 1 of 7

ASK 4 KIT 501-in 6/08

DESCRIPTION OF PARTS

1

INSTALLATION AND OPERATING INSTRUCTIONS

13

9

10

12

11

2

3

L

O

U

R

O

E

E

L

V

E

a

n

CT

N

R

u

O

y

s,

N

I

C

CS

M

A

a

9

d

14

e

I

05

n

U

.

S

.

A

.

®

L

I

S

T

E

D

C

o

m

m

C

er

C

ci

T

al

V

E

q

u

i

p

m

e

82C

n

t

K

A

B

C

S

P

G

Z

O

P

N

E

1

4

5

A

UD

I

N

6

7

IO

O

U

T

8

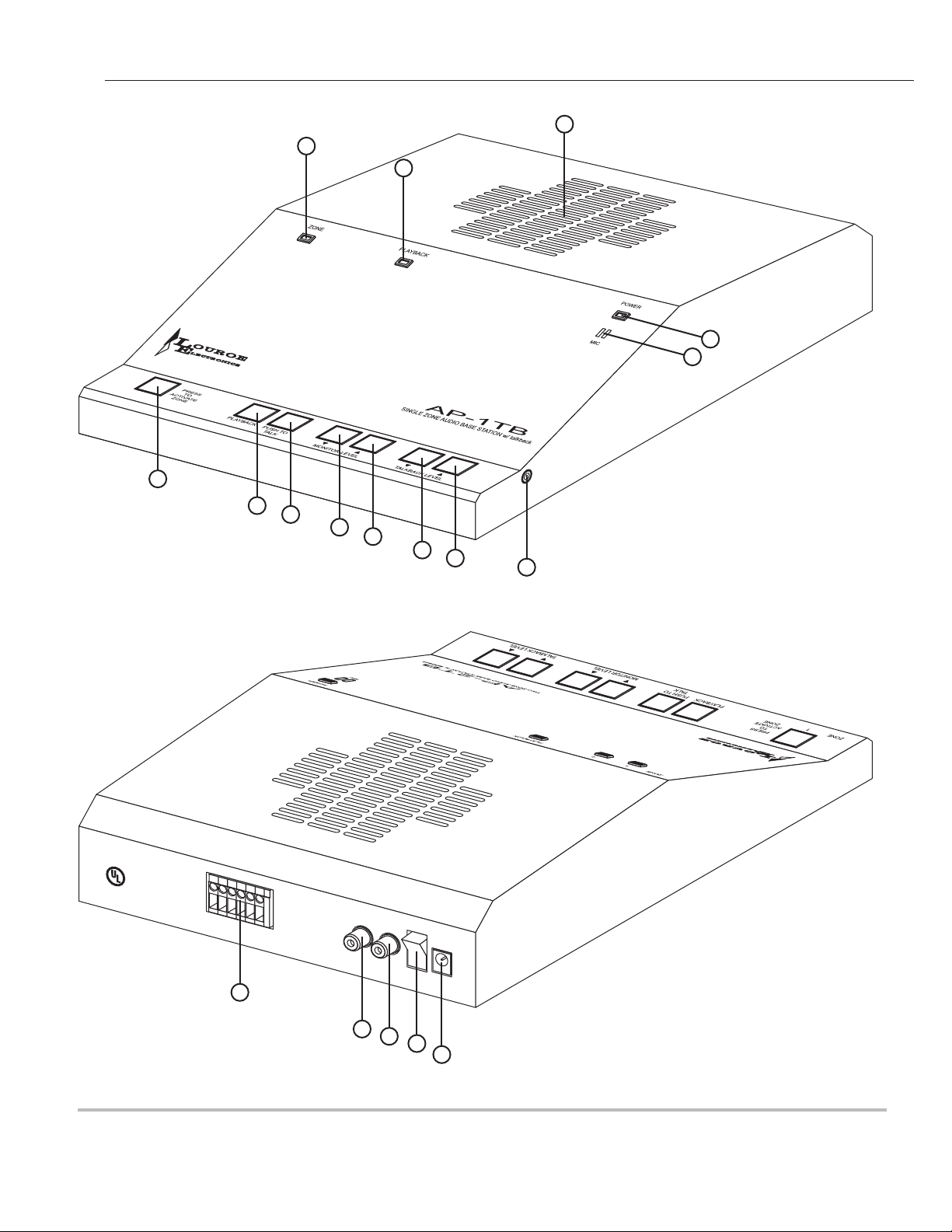

FIG. 2 Front of AP-1TB

Base Station

PO

W

ER

24

V

d

14

15

16

c

17

18

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

FIG. 3 Rear of AP-1TB

Base Station

(818)

Website: www.louroe.com Email: [e-mail]

Page 2 of 7

ASK 4 KIT 501-in 6/08

INSTALLATION AND OPERATING INSTRUCTIONS

DESCRIPTION OF PARTS

[1] Press to Activate Zone Switch Pressing switch activates the system for listen and talkback. Zone

Indicator LED [9] illuminates. Press switch again to de-activate the

system. Zone indicator LED will turn off.

[2] DVR/VCR Playback Switch Press switch for audio playback from a recorder. The Playback LED[10]

is illuminated. During this time, live communication (listen mode) is turned
off. Pressing switch again cancels playback mode and Playback

LED[10] turns off.

[3] Talkback Switch Press to activate and to communicate with the remote Louroe

speaker/microphone. Hold down switch while talking. Microphone at
remote location (TLM-W) is muted while speaking from the AP-1TB.

[4] Monitor Volume DOWN Control Switch Press to decrease the level of audio from the Monitor Speaker[13].

Continue to press and release until desired level of volume is attained.
Pressing and holding down will not change volume.

[5] Monitor Volume UP Control Switch Press to increase the level of audio from the Monitor Speaker[13]

Continue to press and release until desired level of volume is attained.
Pressing and holding down will not change volume.

[6] Talkback Volume DOWN Control Switch Press to decrease the level of audio at the remote speaker (TLM-W).

Continue pressing switch until desired level of audio is attained. Pressing
and holding down will not change volume.

[7] Talkback Volume UP Control Switch Press to increase the level of audio at the remote speaker Model TLM-W.

Continue pressing switch until desired level of volume is attained.
Pressing and holding down will not change volume.

[8] HeadphoneJack Used for private listening. Any 3.5mm stereo headphone with a 8Ω to

600Ω impedance may be used. Mutes speaker output when in use.

[9] Zone Indicator LED Illuminates when a zone is activated. Audio from microphone is present at

the Monitor Speaker[13].

[10] Playback Indicator LED Illuminates when in playback mode. Remains lighted until the Playback

Switch[2] is again pressed.

[11] Talkback MIC Built-in microphone for talkback to remote TLM-W.

[12] Power Indicator LED Indicates power is present at the AP-1TB.

[13] Monitor Speaker Speaker output. Muted when a headphone is connected to the

Headphone Jack[8].

[14] MIC 6-Pin Terminal Block Connects to Model TLM-W speaker/microphone at the remote location.

[15] Audio-IN Jack Receives audio from an external source (recorded playback from a DVR

or VCR).

[16] Audio-OUT Jack Passes audio to an external receiver (DVR, VCR, etc.)

[17] Power Switch Provides power to the unit.

[18] DC-IN Jack Accepts 24 Vdc from external power supply (AC Adapter included).

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

Website: www.louroe.com Email: [e-mail]

Page 3 of 7

ASK 4 KIT 501-in 6/08

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

FOR

MODEL TLM-W SPEAKER/MICROPHONE

AND AP-1TB BASE STATION

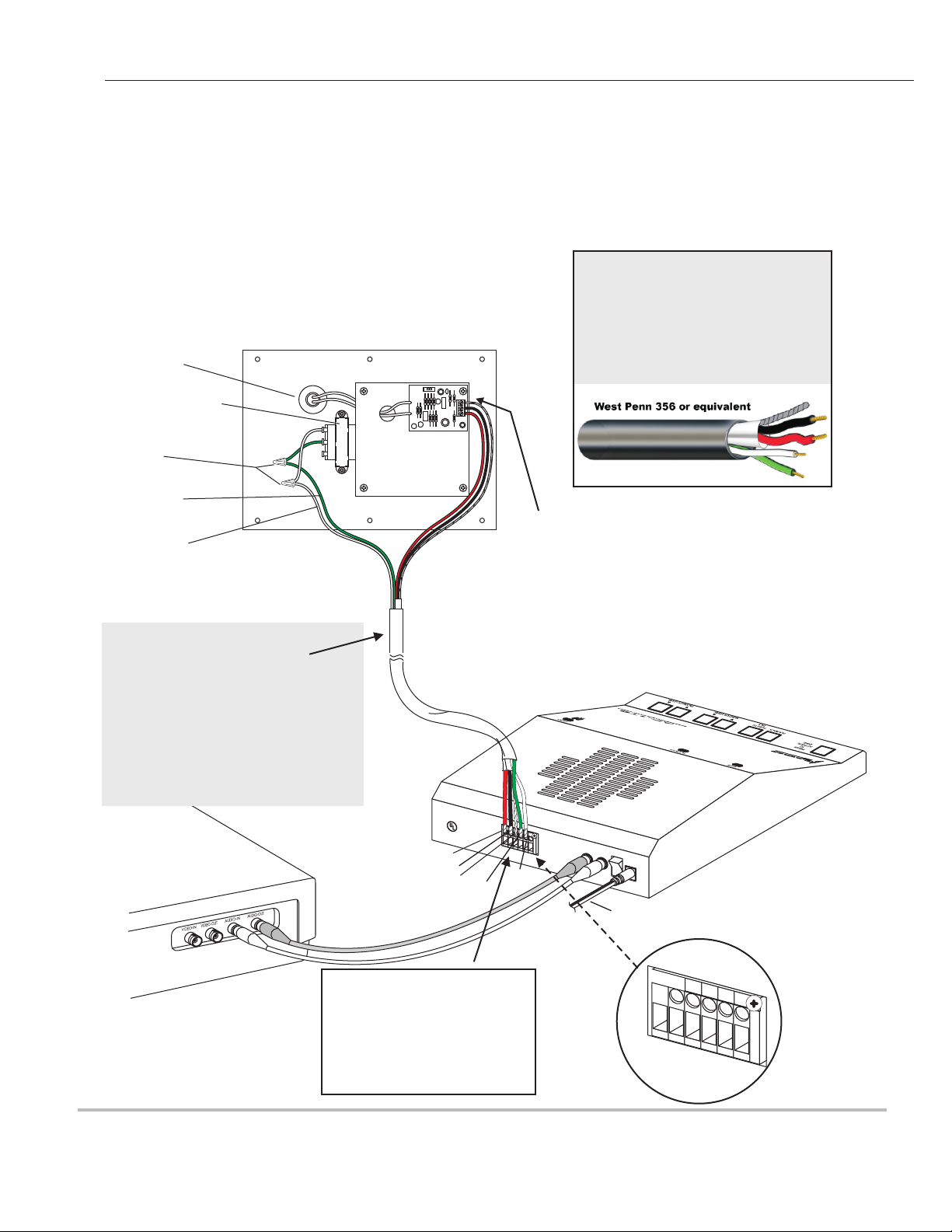

FIG. 4 Interconnection diagram

REAR OF MODEL TLM-W
SPEAKER/MICROPHONE

BUILT-IN
MICROPHONE

70V TRANSFORMER

WIRE NUT

GREEN WIRE
SPEAKER POSITIVE

WHITE WIRE
SPEAKER RETURN
GROUND

Wire Color Code - West Penn 356

RED - 12Vdc Power
BLACK - Audio Output
BARE - Ground

GREEN - Speaker Positive
WHITE - Speaker Negative

}

}

Microphone
Portion

Speaker
Portion

WIRING REQUIREMENTS

+

4 Conductor consisting of:

+

2 Conductor shielded, 20 gauge
with 22 gauge drain (microphone
connection)

+

2 Conductor unshielded, 18 gauge

(speaker connection)

All in the same jacket

C

A

Microphone Connection

A = 12Vdc (red)
B = Audio Output (black)
C = Ground (bare)

If using cable from other
manufacturers, color code may vary

L

O

UR

O

E

E

L

Van

E

C

T

N

RO

u

y

s

N

,

I

CA

CS

M

a

9

d

1

e

4

I

0

n

5

U

.
S

.
A.

®

L

I

S

T

E

D

C

o

m

m

C

e

r

C

c

T

i

a

V

l

E

q

u

i

p
m

e

8

n

2

t

C

RED (A)

BLACK (B)

BARE (C)

K

GREEN (SP)

A

B

C

S

P

G

Z

O

N

E

1

WHITE (G)

P

A

U

D

IN

I

O

O

U

T

P

O

W

Power Supply

E

R

2

4

Vd

c

AD-3

24Vdc, 1A

(included)

MODEL AP-1TB
BASE STATION

Terminal block identification of Model

REAR OF DVR

AP-1TB Audio Base Station

A - 12 Vdc (red)
B - Audio output (black)
C - Ground (mic) (bare)
SP - Speaker positive (green)
G - Speaker negative (white)
P - not used with this application

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

A

B

C

(

S

P

)

G

P

Website: www.louroe.com Email: [e-mail]

Page 4 of 7

ASK 4 KIT 501-in 6/08

INSTALLATION AND OPERATING INSTRUCTIONS

SPECIFICATIONS (Speaker/Mic - Model TLM-W)

Output of microphone
Frequency Response (Mic)
Current Drain (mic)
Speaker
Power Rating (Speaker)
Dimensions (Face Plate) 6 ¼"H x 8"W
Backbox for TLM-W

Surface Mount Box (metal) 6 ¼"H x 8"W x 2 ¾”D

Flush Mount Box (plastic)

Backbox Portion 5"H x 6 ⅞"W x 2 ⅝"D
Total including flange 6 ¼"H x 8"W x 2 ⅝”D

SPECIFICATIONS (Base Station - AP-1TB)

Input sensitivity
(from remote microphone)

Input sensitivity
(talkback microphone)

Monitor power output 1W @ 8Ω

Talkback power output

Audio line output impedance 600Ω

Audio input impedance 10kΩ

Audio frequency response

Headphone impedance

Power input 24 Vdc, 1A or 24 Vdc, 1.5A

Dimensions

Weight

Line Level (0 dB @ 1KΩ)
40 Hz to 15 kHz ± 1 dB
4 mA
4”, 8Ω w/ 70V transformer
4W

0.78Vrms

-55 dB

1.5W into 8Ω (when connected to TLM-W)

100 Hz to 10kHz

8Ω to 600Ω

8 ”W x 10 ⅜”D x 2 ⅜”H

5.5 lbs (2.5 kg)

WIRING CONNECTIONS BETWEEN MODEL TLM-W SPEAKER/MICROPHONE AND AP-1TB AUDIO BASE
STATION

1) Connect one end of recommended cable to remote speaker/microphone (TLM-W) as shown in Fig. 4. Connect wires
wrapped with overall shield to terminals “A”, “B”, and “C” of TLM-W’s terminal block. When using West Penn 356,
connect red wire to terminal “A”; black wire to terminal “B” and bare wire to terminal “C”.

2) Connect the two speaker wires (twisted pair) green and white to green and white wires of TLM-W’s 70V transformer.
Using wire nut connect green wire to green wire of TLM-W’s 70V Transformer. Again, using wire nut connect white
wire to white wire of TLM-W’s 70V Transformer.

3) Connect the other end of the cable to AP-1TB Mic 6-Pin Terminal Block [14]. Make sure that wire connected to
terminal “A” of remote TLM-W connects to terminal “A” of AP-1TB’s Mic 6-Pin Terminal Block [14]; wire connected
to terminal “B” of TLM-W connects to terminal “B” of AP-1TB; “C” to “C”. Observe cable color coding. Terminal “P” of
AP-1TB is not used with this application. Used only when paralleling to a second AP-1TB.

4) For speaker connection connect green speaker wire (positive) to Mic 6-Pin Terminal Block [14] terminal “SP”,
connect white speaker wire (ground) to “G”.

5) When a recording device is used (DVR,VCR,etc.) connect Audio-OUT Jack [16] to recorder’s Audio-IN Jack with the
dual RCA cable (supplied).

6) Connect Audio-IN Jack [15] to recorder’s Audio-OUT Jack with the remaining RCA plug.

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

Website: www.louroe.com Email: [e-mail]

Page 5 of 7

ASK 4 KIT 501-in 6/08

INSTALLATION AND OPERATING INSTRUCTIONS

INSTALLATION OF TLM-W SPEAKER/MICROPHONE

Model TLM-W is designed for mounting to a wall or flat surface. Included are two backboxes:

White plastic backbox is for flush mount
Beige metal backbox is for surface mount

Lift and separate plastic back box from metal back box

1) a. Metal back box has 4 mounting holes for securing to wall (screws not supplied).
b. Drill an opening at top, bottom, side or back of backbox for passing wiring or connecting conduit.
c. Six small screws are supplied for attaching TLM-W face plate to backbox.

2) a. If plastic flush mount backbox is to be used:

b. Drill an opening at back side, as needed, to secure plastic backbox to proper position in wall opening.
c. Six plastic anchor bolts are supplied for securing TLM-W face plate to backbox, using the six screws supplied.
d. Drill an opening at a convenient location on backbox for passing wire or for conduit connection.

OPERATION AND TEST

1) Applying Power To The System

With all wiring connections complete, power up the system using the 24Vdc, 1A or 24 Vdc, 1.5A power supply included

with the kit. First connect the small end of power supply to the 24V DC IN jack [18] located on rear panel of AP-1TB
Base Station. Connect the large end with the 2-prong plug to a standard 120Vac wall outlet or power strip.

2) Press the Power Switch [17] located on rear panel of AP-1TB. The Power Indicator LED [12] will illuminate.

3) Testing For Listen And Talkback At The AP-1TB Base Station Listen Mode

Push in the Press to Activate Zone Switch [1] located on front panel of AP-1TB. Zone indicator [9] will illuminate.
Have someone create sound by talking (or use a radio) at the remote Model TLM-W Speaker/Microphone. Audio
should be present via the AP-1TB’s Monitor Speaker [13]. Adjust speaker volume by rapidly pressing and releasing
the Monitor Volume Up Control Switch [5] to increase volume, or monitor Volume Down Control Switch [4] to
decrease volume.

4) Talkback Mode

To speak out to the remote TLM-W, press and hold down Talkback Switch [3] of the AP-1TB. Another person is

needed to listen at the TLM-W location. If talkback volume needs adjusting, rapidly press and release the Talkback

Volume Up Control Switch [7] to increase volume. Rapidly press and release Talkback Volume Down Control
Switch [6] to decrease volume.

5) Audio Recording And Playback

Model AP-1TB contains an Audio Out Jack [16] and an Audio In Jack [15], located on rear panel. Included with kit is
a color coded dual RCA connector cable. RCA plugs are usually red and gray.

For recording take one end of dual RCA cable (red) and connect to Audio Out Jack [16] of AP-1TB. Connect other
end (same color) to Audio In of the recording device (DVR, VCR, etc.). For listening to recorded playback through the

AP-1TB, connect RCA plug into Audio Out of the recording device and the other end of RCA plug to Audio-In Jack [15]

of AP-1TB. Press DVR/VCR Playback Switch [2] to activate playback mode (Playback Indicator LED [10] will
illuminate) AP-1TB’s speaker will produce recorded audio playback.

As an option, recorded audio may also be played back through a CCTV monitor with built-in amplifier or through the
DVR’s built-in audio system.

WALL MOUNTING AP-1TB AUDIO BASE STATION (Optional)

Bottom of chassis contains four teardrop cut-outs for wall mounting, using #8 screws (not supplied).

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

Website: www.louroe.com Email: [e-mail]

Page 6 of 7

ASK 4 KIT 501-in 6/08

INSTALLATION AND OPERATING INSTRUCTIONS

NOTE

Model AP-1TB Audio Base Station of ASK-4 Kit #501 is
supplied with a 70V talkback output, which is standard for
most audio applications. Should a 600Ù talkback output be
required, please contact our factory for details regarding
instructions for switching over to 600Ù.

Louroe Electronics
[phone]
8:00 am 4:30 pm Pacific

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

Website: www.louroe.com Email: [e-mail]

Page 7 of 7

(818)

ASK 4 KIT 501-in 6/08

MANUFACTURED

IN THE

When this equipment is used as part of an
audio monitoring system, the law requires
that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A
deca l notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18.
Crime and Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear with one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS.

This warranty does not extend to any Louroe product that has been subject to improper or incorrect installation, misuse, accident, or in violation of installation instructions
provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via Best Way.

LOUROE ELECTRONICS 6 95 5 V A L J E AN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

IMPORTANT NOTICE

AUDIO

MONITORING

These Premises

L

E

WARRANTY

OUROE

LECTRONICS

On

(818)

Website: www.louroe.com Email: [e-mail]

ASK 4 KIT 501-in 6/08
