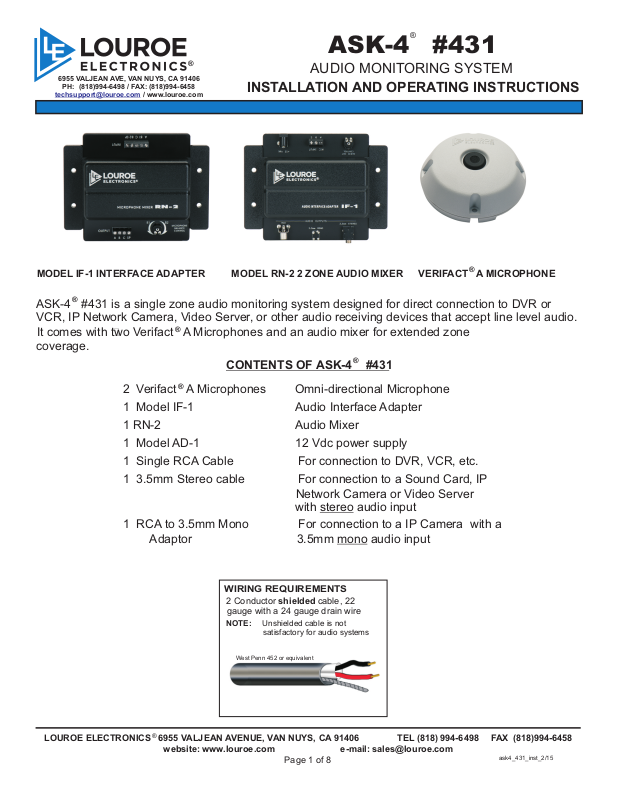

ASK-4

#431

AUDIO MONITORING SYSTEM

INSTALLATION AND OPERATING INSTRUCTIONS

MODEL IF-1 INTERFACE ADAPTER MODEL RN-2 2 ZONE AUDIO MIXER

ASK-4 #431 is a single zone audio monitoring system designed for direct connection to DVR or

®

VERIFACT A MICROPHONE

®

VCR, IP Network Camera, Video Server, or other audio receiving devices that accept line level audio.

?It comes with two Verifact A Microphones and an audio mixer for extended zone

®

coverage.

CONTENTS OF ASK-4 #431

2 Verifact A Microphones Omni-directional Microphone

®

®

1 Model IF-1 Audio Interface Adapter

1 RN-2 Audio Mixer

1 Model AD-1 12 Vdc power supply

1 Single RCA Cable For connection to DVR, VCR, etc.

1 3.5mm Stereo cable For connection to a Sound Card, IP

Network Camera or Video Server

with stereo audio input

1 RCA to 3.5mm Mono For connection to a IP Camera with a

Adaptor 3.5mm mono audio input

WIRING REQUIREMENTS

2 Conductor shielded cable, 22

gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

satisfactory for audio systems

West Penn 452 or equivalent

Page 1 of 8

(818)

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

WIRING REQUIREMENTS

2 conductor shielded, 22 gauge, with a 24 gauge drain wire.
West Penn 452 or equivalent

MICROPHONE INSTALLATION - MECHANICAL - MICROPHONE

Model A Microphone is designed for surface mounting to a ceiling or wall. Microphone will pick up sounds 15’ away from
all directions. For best results, install microphone as close to desired area of coverage as possible. Avoid mounting
microphone to ceiling heights in excess of 10’, or near air vents, refrigeration units, or other audio interferences.

NOTE: Make wiring connection on back side of microphone before installing microphone to ceiling or flat surface.

MICROPHONE INSTALLATION - ELECTRICAL

Located on back side of microphone is a terminal block marked A, B and C.

A is 12 Vdc
B is Audio
C is Ground (common)

Using recommended wiring, connect as follows:

RED wire to terminal A (12Vdc)
BLACK wire to terminal B (Audio)
BARE wire to terminal C (Ground)

NOTE: If using wiring from other manufacturers,

color code may vary.

MODEL IF-1 AUDIO INTERFACE ADAPTER

3.5mm Stereo Audio Out Jack

Audio Out Control
(Gain Adjustment)

Microphone Input Terminal Block

12 Vdc Power Jack

MECHANICAL - RN-2 AND IF-1

RN-2 and IF-1 can be installed to a wall or flat surface with mounting screws or by using a strong double backed adhesive
tape. They are usually located between the microphones and the receiving device such as a DVR or IP Camera.

WIRING CONNECTION FROM MICROPHONES TO RN-2

1) Bring in wiring from first Louroe microphone (or speaker/microphone) to INPUT side of RN-2 and connect as
follows:

1. Wire from terminal A of microphone goes to A of RN-2

2. Wire from terminal B of microphone goes to B1 of RN-2

3. Wire from terminal C of microphone goes to C of RN-2

RCA Audio Out Jack

2) Bring in wiring from second microphone (or speaker/microphone) to INPUT side of RN-2 and connect as follows::

1. Wire from terminal A of second microphone goes to A of RN-2

2. Wire from terminal B of second microphone goes to B2 of RN-2

3. Wire from terminal C of second microphone goes to C of RN-2

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 2 of 8

(818)

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

CONNECTING RN-2 TO LOUROE IF-1 AUDIO INTERFACE ADAPTER

From OUTPUT side of RN-2, make connection to the Louroe IF-1 Audio Interface Adapter as follows:

1. Terminal A of output goes to terminal A of IF-1

2. Terminal B of output goes to terminal B of IF-1

3. Terminal C of output goes to terminal C of IF-1

Located on the output side of the RN-2 Mixer is an adjustment potentiometer for microphone balance. If more volume is

desired from microphone connected to the B-1 input side, turn potentiometer counterclockwise toward the B-1 arrow. If
more volume is desired from microphone connected to the B-2 input side, turn potentiometer clockwise toward the B-2
arrow. For equal volume from the two microphones, position potentiometer to the center.

To apply power to the system, Model AD-1 12Vdc power supply is included. First connect small end (female 90? plug)
into 12Vdc jack on IF-1, then connect 2-prong power block to a standard 110Vac outlet or power strip.

NOTE: Model IF-1 contains two types of audio outputs. A connection cable is provided for each type.

1) RCA

2) 3.5mm stereo

3) RCA to 3.5mm mono with adaptor

These two audio outputs are in parallel ... only one can be used

CONNECTION BETWEEN IF-1 INTERFACE ADAPTER AND DVR/VCR WITH RCA TYPE AUDIO
CONNECTIONS

To make connection to DVR/VCR, plug the RCA cable (supplied) into the RCA type audio output jack located on the
output side of Model IF-1. Connect other end of RCA cable to the DVR/VCR’s “AUDIO IN” jack (see drawing on page

4).

CONNECTION BETWEEN IF-1 AND AN IP NETWORK CAMERA, DVR, VIDEO SERVER WITH

3.5mm MONO TYPE AUDIO CONNECTIONS

To make connection to IP Network Camera, plug the RCA to 3.5mm mono cable with adaptor (supplied) into the RCA
audio out jack located on the output side of IF-1, connect other end of cable (3.5mm) to the camera’s audio in jack (see

drawing on page 5).

CONNECTION BETWEEN IF-1 AND A DVR, IP NETWORK CAMERA OR PC SOUNDCARD WITH

3.5mm STEREO TYPE CONNECTION.

To make connection, plug the 3.5mm stereo cable (supplied) into the “audio out” jack located on the output side of IF-1.
Plug the other end of the cable to “AUDIO IN” of DVR, IP Network Camera or “ LINE IN” of PC soundcard (see drawing

on page 6).

NOTE: DISTANCE BETWEEN MICROPHONE AND IF-1 SHOULD NOT EXCEED 1,000’.

THE RN-2 MIXER GAIN IS LIMITED THAT IT MAY NOT SATISFACTORILY DRIVE
AN AUDIO LINE OF MORE THAN 1000’.

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 3 of 8

(818)

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

LOUROE ASK-4 #431 AUDIO MONITORING SYSTEM AND DVR/VCR, VIDEO SERVER, ETC.

®

WITH RCA AUDIO INPUT

FOR

MICROPHONE #2

VERIFACT A

N

L

A B C

WEST PENN 452
OR EQUIVALENT

INPUT

LOUROE

ELECTRON ICS

OUTPUT

A B C SP

A B C B 2S P 1

RN-2

MICROPHONE MIXER

B1

B2

B1

MICROPHONE

BALANCE CONTROL

MICROPHONE

BALANCE
CONTROL

MICROPHONE #1

VERIFACT A

N

L

A B C

MODEL RN-2
Audio Mixer

B2

REAR PANEL
RECORDER

OUT IN

AUDIO OUT

A B C

CONTROL

MIC INPUT

A B C

+12 Vdc

INTERFACE ADAPTER

IF-1

L

E

OUROE

LECTRONICS

3.5mm STEREO

AUDIO OUTPUTS

3.5mm MONO

RCA

RCA connection cable

MODEL IF-1
Interface Adapter

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 4 of 8

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

LOUROE ASK-4 #431 AUDIO MONITORING SYSTEM

®

AND AN IP NETWORK CAMERA, DVR, VIDEO SERVER WITH 3.5mm MONO AUDIO INPUT

FOR

MICROPHONE #2

VERIFACT A

N

L

A B C

WEST PENN 452
OR EQUIVALENT

INPUT

LOUROE

ELECTRON ICS

OUTPUT

A B C SP

A B C B 2S P 1

RN-2

MICROPHONE MIXER

B1

B2

B1

MICROPHONE

BALANCE CONTROL

MICROPHONE

BALANCE
CONTROL

MICROPHONE #1

VERIFACT A

N

L

A B C

MODEL RN-2
Audio Mixer

RCA to 3.5mm Mono Adapter

B2

AUDIO OUT

A B C

CONTROL

MIC INPUT

A B C

+12 Vdc

INTERFACE ADAPTER

IF-1

L

E

OUROE

LECTRONICS

3.5mm STEREO

AUDIO OUTPUTS

3.5mm MONO

RCA

IP NETWORK CAMERA

RCA plug

MODEL IF-1
Interface Adapter

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 5 of 8

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

MICROPHONE #2

VERIFACT A

N

L

A B C

WEST PENN 452
OR EQUIVALENT

INPUT

LOUROE

ELECTRONIC S

OUTPUT

A B C SP

A B C B 2S P 1

RN-2

MICROPHONE MIXER

B1

B2

B1

MICROPHONE

BALANCE CONTROL

MICROPHONE

BALANCE
CONTROL

MICROPHONE #1

VERIFACT A

N

L

A B C

INTERCONNECTION DIAGRAM

FOR

LOUROE ASK-4 #431AUDIO MONITORING

AND A PC SOUNDCARD, IP NETWORK CAMERA,

VIDEO SERVER, DVR, ETC. WITH A 3.5mm

AUDIO INPUT (OR LINE INPUT)

MODEL RN-2
Audio Mixer

B2

®

SYSTEM

STEREO AUDIO INPUT

A B C

AUDIO OUT

CONTROL

MIC INPUT

INTERFACE ADAPTER

A B C

IF-1

+12 Vdc

MODEL IF-1
Interface Adapter

L

E

OUROE

LECTRONICS

3.5mm STEREO

3.5mm Stereo
OUTPUT

AUDIO OUTPUTS

3.5mm MONO

RCA

Stereo Cable

SPKR

MIC

LINE

PC SOUND CARD

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

(818)

website: www.louroe.com e-mail: [e-mail]

Page 6 of 8

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

SENSITIVITY SWITCH OF MICROPHONE

For special installations that require less microphone sensitivity, a sensitivity switch has

been added to the microphone pre-amp (PC board) and has two positions - N and L:

N represents normal sensitivity (0dB output into 1K? )

L represents low sensitivity (-6dB output into 1 K? )

NOTE: Louroe Verifact™ microphones are always shipped with the sensitivity switch in

normal (N) position. Do not change unless required.

To make an adjustment, use a small screwdriver and move slide switch from N to L.

Sensitivity switch is located on the backside of Verifact™ A Microphone.

SPECIFICATIONS (Microphone - Model A)

Type

Output

Frequency response
Current drain

Supply voltage
Dimensions

Weight

Electret Condenser

Line Level (0 dB 600W @ 1 kHZ)

50 Hz to 15 kHz
10 mA

12Vdc
4"Dia x 1 ½"H

3.5 oz

SPECIFICATIONS (IF-1 Interface Adapter)

Input impedance

Output signal

Power supply

Dimensions

Weight

20kΩ

Ω

600 @ 1 kHz
12Vdc, 500 mA
6 1/8”L x 4 5/8”W x 1 1/4”H

5.5 oz

SPECIFICATIONS (RN-2)

Input Impedance

Output Impedance

Output Gain

Dimensions

Weight

Shipping Weight of kit

20kW

1k @1kHz

Ω

+5dB

6 1/8“L x 4 5/8 “W x 1 1/4”H

5.5 oz

3 lbs

LOUROE ELECTRONICS® 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

website: www.louroe.com e-mail: [e-mail]

Page 7 of 8

(818)

ask4_431_inst_2/15

INSTALLATION AND OPERATING INSTRUCTIONS

When this equipment is used as part of an audio monitoring system,
the law requires that the public be given notice of AUDIO
MONITORING ON THE PREMISES. A decal notice is included with
each microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18. Crime and Criminal
Procedure, Sec 2510.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

®

®

®

IMPORTANT NOTICE

AUDIO

MONITORING

These Premises

WARRANTY

On

®

®

®

®
