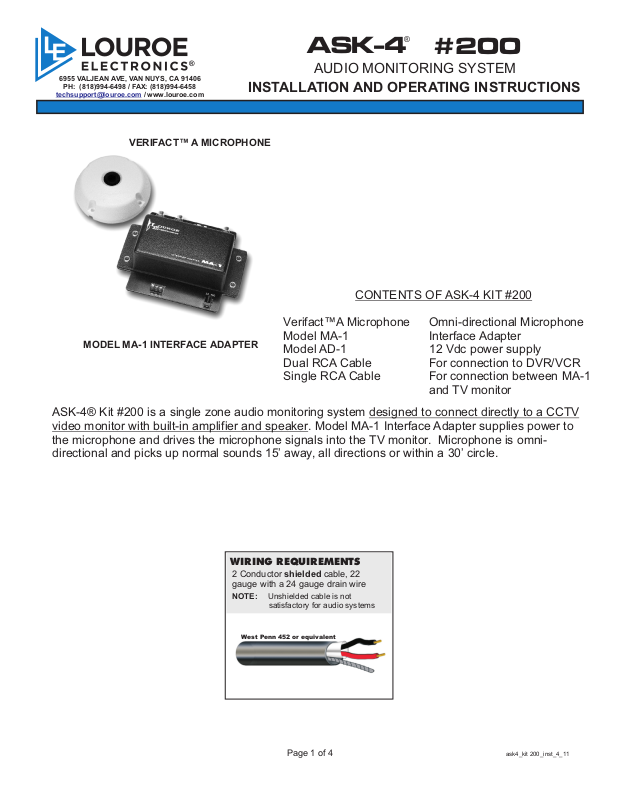

MODEL MA-1 INTERFACE ADAPTER

/ [e-mail]

VERIFACT™ A MICROPHONE

®

ASK-4

#200

AUDIO MONITORING SYSTEM

INSTALLATION AND OPERATING INSTRUCTIONS

CONTENTS OF ASK-4 KIT #200

Verifact™A Microphone Omni-directional Microphone
Model MA-1 Interface Adapter
Model AD-1 12 Vdc power supply
Dual RCA Cable For connection to DVR/VCR
Single RCA Cable For connection between MA-1

and TV monitor

ASK-4® Kit #200 is a single zone audio monitoring system designed to connect directly to a CCTV
video monitor with built-in amplifier and speaker. Model MA-1 Interface Adapter supplies power to
the microphone and drives the microphone signals into the TV monitor. Microphone is omni­directional and picks up normal sounds 15’ away, all directions or within a 30’ circle.

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

Page 1 of 4

ask4_kit 200_inst_4_11

INSTALLATION AND OPERATING INSTRUCTIONS

MICROPHONE INSTALLATION - MECHANICAL

Model A Microphone is designed for surface mounting to a ceiling or wall. It will pick up normal sounds
approximately 15’ away from all directions. For best results, install microphone close to desired area of
coverage. Avoid mounting to ceiling heights in excess of 10’, or near air vents, fans or other audio
interferences.

NOTE: Make wiring connection on backside of microphone before installing microphone to ceiling
or wall.

MICROPHONE INSTALLATION - ELECTRICAL

Located on back side of microphone is a terminal block marked A, B and C.

A is 12 Vdc (Red)
B is Audio (Black)
C is Ground (common) (Bare)

Using recommended wiring, connect as follows:

RED wire to terminal A (12Vdc)
BLACK wire to terminal B (Audio)
BARE wire to terminal C (Ground)

NOTE: If using wiring from other manufacturers,

color code may vary.

wire color code if using
recommended wiring

MECHANICAL INSTALLATION - MODEL MA-1 INTERFACE ADAPTER

The MA-1 Interface Adapter serves as an interface device between the microphone and the CCTV monitor
with audio amplifier. It supplies power to the microphone and drives the audio signals into the monitor’s
audio amplifier. The MA-1 can be installed several ways:

1) Wall mounted close to CCTV monitor

2) Attached to side of the CCTV monitor using double sided adhesive tape, ¼” thickness

MICROPHONE CONNECTION TO MA-1 INTERFACE ADAPTER

1) MA-1 contains a terminal block marked A, B, C.

2) Bring wiring from microphone to MA-1 and make cable connection matching A with A, B with B and C with
C.

3) Connect Model AD-1 Power Supply (provided) into 12 Vdc jack on MA-1 and other end to standard 110 ­120 Vac electric outlet. This will power up the microphone.

CONNECTION BETWEEN MA-1 INTERFACE ADAPTER AND CCTV MONITOR AND DVR/VCR

1) Connect the single RCA cable (provided) to “MONITOR OUT” of MA-1 and to “AUDIO IN” of the CCTV
monitor.

2) The two RCA jacks located on MA-1 marked “AUDIO IN” and “AUDIO OUT” are for connection to a
DVR/VCR.

3) Using provided dual RCA cable, connect “AUDIO OUT” of MA-1 to “AUDIO IN” of DVR/VCR.

4) Connect “AUDIO IN” of MA-1 to “AUDIO OUT” of DVR/VCR.

NOTE: If DVR has its own playback capabilities, skip step 4.

RECORDING AND PLAYBACK PROCEDURES

The “VCR” switch on the MA-1 has two positions - RECORD and PLAYBACK.

1) For audio monitoring and/or recording, move switch to RECORD position.

2) For monitoring audio playback from DVR/VCR, move switch to PLAYBACK position.

Installation is now complete. For testing, a brief recording should be made and played back through the
CCTV monitor.

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 2 of 4

(818)

ask4_kit 200_inst_4_11

INSTALLATION AND OPERATING INSTRUCTIONS

INTERCONNECTION DIAGRAM

FOR
LOUROE™ ASK-4® KIT #200
AUDIO MONITORING SYSTEM

WIRING REQUIREMENTS

2 Conductor shielded cable, 22
gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

West Penn 452 or equivalent

LOUROE™ MODEL A MICROPHONE

T A
C
A

F

I
R
E
V

L

N

A B C

L

N

BARE (C)

A

RED (A)

BLACK (B)

AD-1
+12 Vdc
POWER
SUPPLY

MICROPHONE SENSITIVITY SWITCH

The microphone pre-amp (PC board) contains a sensitivity
switch with two positions marked N and L, and is located on the
back side of the Model A near the terminal block:

N represents normal sensitivity

Microphone is always shipped in the N position. For less
microphone sensitivity, move slide switch to L position. Do not

change unless required.

(0 dB @ 1,000Ω)
L represents lower sensitivity
(-6 dB @ 1,000Ω)

RED (A)

BLACK (B)

BARE (C)

MIC INPUT

A B C

INTERFACE ADAPTER

MA-1

MODEL MA-1

AUDIO INTERFACE ADAPTER

Microphone terminal
block identification

A = 12Vdc (red wire)
B = audio (black wire)
C = ground (bare wire)

DUAL RCA CABLE

L

E

OUROE

LECTRONICS

AUDIO OUTAUDIO IN

MONITOR

REC
VCR
PLAY

SINGLE RCA CABLE

MONITOR OUT

REAR OF DVR OR VCR

OUT IN

AUDIO

TO AUDIO INPUT

CCTV MONITOR W/ AUDIO AMPLIFIER

LOUROE ELECTRONICS 6 9 5 5 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL [phone] FAX [phone]

®

website: www.louroe.com e-mail: [e-mail]

Page 3 of 4

(818)

ask4_kit 200_inst_4_11

MANUFACTURED

IN THE

When this equipment is used as part of an audio
monitoring system, the law requires that the public be
given notice of AUDIO MONITORING ON THE
PREMISES. A decal notice is included with each
microphone shipped.

Federal Law References:
Federal Regulations, US Code, Title 18. Crime and
Criminal Procedure, Sec 2510.

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.
Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.
This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS .

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation
instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

®

®

®

IMPORTANT NOTICE

MONITORING

These Premises

WARRANTY

AUDIO

On

®

®

®

®
