G923
Racing Wheel and Pedals For PlayStation® 4
SETUP GUIDE
G923 RACING WHEEL AND PEDALS FOR PLAYSTATION®4
1 |
|
2 |
3 |
PS4 |
PC |
|
USB |
USB |
logitechG.com/support/g923-ps4
ENGLISH |
3 |
DEUTSCH |
14 |
FRANÇAIS |
25 |
ITALIANO |
36 |
ESPAÑOL |
47 |
PORTUGUÊS |
58 |
NEDERLANDS |
69 |
SVENSKA |
80 |
DANSK |
91 |
NORSK |
102 |
SUOMI |
113 |
ΕΛΛΗΝΙΚΆ |
124 |
ПО-РУССКИ |
135 |
PO POLSKU |
146 |
MAGYAR |
157 |
ČESKÁ VERZE |
168 |
SLOVENČINA |
179 |
УКРАЇНСЬКА |
190 |
EESTI |
201 |
LATVISKI |
212 |
LIETUVIŲ |
223 |
БЪЛГАРСКИ |
234 |
HRVATSKI |
245 |
SRPSKI |
256 |
SLOVENŠČINA |
267 |
ROMÂNĂ |
278 |
TÜRKÇE |
289 |
300. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ةيبرعلا 311 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . תירבע

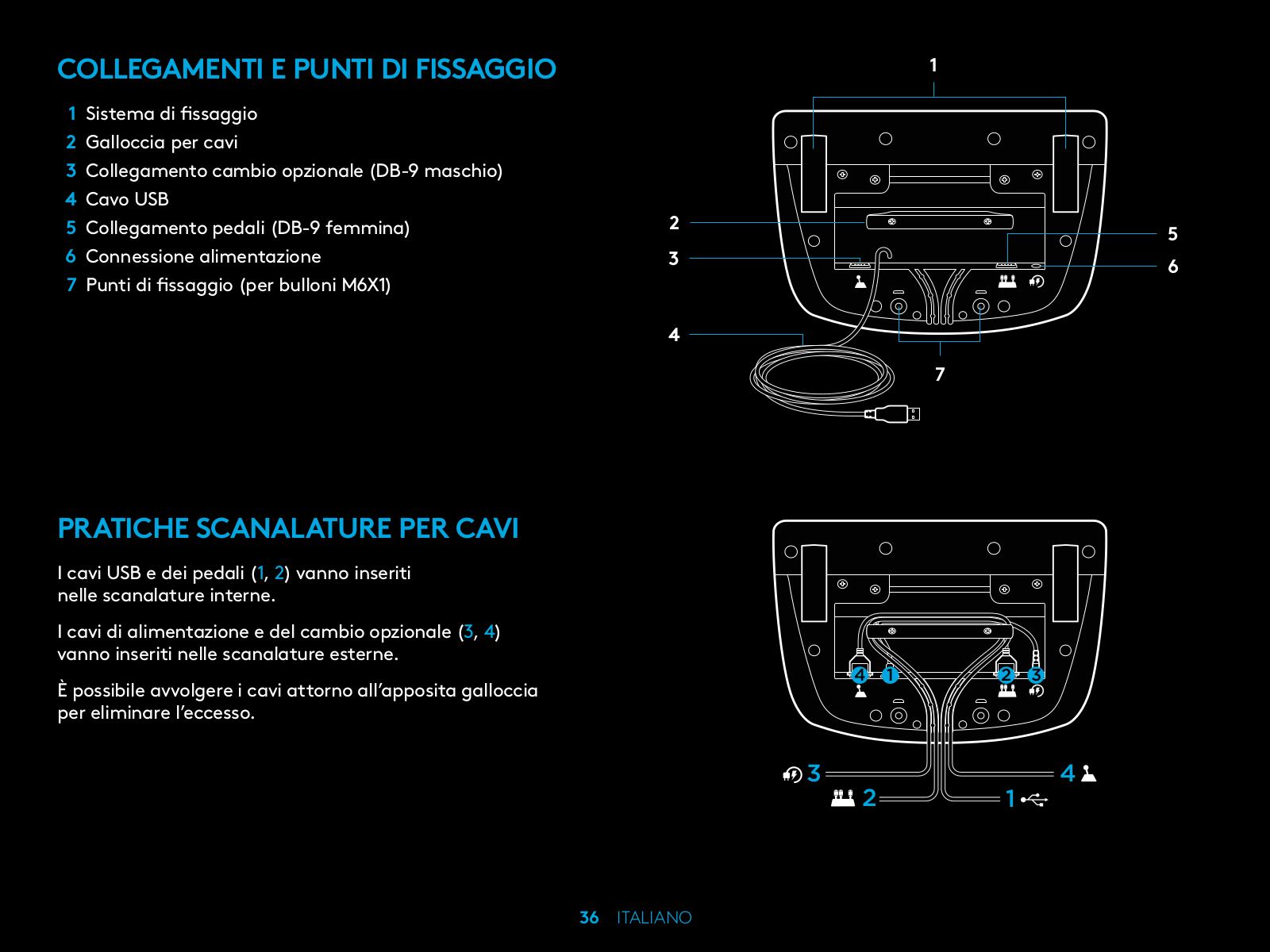

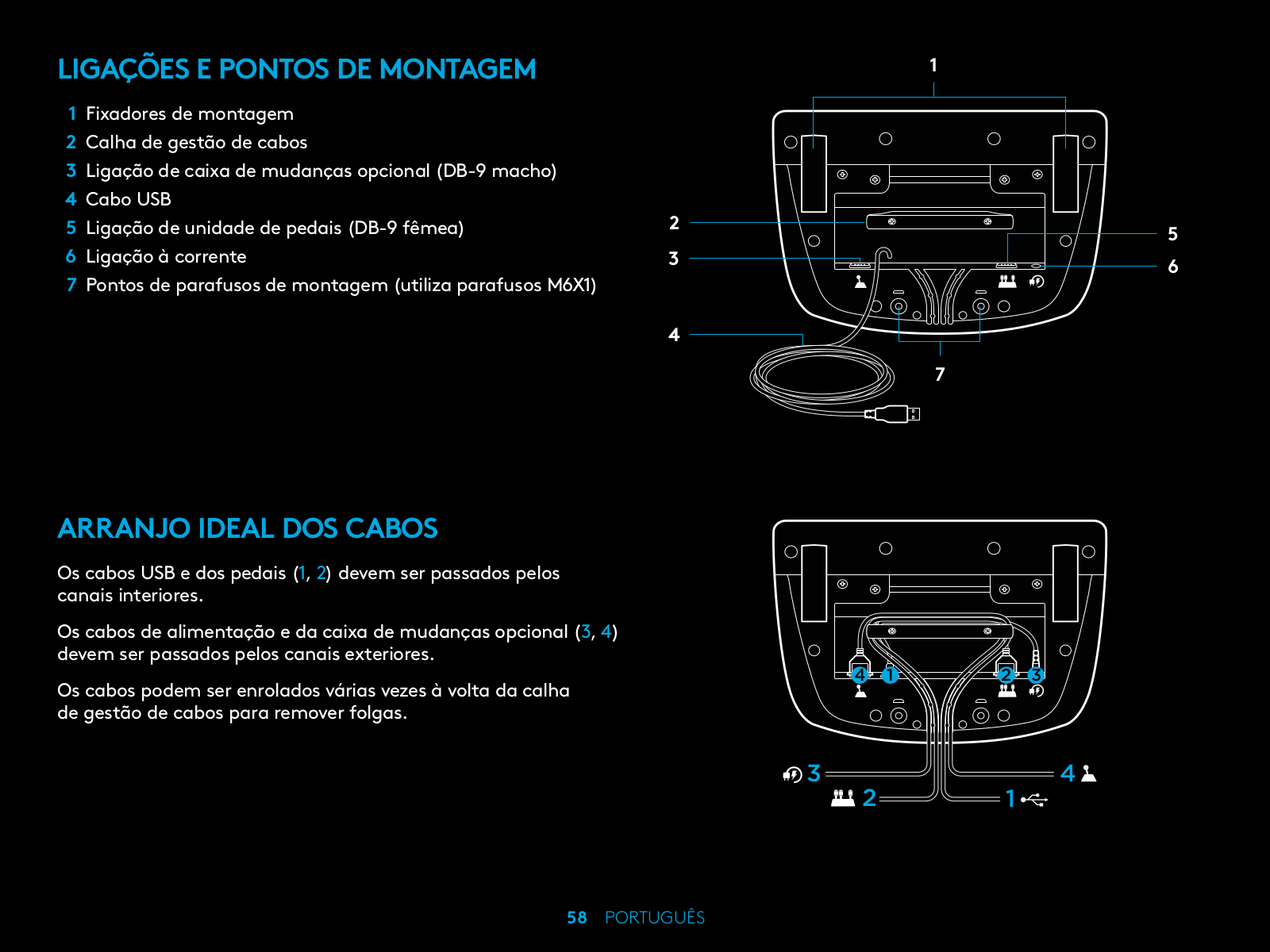

CONNECTIONS AND MOUNT POINTS
1Mounting clamps
2Cable management cleat
3Optional shifter connection (DB-9 male)
4USB cable
5Pedal unit connection (DB-9 female)
6Power connection
7Bolt mounting points (uses M6X1 bolts)
1
2 5 3
6
4
7
OPTIMAL CABLE ROUTING
USB and pedal cables (1, 2) should be routed through inner channels.
Power and optional shifter cables (3, 4) should be routed through outer channels.
Cables may be wrapped multiple times around cable management cleat to take in slack.
4 |
1 |
2 |
3 |
3
4
2
1
3 ENGLISH
INSTALLATION — PS4™
— PC
Attach power adapter and USB cables as shown.
Every time your racing wheel connects with your system,
it will rotate fully to each side and then to the center to calibrate. Your wheel will be ready once this calibration is completed.
For PC to enable the force feedback and RPM LED features on your G923 Wheel and Pedals you must install the Logitech G HUB software. This can be found at logitechG.com/ support/g923-ps4.
TRUEFORCE and advanced features require game integration. Visit logitechG.com/support/G923-ps4 for a complete list
of supported games.
PS4
USB
PC
USB
4 ENGLISH
MOUNTING CLAMPS
G923 Racing Wheel is equipped with
a built in clamping system for mounting to a table. Push down and rotate clamp knobs to lock or unlock. Rotate clamp knobs to tighten or loosen clamps.
Note:
Clamp extenders should be removed for attachment to thicker tables.
5 ENGLISH

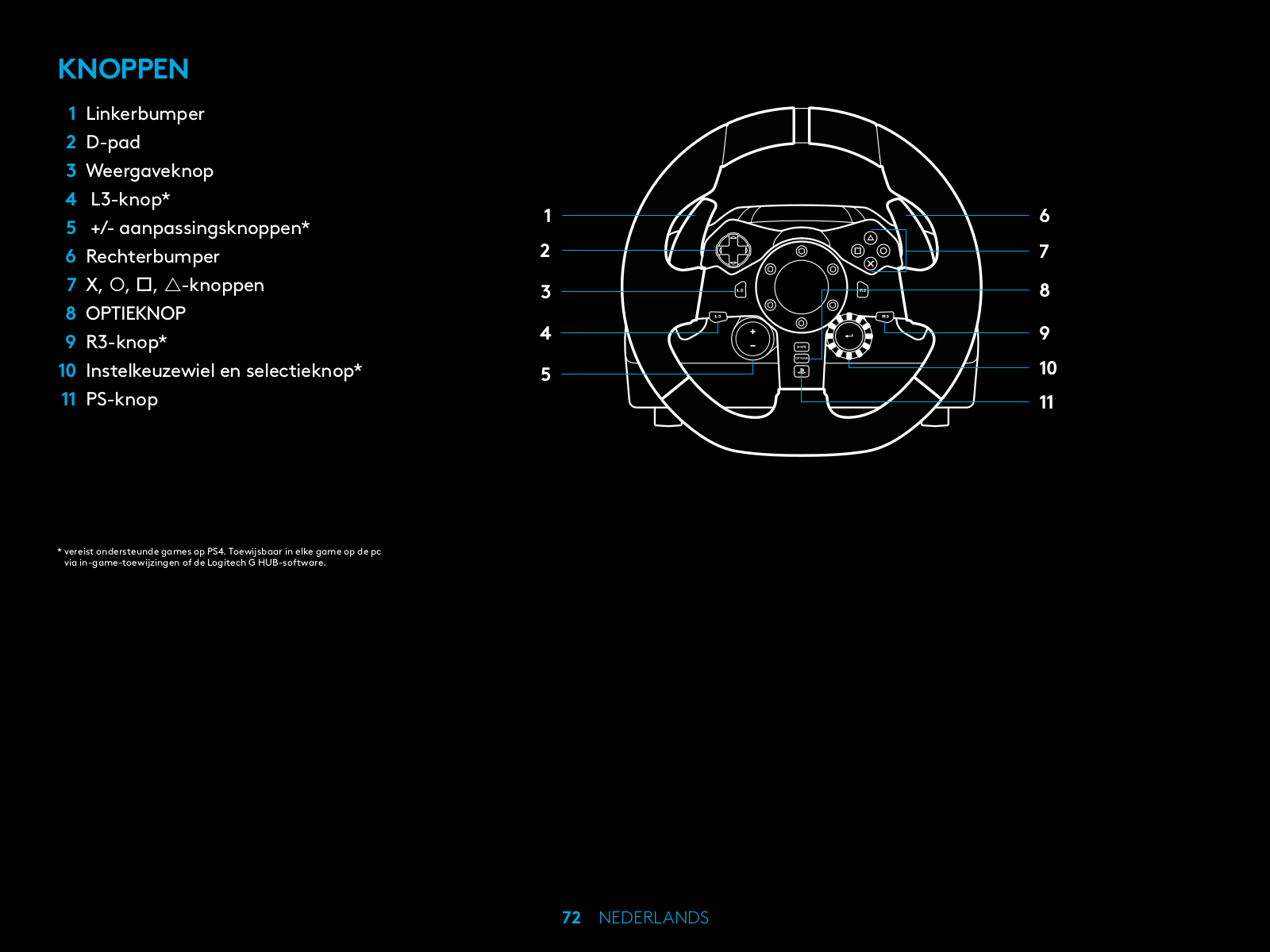

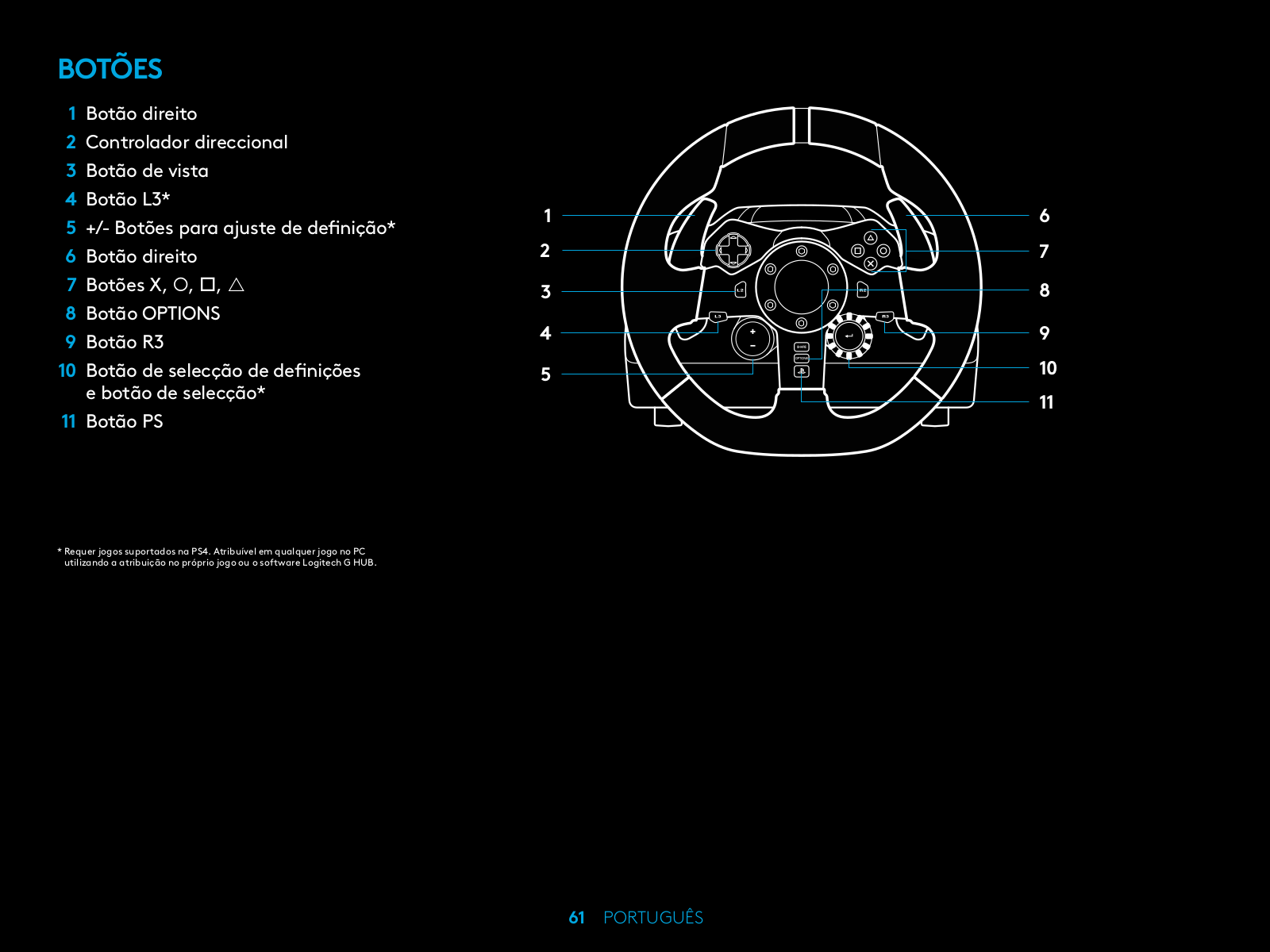

BUTTONS
1Left bumper
2Directional pad
3View button
4L3 button*
5+/- Setting Adjustment buttons*
6Right bumper
7X, ¡, o, r buttons
8OPTIONS button
9R3 button*
10Setting Selection Dial and Select button*
11PS button
*Requires supported games on PS4. Assignable in any game on PC using either in game assignment or Logitech G HUB software.
1
2
3
4
5
6 |
7 |
8 |
9 |
10 |
11 |
6 ENGLISH

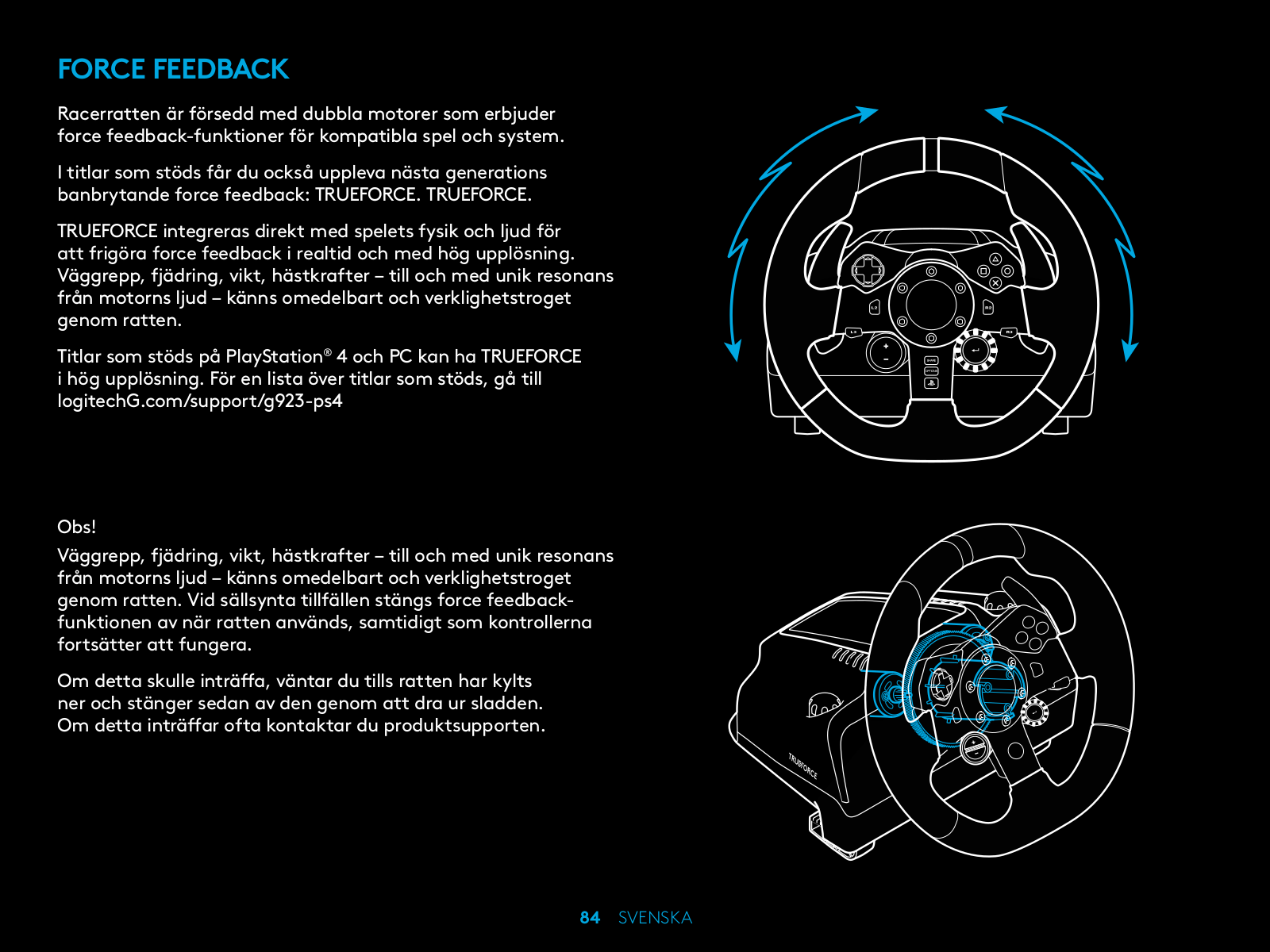

FORCE FEEDBACK
Your Racing Wheel contains dual motors that will provide force feedback with supported games and systems.
In supported titles you will also experience our next generation approach to force feedback: TRUEFORCE.
TRUEFORCE integrates directly with game physics and audio to unlock high-definition, real-time force feedback. Tire grip, suspension, weight, horsepower—even unique engine sound resonance—are immediately and accurately felt through the wheel.
Supported titles on PlayStation® 4 and PC may implement TRUEFORCE high-definition force feedback. For a list of supported titles visit logitechG.com/support/g923-ps4
Note:
Your Racing Wheel has an overheat protection circuit safeguard to protect it under high-temperature operating conditions.
In rare instances, force feedback features may shut down during use while controls continue to operate.
If this occurs, allow the wheel to cool down and power it down by unplugging it. If this occurs frequently, contact product support.
7 ENGLISH

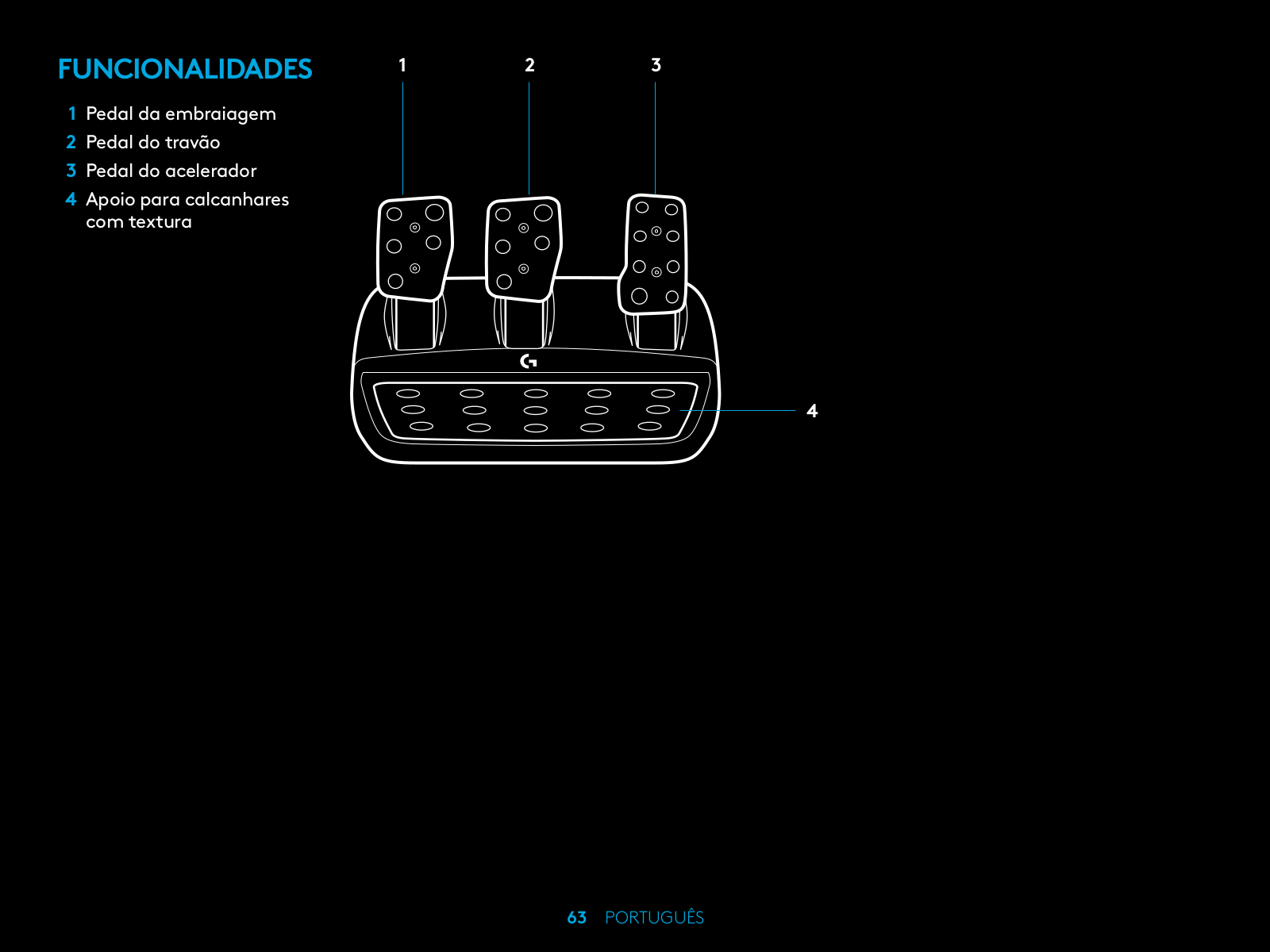

FEATURES |
1 |
2 |
3 |
1Clutch pedal
2Brake pedal
3Throttle pedal
4Textured heel rest
4
8 ENGLISH

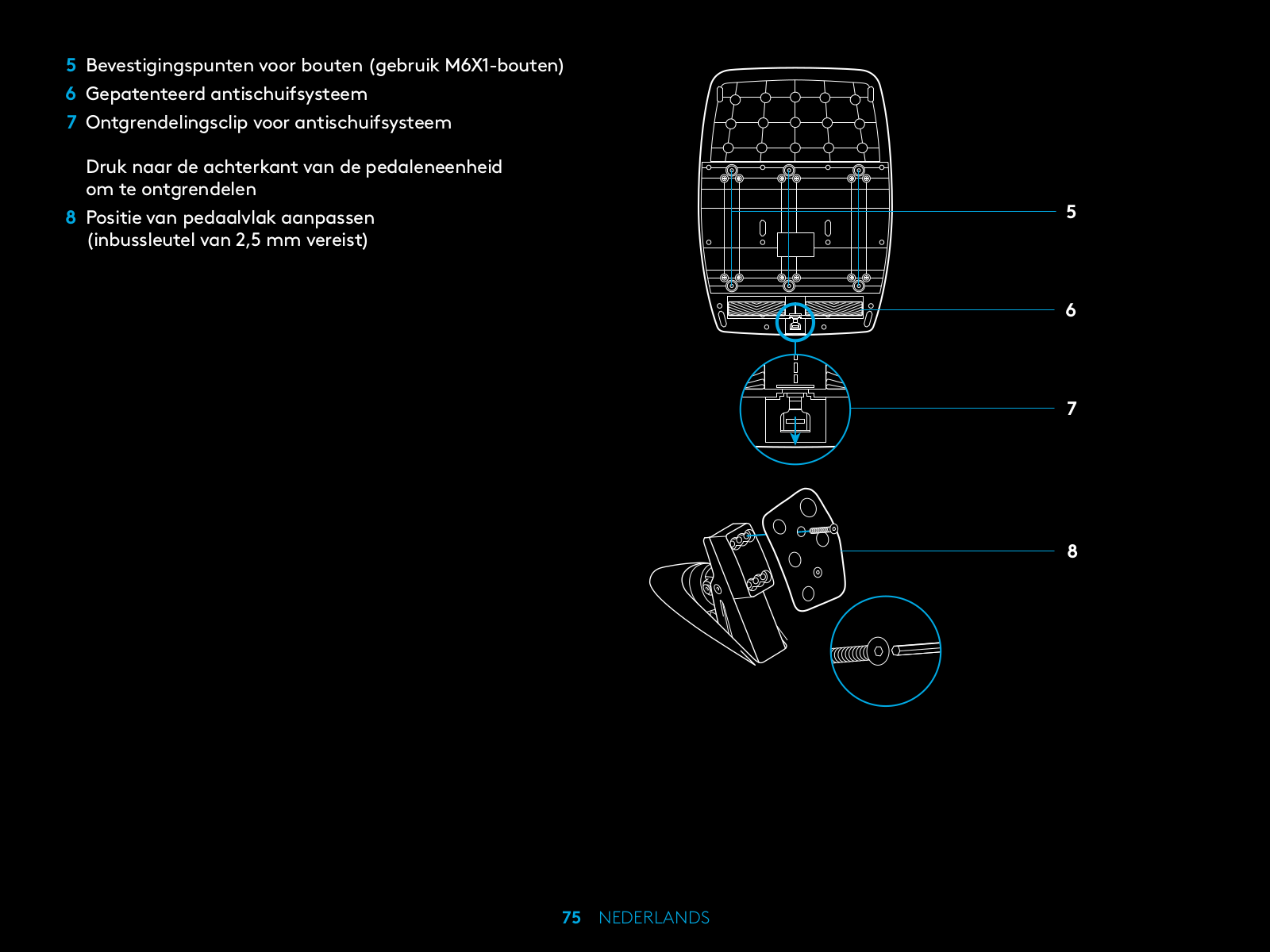

5 Bolt mounting points (uses M6X1 bolts)
6 Patented carpet grip system
7 Carpet grip release clip Push towards rear of pedal unit to release
8 Change pedal face position (requires 2.5mm hex key)
5
6
7
8
9 ENGLISH

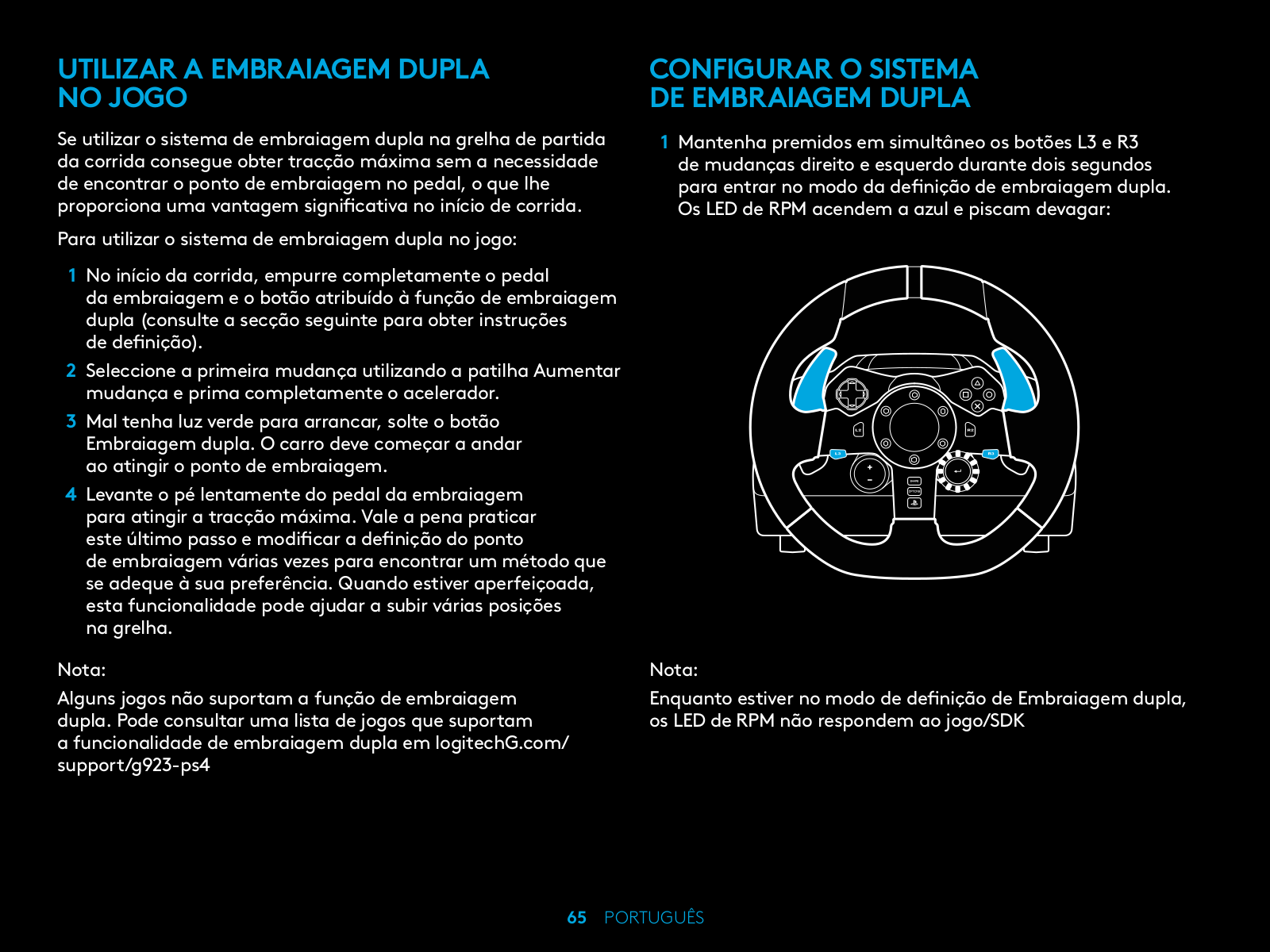

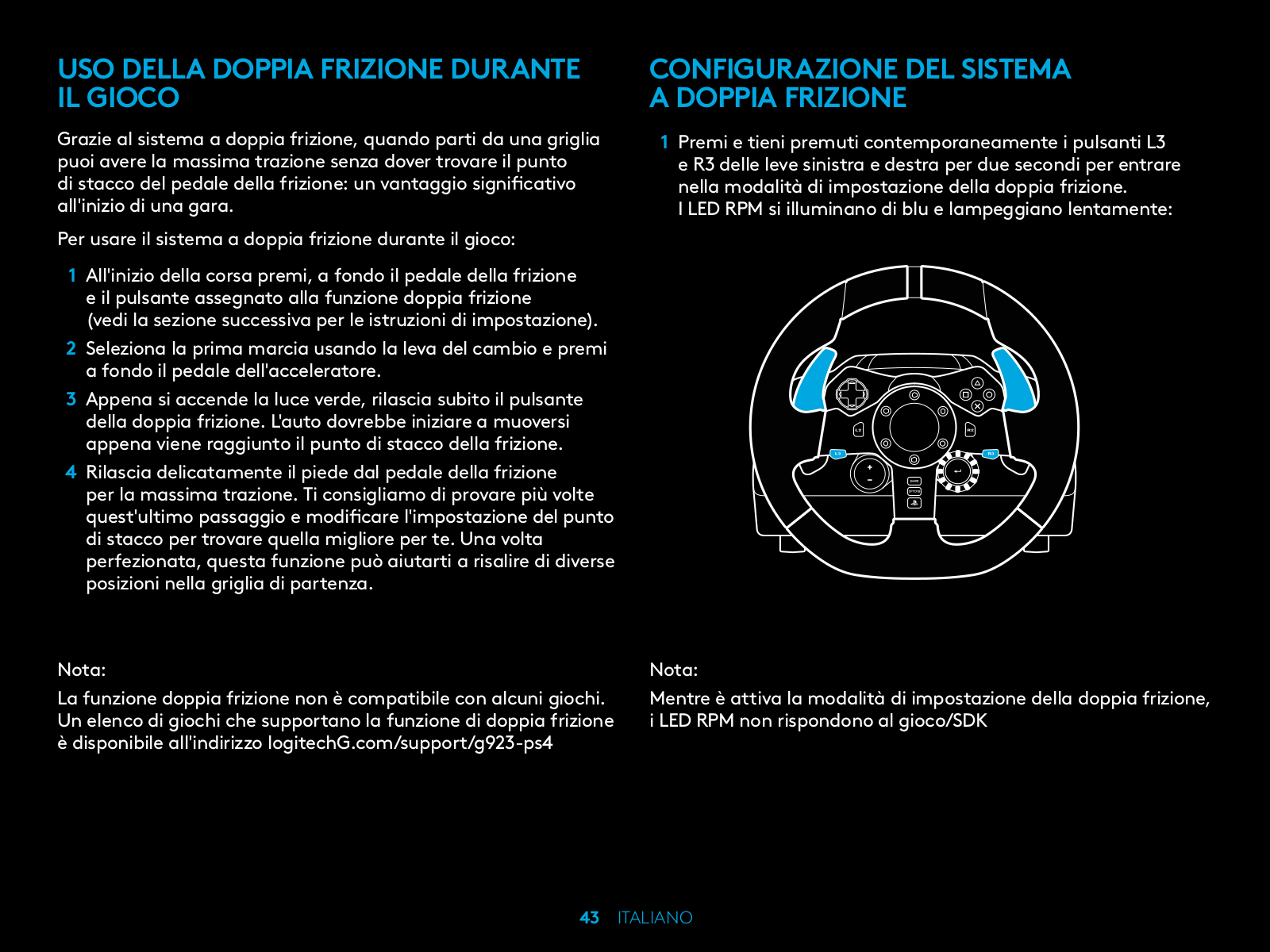

USING THE DUAL CLUTCH IN-GAME
Using a dual clutch system from a grid start in a race enables you to achieve maximum traction without the need to find the bite point of your clutch pedal - this can give you a significant advantage at the start of a race.
To use the dual clutch system in-game:
1At race start, fully depress the clutch pedal and the button assigned to the dual clutch function (see next section
for setting instructions).
2Select first gear using the Gear Up Paddle and fully depress the gas pedal.
3As soon as you get the green light for race start, immediately release the Dual Clutch button. The car should start moving as the bite point of the clutch is engaged.
4Smoothly release your foot from the clutch pedal in order to achieve maximum traction. It’s worth practicing this last
step and modifying the bite point setting several times to find a method that works for you. Once you have it perfected, this feature can help make up several places on the grid.
Note:
Support for the dual clutch function is not possible in some games. A list of games that support the dual clutch feature can be found at logitechG.com/support/g923-ps4
SETTING UP THE DUAL CLUTCH SYSTEM
1Press and hold the left and right gear paddle L3 and R3 buttons together for two seconds to enter
dual clutch setting mode. The RPM LEDs will illuminate blue and flash slowly:
Note:
Whilst in the Dual Clutch setting mode the RPM LEDs will not respond to the game/SDK
10 ENGLISH

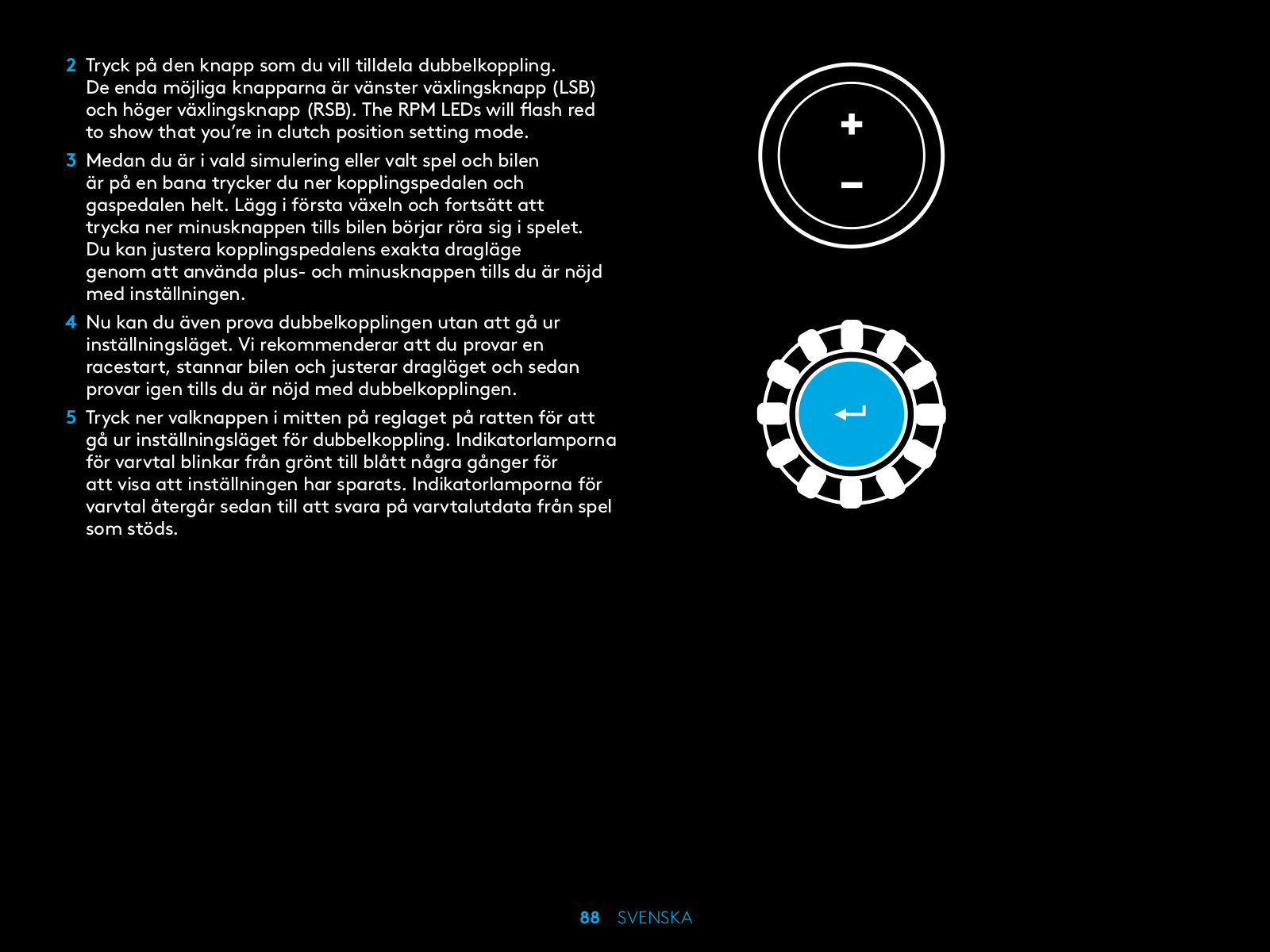

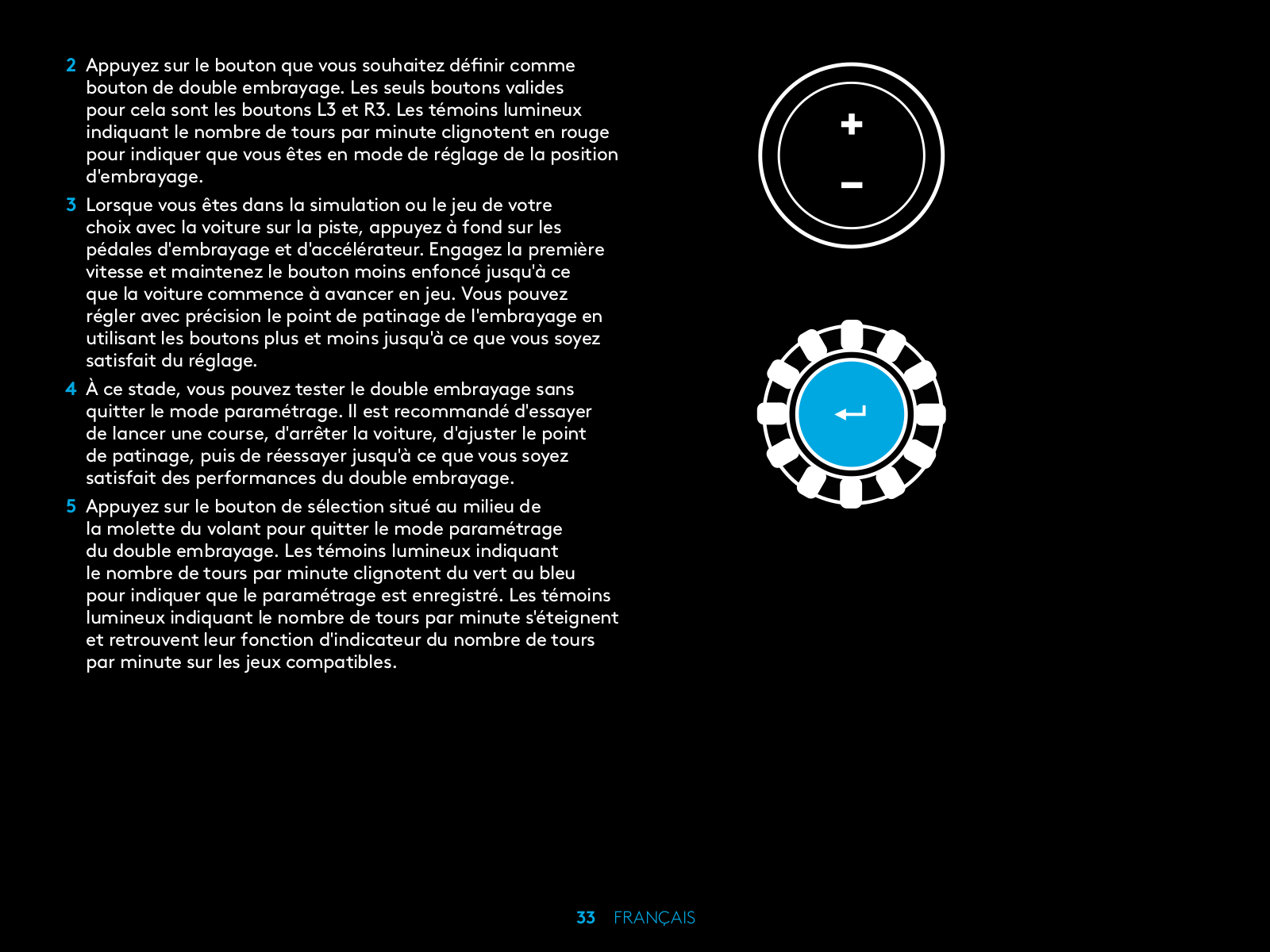

2Press the button you want to set as the dual clutch button. The only valid buttons for this are the L3 and R3 buttons. The RPM LEDs will flash red to show that you’re in clutch position setting mode.
3While in your chosen simulation or game with the car still on a track, fully depress the clutch and gas pedals. Engage first gear and keep pressing the minus button
down until the car begins to move in-game. You can adjust the precise bite point of the clutch by using the plus and minus buttons until you are happy with the setting.
4At this point you may test the dual clutch without leaving the setting mode. It is recommended you attempt a race start, stop the car and adjust the bite point and then try again until you are satisfied with the performance of the dual clutch.
5Press the Select button in the middle of the dial on the wheel to exit dual clutch setting mode. The RPM LEDs will flash
in a sequence from green to blue to show that the setting
is saved. The RPM LEDs will then go out and begin responding again to RPM output from supported games.
11 ENGLISH

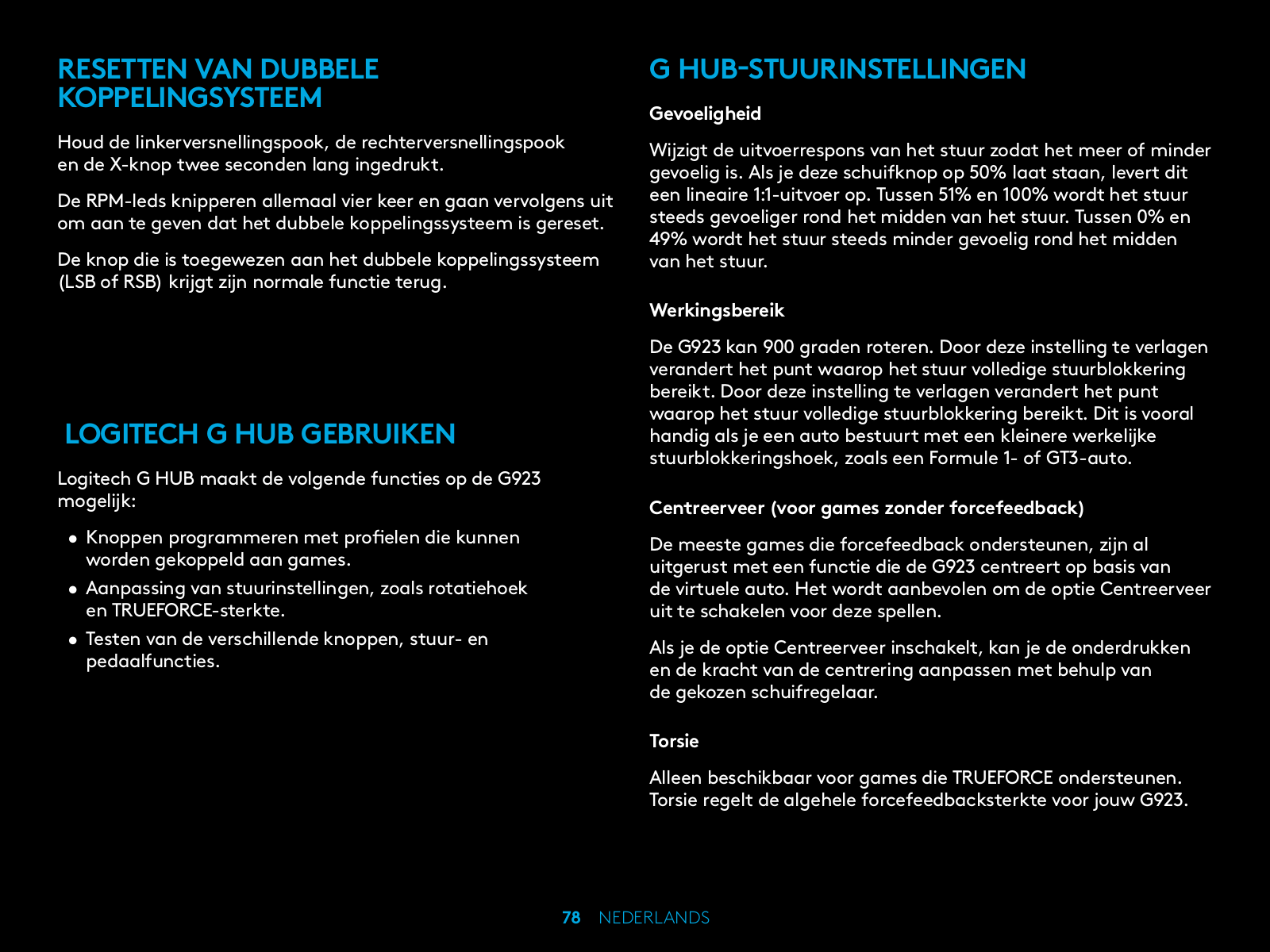

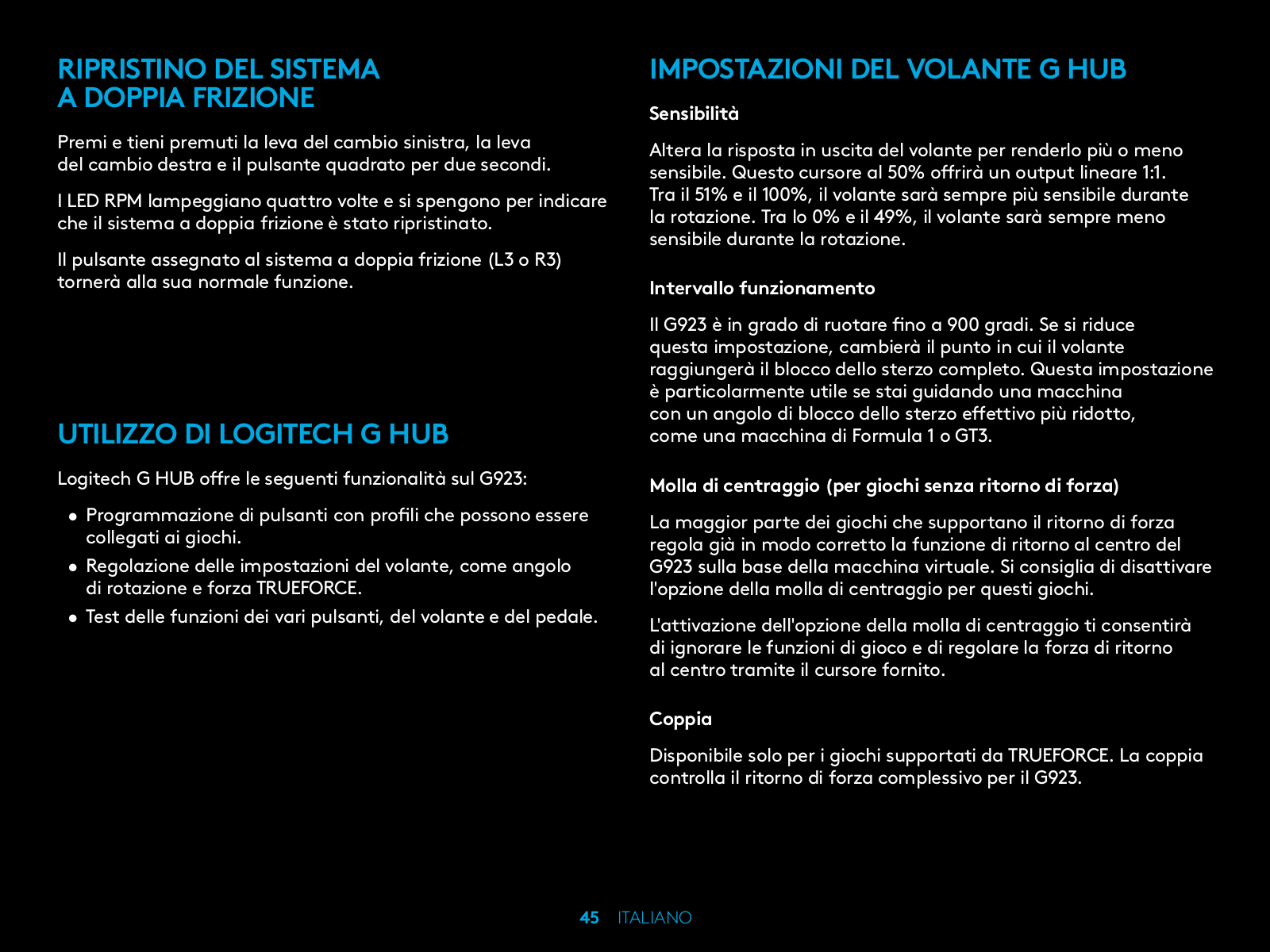

RESETTING DUAL CLUTCH SYSTEM
Press and hold the left gear shift, right gear shift, and square button for two seconds.
The RPM LEDs will all flash four times and then extinguish to indicate that the Dual Clutch system has been reset.
The button assigned to the Dual Clutch system (L3 or R3) will revert to its normal function.
USING LOGITECH G HUB
Logitech G HUB enables the following features on the G923:
•Button programming with profiles that can be linked to games.
•Adjustment of wheel settings, such as Rotation Angle and TRUEFORCE strength.
•Testing of the various buttons, wheel and pedal functions.
G HUB WHEEL SETTINGS
Sensitivity
Alters the output response of the wheel to be more or less sensitive. Leaving this slider at 50% will provide a linear 1:1 output. Between 51% and 100% will make the wheel increasingly more sensitive around the centre movement of the wheel. Between 0% and 49% will make the wheel decreasingly sensitive around the centre movement of the wheel.
Operating Range
The G923 is capable of up to 900 degrees of rotation. Reducing this setting will change the point at which
the wheel will reach full steering lock. This is especially useful if you’re driving a car with a smaller actual steering lock angle, such as a Formula 1 or GT3 car.
Centering Spring (for games without force feedback)
Most games that support force feedback already model the correct return to center function of the G923 based on the virtual car. It is recommended that the Centering Spring option be turned off for these games.
Enabling the Centering Spring option will allow you to override the game features and adjust the strength of the return
to center force using the provided slider.
Torque
Only available for TRUEFORCE supported games. Torque controls the overall force feedback strength for your G923.
12 ENGLISH
Audio Effects
Only available for TRUEFORCE supported games. Controls the overall strength of the audio-related effects (engine note, rumble strips etc.) when using TrueForcecompatible titles.
If you are using your G923 in older titles that do not support TRUEFORCE then adjustment of the force feedback can be performed from the settings menus of the game title.
TESTING YOUR WHEEL AND PEDALS
On the wheel and pedals screens in G HUB you can check
every button and axis on your G923 in order to ensure everything is functioning correctly. For the wheel you can also see the effect of altering the Operating range.
G HUB PEDALS SETTINGS
Sensitivity
Alters the output response of the pedals to be more or
less sensitive. Leaving this slider at 50% will provide a linear 1:1 output. Between 51% and 100% will make the pedal increasingly more sensitive around the initial movement
of the pedal. Between 0% and 49% will make the pedal decreasingly sensitive around the initial movement of the Pedal.
Combined Pedals
If checked, this will set the gas and brake pedals to become two halves of a single axis. This will help the pedals operate correctly in older racing titles that do not support separate axes for pedals.
Note: if left checked then the pedals will not behave correctly in modern racing titles. If you find that just one of your pedals is functioning by accelerating when pressed and braking when released then you should make sure that this option is not checked.
QUESTIONS?
Please visit logitechG.com/support/g923-ps4 for more information or to get in touch with a customer representative.
13 ENGLISH
VERBINDUNGEN UND
BEFESTIGUNGSPUNKTE
1Befestigungsklammern
2Kabelführungsklemme
3Optionale Schalthebelverbindung (DB-9-Stecker)
4USB-Kabel
5Pedaleinheitsverbindung (DB-9-Buchse)
6Stromanschluss
7Befestigungspunkte (für M6X1-Schrauben)
OPTIMALE KABELFÜHRUNG
USBund Pedalkabel (1, 2) sollten über interne Kanäle geleitet werden.
Netzund optionale Schaltkabel (3, 4) sollten über externe Kanäle geleitet werden.
Kabel können mehrfach um die Kabelführungsklemme gewickelt werden, um die Kabel zu straffen.
1
2 5 3
6
4
7
4 |
1 |
2 |
3 |
3
4
2
1
14 DEUTSCH
EINRICHTUNG – PS4™
– PC
Bringe das Netzteil und die USB-Kabel wie dargestellt an.
Immer wenn das Rennlenkrad eine Verbindung zum System herstellt, dreht es sich zur Kalibrierung einmal vollständig
auf jede Seite und dann zur Mitte. Das Lenkrad ist einsatzbereit, sobald diese Kalibrierung abgeschlossen ist.
Um die LED-Funktionen für Force Feedback und Drehzahl für das G923 Lenkrad mit Pedalen aktivieren zu können, muss die Logitech G HUB Software installiert sein.
Dies ist verfügbar unter logitechG.com/support/g923-ps4.
TRUEFORCE und erweiterte Funktionen erfordern Integration im jeweiligen Spiel. Eine vollständige Liste aller unterstützten Spiele ist verfügbar auf logitechG.com/support/G923-ps4.
PS4
USB
PC
USB
15 DEUTSCH
BEFESTIGUNGSKLAMMERN
Das G923 Rennlenkrad verfügt über eine integrierte Klemmvorrichtung zur Tischmontage.
Drücke die Klemmhalterungen nach unten und drehe sie zum Sperren oder Entsperren.
Drehe die Klemmhalterungen zum Festziehen oder zum Lockern der Klemmen.
Hinweis:
Für das Anbringen an stärkeren Tischplatten sollten die Klemmenerweiterungen entfernt werden.
16 DEUTSCH
TASTEN
1Linker Bumper
2D-Pad
3Ansicht-Taste
4L3-Taste*
5+/- Tasten zum Anpassen der Einstellungen*
6Rechter Bumper
7Tasten X, ¡, o, r
8OPTIONEN-Taste
9R3-Taste*
10Einstellungsauswahl-Drehregler mit Auswahltaste*
11PlayStation-Taste
*Erfordert unterstützte Spiele für PS4. Zuweisbar in jedem Spiel für PC durch Zuweisen im Spiel selbst oder über die Logitech G HUB Software.
1
2
3
4
5
6 |
7 |
8 |
9 |
10 |
11 |
17 DEUTSCH
FORCE FEEDBACK
Das Rennlenkrad enthält Doppelmotoren, die Force Feedback für unterstützte Spiele und Systeme erzeugen.
In unterstützten Titeln wird unsere Force-Feedback-Technologie der nächsten Generation ebenfalls erlebbar: TRUEFORCE.
TRUEFORCE ist direkt integriert in die Spielphysik und die Audiowiedergabe für HD Force Feedback in Echtzeit.
Reifenhaftung, Federung, Gewicht, Motorleistung – und sogar einzigartige Motorengeräusche – sind verzögerungsfrei und deutlich über das Lenkrad spürbar.
Unterstützte Titel für PlayStation® 4 und PC können TRUEFORCE High Definition Force Feedback implementieren. Eine Liste der unterstützten Spiele ist verfügbar auf logitechG.com/support/ g923-ps4
Hinweis:
Das Rennlenkrad verfügt über eine Sicherheitskreisschaltung zum Schutz vor Überhitzung bei Betriebsbedingungen mit hohen Temperaturen. In seltenen Fällen kommt es während der Nutzung zu einem Ausfall der Force Feedback Funktionen, während die Steuerung weiterhin funktioniert.
Wenn dies passiert, muss das Lenkrad auskühlen und der Netzstecker abgezogen werden. Wenn es regelmäßig vorkommt, kontaktiere den Produktsupport.
18 DEUTSCH
PRODUKT- |
1 |
2 |
3 |
||||
EIGENSCHAFTEN |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
1 |
Kupplungspedal |
|
|
|
|
|
|
2 |
Bremspedal |
|
|
|
|
|
|
3 |
Gaspedal |
|
|
|
|
|
|
|
|
|
|
|
|
||
4 |
Strukturierte Fußablage |
|
|
|
|
|
|
4
19 DEUTSCH
5 Befestigungspunkte (für M6X1-Schrauben)
6 Patentiertes Antirutschsystem
7 Antirutsch-Rastfeder Zum Lösen Richtung Rückseite der Pedaleinheit drücken
8 Position der Pedaloberfläche ändern
(2,5-mm-Innensechskantschlüssel erforderlich)
5
6
7
8
20 DEUTSCH
VERWENDEN DER DOPPELKUPPLUNG IM SPIEL
Das Verwenden eines Doppelkupplungssystems bei der Startaufstellung in einem Rennen erzielt maximale Traktion, ohne dazu den genauen Druckpunkt des Kupplungspedals finden zu müssen – das kann zu Beginn eines Rennens
ein erheblicher Vorteil sein.
Zum Nutzen des Doppelkupplungssystems im Spiel:
1Beim Rennstart das Kupplungspedal und die Taste, die der Doppelkupplungsfunktion zugewiesen ist, vollständig durchdrücken (siehe nächster Abschnitt für Einrichtungsanleitung).
2Den ersten Gang mit dem Schalthebel einlegen und das Gaspedal ganz durchdrücken.
3Beim Startschuss für das Rennen die Doppelkupplungstaste sofort loslassen. Das Rennauto sollte anfangen, sich zu bewegen, da der Druckpunkt der Kupplung aktiviert wird.
4Den Fuß sanft vom Kupplungspedal nehmen für maximale Traktion. Es lohnt sich, diesen letzten Schritt zu üben und die Einstellung für den Druckpunkt mehrmals zu ändern, um die ideale Methode auszuarbeiten. Durch Entwickeln
einer perfektionierten Methode beim Start lassen sich mithilfe dieser Funktion mehrere Startplätze schnell aufholen.
Hinweis:
Unterstützen der Doppelkupplungsfunktion ist in einigen Spielen nicht möglich. Eine Liste aller Spiele mit Unterstützung für die Doppelkupplungsfunktion ist verfügbar unter logitechG.com/support/g923-ps4
EINRICHTEN DES DOPPEL-
KUPPLUNGSSYSTEMS
1Die Tasten für den linken und rechten Schalthebel L3
und R3 gleichzeitig zwei Sekunden lang drücken und halten, um den Doppelkupplungs-Einstellmodus zu aktivieren.
Die Drehzahl-LEDs beginnen blau zu leuchten und langsam zu blinken:
Hinweis:
Im Doppelkupplungs-Einstellungsmodus reagieren die DrehzahlLEDs nicht auf das Spiel/SDK
21 DEUTSCH
2Die Taste drücken, die als Doppelkupplungstaste eingestellt werden soll. Die einzigen hierfür zulässigen Tasten sind L3 und R3. Die Drehzahl-LEDs beginnen rot zu blinken, um anzuzeigen, dass der Einstellungsmodus für die Kupplungsposition aktiviert ist.
3In der jeweiligen Simulation bzw. im jeweiligen Spiel
die Kupplung und das Gaspedal vollständig durchdrücken, während sich das Rennauto noch auf einer Rennstrecke befindet. Den ersten Gang einlegen und die Minus-Taste gedrückt halten, bis sich das Auto im Spiel bewegt.
Der genaue Druckpunkt der Kupplung ist einstellbar mit den Plusund Minus-Tasten, bis die perfekte Einstellung gefunden ist.
4An dieser Stelle kann die Doppelkupplung getestet werden, ohne den Einstellungsmodus zu verlassen. Es wird empfohlen, ein Rennen zu starten, das Auto anzuhalten, den Druckpunkt einzustellen und es dann erneut zu versuchen, bis die Doppelkupplung optimal eingestellt ist.
5Die Auswahltaste in der Mitte des Drehreglers auf dem Lenkrad drücken, um den Einstellungsmodus für
die Doppelkupplung zu beenden. Die Drehzahl-LEDs beginnen in einer Abfolge von Grün zu Blau zu blinken, um anzuzeigen, dass die Einstellung gespeichert wurde. Die Drehzahl-LEDs hören dann auf zu leuchten und reagieren wieder auf
die Drehzahl-Ausgabe unterstützter Spiele.
22 DEUTSCH
ZURÜCKSETZEN DES DOPPELKUPPLUNGSSYSTEMS
Die linke Gangschaltungstaste, die rechte Gangschaltungstaste und die Viereck-Taste zwei Sekunden lang gedrückt halten.
Die Drehzahl-LEDs werden alle viermal blinken und dann ausgehen, um anzuzeigen, dass das Doppelkupplungssystem zurückgesetzt wurde.
Die dem Doppelkupplungssystem zugewiesene Taste (L3 oder R3) hat dann wieder ihre normale Funktion.
NUTZEN VON LOGITECH G HUB
Logitech G HUB aktiviert die folgenden Funktionen des G923:
•Tastenprogrammierung mit Tastenprofilen, die sich mit einzelnen Spielen verknüpfen lassen.
•Anpassung von Lenkrad-Einstellungen wie Rotationswinkel und TRUEFORCE Intensität.
•Testen der einzelnen Tasten-, Lenkradund Pedal-Funktionen.
G HUB – LENKRAD-EINSTELLUNGEN
Empfindlichkeit
Ändert die Ausgabereaktion des Lenkrads auf eine höhere oder niedrigere Empfindlichkeit. Wenn dieser Schieberegler auf 50 % eingestellt ist, erfolgt eine lineare 1:1-Ausgabe. Zwischen 51 % und 100 % erhöht sich die Empfindlichkeit des Lenkrads um den zentralen Bewegungsbereich des Lenkrads. Zwischen 0 % und 49 % verringert sich die Empfindlichkeit des Lenkrads um den zentralen Bewegungsbereich des Lenkrads.
Betriebsbereich
Das G923 ist um bis zu 900 Grad drehbar. Durch Verringern dieser Einstellung wird der Punkt geändert, an dem das Lenkrad den vollen Lenkeinschlag erreicht. Dies ist besonders nützlich zum Fahren eines Rennautos mit einem kleineren Lenkeinschlag, beispielsweise ein Formel-1-Auto oder ein GT3-Auto.
Zentrierfeder (für Spiele ohne Force Feedback)
Die meisten Spiele, die Force Feedback unterstützen, simulieren bereits die korrekte Rückmeldung für die Zentrierfunktion
des G923 basierend auf dem virtuellen Auto. Es wird empfohlen, die „Zentrierfeder“-Option für diese Spiele zu deaktivieren.
Das Aktivieren der „Zentrierfeder“-Option ermöglicht
das Außerkraftsetzen der Funktionen im Spiel und das Anpassen der Intensität der Rückmeldung für die Zentrierkraft mithilfe des verfügbaren Schiebereglers.
Drehmoment
Nur verfügbar für Spiele, in denen TRUEFORCE unterstützt wird. „Drehmoment“ steuert die Gesamtintensität des Force Feedback für das G923.
23 DEUTSCH
Soundeffekte
Nur verfügbar für Spiele, in denen TRUEFORCE unterstützt wird. Steuert die Gesamtstärke der Soundeffekte (Motorensound, Rüttelstreifen etc.) beim Spielen von TrueForce-kompatiblen Titeln.
Beim Nutzen des G923 in älteren Titeln, die TRUEFORCE nicht unterstützen, kann Force Feedback über die Einstellungsmenüs des jeweiligen Spiels angepasst werden.
TESTEN DES LENKRADS UND DER PEDALE
Auf den Bildschirmen für das Lenkrad und die Pedale in G HUB lassen sich alle Tasten und Achsen des G923 überprüfen,
um sicherzustellen, dass alles ordnungsgemäß funktioniert. Für das Lenkrad lässt sich auch testen, wie sich das Ändern des Betriebsbereichs auswirkt.
G HUB – PEDAL-EINSTELLUNGEN
Empfindlichkeit
Ändert die Ausgabereaktion der Pedale auf eine höhere oder niedrigere Empfindlichkeit. Wenn dieser Schieberegler auf 50 % eingestellt ist, erfolgt eine lineare 1:1-Ausgabe. Zwischen 51 % und 100 % erhöht sich die Empfindlichkeit des Pedals um
den ursprünglichen Bewegungsbereich des Pedals. Zwischen 0 % und 49 % verringert sich die Empfindlichkeit des Pedals um
den ursprünglichen Bewegungsbereich des Pedals.
Kombinierte Pedale
Wenn diese Option aktiviert ist, werden die Gasund Bremspedale so eingestellt, dass sie zwei Hälften einer einzigen Achse bilden. Dadurch funktionieren die Pedale auch in älteren Rennspielen, die keine separaten Achsen für Pedale unterstützen.
Hinweis: Wenn diese Option aktiviert ist, funktionieren die Pedale in modernen Rennspielen nicht korrekt. Falls nur eines der Pedale als Gaspedal funktioniert, wenn es gedrückt wird, und das Loslassen direkt Bremsen auslöst, dann kann es sein, dass diese Option aktiviert ist.
FRAGEN?
Weitere Informationen gibt es auf logitechG.com/support/g923ps4 oder von einem Mitarbeiter des Kundensupports.
24 DEUTSCH
CONNEXIONS ET POINTS DE MONTAGE
1Fixations de montage
2Taquet de rangement des câbles
3Connexion de levier en option (DB-9 mâle)
4Câble USB
5Connexion de l'unité de pédale (DB-9 femelle)
6Alimentation secteur
7Points de montage de boulon (boulons M6X1)
1
2 5 3
6
4
7
SYSTÈME DE PASSAGE DE CÂBLE OPTIMAL
Le câble USB et le câble de la pédale (1, 2) doivent passer par les glissières intérieures.
Les câbles d'alimentation et câbles de levier en option (3, 4) doivent passer par les glissières extérieures.
Les câbles peuvent être enroulés plusieurs fois autour du taquet de rangement des câbles pour éviter qu'il y ait du jeu dans
les câbles.
4 |
1 |
2 |
3 |
3
4
2
1
25 FRANÇAIS
INSTALLATION — PS4™
— PC
Installez l'adaptateur secteur et les câbles USB comme indiqué.
À chaque fois que votre volant de course se connecte à votre système, il tourne entièrement de chaque côté,
puis se repositionne au centre pour le calibrage. Votre volant est prêt une fois le calibrage terminé.
Pour que le PC active les fonctions de retour de force et
du témoin lumineux indiquant le nombre de tours par minute sur votre volant et pédales G923, vous devez installer le logiciel Logitech G HUB. Il est disponible à l'adresse logitechG.com/ support/g923-ps4.
TRUEFORCE et les fonctions avancées nécessitent l'intégration du jeu. Rendez-vous sur logitechG.com/support/G923-ps4 pour connaître la liste complète des jeux pris en charge.
PS4
USB
PC
USB
26 FRANÇAIS
FIXATIONS DE MONTAGE
Le volant de course G923 Driving Force Racing Wheel est équipé d'un système de fixation intégré pour le montage sur une table.
Poussez vers le bas et faites tourner les boutons de fixation pour verrouiller ou déverrouiller.
Faites tourner les boutons de fixation pour serrer ou desserrer les fixations.
Remarque:
Pour fixer le volant sur des tables plus épaisses, vous devez retirer les extenseurs de fixation.
27 FRANÇAIS
BOUTONS
1Gâchette haute gauche
2Pavé directionnel
3Bouton Vue
4Bouton L3*
5Paramétrage des boutons de réglage +/-*
6Gâchette haute droite
7Boutons X, ¡, o, r
8Bouton OPTIONS
9Bouton R3*
10Molette de paramétrage de la sélection et bouton de sélection*
11Bouton PS
*Nécessite des jeux PS4 compatibles. Affectation possible dans tous
les jeux PC utilisant soit l'affectation en jeu, soit le logiciel Logitech G HUB.
1
2
3
4
5
6 |
7 |
8 |
9 |
10 |
11 |
28 FRANÇAIS
RETOUR DE FORCE
Votre volant de course contient deux moteurs qui fournissent le retour de force sur les jeux et systèmes pris en charge.
Vous découvrirez également notre approche nouvelle génération du retour de force dans les titres compatibles: TRUEFORCE.
TRUEFORCE s'intègre directement à la physique et au son du jeu pour produire un retour de force haute définition en temps réel. L'adhérence des pneus, la suspension, le poids, la puissance
du moteur, même la résonance du son du moteur, sont immédiatement et précisément ressentis via le volant.
Les titres PlayStation® 4 et PC compatibles peuvent intégrer le retour de force haute définition TRUEFORCE. Pour connaître la liste des jeux compatibles, rendez-vous sur logitechG.com/ support/g923-ps4
Remarque:
Votre volant de course dispose d'un circuit de protection contre la surchauffe pour le protéger dans les conditions
de fonctionnement à haute température. Il arrive parfois que les fonctions de retour de force s'éteignent en cours d'utilisation bien que les commandes fonctionnent toujours.
Si cela se produit, laissez le volant refroidir et mettez-le hors tension en le débranchant. Si cela se produit fréquemment, contactez le support produit.
29 FRANÇAIS
CARACTÉRISTIQUES |
1 |
2 |
3 |
||||
1 |
Pédale d'embrayage |
|
|
|
|
|
|
2 |
Pédale de frein |
|
|
|
|
|
|
3 |
Pédale de gaz |
|
|
|
|
|
|
4 |
Repose talon texturé |
|
|
|
|
|
|
|
|
|
|
|
|
4
30 FRANÇAIS
