Logitech 920-002416 User Manual
Logitech® Wireless Desktop MK710
Contents
www.logitech.com/support, 55
2
®
Wireless Desktop MK710
Logitech
3
Logitech® Wireless Desktop MK710
1
4
2
Pull
®
Wireless Desktop MK710
Logitech
Español TIRAR
Français TIRER
Português
PUXAR
5
Logitech® Wireless Desktop MK710
3
6
®
Wireless Desktop MK710
Logitech
English
Your Keyboard and mouse are now ready for
use. Install the Logitech® SetPoint™ Software
to do the following:
• Enable some of the F-keys and customize up
to 14 keys on the keyboard
• Enable the Mute icon on the LCD
• Enable the tilt wheel and customize up to
6 buttons on the mouse
Español
Ya puedes usar el teclado y mouse.
Instala el software Logitech® SetPoint™ para:
• Activar algunas de las teclas F y personalizar
hasta 14 botones en el teclado
• Activar el icono de silencio en la pantalla LCD
• Activar el botón rueda y personalizar hasta
6 botones en el mouse
7
Français
Votre ensemble clavier et souris est maintenant
prêt à l’emploi. Installez le logiciel Logitech®
SetPoint™ pour effectuer les actions suivantes:
• activer les touches F et personnaliser jusqu’à
14 touches du clavier;
• activer l’icône de sourdine sur l’écran LCD;
• activer la roulette multidirectionnelle et
personnaliser jusqu’à six boutons de la souris.
Português
O teclado e o mouse estão prontos para ser
usados. Instale o Logitech® SetPoint™ Software
para fazer o seguinte:
• Ativar algumas teclas F e personalizar até
14 teclas no teclado
• Ativar o ícone de sem som no LCD
• Ativar a roda de inclinação e personalizar até
6 botões no mouse
Logitech® Wireless Desktop MK710
Keyboard features: F-key usage
User-friendly enhanced F-keys let you launch applications easily. To use
the enhanced functions (yellow icons), first press and hold the FN key;
second, press the F-key you want to use.
Tip In the software settings, you can invert the FN mode if you prefer to access directly
the enhanced functions without having to press the FN key.
8 English
2nd - Press an F-key
1st - Press and hold
the FN key
Keyboard features: F-keys and more
Getting started with
English 9
Logitech® Wireless Desktop MK710
1. Internet zone
Launches Internet browser
Launches e-mail application
One Touch Search™*
Launches instant message
application*
2. Convenience zone
Launches application switcher*
Zoom in*
Zoom out*
Windows
Gadget or Settings*
* Logitech® SetPoint™ Software installation is required.
3. Productivity zone
Launches media player
Launches Photo Gallery*
Launches document
application*
Launches spreadsheet
application*
4. Context menu
Display contextual menu
of selected item.
5. PC sleep mode
Places your computer in energysaving sleep mode.
6. Eject button*
Opens CD/DVD-ROM drive drawer.
10 English

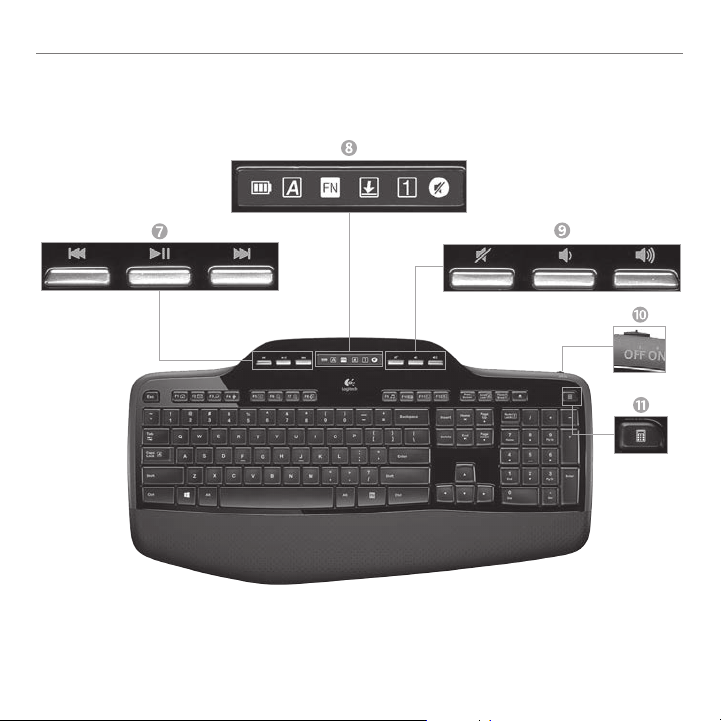

Keyboard features: Media keys and status icons
Getting started with
English 11
Logitech® Wireless Desktop MK710
7. Multimedia navigation
Back/previous track
Play/pause
Forward/next track
8. LCD Dashboard icon status
Battery status indicator (see Battery
management for more information)
60% 30% 10%
100%
Caps lock on
FN on
Scroll lock on
Num lock on
Mute on*
* Logitech® SetPoint™ Software installation is required.
9. Volume control
Mute
Volume down
Volume up
10. Keyboard off/on switch
11. Launches calculator
12 English
Mouse features
1
Getting started with
MicroGear precision scroll wheel
Tilt wheel for side-to-side (horizontal) scrolling
through spreadsheets or wide documents.
The scroll wheel doubles as a middle button.
Press down to use and press again to release.
Zoom
Precision scrolling
Press scroll wheel
to zoom.
1
2
3
Use click-to-click mode to navigate lists
or slides.
Hyper-fast scrolling
The wheel spins freely, allowing you
to fly through long documents and
Web pages.
Scroll toggle
With the flick of a switch, change between precision
(click-to-click) scrolling and hyper-fast scrolling.
English 13
Logitech® Wireless Desktop MK710
More mouse features
1. Back and Forward Buttons* – Press to
flip between web pages.
2. Application Switch* – Press rubber grip
to switch between applications.
3. Battery Indicator Light – Turns red when
a couple weeks of battery life remain.
4. On/Off Switch – Slide to turn mouse on
and off.
5. Battery Door Release – Press where indicated
and slide door off mouse. Reduce weight by
installing a single battery.
6. Receiver Storage Space Inside the Mouse
* Application Switcher and side-to-side scrolling require
Logitech software. Depending on your operating system,
the back, forward, and middle buttons may also require
Logitech software.
14 English
Getting started with
Battery management
Battery icon
Your keyboard and mouse have up to three years
of battery life.*
Battery sleep mode
Did you know that your keyboard and mouse go into
sleep mode after you stop using them for a few minutes?
This feature helps limit battery usage and eliminates
the need to keep switching your devices on and off.
Both your keyboard and mouse are up and running
immediately once you begin using them again.
How to check the battery level for the keyboard
The battery icon on the keyboard LCD shows the current battery
level for the keyboard. As the battery level decreases, the battery
100%
icon shows how much battery power remains, as shown in the image
to the right.
How to check the battery level for the mouse
Option 1: Turn the mouse off then back on using the On/Off switch
on the mouse bottom. If the LED on top of the mouse glows green
for 10 seconds, the batteries are good. If the LED blinks red, the battery
level has dropped to 10% and you have only a few days of battery
power left.
Option 2: Launch the SetPoint Software, and click the Mouse Battery
tab to see the current battery level of the mouse.
* Battery life varies with usage and computing conditions. Heavy usage usually results in shorter battery life.
LED
60% 30% 10%
Mouse bottom
On/Off
switch
Mouse top
English 15
Logitech® Wireless Desktop MK710
Plug it. Forget it. Add to it.
You’ve got a Logitech® Unifying receiver. Now add
a compatible wireless keyboard or mouse that uses
the same receiver. It’s easy. Just start the Logitech®
Unifying software* and follow the onscreen instructions.
For more information and to download the software, visit
www.logitech.com/unifying
16 English
Troubleshooting
Keyboard and mouse are not working
Check the USB connection. Also, try changing USB ports.
Move closer? Try moving the keyboard and mouse closer to
the Unifying receiver, or plug the Unifying receiver into the receiver
extender cable to bring it closer to the keyboard and mouse.
Check battery installation. Also check the battery power of each device.
(See Battery management for more information.)
Getting started with
On the mouse bottom, slide the On/Off switch right to turn on
the mouse. The Battery LED on the mouse top case should light green
for 10 seconds. (See Battery management for more information.)
English 17
Mouse bottom
On/Off
switch
