User
Manual
Version 1.0
User
Manual
Version 1.0
510
Contents
Introduction ...............................................................................................................................4
Getting to know your remote .....................................................................................................4
How your Harmony 510 works ........................................................................................... 4
Activities, devices, and inputs ............................................................................................. 4
The buttons on your Harmony 510 .....................................................................................5
What’s on the Harmony 510 screen .....................................................................................6
Using your Harmony 510 ............................................................................................................. 7
Selecting an Activity ........................................................................................................... 7
Switching between Activities ...............................................................................................7
Turning off your devices ......................................................................................................7
Using the Help button ........................................................................................................ 8
Controlling your devices individually ....................................................................................9
Setting the backlight timing ................................................................................................ 9
Using the Teletext Buttons ..................................................................................................9
Using the Glow Button ........................................................................................................ 9
Setting up your Harmony 510 for the first time .......................................................................... 10
Overview of the setup process .......................................................................................... 10
1. Creating your user account ............................................................................................ 11
2. Connecting your Harmony 510 to your computer ............................................................ 11
3. Setting up the devices you want to control ..................................................................... 12
4. Setting up Activities for your Harmony 510 ..................................................................... 12
5. Updating the remote .................................................................................................... 13
Testing your setup .................................................................................................................... 14
Adding an extra device (passthrough) to an Activity ............................................................ 15
Changing how buttons work in an Activity .......................................................................... 16
Customizing the on-remote help ....................................................................................... 16
Changing your setup ................................................................................................................ 17
Adding and changing your Activities .................................................................................. 17
Renaming an Activity ........................................................................................................ 17
Adding and changing your devices ..................................................................................... 17
Controlling the Remote Assistant ....................................................................................... 18
Personalizing your Harmony 510 ............................................................................................... 18
Changing the order of Activities on your Harmony 510 screen .............................................. 18
Adding custom-labeled buttons to an Activity ..................................................................... 18
Adding additional features to your Harmony 510 ....................................................................... 19
Teaching your Harmony 510 new commands using your old remote ..................................... 19
Naming a new command your remote learned ...................................................................20
Types of delays or speed settings ....................................................................................... 21
Adjusting the delay between IR commands (speed settings) ................................................ 22
Maintaining your Harmony 510 .................................................................................................23
2
Upgrading your Harmony 510 firmware .............................................................................. 23
Testing your remote settings after a software upgrade .......................................................23
Upgrading to a new Harmony remote ................................................................................ 23
Troubleshooting problems with your Harmony 510 .................................................................... 24
Figuring out which inputs your system uses ............................................................................... 26
Figuring out which type of input control you have ...............................................................26
Step 1— Turn on all your devices ........................................................................................ 27
Step 2 — Watch the TV ..................................................................................................... 28
Step 3 — Listen to the sound .............................................................................................28
Getting help with your Harmony 510 ......................................................................................... 29
Contacting Customer Support ...........................................................................................29
Finding answers to questions .............................................................................................29
Getting help with your online setup ...................................................................................29
Using the On-Remote Help ................................................................................................ 30
Logitech’s Harmony Remote user forums ............................................................................30
Appendix A - Device Information ............................................................................................... 31
Appendix B - Glossary ............................................................................................................... 32
Appendix C - Product Specification ............................................................................................35
3
Introduction
The Harmony Advanced Universal Remote is your answer to effortless home entertainment. The
Activities button puts control for all your devices in one convenient location. You can go from
watching TV to watching a DVD to listening to music with the touch of a button. You no longer
need to type in codes to get your remote working with your entertainment system. The guided
online setup walks you through the step-by-step configuration of your Harmony 510 with your
entertainment system and then you’ll be ready to sit back and enjoy!
Whether you’re new to Harmony products or you consider yourself an expert, this User Manual
provides you with useful information to get you going.
Getting to know your remote
How your Harmony 510 works
The Harmony 510 is an Activity-based infrared (IR) universal remote control.
Using the Harmony Remote Software, you can configure the Harmony 510 to control
up to 5 devices.
The Harmony 510 delivers powerful Activity-based control by using Smart State Technology®.
This technology allows the Harmony 510 to keep track of the devices it controls, so it always
knows which of your devices are on. Using Smart State Technology®, the Harmony 510 switches
effortlessly from watching a DVD to listening to music on the stereo with the touch of a button.
Activities, devices, and inputs
Activities are the basis for for the Harmony 510 works. Things like watching a DVD, listening to
radio, playing a game are all examples of Activities you can set up for your remote using the
Harmony Remote Software.
When you select an Activity, your Harmony 510 sends a series of commands to your
entertainment system to turn on the necessary devices and configure them for the selected
Activity. After you select an Activity, your Harmony 510 assigns the buttons on your remote so
they control the proper devices and the screen displays other commands for that Activity.
For information on how to select an Activity, or how to switch between Activities,
see Selecting an Activity.
vices are the components of your entertainment system. They’re things like your TV, cable
De
box, DVD player, or game system.
Inputs are how your devices are connected. For example, if your DVD player is connected to your
TV using the Component 1 input, then the TV needs to be set to Component 1 to display the
DVD picture properly.
4
The buttons on your Harmony 510
The system off button turns off all the devices in the current Activity.
The Harmony 510
buttons may have
different functions
or control different
devices depending on
which Activity you’re in.
For more information, see
Changing how buttons
work in an Activity.
Off
Options Devices
Activities
Help
Menu
Info
Exit
Guide
The arrow keys help you page through items on the touch screen.
The function buttons are dynamic and select different functions on
the remote or the Activity.
The Activities button returns you to the Activities starting point.
The Help button starts the on-remote help.
The Menu button opens the on-screen menu for the device selected.
For information on selecting devices, see
The page up and page down arrows help you navigate through your
on-screen guide or menu.
The Info button opens the information section of your on-screen
guide.
The Exit button closes your on-screen menu or guide.
The Guide button opens your on-screen guide.
+
Vol
The volume button changes the volume.
The navigation pad arrows allow you to move through menus or on-
OK
+
Ch
screen guides.
The channel button changes the channels.
The mute button mutes the sound.
The previous channel buttons returns you to the last channel you were
on.
The play area puts your play, pause, skip and other buttons in one
Replay
1
2
abc
4
5
ghi
jkl
7
8
pqrs
tuv
0
E
enter
area for quick access.
Skip
3
The number pad has the digits 0-9.
def
6
mno
9
wxyz
The enter button enters a selection from the number pad.
+
clear
5
The clear button clears an entry from the number pad.
6
Activities
Activities
The Activities screen is your starting point on the Harmony
510. From this screen, you can select your Activities.
Devices
Devices
When you press the Devices button, the Harmony 510 screen
displays a list of your devices. From this screen, you can
control individual devices.
Commands common to your Activity
Commands common to your Activity
When you select an Activity, your Harmony 510 screen
displays all the commands related to that Activity, not just
the ones related to the primary device of that Activity. For
example, if you’re watching a DVD, your screen displays
functions and commands for your DVD and other devices
you use in the Watch a DVD Activity.
What’s on the Harmony 510 screen
My Activities
1/2 pages Tue 4:51
Options
Devices
Watch TV
Watch a DVD
Listen to Music
Off
Options
Devices
Listen to Music
Options
When you press the Options button, the Harmony
510 screen displays a list of remote options so you can
customize certain features and functions on the remote.
Watch a DVD
1/2 pages Tue 4:51
Devices
Chptr+
Aspect
Chptr-
Frame
Advance
Angle
Zoom
Off
Devices
1/2 pages Tue 4:51
Activities
TV
DVD
Off
The status light is the green LED located at the top
of the remote, in between the Off and Help buttons.
The status light will illuminate when the Harmony is
sending commands to your devices.
Using your Harmony 510
Selecting an Activity
Off
My Activities
The Activities screen displays the Activities you have
created for the remote. You can start an Activity by
touching the item on the screen.
Switching between Activities
To select a new Activity, press the Activities button, and select the Activity you want to enjoy.
The Harmony One will take care of powering on the needed devices, and powering off the ones
not needed.
1/2 pages Tue 4:51
Watch TV
Watch a DVD
Listen to Music
Devices
Options
Turning off your devices
Press the system off button to power off all the devices used in the Activity.
You don’t need to press the system off button when
switching between Activities. The Harmony 510 ensures
the proper devices for the Activity are On or Off.
7
Using the Help button
Because obstacles or distance can interfere with the signals the Harmony 510 sends when it
starts an Activity (for example, someone walks between your Harmony One and the TV when
you press Watch TV, or you’re very far away from the system when you start an Activity), your
Harmony One can become “out of sync” with your devices.
To fix the problem, use the help feature on your Harmony 510.
On the remote, press the 1. Help button.
Answer the questions on the Harmony 510 screen by selecting 2. Yes or No.
Based on your answers, the Harmony 510 re-sends the necessary commands to synchronize
with your devices.
When you’re done with this process, the Harmony 510 will be “in sync” with your devices.
Before using the Help button, be sure you’ve addressed the cause of the
problem (for example, remove any obstacles from the line of sight).
8
Controlling your devices individually
In some cases, you may need to control a device individually. You can use the device feature of
the Harmony 510 to control devices one-by-one.
When you press the Device button, the Harmony 510 screen displays a list of your devices.
Select the device you wish to control. After you select a device, the Harmony 510 controls only
that device. You have access to all the commands for the device included in your Harmony One
configuration.
Once you’ve finished, return to Activities for the optimal control of your entertainment system.
Setting the backlight timing
The Harmony 510 senses when you pick it up, and lights up the display and buttons.
To set the length of time the backlight stays on, follow these steps:
From your Harmony Remote Software:
Select 1. Remote Settings.
Select 2. Display Settings.
Using the Teletext Buttons
When you press any of the Teletext buttons, the home page for Teletext will appear on
the television (it may take a few seconds for the page to appear). The Teletext page will
completely replace the television picture, but sound will still be available. Each Teletext
page has a unique 3-digit page number; all pages can be accessed by entering the 3-digit
page number using the numbered channel buttons on your Harmony remote.
While Teletext is the default setting for these buttons in the
Watch TV Activity, you can customize these buttons to send
different commands in other Activities. See Adding customlabeled buttons to an Activity.
Using the Glow Button
Press the Glow button to light up or turn off the display backlight. To determine the length
of time the backlight stays on.
Note: Shaking or tilting the Harmony remote will not light up the display backlight. Users
must press the Glow button to light up the display backlight. The remote will go into Deep
Sleep mode when the remote detects no motion for two hours. The remote will begin
motion sensing in Deep Sleep mode, and any motion or movement in front of the remote
9
Setting up your Harmony 510 for the first time
Overview of the setup process
When you insert the Harmony remote CD, the guided online setup launches. Follow the easy
setup instructions to install the Harmony Remote Software. For more information on installing
the Harmony Remote Software, refer to the Installation Guide.
After the software installs, start the Harmony Remote Software. When you start the Harmony
Remote Software, it checks for updates automatically and downloads them if necessary.
After you install the Harmony Remote Software and gather your device information using the
Device Worksheet, the setup process guides you through five steps in which you answer a series
of questions about how your entertainment system is set up.
Create Account: the setup walks you through creating a user account on the Harmony 1.
Remote Software.
Check connection: the software ensures your computer and Harmony One are 2.
communicating with each other.
Set up Devices: the software walks you through entering the manufacturer and model 3.
numbers of your entertainment system that you collected using the Device Worksheet.
Set up Activities: the software asks you questions about how your entertainment system 4.
is set up, and then saves the settings.
Update Remote: the software transfers the information from your PC to the remote.5.
10
Gathering your device information
To simplify the setup process, we recommend you fill out the
Device Worksheet, so that all the device information is at hand when you need
it.
Locating manufacturer and model number on your devices
Manufacturer names and model numbers are typically found at the front of
a device, on a label on the back of the device, or in the User Manual for that
device.
1. Creating your user account
When you start the Harmony Remote Software for the first time, you must create
your user account.
From the Harmony Remote Software:
Click 1. Create New Account.
Complete the required account information.2.
Follow the instructions in the setup wizard.3.
After you create your user account, the Harmony Remote Software opens your home 4.
page each time you log in.
Your home page is where you can manage your Activities and Devices, as well as change the
settings on your remote.
Whether you want to add a new Activity or device, troubleshoot a problem with an Activity, or
customize remote buttons, the Harmony Remote Software home page is the place to start.
2. Connecting your Harmony 510 to your computer
To connect your Harmony 510 to your PC, use the USB cable provided.
Remove your Harmony 510 from the charging station.1.
Connect the smaller end of the cable to the USB port on your remote.2.
Connect the wider end of the USB cable to a USB port on your computer.3.
Off
My Activities
1/2 pages Tue 4:51
Options Devices
Activities
Help
Menu Info
GuideExit
++
Ch
Vol
OK
Replay
Skip
1
3
2
def
abc
4
6
5
ghi
mno
jkl
7
9
8
pqrs
wxyz
tuv
E
0
clear enter
11
3. Setting up the devices you want to control
The guided online setup asks you to enter your device information. Enter the information for all
the entertainment components you want to control with your Harmony 510. You should use the
Device Worksheet to gather all your device information before starting the setup process.
Select the Device Type for each of your devices.1.
Select the Manufacturer for each device.2.
Enter the Model numbers for each device.3.
Adding new devices at a later time
If you want to add newly acquired devices
after the initial setup, see Adding and
changing your devices.
Guided online setup
4. Setting up Activities for your Harmony 510
To set up Activities, you need to enter the information related to the Activities you will be using
on your Harmony 510. The Harmony Remote Software shows you a selection of recommended
Activities based on the device information you provided.
When you set up Activities, the software asks questions about the function of each device. For
example, if you set up the Watch TV Activity, you’re asked which device changes the channels
(TV or satellite/cable box). If you only have one device that is capable of doing something, then
the software skips the question. For example, if you only have one TV, the software doesn’t ask
you which device displays video.
If the device has more than one input, the software asks you which input the device needs
to be set. If you’re not sure which input a device uses, see Determining your inputs for more
information.
Activities are the basis for how the Harmony 510 works.
With Activities, the Harmony 510 eliminates the need
to use multiple remotes for simple tasks. Just select the
Activity and the Harmony 510 does the rest. For more
information on Activities, see Adding and changing
Activities.
12
5. Updating the remote
After you enter your device and Activity information, the software saves your information. It
also transfers the information to your Harmony 510. After the software updates your remote,
you’re ready to test your setup. For specific details about testing your setup, see the chapter
on Testing your Setup.
13
Testing your setup
Every time you update your Harmony 510, you should test your remote to ensure it’s working
the way you expect. This chapter gives you the information you need to test your remote. It
also has some suggestions on what to check while you’re testing your setup.
If you run into specific issues while testing your remote, refer to the Troubleshooting section of
his manual for suggestions and possible fixes for your problems.
t
The process of testing your Harmony 510 is straightforward. It involves simply trying the
Activities you use most often and then using the on-remote help to correct any issues.
In some cases, you may need to return to the Harmony Remote Software to make changes to
your remote’s setup to ensure the remote is working the way you want.
To begin testing your remote:
Ensure all the devices in your entertainment system are turned off.1.
Disconnect the USB cable from your remote.2.
If this is the first time you’ve updated your remote, the Harmony 510 tutorial will start
on the remote’s screen.
Follow the instructions displayed on the remote’s screen.3.
Go to your entertainment system and try each of your Activities.4.
For tips on what to look for when starting an Activity, or switching between Activities,
see the tips in this chapter.
If an Activity doesn’t start correctly, press the Help button on the
remote and the on-remote help will get you back “in sync”. After you
finish testing your Activities, be sure to re-test any for which you had
to use the Help.
Testing your setup – Starting an Activity
Look for these things in particular:
Did all of your devices for that Activity turn on?•
Do you hear the correct sound?•
If the Activity includes your TV, do you see the correct picture?•
Testing your setup – Switching between Activities
Look for these things in particular:
Are all devices needed for this new Activity on?•
Did devices not needed for this Activity turn off?•
Do you hear the correct Sound?•
If the Activity includes your TV, do you see the correct • picture?
14
15

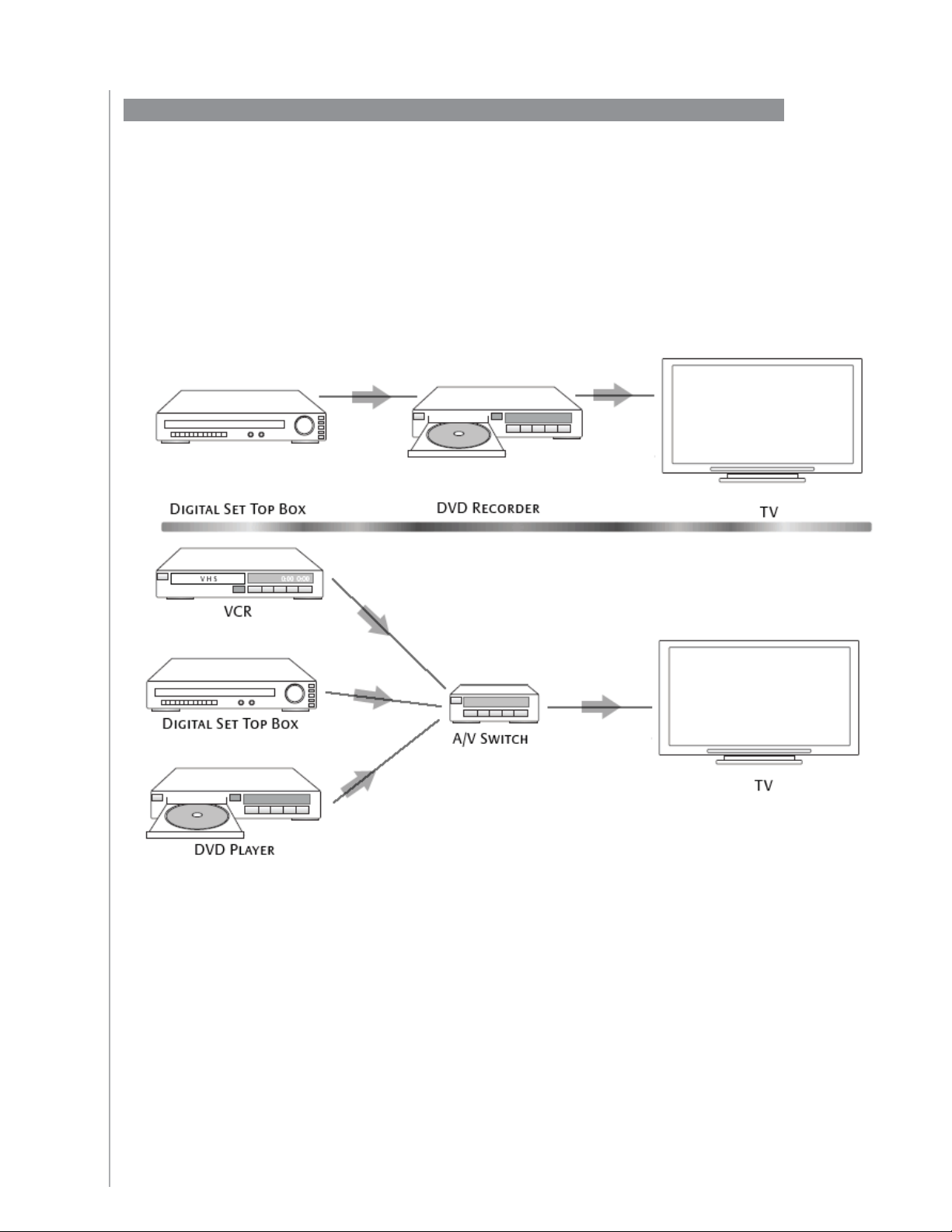

A passthrough device is a device that you add to your system that a signal passes through
unaltered.
For example, if you use your DVD recorder (or VCR) to record shows from your satellite or set
top box, you may need to add your DVD recorder as a passthrough device.
In these examples, the DVD Recorder and the A/V Switch are used as passthrough devices.
Adding an extra device (passthrough) to an Activity
To add an extra Device (Passthrough) to an Activity, go to your home page:
Select the 1. Activities tab.
Click 2. Settings next to the appropriate Activity.
Select 3. Review the settings for this Activity.
Select 4. Yes, but I want to add more control of options and devices for this Activity.
Click 5. Next.
Follow the online instructions to complete the setup.6.
Digital Set Top Box DVD Recorder
TV
Digital Set Top Box
A/V Switch
DVD Player
TV
16
When you select an Activity, your Harmony 510 turns on all the required entertainment devices,
sets up the device inputs correctly, and sets up the remote’s buttons to control the devices in
the Activity. For example, when you select the Watch a DVD Activity, the volume buttons on the
Harmony 510 changes the volume.
However, there may be some commands you want to add to buttons or display on the remote’s
screen. Using the Harmony Remote Software you can add or customize how buttons work in any
Activity quickly and easily.
From the Harmony Remote Software:
Select the 1. Activities tab.
In the Activity in which you want to change a button, click 2. Customize Buttons.
Follow the online instructions.3.
Using the Harmony Remote Software, you can customize the Harmony 510 on-remote help by
selecting between two types of help:
Smart Help
• Asks questions about the devices that are on during a specific Activity.
Full Help
• Asks questions about all the devices in your account.
From the Harmony Remote Software:
Select the 1. Remote Settings tab.
Click 2. Display Settings.
Follow the online instructions.3.
Changing how buttons work in an Activity
Customizing the on-remote help
Tue 4:51
Options
Devices
Activities
Menu Info
GuideExit
OK
Vol
Replay
Skip
Ch
++
Help
1
4
7
2
5
8
0
3
6
9
E
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
clear enter
Off
17
Whether you get a new device or want to change the behavior of some buttons, you may need
to make changes to your Harmony 510 setup. The following sections provide you with the
information to help you with these tasks.
Changing your setup
To add or change a device in your Harmony 510 set up, use the Harmony Remote
Software and select the Devices tab.
To add a device, click To add a device, click • • Add DeviceAdd Device..
To remove a device, click the To remove a device, click the • • icon for the device you want to remove. icon for the device you want to remove.
To modify the settings for a device, press the To modify the settings for a device, press the • • SettingsSettings button for the device you button for the device you
want to modify.want to modify.
In the Harmony Remote Software, select the Activities tab.
To add an Activity, click To add an Activity, click • • Add ActivityAdd Activity..
To remove an Activity, click the To remove an Activity, click the • • icon for the Activity you want to remove. icon for the Activity you want to remove.
To modify the settings for an Activity, press the To modify the settings for an Activity, press the • • SettingsSettings button for the Activity you button for the Activity you
want to modify.want to modify.
A dding and changing your devices
Adding and changing your Activities
If you delete a device, be sure to update your Activities!
Renaming an Activity
In some cases, you may want to rename an Activity. You can rename any Activity
using the Harmony Remote Software.
To rename an Activity, go to the Harmony Remote Software:
Select the 1. Activities tab.
In the Activity you want to rename, click 2. Settings.
Select 3. Rename <current Activity name>.
Controlling the Remote Assistant
The Harmony 510 Remote Assistant guides you through starting Activities. It also gives you more
information about the status of your remote and the Activity you selected.
For example, when you select the Watch TV Activity, the Remote Assistant asks you if the TV is
on and if the other devices in the Activity are configured properly.
You can turn this feature on or off from the Harmony Remote Software or from the remote. The
Remote Assistant can be turned of permanently only by using the Harmony Remote Software.
To permanently turn the Remote Assistant off, from the Harmony Remote Software:
Select the 1. Remote Settings tab.
Click 2. Display Settings.
Follow the instructions online.3.
Personalizing your Harmony 510
You can personalize your Harmony 510 to make the screen look and act the way you want.
Changing the order of Activities on your Harmony 510 screen
You can easily change the order in which your Activities appear on your remote’s screen.
Rearranging the order of the Activities allows you to have the Activities you use most often
appear at the top of the list.
From the Harmony Remote Software:
Click the 1. Activities tab.
Click 2. Re-order Activities.
Follow the online instructions.3.
Adding custom-labeled buttons to an Activity
If you want a button to do something specific, or there’s a function on your device’s original
remote that’s not on the Harmony 510, you can create your own buttons that appear on the
Harmony 510 screen.
You can also change the name of buttons on your remote’s screen to help make them easier to
find.
Naming buttons that appear on the remote’s screen
When you create a custom name for a button, remember to
think about how the name will look on the remote’s screen!
We recommend keeping button names to 10 characters or less.
19
When you use your Harmony 510 to control devices one-by-one, you can customize
the commands that appear on the Harmony 510 screen to make the functions you use easiest
to find.
You can even add the commands you’re missing to your Activities so they’ll always be easily
accessible.
If there’s a button that you don’t use, you can remove buttons that appear on the remote’s
screen using the Harmony Remote Software.
To customize the buttons that appear on the Harmony 510 screen, from the Harmony Remote
Software:
In the Activity for which you want to customize a button, 1.
click Customize Buttons.
Follow the online instructions.2.
Adding additional features to your Harmony 510
It’s possible that a device’s commands are not recognized. Maybe you have a very rare device?
Or a new one? Although we update our device list regularly, there are always new devices in the
market. To remedy this, you can teach your Harmony how to control this device by using the
device’s original remote.
Teaching your Harmony 510 new commands using your old remote
With the Learn IR feature of the Harmony 510 and the Harmony Remote Software, you can use
your device’s original remote to “teach” your Harmony 510. You should only need to use this
feature when Logitech’s device list doesn’t have your device listed, or there’s a button you want
to use that’s missing from the device configuration.
To use the Harmony 510 learning feature, go to the Harmony Remote Software.To use the Harmony 510 learning feature, go to the Harmony Remote Software.
Select the 1. Devices tab.
Click 2. Learn IR located next to the device you want to control.
Follow the online instructions.3.
5-10 cm (2” - 5”)
My Activities
1/2 pages Tue 4:51
Options
Devices
Activities
Menu Info
Guide
Exit
OK
Vol
Replay
Skip
Ch
+
+
Help
1
4
7
2
5
8
0
3
6
9
E
*
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
clear
enter
Off
Naming a new command your remote learned
When you teach your Harmony a new command, you need to give the command a name.
This way, you can refer to the command by name in various locations in the Harmony Remote
Software.
Logitech recommends you use the default names listed on the Learn IR page. By using the default
names, you minimize the chance of a button being assigned incorrectly on the Harmony 510.
Naming conventionsNaming conventions
When naming a command for which there is no default name on the Learn IR page,
use the following naming conventions to make button assignment easier:
Don’t use spaces or special characters such as /, & or * in the name.Don’t use spaces or special characters such as /, & or * in the name.• •
Capitalize the start of words (for example,Capitalize the start of words (for example,• • NextDisc, ModeDigital NextDisc, ModeDigital).).
Start the command name with its main function (for example, Start the command name with its main function (for example, • • VolumeRearUp, VolumeRearUp,
VolumeRearDown, VolumeFrontUpVolumeRearDown, VolumeFrontUp). This helps group related commands in lists.). This helps group related commands in lists.
Start infrared commands that select inputs (for example, on a stereo receiver) with the Start infrared commands that select inputs (for example, on a stereo receiver) with the • •
prefix “Input”. prefix “Input”.
Don’t name the input based on what you’ve connected to your device, rather name it Don’t name the input based on what you’ve connected to your device, rather name it • •
based on what it’s called on the front of the device, or on the remote control based on what it’s called on the front of the device, or on the remote control
(for example, (for example, InputAux, InputVideo1, InputTape, InputDVDInputAux, InputVideo1, InputTape, InputDVD).).
Types of delays or speed settings
If your device doesn’t react to a command from the Harmony 510, it may be because the delay
setting needs to be adjusted. By default, different devices take different amounts of time to
react to a command from a remote control. To accommodate these differences in your devices,
the Harmony 510 uses several types of delays, or speed settings, to control your devices.
Power On Delay
The Power On Delay is the amount of time that a device needs to “warm up” before receiving
another command. For instance, when you turned on a device, you may notice that the device
needs a certain amount of time before it can receive another command from the remote.
Example: Every time I turn on my system with an Activity, my TV powers on but doesn’t go to the
correct input. However, it does go to the correct input when switching between Activities when
the TV is already on. The Help button fixes it each time, but I don’t want to use the Help button
every time.
Inter-key Delay
The Inter-Key Delay is the amount of time allotted for commands to be sent between button
presses.
Example: Any time I press volume up multiple times in a row, for my AV Receiver it takes a long
time to increase the volume. I would like my devices to respond quicker to these presses.
Input Delay
The Input Delay is the amount of time that the remote takes when switching between inputs.
Many devices need a certain amount of time before changing to the next input in the input list.
Example: My TV doesn’t always go to the correct input when switching between Activities and I
have already verified that the input list is correct.
21
Adjusting the delay between IR commands (speed settings)
If you find the delay between IR commands is too long, especially when changing channels on
your TV, you can change the delay time for a device that is reacting too slowly.
The Harmony 510 uses several different delays to control your devices. For more information on
which delay you need to adjust, see Types of delays or speed settings.
o adjust the delay between IR commands, go to the Harmony Remote Software:
T
Click the 1. Devices tab.
Select the device for which you want to apply the change and click 2. Settings.
Select 3. Adjust the delays (speed settings).
Click4. Next.
Follow the online instructions.5.
22
One touch to you favorite channels
Maintaining your Harmony 510
Upgrading your Harmony 510 firmware
Your Harmony 510 contains internal software, called firmware. The remote’s firmware is similar to
your computer’s operating system.
Logitech updates the firmware for your remote to ensure you’re always getting the most from
your Harmony 510. Generally, when you connect your remote to your computer the Harmony
Remote Software updates your remote automatically if new firmware is available.
However, sometimes you may need to update the firmware manually.
To upgrade your Harmony 510 firmware:
Remove your Harmony from the charging station.1.
Connect your Harmony to your computer using the USB cable.2.
Start the Harmony Remote Software.3.
Click 4. Downloads.
Click 5. Firmware.
Follow the online instructions.6.
The Harmony one is always learning new tricks!
Testing your remote settings after a software upgrade
After you finish making any changes to your Harmony 510 configuration, you should test the
new set up to ensure everything is working the way you expect. This testing process is the same
as the one you did when you set up your Harmony 510 for the first time. For more detailed
information, see Testing your setup.
Upgrading to a new Harmony remote
When you upgrade to a newer model Harmony, you can transfer the configuration from your
old remote to your new remote.
To upgrade to a new model Harmony remote:
From the Harmony Remote Software:
Click 1. Remote Settings.
Click 2. Manage Remotes.
Click 3. Replace.
Follow the online instructions.4.
23
24
Troubleshooting problems with your Harmony 510
In this section, you’ll find some commonly reported issues and the suggested solutions. These
solutions may help you fix problems you’re experiencing. If you still cannot fix the problem,
refer to Getting help with your Harmony One.
The T
V doesn’t turn on when starting an Activity, but using the Help button
on the remote fixes the issue.
Try increasing the Try increasing the • • Inter-Device DelaInter-Device Delayy for your television. Sometimes for your television. Sometimes
commands are sent too close together for different devices and need to commands are sent too close together for different devices and need to
be spaced out more.be spaced out more.
The TV doesn’t go to the right input when starting Activities.
Using the Harmony Remote Software, check your Activity to ensure the Using the Harmony Remote Software, check your Activity to ensure the • •
Activity is set up to use the correct input your TV needs to be set on to Activity is set up to use the correct input your TV needs to be set on to
get a picture. Next, check that the inputs are in the correct order for get a picture. Next, check that the inputs are in the correct order for
the Harmony 510 to know how to cycle through each input. If you’re still the Harmony 510 to know how to cycle through each input. If you’re still
experiencing trouble, try raising the experiencing trouble, try raising the Inter-Device and Input DelayInter-Device and Input Delayss for for
your TV.your TV.
When pressing buttons in an Activity, the remote sends
the command twice.
Try lowering the repeats for the device that is receiving the command. Try lowering the repeats for the device that is receiving the command. • •
You can do this by using the troubleshoot option in the Harmony You can do this by using the troubleshoot option in the Harmony
Remote Software.Remote Software.
When you try to add a new TV to your account, you get a message informing
you that you haven’t entered the correct model number.
The model number for most devices can be found on the front of the The model number for most devices can be found on the front of the • •
device. If it isn’t there, it can be found on a label on the back or bottom device. If it isn’t there, it can be found on a label on the back or bottom
of the device. The model number shouldn’t be confused with the serial of the device. The model number shouldn’t be confused with the serial
number or the model number of the device’s remote control, as many number or the model number of the device’s remote control, as many
different devices by a manufacturer can share the same remote.different devices by a manufacturer can share the same remote.
25
The TV doesn’t turn on when starting an Activity, but using the Help button on
the remote fixes the issue.
Try increasing the Try increasing the • • Inter-Device DelaInter-Device Delayy for your television. Sometimes for your television. Sometimes
commands are sent too close together for different devices and need to be commands are sent too close together for different devices and need to be
spaced out more.spaced out more.
The TV doesn’t go to the right input when starting Activities.
Using the Harmony Remote Software, check your Activity to ensure the Using the Harmony Remote Software, check your Activity to ensure the • •
Activity is set up to use the correct input your TV needs to be set on to get a Activity is set up to use the correct input your TV needs to be set on to get a
picture. Next, check that the inputs are in the correct order for the Harmony picture. Next, check that the inputs are in the correct order for the Harmony
510 to know how to cycle through each input. If you’re still experiencing 510 to know how to cycle through each input. If you’re still experiencing
trouble, try raising the trouble, try raising the Inter-Device and Input DelayInter-Device and Input Delayss for your TV. for your TV.
When pressing buttons in an Activity, the remote sends
the command twice.
Try lowering the repeats for the device that is receiving the command. Try lowering the repeats for the device that is receiving the command. • •
You can do this by using the troubleshoot option in the Harmony Remote You can do this by using the troubleshoot option in the Harmony Remote
Software.Software.
When you try to add a new TV to your account, you get a message informing you
that you haven’t entered the correct model number.
The model number for most devices can be found on the front of the device. The model number for most devices can be found on the front of the device. • •
If it isn’t there, it can be found on a label on the back or bottom of the If it isn’t there, it can be found on a label on the back or bottom of the
device. The model number shouldn’t be confused with the serial number or device. The model number shouldn’t be confused with the serial number or
the model number of the device’s remote control, as many different devices the model number of the device’s remote control, as many different devices
by a manufacturer can share the same remote.by a manufacturer can share the same remote.
The On Demand command isn’t on the Harmony One for
the Watch TV Activity.
You can map the command to any unused button on the Harmony 510 or You can map the command to any unused button on the Harmony 510 or • •
on the remote’s screen. The command is likely in our database, but wasn’t on the remote’s screen. The command is likely in our database, but wasn’t
mapped to the Activity. If we’re missing the command, the Harmony 510 can mapped to the Activity. If we’re missing the command, the Harmony 510 can
learn it from your original remote. For more information, see learn it from your original remote. For more information, see Teaching your Teaching your
Harmony One new commands using your old remotHarmony One new commands using your old remotee..
The Harmony Remote software in unable to communicate with the Harmony 510.
Try disabling any Internet security software you might have including Try disabling any Internet security software you might have including • •
firewalls and anti-virus software.firewalls and anti-virus software.
Figuring out which inputs your system uses
One of the most important parts to creating your Activities for your Harmony 510 is determining
which inputs your system uses for each device. This chapter gives you some suggestions on how
to figure out which inputs your entertainment system uses if you’re not sure.
Inputs are how the devices in your entertainment system are connected. For example, your DVD
or cable box is connected to your TV through an input. If you use an AV Receiver to control the
sound on your devices, for example if you have a home theater system, this chapter will also help
you figure out the inputs for your audio connections.
After you know how your devices are connected, you can use the information to create your
Activities using the Harmony Remote Software.
Figuring out which type of input control you have
The first step in determining which inputs you have is to figure out how you use your device’s
original remote to change inputs. In general, there are four possibilities and each one is
described in this section. To figure out which option your TV or AV Receiver uses, look at your
device’s original remote and see which option fits.
Option 1 — One source button
In this case, your remote has only one source or input
select button.
When you press the source button, your device
switches to the next input and the label appears on
your TV screen.
Each time you press the source button, the device
switches to a new source until you get back to where
you started.
Option 2 — Several source buttons
In this case, your device’s original remote has several
source buttons — one for each input. For example,
you may have buttons labeled TV, DVD, VIDEO 1, or
S-VIDEO.
26
When you press one of the source buttons, the device
switches to the source you selected and the label
appears on your TV screen.
Option 3 — Select the input from an on-screen
menu
In this case, your device uses an on-screen menu from
which you can select the input you want.
When you press the source button, the menu
appears on your TV screen. Then, you use another
button on the remote to choose the input you want,
and then a third button to select the input.
For example, you press the source button to display
the on-screen menu, the arrow keys to select an
input, and then the OK button enter your selection.
Option 4 — Select the source from a list
In this case, your device has a list of inputs and you
can use the buttons on the remote to select the
input you want from the list.
After you press the source button, you have to press
another button on the remote that selects the input
you want.
In this option, there’s no menu from which to choose
(Option 3) and you don’t have to cycle through all
inputs to get to the one you want (Option 1).
Step 1— Turn on all your devices
To determine which devices are using which inputs, Logitech recommends you start by turning
on all the devices in your entertainment system.
If possible, you should even start something playing in your DVD player, CD player, VCR, etc.
By having all your devices on, it’s easier to see how they’re connected.
It’s also handy to have some paper and a pen so you can note which devices are connected to
which inputs.
27
Step 2 — Watch the TV
In this step, you must use your TV’s original remote control to switch between inputs.
Using your TV’s original remote, select each input one-at-a-time.1.
For each input, note which device appears to be connected to that input.2.
For example, if you switch to VIDEO 1 and see your DVD playing, you know your DVD
player is connected to VIDEO 1.
Repeat step 2 for each input.3.
Step 3 — Listen to the sound
You need to complete this step only if you have a separate device (called an AV Receiver) that
manages the sound for your entertainment system. For example, you have a home theater
system or connect your TV to your stereo so the sound comes out of your stereo speakers.
You must use your AV Receiver’s original remote control to switch between inputs.
Using your AV Receiver’s original remote, select each input one-at-a-time.1.
For each input, note which device appears to be connected to that input.2.
For example, if you switch to OPTICAL 1 and hear the sound from your DVD playing,
you know your DVD player is connected to OPTICAL 1.
Repeat step 2 for each input.3.
28
Getting help with your Harmony 510
Contacting Customer Support
If you’re experiencing problems and can’t find the solution, our courteous and expert
professionals can assist!
From your home page, click the More Help button located in the Tip Center and then select the
Contact Us tab.
Finding answers to questions
You can access our online help to search for topics or Frequently Asked Questions (FAQs).
From your home page, click the More Help button located in the Tip Center.
Getting help with your online setup
You have access to several online features that help guide you through the online setup and
customization of your Harmony 510:
Harmony Remote
Software
FAQs (Frequently
Asked Questions)
More Help button Provides specific online help for the page you’re on.
Provides instructional help to guide you through a series of questionand-answer steps to accomplish a task.
A searchable list of customer questions with answers provided by the
Harmony One’s support center.
29
Using the On-Remote Help
When one or more of your devices don’t power on or off, or when they don’t switch inputs
correctly, you can use the Help button on the remote for simple troubleshooting. Answer the
questions on your Harmony One to re-synchronize it with your entertainment system. See Using
the Help button.
Logitech’s Harmony Remote user forums
You can also access the user forums to see what other users like you’re discussing. Simply go to
http://forums.logitech.com/.
30
Appendix A - Device Information
In the Add Devices step of the setup software, you will need to enter information about the components in y
List the entertainment components below that you would like your new remote to control.
our entertainment system. Fill out this worksheet to use as your guide.
Device Type Manufacturer Model Number
example: DVD Player example: Pioneer example: DV-414
Tips for identifying Device Type:
• a general category description
• examples: Television, VCR, CD Player, DVD Player, Stereo
Receiver, Amplifier, Game Console, etc.
Tips for identifying Manufacturer:
• also referred to as “make” or “brand name”
• typically on the front of the component
• sometimes on the label with the Model Number
• examples: Sony®, Phillips®, Denon®, DirecTV®, TiVo®, etc.
Tip Center
How to Find Model Numbers
On most entertainment components,
the model number is usually found on
a label located on the front, back or
bottom.
Tips for identifying Model Number:
• also “Model” or “M/N”
• usually on a label on the front, back or bottom of the component (see
the Tip Center )
• model number may be different than model name
• also found in the component’s user manual
• NOT model number on the old remote control
• NOT serial number (SN) which is usually much longer
• examples: RC-QN3BK, CT-36XF36C, Explorer 3100, L32
HDTV 10A, etc.
If you cannot find the model number
on the component itself, the user
manual that came with your component
should list the manufacturer and model
number.
Once you have gathered all of your information, take this worksheet to your computer and continue
with the Setup software.
© Copyright 2006 Logitech or its licensors. All rights reserved.
31
Appendix B - Glossary
Amplifier
Anamorphic views
Aspect ratio
A/V switch
DLP® (Digital Light
Processing)
DVD recorder (DVR)
HDTV (High Definition
Television)
A stereo component that outputs to speakers, and increases
the gain or level of an audio signal. An amplifier doesn’t
typically include a radio.
Also referred to as Enhanced for Widescreen, or Enhanced
for 16:9. The process that horizontally shrinks a 16:9 image
into a 4:3 space to convert images between widescreen and
typical television image aspect ratio. Used on many DVDs.
The ratio of image width to image height. Common motionpicture ratios are 1.85:1 and 2.35:1. Television screens are
usually 1.33:1 (also known as 4:3). HDTV is 1.78:1, or 16:9.
A device with several audio and video source inputs that
sends a selected audio/video source input signal to an output
device like speakers or a TV.
Projector screen technology that relies on using individually
controlled tiny mirrors (micro mirrors) to produce an image.
Developed originally by Texas Instruments.
A standalone unit that resembles and functions very much
like a VCR. Like a VCR, DVD recorders all have AV source
inputs, as well it can record TV shows.
The high-resolution form of television. HDTV has 1125 lines
of resolution, or more than five times the video information
than that of a TV set, creating a much crisper, more detailed
picture.
A device that is connected to a set of lights and allows the
lights to be powered or dimmed remotely.
32
Light controller
Mini-system
NTSC (National Television
System(s) Committee)
Output Device
A single unit that is some combination of the functionality of
a DVD, VCR, radio, and amplifier.
The standard video broadcast format used in North America.
A device that produces the sound or picture, for example,
a TV or speakers.
A video format that is used in the UK, and parts of Europe
PAL
(Phase Alternating Line)
and Asia.
A device that routes video or audio from one device to another
device.
Passthrough
Personal Video Recorder
(PVR)
Pre-amplifier
Pre-amp Sound Processing
Receiver
Contains an internal recorder and player that records and plays
video without the use of a removable tape or disc. Typically
PVRs can pause, rewind, instantly replay, and play slow-motion
for live or recorded TV. Examples of PVR service providers
are TiVo, ReplayTV, UltimateTV, and Keen PM. Many satellite
providers also provide PVR services and have PVRs included in
some of their satellite receivers.
A control and switching component that may include
equalization functions.
Takes a small signal and amplifies it sufficiently to be fed
into the power amplifier for further amplification. A pre-amp
includes all of the controls for regulating tone, volume, and
channel balance. This task is known as sound processing.
Also referred to as a tuner or a stereo receiver. A receiver can
be any component that receives or tunes broadcast signals,
or AM/FM radio. Typically refers to the single component that
includes a preamplifier, surround processor, multi-channel
amplifier, and AM/FM tuner.
RF (Radio Frequency)
SACD (Super Audio CD)
Satellite Radio
Used by some remote controls, to control devices because it
doesn’t have the same line-of-sight restrictions as IR (infrared)
signals.
A read-only optical audio disc aimed at providing much higher
quality of digital audio reproduction than the compact disc.
A service in the United States that provides digital
programming directly from satellites. Currently the 2 main
providers for service are XM and Sirrus.
33
SDTV Standard Definition
Television
One mode of operation of digital television where the
broadcaster transmits pictures with detail similar to, or slightly
better than, today’s analog television. Since the picture
contains less information, there is “room” in the digital signal
multicast broadcasting.
Stereo receiver
Tuner
Power strip
Also referred to as a tuner or a receiver. A stereo receiver is any
component that receives or tunes, broadcast signals, or AM/
FM radio. Typically refers to the single component that includes
a preamplifier, surround processor, multi-channel amplifier,
and AM/FM tuner.
Also referred to as a receiver or a stereo receiver. A tuner
is any component that receives or tunes, broadcast signals,
or AM/FM radio.
Typically refers to the single component that includes
a preamplifier, surround processor, multi-channel amplifier,
and AM/FM tuner.
A common device that acts like an extension cord, providing
additional cord length, as well as a mechanism that offers
several electrical outlets.
34
Appendix C - Product Specification
LCD Size 1.5" Diagonal
LCD Resolution 96 x 64
LCD Screen Monochrome
Power Source 4 x AAA batteries
Power Type Alkaline
Brands Supported 5,000+
Devices Supported 225,000+
Maximum number of devices per account 5
Backlit keypad Yes
Backlight Color Green
IR Learning Yes (Up to 250 Khz)
IR Transmit 15.625 kHz to 500 kHz
Learning Capabilities Any IR Device
IR Transmitters 2
IR Transmission Range Up to 30ft
Memory Type Flash
Memory Amount 512 KB
Weight 5.4 oz (with battery installed)
Dimensions 1.9” x 8.0”
Warranty 1 Year
Supported Platforms Windows 2000/XP/Vista
MAC OS X 10.3 +
35
36
© 2008 Logitech Inc. All rights reserved. Logitech's trademarks are either registered trademarks
or trademarks of Logitech in the US and other countries. All other trademarks are the property
of their respective owners.
Loading...
