Lippert In-Wall Troubleshooting Guide
Schwintek In-Wall™ Slideout System
TROUBLESHOOTING GUIDE
Rev: 01.30.2015
Page 2
Lippert In-Wall Troubleshooting Guide
TABLE OF CONTENTS
SYSTEM INOPERATIVE 3
Controller 3
Motors and Harnesses 4
ROOM STUCK OUT RETAIL 5
Electronic Manual Override 5
Disengage Motors, Manually Retract Room and Travel Lock 6
ROOM STUCK IN DEALER ONLY 7
Electronic Manual Override 7
Remove Exterior Fascia to Access Motor Retention Screw 8
VISUAL INSPECTIONS 9
Measurements 9
Floor Rollers 11
V-Rollers 11
Gear Racks 11
Rev: 01.30.2015
Page 3
Lippert In-Wall Troubleshooting Guide
Fig. 1 - Controller
A
C
B
D
E
Controller (Fig. 1)
Callout Description
A Motor 1 Junction
B Motor 2 Junction
C Switch Junction
D Power Junction

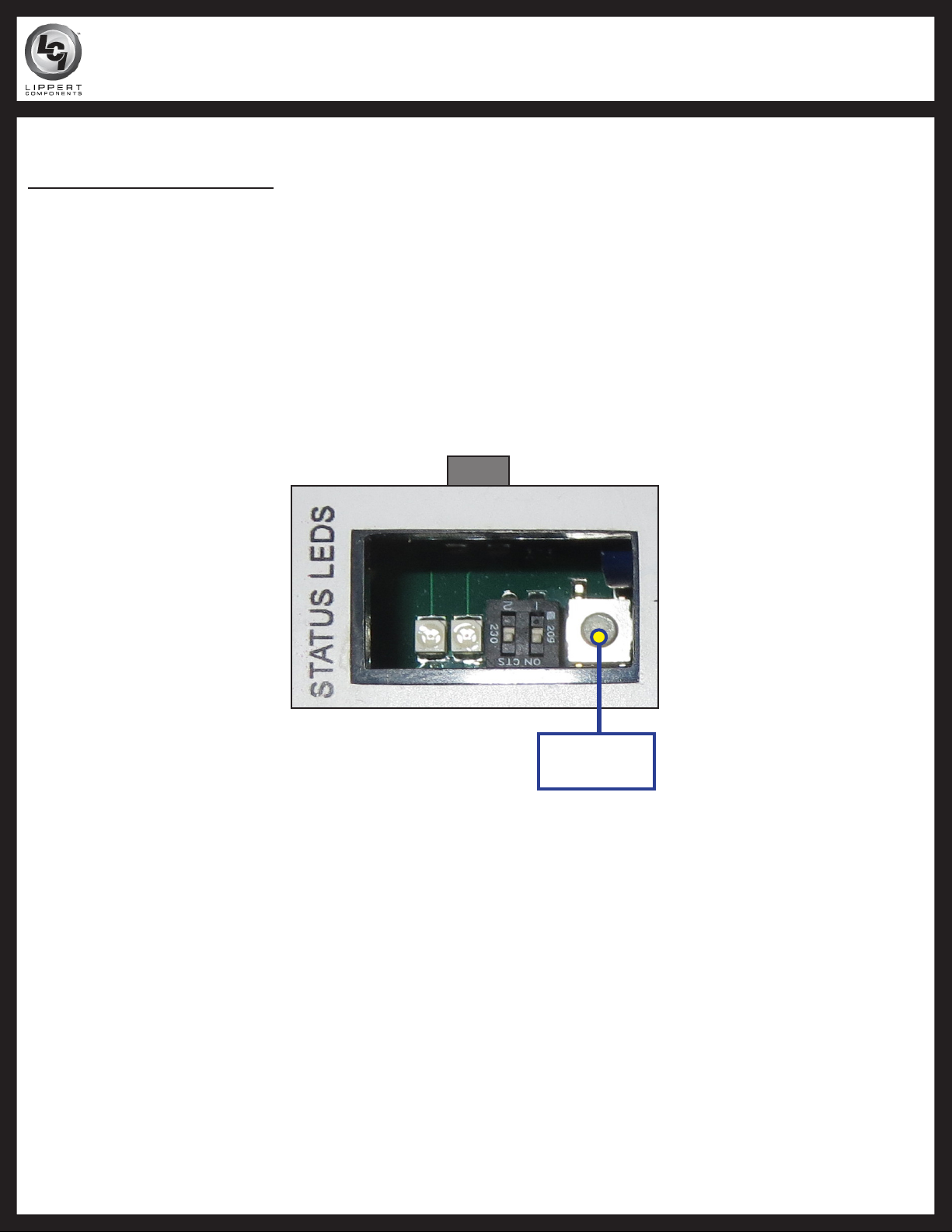

E
Controller LED
Display
System Inoperative
Controller
1. Locate Controller (Fig. 1).
2. Activate switch.
3. Look for the status LEDs on the controller to light while switch is activated (Fig. 1E).
4. If status LEDs light, but no error codes are present, skip to page 9 of this guide to do a visual inspection
of the mechanical portions of this system.
5. If status LEDs do not light, and no error codes are present, check the following:
A. Check for 12VDC in to controller (red and black terminals) (Fig. 1D).
B. Check for 12VDC at switch connection on both extend and retract (Fig. 1C).
C. Check the battery for 12VDC.
6. If error codes are present, refer to the label on the controller for error identification.
SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE
Rev: 01.30.2015
Page 4
Lippert In-Wall Troubleshooting Guide
Motors and Harnesses
1. Check for proper connections between the motors and harnesses.
2. Visually inspect the exposed harnesses to ensure they are not pinched or damaged.
3. If test harness is available, connect the test harness from the controller to the motor and try to operate
the slide-out using the normal switch.
4. If test harness is not available, ohm test the harness.
Fig. 2 - Motor and Harness
SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE
