KWIKEE® REVOLUTION SERIES
STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
STEPS
Purpose
This document describes the removal and replacement of the Kwikee® Revolution Series step motor.
NOTE: This information was obtained from Kwikee manual #82-ST0502 Rev 0B dated July 2013.
Required Resources
• Standard automotive style jack
or jack stand
•
•
•
" hex driver
⁄
" torque wrench
⁄
" socket with ratchet
⁄
Instructions
369340 Motor for TT Revolution
369091 Hex Bolt,
360212 Plastic Spacer
Replacement Kit #380073
Part # Description
⁄"
x 2"
TI-273
Steps MUST be supported with the proper automotive style jack or jack stand that is in good working
order. If the step is not supported when the motor is removed, the step will open. Failure to properly
support the steps may result in death, serious personal injury or severe product damage.
Read and understand all of the following instructions before beginning this procedure.
NOTE: This procedure must be completed with the steps either in the full retracted position or completely
removed from the coach.

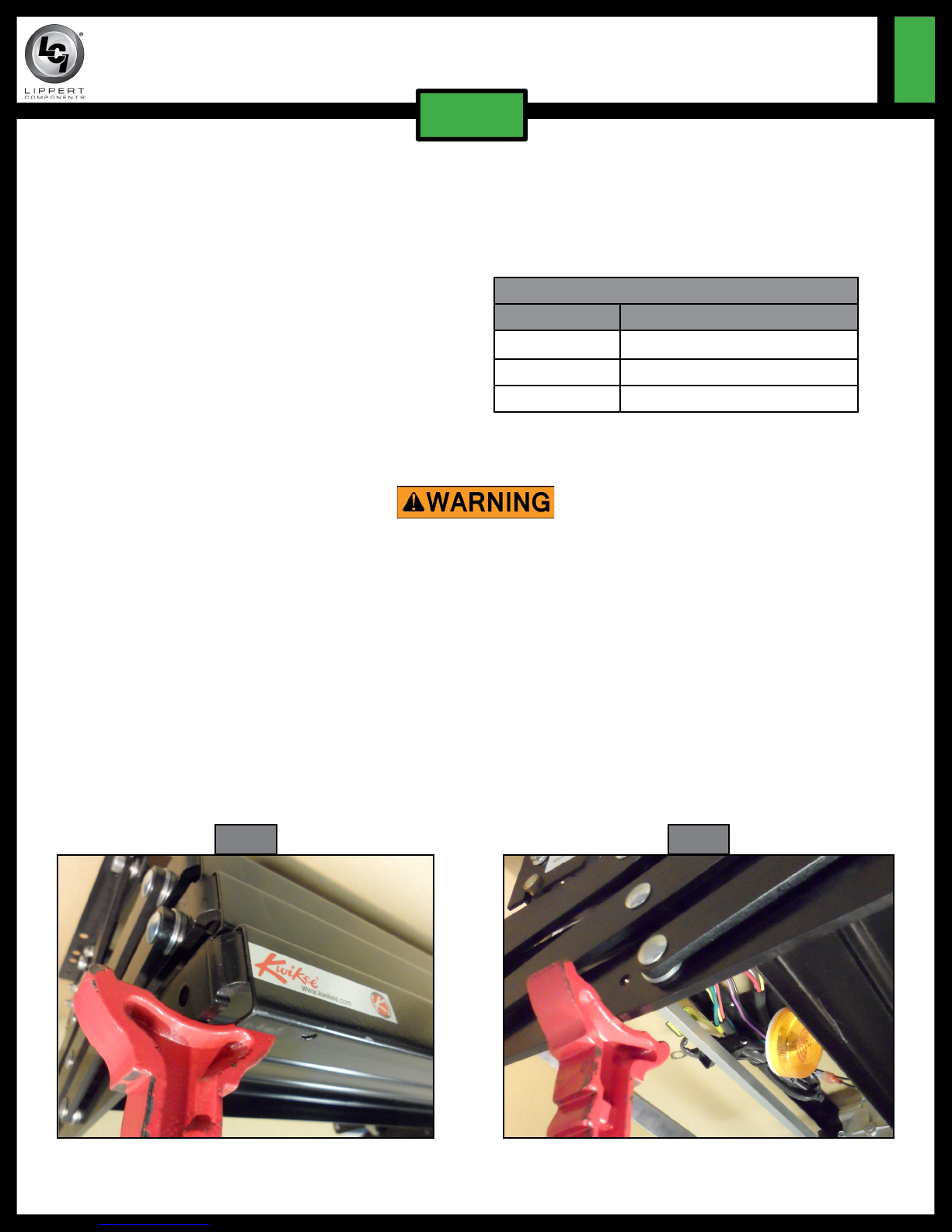

1. Using a standard automotive type jack or jack stand, brace the steps in the completely retracted
position (Fig. 1). This will prevent the steps from opening when the motor is removed from the step.
2. Position the standard automotive type jack or jack stand to the rear of the steps. Leave some space
between the step frame and the jack or jack stand to allow for later adjustment when installing the
motor (Fig. 2).
Fig. 1
Fig. 2
Rev: 10.04.18 Page 1 CCD-0002267
KWIKEE® REVOLUTION SERIES
STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
STEPS
Moving parts can pinch, crush or cut. Keep clear and use caution.
Removing the Motor
The motor is attached to the step frame using three
bolt goes through a plastic motor spacer (Fig. 3). These spacers are not attached to the motor and will fall
out when the bolt and/or the motor is removed.
1. Disconnect the 2-wire power motor harness from the motor plug. It may be necessary to use a 5/16"
socket with ratchet to loosen the hex bolts used for mounting the motor.
2. Completely remove the three hex bolts (Fig. 4).
Fig. 3 Fig. 4
" hex bolts. On the bottom side of the motor, each
⁄
TI-273
Plastic Spacer
" Hex Bolts
(Total of 3)
Rev: 10.04.18 Page 2 CCD-0002267
⁄
KWIKEE® REVOLUTION SERIES
STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
STEPS
Installing the New Motor
1. Insert three
2. Place one plastic spacer (Part #360212 of Kit #380073) on each hex bolt on the backside of the motor.
Each spacer has a groove on one side that must be aligned with the bolt hole (Fig. 5).
NOTE: While installing the motor, make sure to keep the three hex bolts from falling out of the mounting
holes and the three plastic spacers from slipping off the end of each bolt.
3. The motor pin (Fig. 6) must be fitted into the motor mounting bracket. The step frame may need to be
adjusted to ensure the proper fit of the motor.
hex bolts (Part #369091 of Kit #380073) into the motor mounting holes.
⁄"
Fig. 5
TI-273
Groove Side of Spacer
Fig. 6
Motor Pin
Rev: 10.04.18 Page 3 CCD-0002267
KWIKEE® REVOLUTION SERIES
STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
STEPS
4. Verify that the motor gear is properly engaged with the drive gear mechanism (Fig. 7).
5. If the motor pin and the hex bolts do not line up properly, loosen—but do not remove—the hex bolts
(Fig. 8).
6. Install the motor.
7. While holding the motor in place, tighten the hex bolts to 80 in-lbs.
8. With the motor fitted properly, use the
NOTE: Be careful. Do not tighten the hex bolts all the way down.
9. Use the
NOTE: Do not overtighten!
10. Reconnect the 2-wire power motor harness to the motor. Remove the jack or jack stand from the step.
Test the extension and retraction of the step.
torque wrench to finish tightening all hex bolts down to 18 in-lbs.
⁄"
hex driver to tighten the bolts.
⁄"
Fig. 7
TI-273
Drive Gear Mechanism
Motor Gear
Fig. 8
Hex Bolts
Rev: 10.04.18 Page 4 CCD-0002267
KWIKEE® REVOLUTION SERIES
STEP MOTOR REPLACEMENT INSTRUCTIONS (82-ST0502)
Support Documentation
Document # Description
Kwikee #1422279 /
LCI #369410
82-ST0500 Kwikee IMGL Step Control Testing Procedure
82-ST0501 QR-034, Kwikee Step Identification and Replacement Parts Guide
Kwikee #3010002262 /
LCI #375656
TI-273
STEPS
Kwikee 888 Electric Step Owner's Manual
Kwikee Revolution Step Series Owner's Manual
As a supplier of components to the RV industry, safety, education and customer satisfaction are our primary concerns. Should you
have any questions, please do not hesitate to contact us at (574) 537-8900 or by email at customerservice@lci1.com. Self-help tips,
technical documents, product videos and a training class schedule are available at lci1.com or by downloading the MyLCI app.
Rev: 10.04.18 Page 5 CCD-0002267
