Linksys WRT54GP2 User Manual

A Division of Cisco Systems, Inc.

GHz

2.4

VoIP

802.11g

Model No.

Wireless-G

Broadband Router with 2 Phone Ports

Installation and Troubleshooting Guide

WRT54GP2

Wireless-G Broadband Router with 2 Phone Ports

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

How to Use this Guide

Your guide to the Wireless-G Broadband Router with 2 Phone Ports has been designed to make understanding networking with the Router easier than ever. Look for the following items when reading this guide:

This exclamation point means there is a caution or warning and is something that could damage your property or the Router.

This question mark provides you with a reminder about something you might need to do while using the Router.

This checkmark means there is a note of interest and is something you should pay special attention to while using the Router.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section.

WRT54GP2-UG-50112D JL

Wireless-G Broadband Router with 2 Phone Ports

Table of Cont ent s

Wireless-G Broadband Router with 2 Phone Ports

Chapter 1: Introduction 1

Welcome 1 What’s in this Guide? 2

Chapter 2: Planning Your Wireless Network 5

Network Topology 5 Ad-Hoc versus Infrastructure Mode 5 Network Layout 6

Chapter 3: Getting to Know the Router 7

The Back Panel 7 The Front Panel 8

Chapter 4: Connecting the Router 9

Overview 9 Connection Instructions 10

Chapter 5: Configuring the Router 11

Overview 11 How to Access the Web-based Utility 14 The Setup Tab - Basic Setup 15 The Setup Tab - DDNS 22 The Setup Tab - MAC Address Clone 24 The Setup Tab - Advanced Routing 25 The Wireless Tab - Basic Wireless Settings 27 The Wireless Tab - Wireless Security 28 The Wireless Tab - Wireless Network Access 30 The Wireless Tab - Advanced Wireless Settings 31

The Security Tab - Filter 33 The Security Tab - VPN Passthrough 35 The Voice Tab 36 The Applications & Gaming Tab - Port Range Forwarding 36 The Applications & Gaming Tab - Port Triggering 37 The Applications & Gaming Tab - UPnP Forwarding 38 The Applications & Gaming Tab - DMZ 41 The Applications & Gaming Tab - QoS 42 The Administration Tab - Management 45 The Administration Tab - Log 47 The Administration Tab - Factory Defaults 48 The Administration Tab - Firmware Upgrade 48 The Status Tab - Voice 49 The Status Tab - Router 50 The Status Tab - Local Network 51 The Status Tab - Wireless 52

Appendix A: Troubleshooting 53

Common Problems and Solutions 53 Frequently Asked Questions 67

Appendix B: Wireless Security 77

Security Precautions 77 Security Threats Facing Wireless Networks 78

Wireless-G Broadband Router with 2 Phone Ports

Appendix C: Finding the MAC Address and

IP Address for Your Ethernet Adapter 81

Windows 98 or Me Instructions 81 Windows 2000 or XP Instructions 82 For the Router’s Web-based Utility 82

Appendix D: Windows Help 83 Appendix E: Glossary 85 Appendix F: Specifications 93 Appendix G: Warranty Information 95 Appendix H: Regulatory Information 97 Appendix I: Contact Information 99

Vonage 99 Linksys 99

List of Figures

Wireless-G Broadband Router with 2 Phone Ports

Figure 3-1: Back Panel 7 Figure 3-2: Front Panel 8 Figure 4-1: Router Connection Diagram 9 Figure 4-1: Connect a PC 10 Figure 4-2: Connect a Telephone 10 Figure 4-3: Connect the Modem 10 Figure 4-4: Connect the Power 10 Figure 5-1: Router’s IP Address 14 Figure 5-2: Router Login 14 Figure 5-3: Setup Tab - Basic Setup (Obtain an

IP automatically) 15 Figure 5-4: Static IP 16 Figure 5-5: PPPoE 17 Figure 5-6: RAS (for Singtel) 17 Figure 5-7: PPTP 18 Figure 5-8: Heart Beat Signal 19 Figure 5-9: Setup Tab - DDNS (DynDNS.org) 23 Figure 5-10: Setup Tab - DDNS (TZO.com) 23 Figure 5-11: Setup Tab - MAC Address Clone 24 Figure 5-12: Setup Tab - Advanced Routing 25 Figure 5-13: Routing Table Entry List 26 Figure 5-14: Wireless Tab - Basic Wireless Settings 27 Figure 5-15: Wireless Tab - Wireless Security

(WPA Pre-Shared Key) 28

Figure 5-16: Wireless Tab - Wireless Security (WPA RADIUS) 29 Figure 5-17: Wireless Tab - Wireless Security (WEP) 29 Figure 5-18: Wireless Tab - Wireless Network Access 30 Figure 5-19: Wireless Client MAC List 30 Figure 5-20: Advanced Wireless Settings 31 Figure 5-21: Security Tab - Filter 33 Figure 5-22: Filtered MAC Address 34 Figure 5-23: Security Tab - VPN Passthrough 35 Figure 5-24: Voice Tab 36 Figure 5-25: Applications & Gaming Tab - Port

Range Forwarding 36 Figure 5-26: Applications & Gaming Tab - Port Triggering 37 Figure 5-27: Applications & Gaming Tab - UPnP Forwarding 38 Figure 5-28: Applications & Gaming Tab - DMZ 41 Figure 5-29: Applications & Gaming Tab - QoS 42 Figure 5-30: Administration Tab - Management 45 Figure 5-31: Back up & Restore Configuration 46 Figure 5-32: Administration Tab - Log 47 Figure 5-33: Incoming Log Table 47 Figure 5-34: Outgoing Log Table 47 Figure 5-35: Administration Tab - Factory Defaults 48 Figure 5-36: Administration Tab - Firmware Upgrade 48 Figure 5-37: Status Tab - Voice 49 Figure 5-38: Status Tab - Router 50

Wireless-G Broadband Router with 2 Phone Ports

Figure 5-39: Status Tab - Local Network 51 Figure 5-40: DHCP Active IP Table 51 Figure 5-41: Status Tab - Wireless 52 Figure C-1: IP Configuration Screen 81 Figure C-2: MAC/Adapter Address 81 Figure C-3: MAC/Physical Address 82 Figure C-4: MAC Address Clone 82 Figure C-5: MAC Address Filter 82

Chapter 1 : Introduction

Wireless-G Broadband Router with 2 Phone Ports

Welcome

Thank you for choosing the Linksys Wireless-G Broadband Router with 2 Phone Ports. This Router will allow you to network wirelessly better than ever, sharing Internet access, files and fun, easily and securely. Plus, after you have set up your Vonage service, you can make phone or fax calls using your Internet connection.

How does the Router do all of this? A router is a device that allows access to an Internet connection over a network. With the Wireless-G Broadband Router with 2 Phone Ports, this access can be shared over the three switched ports or via the wireless broadcast at either up to 11Mbps for Wireless-B or up to 54Mbps for Wireless-G. In addition, the WPA standard provides greater security opportunities while the whole network is protected through NAT technology. All of these security features, as well as full configurability, are accessed through the easy-to-use browser-based utility.

But what does all of this mean? Networks are useful tools for sharing Internet access and computer resources. Multiple computers can share

Internet access, so you don’t need more than one high-speed Internet connection. After you set up your Vonage account, you can also use your Internet access to make Internet phone or fax calls, even while you’re surfing the Internet. Plus, you can access one printer from different computers and access data located on another computer’s hard drive. Networks are even used for playing multiplayer video games. All the while, the Router protects your networks from unauthorized and unwelcome users. So, networks not only are useful in homes and offices, but also can be fun.

PCs on a wired network create a LAN, or Local Area Network. They are connected with Ethernet cables, which is why the network is called “wired”.

Chapter 1: Introduction Welcome

wpa (wi-fi protected access): a wireless security protocol using TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

nat (network address translation): NAT technology translated IP addresses of a local area network to a different IP address for the Internet.

mbps: one million bits per second; a unit of measurement for data transmission.

browser: an application program that provides a way to look at and interact with all the information on the World Wide Web.

lan (local area network): the computers and networking products that make up the network in your home or office.

ethernet: an IEEE standard network protocol that specifies how data is placed on and retrieved from a common transmission medium.

Wireless-G Broadband Router with 2 Phone Ports

PCs equipped with wireless cards or adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network, which is sometimes called a Wireless Local Area Network (WLAN). The Router bridges wireless networks of both 802.11b and

802.11g standards and wired networks, allowing them to communicate with each other.

802.11b: an IEEE wireless networking standard that specifies a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz.

To create your network, install and set up the Router. To guide you through the process, Linksys strongly recommends that you run the Setup Wizard on the Setup CD-ROM. If you prefer to manually set up the Router, use the instructions in the Quick Installation or this Installation and Troubleshooting Guide to help you. These instructions should be all you need to get the most out of the Wireless-G Broadband Router with 2 Phone Ports.

What’s in this Guide?

This guide covers the basic steps for setting up a network with a router. After going through “Chapter 3: Getting to Know the Router,” most users will only need to use the following chapters:

• Chapter 4: Connecting the Router This chapter instructs you on how to connect the Router to your cable or DSL modem, PCs, and telephones (or fax machines).

• Chapter 5: Configuring the Router This chapter explains how to configure the Router using your web browser and the Router’s Web-based Utility. You will configure the Router using the settings provided by your ISP.

When you’re finished with the basic steps, then you are ready to connect to the Internet.

802.11g: an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices.

Chapter 1: Introduction

What’s in this Guide?

You also have other chapters available for reference:

• Chapter 1: Introduction This chapter describes the Router’s applications and this Installation and Troubleshooting Guide.

• Chapter 2: Planning Your Wireless Network This chapter describes the basics of wireless networking.

• Appendix A: Troubleshooting This appendix describes some possible problems and solutions, as well as frequently asked questions, regarding installation and use of the Router.

• Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks.

• Appendix C: Finding the MAC Address and IP Address for Your Ethernet Adapter This appendix instructs you on how to find the MAC address or Ethernet address of your PC’s Ethernet network adapter.

• Appendix D: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol.

• Appendix E: Glossary This appendix gives a brief glossary of terms frequently used in networking.

• Appendix F: Specifications This appendix provides the technical specifications for the Router.

• Appendix G: Warranty Information This appendix supplies the warranty information for the Router.

Wireless-G Broadband Router with 2 Phone Ports

Chapter 1: Introduction What’s in this Guide?

Wireless-G Broadband Router with 2 Phone Ports

• Appendix H: Regulatory Information This appendix supplies the regulatory information regarding the Router.

• Appendix I: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support, as well as Vonage.

Chapter 1: Introduction

What’s in this Guide?

Wireless-G Broadband Router with 2 Phone Ports

Chapter 2: Planning Your Wireless Netw ork

Network Topology

A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each computer in the WLAN uses a wireless device to connect to the network. Computers in a WLAN share the same frequency channel and SSID, which is an identification name shared by the wireless devices belonging to the same wireless network.

Ad-Hoc versus Infrastructure Mode

Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other. Choosing between these two modes depends on whether or not the wireless network needs to share data or peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired network or need to share a peripheral, such as a printer, with the wired network computers, the wireless network should be set up in Infrastructure mode. The basis of Infrastructure mode centers around an access point or wireless router, such as the Wireless-G Broadband Router with 2 Phone Ports, which serves as the main point of communications in a wireless network. The Router transmits data to PCs equipped with wireless network adapters, which can roam within a certain radial range of the Router. You can arrange the Router and multiple access points to work in succession to extend the roaming range, and you can set up your wireless network to communicate with your Ethernet hardware as well.

Chapter 2: Planning Your Wireless Network Network Topology

network: a series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users.

ssid: your wireless network’s name.

ad-hoc: a group of wireless devices

communicating directly to each other (peer-to-peer) without the use of an access point.

infrastructure: a wireless network that is bridged to a wired network via an access point.

adapter: a device that adds network functionality to your PC.

ethernet: IEEE standard network protocol that specifies how data is placed on and retrieved from a common transmission medium.

Wireless-G Broadband Router with 2 Phone Ports

If the wireless network is relatively small and needs to share resources only with the other computers on the wireless network, then the Ad-Hoc mode can be used. Ad-Hoc mode allows computers equipped with wireless transmitters and receivers to communicate directly with each other, eliminating the need for a wireless router or access point. The drawback of this mode is that in Ad-Hoc mode, wireless-equipped computers are not able to communicate with computers on a wired network. And, of course, communication between the wirelessequipped computers is limited by the distance and interference directly between them.

Network Layout

The Wireless-G Broadband Router with 2 Phone Ports has been specifically designed for use with both your

802.11b and 802.11g products. It is compatible with all 802.11b and 802.11g adapters, such as the Notebook

Adapters (WPC54G, WPC11) for your laptop computers, PCI Adapter (WMP54G, WMP11) for your desktop PC, and USB Adapter (WUSB54G, WUSB11) when you want to enjoy USB connectivity. The Broadband Router will also communicate with the Wireless PrintServer (WPS54GU2, WPS11) and Wireless Ethernet Bridges (WET54G, WET11).

When you wish to connect your wireless network with your wired network, you can use the Broadband Router’s three LAN ports. To add more ports, any of the Broadband Router's LAN ports can be connected to any of Linksys's switches (such as the EZXS55W or EZXS88W).

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at www.linksys.com for more information about products that work with the Wireless-G Broadband Router with 2 Phone Ports.

access point: a device that allows wireless-equipped computers and other devices to communicate with a wired network. Also used to expand the range of a wireless network.

Chapter 2: Planning Your Wireless Network

Network Layout

Wireless-G Broadband Router with 2 Phone Ports

Chapter 3: Getting to Know the Router

The Back Panel

The Router’s ports and the Reset button are located on the back panel of the Router.

Figure 3-1: Back Panel

Internet This Internet port connects to your cable or DSL modem. Phone1 For your primary Vonage line, the Phone1 port allows you to connect the Router to your

telephone (or fax machine) using an RJ-11 telephone cable (not included).

Phone2 If you have a second Vonage line, the Phone2 port allows you to connect the Router to your

second telephone (or fax machine) using an RJ-11 telephone cable (not included).

Ethernet 1-3 These three Ethernet ports connect to network devices, such as PCs or more switches. Reset Button There are two ways to reset the Router's factory defaults. Either press the Reset Button

for five seconds, or restore the defaults from the Router's Web-based Utility.

Power The Power port is where you will connect the power adapter.

Chapter 3: Getting to Know the Router The Back Panel

NOTE: The Factory Default

feature of the Router’s Webbased Utility is protected by a password available only from Vonage. Contact Vonage for more information.

Wireless-G Broadband Router with 2 Phone Ports

The Front Panel

The Router’s LEDs, which inform you about network activities, are located on the front panel.

Figure 3-2: Front Panel

Power Green. The Power LED lights up when the Router is powered on. If the LED is flashing, the

Router is booting up, running a system self-test, or upgrading its firmware.

WLAN Green. The WLAN LED lights up when there is an active wireless connection. If the LED is

flashing, the Router is sending or receiving data over the wireless network.

Ethernet 1-3 Green. The Ethernet LED serves two purposes. If the LED is solidly lit, the Router is

connected to a device through the corresponding port (Ethernet 1, 2, or 3). If the LED is flashing, the Router is sending or receiving data over that port.

Phone 1-2 Green. The Phone LED is solidly lit when a telephone or fax machine has a registered

connection to Vonage through the corresponding port (Phone 1 or 2). (The connection is registered if your Vonage service account is active . ) Otherwise, the LED does not light up. It flashes when the phone is being used or an incoming call has been detected.

Internet Green. The Internet LED lights up when the Router is connected to your cable or DSL

modem. If the LED is flashing, the Router is sending or receiving data over the Internet port.

Proceed to “Chapter 4: Connecting the Router.”

Chapter 3: Getting to Know the Router

The Front Panel

Chap t er 4 : Co nn ec t in g t h e Ro ut er

Overview

Wireless-G Broadband Router with 2 Phone Ports

To begin installation of the Router, you will connect the Router to your PCs, telephone(s) or fax machine(s), and cable or DSL modem. The following connection diagram illustrates a basic network setup with wired connections to one desktop PC and telephone and a wireless connection to one notebook PC.

Desktop PC

Cable/DSL

Internet

Chapter 4: Connecting the Router Overview

Modem

Router

Figure 4-1: Router Connection Diagram

Notebook PC

Telephone

NOTE: If you already have a router in your network, then

replace your existing router with the Wireless-G Broadband Router with 2 Phone Ports.

Wireless-G Broadband Router with 2 Phone Ports

Connection Instructions

1. Make sure that all of your hardware is powered off, including the Router, PCs, and broadband modem. NOTE: Make sure your telephone is set to its tone setting (not pulse).

2. Connect your broadband modem’s Ethernet cable to the Router’s Internet port.

3. Plug a standard telephone into the Router’s Phone1 port. IMPORTANT: Do not connect the Phone port to a telephone wall jack. Make sure you only connect

a telephone or fax machine to the Phone port. Otherwise, the Router or the telephone wiring in your home or office may be damaged.

4. If you have a second Vonage phone or fax line, repeat step 3 to connect a telephone or fax machine to the

Router’s Phone2 port.

5. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the Router.

Connect the other end to an Ethernet port on a network device, e.g., a PC, print server, or switch.

Figure 4-1: Connect a PC

Figure 4-2: Connect a Telephone

Repeat this step to connect more PCs or other network devices to the Router.

6. Power on the broadband modem.

7. Connect the included power adapter to the Router’s Power port, and then plug the power adapter into an

electrical outlet. The Power LED on the front panel will light up when the adapter is connected properly.

8. Power on your PC(s).

Proceed to “Chapter 5: Configuring the Router.”

Figure 4-3: Connect the Modem

Figure 4-4: Connect the Power

Chapter 4: Connecting the Router

Connection Instructions

Wireless-G Broadband Router with 2 Phone Ports

Chap t er 5: Co n f ig ur in g t h e Ro ut er

Overview

Linksys recommends using the Setup CD-ROM for first-time installation of the Router. If you do not wish to run the Setup Wizard on the Setup CD-ROM, then you can use the Web-based Utility to configure the Router. For advanced users, you may configure the Router’s advanced settings through the Web-based Utility.

This chapter will describe each web page on the Utility and each page’s key functions. The Utility can be accessed via your web browser through use of a computer connected to the Router . For a basic wireless network setup, most users only have to use the following screens of the Utility:

•Basic Setup. On the Basic Setup screen, enter the Internet connection settings provided b y your ISP. If you do

not have this information, you can call your ISP to request the settings. Once you have the setup information for your specific type of Internet connection, then you can configure the Router.

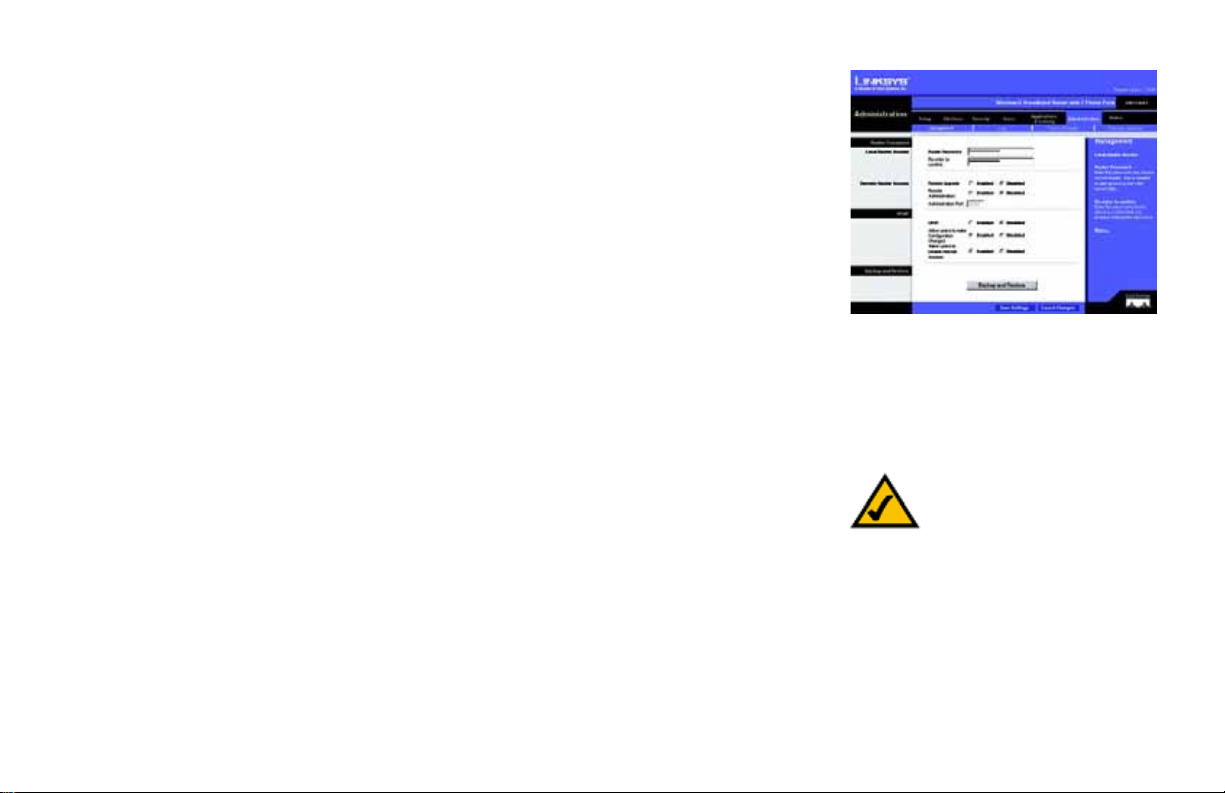

• Management. Click the Administration tab and then the Management tab. The Router’s default password

is admin. To secure the Router, change the Password from its default.

• Wireless. On the Basic Wireless Settings screen, set the basic configuration for your wireless network.

There are seven main tabs: Setup, Wireless, Security, Voice, Applications & Gaming, Administration, and Status. Additional tabs will be available after you click one of the main tabs.

Chapter 5: Configuring the Router Overview

Wireless-G Broadband Router with 2 Phone Ports

Setup

• Basic Setup. Enter the Internet connection and network settings on this screen.

• DDNS. Enable the Router’s Dynamic Domain Name System (DDNS) feature on this screen.

• MAC Address Clone. If you need to clone a MAC address onto the Router, use this screen.

• Advanced Routing. On this screen, you can alter Network Address Translation (NAT), Dynamic Routing, and

Static Routing configurations.

Wireless

• Basic Wireless Settings. Enter the basic settings for your wireless network on this screen.

• Wireless Security. Enable and configure the security settings for your wireless network.

• Wireless Network Access. To permit or deny wireless network access for specific devices, set up MAC

address filtering.

• Advanced Wireless. Advanced users can alter data tranmission settings on this screen.

Security

• Filter. To block specific users from Internet access, you can set up IP address, port, and MAC address

filtering.

• VPN Passthrough. To enable or disable IPSec, PPPoE, and/or PPTP Passthrough, use this screen.

Chapter 5: Configuring the Router

Overview

Wireless-G Broadband Router with 2 Phone Ports

Voice

Access to the Voice tab is restricted by Vonage. Contact Vonage for more information.

Applications & Gaming

• Port Range Forwarding. Set up public services or other specialized Internet applications on your network.

• Port Triggering. To set up triggered ranges and forwarded ranges for Internet applications, click this tab.

• UPnP Forwarding. Use this screen to alter UPnP forwarding settings.

• DMZ. Click this tab to allow one local user to be exposed to the Internet for use of special-purpose services.

• QoS. Enable QoS (Quality of Service) to maximize network performance.

Administration

• Management. On this screen, alter the Router’s password, access privileges, and UPnP settings. You can

also back up and restore the Router’s configuration if necessary.

• Log. If you want to view or save activity logs, click this tab.

• Factory Defaults. If you want to reset the Router to its factory default settings, then you will need a password

available only from Vonage. Contact Vonage for more information.

• Firmware Upgrade. Upgrading the Router’s firmware requires a password available only from Vonage.

Contact Vonage for more information.

Chapter 5: Configuring the Router Overview

Wireless-G Broadband Router with 2 Phone Ports

Status

• Voice. This screen provides status information about your Vonage phone lines.

• Router. This screen provides status information about the Router.

• Local Network. This provides status information about the local network.

How to Access the Web-based Utility

To access the Web-based Utility of the Router, launch Internet Explorer or Netscape Navigator, and enter the Router’s default IP address, 192.168.15.1, in the Addressfield. Press the Enter key.

A screen will appear asking you for your User name and Password. Enter admin in the User Name and Password fields. Then click the OK button.

Make the necessary changes through the Utility. When you have finished making changes to a screen, click the Save Settings button to save the changes, or click the Cancel Changes button to undo your changes. Help information is shown on the right-hand side of a screen. For additional help on a tab, click More.

Figure 5-1: Router’s IP

Address

Figure 5-2: Router Login

Chapter 5: Configuring the Router

How to Access the Web-based Utility

Wireless-G Broadband Router with 2 Phone Ports

The Setup Tab - Basic Setup

The Basic Setup screen is the first screen you see when you access the Web-based Utility.

Internet Setup

The Internet Setup section configures the Router for your Internet connection type. This information can be obtained from your ISP.

Internet Connection Type

The Router supports six connection types: Obtain an IP automatically (DHCP), Static IP, PPPoE, RAS, PPTP, and Heart Beat Signal. Each Basic Setup screen and available features will differ depending on what kind of connection type you select.

Obtain an IP automatically

By default, the Router’s Internet Connection Type is set to Obtain an IP automatically, and it should be used only if your ISP supports DHCP or you are connecting through a dynamic IP address.

Figure 5-3: Setup Tab - Basic Setup

(Obtain an IP automatically)

Chapter 5: Configuring the Router The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

Static IP

If you are required to use a permanent IP address, then select Static IP. IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide

you with the IP Address you need to specify here. Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your

ISP). Your ISP will provide you with the Subnet Mask.

Default Gateway. Your ISP will provide you with the Default Gateway Address. DNS 1-3. Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address.

PPPoE

Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet) to establish Internet connections for end-users. If you use a DSL line, check with your ISP to see if they use PPPoE. If they do, you will have to enable it.

User Name and Password. Enter the User Name and Password provided by your ISP. Service Name. If provided by your ISP, enter the Service Name. Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after

it has been inactive for a specific period of time (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the Router to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain on at all times, enter 0 in the Max Idle

Figure 5-4: Static IP

static ip address: a fixed address assigned to a computer or device connected to a network.

subnet mask: an address code that determines the size of the network.

default gateway: a device that forwards Internet traffic from your local area network.

pppoe: a type of broadband connection that provides authentication (username and password) in addition to data transport.

Chapter 5: Configuring the Router

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

Time field. Otherwise, enter the number of minutes you want to have elapsed before your Internet access disconnects.

Keep Alive and Redial Period. This option keeps your Internet access connected indefinitely, even when it sits idle. If you select this option, the Router will periodically check your Internet connection. If the connection is down, then the Router will automatically re-establish the connection. To use this option, click the radio button next to Keep Alive. The default Redial Period is 30 seconds.

When you are finished, click the Save Settings button. Then click the Status tab, and click the Connect button to start the connection.

RAS (for SingTel)

Remote Access Service (RAS) is a service that applies to connections in Singapore only. For users in Singapore, check with Singtel for information on RAS.

User Name and Password. Enter the User Name and Password supplied by Singtel. RAS Plan. Select the type of plan you have. Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after

Chapter 5: Configuring the Router The Setup Tab - Basic Setup

Figure 5-5: PPPoE

NOTE: For DSL users, if you

need to enable PPPoE support, remember to remove any PPPoE applications that are installed on your PCs.

Figure 5-6: RAS (for Singtel)

Wireless-G Broadband Router with 2 Phone Ports

When you are finished, click the Save Settings button. Then click the Status tab, and click the Connect button to start the connection.

PPTP

Point-to-Point Tunneling Protocol (PPTP) is a service that applies to connections in Europe and Israel only. IP Address. This is the IP address that the Router has, when seen from the Internet. Your ISP will provide

you with the IP Address you need to specify here. Subnet Mask. This is the Router’s Subnet Mask, as seen by external users on the Internet (including your

ISP). Your ISP will provide you with the Subnet Mask.

Default Gateway. Your ISP will provide you with the Default Gateway Address. User Name and Password. Enter the User Name and Password provided by your ISP. Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after

Figure 5-7: PPTP

Chapter 5: Configuring the Router

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

When you are finished, click the Save Settings button. Then click the Status tab, and click the Connect button to start the connection.

Heart Beat Signal

Heart Beat Signal is a service used in Australia only. If you are using a Heart Beat Signal connection, check with your ISP for the necessary setup information.

User Name and Password. Enter the User Name and Password provided by your ISP. Heart Beat Server. This is the IP address that the Router has, when seen from the Internet. Your ISP will

provide you with the IP Address you need to specify here. Connect on Demand and Max Idle Time. You can configure the Router to cut the Internet connection after

Figure 5-8: Heart Beat Signal

Chapter 5: Configuring the Router The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

connection is down, then the Router will automatically re-establish the connection. To use this option, click the radio button next to Keep Alive. The default Redial Period is 30 seconds.

When you are finished, click the Save Settings button. Then click the Status tab, and click the Connect button to start the connection.

Optional Settings

Some of these settings may be required by your ISP. Verify with your ISP before making any changes. Host Name and Domain Name. These fields allow you to supply a host and domain name for the Router. Some

ISPs require these names as identification. You may have to check with your ISP to see if your broadband Internet service has been configured with a host and domain name. In most cases, leaving these fields blank will work.

MTU. The MTU (Maximum Transmission Unit) setting specifies the largest packet size permitted for network transmission. Select Enable and enter the value desired. It is recommended that you leave this value in the 1200 to 1500 range. For most DSL users, it is recommended to use the value 1492. By default, MTU is set at 1500 when disabled.

Network Setup

The Network Setup section allows you to change the Router’s local network settings.

Router IP

The values for the Router’s Local IP Address and Subnet Mask are shown here. In most cases, keeping the default values will work.

packet: a unit of data sent over a network.

Chapter 5: Configuring the Router

The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

Local IP Address. The default value is 192.168.15.1. Subnet Mask. The default value is 255.255.255.0.

Network Address Server Settings (DHCP)

These settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP) server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer on your network. Unless you already have one, it is highly recommended that you leave the Router enabled as a DHCP server.

Local DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, set the Router’s DHCP option to Disable. If you disable DHCP, remember to assign a static IP address to the Router.

Start IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the default IP address for the Router is 192.168.15.1, the Start IP Address must be 192.168.15. 2 or greater, but smaller than 192.168.15.254. The default Start IP Address is 192.168.15.100.

Number of Address (Optional). Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50.

DHCP Address Range. The range of DHCP addresses is displayed here. Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the

Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new dynamic IP address. The default is 0 minutes, which means one day.

dynamic ip address: a temporary IP address assigned by a DHCP server.

Chapter 5: Configuring the Router The Setup Tab - Basic Setup

Wireless-G Broadband Router with 2 Phone Ports

DNS 1-3. The Domain Name System (DNS) is how the Internet translates domain or website names into Internet addresses or URLs. Your ISP will provide you with at least one DNS Server IP Address. You can enter up to three DNS Server IP Addresses here. The Router will use these for quicker access to functioning DNS servers.

WINS. The Windows Internet Naming Service (WINS) converts NetBIOS names to IP addresses. If you use a WINS server, enter that server’s IP address here. Otherwise, leave this field blank.

Time Setting

Change the time zone in which your network functions from this pull-down menu. When you have finished making changes to this screen, click the Save Settings button to save the changes, or

click the Cancel Changes button to undo your changes. Help information is shown on the right-hand side of a screen. For additional information, click More.

NOTE: To test your settings, connect to the Internet now.

The Setup Tab - DDNS

The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router.

Before you can use this feature, you need to sign up for DDNS service at one of two DDNS service providers, DynDNS.org or TZO.com. If you do not want to use this feature, keep the default setting, Disable.

ddns: allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (e.g., www.xyz.com) and a dynamic IP address.

Chapter 5: Configuring the Router

The Setup Tab - DDNS

+ 80 hidden pages
