Linksys SRW224P User Manual

A Division of Cisco Systems, Inc.

®

24-Port 10/100 + 2-Port Gigabit Switch

with WebView and Power over Ethernet

User Guide

WIRED

Model No.

SRW224P

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Copyright and Trademarks

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.

WARNING: This product contains chemicals, including lead, known
to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Switch easier than ever. Look for
the following items when reading this User Guide:

This checkmark means there is a note of interest and is something
you should pay special attention to while using the Switch.

This exclamation point means there is a caution or warning and
is something that could damage your property or the Switch.

This question mark provides you with a reminder about
something you might need to do while using the Switch.

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

SRW224P-UG-51008 KL

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Table of Contents

Chapter 1: Introduction 1

Welcome 1
What’s in this Guide? 2

Chapter 2: Getting to Know the Switch 3

The Front Panel 3
The Back Panel 4
The Side Panel 4
RJ-45 Ports 5
The Gigabit Expansion Ports 5
The Console Port 5

Chapter 3: Connecting the Switch 6

Overview 6
Pre-Installation Considerations 7
Hardware Installation 8
Placement Options 8
Uplinking the Switch 9

Chapter 4: Configuration using the Console Interface 10

Overview 10
Configuring the Switch through the Console Interface 11

Chapter 5: Configuring the Switch through the Web Utility 24

Overview 24
System Information 25
IP Config 31
Switch Config 33
QoS 43
DiffServ 50
Security 56
SNTP 65
Statistics 66
PoE 68
Spanning Tree 71
SNMP 75
IGMP 76
Maintenance 80

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Help 82

Appendix A: Fast Ethernet and Gigabit Ethernet 83

About Fast Ethernet 83
About Gigabit Ethernet 83

Appendix B: Cabling 84

Overview 84
Twisted Pair Cabling 84
Fiber Optic Cabling 84

Appendix C: Glossary 85
Appendix D: Specifications 88
Appendix E: Warranty Information 89
Appendix F: Regulatory Information 90
Appendix G: Contact Information 96

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

List of Figures

Figure 2-1: Front Panel 3
Figure 2-2: Back Panel 4
Figure 2-3: Side Panel 4
Figure 3-1: Typical Network Configuration 6
Figure 3-2: Attaching the Switch’s Rubber Feet 8
Figure 3-3: Attaching Brackets to the Switch 9
Figure 3-4: Mounting the Switch 9
Figure 4-1: Finding Hyperterminal 10
Figure 4-2: Connection Description 10
Figure 4-3: Password Screen 10
Figure 4-4: COM1 Properties 11
Figure 4-5: Login 11
Figure 4-6: Switch Main Menu 12
Figure 4-7: System Configuration Menu 12
Figure 4-8: System Information 13
Figure 4-9: Versions 13
Figure 4-10: General Information 13
Figure 4-11: Serial Port Configuration 14
Figure 4-12: CPU Performance 14
Figure 4-13: User and Password Settings 15
Figure 4-14: IP Configuration 16
Figure 4-15: IP Address Configuration Screen 16
Figure 4-16: HTTP 16
Figure 4-17: SNMP 17
Figure 4-18: Network Configuration/PING 17
Figure 4-19: File Management 18
Figure 4-20: Restore System Default Settings 19
Figure 4-21: Reboot System 19
Figure 4-22: Back to Main Menu 20
Figure 4-23: Port Status 21

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Figure 4-24: Port Configuration 21
Figure 4-25: PoE Main Menu 22
Figure 4-26: Power Configuration 22
Figure 4-27: Power Port Status 22
Figure 4-28: Power Port Configuration 23
Figure 4-29: Logout 23
Figure 5-1: Address Field 24
Figure 5-2: Password Screen 24
Figure 5-3: Sys. Info - System Description 24
Figure 5-4: Sys. Info - System Information 25
Figure 5-5: Sys. Info - System Mode 26
Figure 5-6: Sys. Info - Forwarding Database 27
Figure 5-7: Dynamic Address Screen 28
Figure 5-8: Static Address Screen 28
Figure 5-9: Sys. Info - Time Synchronization Screen 29
Figure 5-10: Sys. Info - CPU Performance 30
Figure 5-11: Sys. Info - Logout 30
Figure 5-12: IP Config - IP Address 31
Figure 5-13: Switch Config - Port Configuration 33
Figure 5-14: Edit Port Configuration Screen 34
Figure 5-15: Switch Config - VLAN 36
Figure 5-16: Adding/Editing VLAN Screen 37
Figure 5-17: Switch Config - VLAN Port 38
Figure 5-18: Switch Config - LAG Configuration 39
Figure 5-19: Create LAG Screen 40
Figure 5-20: LAG Broadcast Control Screen 40
Figure 5-21: VLAN LAG Configuration Screen 40
Figure 5-22: Switch Config - Port Mirroring 41
Figure 5-23: Switch Config - LACP 42
Figure 5-24: LACP Membership Screen 42
Figure 5-25: QoS - CoS Settings 44

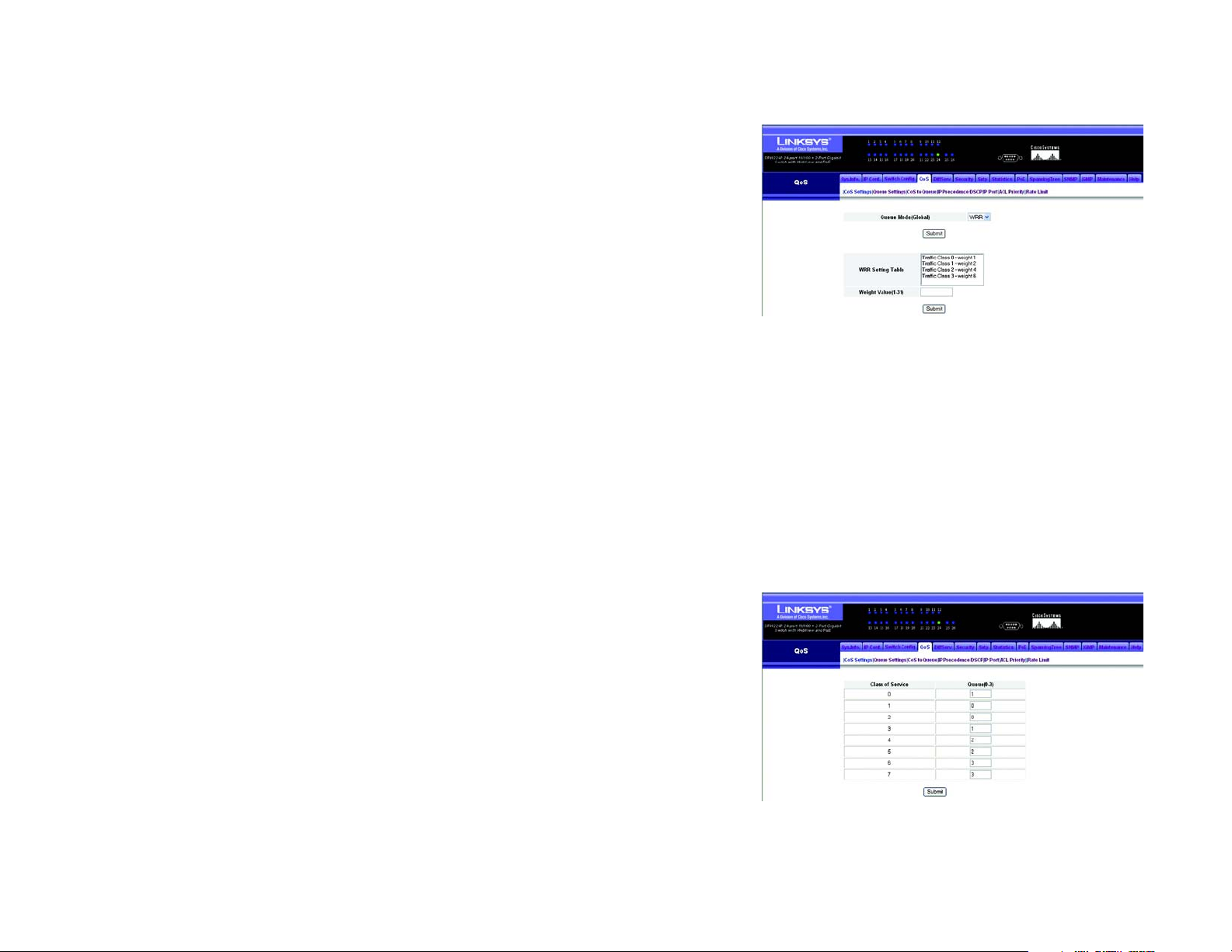

Figure 5-26: QoS - Queue Settings 45
Figure 5-27: QoS - CoS to Queue 45

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Figure 5-28: QoS - IP Precedence/DSCP 46
Figure 5-29: QoS - IP Port 47
Figure 5-30: QoS - ACL Priority 48
Figure 5-31: QoS - Rate Limit 49
Figure 5-32: DiffServ - Diffserv Class Map 51
Figure 5-33: DiffServ Class Map - Setting Rules 51
Figure 5-34: DiffServ Class Map - Adding a Class 52
Figure 5-35: DiffServ - Diffserv Policy Map 53
Figure 5-36: DiffServ Policy Map - Adding a Policy 53

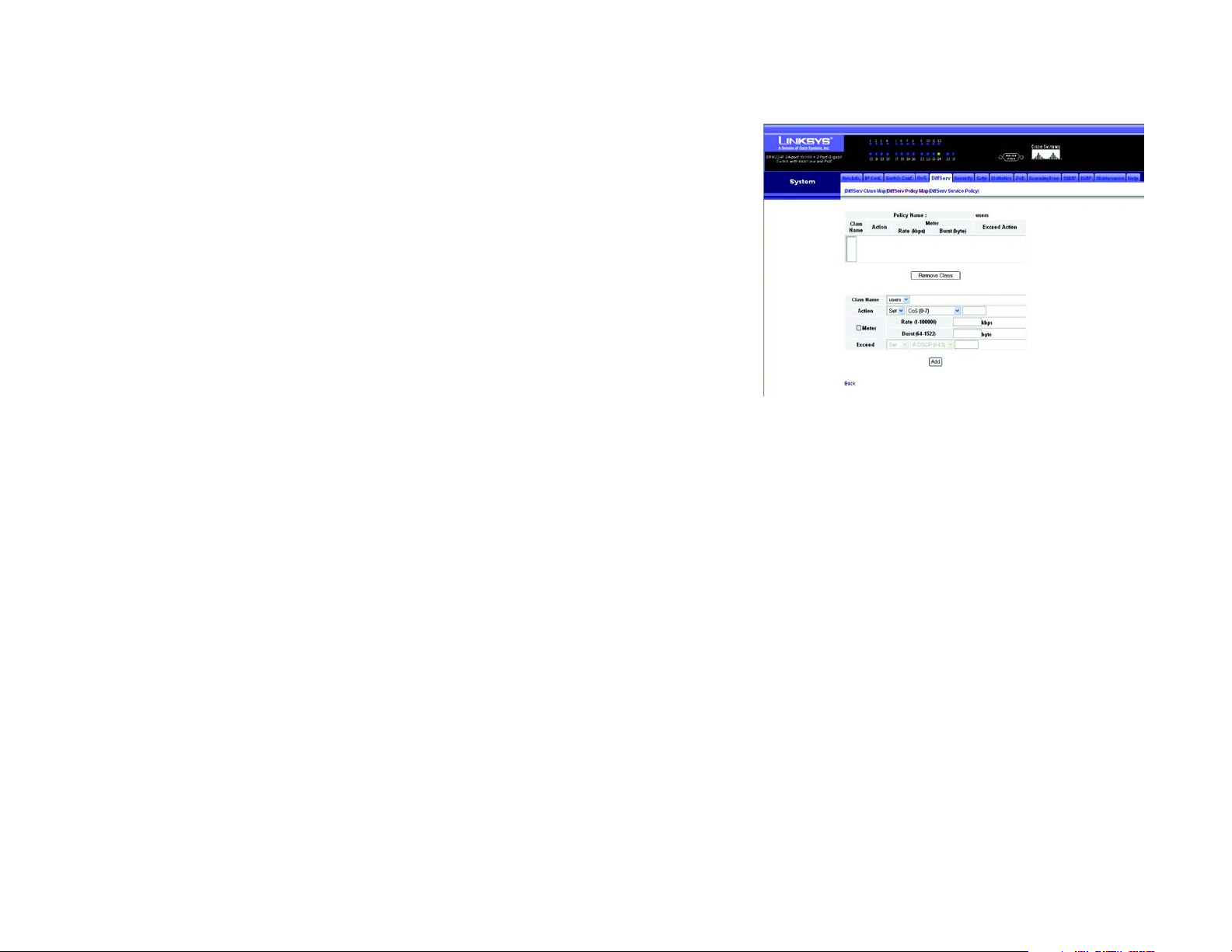

Figure 5-37: DiffServ Policy Map - Setting Rules 54
Figure 5-38: DiffServ - Diffserv Service Policy 55
Figure 5-39: Security - ACL Conf 56
Figure 5-40: ACL Conf - Adding/Editing Standard ACL 57
Figure 5-41: ACL Conf - Adding/Editing Extended ACL 57
Figure 5-42: ACL Conf - Adding/Editing MAC ACL 59
Figure 5-43: Security - ACL Port Binding 60
Figure 5-44: Security - 802.1x Users 61

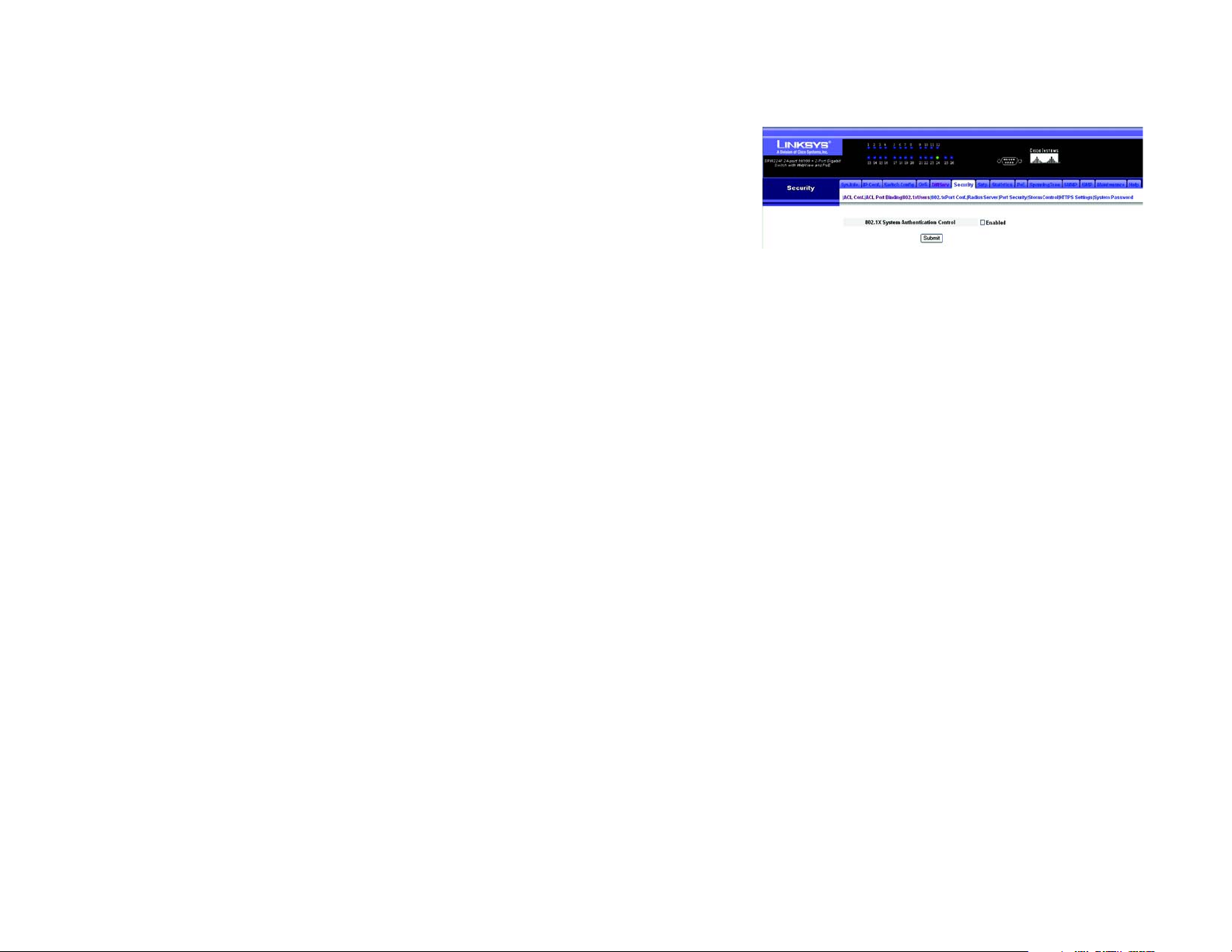

Figure 5-45: Security - 802.1x Port Conf 62
Figure 5-46: Security - RADIUS Server 62
Figure 5-47: Security - Port Security 63
Figure 5-48: Security - Storm Control 63
Figure 5-49: Security - HTTPS Settings 64
Figure 5-50: Security - System Password 64

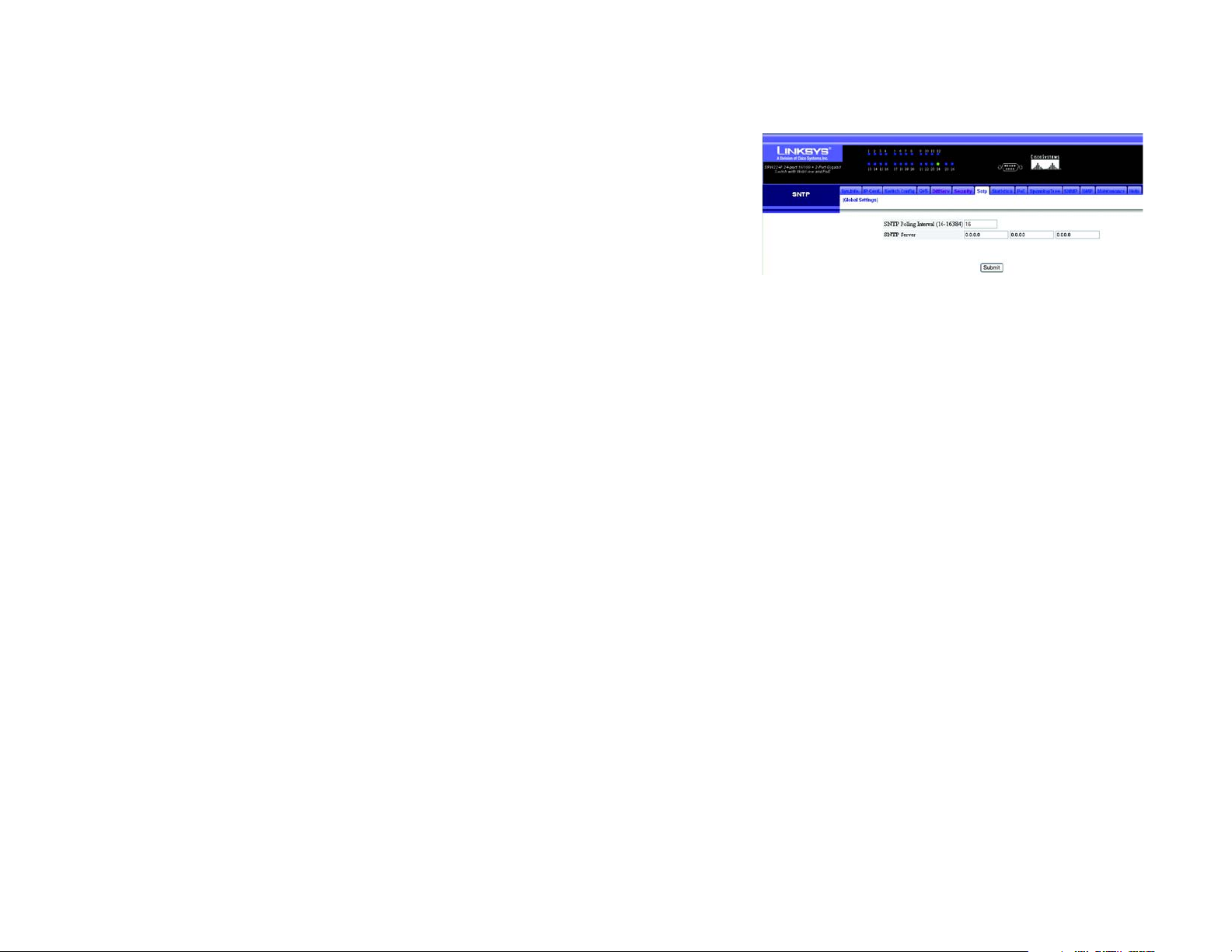

Figure 5-51: SNTP - Global Settings 65
Figure 5-52: Statistics - Interface Statistics 66
Figure 5-53: Statistics - Etherlike Statistics 67
Figure 5-54: Statistics - RMON Statistics 67
Figure 5-55: PoE - Power Config 68
Figure 5-56: PoE - Power Port Config 69
Figure 5-57: PoE - Power Port Status 69
Figure 5-58: PoE - Power Status 70
Figure 5-59: Spanning Tree - Information 72
Figure 5-60: Spanning Tree - Configuration 73

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Figure 5-61: Spanning Tree - Port/LAG Info 73
Figure 5-62: Spanning Tree - Information 74
Figure 5-63: SNMP - SNMP Config 75
Figure 5-64: IGMP - IGMP Conf 77
Figure 5-65: IGMP - IGMP Router Info 78
Figure 5-66: IGMP - IGMP Router Conf 78
Figure 5-67: IGMP - IP Multicast Reg Table 79
Figure 5-68: IGMP - IGMP Member Conf 79
Figure 5-69: Maintenance - Reset 80
Figure 5-70: Maintenance - File Download 80
Figure 5-71: Maintenance - File Upload 81
Figure 5-72: Maintenance - Restore Defaults 81
Figure 5-73: Maintenance - Save Config 81
Figure 5-74: Maintenance - Integrated Cable Test 82
Figure 5-75: Help 82

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Chapter 1: Introduction

Welcome

Thank you for choosing the 24-port 10/100 + 2-Port Gigabit Switch with WebView and Power over Ethernet. This
Switch will allow you to network better than ever.

This new Linksys rackmount Switch delivers non-blocking, wire speed switching for your 10 and 100 megabit
network clients, plus multiple options for connecting to your network backbone. Twenty-four 10/100 ports wire
up your workstations, while the two integrated 10/100/1000BaseTX ports connect to other switches and the
backbone at Gigabit speeds. And the mini-GBIC ports allow future expansion through alternate transmission
media like optical fiber.

All the 10/100 ports on this Switch support IEEE 802.3af standard (802.3af) Power-over-Ethernet (PoE)
capabilities. Each port can detect connected 802.3af-compliant network devices, such as IP phones or wireless
access points, and automatically supply the required DC power.

The Switch can provide DC power to a wide range of connected devices, eliminating the need for an additional
power source and cutting down on the amount of cables attached to each device. Once configured to supply
power, an automatic detection process is initialized by the Switch that is authenticated by a PoE signature from
the connected device. Detection and authentication prevent damage to non-PoE devices.

The Switch features WebView monitoring and configuration via your web browser, making it easy to manage the
128 VLANs and up to 4 lagging groups. Or if you prefer, you can use the integrated console port to configure the
Switch. The non-blocking, wire-speed switching forwards packets as fast as your network can deliver them.

All ports have automatic MDI/MDI-X crossover detection. Each port independently and automatically negotiates
for best speed and whether to run in half- or full-duplex mode. Head-of-line blocking prevention keeps your high­speed clients from bogging down in lower-speed traffic and fast store-and-forward switching prevents damaged
packets from being passed on into the network.

Use the instructions in this User Guide to help you connect the Switch, set it up, and configure it to bridge your
different networks. These instructions should be all you need to get the most out of the 24-port 10/100 + 2-Port
Gigabit Switch with WebView and Power over Ethernet.

Chapter 1: Introduction
Welcome

1

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

What’s in this Guide?

This user guide covers the steps for setting up and using the Switch.

• Chapter 1: Introduction
This chapter describes the Switch’s applications and this User Guide.

• Chapter 2: Getting to Know the Switch
This chapter describes the physical features of the Switch.

• Chapter 3: Connecting the Switch
This chapter describes how to connect the Switch.

• Chapter 4: Configuration using the Console Interface
This chapter instructs you on how to use the Switch’s console interface for configuring the Switch.

• Chapter 5: Configuring the Switch through the Web Utility
This chapter shows you how to configure the Switch using the Web Utility.

• Appendix A: Fast Ethernet and Gigabit Ethernet
This appendix describes the various types of ethernet.

• Appendix B: Cabling
This appendix discusses different types of cabling.

• Appendix C: Glossary
This appendix gives a brief glossary of terms frequently used in networking.

• Appendix D: Specifications
This appendix provides the Switch’s technical specifications.

• Appendix E: Warranty Information
This appendix supplies the Switch’s warranty information.

• Appendix F: Regulatory Information
This appendix supplies the Switch’s regulatory information.

• Appendix G: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 1: Introduction
What’s in this Guide?

2

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Chapter 2: Getting to Know the Switch

The Front Panel

The Switch's LEDs and ports are located on the front panel.

Figure 2-1: Front Panel

LEDs

System A green LED indicates that power is being supplied to the Switch. A solid, amber

LED indicates that the Switch’s power-on-self-test (POST) is in progress, but
when this blinks amber that indicates that the POST has failed.

Link/Act A green LED indicates a functional network link through the corresponding port

(1 through 26) with an attached device. A blinking LED indicates that the Switch
is actively sending or receiving data over that port.

PoE A green LED indicates a powered device is connected to the corresponding port

(1 through 24).

Speed A green LED indicates a link to the corresponding port (Gigabit ports 25 and 26) is

operating at 1000Mbps. No light indicates either no link or a link operating at a
speed of 10/100Mbps.

Chapter 2: Getting to Know the Switch
The Front Panel

3

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Ports

LAN (1-24) The LAN ports connect to Ethernet network devices, such as other switches or

routers.

Gigabit1 (25)/Gigabit 2 (26) The Switch is equipped with two Gigabit RJ-45 ports that are shared with two

mini-GBIC ports. If a Gigabit mini-GBIC port is being used, the associated RJ-45
port cannot be used. They link to high-speed network peripheral system or
clients at speeds of up to 1000Mbps.

Console The Console port is where you connect a serial cable from a PC’s serial port.

The Back Panel

The power port is located on the back panel.

Figure 2-2: Back Panel

Power The Power port is where you will connect the power cord.

The Side Panel

A security slot, where you can attach a lock to protect the Switch, is located on a side panel.

Chapter 2: Getting to Know the Switch
The Back Panel

Figure 2-3: Side Panel

4

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

RJ-45 Ports

The Switch is equipped with 24 auto-sensing RJ-45 ports. These RJ-45 ports support network speeds of either
10Mbps or 100Mbps, and can operate in half and full-duplex modes. Auto-sensing technology enables each port
to automatically detect the speed of the device connected to it (10Mbps or 100Mbps), and adjust its speed and
duplex accordingly.

The Switch’s RJ-45 ports also support the IEEE 802.3af Power-over-Ethernet (PoE) standard that enables DC
power to be supplied to attached devices using wires in the connecting twisted-pair cable. Any 802.3af­compliant device attached to a port can directly draw power from the Switch over the twisted-pair cable without
requiring its own separate power source. This capability gives network administrators centralized power control
for devices such as IP phones and wireless access points, which translates into greater network availability.

For each attached 802.3af-compliant device, the Switch automatically senses the load and dynamically supplies
the required power. The Switch delivers power to a device using the two data wire pairs in the twisted-pair cable.
Each port can provide up to 15.4 W of power at the standard -48 VDC voltage.

To connect a device to a port, you will need to use a network cable. You will need to use Category 5 (or better)
cable. For more information on twisted-pair cabling, refer to Appendix B: Cabling.

The Gigabit Expansion Ports

The Switch is equipped with two Gigabit Ethernet ports that have shared mini-GBIC ports, which provide for the
installation of one expansion module. These ports provide links to high-speed network segments or individual
workstations at speeds of up to 1000Mbps (Gigabit Ethernet).

To establish a Gigabit Ethernet connection using a mini-GBIC port, you will need to install an MGBT1, MGBSX2, or
MGBLH1 Gigabit expansion module and use Category 5e cabling or fiber optic cabling. For more information on
fiber optic cabling, refer Appendix B: Cabling

The Console Port

The Switch is equipped with a serial port labeled CONSOLE (located on the front of the Switch) that allows you to
connect to a computer’s serial port (for configuration purposes) using the provided serial cable. You can use
HyperTerminal to manage the Switch using the console port.

With this and many other Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com for more information about products that work with the Switch.

Chapter 2: Getting to Know the Switch
RJ-45 Ports

5

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Chapter 3: Connecting the Switch

Overview

This chapter will explain how to connect network devices to the Switch. The following diagram shows a typical
network configuration.

Figure 3-1: Typical Network Configuration

When you connect your network devices, make sure you don’t exceed the maximum cabling distances, which are
listed in the following table:

Maximum Cabling Distances

From To Maximum Distance

Switch Switch or Hub 100 meters (328 feet)

Hub Hub 5 meters (16,4 feet)

Switch or Hub Computer 100 meters (328 feet)

*A hub refers to any type of 100Mbps hub. A 10Mbps hub connected to another 10Mbps hub can span up to 100
meters (328 feet).

Chapter 3: Connecting the Switch
Overview

6

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Pre-Installation Considerations

Fast Ethernet Considerations

If you will be using the Switch for Fast Ethernet (100Mbps) applications, you must observe the following
guidelines:

Full-Duplex

As previously mentioned, the Switch provides full-duplex support for its RJ-45 ports. Full-duplex operation allows
data to be sent and received simultaneously, doubling a port’s potential data throughput.

If you will be using the Switch in full-duplex mode, the maximum cable length using Category 5 cable is 328 feet
(100 meters).

Positioning the Switch

Before you choose a location for the Switch, observe the following guidelines:

1. Make sure that the Switch is accessible and that the cables can be connected easily.

2. Keep cabling away from sources of electrical noise, power lines, and fluorescent lighting fixtures.

3. Position the Switch away from water and moisture sources.

4. To ensure adequate air flow around the Switch, be sure to provide a minimum clearance of two inches
(50mm).

5. Do not stack free-standing Switches more than four units high.

6. Connect Network Devices

Chapter 3: Connecting the Switch
Pre-Installation Considerations

7

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Hardware Installation

To connect network devices to the Switch, follow these instructions:

1. Make sure all the devices you will connect to the Switch are powered off.

2. Connect a Category 5 Ethernet network cable to one of the numbered ports on the Switch.

3. Connect the other end to a PC or other network device.

4. Repeat steps 2 and 3 to connect additional devices. If 802.3af-compliant PoE devices are connected to the
Switch’s 10/100 ports, the Switch automatically supplies the required power.

5. If you are using the Gigabit port, connect a Category 5e Ethernet network cable to the Gigabit port on the
Switch, and connect the other end to a Gigabit server or other network device.

6. If you are using a mini-GBIC port, then connect a mini-GBIC module to the mini-GBIC port. For detailed
instructions, refer to the module’s documentation.

7. Connect the supplied power cord to the Switch’s power port, and plug the other end into an electrical outlet.
When connecting power, always use a surge protector.

8. Power on the devices connected to the Switch. Each active port’s corresponding LED will light up on the
Switch.

IMPORTANT: Make sure to use the power cord that is
supplied with the Switch. Use of a different power
cord could damage the Switch.

NOTE:

If you need to reset the Switch, remove the
power cord from the back of the Switch and then
reconnect it.

Placement Options

There are two ways to physically install the Switch, either set the Switch on its four rubber feet for desktop
placement or mount the Switch in a standard-sized, 19-inch high rack for rack-mount placement.

Desktop Placement

1. Attach the rubber feet to the recessed areas on the bottom of the Switch.

2. Place the Switch on a desktop near an AC power source.

3. Keep enough ventilation space for the Switch and check the environmental restrictions mentioned in
Appendix D: Specifications as you are placing the Switch.

4. Connect the Switch to network devices according to the Hardware Installation instructions above.

Chapter 3: Connecting the Switch
Hardware Installation

Figure 3-2: Attaching the Switch’s Rubber Feet

8

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Rack-Mount Placement

To rack-mount the Switch in any standard 19-inch rack, follow the instructions described below.

1. Place the Switch on a hard flat surface with the front panel faced towards your front side

2. Attach a rack–mount bracket to one side of the Switch with the supplied screws.

3. Secure the brackets tightly.

Figure 3-3: Attaching Brackets to the Switch

4. Follow the same steps to attach the other bracket to the opposite side.

5. After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to any
standard 19-inch rack.

6. Connect the Switch to network devices according to the Hardware Installation instructions above.

Uplinking the Switch

To uplink the Switch, connect one end of a Cat5 (or better) cable into one of the 24 10/100 ports, and then
connect the other end of the cable into the peripheral device’s uplink port. MDI/MDIX will automatically detect the
speed and cable type.

The hardware installation is complete. Proceed to Chapter 4: Configuration using the Console Interface, for
directions on how to set up the Switch.

IMPORTANT: Make sure to use the power cord that is
supplied with the Switch. Use of a different power
cord could damage the Switch.

Figure 3-4: Mounting the Switch

Chapter 3: Connecting the Switch
Uplinking the Switch

9

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Chapter 4: Configuration using the
Console Interface

Overview

The Switch features a menu-driven console interface for basic configuration. You can easily manage your
network from the screens through the console port. Before you can use the console interface, you will need to
configure the HyperTerminal application.

Configuring the HyperTerminal Application

1. Click the Start button. Select Accessories and then select Communications. HyperTerminal should be one
of the options listed in the next menu. Select HyperTerminal to run the utility program.

2. Enter a name for this connection. In the example shown, the name of connection is SRW224P. Select an icon
for the application. Click OK.

3. Select a port to communicate with the Switch. Select COM1 or COM2.

4. Set the serial port settings, as follows, then click OK. These settings should be:

• Bits per Second: 38400

• Databits: 8

• Parity: None

• Stop bits: 1

• Flow control: None

Figure 4-1: Finding Hyperterminal

Figure 4-2: Connection Description

Figure 4-3: Password Screen

Chapter 4: Configuration using the Console Interface
Overview

10

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Configuring the Switch through the Console Interface

Login

When you finish configuring HyperTerminal, the Login screen will appear. The first time you open the console
interface, use the default username admin, and leave the password blank. You can set a new password later
from the Password Setting screen.

Switch Screens

The console interface screens consist of a series of menus. Each menu has several options, which are listed
vertically. A highlight in each menu lets you select the option you wish to choose; pressing the Enter key activates
the highlighted option.

To navigate through the Console Interface use the Up Arrow or Down Arrow keys to move up or down, or use the
number keys to select the respective option (for example, press the 5 key to highlight help) use the Enter key to
select, and the Esc key to return to the previous selection; menu options and any values entered or present will
get highlighted. The bottom of the window always has a listing of the appropriate key strokes.

Figure 4-4: COM1 Properties

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-5: Login

11

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Switch Main Menu

The Main Menu screen displays six menu choices: System Configuration Menu, Port Status, Port Configuration,
PoE Configuration, Help, and Logout.

System Configuration Menu

System Configuration Menu displays:

1. System Configuration

2. Management Settings

Figure 4-6: Switch Main Menu

3. User and Password Settings

4. IP Configuration

5. File Management

6. Restore System Default Setting

7. Reboot System

8. Back to Main Menu.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-7: System Configuration Menu

12

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

System Information

In System Information, you can check the Versions and General Information.

Versions

The version screen displays the Boot Version, Software Version, Loader Version and the Hardware Version.

Boot Version. This file runs when the Switch is turned on. It loads the operating system for the Switch.

Software Version. This file contains the programming code that runs the Switch.

Loader Version. This file loads the software from storage memory to main memory.

Figure 4-8: System Information

Hardware Version. The current hardware setup of the Switch.

General Information

The General Information screen displays the System Description, System Up Time, System Mac Address, System
Contact, System Name and System Location

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-9: Versions

Figure 4-10: General Information

13

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Management Settings

The Management Settings screen displays two menu choices: Serial Port Configuration and CPU Performance

Serial Port Configuration

The Serial Port Configuration screen displays the current setting for the baud rate. The baud rate can be changed
by selecting edit then using the spacebar to toggle through the different baud rates. Use the save action to set
the new baud rate.

Figure 4-11: Serial Port Configuration

CPU Performance

The CPU performance screen displays the percentage of processor power being used by the Switch.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-12: CPU Performance

14

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

User and Password Settings

The User & Password Settings screen displays user account information on the Switch. The default account is the
administrator account. To add a new user, use the arrow keys to select edit then enter the username of the new
account and assign a password to the account. The password must be re-entered into the Again Password
column to cofirm the password.

To save the new user account information, use the arrow key to select save and press enter.

NOTE:

While only five accounts can be configured through the Switch’s

console interface, up to 16 can be configured with the Switch’s web interface.

Figure 4-13: User and Password Settings

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

15

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

IP Configuration

The IP Configuration screen displays four menu choices: IP Address Settings, HTTP, SNMP and Network
Configuration.

IP Address Settings

The IP Address Settings screen allows you to set the IP information for the Switch.

IP Address. This sets the Switch’s IP Address. The default setting is 192.168.1.254.

Subnet Mask. This combined with the IP Address defines the Switch’s network address.

Default Gateway. This defines the IP Address for the default gateway of the network.

Management VLAN. Set the ID number of the Management VLAN. This is the only VLAN through which you can

gain management access to the Switch. By default, all ports on the Switch are members of VLAN 1, so a
management station can be connected to any port on the Switch. However, if other VLANs are configured and you
change the Management VLAN, you may lose management access to the Switch. In this case, you should
reconnect the management station to a port that is a member of the Management VLAN.

IP Mode. Choose to have either a user defined IP address or to have it assigned by DHCP or BOOTP.

HTTP

The HTTP screen allows you to set the Hyper Text Transfer Protocol information for the Switch.

HTTP Server. Enable or Disable the Switch’s HTTP server function.

HTTP Server port. Set the TCP port which HTTP packets are sent and received from.

Figure 4-14: IP Configuration

Figure 4-15: IP Address Configuration Screen

HTTPS Server. Enable or Disable the Secure HTTP server function of the Switch.

HTTPS Server port. Set the TCP port witch HTTPS packets are sent and received from.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-16: HTTP

16

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

SNMP

The SNMP screen allows you to set the Switch’s SNMP settings.

SNMP Server. Enable or Disable the SNMP function for the Switch.

SNMP Port. Set the TCP port that will be used for sending and receiving SNMP packets.

Network Configuration

The Network Configuration Screen allows you to use PING to test network connectivity. Enter the IP address of the
interface or device you wish to PING and select the Execute action.

Figure 4-17: SNMP

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-18: Network Configuration/PING

17

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

File Management

The File Management screen allows you to upload and download files to the Switch using TFTP.

Source File. Specify the location of the file to transfer. Select TFTP if the file is on a TFTP server, Image if the file
is a local image file, or startup-config if the file is a local configuration file.

Destination File. Specify where the file is to be transferred. Select TFTP if the file is to be uploaded to a TFTP
server, Image if the file is to be downloaded as a image file, startup-config if the file is a configuration file, or boot
if the file is a boot file.

File Name. Enter the name of the file to be uploaded or downloaded.

IP Address. Enter the IP address of the TFTP server that will transfer the file.

Figure 4-19: File Management

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

18

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Restore System Default Setting

To restore the Switch back to the factory default settings, select Restore System Default Setting and press Enter.
A confirmation message will appear stating that All User Configuration data will be reset to Default. Continue? [y/
n]. Press the “y” key to continue or the “n” key to cancel the action.

Reboot System

Figure 4-20: Restore System Default Settings

If you would like to reboot the Switch, select Reboot System and press Enter.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-21: Reboot System

19

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Back to Main Menu

Select Back to Main Menu if you want to return to the main menu.

Figure 4-22: Back to Main Menu

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

20

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

Port Status

This screen allows you to view the status of a port. The Port, Enable, Link Status, Spd/Dpx, and Flow Control are
displayed.

Ports 1 through 24 are ethernet RJ-45 ports and ports 25 and 26 are Gigabit RJ-45 ports, Giga1 and Giga2. Each
Gigabit port has a shared mini-Gbic port. If there is a connection to one of the mini-Gbic ports then the
corresponding Gigabit RJ-45 port cannot be used.

Port Configuration

You can use the Port Configuration or screen to enable/disable an interface, set auto-negotiation and the
interface capabilities to advertise, or manually fix the speed, duplex mode, and flow control.

Enable – Allows you to manually enable or disable an interface. You can disable an interface due to abnormal
behavior (for example, excessive collisions), and then enable it again, once the problem has been resolved. You
may also disable an interface for security reasons.

Auto-negotiation (Port Capabilities) – Allows auto-negotiation to be enabled/disabled. When auto-negotiation
is enabled, you need to specify the capabilities to be advertised. When auto-negotiation is disabled, you can force
the settings for speed, mode, and flow control.The following capabilities are supported.

• 10half - Supports 10 Mbps half-duplex operation

• 10full - Supports 10 Mbps full-duplex operation

• 100half - Supports 100 Mbps half-duplex operation

• 100full - Supports 100 Mbps full-duplex operation

• 1000full (Gigabit only)- Supports 1000 Mbps full-duplex operation

(Default: Autonegotiation enabled; Advertised capabilities for 100BASE-TX – 10half, 10full, 100half,
100full; 1000BASE-T – 10half, 10full, 100half, 100full, 1000full; 1000BASE-SX/LX/LH (SFP) – 1000full;
100BASE-FX (SFP) – 100full

Speed/Duplex. Allows manual selection of port speed and duplex mode (that is, with auto-negotiation disabled).

Figure 4-23: Port Status

Figure 4-24: Port Configuration

Flow Control. Allows automatic or manual selection of flow control.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

21

24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet

PoE Configuration

The PoE Main Menu screen displays three menu choices: System PoE Configuration, Port PoE Status and Port PoE
Configuration.

System PoE Configuration

The Power Configuration screen allows you to set the PoE power allocation from the Switch to connected devices.

The Switch’s power management enables total Switch power and individual port power to be controlled within a
configured power budget. Port power can be automatically turned on and off for connected devices, and a per­port power priority can be set so that the Switch never exceeds its allocated power budget. When a device is
connected to a port, its power requirements are detected by the Switch before power is supplied. If the power
required by a device exceeds the power budget of the port or the whole Switch, power is not supplied.

Figure 4-25: PoE Main Menu

Port PoE Status

The Power Port Status screen allows you to view the current PoE settings for each port on the Switch.

Ports can be set to one of three power priority levels, critical, high, or low. To control the power supply within the
Switch’s budget, ports set at critical or high priority have power enabled in preference to those ports set at low
priority. For example, when a device is connected to a port set to critical priority, the Switch supplies the required
power, if necessary by dropping power to ports set for a lower priority. If power is dropped to some low-priority
ports and later the power demands on the Switch fall back within its budget, the dropped power is automatically
restored.

Chapter 4: Configuration using the Console Interface
Configuring the Switch through the Console Interface

Figure 4-26: Power Configuration

Figure 4-27: Power Port Status

22
