Linear Personal Emergency Reporting Solutions User Manual

Lin ear Personal Emergency Reporting Solutions

Systems Kits

Transmitters

Accessories

02 | An Innovative History

Linear was established in 1961 as a manufacturer of radio controls.
Over the next ve decades, an unrelenting dedication to quality has
turned it into the most trusted name is everyday technology. To learn
more about Linear’s full product line, visit www.linearcorp.com.

Long known for pioneering radio frequency in everyday use, Linear now combines
passive infrared detection, digital electronics, and human engineering for a full
range of products. Today, Linear opens your gates, your garages, and your front
doors. You walk through Linear. You talk through Linear. You trust Linear every day.

Linear’s prevalence across America is simply unprecedented. Hundreds of thousands
of people use Linear products every day without even knowing it. Backed by the
industry’s best warranties, a network of qualied integrators and installers, and
unrivaled electronic solutions know-how, it’s no wonder that Linear continues to lead
the industry forward.

Linear combines the latest in technology with simplicity and elegance. From gate
operators to intercom systems to high-denition video distribution, these are
innovations that are designed to make your life easier. These are innovations that
make your life better.

Health & Wellness

Linear’s Health & Wellness Division designs
and manufactures health and safety
technologies that enhance patient care,
improve patient management and
accountability, and reduce costs.

Extending professional and wellness care
into the home, its award-winning PERS
line includes a full selection of consoles,
transmitters and accessories. With a 30-year
history of designing personal safety devices,
Linear is the leading PERS manufacturer,
and the brand preferred by more of the
nation’s top Emergency Service providers.
The company works with and services
customers on an individual basis to assist
their business growth, providing tailored,
value-added services. Full PERS training
is available through Linear University.

For customized healthcare products, large
healthcare institutions or organizations can
turn to Linear’s OEM Solutions team. Linear
brings to bear its complete infrastructure –
design and engineering teams; manufacturing
facilities; logistics and distributions centers –
to scale new products from prototype through
full production.
Beyond Home Healthcare, Linear’s Access
Control and Security systems for commercial
facilities protect outdoor entries, gates,
windows, doors and perimeters, with systems
that range from single-door locksets, to
outdoor CCTV video, to PC and web-based
network access systems for thousands of
users.

Please visit www.LinearHealth.com for
more information.

Personal Emergency Solutions Contents | 03

An Innovative History 02

Linear Health & Wellness 03

Personal Emergency Systems PERS-4200 04 - 05

Personal Emergency Systems PERS-2400B 06

Personal Emergency Kits & Accessories 07

Personal Emergency Long-Range Transmitters 08

Personal Emergency Transmitters 09 - 10

Personal Emergency Transmitters Accessories 11

Linear Training 12

Technical Support 13

Linear Manufacturing & Distribution 14 - 15

Linear Order Information Back Page

04 | Personal Emergency 4200 Systems

Personal Emergency 4200 Systems | 05

PERS-4200

Personal Emergency Reporting System

PART # SSC00079

The PERS-4200 brings forth a new generation of Personal Emergency Reporting Systems and delivers advanced features
and options to suit any client needs. Field selectable English/Spanish language prompts, an optional plug-in wireless remote
speaker/microphone option and an optional plug-in 3G cellular module make the PERS-4200 Linear’s most advanced
Personal Emergency Reporting Console.

Features:

All of the features found in the PERS-2400B and PERS-3600B

• Enhanced Passive Alerts summon help even with the subscriber

can’t press their button

• Built-in temperature monitor for high and low temperature alerts

• Illuminated “HELP” button is easier to see at night

• Pre-recorded reminder messages promote use and simplies set-up

• Speakerphone Mode of operation

• Remote Call-in Speakerphone operation

• Up to 1000 feet of radio range when paired with Linear’s new

DXS-LRx Series transmitters

• Upgradeable rmware keeps the console current

• System event log (100 events) can be downloaded by the

PERS Provider

• 24-hour (minimum) back-up battery via Nickel Metal Hydride

battery

• Load shed battery saver circuit improved service life and prevents

battery damage during long power outages

• Quick-learn and remote access transmitter enrolling capability

• Selectable two-way voice activation by channel

• Programmed with free PERS-4200 software

(download at www.linearcorp.com )

• Optional plug-in RF based remote speaker/microphone module

• Optional 3G plug-in GSM module

• Overall Size 6.4 in L x 6.3 in W x 2.75 in H (163 x 160 x 70 mm)

DATA /VOICE MODU LE

Plug-in GSM Cellular Interface Module

Ordering Part Number AAE000462

Features:

• 3G data transmission format

• AT&T system approved

• Data transmission with 2-way voice communications

• Plugs into dedicated Data/Voice port on the PERS-4200

• Can be added to the PERS-4200 after initial system placement

• Note: Contact your Linear Health & Wellness team for a list of Central

Stations that are compatible with the Linear Data/Voice Module
module

• Programs via RA-4200 software

• Competitive monthly charge for cellular service

RSM-MODULE

RF based Plug-in Remote
Speaker/Microphone Kit
Bay Station

RSM-WALL-STN

Wireless Remote
Speaker/Microphone Module Only

Ordering Part Number

AAE 00452 Remote Speaker and Bay Station Kit

AAE 00454 Additional Remote Speaker Module

Features:

• Base station supports up to four remote speaker/microphone

devices

• Base station plugs into PERS-4200 console

• Concealed line cord on the remote speaker allows for wall or

tabletop mounting

• Remote Speaker/microphone device duplicates all of the voice

functions found in the PERS-4200

• Compact unobtrusive design

06 | Personal Emergency 2400B Systems

PERS-2400B

Personal Emergency Reporting System

PART # SSC00062B

The PERS-2400B Console is the foundation of one of the
most successful and durable emergency reporting and
medical alert systems available. Designed for use with
Linear’s DX and DXS wireless personal transmitters and
accessories, the table-top or wall-mount system Console
provides pushbutton emergency assistance. With the
optional VB-4B voice board, the PERS-2400B combines
a powerful speaker and sensitive microphone for superior
two-way voice communication throughout the home.

Features:

• Manual override to ensure best 2-Way voice performance in all

ambient environments, controlled by Central Monitoring Station

• Braille characters for emergency, home, and clear functions

• Alarm tones provided for emergency, re and CO alarm

conditions

• Silent alarm capability (as panic button for domestic

violence applications)

• Selectable inactivity reporting: 8, 12, or 24 hours

• Single telephone seizure and true phone line seizure capability

(see RJ-31X Telephone Adapter)

• Capacity for up to 16 DX/DXS transmitters

• Point ID communicator reporting

• Programmable with Windows-based RA-2400 Software

• Installs in minutes; temporary or permanent locations

• Optional two-way voice capability with the addition of the

VB-4B Voice Board

• Field enabled status reporting and zone supervision

• UL Listed per standard 1637 and as Single Station Smoke

and CO Alarm Accessory, le S2499

• Operating frequency: 315 MHz

• Backup battery size: 12 volts, 1.2 amp/hour (32-hour backup)

• 7.5” W x 8.75” H x 3” D

Personal Emergency Kits & Accessories | 07

Linear’s PERS kits provide a complete package that is ready to program and ready to install.
Each kit includes a console with 2-way voice capability, the back-up battery, a phone line
cord, and a Linear DXS-LRC transmitter.

PERS-4200 KIT

ORDER # SSC00072

Includes all of the following items:

• PERS-4200 Console

• 12 VDC Rechargeable Battery (installed)

• Telephone Cord

• DXS-LRC Supervised Long Range Pendant/Wristband
Transmitter (learned into console)

PERS-2400 KIT

ORDER # SSC00078

Includes all of the following items:

• PERS-2400B Console

• VB-4B Two-way voice board (installed)

• 12 VDC Rechargeable Battery (installed)

• Telephone Cord

• DXS-LRC Supervised Long Range Pendant/Wristband

Transmitter (learned into console)

216113 - 04

Replacement Telephone Cord

ORDER # 2 16113-0 4

• Ten Foot Cord

232378-01

Replacement Power Supply
for PERS-4200

ORDER # 232378-01

VB-4B

2-Way Audio Module with Voice Prompts

ORDER # A AE00419B

• Digitally synthesized voice sounds system prompts

• Adjustable volume

• 2-Way audio with the Central Station

• Remote speaker and microphone supported

228844

Back-up battery for PERS-4200

ORDER # 228 844

• Rechargeable Nickel Metal Hydride battery

• Provides 24 hours of back-up power

100104

Back-up battery for PERS-2400B

ORDER # 10010 4

• Rechargeable Sealed Lead Acid Battery

• Provides more than 24 hours of back-up

power

08 | Personal Emergency Long-Range Transmitters

Accessories for Linear Personal Emergency Reporting System Products

The DXS-LRP Long-Range Pendant and DSX-LRW Long-Range Wristwatch Transmitters are the latest in style and easy
wear in the Linear line of Personal Emergency Transmitters. Updated designs, plus many new features, promote full-time use.

Smaller, sleeker, more attractive and lighter weight, the transmitters are 20 percent more powerful than previous pendants,
supplying the maximum output allowed by the FCC for improved transmission reliability and range.

The DXS protocol devices are compatible with Linear’s existing and future generations of PERS Consoles and alarm
panel systems.

Features:

• Increased output power while maintaining FCC compliance

• Improved transmission range—up to 1000 feet with the

PERS-4200 Console

• Recessed activation button helps prevent accidental transmissions

• Shock and water resistant (up to 30 minutes at a depth of three ft)

• Full RF supervision (after August 1, 2013)

• Two-color visual activation indicator

• Unique transmitter code printed on the transmitter, the packaging,

and the labels for eld enrolling with PERS-4200 console

• Warranted for two years

• UL listed

Specications:

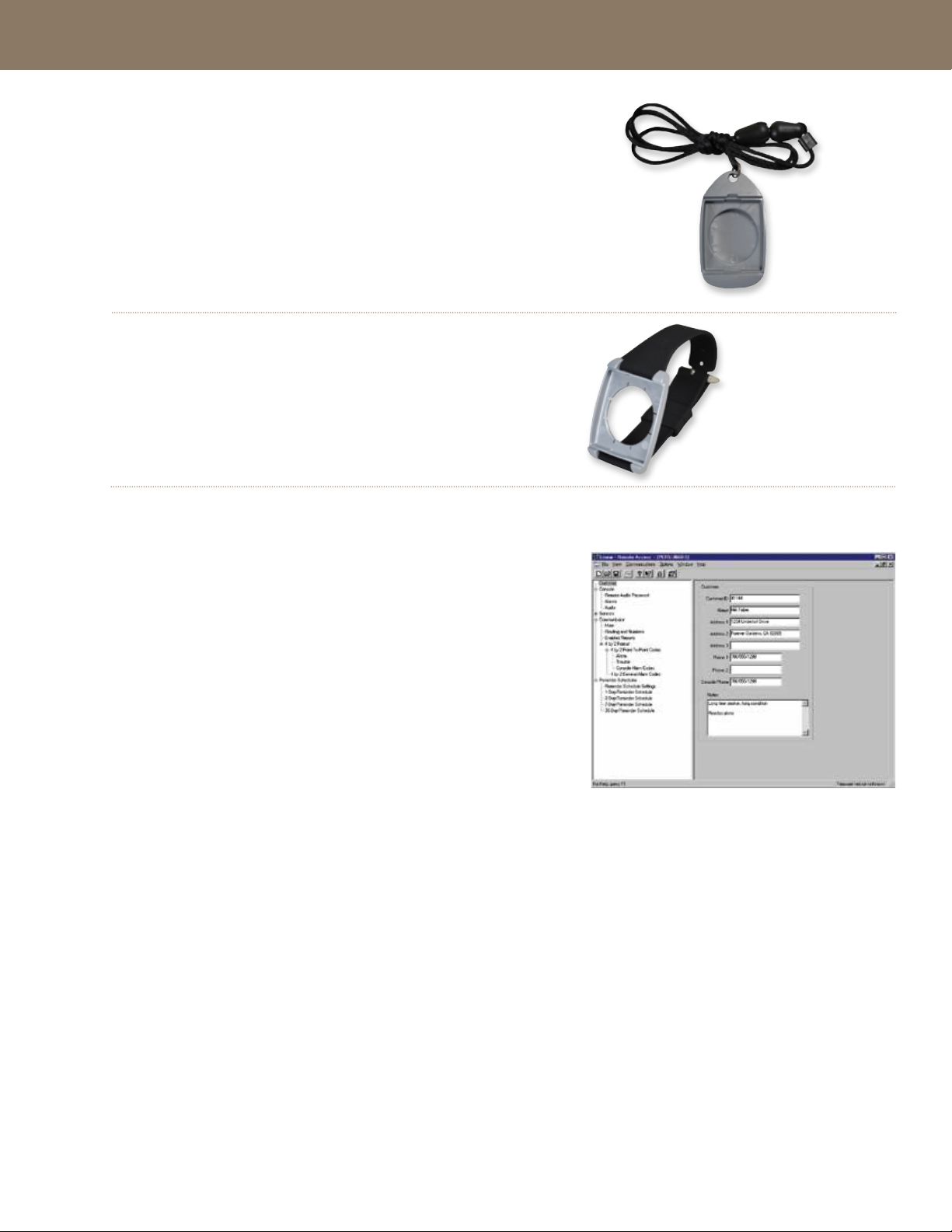

DSX-LRP Long-Range Pendant

• Dimensions: 1.25” W x 2.0” H x 0.375” D

• Weight: 0.33 oz (9.45 grams)

• Color: White with black lanyard

• Order number: SST00122 (white) SST00126 (black)

DSX-LRW Long-Range Wristwatch

• Dimensions:

Transmitter: 1.125” W x 1.7” H x 0.375” D
Adjustable band: 6.25”- 8.25” length

• Weight: 0.34 oz (9.65 grams)

• Standard 18mm watch band pins

• Color: Black with black wrist strap

• Order number: SST00123

DSX-LRC Long-Range Convertable Transmitter

• Dimensions:
Transmitter: 1.3” W x 1.8” H x 0.375” D

• Weight: 0.45 oz (12.6 g) in pendant conguration

0.38 oz (10.8 g) in wrist conguration

• Standard 18mm watch band pins

• Order number: SST00124

Personal Emergency Transmitters | 09

DXS-65

Supervised Emergency Alarm Transmitter

PAR T # SST00121

The Model DXS-65 is a water-resistant emergency alarm transmitter designed for use
in emergency reporting applications. Place the transmitter on the nightstand or in the
bathroom, to offer additional emergency or panic button options – in case the personal
pendant transmitter is out of reach when needed.

Features:

• Water-resistant

• Large, easy-to-nd HELP button

• Optional aqua-colored pushbutton included

• Visual activation indicator

• Full RF supervision, eld enabled

• Long-life lithium batteries

• DXS format

• 2.5” W x 3” H x 0.6” D

Optional Aqua Pushbutton Wall-MountTab le -To p

DXS -73

Supervised Photoelectric Smoke Detector Transmitter

PART # SST00113

The Model DXS-73 Supervised Photoelectric Smoke Detector Transmitter
is a photoelectric smoke alarm with a built-in transmitter designed for use
with Linear’s DXS and DX format receivers and PERS consoles. When
smoke is detected, the detector sounds a loud local alarm. Twenty
seconds after the local alarm sounds, the built-in transmitter sends
a digitally coded wireless signal to its companion receiver. The wireless
signal will be repeated every 20 seconds as long as smoke is still present.

Features:

• Photoelectric-type detector • UL, CSFM, and MEA listed

• Alarm, status, and low-battery transmissions • DXS format

• Built-in 85 dBA sounder • 5.375” W x 5.375” H x 2.25” D

DXS-80

Supervised Carbon Monoxide Detector Transmitter

PAR T # SST00116

The DXS-80 Supervised Carbon Monoxide Detector Transmitter is
a UL Listed*, single-station carbon monoxide alarm with a built-in
supervised transmitter designed for use with Linear’s DXS and DX
format receivers and PERS consoles. The DXS-80 provides a
warning to alert against both the acute and chronic effects of
carbon monoxide (CO) poisoning.

Features:

• Electrochemical-type detector • UL Listed*

• Alarm, status, and low-battery transmissions • DXS format

• One 3-volt lithium battery supplied • RF frequency: 315 MHz

• Two status indicators • 5.375” W x 5.375” H x 2” D

• Built-in 85 dBA sounder

*

NOTE: The DXS-80 is currently UL Listed for use with the Linear PERS Consoles only.

It has not been tested by UL with other compatible Linear receivers

10 | Personal Emergency Transmitters

Add even more versatility to your Personal Emergency Reporting System with the addition of Linear
transmitters that add even greater capability to the system. The DXS-31 can be congured to give either
an activity conrmation or an emergency alarm. The DXS-54 passive infrared motion detector provides
further conrmation of activity within the subscriber’s home. Complete programming instructions for
the various different applications are clearly indicated in the PERS-2400, PERS-3600 and PERS-4200
installation instructions.

DXS -31

Supervised Universal Door/Window Transmitter

ORDER # SST00073

The Model DXS-31 Supervised Universal Door/Window Transmitter is a
battery-powered stationary transmitter designed for use with Linear’s DXS
and DX format receivers and PERS consoles. In PERS installations, depending
on programming, the DXS-31 functions to reset the PERS activity timer or
trigger an emergency alarm. The transmitter can be triggered by the built-in
magnetic switch or an external switch.

Features:

• Alarm, alarm restore, supervisory and low battery transmissions

• Includes magnet for internal contact

• Includes mounting shoe

• External contact terminals

• DXS format

• N/O or N/C input loop circuit

• Powered by 2032 two lithium batteries (included)

• Optional 2450 lithium batteries can be used for extended life

• RF frequency: 315 MHz

• 1.5” W x 3.3” H x 0.88” D

DXS-54

Supervised Passive Infrared Motion Detector Transmitter

ORDER # SST00074

The Model DXS-54 Supervised Passive Infrared Motion Detector Transmitter is
a battery-powered passive infrared motion detector with a built-in transmitter
designed for use with Linear’s DXS and DX format receivers and PERS consoles.
In PERS installations, the DXS-54 functions to reset the PERS activity timer.
When the passive infrared sensor detects motion in its eld of view, the
transmitter sends a digitally coded wireless signal to the PERS console.

Features:

• Activity timer reset, supervisory, and low-battery transmissions

• Walk-test mode

• Fresnel lens with 24 facets

• Battery saver circuitry

• 9-Volt alkaline battery supplied

• DXS format

• RF frequency: 315 MHz

• 3.2” W x 4.4” H x 1.75” D

Use to reset

PERS activity timer

with motion

Personal Emergency Transmitter Accessories | 11

232356-01

Breakaway Lanyard Assembly for DXS-LRC Transmitter

ORDER # 232356-01

• Direct replacement for the DXS-LRC transmitter

• Includes snap-in mounting assembly

232357-01

Wristband Assembly for DXS-LRC Transmitter

ORDER # 232357-01

• Direct replacement for the DXS-LRC transmitter

• Includes snap-in mounting assembly

RA-2400

Programming Software, PERS-2400B

RA-4200

Programming Software, PERS-4200

Available via download at http://www.linearcorp.com/downloads.php

The RA-2400 and RA-4200 Remote Access software is a communications
program designed to work with Linear’s Personal Emergency Reporting
System. The software runs on an IBM PC or compatible computer and
connects to the console through the standard telephone network, or to
the Console directly, with the computer’s modem. This software
runs under most versions of the Windows

™

operating system.

12 | Linear Training

Technical Services is the group within Linear LLC that administers Continuing Education
Unit (CEU) activities, courses, and programs. Technical training ensures the education
and meets the goals of the dealers, distributors, and others who sell the Linear LLC
branded products.

The technical training manager reviews the policies and procedures and ensures they meet accreditation
requirements for CEUs. Linear LLC accredits their training through the National Burglar & Fire Alarm
Association (NBFAA) service of the National Training School. The review process for every program
occurs every two years at a minimum.

Linear will ensure the training provides adequate resources to support a positive learning environment.
Instructors will be available to provide assistance and support to students. When students meet the
requirements for satisfactory completion of the training program, they are issued a certicate that
indicates the title of the program, the name of the instructor, and the number of CEUs for the program.

Linear training is provided by qualied personnel with many years of experience in the eld and
competence in their topic of instruction. They also have knowledge and skill in instructional methods and
learning processes. Feedback is encouraged and collected. Linear offers three types of training
through learnlinear.com

Type 1: Instructor Lead Training—On-Site Training

We have product trainers and a sales management team who travel the U.S. to provide training at
your facility or at a local distributor. This is a more traditional, classroom-style training option.

Type 2: Instructor Lead /Computer-Based Training

A product trainer remotely teaches a course using teleconferences and computer software to present
the material. Since a live instructor is leading the training, these classes are scheduled.

Type 3: Self-Paced Training—Computer-Based

This is similar to taking online college classes. From the convenience of either home or ofce, you can
take classes at your own pace and return to previous sessions should you need to stop mid-class. If
you have any questions, feel free to e-mail at: [e-mail] or call 1.80 0.421.1587
and ask for our training manager.

Technical Support | 13

Linear’s Technical Services Department provides telephone support for our
expanding product line. The group supports nearly 2,000 products in various
types of installations and applications. Application engineers can assist dealers
and installers with their technical questions regarding every Linear product.

The application engineers answer questions regarding equipment installation, programming,
system design, troubleshooting, and inter-system compatibility. Questions could be about radio
controls, security systems, access controls, door operators, gate operators, audio or video
equipment, and accessories. Often, installers simply need fast help with their installation issues
so they can complete the job and continue on to the next iinstallation. Linear’s quality and
professional technical support staff provides that service.

The new extended Technical Services Department telephone service hours (5:00 AM to 4:30
PM Pacic Time) will be of value to nationwide installers and company representatives alike.
West Coast callers will be able to call as early as 5:00 AM local time, and East Coast callers
will be able to call as late as 7:30 PM local time.

Linear Technical Services provides direct access to the people who know Linear products best.
To speak with a Linear expert, call 1.8 00. 421.1587 and press 3.

14 | East & West Distribution Centers

To streamline order fulllment and shorten delivery time for Linear
distributors and dealers, Linear LLC maintains two fully stocked regional
distribution facilities in Vista, California, and Summerville, South Carolina.

Linear’s Western Distribution Center has 90,000 square feet with 19 shipping docks.
Linear’s Eastern Distribution Center boasts 175,000 square feet with 25 shipping docks
and is the third largest UPS shipper in the Charleston, South Carolina, area.

Both warehouse locations are completely equipped with shipping, receiving, and quality
control facilities, and they each stock tens of thousands of Linear products for security,
entry systems, communications, audio/video/data, central vacuum systems, and personal
emergency response. Each warehouse team receives dozens of cargo containers each
month, processes hundreds of orders daily, and ships thousands of packages with Linear
goods to worldwide destinations each day.

State-of-the-Art Manufacturing | 15

Sound plans implemented with quality products and solutions to support
them are critical to success in today’s competitive global business
environment. With a state-of-the-art manufacturing facility in China,
Linear uses industry-leading manufacturing technologies that enable
production of quality products that consistently raise the standard in
home technology and provide a value you can depend on in today’s
competitive marketplace.

High-performance production tools, advanced technologies and techniques in design
and testing, integrated circuitry, microchip, and surface mount technology, as well as
the latest electronic component assembly and quality assurance techniques are features
you can depend on from Linear manufacturing. Linear’s Hong Kong manufacturing
operation boasts a staff of more than 1,300 and is ISO 9001:2000 and ISO 13485
quality system certied.

Linear Order Information

Sales Department:

5:00 AM — 4:30 PM (Pacific Time) Monday through Friday.

By Phone: [phone]
By Fax: [phone]
By Web: linearcorp.com
By Email: [e-mail]

Technical Support for Dealers & Installers:

5:00 AM — 4:30 PM (Pacific Time) Monday through Friday.

By Phone: [phone]
By Fax: [phone]
By Web: linearcorp.com
By Email: [e-mail]

These Linear products are available nationwide at hundreds of conveniently located
local distributor branches. These innovative products are available where you need
them and when you need them, making Linear the natural choice for your personal
emergency solutions.

Linear Personal Emergency Solution products are distributed by:

UL1637 LISTED

Linear LLC | 1950 Camino Vida Roble | Suite 150 | Carlsbad, CA 92008 | 800.421.1587 | www.linearcorp.com

Copyright © 2013, Linear LLC P/N 231285C Printed in USA
