PERS-3600B
PERSONAL
EMERGENCY
REPORTING
SYSTEM
INSTALLATION & OPERATION
INSTRUCTIONS
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
BY
BY
www.linearcorp.com
CONTENTS
CONTROL AREA FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
REAR SIDE AND BOTTOM FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
TELEPHONE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
BACKUP BATTERY INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
TRANSFORMER INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
APPLY POWER - SELECT DIALING METHOD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TRANSMITTER INSTALLATION OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLING SINGLE TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLING MULTIPLE TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TESTING TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ERASING TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
RECORDING REMINDER MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LOCAL PROGRAMMING WITH RA-2400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ACTIVITY TIMER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AUDIO OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SPEAKERPHONE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SUPERVISORY CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPTIONAL OUTPUT CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPTIONAL REMOTE SPEAKER/MIC CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
NON-VOICE PROMPT BEEP LEGEND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WIRELESS INSTALLATION TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LINEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PRODUCT DESCRIPTION
The PERS-3600B Console is a supervised wireless emergency reporting product designed
for personal emergency applications. The table-top Console provides “pushbutton” emergency
assistance to anyone who desires additional security and peace of mind. For the visually impaired,
each button on the Console is molded with braille characters to identify the button’s function.
The Console can receive signals from up to 16 Linear wireless transmitters. Activating a transmitter
causes the Console’s digital communicator to send the appropriate alarm report to the central
monitoring station via the standard telephone network. In addition to the central station report,
audible and visual indications occur and the alarm relay energizes during an emergency activation.
The emergency alarm can be triggered by the large HELP button on the top of the Console or with
a wireless transmitter. The fi re alarm can be triggered by a wireless smoke alarm.
ACTIVITY TIMER
The optional activity timer can be set for 8, 12 or 24 hour operation or disabled. The emergency
alarm will trigger automatically if the time set elapses before an activity transmitter is triggered or
the Console’s HOME button is pressed.
VOICE PROMPTS
To simplify operation, the Console can “speak” to the subscriber with its built-in digitally
synthesized voice. The Console will say “emergency”, “fi re”, “CO alarm”, “timer done soon”, and
other system operation, setup, and supervisory prompts from a 50 word vocabulary. If necessary,
the voice option can be disabled.
AUDIO COMMUNICATIONS
The Console can perform 2-way voice activated (duplex), 2-way manual, and 1-way listen-only
audio communications through the Console’s built-in high-sensitivity microphone and speaker.
Communications with central station monitoring personnel starts after an alarm. Communications
can also be started without any subscriber action by calling the Console twice from any telephone
and keying in a four digit password.
REMINDER MESSAGES
As a special feature, the PERS-3600B Console can record and play up to approximately eight
15-second audio reminder messages. The reminder messages can be used to help the subscriber
remember to take medications, call someone, get ready for an appointment, etc. Each message
is controlled by a real time clock and can be programmed via the RA-2400 software to play
daily, every other day, weekly, or monthly. Reminder messages are played and repeated in threeminute intervals for either 15 or 30 minutes (programmable) until canceled. Messages can also
be programmed for single-play.
BUILT-IN SPEAKERPHONE
The Console can be programmed to act as a remote controlled “speakerphone”. With the
speakerphone mode enabled, the Console will monitor the telephone line for an incoming
call. Activating any emergency transmitter (or the Console’s HELP button) while the telephone
is ringing will cause the Console to seize the line and begin speakerphone communications.
Activating any emergency transmitter (or HELP button) during the call will disconnect the line. The
Console will auto-disconnect after 15, 30, or 60 minutes (programmable).
DIGITAL COMMUNICATOR
The Console’s digital communicator can route calls to three telephone numbers: primary,
secondary, and supervisory. General repor ting codes and individual sensor reporting codes are
programmable for the 4x2 format. Alternately, Ademco Contact ID format can be selected. The
telephone line is constantly monitored, line failure and restoral will be locally announced by the
Console (optional through programming).
POWER SUPPLY
Powered by a low voltage plug-in transformer, the Console has provisions for a rechargeable
backup battery for operation during AC power outages. A power switch allows for out-of-service
storage of the Console without discharge of the battery. The battery is recharged by the Console,
even if the POWER switch is off (as long as the transformer is plugged in). If the backup battery
becomes low, the POWER light will fl ash and the condition can be reported to the central station.
PROGRAMMING
The Console is programmed using the RA-2400 remote access software (available on CD and at
Linear’s Web site: www.linearcorp.com). Refer to the software’s detailed instruction manual and
built-in help fi le for programming details.
OPERATION SUMMARY
A variety of Linear’s supervised DXS and non-supervised DX format transmitters can be used
with the Console. Transmitters can be assigned to the following four functions:
EMERGENCY
Portable, supervised and non-supervised, pendant, belt-clip, or wristband type transmitters
(Models DXT-41, DXT-42, DXT-61A, DXS-21, DXS-23, DXS-62A) and stationary, supervised
Model DXS-31 transmitters are used for personal emergency applications. When an emergency
transmitter is triggered, the Console announces the emergency alarm and an emergency
report is sent to the central station. The emergency alarm can also be triggered by pressing the
Console’s HELP button.
FIRE
Supervised Model DXS-73 wireless photoelectric smoke alarm triggers the fi re alarm. When the
fi re alarm is activated, the Console announces the fi re alarm and a fi re report is sent to the
central station.
CARBON MONOXIDE (CO)
Supervised Model DXS-80 wireless carbon monoxide detectors trigger the CO alarm. When a
carbon monoxide alarm is activated, the Console sounds a repeated series of four beeps and a
carbon monoxide report is sent to the central station.
ACTIVITY
Supervised, switch or motion triggered transmitters (Models DXS-31/DXS-32 and DXS-54) can
be used for ensuring human activity. The DXS-54 motion detector will monitor room activity. The
DXS-31 and DXS-32 transmitters can be wired to a pushbutton or switch for manual activity
monitoring. As long as a signal is received at least once every 8, 12, or 24 hours (programmable)
an alarm will not be triggered. 15 minutes before the programmed time expires, the HOME
indicator will start blinking and the Console will announce every ten seconds that the timer will
run out soon. The activity timer can be reset with a signal from one of the activity transmitters or by
pressing the HOME button on the Console. Failure to reset the activity timer within the programmed
time period will trigger the Console’s emergency alarm and send an inactivity report to the central
station. The activity timer can be turned on or off at the Console or through programming.
AUTOMATIC FULL SYSTEM TEST
The Console can be programmed to perform a full system test daily, weekly, or monthly. The
automatic full system test can also be disabled. As long as all system components are operational,
the system test report will be sent at the programmed interval. The full system test report will NOT
be sent if any system component (transmitter, Console, phone line) is not fully functional.
EMERGENCY
DXT-41 DXT-42
DXT-61A
DXS-21
DXS-23
FIRE
DXS-73
CARBON
MONOXIDE
DXS-80
ACTIVITY
TRANSMITTER SUPERVISION
Supervised transmitters regularly send status reports to the Console and low battery repor ts when
their batteries are low. When the Console receives a low battery report, the STATUS indicator
blinks. If the Console fails to receive a status report from a transmitter for a period of 24 hours,
the STATUS indicator will light. All supervisory conditions can sound a local annunciation and be
reported to the central station (optional through programming).
DXS-62A
NOTE: COMPATABILITY WITH
THE PERS-3600B HAS NOT
BEEN VERIFIED BY UL
NOTE: NOT A UL LISTED DEVICE
DXS-31
DXS-31/32
DXS-54
UP TO 16 TRANSMITTERS
TOTAL CAN BE USED WITH
EACH CONSOLE
1. CONTROL AREA FEATURES 2. REAR SIDE AND BOTTOM FEATURES
STATUS INDICATOR
• NORMALLY OFF
• LIGHTS WHEN ANY TRANSMITTERS ARE
MISSING (SUPERVISORY)
• BLINKS SLOWLY WHEN ANY TRANSMITTERS
HAVE A LOW BATTERY
POWER INDICATOR
• LIGHTS WHEN AC IS PRESENT
• BLINKS SLOWLY WHEN BATTERY IS CHARGING
• BLINKS QUICKLY WHEN AC IS ABSENT
(CONSOLE ON BATTERY POWER)
• OFF IN TEST AND SETUP MODES
CANCEL BUTTON
• STOPS ALARM
• ADDS CANCEL TO AN ALARM
REPORT IN PROGRESS
• PRESS IMMEDIATELY AFTER
EMERGENCY TO PREVENT REPORT
• CLEARS INDICATORS
• STOPS TROUBLE BEEPER
• PRESS FOR 5 SECONDS TO ADD
A TRANSMITTER
• CLEARS REMINDER MESSAGE
• BLINKS SLOWLY WHEN LESS THAN 15 MINUTES
• LIGHTS WHEN ACTIVITY TIMER IS ON
• LIGHT IS OFF WHEN ACTIVITY TIMER IS OFF
REMAIN ON THE ACTIVITY TIMER
• BLINKS QUICKLY WHEN THE ACTIVITY
• PRESS TO RESET ACTIVITY TIMER
• PRESS FOR 5 SECONDS TO TURN
ACTIVITY TIMER AND REMINDER RPT. OFF
TO TURN ACTIVITY TIMER AND
• PRESS AND HOLD TO TRIGGER
• PRESS DURING SPEAKERPHONE
• PRESS WHILE IN TEST MODE TO
CONNECT THE CONSOLE TO A PC
FOR LOCAL PROGRAMMING WITH
• HIDES THE HOME BUTTON IF THE
ACTIVITY TIMER IS NOT USED
(REMOVE IF INSTALLED TO RECORD
AND PLAYBACK REMINDER MESSAGES
HOME INDICATOR
TIMER HAS EXPIRED
HOME BUTTON
• IF ACTIVITY TIMER IS OFF,
PRESS FOR 5 SECONDS
REMINDER REPORT ON
• USED IN TEST MODE TO
RECORD AND PLAYBACK
REMINDER MESSAGES
SENDING INDICATOR
• NORMALLY OFF
• FLASHES WHEN CONSOLE
IS PLACING A CALL
HELP BUTTON
THE EMERGENCY ALARM
• PRESS DURING RING FOR
SPEAKERPHONE MODE
MODE TO DISCONNECT
THE RA-2400 SOFTWARE
HOME BUTTON COVER
CONSOLE REAR
EXTERNAL SPEAKER
AND RELAY OUTPUT
TERMINALS
(FACTORY INSTALLED)
16VAC 1.25 AMP
PLUG-IN
TRANSFORMER
BATTERY FUSE COVER
FUSE TYPE: 2AG
FUSE RATING: 1AMP
EXTERNAL
SPEAKER
BYPASS JUMPER
AUDIO VOLUME
ACCESS DOOR
LOCAL
PHONE
JACK
TELEPHONE
LINE JACK
TWO-WAY
BACKUP
BATTERY
-
SHIPPED WITH REMOVABLE
EXTERNAL
MICROPHONE
TERMINALS
CONSOLE BOTTOM
TWO-WAY AUDIO
VOLUME
DIGITAL VOICE
VOLUME
DIGITAL VOICE
VOLUME
NOTE: THE CONSOLE IS
LABELS COVERING
SOME OF THE REAR
CONNECTIONS
POWER
SWITCH
TEST
BUTTON
3. TELEPHONE CONNECTIONS 4. BACKUP BATTERY INSTALLATION
REMOVE THE
2
BATTERY DOOR
PUSH THE RELEASE TABS IN
AND SLIDE THE DOOR UPWARD
12-VOLT, 1.2 AMP HOUR
CONNECT THIS JACK
TO THE TELEPHONE LINE
RESIDENT'S
TELEPHONE
JACK
REAR OF
CONSOLE
CONNECT THIS JACK
TO THE LOCAL
TELEPHONE
RESIDENT'S
LOCAL TELEPHONE
(OPTIONAL)
1
BE SURE THAT
THE POWER
SWITCH IS OFF
ON OFF
CONNECT THE RED LEAD
3
TO POSITIVE AND THE
BLACK LEAD TO THE
NEGATIVE BATTERY
TERMINAL
CAUTION: CONNECTING
THE BATTERY LEADS BACKWARDS
WILL BLOW THE BATTERY FUSE
FUSE TYPE: 1 AMP 2AG
SLIDE THE BATTERY
4
INTO THE CASE AND
REPLACE THE
BATTERY DOOR
IMPORTANT: WHEN REPLACING THE
BATTERY, THE OLD BATTERY MUST
BE RECYCLED. DELIVER THE BATTERY
TO AN APPROPRIATE RECYCLING FACILITY
BATTERY TYPE:
1

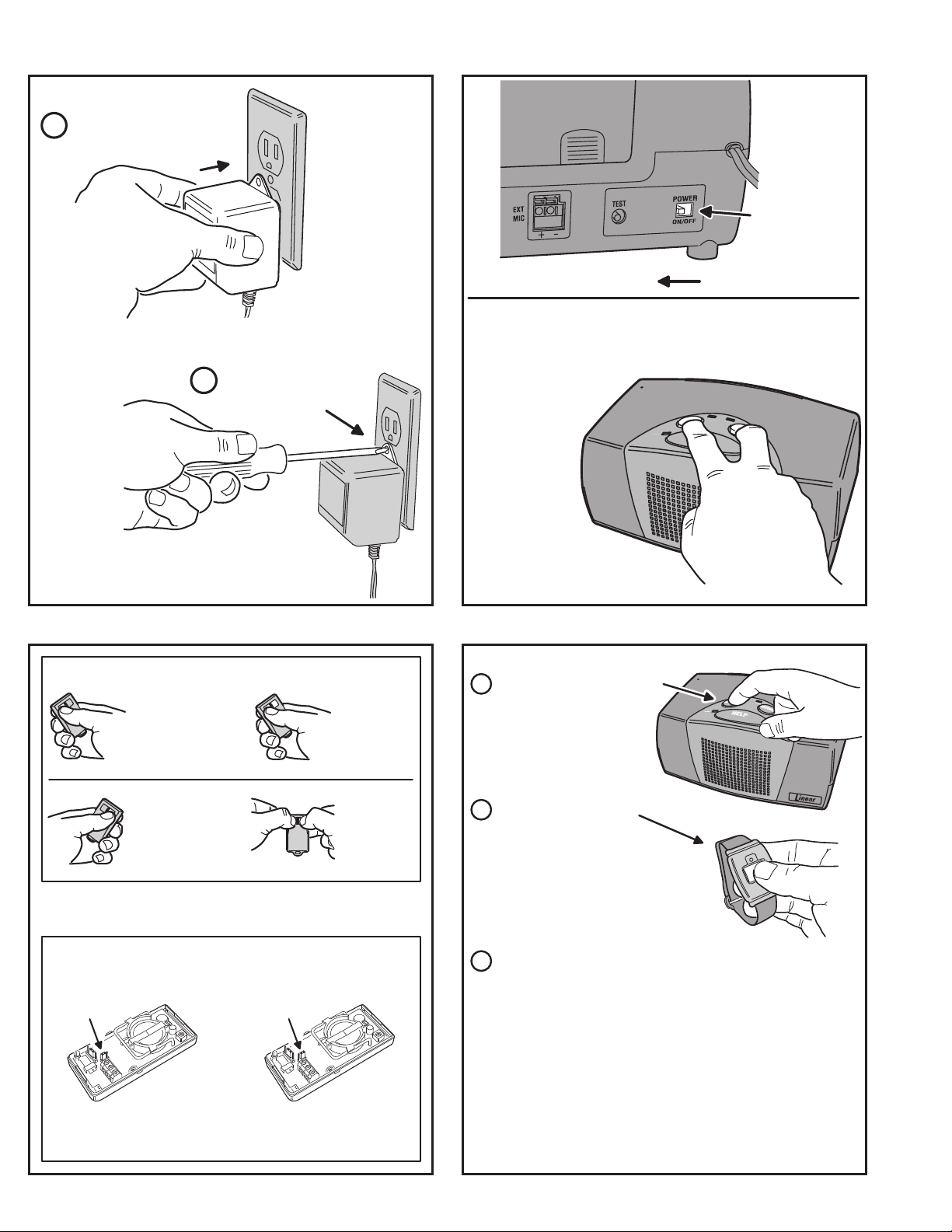

5. TRANSFORMER INSTALLATION 6. APPLY POWER - SELECT DIALING METHOD
PLUG TRANSFORMER
1
INTO AN
AC OUTLET
UN-SWITCHED
SLIDE POWER
SWITCH ON
ON
OFF
NOTE: THE DEFAULT DIALING METHOD IS TONE DIALING
IF REQUIRED, CHANGE THE DIALING METHOD BY PRESSING
AND HOLDING THE HOME & CANCEL BUTTONS FOR 3 SECONDS
SECURE
2
TRANSFORMER
WHILE SWITCHING THE POWER ON
WITH SCREW
• 7 BEEPS SOUND FOR PULSE DIALING
• 8 BEEPS SOUND FOR TONE DIALING
7. TRANSMITTER INSTALLATION OPTIONS 8. INSTALLING SINGLE TRANSMITTERS
FOR ALL TWO-BUTTON TRANSMITTERS
WHEN IT IS
INSTALLED
WITH THE
LEFT BUTTON
IT WILL
ACTIVATE
USING
EITHER
BUTTON
1
PRESS CANCEL BUTTON
FOR 5 SECONDS
• CONSOLE ANNOUNCES
THAT IT IS READY TO
LEARN TRANSMITTERS
ADDS ONE TRANSMITTER AT A TIME
WHEN IT IS
INSTALLED
WITH THE
RIGHT BUTTON
IT WILL ONLY
ACTIVATE
USING BOTH
BUTTONS
FOR DXS-31 STATIONARY TRANSMITTERS
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR DELAY
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR INSTANT
IT WILL
FUNCTION
AS EMERGENCY
AS ACTIVITY
FOR MODEL DXS-32: CUT JUMPER (INSTANT TX) FOR USE
AS AN ACTIVITY TX. SEE DXS-32 INSTALLATION INSTRUCTIONS
2
IT WILL
FUNCTION
2
ACTIVATE TRANSMITTER
• CONSOLE ANNOUNCES
TRANSMITTER TYPE THEN
REVERTS TO STANDBY MODE
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, THE CONSOLE WILL ANNOUNCE
"ERROR ZONES FULL"
DXS-62A
3
REPEAT STEPS 1 & 2 FOR ADDITIONAL
TRANSMITTERS (UP TO 16 TOTAL)
NOTE: PRESS CANCEL BEFORE TRANSMITTING TO RETURN
TO STANDBY MODE WITHOUT ENTERING A TRANSMITTER
• THE CONSOLE WILL ANNOUNCE ITS STATUS
THE CONSOLE WILL RETURN TO STANDBY MODE AUTOMATICALLY
WHEN A TRANSMITTER IS LEARNED OR AFTER 30 SECONDS
HAS ELAPSED
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER.

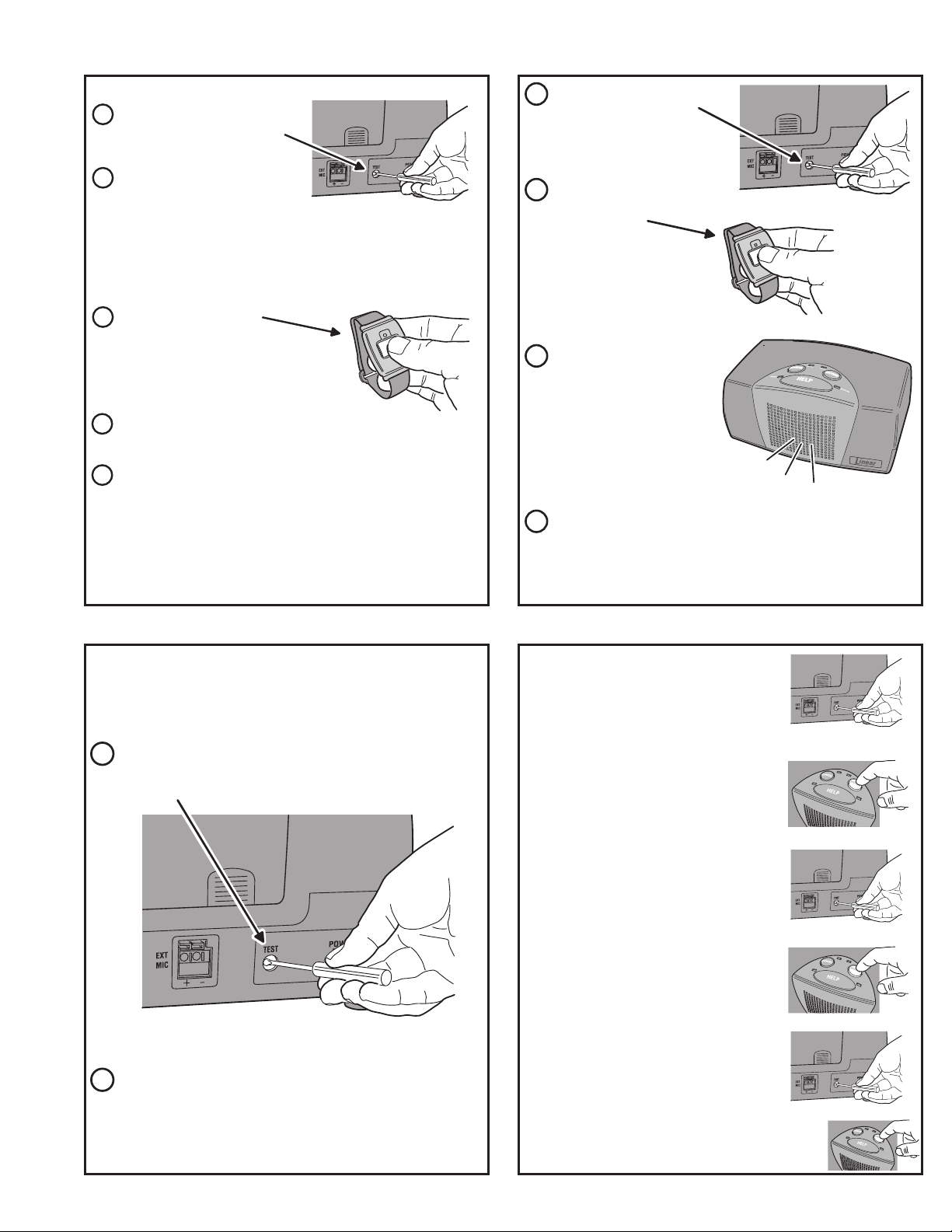

9. INSTALLING MULTIPLE TRANSMITTERS 10. TESTING TRANSMITTERS
ADDS MULTIPLE TRANSMITTERS
1
PRESS TEST BUTTON
• CONSOLE ANNOUNCES
TEST MODE
2
PRESS TEST BUTTON AGAIN
• CONSOLE ANNOUNCES ITS
READY TO LEARN TRANSMITTERS
NOTE: EACH TIME THE TEST BUTTON IS PRESSED IN THE ADD
TRANSMITTER MODE, THE CONSOLE WILL BE READY TO INSTALL A
TRANSMITTER IN THE NEXT AVAILABLE SENSOR ZONE LOCATION.
THE CONSOLE WILL ANNOUNCE THE SENSOR ZONE LOCATION NUMBER.
3
ACTIVATE TRANSMITTER
• CONSOLE ANNOUNCES
THE TRANSMITTER TYPE
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, THE CONSOLE WILL ANNOUNCE
"ERROR ZONES FULL"
REPEAT STEPS 2 & 3 FOR
4
DXS-62A
ADDITIONAL TRANSMITTERS
(UP TO 16 TOTAL)
5
PRESS CANCEL TO RETURN TO STANDBY MODE
• THE CONSOLE WILL ANNOUNCE ITS STATUS
1
PRESS TEST BUTTON
• CONSOLE ANNOUNCES
TEST MODE
2
ACTIVATE EACH OF THE
CONSOLE'S TRANSMITTERS,
ONE AT A TIME
3
THE CONSOLE WILL ANNOUNCE
THE TRANSMITTER'S TYPE
AND ZONE NUMBER AND ANY
SUPERVISORY CONDITIONS
FOR THE TRANSMITTER
THE CONSOLE WILL RETURN TO STANDBY MODE
AUTOMATICALLY AFTER 3 MINUTES
4
PRESS CANCEL TO RETURN TO STANDBY MODE
• THE CONSOLE WILL ANNOUNCE ITS STATUS
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER
THE CONSOLE WILL RETURN TO STANDBY MODE
AUTOMATICALLY AFTER 3 MINUTES
11. ERASING TRANSMITTERS 12. RECORDING REMINDER MESSAGES
RECORDING REMINDER MESSAGES
CAUTION: ALL TRANSMITTERS
WILL BE ERASED!
1
PRESS AND HOLD THE TEST BUTTON FOR 5 SECONDS
• CONSOLE ANNOUNCES "ZONE RESET"
(ALL TRANSMITTERS ERASED)
2
PRESS CANCEL TO RETURN TO STANDBY MODE
• THE CONSOLE WILL ANNOUNCE ITS STATUS
THE CONSOLE WILL RETURN TO STANDBY MODE
AUTOMATICALLY AFTER 3 MINUTES
1. PRESS AND RELEASE THE TEST BUTTON
TO ENTER TEST MODE
2. PRESS AND HOLD THE HOME BUTTON FOR
5 SECONDS (BE READY TO RECORD)
3. RECORD UP TO A 15 SECOND MESSAGE
(SPEAK AT NORMAL VOLUME, TWO FEET FROM CONSOLE)
4. PRESS THE HOME BUTTON TO STOP RECORDING
5. PRESS THE HOME BUTTON AGAIN TO PLAY THE
MESSAGE JUST RECORDED, PRESS THE HOME
BUTTON TWICE AND HOLD IT AFTER THE 2ND PRESS
TO RECORD ANOTHER MESSAGE IN THE NEXT
AVAILABLE MESSAGE NUMBER
6. REPEAT STEPS 2-5 FOR ADDITIONAL MESSAGES
(UP TO 8 MESSAGES ALLOWED)
7. PRESS AND RELEASE THE CANCEL BUTTON TO
EXIT TEST MODE
TEST PLAYING REMINDER MESSAGES
1. PRESS AND RELEASE THE TEST BUTTON
TO ENTER TEST MODE
2. PRESS AND RELEASE THE HOME BUTTON
3. THE CONSOLE WILL ANNOUNCE EACH MESSAGE
NUMBER, THEN PLAY THE RECORDED MESSAGE
4. PRESS THE HOME BUTTON TO ADVANCE TO
THE NEXT MESSAGE TO BE PLAYED
5. PRESS AND RELEASE THE CANCEL BUTTON TO
EXIT TEST MODE
NOTE: TIME SCHEDULING FOR PLAYING REMINDER
MESSAGES IS SET WITH THE RA-2400 SOFTWARE
ERASING ALL REMINDER MESSAGES
1. PRESS AND RELEASE THE TEST BUTTON
TO ENTER TEST MODE
2. PRESS AND HOLD THE HOME BUTTON FOR
MORE THAN 10 SECONDS
3. THE CONSOLE WILL ERASE ALL REMINDER MESSAGES
AND PLAYBACK SCHEDULES
4. PRESS AND RELEASE THE CANCEL BUTTON TO
EXIT TEST MODE
3

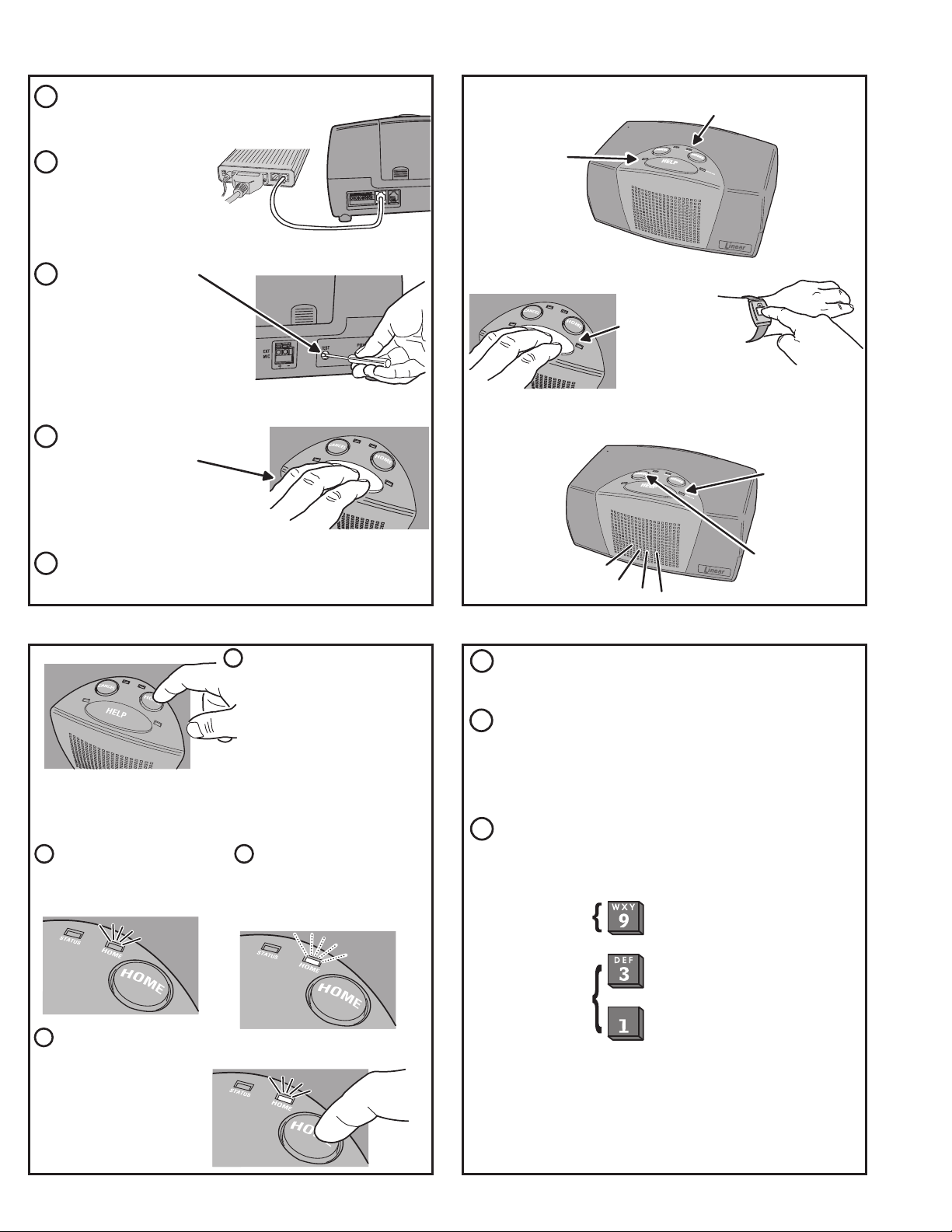

13. LOCAL PROGRAMMING WITH RA-2400 14. SYSTEM OPERATION
PERFORM THE STEPS DETAILED IN THE
1
RA-2400/PERS REFERENCE GUIDE (P/N 224756)
TO SET UP THE RA-2400 PROGRAM
TO LOCALLY PROGRAM
2
THE CONSOLE, CONNECT
THE MODEM'S LINE JACK
TO THE CONSOLE'S LINE
JACK
LINE-TO-LINE
PRESS THE TEST BUTTON
3
MOMENTARILY
• CONSOLE ANNOUNCES
TEST MODE
• START A LOCAL CONNECTION WITH
THE RA-2400 SOFTWARE
NOTE: CONSOLE WILL EXIT TEST MODE
AUTOMATICALLY AFTER 3 MINUTES
OR BY PRESSING THE CANCEL BUTTON
WHEN RA-2400 CONNECTION TIMER
4
STARTS COUNTING DOWN,
PRESS THE HELP BUTTON
• THE CONSOLE ANNOUNCES
"PHONE ON" WHEN THE CONSOLE
HAS CONNECTED
PERFORM PROGRAMMING IN THE RA-2400 SOFTWARE, SEND AND SAVE
5
THE ACCOUNT PROFILE, THEN DISCONNECT FROM THE CONSOLE
CONSOLE
STANDING BY
POWER
LIGHT
IS ON
- IN CASE OF EMERGENCY -
CONSOLE
IN ALARM
THE CONSOLE
ANNOUNCES
EMERGENCY
UNTIL THE CANCEL
BUTTON IS PRESSED,
CENTRAL STATION
REPORT IS COMPLETE,
OR THE SIREN TIME EXPIRES
PRESS AND
MOMENTARILY
HOLD THE
HELP BUTTON
HOME LIGHT SHOWS
ACTIVITY TIMER STATUS
THE OTHER
CONSOLE
LIGHTS ARE
NORMALLY
OFF
- OR ACTIVATE
AN EMERGENCY
TRANSMITTER
PRESS TRANSMITTER
BUTTON FOR AT LEAST
2 SECONDS
SENDING LIGHT
FLASHES DURING
COMMUNICATION
PRESS CANCEL TO
STOP THE ALARM
(ADDS CANCEL TO
ALARM REPORT IN
PROGRESS)
15. ACTIVITY TIMER OPERATION 16. AUDIO OPERATION
ENABLING THE ACTIVITY TIMER
1
PRESS THE HOME BUTTON FOR
5 SECONDS TO TURN THE
ACTIVITY TIMER ON
NOTE: THE ACTIVITY TIMER CAN
BE ENABLED FOR 8, 12, OR
24 HOURS, OR DISABLED BY
PROGRAMMING
NOTE: TO TURN THE ACTIVITY TIMER OFF, PRESS THE HOME BUTTON FOR FIVE
SECONDS, THIS WILL ALSO TURN ON/OFF REMINDER REPORTING IF REMINDER
SCHEDULE TIME OUT REPORT IS ENABLED IN THE RA-2400 SOFTWARE (ACTIVITY
TIMER CAN BE DISABLED SEPARATELY IN RA-2400 ALARMS PROGRAMMING)
2
ACTIVITY TIMER RUNNING
THE HOME INDICATOR WILL LIGHT,
SHOWING THAT THE ACTIVITY
TIMER IS ENABLED
4
RESETTING ACTIVITY TIMER
THE SUBSCRIBER NEEDS TO
PRESS THE HOME BUTTON OR
TRIGGER AN ACTIVITY
TRANSMITTER BEFORE THE
TIMER EXPIRES TO PREVENT
AN INACTIVITY REPORT
PRESSING THE HOME BUTTON
RESTARTS THE TIMER
3
TIME RUNNING OUT
THE HOME INDICATOR WILL BLINK &
THE CONSOLE ANNOUNCES EVERY
10 SECONDS WHEN LESS THAN
15 MINUTES OF TIME REMAIN
PROGRAM THE CONSOLE FOR THE DESIRED AUDIO MODE:
1
1) LISTEN-ONLY
2) 2-WAY MANUAL
3) 2-WAY VOICE ACTIVATED (DUPLEX)
AFTER THE CENTRAL STATION OPERATOR ACKNOWLEDGES THE
2
COMMUNICATOR'S REPORT, THE CONSOLE WILL STOP ITS LOCAL
ALARM AND SWITCH TO THE SELECTED AUDIO MODE
AUDIO OPERATION CAN ALSO BE ESTABLISHED BY CALLING THE
CONSOLE TWICE AND KEYING IN THE FOUR DIGIT REMOTE AUDIO
PASSWORD FOLLOWED BY THE # KEY (SEE SECTION #22)
3
CENTRAL STATION OPERATOR OR AUDIO CALLER:
USE THESE KEYS ON A TELEPHONE SET TO CONTROL THE CONSOLE'S
AUDIO MODE (IN CENTRAL STATION, CONNECT A TELEPHONE TO THE
SAME TELEPHONE LINE AS THE CENTRAL STATION RECEIVER)
ALL
AUDIO
MODES
2-WAY
MANUAL
AUDIO
MODE
THE "1" AND "3" KEYS ARE NOT USED IN LISTEN-ONLY AUDIO MODE
THE "1" AND "3" KEYS CAN BE USED IN 2-WAY VOICE ACTIVATED MODE.
USING THEM WILL CAUSE THE SYSTEM TO SWITCH TO 2-WAY MANUAL
MODE. PRESSING "8" RESTORES 2-WAY VOICE ACTIVATED MODE.
PRESSING ANY KEY OTHER THAN "9" WILL EXTEND THE AUDIO TIME
90 MORE SECONDS
FOR 90 SECONDS
PRESS "9" TO
DISCONNECT THE CALL
PRESS "3" TO LISTEN
PRESS "1" TO TALK
4

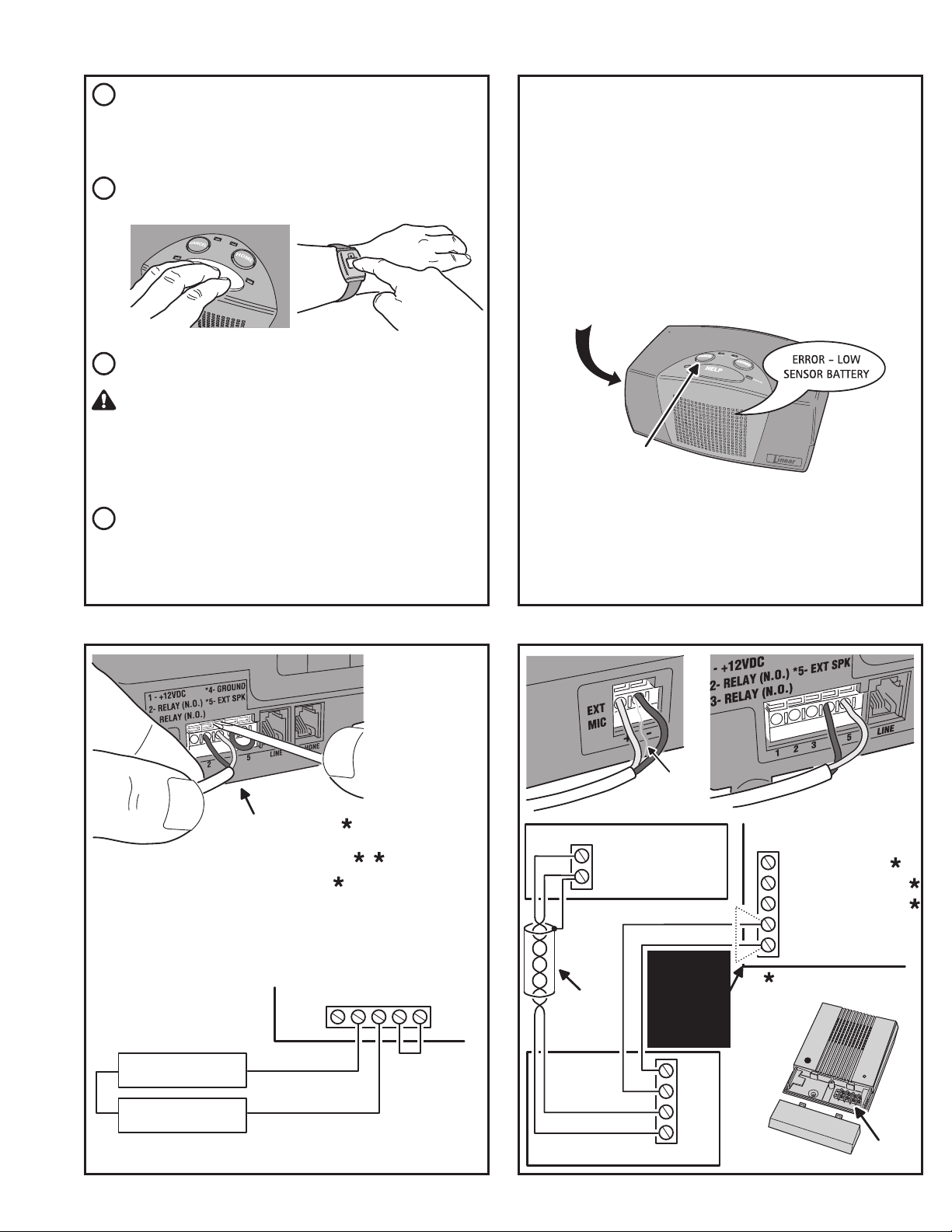

17. SPEAKERPHONE OPERATION 18. SUPERVISORY CONDITIONS
PROGRAM THE CONSOLE TO ENABLE SPEAKERPHONE MODE
1
NOTE: SPEAKERPHONE MODE CAN ONLY BE USED ON INCOMING CALLS
AND WILL NOT FUNCTION WHEN THE CONSOLE IS OPERATING FROM
BACKUP BATTERY POWER. ATTEMPTING TO ANSWER WHILE THE CONSOLE
IS ON BACKUP POWER WILL CAUSE AN EMERGENCY ALARM.
WHILE THE TELEPHONE IS RINGING, ACTIVATING AN EMERGENCY
2
TRANSMITTER OR PRESSING THE HELP BUTTON WILL SEIZE THE
TELEPHONE LINE
THE SYSTEM WILL BEGIN 2-WAY VOICE ACTIVATED MODE FOR AUDIO
3
COMMUNICATIONS
WARNING: THE CONSOLE WILL NOT BE ABLE
TO REPORT AN EMERGENCY WHILE THE
SPEAKERPHONE MODE IS ACTIVE
NOTE: TO REPORT AN EMERGENCY WHEN THE SPEAKERPHONE IS IN USE,
PRESS EITHER THE HELP BUTTON OR THE BUTTON ON AN EMERGENCY
TRANSMITTER TO END THE PHONE CALL AND THEN PRESS ONE OF THESE
BUTTONS AGAIN TO REPORT THE EMERGENCY.
THE CONSOLE WILL END AUDIO COMMUNICATIONS WHEN EITHER:
4
• THE HELP BUTTON IS PRESSED
• ANY EMERGENCY TRANSMITTER IS ACTIVATED
• THE AUTO-DISCONNECT TIMER RUNS OUT (PROGRAMMABLE
FOR 15, 30, OR 60 MINUTES)
TRANSMITTER LOW BATTERY
WHEN A TRANSMITTER SENDS A LOW BATTERY SIGNAL THE
CONSOLE'S STATUS INDICATOR WILL BLINK SLOWLY
TRANSMITTER SUPERVISORY
IF A TRANSMITTER PROGRAMMED AS SUPERVISED FAILS
TO REPORT STATUS IN A 24 HOUR PERIOD, THE CONSOLE'S
STATUS INDICATOR WILL LIGHT
LOW CONSOLE BACKUP BATTERY
THE CONSOLE WILL TEST ITS BACKUP
BATTERY EVERY 8 HOURS. IF THE BATTERY
TESTS LOW, THE POWER INDICATOR WILL
BLINK SLOWLY WHILE THE CONSOLE
CHARGES THE BATTERY.
CLEARING STATUS INDICATIONS
PRESS THE CANCEL BUTTON TO
CLEAR THE STATUS INDICATOR
AND STOP THE ANNUNCIATION
THE CONSOLE WILL REPORT THESE SUPERVISORY CONDITIONS
TO THE CENTRAL STATION IF ENABLED IN THE COMMUNICATOR
PROGRAMMING (AUTOMATIC FULL-SYSTEM CONSOLE SUPERVISORY
REPORTS CAN ALSO BE SENT AT 1, 7, OR 30 DAY INTERVALS)
CONDITION WILL LIKELY OCCUR AGAIN
WHEN TROUBLE EXISTS,
THE CONSOLE WILL ANNOUNCE
THE CONDITION EVERY
HOUR UNTIL CLEARED
NOTE: A TROUBLE
UNTIL THE PROBLEM IS FIXED
19. OPTIONAL OUTPUT CONNECTIONS 20. OPTIONAL REMOTE SPEAKER/MIC CONNECTIONS
USE A SMALL
SCREWDRIVER
TO PUSH ON THE
TERMINAL LOCKS
TO ALLOW THE
CONNECT WIRES TO
RELAY TERMINALS
NOTE: THE CONSOLE IS SHIPPED WITH
REMOVABLE LABELS COVERING SOME
OF THE REAR CONNECTIONS
CONSOLE
TERMINALS 2 & 3
TERMINAL BLOCK
ARE A FORM "A" DRY
CONTACT RELAY
RATED 24 VOLTS AT
1 AMP MAXIMUM
NOISEMAKER OR
VISUAL INDICATOR
EXTERNAL
POWER SUPPLY
WIRE TO SLIDE
INTO THE TERMINAL
HOLE
NOTE: NOT TO BE USED IN
UL INSTALLATIONS
- RELAY NORMALLY OPEN
1 - +12 VDC @ 100 mA
2
3 - RELAY NORMALLY OPEN
4 - COMMON GROUND
5 - EXTERNAL SPEAKER
TERMINALS 4 & 5
HAVE A FACTORY
INSTALLED JUMPER
DO NOT REMOVE
UNLESS USING
A UL LISTED MODEL
RSM-1 OR OTHER
UL LISTED SPEAKER
SHIELD
CONSOLE MIC TERMINALS
EXTERNAL MICROPHONE (+)
MICROPHONE COMMON (-)
NOTE: REMOVE
JUMPER WHEN
USE
SHIELDED
TWISTED PAIR
LISTED MODEL
RSM-1 OR OTHER
WIRE FOR
MICROPHONE
RSM-1 TERMINAL BLOCK
WIRE
USING A UL
UL LISTED
SPEAKER
SPKR
SPKR
MIC (-)
MIC (+)
CONSOLE MAIN
TERMINAL BLOCK
1 - +12 VDC @ 100 Ma
2 - RELAY NORMALLY OPEN
3 - RELAY NORMALLY OPEN
4 -
GROUND
5 - EXTERNAL SPEAKER
NOTE: NOT TO BE USED IN
UL INSTALLATIONS
LINEAR
MODEL RSM-1
REMOVE
JUMPER
WIRE
RSM-1
TERMINALS
5
21. NON-VOICE PROMPT BEEP LEGEND
R
WHEN VOICE PROMPTS ARE DISABLED, THE CONSOLE WILL SOUND BEEPS
1 BEEP ................... TRANSMITTER ADDED TO A SENSOR ZONE
1 LONG BEEP ........ SENSOR ZONES FULL
2 BEEPS ................. CONSOLE IN STANDBY MODE, ACTIVITY TIMER ON
3 BEEPS ................. CONSOLE IN STANDBY MODE, ACTIVITY TIMER OFF
4 BEEPS ................. CONSOLE IN TEST MODE
5 BEEPS ................. CONSOLE IN LEARN TRANSMITTER MODE
6 BEEPS ................. CONSOLE HAS ERASED ALL TRANSMITTERS
7 BEEPS ................. PULSE DIALING HAS BEEN SELECTED FOR THE CONSOLE
8 BEEPS ................. TONE DIALING HAS BEEN SELECTED FOR THE CONSOLE
TO INDICATE VARIOUS CONDITIONS
22. REMOTE AUDIO COMMUNICATIONS
TO ESTABLISH REMOTE AUDIO COMMUNICATIONS WITH THE CONSOLE:
1. DIAL THE NUMBER OF THE PHONE LINE THAT THE CONSOLE IS CONNECTED TO,
ALLOW IT TO RING THREE TIMES, THEN HANG UP
2. WAIT ABOUT 10 SECONDS, THEN CALL THE CONSOLE A SECOND TIME
3. WHEN THE CONSOLE ANSWERS, A TONE WILL SOUND FOR ABOUT 8 SECONDS
4. WHEN THE TONE ENDS, ENTER THE REMOTE AUDIO PASSWORD (DEFAULT 1234)
FOLLOWED BY THE # KEY
THE CONSOLE WILL BEGIN AUDIO COMMUNICATIONS (2-WAY DUPLEX, 2-WAY MANUAL,
OR LISTEN-ONLY) DEPENDING ON THE CONSOLE’S PROGRAMMING
SEE SECTION 16 FOR AUDIO COMMUNICATION OPERATION DETAILS
NOTE: IF THE CONSOLE AUDIO IS SET TO “NONE” REMOTE AUDIO COMMUNICATIONS
WILL NOT FUNCTION

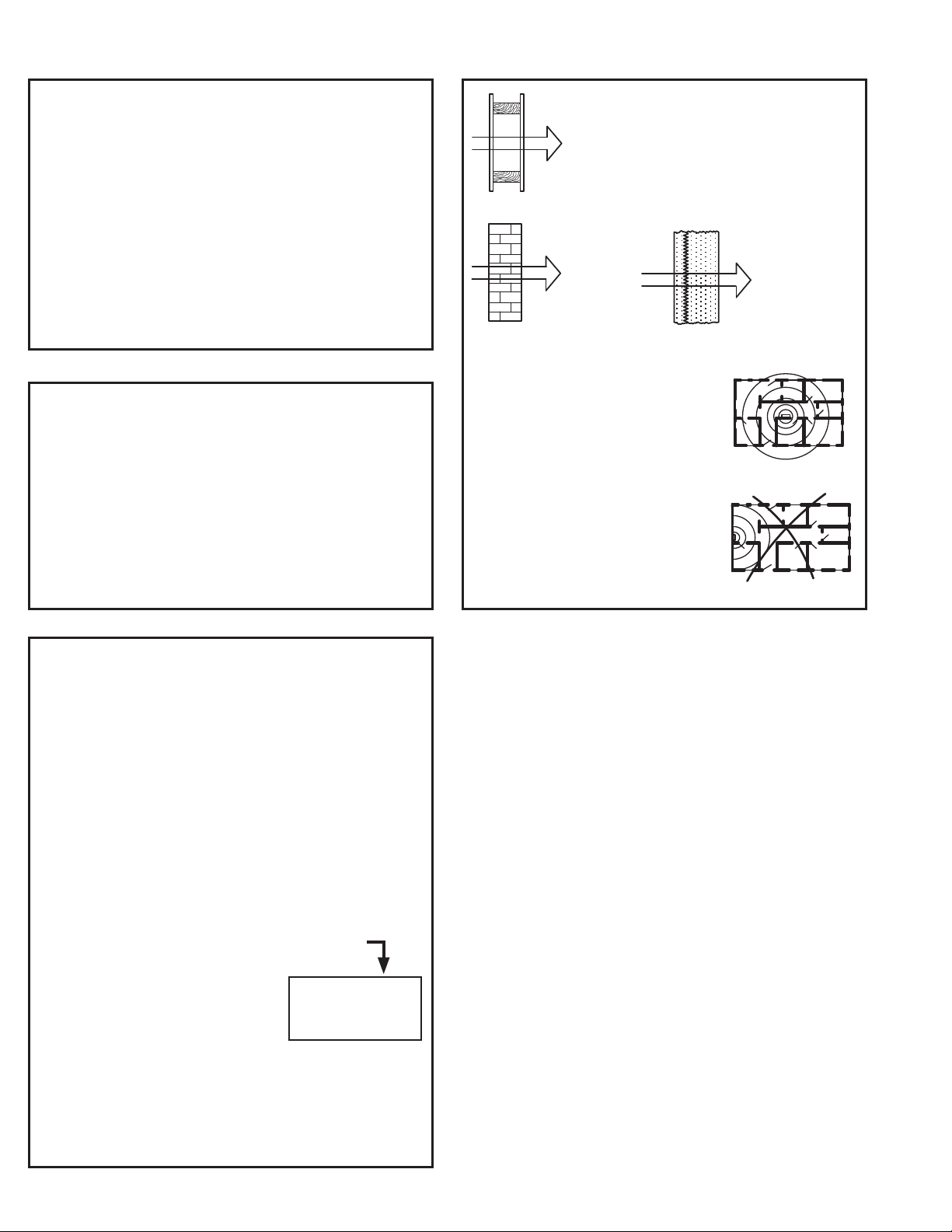

23. WIRELESS INSTALLATION TIPS
WALLBOARD AND
WOOD STUDS
90% - 100%
OF FULL POWER
LIGHT CONCRETE
OR BRICK
65% - 95%
OF FULL POWER
CENTRALLY LOCATE CONSOLE
CONSOLE LOCATION WILL
AFFECT RADIO RANGE
TRANSMITTERS AT THE
OTHER END OF THE HOUSE
MIGHT BE TOO FAR AWAY
CONSTRUCTION
MATERIALS WILL
AFFECT RADIO RANGE
CONCRETE WITH STEEL
REINFORCEMENT OR
METAL LATH AND PLASTE
10% - 70%
OF FULL POWER
RIGHT
WRONG!
SPECIFICATIONS LINEAR LIMITED WARRANTY
CODING FORMATS
DX CODE 24-BIT A1D PPM 1,048,567 CODES
DXS CODE 24-BIT A1D PPM 1,048,567 CODES
POWER REQUIREMENTS
PRIMARY SUPPLY 16 VAC 1.25 AMP PLUG-IN TRANSFORMER
BACKUP SUPPLY 12 VOLT 1.2 AMP/HOUR BATTERY
NORMAL OPERATING CURRENT 120 mA
ALARM OPERATING CURRENT 190 mA
BACKUP OPERATION DURATION 30 HOURS MINIMUM
BATTERY LIFE EXPECTED 3 YEARS
BACKUP SUPPLY OPERATING CURRENT 40 mA
BATTERY FUSE 1 AMP, TYPE 2AG
RF CHARACTERISTICS
RECEIVER TYPE DUAL-DIVERSITY SUPERHETERODYNE
RF SENSITIVITY -100 dBm TYPICAL
RADIO FREQUENCY 315 Mhz
MAXIMUM RANGE 400 FEET LINE-OF-SIGHT, OPEN RANGE
UL LISTED FOR 150 FEET
COMMUNICATOR
COMMUNICATOR FORMATS 4 BY 2 (GENERAL OR POINT-TO-POINT),
ADEMCO CONTACT ID
UL TESTED WITH SURGARD SGMLRG-DG
DIALING TONE OR PULSE
DIALING DELAY 0 OR 15 SECONDS
REMOTE PROGRAMMING PASSWORD 6 DIGITS
REMOTE COMMUNICATIONS PASSWORD 4 DIGITS
ACCOUNT NUMBER LENGTH 4 DIGITS
PRIMARY TELEPHONE NUMBER 20 DIGITS
SECONDARY TELEPHONE NUMBER 20 DIGITS
SUPERVISORY TELEPHONE NUMBER 20 DIGITS
CONSOLE STATUS REPORT OPTIONAL 1, 7 OR 30 DAY REPORT
CONSOLE
OPERATING TEMPERATURE 32°-120° F (0-49° C)
HELP ALARM DURATION 1-30 MINUTES
ACTIVITY TIMER PERIOD 8, 12, OR 24 HOURS
AUDIO LISTEN-ONLY, 2-WAY MANUAL, 2-WAY VOICE
ACTIVATED (DUPLEX) SPEAKERPHONE
RELAY OUTPUT N.O. @ 24 VOLT AC/DC 1 AMP
MAXIMUM, NEC CLASS II CIRCUITRY
Copyright © 2012 Linear LLC 228305 AX1
CENTRAL STATION RECEIVERCENTRAL STATION RECEIVER
NOTE: THE INSTALLER MUST
VERIFY COMPATIBILITY
BETWEEN THE PERS-3600B AND
THE UL LISTED DIGITAL ALARM
COMMUNICATOR RECEIVER
This Linear product is warranted against defects in material and workmanship for twelve
(12) months. This warranty extends only to wholesale customers who buy direct from Linear
or through Linear’s normal distribution channels. Linear does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to the nature of the
dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC
for consequential damages arising out of or in connection with use or performance
of this product or other indirect damages with respect to loss of property, revenue, or
profi t, or cost of removal, installation, or reinstallation. All implied warranties, including
implied warranties for merchantability and implied warranties for fi tness, are valid only until
the warranty expires. This Linear LLC Warranty is in lieu of all other warranties express
or implied.
All products returned for warranty service require a Return Product Authorization Number
(RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other
important details.
IMPORTANT WIRELESS INFORMATION
Linear radio controls provide a reliable communications link and fi ll an important need in
portable wireless signaling. However, there are some limitations which must be observed.
• For U.S. installations only: The radios are required to comply with FCC Rules and
Regulations as Part 15 devices. As such, they have limited transmitter power and
therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be
blocked by radio signals that occur on or near their operating frequencies, regardless of
code settings.
• Changes or modifi cations to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as a
wholesale distributor or dealer, and these facts should be communicated to the ultimate
users.
Loading...
