PERS-2400B
p
PERSONAL
EMERGENCY
REPORTING
SYSTEM
Installation,
and Operation Instructions
USA & Canada (800) 421-1587 & (800) 392-0123
(760) 438-7000 - Toll Free FAX (800) 468-1340
www.linearcor
BY
BY
.com
CONTENTS
1. FRONT PANEL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. REMOVING BOTTOM COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
3. CONSOLE BOTTOM FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
4. OPTIONAL VB-4B VOICE BOARD INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
5. OPTIONAL RELAY OUTPUT CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6. OPTIONAL REMOTE SPEAKER/MIC CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 2
7. BACKUP BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8. INSTALL TRANSFORMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
9. APPLY POWER - SELECT DIALING METHOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
10. TRANSMITTER INSTALLATION OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
11. INSTALLING SINGLE TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
12. INSTALLING MULTIPLE TRANSMITTERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
13. TESTING TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
14. ERASING TRANSMITTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
15. LOCAL PROGRAMMING WITH RA-2400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
16. TELEPHONE CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
17. SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
18. ACTIVITY TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
19. AUDIO BOARD OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
20. SPEAKERPHONE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
21. SUPERVISORY CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
22. WIRELESS INSTALLATION TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LINEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PRODUCT DESCRIPTION
The PERS-2400B Console is a supervised wireless emergency reporting product designed
for personal emergency applications. The table-top or wall-mount Console provides
“pushbutton” emergency assistance to anyone who desires additional security and peace
of mind. For the visually impaired, each button on the Console is molded with braille
characters to identify the button’s function.
The Console receives signals from up to 16 Linear wireless transmitters. Activating a
transmitter causes the Console’s digital communicator to send the appropriate alarm report
to the central monitoring station via the standard telephone network. In addition to the
central station report, audible and visual indications occur and the alarm relay energizes
during an emergency activation.
The emergency alarm can be triggered by the large EMERGENCY button on the face of the
Console or with a wireless transmitter. The fi re alarm can be triggered by wireless smoke alarms.
The optional activity timer can be set for 8, 12 or 24 hour operation. The emergency alarm
will trigger automatically if the time set elapses before an activity transmitter is triggered or
the Console’s HOME button is pressed.
If the optional Model VB-4B voice board is installed, the Console will “talk” to the user.
The digitized voice, will sound “emergency”, “fi re”, “CO Alarm”, “timer done soon”, and
other system operation, setup, and supervisory prompts from a 38 word vocabulary. In
addition, the voice board supports 2-way automatic, 2-way manual, and 1-way listen-only
audio communications with central station monitoring personnel using the Console’s built-in
high-sensivity microphone and speaker.
The Console can be programmed to act as a remote controlled “speakerphone”. With
the speakerphone mode enabled (Model VB-4B voice board required) the Console will
monitor the telephone line for an incoming call. Activating any emergency transmitter (or
the Console’s EMERGENCY button) while the telephone is ringing will cause the Console
to seize the line and begin full duplex voice communications. Activating any emergency
transmitter (or EMERGENCY button) during the call will disconnect the line. The Console
will auto-disconnect after 15, 30, or 60 minutes (programmable).
Supervised transmitters regularly send status reports to the Console and low battery repor ts
when their batteries are low. When the Console receives a low battery report, the TROUBLE
indicator fl ashes. If the Console fails to receive a status report from a transmitter for a period
of 24 hours, the TROUBLE indicator will light. All supervisory conditions can sound a local
annunciation and be reported to the central station.
The Console’s digital communicator can route calls to three telephone numbers: primary,
secondary, and supervisory. General reporting codes and individual sensor reporting codes
are programmable for the 4x2 format. Alternately, Ademco Contact ID may be selected for
the communicator reporting format.
Powered by a low voltage plug-in transformer, the Console has provisions for a rechargeable
backup battery for operation during AC power outages. A power switch allows for out-of-service
storage of the Console without discharge of the battery. The battery is recharged and supervised
by the Console. If the backup battery becomes low the POWER light will fl ash and the condition
can be reported to the central station.
The Console is programmed using Linear’s RA-2400 remote access software (available on
CD and at Linear’s Web site: www.linearcorp.com). Refer to the software’s built-in help fi le for
programming details.
TRANSMITTER COMPATIBILITY
EMERGENCY
DXT-41 DXT-42
DXT-61A
DXS-62A
NOTE: COMPATABILITY WITH
THE PERS-2400B HAS NOT
BEEN VERIFIED BY UL
NOTE: NOT A UL LISTED DEVICE
DXS-21
DXS-23
DXS-31
UP TO 16 TRANSMITTERS
CAN BE USED WITH
EACH CONSOLE
R
A
D
I
O
S
I
G
N
A
L
S
FIRE
DXS-73
DXS-31/32
PERS-2400B
CONSOLE
TO CENTRAL STATION
CARBON
MONOXIDE
DXS-80
ACTIVITY
DXS-54
VIA TELEPHONE
OPERATION SUMMARY
A variety of Linear’s supervised DXS and non-supervised DX format transmitters can be
used with the Console. Transmitters can be assigned to the following four functions:
EMERGENCY
Portable, supervised and non-supervised, pendant, belt-clip, or wristband type transmitters
(Models DXT-41, DXT-42, DXT-61A, DXS-21, DXS-23, DXS-62A) and stationary,
supervised Model DXS-31 transmitters are used for personal emergency applications.
When an emergency transmitter is triggered, the Console sounds a two-tone siren and an
emergency report is sent to the central station. The emergency alarm can also be triggered
by pressing the Console’s EMERGENCY button.
FIRE
Supervised Model DXS-73 wireless photoelectric smoke alarms trigger the fi re alarm.
When the fi re alarm is activated, the Console sounds a repeated series of three beeps and
a fi re report is sent to the central station.
CARBON MONOXIDE (CO)
Supervised Model DXS-80 wireless carbon monoxide detectors trigger the CO alarm.
When a carbon monoxide alarm is activated, the Console sounds a repeated series of four
beeps and a carbon monoxide report is sent to the central station.
ACTIVITY
Supervised, switch or motion triggered transmitters (Models DXS-31/DXS-32 and DXS-54)
can be used for ensuring human activity. The DXS-54 motion detector will monitor room
activity. The DXS-31 and DXS-32 transmitters can be wired to a pushbutton or switch for
manual activity monitoring. As long as a signal is received at least once every 8, 12, or 24
hours (programmable) an alarm will not be triggered. 15 minutes before the programmed
time expires, the HOME indicator will start blinking and a low pitched beep will sound every
ten seconds. The activity timer can be reset with a signal from one of the activity transmitters
or by pressing the HOME button on the Console. Failure to reset the activity timer within
the programmed time period will cause the Console to sound the two-tone emergency siren
and send an inactivity report to the central station. The activity timer can be turned on or off
at the Console or through programming.
1. FRONT PANEL FEATURES
TROUBLE INDICATOR
• NORMALLY OFF
• LIGHTS WHEN ANY TRANSMITTERS ARE MISSING
(SUPERVISORY)
• BLINKS SLOWLY WHEN ANY TRANSMITTERS
HAVE A LOW BATTERY
POWER INDICATOR
• LIGHTS WHEN AC IS PRESENT
• BLINKS SLOWLY WHEN BATTERY IS CHARGING
• BLINKS QUICKLY WHEN AC IS ABSENT
(CONSOLE ON BATTERY POWER)
• OFF IN TEST AND SETUP MODES
• PRESS AND HOLD TO TRIGGER
• PRESS DURING SPEAKERPHONE
EMERGENCY TO PREVENT REPORT
EMERGENCY BUTTON
THE EMEREGNCY ZONE
• PRESS DURING RING FOR
SPEAKERPHONE MODE
MODE TO DISCONNECT
CLEAR BUTTON
• ADDS CANCEL TO AN ALARM
• PRESS IMMEDIATELY AFTER
• STOPS TROUBLE BEEPER
• STOPS ALARM
REPORT IN PROGRESS
• CLEARS INDICATORS
• PRESS FOR 5
SECONDS TO ADD
A TRANSMITTER
2. REMOVING BOTTOM COVER
TO ACCESS THE INSIDE OF THE CONSOLE
PRESS THE TWO LOCKING TABS IN AND
REMOVE THE CONSOLE'S BOTTOM COVER
PRESS
TABS
IN
REMOVE
COVER
• PRESS FOR 5 SECONDS TO TURN ACTIVITY TIMER OFF
HOME INDICATOR
• LIGHTS WHEN ACTIVITY TIMER IS ON
• BLINKS SLOWLY WHEN LESS THAN 15 MINUTES
REMAIN ON THE ACTIVITY TIMER
• BLINKS QUICKLY WHEN THE ACTIVITY TIMER HAS EXPIRED
SENDING INDICATOR
• NORMALLY OFF
HES WHEN CONSOLE IS PLACING A CALL
• FLAS
• IF ACTIVITY TIMER IS OFF, PRESS FOR
5 SECONDS TO TURN ACTIVITY TIMER ON
3. CONSOLE BOTTOM FEATURES
16 VAC 1.25 AMP
PLUG-IN
TRANSFORMER
EXTERNAL SPEAKER,
RELAY OUTPUT, AND
DIALER POWER
TERMINALS
1 AMP 2AG
BATTERY FUSE
(HIDDEN)
VB-4B VOICE BOARD
• PRESS TO RESET ACTIVITY TIMER
• ADHESIVE BACKED PLATE TO
HIDE THE HOME BUTTON IF THE
ACTIVITY TIMER IS NOT USED
HOME BUTTON
HOME BUTTON COVER
12-VOLT 1.2 AMP/HOUR
BACKUP BATTERY
OPTIONAL
4. OPTIONAL VB-4B VOICE BOARD INSTALLATION
PRESS-FIT MICROPHONE INTO
1
CONNECT BLACK
MICROPHONE WIRE
TO CENTER
TERMINAL
CONNECT RED
MICROPHONE WIRE
TO THIS TERMINAL
3
SEAT
MICROPHONE
2
ROUND MOUNTING HOLE
4
CAREFULLY ALIGN
PINS TO CONNECTORS
ON BOTH ENDS OF BOARD
LOCAL
PHONE
JACK
TELEPHONE
LINE JACK
POWER
SWITCH
TEST
BUTTON
5
NOTE: POWER MUST
BE OFF AND BATTERY
SHOULD BE REMOVED
OR DISCONNECTED
BEFORE INSTALLING
THE AUDIO BOARD
BE SURE THAT THE
WHITE ARROWS ON
AUDIO BOARD POINT
TOWARD THE
BATTERY AREA
PRESS BOARD
COMPLETELY
INTO CONNECTORS
NOTE: AFTER THE AUDIO BOARD
IS INSTALLED AND ENABLED, THE
CONSOLE WILL SPEAK INSTEAD
OF BEEP DURING PROGRAMMING
1
5. OPTIONAL RELAY OUTPUT CONNECTIONS
FORM "A" DRY CONTACT RELAY
24 VOLTS AT 1 AMP MAXIMUM
NOISEMAKER OR
VISUAL INDICATOR
EXTERNAL
POWER SUPPLY
ROUTE CABLE UNDER
STRAIN-RELIEF CLAMP
5
4 - RELAY NORMALLY OPEN
3 - RELAY COMMON
2
1
CONSOLE
TERMINAL BLOCK
CONNECT WIRES
TO TERMINALS
6. OPTIONAL REMOTE SPEAKER/MIC CONNECTIONS
VB-4B
VOICE
BOARD
REMOVE
JUMPER
WIRE
VB-4B TERMINAL BLOCK
EXTERNAL MICROPHONE (+)
MICROPHONE COMMON (-)
CONSOLE MICROPHONE (+)
USE
SHIELDED
TWISTED PAIR
WIRE FOR
MICROPHONE
RSM-1 TERMINAL BLOCK
NOTE: REMOVE
JUMPER WHEN
USING AN
EXTERNAL SPKR
NOTE: NOT
TESTED BY UL
SPKR
SPKR
MIC (-)
MIC (+)
LINEAR
MODEL RSM-1
CONSOLE
TERMINAL BLOCK
5 - DIALER POWER
4 - RELAY NORMALLY OPEN
3 - RELAY COMMON
DIALER COMMON
2 -
EXTERNAL SPEAKER
1 - EXTERNAL SPEAKER
RSM-1
TERMINALS
7. BACKUP BATTERY
TURN POWER
1
SWITCH OFF
ON
OFF
CONNECT RED LEAD TO
2
POSITIVE AND BLACK LEAD TO
NEGATIVE BATTERY TERMINAL
BATTERY TYPE: 12-VOLT, 1.2 AMP/HOUR
FIT BATTERY
3
INTO CONSOLE
SLIDE DOWN
THEN BACK
8. INSTALL TRANSFORMER
PLUG TRANSFORMER
1
INTO AN UN-SWITCHED
117 VAC OUTLET
SECURE
2
TRANSFORMER
WITH SCREW
2
9. APPLY POWER - SELECT DIALING METHOD
TURN POWER
SWITCH ON
ON
10. TRANSMITTER INSTALLATION OPTIONS
FOR ALL TWO-BUTTON TRANSMITTERS
WHEN IT IS
INSTALLED
WITH THE
LEFT BUTTON
IT WILL
ACTIVATE
USING
EITHER
BUTTON
NOTE: THE DEFAULT DIALING METHOD IS TONE DIALING
IF REQUIRED, CHANGE THE DIALING METHOD
BY PRESSING AND HOLDING THE HOME & CLEAR
BUTTONS WHILE SWITCHING THE POWER ON
• 7 BEEPS SOUND FOR PULSE DIALING
• 8 BEEPS SOUND FOR TONE DIALING
11. INSTALLING SINGLE TRANSMITTERS
ADDS ONE TRANSMITTER AT A TIME
1
PRESS CLEAR BUTTON
FOR 5 SECONDS
• 5 BEEPS SOUND
(TX ADD MODE)
WHEN IT IS
INSTALLED
WITH THE
RIGHT BUTTON
IT WILL ONLY
ACTIVATE
USING BOTH
BUTTONS
FOR DXS-31 STATIONARY TRANSMITTERS
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR DELAY
WHEN IT IS INSTALLED
WITH THE JUMPER SET
FOR INSTANT
IT WILL
FUNCTION
AS EMERGENCY
AS ACTIVITY
FOR MODEL DXS-32: CUT JUMPER (INSTANT TX) FOR USE
AS AN ACTIVITY TX. SEE DXS-32 INSTALLATION INSTRUCTIONS
12. INSTALLING MULTIPLE TRANSMITTERS
ADDS MULTIPLE TRANSMITTERS
1
PRESS TEST BUTTON
• 4 BEEPS SOUND
(TEST MODE)
IT WILL
FUNCTION
2
ACTIVATE TRANSMITTER
• 1 BEEP SOUNDS
(TX ADDED)
CONSOLE REVERTS
TO OPERATE MODE
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS WHEN
TRYING TO ADD A TRANSMITTER
3
REPEAT STEPS 1 & 2 FOR ADDITIONAL
TRANSMITTERS (UP TO 16 TOTAL)
NOTE: PRESS CLEAR BEFORE TRANSMITTING TO RETURN
TO OPERATE MODE WITHOUT ENTERING A TRANSMITTER
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 30 SECONDS
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER.
DXS-62A
2
PRESS TEST BUTTON AGAIN
• 5 BEEPS SOUND
(ADD TX MODE)
NOTE: EACH TIME THE TEST BUTTON IS PRESSED IN THE ADD TX MODE,
THE CONSOLE WILL BE READY TO INSTALL A TRANSMITTER IN THE NEXT
AVAILABLE SENSOR ZONE LOCATION. IF THE VB-4B VOICE BOARD IS
INSTALLED, THE CONSOLE WILL ANNOUNCE THE SENSOR ZONE LOCATION
NUMBER.
ACTIVATE TRANSMITTER
3
• 1 BEEP SOUNDS
(TX ADDED)
NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS
WHEN TRYING TO ADD A TRANSMITTER
REPEAT STEPS 2 & 3 FOR
4
ADDITIONAL TRANSMITTERS
(UP TO 16 TOTAL)
5
PRESS CLEAR TO RETURN TO OPERATE MODE
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE
MODE AUTOMATICALLY AFTER 3 MINUTES
NOTE: WRITE DOWN EACH TRANSMITTER'S TYPE AND ZONE NUMBER
WHEN THE TRANSMITTER IS ADDED. THE CENTRAL STATION WILL NEED
TO KNOW THE TYPE AND REPORTING ZONE FOR EACH TRANSMITTER
DXS-62A
3
13. TESTING TRANSMITTERS
PRESS TEST BUTTON
1
• 4 BEEPS SOUND (TEST MODE)
2
ACTIVATE EACH OF THE
CONSOLE'S TRANSMITTERS,
ONE AT A TIME
COUNT THE NUMBER OF BEEPS
3
THAT THE CONSOLE SOUNDS
WHEN THE TRANSMITTER
IS ACTIVATED
1-BEEP = TX OK
2-BEEPS = TX HAD ALARM
3-BEEPS = TX MISSED STATUS
4-BEEPS = TX HAS LOW BATTERY
NOTE: WITH THE MODEL VB-4B VOICE BOARD
INSTALLED, THE CONSOLE WILL ANNOUNCE
THE TRANSMITTER STATUS
4
PRESS CLEAR TO RETURN TO OPERATE MODE
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 3 MINUTES
14. ERASING TRANSMITTERS
CAUTION: ALL TRANSMITTERS
WILL BE ERASED!
PRESS AND HOLD TEST BUTTON FOR 5 SECONDS
1
• 6 BEEPS SOUND (ALL TRANSMITTERS WERE ERASED)
2
PRESS CLEAR TO RETURN TO OPERATE MODE
• 2 BEEPS SOUND WITH ACTIVITY TIMER ENABLED
• 3 BEEPS SOUND WITH ACTIVITY TIMER DISABLED
THE CONSOLE WILL RETURN TO OPERATE MODE
AUTOMATICALLY AFTER 3 MINUTES
15. LOCAL PROGRAMMING WITH RA-2400
PERFORM THE STEPS DETAILED IN THE
1
RA-2400/PERS-2400 REFERENCE GUIDE (P/N 217163)
TO SET UP THE RA-2400 PROGRAM
TO LOCALLY PROGRAM
2
THE CONSOLE, CONNECT
THE MODEM'S LINE JACK
TO THE CONSOLE'S LINE
JACK
PRESS TEST BUTTON
3
MOMENTARILY
• 4 BEEPS SOUND
(TEST MODE)
NOTE: CONSOLE WILL EXIT TEST MODE
AUTOMATICALLY AFTER 3 MINUTES
OR BY PRESSING THE CLEAR BUTTON
WHEN RA-2400 CONNECTION
4
TIMER STARTS COUNTING DOWN,
PRESS THE EMERGENCY BUTTON
• 4 BEEPS SOUND
(RA-2400 ANSWER)
LINE-TO-LINE
16. TELEPHONE CONNECTIONS
LOCAL
TELEPHONE
ROUTE CABLES UNDER
STRAIN-RELIEF TABS
TELEPHONE
JACK
CONSOLE WITH
REAR COVER
INSTALLED
PERFORM PROGRAMMING IN
5
THE RA-2400 SOFTWARE, THEN
DISCONNECT FROM THE CONSOLE
4
CONNECT LOCAL
TELEPHONE TO
THIS JACK
CONNECT TELEPHONE
LINE TO THIS JACK
17. SYSTEM OPERATION
E
STANDING BY
POWER LIGHT IS ON
OTHER LIGHTS ARE OFF
CONSOLE
18. ACTIVITY TIMER
ENABLING THE ACTIVITY TIMER
1
PRESS THE HOME BUTTON FOR
5 SECONDS TO TURN THE
ACTIVITY TIMER ON
NOTE: THE ACTIVITY TIMER CAN
BE ENABLED FOR 8, 12, OR
24 HOURS, OR DISABLED BY
PROGRAMMING
NOTE: TO TURN THE ACTIVITY TIMER OFF,
PRESS THE HOME BUTTON FOR FIVE SECONDS
- IN CASE OF EMERGENCY -
PRESS AND
MOMENTIARLY
HOLD
EMERGENCY
BUTTON
CONSOLE
IN ALARM
SENDING LIGHT
FLASHES DURING
COMMUNICATION
19. AUDIO BOARD OPERATION
1
2
CENTRAL STATION OPERATOR:
3
- OR ACTIVATE
EMERGENCY
TRANSMITTER
PRESS TRANSMITTER
BUTTON FOR AT LEAST
2 SECONDS
SIREN SOUNDS
UNTIL CLEAR BUTTON
IS PRESSED,
CENTRAL STATION
REPORT IS COMPLETE,
OR SIREN TIME EXPIRES
PRESS CLEAR TO
STOP SIREN
(ADDS CANCEL TO
ALARM REPORT IN
PROGRESS)
2
ACTIVITY TIMER RUNNING
THE HOME INDICATOR WILL LIGHT,
SHOWING THAT THE ACTIVITY
TIMER IS ENABLED
4
RESETING ACTIVITY TIMER
THE SUBSCRIBER NEEDS TO
PRESS THE HOME BUTTON OR
TRIGGER AN ACTIVITY
TRANSMITTER BEFORE THE
TIMER EXPIRES TO PREVENT
AN INACTIVITY REPORT
PRESSING THE HOME BUTTON
RESTARTS THE TIMER
3
TIME RUNNING OUT
THE HOME INDICATOR WILL BLINK &
A SHORT BEEP SOUNDS EVERY
10 SECONDS WHEN LESS THAN
15 MINUTES OF TIME REMAIN
20. SPEAKERPHONE OPERATION
PROGRAM THE CONSOLE TO ENABLE SPEAKERPHONE MOD
1
NOTE: SPEAKERPHONE MODE CAN ONLY BE USED ON INCOMING CALLS
AND WILL NOT FUNCTION WHEN THE CONSOLE IS OPERATING FROM
BACKUP BATTERY POWER. ATTEMPTING TO ANSWER WHILE THE CONSOLE
IS ON BACKUP POWER WILL CAUSE AN EMERGENCY ALARM.
WHILE THE TELEPHONE IS RINGING, ACTIVATING AN
2
EMERGENCY TRANSMITTER OR PRESSING THE EMERGENCY
BUTTON WILL SEIZE THE TELEPHONE LINE
PRESSING ANY KEY OTHER THAN "9" WILL EXTEND THE AUDIO TIME
90 MORE SECONDS
NOTE: TO USE THE AUDIO MODES, THE MODEL VB-4B AUDIO MODULE
MUST BE INSTALLED IN THE CONSOLE
THE AUDIO BOARD WILL BEGIN 2-WAY FULL DUPLEX MODE
3
FOR AUDIO COMMUNICATIONS
WARNING: THE CONSOLE WILL NOT BE ABLE
TO REPORT AN EMERGENCY WHILE THE
SPEAKERPHONE MODE IS ACTIVE
NOTE: TO REPORT AN EMERGENCY WHEN THE SPEAKERPHONE IS IN USE,
PRESS EITHER THE EMERGENCY BUTTON OR THE BUTTON ON AN
EMERGENCY TRANSMITTER TO END THE PHONE CALL AND THEN PRESS
ONE OF THESE BUTTONS AGAIN TO REPORT THE EMERGENCY.
THE AUDIO BOARD WILL END AUDIO COMMUNICATIONS
4
WHEN EITHER:
• THE EMERGENCY BUTTON IS PRESSED
• ANY EMERGENCY TRANSMITTER IS ACTIVATED
• THE AUTO-DISCONNECT TIMER RUNS OUT
NOTE: TO USE THE SPEAKERPHONE MODE, THE MODEL VB-4B AUDIO
MODULE MUST BE INSTALLED IN THE CONSOLE
5
21. SUPERVISORY CONDITIONS
R
TRANSMITTER LOW BATTERY TROUBLE
WHEN A TRANSMITTER SENDS A LOW BATTERY SIGNAL THE
CONSOLE'S TROUBLE INDICATOR WILL BLINK SLOWLY.
TRANSMITTER SUPERVISORY TROUBLE
IF A TRANSMITTER PROGRAMMED AS SUPERVISED FAILS
TO REPORT STATUS IN A 24 HOUR PERIOD, THE CONSOLE'S
TROUBLE INDICATOR WILL LIGHT.
CONSOLE BACKUP BATTERY TROUBLE
THE CONSOLE WILL TEST ITS BACKUP
BATTE
RY EVERY 8 HOURS. IF THE BATTERY
TESTS LOW, THE POWER INDICATOR WILL
BLINK SLOWLY WHILE THE CONSOLE
CHARGES THE BATTERY.
THE CONSOLE WILL BEEP EVERY
2-BEEPS = CONSOLE LOW BATTERY
3-BEEPS = TRANSMITTER SUPERVISORY
4-BEEPS = TRANSMITTER LOW BATTERY
WHEN TROUBLE EXISTS,
HOUR UNTIL CLEARED:

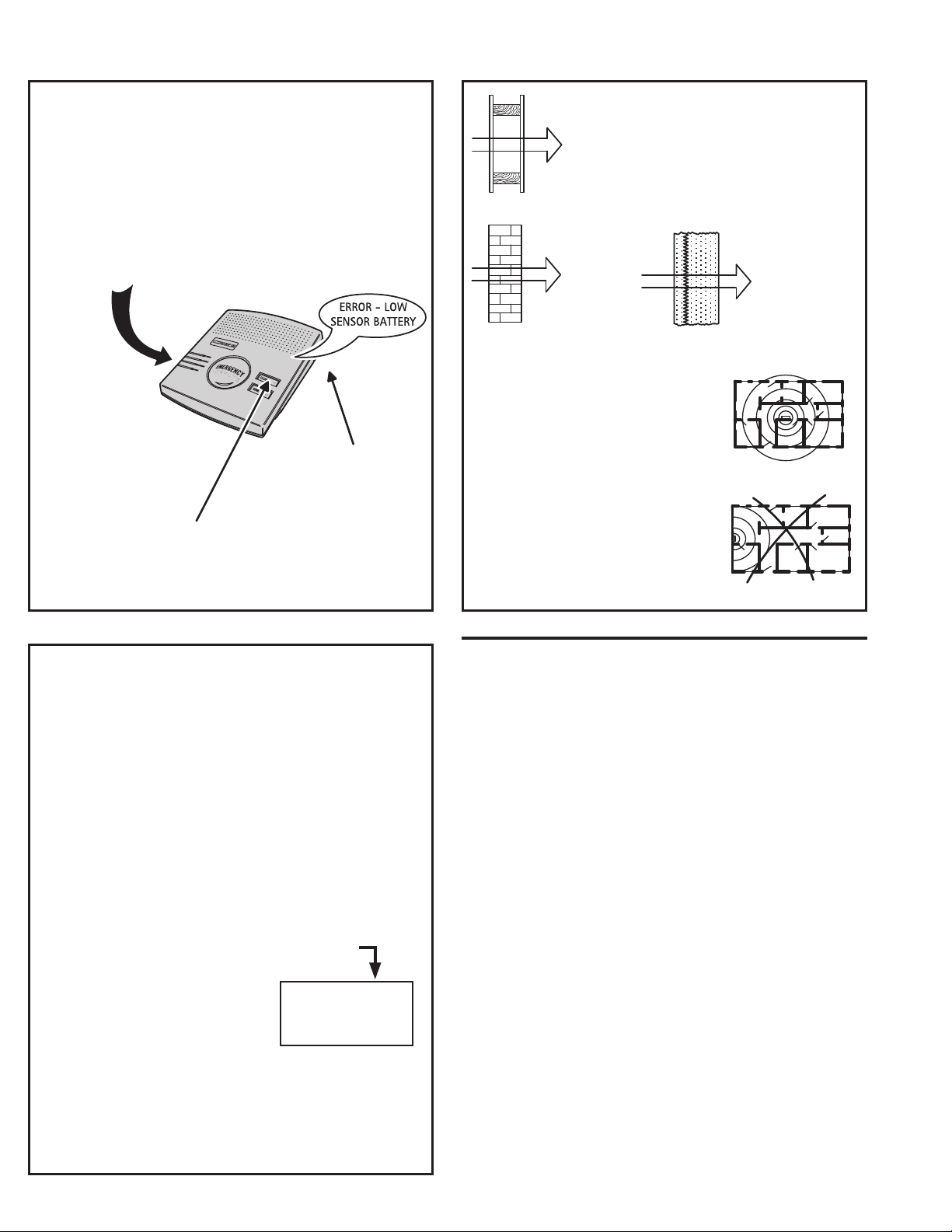

22. WIRELESS INSTALLATION TIPS
WALLBOARD AND
WOOD STUDS
90% - 100%
OF FULL POWER
LIGHT CONCRETE
OR BRICK
65% - 95%
OF FULL POWER
CONSTRUCTION
MATERIALS WILL
AFFECT RADIO RANGE
CONCRETE WITH STEEL
REINFORCEMENT OR
METAL LATH AND PLASTE
10% - 70%
OF FULL POWER
THE CONSOLE WILL REPORT
TROUBLE AND/OR 30-DAY STATUS
TO THE CENTRAL STATION IF
ENABLED IN THE COMMUNICATOR
PROGRAMMING
CLEARING TROUBLE INDICATIONS
PRESS THE CLEAR BUTTON TO STOP TROUBLE
INDICATORS AND SOUNDERS
NOTE: THE TROUBLE CONDITION WILL LIKELY OCCUR AGAIN
UNTIL THE PROBLEM IS FIXED
SPECIFICATIONS
CODING FORMATS
DX CODE 24-BIT A1D PPM 1,048,567 CODES
DXS CODE 24-BIT A1D PPM 1,048,567 CODES
POWER REQUIREMENTS
PRIMARY SUPPLY 16 VAC 1.25 AMP PLUG-IN TRANSFORMER
BACKUP SUPPLY 12 VOLT 1.2 AMP/HOUR BATTERY
NORMAL OPERATING CURRENT 80 mA
ALARM OPERATING CURRENT 120 mA
BACKUP OPERATION DURATION 32 HOURS MINIMUM
BATTERY LIFE EXPECTED 3 YEARS
BACKUP SUPPLY OPERATING CURRENT 32 mA
RF CHARACTERISTICS
RECEIVER TYPE DUAL-DIVERSITY SUPERHETERODYNE
RF SENSITIVITY -100 dBm TYPICAL
RADIO FREQUENCY 315 Mhz
MAXIMUM RANGE 400 FEET LINE-OF-SIGHT, OPEN RANGE
UL LISTED FOR 150’
COMMUNICATOR
COMMUNICATOR FORMATS 4 BY 2 (GENERAL OR POINT-TO-POINT),
ADEMCO CONTACT ID
UL TESTED WITH SURGARD SGMLRG-DG
CENTRAL STATION RECEIVER
DIALING TONE OR PULSE
DIALING DELAY 0 OR 15 SECONDS
REMOTE ACCESS PASSWORD 6 DIGITS
ACCOUNT NUMBER LENGTH 4 DIGITS
PRIMARY TELEPHONE NUMBER 20 DIGITS
SECONDARY TELEPHONE NUMBER 20 DIGITS
SUPERVISORY TELEPHONE NUMBER 20 DIGITS
CONSOLE STATUS REPORT OPTIONAL 1, 7 OR 30 DAY REPORT
CONSOLE
OPERATING TEMPERATURE 32°-100° F (0-50° C)
EMERGENCY ALARM DURATION 1-30 MINUTES
ACTIVITY TIMER PERIOD 8, 12, OR 24 HOURS
AUDIO LISTEN-ONLY, 2-WAY MANUAL, 2-WAY DUPLEX,
SPEAKERPHONE
RELAY OUTPUT N.O. @ 24 VOLT AC/DC 1 AMP
MAXIMUM, NEC CLASS II CIRCUITRY
Copyright © 2012 Linear LLC 228279 BX1
NOTE: THE CONSOLE WILL ANNOUNCE
THE SUPERVISORY CONDITIONS WITH
THE OPTIONAL MODEL VB-4B VOICE
BOARD INSTALLED. THE VOICE CAN
BE DISABLED THROUGH
PROGRAMMING
NOTE: THE INSTALLER MUST
VERIFY COMPATIBILITY
BETWEEN THE PERS-2400B AND
THE UL LISTED DIGITAL ALARM
COMMUNICATOR RECEIVER
CONSOLE LOCATION WILL
AFFECT RADIO RANGE
LINEAR LIMITED WARRANTY
This Linear product is warranted against defects in material and workmanship for twelve
(12) months. This warranty extends only to wholesale customers who buy direct from Linear
or through Linear’s normal distribution channels. Linear does not warrant this product to
consumers. Consumers should inquire from their selling dealer as to the nature of the
dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC
for consequential damages arising out of or in connection with use or performance
of this product or other indirect damages with respect to loss of property, revenue, or
profi t, or cost of removal, installation, or reinstallation. All implied warranties, including
implied warranties for merchantability and implied warranties for fi tness, are valid only until
the warranty expires. This Linear LLC Warranty is in lieu of all other warranties express
or implied.
All products returned for warranty service require a Return Product Authorization Number
(RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other
important details.
IMPORTANT WIRELESS INFORMATION
Linear radio controls provide a reliable communications link and fi ll an important need in
portable wireless signaling. However, there are some limitations which must be observed.
• For U.S. installations only: The radios are required to comply with FCC Rules and
Regulations as Part 15 devices. As such, they have limited transmitter power and
therefore limited range.
• A receiver cannot respond to more than one transmitted signal at a time and may be
blocked by radio signals that occur on or near their operating frequencies, regardless of
code settings.
• Changes or modifi cations to the device may void FCC compliance.
• Infrequently used radio links should be tested regularly to protect against undetected
interference or fault.
• A general knowledge of radio and its vagaries should be gained prior to acting as a
wholesale distributor or dealer, and these facts should be communicated to the ultimate
users.
CENTRALLY LOCATE CONSOLE
RIGHT
TRANSMITTERS AT THE
OTHER END OF THE HOUSE
MIGHT BE TOO FAR AWAY
WRONG!
Loading...
