Linear NR8-5, DMC1HCKIT, DMC1HKIT Specsheet

Linear | Communications Solutions Catalog

DMC1

Music / Communication System

DMC3-4

Music / Communication System

DMC-10

Music / Communication System

Encore

Distributed Audio Sy stem

Order Information

Sales Department

5:00 AM — 4:30 PM (Pacifi c Time) Monday – Friday
8:00 AM — 7:30 PM (Eastern Time) Monday – Friday

Phone [phone]
Fax [phone]
Web www.linearcorp.com
E-mail [e-mail]

Technical Support for Dealers & Installers

5:00 AM — 4:30 PM (Pacifi c Time) Monday – Friday
8:00 AM — 7:30 PM (Eastern Time) Monday – Friday

Phone [phone]
Fax [phone]
Web www.linearcorp.com
E-mail [e-mail]

These Linear products are available nationwide at hundreds of conveniently
located local distributors branches. The innovative products are available
where you need them and when you need them, making Linear the natural
choice for your Communication Solutions.

Linear products are distributed by:

All these brands are now under one name.

Table of Contents

DMC1 System Kits 05
DMC1 Masters 06
DMC1 Add-Ons 07
DMC1 Room & Patio Stations 08

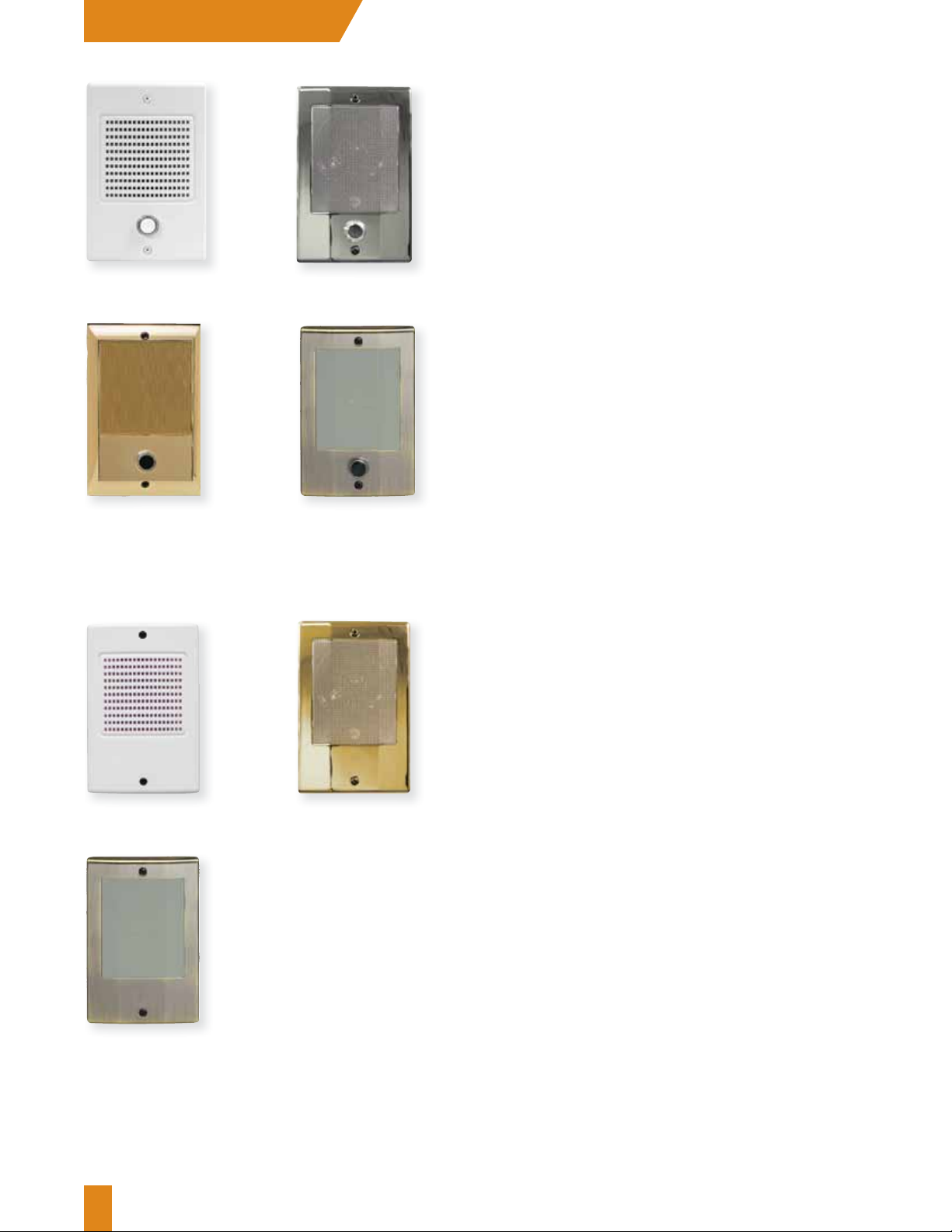

DMC1 Door Stations 09
Standard Mounting Frames 10
DMC1 System Diagrams 11
6- Wire Retrofit Syst em Di a gram 12

3- and 4-Wire Retrofit Masters 13
3- and 4-Wire Retrofit Room & Patio Stations 14
3- and 4-Wire Retrofit Door Stations 16
3- and 4-Wire Retrofit Mountain Frames 17
3-Wire Retrofit System Diagram 19
4-Wir e Re trof it Sy ste m Diagr a m 20
Retrofit Model Compatibility 21

DMC-10 Intercom Kit 23
DMC-10 Intercom Components 24
DMC-10 Faceplates 25

Encore Kit 26
Encore Accessories 27
Encore Input Wall Plates 28

Rough-In Kits 30
Wire & Cable 32
Rough-In Components 33
Intercom Accessories 35

Order Information 02
Linear Training 37
Technical Support 38
Facilities 39
Distribution Centers 40
Index 41

An Innovative History

Linear Corporate Headquarters

Carlsbad, California

Linear was established in 1961 as a manufacturer of radio
controls. Over the next fi ve decades, an unrelenting dedication
to quality has turned it into the most trusted name in everyday
technology.

Long known for pioneering radio frequency remote controls for everyday use,
Linear now combines computer aided mechanical engineering and electronic
design into a full range of products. Today, Linear opens your gates, your
garages, and your doors.

Linear’s prevalence across America is simply unprecedented. Hundreds of
thousands of people use Linear products every day without even knowing it.
Backed by the industry’s best warranties, a network of qualifi ed integrators and
installers, and unrivaled electronic solutions know-how, it’s no wonder that Linear
continues to lead the industry forward.

Linear combines the latest in technology with simplicity and elegance. From gate
operators and intercom systems to central vacuums and security systems, these
are innovations that are designed to make your life easier. These are innovations
that make your life better.

2

Reference www.linearcorp.com800.421.1587

Linear Communications Solutions

Then... Now...

Say “intercom,” and most people think of “tinny” sound and inconsistent performance…

Those days are long gone!

Today, Linear’s communication and whole-house music distribution systems deliver
true sound for music and voice. This catalog showcases elegant and sophisticated
acoustical systems that deliver quality sound throughout the home. They also ensure
peace of mind with enhanced security and room monitoring features.

For more than 50 years, a company named M&S Systems has been the leading
designer and manufacturer of fi ne systems for home communication and entertainment.
These products revolutionized home communications with technology, style, and
value. That company is now part of Linear, where the legacy of quality in design and
development continues on.

Systems for new installations using Cat-5 wire

Linear’s DMC1 Music/Communications System offers much more than just good looks.
Designed for today’s home, the DMC1 offers the homeowner the ability to communicate
and monitor up to 15 rooms and supply digitally-tuned AM/FM radio to each of those
rooms. The new iPlay® Dock - MP3 & CD changer accessory can fi ll the home or patio
with your digital collection of music, whether from your portable device, smartphone, or
MP3 media.

Linear’s DMC-10 Structured Wire Intercom System takes advantage of today’s modern
homebuilding standard, a central wiring cabinet that provides a “structure” for all low­voltage signal distribution in the home. This hub-based intercom system features room,
door, and patio stations in contemporary designs, crafted to blend into the installation’s
decor.

Systems for 3-wire, 4-wire, and 6-wire retrofi t installations

Linear’s DMC3-4 offers many of the same features as the DMC1, but it is engineered to
run on existing wires. The DMC3-4 will replace most older 3-wire or 4-wire intercoms
(use DMC1 for 6-wire retrofi ts). Unique retrofi t fi nish-out frames make installation easy by
eliminating the need to repair drywall. The DMC3-4 retrofi t also offers an option to add
the DMC1 iPlay® Dock, or 6-disc CD changer.

Referencewww.linearcorp.com 800.421.1587

3

DMC1 / DMC3-4 Systems

Simple Installation for Retrofi t or New Home Construction

Step up from the common intercom. The DMC family of Communication and Music Systems
from Linear furnishes rich sound for music and voice throughout the home.

These elegant and sophisticated audio systems have the ability to communicate and monitor
up to 15 rooms while supplying digitally-tuned AM/FM radio to each of them. Add the optional
DMC1 iPlay
MP3 players, smart phones and CD/MP3 disks. Whether you have a new or existing home, the
DMC series is a sound fi t – offering many features for both the homeowner and the installer.

Homeowners with intercom systems already in place
can upgrade to Linear’s DMC3-4 Music/Communication
Retrofi t System. Because it connects to existing wires,
this full-function intercom and music distribution system
can easily replace most older 3-wire or 4-wire M&S
Systems, NuTone, and many other intercoms, without the
need to repair drywall.

For new homes, Linear offers the DMC1 Music/Communication
System. With the same sleek aesthetic as the DMC3-4,
the DMC1 system’s quick-connect CAT-5 wiring simplifi es
installation and improves performance.

®

dock and connect to all your digital music sources, including portable devices,

Homeowners will appreciate one elegant system for both intercom and music – a system with
many convenient controls, including one-touch privacy.

Whichever system meets your particular need, the DMC series is a big leap forward in fl exible
functionality, sound quality and installation simplicity.

DMC3-4

Easy retrofi t: Established
homes with older intercoms
can effortlessly upgrade to
the latest in whole-house
communications with the
DMC3-4 Music/Communication
Retrofi t System.

4

DMC1 Intercom System www.linearcorp.com800.421.1587

DMC1PACK

Music/Communication System Package

DMC1 System Kits

ORDER # DMC1PACK

DMC1MMPACK

Music/Communication System Package

This package contains everything in the DMC1Pack
with the addition of the DMC1MM iPlay
CD Player.

ORDER # DMC1MMPACK

®

Dock - MP3 &

DMC1CDPACK

Music/Communication System Package

This package contains everything in the DMC1Pack
with the addition of the DMC1CD 6-Disc CD Changer.

ORDER # DMC1CDPACK

The Model DMC1PACK Music/Communication System
Packages many of the basic components needed to
assemble a 4-room, 1-patio, and 1-entry-door music/
communication system. The kit includes the following:

(1) - Model DMC1 Music/Communication System
Master (White)

(4) - Model DMC1RS Indoor Room Stations with
Remote Scan and Master Volume (White)

(1) - Model DMC1RW Patio Station with Remote
Scan and Master Volume

(1) - Model MC3 3-note Chime Module

(1) - Model DS3B Intercom Door Speaker with
Bell Button

(1) - Model DMC1F Combination Mounting
Frame (White)*

For DMC1PACK rough-in components, order the Model
DMC1HKIT Wall Housing and Rough-in Ring Kit.

For DMC1MMPACK rough-in components, order the
Model DMC1HCKIT Combination Wall Housing and
Rough-in Ring Kit.

Features:

• White faceplate

• Supports up to 15 room stations

• CAT-5 wiring to room and patio stations

• For new installations or 6-wire intercom
system retrofi t installations

• 30 watts (RMS) maximum output power

• Eight AM and eight FM radio station tuner presets

• Remote volume and source control from
room stations

• Privacy, intercom-only, and door-release features

• Programmable monitor override

* DMC1CDPACK and DMC1MMPACK only

DMC1 Intercom Systemwww.linearcorp.com 800.421.1587

5

DMC1 Masters

DMC1 / DMC1A / DMC1B

Music/Communication System Master

ORDE R # DMC1 / DMC1A / DM C1B

DMC1 (White) DMC1B (Black) DMC1A (Almond)

The Model DMC1 Music/Communication System
Master is a full-function intercom and music
distribution system designed for residential use.
The system supports up to 15 room stations and up
to three door speakers. The built-in AM/FM radio
tuner allows setting eight AM station presets and
eight FM station presets. The backlit liquid crystal
display shows the operation mode, audio source,
radio frequency, volume setting, and time. With the
optional Model DMC1MM iPlay
the master unit the system provides three different
media playback options: CD player, a dock port for your
portable device, and an audio line input for other
MP3 devices.

For master unit rough-in and fi nish-out components,
order the Model DMC1H Wall Housing Kit to mount the
DMC1 master. If the optional Model DMC1CD add-on
CD Changer or DMC1MM is used, order the Model
DMC1F Combination Mounting Frame and the
DMC1HC CD Combination Wall Housing Kit.

®

Dock installed below

FEATURES

• White, almond, or black faceplate

• Supports up to 15 room stations

• Supports up to three door speakers

• CAT-5 wiring to room and patio stations

• For new installations or 6-wire intercom
system retrofi t installations

• 30 watts (RMS) maximum output power

• Eight AM and eight FM radio station tuner presets

• Remote volume and source control from room stations

• Privacy, intercom-only, and door-release features

• Programmable monitor override

• Automatic on/off feature

• Optional 3-note and 8-note door chime

Specifi cations are subject to change without notice.

6

DMC1 Intercom System www.linearcorp.com800.421.1587

DMC1MM / DMC1MMA / DMC1MMB

Add-On iPlay® Dock - MP3 & CD Changer

DMC1MM (White) DMC1MMB (Black) DMC1MMA (Almond)

DMC1 Add-Ons

ORDER #:
DMC1MM
DMC1MMA
DMC1MMB

The Model DMC1MM add-on iPlay® Dock - MP3 & CD
Player brings new media connectivity to your DMC1 or
DMC3-4 music/communications system. The DMC1
iPlay mounts below the master unit and contains three
different media playback options: CD player, a dock
port for your portable device, and an audio line input for
other MP3 devices.

For rough-in and fi nish-out components, order the
Model DMC1F Combination Mounting Frame and the
DMC1HC Combination Wall Housing Kit.

DMC1CD / DMC1CDA / DMC1CDB

Add-On 6-Disc CD Changer

ORDER #:
DMC1CD
DMC1CDA
DMC1CDB

FEATURES

• iPlay® dock with compatibility for
device charging

• USB-A port for MP3 player/phone charging

• 3.5mm audio input for MP3 player audio

• Single slot CD player

• Supports CD/CD-R/CD-RW and MP3 discs

• Play, pause, fast-forward, rewind, track forward,
track reverse, eject, and mode functions

• White, almond and black faceplate colors available

• 16” w x 12” h

DMC1CD (White)

DMC1CDA (Almond)

DMC1CDB (Black)

The Model DMC1CD Add-on 6-disc CD Changer is a
multi-disc compact disc player that connects to the
DMC3-4 music/communications master station to
provide a CD audio source input. The CD changer
mounts below the master unit and contains a slide-in
CD magazine that can hold up to six compact discs.

For rough-in and fi nish-out components, order the
Model DMC1F Combination Mounting Frame and the
DMC1HC iPlay

®

/CD Combination Wall Housing Kit.

FEATURES

• White, almond, or black faceplate

• Holds up to six compact discs

• Five playback modes

• Disc number displayed

• Track number displayed

• Number of tracks per CD displayed

• Track time displayed

DMC1 Intercom Systemwww.linearcorp.com 800.421.1587

7

DMC1 Room & Patio Stations

DMC1RS / DMC1RSA / DMC1RSB

Indoor Room Station with Remote Scan and Master Volume

FEATURES

• White, almond, or black faceplate

• Volume control sets sound level

• Privacy button to prevent monitoring from other room stations
or master unit

• Communicates with door speakers, other room stations,
and master unit

• Power, volume, and scan control of the master unit’s built-in
AM/FM radio receiver

• Scans auxiliary, CD, AM, and FM sources

• Can activate door release mechanism or a security
system’s panic alarm

DMC1RS (White)

ORDE R # DMC1RS / DMC1RS A / DMC1RSB

DMC1R

Indoor Room Station

ORDE R # DMC1R ORDE R # DMC1RW

FEATURES

• White faceplate

• Volume control sets sound level

• Privacy button to prevent monitoring from
other room stations or master unit

• Communicates with door speakers, other room
stations, and master unit

DMC1RSA (Almond)

DMC1RSB (Black)

DMC1RW

Patio Station with Remote Scan and Master Volume

FEATURES

• White faceplate

• Also available in almond (DMC1RWA),
or black (DMC1RWB) faceplates

• Volume control sets sound level

• Privacy button to prevent monitoring from
other room stations or master unit

• Communicates with door speakers, other room
stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, CD, AM, and FM sources

8

DMC1 Intercom System www.linearcorp.com800.421.1587

ORDE R # DS3B (W hite)

ORDE R # DS3NB (Nickel)

DMC1 Door Stations

DS3B / DS3NB / BD3BN / D3BN

Intercom Door Station with Bell Button

FEATURES

• White, nickel, bright brass, or antique
brass-fi nished faceplate

• Lighted doorbell button

• 2-Way voice communications

• Mounts in Model ME3 Door Station Rough-in Enclosure

ORDE R # BD3BN (Bright Brass)

ORDE R # DS3 (White)

ORDE R # D3BN (Antique Brass)

DS3 / BD3N / D3N

Intercom Door Station

FEATURES

• White, bright brass, or antique brass-fi nished faceplate

• 2-Way voice communications

• Mounts in Model ME3 Door Station Rough-in Enclosure

ORDE R # BD3N (Bright Brass)

D3N (A ntique Brass)

DMC1 Intercom Systemwww.linearcorp.com 800.421.1587

9

Standard Mounting Frames

DMC1F / DMC1FA / DMC1FB

Combination Mounting Frame

The Model DMC1F Combination Mounting Frame is used in
new and retrofi t intercom installations. The frame is designed
to fi t a DMC1 or DMC3-4 Music/Communication System.

In new installations, use the DMC1F combination frame when
installing a DMC1 with a DMC1CD or DMC1MM below the
master.

In retrofi t installations, use the DMC1F combination frame
when replacing a master-only system with a DMC3-4 or
DMC1 and a DMC1CD or DMC1MM below the master.

NOTE: The wall hole will need to be enlarged for this type
of retrofi t installation.

ORDE R # DMC1F / DMC1FA / DMC1FB

DMC1FG

Master Gap Frame

DMC1F (White)

DMC1FA (Almond)

DMC1FB (Black)

DMC1FRG

Room Station Gap Frame

ORDE R # DMC1FRG

ORDER # DMC1FG

The Model DMC1FG Master Gap Frame is used in
installations where a gap is exposed around the master
mounting hole. The frame is designed to fi t DMC1 and
DMC3-4 masters.

10

DMC1 Intercom System www.linearcorp.com800.421.1587

The Model DMC1FRG Room Station Gap Frame is used
in installations where a gap is exposed around the room
station mounting hole. The frame is designed to fi t all
DMC1 indoor room stations.

DMC1 System Diagram

NR8P

8" Flush Mount
Speaker

(NR8-5)

MS2SX5SC

MVC1

Volume Control
(1-Gang Box)

CAT5

NR8P

8" Flush Mount
Speaker

DMC1

EXAMPLE

SYSTEM

DIAGRAM

This diagram is for product reference only.
Refer to installation instructions for product
limits and specications.

Model numbers in parentheses represent
standard rough-in components.

CAT5

Door Release
Mechanism

DRW

Dry Contact
Closure for
Door Release

Antennas
Included with
Wall housings

Remote Power
Transformer

RT11

Either

Security Panel

Dry Contact
Closure for
Panic Operation

AM FM

CAT5

Modular
Door
Chime

MC3
or
MC8

CAT5

DMC1 Music/Communication System (DMC1H Housing Required)

DMC1MM

(DMC1F Frame Required)

(DMC1HC Housing Required)

DMC1R

Standard Room Station

(DMC1HR)

DMC1RS

Standard Room Station
w/Remote Scan

(DMC1HR)

Supports up to 15 room or patio stations

DMC1RW

Patio Station

MS4DCXSC

AWP
Audio Input
Wall Plate
for External
Stereo Sources

(AWP)

DS3

Door Speaker

(ME3)

Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel

MS4DCXSC

DS3B

Door Speaker
w/Bell Button

(ME3)

DMC1 Intercom Systemwww.linearcorp.com 800.421.1587

11

6-Wire Retrofi t System Diagram

(NR8-5)

NR9P
8" Flush Mount
Speaker

NR9P
8" Flush Mount
Speaker

MS2SX5SC

MVC1
Volume Control
(1-Gang Box)

EXISTING WIRE

DMC1

EXAMPLE

6-WIRE RETROFIT

SYSTEM

DIAGRAM

This diagram is for product reference only.
Refer to installation instructions for product
limits and specifications.

Model numbers in parentheses represent
standard rough-in components.

AM FM

EXISTING WIRE

Door Release
Mechanism

DRW

Dry Contact
Closure for
Door Release

Antennas
Included with
Wall housings

DMCRAC

DMC1 Music/Communication System (Frame Required)

DMC1MM
(DMC1HC Housing Required)

Remote Power
Transformer

RT11

Either

Antenna
Adapter

Modular
Door
Chime

MC3
or
MC8

(Frame Required)

Security Panel

Dry Contact
Closure for
Panic Operation

DMC1R

Standard Room Station

EXISTING WIRE

Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel

DMC1RS

Standard Room Station
w/Remote Scan

DMCFR

Supports up to 15 room or patio stations

DMC1RW
Patio Station

DMCFRW

EXISTING WIRE

DS3
Door Speaker

EXISTING WIRE

DS3B
Door Speaker
w/Bell Button

(DMCFD for
NuTone Only)

12

DMC1 Intercom System www.linearcorp.com800.421.1587

DMC3-4

OC3/C3/C3

ORD

ER

# D

MC3

-4

/ D

MC3

-4A/ DMC

3-4

B

Music/Communication Retrofi t System Master

3 & 4-Wire Retrofi t Masters

ORDE R # DMC 3-4 / DM C3-4A / DMC3-4B

DMC3-4 (White)

The Model DMC3-4 Music/Communication Retrofi t
System Master is a full-function intercom and music
distribution system designed for retrofi t applications.
The master unit can replace older intercom systems
that use 3-wire or 4-wire connections to the room
stations. The system supports up to 15 room stations
and up to three door speakers. The built-in AM/FM
radio tuner allows setting eight AM station presets
and eight FM station presets. The backlit liquid crystal
display shows the operation mode, audio source, radio
frequency, volume setting, and time. With the optional
Model DMC1 iPlay

®

dock installed below the master
unit the system provides three different media playback
options: CD player, a dock port for your portable
device, and an audio line input for other MP3 devices.

DMC3-4B (Black) DMC3-4A (Almond)

FEATURES

• White, almond, or black faceplate

• Retrofi t for 3-wire and 4-wire intercom systems

• Supports up to 15 room stations

• Supports up to three door speakers

• 30 watts (RMS) maximum output power

• Eight AM and eight FM radio station tuner presets

• Remote volume and source control from
room stations

• Intercom-only and door-release features

• Programmable monitor override

• Automatic on/off feature

• Optional 3-note and 8-note door chime

DMC3-4 Intercom Systemswww.linearcorp.com 800.421.1587

13

3 & 4-Wire Retrofi t Room & Patio Stations

3-Wire & 4-Wire Retrofi t Patio/Room Stations

DMC3RS / DMC4RS

Retrofi t Indoor Room Station with
Remote Scan and Master Volume

Room stations have pushbuttons that control the system
operation. Retrofi t room and patio stations connect to
the master unit using the installation’s existing wiring. All
room station models can talk to other room stations, door
speakers, and the master unit. Each has an intercom volume
control. The Model DMC3RS Room Station and DMC3RW
Patio Station have the additional benefi t of being able to
select the audio source, control the radio tuner, and set the
master music volume.

ORDE R # DMC 3RS / DMC3RSA / DMC3R SB
ORDE R # DMC 4RS / DMC4RSA / DMC4RSB

DMC3RS (3-Wire White)
DMC4RS (4-Wire White)

DMC3RSA (3-Wire Almond)
DMC4RSA (4-Wire Almond)

DMC3RSB (3-Wire Black)
DMC4RSB (4-Wire Black)

DMC3R / DMC4R

Retrofi t Indoor Room Station

FEATURES

• White, almond, or black faceplate

• Retrofi t for 3-wire and 4-wire intercom systems

• Volume control sets sound level

• Communicates with door speakers, other room
stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, dock, CD, AM, and FM sources

• Can activate door release mechanism or a security
system’s panic alarm

DMC3RW / DMC4RW

Retrofi t Patio Station with Remote

ORDE R # DMC 3R / DMC4R ORDER # DMC3R W / DMC 4RW

FEATURES

• White faceplate

• Retrofi t for 3-wire and 4-wire intercom systems

• Volume control sets sound level

• Communicates with door speakers,
other room stations and master unit

14

DMC3-4 Intercom Systems www.linearcorp.com800.421.1587

FEATURES

• White faceplate

• Also available in almond (DMC3RWA) (DMC4RWA),
or black (DMC3RWB) (DMC4RWB) faceplates

• Retrofi t for 3-wire and 4-wire intercom systems

• Volume control sets sound level

• Communicates with door speakers,
other room stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, dock, CD, AM, and FM sources

4-Wire Retrofi t Patio/Room Stations

N68RS

Retrofi t Large Indoor Room Station with
Remote Scan and Master Volume

FEATURES

• White faceplate

• Retrofi t for 4-wire intercom systems only

• Volume control sets sound level

• Communicates with door speakers, other room
stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, dock, CD, AM, and FM sources

• 9-3/4” w x 11-3/4” h

4-Wire Retrofi t Room & Patio Stations

ORDE R # N68RS

NW65RS

Retrofi t Patio Station with
Remote Scan and Master Volume

ORDER # NW65RS

FEATURES

• White faceplate

• Retrofi t for 4-wire intercom systems only

• Volume control sets sound level

• Communicates with door speakers,
other room stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, dock, CD, AM, and FM sources

• 6” w x 8” h

NW68RS

Retrofi t Large Patio Station with
Remote Scan and Master Volume

ORDER # NW68RS

FEATURES

• White faceplate

• Retrofi t for 4-wire intercom systems only

• Volume control sets sound level

• Communicates with door speakers,
other room stations, and master unit

• Power, volume, and scan control of the master
unit’s built-in AM/FM radio receiver

• Scans auxiliary, dock, CD, AM, and FM sources

• 9-3/4” w x 11-3/4” h

DMC3-4 Intercom Systemswww.linearcorp.com 800.421.1587

15

3 & 4-Wire Retrofi t Door Stations

ORDE R # DS3B (W hite)

ORDE R # DS3NB (Nickel)

DS3B / DS3NB / BD3BN / D3BN

Intercom Door Station with Bell Button

FEATURES

• White, nickel, bright brass, or antique
brass-fi nished faceplate

• Lighted doorbell button

• 2-Way voice communications

• Mounts in Model ME3 Door Station Rough-in Enclosure

• 4-1/8” w x 6-3/16” h

ORDE R # BD3BN (Bright Brass)

ORDE R # DS3 (White)

ORDE R # D3BN (Antique Brass)

ORDE R # BD3N (Bright Brass)

DS3 / BD3N / D3N

Intercom Door Station

FEATURES

• White, bright brass, or antique brass-fi nished faceplate

• 2-Way voice communications

• Mounts in Model ME3 Door Station Rough-in Enclosure

• 4-1/8” w x 6-3/16” h

D3N (A ntique Brass)

16

DMC3-4 Intercom Systems www.linearcorp.com800.421.1587

Master Retrofi t Mounting Frames

DMCFM / DMCFMA / DMCFMB

Master Retrofi t Mounting Frame

The Model DMCFM Master Retrofi t Mounting Frame is
used in retrofi t intercom installations when replacing a
master-only system with a DMC3-4 Music/Communication
Retrofi t System Master or a DMC1 Music/Communication
System Master in a 6-wire retrofi t installation.

17-1/2” w x 10-5/8” h

ORDE R # DMC FM / DMCFMA / DMCFMB

DMCFM (White)

DMCFMA (Almond)

DMCFMB (Black)

DMCFC / DMCFCA / DMCFCB

Combination Retrofi t Mounting Frame

The Model DMCFC Combination Retrofi t Mounting Frame
is used in retrofi t intercom installations when replacing a
combination system with a DMC3-4 Music/Communication
Retrofi t System Master or a DMC1 Music/Communication
System Master in a 6-wire retrofi t installation with a DMC1CD
or DMC1MM below the master.

17-1/2” w x 15-5/8” h

ORDE R # DMC FC / DMCFCA / D MCFCB

DMCFM (White)

DMCFMA (Almond)

DMCFMB (Black)

DMC3-4 Intercom Systemswww.linearcorp.com 800.421.1587

17

Retrofi t Mounting Frames

ORDE R # DMC FR / DMCFR A / DMC FRB

DMCFR / DMCFRA / DMCFRB

Room Station Retrofi t Mounting Frame

The Model DMCFR Room Station Retrofi t Mounting Frame
is used in retrofi t intercom installations when replacing older
room stations with Model DMC3R, DMC3RS, DMC4R, and
DMC4RS Room Stations.

7-1/2” w x 10” h

DMC1FR (White)

DMC1FRA (Almond)

DMC1FRB (Black)

DMCFD

Door Station Retrofi t Mounting Frame

ORDE R # DMC FD ORDE R # DMC FRW

The Model DMCFD Door Station Retrofi t
Mounting Frame is used in retrofi t intercom
installations when replacing a NuTone door
station. This frame is not required when
replacing old-style M&S Systems door station
in a retrofi t installation. This retrofi t mounting
frame fi ts Model BD3N, BD3BN, D3N, D3BN,
DS3, and DS3B Door Stations.

DMCFRW

Patio Station Retrofi t Mounting Frame

The Model DMCFRW Patio Station Retrofi t
Mounting Frame is used in retrofi t intercom
installations when replacing an older outdoor
patio station with a Model DMC3RW or
DMC4RW Retrofi t Patio Station.

18

DMC3-4 Intercom Systems www.linearcorp.com800.421.1587

(NR8-5)

3-Wire Retrofi t System Diagram

DMC3R DMC3RS

NR8PNR8P

DMCFR

DMC3RW

Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel

DMCFRW

DMCFD

DMC3-4 Intercom Systemswww.linearcorp.com 800.421.1587

19

4-Wire Retrofi t System Diagram

NR8PNR8P

(NR8-5)

DMC4RSDMC4R

DMCFR

DMC4RW

DMC3-4

DMC1CD

Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel

DMC1HC DMCFD

DMCFRW

20

DMC3-4 Intercom Systems www.linearcorp.com800.421.1587

Retrofi t Model Compatibility

RETROFIT INSTALLATION INTERCOM MODEL COMPATIBILITY TABLE

MANUFACTURER

OF OLD INTERCOM

M&S Systems

NuTone

OLD MODEL

TO

RETROFIT

5

6

10 S er ie s

20 Series

30 Series

40 Series

44 Series

52

70

78

80

88 Series

100

150

MC170

200

220

250

300 - MC300

MC302

330

333

338

350 - MC350

MC350A

440 Series

MC500

MC602

MC702

MC800

MC902

2011/2012

2015/2016

2031/2032

2053/2054

2055/2056

2063/2064

2067/2068

2071

2090/2091

2401/2402

2540/2541

2542

2561/2562

IM-203

IM-313

IM-406

IM-3204

IM-3303

IM-4006

IM-4406

IMA-203D

IMA-303

IMA-2003

IMA-3003

IMA-3303

M-3103

SM428

OLD MODEL

WIRING SYSTEM

3-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

6-Wire System

6-Wire System

3-Wire System

7-W ire Sys tem

7-W ire Sys tem

7-W ire Sys tem

7-W ire Sys tem

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

4-Wire System

6-Wire System

7-W ire Sys tem

4-Wire System

6-Wire System

7-W ire Sys tem

7-W ire Sys tem

3-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

5-Wire System

3-Wire System

8-Wire System

6-Wire System

6-Wire System

8-Wire System

3-Wire System

3-Wire System

6-Wire System

4-Wire System

3-Wire System

6-Wire System

6-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

3-Wire System

8-Wire System

RETROFIT WITH
3-WIRE DMC3-4

SYSTEM

✔

✔

✔
✔
✔
✔
✔
✔
✔
✔
✔

✔
✔

✔

✔
✔
✔
✔
✔
✔

RETROFIT WITH

4-WIRE DMC3-4

SYSTEM

✔
✔
✔
✔

✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔

✔

✔

RETROFIT WITH

6-WIRE DMC1

SYSTEM

✔
✔

✔
✔
✔
✔

✔
✔

✔
✔
✔

✔
✔
✔
✔

✔

✔
✔

✔

DMC3-4 Intercom Systemswww.linearcorp.com 800.421.1587

21

DMC-10 Intercom Kit

DMC10-KIT

Structured Wire Intercom Kit

Linear’s new DMC-10 structured wire intercom
system brings robust functionality, installation
simplicit y, and fast and easy expandability to
multi-room / whole-house communications.
Leveraging a structured wiring methodology and
design, the DMC-10 is easy to install and easy to use.

The heart of the system is the Model DMC-10H
Structured Wire Intercom Hub. The system hub is
designed to be grid-mounted inside a structured
wiring enclosure (not included, Linear H312KIT or
H318 recommended). Up to eight room, door, and
patio stations in any combination can be connected
to the system hub using up to 500 feet of standard
CAT-5 cable for each station. For larger installations,
a second system hub can be added for expansion,
providing a total system capacit y of up to 16 stations.

The Model DMC-10AWP Audio Input Wall Plate can
also be added to the system to connect an external
audio source (such as a CD or MP3 player) for
distribution throughout the intercom system. The
room, door, and patio stations showcase a sleek,
modern design, crafted to blend smoothly into the
installation’s decor. Black, almond, and a variety of
metallic fi nish faceplates are available to further
customize each installation. When in use, room
station keypads illuminate with soft blue indicators.

The door and patio station keys are back-lit with
white lighting for easy nighttime operation. Room and
patio stations support several useful features: Privacy
mute disables the station’s microphone to prevent
monitoring from other stations. The do-not-disturb
feature disables the station’s microphone and
speaker to prevent monitoring and interruption.
Hands-free reply lets the person called respond
without having to press any room station keys.

Room, patio, and door stations mount inside standard
2-gang junction boxes making them easy to install
and wire. Each station and the system hub contain
color-coded Type 110 punch-down terminal blocks for
fast and reliable connection to CAT-5 cable. A choice
of three door chime sounds is available for each door
station connected.

For interior stations, use the Model DMC-10RS Room
Stations. For exterior stations, use the Model
DMC-10PS Patio Stations and the Model DMC-10DS
Door Stations. A 12-volt switching power supply is
required with each intercom hub, and is included
with the DMC-10KIT. A 3-amp-rated integral door
release relay is built into each system hub, which
enables remote activation of door release devices,
such as Linear’s optional Model DRW Door Release
Mechanism, from any station.

22

DMC10 Intercom System www.linearcorp.com800.421.1587

ORDE R # DMC-10KIT

DMC-10 Intercom Kit

The Model DMC-10KIT Structured Wire Intercom Kit is a complete, 4-room/1-door intercom system
designed for residential or light commercial applications and structured wire installation methods.

The kit includes the following:

(1) - DMC-10H Structured Wire Intercom Hub

(4) - DMC-10RS Intercom Room Stations

(1) - DMC-10DS Intercom Door Station

(1) - 12-volt Switching Power Supply

FEATURES

• Kit includes white faceplates on door and room stations

• Can support any mix of up to eight room, patio, or door stations (extra stations optional)

• Room stations feature door talk, door release, mute functions, do-not-disturb, hands-free
communications, and audible 8-step digital volume control

• Extended-life white LED backlit doorbell button on door station for easy night operation

• Choose from three distinct chime sounds for door station

• Contemporary design room stations with multi-level blue keypad backlighting

• Almond and black room station faceplates available to match any décor (optional)

• Bright brass, antique brass, and satin nickel door station faceplates available to match any décor (optional)

• Door, room, and patio stations fi t standard 2-gang J-box

• Hub connects to stations with standard CAT-5 wiring (up to 500 feet per station)

• Type 110 punch-down CAT-5 color-coded terminals to connect stations or optional expansion hub

• Privacy mute and door release override is selectable by station

• 3-Amp-rated integral door release relay

• Operational status indicators on hub for each station

• Hub grid-mounts in structured wiring enclosure (not included, Linear H312KIT recommended)

DMC10 Intercom Systemwww.linearcorp.com 800.421.1587

23

DMC-10 Components

DMC-10RS

Intercom Room Station

FEATURES

• Contemporary design with multi-level blue keypad
backlighting

• White faceplate included; almond and black available
to match any decor

• Door talk and door release

• Privacy mute feature

• Do-not-disturb feature

• Hands-free reply

• Audible 8-step digital volume control

• Fits in standard 2-gang J-box

DMC-10DS

Intercom Door Station

ORDER # DMC-10DSORDER # DMC-10RS

FEATURES

• Contemporary design

• White faceplate included; antique brass, bright brass,
and satin nickel available to match any decor

• Connects to intercom hub with standard CAT-5 wiring
(up to 500 feet per station)

• Extended-life white LED backlit doorbell station
for easy night operation

• Hands-free communications for the visitor

• Fits in standard 2-gang J-box

DMC-10H

Structured Wire Intercom Hub

ORDE R # DMC-10H ORDE R # DMC-10PS ORDER # D MC-10AWP

The DMC-10H Structured Wire Intercom
Hub grid mounts in a structured wiring
enclosure (not included, Linear H312KIT
recommended). Up to eight room, door,
and patio stations in any combination can
be connected to the system hub using
up to 500 feet of standard CAT-5 cable
for each station. For larger installations,
a second system hub can be added
for expansion, providing a total system
capacity of up to 16 stations.

DMC-10PS

Intercom Patio Station

FEATURES

• Contemporary design with multi-level
white keypad backlighting

• White faceplate included; antique
brass, bright brass, and satin nickel
available to match any decor

• Door talk

• Privacy mute feature

• Do-not-disturb feature

• Hands-free reply

• Audible 8-step digital volume control

• Fits in standard 2-gang J-box

DMC-10AWP

Audio Input Wall Plate

FEATURES

• External audio input connection
for DMC-10H Structured Wire
Intercom Hub

• Mounts in a single-gang J-box

• Fits Decora® faceplate

• One pair of color-coded RCA jacks

• One dry contact mute output
mini-jack

• LED audio signal indicator

• Adjustable audio level control

24

DMC10 Intercom System www.linearcorp.com800.421.1587

DMC-10 Faceplates

DMC-10DFAB-4

Door Station Faceplates
(4-pack) (Antique Brass)

ORDER # DMC-10DFAB-4

DMC-10DFBB-4

Door Station Faceplates
(4-pack) (Bright Brass)

DMC-10PFAB-4

Patio Station Faceplates
(4-pack) (Antique Brass)

ORDER # DMC-10PFAB-4

DMC-10PFBB-4

Patio Station Faceplates
(4-pack) (Bright Brass)

DMC-10RFA-4

Room Station Faceplates
(4-pack) (Almond)

ORDE R # DMC-10RFA-4

DMC-10RFB-4

Room Station Faceplates
(4-pack) (Black)

ORDER # DMC-10DFBB-4

DMC-10DFSN-4

Door Station Faceplates
(4-pack) (Nickel)

ORDER # DMC-10DFSN-4

DMC-10DFW-4

Door Station Faceplates
(4-pack) (White)

ORDER # DMC-10PFBB-4

DMC-10PFSN-4

Patio Station Faceplates
(4-pack) (Nickel)

ORDER # DMC-10PFSN-4

DMC-10PFW-4

Patio Station Faceplates
(4-pack) (White)

ORDER # DMC-10RF B-4

DMC-10RFW-4

Room Station Faceplates
(4-pack) (White)

ORDE R # DMC-10RFW-4

ORDER # DMC-10DFW-4

ORDE R # DMC-10PFW-4

DMC10 Intercom Systemwww.linearcorp.com 800.421.1587

25

Encore Kit

ENC-KIT-M

Encore Digital Audio Distribution System Kit

Whether this is a new in-home audio system, or
an upgrade to an existing one, the Encore system
is easy to install from scratch, or connect to an
existing structured wire based system using single
run CAT-5 wire. The Encore System Keypads blend
into any home or offi ce interior, with a stylish, non­intrusive look and features a self-intuitive
user-interface that is as easy-to-use as it is
elegant.

FEATURES

• Kit includes everything you need to implement a
4 audio source, 4 zone system, expandable to
32 zones

• Integrated high effi ciency, 50-watts-per-channel
into 4-ohm speakers at less than 1% THD

• Easy to install new or as a retrofi t, requiring only
one CAT-5 run per keypad

• No content loss or distortion with award-winning
DIGI-5 sound technology, from source to keypad

• 2 year limited warranty

The kit includes the following:

(1) - Audio Distribution Hub & Power Supply

(4) - Encore Amplifi ed Keypads

(4) - Source Input Wall Plates

(1) - H275 Universal Mounting Bracket

(1) - Standard Remote

(4) - IR Emitters

ORDE R # ENC -KI T-M

26

Encore Distributed Audio www.linearcorp.com800.421.1587

ORDER # ENC-DRS

Encore Accessories

ENC-DRS

Encore Keypad

FEATURES

• Provides local control of all system functions:
Source selection and volume level
Tone control (bass/treble adjustment)
Balance, loudness and dynamic compression
Mute, do-not-disturb and whole-house music modes

• Built-in Class D Digital Amplifi er provides 50-watts-per­ channel total output power at less than 1% THD

• Built-in IR engine allows for remote control of all
connected audio sources

• Back-lit buttons with auto fade

• Connections for optional Local Input Wall Plate

• CAT-5 wiring connections to the Audio Distribution Hub
and Local Input Wall Plate

®

• DECORA

• Includes white keypad bezel and elegant screwless
wall plate (black and almond also available)

style – fi ts into a standard single-gang box

ORDER # ENC-HUB

ENC-HUB

Encore Hub

FEATURES

• Routes four Source Input Wall Plates and four Keypads
for a 4-source, 4-zone digital audio distribution system,
using CAT-5 wiring

• Use as a 4-Zone Expansion Hub for an existing Encore
system, providing connections for up to four additional
Keypads

• End-to-end digital architecture delivers crystal clear
sound to all zones with no signal loss

• Durable, high-quality punch down connectors

• Keypad power-boost output terminals for longer distances

• Zone pairing – groups multiple zones together for large
rooms

• No PC required for setup – plug in the Encore Keypads
and you’re ready to go

Encore can be inter faced to DMC-10 Intercom System using part
DMC10-AWP. This provides automatic mute feature when the
DMC-10 intercom is active. Contact your Linear Sales
Representative or Technical Support for details.

Note: When ordering the ENC-HUB, either for use as an expansion hub, or as
the primar y intercom hub, an ENC -PS 12-volt switching power supply must
also be ordered.

www.linearcorp.com 800.421.1587

Encore Distributed Audio

27

Encore Accessories

ENC-PS

Power Supply for the ENC-HUB

FEATURES

• Power supply for ENC-HUB System Hub

• 120 VAC input, 26 VDC @ 1.2 Amp output

• Visible green power indicator light

• Output cable has connector for hub

• Green power indicator

• Mounts in structured wiring enclosure or on H275 Universal Bracket

ENC-SIWP

Source Input Wall Plate

ORDER # ENC-SIWP

ORDER # ENC-LIWP

FEATURES

• Provides connectivity to the Audio Distribution Hub for an input source that can be
shared between multiple zones of an Encore Audio Distribution System

• Up to four Source Input Wall Plates can be used per system

• Analog source material connected to RCA jacks is converted to 24-bit SPDIF digital
format (better than CD quality), using high grade A/D converters

• Additional optical and coaxial input jacks are provided for direct connection to digital
output sources

• IR emitter output connector provides IR control of source components remotely

• Input gain adjustment and clipping indicator

• Fits into a standard single-gang box

ENC-LIWP

Local Input Wall Plate

FEATURES

• Provides connectivity to an Encore Keypad for an audio input that can be used
as a fi fth source within a discreet zone of an Encore Audio Distribution System

• One Local Input Wall Plate can be used per Keypad

• Convenient override feature automatically switches to the top set of RCA connectors
when source material is present

• Analog source material connected to RCA jacks is converted to 24-bit SPDIF digital
format (better than CD quality), using high grade A/D converters

• Additional optical and coaxial input jacks are provided for direct connection to
digital output sources

• IR emitter output connector provides IR control of local source components

• Input gain adjustment and clipping indicator

• Fits into a standard single-gang box

28

Encore Distributed Audio www.linearcorp.com800.421.1587

ORDE R # ENC -REM

Encore Accessories

ENC-REM

Encore Remote

FEATURES

• Provides local control of system functions: source selection,
volume control, mute and power

• Credit card size remote control

• Magnetic strip provides the ability to stick remote
to metallic surfaces

• Includes battery

ENC-LRM

Encore Remote

ORDE R # ENC -LR M

FEATURES

• Provides control of all system functions
and source components

• Hand-held learning remote control

• Programmable 4-source capable

• Pre-programmed with Encore controls

• Compatible with major source components

• Dedicated Encore volume, source, bass, treble
and balance controls

• Three IR macro function buttons with built-in IR code library

• Includes batteries

2171

Single-Head IR Emitter

FEATURES

• Repeats IR signals from keypads to source components

• Ten-foot cord with mini plug

• Adhesive back on emitter

Also available in 4-pack. Order # 2171-4.

ORDER # 2171

www.linearcorp.com 800.421.1587

Encore Distributed Audio

29

Rough-In Kits

ORDE R # DMC1H

DMC1H

Wall Housing Kit

The Model DMC1H Wall Housing Kit offers many of the
components needed to rough-in a DMC1 or DMC3-4
intercom system.

The kit includes the following:

(1) - Metal wall housing for DMC1 or DMC3-4

(1) - FM dipole antenna

(1) - Ferrite fi lter

(4) - 1.5-Inch snap-in bushings

(1) - TE5D Transformer Assembly

75 feet of MS4DCXSC Shielded Speaker Cable
25 feet of antenna wire

14-1/4” w x 4-1/2” h

FEATURES

• Rough-in components for professional installation

• Power transformer to power system master included

ORDER # DMC1HC

DMC1HC

Combination Wall Housing Kit

The Model DMC1HC Combination Wall Housing Kit
offers many of the components needed to rough-in a
DMC1 or DMC3-4 intercom system when paired with
a DMC1MM or DMC1CD optional add-on.

The kit includes the following:

(1) - Metal wall housing for DMC1 or DMC3-4 with
DMC1CD or DMC1MM

(1) - FM dipole antenna

(1) - Ferrite fi lter

(1) - TE2D Transformer Assembly

(1) - TE5D Transformer Assembly

75 feet of MS4DCXSC Shielded Speaker Cable
25 feet of antenna wire

14-1/4” w x 11-3/8” h

FEATURES

• Rough-in components for professional installation

• Power transformer to power system master included

®

• Power transformer to power CD changer / iPlay

included

30

Kits & Accessories www.linearcorp.com800.421.1587

DMC1HKIT

Wall Housing Kit and Rough-In-Ring Kit

Rough-In Kits

The Model DMC1HKIT Wall Housing and Rough-in
Ring Kit offers many of the components needed to
rough-in a DMC1 or DMC3-4 intercom system. The
kit also includes rough-in rings for a door speaker,
one outdoor patio station, and four indoor room
stations.

ORDE R # DMC1H

DMC1HCKIT

Combo Wall Housing and Rough-In Ring Kit

The kit includes the following:

(1) - Metal wall housing for DMC1 or DMC3-4

(1) - ME3 Door Speaker Rough-in Enclosure

(1) - DMC1HRW Flush-mount Patio Rough-in Enclosure

(4) - DMC1HR-5 Rough-in Rings

(1) - FM dipole antenna

(1) - Ferrite fi lter

(4) - 1.5-Inch snap-in bushings

(1) - TE5D Transformer Assembly

75 feet of MS4DCXSC Shielded Speaker Cable
25 feet of antenna wire

For system components, order the Model DMC1PACK
Music/Communication System Package.

FEATURES

• Rough-in components for professional installation

• Rough-in rings for one door speaker, one patio station,
and four room stations

• Power transformer to power system master included

The Model DMC1HCKIT Combination Wall Housing
and Rough-in Ring Kit offers many of the components
needed to rough-in a DMC1 or DMC3-4 intercom
system with either the optional DMC1MM Add-on

®

iPlay

Dock - MP3 & CD Player, or Add-on 6-disc
CD Changer. The kit also includes rough-in rings for
a door speaker, one outdoor patio station, and four
indoor room stations.

ORDER # DMC1HCKIT

The kit includes the following:

(1) - Metal wall housing for DMC1 or DMC3-4

(1) - ME3 Door Speaker Rough-in Enclosure

(1) - DMC1HRW Flush-mount Patio Rough-in Enclosure

(4) - DMC1HR-5 Rough-in Rings

(1) - FM dipole antenna

(1) - Ferrite fi lter

(1) - TE2D Transformer Assembly

(1) - TE5D Transformer Assembly

75 feet of MS4DCXSC Shielded Speaker Cable
25 feet of antenna wire

For system components, order the Model DMC1CDPACK
Music/Communication System Package or DMC1MMPACK

FEATURES

• Rough-in components for professional installation

• Rough-in rings for one door speaker, one patio station,
and four room stations

• Power transformer to power system master included

®

• Power transformer to power CD changer / iPlay

included

Kits & Accessorieswww.linearcorp.com 800.421.1587

31

Wire & Cable

ORDER # MS2SX5SC

MS2SX5SC

Shielded Speaker Cable

The Model MS2SX5SC Shielded Speaker Cable is 2-conductor,
22-gauge, shielded cable. The cable is supplied in a 500-foot roll.
The cable’s shielding reduces outside electrical interference from
radio frequency sources.

The cable’s jacket is yellow. The cable contains two solid copper
22-gauge wires with blue and violet insulation. The blue and violet
wires are foil shielded as a pair and have a shield drain wire.

This cable is typically used for connecting a Model NR8P 45-ohm
Intercom Speaker to a Model MVC1 Monaural Volume Control.

MS4DCX5SC

Shielded Door Station Cable

The Model MS4DCX5SC Shielded Door Station Cable is
4-conductor, 22-gauge, shielded cable. The cable is supplied in
a 500-foot roll. The cable’s shielding reduces outside electrical
interference from radio frequency sources.

ORDE R # MS4DCX5SC

ORDER # PBVM127X1

The cable’s jacket is orange. The cable contains four solid copper
22-gauge wires with red, black, orange, and yellow insulation.
The red and black wires are foil shielded as a pair and have a
shield drain wire. The orange and yellow wires are foil shielded
as a pair and have a shield drain wire.

This cable is typically used to connect door stations to DMC1
and DMC3-4 systems.

PBVM127X1

Low-Voltage 2-Conductor Wire Pull Box

The Model PBVM127X1 Low-voltage 2-conductor Wire Pull Box
is 2-conductor 18-gauge wire. The wire is supplied in a 1,000-foot
pull box for easy wire installation.

The cable contains two solid copper 18-gauge wires with red
and white insulation.

This cable is typically used for connecting RT11 Remote
Transformers and DRW Door Release Mechanisms to DMC1
and DMC3-4 systems.

32

Kits & Accessories www.linearcorp.com800.421.1587

Rough-In Components

DMC1HR-5

Room Station Rough-In
Ring (5-pack)

ORDER # DMC1HR-5

The Model DMC1HR-5 Room Station
Rough-in Ring (5-pack) is used to
rough-in indoor room stations used
with a DMC1 Music/Communication
System installation. This rough-in ring
is compatible with DMC1R and all colors
of DMC1RS Indoor Room Stations.

6” w x 5-3/4” h

DMC1HRW

Flush-Mount Patio Station
Rough-In Enclosure

ORDE R # DMC1HRW

The Model DMC1HRW Flush-mount
Rough-in Enclosure is used to rough­in outdoor patio stations used with a
DMC1 Music/Communication System
installation. This metal rough-in enclosure
is compatible with the Model DMC1RW
Patio Station.

4-3/4” w x 4-3/4” h

DMC1HRWS

Surface-Mount Patio Station
Rough-In Enclosure

ORDER # DMC1HRWS

The Model DMC1HRWS Surface­mount Rough-in Enclosure is used to
rough-in outdoor patio stations used
with a DMC1 Music/Communication
System installation. This plastic rough­in enclosure is compatible with the
Model DMC1RW Patio Station.

DS3BXB

Intercom Door Station
Enclosure (Black)

ORDER # DS3BXB

The Model DS3BXB Intercom Door
Station Enclosure is a surface-mount
plastic enclosure. The enclosure is
compatible with Model BD3BN, BD3N,
D3BN, and D3N Door Stations.

DS3BXW

Intercom Door Station
Enclosure (White)

ORDER # DS3BXW

The Model DS3BXW Intercom Door
Station Enclosure is a surface-mount
plastic enclosure. The enclosure is
compatible with Model DS3 and DS3B
Door Stations.

ME3

Recess-Mount Door Station
Rough-In Enclosure

ORDE R # ME3

The Model ME3 Door Station Rough­in Enclosure is used to rough-in door
stations used with DMC1 Music/
Communication System installations.
This rough-in enclosure is compatible
with all colors and models of door
stations except Model DMC-10DS.

3-3/8” w x 5-3/4” h

Kits & Accessorieswww.linearcorp.com 800.421.1587

33

Rough-In Components

SMP8

Large Room/Patio Station
Surface-Mount Enclosure

ORDE R # SMP 8 ORDER # N R8-5 ORDE R # AWPM RX

The Model SMP8 Surface-mount
Enclosure is used in surface-mount
applications to rough-in large format
room and patio stations used with
DMC3-4 Music/Communications
System 4-wire retrofi t installations.

This white plastic rough-in enclosure
is compatible with the Model N68RS
and NW68RS Room and Patio Stations

NR8-5

Ceiling Intercom Speaker
Mounting Ring (5-pack)

The Model NR8-5 Ceiling Intercom
Speaker Mounting Ring (5-pack) is
a rough-in ring designed to fi t 8-inch
Model NR8P Ceiling Intercom Speaker.

AWPMRX

Mono Audio Rough-In Kit

The Model AWPMRX Mono Audio
Rough-in Kit includes a dual-ended
RCA interconnect cable and a single­gang J-box for recessed mounting
of AWP and AWPA Audio Input Wall
Plates.

MVC1 / MVC1A

Monaural Volume Control

MVC1 (White)

MVC1A (Almond)

ORDE R # MVC1 / MVC1A ORDER # NR8P

FEATURES

• Monaural volume control

• Standard white or almond wall plate

• Designed for 45-ohm intercom speakers

• Mounts in single-gang J-box

NR8P

Ceiling Intercom Speaker

FEATURES

• 8-Inch recessed ceiling mount speaker

• 45-Ohm impedance for intercom use

• White frame and white plastic grille

• Requires NR8 Mounting Ring

34

Kits & Accessories www.linearcorp.com800.421.1587

Intercom Accessories

D360

FM Antenna

ORDER # D360

The Model D360 FM Antenna is an
omnidirectional turnstile-design FM
antenna for use with the Model DMC1
and DMC3-4 Music/Communications
Systems. Typically the antenna is
mounted inside the attic. The
antenna connects to the system with
the supplied 30-foot, 300-ohm twin­lead cable.

MC3

3-Note Chime Module

ORDE R # MC3

The Model MC3 3-note Chime Module
is a module that can be installed
in the DMC1 or DMC3-4 Music/
Communication System masters.

To announce a visitor, the intercom
system’s doorbell chime sounds when
the bell button is pressed on a door
station connected to the intercom. The
module can be set to play one, two, or
three notes for the intercom’s doorbell
chime sound, with a different chime for
each door.

MC8

8-Note Chime Module

ORDE R # MC8

The Model MC8 8-note Chime Module
is a module that can be installed
in the DMC1 or DMC3-4 Music/
Communication System Masters.

To announce a visitor, the intercom
system’s doorbell chime sounds when
the bell button is pressed on a door
station connected to the intercom. The
module can be set to play one, two,
four, or eight notes for the intercom’s
doorbell chime sound, with a different
chime for each door.

DMCRAC

Antenna Adapter

ORDER # DMCRAC

The Model DMCRAC Antenna Adapter
is for DMC1 Music/Communication
System master units that are used in
6-wire retrofi t installations. The antenna
adapter converts the DMC1 AM and
FM antenna input connectors to screw
terminals that can connect to the
existing antenna wires in the installation.

The DMCRAC mounts onto the DMC1
radio tuner module and is only required
for 6-wire retrofi t DMC1 installations. For
3-wire and 4-wire retrofi t installations,
the DMC3-4 Music/Communication
Retrofi t System master is factory
equipped with a DMCRAC already
installed.

DMC1QCS

Quick Connect Pack

ORDE R # DMC1QCS

The Model DMC1QCS Quick Connect
Pack contains fi ve replacement
connectors for DMC1 Music/
Communication System installations.
These connectors connect wires from
room and patio stations to the DMC1
master.

The connectors are designed for use
with all cable types. Each connector
has screw-down terminals that secure
the wires.

Kits & Accessorieswww.linearcorp.com 800.421.1587

35

Intercom Accessories

DRW

Door Release Mechanism

ORDER # DRW

The Model DRW Door Release
Mechanism is an electro-mechanical
device that will release a door strike
when activated. The DRW can be used
with DMC1, DMC3-4, and DMC-10
systems to grant access through a
controlled door.

The door release mechanism is powered
by a Model RT11 Power Transformer.
The intercom system provides a relay
contact closure to switch the power
from the transformer to the door release.

RT11

Remote Transformer

ORDER # RT11

The Model RT11 Remote Transformer is
a UL Listed, 24-volt AC with center tap,
40 VA plug-in wall transformer typically
used as a local power supply for the
Model DRW Door Release Mechanism.

The transformer is supplied with a
50-foot, 4-conductor cable.

RT35

Remote Transformer

ORDER # RT35

The Model RT35 Remote Transformer is
a UL Listed, 24-volt AC with center tap,
40 VA direct wire transformer typically
used as a local power supply for the
Model DRW Door Release Mechanism.

TE2D

Transfo rm er Ass embly

ORDER # TE2D

The Model TE2D Transformer Assembly is an ETL Listed,
24-volt AC with center tap, 40-VA direct wire transformer
used to power the Model DMC1MM Add-on iPlay
Dock - MP3 & CD player or the DMC1CD Add-on 6-disc
CD Changer. The transformer mounts in the bottom of a
Model DMC1HC Wall Housing.

The transformer output wires are terminated with a
connector that fi ts either the DMC1CD or DMC1MM units.

®

TE5D

Transfo rm er Ass embly

ORDER # TE5D

The Model TE5D Transformer Assembly is an ETL Listed,
dual-output 16-volt AC, 37-VA direct wire transformer
used to power the Model DMC1 and DMC3-4 Music/
Communications Systems. The transformer mounts in
the bottom of Model DMC1H or DMC1HC Wall Housings.

The transformer output wires are terminated with a
connector that fi ts the DMC1 or DMC3-4 master.

36

Kits & Accessories www.linearcorp.com800.421.1587

Linear Training

Linear University Training

Carlsbad, California

If you have any questions,

feel free to e-mail at:

[e-mail]

or call 1-800- 421-1587 and

ask for your Linear Sales

Representative.

Linear ReferenceLinear Training

Technical Services is the group within Linear LLC that administers Continuing
Education Unit (CEU) activities, courses, and programs. Technical training ensures
the education and meets the goals of the dealers, distributors, and others who sell
Linear branded products.

The technical training manager reviews the policies
and procedures and ensures they meet accreditation
requirements for CEUs. Linear LLC accredits their
training through the National Burglar & Fire Alarm
Association (NBFAA) service of the National Training
School. The review process for every program occurs
every two years at a minimum.

Linear will ensure the training provides adequate
resources to support a positive learning environment.
Instructors will be available to provide assistance and
support to students.

When students meet the requirements for satisfactory
completion of the training program, they are issued a
certifi cate that indicates the title of the program, the
name of the instructor, and the number of CEUs for the
program.

Linear training is provided by qualifi ed personnel with
many years of experience in the fi eld and competence in
their topic of instruction. They also have knowledge and
skill in instructional methods and learning processes.
Feedback is encouraged and collected.

Linear offers three types of FREE training through

LearnLinear.com

Type 1: Instructor-Led Training - Linear University,

Carlsbad, CA

Linear University provides FREE training courses
every month at its Carlsbad, California campus. Many
of the courses offered are CEU Certifi ed and meet
requirements for continuing education credits. This
unique format also creates a personalized setting for
dealers and installers to gain hands-on experience with
Linear products, guided by veteran technical trainers
and product experts. See the training schedule at
learnlinear.com.

Type 2: Self-Paced Training - Recorded Webinars /
Videos

Linear is proud to offer free, pre-recorded training
Webinars/videos for business decision-makers, dealers,
distributors and installers. These Webinars cover the
latest topics, technical training, product overviews, and
more. With courses updated regularly, there’s always
something new to learn! Courses cover many popular
topics.

Type 3: Instructor-Led Training - On Site

In addition to the multitude of Carlsbad, CA-based
training sessions available, Linear offers local on-site
training, which is available based on class size with
Linear Sales Manager approval. Our product trainers or
sales managers can travel the U.S. to provide training at
your facility or at a local distributor.

Referencewww.linearcorp.com 800.421.1587

37

Linear Reference

Technical Support

Linear Technical Support

Linear’s Technical Services Department provides telephone support for our
expanding product line. The group supports nearly 2,000 products in various types
of installations and applications. Application engineers can assist dealers and
installers with their technical questions regarding every Linear product.

The application engineers answer questions regarding
equipment installation, programming, system design,
troubleshooting, and inter-system compatibility.
Questions cover topics such as radio controls, security
systems, access controls, door operators, gate
operators, audio or video equipment, and accessories.
Often, installers simply need fast help with their
installation issues so they can complete the job and
continue on to the next installation. Linear’s quality
and professional technical support staff provides
that service.

The new extended Technical Services Department
telephone service hours (5:00 a.m. to 4:30 p.m. Pacifi c
Time) will be of value to nationwide installers and
company representatives alike. West Coast callers
will be able to call as early as 5:00 am local time,
and East Coast callers will be able to call as late as
7:30 p.m. local time.

Linear Technical Services provides direct access to the
people who know Linear products best. To speak with
a Linear expert, call 1-800-421-1587 and press 3.

38

Reference www.linearcorp.com800.421.1587

Manufacturing Facilities

Linear ReferenceLinear Manufacturing

Linear Manufacturing

Guangdong, China

Sound plans implemented with quality products and solutions to support them
are critical to success in today’s competitive global business environment. With
a state-of-the-art manufacturing facility in China, Linear uses industry-leading
manufacturing technologies that enable production of quality products that
consistently raise the standard in home technology and provide a value you can
depend on in today’s competitive marketplace.

High-performance production tools, advanced
technologies and techniques in design and testing,
integrated circuitry, microchip, and surface mount
technology, as well as the latest electronic component
assembly and quality assurance techniques
are features you can depend on from Linear
manufacturing.

Linear’s overseas manufacturing operation boasts a
staff of more than 1,300 and is ISO 9001:2000 quality
system certifi ed.

Several products in this catalog are assembled in the
U.S.A. using domestic and overseas manufactured
sub-components. Linear’s Michigan facility supports
production and service of slide, swing, and barrier
Gate Operators together with drawbar and jackshaft
Commercial Door Operators.

Referencewww.linearcorp.com 800.421.1587

39

Linear Reference

East & West Coast Distribution Centers

Linear Order Fulfi llment

West Coast

Distribution Center

To streamline order fulfi llment and shorten delivery time for Linear distributors
and dealers, Linear maintains two fully stocked regional distribution facilities
in Vista, California, and Summerville, South Carolina.

Linear’s Western Distribution Center has 90,000
square feet with 19 shipping docks. Linear’s Eastern
Distribution Center boasts 175,000 square feet with
25 shipping docks and is the third largest UPS
shipper in the Charleston, South Carolina area.

Both warehouse locations are completely equipped with
shipping, receiving, and quality control facilities, and
they each stock tens of thousands of Linear products
for security, entry systems, communications, audio/
video/data, central vacuum systems, and personal
emergency response. Each warehouse team receives
dozens of cargo containers each month, processes
hundreds of orders daily, and ships thousands of
packages with Linear goods to worldwide destinations
each day.

40

Reference www.linearcorp.com800.421.1587

East Coast
Distribution Center

Index

Linear Reference

Model /Order # Color Page

2171 29

AWPMR X 34

BD3BN 9, 16

BD3N 9, 16

D360 35

D3BN 9, 16

D3N 9, 16

DMC1 (White) 6

DMC-10AWP 24

DMC-10DFAB-4 (Antique Brass) 25

DMC-10DFBB-4 (Bright Brass) 25

DMC-10DFSN-4 (Nickel) 25

DMC-10DFW-4 ( White) 25

DMC-10DS 24

DMC-10H 24

DMC-10KIT 22, 23

DMC-10PFAB-4 (Antique Brass) 25

DMC-10PFBB-4 (Bright Brass) 25

DMC-10PFSN-4 (Nickel) 25

DMC-10PFW-4 (White) 25

DMC-10PS 24

DMC-10RFA-4 (A lmond ) 25

DMC-10RFB-4 (Black) 25

DMC-10RFW-4 ( White) 25

DMC-10RS 24

DMC1A (Almond) 6

DMC1B (Black) 6

DMC1CD (White) 7

DMC1CDA (Alm ond) 7

DMC1CDB (Black) 7

DMC1CDPACK 5

DMC1F (White) 10

DMC1FA (Almond) 10

DMC1FB (Black) 10

DMC1FG 10

DMC1FRG 10

DMC1H 30

DMC1HC 30

DMC1HCKIT 31

DMC1HKIT 31

DMC1HR-5 33

DMC1HRW 33

DMC1HRWS 33

DMC1MM (White) 7

DMC1MMA (Almond)) 7

DMC1MMB (Bla ck) 7

DMC1MMPACK 5

DMC1PACK 5

DMC1QCS 35

DMC1R 8

DMC1RS (White) 8

DMC1RSA (Al mond) 8

DMC1RSB (Black) 8

DMC1RW (White) 8

DMC1RWA (Almo nd) 8

DMC1RWB (Black) 8

DMC3-4 (White) 13

DMC3- 4A (Almond) 13

Model /Order # Color Page

DMC3-4B (Black) 13

DMC3R 14

DMC3RS (White) 14

DMC3RS A (Almond) 14

DMC3RSB (Black) 14

DMC3RW (White) 14

DMC3RWA (Almond) 14

DMC3RWB (Black) 14

DMC4R 14

DMC4RS (White) 14

DMC4RS A (Almo nd) 14

DMC4RSB (Black) 14

DMC4RW DMC4RW 21

DMCFC ( White) 17

DMCFCA (Almond) 17

DMCFCB (Black) 17

DMCFD 18

DMCFM ( White) 17

DMCFMA (Almond) 17

DMCFMB (Black) 17

DMCFR White) 18

DMCFRA (Almond) 18

DMCFRB (Black) 18

DMCFRW 18

DMCRAC 35

DRW 36

DS3 9, 16

DS3B 9, 16

DS3B2 DS3B2 37

DS3BXB 33

DS3BXW 33

DS3NB 9, 16

ENC-DRS 27

ENC-HUB 27

ENC-KIT-M 26

ENC-LIWP 28

ENC-LRM 29

ENC-PS 28

ENC-REM 29

ENC-SIWP 28

MC3 35

MC8 35

ME3 33

MS2SX5SC 32

MS4DCX5SC 32

MVC1 (White) 34

MVC1A (Almo nd) 34

N68RS 15

NR8-5 34

NR8P 34

NW65RS 15

NW68RS 15

PBVM127X1 32

RT11 36

RT35 36

SMP8 34

TE2D 36

TE5D 36

Referencewww.linearcorp.com 800.421.1587

41

Linear LLC | 1950 Camino Vida Roble | Suite 150 | Carlsbad, CA 92008 | 800.421.1587 | www.linearcorp.com

P/N 232632 A X1
