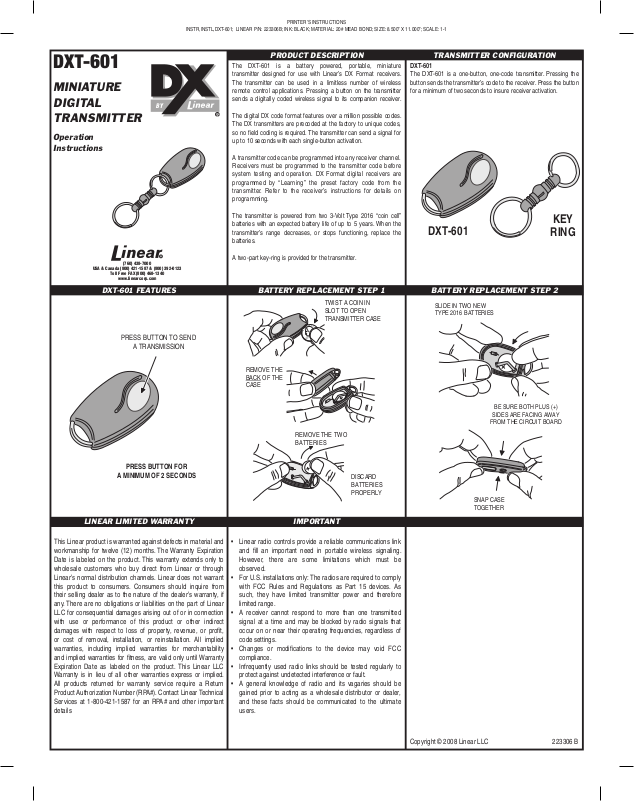

Linear DXT-601 Operating Instruction

DXT-601

KEY

RING

MINIATURE DIGITAL TRANSMITTER

Operation Instructions

PRODUCT DESCRIPTION

The DXT-601 is a battery powered, portable, miniature transmitter designed for use with Linear’s DX Format receivers. The transmitter can be used in a limitless number of wireless remote control applications. Pressing a button on the transmitter

sends a digitally coded wireless signal to its companion receiver.

The digital DX code format features over a million possible codes. The DX transmitters are precoded at the factory to unique codes, so no ﬁ eld coding is required. The transmitter can send a signal for up to 10 seconds with each single-button activation.

A transmi tter code can be pr ogrammed into any receiver channel. Receivers must be programmed to the transmitter code before system testing and operation. DX Format digital receivers are programmed by “Learning” the preset factory code from the transmi tter. Refer to the receiver’s instru ctions for detail s on programming.

The transmitter is powered from two 3-Volt Type 2016 “coin cell” batteries with an expected battery life of up to 5 years. When the transmitter’s range decreases, or stops functioning, replace the batteries.

TRANSMITTER CONFIGURATION

DXT-601

The DXT-601 is a one-button, one-code transmitter. Pressing the button sends the transmitter’s code to the receiver. Press the button for a minimum of two seconds to insure receiver activation.

DXT-601

USA & Canada (800) 421-1587 & (800) 392-0123

(760) 438-7000

Toll Free FAX (800) 468-1340

www.linearcorp.com

A two-part key-ring is provided for the transmitter.

DXT-601 FE ATURES BATTERY REPLACEMENT STEP 1 BATTERY REPLACEMENT STEP 2

PRESS BUTTON TO SEND

A TRANSMISSION

PRESS BUTTON FOR

A MINIMUM OF 2 SECONDS

LINEAR LIMITED WARRANTY

TWIST A COIN IN SLOT TO OPEN TRANSMITTER CASE

REMOVE THE BACK OF THE CASE

REMOVE THE TWO BATTERIES

DISCARD BATTERIES PROPERLY

IMPORTANT

SLIDE IN TWO NEW TYPE 2016 BATTERIES

BE SURE BOTH PLUS (+)

SIDES ARE FACING AWAY

FROM THE CIRCUIT BOARD

SNAP CASE TOGETHER

This Linear product is warranted against defects in material and workmanship for twelve (12) months. The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale customers who buy direct from Linear or through Linear’s normal distribution channels. Linear does not warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC for consequential damages arising out of or in connection with use or performance of this product or other indirect damages with respect to loss of property, revenue, or proﬁ t, or cost of removal, installation, or reinstallation. All implied warranties, including implied warranties for merchantability and implied warranties for ﬁ tness, are valid only until Warranty Expiration Date as labeled on the product. This Linear LLC Warranty is in lieu of all other warranties express or implied. All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-421-1587 for an RPA# and other impor tant details

• Linear radio controls provide a reliable communications link and ﬁ ll an important need in portable wireless signaling. However, there are some limitations which must be observed.

• For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such, they have limited transmitter power and therefore limited range.

• A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies, regardless of code settings.

• Changes or modiﬁ cations to the device may void FCC compliance.

• Infrequently used radio links should be tested regularly to protect against undetected interference or fault.

• A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale distributor or dealer, and these facts should be communicated to the ultimate users.
