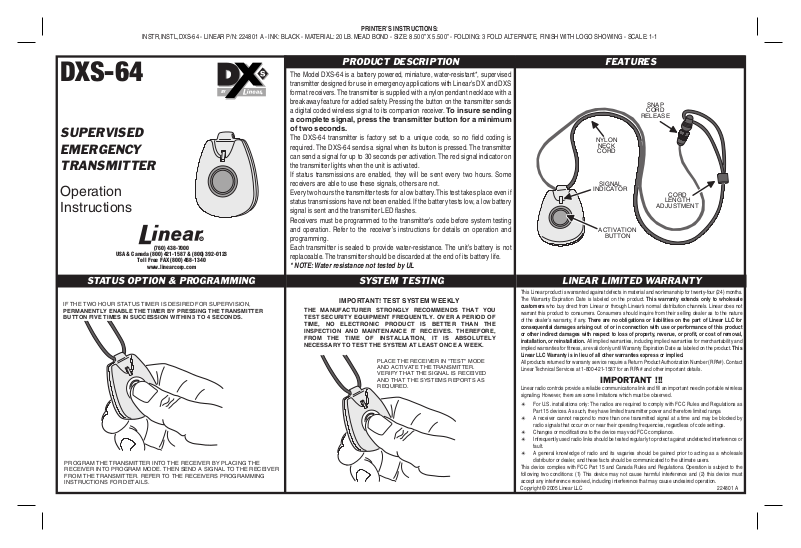

Linear DXS-64 User Manual

DXS-64

SUPERVISED
EMERGENCY
TRANSMITTER

Operation
Instructions

USA & Canada [phone] & [phone]

Toll Free FAX [phone]

[phone]

www.linearcorp.com

The Model DXS-64 is a battery powered, miniature, water-resistant*, supervised

PRODUCT DESCRIPTION

BY

transmitter designed for use in emergency applications with Linear’s DX and DXS
format receivers. The transmitter is supplied with a nylon pendant necklace with a
breakaway feature for added safety. Pressing the button on the transmitter sends
a digital coded wireless signal to its companion receiver. To insure sending

a complete signal, press the transmitter button for a minimum
of two seconds.

The DXS-64 transmitter is factory set to a unique code, so no fi eld coding is
required. The DXS-64 sends a signal when its button is pressed. The transmitter
can send a signal for up to 30 seconds per activation. The red signal indicator on
the transmitter lights when the unit is activated.
If status transmissions are enabled, they will be sent every two hours. Some
receivers are able to use these signals, others are not.
Every two hours the transmitter tests for a low battery. This test takes place even if
status transmissions have not been enabled. If the battery tests low, a low battery
signal is sent and the transmitter LED fl ashes.
Receivers must be programmed to the transmitter’s code before system testing
and operation. Refer to the receiver’s instructions for details on operation and
programming.
Each transmitter is sealed to provide water-resistance. The unit’s battery is not
replaceable. The transmitter should be discarded at the end of its battery life.

* NOTE: Water resistance not tested by UL

FEATURES

NYLON

NECK
CORD

SIGNAL

INDICATOR

ACTIVATION

BUTTON

STATUS OPTION & PROGRAMMING SYSTEM TESTING LINEAR LIMITED WARRANTY

This Linear product is warranted against defects in material and workmanship for twenty-four (24) months.

IF THE TWO HOUR STATUS TIMER IS DESIRED FOR SUPERVISION,

PERMANENTLY ENABLE THE TIMER BY PRESSING THE TRANSMITTER
BUTTON FIVE TIMES IN SUCCESSION WITHIN 3 TO 4 SECONDS.

PROGRAM THE TRANSMITTER INTO THE RECEIVER BY PLACING THE
RECEIVER INTO PROGRAM MODE. THEN SEND A SIGNAL TO THE RECEIVER
FROM THE TRANSMITTER. REFER TO THE RECEIVERS PROGRAMMING
INSTRUCTIONS FOR DETAILS.

THE MANUFACTURER STRONGLY RECOMMENDS THAT YOU
TEST SECURITY EQUIPMENT FREQUENTLY. OVER A PERIOD OF
TIME, NO ELECTRONIC PRODUCT IS BETTER THAN THE
INSPECTION AND MAINTENANCE IT RECEIVES. THEREFORE,
FROM THE TIME OF INSTALLATION, IT IS ABSOLUTELY
NECESSARY TO TEST THE SYSTEM AT LEAST ONCE A WEEK.

IMPORTANT! TEST SYSTEM WEEKLY

PLACE THE RECEIVER IN "TEST" MODE
AND ACTIVATE THE TRANSMITTER.
VERIFY THAT THE SIGNAL IS RECEIVED
AND THAT THE SYSTEMS REPORTS AS
REQUIRED.

The Warranty Expiration Date is labeled on the product. This warranty extends only to wholesale
customers who buy direct from Linear or through Linear’s normal distribution channels. Linear does not

warrant this product to consumers. Consumers should inquire from their selling dealer as to the nature
of the dealer’s warranty, if any. There are no obligations or liabilities on the part of Linear LLC for

consequential damages arising out of or in connection with use or performance of this product
or other indirect damages with respect to loss of property, revenue, or profi t, or cost of removal,
installation, or reinstallation. All implied warranties, including implied warranties for merchantability and
implied warranties for fi tness, are valid only until Warranty Expiration Date as labeled on the product. This
Linear LLC Warranty is in lieu of all other warranties express or implied.

All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact
Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.

Linear radio controls provide a reliable communications link and fi ll an important need in portable wireless
signaling. However, there are some limitations which must be observed.

 For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as

Part 15 devices. As such, they have limited transmitter power and therefore limited range.

 A receiver cannot respond to more than one transmitted signal at a time and may be blocked by

radio signals that occur on or near their operating frequencies, regardless of code settings.

 Changes or modifi cations to the device may void FCC compliance.
 Infrequently used radio links should be tested regularly to protect against undetected interference or

fault.

 A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale

distributor or dealer, and these facts should be communicated to the ultimate users.
This device complies with FCC Part 15 and Canada Rules and Regulations. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Copyright © 2005 Linear LLC 224801 A

IMPORTANT !!!

SNAP
CORD

RELEASE

ADJUSTMENT

CORD

LENGTH
