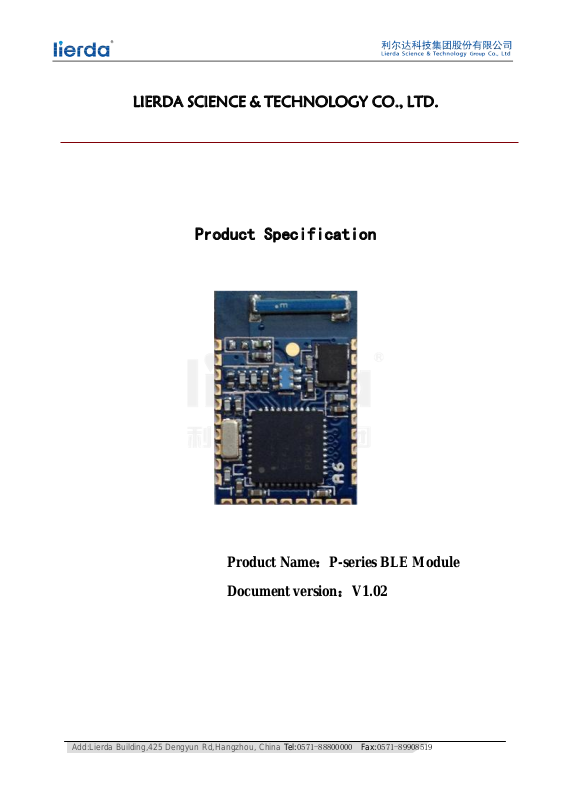

Lierda Science and Technology Group LSD4BTP74MSTD1 Users manual
LIERDA SCIENCE & TECHNOLOGY CO., LTD.
Product Specification
Product Name：P-series BLE Module
Document version：V1.02
Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519
Contents
Chapter 1 Feature ............................................................................................................................................ 1
Chapter 2 Parameters ...................................................................................................................................... 2
Chapter 3 Product Specification ..................................................................................................................... 3

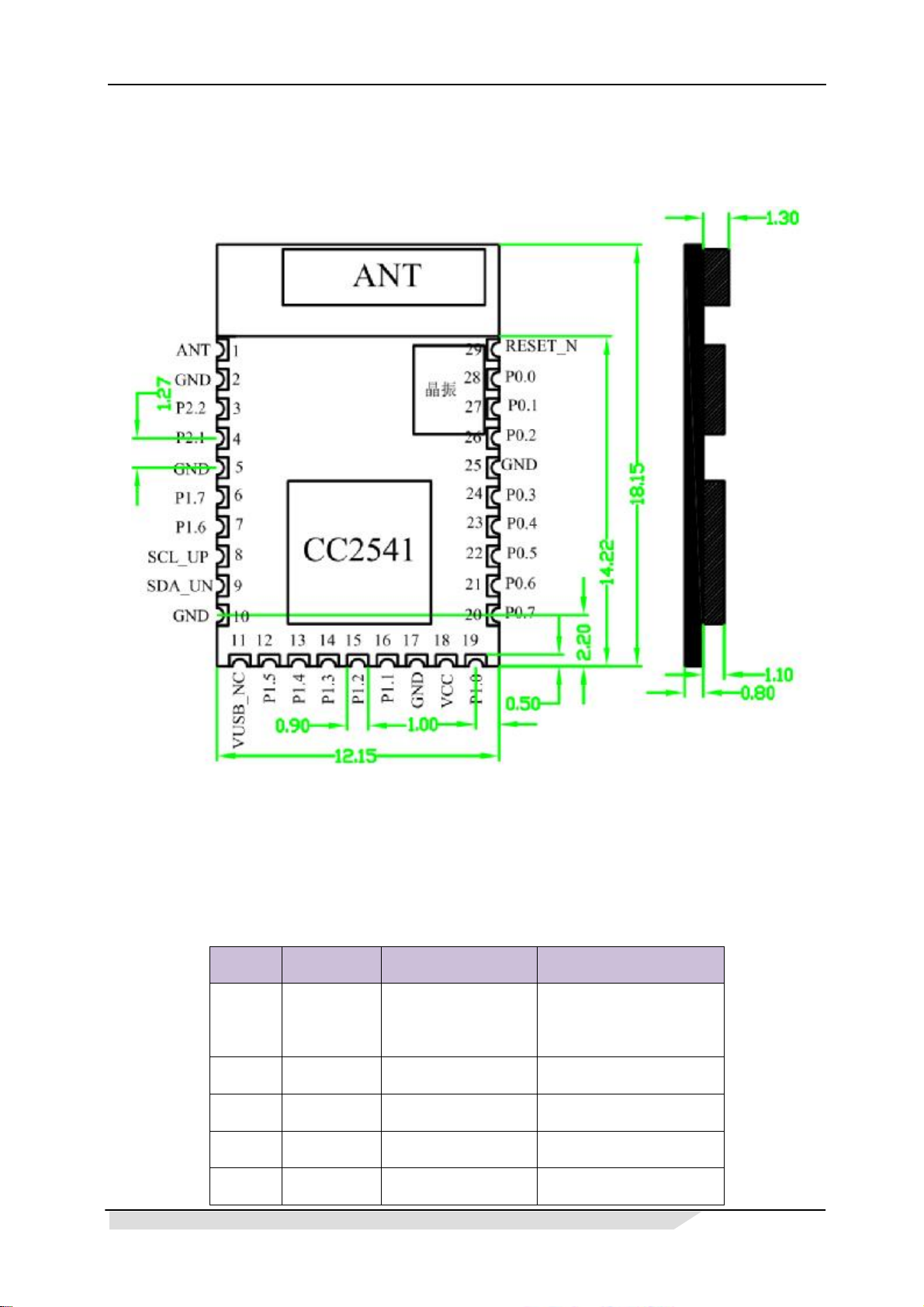

3.1 boundary dimension ............................................................................................................................. 3
3.2 Pin Definition ....................................................................................................................................... 3

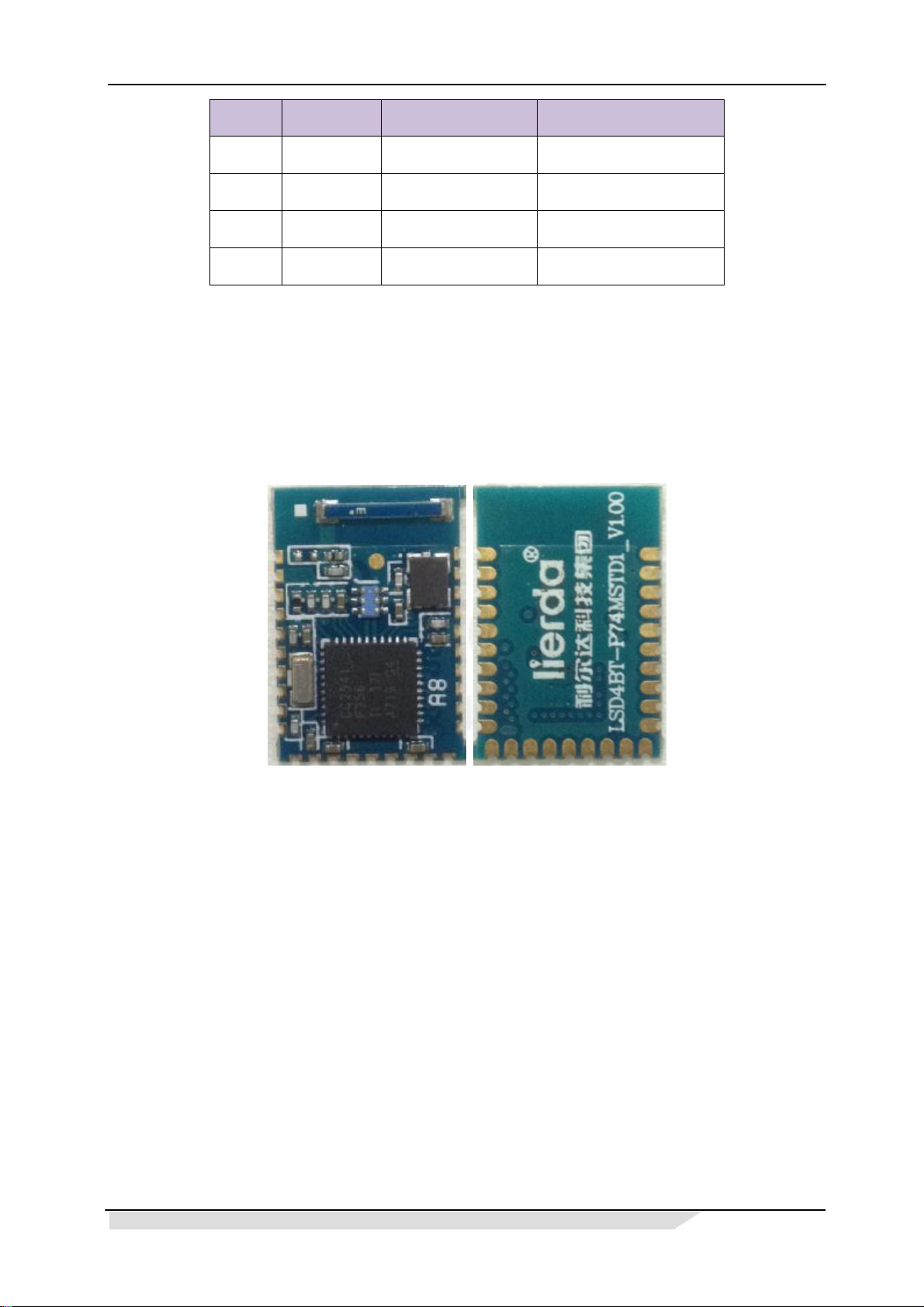

3.3 real product show ................................................................................................................................. 4

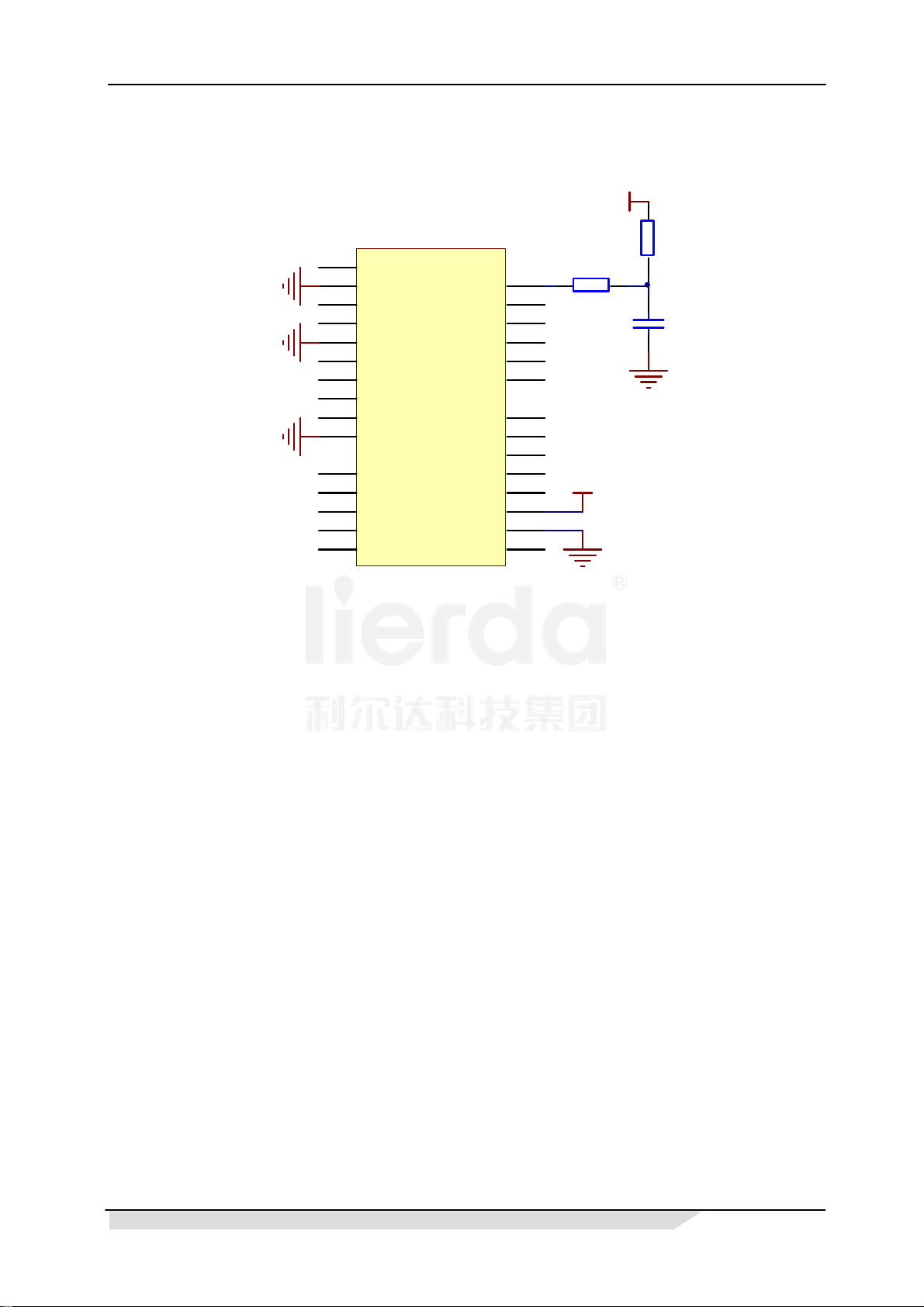

Chapter 4 Typical Circuit ................................................................................................................................ 5

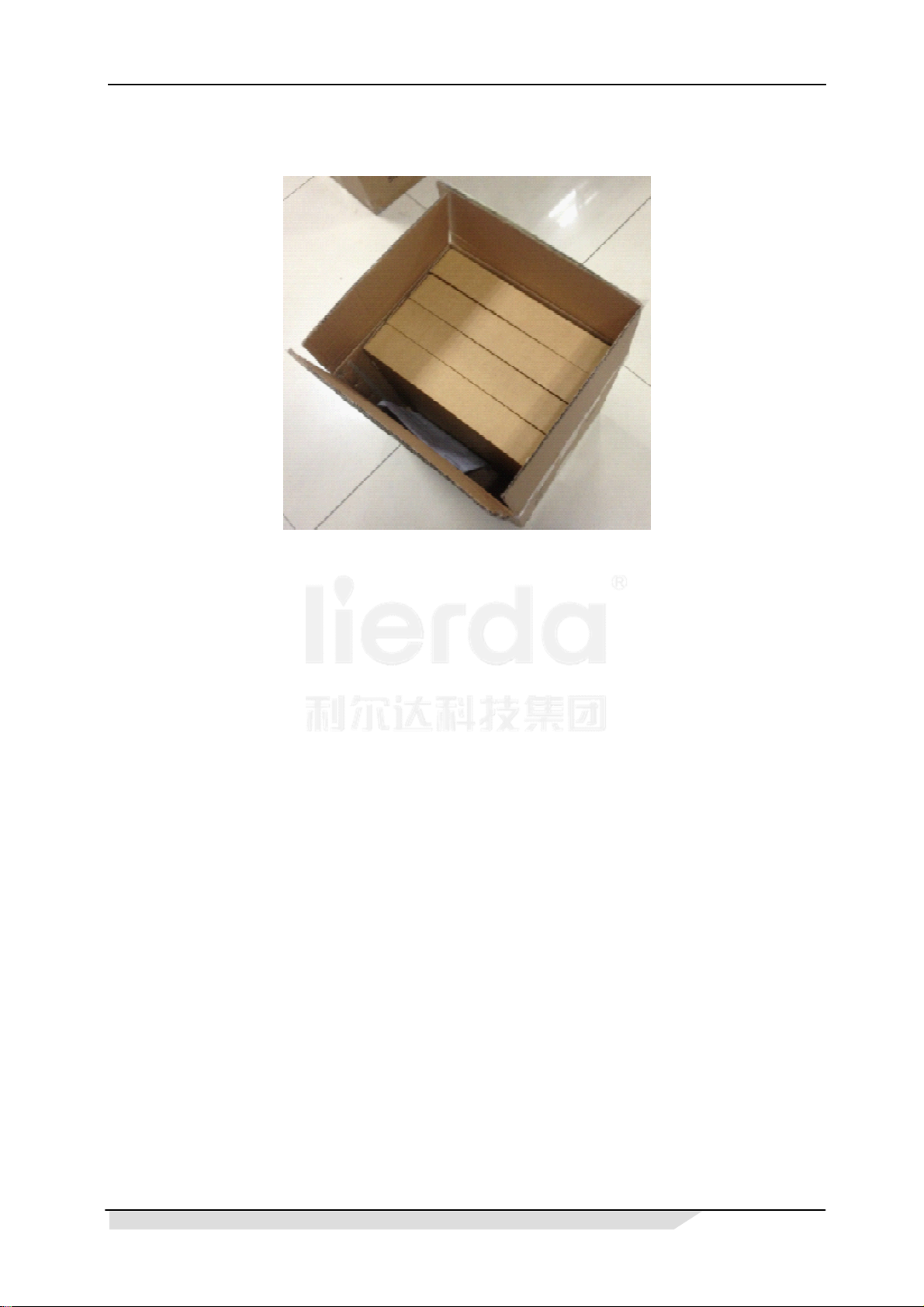

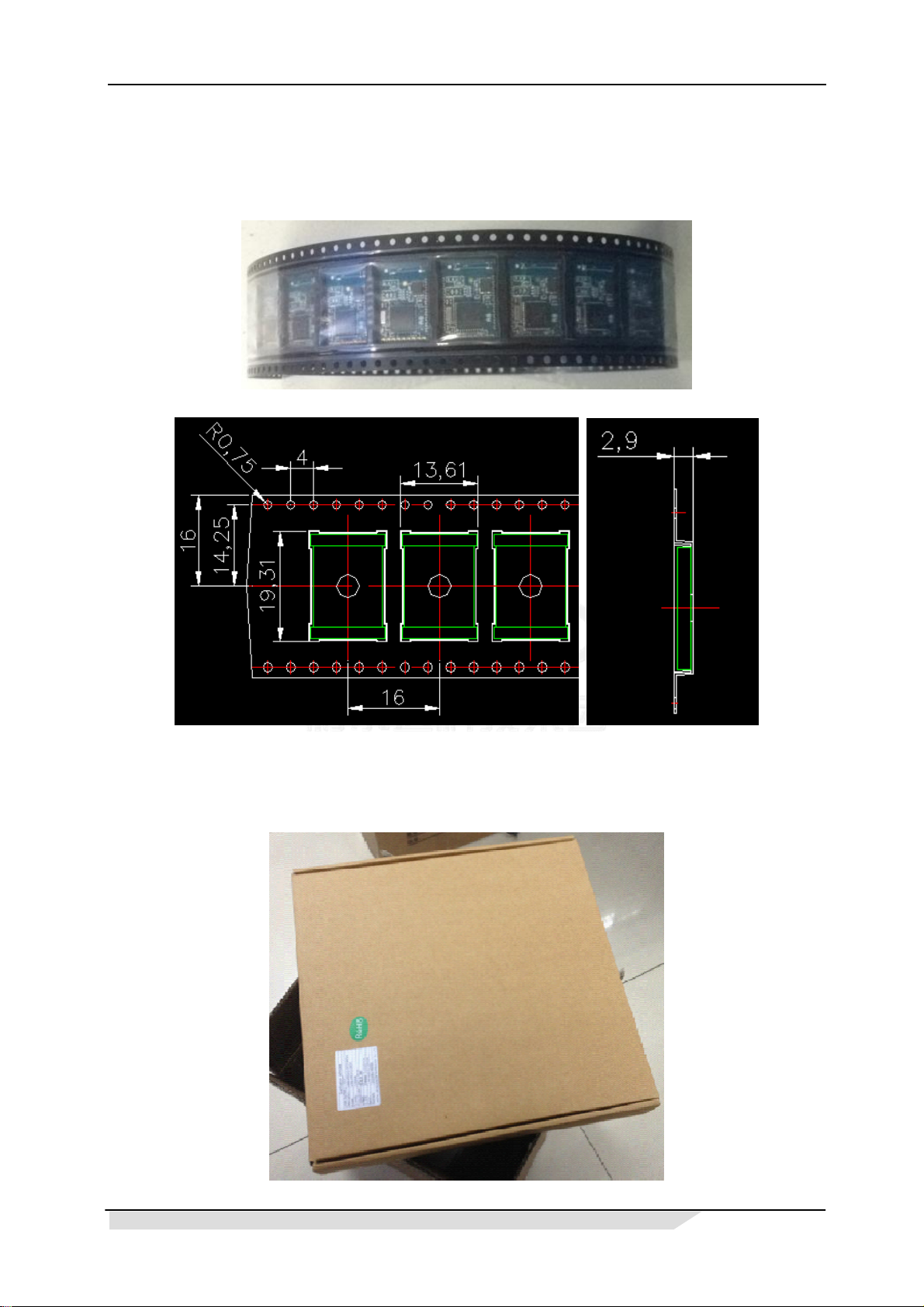

Chapter 5 Pakge .............................................................................................................................................. 6
Appendix One BLE Profile brief introduction .............................................................................................. 8
Notes to users ................................................................................................................................................... 11
Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519
Chapter 1 Feature
Lierda P-Series Low Power Consumption High performance Bluetooth transceiver Module
is designed based on TI CC2541 chip. The Module has ceramic integrate antenna, and
adopts SMT attachment interface. It has a complete open port which reduces hardware
design difficulties and also provide high structural and software flexibility for users. The
module has low power consumption, a compact size and have high resistance to disturbance.
Based on different kinds of application firmware, Product Model offered as sheet 1-1.
Sheet 1-1 Product Model
Product Name
Model number
Remark
No software, user development
P-series BLE Module-hardware only LSD4BT-P74MSTD1
by themselves。
Lierda BLE application in
P-series BLE Module-unvarnished
LSD4BT-P74MMST2
unvarnished transmission,the
transmission master
master device
Lierda BLE application in
P-series BLE Module-unvarnished
LSD4BT-P74MLSP2
unvarnished transmission,the
transmission slave
slave device
Lierda P-series Module can be applicable to many occasions：
Ø 2.4GHz low power consumption Bluetooth system
Ø PC, Tablet and other BLE Handheld devices (HID device, Remote Control)
Ø Consumers electronics such as physical, medical and so on
Ø Wireless network system such as Smart meters and data collection
Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519
Page 1
Chapter 2 Parameters
Sheet 2-1 Module Parameters
Item
Supply voltage 2.0 ~ 3.6 V（classic 3.3V）
frequency
2402 ~ 2480 MHz
Emitting
Power consumption
Receiving
Parameters
≤ 25 mA
≤ 25 mA
Low power may cause failure.
Over power may damage device
@0dBm , MCU-32MHz
@MCU-32MHz
Sleep ≤ 1 uA Sleep Mode
Emission power (-23dBm ~0dBm) ±1dBm Programmable
Operating ambient
-20℃ ~ 70 ℃
temperature range
Storage temperature
-40℃ ~ 85 ℃
range
channel 40
3 broadcast channel and 37 data
transmission channel
Remarks
modulation format GFSK Aaptive frequency hopping
Communication
I/O Control 0 ~ VCC
Air baud rate 1Mbps
Transmission distance ≈20m Open and visual environment
Port type 1.27 mm Single row* 3 SMT
gain of Antenna
Application Refer the appendix one
Operating Humidity
BLE standrd
2 dBi (Typical)
30%~70%
range
All the parameters are tested at the environment of 25℃±3℃
Transmission distance is affected by the temperature and humidity and is only for reference
Add:Lierda Building,425 Dengyun Rd,Hangzhou, China Tel:0571-88800000 Fax:0571-89908519
Page 2
