LSD4BT212-06D0

BT Module Product Specification

and User Manual

Name:

Model:

BT Module

LSD4BT212-02D0

Version:

V1.0

FCC Caution:

Any Changes or modifications not expressly approved by the responsible

party could void the user’s authority to operate the equipment.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. This transmitter must not be co-located

or operating in conjunction with any other antenna or transmitter.

To satisfy FCC RF Exposure requirements for this transmission devices, a

separation distance of 20 cm or more should be maintained between the

antenna of this device and persons during operation.

If used in portable product to do SAR evaluation and testing.

This equipment complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1).This device may not cause harmful interference, and

2).This device must accept any interference received, including

interference that may cause undesired operation.

OEM Labeling Requirements:

NOTICE: The OEM or final integrator must ensure that FCC labeling

requirement are met. This includes an additional label on the outside of

the final product housing with the following contents:

Company Name
MODEL:
Contains Model: LSD4BT212-06D0, FCC ID:N8NLSD4BT212-06D0

This device complies with Part 15 of the FCC Rules. Operation is subjected to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.

1. Functional characteristics

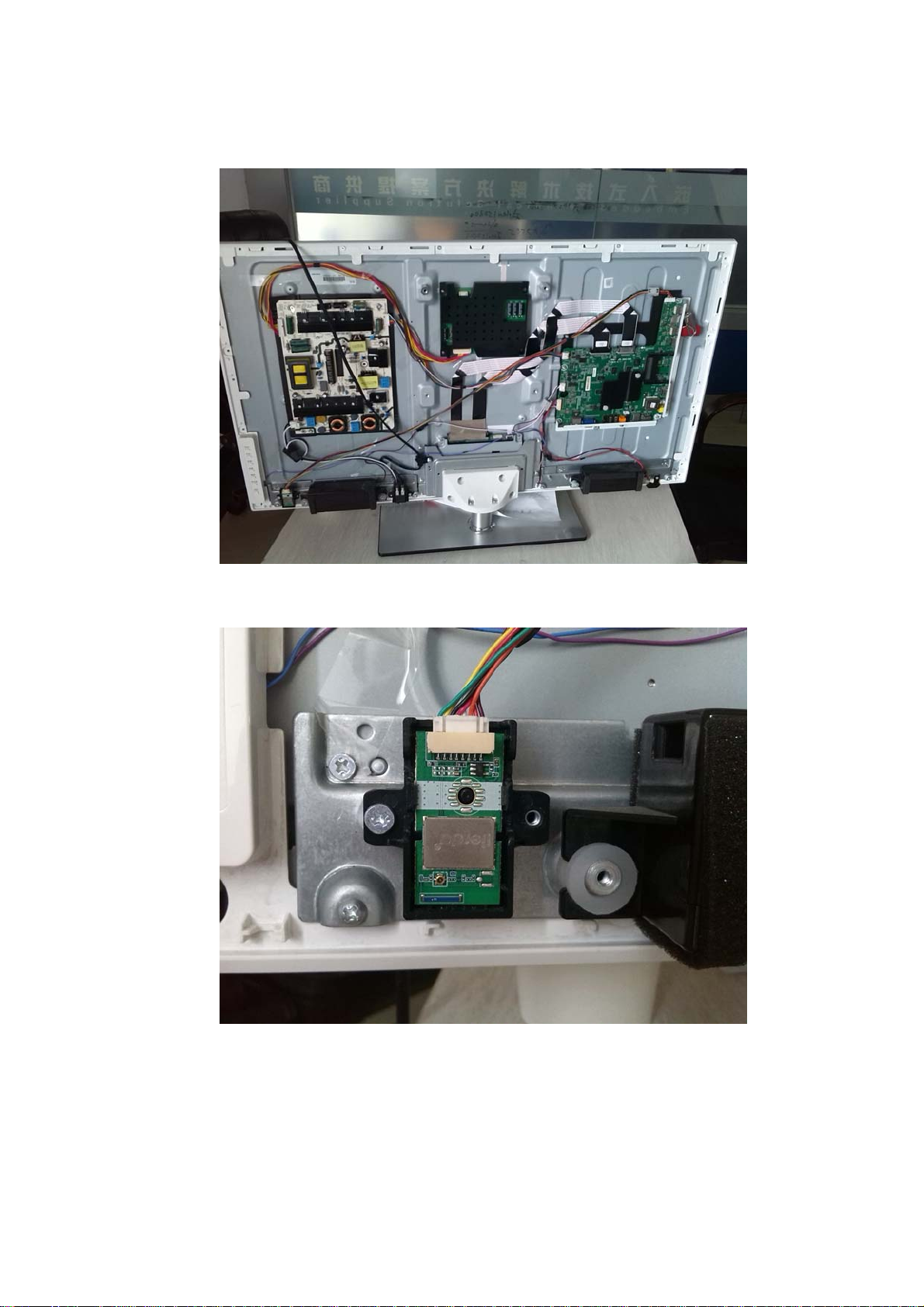

LSD4BT212-06D0 is based on Broadcom Bluetooth chip

BCM20705, designed specifically for Hisense TV Bluetooth module, can

be widely applied in the field of short-range wireless communications for

all occasions, it has small size, low power consumption, transmission

distance, anti-interference ability, and low cost.

The module antenna is ceramic antenna, the overall design is

compact, small size, the interface is completely open, customers in the

use of RF hardware design eliminates the difficulty, while the software

and product structure more flexible secondary development of space.
