Page 1

Crawler Excavator R 950 SME

litronic

Operating Weight: 42,950 – 44,800 kg Engine Output: 220 kW / 300 HP Bucket Capacity: 2.00 – 2.75 m

Page 2

Technical Data

Engine

Rating per ISO 9249

��

Model

��

Type Bore/Stroke Displacement Engine operation

Exhaust gas treatment

��

Cooling

Air cleaner

Fuel tank Electrical system Voltage Batteries Starter Alternator Engine idling Motor management

��

220 kW (300 HP) at 1,800 RPM Liebherr D 936 A7 6 cylinder in-line 122/150 mm

10.52 l 4-stroke diesel

Common-rail, bi-turbo

particle filter with active regeneration

emission standard level IIIB / Tier 4i

water-cooled and integrated motor oil cooler,

after-cooled and fuel cooled

dry-type air cleaner with pre-cleaner, primary and

safety elements

780 l

24 V 2 x 180 Ah/12 V 24 V/7.8 kW three phase current 28 V/100 A sensor-controlled connection to the integrated bagger system con-

trolling via CAN-BUS to the economical utilisation of the service that is available

Hydraulic System

Hydraulic system

Hydraulic pump

Max. flow Max. pressure Pump management

Hydraulic tank Hydraulic system Hydraulic oil filter Hydraulic oil cooler

MODE selection

RPM adjustment

Liebherr Tool-Control

��

Positive Control. Dual circuit hydraulic system for independent and need-based quantity allotment via the hydraulic pumps; sensor-guided. Features high system dynamics and sensibility provided by integrated system controlling

Liebherr variable displacement pump built in

transversal plate style, in parallel arrangement

with integrated transfer box 2 x 305 l/min. 380 bar electronic pump management via the integrated

system controlling (CAN-BUS) synchronous to

the control block 340 l max. 590 l 1 full flow filter (10 μm) in return line compact cooler, consisting of a water cooler,

sandwiched with hydraulic oil cooler, gearbox oil

cooler, fuel cooler and after-cooler cores and

hydrostatically driven fan adjustment of engine and hydraulic performance

via a mode pre-selector to match application, e.g.

for especially economical and environmentally

v friendly operation or for maximum digging per-

formance and heavy-duty jobs stepless adjustment of engine output via RPM at

each selected mode 10 preadjustable pump flows and pressures for

add-on tools

Hydraulic Controls

The controlling is conducted via the integrated bagger system technology, input and output modules, communicated via the CAN-BUS with the electronic central unit.

Power distribution Servo circuit Attachment and swing Travel

– speed pre-selection Additional functions

��

via control valve with integrated safety valves

��

proportional via joystick levers – with proportionally functioning foot pedals and

adjusted with a plugable lever

proportional regulation via slide switches or foot

pedals

Swing Drive

��

Drive by

Transmission Swing ring

Swing speed Swing torque Holding brake

��

Operator’s Cab

��

Cab

Operator’s seat

Control system Operation and displays

Air-conditioning

Noise emission ISO 6396 2000/14/EC

��

Undercarriage

��

S-HD

��

Drive

Transmission Travel speed

Net drawbar pull on crawler Track components Track rollers/Carrier rollers Tracks Track pads Digging locks

Lashing eyes

��

Attachment

��

Type

Hydraulic cylinders

��

Pivots Lubrication

Hydraulic connections

��

Bucket

��

Liebherr swash plate motor, shockless and anti-

reaction Liebherr compact planetary reduction gear Liebherr, sealed single race ball bearing swing

ring, internal teeth 0 – 10 RPM stepless 125 kNm wet multi-disc (spring applied, pressure released)

ROPS safety cab structure with individual wind-

screens or featuring a slide-in subpart under the

ceiling, work headlights integrated in the ceiling,

adoor with a side window (can be opened on

both sides), large stowing and depositing possi-

bilities, shock-absorbing suspension, sound-

damping insulating, tinted laminated safety glass,

separate window shades for the sunroof window

and windscreen, 12 V plug, storage bins, lunch-

box, cup holder Liebherr-Comfort seat, airsprung with automatic

weight adjustment, vertical and horizontal seat

damping including consoles and joysticks. Seat

and armrests adjustable separately and in combi-

nation, seat heating as standard arm consoles, swinging with the seat large high resolution colour display with self-

explanatory operation via touch screen, video,

versatile adjusting, control and monitoring facili-

ties, e.g. climate control, implement and tool

parameters standard automatic air-conditioning, ambient air

function, fast de-icing and demisting at the press

of a button, air vents can be operated via a menu;

ambient air and fresh air filters can be easily

replaced and are accessible from the outside;

heating-cooling unit, designed for extreme out-

side temperatures, sensors for solar radiation,

inside and outside temperatures

LpA (inside cab) = 72 dB(A) LWA (surround noise) = 106 dB(A)

gauge 2,900 mm Liebherr swash plate motors with integrated

brake valves on both sides Liebherr planetary reduction gears low range – 3.0 km/h

high range – 4.9 km/h

��

348 kN D 7 G, maintenance-free

��

10/2 sealed and greased triple-grouser wet multi-discs (spring applied, pressure

released) integrated

combination of resistant steel plates and cast

steels components Liebherr cylinders with special seal-system,

shock protection sealed, low maintenance automatic central lubrication system (except link

and tilt geometry) pipes and hoses equipped with SAE splitflange

connections fitted as standard with Liebherr tooth system

2 R 950 SME Litronic

Page 3

Dimensions

mm A* 2,993 C 3,260/3,455** D 3,470 E 3,500 H 2,890 K 1,280 L 4,400 P 1,155 Q 550 S 2,900 U 5,370 Z 6,145 N 500 600 750 B 3,462 3,500 3,650 G 3,712 3,712 3,712

* without door stop device and spacer ** with FOPS top guard

Gooseneck Boom 6.45 m SME Stick Length 2.60 m SME mm

V 7,050 W 3,450 X 11,350

R 950 SME Litronic 3

Page 4

Backhoe Attachment

with Gooseneck Boom 6.45 m SME

-10

-15

-20

-25

mft

-1

-5

-2

-3

-4

-5

-6

-7

-8 0 m123456789101112

Digging Envelope

Stick length m 2.60 SME Max. digging depth m 7.00 Max. reach at ground level m 10.92 Max. dump height m 6.98 Max. teeth height m 10.85

Digging force ISO kN 211 t 21.5 Breakout force ISO kN 255 t 26.0

Operating Weight and Ground Pressure

Operating weight includes basic machine with gooseneck boom SME

6.45 m, stick SME 2.60 m and bucket HD 2.50 m

Undercarriage S-HD

Pad width mm 500 600 750 Weight kg 42,950 43,550 44,800 Ground pressure kg/cm

(2,000 kg).

0.91 0.77 0.63

0 ft

510152025303540

R0055

Buckets Machine stability per ISO 10567* (75 % of tipping capacity)

S-HD-Undercarriage

SME Attachment

Cutting

width

Capacity

ISO 7451

mm m

1,650 2.00 2,600 2,550

HDV

1,650 2.25 2,800 – 1,650 2.00 1,720 1,660

1,650 2.25 1,830 1,780

1,850 2.50 2,000 1,950 1,850 2.75 2,050 2,000

kg kg without quick change adapter with quick change adapter

* Indicated loads are based on ISO 10567 max. stick length, lifted 360° on firm

HDV bucket with teeth Z 70 (appropriate for materials above classification 6, according to VOB, Section C, DIN 18300)

HD bucket with teeth Z 50 (appropriate for materials above classification 6, according to VOB, Section C, DIN 18300)

Rock bucket for direct fitting

Rock bucket for fitting to quick change adapter

Other backhoes available on request

Max. material weight

Weight3)Weight

= ≤ 2.2 t/m3,

= ≤ 1.8 t/m3,

Y V

–

X X Y V

= ≤ 1.5 t/m3,

= ≤ 1.2 t/m

X Y V y

4 R 950 SME Litronic

Page 5

Lift Capacities

with Gooseneck Boom 6.45 m SME

Stick 2.60 m SME

3.0 m 4.5 m 6.0 m 7.5 m 9.0 m Under-

carriage

7.5

6.0

4.5

3.0

1.5 0

S-HD

– 1.5 – 3.0 – 4.5

Height Can be slewed though 360° In longitudinal position of undercarriage Max. reach * Limited by hydr. capacity

The load values are quoted in tons (t) at stick end (without bucket), and may be swung 360° on firm and even ground. Adjacent values are valid forthe undercarriage when in the longitudinal position. Capacities are valid for 600 mm wide triple-grouser pads. Indicated loads are based on ISO10567 standard and do not exceed 75 % of tipping or 87 % of hydraulic capacity (indicated via *). Without bucket cylinder, link and lever the liftcapacities will increase by 700 kg. Lifting capacity of the excavator is limited by machine stability and hydraulic capacity. According to European Standard, EN 474-5: In the European Union excavators have to be equipped with an overload warning device, a load diagram and automatic safety check valves on hoist cylinders and stick cylinder(s), when they are used for lifting operations which require the use of lifting accessories.

S-HD S-HD S-HD S-HD S-HD

S-HD S-HD S-HD

7.5* 7.5* 7.3

10.7* 10.7* 9.6 9.7* 7.2* 7.2* 8.3

15.9* 15.9* 12.1* 12.1* 9.3 10.3* 7.1* 7.1* 8.8

18.6 19.4* 12.4 13.6* 9.0 11.0* 6.9 9.1* 6.8 7.3* 9.1

13.5* 13.5* 11.8 14.8* 8.7 11.6* 6.7 9.7* 6.6 7.8* 9.1

17.6 19.4* 11.5 15.1* 8.5 11.8* 6.8 8.6* 8.9

14.8* 14.8* 17.7 19.0* 11.5 14.6* 8.5 11.4* 7.4 9.8* 8.3

20.9* 20.9* 16.7* 16.7* 11.7 13.0* 8.8 9.6* 7.5

12.5* 12.5* 9.0* 9.0* 8.7* 8.7* 6.1

R 950 SME Litronic 5

Page 6

Standard Equipment

Undercarriage

Lifetime-lubricated track rollers Tracks sealed and greased Track guide at each track frame (three pieces) Sprocket with dirt ejector Lashing eyelets

Uppercarriage

Handrails, non slip surfaces Liebherr full-automatic central lubrication system (except connecting link for bucket kinematics) Engine hood with lift help Sound insulation Maintenance-free swing brake lock Lockable tool box Extended tool kit

Hydraulics

Hydraulic tank shut-off valve and pumps Pressure test ports for hydraulic Pressure storage for controlled lowering of equipment with engine turned off Filter with integrated fine filter area Liebherr hydraulic oil Stepless work mode selector

Operator’s Cab

Storage bin Mechanical hour meters, readable from outside the cab Sunroof, right window and windshield with safety glass Operator seat Comfort Cup holder Completely retractable windscreen Front windscreen (bottom) retractable Rubber floor mat Hydro mounts Dome light Coat hook Automatic air conditioning Fuel consumption indicator LiDAT Plus (Liebherr data transfer system) * 7” colour multifunction display with touchscreen Emergency exit rear window Preparation for radio installation Rain hood over front window opening ROPS safety cab structure Rear space monitoring with camera All tinted windows Headlights (two pieces, Halogen) Door with sliding windows Seat belt Roll-down sun blind Storage space Wiper/washer Cigarette lighter and ashtray

Engine

Turbo charger Common-Rail system injection Conform with level IIIB / Tier 4i emission standard Fuel filter and water separator After-cooled Liebherr particle filter Sensor-controlled automatic engine idling

Attachment

Safety check valves hoist cylinder Headlight on boom (right, Halogen) Bottom boom protection for stick

* optionally extendable after one year

6 R 950 SME Litronic

Page 7

Individual Options

Undercarriage

Track pads double-grouser Reinforced base panel for centre section Reinforced cover plate and base plate for centre section Track guide at each track frame (four pieces) Protection plate for wrecking ball operation

Uppercarriage

Refuelling pump (electrical) Fuel anti-theft device Reversible fan drive Uppercarriage guard at bottom and sides Customized colors Rock protection (swing gear and lubrication pipes)

Hydraulics

Liebherr hydraulic oil, biodegradable Liebherr hydraulic oil, specially for warm and cold regions Bypass filter

Engine

Air pre-filter with dust trap Automatic engine shut-down (adjustable time-period) Lighting engine compartment Fuel pre-heating system

Operator’s Cab

Operator seat Premium Travel alarm system Fire extinguisher Footrest Electric cool box (12 V) Proportional controls Liebherr Engine shut-down (emergency stop) in cab Bullet-proof glass panel in roof Bullet-proof front window (one piece, fixed installation – can not be opened) Bullet-proof front window (two pieces, fixed installation – can not be opened) Radio Comfort Amber beacon Roof wiper Headlights (two pieces, Xenon) FOPS top guard FGPS front guard Sun visor Auxiliary heater with weekly timer Electronic drive away lock Additional headlights or/and rear headlights (Halogen or Xenon)

Attachment

High pressure circuit Security for hoist cylinder in grab or hammer operation Piston rod guard for bucket cylinders Hoist cylinder hose protection Liebherr automatic lubrication system for link geometry Hydraulic or mechanical quick change adapter Liebherr line of buckets Liebherr Tool-Control Liebherr Tool-Management Liebherr tooth system LIKUFIX Middle pressure circuit Safety check valves stick cylinder Headlights on boom (right, Xenon) Stick cylinder shut-down, adjustable Overload warning device Bottom boom protection for gooseneck boom Additional headlights on boom (left, Halogen or Xenon)

Options and/or special attachments, supplied by vendors other than Liebherr, are only to be installed with the knowledge and approval of Liebherr in order to retain warranty.

R 950 SME Litronic 7

Page 8

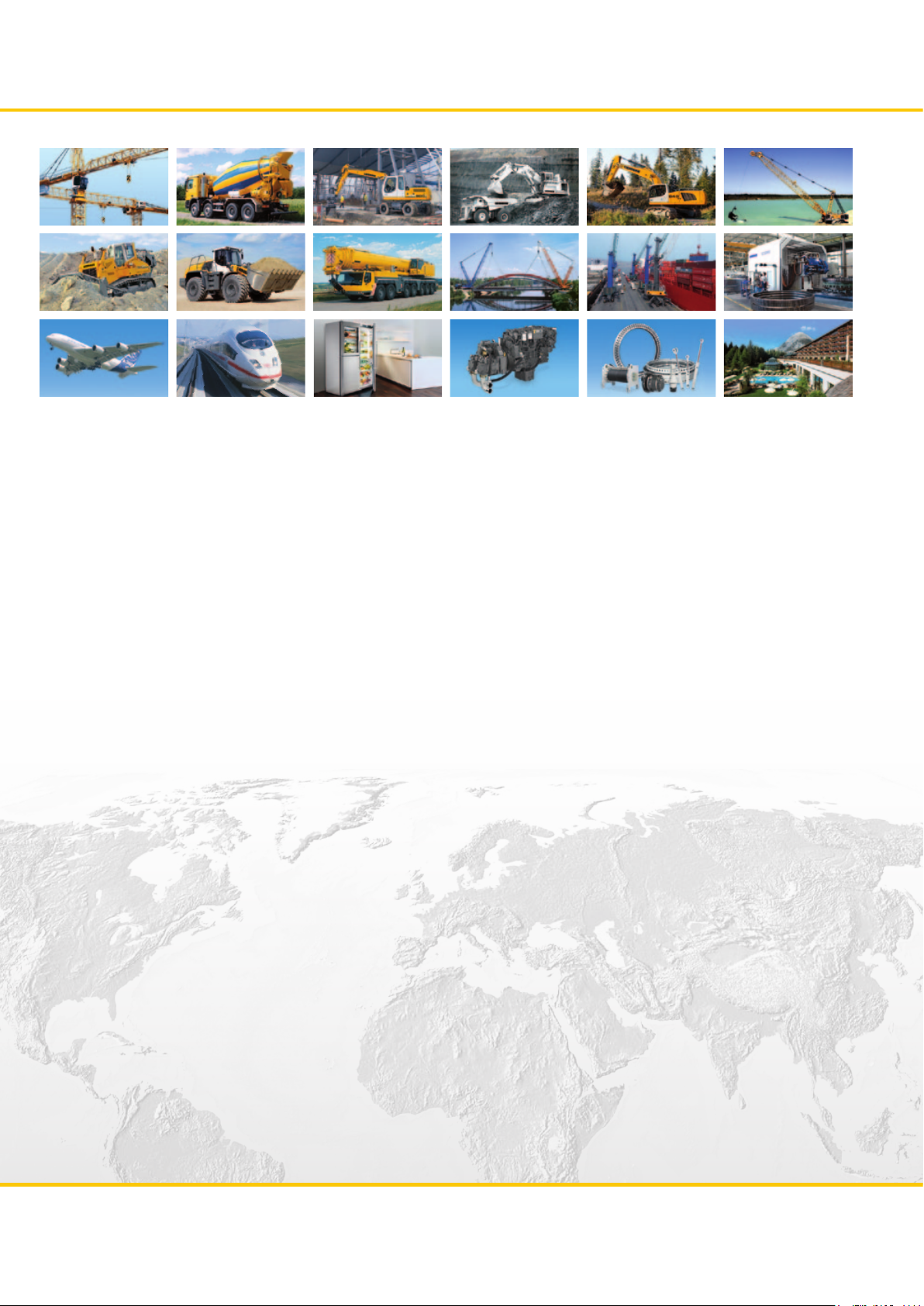

The Liebherr Group of Companies

Wide Product Range

The Liebherr Group is one of the largest construction equipment manufacturers in the world. Liebherr’s high-value products and services enjoy a high reputation in many other fields. The wide range includes domestic appliances, aerospace and transportation systems, machine tools and maritime cranes.

Exceptional Customer Benefit

Every product line provides a complete range of models in many different versions. With both their technical excel lence and acknowledged quality, Liebherr products offer a maximum of customer benefits in practical application.

State-of-the-art Technology

To provide consistent, top quality products, Liebherr attaches great importance to each product area, its components and core technologies. Important modules and components are developed and manufactured in-house, for instance the entire drive and control techno logyfor construction equipment.

Worldwide and Independent

Hans Liebherr founded the Liebherr family company in

1949. Since that time, the enterprise has steadily grown to a group of more than 130 companies with over 38,000employees located on all continents. The corporate headquarters of the Group is Liebherr-International AG inBulle, Switzerland. The Liebherr family is the sole owner of the company.

www.liebherr.com

Liebherr-France SAS

2 avenue Joseph Rey, B.P. 90287, FR-68005 Colmar Cedex  +33 389 21 30 30, Fax +33 389 21 37 93 www.liebherr.com, E-Mail: info.lfr@liebherr.com www.facebook.com/LiebherrConstruction

Printed in Germany by Typodruck RG-BK-RP LFR/SP 11113848-3-03.13_enGB

All illustrations and data may differ from standard equipment. Subject to change without notice. All indicated loads are based in accordance with ISO 9248.
