Installation
Instructions
For Free Standing NoFrost
Combined Refrigerator-Freezers
CS 1611
7083 231-00
I
MPORTANT
PLEASE READ AND FOLLOW
THESE INSTRUCTIONS
These instructions contain Warning and Caution
statements. This information is important for safe
and efficient installation.
Always read and follow all Warning and Caution
statements!
WARNING!
Warning indicates a potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION!
Caution indicates a potentially hazardous
situation which, if not avoided, may result
in minor or moderate injury.
IMPORTANT
This highlights information that is especially
relevant to a problem-free installation.
Make sure incoming voltage is the same as the unit
rating.
To reduce the risk of fire, electric shock, or personal
injury, installation work and electrical wiring must
be done by a qualified electrician in accordance
with all applicable codes and standards, including
fire-rated construction.
TO THE INSTALLER
It is very important that the guidelines and
instructions are followed in the manual to ensure
proper installation and operation of the unit. The
Installation Guidelines section contains important
information for making sure the installation is
correct. Read and understand all the information in
Installation Guidelines, and in this manual before
the unit is installed.
CAUTION!
Always wear protective devices such
as protective gloves and eye shields
when installing the appliance. Also use
hearing protection when drilling holes into
concrete floors.
Contents Page
Planning information
Unit dimensions .............................................. 4
Unit venting ..................................................... 4
Cabinet opening dimensions .......................... 5
Installation
Leveling the appliance .................................... 6
Blocking for safety
Mounting the anti tipping device ..................... 6
Reversing door hinges ..................................... 8-13
2
Area Requirements
Verify the following:
I
NSTALLATION
G
UIDELINES
s &INISHEDKITCHENFLOORHEIGHTISLEVEL!PPLIANCE
must be shimmed level if the floor heights
are not equal to make sure air vents are not
obstructed.
s 2EMOVEANYTHINGATTACHEDTOREARORSIDEWALLS
that can obstruct door opening.
s #UTOUTDIMENSIONSAREACCURATE
s %LECTRICALOUTLETISINCORRECTLOCATION
Do not install this refrigerator-freezer next to any
other refrigerator or model except another Liebherr
model. Liebherr models are designed to allow side
by side installation.They are equipped with
a heating system to eliminate condensation when
refrigerators or freezers are installed side by side.
Installing this refrigerator-freezer next to any other
refrigerator or freezer can cause condensation or
cause damage to the Liebherr refrigerator-freezer.
Electrical Requirement
If codes require a separate grounding circuit to be
used, have a qualified electrician install the circuit.
WARNING!
Do not ground to a gas pipe. Check with
a qualified electrician if you are not sure
the appliance is properly grounded. Do not
have a fuse in the neutral or grounding
circuit.
WARNING!
ELECTRIC SHOCK HAZARD
s %LECTRICALLYGROUNDTHEAPPLIANCE
s $ONOTUSEANEXTENSIONCORD
s &AILURETOFOLLOWTHESEINSTRUCTIONS
could result in fire or electric shock.
WARNING!
ELECTROCUTION HAZARD
Electrical grounding required. This
appliance is equipped with a three-prong
(grounding) polarized plug for your
protection against possible shock hazards.
Do not remove the round grounding
s
prong from the plug.
Do not use a two-prong grounding
s
adapter.
Do not use an extension cord to
s
connect power to the unit.
CAUTION!
To protect the appliance from possible
damage, allow the appliance to stand 1/2 to
1 hour in place before turning the electricity
on. This allows the refrigerant and system
lubrication to reach equilibrium.
Customer’s Responsibility
A 115 Volt, 60 Hz, 15 Amp fused electrical supply is
required. We recommend using a dedicated circuit
for this appliance to prevent electrical overload.
Follow the National Electrical Code and local codes
and ordinances when installing the receptacle.
Blocking for Safety
WARNING!
The anti tipping brackets must be installed
to prevent the appliance from tipping after
it is installed. Refer to Blocking for Safety.
Unit Venting
Do not restrict the air flow. Air flow must be
provided for the unit to operate.
3
P
LANNING
I
NFORMATION
Unit Dimensions - Figure 1
Figure 1
A = 79-1/2" (2020 mm)
B = 29-3/8" (747 mm)
C = 24-13/16" (630 mm)
D = 52-3/8" (1330 mm)
E = 31-3/32" (790 mm)
Unit Venting - Figure 2
Do not restrict the air flow. The opening can either
be directly over the appliance
and below the ceiling
3
in a soffit
The cabinet height as specified at 80” (2032 mm)
will create a 1-5/16” (33 mm) gap above the
appliance providing optimal air flow over the top of
the appliance for its efficient operation.
Be sure to consider the possibility of having to
raise some of the leveling legs in order to level the
appliance when installing. If you adjust the height
of the appliance - it will effectively reduce air flow.
Therefore leave yourself some room for adjustment.
The section below the freezer door and the floor
must not be covered.
.
2
IMPORTANT
1
, above the cabinet
or through a vent installed
Overall height of the appliance can be increased by
a maximum of 5/8” (see Leveling the appliance).
1
2
3
Figure 2
4
P
LANNING
Cabinet Opening Dimensions - Figure 3
The appliance can be used freestanding or semi built-in.
I
NFORMATION
If semi built-in, please consider the cabinet opening dimensions as shown in
1
This is where the power cord is fed out of
the appliance rear.
Free length of the power cord is 94".
Choose the position of the electrical
outlet taking these specifications into
account.
The electrical outlet must be accessible
for installation and servicing.
Figure 3
.
Figure 3
The electrical outlet must not be
situated behind the appliance!
5
I
NSTALLATION
Leveling the Appliance - Figure 4
1. The height can be adjusted in front by twisting
1
the leveling feet
2. Twist the adjusting bolt
the appliance.
Do not use a power driver.
3. Align the appliance with sides of kitchen
cabinets by adjusting leveling feet
2
supports
.
.
2
to set up the back of
CAUTION!
1
and the
Mounting the anti tipping device
WARNING!
The anti tipping brackets must be mounted
to prevent the appliance from tipping when
the fully stocked door is opened.
WARNING!
Be sure that there is no plumbing or
electrical wiring located in this area which
screws or drills could damage.
The anti tipping brackets provided can be mounted
within 11 3/4 inch to the left and right of the
appliance center (Figure 5).
Freestanding applications
1. Mark the center of the appliance on the back
wall.
2. Mount the anti tipping brackets within the given
area.
IMPORTANT
Locate at least one anti tipping bracket
directly in line with a wall stud (Figure 6).
Figure 4
5 mm
socket
22 mm
wrench
IMPORTANT
After final installation, this screw must be
turned down until it has proper floor contact to
support the hinge bracket.
To ensure a secure mounting of the brackets
use any possible mounting option as shown in
Figures 7 - 10.
Figure 5
6
B
LOCKING
Mounting options
F
OR
S
AFETY
Semi built in
With semi built in applications the anti tipping
brackets must be mounted with a distance of
22 inches from the appliance housing front to the
back of the bracket. (Figure 6).
The gap to the wall must be filled with a wooden
spacer to fasten the bracket.
WARNING!
Be sure the wooden spacer is fastened
securely to the floor and / or wall.
1. Mark the center of the appliance on the back
wall.
2. Mount the wooden spacer.
3. Mount the anti tipping brackets within 11-3/4 inch
to the left and right of the appliance center.
IMPORTANT
To ensure a secure mounting of the brackets
use any possible mounting option as shown in
Figures 7 - 10.
Mounting the bracket with the wall
stud.
Mounting with wall plugs at concrete
walls (Figure 7).
Screws 6 x 63 mm
Figure 7
Mounting with the wall plate turning
in the screws angular (Figure 8).
Screws 6 x 63 mm
Figure 8
Mounting with wooden floors
(Figure 9).
Figure 6
Screws 6 x 63 mm
Figure 9
Mounting with concrete floors using
the anchors provided (Figure 10).
Figure 10
NOTE
If longer or shorter screws are needed, they
must be supplied by the installer.
7
R
EVERSING
Door hinges should only be changed by a trained expert.
Changing the door hinges must be done by two people.
D
OOR
H
INGES
CAUTION!
Before changing over door hinges,
disconnect the appliance from the
electrical outlet.
1. ȽÆÌÇȼÇÇÊƓÈÊÁ˽ÇŰ
door cover and pivot to
the left.
1.
5.
4.
4. Pull the left-hand side of the cover
approx. 1/4" (6 mm) towards you.
5. Remove pin.
6.
3.
2. Let door cover hang down.
3. Slide red safety bracket over
the hinge.
IMPORTANT
The two knobs on the safety bracket
must be fully inserted into the
marked openings on the hinge.
2.
6. Open top door wide and
remove covers.
7.
7. Remove cover.
8
8.
R
EVERSING
D
OOR
H
INGES
12.
8. Remove cover from upper door
mounting and unscrew door.
10.
9.
9. Transfer fastener for soft stop
mechanism to the opposite side.
10. Transfer cover plate to the opposite
side.
12. Open bottom door, prise
ÇŰ¼ÇÇÊ»ÇνÊƖ
14.
15.
13.
13. Pivot door cover to the left.
14. Slide red safety bracket
over the hinge.
15. Remove pin.
11.
11. Remove cover.
16.
16. Open bottom door wide and
remove cover.
9

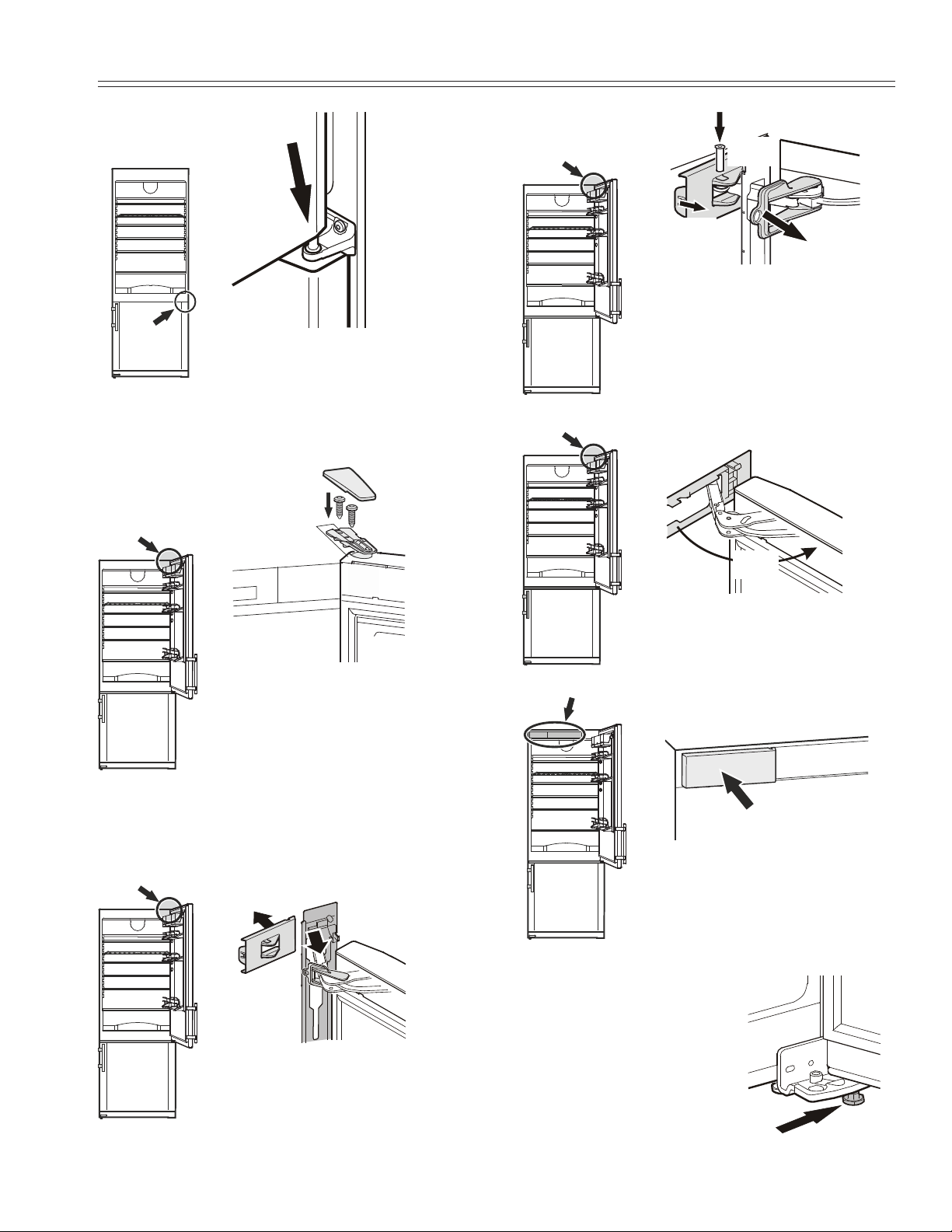

R
EVERSING
D
OOR
17.
18.
17. Pull out middle hinge pin.
18. Remove bottom door.
H
INGES
24.
25.
23.
23. Tilt appliance slightly backwards and un screw the adjustable foot.
24. Remove the hinge pin.
25. Unscrew hinge bracket.
19.
20.
21.
19. Unscrew hinge bracket.
20. Transfer cover plate to the op-
posite side.
21. Turn hinge bracket through
180° and screw into place.
22.
26. Transfer fastener for
soft stop mechanism
on hinge bracket to
the opposite side.
27. Tr ansf er co ver t o the
opposite side.
29.
26.
27.
28.
22. Remove hinge bushing, turn
МАКЗН¿Аʾ˅ʽͳ¹Ж¼К½ƘŲМƖ
28. Transfer cover plate to the
opposite side.
29. Screw hinge bracket into
place.
10
R
EVERSING
30.
30. Tilt appliance slightly backwards,
insert pin and attach using the
adjustable foot.
36.
D
OOR
H
INGES
35.
34.
Both doors
34. Remove screw.
35. Pivot soft stop mechanism outwards on
the right, pull to the right and remove.
36. Slide spacer to the left and remove.
32.
32.
33. Transfer panels of both
door covers to the opposite side.
31. Release pressure plates at
32. Transfer door handle and
31.
the front
backwards to remove
plugs to the opposite side.
1
and pull them
33.
33.
2
37.
38.
Both doors
37. НКЖЛИ¹»½КМАКЗН¿Аʾ˅ʽͳ¹Ж¼К½ƘŲМЗЖ
.
the opposite side.
38. Turn soft stop mechanism through
ʾ˅ʽͳ¹Ж¼К½ƘŲМЗЖМА½ЗИИЗЛБМ½ЛБ¼½Ɩ
Then secure both parts with screws.
39.
39. Suspend bottom door on
hinge pin.
11
R
EVERSING
D
OOR
40.
40. Insert middle hinge pin.
H
INGES
45.
45. Click cover into place.
41.
41. Slide door cover over soft stop
mechanism hinge.
42.
43.
Refrigerator door
46. Using a screwdriver, push
out the hinge from underneath and remove it from
the door .
Refrigerator door
47. Using a screwdriver, push out
the plug from underneath and
transfer it to the opposite side.
46.
47.
44.
42. Move soft stop mechanism hinge
to the fastener and insert pin.
43. Remove red safety bracket.
44. Pivot door cover to the left and
click into place on the door.
Refrigerator door
48. Insert hinge.
12
48.
R
EVERSING
D
OOR
H
54.
INGES
49.
49. Suspend top door on hinge pin.
For this, the door must be open at
least 90°.
50.
53.
53. Pull the right-hand side of the
cover approx. 1/4" (6 mm) towards you.
54. Move soft stop mechanism hinge
to the fastener and insert pin.
55. Remove red safety bracket.
55.
56.
56. Pivot door cover to the left and
click into place on the door.
50. Secure door with screws and
click cover into place.
51.
52.
51. Click cover into place.
52. Slide door cover over soft stop
mechanism hinge.
57.
57. Click cover into place.
58. Ĺ»½ÌÀ½¹ÈÈÄÁ¹Æ»½ÁÆÁÌËŲƹÄ
position at the place of installation.
Extend the adjustable foot at
the bottom hinge bracket until
ÁÌʽËÌËÇÆÌÀ½ŴÇÇʹƼÌÀ½Æ
make a further 90° turn.
58.
13
Loading...
