Liebherr CS1350B User Manual

Instructions
for use and
installation
Combined fridge-freezer
CS1350B
180515 7086278 - 00
The appliance at a glance
Contents
1 The appliance at a glance............................. 2
1.1 Additional benefits............................................ 2
1.4 Conformity........................................................ 3
1.5 Installation dimensions .................................... 4
1.6 Energy saving.................................................. 4
1.7 Example of food arrangement.......................... 4
4.1 Transporting the appliance............................... 6
4.2 Setting up the appliance................................... 6
4.3 Changing the door hinges................................ 7
4.5 Installation into a fitted kitchen......................... 10
4.8 Connecting the appliance................................. 11
5 Operation........................................................ 11
5.2 Temperature alarm........................................... 11
7 Troubleshooting............................................ 17
The manufacturer is constantly working to improve all models. Therefore please understand that we reserve the right to make design, equipment and technical modifica­tions.
To get to know all the benefits of your new appliance, please read the information contained in these instruc­tions carefully.
The instructions apply to several models, so there may be differences. Sections which only apply to certain appli­ances are indicated with an asterisk (*).
Instructions for action are marked with a , the results of action are marked with a .

1 The appliance at a glance

1.1 Additional benefits

CFC free
­Energy-optimized refrigerant circuit
­Energy-efficient insulation
­Low energy consumption
­User-friendly electronic controls
­The appliance defrosts automatically - no need to
­spend time defrosting Large refrigeration capacity
­Safety glass storage shelves
­Large freezing capacity
­Shelves can be removed to make space for large
­items. Freezer over-temperature alarm
­Quick-freeze feature for fresh food (SuperFrost)
­Frozen food temperature indicator
­All freezer drawers suitable for quick-freeze
­Bright LED interior light
­Door ajar alarm
­Handle grips on all extra-large drawers for easy trans-
­port Integrated transport grips on appliance housing
­Transport castors at back
­Easy to clean
­Door hinges can be reversed
-
Congratulations on the purchase of your new appliance. With this purchase, you have chosen all the advantages of the latest refrigeration technology, guaranteeing you a high-quality appliance with a long life span and high oper­ating safety.
The equipment of your appliance gives you the highest level of day-to-day ease of operation.
Together we are making an active contribution to the conservation of our environment by purchasing this appli­ance which is manufactured in an environmentally friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
2 * Depending on model and options
The appliance at a glance

1.2 Overview of the appliance and accessories

Fig. 1
(1) Rear transport
handles
(2) Operating and control
elements
(3) LED interior light (11)Bottle rack (4) Fan (12)IceMaker (5) Installation area,
adjustable
(6) Drain hole (14)VarioSpace (7) Coldest zone (15)Rating plate (8) Vegetable drawer (16)Adjustable feet, front
(9) Door racks
(10)Bottle shelf
(13)Freezer compartment
transport handles, rear transport castors
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood plasma, laboratory preparations or similar substances and products in accordance with the CMDCAS and FDA 510(k)
-
Use in areas at risk of explosion
Incorrect appliance use can cause damage to the stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient temperature limits according to its climate rating. The climate rating for your appli­ance is printed on the rating plate.
Note
To guarantee trouble-free operation, comply
u
with the indicated ambient temperatures.
Climate rating
SN 50 °F (10 °C) to 90 °F (32 °C)
N 61 °F (16 °C) to 90 °F (32 °C)
ST 61 °F (16 °C) to 101 °F (38 °C)
T 61 °F (16 °C) to 110 °F (43 °C)
for ambient temperatures from

1.4 Conformity

The refrigerant circuit has been tested for leaks. The appliance complies with the relevant safety regulations and the directives UL250 and CAN/CSA C22.2 No.63-93.
Instructions for testing institutes:
Tests must be carried out in accordance with the appli­cable standards and guidelines. The preparation and testing of the appliance must be carried out taking account of the manufacturer's
loading plans and the instructions in the operating manual .

1.3 Range of appliance use

Normal use
The appliance is only suitable for cooling food for residential or other similar environments. This includes the following types of uses
-
in staff kitchens, bed and breakfast establish­ments,
-
by guests in country homes, hotels, motels and other types of accommodations,
-
for catering and similar wholesale services.
* Depending on model and options 3
General safety information

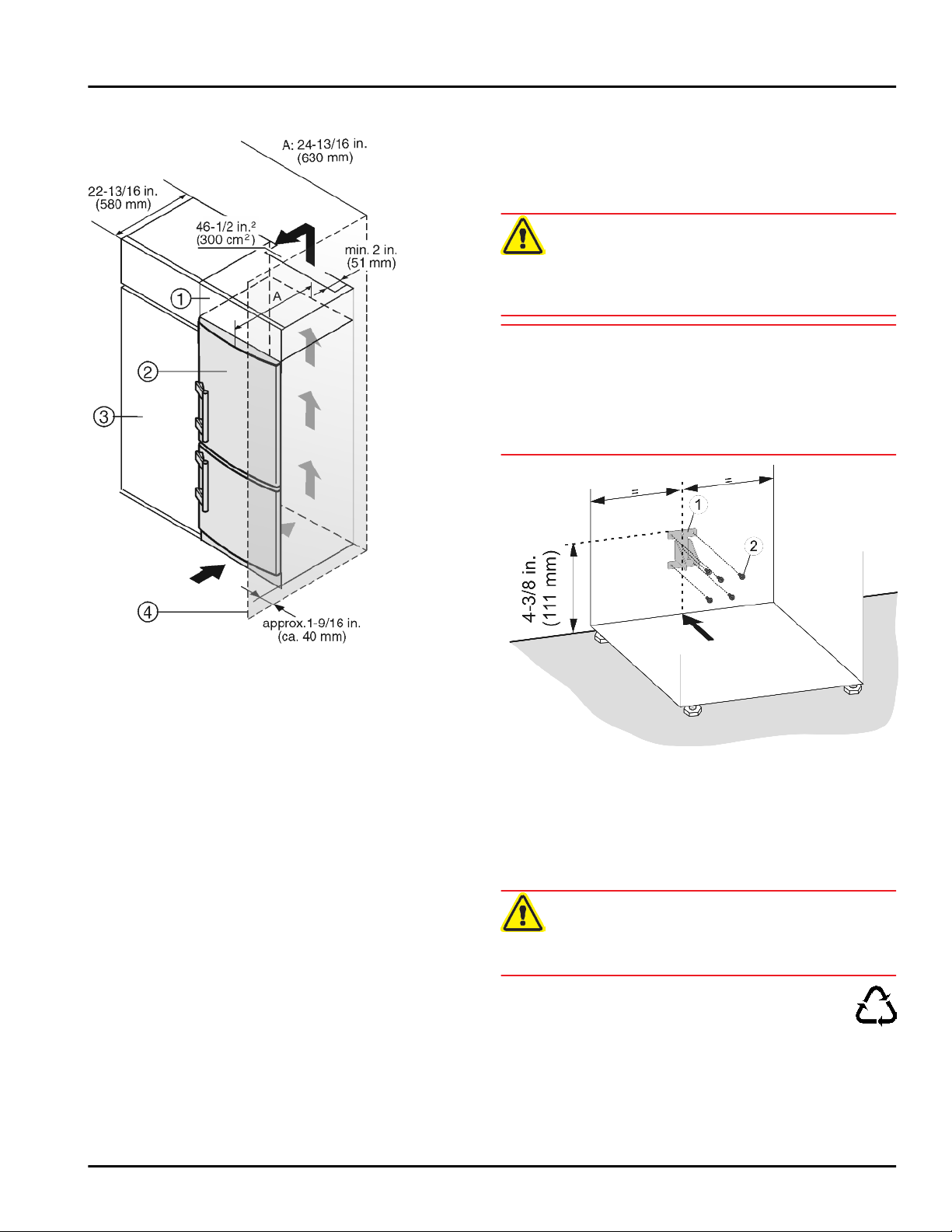

1.5 Installation dimensions

1.7 Example of food arrangement

Fig. 3

2 General safety information

Read and follow these instructions. They contain safety advice which is important for safe and problem-free installation and operation. Always read and follow the safety advice.
Fig. 2

1.6 Energy saving

Always ensure good ventilation. Do not obstruct venti-
­lation openings or grilles. Never block air slits in the fan.
­Do not install the appliance in direct sunlight or next to
­an oven, heater, or similar heat source. Energy consumption depends on installation conditions
­such as the ambient temperature (see 1.3) . Avoid opening the appliance door for any longer then
­neccesary. The lower the temperature is set the higher the energy
­consumption. Store food logically (see The appliance at a glance).
­All food stored in the appliance should be well wrapped
­and covered. This prevents frost buildup. Only take food out for as long as necessary so that it
­does not get too warm. Storing hot food: let it cool to room temperature first.
­Defrost frozen food in the fridge.
-
Dust deposits increase energy consumption:
Once a year the dust should be
­removed from the refrigerating machine and the heat exchanger metal grid at the back of the appli­ance.
Dangers for the user:
-
This appliance can be operated by children 8 years and older as well as by persons with reduced physical, sensory or mental capabili­ties or lack of experience and knowledge if they are supervised or have been instructed in the safe use of the appliance and understand the associated risks. Children must not play with the appliance. Cleaning and user mainte­nance must not be performed by children unless they are supervised.
-
When disconnecting the appliance from the outlet, always take hold of the plug. Do not pull on the cable.
-
Disconnect the power plug or switch off the power if a fault occurs.
-
Do not damage the mains power line. Do not operate the appliance from a defective mains power line.
-
Repairs, work on the appliance and replace­ment of the power cord should only be carried out by the customer service department.
-
The appliance should only be assembled, connected and disposed of in accordance with the instructions.
4 * Depending on model and options
-
Please keep the instructions and pass them on to any future owner.
-
All repairs to or work on the IceMaker must only be carried out by the customer service department or other specialist engineers trained to do this.
-
The manufacturer is not liable for damage arising from incorrect connection to the water supply.
Risk of fire:
-
Do not operate the appliance near explosive gases.
-
Do not store explosive materials or spray cans with flammable propellants, such as e.g. butane, propane, pentane, etc. in the appli­ance. You can recognize such spray cans by the printed contents or a flame symbol. Any leaking gasses can be ignited by electrical components.
-
Keep burning candles, lamps and other objects with open flames away from the appli­ance so that they do not set it on fire.
-
Alcoholic beverages or other containers holding alcohol must always be tightly sealed for storage purposes. Any leaking alcohol can be ignited by electrical components
Tipover hazard:
-
Do not stand or climb on the base, drawers, doors, etc. This applies in particular to chil­dren.
Risk of food poisoning:
-
Do not consume food that has passed its best before date.
Danger of frostbite, feelings of numbness and pain:
-
Avoid continued skin contact with the cold surfaces or chilled/frozen food or adopt protec­tive measures, e. g. use gloves. Do not consume ice cream (especially sherbets) and ice cubes immediately when they are too cold.
Risk of injury and damage:
-
Hot steam may lead to injuries. Do not use any electrical heating or steam cleaning equip­ment, naked flames or defrosting sprays for defrosting
-
Do not remove ice with sharp objects
Risk of crushing:
-
Do not hold onto the hinge when opening and closing the door. Fingers may get caught.
Controls and displays
Symbols on the device:
The symbol can be on the compressor. It refers to the oil in the compressor and refers to the following danger: Can be lethal if swallowed or inhaled. This notice only applies for recycling. There is no danger during normal operation.
Follow the specific instructions in the other sections:
DANGER indicates a hazardous situation,
which if not avoided, will result in death or serious injury.
WARNING indicates a hazardous situation,
which if not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation,
which if not avoided, will result in minor or moderate injury.
NOTICE indicates a hazardous situation,
which if not avoided, could result in damage to property.
Note indicates useful advice and tips.

3 Controls and displays

3.1 Operating and control elements

Fig. 4
(1) Fridge compartment
On/Off button
(2) Ventilation button (7) SuperFrost button (3) Setting button for
chiller compartment
(4) Fridge compartment
temperature display
(5) Freezer compartment
temperature display

3.2 Temperature display

The following is displayed in normal operation:
the freezer temperature set
­the fridge temperature set
-
The freezer compartment temperature display is flashing:
the temperature setting has been changed
­after switch-on the temperature is not yet cold enough
­the temperature has risen several degrees
-
(6) Setting button for
freezer compartment
(8) Alarm button
(9) Freezer compartment
On/Off button
* Depending on model and options 5
Start-up

4 Start-up

4.1 Transporting the appliance

CAUTION
Risk of injury or damage if incorrectly transported.
Transport the appliance in its packaging.
u
Transport the appliance upright.
u
Do not move the appliance on your own.
u

4.2 Setting up the appliance

WARNING
Risk of fire due to moisture! If live parts or the power cord get wet, this can cause a short circuit.
The appliance is designed for use in enclosed spaces.
u
Do not operate the appliance in open space or in damp areas or where there is spray.
WARNING
Risk of fire due to short circuit. If the power cable or plug of the appliance or another appliance and the back of the appliance touch each other the power cable or plug will be damaged by the vibrations of the appliance which could lead to a short circuit.
Install the appliance so that it does not touch any plugs
u
or power cables. Do not connect the appliance or other appliances to the
u
sockets on the back of the appliance.
NOTICE
Risk of damage caused by condensation Installing the appliance next to any other refrigerator or freezer can cause condensation or damage to the Lieb­herr appliance.
Do not install this appliance next to any other refriger-
u
ator or freezer except another Liebherr model. Liebherr models are designed to allow side-by-side installation. They are equipped with a heating system to eliminate condensation when refrigerators or freezers are installed side-by-side.
NOTICE
Risk of damage for the finished floor surface!
Protect the finished floor surface before you uncrate the
u
unit.
Verify that:
The floor under the appliance is flat and level.
q
The floor can support the appliance's weight plus
q
approximately 1200 pounds (544 kg) of food weight. The appliance is not placed in direct sunlight or near
q
the stove, range top, radiators and similar heat sources.
Examine the unit and packaging for shipping damage.
u
Contact the carrier immediately if you suspect there is any damage. Note the type (model, number), index, appliance/serial
u
number, date of purchase and where purchased (see 6.5) . Remove anything attached to the rear or side walls of
u
appliance that would prevent proper installation or impede proper ventilation. Remove the protective film from the outside of the
u
appliance.
NOTICE
WARNING
Danger of fire and damage!
Do not place devices that give off heat, e.g. micro-
u
waves, toasters, etc. on the appliance.
CAUTION
Risk of personal injury!
Have two people move this appliance into place.
u
WARNING
Danger of fire and damage due to blocked ventilation openings!
Never block the ventilation openings. Always ensure
u
good ventilation!
6 * Depending on model and options
The stainless steel doors are treated with a high-grade surface coating and must not be cleaned with the supplied cleaning agent.
This would damage the surface coating.
Wipe the coated door surfaces using a soft, clean
u
cloth only. Apply a stainless steel cleaner only to the stainless
u
steel side walls evenly, wiping with the grain. Subse­quent cleaning becomes easier as a result. Wipe painted side walls with a clean, soft cloth only.
u
Align the appliance so that it
u
stands firmly and on a level by applying the accompa­nying spanner to the adjust­able-height feet (A) and using a spirit level. Then support the door:
u
Extend the adjustable foot at the turn hinge (B) until it rests on the floor and then make a further 90° turn.
Note
Clean the appliance (see 6.2) .
u
If the appliance is set up in humid areas, condensation may build on the outside of the appliance.
Always ensure proper ventilation.
u
Note
If the gap between the rear of the appliance and the wall is less than 2 in. (51 mm), the power consumption level may increase.

4.3 Changing the door hinges

You can reverse the door hinges, if necessary:
Make sure you have the following tools on hand:
Torx® 25
q
Torx® 15
q
Screwdriver
q
Cordless screwdriver, if necessary
q
Another person to help with the installation, if
q
necessary
Start-up
CAUTION
Risk of injury if the door tips out!
Keep a steady grip on the door.
u
Set the door down carefully.
u
Unscrew the upper bearing bracket
u
25 screws) Lift the upper door up and off and set it to the side.
u
Fig. 5 (4)
and pull it upward to remove.
Fig. 5 (3)

4.3.2 Removing the lower door

Close the lower door.
u
Remove the center bearing pin
u
bearing bracket and the lower door. Remove the plastic cap
u
CAUTION
Risk of injury if the door tips out!
Keep a steady grip on the door.
u
Set the door down carefully.
u
Open the lower door.
u
Unscrew the middle bearing bracket
u
Torx® 25 screws). Lift the door off upwards and set it to the side.
u
Fig. 6 (10)
Fig. 6 (11)
.

4.3.3 To swap over central bearing parts

(2 Torx®
from the
Fig. 6 (13)
(2

4.3.1 Removing the upper door

Note
To prevent food items from falling out, take all food out
u
of the door racks before removing the door.
Fig. 6
Carefully remove the cover trim
u
Screw the middle bearing bracket
u
supporting plate hinge side (4 Nm). Turn the cover trim
u
place on the new handle side.
Fig. 5
Close upper door.
u
Pull the cover
u
Lift the cover
u
* Depending on model and options 7
Fig. 5 (1)
Fig. 5 (2)
forward and up.
off.
Fig. 6 (14)
Fig. 6 (12)
Fig. 6 (12)
turned 180° onto the new
180° and snap it back into
.
Fig. 6 (13)
with the
Loading...
+ 15 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
