Operating instructions

Combined fridge-freezer

210312

C(P)(esf)34/35/38/40 ... 3

7081896 - 05

Page 2

Appliance at a glance

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 Installation dimensions............................................. 3

1.5 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Transporting the appliance....................................... 4

4.2 Installing the appliance............................................. 4

4.3 Changing over the door hinges................................ 5

4.4 Insertion into a row of kitchen units........................... 7

4.5 Disposing of packaging............................................ 7

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5 Control.................................................................... 7

5.1 Temperature alarm................................................... 7

5.2 Refrigerator compartment........................................ 8

5.3 Freezer compartment............................................... 9

6 Maintenance........................................................... 10

6.1 Manual defrosting..................................................... 10

6.2 Cleaning the appliance............................................. 10

6.3 Changing the interior light with bulb *....................... 11

6.4 Customer service..................................................... 11

7 Malfunction............................................................. 11

8 Decommissioning.................................................. 12

8.1 Switching off the appliance....................................... 12

8.2 Taking the appliance out of service.......................... 12

9 Disposing of the appliance................................... 12

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a , the results of action are marked with a .

1 Appliance at a glance

1.1 Description of appliance and equipment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation. Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

Fig. 1

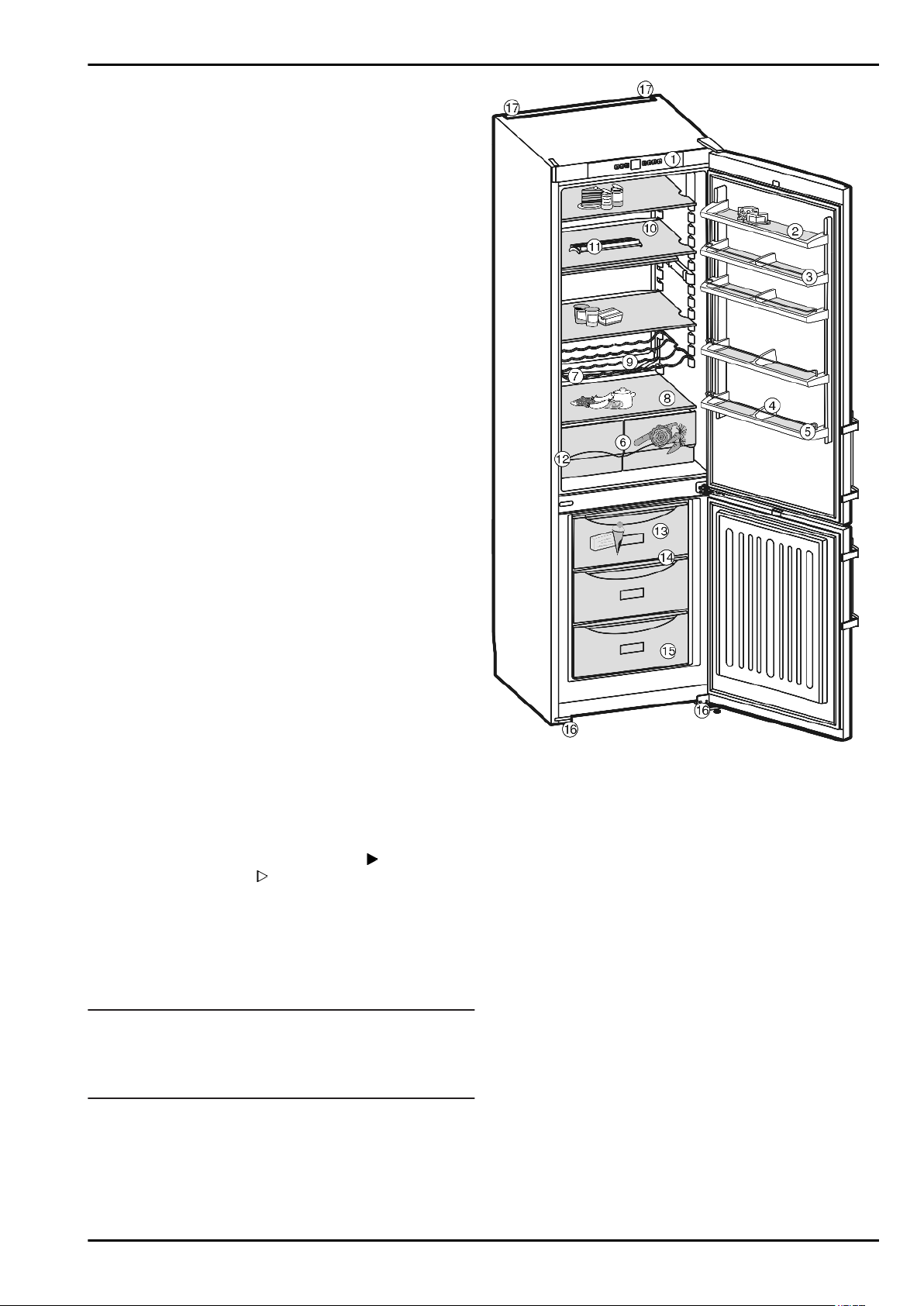

(1) Operating controls (10) Shelf, relocatable (2) Butter shelf (11) Egg tray (3) Door rack, adjustable (12) Type plate (4) Bottle holder, moveable (13) Freezer drawer (5) Bottle shelf (14) VarioSpace (6) Vegetable bins (15) Ice cube tray (7) Bottle rack (16) Adjustable feet at the

front, transport rollers at the rear

(8) Coldest area (17) Transport handles (9) Drain opening

1.2 Range of appliance use

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes use in, for example

in staff kitchenettes, bed and breakfast establishments,

by guests in country homes, hotels, motels and other forms

of accommodation, in catering and similar services in the wholesale trade

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance is not suitable for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Misuse of the appliance can result in the stored products suffering harm or perishing. Furthermore, the appliance is not suitable for operation in potentially explosive atmospheres.

Page 3

General safety information

The appliance is set to operate within specific ambient temperature limits according to its climate rating. The correct climate rating for your appliance is indicated on the type plate.

Note

Compliance with the ambient temperatures indicated is

required, otherwise the cooling performance is reduced.

Climate rating

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

for ambient temperatures of

1.3 Conformity

The refrigerant circuit is tested for leakage. The appliance complies with the relevant safety regulations and EC Directives 2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.

1.4 Installation dimensions

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille. Always keep fan louvres clear.

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object. The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) . Keep the time the appliance is open to a minimum.

The lower the temperature setting, the higher the power

consumption. Store food logically. (see Appliance at a glance).

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming. Remove food as needed in order that it does not warm too

much. First cool warm food to room temperature before storing it .

Defrost frozen food in the refrigerator.

If there is a thick layer of frost in the appliance: defrost the

appliance. Empty and switch off refrigerating unit for longer vacation

periods. Accumulated dust increases the energy consumption:

Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

Fig. 2

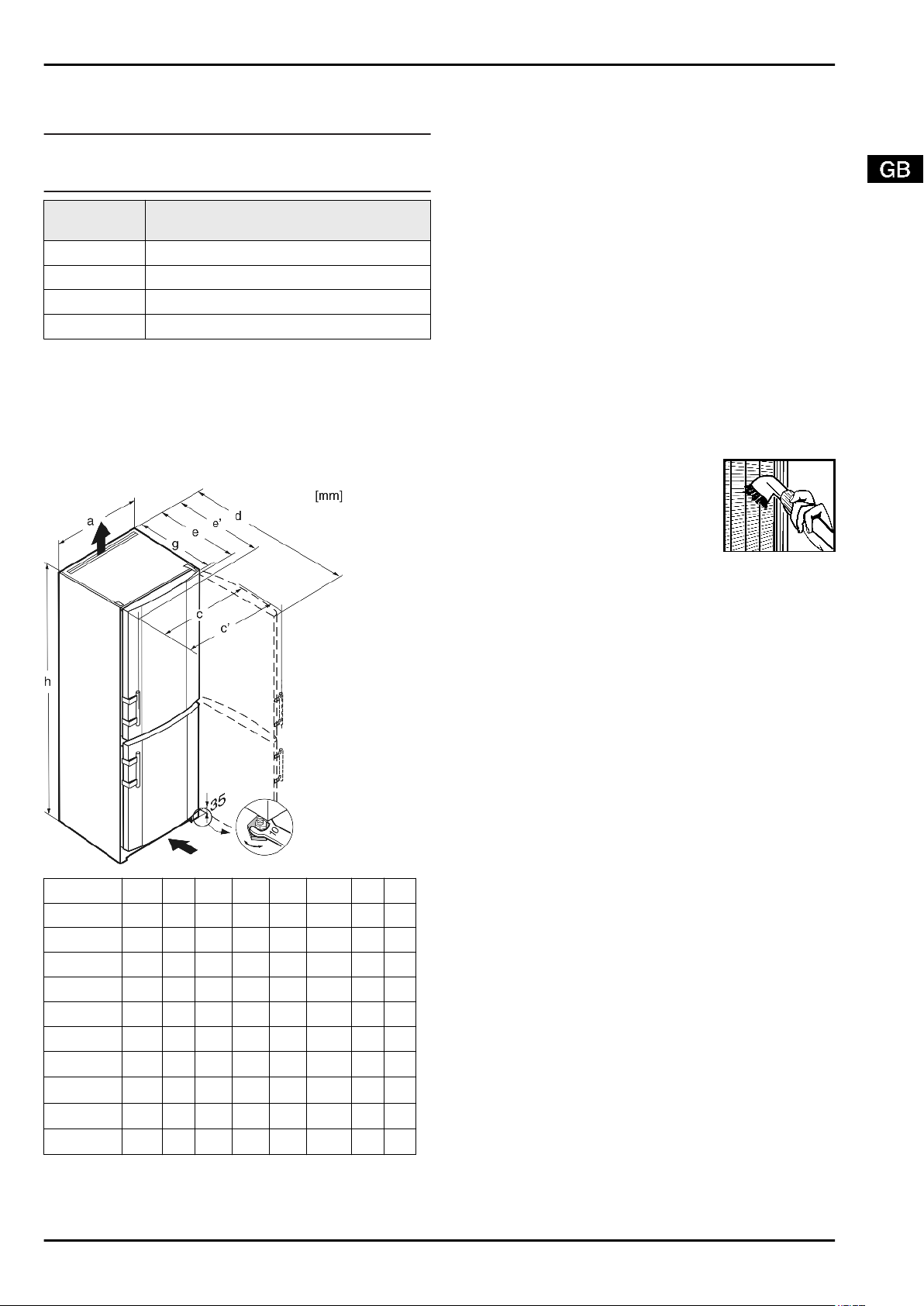

Model h a g e e' d c c'

C3523 1817 600 611 631 661 1179 606 637

C4023 2011 600 611 631 661 1179 606 637

CP4023 2011 600 611 631 661 1179 606 637

CPesf4023 2011 600 611 631 661 1179 606 637

CP3523 1817 600 611 631 661 1179 606 637

CPesf3523 1817 600 611 631 661 1179 606 637

CP3413 1817 600

CPesf3413 1817 600

CP3813 2011 600

CPesf3813 2011 600

On appliances not supplied with wall spacer brackets or if the supplied spacer brackets are not used, the dimension is reduced by 35 mm (see 4.2) .

646x666x696x1214

606 637

2 General safety information

Danger for the user:

This appliance is not designed for persons (including chil-

dren) with physical, sensory or mental impairment or persons not having sufficient experience and knowledge, unless they are instructed in the use of the appliance and are initially supervised by a person responsible for their safety. Keep children under supervision to ensure they do not play with the appliance. In case of a fault, pull out the mains plug (not by pulling the

connecting cable) or switch off the fuse. Have any repairs to or intervention in the appliance, and any

change of the mains power cable, carried out by the customer service only or by other specialised personnel trained for the purpose. When disconnecting the appliance from the supply, always

take hold of the plug. Do not pull the cable. Please keep these instructions in a safe place and pass

them on to any subsequent owners.

Fire hazard:

The refrigerant R 600a is environmentally friendly but flam-

mable. Escaping refrigerant may ignite.

Do not damage the refrigerant circuit pipes.

•

Do not allow naked flames or ignition sources to enter the

•

appliance. Do not use any electrical appliances in the interior (e.g.

•

steam cleaners, heaters, ice cream maker etc.). If refrigerant escapes: eliminate naked flames or sources

•

of ignition from the vicinity. Pull out the power plug. Ventilate the area well. Notify customer service.

Do not store explosives or sprays using combustible propel-

lants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components. Keep burning candles, lamps and other items with naked

flames away from the appliance so that they do not set the appliance on fire.

Page 4

Controls and displays

Always store high-percentage alcohol in tightly sealed,

upright containers. Alcohol possibly escaping may ignite due to electrical components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for

support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid lasting skin contact with cold surfaces or refrigerated/

frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Please observe the specific information in the other sections:

4 Putting into operation

4.1 Transporting the appliance

Risk of injury and danger of damage as a result of incorrect transport!

u u u

4.2 Installing the appliance

CAUTION

Transport the appliance in a packed condition. Transport the appliance upright. Do not transport the appliance without assistance.

DANGER identifies a situation involving direct

danger which, if not obviated, may result in death or severe bodily injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in death or severe bodily injury.

CAUTION identifies a dangerous situation

which, if not obviated, may result in minor or medium bodily injury.

NOTICE identifies a dangerous situation

which, if not obviated, may result in damage to property.

Note identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

Fire hazard due to dampness! If live parts or the mains lead become damp this may cause short circuits.

Risk of fire due to short circuit! If the mains cable/connector of the appliance or of another appliance touch the rear of the appliance, the mains cable/ connector may be damaged by the appliance vibrations, leading to a short circuit.

Fire hazard due to refrigerant! The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

WARNING

The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

WARNING

Stand the appliance so that it is not touched by connectors or main cables. Do not plug the appliance or any others into sockets located near the rear of the appliance.

WARNING

Do not damage the piping of the refrigeration circuit.

Fig. 3

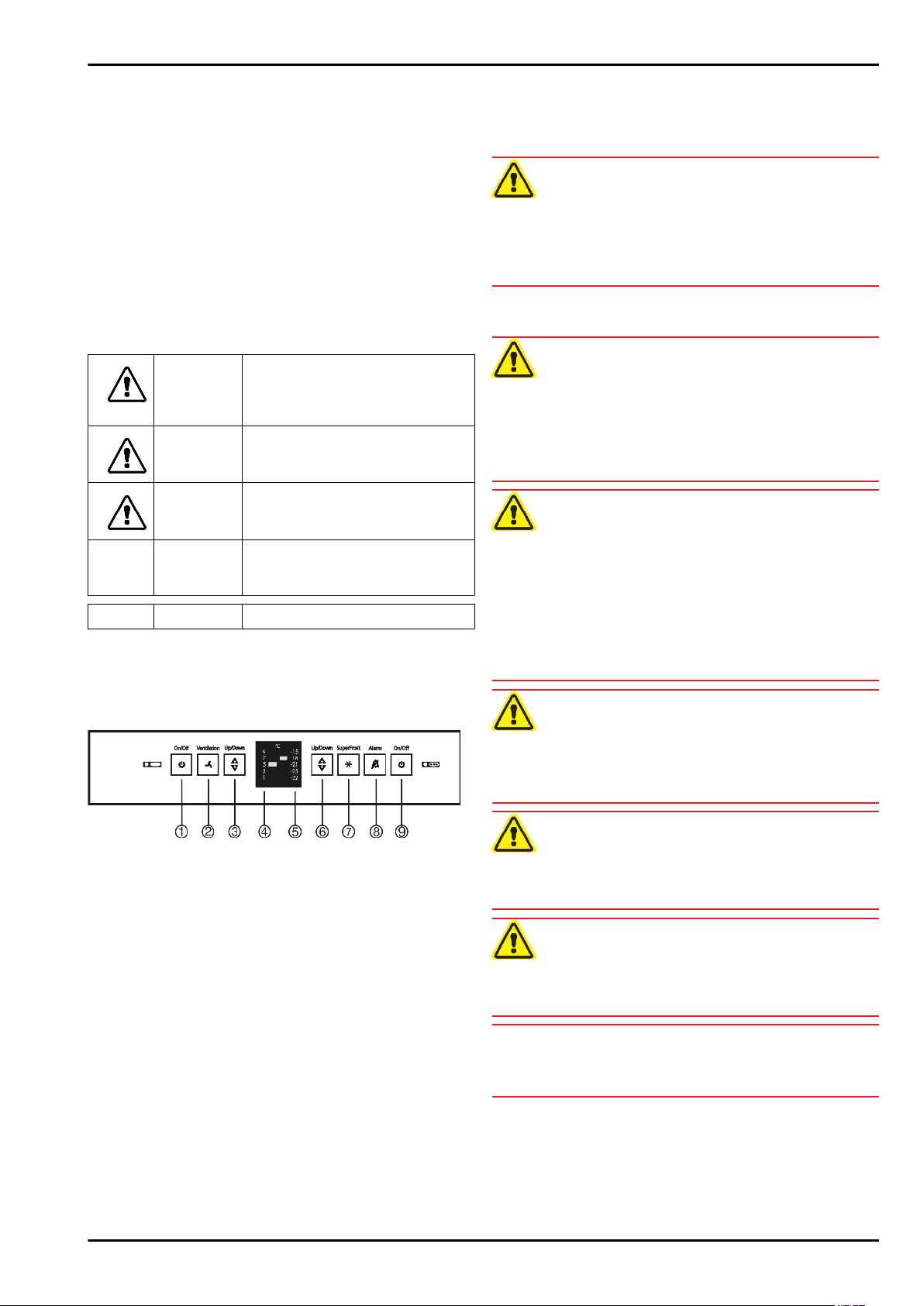

(1) On/Off button, refriger-

ator compartment

(2) Fan button (7) SuperFrost button (3) Setting button, refriger-

ator compartment

(4) Refrigerator compart-

ment temperature display

(5) Freezer compartment

temperature display

(6) Setting button, freezer

compartment

(8) Alarm button

(9) On/Off button, freezer

compartment

3.2 Temperature display

The following are displayed in normal operation:

the set freezing temperature

the set cooling temperature

The temperature display flashes:

the temperature setting is being changed

the temperature has risen several degrees

Fire hazard and danger of damage!

Blocked ventilation openings pose a risk of fire and damage!

NOTICE

Risk of damage due to condensate!

q q

WARNING

Do not place appliances emitting heat e.g. microwaves, toasters etc. on the appliance!

WARNING

Always keep the ventilation openings clear. Always ensure that the appliance is properly ventilated!

Do not install the appliance directly alongside a further refrigerator/freezer.

In the event that the appliance is damaged, contact the supplier immediately before connecting to the mains. The floor at the site must be flat and level.

Do not install the appliance in a location where it is exposed to direct radiation of the sun, next to a cooker, heater and similar.

Page 5

Putting into operation

Always stand the appliance backed directly to the wall using

the enclosed wall spacers (see below). The appliance may be moved only when it is empty.

Do not install the appliance without assistance.

Standard EN 378 specifies that the room in which you install

your appliance must have a volume of 1 m2 per 8 g of R 600a refrigerant used in the appliance. If the room in which the appliance is installed is too small, a flammable gas-air mixture may form in the event of a leakage in the refrigeration circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

Detach the connecting cable from the rear of the appliance,

removing the cable holder at the same time because otherwise there will be vibratory noise! Remove the protective film from the outside of the appli-

ance.*

NOTICE*

The stainless steel doors are finished with a high quality surface coating and must not be treated with the enclosed care product,

as otherwise the surface coating will be damaged.

Please only use a soft clean cloth to wipe the coated door

surfaces. Only use a stainless steel care product on the stainless

steel side walls, applying it evenly in the direction of polishing. Subsequent cleaning will then be easier. Use only a soft clean cloth to wipe side walls and door

surfaces with a paint finish.

Always see to good ventilation at the installation site.

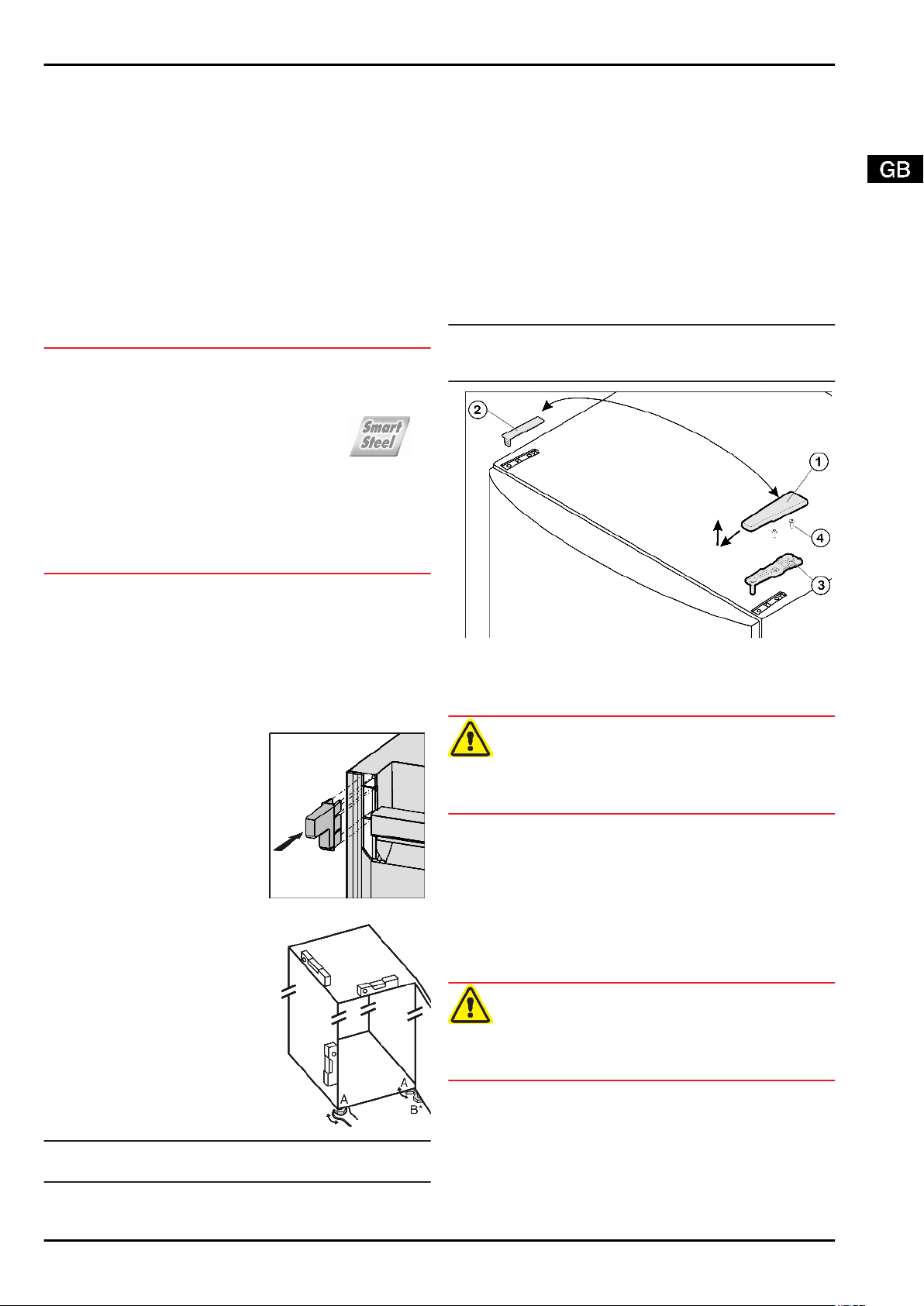

4.3 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

Torx® 25

Torx® 15

Screwdriver

Cordless screwdriver, if necessary

Second person for fitting work, if needed

4.3.1 Detaching the upper door

Note

Remove any food from the door racks before removing the

door, so that no food falls out.

Remove the protective film from the decorative trims.

Remove all transit supports.

If wall spacers are included with the appliance, the specified energy consumption is achieved if these wall spacers are mounted and used. Without wall spacers, the specified appliance depth is reduced by 3.50 cm. If the enclosed wall spacers are not used, the function of the appliance is not affected in any way. However, on such appliances with less wall clearance, energy consumption will be slightly higher.*

In the case of an appliance with

enclosed wall spacers, mount the wall spacers on the back of the appliance at the top left and right.*

Dispose of packaging material (see 4.5) .

Align the appliance so that it

stands firmly and on a level by applying the accompanying spanner to the adjustableheight feet (A) and using a spirit level. Then support the door: Extend

the adjustable foot at the turn hinge (B) until it rests on the floor and then make a further 90° turn.

Note

Clean the appliance (see 6.2) .

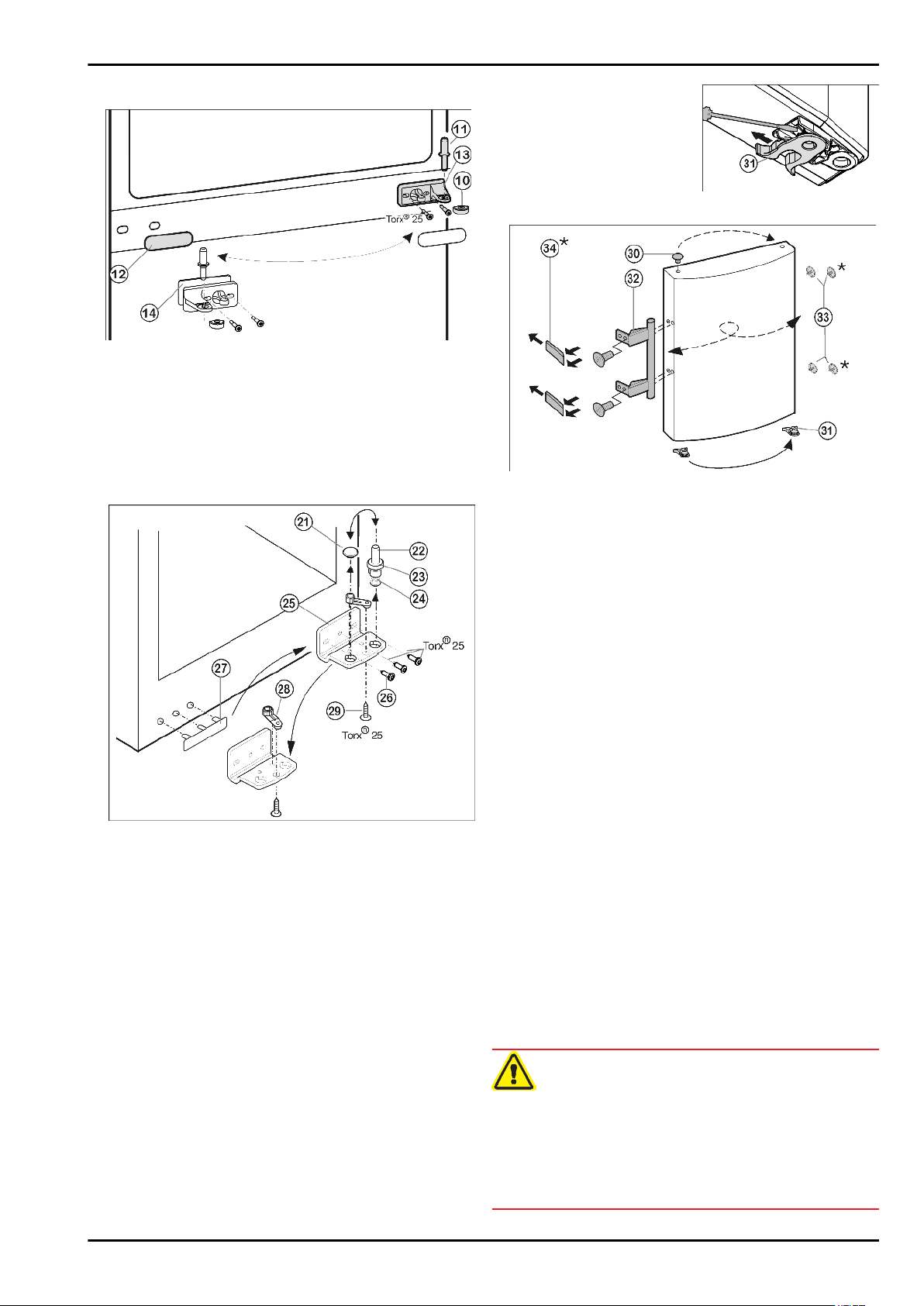

Fig. 4

Close the upper door.

Pull off the cover

Lift off the cover

CAUTION

Risk of injury if the door tips!

Take good hold of the door.

Set down the door carefully.

Unscrew the upper turn hinge

Fig. 4 (4)

Lift up the upper door and set it aside.

4.3.2 Detaching the lower door

Close the lower door.

Draw the middle bearing pin

and lower door. Remove the plastic cap

Risk of injury if the door tips!

Take good hold of the door.

Set down the door carefully.

Open the lower door.

Unscrew the middle turn hinge (2x Torx® 25).

Lift up the door and set it aside.

and lift it off.

CAUTION

Fig. 4 (1)

Fig. 4 (2)

Fig. 5 (10)

forwards and upwards.

Fig. 5 (11)

Fig. 4 (3)

(2x Torx® 25)

out of the turn hinge

Fig. 5 (13)

If the appliance is installed in a very damp environment, condensate may form on the outside of the appliance.

Page 6

Putting into operation

4.3.3 Transferring the middle bearing elements

Fig. 5

Carefully detach the cover panel

Turn the middle turn hinge

Fig. 5 (14)

new hinge side (with 4 Nm). Turn the cover panel

into place again on the new handle side.

through 180° and screw it firmly into place on the

Fig. 5 (12)

Fig. 5 (13)

through 180° and snap it

with the washer

Transfer the spring clamp

Fig. 7 (31)

latch nose and pull the spring clamp off over it. Slide the spring clamp

into place on the new hinge side until it clicks into place.

: Depress the

Fig. 7

4.3.4 Transferring the lower bearing elements

Fig. 6

Lift out the bearing pin

Fig. 6 (23)

Lift off the stopper

Unscrew

it to the opposite location hole of the turn hinge and screw it firmly into place. Carefully lift off the cover on the handle side

transfer it to the opposite side. Screw the turn hinge

hinge side, possibly using a cordless screwdriver (with 4 Nm).

Re-insert the stopper

Re-insert the bearing pin

and foot. In so doing, pay attention that the locating lug points backwards

and foot

Fig. 6 (26) Fig. 6 (29)

Fig. 6 (22)

Fig. 6 (24)

Fig. 6 (21)

the turn hinge

the bearing element

Fig. 6 (25)

Fig. 6 (21)

Fig. 6 (25)

firmly into place on the new

into the other hole.

Fig. 6 (22)

together with washer

Fig. 6 (28)

together with washer

, transfer

Fig. 6 (27)

and

4.3.5 Transferring the handles

On both the upper and lower door:

Fig. 8

Lift the stopper

transfer it. Detach door handle

sure plates When fitting the pressure plates on the opposite side, make

sure they snap properly into place*

Fig. 8 (30)

Fig. 8 (32)

Fig. 8 (34)

out of the door bearing bush and

, stopper

and transfer to the opposite side.

Fig. 8 (33)

and pres-

4.3.6 Fitting the lower door

Place the lower door from above onto the lower bearing pin

Fig. 6 (22)

Close the door.

Place the plastic cap

hinge Place the middle bearing pin

the new hinge side, through the middle turn hinge

Fig. 5 (13)

Fig. 5 (10)

Fig. 5 (11)

back onto the middle turn

in the lower door, on

4.3.7 Fitting the upper door

Place the upper door on the middle bearing pin

Insert the upper turn hinge

hinge side. Screw the upper turn hinge firmly into place (with 4 Nm)

(2x Torx® 25) with a bradawl or use a cordless screwdriver. Apply the cover

site side from the outside and snap them into place.

Fig. 4 (4)

Fig. 4 (1)

Fig. 4 (3)

. Possibly make preliminary holes

and cover

in the door on the new

Fig. 4 (2)

Fig. 5 (11)

to the oppo-

4.3.8 Aligning the doors

If necessary, align the doors to the appliance housing by

way of the two oblong holes in the bottom turn hinge

Fig. 6 (25)

unscrew the middle screw in the bottom turn hinge

Fig. 6 (25)

Risk of injury due to the door dropping out! If the bearing parts are not screwed into place firmly enough, the door may drop out. This may lead to severe injuries. What is more, the door may not close and therefore the appliance may fail to cool properly.

Screw the turn hinges firmly into place with 4 Nm.

Check all of the screws and retighten if necessary.

and middle turn hinge

WARNING

Fig. 5 (13)

. To do so,

Page 7

Control

4.4 Insertion into a row of kitchen units

Fig. 9

(1) Stack cabinet (3) Kitchen cabinet (2) Appliance (4) Wall

In the case of appliances without enclosed wall spacers, or if the enclosed spacers are not used, the dimension is reduced by 35 mm (see 4.2) .

The appliance can be inserted into a row of kitchen units. To match the appliance a suitable stack cabinet ance.

When building in with kitchen units (max. depth 580 mm) the appliance can be positioned directly next to the refrigerator

Fig. 9 (3)

by 70 mm x at the side and by 85 mm x at the centre.

Important for the ventilation:

If the appliance is installed with the hinges next to a wall

Fig. 9 (4)

least 40 mm. This corresponds to the projection of the handle when the door is open.

. The appliance projects out from the kitchen unit front

At the back of the stack cabinet there has to be a ventilation duct of at least 50 mm depth throughout the width of the stack cabinet. The ventilation space under the ceiling has to be at least 300 cm2. the larger the ventilation space, the more energy-saving the appliance is in operation.

, the distance between appliance and wall has to be at

Fig. 9 (2)

Fig. 9 (1)

to the height of the row of units,

can be fitted above the appli-

4.5 Disposing of packaging

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

polythene bags and sheets

polypropylene straps

nailed wooden frame with polyethylene panel*

Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

Do not use stand-alone inverters (conversion of d.c. to a.c./

three-phase) or energy saving plugs.

Fire and overheating hazard!

The type of current (alternating current) and voltage at the installation site have to conform with the data on the type plate (see Appliance at a glance). Connect the appliance only with a properly installed socket outlet with earthing contact. The socket outlet must be fused with 10 A or higher.

It must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

u u

WARNING

Do not use extension cables or multiple socket outlets.

Check the electrical connection. Plug in the power plug.

4.7 Switching on the appliance

Note

To switch on the entire appliance it is necessary only to

switch on the freezer compartment. In so doing, the refrigerator compartment is automatically switched on as well.

Put the appliance into operation about 4 hours before first loading food to be frozen.

4.7.1 Switching on the freezer compartment

PressOn/Off button, freezer compartment

The appliance is switched on. The refrigerator compartment

temperature display indicates the set temperature. The freezer compartment temperature display and the alarm button flash until the temperature is sufficiently low.

4.7.2 Switching on the refrigerator compartment

Note

When the refrigerator compartment is switched on, the

freezer compartment is automatically switched on as well.

Press On/Off button, refrigerator compartment

The interior light is on when the door is open.

The temperature display shines. Refrigerator compartment

and freezer compartment are switched on.

Fig. 3 (9)

Fig. 3 (1)

WARNING

Danger of suffocation due to packing material and plastic film!

Do not allow children to play with packing material.

5 Control

5.1 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold enough.

Page 8

Control

The temperature display and the alarm button flash at the same time.

The cause of the temperature being too high may be:

warm fresh food was placed inside

too much warm ambient air flowed in when rearranging and

removing food power failure for some time

the appliance is faulty

The audible alarm is automatically silenced, the alarm button

Fig. 3 (8)

when the temperature is sufficiently cold again. If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.

goes out and the temperature display stops flashing

Check the quality of the food. Do not consume spoiled food.

5.1.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is sufficiently cold again, the alarm function is active again.

Press alarm button

The audible alarm is silenced.

Fig. 3 (8)

5.2 Refrigerator compartment

The natural circulation of air in the refrigerator compartment results in zones differing in temperature. It is coldest directly above the vegetable drawers and at the rear wall. It is warmest at the top front of the compartment and in the door.

5.2.1 Food refrigeration

Note

The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.

Always keep the air slits of the fan free.

Store perishable food such as ready-to-serve dishes, meat

products and sausages in the coldest zone. Place butter and preserves in the upper area and in the door (see Appliance at a glance). Use recyclable plastic, metal, aluminium and glass

containers and cling film for wrapping. Always store liquids and food which is subject to odour or

taste transfer in closed containers or cover them. Foods which give off a large amount of ethylene gas and

delicate foods, such as fruit, vegetables, salad, should always be stored separately or wrapped so as not to reduce the storage life; e.g. do not store tomatoes together with kiwis or cabbage. Do not store food too close together to enable good air

circulation. To safeguard bottles from tipping over: move the bottle

holder.

Press the setting button, refrigerator compartment

the number of times needed until the required temperature shines in the LED display.

Note

Long pressing of the setting button sets a slightly colder

value within a small temperature range (e.g.: between 5 °C and 7 °C). The LED of the next lower temperature range then shines in the temperature display.

Fig. 3 (3)

5.2.3 Fan

With the fan you can rapidly cool large quantities of fresh food or achieve a relatively even distribution of temperature across all the storage levels.

The forced-air cooling is to be recommended:

at high room temperature (above33 °C )

at high humidity

The forced-air cooling uses slightly more energy. To save energy, the fan switches off automatically when the door is open.

Switching on the fan

Briefly press the fan button

The fan button shines.

The fan is active. It switches on automatically when the

compressor runs.

To switch off the fan

Briefly press the fan button

The fan button goes out.

The fan is switched off.

Fig. 3 (2)

5.2.4 Relocating the shelves

The shelves have stops preventing them from being unintentionally pulled out.

Lift the shelf and draw it out forwards.

Insert shelf with the raised edge

pointing upwards at the back. The food does not freeze onto the rear

wall.

5.2.5 Using the sectioned shelf

CAUTION

Danger of laceration! The shelf may break. The broken fragments may cause laceration.

Remove only empty shelves.

5.2.2 Setting the temperature

The temperature depends on the following factors:

the door opening frequency

the room temperature at the site where the appliance is

installed the type, temperature and quantity of frozen food

Temperature setting to be recommended: 5 °C The temperature can be changed continuously. Once the 1 °C

setting is reached, it starts again with 9 °C.

To access temperature adjustment: press the setting button,

refrigerator compartment The LED of the current temperature flashes in the tempera-

ture display.

Fig. 3 (3)

once.

The glass shelf with stop face (2) has to be at the back.

Fig. 10

Page 9

Control

5.2.6 Removing the storage rack

Remove storage rack according to

illustration.

5.2.7 Removing the bottle holder

Remove the bottle holder according

to the illustration.

5.3 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

5.3.1 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see Appliance at a glance) under "Freezing capacity ... kg/24h".

The maximum load of frozen food for the drawers is 25 kg each and for the shelves 35 kg each.

CAUTION

Risk of injury due to broken glass! Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks.

Do not freeze bottles and cans containing drinks!

In order that the food is rapidly frozen through to the core, do not exceed the following quantities per pack:

- Fruit, vegetables up to 1 kg

- Meat up to 2.5 kg

Pack the food in portions in freezer bags, reusable plastic,

metal or aluminium containers.

5.3.2 Storage life

Standard values for the storage life of various types of

food in the freezer compartment:

Ice-cream 2 to 6 months

Sausage, ham 2 to 6 months

Bread, bakery products 2 to 6 months

Game, pork 6 to 10 months

Fatty fish 2 to 6 months

Lean fish 6 to 12 months

Cheese 2 to 6 months

Poultry, beef 6 to 12 months

Vegetables, fruit 6 to 12 months

The values indicated for storage life are standard ones.

5.3.3 Thawing food

- in the refrigerator compartment

- at room temperature

- in a microwave oven

- in a conventional or fan oven Remove only as much food as is required. Use thawed food

as quickly as possible. Food once thawed should be re-frozen only in exceptional

cases.

5.3.4 Setting the temperature

Temperature setting to be recommended: -18 °C The temperature can be changed continuously. Once the

-32 °C setting is reached, it starts again with -15 °C. To access temperature adjustment: press setting button,

freezer compartment The LED of the current temperature flashes in the tempera-

ture display of the freezer compartment. Press the setting button, freezer compartment

number of times needed until the required temperature shines in the LED display.

Note

Long pressing of the setting button sets a slightly colder

value within a small temperature range (e.g.: between

-15 °C and -18 °C). The LED of the next lower temperature range then shines in the temperature display.

Fig. 3 (6)

once.

Fig. 3 (6)

the

5.3.5 SuperFrost

With this function you can freeze fresh food quickly through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

In addition, frozen food already in storage is given a "cold reserve". The food stays frozen longer as a result when you defrost the appliance.

The maximum amount of fresh food which can be frozen in 24 h is indicated on the type plate under "freezing capacity ... kg/ 24h". This amount varies according to the model and climate rating.

You have to activate SuperFrost in good time, depending on how much fresh food is to be frozen: about 6 hours before placing the food inside in case of small amounts and about 24 hours in advance in case of the maximum amount of food to be frozen.

Wrap produce and spread it out as far as possible. Do not allow produce to be frozen to touch produce that is already frozen to prevent the latter thawing.

You do not have to activate SuperFrost in the following cases:

when placing frozen food in the freezer

when freezing up to approx. 2 kg fresh food daily

Freezing with SuperFrost

Briefly press the SuperFrost button

The SuperFrost button shines.

The LED of the coldest temperature shines in the tempera-

ture display. The freezer temperature drops, the appliance operates with

the maximum refrigerating capacity.

Note

Pressing the SuperFrost button can cause the compressor

to switch on up to 8 minutes later, thanks to the integrated switch-on delay. This delay increases the service life of the compressor.

In case of a small amount of food to be frozen: wait approx. 6 h.

Place wrapped produce in the bottom drawers.

Fig. 3 (7)

Page 10

Maintenance

In case of the maximum amount of food to be frozen (see type plate): wait about 24 h.

Remove bottom drawer and place produce directly in the

appliance so that it touches the base or sides. SuperFrost is automatically deactivated after about 65 h.

The SuperFrost button extinguishes once freezing is

completed. Place produce in the drawer and then push the drawer back

in again. The appliance continues to operate in the energy-saving,

normal mode.

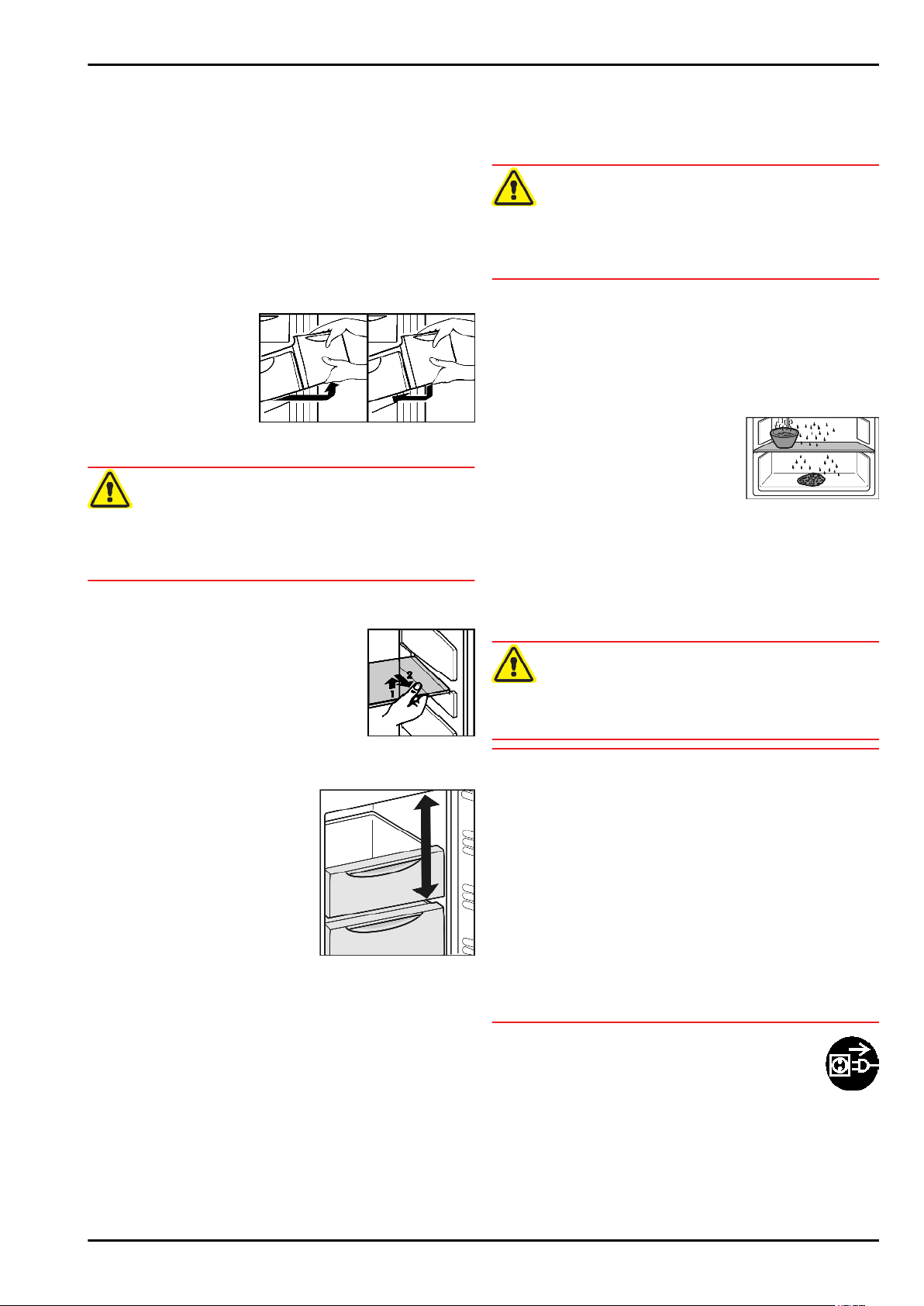

5.3.6 Drawers

To store frozen food directly on the shelves: pull the drawer

forwards and lift it out.

Danger of cuts! The shelf can break. You can cut yourself on the broken pieces.

CAUTION

Hold the shelf firmly.

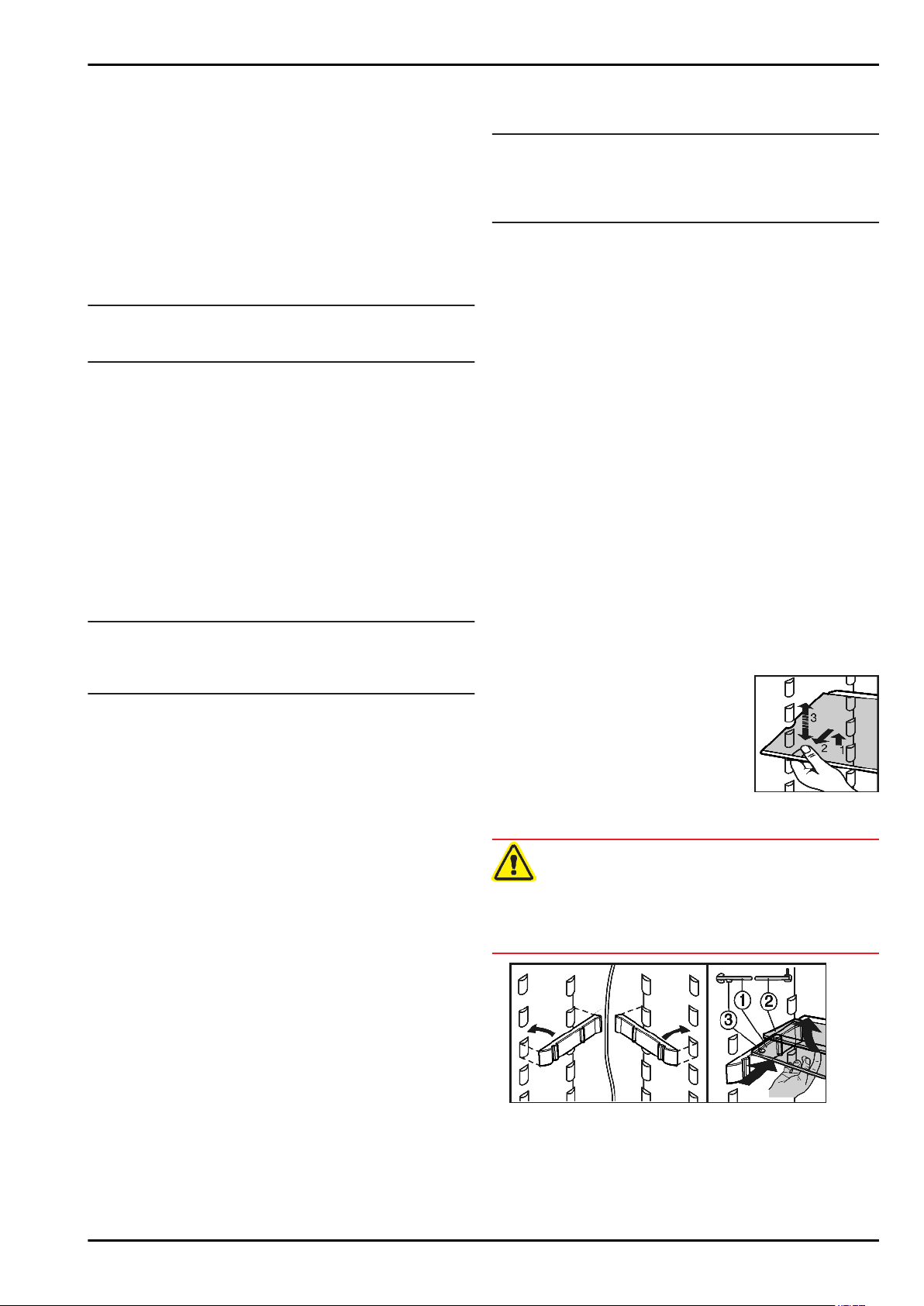

5.3.7 Shelves

To remove the shelf: lift up at the front

and pull out. To put the shelf back: simply push in as

far as it will go.

The layer of frost or ice builds up faster if the appliance is opened often or if the food is warm when placed inside. However, a thick layer of ice will increase the appliance‘s energy consumption. You should therefore defrost the appliance regularly.

Risk of injury and damage as a result of hot steam!

u w u w u u

-or-

w w u u u

CAUTION

Do not use electric heaters or steam cleaners, naked flames or defrosting sprays for defrosting. Do not remove ice using sharp instruments.

Switch on SuperFrost one day before defrosting. The frozen goods are provided with a "cold reserve". Switch off the appliance. The temperature display goes out. Pull out the power plug or switch off the fuse. If possible, put the frozen goods in the freezer drawer, wrapped in newspaper or a blanket, and store in a cool place. Place a pan with hot, not boiling water on a middle shelf.

Half-fill the two lower drawers with lukewarm water and put them in the appliance.

Defrosting is speeded up. Defrost water is collected in the drawers. Leave the door of the appliance open while defrosting. Remove detached pieces of ice. Clean the appliance (see 6.2) .

6.2 Cleaning the appliance

CAUTION

Risk of injury and damage as a result of hot steam! Hot steam may damage the surfaces and cause burns.

Do not use any steam cleaners!

5.3.8 VarioSpace

Apart from being able to remove the drawers, you can also remove the shelves, creating space for large items of frozen food. Poultry, meat, large pieces of game and high bakery products can be frozen in one piece and prepared.

The maximum load of frozen food

for the drawers is 25 kg each and for the shelves 35 kg each.

6 Maintenance

6.1 Manual defrosting

The refrigerator compartment is defrosted automatically. The defrost water evaporates as a result of the heat of the compressor. Drops of water on the rear wall are perfectly normal.

Regularly clean the drain opening to allow the water to flow

away (see 6.2) .

A layer of frost or ice can build up in the freezer compartment after a long period of operation.

NOTICE

Incorrect cleaning damages the appliance!

Do not use cleaning agents in concentrated form.

Do not use any scouring or abrasive sponges or steel wool.

Please do not use any aggressive, scouring, sand-,

chloride-, chemical- or acid-based cleaning agents. Do not use chemical solvents.

Do not damage or remove the type plate on the inside of the

appliance. It is important for the customer service. Do not pull off, bend or damage cables or other compo-

nents. Do not allow any cleaning water to enter the drain channel,

ventilation grille or electrical parts. Please use soft cleaning cloths and a universal pH-neutral

cleaning agent. Please use cleaning and care products suitable for contact

with foodstuffs in the appliance interior.

Empty appliance.

Pull out the power plug.

Clean plastic outer and inner surfaces with lukewarm

water and a little washing-up liquid.

Page 11

NOTICE

The stainless steel doors are finished with a high quality surface coating and must not be treated with the enclosed care product,

as otherwise the surface coating will be damaged.

Please only use a soft clean cloth to wipe the coated door

surfaces. In the case of heavy soiling, use a little water or neutral cleaning agent. A micro-fibre cloth can be used optionally. When soiled, clean stainless steel side walls with a

commercially available stainless steel cleaning agent. Then apply the enclosed stainless steel care product evenly in the direction of polishing. Use only a soft clean cloth to wipe side walls and door

surfaces with a paint finish. In the case of heavy soiling, use a little water or neutral cleaning agent. A micro-fibre cloth can be used optionally.

Clean drain hole: Remove

deposits with a narrow instrument, e.g. a cotton bud.

Malfunction

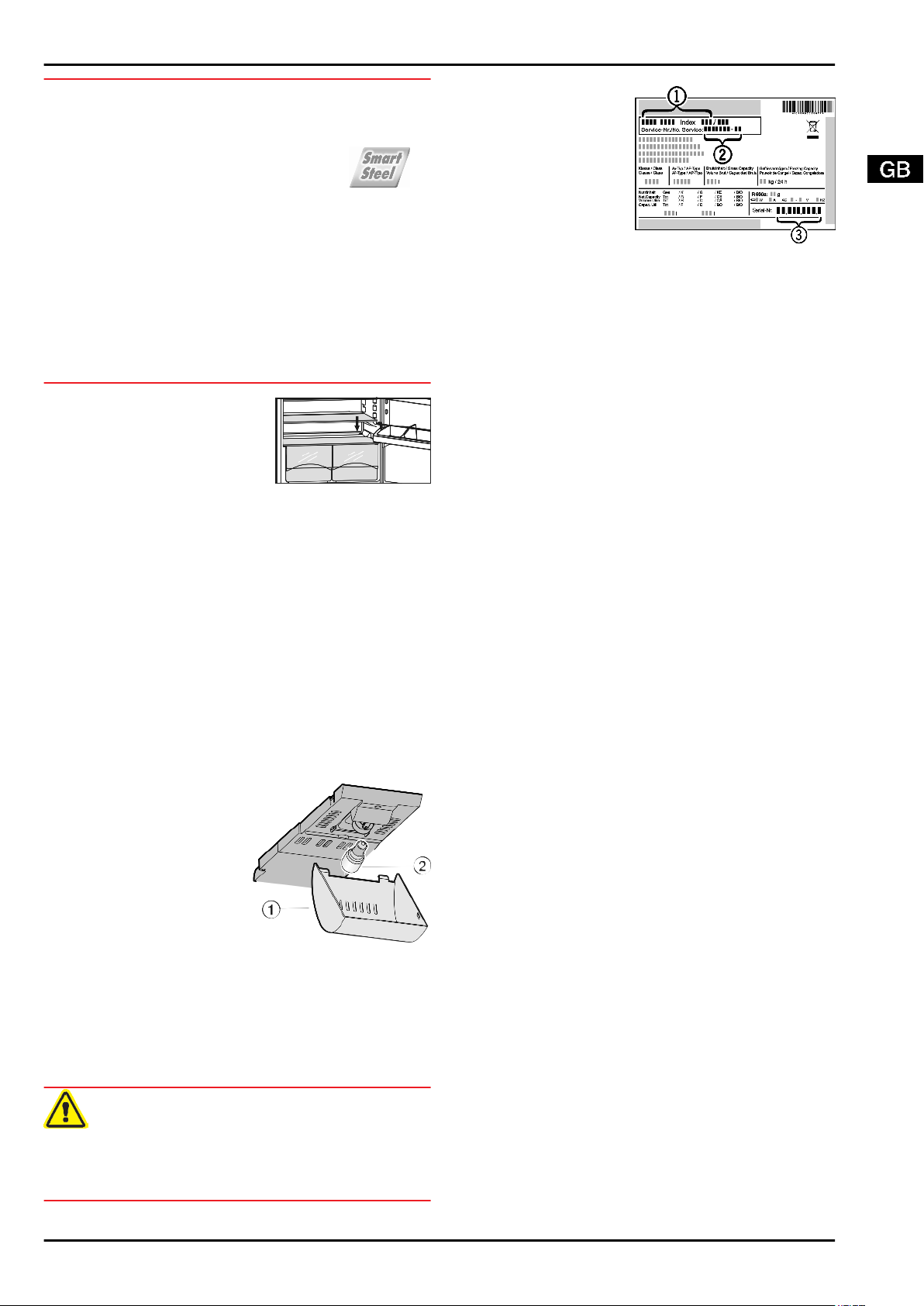

Read the appliance

designation

Fig. 12 (1)

No.

Fig. 12 (2)

serial No. off the type plate located inside the appliance on the lefthand side.

Notify the customer service, specifying the fault, appliance

designation

Fig. 12 (3)

This will help us to provide you with a faster and more accu-

rate service. Keep the appliance closed until the customer service

arrives. The food will stay cool longer.

Pull out the mains plug (not by pulling the connecting cable)

or switch off the fuse.

, service

and

Fig. 12 (3)

Fig. 12 (1)

, service No.

Fig. 12 (2)

and serial No.

7 Malfunction

Fig. 12

Clean items of equipment by hand with lukewarm water

and a little washing-up liquid.

After cleaning:

Wipe dry the appliance and items of equipment.

Connect the appliance and switch it on again.

Switch on SuperFrost (see 5.3.5) .

When the temperature is sufficiently cold: Put the food back inside.

6.3 Changing the interior light with bulb *

Bulb data

max. 25 W Fitting: E14 Type of current and voltage must conform with the details on the type plate

Switch off the appliance.

Pull out the power plug or

switch off the fuse. Take holder of the cover

Fig. 11 (1)

and unhook it at the back. Change the bulb

Fig. 11 (2)

Put the cover

back in place.

at the front

Fig. 11 (1)

Fig. 11

6.4 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

Have any repairs and action - not expressly specified - on

the appliance and mains cable carried out by service personnel only. (see Maintenance)

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

The appliance is not switched on.

→

Switch on the appliance.

The power plug is not properly inserted in the wall socket.

→

Check power plug.

The fuse of the wall socket is not in order.

→

Check fuse.

The compressor runs for a long time.

The compressor switches to a low speed when little cold is

→

needed. Although the running time is increased as a result, energy is saved. This is normal in energy-saving models.

SuperFrost is activated.

→

The compressor runs for longer in order to rapidly cool the

food. This is normal.

A LED on the bottom rear of the appliance (at the compressor) flashes regularly every 15 seconds*.

The inverter is equipped with a diagnostic LED.

→

The flashing is normal.

Excessive noise.

Speed-controlled* compressors may produce varying

→

running noise due to different speed steps. The sound is normal.

A bubbling and gurgling noise.

This noise comes from the refrigerant flowing in the refriger-

→

ation circuit. The sound is normal.

A quiet clicking noise.

The noise is produced whenever the refrigeration unit

→

(motor) automatically switches on or off. The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

The refrigeration increases automatically when the Super-

→

Frost, function is activated, fresh food has just been placed in the appliance or the door has been left open for a while. The sound is normal.

Page 12

Decommissioning

The ambient temperature is too high.

→

Solution: (see 1.2)

A low hum.

The sound is produced by air flow noise of the fan.

→

The sound is normal.

Vibratory noise.

The appliance is not standing firmly on the floor. As a result,

→

adjoining units or objects are set into vibration by the running refrigeration unit.

Move the appliance away a little and align it using the

adjustable feet. Move bottles and containers apart.

The SuperFrost button flashes together with the temperature display.

There is a fault.

→

Contact the customer service. (see Maintenance).

The temperature is not cold enough.

The door of the appliance is not properly closed.

→

Close the door of the appliance.

Insufficient ventilation.

→

Clear ventilation grilles.

The ambient temperature is too high.

→

Solution: (see 1.2) .

The appliance was opened too frequently or for too long.

→

Wait until the appliance reaches the required temperature

itself. If not, contact the customer service. (see Maintenance). Too much fresh food was placed inside without SuperFrost.

→

Solution: (see 5.3.5)

The appliance is too close to a heat source.

→

Solution: (see Putting into operation).

The interior light is not on.

The appliance is not switched on.

→

Switch on the appliance.

The door was open longer than 15 min.

→

The interior light automatically switches off if the door has

been open for about 15 min. If the interior light is not on but the temperature display is lit,

→

the bulb is faulty. Change the bulb. (see Maintenance).

Note

If only the refrigerator compartment is to be switched off, e.g

during holidays, then always pay attention: the freezer compartment temperature display has to shine.

8.2 Taking the appliance out of service

Empty the appliance.

Pull out the power plug.

Clean the appliance (see 6.2) .

Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

Disable the appliance.

Pull out the plug.

Cut through the connecting cable.

8 Decommissioning

8.1 Switching off the appliance

Note

To switch on the entire appliance it is necessary only to

switch off the freezer compartment. In so doing, the refrigerator compartment is automatically switched off as well.

8.1.1 Switching off the freezer compartment

Press ON/OFF button, freezer compartment

least 3 seconds. The temperature displays are dark. The entire appliance is

switched off.

8.1.2 Switching off the refrigerator compartment

Press ON/OFF button, refrigerator compartment

for at least 3 seconds. The interior light is off.

The temperature display of the refrigerator compartment is

dark.

Fig. 3 (9)

Fig. 3 (1)

for at
