LC320W01

Liquid Crystal Display

Product Specification

SPECIFICATION

FOR

APPROVAL

)

( (

Preliminary Specification

●

)

Final Specification

Title 32.0” WXGA TFT LCD

BUYER General MODEL

APPROVED BY

SIGNATURE

DATE

SUPPLIER LG.Philips LCD Co., Ltd.

*MODEL LC320W01

MODEL B6K3

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

Jay Yoon / G. Manager

REVIEWED BY

H. S. Song / Manager

PREPARED BY

W. K . Min / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0 Feb. 17, 2005

TV Product Development Dept.

LG. Philips LCD Co., Ltd

1/ 28

Page 2

LC320W01

Liquid Crystal Display

Product Specification

CONTENTS

Number ITEM Page

COVER CONTENTS

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION 2 ABSOLUTE MAXIMUM RATINGS 3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS 3-2 INTERFACE CONNECTIONS 3-3 SIGNAL TIMING SPECIFICATIONS

3-4 SIGNAL TIMING WAVEFORMS 3-5 COLOR INPUT DATA REFERENCE

3-6 POWER SEQUENCE 4 OPTICAL SPECIFICATIONS 5 MECHANICAL CHARACTERISTICS 6 RELIABILITY

1 2

4 5

6 6 8

12 13

14 15 17 21 24

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC 8 PACKING

8-1 DESIGNATION OF LOT MARK

8-2 PACKING FORM

9 PRECAUTIONS 27

9-1 MOUNTING PRECAUTIONS 27

9-2 OPERATING PRECAUTIONS 27

9-3 ELECTROSTATIC DISCHARGE CONTROL 28

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE 28

9-5 STORAGE 28

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM 28

Ver. 1.0 Feb. 17, 2005

25 25 25 26 26 26

2/ 28

Page 3

Liquid Crystal Display

Product Specification

RECORD OF REVISIONS

Revision No Revision Date Page Description

0.0 Sep. 13, 2004 - Preliminary Specification

0.1 Nov. 04, 2004 - Updated Preliminary Specification 4 General Features

6 Table2-1.Electrical characteristics

7 Table2-2. Inverter Electrical characteristics

11 Table6. Inverter connector pin configuration 12 Table7.Timing table

18 Table12. Gray scale specification 21 Table13. Mechanical characteristics

0.2 Nov.08,2004 17 Change the VBR-A (2.5V →1.65V)

0.3 Dec.17,2004 Table1.Absolute maximum ratings

0.4 Jan.05,2005 4 General Features

1.0 Feb.17,2005 16 Change Power Sequence for Inverter(T4 Min: 0Æ-500, Max: None Æ120)

-Storage Temperature:T

23 Change Mechanical drawing

16 Note4. T4 related Ext-PWM and A-Dim signal is min 0ms.

Table 2-2.Inverter electrical characteristics

-Input current (Vbr-A = 3.3V) : Typ. 4.0A → 4.1A, Max. 4.28A → 4.35A

Table10.Power sequence for Inverter

-T2:100ms → 500ms

Table11. Optical characteristics

-Color coordinates

Wx:0.275 Wy:0.279 →Wx:0.280, Wy:0.285

Table 2-1. Electrical Characteristics

-Change Power Input Current and Power Consumption Table 2-2.Inverter electrical characteristics

-Max Input Power 104.4W

-Inrush Current 6.3A

-Pulse Duty(PWM) High and Low Level define

50℃→65℃

LC320W01

17 Change Response time Spec (G-to-G 8ms → 10ms) 23 Change Label Mark (Add “Lead free” and Matsushita Label)

24 Delete Humidity condition storage test item

Final Specification

Ver. 1.0 Feb. 17, 2005

3/ 28

Page 4

LC320W01

Liquid Crystal Display

Product Specification

1. General Description

The LC320W01 is a Color Active Matrix Liquid Crystal Display with an integral External Electrode Fluorescent Lamp(EEFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive display type which is operated in the normally black mode. It has a 31.51 inch diagonally measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel ar Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes. Gray scale or the luminance of the sub-pixe l color is determined with a 8-bit gray scale signal for each dot, Therefore it can present a palette of more than 16.7M(true) colors. It has been designed to apply the 8Bit 1 port LVDS interface. It is intended to support LCD TV, PCTV where high brightness, super wide view ing angle, high color gamut, high color depth and fast response time are important.

RGB(Mini-LVDS)

Source Driver Circuit

S1 S1366

+12.0V

LVDS

5pair

Option

# 9

CN1

(30pin)

Timing Controller

[ODC & Mini-LVDS

Tx integrated]

Gate Driver Circuit

TFT - LCD Panel

(1366 × RGB × 768 pixels)

ray)

Power Circuit

G768

Block

+24.0V +24.0V

Inverter

(CN2,CN3)

2pin x 1CNs (High)

Back light Assembly (20EEFL)

2pin x 1CNs (High)

General Features

Active Screen Size 31.51 inches(800.4mm) diagonal Outline Dimension 760.0 mm(H) x 450.0 mm(V) x 53.5 mm(D) (Typ.) Pixel Pitch 170.25㎛ x 510.75㎛ x RGB Pixel Format 1366 horiz. by 768 vert. pixels RGB stripe arrangement Color Depth 8bit, 16,7 M colors

Luminance, White 500 cd/m2 (Center 1 point) (Typ.) Viewing Angle (CR>10) Viewing angle free ( R/L 178(T yp.), U/D 178( Typ.))

Power Consumption Total 89.1Watt (Typ.) (Logic=(5.1W), Lamp=84W [IBL=85mA] ) Weight 7,200 g (Typ.) Display Operating Mode Transmissive mode, norma lly black

Surface Treatment Hard coating(3H), anti-glare treatment of the front polarizer

Ver. 1.0 Feb. 17, 2005

4/ 28

Page 5

LC320W01

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values wh ich, if exceeded, may cause faulty operation or damage to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter

Power Input

Voltage

LCM

Backlight inverter ON/OFF Control Voltage Brightness Control Voltage

Operating Temperature (Ambient Temp.)

Storage Temperature Operating Ambient Humidity Storage Humidity

VLCD -0.3 +14.0 VDC

VBL -0.3 +27.0 VDC

VON/OFF -0.3 +5.25 VDC

VBR-A 0 +5.25 VDC

TOP 0 +50

TSUR 0 +65

TST -20 +65 HOP 10 90 %RH HST 10 90 %RH

Value

Unit

Min Max

°C °C

°C

Note :

1. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 °C Max, and no condensation.

2. Abnormal visual problems by panel surface temperature can be occurred in specific

range (60 °C ~ 65 °C), But materials(ex : polarizer) are not damaged permanently in this range, T

SUR.

90%

NoteSymbol

at 25 ± 2 °C

1 2 1 1 1

Wet Bulb Temperature [C]

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [C]

Ver. 1.0 Feb. 17, 2005

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

5/ 28

Page 6

LC320W01

Liquid Crystal Display

Product Specification

3. Electrical Specifications 3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other input power for the EEFL/Backlight is to power inverter.

Table 2-1. ELECTRICAL CHARACTERISTIC S

Parameter Symbol

Min Typ Max

Circuit :

Power Input Voltage VLCD 11.4 12.0 12.6 VDC Permissible Input Ripple Voltage VRP - - 200 mVP-P

298 425 553 mA 1

Power Input Current ILCD

399 570 741 mA 2 Power Consumption PLCD 3.6 5.1 6.6 Watt 1 Rush current IRUSH - - 3.0 A 3

Note : 1. The specified current and power consumption are under the V

Value

Unit Note

=12.0V, 25 ± 2°C, fV=60Hz

LCD

condition whereas mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 1ms (min.).

White : 255Gray Black : 0Gray

Mosaic Pattern(8 x 6)

Ver. 1.0 Feb. 17, 2005

6/ 28

Page 7

Product Specification

Table 2-2. INVERTER ELECTRICAL CHARACTERISTICS

LC320W01

Liquid Crystal Display

Parameter Symbol Condition

Inverter :

Input Voltage V Input Current

Input Current(In-

Rush)

RUSH

VBR-A(max) = 3.3V - 4.10 4.35 A

VBL=21.6V V

EXTV

Power Consumption

B/L on/off control

ON/OFF

VBR–A =1.65V - 84.0 104.4 Watt 1, 3

Lamp ON = High 2.4 - 5.0 V

Lamp OFF =Low 0.0 0.6 V

Brightness Adj (Analog mode)

Brightness Adj (Burst mode)

-A 0 - 3.3 V

EXTV

-B External Input (PWM) 20 - 100 % 4

Value

Unit

Min. Typ. Max.

21.6 24.0 25.2 V

-A(Typ) = 1.65V - 3.5 3.75 A

-A=3.3V

-B=100%

--6.3A

Note

1, 3 1, 3

Frequency (PWM)

(Burst mode) Pulse Duty(PWM)

f-B

=24V

EXTV

-B=PWM

155 165 175 Hz

High Level 2.5 - 5.0 V

(Burst mode)

Low Level 0.0 - 0.6 V

Lamp :

Life Time 50,000 60,000 Hrs 2

Notes :

1. The specified current and power consumption are under the typical supply Input voltage, 24.0V. The ripple voltage of the power supply input voltage is under 0.5 Vp-p.

Inrush current of the power supply input current is under +10% of the typical current

2. Specified values are for a single lamp which is aligned horizontally. The life is determined as the time at which luminance of the lamp is 50% compared to that of initial

value at the typical lamp current on condition of continuous operating at 25 ± 2°C. Specified value is when lamp is aligned horizontally.

3. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 2Hrs in a dark environment at 25 °C± 2°C.

4. Burst mode is controlled by TV system.High Level of Ext-PWM is min 2.5V. On duty ratio of output.

Ver. 1.0 Feb. 17, 2005

7/ 28

Page 8

LC320W01

Liquid Crystal Display

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module electronics and two 12-pin connectors are used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1) : FI-X30SSL-HF (Manufactured by JAE) or Equivalent

- Mating Connector : FI-30C2L (Manufactured by JAE) or Equivalent

Table 3. MODULE CONNECTOR(CN1) PIN CONFIGURATION

Pin No Symbol Description Note

Power Supply +12.0V Power Supply +12.0V Power Supply +12.0V Power Supply +12.0V

Ground

10 11 12 13 14 15 16 17

18 19

20 21 22 23 24 25 26 27 28 29 30

1 2 3 4 5 6 7 8 9

VLCD VLCD VLCD VLCD

GND Ground GND Ground GND Ground GND Ground

Select Select LVDS Data format

NC NC

GND Ground

RA- LVDS Receiver Signal(-) RA+ LVDS Receiver Signal(+) GND Ground

RB- LVDS Receiver Signal(-) RB+ LVDS Receiver Signal(+) GND Ground

RC- LVDS Receiver Signal(-) RC+ LVDS Receiver Signal(+)

GND

RCLK- LVDS Receiver Clock Signal(-)

RCLK+ LVDS Receiver Clock Signal(+)

GND Ground

RD- LVDS Receiver Signal(-) RD+ LVDS Receiver Signal(+) GND Ground

NC NC

NC NC GND Ground GND Ground

Note: 1. If the Pin 9 is Ground, Interface format is “LG”, and if the Pin 9 is Vcc(3.3V), Interface format is

“DISM”. See page 9 and 10.

2. The pin 30 should be ground, this pin 30 is necessary for LCD module test.

3. All GND(ground) pins should be connected together to the LCD module’s metal frame.

4. All V

LCD (power input) pins should be connected together.

5. Input Level of LVDS signal is based on the IEA 664 Standard.

Ver. 1.0 Feb. 17, 2005

8/ 28

Page 9

Liquid Crystal Display

Product Specification

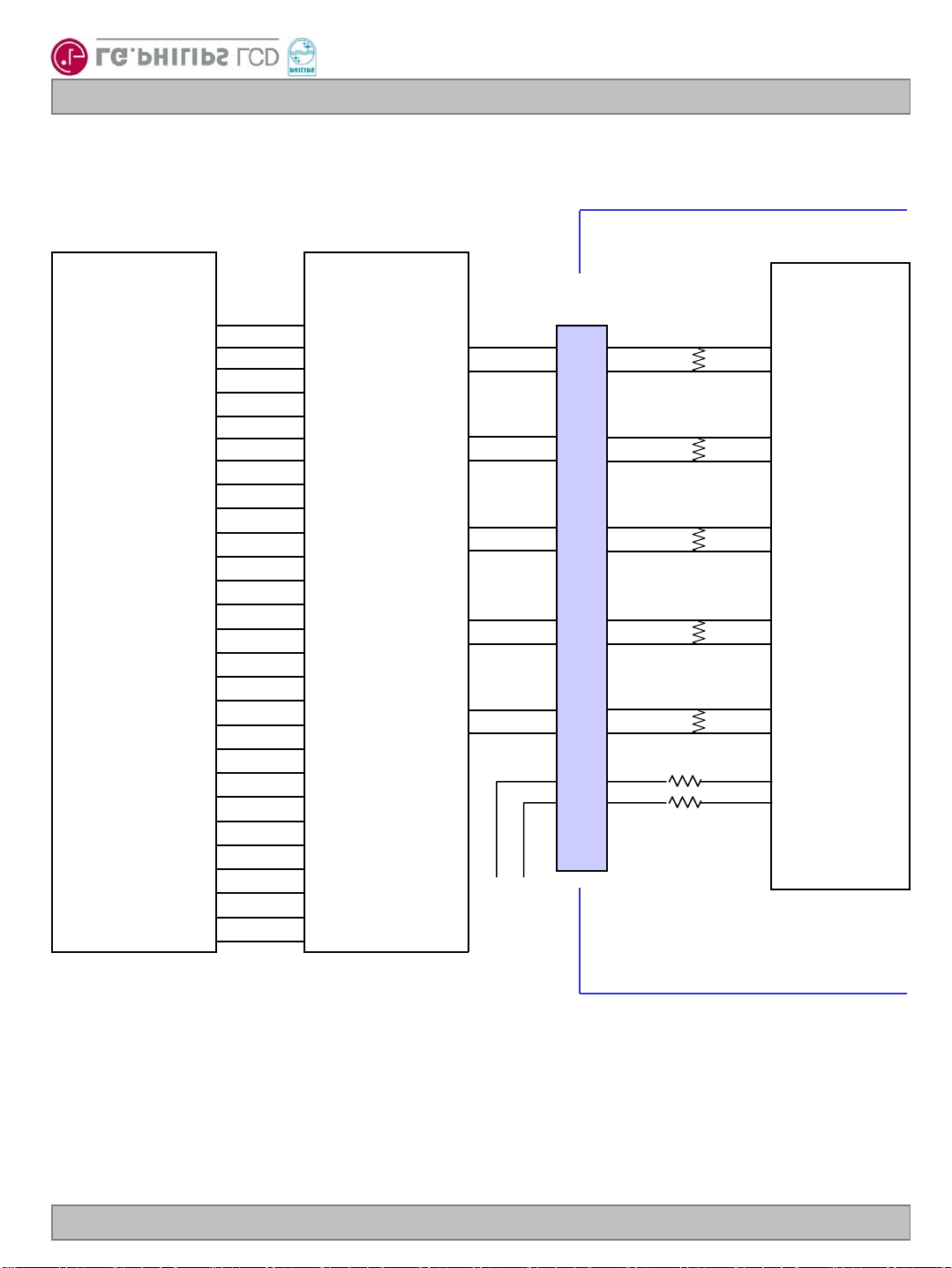

Table 4. REQUIRED SIGNAL AS SIGNMENT FOR LVDS TRANSMITTER ( Pin9=“L” or “Open” )

LC320W01

Host System

24 Bit

RED0 RED1 RED2 RED3 RED4 RED5 RED6

RED7 GREEN0 GREEN1 GREEN2 GREEN3 GREEN4 GREEN5 GREEN6 GREEN7

BLUE0 BLUE1 BLUE2 BLUE3 BLUE4 BLUE5 BLUE6 BLUE7

Hsync

Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51 52 54 55 56 3 50 2 4 6 7 11 12 14 8 10 15 19 20 22 23 24 16 18 27 28 30 31

TxOUT0TxOUT0+

TxOUT1TxOUT1+

TxOUT2TxOUT2+

TxCLKOUTTxCLKOUT+

TxOUT3TxOUT3+

FI-X30SSL-HF

48 47

46 45

42 41

40 39

38 37

GND

12 13

15 16

18 19

21 22

24 25

Timing

Controller

100Ω

RxIN0RxIN0+

RxIN1RxIN1+

RxIN2RxIN2+

RxCLKINRxCLKIN+

RxIN3RxIN3+

LG / DISM

LCD Test

LCD Module

Note: 1. The LCD Module uses a 100 Ohm [Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0 Feb. 17, 2005

9/ 28

Page 10

Product Specification

Table 5. REQUIRED SIGNAL AS SIGNMENT FOR LVDS TRANSMITTER ( Pin9=“H” )

LC320W01

Liquid Crystal Display

Host System

24 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7 GREEN0 GREEN1 GREEN2 GREEN3 GREEN4 GREEN5 GREEN6 GREEN7

BLUE0 BLUE1 BLUE2 BLUE3 BLUE4 BLUE5 BLUE6 BLUE7

Hsync

Vsync

Data Enable

CLOCK

DS90C385

or Compatible

50 2 51 52 54 55 56 3 8 10 4 6 7 11 12 14

16 18 15 19 20 22 23 24 27 28 30 31

TxOUT0TxOUT0+

TxOUT1TxOUT1+

TxOUT2TxOUT2+

TxCLKOUTTxCLKOUT+

TxOUT3TxOUT3+

FI-X30SSL-HF

48 47

46 45

42 41

40 39

38 37

GND

Vcc

12 13

15 16

18 19

21 22

24 25

Timing

Controller

100Ω

RxIN0RxIN0+

RxIN1RxIN1+

RxIN2RxIN2+

RxCLKINRxCLKIN+

RxIN3RxIN3+

LG /

DISM

LCD Test

LCD Module

Note: 1. The LCD Module uses a 100 Ohm [Ω] resistor between positive and negative lines of each receiver

input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver. 1.0 Feb. 17, 2005

10 / 28

Page 11

Liquid Crystal Display

Product Specification

3-2-2. Backlight Inverter

The inverter connector is S14B-PH-SM3-TB top entry type (manufactured by JST) or equivalent

The pin configuration for the 14 pin connector is shown in the table below.

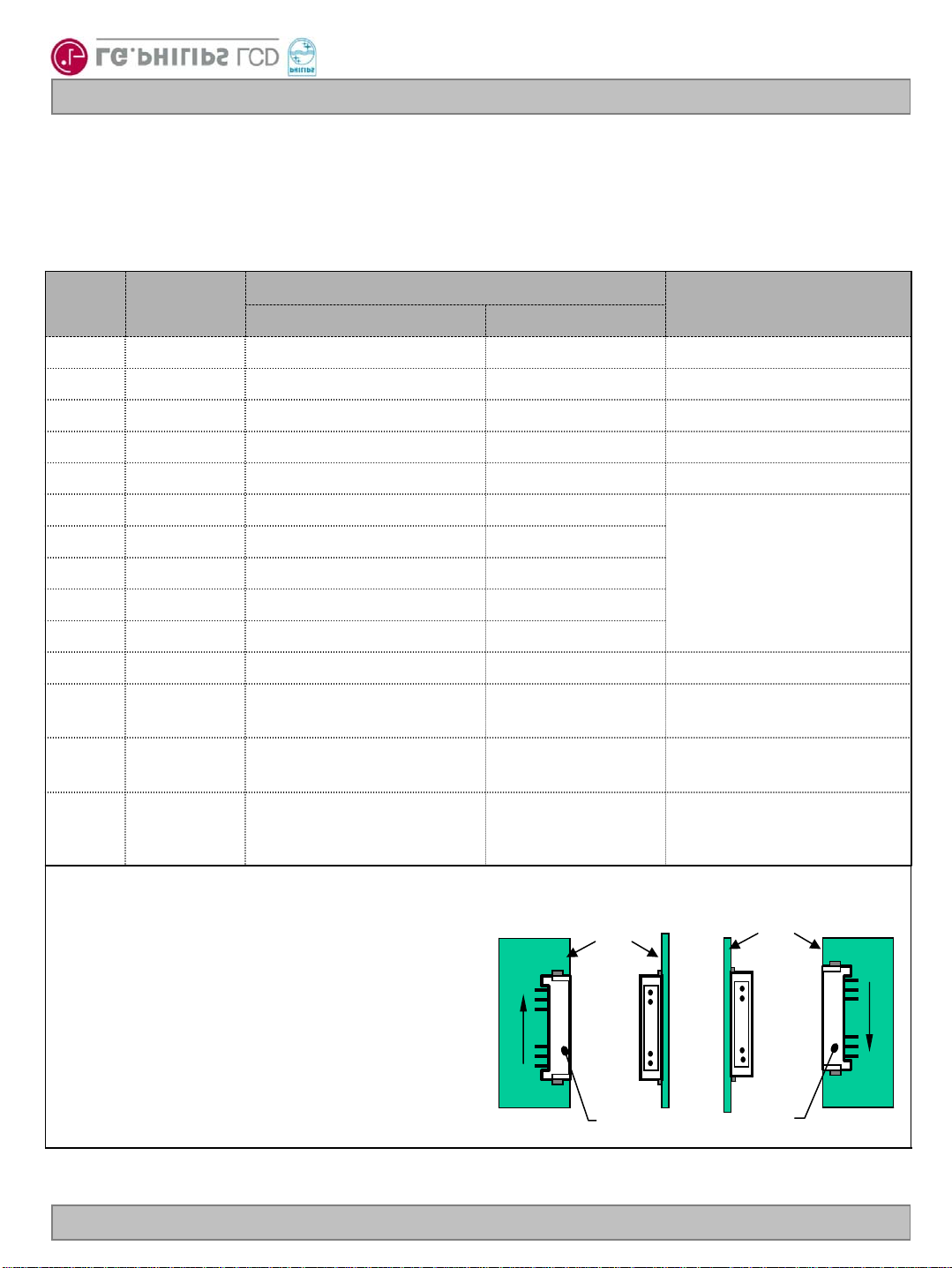

Table 6. INVERTER CONNECTOR PIN CONFIGULATION

LC320W01

Pin Symbol

Master(CN2) 1V 2V 3V 424V Power Input 5 6 7 8 9

10 11 VBR-A Analog dimming Don’t care 0V(min) ~ 3.3V(max)

12 ON / OFF Backlight ON/OFF control Don’t care

BL 24V Power Input 24V Power Input BL 24V Power Input BL 24V Power Input

VBL GND GND GND GND GND

EXTV

-B

24V Power Input GROUND GROUND GROUND GROUND GROUND

External PWM signal

Slave(CN3)

24V Power Input 24V Power Input 24V Power Input 24V Power Input GROUND GROUND GROUND GROUND GROUND

ON : 2.4 ~ 5.0V OFF : 0.0 ~ 0.6V

Rising edge : Lamp on Falling edge: Lamp off

Note

Signal assignment

Error out

1. Connector

Backlight status output

1) Connector(Receptacle) : S14B-PH-SM3-TB (JST) &

S12B-PH-SM3-TB (JST)

PCB

2) Mating Connector(Plug) : PHR14 (JST) &

PHR12 (JST)

…

* JST : Japan solderless Terminal Co.,Ltd.

S14B-PH-SM3-TB

Notes : Pin 5~14 should connect to master and slave connector.

1. GROUND is connected to the LCD’s metal frame.

Ver. 1.0 Feb. 17, 2005

Normal : 0V Abnormal : External pull-

up voltage

PCB

…

S12B-PH-SM3-TB

…

11 / 28

Page 12

LC320W01

Liquid Crystal Display

Product Specification

3-3. Signal Timing Specifications

This is the signal timing required at the input of the LVDS transmitter. All of the interface signal timing should be satisfied with the following specification for it’s proper operation.

Table 7. TIMING TABLE

ITEM Symbol Min Typ Max Unit Remark

Period tCLK 12.5 13.8 14.7 ns

DCLK

Frequency - 68 72.3 80 MHz Period tHP 1468 1528 1776 tCLK

Hsync

Vsync

(Data

Enable)

Frequency fH 45 47.4 50 Width tWH 832- tCLK Period t Frequency fV 47 60 63 Hz Width t Horizontal Valid t Horizontal Back Porch t Horizontal Front Porch tHFP 24 48 - Horizontal Blank Vertical Valid t Vertical Back Porch tVBP 415- Vertical Front Porch tVFP 12- Vertical Blank - 7 22 tVP- tVV

VP 775 790 1063 tHP

WV 25-

HV 1366 1366 1366

HBP 24 80 -

VV 768 768 768

tHP- tHV 162 tHP- tHV

KHz

tHP

tCLK

Note 1) PAL : 47~53Hz NTSC : 57~63Hz

Note : Hsync Period and Hs ync Width should be even number times of tCLK. If the value is odd number

times of tCLK, display control signal can be asynchronous. In order to operate the LCD, Hsync, Vsync and DE(Data Enable) signals should be used.

1. The performance of the electro-optical charac teristics may be influenced by var iance of the vertical refresh rate.

2. Vsync and Hsync should be keep the above specification.

3. Hsync Period, Hsync Width and Horizontal Back Porch should be any times of character number(4).

Ver. 1.0 Feb. 17, 2005

12 / 28

Page 13

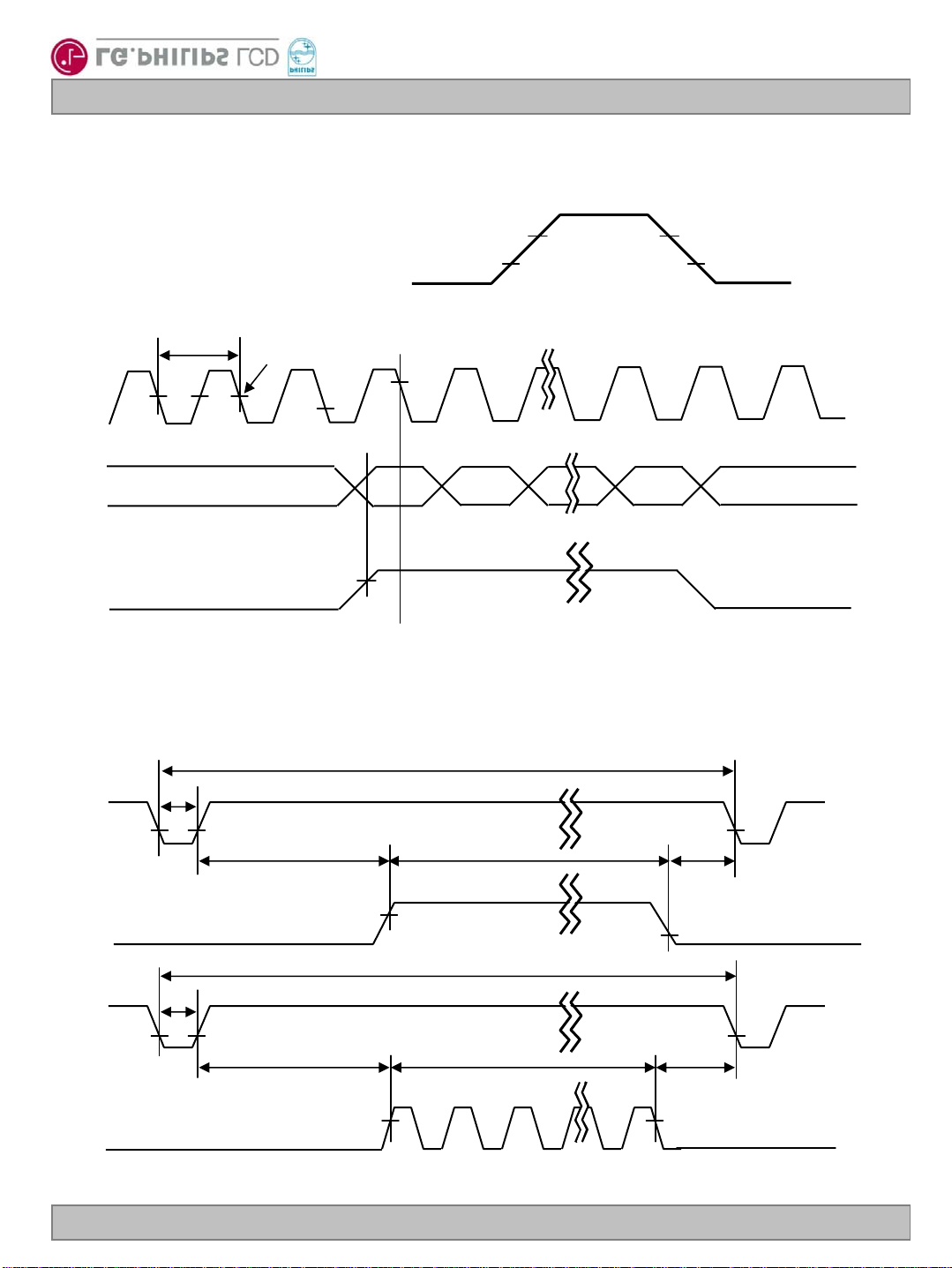

3-4. Signal Timing Waveforms

LC320W01

Liquid Crystal Display

Product Specification

DCLK

DE(Data Enable)

Hsync, Vsync, DE, Data

tCLK

0.5 VDD

Invalid data

0.7VDD

0.3VDD

Valid data

Invalid data

tHP

HSync

tHBP tHV

DE(Data Enable)

tVP

tWV

VSync

tVBP

tVV tVFP

DE(Data Enable)

Ver. 1.0 Feb. 17, 2005

tHFP

13 / 28

Page 14

LC320W01

Liquid Crystal Display

Product Specification

3-5. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8-bit gray scale data input for the color the higher the binary input, the brighter the color . The below table provides a reference for color versus data input.

Table 8. COLOR DATA REFERENCE

Input Color Data

Basic Color

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Red (255) Green (255) Blue (255) Cyan

Magenta Yellow

White RED (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

GREEN

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 BLUE (000) Dark BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

BLUE

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

... ... ... ...

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

Note : Users should be input true 8 Bit data streams via LVDS transmitter.

Ver. 1.0 Feb. 17, 2005

14 / 28

Page 15

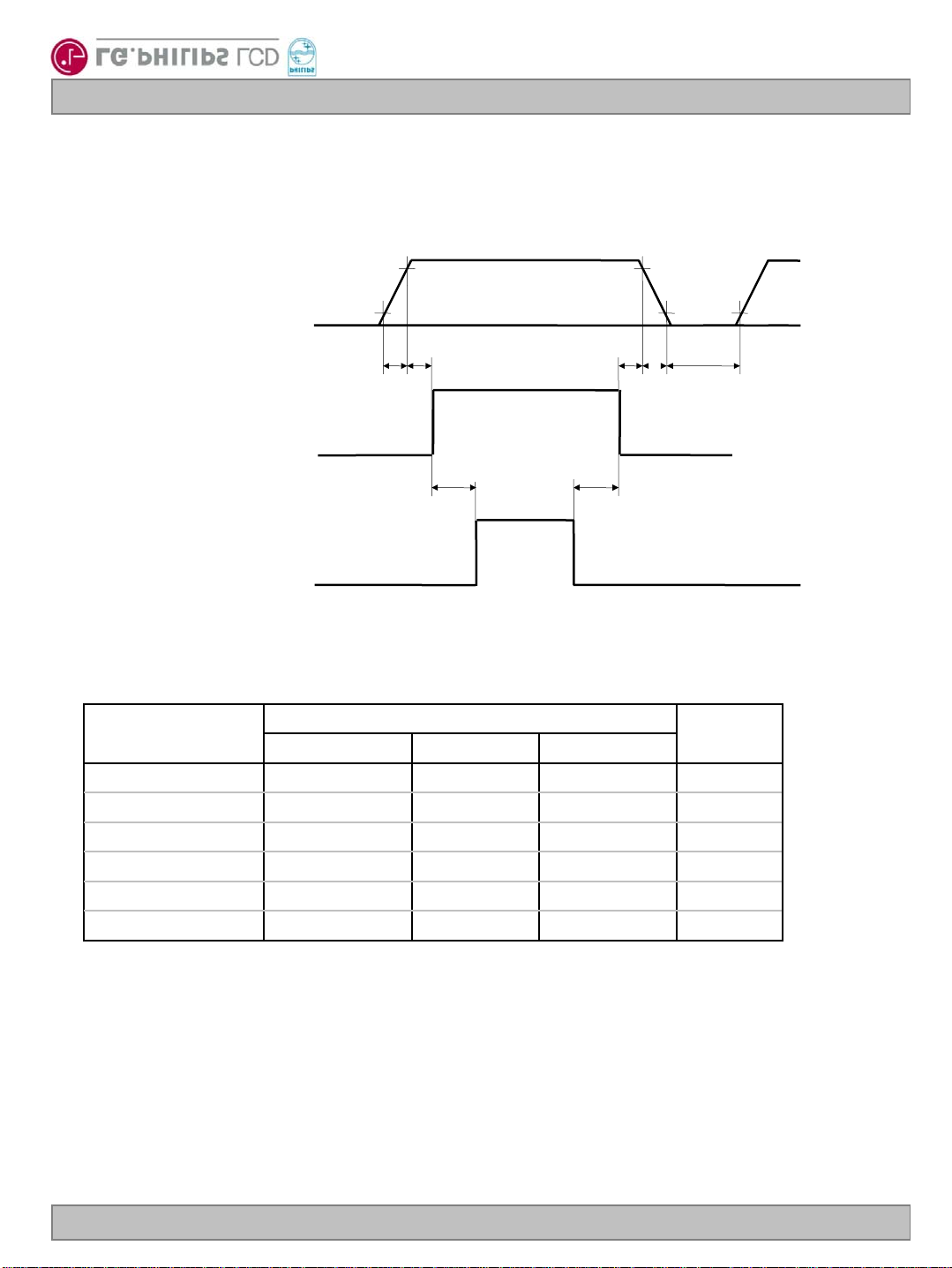

3-6. Power Sequence

3-6-1. LCD Driving circuit

Power For LCD

LCD

Product Specification

90% 90%

10%

1 T2 T5

LC320W01

Liquid Crystal Display

10%

Interface Signal (Tx)

Valid Data

T3 T4

Lamp ON

Power for LAMP

Table 9. POWER SEQUENCE FOR LCD DRIVING CIRCUIT

Value

Parameter

Min Typ Max T1 0.01 - 10 ms T2 0.01 - 50 T3 200 - T4 200 - T5 0.01 - 50 T6 2000 -

Unit

ms ms ms ms ms

Note : 1. Please avoid the floating state of interface signal at invalid period.

2. When the interface signal is invalid, be sure to pull down the power supply V

3. Lamp power must be turn on after power supply for a LCD interface signal are valid.

4. T6 should be measured after the module has been fully discharged between power off and on period.

Ver. 1.0 Feb. 17, 2005

LCD

to 0V.

15 / 28

Page 16

Product Specification

LC320W01

Liquid Crystal Display

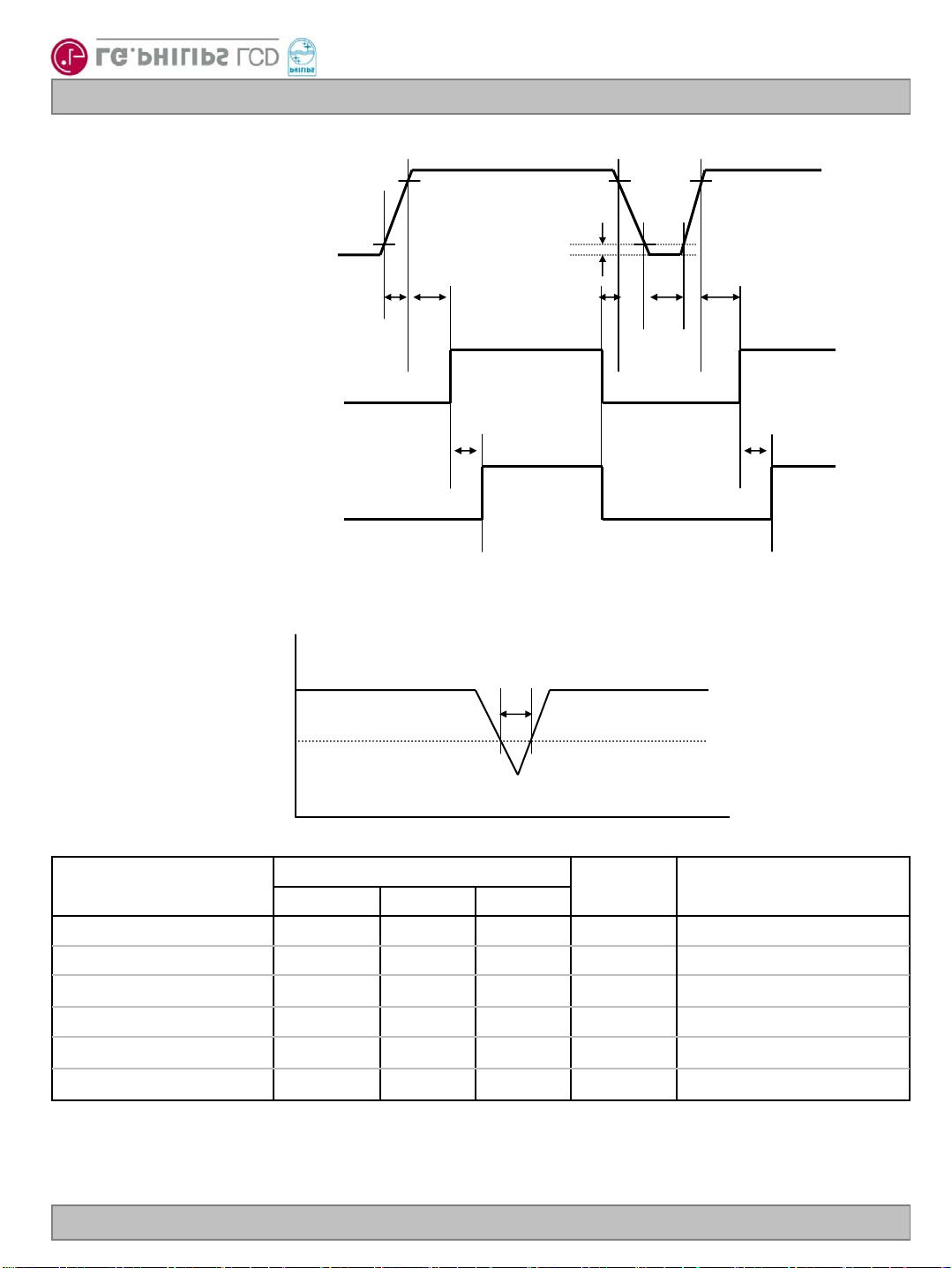

3-6-2. On/Off for Inverter

Power Supply For Inverter

ON/OFF

VBR-A

EXTVBR-B : 1. EXTVBR-B has Same sequence with VBR-A.

3-6-3. Deep condition for Inverter

10%

90%

1 T2

24V (typ.)

0.7V

4 T4

Lamp ON

T3 T2

: 24V

(Typ) x 0.85

0 V

Table 10. Power Sequence for Inverter

Parameter

Values

Min Typ Max T1 20 - - ms 1 T2 500 - - ms T3 200 - - ms T4 -500 - 120 ms 4 T5 10 - - ms

Units

msT6 - - 10

Note : 1. T1 describes rising time of 0V to 24V and is not applied at restarting time.

2. When the Inverter is shut-down by ARC protection, T3 need 3.3sec

3. When V

(24V) is supplied always, there is no reliability problem.

4.ExtVbr-B should be duty 100% in T4 section and Vbr-A recommend 1.65V.

Ver. 1.0 Feb. 17, 2005

Remarks

(Typ) x 0.85

16 / 28

Page 17

LC320W01

Liquid Crystal Display

Product Specification

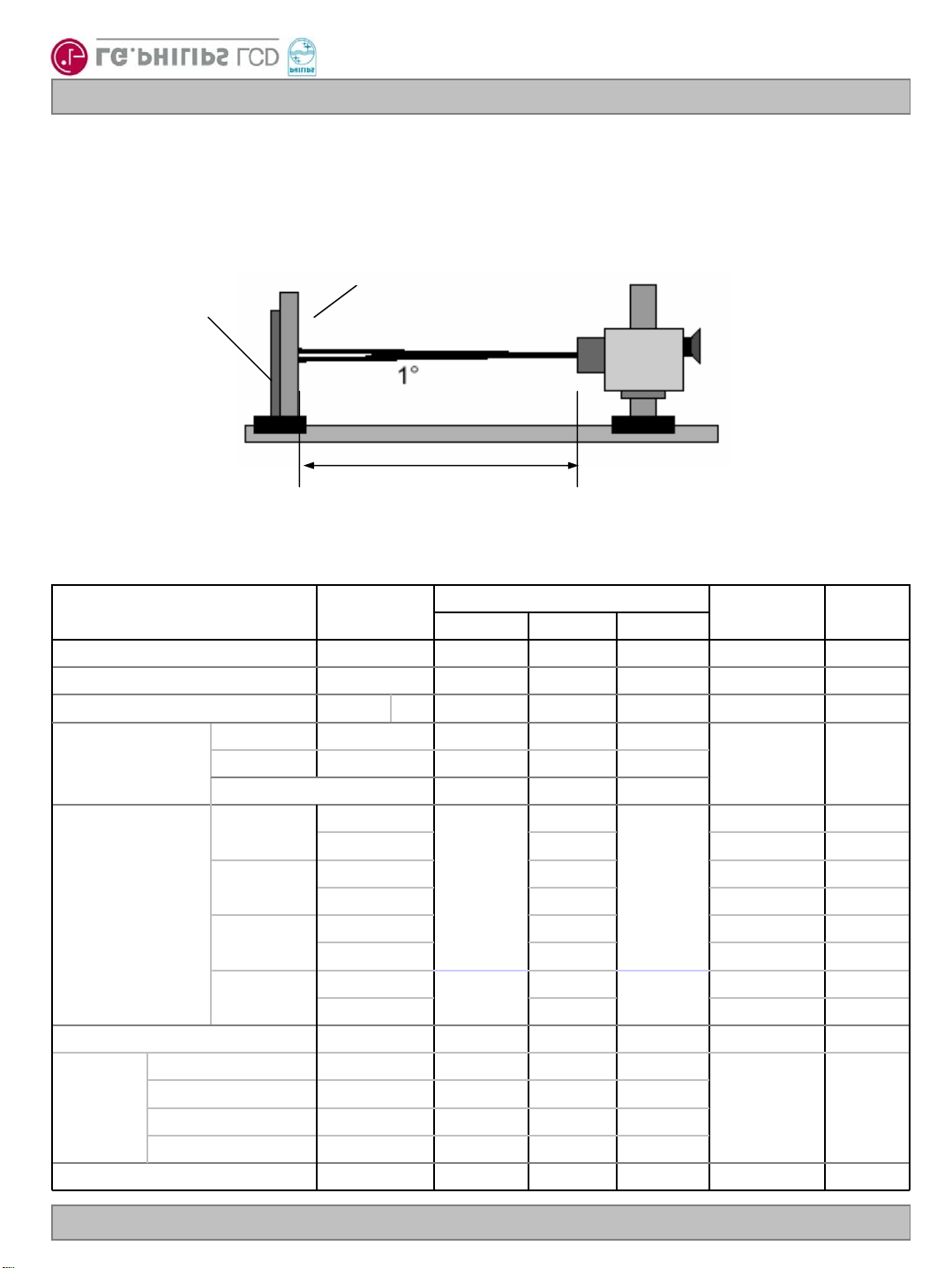

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25±2°C. The values are specified at an approximate distance 50cm from the LCD surface at a viewing angle of Φ and θ equal to 0 °. It is presented additional information concerning the measurement equipment and method in FIG. 1.

Optical Stage(x,y)

LCD Module

Pritchard 880 or equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 11. OPTICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Ta= 25±2°C, V

Value

Contrast Ratio CR 450 600 Surface Luminance, white L Luminance Variation δ

WHITE

Rise Time Tr

Response Time

Decay Time Tr

5P 1.3 3

350 500 cd/m

- 8 15

- 10 15

- 10 14G to G

RED

GREEN Color Coordinates [CIE1931]

BLUE

WHITE

Rx 0.631 Ry 0.343 Gx 0.280 Gy 0.600

Typ

-0.03

Bx 0.145

By 0.060 Wx 0.280 Wy 0.285

Typ

-0.025

Viewing Angle (CR>10)

x axis, right(φ=0°) θr 85 89 - x axis, left (φ=180°) y axis, up (φ=90°) y axis, down (φ=270°)

θl 85 89 - θu 85 89 - θd 85 89 -

Gray Scale 2.2 6

=12.0V, fV=60Hz, Dclk=72.3MHz,

LCD

BR-A =1.65V, EXTVBR-B=H )

Unit Note

ms 4

Typ

+0.03

Typ

+0.025

degree 5

1 2

Ver. 1.0 Feb. 17, 2005

17 / 28

Page 18

Note :

LC320W01

Liquid Crystal Display

Product Specification

1. Contrast Ratio(CR) is defined mathematically as :

Contrast Ratio =

Surface Luminance with all white pixels Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface Luminance(

) is the luminance value at center 1-po int across the LCD surface 50cm

from the surface with all pixels displaying white. For more information see the FIG. 2.

3. The variation of surface luminance , δ WHITE is defined as : δ WHITE(5P) = Maximum(L

Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

, L

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

on5

)

For more information, see the FIG. 2.

4. Response time is the time required for the display to transition from G(N) to G(M) (Rise Time, Tr

and from G(M) to G(N) (Decay Time, Tr

). For additional information see the FIG. 3. (N<M)

5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is normal to the LCD module surface. For more information, see the FIG. 4.

6. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 12.

Table 12. GRAY SCALE SPECIFICATION

Gray Level

L0 L15 L31

L47 L63

L79 L95

L111 L127 L143 L159 L175 L191 L207 L223 L239 L255

Min. Typ. Max.

0.15

0.35

1.00

2.00

3.90

6.60

10.40

14.70

20.10

26.20

33.40

41.70

52.00

63.20

80.00

100.00

Luminance [%] (Typ)

0.18

0.27

1.00

2.40

4.60

7.60

11.40

16.00

21.60

28.00

35.40

43.70

53.00

63.20

74.50

88.00

100.00

0.30

1.00

2.40

4.60

7.60

11.40

16.80

22.60

29.50

37.40

45.70

54.50

64.80

76.50

88.50

97.00

100.00

)

Ver. 1.0 Feb. 17, 2005

18 / 28

Page 19

Product Specification

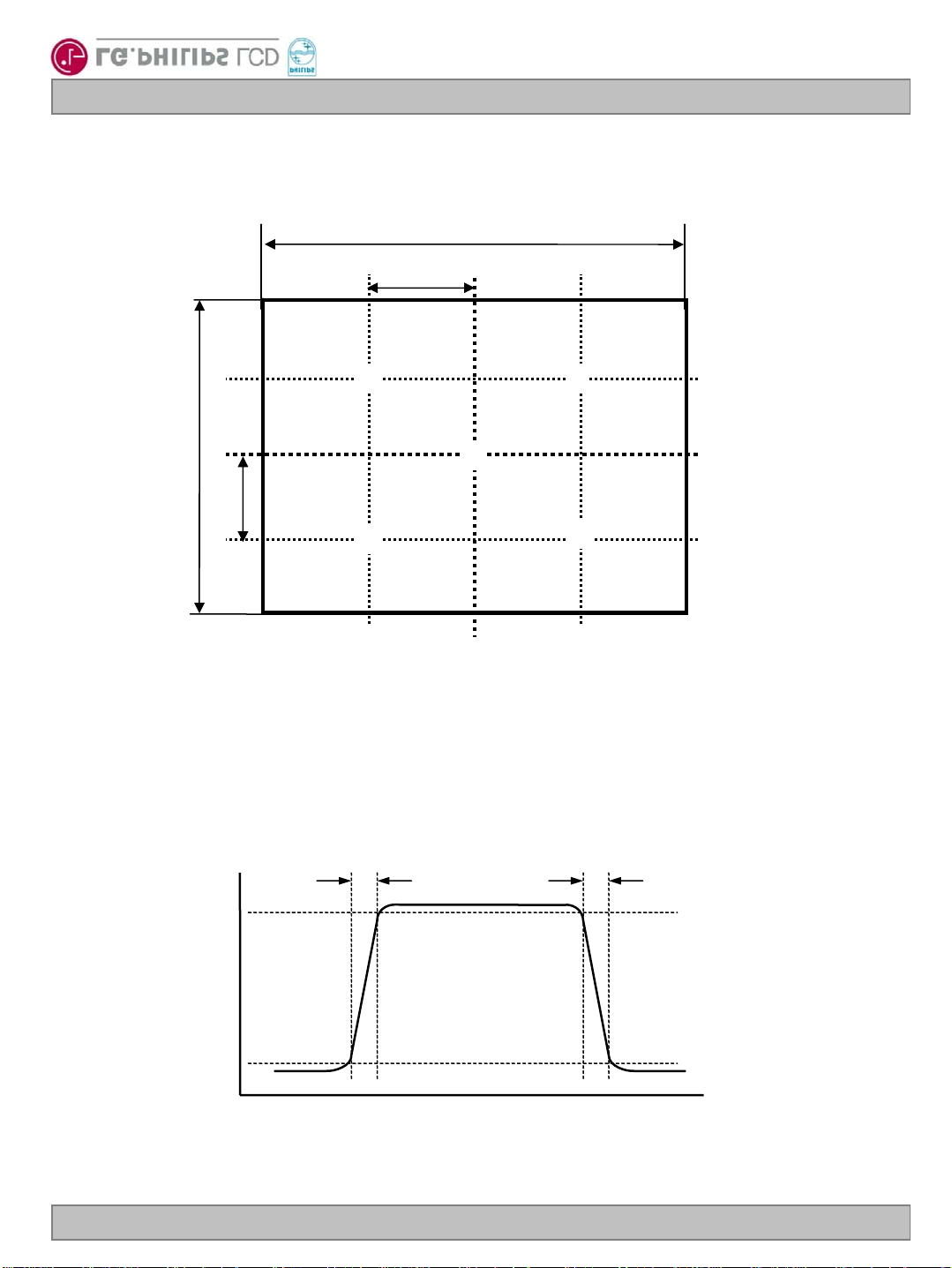

Measuring point for surface luminance & measuring point for luminance variation

③②

LC320W01

Liquid Crystal Display

①

A : H / 4 mm

④

FIG. 2 The Position of Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for “Gray(N)” and “Gray(M)”.

100

TrR

⑤

TrD

B : V / 4 mm

H : 697.685 mm V : 392.256 mm

@ H,V : Active Area

Optical Response

Ver. 1.0 Feb. 17, 2005

Gray(N)

N,M = 0(Black)~255(White), N<M

FIG. 3 Response Time

Gray(M)

Gray(N)

19 / 28

Page 20

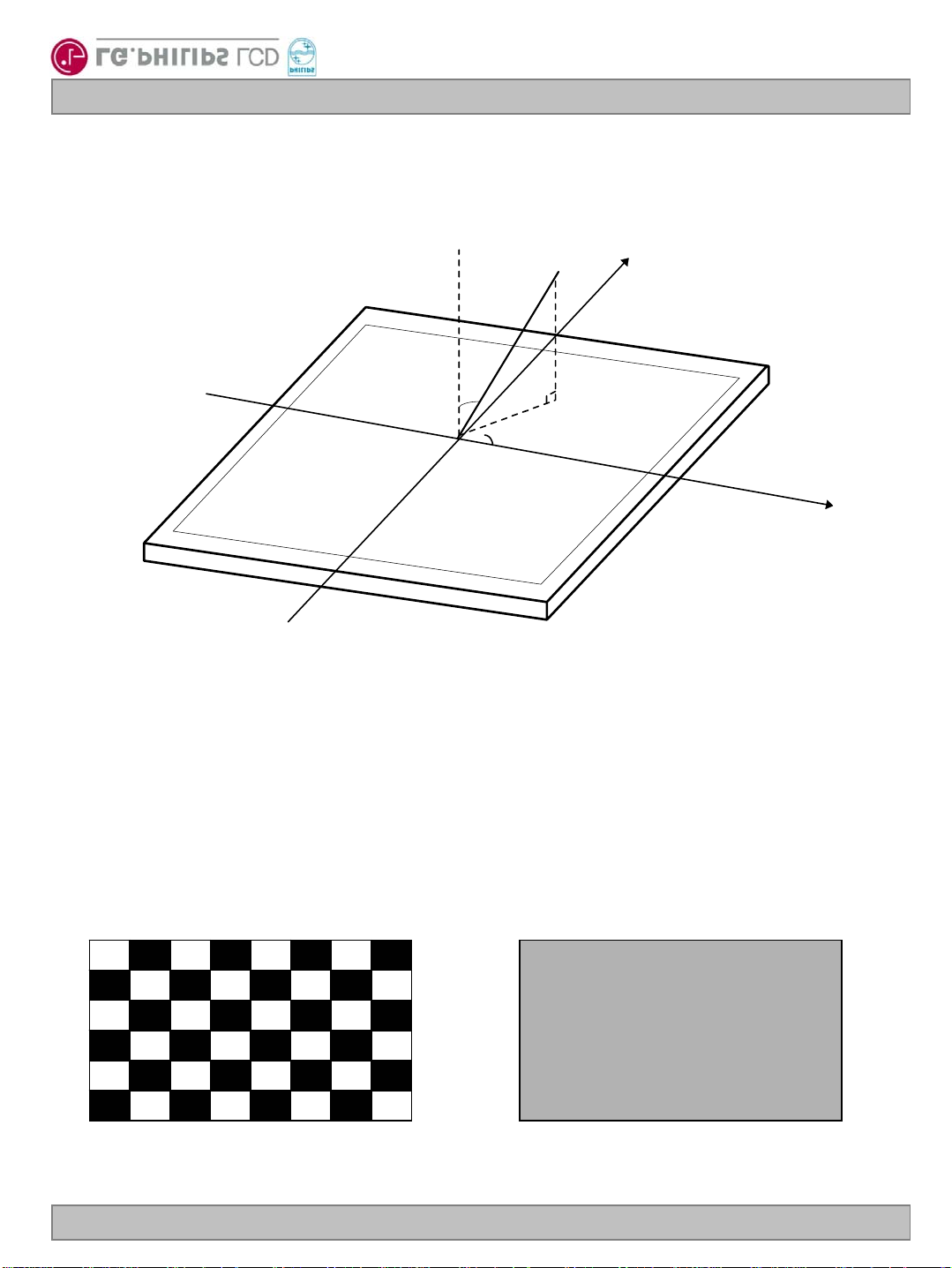

Dimension of viewing angle range

= 180°, Left

Product Specification

Normal

= 90°, Up

= 0°, Right

LC320W01

Liquid Crystal Display

= 270°, Down

FIG. 4 Viewing Angle

7. Image sticking When it changes into pattern-B after a 1-hour drive by pattern-A, it disappears within 10 minutes.

<Pattern-A, Chess board (8x6)> <Pattern-B, Mid-gray(127 gray)>

Ver. 1.0 Feb. 17, 2005

20 / 28

Page 21

LC320W01

Liquid Crystal Display

Product Specification

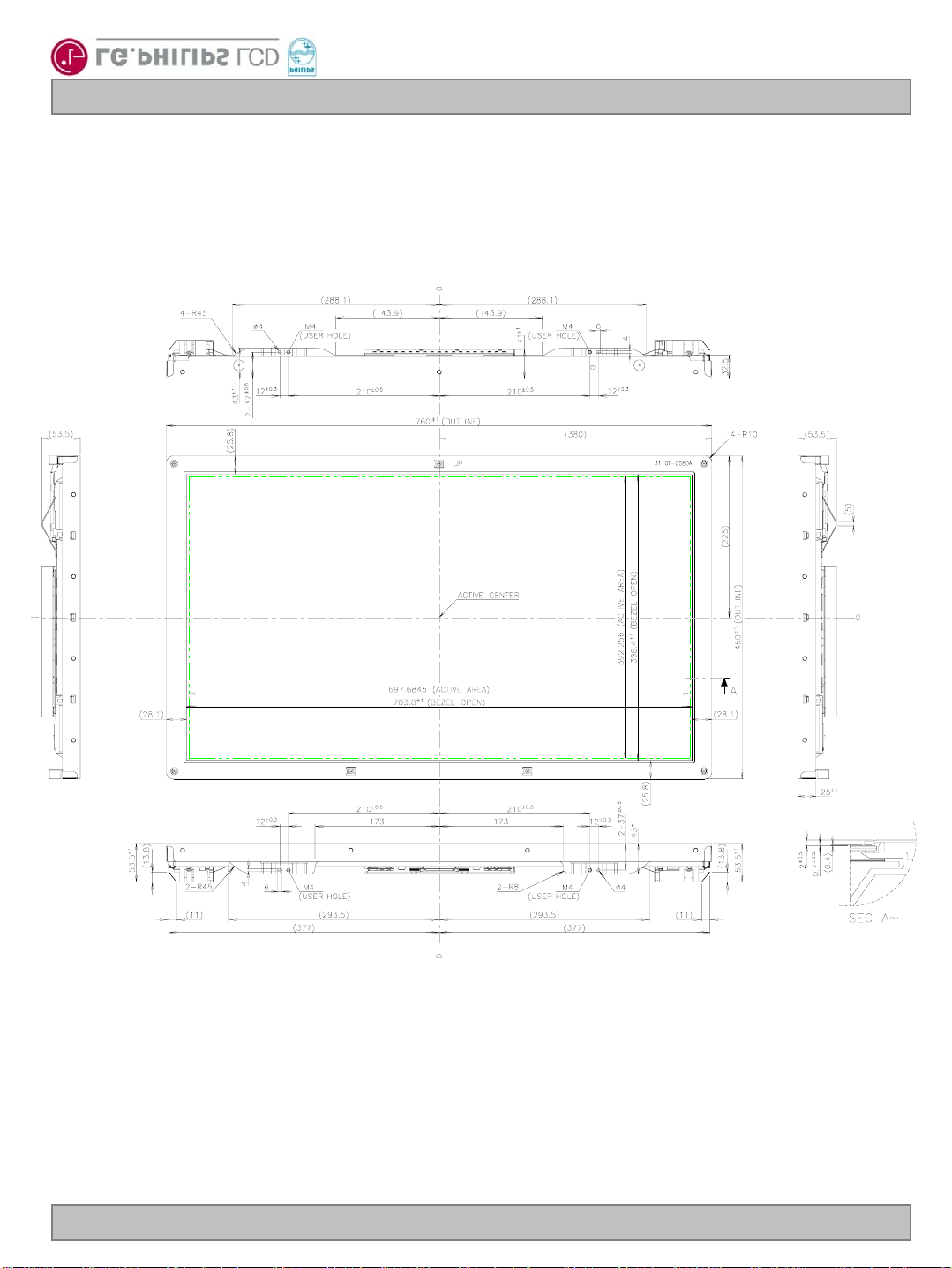

5. Mechanical Characteristics

The following items provide general mechanical characteristics. In addition, the figures in the next page show the detail information of mecha nic al drawing fo r LCD mo dul e.

Table 13. MECHANICAL CHARACTE RISTIC S

Horizontal 760.0mm

Outline Dimension

Bezel Area

Active Display Area

Weight 7,200 g(Typ.), 7,600 g(Max)

Surface Treatment

Vertical Depth 53.5 mm Horizontal 703.8mm Vertical 398.4mm Horizontal Vertical

Hard coating(3H) Anti-glare treatment of the front polarizer

Note : Please refer to a mechanic drawing in terms of tolerance at the next page.

450.0 mm

697.685mm

392.256mm

Ver. 1.0 Feb. 17, 2005

21 / 28

Page 22

LC320W01

Liquid Crystal Display

Product Specification

Ver. 1.0 Feb. 17, 2005

22 / 28

Page 23

LC320W01

Liquid Crystal Display

Product Specification

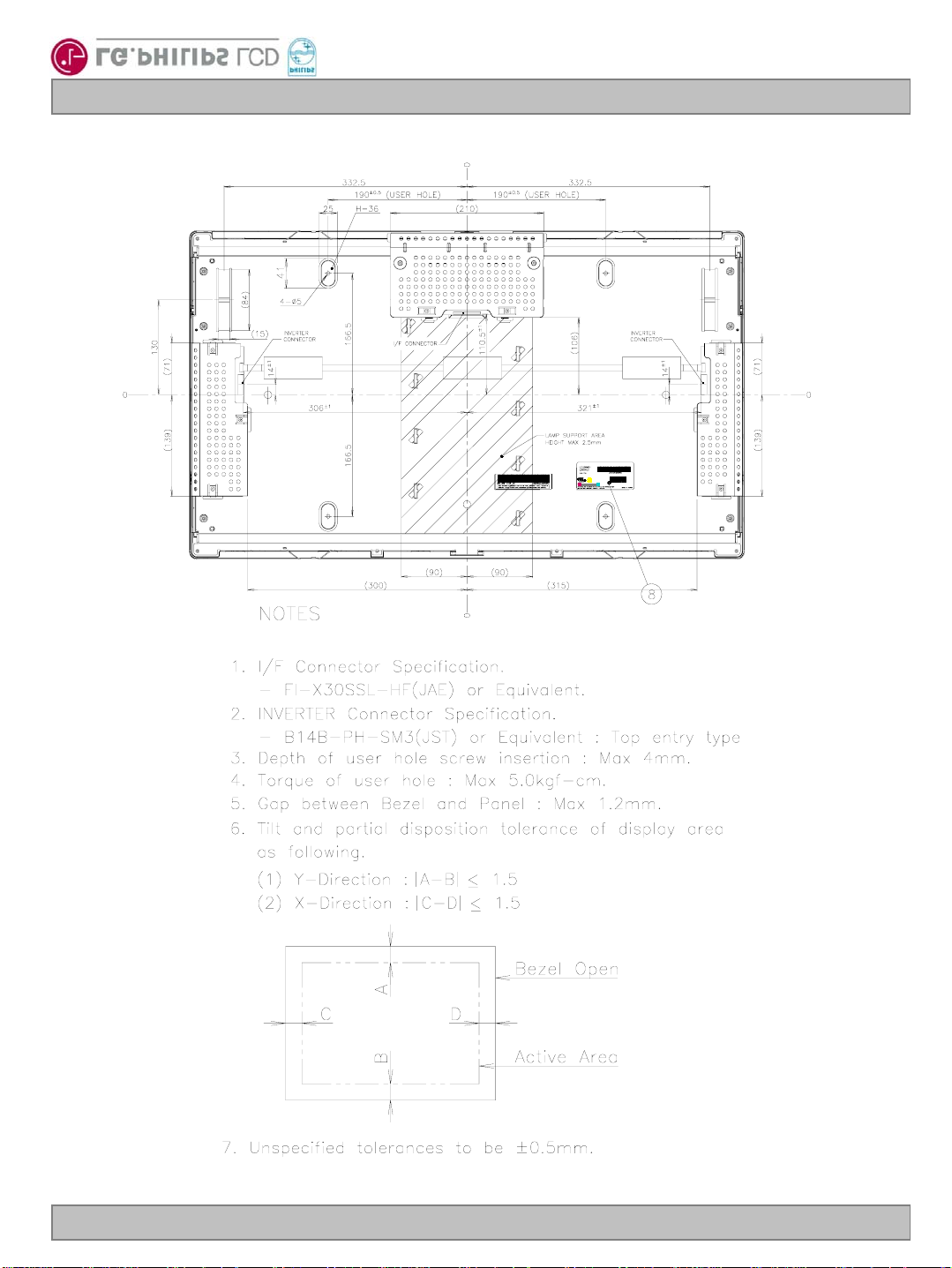

Master

Slave

Ver. 1.0 Feb. 17, 2005

23 / 28

Page 24

Product Specification

6. Reliability

Table 14. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60°C, 500h

2 Low temperature storage test Ta= -20°C, 500h

LC320W01

Liquid Crystal Display

3 High temperature operation test

4 Low temperature operation test Ta= 0°C, 500h(1000h)

5 Heat cycle test

6 Soldering heat cycle test

Vibration test

(non-operating)

Shock test

(non-operating)

Ta= 50°C, 80%RH, 500h Ta= 60°C, 500h(2000h)

Ta= -20 °C ~ 60 °C, 30min/5min/30min, 100cycles

Ta= -40 °C ~ 80 °C, 30min/5min/30min, 200cycles

Wave form : random Vibration level : 1.0Grms Bandwidth : 10-500Hz Duration : X,Y,Z, 10 min

One time each direction

Shock level : 100Grms Waveform : half sine wave, 2ms Direction : ±X, ±Y, ±Z

One time each direction

Ver. 1.0 Feb. 17, 2005

24 / 28

Page 25

LC320W01

Liquid Crystal Display

Product Specification

7. International standards

7-1. Safety

a) UL 60950, Third Edition, Underwriters Laboratories, Inc., Dated Dec. 11, 2000.

Standard for Safety of Information Technology Equipment, Including Electrical Business Equipment.

b) CAN/CSA C22.2, No. 60950, Third Edition, Canadian Standards Association, Dec. 1, 2000.

Standard for Safety of Information Technology Equipment, Including Electrical Business Equipment.

c) EN 60950 : 2000, Third Edition

IEC 60950 : 1999, Third Edition European Committee for Electrotechnical Standardization(CENELEC) EUROPEAN STANDARD for Safety of Information Technology Equipment Including Electrical

Business Equipment.

7-2. EMC

a) ANSI C63.4 “Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and

Electrical Equipment in the Range of 9kHZ to 40GHz. “American National Standards Institute(ANSI), 1992

b) C.I.S.P.R “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ International Special Committee on Radio Interference.

c) EN 55022 “Limits and Methods of Measurement of Radio Interface Characteristics of Information

Technology Equipment.“ European Committee for Electrotechnical Standardization.(CENELEC), 1998

( Including A1: 2000 )

Ver. 1.0 Feb. 17, 2005

25 / 28

Page 26

Product Specification

8-1. Designation of Lot Mark

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR E : MONTH F : FACTORY CODE G : ASSEMBLY CODE H ~ M : SERIAL NO.

Note

1. YEAR

LC320W01

Liquid Crystal Display

Year Mark

321

200452005

200320022001

2006720078200892009

2. MONTH

Month

Mark

Apr5May

Jun7Jul8Aug9Sep

3. FACTORY CODE

Factory Code LPL Gumi LPL Nanjing HEESUNG

Mark C DK

4. SERIAL NO.

Mark

100001~199999, 200001~299999, 300001~399999, …., A00001~A99999, ….., Z00001~Z99999

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module. This is subject to change without prior notice.

2010

Oct

Nov

DecMarFebJan

C321

8-2. Packing Form

a) Package quantity in one box : 5 pcs b) Box Size : 880mm X 500mm X 570mm

Ver. 1.0 Feb. 17, 2005

26 / 28

Page 27

LC320W01

Liquid Crystal Display

Product Specification

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1) You must mount a module using holes arranged in four corners or four sides. (2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force. (4) You should adopt radiation structure to satisfy the temperature specification. (5) Acetic acid type and chlor ine type materials for the cover case are not des irable because the former

generates corrosive gas of attacking the polarizer at high tempe rature and the latte r causes ci rcuit br eak by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.) (7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft mater ials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause chemical damage to the polarizer.

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=±200mV(Over and under shoot voltage) (2) Response time depends on the temperature.(In lower temperature, it becomes longer.) (3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(requ ired time that brightness is stable after tu rned on) becomes

longer. (4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarize r or

electrical contacted parts. And after fading condensation, smear or spot will occur. (5) When fixed patterns are displayed for a long time, remnant image is likely to occur. (6) Module has high frequency cir cuits. Sufficient suppression to the elec tromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference. (7) Please do not give any mechanical and/or acoustical impact to LCM. O therwise, LCM can ’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it causes metallic foreign material and deal LCM a fatal blow)

(9) Please do not set LCD on its edge.

Ver. 1.0 Feb. 17, 2005

27 / 28

Page 28

LC320W01

Liquid Crystal Display

Product Specification

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to elec trostatic di scharge. Make certain that treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary. (1) Store them in a dark place. Do not exp ose t h e mo dul e t o sunli ght or flu oresce nt light. K e ep t h e t emp erat ure

between 5°C and 35°C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer. This should be peeled off slowly and care fully by people who are electrically g rounded and with well ionblown equipment or in such a condition, etc.

(2) When the module with protection film a ttached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recogn ized,

please wipe them off with absorbent cotton waste or other soft materia l like chamois soaked with normalhexane.

Ver. 1.0 Feb. 17, 2005

28 / 28
