OWNER’S MANUAL
DIGITAL SIGNAGE MEDIA PLAYER
(Hardware)
Please read this manual carefully before operating your set and retain it for future reference.
DIGITAL SIGNAGE MEDIA PLAYER
NC1000 NC1100 NA1000 NA1100
NC2000 NC2100 NA2000 NA2100
www.lgsupersign.com
www.lgsolutions.com
CONTENTS |
|
NC1000 |
|
Specifications..................................................................................................... |
4 |
General Specifications................................................................................................... |
4 |
Multi I/O Port.................................................................................................................. |
4 |
Operational Specifications............................................................................................. |
4 |
Included in the Box............................................................................................. |
5 |
Basic Components......................................................................................................... |
5 |
Optional Items................................................................................................................ |
5 |
Connections....................................................................................................... |
6 |
Back Panel..................................................................................................................... |
6 |
Installation.......................................................................................................... |
7 |
In/Out Cable Connection.................................................................................... |
9 |
Connecting a Monitor with D-sub Cable......................................................................... |
9 |
Connecting a Monitor with an HDMI Cable.................................................................. |
12 |
Connecting/Disconnecting HDMIAudio Device in Windows........................................ |
14 |
Connection to Multiple Monitors................................................................................... |
15 |
NC2000 |
|
Specifications................................................................................................... |
16 |
General Specifications................................................................................................. |
16 |
Multi I/O port................................................................................................................. |
16 |
Operational Specifications........................................................................................... |
16 |
Included in the Box........................................................................................... |
17 |
Basic Components....................................................................................................... |
17 |
Connections..................................................................................................... |
18 |
Back Panel................................................................................................................... |
18 |
Installation........................................................................................................ |
19 |
2
NC1100/NA1000/NA1100 |
|
Specifications................................................................................................... |
20 |
General Specifications................................................................................................. |
20 |
Multi I/O Port................................................................................................................ |
20 |
Operational Specifications........................................................................................... |
20 |
Included in the Box........................................................................................... |
21 |
Basic Components....................................................................................................... |
21 |
Optional Items.............................................................................................................. |
21 |
Connections..................................................................................................... |
22 |
Back Panel................................................................................................................... |
22 |
Installation........................................................................................................ |
23 |
In/Out Cable Connection.................................................................................. |
25 |
Connecting a Monitor with D-sub Cable....................................................................... |
25 |
Connecting a Monitor with an HDMI Cable.................................................................. |
28 |
Connecting/Disconnecting HDMIAudio Device in Windows........................................ |
30 |
Connecting a Monitor with DP Cable........................................................................... |
31 |
Connection to Multiple Monitors................................................................................... |
34 |
NC2100/NA2000/NA2100 |
|
Specifications................................................................................................... |
35 |
General Specifications................................................................................................. |
35 |
Multi I/O Port................................................................................................................ |
35 |
Operational Specifications........................................................................................... |
35 |
Included in the Box........................................................................................... |
36 |
Basic Components....................................................................................................... |
36 |
Connections..................................................................................................... |
37 |
Back Panel................................................................................................................... |
37 |
Installation........................................................................................................ |
38 |
Appendix |
|
Limitations of Microsoft Windows Embedded Standard................................... |
39 |
FrequentlyAsked Questions (FAQs)................................................................ |
39 |
3
<![endif]>NC1000
NC1000
Specifications
General Specifications
Attention
●Product specifications may change without prior notice to improve performance.
Dimensions |
250 mm (W) x 220 mm (H) x 45 mm (D) (only Set) |
Weight |
1.43 kg (only Set) |
CPU |
IntelATOM Processor 330 1.6 GHz(Dual Core), FSB 533 MHz |
Chip Set |
Nvidia MCP7A-I ON |
Main Memory |
DDR3 1066 SODIMM type 1 GB, 2 GB |
Secondary Storage Device |
SATASSD 8 GB, 16 GB, 32 GB |
O/S |
Windows Embedded Standard |
|
|
Multi I/O Port
Serial Port |
One external RS-232 Serial port |
USB Port |
Hi-Speed USB 2.0 port 480 Mbps rate (x5) |
LAN Port |
Realtek RTL8103E 10/100 Mbps Ethernet controller (NC1000-**A*/**B*) |
|
Realtek RTL8111E Gigabit Ethernet controller (NC1000-**P*/**Q*) |
VGA/ HDMI |
Nvidia MCP7A-ION integrated Graphic chipset |
4-in-1 Card |
Secure Digital (SD) / MultiMedia Card (MMC/MMC4.0) / |
|
Memory Stick (MS/MS-Pro) / xD Memory Card |
PCI Express Card Slot |
Supported |
LINE OUT |
Supported |
SPDIF |
5.1 Channel Supported (depending on source signal) |
(DigitalAudio Out) |
|
|
|
Operational Specifications
Resolution |
Maximum Resolution |
1920 x 1080 @ 60 Hz |
|
|
|
|
Recommended Resolution |
1920 x 1080 @ 60 Hz |
|
|
|
Power |
Rated Voltage |
100-240 V~ 50/60 Hz 1.2A |
|
|
|
Operating Condition |
|
Sync (H/V) |
Video |
LED |
|
|
Normal Mode |
|
On/On |
Active |
On |
|
Deep Sleep Mode |
|
Off/Off |
Off |
Off |
|
(Set = Off) |
|
|||
|
|
|
|
|
|
Operating Conditions |
Operating Conditions |
Temperature |
5 to 40 |
Humidity |
10 % to 80 % |
|
Storage Conditions |
Temperature |
-20 to 60 |
Humidity |
5 % to 95 % |
4
NC1000
Included in the Box
Basic Components
The NC1000 with the following components. Please check that these components have been included prior to installation.
<![if ! IE]><![endif]>NC1000
NC1000 |
User Manual / Cards |
Box Guide |
Power Cable |
RS-232C Cable |
Rail x 2 |
Handle x 2 |
M3, L8 x 8 |
M3, L12 x 4 |
|
(for attachment of handle) |
(forattachmentofBoxGuideonthemonitor) |
||
|
Attention
● These illustrations may differ from your product and are subject to change.
Optional Items
The following items are supported by the NC1000, but are not provided with the product. Please purchase optional items as needed.
● HDMI cable, D-sub cable, LINE-OUT cable, fiber optic cable, LAN cable, mouse, keyboard.
5
NC1000

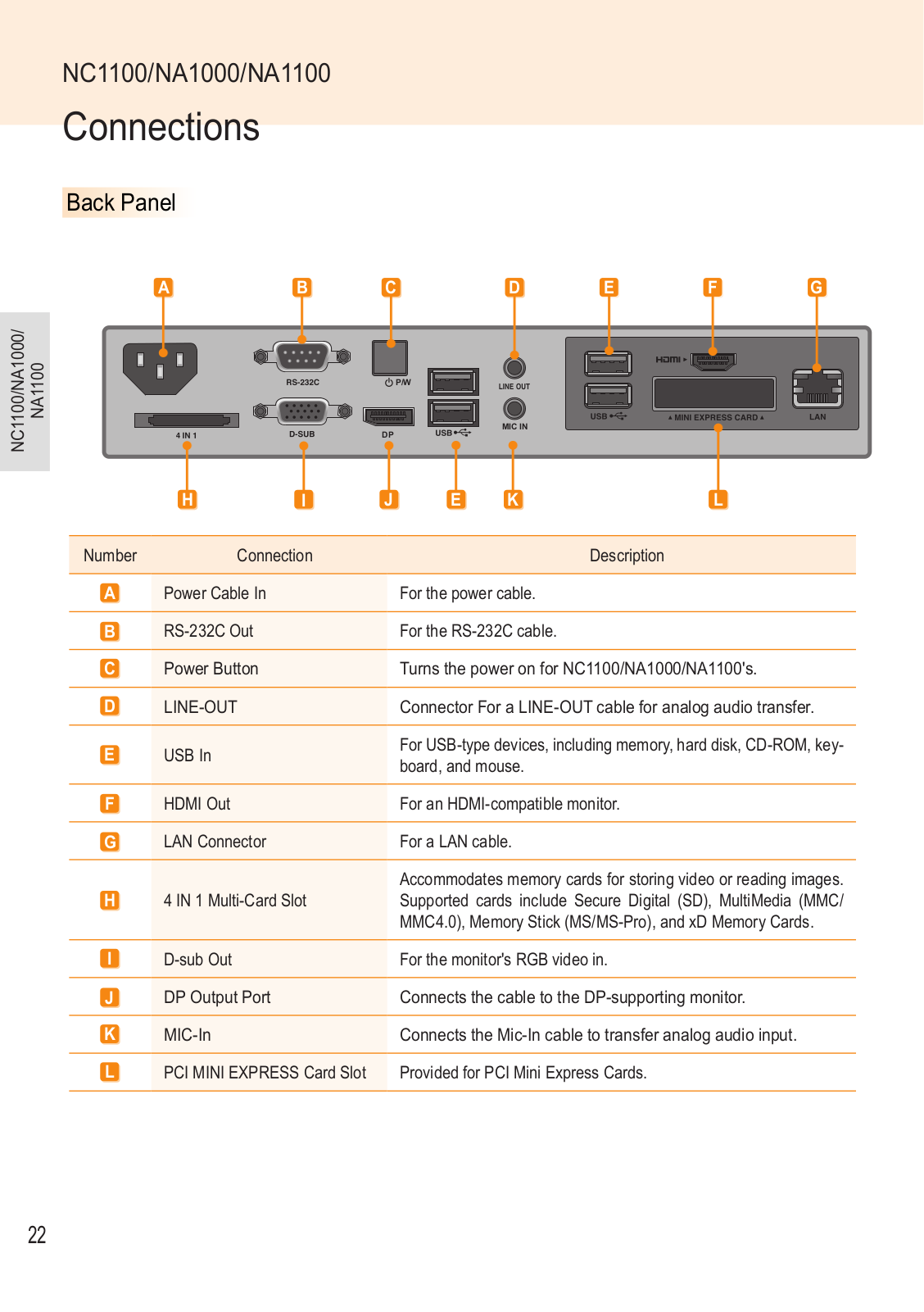

Connections
Back Panel
A |
B |
C |
D |
F |
G |
E |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![endif]>NC1000
|
|
|
|
|
I |
J |
K |
E |
|
|
M |
E |
|
|
H |
L |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
||
Number |
|
|
Connection |
|
|
|
|
Description |
|
|||
|
|
|
|
|
|
|
|
|
|
|
||
A |
Power Cable In |
|
|
|
For the power cable. |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
B |
Power Switch |
|
|
|
Provides power to the NC1000. |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||
C |
RS-232C Out |
|
|
|
For the RS-232C cable. |
|
|
|||||
|
|
|
|
|
|
|
|
|
||||
D |
USB Wireless Modem In |
|
|
For a USB-type wireless modem. |
|
|||||||
|
|
|
|
|
|
|
|
|
||||
E |
USB In |
|
|
|
For USB-type devices, including memory, hard disk, CD-ROM, key- |
|||||||
|
|
|
board, and mouse. |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|||
F |
HDMI Out |
|
|
|
For an HDMI-compatible monitor. |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||
G |
LAN Connector |
|
|
|
For a LAN cable. |
|
|
|||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
Accommodates memory cards for storing video or reading images. |
||||
H |
4 IN 1 Multi-Card Slot |
|
|
Supported cards include Secure Digital (SD), MultiMedia (MMC/ |
||||||||
|
|
|
|
|
|
|
|
MMC4.0), Memory Stick (MS/MS-Pro), and xD Memory Cards. |
||||
|
|
|
|
|
|
|
|
|
|
|
||
I |
D-sub Out |
|
|
|
For the monitor's RGB video in. |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|||
J |
OPTICAL Out |
|
|
|
For an optical cable for digital audio transfer. |
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
K |
NC1000 Power Button |
|
|
Turns NC1000 on. |
|
|
||||||
|
|
|
|
|
|
|
|
|||||
L |
LINE-OUT Connector |
|
|
For a LINE-OUT cable for analog audio transfer. |
||||||||
|
|
|
|
|
|
|
|
|||||
M |
PCI MINI EXPRESS Card Slot |
|
Provided for PCI Mini Express Cards. |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Attention
Turn on the power switch (B) and then turn on the power button (K) to power on NC1000.
6
NC1000
Installation
We recommend you to use the items provided with your NC1000 and follow our instructions for integrating the product with your monitor in order to ensure the correct results.
Attention
The illustrations shown are to guide your integration and may differ from your product.
1Place the handle into the slots on the side of the product.
2Use screws to secure the handle.
3Place the rail in the slots on the side of the product.
<![endif]>NC1000
Warning
● Be careful of sharp edges on the rail and the handle.
7
NC1000

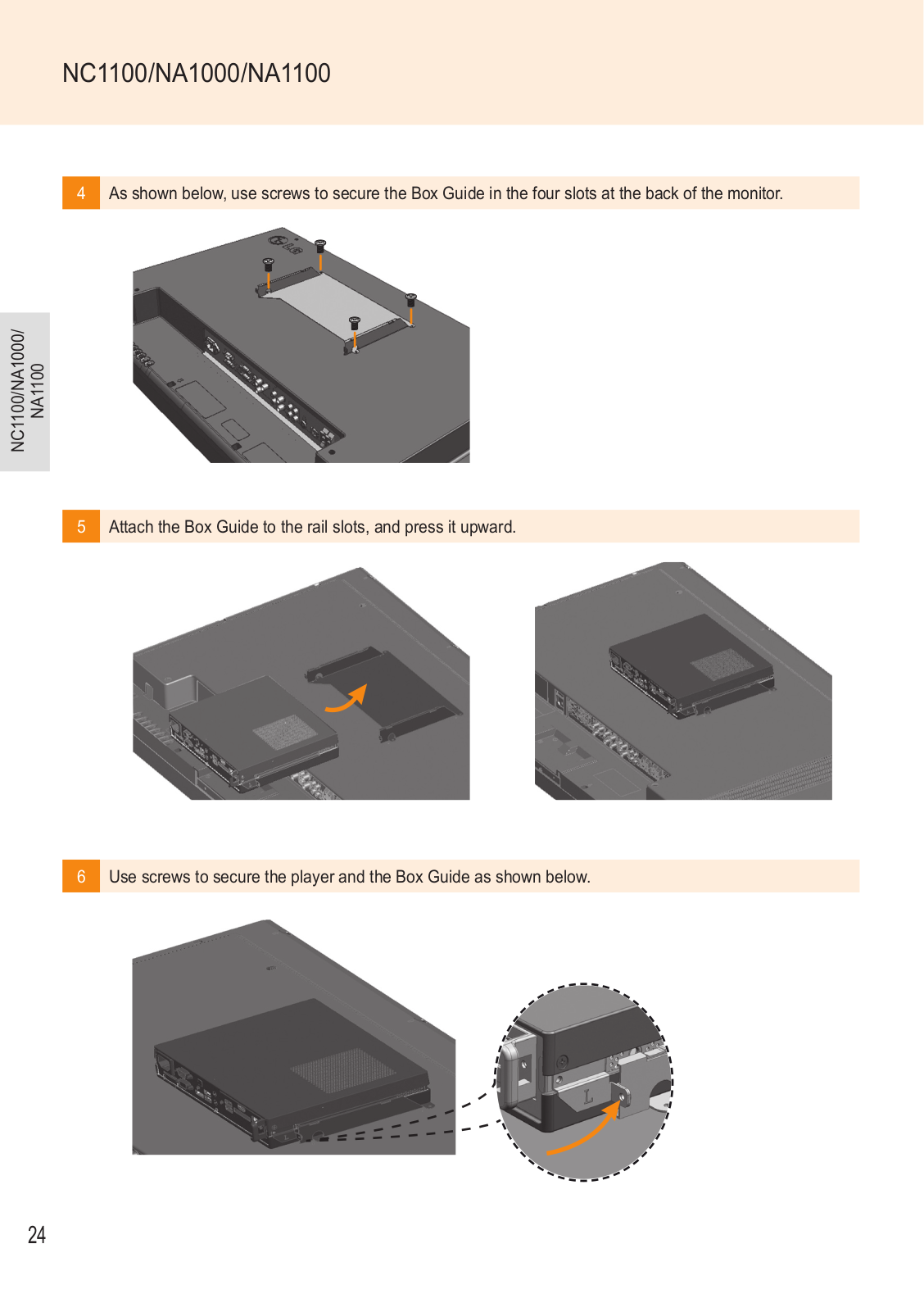

4As shown below, use screws to secure the Box Guide in the four slots at the back of the monitor.
<![if ! IE]><![endif]>NC1000
5Attach the Box Guide to the rail slots, and press it upward.
6Use screws to secure the player and the Box Guide as shown below.
8
NC1000
In/Out Cable Connection
In order to watch video on a monitor, you need to use a D-sub cable or an HDMI cable to connect the NC1000 to a monitor.
Attention
●D-sub, HDMI, LINE-OUT, OPTICAL, and LAN cables are not included with the NC1000. If the cables were not provided with your monitor, you may need to purchase them separately.
●After cabling is complete, assign the SET ID of the monitor to be connected to NC1000.
●To configure the SET ID, please refer to the owner’s manual for your monitor.
Note
When using the SuperSign Manager software:
●The monitor SET ID is a unique number used to identify the monitor. You can choose a number from 1 to 25. The SET ID allows the SuperSign Manager software to identify the monitor.
●In order to directly connect the monitor to NC1000, its SET ID must be set to 1.
●To use SuperSign Manager, the monitor that will be connected to NC1000 must support the LG RS232C protocol.Amonitor supporting the LG RS232C protocol can control the monitor functions, such as brightness and sound, using SuperSign Manager.
Connecting a Monitor with D-sub Cable
Attention
●A D-sub cable connection does not include an audio signal. For audio, you need to connect a LINE-OUT or OPTICAL cable.
Note
● D-sub cables are also known as RGB cables.
1Connect the appropriate power cables to a monitor and NC1000 respectively.
<![endif]>NC1000
9
NC1000
In/Out Cable Connection
2Connect the D-sub port of NC1000 and RGB-IN port of the monitor with a D-sub cable.
<![if ! IE]><![endif]>NC1000
3Connect NC1000 (OUT) to the monitor (IN) with an RS-232C cable.
10
NC1000
In/Out Cable Connection

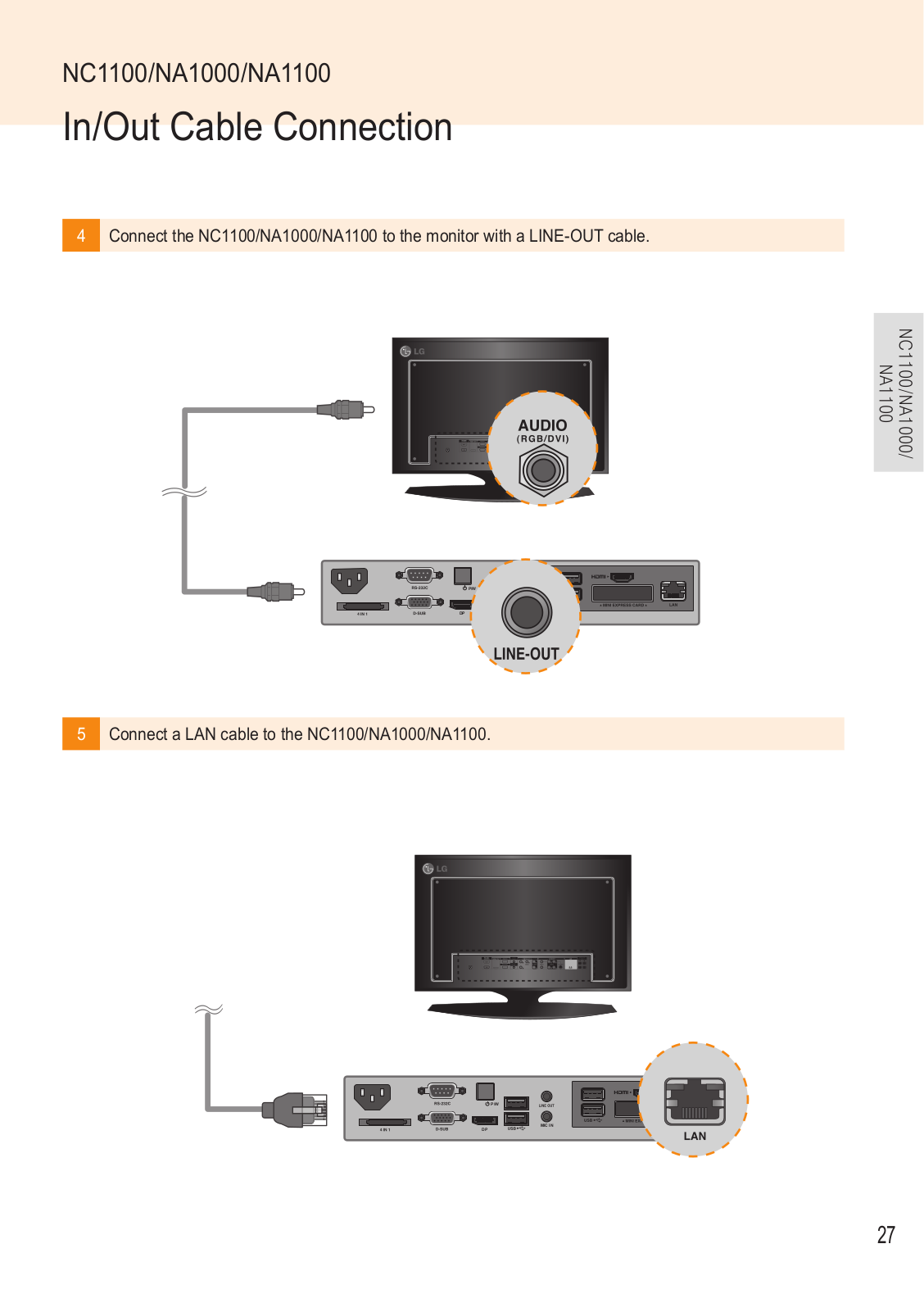

4Connect the NC1000 to the monitor with a LINE-OUT cable.
<![if ! IE]><![endif]>NC1000

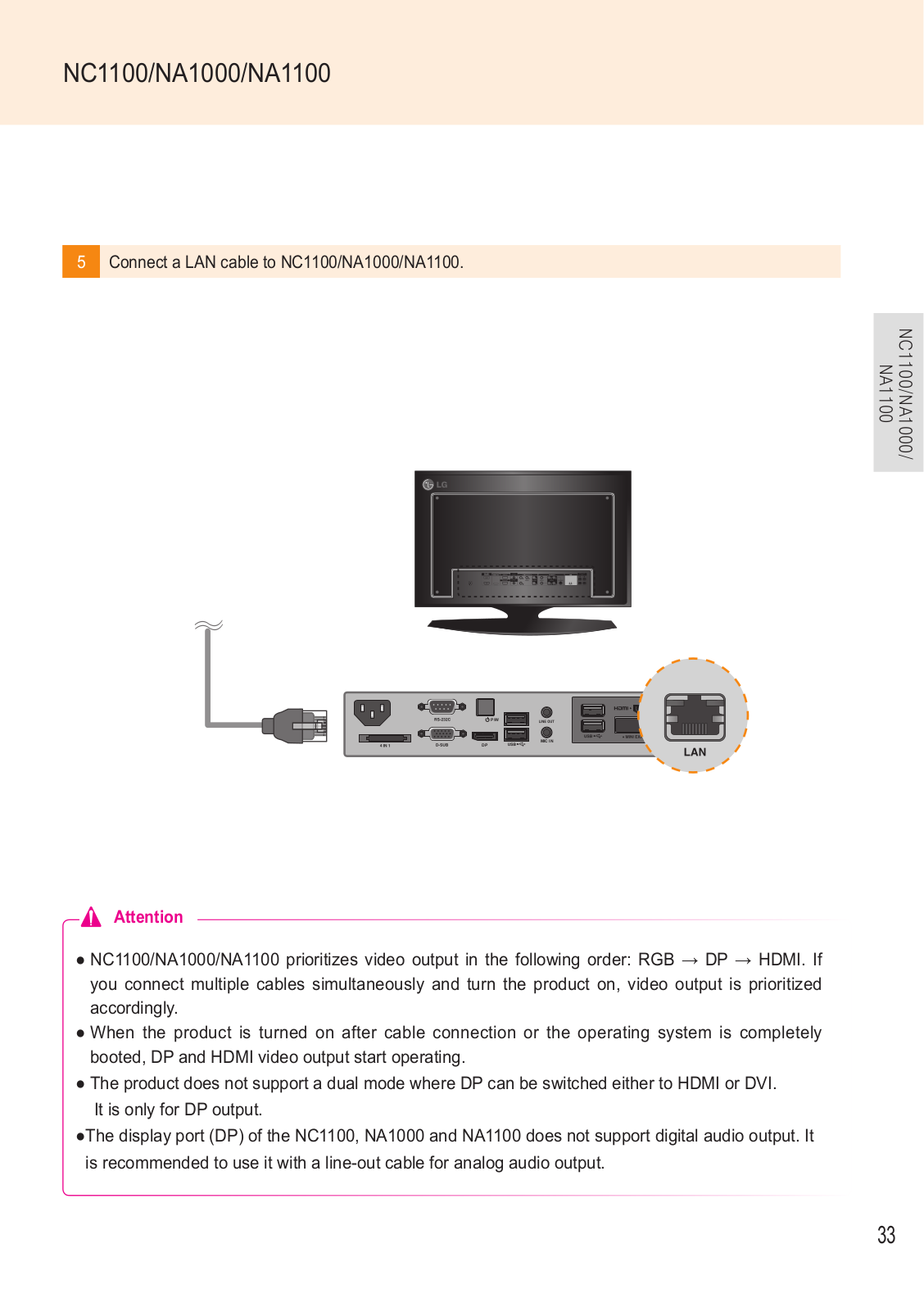

5Connect a LAN cable to the NC1000.
11
NC1000
In/Out Cable Connection
Connecting a Monitor with an HDMI Cable
HDMI connections allow digital video and audio signals to be transferred with one cable.
HDMI cable connections do not require an additional audio in cable.
|
Attention |
| <![if ! IE]> <![endif]>NC1000 |
● The monitor to connect with NC1000 should have the HDMI in for the HDMI connection. |
● To use the HDMI device, you need to activate the HDMI device in Microsoft Windows Embedded Standard, the operating system of the NC1000. To connect and disconnect the HDMI audio device, see the Connecting/ Disconnecting HDMIAudio Device in Windows section of this document.
1Connect the appropriate power cables to a monitor and NC1000 respectively.
2Connect NC1000 to a monitor with an HDMI cable.
12
