ENGLISH

OWNER’S MANUAL

STYLISH Blu-ray Disc DVD Home Cinema System

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

HB45E (HB45E, SB45E-F/W)

P/NO : MFL63290008

HB45E-D0.BPRTLL_ENG 0008.indd 1HB45E-D0.BPRTLL_ENG 0008.indd 1 2/18/10 8:55:37 PM2/18/10 8:55:37 PM

2 Safety Information

Safety Information

HB45E-D0.BPRTLL_ENG 0008.indd 2HB45E-D0.BPRTLL_ENG 0008.indd 2 2/18/10 8:55:41 PM2/18/10 8:55:41 PM

1 Safety Information

3Safety Information

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning  ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Cautions and Warnings

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a con ned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those speci ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

HB45E-D0.BPRTLL_ENG 0008.indd 3HB45E-D0.BPRTLL_ENG 0008.indd 3 2/18/10 8:55:41 PM2/18/10 8:55:41 PM

4 Safety Information

Safety Information

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the speci cation page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or  re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service centre. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery

or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine,  re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects  lled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products shall be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city o ce, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/ EC, 2006/95/EC, and 2009/125/EC.

European representative:

LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31-(0)36-547-8888)

HB45E-D0.BPRTLL_ENG 0008.indd 4HB45E-D0.BPRTLL_ENG 0008.indd 4 2/18/10 8:55:42 PM2/18/10 8:55:42 PM

5Safety Information

Notes on Copyrights

Because AACS (Advanced Access Content System)

• is approved as content protection system for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are

• additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact an authorized Customer Service Centre.

Many BD-ROM/DVD discs are encoded with

• copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

This product incorporates copyright protection

• technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Under the U.S. Copyright laws and Copyright

• laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

Important Notice for TV colour system

The colour system of this player di ers according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is outputted as a NTSC signal.

Only the multi system colour TV can receive all signals outputted from the player.

If you have a PAL colour system TV, you will see

• just distorted images when using discs or video contents recorded in NTSC.

The multi system colour TV changes the colour

• system automatically according to input signals. In case that the colour system is not changed automatically, turn it o and then on to see normal images on screen.

Even if the disc recorded in NTSC colour system

• are well displayed on your TV, these may not be recorded correctly on your recorder.

Safety Information

HB45E-D0.BPRTLL_ENG 0008.indd 5HB45E-D0.BPRTLL_ENG 0008.indd 5 2/18/10 8:55:42 PM2/18/10 8:55:42 PM

Contents

Installation

16 Speaker Connection

16 Attaching the speakers to

Safety Information

3 Cautions and Warnings

Preparation

8 Introduction

8 About the “ ” Symbol

Display

8 Symbols Used in this

Manual

9 Supplied Accessories

9 Playable Discs

11 File compatibility

12 Regional Code

12 AVCHD (Advanced Video

Codec High Deﬁ nition)

12 Certain System

Requirements

12 Compatibility Notes

13 Remote control

14 Front/Top panel

15 Rear panel

17 Connecting to Your TV

17 HDMI Connection

18 What is SIMPLINK?

19 Video Connection

19 Resolution Setting

20 Antenna connection

20 Connections with external device

20 AUX Connection 21 PORT. IN connection 21 OPTICAL IN 1/2 connection

22 Connecting to your Home Network

22 Wired network connection

23 Wired Network Setup

25 USB device connection

26 Settings

26 Adjusting the Setup

27 [DISPLAY] Menu

28 [LANGUAGE] Menu

29 [AUDIO] Menu

30 [LOCK] Menu

31 [NETWORK] Menu

31 [OTHERS] Menu

32 Sound Effect

the player

Settings

HB45E-D0.BPRTLL_ENG 0008.indd 6HB45E-D0.BPRTLL_ENG 0008.indd 6 2/18/10 8:55:42 PM2/18/10 8:55:42 PM

Operation

33 General Playback

35 Advanced Playback

38 On-Screen display

41 Enjoying BD-LIVE

42 Playing a movie ﬁ le and VR disc

44 Viewing a photo

47 Listening to music

50 Playing the iPod

53 Radio Operations

54 Playing content via your home

network

59 Using NetCast

Access

60 YouTube

63 Picasa Web Albums

67 Using the AccuWeather

Entertainment

Maintenance

Appendix

73 Controlling a TV with the Supplied

Remote Control

73 Setting up the remote to

control your TV

74 Area Code List

75 Language code List

76 Network Software Update

76 Network update notiﬁ cation

76 Software Update

78 Video output resolution

79 Trademarks and Licences

81 Speciﬁ cations

83 Important Information Relating to

Network Services

84 Open source software notice

85 Gracenote® End User Licence

Agreement

69 Notes on Discs

69 Handling the Unit

Troubleshooting

70 General

71 Picture

71 Sound

72 Network

HB45E-D0.BPRTLL_ENG 0008.indd 7HB45E-D0.BPRTLL_ENG 0008.indd 7 2/18/10 8:55:43 PM2/18/10 8:55:43 PM

8 Preparation

2 Preparation

Preparation

Introduction

About the “ ” Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that speci c media.

Symbols Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicates cautions for preventing possible damages from abuse.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

DVD

AVC HD

ACD

MOVIE

MUSIC


BD-ROM disc

DVD-Video, DVD±R/RW in Video mode or VR mode and  nalized

DVD±R/RW in AVCHD format

Audio CDs

Video  les

Audio  les

Photo  les

HB45E-D0.BPRTLL_ENG 0008.indd 8HB45E-D0.BPRTLL_ENG 0008.indd 8 2/18/10 8:55:43 PM2/18/10 8:55:43 PM

9Preparation

Supplied Accessories

Video cable (1) Colour-coded

Speaker Cables (3)

Remote control (1) Batteries (2)

FM antenna (1) Nero MediaHome4

Essentials software CD-ROM (1)

iPod cradle Foot

Playable Discs

Blu-ray Disc

Discs such as movies that can

be p BD-R/RE discs that contain

Movie, Music or Photo  les.

DVD-VIDEO 8 / 12 cm disc Discs such as movies that can be purchased or rented.

DVD±R 8 / 12 cm disc

Video mode and  nalized only

Supports the dual layer disc

also Finalized AVCHD format

DVD±R discs that contain

Movie, Music or Photo  les

DVD-RW 8 / 12 cm disc

VR mode

 nalized only Finalized AVCHD format

DVD-RW discs that contain

Movie, Music or Photo  les.

DVD+RW 8 / 12 cm disc

Video mode

AVCHD format

Finalized AVCHD format

DVD+RW discs that contain

Movie, Music or Photo  les.

Audio CD 8 / 12 cm disc

CD-R/RW 8 / 12 cm disc

CD-R/RW discs that contain

audio titles, Movie, Music or Photo  les.

urchased or rented.

Preparation

, Video mode and

and  nalized only

HB45E-D0.BPRTLL_ENG 0008.indd 9HB45E-D0.BPRTLL_ENG 0008.indd 9 2/18/10 8:55:44 PM2/18/10 8:55:44 PM

10 Preparation

•

Preparation

•

NOTE

Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW ) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

Depending on the recording software & the  nalization, some recorded discs (CD-R/RW, DVD ±R/RW, BD-R/RE) may not be playable.

BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.

Pre-recorded DVDs are automatically set to these standards. There are many di erent types of recordable disc formats (including CD-R containing MP3 or WMA  les) and these require certain pre-existing conditions to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA  les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

HB45E-D0.BPRTLL_ENG 0008.indd 10HB45E-D0.BPRTLL_ENG 0008.indd 10 2/18/10 8:55:46 PM2/18/10 8:55:46 PM

11Preparation

File compatibility

Overall

Available File extensions:

“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “.mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”

Available  le extensions di er depending

• on the DLNA servers.

Some “wav”  les are not supported on this

• player.

The  le name is limited to 180 characters.

• Depending on the size and number of the

•  les, it may take several minutes to read the contents on the media.

Maximum Files/Folder: Less than 2000 (total number of  les and folders)

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

Video  les

Available resolution size:

1920 x 1080 (W x H) pixels Playable subtitle: SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

VobSub (.sub) is not available in the

• [Home Link] feature.

Playable Codec format: “DIVX3.xx”, “DIVX4. xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback only), H.264/MPEG-4 AVC, MPEG1 SS, MPEG2 PS, MPEG2 TS Playable Audio format: “Dolby Digital”, “DTS”, “MP3”, “WMA”, “AAC”, “AC3”

•

Not all the WMA and AAC Audio format is compatible with this unit.

Sampling frequency: within 32 kHz to 48 kHz (WMA), within 16 kHz to 48 kHz (MP3) Bit rate: within 20 kbps to 320 kbps (WMA), within 32 kbps to 320 kbps (MP3)

NOTE

HD movie  les contained on the CD or USB

•

1.0/1.1 may not played properly. BD, DVD or USB

2.0 are recommended to play back HD movie  les.

This player supports H.264/MPEG-4 AVC pro le

• Main, High at Level 4.1. For a  le with higher level, the warning message will appear on the screen.

•

This player does not support the  les that are recorded with GMC encoding techniques in MPEG4 standard, like DivX or XVID have.

*1 GMC – Global Motion Compensation *2 Qpel – Quarter pixel

or Qpel

. Those are video

Audio  les

Sampling frequency: within 8 kHz to 48 KHz (WMA), within 11 kHz to 48 kHz (MP3) Bit rate: within 8 kbps to 320 kbps (WMA, MP3),

NOTE

This unit cannot support the ID3 Tag embedded

• MP3  le.

The total playback time indicated on the screen

• may not correct for VBR  les.


Recommended size:

Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless compression photo

• image  les are not supported.

Preparation

HB45E-D0.BPRTLL_ENG 0008.indd 11HB45E-D0.BPRTLL_ENG 0008.indd 11 2/18/10 8:55:47 PM2/18/10 8:55:47 PM

12 Preparation

Preparation

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the bottom of the unit or “ALL”.

AVCHD (Advanced Video Codec High Deﬁ nition)

This player can playback AVCHD format

• discs. These discs are normally recorded and used in camcorders.

The AVCHD format is a high de nition

• digital video camera format.

The MPEG-4 AVC/H.264 format is capable

• of compressing images at higher e ciency than that of the conventional image compressing format.

Some AVCHD discs use the “x.v.Colour”

• format.

This player can playback AVCHD discs using

• “x.v.Colour” format.

Some AVCHD format discs may not play,

• depending on the recording condition.

AVCHD format discs need to be  nalized.

• “x.v.Colour” o ers a wider colour range than

• normal DVD camcorder discs.

Certain System Requirements

For high de nition video playback:

•

High de nition display that has HDMI input jacks.

•

BD-ROM disc with high de nition content.

•

HDMI or HDCP capable DVI input on your display device is required for some content (as speci ed by disc authors).

•

For up-conversion of standard de nition DVD, a HDMI or HDCP capable DVI input on your display device is required for copy protected content.

Compatibility Notes

Because BD-ROM is a new format,

• certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Centre.

Viewing high-de nition content and up-

• converting standard DVD content may require a HDMI-capable input or HDCPcapable DVI input on your display device.

Some BD-ROM and DVD discs may restrict

• the use of some operation commands or features.

You can use a USB device that is used

• to store some disc related information, including downloaded on-line content. The disc you are using will control how long this information is retained.

HB45E-D0.BPRTLL_ENG 0008.indd 12HB45E-D0.BPRTLL_ENG 0008.indd 12 2/18/10 8:55:47 PM2/18/10 8:55:47 PM

Remote control

13Preparation

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with and matched correctly.

• • • • • • •a • • • • • •

(POWER): Switches the player

ON or OFF.

OPEN/CLOSE:

release a disc.

RADIO&INPUT: Changes input mode.

0-9 numerical buttons: Selects numbered options in a menu.

CLEAR: Removes a mark on the search menu or a number when setting the password.

REPEAT: Repeats a desired section or sequence.

• • • • • • •b • • • • • •

SCAN: Searches

m/M

backward or forward.

./>

or previous chapter / track /  le.

x B X

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound e ect mode.

VOL +/- : Adjusts speaker volume. OPTICAL: Changes input mode to

optical directly.

MUTE: Mutes the unit.

SKIP: Goes to the next

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback.

Inserts or

• • • • • • •c • • • • • •

HOME: Displays or exits the

[Home Menu]. MUSIC ID: When connected to the

network, can provide information about the current song while movie playback.

INFO/DISPLAY: Displays or exits

On-Screen Display. Direction buttons: Selects an

option in the menu.

ENTER: Acknowledges menu

selection.

RETURN: Exits the menu or

resumes playback. TITLE/POPUP: Displays the DVD

title menu or BD-ROM’s pop-up menu, if available.

DISC MENU: Accesses menu on a disc.

• • • • • • •d • • • • • •

Coloured (R, G, Y, B) buttons: Uses to navigate on menus.

RDS: Radio Data System. PTY: Views the programme type of

the RDS.

PTY SEARCH:

Searches programme type. MONO/STEREO: Selects mono/

stereo in FM mode. MARKER: Marks any point during

playback. SEARCH: Displays or exits the

search menu. SLEEP: Sets a certain period of time

after which the unit will switch to o .

REC: Records an audio CD.

TV Control Buttons: See page 73.

Preparation

HB45E-D0.BPRTLL_ENG 0008.indd 13HB45E-D0.BPRTLL_ENG 0008.indd 13 2/18/10 8:55:47 PM2/18/10 8:55:47 PM

14 Preparation

Front/Top panel

Preparation

FRONT

TOP

NOTE

The player can be set in horizontal or vertical

• position.

When you set the player in horizontal position,

• make sure to attach the supplied foots before setting as shown below. It protects the bottom panel from being scratched.

Display window

According to the way to posion the

unit, the display is shown horizontally or vertically.

Remote Sensor

Disc slot

Port.IN

USB port

(STOP): Stops playback.

(PLAY): Starts or pauses playback.

FUNC. : Changes input mode.

+/- : Adjusts speaker volume.

(Disc insert/release button)

1/\

(POWER) Button

HB45E-D0.BDEULL ENG 0007.indd 14HB45E-D0.BDEULL ENG 0007.indd 14 2/23/10 10:16:00 AM2/23/10 10:16:00 AM

Rear panel

OPTICAL IN 1(TV) / 2

AUX (L/R) INPUT

Speakers connectors

Cooling Fan

AC Power cord

Plug into the power source.

Antenna Connector

VIDEO OUT

iPod Connector

LAN port

HDMI OUT (type A, Version 1.3)

Connect to TV with HDMI inputs.

15Preparation

Preparation

HB45E-D0.BDEULL ENG 0007.indd 15HB45E-D0.BDEULL ENG 0007.indd 15 2/23/10 10:16:01 AM2/23/10 10:16:01 AM

16 Installation

3 Installation

Installation

Speaker Connection

Attaching the speakers to the player

1. Connect speaker wires to the main unit. Each speaker wire is colour-coded. Use matching colour wires for corresponding speakers.

colour Speaker Position

Orange Sub

woofer

Red Front Front right

White Front Front left

Any front position

2. Connect the speaker wire to the terminal on the speaker.

Make sure the wire marked black goes in

to the terminal marked “–” (minus) and the other wire goes in to the terminal marked “+” (plus).

CAUTION

Be careful to make sure children not to put their hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

HB45E-D0.BPRTLL_ENG 0008.indd 16HB45E-D0.BPRTLL_ENG 0008.indd 16 2/18/10 8:55:53 PM2/18/10 8:55:53 PM

17Installation

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

•

HDMI connection (pages 17-18)

•

Video connection (page 19)

NOTE

Depending on your TV and other equipment

• you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

Please refer to the manuals of your TV, stereo

• system or other devices as necessary to make the best connections.

Make sure the player is connected directly to

• the TV. Tune the TV to the correct video input channel.

Do not connect your player via your VCR. The

• image could be distorted by the copy protection system.

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, Version 1.3). Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.

HDMI Connection

Player

Installation

Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

HB45E-D0.BPRTLL_ENG 0008.indd 17HB45E-D0.BPRTLL_ENG 0008.indd 17 2/18/10 8:55:54 PM2/18/10 8:55:54 PM

18 Installation

Installation

NOTE

Changing the resolution when the connection

•

has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

When the HDMI connection with HDCP is not

•

veri ed, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

If there is noise or lines on the screen, please

•

check the HDMI cable (length is generally limited to 4.5 m and use a high speed HDMI cable (version 1.3).

If a connected HDMI device does not accept the

•

audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

When you use HDMI connection, you can

•

change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 19.)

Select the type of video output from the HDMI

•

OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 28).

When you connect a HDMI or DVI compatible

•

device make sure of the following:

- Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

- The connected device’s video input is set correctly for this unit.

- The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.

Not all HDCP-compatible HDMI or DVI devices

•

will work with this player.

- The picture will not be displayed properly with non-HDCP device.

- This player does not playback and TV screen is changed to black screen.

What is SIMPLINK?

Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O , etc.

Refer to the TV owner’s manual for the details of SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

NOTE

Depending on the disc type or playing status,

• some SIMPLINK operation may di er from your purpose or not work.

When you use SIMPLINK function, you have to

• connect to the OPTICAL IN 1 jack to enjoy TV sound to your speaker system.

HB45E-D0.BPRTLL_ENG 0008.indd 18HB45E-D0.BPRTLL_ENG 0008.indd 18 2/18/10 8:55:54 PM2/18/10 8:55:54 PM

19Installation

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system’s speakers.

Video Connection

Player

Yellow

Resolution Setting

The player provides several output resolutions for HDMI OUT jacks. You can change the resolution using [Setup] menu.

1. Press HOME (

2. Use I/i to select the [Setup] and press

ENTER (

3. Use U/u to select [DISPLAY] option then press i to move to the second level.

4. Use U/u to select the [Resolution] option then press ENTER ( third level.

). The [Setup] menu appears.

) or i to move to the

Installation

5. Use U/u to select the desired resolution then press ENTER ( ) to con rm your selection.

NOTE

•

If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:

Press HOME ( ) twice.

2. Press x for more than 5 seconds. Since several factors a ect the resolution of

• video output, see “Video Output Resolution” on page 78.

HB45E-D0.BPRTLL_ENG 0008.indd 19HB45E-D0.BPRTLL_ENG 0008.indd 19 2/18/10 8:55:55 PM2/18/10 8:55:55 PM

20 Installation

Installation

Antenna connection

Connect the supplied antenna for listening to the radio.

Antenna Connection

Player

Connections with external device

AUX Connection

You can enjoy the sound of your component with the analogue audio output jacks from the speakers of the system.

Connect the analogue audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER (

You can also use the FUNC. button on the top panel to select the input mode.

AUX Connection

NOTE

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

Red White

To the audio output jacks of your component (TV, VCR, etc.)

HB45E-D0.BPRTLL_ENG 0008.indd 20HB45E-D0.BPRTLL_ENG 0008.indd 20 2/18/10 8:55:56 PM2/18/10 8:55:56 PM

21Installation

PORT. IN connection

You can enjoy the sound of your portable audio player from the speakers of the system.

Connect the headphones (or line out ) jack of the portable audio player into the PORT. IN of this unit. And then select the [PORTABLE] option by pressing RADIO&INPUT and ENTER (

You can also use the FUNC. button on the top panel to select the input mode.

PORT.IN Connection

MP3 player, etc

OPTICAL IN 1/2

connection

You can enjoy the sound of your component with the digital optical connection from the speakers of the system.

Connect the optical output jack of your component into the OPTICAL IN 1/2 jacks on the unit. And then select the [OPTICAL] option by pressing RADIO&INPUT and ENTER ( press OPTICAL to select directly.

You can also use the FUNC. button on the top panel to select the input mode.

Optical Connection

OPTICAL IN 1

OPTICAL IN 2

). Or

Installation

To the digital optical output jack of your component

HB45E-D0.BPRTLL_ENG 0008.indd 21HB45E-D0.BPRTLL_ENG 0008.indd 21 2/18/10 8:55:57 PM2/18/10 8:55:57 PM

22 Installation

Installation

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel. By connecting the unit to a broadband home network, you have access to services such as software updates, Home Link, BD-Live interactivity and streaming services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference. Please refer to the documentation for your network device for further instructions. Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CAT5 or better with RJ45 connector). In the example con guration for wired connection below, this player would be able to access content from either of the PCs.

Wired Network Connection

Router

Broadband

Service

WAN

LAN 1

LAN 2

LAN 3

Player

NOTE

When plugging or unplugging the LAN cable,

•

hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

Do not connect a modular phone cable to the

•

LAN port. Since there are various connection

•

con gurations, please follow the speci cations of your telecommunication carrier or internet service provider.

If you want to access content from PCs or DLNA

•

servers, this player must be connected to the same local area network with them via a router.

HB45E-D0.BPRTLL_ENG 0008.indd 22HB45E-D0.BPRTLL_ENG 0008.indd 22 2/18/10 8:55:58 PM2/18/10 8:55:58 PM

23Installation

Wired Network Setup

Before setting the wired network, you need to connect the broadband internet to your home network.

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (

2. Use U/u/I/

to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

NOTE

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set the [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using U/u/I/ buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

3. Select [OK] and press ENTER ( ) to apply network settings.

4. The player will ask you to test the network connection. Select [OK] and press ENTER

) to complete the network connection.

(

5. If you select [Test] and press ENTER

) at step 4 above, the network

( connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

and numerical

Installation

HB45E-D0.BPRTLL_ENG 0008.indd 23HB45E-D0.BPRTLL_ENG 0008.indd 23 2/18/10 8:55:58 PM2/18/10 8:55:58 PM

24 Installation

Notes on Network Connection:

•

Installation

•

Many network connection problems during set up can often be  xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

Some internet contents may require a higher bandwidth connection.

Even if the player is properly connected and con gured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

Any fees charged by an ISP including,

• without limitation, connection charges are your responsibility.

A 10 Base-T or 100 Base-TX LAN port is

• required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

You must use a Router to use xDSL service.

• A DSL modem is required to use DSL service

• and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

The use of a “Router” may not be allowed

• or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

Turn o all unused network equipment in

• your local home network. Some devices may generate network tra c.

HB45E-D0.BPRTLL_ENG 0008.indd 24HB45E-D0.BPRTLL_ENG 0008.indd 24 2/18/10 8:55:59 PM2/18/10 8:55:59 PM

25Installation

USB device connection

This player can play movie, music and photo  les contained in the USB device.

1. Insert a USB device to the USB port until it  ts into place.

USB Connection - 1

When you connect the USB device on the HOME menu, the player plays a music  le contained in the USB storage device automatically. If the USB storage device is containing various types of  les, a menu for the  le type selection will appear.

2. Select [Movie], [Photo] or [Music] using

I/i

, and press ENTER ( ).

3. Select a  le using U/u/I/i, and press PLAY or ENTER ( You can check the space of the USB device on the screen.

4. Select the other mode. And withdraw the USB device carefully.

USB Connection - 2

) to play the  le.

Installation

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER ( ) while [Cancel] is selected to stop loading.

HB45E-D0.BPRTLL_ENG 0008.indd 25HB45E-D0.BPRTLL_ENG 0008.indd 25 2/18/10 8:56:00 PM2/18/10 8:56:00 PM

26 Installation

Installation

NOTE

This player supports USB  ash memory/external

• HDD formatted in FAT16, FAT32 and NTFS when accessing  les (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB  ash memory/external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.

The USB device can be used for the local storage

• for enjoying BD-Live discs with Internet.

This unit can support up to 4 partitions of the

• USB device.

Do not extract the USB device during operation

• (play, etc.).

An USB device which requires additional

• programme installation when you have connected it to a computer, is not supported.

USB device: USB device that support USB 1.1

• and USB 2.0.

Movie, music and photo  les can be played.

• For details of operations on each  le, refer to relevant pages.

Regular back up is recommended to prevent

• data loss.

If you use a USB extension cable, USB HUB or

• USB Multi-reader, the USB device may not be recognised.

Some USB device may not work with this unit.

• Digital camera and mobile phone are not

• supported.

USB Port of the unit cannot be connected to PC.

• The unit cannot be used as a storage device.

Settings

Adjusting the Setup Settings

You can change the settings of the player in the [Setup] menu.

1. Press HOME.

2. Use I/i to select the [Setup] and press

ENTER ( ) The [Setup] menu appears.

3. Use U/u to select a  rst setup option, and press i to move to the second level.

HB45E-D0.BPRTLL_ENG 0008.indd 26HB45E-D0.BPRTLL_ENG 0008.indd 26 2/18/10 8:56:01 PM2/18/10 8:56:01 PM

4. Use U/u to select a second setup option, and press ENTER ( level.

5. Use U/u to select a desired setting, and press i or ENTER ( ) to con rm your selection.

) to move to the third

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to  ll your TV screen. Both sides of the picture are cut o .

NOTE

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

Resolution

Sets the output resolution of the HDMI video signal. Refer to page 19 and 78 or details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[1080p]

Outputs 1080 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[720p]

Outputs 720 lines of progressive video.

[576p]

Outputs 576 lines of progressive video.

[576i]

Outputs 576 lines of interlaced video.

27Installation

Installation

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to  ll the entire screen.

HB45E-D0.BPRTLL_ENG 0008.indd 27HB45E-D0.BPRTLL_ENG 0008.indd 27 2/18/10 8:56:01 PM2/18/10 8:56:01 PM

28 Installation

Installation

1080p Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of  lm material (1080p/ 24 Hz) with a HDMI-equipped display compatible with 1080p/ 24 Hz input.

NOTE

•

When you select [24 Hz], you may experience some picture disturbance when the video switches video and  lm material. In this case, select [50 Hz].

•

Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with

1080p/ 24 Hz

the video output will be 50 Hz to match the video source format.

, the actual frame frequency of

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[LANGUAGE] Menu

Display Menu

Select a language for the [Setup] menu and on-screen display.

Disc Menu/ Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press ENTER ( Use number buttons then ENTER ( enter the corresponding 4-digit number according to the language code list on page 75.

[O ] (for Disc Subtitle only)

Turn o Subtitle.

) to select another language.

) to

[RGB]

Select when connecting to a DVI (RGB) display device.

HB45E-D0.BPRTLL_ENG 0008.indd 28HB45E-D0.BPRTLL_ENG 0008.indd 28 2/18/10 8:56:02 PM2/18/10 8:56:02 PM

NOTE

Depending on the disc, your language setting may not work.

29Installation

[AUDIO] Menu

Speaker Setup

To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level.

[Speaker]

Select a speaker that you want to adjust.

[Volume]

Adjust the output level of each speaker.

[Distance]

Adjust the distance between each speaker and the listening position.

[Test/ Stop test tone]

The speakers will emit a test tone.

[OK]

Con rms the setting.

[Cancel]

Cancels the setting.

HD AV Sync

Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it e ectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use scroll up and down through the delay amount, which you can set at anything between 0 and 300m sec.

The delay will vary depending on which digital TV channel you are on. If you change channel you may need to readjust the HD AV Sync.

U u

DRC (Dynamic Range Control)

When a content encoded in Dolby Digital or Dolby Digital Plus is playing back, you may wish to compress the dynamic range of the audio output (the di erence between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set [DRC] to [On] for this e ect.

NOTE

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

Installation

HB45E-D0.BPRTLL_ENG 0008.indd 29HB45E-D0.BPRTLL_ENG 0008.indd 29 2/18/10 8:56:03 PM2/18/10 8:56:03 PM

30 Installation

Installation

[LOCK] Menu

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER ( ) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press ENTER (

[Change]

Enter the current password and press ENTER ( press ENTER ( ) to create a new password.

If you make a mistake before pressing

( )

password.

) to create a new password.

). Enter a 4-digit password twice, and

NOTE

ENTER

, press CLEAR. Then input the correct

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select this, parental control is not active and the disc plays in full.

BD Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

NOTE

The [BD Rating] will be applied only for the BD disc that containing the Advanced Rating Control.

If you forget your password,

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

2. Select [Lock] option in the [Setup] menu.

3. Use number buttons to enter “210499” on the

[Lock] Menu. The password is cleared.

HB45E-D0.BPRTLL_ENG 0008.indd 30HB45E-D0.BPRTLL_ENG 0008.indd 30 2/18/10 8:56:04 PM2/18/10 8:56:04 PM

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 74.

31Installation

[NETWORK] Menu

The [NETWORK] settings are needed to use the software update, BD Live, Home Link and NetCast features.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the network connection for network communication. (See “Connecting to your Home Network” on pages 22.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press ENTER ( ) to check whether a connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live functions are used.

[Permitted]

Internet access is permitted for all BD-Live contents.

[Partially permitted]

Internet access is permitted only for BDLive contents which have content owner certi cates. Internet access and AACS Online functions are prohibited for all BDLive contents without a certi cate.

[OTHERS] Menu

DivX VOD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an o cial DivX Certi ed device that plays DivX video. Visit www.divx.com for more information and software tools to convert your  les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certi ed® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

NOTE

All the downloaded videos from DivX VOD with this player’s registration code can only be played back on this unit.

Installation

[Prohibited]

Internet access is prohibited for all BD-Live contents.

HB45E-D0.BPRTLL_ENG 0008.indd 31HB45E-D0.BPRTLL_ENG 0008.indd 31 2/18/10 8:56:04 PM2/18/10 8:56:04 PM

32 Installation

Installation

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about  ve minutes. If you set this option to [On], the unit automatically turns itself o after the Screen Saver is displayed for 25 minutes. Set this option to [O ] to leave the screen saver until the unit is operated by the user.

Initialize

Factory Set

You can reset the player to its original factory settings.

BD Storage Clear

Initializes the BD contents from the connected USB storage.

NOTE

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

Software

Information

Displays the current software version.

Update

You can update the software by connecting the unit directly to the software update server (see page 76-77).

Disclaimer Notice

Press ENTER ( ) to view the notice of Network Service Disclaimer on page 83.

Sound Effect

You can select a suitable sound mode. Press SOUND EFFECT repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe di erent depending on sound sources and e ects.

[Natural]: You can enjoy comfortable and natural sound.

[Bypass]: Software with multichannel surround audio signals is played according to the way it was recorded.

[Bass Blast]: Reinforce the bass sound e ect from front left and right speaker and subwoofer.

[Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound.

[Virtual]: You can enjoy more dynamic sound with improved centre channel.

[Game]: You can enjoy more virtual sound while playing video games.

[Night]: This may be useful when you want to watch movies at low volumes late at night.

[Mus. ReTouch]: When listening to MP3  les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources.

[Loudness]: Improves bass and treble sound.

[Natural Plus]: You can enjoy the natural sound e ect same as 5.1 channel.

HB45E-D0.BDEULL ENG 0007.indd 32HB45E-D0.BDEULL ENG 0007.indd 32 2/19/10 10:03:53 AM2/19/10 10:03:53 AM

4 Operation

33Operation

General Playback

Playing Discs

1. Put a disc with the label facing left to the disc slot as below. If you set in horizontal position, put a disc with the label facing up to the disc slot. Then it is automatically inserted.

For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.

2. Press HOME (

3. Select [Movie], [Photo] or [Music] using

I/i

, and press ENTER ( ).

4. Select the [Disc] option using I/i, and press ENTER (

When you connect up to two devices, it appears as above.

5. Select a  le using U/u/I/i, and press B (PLAY) or ENTER (

) to play the  le.

NOTE

Playback functions described in this manual are

• not always available in every  les and medium. Some functions can be restricted depending on many factors.

Depending on the BD-ROM titles, a USB device

• connection may be needed for the proper playback.

Operation

HB45E-D0.BPRTLL_ENG 0008.indd 33HB45E-D0.BPRTLL_ENG 0008.indd 33 2/18/10 8:56:05 PM2/18/10 8:56:05 PM

34 Operation

Operation

To stop playback

Press x (STOP) while playback.

To pause playback

Press X (PAUSE) while playback. Press B (PLAY) to resume playback.

To play frame-by-frame

Press X (PAUSE) while movie playback. Press X (PAUSE) repeatedly to play Frame-byFrame playback.

To scan forward or backward

Press m or M to play fast forward or fast reverse during playback. You can change the various playback speeds by pressing m or M repeatedly.

To slow down the playing speed

While the playback is paused, press M repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/ﬁ le

During playback, press . or > to go to the next chapter/track/ le or to return to the beginning of the current chapter/track/ le. Press . twice brie y to step back to the previous chapter/track/ le.

Using the disc menu

BD DVD AVC HD

To display the disc menu

The menu screen may be displayed  rst after loading a disc which contains a menu. If you want to display the disc menu while playback, press DISC MENU.

Use U/u/I/i buttons to navigate through menu items.

To display the Pop-up menu

Some BD-ROM discs contain Pop-up menu that appears while playback.

Press TITLE/POPUP while playback, and use

U/u/I/i

items.

buttons to navigate through menu

HB45E-D0.BPRTLL_ENG 0008.indd 34HB45E-D0.BPRTLL_ENG 0008.indd 34 2/18/10 8:56:06 PM2/18/10 8:56:06 PM

35Operation

Resume playback

BD DVD AVC HD MOVIE ACD

MUSIC

The unit records the point where you pressed the x (STOP) depending on the disc. If “

(Resume Stop)” appears on the screen

brie y, press B (PLAY) to resume playback (from the scene point).

If you press x (STOP) twice or unload the disc, “x”(Complete Stop) appears on the screen. The unit will clear the stopped point.

NOTE

The resume point may be cleared when a

• button is pressed (for example; 1 (POWER),

(OPEN/CLOSE), etc).

On BD-Video discs with BD-J, the resume

• playback function does not work.

If you press x (STOP) once during BD-ROM

• interactive title playback, the unit will be in Complete Stop mode .

Advanced Playback

Repeat Playback

BD DVD AVC HD ACD MUSIC

During playback, press REPEAT repeatedly to select a desired repeat mode.

BDs/DVDs

– Selected portion will be repeated

A-

continually.

Chapter

– The current chapter will be

played back repeatedly.

– The current title will be played

Title

back repeatedly.

To return to normal playback, press REPEAT repeatedly to select [O ].

Audio CDs/Music  les

– The current track or  le will be

played back repeatedly.

– All the tracks or  les will be played

back repeatedly.

– The tracks or  les will be played back

in random order.

– All the tracks or  les will be

played back repeatedly in random order.

– Selected portion will be repeated

continually. (Audio CD only)

To return to normal playback, press CLEAR.

Operation

NOTE

If you press > once during Repeat Chapter/

• Track playback, the repeat playback cancels.

This function may not work on some disc or title.

•

HB45E-D0.BPRTLL_ENG 0008.indd 35HB45E-D0.BPRTLL_ENG 0008.indd 35 2/18/10 8:56:07 PM2/18/10 8:56:07 PM

36 Operation

Operation

Repeating a speciﬁ c portion

BD DVD AVC HD ACD

This player can repeat a portion you have selected.

1. While playback, press REPEAT to select [A-] at the beginning of the portion you wish to repeat. And then press ENTER (

2. Press ENTER ( ) at the end of the portion. Your selected portion will be repeated continually.

3. To return to normal playback, press REPEAT repeatedly to select [OFF] or press CLEAR.

NOTE

You cannot select a portion less than 3 seconds. This function may not work on some disc or title.

Marker Search

BD DVD AVC HD MOVIE

You can start playback from up to nine memorized points.

To enter a marker

1. While playback, press MARKER at the desired point. The Marker icon appears on the TV screen brie y.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press a number button to select a marker number that you want to recall. Playback starts from the marked scene.

To delete a Marker

1. Press SEARCH and the search menu appears on the screen.

2. Press u to highlight a marker number. Use

I/i

to select a marked scene that you

want to delete.

3. Press CLEAR and the marked scene is erased from the search menu.

NOTE

•

This function may not work depending on discs, titles, server ability.

•

All marked points are cleared if the title is in complete stop (x) mode, the title is changed or if you unload the disc.

If the total length of the title is less than

• 10 seconds, this function is not available.

Using the search menu

BD DVD AVC HD MOVIE

Using search menu, you can easy to  nd the point where you want to start playback.

To search a point

1. During playback, press SEARCH to display the search menu.

2. Press I/i to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding I/i button.

HB45E-D0.BPRTLL_ENG 0008.indd 36HB45E-D0.BPRTLL_ENG 0008.indd 36 2/18/10 8:56:08 PM2/18/10 8:56:08 PM

37Operation

To start playback from a marked scene

1. Press SEARCH and the search menu appears on the screen.

2. Press u to highlight a marker number. Use

I/i

to select a marked scene that you

want to start playback from.

3. Press ENTER ( ) to start playback from the marked scene.

NOTE

•

This function may not work depending on discs, titles, server ability.

•

This function may not work on some [Home Link] contents depending on the  le type and ability of the DLNA server.

Changing content list view

MOVIE MUSIC PHOTO

On the [Movie], [Music], [Photo] or [Home Link] menu, you can change the content list view.

Method 1

Press red (R) coloured button repeatedly.

Operation

Method 2

1. On the content list, press INFO/DISPLAY ( ) to display the option menu.

option.

view.

to select the [View Change]

) to change the content list

2. Use U/

3. Press ENTER (

HB45E-D0.BPRTLL_ENG 0008.indd 37HB45E-D0.BPRTLL_ENG 0008.indd 37 2/18/10 8:56:09 PM2/18/10 8:56:09 PM

38 Operation

Operation

Viewing content information

MOVIE

The player can display the content information.

1. Select a  le using U/u/I/i.

2. Press INFO/DISPLAY (

option menu.

3. Select the [Information] option using U/u, and press ENTER (

The  le information appears on the screen.

While movie playback, you can display the  le information by pressing TITLE/POPUP.

) to display the

NOTE

The information displayed on the screen may not correct comparing actual content information.

Last Scene Memory

BD DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

NOTE

Last Scene Memory function for a previous disc

• is erased once a di erent disc is played.

This function may not work depending on the

• disc.

This unit does not memorize settings of a disc if

• you switch o the unit before commencing to play it.

On-Screen display

You can display and adjust various information and settings about the content.

Displaying content information on-screen

BD DVD AVC HD MOVIE

1. While playback, press INFO/DISPLAY (

show various playback information.

Title – Current title number/total number

of titles Chapter – Current chapter number/total

number of chapters Time – Elapsed playing time/Total

playback time Audio – Selected audio language or

channel Subtitle – Selected subtitle

Angle – Selected angle/total number of

angles TV Aspect Ratio – Selected a TV aspect

Ratio Picture Mode – Selected picture mode

) to

a b c

e f

g h i

HB45E-D0.BPRTLL_ENG 0008.indd 38HB45E-D0.BPRTLL_ENG 0008.indd 38 2/18/10 8:56:10 PM2/18/10 8:56:10 PM

39Operation

Movie Information – Select this option

and press ENTER ( ) to display movie information

2. Select an option using U/u.

3. Use I/i to adjust the selected option

value.

4. Press RETURN (O) to exit the On-Screen display.

NOTE

If no button is pressed for a few seconds, the on-

• screen display disappears.

A title number cannot be selected on some

• discs.

Available items may di er depending on discs

• or titles.

If BD interactive title is playing back, some

• setting information is displayed on the screen but prohibited to be changed.

To use the [Movie Information] option, the player

• must be connected to the broadband internet for accessing the Gracenote Media Database.

If the music information from the

• Gracenote® media database is either not correct or not exist, please contact Gracenote® at http://www.gracenote.com for support.

LG is a licence of Gracenote® technology and is

• not responsible or reliable for information from the Gracenote® media database.

Playing from selected time

BD DVD AVC HD MOVIE

1. Press INFO/DISPLAY ( ) during playback.

The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to  nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”.

Press I/i to skip the playback 60 seconds forward or backward.

3. Press ENTER (

) to start playback from

selected time.

NOTE

•

This function may not work on some disc or titles.

•

This function may not work on some [Home Link] contents depending on the  le type and ability of the DLNA server.

Hearing a different audio

BD DVD AVC HD MOVIE

1. During playback, press INFO/DISPLAY (

display the on-screen display.

2. Use U/

3. Use I/

to select the [Audio] option.

to select desired audio language,

audio track or audio channel.

Operation

) to

HB45E-D0.BPRTLL_ENG 0008.indd 39HB45E-D0.BPRTLL_ENG 0008.indd 39 2/18/10 8:56:11 PM2/18/10 8:56:11 PM

40 Operation

Operation

NOTE

•

Some discs allow you to change audio selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate audio from the selections on the disc menu.

Immediately after you have switched sound,

• there may be a temporary discrepancy between the display and actual sound.

On BD-ROM disc, the multi audio format (5.1CH

• or 7.1CH) is displayed with [MultiCH] in the onscreen display.

Selecting a subtitle language

BD DVD AVC HD MOVIE

1. During playback, press INFO/DISPLAY (

display the on-screen display.

2. Use U/

3. Use I/

to select the [Subtitle] option.

to select desired subtitle language.

4. Press RETURN(O) to exit the On-Screen display.

NOTE

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press TITLE/POPUP or DISC MENU button and choose the appropriate subtitle from the selections on the disc menu.

Watching from a different angle

BD DVD

If the disc contains scenes recorded at di erent camera angles, you can change to a di erent camera angle during playback.

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/

3. Use I/

to select the [Angle] option.

to select desired angle.

4. Press RETURN (O) to exit the On-Screen display.

Changing the TV Aspect Ratio

) to

BD DVD AVC HD MOVIE

You can change the TV aspect ratio setting while playback.

1. During playback, press INFO/DISPLAY ( display the on-screen display.

2. Use U/

to select the [TV Aspect Ratio]

option.

3. Use I/

to select desired option.

4. Press RETURN (O) to exit the On-Screen display.

NOTE

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

) to

HB45E-D0.BPRTLL_ENG 0008.indd 40HB45E-D0.BPRTLL_ENG 0008.indd 40 2/18/10 8:56:12 PM2/18/10 8:56:12 PM

41Operation

Changing the Picture Mode

BD DVD AVC HD MOVIE

You can change the [Picture mode] option while playback.

1. During playback, press INFO/DISPLAY ( display the on-screen display.

option.

display.

to select the [Picture Mode]

to select desired option.

2. Use U/

3. Use I/

4. Press RETURN (O) to exit the On-Screen

Setting the [User setting] option

1. During playback, press INFO/DISPLAY ( ) to display the on-screen display.

2. Use U/

3. Use I/

to select the [Picture Mode]

option.

to select the [User setting] option,

and press ENTER (

) to

Enjoying BD-LIVE

This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-Video supporting BONUSVIEW (BD-ROM version 2 Pro le 1 version 1.1/ Final Standard Pro le).

Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

In addition to the BONUSVIEW function, BDVideo supporting BD-Live (BD-ROM version 2 Pro le 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (pages 22-24).

2. Insert a USB storage device to the USB port on the front panel.

A USB storage device is needed to download bonus content.

Operation

USB Connection

4. Use U/u/I/ options.

Select [Default] option then press ENTER (

) to reset the all adjustments.

5. Use U/u/I/ and press ENTER (

HB45E-D0.BPRTLL_ENG 0008.indd 41HB45E-D0.BPRTLL_ENG 0008.indd 41 2/18/10 8:56:13 PM2/18/10 8:56:13 PM

to adjust the [Picture Mode]

to select the [Close] options,

) to  nish setting.

42 Operation

Operation

3 . Press Home( ), and set the [BD-LIVE

connection] option on the [Setup] menu (page 31).

Depending on a disc, the BD-Live function may not be operated if [BDLIVE connection] option is set to [Partially Permitted].

4 . Insert a BD-ROM with BD-LIVE.

The operations are di er depending on the disc. Refer to the manual supplied with the disc.

NOTE

Do not extract the connected USB device while

•

content is being downloaded or a Blu-ray disc is still in the disc tray. Doing so may damage the connected USB device and BD-Live features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Some BD-Live contents may be restrictively

•

accessed in some territories by contents provider’s own decision.

It may take up to several minutes to load and

•

start enjoying BD-Live contents.

Playing a movie ﬁ le and VR disc

You can play DVD-RW discs that are recorded in Video Recording (VR) format and movie  les contained in a disc or USB device.

1. Press HOME (

2. Select [Movie] using I/i, and press ENTER (

3. Select the device using I/i, and press ENTER (

When you connect up to two devices, it appears as above.

HB45E-D0.BPRTLL_ENG 0008.indd 42HB45E-D0.BPRTLL_ENG 0008.indd 42 2/18/10 8:56:14 PM2/18/10 8:56:14 PM

43Operation

4. Select a  le using U/u/I/i, and press PLAY or ENTER (

) to play the  le.

NOTE

The  le requirements are described on page 11.

• You can use various playback functions. Refer to

• pages 33-41.

Un nalized DVD VR format discs may not be

• played in this player.

Some DVD-VR disc are made with CPRM data

• by DVD recorder. This unit cannot support these kinds of discs.

What is CPRM?

CPRM is a copy protection system (with scramble system) only allowing the recording of ‘copy once’ broadcast programmes. CPRM stands for Content Protection for Recordable Media.

Selecting a subtitle ﬁ le

MOVIE

If a movie  le name and the subtitle  le name are the same, subtitle  le is played automatically when playing the movie  le.

If the subtitle  le name is di erent with the movie  le name, you need to select the subtitle  le on the [Movie] menu before playing the movie.

NOTE

to select the subtitle  le you

1. Use U/u/I/ wish to play in the [Movie] menu.

2. Press ENTER (

Press ENTER ( ) again to deselect the subtitle  le. Selected subtitle  le will be displayed when you play the movie  le.

Operation

If you press x (STOP) while playback, the

• subtitle selection is cancelled.

This function may not work in the [Home Link]

• feature.

HB45E-D0.BPRTLL_ENG 0008.indd 43HB45E-D0.BPRTLL_ENG 0008.indd 43 2/18/10 8:56:15 PM2/18/10 8:56:15 PM

44 Operation

Operation

Changing subtitle code page

MOVIE

If the subtitle is not displayed properly, You can change the subtitle code page to view the subtitle  le properly.

1. During playback, press INFO/DISPLAY ( display the playback menu.

display.

to select the [Code Page] option.

to select desired code option.

2. Use U/

3. Use I/

4. Press RETURN(O) to exit the On-Screen

) to

Viewing a photo

You can view photo  les using this player.

1. Press HOME (

2. Select [Photo] using I/i, and press ENTER (

3. Select the device using I/i, and press ENTER (

When you connect up to two devices, it appears as above.

4. Select a  le using U/u/I/i, and press ENTER (

HB45E-D0.BPRTLL_ENG 0008.indd 44HB45E-D0.BPRTLL_ENG 0008.indd 44 2/18/10 8:56:16 PM2/18/10 8:56:16 PM

) to view the photo.

45Operation

To play a slide show

Press B (PLAY) to start slide show.

To stop a slide show

Press x (STOP) while slide show.

To pause a slide show

Press X (PAUSE) while slide show. Press B (PLAY) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press I or

to go to the previous or next photo.

NOTE

The  le requirements are described on page 11.

• You can use various playback functions. Refer to

• pages 33-41.

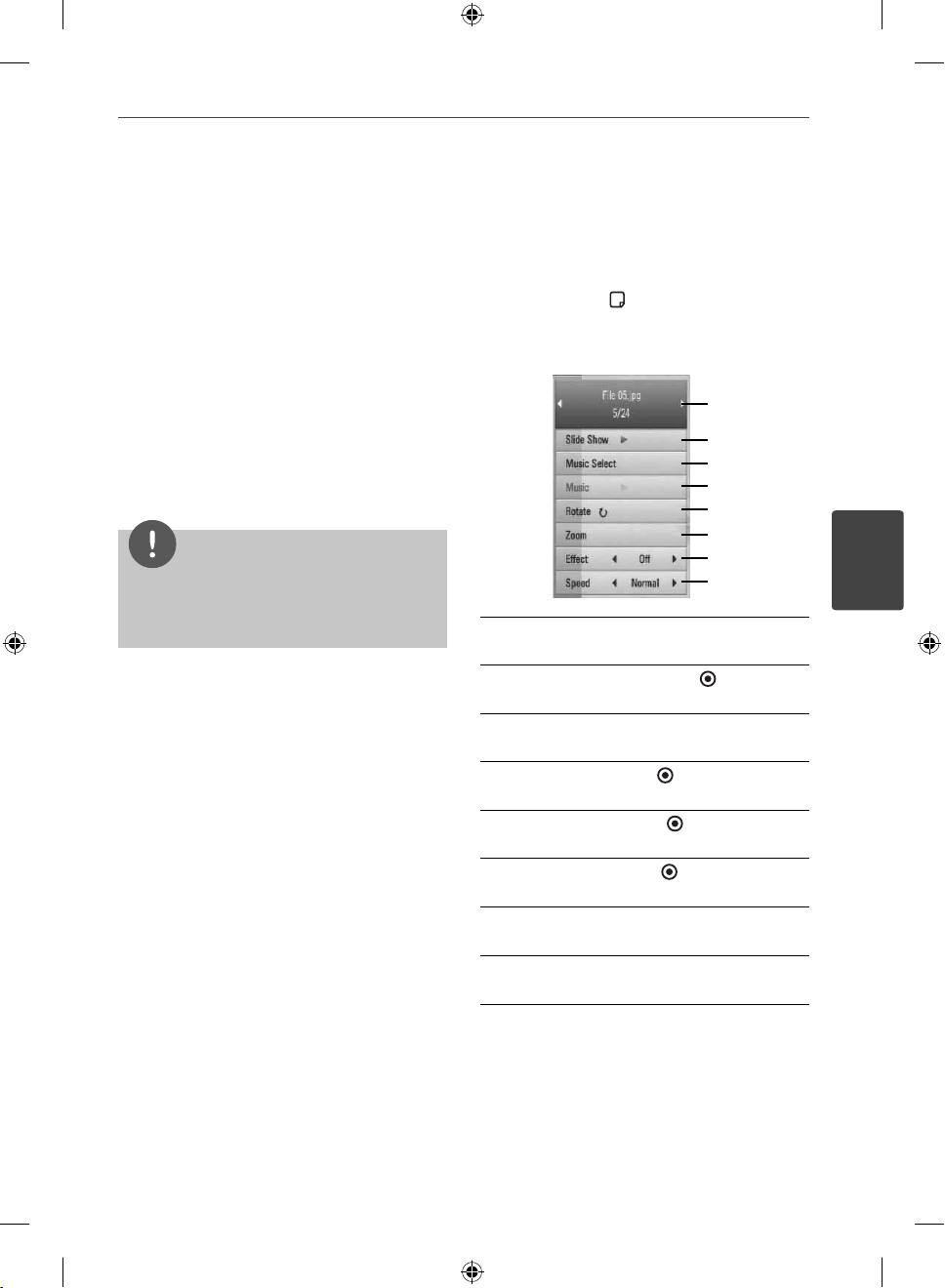

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/DISPLAY ( menu.

2. Select an option using U/u.

Current photo/Total number of photos

– Use I/i to view previous/next photo. Slide Show – Press ENTER (

pause slide show. Music Select – Select the background

music for the slide show. Music –Press ENTER (

background music. Rotate – Press ENTER (

photo clockwise. Zoom – Press ENTER (

[Zoom] menu. E ect – Use I/i to select a transition

e ect between photos in a slide show. Speed – Use I/i to select a delaying

speed between photos in a slide show.

) to display the option

b c d e

f g

) to start or

) to start or pause

) to rotate the

) to display the

Operation

3. Press RETURN (O) to exit the option menu.

HB45E-D0.BPRTLL_ENG 0008.indd 45HB45E-D0.BPRTLL_ENG 0008.indd 45 2/18/10 8:56:17 PM2/18/10 8:56:17 PM

46 Operation

Operation

Listening to music while slide show

You can display photo  les while listening to music  les.

1. Press HOME (

2. Select [Photo] or [Home Link] using I/i,

and press ENTER (

3. Select the [Disc] or [USB] option using I/i, and press ENTER ( ).

Selecting a server or a share folder is needed for [Home Link] menu.

4. Select a  le using U/u/I/i, and press ENTER ( ) to view the photo.

5. Press INFO/DISPLAY ( option menu.

6. Use U/u to select [Music Select] option, and press ENTER ( ) to display the [Music Select] menu.

) to display the

7. Use U/u to select a device, and press ENTER ( ).

Device that you can select are di er depending on the location of the photo  le you are displaying in full screen.

Photo location Available Device

Disc Disc, USB USB Disc, USB Share Folder on

your PC (CIFS) DLNA server DLNA server

8. Use U/u to select a  le or a folder you wish to play.

Select a folder and press ENTER ( ) to display the lower directory.

Select the upper directory.

and press ENTER ( ) to display

CIFS

NOTE

When selecting music from [Home Link], folder selection is not available. Only  le selection is available on the [Home link].

9. Use i to select [OK], and press ENTER ( ) to complete music selection.

HB45E-D0.BPRTLL_ENG 0008.indd 46HB45E-D0.BPRTLL_ENG 0008.indd 46 2/18/10 8:56:18 PM2/18/10 8:56:18 PM

47Operation

Listening to music

The player can play Audio CDs and music  les

1. Press HOME (

2. Select [Music] using I/i, and press ENTER (

3. Select the device using I/i, and press ENTER (

Audio CD Recording

You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on the front panel.

2. Place an Audio CD on the disc slot. The disc is automatically inserted and

playback starts automatically.

3. Press INFO/DISPLAY ( option menu.

Press z REC button on the remote control.

You can record all musics in the audio CD.

4. Use U/u to select [CD Recording] option, and press ENTER ( Recording] menu.

Repeat this step to select tracks as many as you can.

5. Use U/u to select a track you wish to copy on the menu, and press ENTER (

Repeat this step to select tracks as many as you can.

) to display the

) to display the [CD

Operation

When you connect up to two devices, it appears as above.

4. Select a music  le or audio track using

U/u/I/i

music.

, and press ENTER (

) to play the

NOTE

The  le requirements are described on page 11.

• You can use various playback functions. Refer to

• pages 33-41.

HB45E-D0.BPRTLL_ENG 0008.indd 47HB45E-D0.BPRTLL_ENG 0008.indd 47 2/18/10 8:56:20 PM2/18/10 8:56:20 PM

6 Use U/u/I/i to select [Start], and press

ENTER (

Select all the tracks on an Audio CD.

Selects an encoding option from the pop-up menu (128kbps, 192kbps, 320kbps or Lossless).

Cancels the recording and returns to the previous screen.

48 Operation

Operation

7 Use U/u/I/i to select the destination

folder to be copied.

If you want to create a new folder, use U/u/

I/i

to select [New Folder] and press ENTER

( Enter a folder name using virtual keyboard,

and press ENTER (

) while [OK] is selected.

8 Use U/u/I/i to select [OK], and press

ENTER (

) to start Audio CD recording.

If you want to stop in progressing Audio CD recording, press ENTER ( ) while [Cancel] is highlighted.

9 A message appears when Audio CD

recording is completed. Press ENTER ( ) to check the music  le created in the destination folder.

NOTE

•

The table below shows the average recording time from an audio track with 4 minutes of playback time to a music  le with 192 kbps as an example.

stop mode while playback

1.4 min. 2 min.

•

All times in the above table are approximate.

•

Actual recording time for USB storage device varies depending on the USB storage device’s ability.

•

Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.

•

The length of the music should be longer than 20 seconds for the proper recording.

•

Do not turn o this player or extract the connected USB storage device during Audio CD recording.

The making of unauthorized copies of

copy-protected material, including computer

programmes,  les, broadcasts and sound

recordings, may be an infringement of copyrights

and constitute a criminal o ense.

This equipment should not be used

for such purposes.

Be responsible

Respect copyrights

HB45E-D0.BPRTLL_ENG 0008.indd 48HB45E-D0.BPRTLL_ENG 0008.indd 48 2/18/10 8:56:21 PM2/18/10 8:56:21 PM

49Operation

Viewing information from Gracenote Media Database

The player can access to the Gracenote Media Database and loads the music information so that Track name, Artist Name, Genre and other text information can be displayed on the list.

Audio CD

When you insert an Audio CD, the player starts playback automatically and load the music title from the Gracenote® Media Database.

If there is no music information from the database, music titles will not appear on the screen.

Music ﬁ le

1. Select a music  le or audio track using

U/u/I/i

2. Press INFO/DISPLAY ( ) to display the option menu.

3. Select the [Information] option using U/u, and press ENTER ( ).

The player accesses to Gracenote Media Database for the music information.

BD/DVD

While listening to a music from the movie playback, press MUSIC ID to start loading music information from the Gracenote Media Database.

NOTE

The player must be connected to the broadband

• internet for accessing the Gracenote® Media Database.

If the music information is not in the

• Gracenote on the screen.

If the music information from the

• Gracenote® media database is either not correct or not exist, please contact Gracenote® at http://www.gracenote.com for support.

Depending on the cases, it will takes a few

• minutes to load music information from the Gracenote® media database.

Information may be displayed in English, if your

• own language is not available on the Gracenote® media database.

This function is not available for NetCast on-line

• content and content in DLNA servers.

Audio CDs that users made for their only private

• purposes cannot be supported in this feature because they are not in the Gracenote® Media Database.

Media Database, message appears

Operation

HB45E-D0.BPRTLL_ENG 0008.indd 49HB45E-D0.BPRTLL_ENG 0008.indd 49 2/18/10 8:56:22 PM2/18/10 8:56:22 PM

iPod

Operation

Playing the iPod

You can enjoy the sound with your iPod. For details about iPod, refer to the iPod’s User Guide.

Preparation

To view iPod’s Videos and Photos on the TV

• screen.

- Be sure to use the video connection

through the VIDEO OUT jack on the rear panel of this unit. Select the appropriate video input mode on the TV.

- Depending on the iPod, make sure that

select Videos > Video settings, and then set TV Out to Ask or On from your iPod. For details about Video Settings, refer to the iPod User Guide.

- The viewing photos is available only if this

unit is in iPod IN mode and you can view photos only as a slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about a slide show, refer to the iPod User Guide.

Before connecting the iPod, turn this unit

• o and reduce the volume of this unit to its minimum.

1. Connect the iPod cradle cable to the port.

NOTE

Connect the end of the cable wih the mark

• “V“ facing right on the unit.

Be careful not to put iPod cradle into the unit

• strongly when connecting or disconnecting it. Or the cable may be damaged.

2. Connect the iPod to the cradle  rmly.

Connect the iPod

When you connect the iPod on the HOME menu, the player plays a music automatically. Or a menu for the  le type selection will appear.

3. Select a  le using U/u/I/i, and press ENTER ( ) to play the  le.

HB45E-D0.BPRTLL_ENG 0008.indd 50HB45E-D0.BPRTLL_ENG 0008.indd 50 2/18/10 8:56:22 PM2/18/10 8:56:22 PM

Operation

Enjoying iPod on the screen

1. Connect the iPod cable to the port.

2. Connect the iPod to the cradle  rmly.

3. Press HOME ( ).

4. Select [Music] or [Movie] using I/i, and

press ENTER ( ). If you connected the other device (CD or USB), select the iPod on the menu.

5. Select a content using U/u/I/i, and press ENTER (

You can search easily a content by power

scroll on the screen.

) to play.

Power scroll

Enjoying the iPod IN mode

You can operate your iPod by using the supplied remote control and controls on your iPod.

1. Connect the iPod  rmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

2. Press RADIO&INPUT to select iPod IN mode.

U/u/I/i

/ENTER ( )

m/M

./>

REPEAT To select a desired repeat

Selects an option in the menu.

Starts playback the music or video.

To pause while it is playing. To

resume playing, press

(PLAY)

again.

Fast-forward or rewind a song or video

Skip the playback forward or backward .

( )

, All

mode: Track

, O

(No display).

Operation

NOTE

If the iPod’s OSD language is selected to simple chinese, the power scroll function is not operated correctly.

HB45E-D0.BPRTLL_ENG 0008.indd 51HB45E-D0.BPRTLL_ENG 0008.indd 51 2/18/10 8:56:23 PM2/18/10 8:56:23 PM

Operation

NOTE

An error message “CHECK IPOD” or “Connected

• iPod model is not supported.” appears when:

- your iPod is not available for the function to be

operated.

An error message “CHECK IPOD” or “Please

• update iPod’s software.” appears when:

- your iPod has an old software version.

Update your iPod software to latest version.

If this unit displays an error message, follow the

• message. An error message “CHECK IPOD” or “Please check your iPod.” appears when:

- the communication between this unit and

your iPod is failed.

Undock & re-dock your iPod in this unit.

- your iPod is not connected  rmly.

- this unit recognises your iPod as unknown

device.

- your iPod is exceptionally low on power.

The battery needs to be charged.

If you charge the battery while iPod is

extremely low in power, it may take longer to charge.

You may use the dock adapter which should

• be supplied with your iPod to the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer.

Compatibility with your iPod may vary

• depending on the type of your iPod.

iPod touch and iPhone have any di erence in

• operation other than iPod. You may need any additional control to use them with this unit. (e.g. “slide to unlock”)

If you use an application, make a call, or send

• and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.

Depending on your iPod’s software version, it

• may not be possible to control your iPod from this unit. We recommend installing the latest software version.

The video quality depends on the video sources

• on your iPod.

If you have a problem with your iPod, please visit

• www.apple.com/support/ipod.

HB45E-D0.BPRTLL_ENG 0008.indd 52HB45E-D0.BPRTLL_ENG 0008.indd 52 2/18/10 8:56:25 PM2/18/10 8:56:25 PM

Operation

Radio Operations

Be sure that the antenna is connected. (Refer to the page 20)

Listening to the radio

1. Press RADIO&INPUT until Tuner (FM) appears in the display window. The last received station is tuned in.

2. Press and hold TUNING (-/+) for about two seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNING (-/+) repeatedly.

3. Adjust the volume by pressing +/- on the top panel or VOL (+/- ) on the remote control.

Presetting the Radio Stations

You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press RADIO&INPUT until the TUNER (FM) appears in the display window.

2. Select the desired frequency by using TUNING (-/+).

3. Press ENTER ( in the display window.

4. Press PRESET (-/+) to select the preset number you want.

5. Press ENTER (

6. Repeat the steps 2 to 5 to store other

stations.

) a preset number will  ash

). The station is stored.

Deleting all the saved stations

Press and hold CLEAR for two seconds. “ERASE ALL” will  ash up. Press CLEAR again. Then all the saved stations are deleted.

Improving poor FM reception

Press B (blue) (MONO/STEREO) coloured button on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

See information about a radio station

The FM tuner is supplied with the RDS (Radio Data System) facility. This shows information about the radio station being listened to. Press RDS repeatedly to cycle through the various data types:

PS (Programme Service Name)

The name of the channel will appear in the display

PTY (Programme Type Recognition)

The programme type (e.g. Jazz or News) will appear in the display.

RT (Radio Text)

A text message contains special information from the broadcast station. This text may scroll across the display.

CT (Time controlled by the channel)

This shows the time and date as broadcast by the station.

Operation

HB45E-D0.BPRTLL_ENG 0008.indd 53HB45E-D0.BPRTLL_ENG 0008.indd 53 2/18/10 8:56:25 PM2/18/10 8:56:25 PM

Operation

Playing content via your home network

The play can browse and play content on your PC and DLNA certi ed media servers connected on your home network.

About DLNA

This Player is a DLNA Certi ed digital media player that can display and play movie, photo and music content from your DLNAcompatible digital media server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired network in the home.

The DLNA certi cation logo makes it easy to  nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Accessing a DLNA media server

1. Check the network connection and settings (pages 22-24).

2. Press HOME (

3. Select [Home Link] using I/i, and press

ENTER (

4. Select a DLNA media server from the list using U/u, and press ENTER ( ).

If you want to rescan available media server, press the green (G) coloured button.

NOTE

Depending on the media server, this player may needs to get permission from the server.

5. Select a  le using U/u/I/i, and press ENTER ( ) to play the  le.

HB45E-D0.BPRTLL_ENG 0008.indd 54HB45E-D0.BPRTLL_ENG 0008.indd 54 2/18/10 8:56:25 PM2/18/10 8:56:25 PM

Operation

NOTE

The  le requirements are described on page 11.

• You can use various playback functions. Refer to

• pages 33-41.

Because the compatibility and available playback

• functions on the [Home Link on the bundle DLNA server (Nero MediaHome 4 Essentials) environment,  le requirements and playback functions on the [Home Link] menu may di er depending on media servers.

The  le requirements on page 11 are not always

• compatible. There may have some restrictions by  le features and media server’s ability.

The thumbnail of the unplayable  les can be

• displayed in the [Home Link] menu, but those cannot be played on this player.

If there is an unplayable music  le in the [Home

• Link] menu, the player skip the  le and play the next  le.

Playing a movie subtitle

• on DLNA media server created by supplied Nero MediaHome 4 Essentials software on this player package.

The subtitle  le name and movie  le name have

• to be the same and located at the same folder.

The playback and operating quality of the

• [Home Link] function may be a ected by your home network condition.

The  les from removable media such as USB

• drive, DVD-drive etc. on your media server may not be shared properly.

] menu are tested

 les are only available

About Nero MediaHome 4 Essentials

Nero MediaHome 4 Essentials is a software for sharing movie, music and photo  les stored on your computer to this player as a DLNAcompatiable digital media server.

NOTE

The Nero MediaHome 4 Essentials CD-ROM is

• designed for PCs and should not be inserted in this player or in any product other than a PC.

The supplied Nero MediaHome 4 Essentials CD-

• ROM is a customized software edition only for sharing  les and folders to this player.

The supplied Nero MediaHome 4 Essentials

• software does not support following functions: Transcoding, Remote UI, TV control, Internet services and Apple iTunes

This manual explains operations with the

• English version of Nero MediaHome 4 Essentials as examples. Follow the explanation referring to the actual operations of your language version.

Operation

HB45E-D0.BPRTLL_ENG 0008.indd 55HB45E-D0.BPRTLL_ENG 0008.indd 55 2/18/10 8:56:27 PM2/18/10 8:56:27 PM

Operation

Installing Nero MediaHome 4 Essentials

Before you install Nero MediaHome 4 Essentials, check the system requirement shown below.

Windows® XP (Service Pack 2 or higher),

• Windows Vista® (no Service Pack required), Windows® XP Media Centre Edition 2005 (Service Pack 2 or higher), Windows Server® 2003

Windows Vista® 64-bit edition (application

• runs in 32-bit mode)

Hard drive space: 200 MB hard drive space

• for a typical installation of Nero MediaHome stand-alone

1.2 GHz Intel® Pentium® III or AMD

• Sempron™ 2200+ processors

Memory: 256 MB RAM

• Graphics card with at least 32 MB video

• memory, minimum resolution of 800 x 600 pixels, and 16-bit colour settings

Windows® Internet Explorer® 6.0 or higher

• DirectX® 9.0c revision 30 (August 2006) or

• higher

Network environment: 100 Mb Ethernet

•

Start up your computer, and insert the Nero MediaHome 4 Essentials CD-ROM into your computer’s CD-ROM drive. An installation wizard will walk you through the quick and uncomplicated installation process. To install Nero MediaHome 4 Essentials, proceed as follows:

1. Close all Microsoft Windows programmes and exit any anti-virus software that may be running.

2. Insert the Nero MediaHome 4 Essentials CD-ROM into your computer’s CD-ROM drive.

3. Click [Nero MediaHome 4 Essentials]. The installation is prepared and the installation wizard appears.

4. Click the [Next] button to display the serial number input screen. Click [Next] to go to the next step.

5. If you accept all conditions, click [I accept the Licence Conditions] check box and click [Next]. Installation is not possible without this agreement.

6. Click [Typical] and click [Next]. The installation process is started.

7. If you want to take part in the anonymous collection of data, select the check box and click the [Next] button.

8. Click the [Exit] button to complete the installation.

HB45E-D0.BPRTLL_ENG 0008.indd 56HB45E-D0.BPRTLL_ENG 0008.indd 56 2/18/10 8:56:27 PM2/18/10 8:56:27 PM

Operation

Sharing ﬁ les and folders

On your computer, you must share the folder contained movie, music and/or photo content to play them using [Home Link] features.

This parts explains the procedure for selecting the shared folders on your computer.

1. Double-click the “Nero MediaHome 4 Essentials” icon on the desktop.

2. Click [Network] icon on the left and de ne your network name in the [Network name]  eld. The Network name you enter will be recognised by your player.

3. Click [Shares] icon on the left.

4. Click [Local Folders] tab on the [Shares]

screen.

5. Click [Add] icon to open the [Browse Folder] window.

6. Select the folder containing the  les you want to share. The selected folder is added to the list of shared folders.

7. Click [Start Server] icon to start the server.

NOTE

Accessing a share folder from your PC

1. Start your PC that connected on your local area network.

2. On your PC, share folders which contain movie, photo or music  les.

3. On the player, check the network connection and settings (pages 22-24).

4. Press HOME (

5. Select [Home Link] using I/i, and press

ENTER (

6. Select a share folder from the list using U/u, and press ENTER (

If you want to rescan available media servers, press the green(G) coloured button.

Operation

If the shared folders or  les are not displayed on

• the player, click the folder on the [Local Folders] tab and click [Rescan Folder] at the [More] button.

Visit www.nero.com for more information and

• software tools.

NOTE

Depending on the share folder, this player may need to input network user ID and password for accessing the folder.

7. Select a  le using U/u/I/i, and press ENTER ( ) to play the  le.

HB45E-D0.BPRTLL_ENG 0008.indd 57HB45E-D0.BPRTLL_ENG 0008.indd 57 2/18/10 8:56:27 PM2/18/10 8:56:27 PM

Operation

NOTE

The  le requirements are described on page 11.

• You can use various playback functions. Refer to

• pages 33-41.

The thumbnail of the unplayable  les can be

• displayed in the [Home Link] menu, but those cannot be played on this player.

If there is an unplayable music  le in the [Home

• Link] menu, the player skips the  le and play next  le.

The subtitle  le name and movie  le name have

• to be the same and located at the same folder.

The playback and operating quality of the

• [Home Link] function may be a ected by your home network condition.

The  les on an removable media such as USB

• drive, DVD-drive etc. on your PC may not be shared properly.

You may experience connection problems

• depending on your PC’s environment.

PC requirements

Windows® XP (Service Pack 2 or higher),

• Windows Vista® (no Service Pack required) Windows 7®

1.2 GHz Intel® Pentium® III or AMD

• Sempron™ 2200+ processors

Network environment: 100 Mb Ethernet,

•

NOTE

If you use Windows® XP or Windows Vista®, visit link below for more information on  le share settings.

Entering a network user ID and the password

Depending on your PC’s environment, you may need to enter a network user ID and the password for accessing a shared folder.

1. The keyboard menu appears automatically if the network user ID and the password are required.

2. Use U/u/I/ press ENTER ( on the keyboard menu.

To enter a letter with an accent mark, select the letter from extended character set.

Example: Select “D” and then press INFO/ DISPLAY ( ) to display the extended character set. Use and then press ENTER ( ).

to select a character then

) to con rm your selection

I/i

to select “D” or “Ď”

HB45E-D0.BPRTLL_ENG 0008.indd 58HB45E-D0.BPRTLL_ENG 0008.indd 58 2/18/10 8:56:28 PM2/18/10 8:56:28 PM

Operation

[Clear] – Clear all entered characters. [Space] – Inserts a space at the cursor

position. [<–] – Deletes the previous character at the

cursor position. [ABC / abc / #+-=&] – Change the keyboard

menu settings to capital letters, small letters or symbols.

3. When you  nish entering the network user ID and password, select [OK] using U/u/I/

and press ENTER (

The network user ID and password will be remembered after accssing the folder for your convenience. If you do not want the network user ID and password to be remembered, press red (R) coloured button to un-tick the [Remember] check box before accessing the folder.

) to access the folder.

Using NetCast

Entertainment Access

You can use various content services via Internet with NetCast Entertainment Access feature.

1. Check the network connection and settings (pages 22-24).

2. Press HOME (

3. Select the [NetCast] using I/i, and press

ENTER (

4. Select an option using I/i, and press ENTER (

YouTube – See pages 60-63 Picasa Web Albums – See pages 63-66 AccuWeather – See pages 67-68

5. While enjoying on-line content from NetCast, press blue (B) coloured button to go to NetCast Home screen.

Operation

NOTE

The content of NetCast services and service

• related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information.

The background image on the NetCast home

• indicates the weather of your favorite city in the AccuWeather feature.

HB45E-D0.BPRTLL_ENG 0008.indd 59HB45E-D0.BPRTLL_ENG 0008.indd 59 2/18/10 8:56:29 PM2/18/10 8:56:29 PM

60 Operation

Operation

YouTube

You can browse, search and watch YouTube videos over the internet to your TV via your LG Blu-ray disc player.

Watch YouTube videos on your TV

1. On the player, select the [YouTube] option in the [NetCast] menu using I/i, and press ENTER (

2. Press U to select the option menu bar.

3. Use I/

ENTER (

4. Use I/ ( ) or N (play) to play the video.

Button Operation

or ENTER

( )

INFO/ DISPLAY

./>

to select an option and press

) to search videos.

to select a video and press ENTER

Starts playback the video with content detail.

Toggle between playback in full screen and playback screen with content detail.

To pause a video while it is playing. To resume playing a paused video, press B again.

Stops the video and displays related videos list.

Skip the playback forward or backward .

About the YouTube menu

There are various options on the YouTube menu. Use and press ENTER ( described below.

Featured – The featured videos list will be displayed.

Recent Videos – The most recently updated videos list will be displayed.

Most Viewed – The most viewed videos list will be displayed. The period option appears at the bottom of the screen.

Top Rated – The best rated videos list from YouTube server will be displayed. The period option appears at the bottom of the screen.

Search – The virtual keyboard will be displayed. See “Searching videos” on page 62 for more detail.

History – The videos list that you previously played on this unit will be displayed. Maximum of 25 videos can be stored.

Favorites – This option will be appeared only when the unit is in sign-in status. Displays the videos list that is arranged in the YouTube server with your account. Some videos may not appear on the [Favorites] list, even if the videos are arranged in the server.

Sign in (Sign Out) – Displays the virtual keyboard to sign in or returns to the sign-out status. See “Sign in with your YouTube account” on page 63 for more details.

Local site – Choose which country’s videos you would like to view. The countries listed on the [Local Site] menu may di erent with those listed on the YouTube web site.

U/u/I/i

to select an option

) to select the options as

HB45E-D0.BPRTLL_ENG 0008.indd 60HB45E-D0.BPRTLL_ENG 0008.indd 60 2/18/10 8:56:29 PM2/18/10 8:56:29 PM

NOTE

•

The YouTube menu can display 5 videos in the videos list. Press green (G) or yellow (Y) buttons to display previous/next 5 videos.

If you select the [Most Viewed] or [Top Rated]

• option in the YouTube menu, the period options appear at the bottom of the screen. Use U/u/I/

to select a period option and press ENTER

(

) to display the videos list within the selected

period.

•

The videos list searched from the player may di er with the list searched from a web browser on PC.

The playback of YouTube videos may be paused,

• stopped or bu ering occurring often depending on your broadband speed. We recommend a minimum connection speed of 1.5 Mbps. For the best playback condition, a connection speed of 4.0 Mbps is required. Sometimes your broadband speed varies based on your ISP’s network conditions. Contact your ISP if you have problems maintaining a fast connection that is reliable, or if you want to increase your connection speed. Many ISPs o er a variety of broadband speed options.

Using the virtual keyboard

On the virtual keyboard, there are two input mode for the entering a character. Press the yellow (Y) coloured button to toggle display between keyboard mode and keypad mode.

Keyboard Mode

Use U/u/I/i to select a letter on the screen, and press ENTER ( ) to con rm your selection.

[Cancel] – Return to the previous screen. [Space] – Inserts a space at the cursor

position. [Backspace] – Deletes the previous character

at the cursor position. [ABC / abc / #+-=&] – Changes the virtual

keyboard settings to capital letters, small letters or symbols.

61Operation

Operation

Press CLEAR to clear all entered characters.

To enter a letter with an accent mark:

1. Select a letter using U/u/I/i on the virtual key board.

2. Press INFO/DISPLAY (

) to display the

extended character set.

3. Use I/i to select a character then press ENTER (

Available languages to enter on the keyboard mode are as follows: English, Spanish, Italian, French, German, Dutch, Portuguese, Swedish, Polish and Czech.

HB45E-D0.BPRTLL_ENG 0008.indd 61HB45E-D0.BPRTLL_ENG 0008.indd 61 2/18/10 8:56:30 PM2/18/10 8:56:30 PM

62 Operation

Operation

Keypad Mode

This mode allows you to enter letters by pressing the buttons on the remote control. Press the buttons with the required letter once, twice, three or four times until the letter is displayed.

Button Operation

CLEAR Deletes the previous character

at the cursor position.

REPEAT Inserts a space at the cursor

position.

m/M

Change the character set of the remote control (#+-=&, 123, ABC or abc)

Searching videos

You can search for videos by entering search words of up to 128 characters.

I/i

1. Use menu and press ENTER ( virtual keyboard.

Refer to “Using the virtual keyboard” on page 61 for using virtual keyboard.

When you entering a character, maximum of 5 suggestion words will be displayed.

2. When you  nish entering the search words, select [OK] and press ENTER ( the related video list.

to select [Search] option from the

) to display the

) to display

NOTE

The keypad mode is available only in the [YouTube] and [Picasa Web Albums] features.

HB45E-D0.BPRTLL_ENG 0008.indd 62HB45E-D0.BPRTLL_ENG 0008.indd 62 2/18/10 8:56:31 PM2/18/10 8:56:31 PM

63Operation

To watch videos from your [Favorites] video list on the YouTube server with your account, you need to sign in with your YouTube account.

I/i

1. Use menu and press ENTER ( virtual keyboard.

2. Use U/u/I/ press ENTER ( on the virtual keyboard.

Refer to “Using the virtual keyboard” on page 61 for using virtual keyboard.

3. When you  nish entering the user name and the password, select [OK] and press ENTER (

4. If you want to sign out, select the [Sign Out] from the YouTube menu and press ENTER (

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the [Sign In] option.

Select a stored user name on the list and press ENTER ( the selected user name is entered. You will then only need to enter the password to sign in.

to select [Sign In] option from the

) to display the

to select a character then

) to con rm your selection

) to sign in.

) to display the keyboard menu with

Picasa Web Albums

Enjoy photo albums from friends and family on the Picasa Web Albums on-line service.

View Picasa Web Albums on your TV

1. On the player, select the [Picasa Web Albums] option in the [NetCast] menu using I/i, and press ENTER ( ).

Featured photos are appeared on the screen.

2. Use U/u/I/ ENTER (

Button Operation

INFO/ DISPLAY

I/i

to select a photo and press

) to view the photo in full screen.

Starts a slide show.

Displays the photo option menu.

Pauses a slide show. To resume slide show, press B again.

Stops the slide show and return to the Picasa Web Albums menu.

Moves to the next or previous photo.

Operation

Select the [X] symbol and press ENTER ( ) to delete the stored user name.

HB45E-D0.BPRTLL_ENG 0008.indd 63HB45E-D0.BPRTLL_ENG 0008.indd 63 2/18/10 8:56:32 PM2/18/10 8:56:32 PM

64 Operation

Operation

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press INFO/DISPLAY ( menu.

2. Select an option using U/u.

Current photo/Total number of photos

– Use I/i to view previous/next photo. Slide Show – Press ENTER (

pause slide show. Add to Friends List– Add the current

photo owner to my friend list. Rotate – Press ENTER (

photo clockwise. Zoom – Press ENTER (

[Zoom] menu. E ect – Use I/i to select a transition

e ect between photos in a slide show. Speed – Use I/i to select a delaying

speed between photos in a slide show.

3. Press RETURN (O) to exit the option menu.

) to display the option

a b c d

e f g

) to start or

) to rotate the

) to display the

About the Picasa Web Albums menu

There are various options on the Picasa Web Albums menu. Use menu option and press ENTER (

U/u/I/i

to select an

) to select

the options as described below.

Home – The featured photo list will be displayed.

NetCast Friends – List of your friends will be displayed.

Search – Enter a search word to  nd related photos. The virtual keyboard will be displayed (page 61).

My Photos – Displays the photos organised in my Picasa Web Albums. This option is available only when the unit is in sign-in status.

Favorites – Displays up to 50 favorite web albums that are arranged in the Picasa Web Albums server with your account. This option is available only when the unit is in sign-in status.

NOTE

Photos displayed in [My Photos] and [Favorites] may di er with the photos from a web browser on PC.

HB45E-D0.BPRTLL_ENG 0008.indd 64HB45E-D0.BPRTLL_ENG 0008.indd 64 2/18/10 8:56:32 PM2/18/10 8:56:32 PM

65Operation

Adding friends

If you add your friends on the [NetCast Friends] menu, you can see the photos of your friend’s public photos directly.

1. Select the [NetCast Friends] on the Picasa Web Albums menu using U/u/I/i, and press ENTER (

2. Press ENTER ( ) to display the virtual keyboard.

3. Enter a name using the virtual keyboard. Refer to “Using the virtual keyboard” on

page 61 for using virtual keyboard.

4. Select [OK] using U/u/I/i, and press ENTER ( your friend.

) to display the web album of

Searching photos

You can enter a search word to  nd related photos.

1. Select the [Search] on the Picasa Web Albums menu using U/u/I/i, and press ENTER (

2. Enter a search word using the virtual keyboard.

Refer to “Using the virtual keyboard” on page 61 for using virtual keyboard.

3. Select [OK] using U/u/I/i, and press ENTER (

) to display the search result.

NOTE

The search result from the player may di er with the result searched from a web browser on PC.

Operation

NOTE

If you want to delete your friend from the list,

• press green (G) coloured button while the web album is selected.

If you want to add more friends, press red (R)

• coloured button on the list.

You can add more web albums of your friends

• up to 50.

HB45E-D0.BPRTLL_ENG 0008.indd 65HB45E-D0.BPRTLL_ENG 0008.indd 65 2/18/10 8:56:33 PM2/18/10 8:56:33 PM

66 Operation

Operation

Signing in with your account

To display photos in your web album on the screen, you need to sign in with your Picasa Web Albums account.

1. Select the [Sign In] on the Picasa Web Albums menu using U/u/I/i, and press ENTER (

2. Enter your user name using the virtual keyboard, and press ENTER ( ) while [OK] is selected.

Refer to “Using the virtual keyboard” on page 61 for using virtual keyboard.

3. Enter the password using the virtual keyboard, and press ENTER (

) while [OK] is

selected. Your web album is appeared on the screen.

4. If you want to sign out, select the [Sign Out] from the Picasa Web Albums menu and press ENTER (

This unit can automatically store up to 5 user names which were previously signed-in. The user name list appears when you select the [Sign In] option.

Select a stored user name on the list and press ENTER (

) to display the virtual keyboard with the selected user name is entered. You will then only need to enter the password to sign in.

Select the [X] symbol and press ENTER ( ) to delete the stored user name.

HB45E-D0.BPRTLL_ENG 0008.indd 66HB45E-D0.BPRTLL_ENG 0008.indd 66 2/18/10 8:56:34 PM2/18/10 8:56:34 PM

67Maintenance

Using the AccuWeather

See on-line local and global weather forcasts from AccuWeather.com.

Viewing weather information

1. On the player, select the [AccuWeather] option in the [NetCast] menu using I/i, and press ENTER ( ).

The city selection menu appears on the screen.

2. Press ENTER ( ) while [Add City to Favorite City List] is selected.

3. Select a region using U/u, and press ENTER

(

5. Select a city using U/u/I/i, and press ENTER (

6. Use U/u/I/i to select [Home] and press ENTER (

) to display weather information

of the selected city.

Press red (R) coloured button to toggle display between Fahrenheit or Celsius thermometre.

7. Use I/i to select previous or next city, and press ENTER (

) to display the weather

information. This step works only when you add more

than 1 cities to the [Favorite city List].

NOTE

The weather information is not always correct.

• The weather information may be displayed in

• English, if your own language is not available on the AccuWeather service.

Maintenance

4. Select a, country using U/u/I/i, and press ENTER ( ).

HB45E-D0.BPRTLL_ENG 0008.indd 67HB45E-D0.BPRTLL_ENG 0008.indd 67 2/18/10 8:56:35 PM2/18/10 8:56:35 PM

68 Operation

Operation

Adding more cities

1. Use I/i to select [Favorite City List] on the AccuWeather menu, and press ENTER (

2. Press ENTER ( ) while [Add City to Favorite City List] is selected.

3. Select a region, country and city using

U/u/I/i

and ENTER (

4. Repeats step 2-3 to add up to 5 cities. Select the [X] symbol and press ENTER (

to delete the stored favorite city.

5. Use U/u to select a city from the [Favorite City List], and press ENTER ( the weather information.

) to display

)

HB45E-D0.BPRTLL_ENG 0008.indd 68HB45E-D0.BPRTLL_ENG 0008.indd 68 2/18/10 8:56:36 PM2/18/10 8:56:36 PM

5 Maintenance

69Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as

• insecticide spray near the unit.

Wiping with strong pressure may damage

• the surface.

Do not leave rubber or plastic products in

• contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service centre.

Maintenance

HB45E-D0.BPRTLL_ENG 0008.indd 69HB45E-D0.BPRTLL_ENG 0008.indd 69 2/18/10 8:56:37 PM2/18/10 8:56:37 PM

Troubleshooting

6 Troubleshooting

General

Troubleshooting

The Power does not turned on.

The unit does not start playback.

The angle cannot be changed.

The subtitle language cannot be changed or turned o .

Cannot play MP3/WMA/ JPEG/DivX  les.

The remote control does not work properly.

Plug the power cord into the wall outlet securely.•

Insert a playable disc. (Check the disc type, colour system,

• and regional code.)

Place the disc with the playback side right.

• Place the disc on the disc slot correctly.

• Clean the disc.

• Cancel the rating function or change the rating level.

•

Multi-angles are not recorded on the DVD Video being

• played.

Subtitles are not recorded on the DVD Video being played.•

The  les are not recorded in a format that the unit can play.

• The unit does not support the codec of the movie  le.

•

The remote control is not pointed at the remote sensor of

• the unit.

The remote control is too far from the unit.

• There is an obstacle in the path of the remote control and

• the unit.

The batteries in the remote control are exhausted.

•

HB45E-D0.BPRTLL_ENG 0008.indd 70HB45E-D0.BPRTLL_ENG 0008.indd 70 2/18/10 8:56:37 PM2/18/10 8:56:37 PM


Troubleshooting

There is no picture. Select the appropriate video input mode on the TV so the

Picture noise appears You are playing a disc recorded in a colour system that is

• picture from the unit appears on the TV screen.

Connect the video connection securely.

• Check the [HDMI Color Setting] in the [Setup] menu is

• set to the appropriate item that conforms to your video connection.

•

Your TV may not suppot the resolution you have set on the player. Change the resolution that your TV accepts.

The player’s HDMI OUT jack is connected to a DVI device that

• does not support copyright protection.

• di erent from your TV.

Set the resolution which your TV accepts.

•

Sound

There is no sound or the sound is distorted.

The unit is in scan, slow motion, or pause mode.

• The sound volume is low.

• Check the speaker cable connection. (page 16)

•

Troubleshooting

HB45E-D0.BPRTLL_ENG 0008.indd 71HB45E-D0.BPRTLL_ENG 0008.indd 71 2/18/10 8:56:38 PM2/18/10 8:56:38 PM

Troubleshooting

Network

BD-Live feature does not work.

Streaming video services (such as YouTube, etc.) are often stopped or “bu er” during playback.

Shared folder or  les from your PC or a media server are not displayed on the [Home Link] menu.

Design and speci cations are subject to change without notice.

The connected USB storage may not have enough space.

• Connect the USB storage with at least 1GB free space.

Ensure that the unit is correctly connected to the local area

• network and can access the internet (see pages 22-24).

•

Your broadband speed may not fast enough to use the BDLive features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

•

The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted].

Your broadband service speed may not be fast enough to

• stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

The  rewall or anti-virus software on your media server is

• running. Turn o the  rewall or anti-virus software running on your PC or media server.

The player is not connected to the local area network that

• your PC or the media server are connected.

Customer Support

You can update the Player using the latest software to enhance the products operation and/or

Troubleshooting

add new features. To obtain the latest software for this player (if updates have been made), please visit http://lgservice.com or contact LG Electronics customer care centre.

HB45E-D0.BPRTLL_ENG 0008.indd 72HB45E-D0.BPRTLL_ENG 0008.indd 72 2/18/10 8:56:38 PM2/18/10 8:56:38 PM

7 Appendix

Appendix

Controlling a TV with the Supplied Remote Control

You can control your TV using the buttons below.

TV Control Buttons

Button Operation

(TV Power)

AV/ INPUT Switch the TV’s input source

VOL +/- Scan up or down through

U/u

PR/CH

Turn the TV on or o .

between the TV and other input sources.

memorized channels.

Adjust the volume of the TV

Setting up the remote to control your TV

You can operate your LG/GoldStar TV with the supplied remote control.

While holding down TV POWER button, press

U/u

PR/CH complete setting.

When you replace the batteries of the remote, you may have reset the remote control.

. Release the TV POWER button to

Appendix

NOTE

Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

HB45E-D0.BPRTLL_ENG 0008.indd 73HB45E-D0.BPRTLL_ENG 0008.indd 73 2/18/10 8:56:38 PM2/18/10 8:56:38 PM

Appendix

Area Code List

Choose an area code from this list.

Area Code Area Code Area Code Area Code

Afghanistan AF Argentina AR Australia AU Austria AT Belgium BE Bhutan BT Bolivia BO Brazil BR Cambodia KH Canada CA Chile CL China CN Colombia CO Congo CG Costa Rica CR Croatia HR Czech Republic CZ Denmark DK Ecuador EC Egypt EG El Salvador SV Ethiopia ET

Fiji FJ Finland FI France FR Germany DE Great Britain GB Greece GR Greenland GL Hong Kong HK Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU Malaysia MY Maldives MV Mexico MX

Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands

Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA Paraguay PY Philippines PH Poland PL Portugal PT Romania RO Russian

Federation RU Saudi Arabia SA Senegal SN

Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Taiwan TW Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW

HB45E-D0.BPRTLL_ENG 0008.indd 74HB45E-D0.BPRTLL_ENG 0008.indd 74 2/18/10 8:56:40 PM2/18/10 8:56:40 PM

Appendix

Language code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language Code Language Code Language Code Language Code

Afar 6565 Afrikaans 6570 Albanian 8381 Ameharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Aymara 6588 Azerbaijani 6590 Bashkir 6665 Basque 6985 Bengali; Bangla 6678 Bhutani 6890 Bihari 6672 Breton 6682 Bulgarian 6671 Burmese 7789 Byelorussian 6669 Chinese 9072 Croatian 7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079 Fiji 7074 Finnish 7073

French 7082 Frisian 7089 Galician 7176 Georgian 7565 German 6869 Greek 6976 Greenlandic 7576 Guarani 7178 Gujarati 7185 Hausa 7265 Hebrew 7387 Hindi 7273 Hungarian 7285 Icelandic 7383 Indonesian 7378 Interlingua 7365 Irish 7165 Italian 7384 Japanese 7465 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kirghiz 7589 Korean 7579 Kurdish 7585 Laothian 7679 Latin 7665 Latvian, Lettish 7686 Lingala 7678

Lithuanian 7684 Macedonian 7775 Malagasy 7771 Malay 7783 Malayalam 7776 Maori 7773 Marathi 7782 Moldavian 7779 Mongolian 7778 Nauru 7865 Nepali 7869 Norwegian 7879 Oriya 7982 Panjabi 8065 Pashto, Pushto 8083 Persian 7065 Polish 8076 Portuguese 8084 Quechua 8185 Rhaeto-Romance

8277

Rumanian 8279 Russian 8285 Samoan 8377 Sanskrit 8365 Scots Gaelic 7168 Serbian 8382 Serbo-Croatian 8372 Shona 8378

Sindhi 8368 Singhalese 8373 Slovak 8375 Slovenian 8376 Spanish 6983 Sudanese 8385 Swahili 8387 Swedish 8386 Tagalog 8476 Tajik 8471 Tamil 8465 Telugu 8469 Thai 8472 Tonga 8479 Turkish 8482 Turkmen 8475 Twi 8487 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapük 8679 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 7473 Yoruba 8979 Zulu 9085

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 75HB45E-D0.BPRTLL_ENG 0008.indd 75 2/18/10 8:56:40 PM2/18/10 8:56:40 PM

Appendix

Network Software Update

Network update notiﬁ cation

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn on the player.

I/i

2. Use

Appendix

to select a desired option and then

press ENTER ( ).

Option 2:

If the software update is available from the update server, the “Update” icon appears at the bottom of the Home menu. Press blue (B) coloured button to start the up

date procedure.

Software Update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

CAUTION

•

Before updating the software in your player, remove any disc and USB Device from the player.

•

Before updating the software in your player, turn the player o and then turn it back on.

•

During the software update procedure, do not turn o the player or disconnect AC power, or do not press any button.

•

If you cancel the update, turn o the power and turn it on for stable performance.

•

This unit cannot be updated to previous software version.

1. Check the network connection and settings

[OK]

Starts the software update.

[Cancel]

HB45E-D0.BPRTLL_ENG 0008.indd 76HB45E-D0.BPRTLL_ENG 0008.indd 76 2/18/10 8:56:41 PM2/18/10 8:56:41 PM

Exits the update menu and displays it next booting.

[Hide]

Exits the update menu and it does not appear until next software is uploaded in the update server.

(page 22-24).

2. Select [Software] option in the [Setup] menu then press ENTER ( ).

Select [Update] option, and press ENTER

( ).

The player will check for the newest update.

Appendix

NOTE

Pressing ENTER () while checking for the

• update will end the process.

If there is no update available, the Message, “No

• update is found.” appears. Press ENTER() to return to the [Home Menu].

4. If newer version exists, the message “A new update was found. Do you want to download it?” appears.

5. Select [OK] to download the update. (Selecting [Cancel] will end the update.)

6. The player starts downloading the newest update from the server. takes several minutes depending on your home network condition)

7. When downloading is completed, the message, “Download is complete. Do you want to update?” appears.

8. Select [

OK] to start updating. (Selecting [Cancel] will end the update and downloaded  le will not be re-usable. To update software the next time, the software update procedure has to be started from the beginning again.)

(Downloading will

CAUTION

Do not turn o the power during the software update.

NOTE

If the software includes the driver update, disc tray may open during the process.

9. When update is completed, the message, “Update is complete.” will appear, and then power will turn o automatically after 5 seconds.

10.

Turn the power back on. The system now

operates with the new version.

NOTE

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Centre then update your player. Refer to “Customer Support” on page 72.

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 77HB45E-D0.BPRTLL_ENG 0008.indd 77 2/18/10 8:56:42 PM2/18/10 8:56:42 PM

Appendix

Video output resolution

Appendix

Video Out

Resolution

576i 576p

576p 576p

720p 720p

1080i 1080i

1080p / 24 Hz 1080p / 24 Hz

1080p / 50 Hz 1080p / 50 Hz

HDMI OUT

HDMI OUT connection

For the 576i resolution setting, real output

• resolution of HDMI OUT will change to 576p.

If you select a resolution manually and then

• connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

If you select a resolution that your TV

• does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

The 1080p video output frame rate may

• be automatically set to either 24 Hz or 50 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

VIDEO OUT connection

The resolution of the VIDEO OUT jack is always outputted at 576i resolution.

HB45E-D0.BPRTLL_ENG 0008.indd 78HB45E-D0.BPRTLL_ENG 0008.indd 78 2/18/10 8:56:44 PM2/18/10 8:56:44 PM

Trademarks and Licences

Appendix

“Blu-ray Disc” is a trademark.

“BD-LIVE” logo is a trademark of Blu-ray Disc Association.

“BONUSVIEW” is trademark of Blu-ray Disc Association.

Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

Manufactured under licence from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-De nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks or certi cation marks of Digital Living Network Alliance.

DivX is a registered trademark of DivX, Inc., and is used under licence.

“x.v.Colour” is a trademark of Sony Corporation.

Appendix

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio | Essential are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

HB45E-D0.BPRTLL_ENG 0008.indd 79HB45E-D0.BPRTLL_ENG 0008.indd 79 2/18/10 8:56:44 PM2/18/10 8:56:44 PM

80 Appendix

Appendix

“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

This product is licenced under the AVC patent portfolio licence and VC-1 patent portfolio licence for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard (“AVC/ VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licenced to provide AVC/VC-1 Video. No licence is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc. “Made for iPod” means that an electronic accessory

has been designed to connect speci cally to iPod and has been certi ed by the developer to meet Apple performance standards.

“Works with iPhone” means that an electronic accessory has been designed to connect speci cally to iPhone and has been certi ed by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Gracenote®, Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

Music recognition technology and related data are provided by Gracenote®.

Portions of the content is copyright its providers.

Gracenote or

Energy Saving

(Extremely Low Power Consumption)

On the LG products, an innovative power consumption system in stand-by mode is built.

It consumes less than 0.09 watts in that mode. Therefore, the small amounts of electricity are consumed even though the power plug is inserted.

HB45E-D0.BPRTLL_ENG 0008.indd 80HB45E-D0.BPRTLL_ENG 0008.indd 80 2/18/10 8:56:45 PM2/18/10 8:56:45 PM

81Appendix

Speciﬁ cations

General

•

Power requirements: AC 200-240 V, 50/ 60 Hz

•

Power consumption: 60 W

•

Dimensions (W x H x D): Approx. 80 x 256 x 260 mm without foot

•

Net Weight (Approx.):

3.1 kg

•

Operating temperature: 41 °F to 95 °F (5 °C to 35 °C)

•

Operating humidity: 5 % to 90 %

•

Bus Power supply (USB): DC 5V 500 mA

Inputs/ Outputs

•

VIDEO OUT:

1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

•

HDMI OUT (video/audio): 19 pin (HDMI standard, Type A, Version 1.3)

•

Analogue AUDIO IN:

2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1

•

DIGITAL IN (OPTICAL 1/2): 3 V (p-p), Optical jack x 2

•

PORT. IN:

0.5 Vrms (3.5 mm stereo jack)

Tuner

FM Tuning Range:

•

87.5 to 108.0 MHz or 87.50 to 108.00 MHz

Ampliﬁ er

Power output (4 Ω), (PEAK)

• Total 400 W Front 125 W x 2 Sub-Woofer 150 W (Passive)

Power output (4 Ω), (RMS), THD 10 % (4 Ω/ 3 Ω)

• Total 300 W Front 90 W x 2 Sub-Woofer 120 W (Passive)

System

Laser:

• Semiconductor laser Wavelength: 405 nm / 650 nm

Signal system:

• Standard NTSC/PAL colour TV system

Frequency response:

• 20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)

Signal-to-noise ratio:

• More than 85 dB

Total harmonic distortion:

•

0.05 % at 1 W Dynamic range:

• More than 90 dB

LAN port:

• Ethernet jack x 1, 10BASE-T/100BASE-TX

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 81HB45E-D0.BPRTLL_ENG 0008.indd 81 2/18/10 8:56:46 PM2/18/10 8:56:46 PM

82 Appendix

Speakers

Front speaker (Left/ Right)

• Type: 2 Way 3 speaker Impedance Rated: 4 Ω Input Power: 125 W Max. Input power: 250 W Net Dimensions 168 x 484 x 129 mm (W x H x D): Net Weight: 1.6 kg

Subwoofer

• Type: 1 Way 1 speaker Impedance Rated: 3 Ω Input Power: 150 W Max. Input power: 300 W Net Dimensions 190 x 390 x 308 mm (W x H x D): Net Weight: 5.2 kg

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 82HB45E-D0.BPRTLL_ENG 0008.indd 82 2/18/10 8:56:46 PM2/18/10 8:56:46 PM

83Appendix

Important Information Relating to Network Services

PLEASE READ CAREFULLY. USE OF THE NETWORK SERVICES IS SUBJECT TO THE FOLLOWING TERMS AND CONDITIONS.

Use of the Network Services requires an Internet connection which is sold separately and for which you are solely responsible. The Network Services may be limited or restricted depending upon the quality, capabilities and technical limitations of your Internet service.

The Network Services belong to third parties and may be protected by copyright, patent, trademark and/or other intellectual property laws. The Network Services are provided sol\ely for your personal and noncommercial use. Unless expressly authorized by the respective content owner or service provider, you shall not modify, copy, republish, upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any manner or medium any content or services accessible through this product.

LG IS NOT RESPONSIBLE FOR YOUR USE OF THE NETWORK SERVICES. THE NETWORK SERVICES ARE PROVIDED “AS IS.” TO THE FULLEST EXTENT PERMISSIBLE BY LAW, LG MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHATSOEVER (i) FOR THE ACCURACY, VALIDITY, TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY NETWORK SERVICE MADE AVAILABLE THROUGH THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES ARE FREE OF VIRUSES OR OTHER COMPONENTS THAT MAY INFECT, HARM, OR CAUSE DAMAGE TO THIS PRODUCT, YOUR COMPUTER, TELEVISION, OTHER EQUIPMENT, OR ANY OTHER PROPERTY. LG EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL THEORY, WHETHER IN CONTRACT, TORT, STRICT LIABILITY OR OTHERWISE, SHALL LG BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY, CONSEQUENTIAL OR OTHER DAMAGES OR ATTORNEY FEES OR EXPENSES RELATING TO OR ARISING OUT OF THE NETWORK SERVICES EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR IF SUCH DAMAGES COULD HAVE BEEN REASONABLY FORESEEN.

The Network Services may be terminated or interrupted at any time, and LG makes no representation or warranty that any Network Service will remain available for any period of time. Use of the Network Services may be subject to additional terms and conditions of the respective third party service provider. The Network Services are transmitted by third parties by means of networks and transmission facilities over which LG has no control. LG EXPRESSLY DISCLAIMS ANY RESPONSIBILITY OR LIABILITY FOR ANY INTERRUPTION OR SUSPENSION OF ANY NETWORK SERVICE.

LG shall be neither responsible nor liable for customer service related to the Network Services. Any question or request should be made directly to the respective Network Service providers.

“Network Service(s)” means the third party services accessible through this product including but not limited to all data, software, links, messages, video and other content found thereon or used in connection therewith.

“LG” means LG Electronics, Inc. its parent company and all of their respective subsidiaries, a liates and related companies worldwide.

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 83HB45E-D0.BPRTLL_ENG 0008.indd 83 2/18/10 8:56:47 PM2/18/10 8:56:47 PM

84 Appendix

Appendix

Open source software notice

The following GPL executables and LGPL libraries used in this product are subject to the GPL2.0/ LGPL2.1 License Agreements:

GPL EXECUTABLES: Linux kernel 2.6, bash, busybox, cramfs, dhcpcd, e2fsprogs, fdisk, mkdosfs, mtd-utils, net-tools, procps, samba-3.0.25b, sysutils, tcpdump, tftpd, tinylogin, unzip, utelnetd

LGPL LIBRARIES: uClibc, DirectFB, blow sh, cairo,  mpeg, iconv, libusb, mpg123

gSOAP Public License 1.3 LIBRARY: gsoap LG El ectronics o ers to provide source code to

you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at: opensource@lge.com This o er is valid for a period of three(3) years from the date of the distribution of this product by LG Electronics.

You can obtain a copy of the GPL, LGPL licenses from http://www.gnu.org/licenses/old-licenses/gpl-

2.0.html and http://www.gnu.org/licenses/old-

licenses/lgpl-2.1.html . Also you can obtain a copy of gSOAP public license

from http://www.cs.fsu.edu/~engelen/license.html. This software is based in part on the work of the

This product includes

• (www.freetype.org). jpeg: This software is based in part on the work of

•

OpenSSL: – cryptographic software written by Eric Young

(eay@cryptsoft.com).

– software written by Tim Hudson

(tjh@cryptsoft.com).

– software developed by the OpenSSL Project

for use in the OpenSSL Toolkit. (http://www.openssl.org)

•

strace : copyright © 1991, 1992 Paul Kranenburg copyright © 1993 Branko Lankester copyright © 1993 Ulrich Pegelow copyright © 1995, 1996 Michael Elizabeth Chastain copyright © 1993, 1994, 1995, 1996 Rick Sladkey copyright © 1999,2000 Wichert Akkerman

•

any person obtaining a copy of this software and associated documentation  les (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

HB45E-D0.BPRTLL_ENG 0008.indd 84HB45E-D0.BPRTLL_ENG 0008.indd 84 2/18/10 8:56:47 PM2/18/10 8:56:47 PM

85Appendix

Gracenote® End User Licence Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to perform disc and/or  le identi cation and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gracenote Servers”) and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive licence to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your licence terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identi er to track queries for statistical purposes. The purpose of a randomly assigned numeric identi er is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licenced to you “AS IS.” Gracenote makes no representations or warranties, express or implied,

regarding the accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems su cient. No warranty is made that the Gracenote Software or Gracenote Servers are errorfree or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

Appendix

HB45E-D0.BPRTLL_ENG 0008.indd 85HB45E-D0.BPRTLL_ENG 0008.indd 85 2/18/10 8:56:47 PM2/18/10 8:56:47 PM

HB45E-D0.BPRTLL_ENG 0008.indd 86HB45E-D0.BPRTLL_ENG 0008.indd 86 2/18/10 8:56:47 PM2/18/10 8:56:47 PM

LG HB45E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
