LG HB44A User Manual

OWNER’S MANUAL

Network Blu-ray Disc

DEUTSCH ITALIANO ESPAÑOLENGLISH

DVD Home Cinema System

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

HB44A(HB44A, SB45A-F/W)

P/NO : MFL63290026

HB44A(HB44A, SB45A-FW) DG ENG 001 1HB44A(HB44A, SB45A-FW) DG ENG 001 1 2010-04-29 ¿ÀÀü 10:44:522010-04-29 ¿ÀÀü 10:44:52

HB44A(HB44A, SB45A-FW) DG ENG 002 2HB44A(HB44A, SB45A-FW) DG ENG 002 2 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

1 Safety Information

3Safety Information

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning  ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Cautions and Warnings

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a con ned space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those speci ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

HB44A(HB44A, SB45A-FW) DG ENG 003 3HB44A(HB44A, SB45A-FW) DG ENG 003 3 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

4 Safety Information

Safety Information

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the speci cation page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or  re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service centre. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery

or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine,  re or the like.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects  lled with liquids, such as vases, shall be placed on the apparatus.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products shall be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city o ce, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/ EC, 2006/95/EC, and 2009/125/EC.

European representative:

LG Electronics Service Europe B.V.Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31-(0)36-547-8888)

HB44A(HB44A, SB45A-FW) DG ENG 004 4HB44A(HB44A, SB45A-FW) DG ENG 004 4 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

5Safety Information

Notes on Copyrights

Because AACS (Advanced Access Content System)

• is approved as content protection system for BD format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analogue signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are

• additionally used as content protection systems for BD format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD-ROM Mark, BD+, or this product, please contact an authorized Customer Service Centre.

Many BD-ROM/DVD discs are encoded with

• copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

This product incorporates copyright protection

• technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Under the U.S. Copyright laws and Copyright

• laws of other countries, unauthorized recording, use, display, distribution, or revision of television programmes, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

Important Notice for TV colour system

The colour system of this player di ers according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC colour system, the image is outputted as a NTSC signal.

Only the multi system colour TV can receive all signals outputted from the player.

If you have a PAL colour system TV, you will see

• just distorted images when using discs or video contents recorded in NTSC.

The multi system colour TV changes the colour

• system automatically according to input signals. In case that the colour system is not changed automatically, turn it o and then on to see normal images on screen.

Even if the disc recorded in NTSC colour system

• are well displayed on your TV, these may not be recorded correctly on your recorder.

Safety Information

HB44A(HB44A, SB45A-FW) DG ENG 005 5HB44A(HB44A, SB45A-FW) DG ENG 005 5 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

Contents

Installation

16 Speaker Connection

16 Attaching the speakers to

Safety Information

3 Cautions and Warnings

Preparation

8 Introduction

8 About the “ ” Symbol

Display

8 Symbols Used in this

Manual

9 Supplied Accessories

9 Playable Discs

11 File compatibility

12 Regional Code

12 AVCHD (Advanced Video

Codec High Deﬁ nition)

12 Certain System

Requirements

12 Compatibility Notes

13 Remote control

14 Front panel

15 Rear panel

17 Connecting to Your TV

17 HDMI Connection

18 What is SIMPLINK?

19 Component Video

19 Video Connection

20 Resolution Setting

21 Antenna connection

21 Connections with external device

21 AUX Connection 22 PORT. IN connection 22 OPTICAL IN 1/2 connection

23 Connecting to your Home Network

23 Wired network connection

24 Wired Network Setup

26 USB device connection

27 Settings

27 Adjusting the Setup

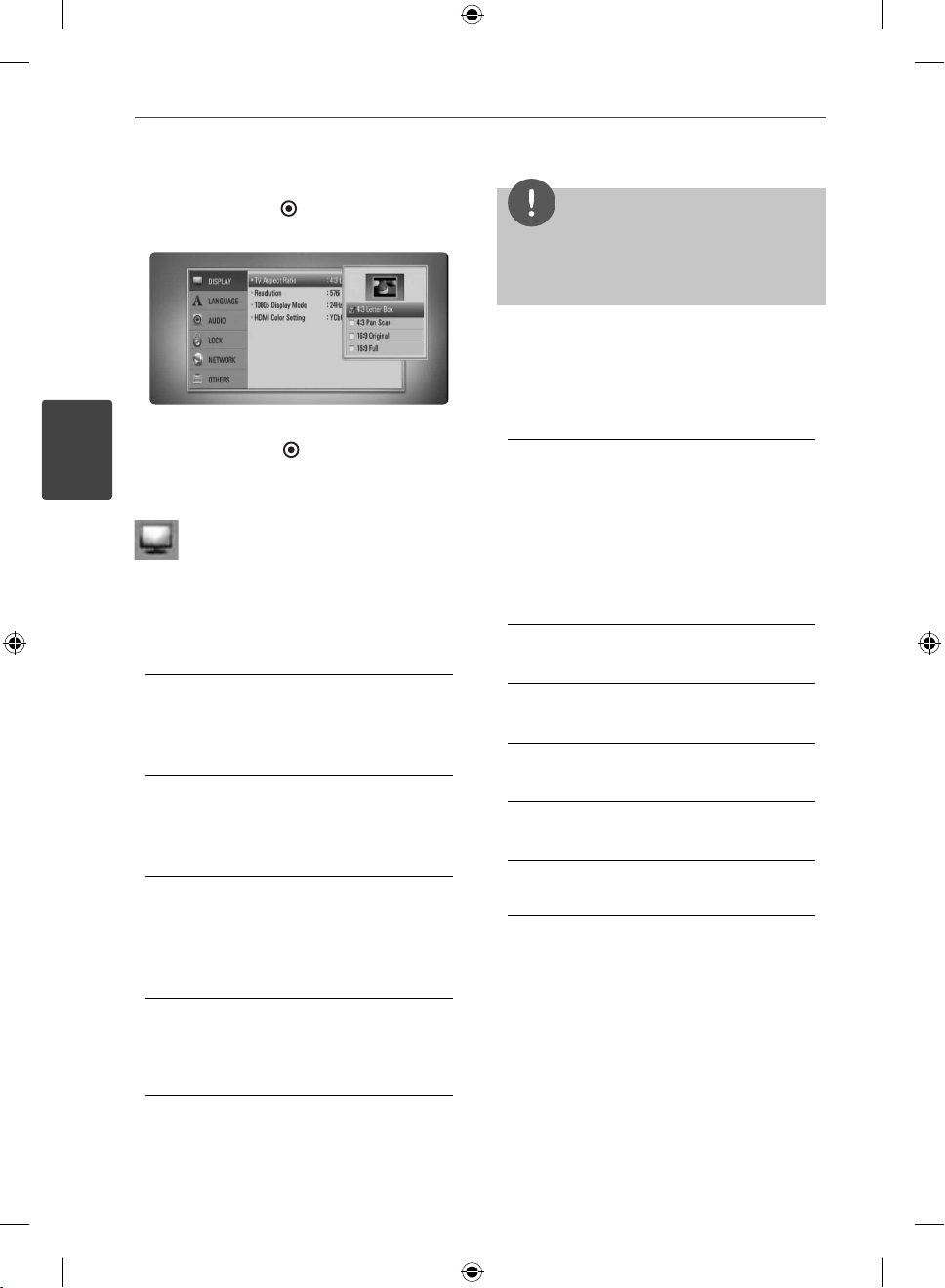

28 [DISPLAY] Menu

29 [LANGUAGE] Menu

30 [AUDIO] Menu

31 [LOCK] Menu

32 [NETWORK] Menu

32 [OTHERS] Menu

33 Sound Effect

the player

Connection

Settings

HB44A(HB44A, SB45A-FW) DG ENG 006 6HB44A(HB44A, SB45A-FW) DG ENG 006 6 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

Operation

34 General Playback

36 Advanced Playback

40 On-Screen display

43 Enjoying BD-LIVE

44 Playing a movie ﬁ le and VR disc

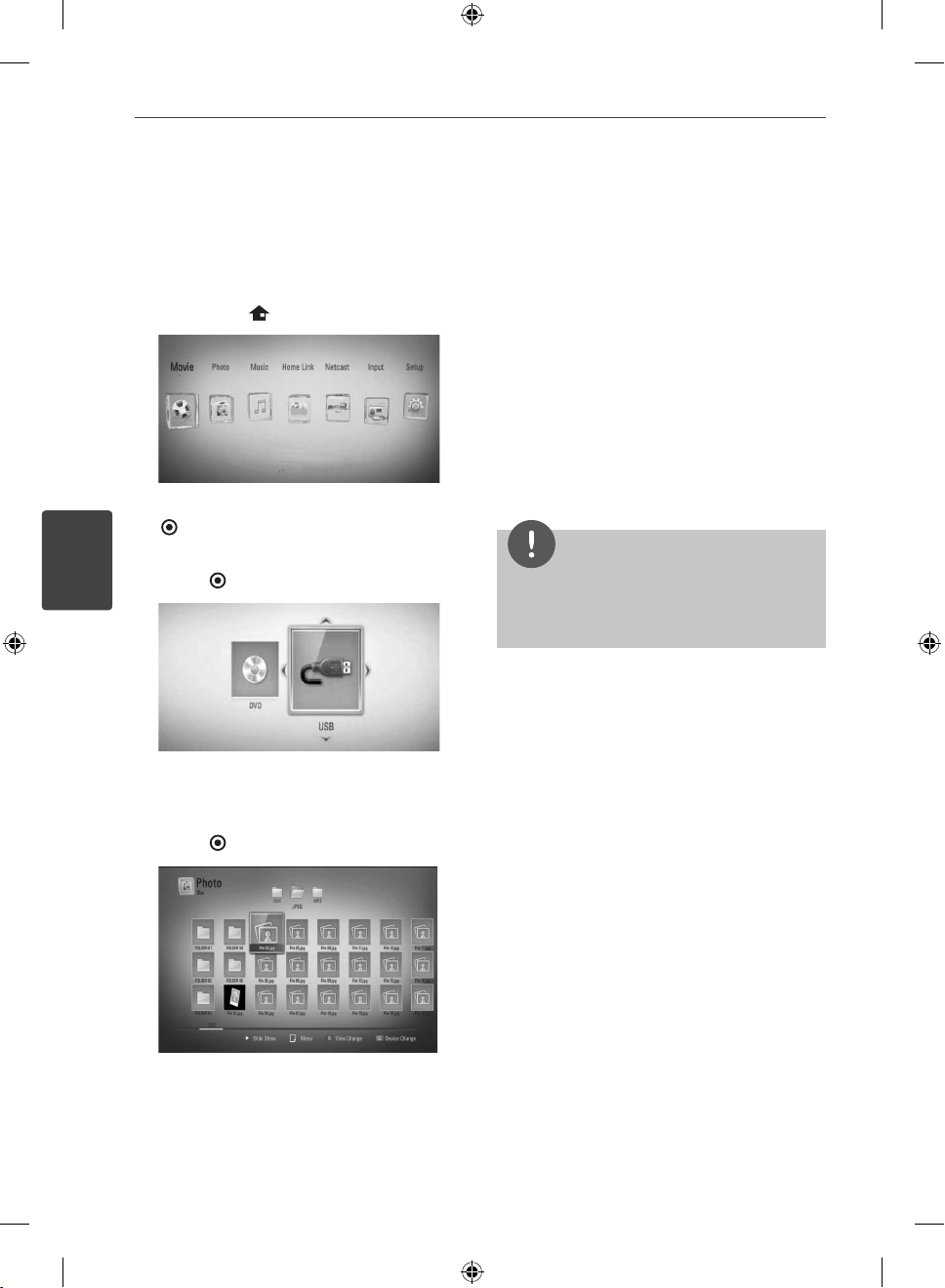

46 Viewing a photo

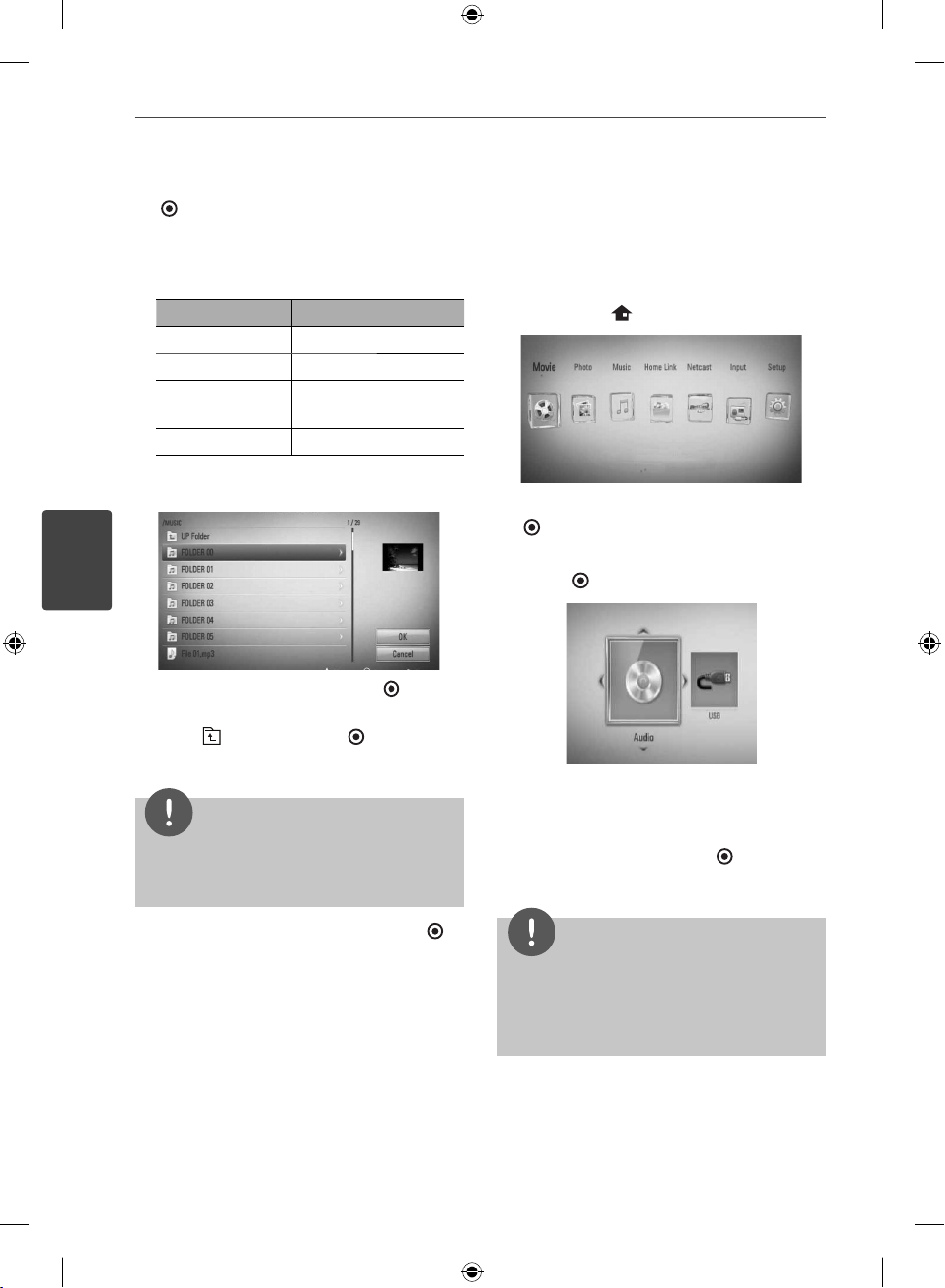

48 Listening to music

52 Radio Operations

53 Playing content via your home

network

58 Using NetCast

Access

58 YouTubeTM

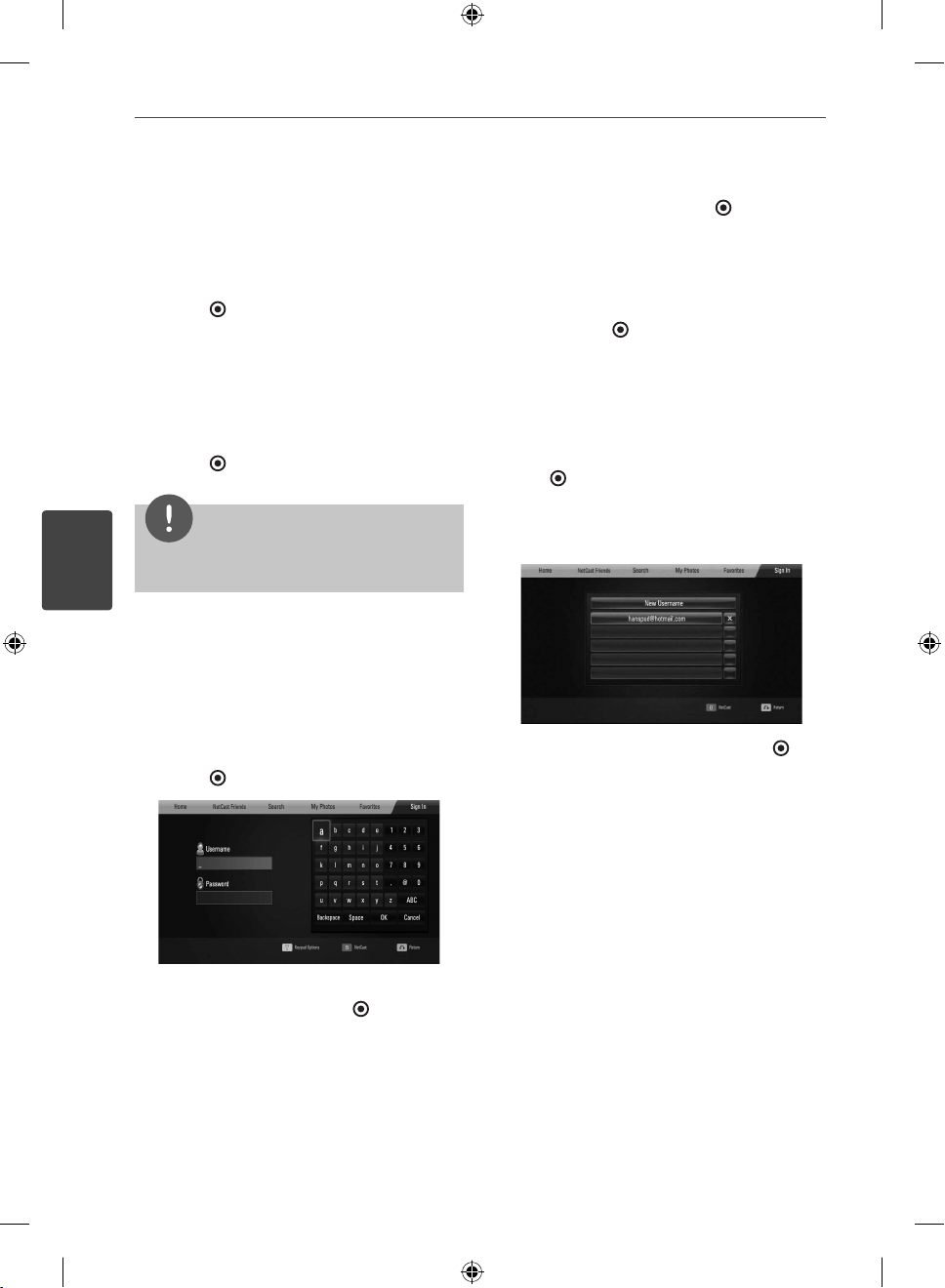

62 Picasa

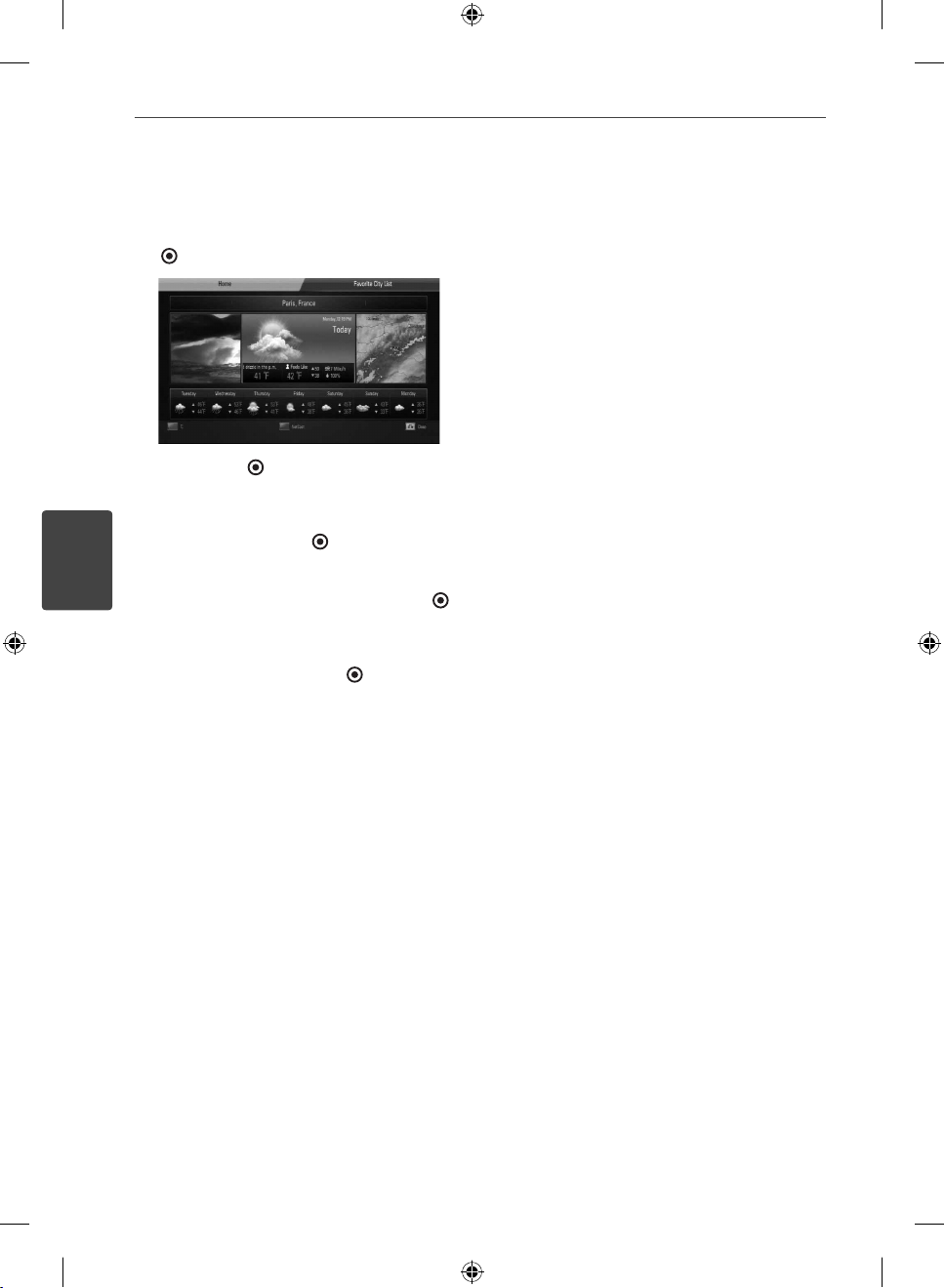

65 Using the AccuWeather

Entertainment

Web Albums

Maintenance

Appendix

71 Controlling a TV with the Supplied

Remote Control

72 Area Code List

73 Language code List

74 Network Software Update

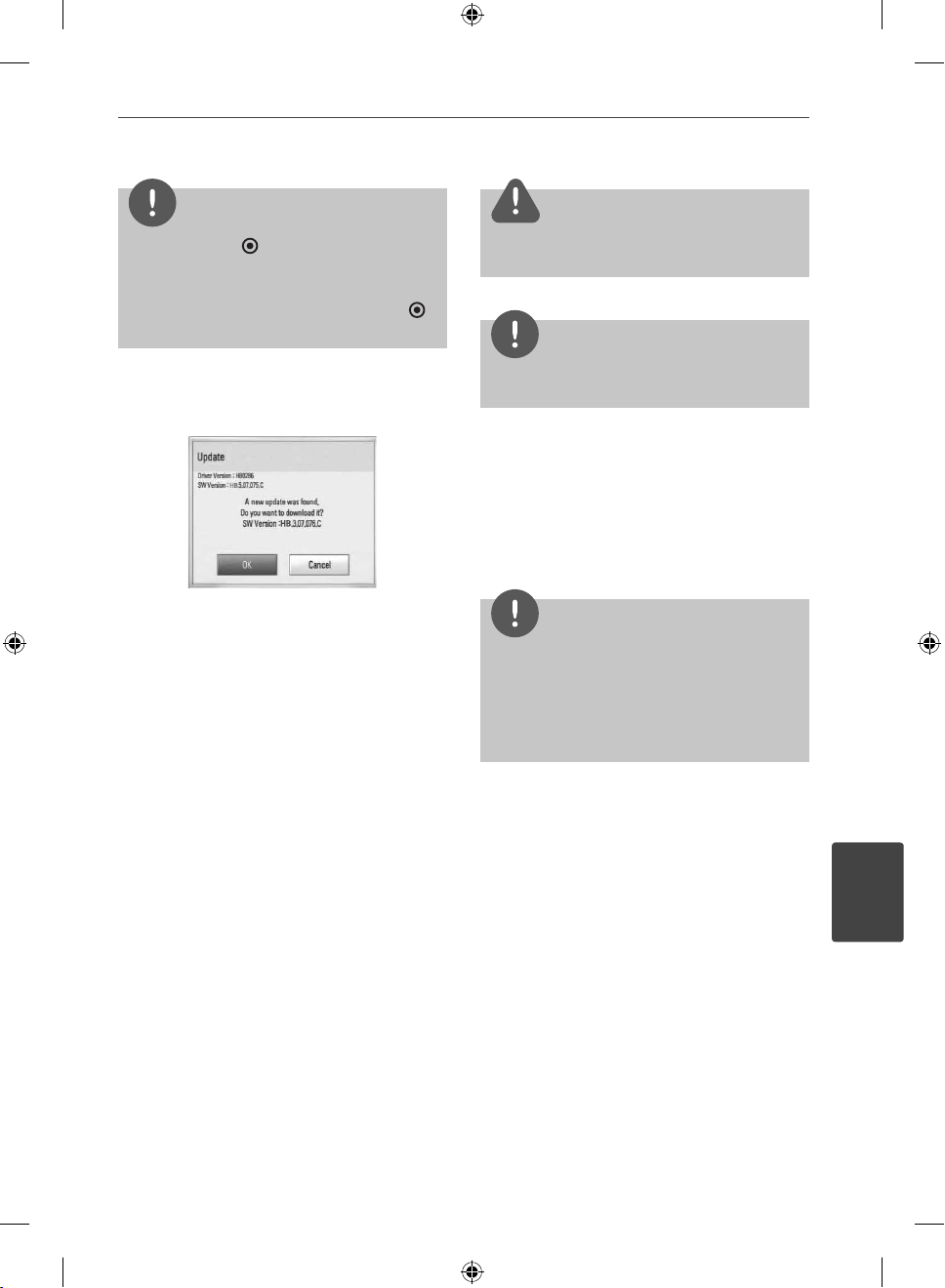

74 Network update notiﬁ cation

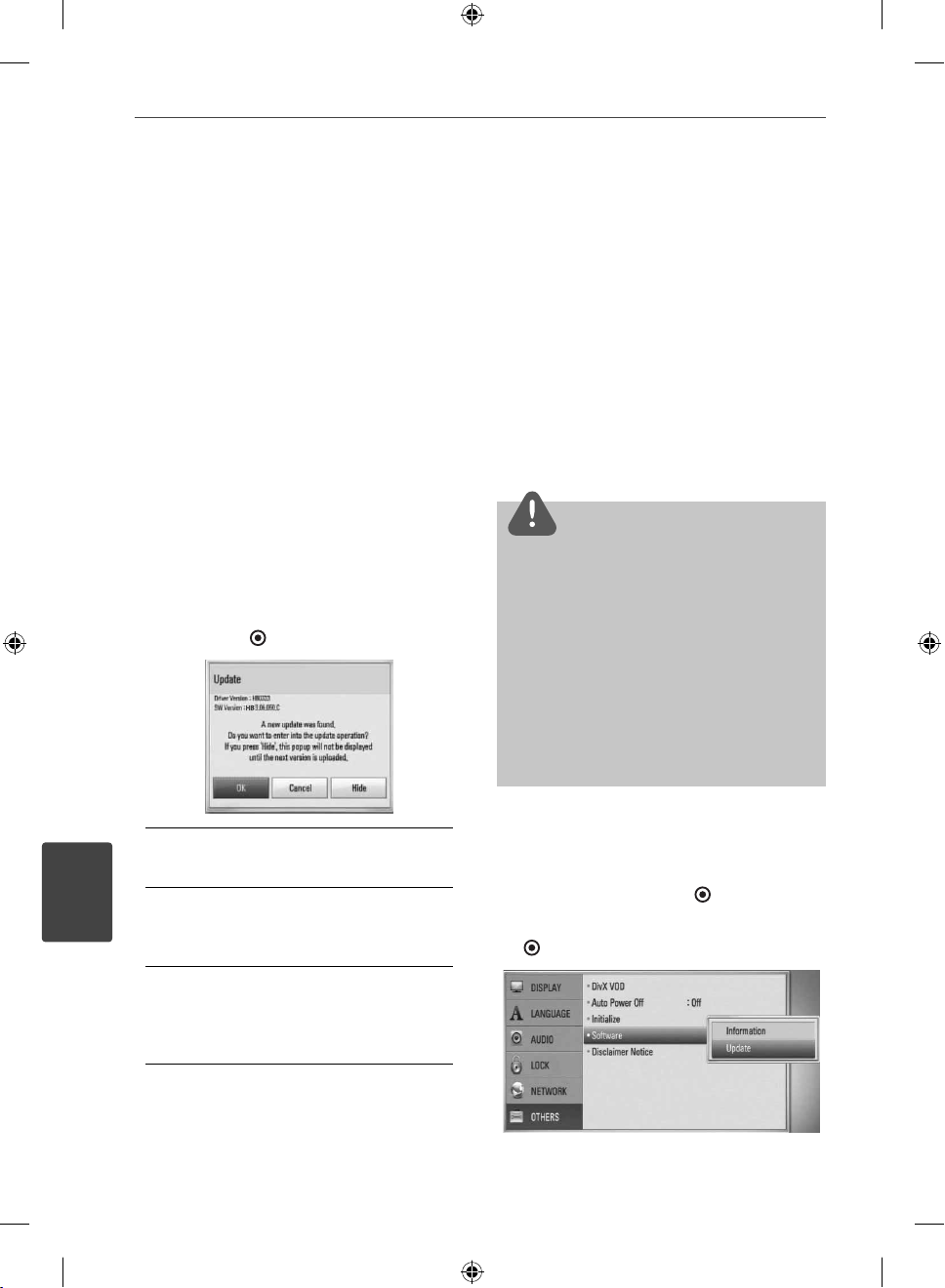

74 Software Update

76 Video output resolution

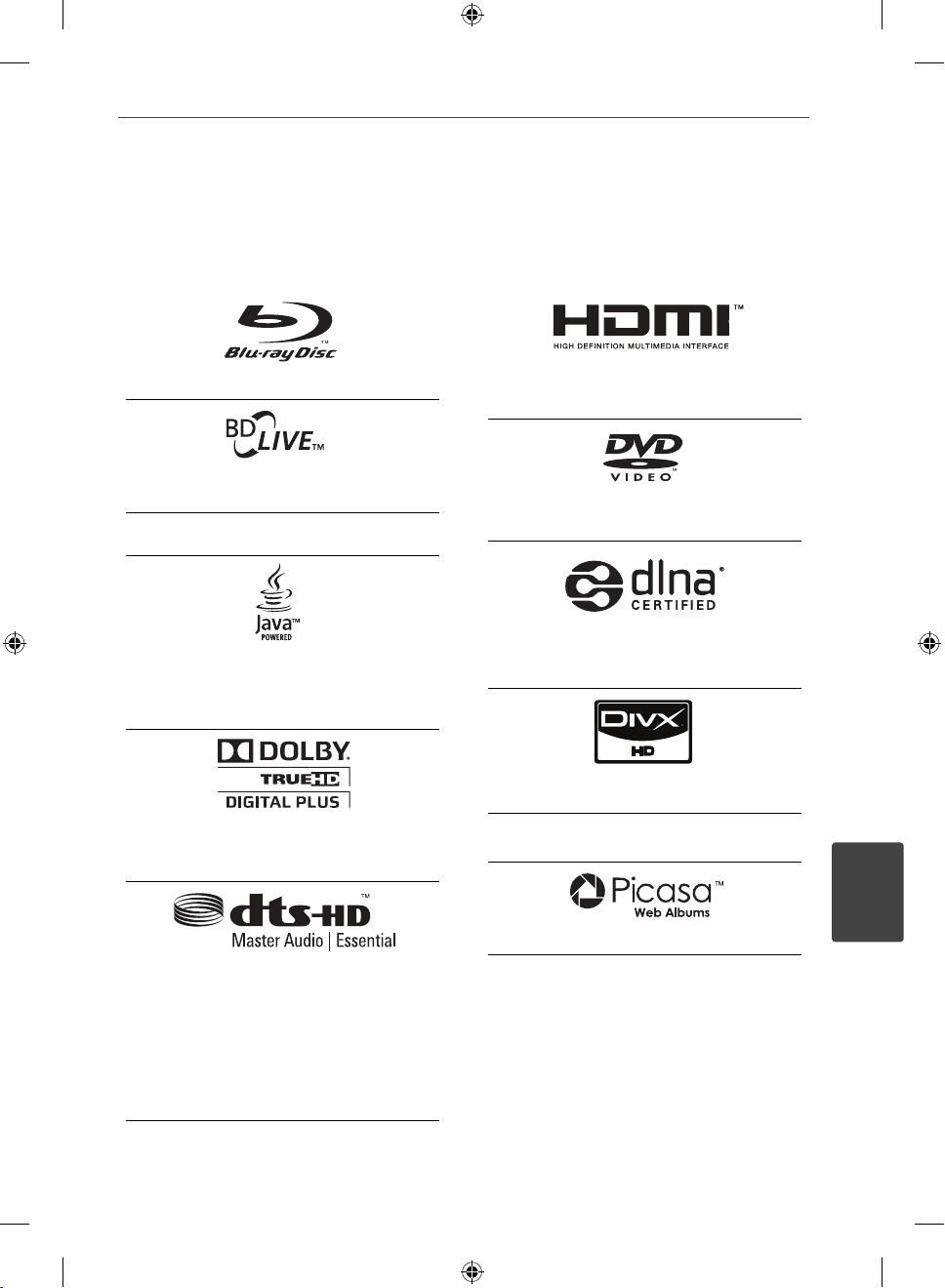

77 Trademarks and Licences

79 Speciﬁ cations

81 Important Information Relating to

Network Services

82 Open source software notice

83 Gracenote® End User Licence

Agreement

67 Notes on Discs

67 Handling the Unit

Troubleshooting

68 General

69 Picture

69 Sound

70 Network

HB44A(HB44A, SB45A-FW) DG ENG 007 7HB44A(HB44A, SB45A-FW) DG ENG 007 7 2010-04-29 ¿ÀÀü 10:44:542010-04-29 ¿ÀÀü 10:44:54

8 Preparation

2 Preparation

Preparation

Introduction

About the “ ” Symbol Display

“ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that speci c media.

Symbols Used in this Manual

NOTE

Indicates special notes and operating features.

CAUTION

Indicates cautions for preventing possible damages from abuse.

A section whose title has one of the following symbols are applicable only to the disc represented by the symbol.

DVD

AVC HD

ACD

MOVIE

MUSIC


BD-ROM disc

DVD-Video, DVD±R/RW in Video mode or VR mode and  nalized

DVD±R/RW in AVCHD format

Audio CDs

Movie  les

Music  les

Photo  les

HB44A(HB44A, SB45A-FW) DG ENG 008 8HB44A(HB44A, SB45A-FW) DG ENG 008 8 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

9Preparation

Supplied Accessories

Video cable (1) Colour-coded

Speaker Cables (3)

Remote control (1) Batteries (2)

FM antenna (1) Nero MediaHome4

Essentials software CD-ROM (1)

Playable Discs

Blu-ray Disc

Discs such as movies that can

be p BD-R/RE discs that contain

Movie, Music or Photo  les.

DVD-VIDEO 8 / 12 cm disc Discs such as movies that can be purchased or rented.

DVD±R 8 / 12 cm disc

Video mode and  nalized only

Supports the dual layer disc

also Finalized AVCHD format

DVD±R discs that contain

Movie, Music or Photo  les

DVD-RW 8 / 12 cm disc

VR mode

 nalized only Finalized AVCHD format

DVD-RW discs that contain

Movie, Music or Photo  les.

DVD+RW 8 / 12 cm disc

Video mode

AVCHD format

Finalized AVCHD format

DVD+RW discs that contain

Movie, Music or Photo  les.

Audio CD 8 / 12 cm disc

CD-R/RW 8 / 12 cm disc

CD-R/RW discs that contain

audio titles, Movie, Music or Photo  les.

urchased or rented.

Preparation

, Video mode and

and  nalized only

HB44A(HB44A, SB45A-FW) DG ENG 009 9HB44A(HB44A, SB45A-FW) DG ENG 009 9 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

10 Preparation

•

Preparation

•

NOTE

Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW ) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

Depending on the recording software & the  nalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.

BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.

Pre-recorded DVDs are automatically set to these standards. There are many di erent types of recordable disc formats (including CD-R containing MP3 or WMA  les) and these require certain pre-existing conditions to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA  les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

HB44A(HB44A, SB45A-FW) DG ENG 0010 10HB44A(HB44A, SB45A-FW) DG ENG 0010 10 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

11Preparation

File compatibility

Overall

Available File extensions:

“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”, “ .mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”

Available  le extensions di er depending

• on the DLNA

•

Some “.wav”  les are not supported on this player.

•

The  le name is limited to 180 characters.

•

Depending on the size and number of the  les, it may take several minutes to read the contents on the media.

Maximum Files/Folder: Less than 2 000 (total number of  les and folders)

CD-R/RW, DVD±R/RW, BD-R/RE Format:

ISO 9660+JOLIET, UDF and UDF Bridge format

MOVIE

Available resolution size:

1 920 x 1 080 (W x H) pixels Playable subtitle: SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

VobSub (.sub) is not available in the

• [Home Link] feature.

Playable Codec format: “DIVX3.xx”, “DIVX4. xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback only), H.264/MPEG-4 AVC, MPEG1 SS, MPEG2 PS, MPEG2 TS Playable Audio format: “Dolby Digital”, “DTS”, “MP3”, “WMA”, “AAC”, “AC3”

•

Not all the WMA and AAC Audio format is compatible with this unit.

Sampling frequency: within 32 kHz to 48 kHz (WMA), within 16 kHz to 48 kHz (MP3) Bit rate: within 20 kbps to 320 kbps (WMA), within 32 kbps to 320 kbps (MP3)

servers.

NOTE

HD movie  les contained on the CD or USB

•

1.0/1.1 may not played properly. BD, DVD or USB

2.0 are recommended to play back HD movie  les.

This player supports H.264/MPEG-4 AVC pro le

• Main, High at Level 4.1. For a  le with higher level, the warning message will appear on the screen.

•

This player does not support the  les that are recorded with GMC encoding techniques in MPEG4 standard, like DivX or XVID have.

*1 GMC – Global Motion Compensation *2 Qpel – Quarter pixel

or Qpel

. Those are video

MUSIC

Sampling frequency: within 8 kHz to 48 KHz (WMA), within 11 kHz to 48 kHz (MP3) Bit rate: within 8 kbps to 320 kbps (WMA, MP3),

NOTE

This unit cannot support the ID3 Tag embedded

• MP3  le.

The total playback time indicated on the screen

• may not correct for VBR  les.


Recommended size:

Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel

Progressive and lossless compression photo

• image  les are not supported.

Preparation

HB44A(HB44A, SB45A-FW) DG ENG 0011 11HB44A(HB44A, SB45A-FW) DG ENG 0011 11 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

12 Preparation

Preparation

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”.

AVCHD (Advanced Video Codec High Deﬁ nition)

This player can playback AVCHD format

• discs. These discs are normally recorded and used in camcorders.

The AVCHD format is a high de nition

• digital video camera format.

The MPEG-4 AVC/H.264 format is capable

• of compressing images at higher e ciency than that of the conventional image compressing format.

Some AVCHD discs use the “x.v.Colour”

• format.

This player can playback AVCHD discs using

• “x.v.Colour” format.

Some AVCHD format discs may not play,

• depending on the recording condition.

AVCHD format discs need to be  nalized.

• “x.v.Colour” o ers a wider colour range than

• normal DVD camcorder discs.

Certain System Requirements

For high de nition video playback:

•

High de nition display that has COMPONENT or HDMI input jacks.

•

BD-ROM disc with high de nition content.

•

HDMI or HDCP capable DVI input on your display device is required for some content (as speci ed by disc authors).

•

For up-conversion of standard de nition DVD, a HDMI or HDCP capable DVI input on your display device is required for copy protected content.

Compatibility Notes

Because BD-ROM is a new format,

• certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Centre.

Viewing high-de nition content and up-

• converting standard DVD content may require a HDMI-capable input or HDCPcapable DVI input on your display device.

Some BD-ROM and DVD discs may restrict

• the use of some operation commands or features.

You can use a USB device that is used

• to store some disc related information, including downloaded on-line content. The disc you are using will control how long this information is retained.

HB44A(HB44A, SB45A-FW) DG ENG 0012 12HB44A(HB44A, SB45A-FW) DG ENG 0012 12 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

Remote control

13Preparation

Battery Installation

Remove the battery cover on the rear of the Remote Control, and insert two R03 (size AAA) batteries with and matched correctly.

• • • • • • •a • • • • • •

(POWER): Switches the player

ON or OFF.

OPEN/CLOSE: Opens and closes

the disc tray. RADIO&INPUT: Changes input

mode. 0-9 numerical buttons: Selects

numbered options in a menu. CLEAR: Removes a mark on the

search menu or a number when setting the password.

REPEAT: Repeats a desired section or sequence.

• • • • • • •b • • • • • •

SCAN: Searches

m/M

backward or forward.

./>

or previous chapter / track /  le.

x B X

SPEAKER LEVEL: Sets the sound level of desired speaker.

SOUND EFFECT: Selects a sound e ect mode.

VOL +/- : Adjusts speaker volume. OPTICAL: Changes input mode to

optical directly.

MUTE: Mute the unit.

SKIP: Goes to the next

(STOP): Stops playback.

(PLAY): Starts playback.

(PAUSE): Pauses playback

• • • • • • •c • • • • • •

HOME: Displays or exits the

[Home Menu].

C ID: When connected to the

MUSI

network, can provide information about the current song while movie playback.

INFO/DISPLAY: Displays or exits

On-Screen Display. Direction buttons: Selects an

option in the menu

ENTER: Acknowledges menu

selection.

RETURN: Exits the menu or

resumes playback. TITLE/POPUP: Displays the DVD

title menu or BD-ROM’s pop-up menu, if available.

DISC MENU: Accesses menu on a disc.

• • • • • • •d • • • • • •

Coloured (R, G, Y, B) buttons: Use to navigate on menus.

RDS: Radio Data System. PTY: Views the programme type of

the RDS.

PTY SEARCH:

Searches programme type. MONO/STEREO: Selects mono/

stereo in FM mode. MARKER: Marks any point during

playback. SEARCH: Displays or exits the

search menu. SLEEP: Sets a certain period of time

after which the unit will switch to o .

REC: Records an audio CD.

TV Control Buttons: See page 71.

Preparation

HB44A(HB44A, SB45A-FW) DG ENG 0013 13HB44A(HB44A, SB45A-FW) DG ENG 0013 13 2010-04-29 ¿ÀÀü 10:44:552010-04-29 ¿ÀÀü 10:44:55

14 Preparation

2 3 4

666

Front panel

Preparation

1/\

(POWER) Button

Disc Tray

Remote sensor

Display window

Volume control

(OPEN/CLOSE)

PORT. IN

USB Port

Operation buttons

(PLAY / PAUSE)

(STOP)

(SKIP) F (Function) Changes the input source or function.

HB44A(HB44A, SB45A-FW) DG ENG 0014 14HB44A(HB44A, SB45A-FW) DG ENG 0014 14 2010-04-29 ¿ÀÀü 10:44:572010-04-29 ¿ÀÀü 10:44:57

Rear panel

234

1 2 3 4 5

666

9 10

15Preparation

Preparation

AC Power cord

Plug into the power source.

Speakers connectors

Cooling Fan

Antenna Connector

OPTICAL IN 1(TV) / 2

VIDEO OUT

AUX (L/R) INPUT

COMPONENT VIDEO (Y P

B PR

)

OUTPUT (PROGRESSIVE SCAN)

HDMI OUT (type A, Version 1.3)

Connect to TV with HDMI inputs.

LAN port

HB44A(HB44A, SB45A-FW) DG ENG 0015 15HB44A(HB44A, SB45A-FW) DG ENG 0015 15 2010-04-29 ¿ÀÀü 10:44:572010-04-29 ¿ÀÀü 10:44:57

16 Installation

3 Installation

Installation

Speaker Connection

Attaching the speakers to the player

1. Connect speaker wires to the main unit. Each speaker wire is colour-coded. Use matching colour wires for corresponding speakers.

colour Speaker Position

Orange Sub

woofer

Red Front Front right

White Front Front left

Any front position

2. Connect the speaker wire to the terminal on the speaker.

Make sure the wire marked black goes in

to the terminal marked “–” (minus) and the other wire goes in to the terminal marked “+” (plus).

CAUTION

Be careful to make sure children not to put their

• hands or any objects into the *speaker duct. *Speaker duct: A hole for plentiful bass sound on speaker cabinet (enclosure).

Place the centre speaker at a safe distance from

• the child’s reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.

The speakers contain magnet parts, so color

• irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

HB44A(HB44A, SB45A-FW) DG ENG 0016 16HB44A(HB44A, SB45A-FW) DG ENG 0016 16 2010-04-29 ¿ÀÀü 10:44:572010-04-29 ¿ÀÀü 10:44:57

17Installation

Connecting to Your TV

Make one of the following connections, depending on the capabilities of your existing equipment.

•

HDMI connection (pages 17-18)

•

Component Video connection (page 19)

•

Video connection (page 19)

NOTE

Depending on your TV and other equipment

• you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

Please refer to the manuals of your TV, stereo

• system or other devices as necessary to make the best connections.

Make sure the player is connected directly to

• the TV. Tune the TV to the correct video input channel.

Do not connect your player via your VCR. The

• image could be distorted by the copy protection system.

HDMI Connection

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable(Type A, Version 1.3). Connect the HDMI OUT jack on the player to the HDMI IN jack on a HDMI compatible TV or monitor.

HDMI Connection

Player

Installation

Set the TV’s source to HDMI (refer to TV’s Owner’s manual).

HB44A(HB44A, SB45A-FW) DG ENG 0017 17HB44A(HB44A, SB45A-FW) DG ENG 0017 17 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

18 Installation

Installation

NOTE

Changing the resolution when the connection

•

has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

When the HDMI connection with HDCP is not

•

veri ed, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

If there is noise or lines on the screen, please

•

check the HDMI cable (length is generally limited to 4.5 m and use a high speed HDMI cable (version 1.3).

If a connected HDMI device does not accept the

•

audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

When you use HDMI connection, you can

•

change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 20.)

Select the type of video output from the HDMI

•

OUT jack using [HDMI Color Setting] option on the [Setup] menu (see page 29).

When you connect a HDMI or DVI compatible

•

device make sure of the following:

- Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

- The connected device’s video input is set correctly for this unit.

- The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.

Not all HDCP-compatible HDMI or DVI devices

•

will work with this player.

- The picture will not be displayed properly with non-HDCP device.

- This player does not playback and TV screen is changed to black screen.

What is SIMPLINK?

Some functions of this unit are controlled by the TV’s remote control when this unit and LG TV’s with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV’s remote control; Play, Pause, Scan, Skip, Stop, Power O , etc.

Refer to the TV owner’s manual for the details of SIMPLINK function.

LG TV’s with SIMPLINK function has the logo as shown above.

NOTE

Depending on the disc type or playing status,

• some SIMPLINK operation may di er from your purpose or not work.

When you use SIMPLINK function, you have to

• connect to the OPTICAL IN 1 jack to enjoy TV sound to your speaker system.

HB44A(HB44A, SB45A-FW) DG ENG 0018 18HB44A(HB44A, SB45A-FW) DG ENG 0018 18 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

19Installation

Component Video Connection

Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using Y Pb Pr cables. You can hear the sound the through the system’s speaker.

Component Connection

Player

Green

Blue

Blue Red

Red

Video Connection

Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system’s speakers.

Video Connection

Player

Yellow

Installation

NOTE

When you use COMPONENT VIDEO OUT connection, you can change the resolution for the output. (Refer to “Resolution setting” on page 20.)

HB44A(HB44A, SB45A-FW) DG ENG 0019 19HB44A(HB44A, SB45A-FW) DG ENG 0019 19 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

20 Installation

Installation

Resolution Setting

The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu.

1. Press HOME ( ).

2. Use I/i to select the [Setup] and press

ENTER (

3. Use U/u to select [DISPLAY] option then press i to move to the second level.

4. Use U/u to select the [Resolution] option then press ENTER ( ) or i to move to the third level.

). The [Setup] menu appears.

NOTE

If your TV does not accept the resolution you

• have set on the player, you can set resolution to 576p as follows:

1. Press Z to open the disc tray. 2 Press x for more than 5 seconds. Since several factors a ect the resolution of

• video output, see “Video Output Resolution” on page 76.

5. Use U/u to select the desired resolution then press ENTER (

) to con rm your

selection.

HB44A(HB44A, SB45A-FW) DG ENG 0020 20HB44A(HB44A, SB45A-FW) DG ENG 0020 20 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

21Installation

Antenna connection

Connect the supplied antenna for listening to the radio.

Antenna Connection

Player

Connections with external device

AUX Connection

You can enjoy the sound of your component with the analogue audio output jacks from the speakers of the system.

Connect the analogue audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing RADIO&INPUT and ENTER (

You can also use F button on the front panel to select the input mode.

AUX Connection

Player

Installation

NOTE

After connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

To the audio output jacks of your component (TV, VCR, etc.)

HB44A(HB44A, SB45A-FW) DG ENG 0021 21HB44A(HB44A, SB45A-FW) DG ENG 0021 21 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

Red

White

22 Installation

Installation

PORT. IN connection

You can enjoy the sound of your portable audio player from the speakers of the system.

Connect the headphones (or line out ) jack of the portable audio player into the PORT. IN of this unit. And then select the [PORTABLE] option by pressing RADIO&INPUT and ENTER

(

You can also use F button on the front panel to select the input mode.

PORT.IN Connection

OPTICAL IN 1/2

connection

You can enjoy the sound of your component with the digital optical connection from the speakers of the system.

Connect the optical output jack of your component into the OPTICAL IN 1/2 jacks on the unit. And then select the [OPTICAL 1/2] option by pressing RADIO&INPUT and ENTER

). Or press OPTICAL to select directly.

(

You can also use F button on the front panel to select the input mode.

Optical Connection

To the digital

optical output jack

of your component

twZGSGUUU

HB44A(HB44A, SB45A-FW) DG ENG 0022 22HB44A(HB44A, SB45A-FW) DG ENG 0022 22 2010-04-29 ¿ÀÀü 10:44:582010-04-29 ¿ÀÀü 10:44:58

23Installation

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as software updates, Home Link, BD-LIVE interactivity and streaming services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference. Please refer to the documentation for your network device for further instructions. Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable (CAT5 or better with RJ45 connector). In the example con guration for wired connection below, this player would be able to access content from either of the PCs.

Wired Network Connection

Router

Broadband

Service

WAN

LAN 1

LAN 2

LAN 3

Player

NOTE

When plugging or unplugging the LAN cable,

• hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

Do not connect a modular phone cable to the

• LAN port.

Since there are various connection

• con gurations, please follow the speci cations of your telecommunication carrier or internet service provider.

If you want to access content from PCs or DLNA

• servers, this player must be connected to the same local area network with them via a router.

Installation

HB44A(HB44A, SB45A-FW) DG ENG 0023 23HB44A(HB44A, SB45A-FW) DG ENG 0023 23 2010-04-29 ¿ÀÀü 10:44:592010-04-29 ¿ÀÀü 10:44:59

24 Installation

Installation

Wired Network Setup

Before setting the wired network, you need to connect the broadband internet to your home network.

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow.

1. Select [Connection Setting] option in the [Setup] menu then press ENTER (

2. Use U/u/I/

to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically.

NOTE

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set the [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using U/u/I/ buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

3. Select [OK] and press ENTER ( ) to apply network settings.

4. The player will ask you to test the network connection. Select [OK] and press ENTER

) to complete the network connection.

(

5. If you select [Test] and press ENTER

) at step 5 above, the network

( connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu.

and numerical

HB44A(HB44A, SB45A-FW) DG ENG 0024 24HB44A(HB44A, SB45A-FW) DG ENG 0024 24 2010-04-29 ¿ÀÀü 10:44:592010-04-29 ¿ÀÀü 10:44:59

Notes on Network Connection:

Many network connection problems during

• set up can often be  xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

Depending on the internet service provider

• (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for

• any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

The features of BD-ROM discs made

• available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

Some internet contents may require a

• higher bandwidth connection.

Even if the player is properly connected and

• con gured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

Some internet connection operations may

• not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

Any fees charged by an ISP including,

• without limitation, connection charges are your responsibility.

A 10 Base-T or 100 Base-TX LAN port is

• required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

You must use a Router to use xDSL service.

• A DSL modem is required to use DSL service

• and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

The use of a “Router” may not be allowed

• or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

Turn o all unused network equipment in

• your local home network. Some devices may generate network tra c.

25Installation

Installation

HB44A(HB44A, SB45A-FW) DG ENG 0025 25HB44A(HB44A, SB45A-FW) DG ENG 0025 25 2010-04-29 ¿ÀÀü 10:44:592010-04-29 ¿ÀÀü 10:44:59

26 Installation

Installation

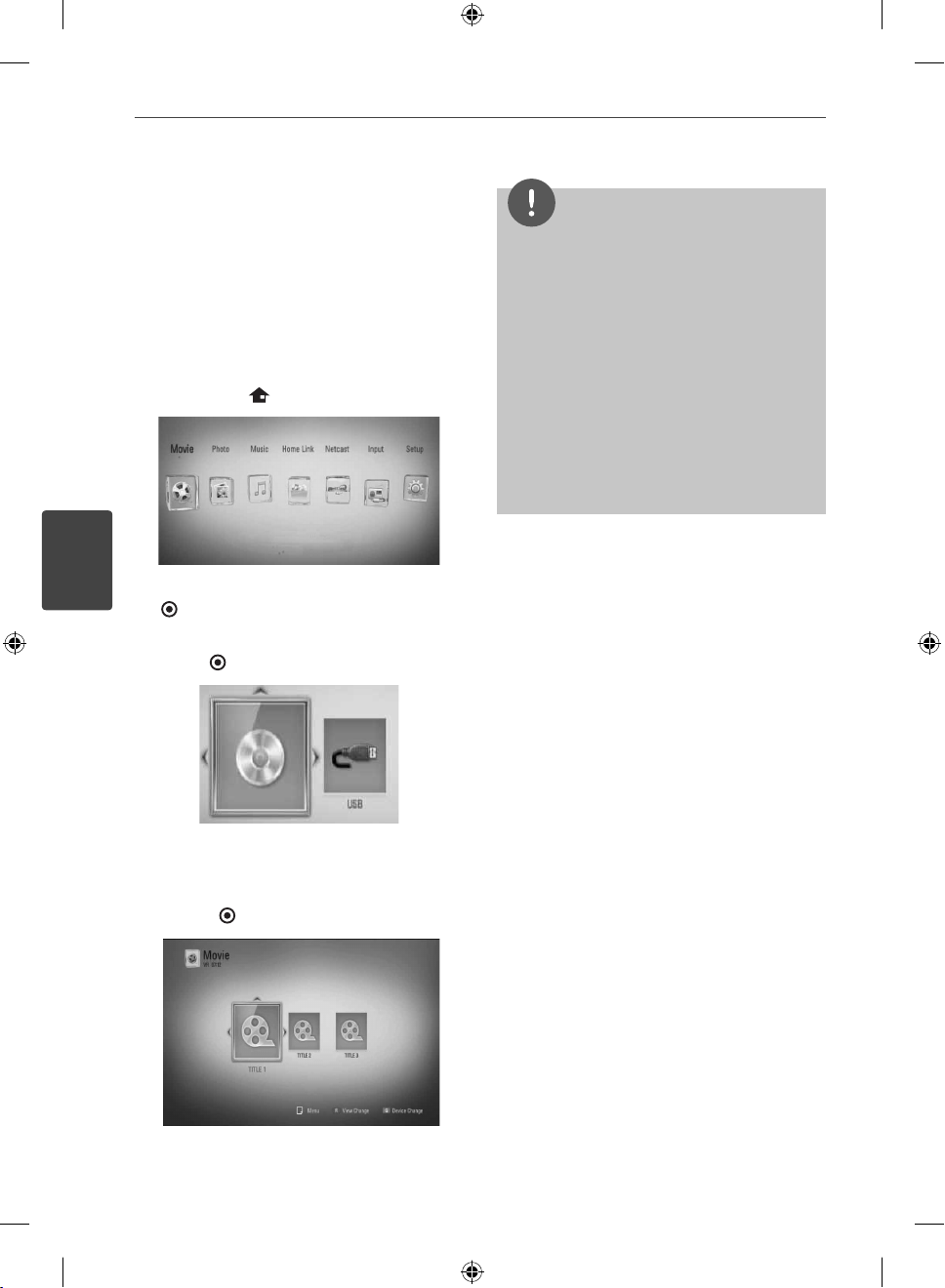

USB device connection

This player can play movie, music and photo  les contained in the USB device.

1. Insert a USB device to the USB port until it  ts into place.

USB Connection - 1

When you connect the USB device on the HOME menu, the player plays a music  le contained in the USB storage device automatically. If the USB storage device is containing various types of  les, a menu for the  le type selection will appear.

2. Select [Movie], [Photo] or [Music] using

I/i

, and press ENTER ( ).

3. Select a  le using U/u/I/i, and press PLAY or ENTER ( You can check the space of the USB device on the screen.

4. Select the other mode. And withdraw the USB device carefully.

USB Connection - 2

) to play the  le.

File loading may takes few minutes depending on the number of content stored in the USB storage device. Press ENTER ( ) while [Cancel] is selected to stop loading.

HB44A(HB44A, SB45A-FW) DG ENG 0026 26HB44A(HB44A, SB45A-FW) DG ENG 0026 26 2010-04-29 ¿ÀÀü 10:44:592010-04-29 ¿ÀÀü 10:44:59

+ 58 hidden pages
