LG 43UH6500 Schematic

Internal Use Only

LED TV

SERVICE MANUAL

CHASSIS : UA63J

MODEL : 43UH6500 43UH6500-UB

CAUTION

BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

P/NO : MFL69413301 (1601-REV00)

CONTENTS

CONTENTS .............................................................................................. 2

SAFETY PRECAUTIONS ........................................................................ 3

SERVICING PRECAUTIONS ................................................................... 4

SPECIFICATION ...................................................................................... 6

ADJUSTMENT INSTRUCTION .............................................................. 14

ASSEMBLY / DISASSEMBLY. ................................................................ 26

BLOCK DIAGRAM .................................................................................. 28

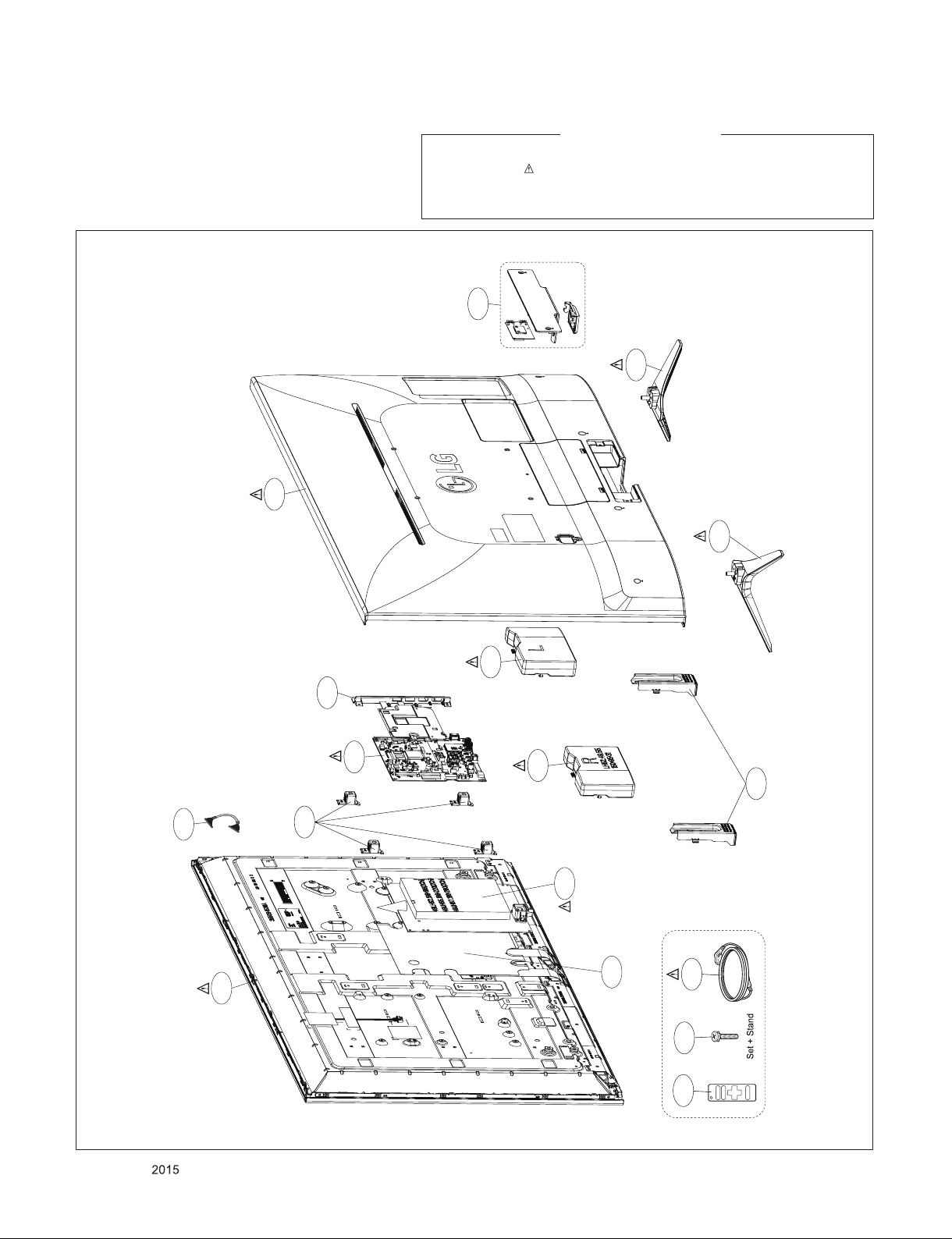

EXPLODED VIEW .................................................................................. 33

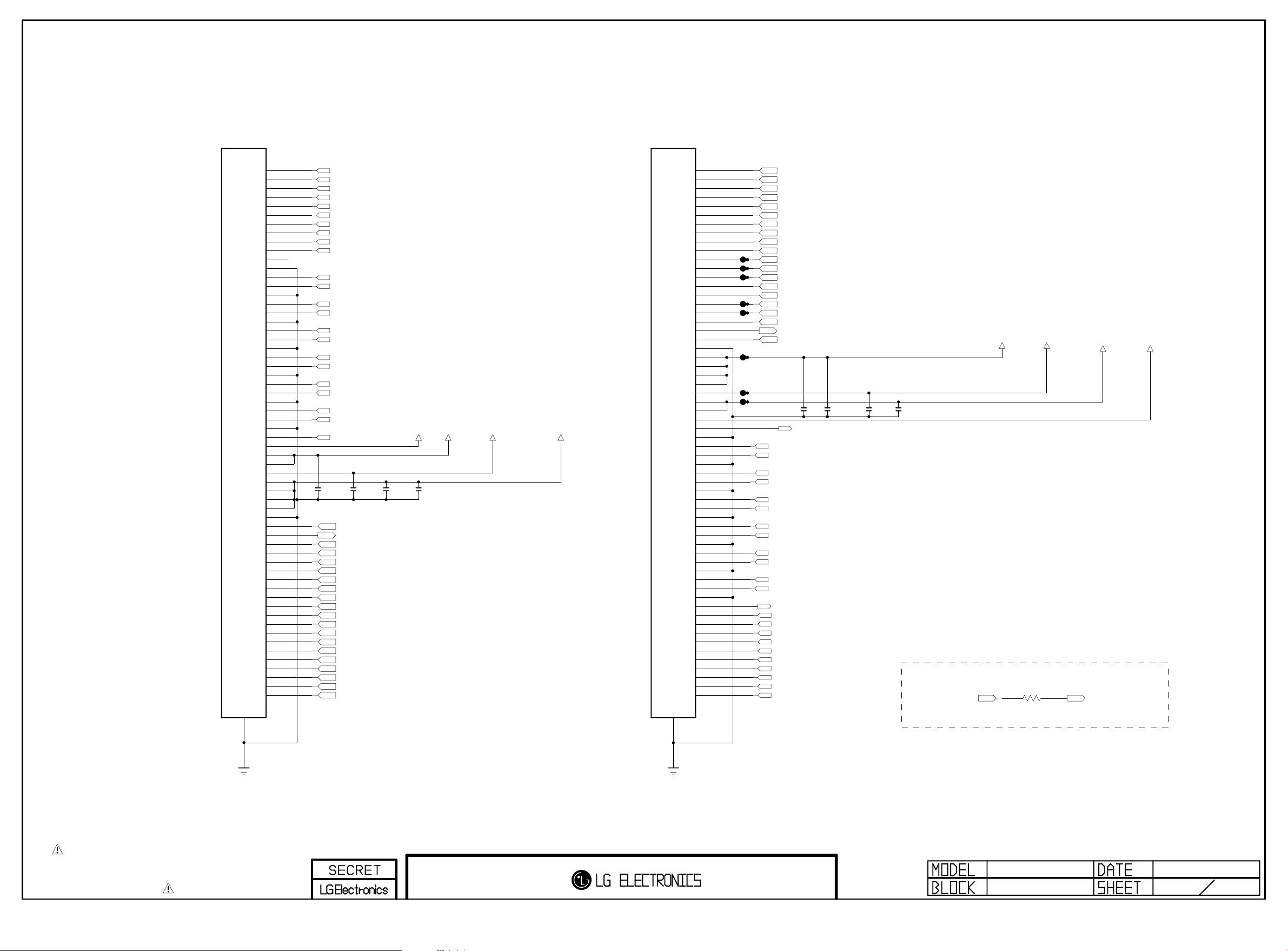

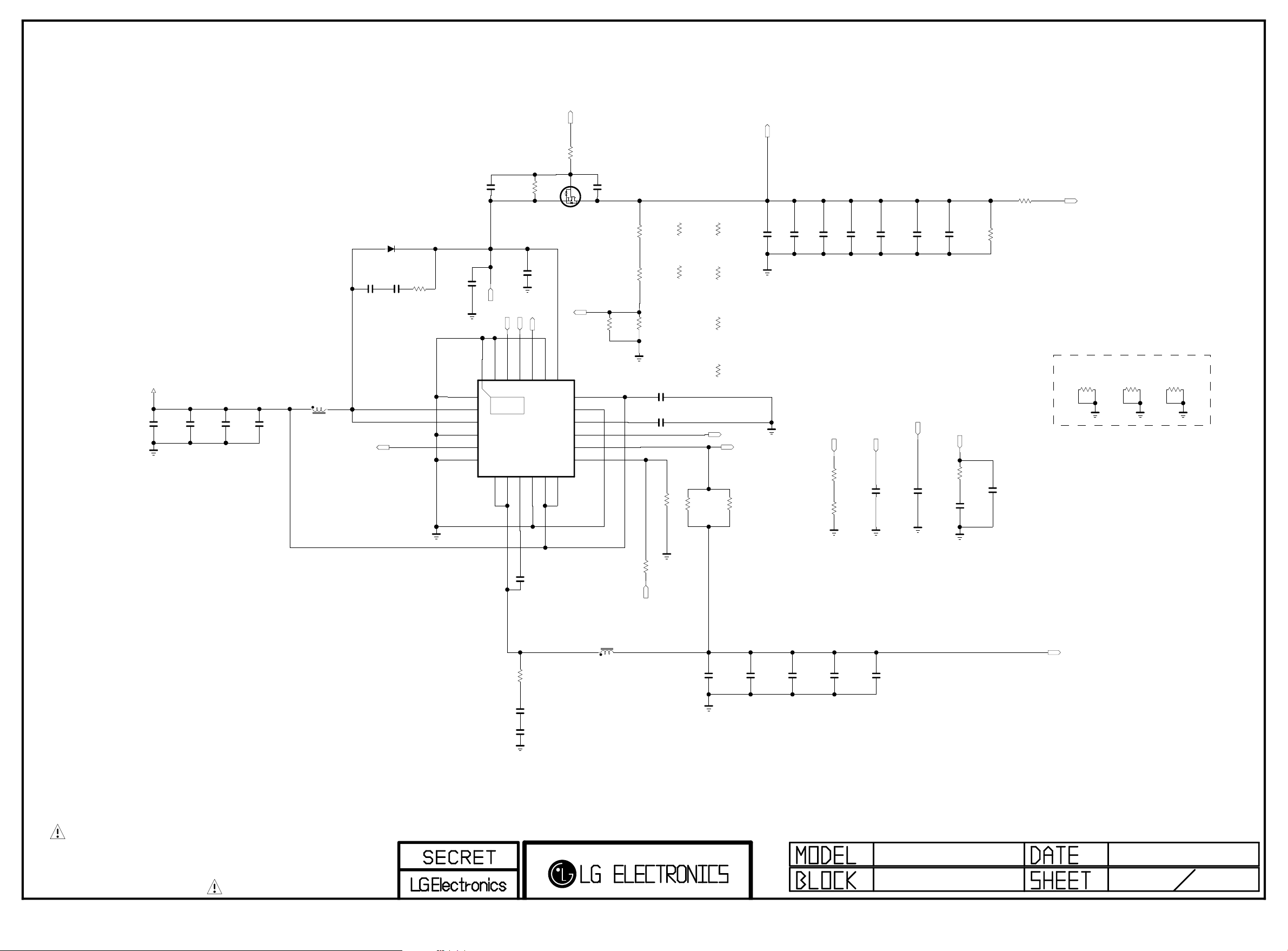

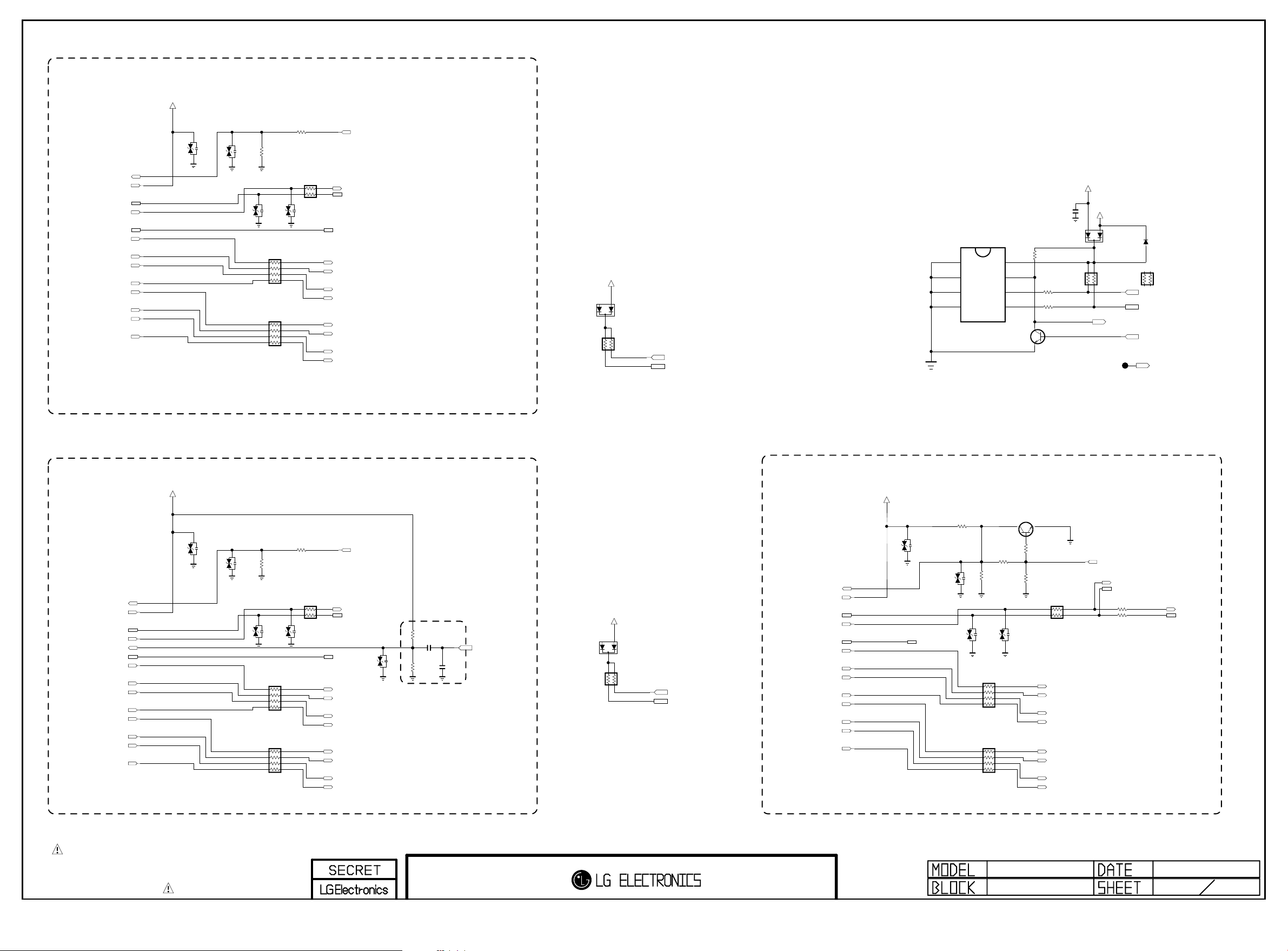

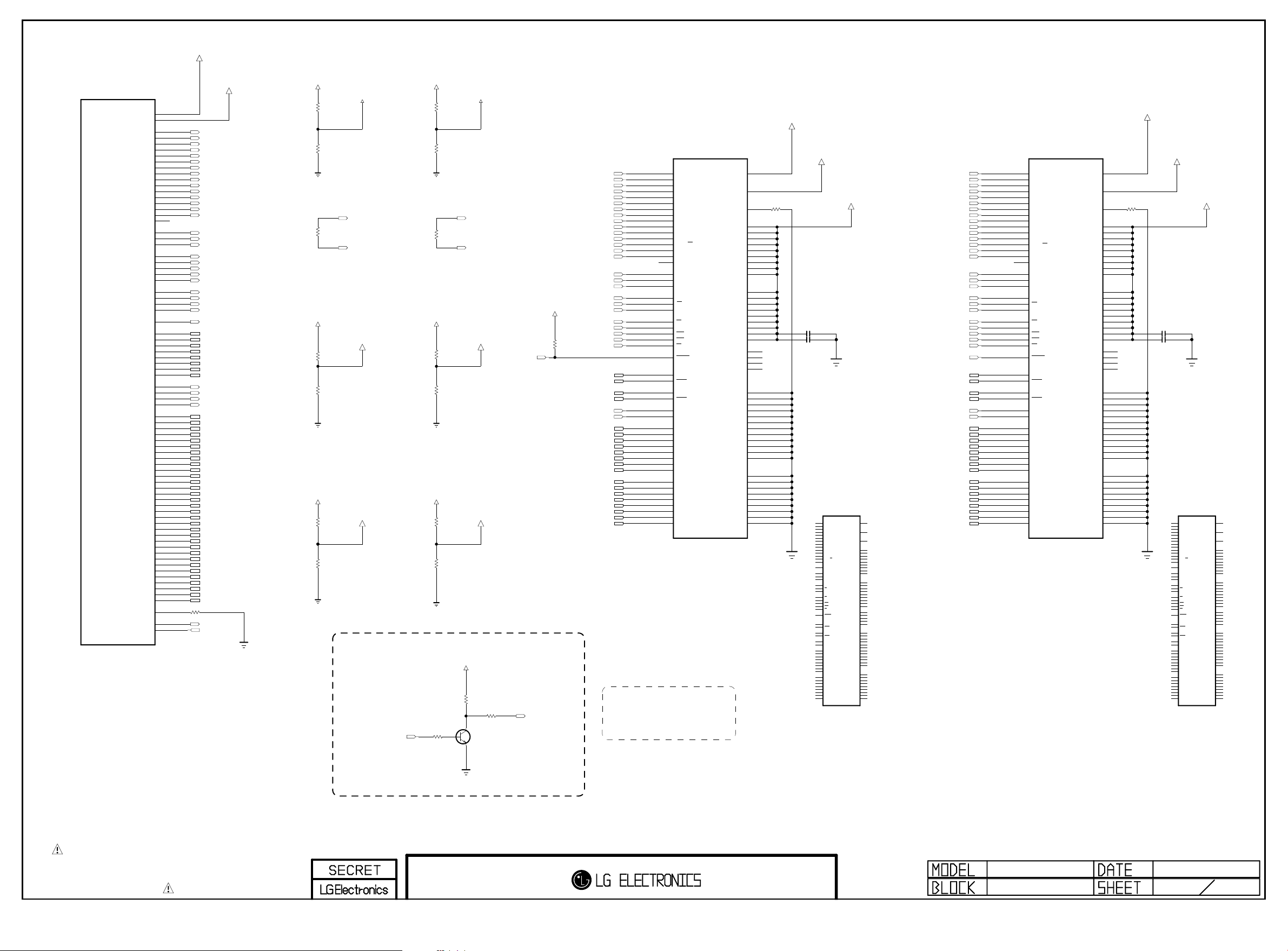

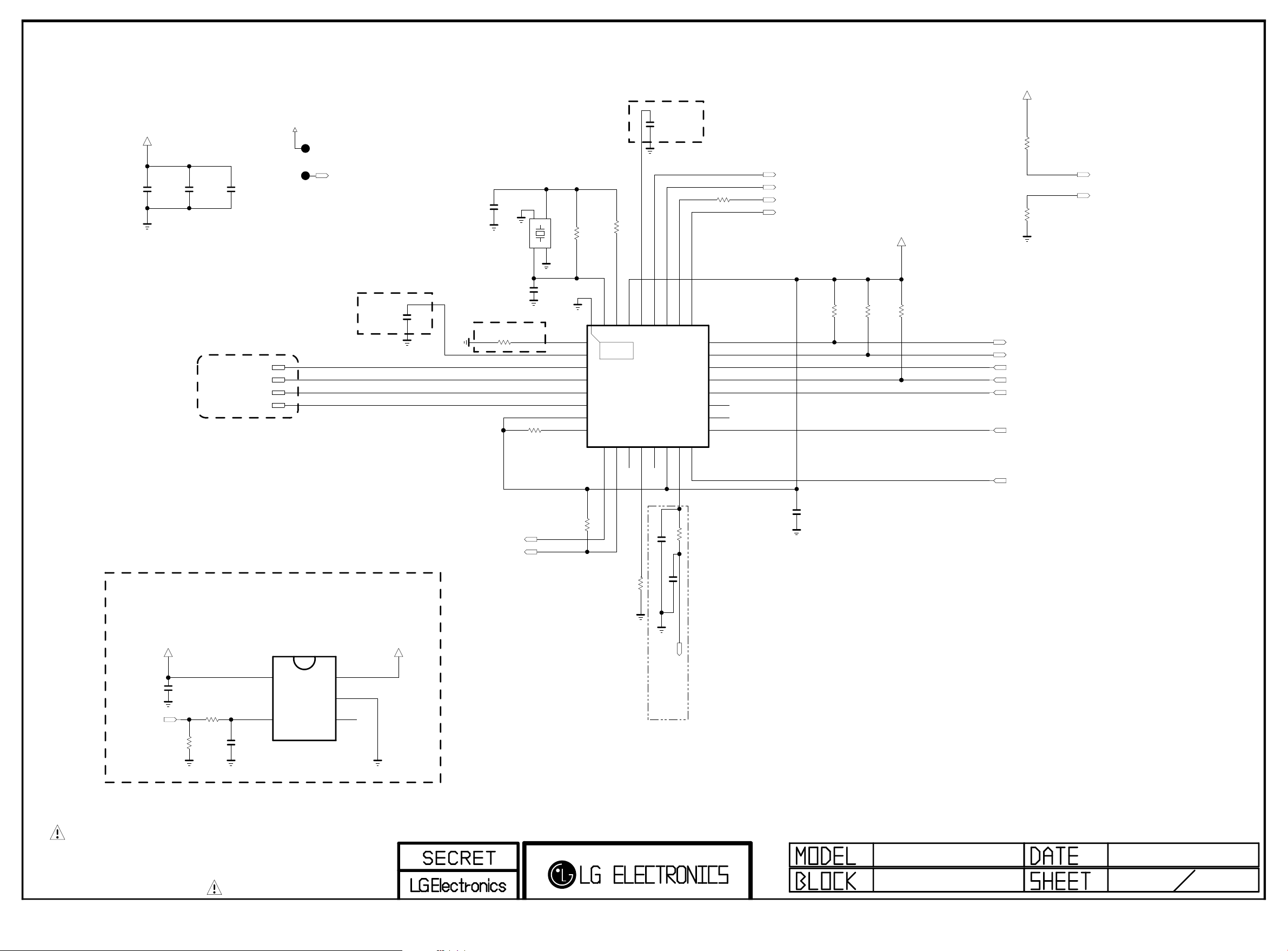

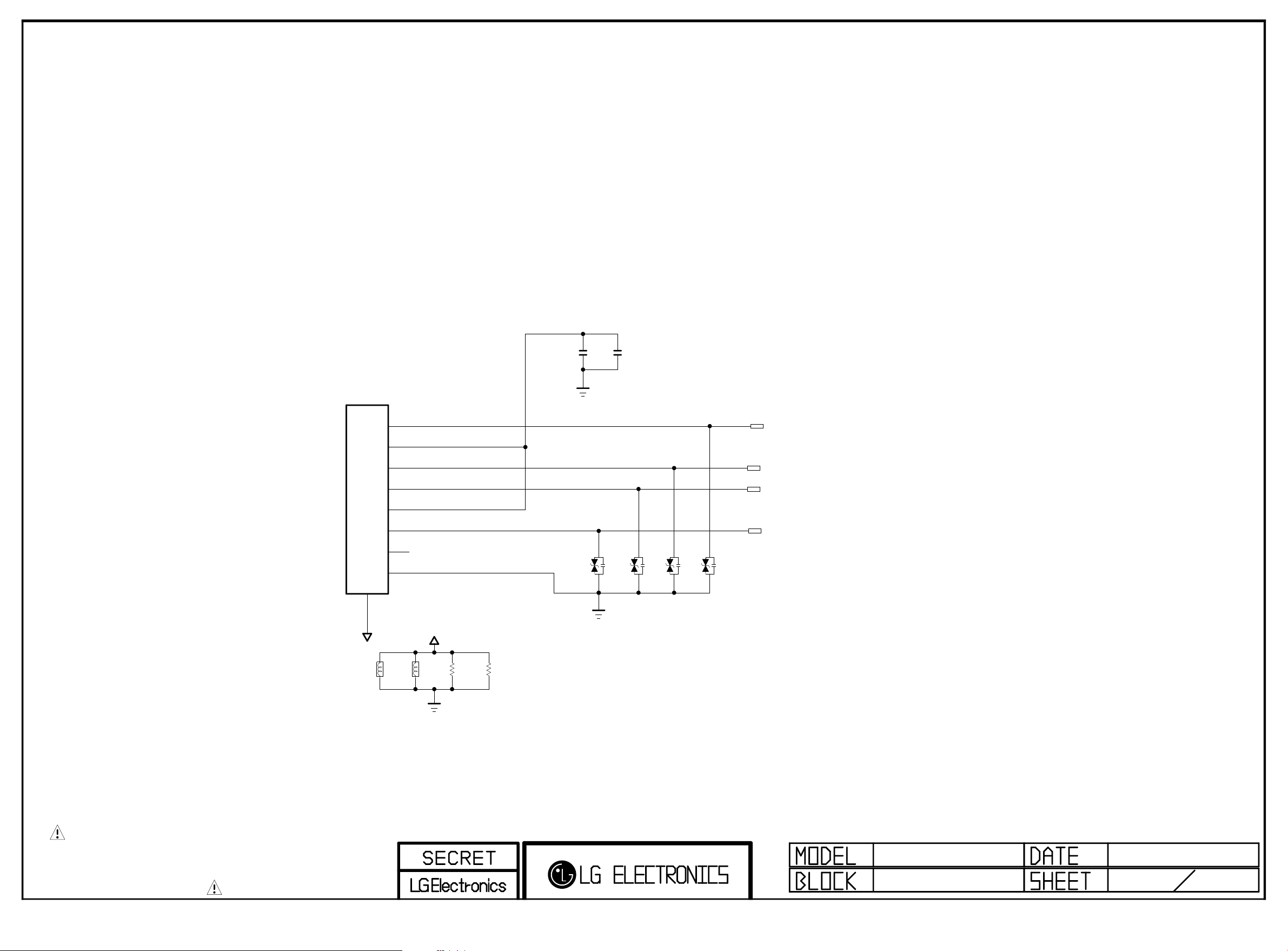

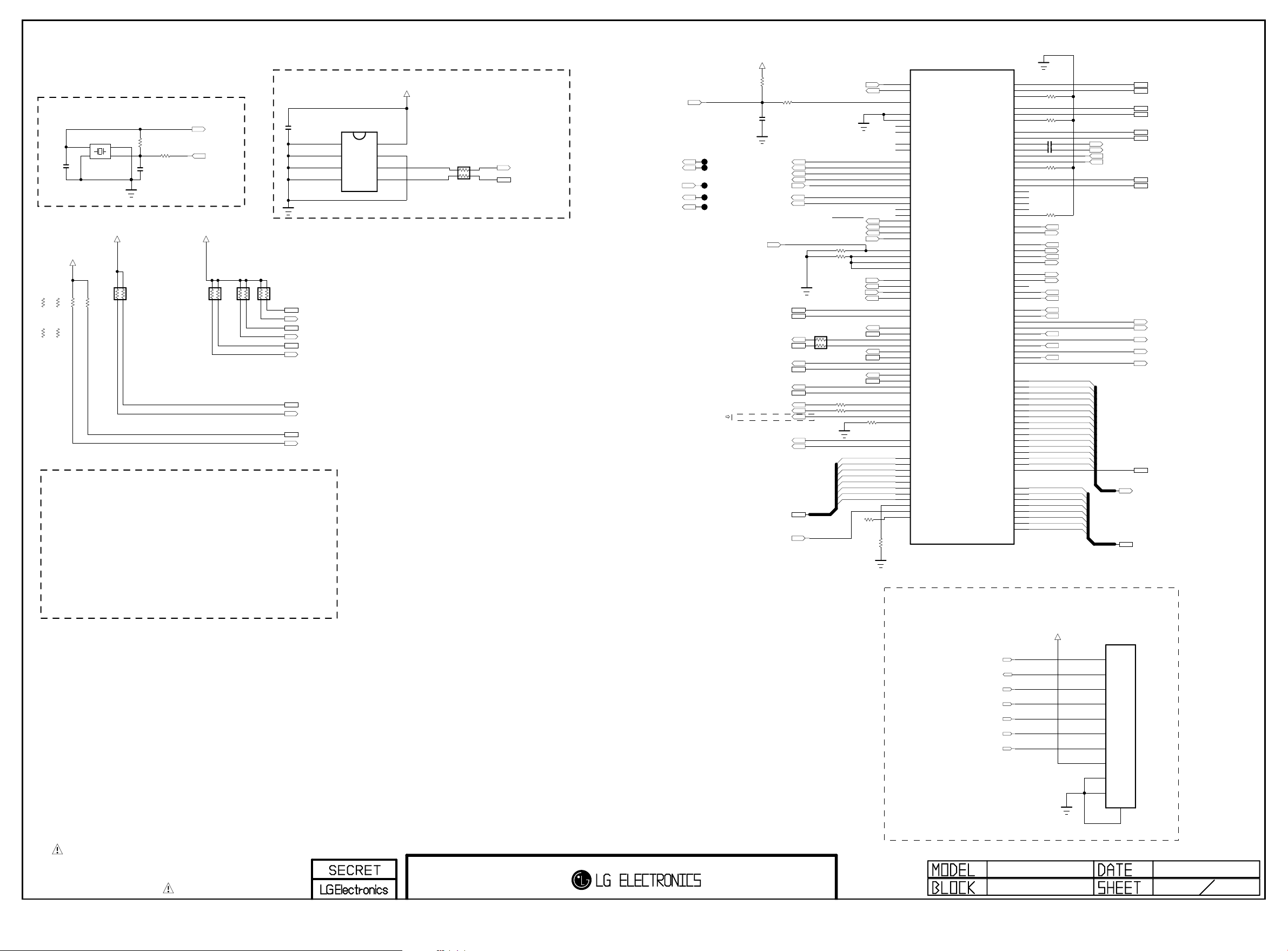

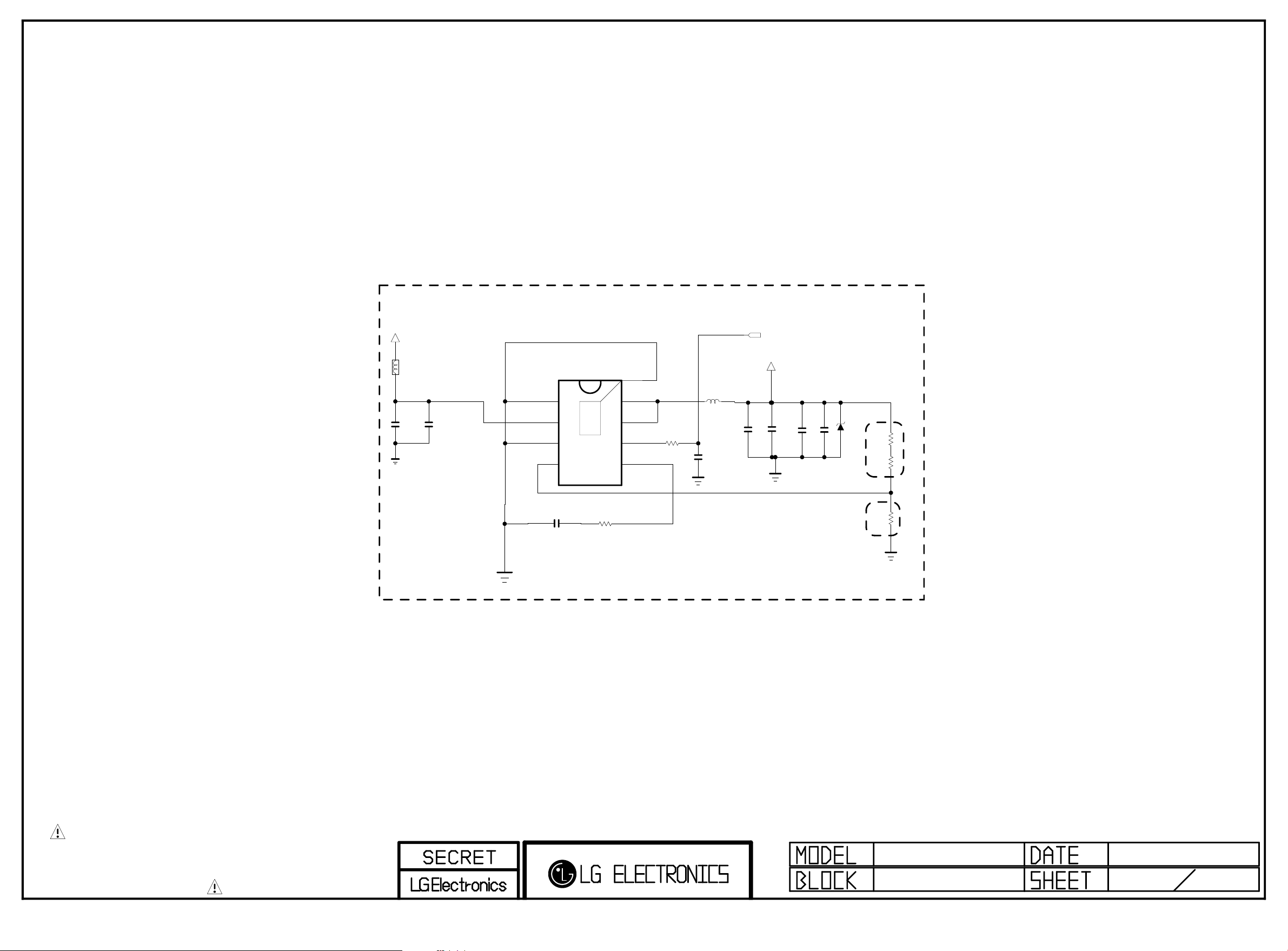

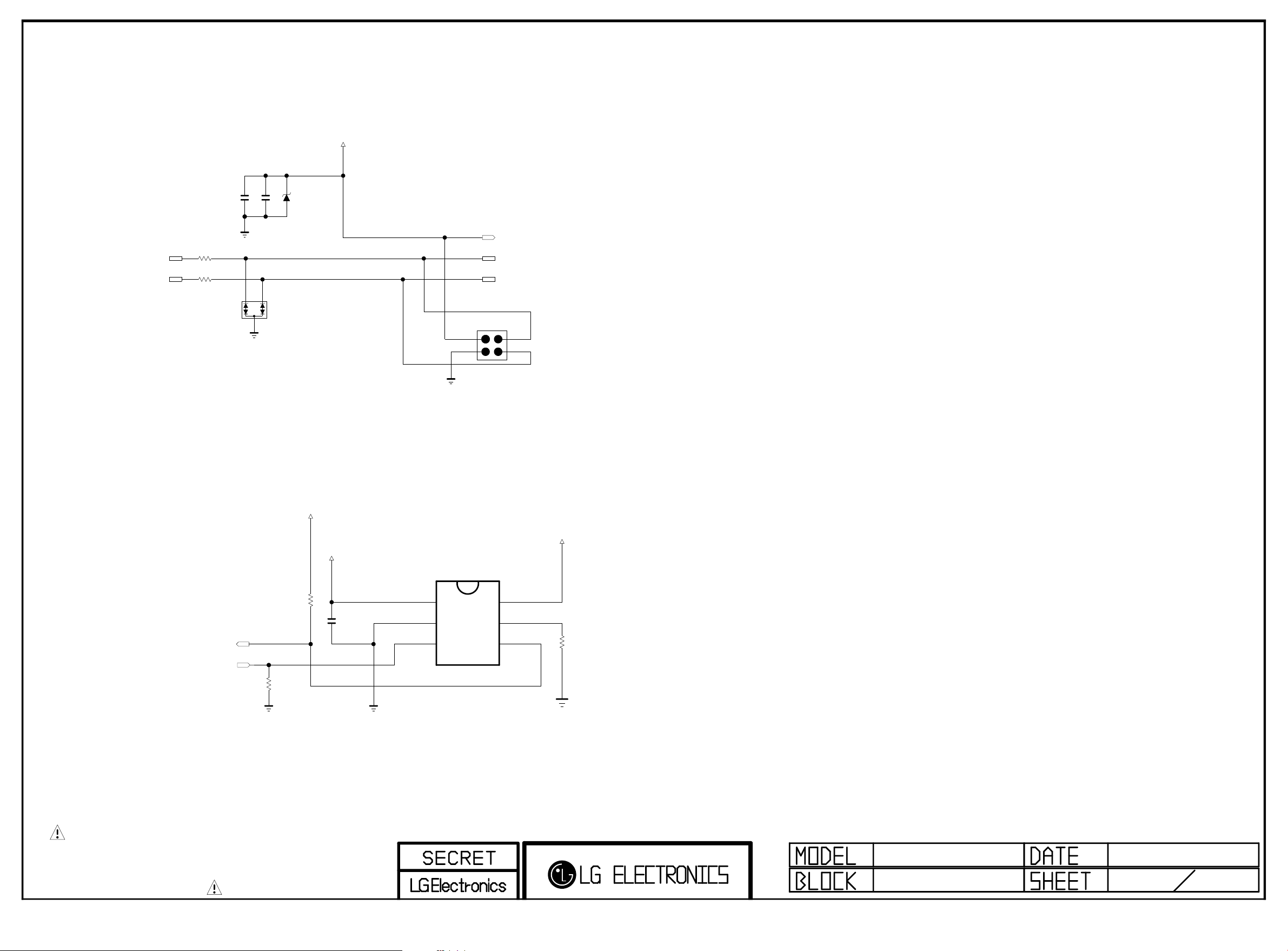

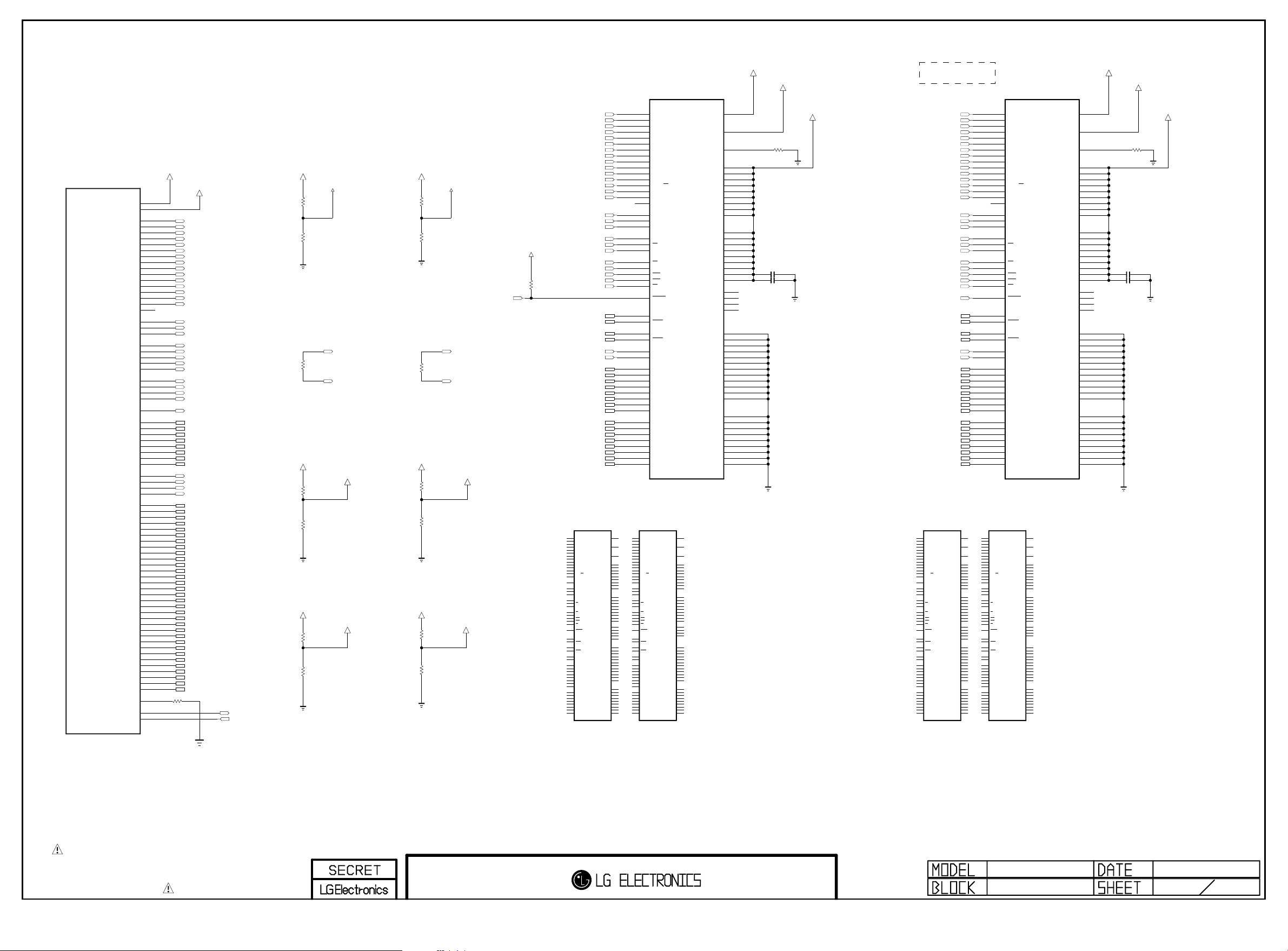

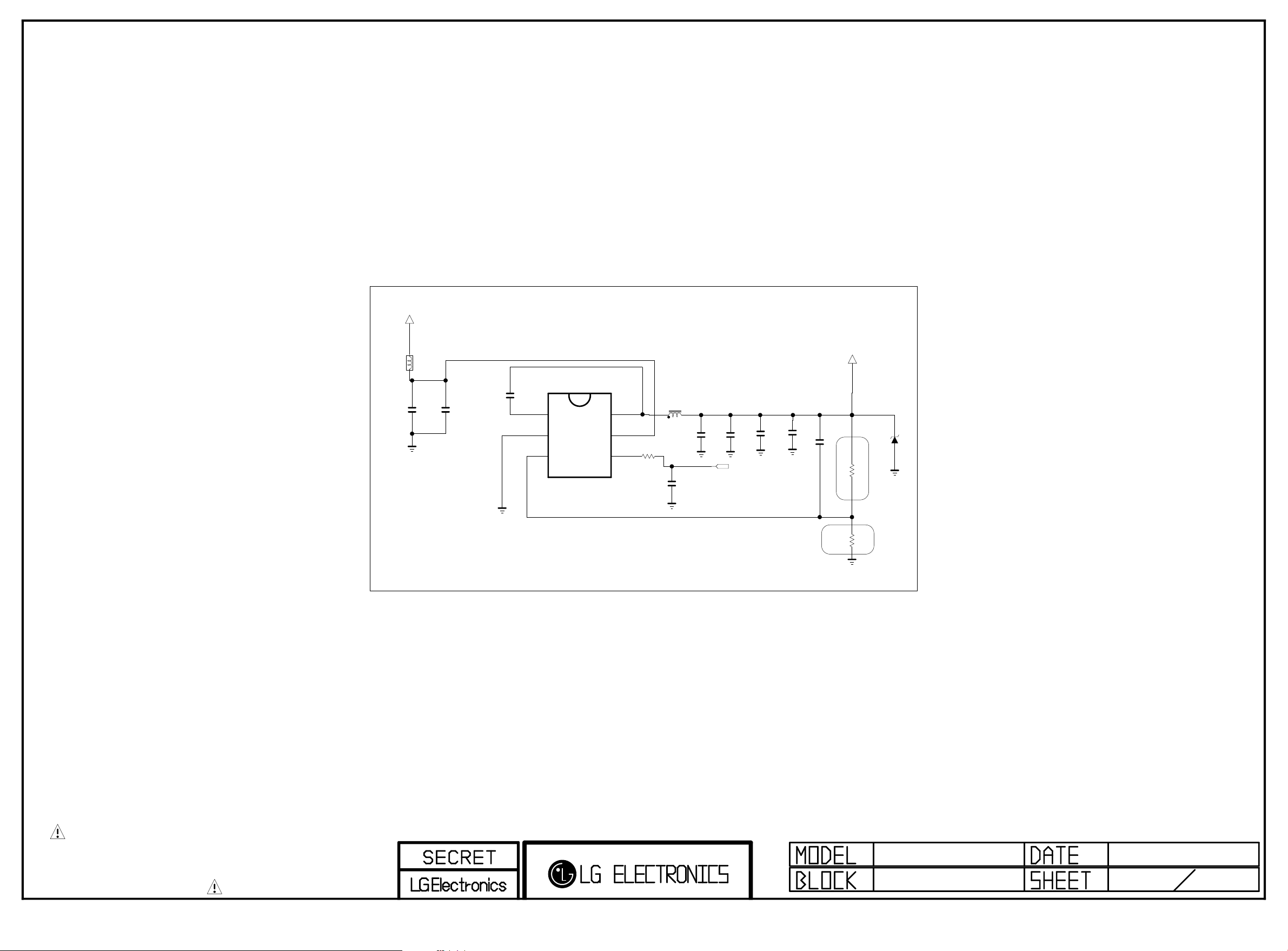

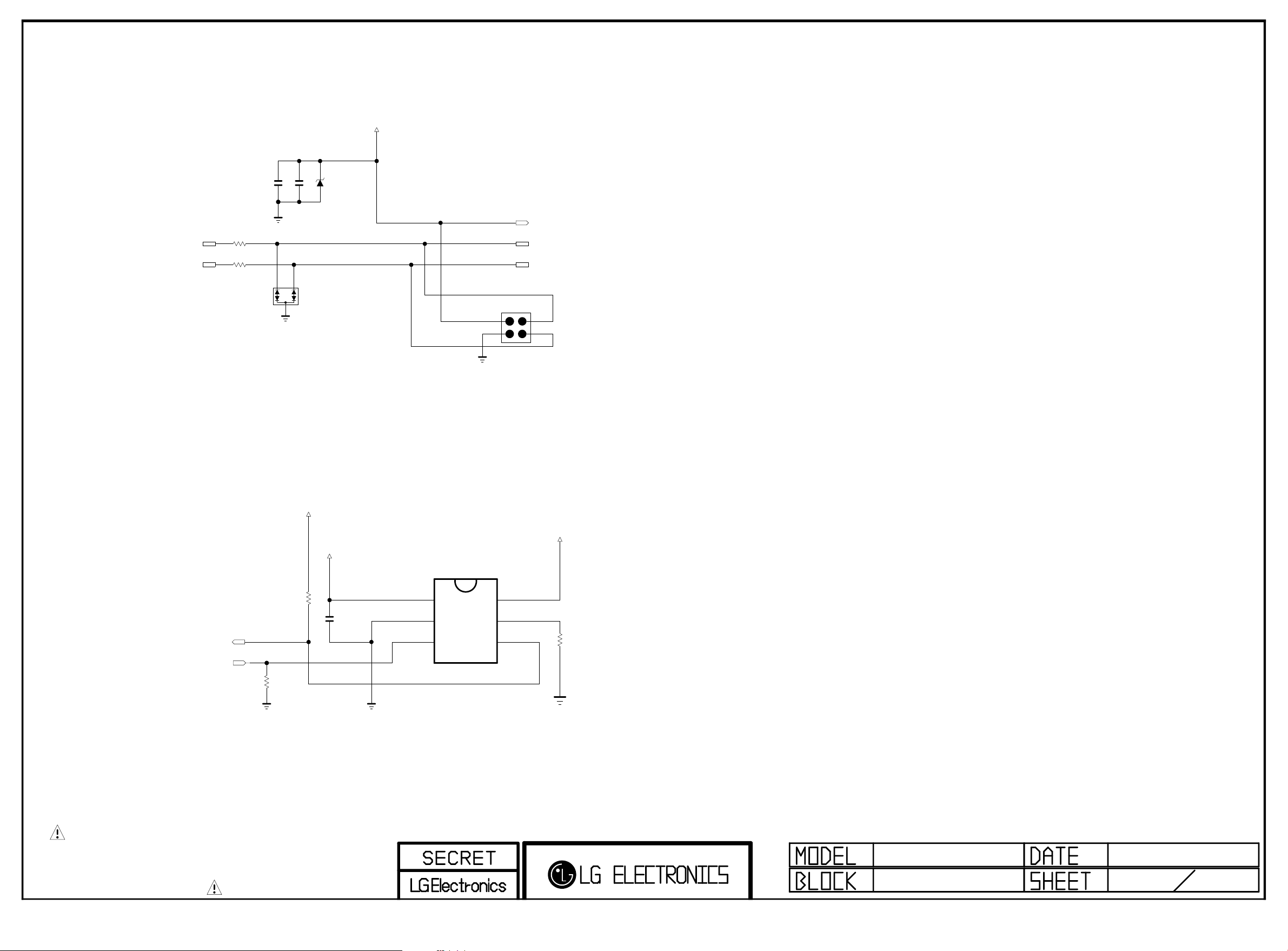

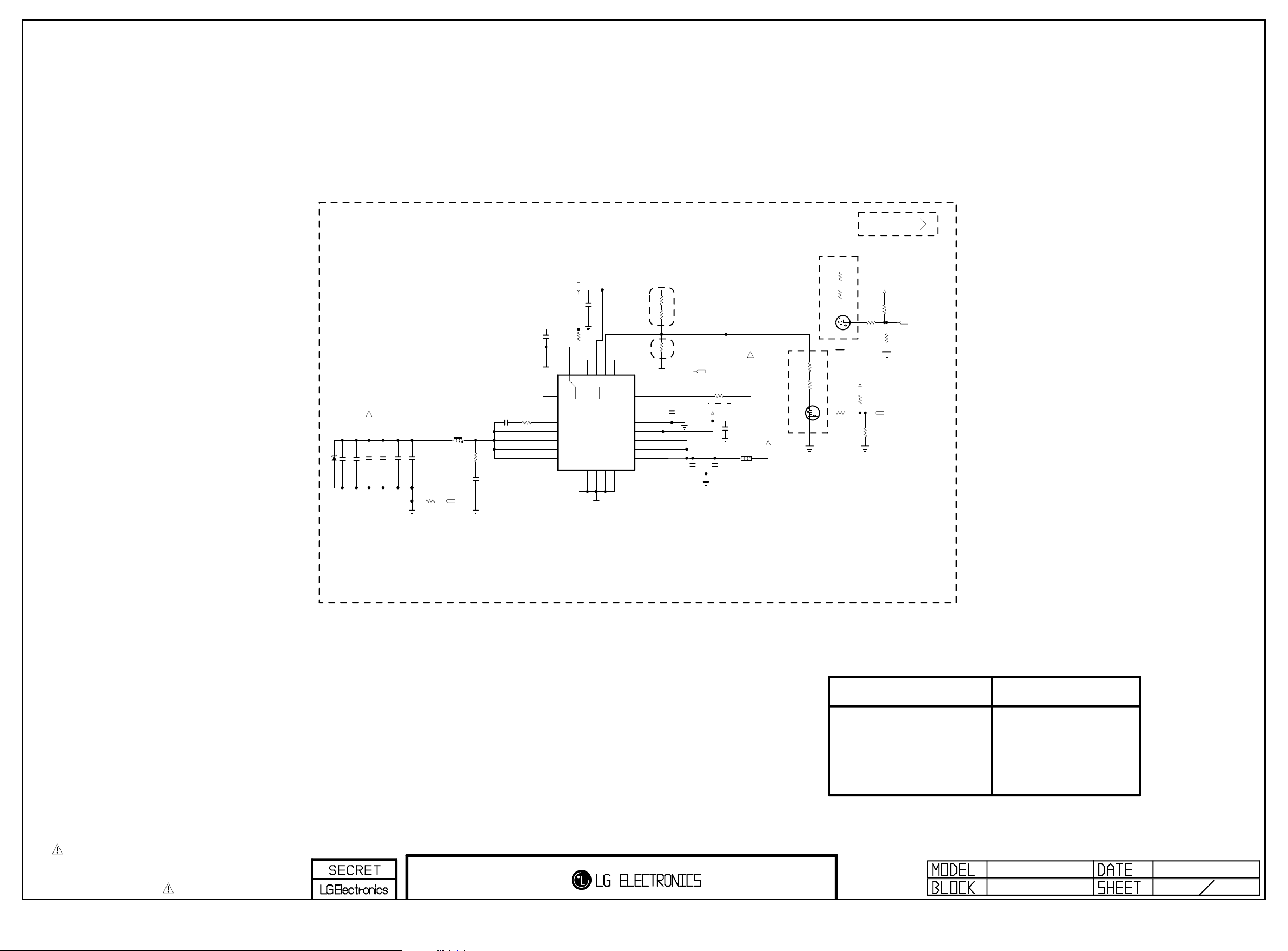

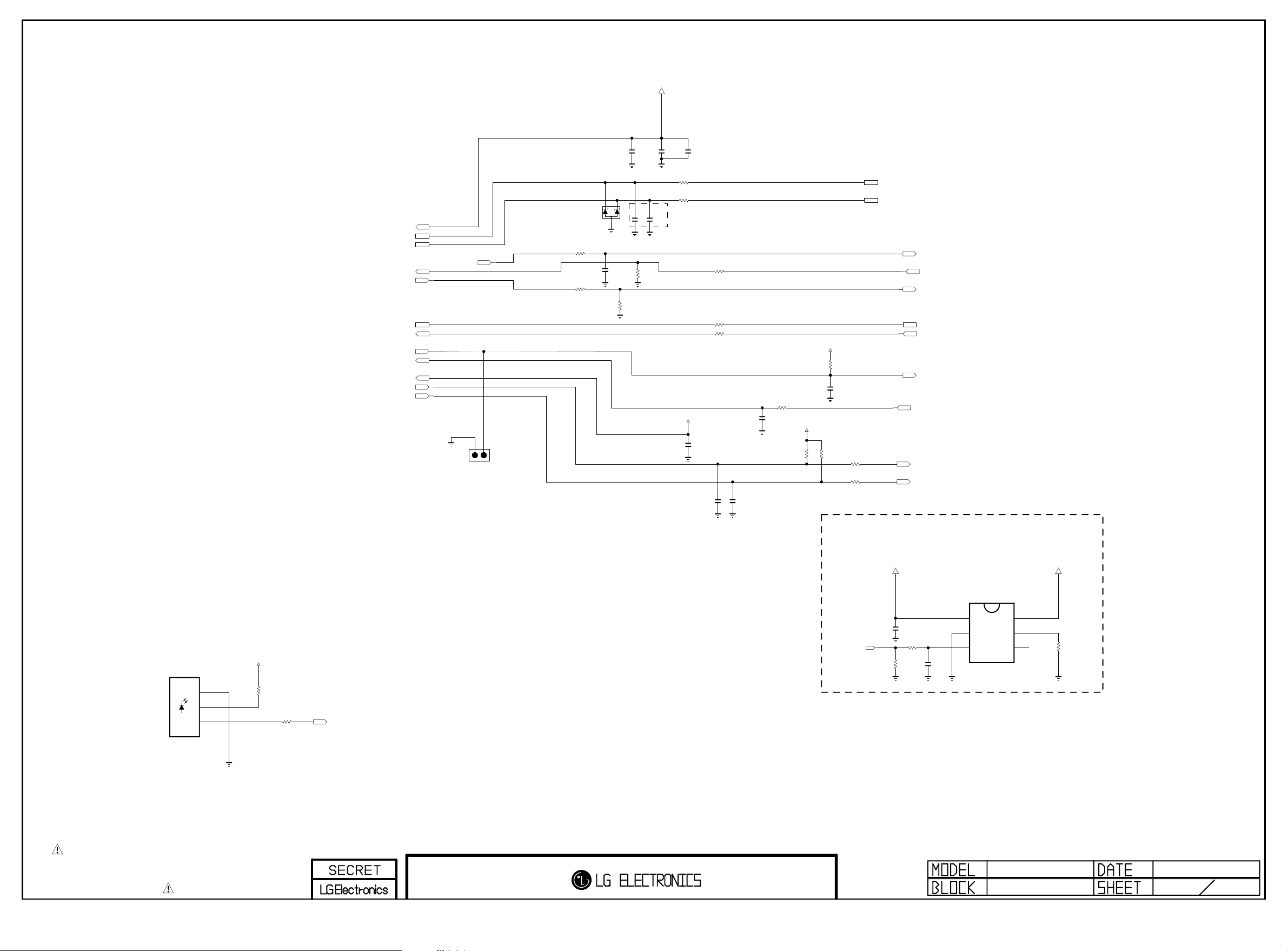

SCHEMATIC CIRCUIT DIAGRAM ........................................... APPENDIX

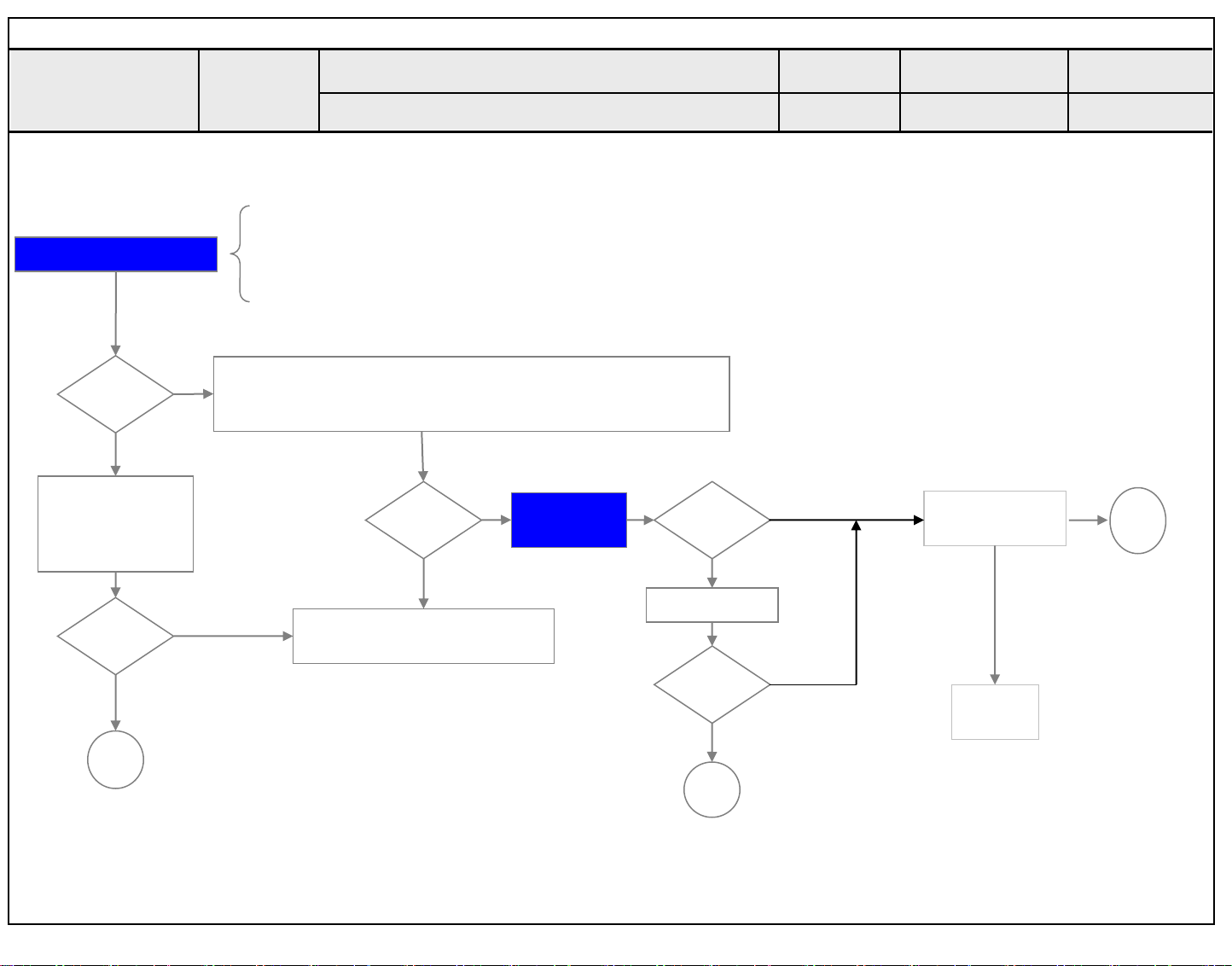

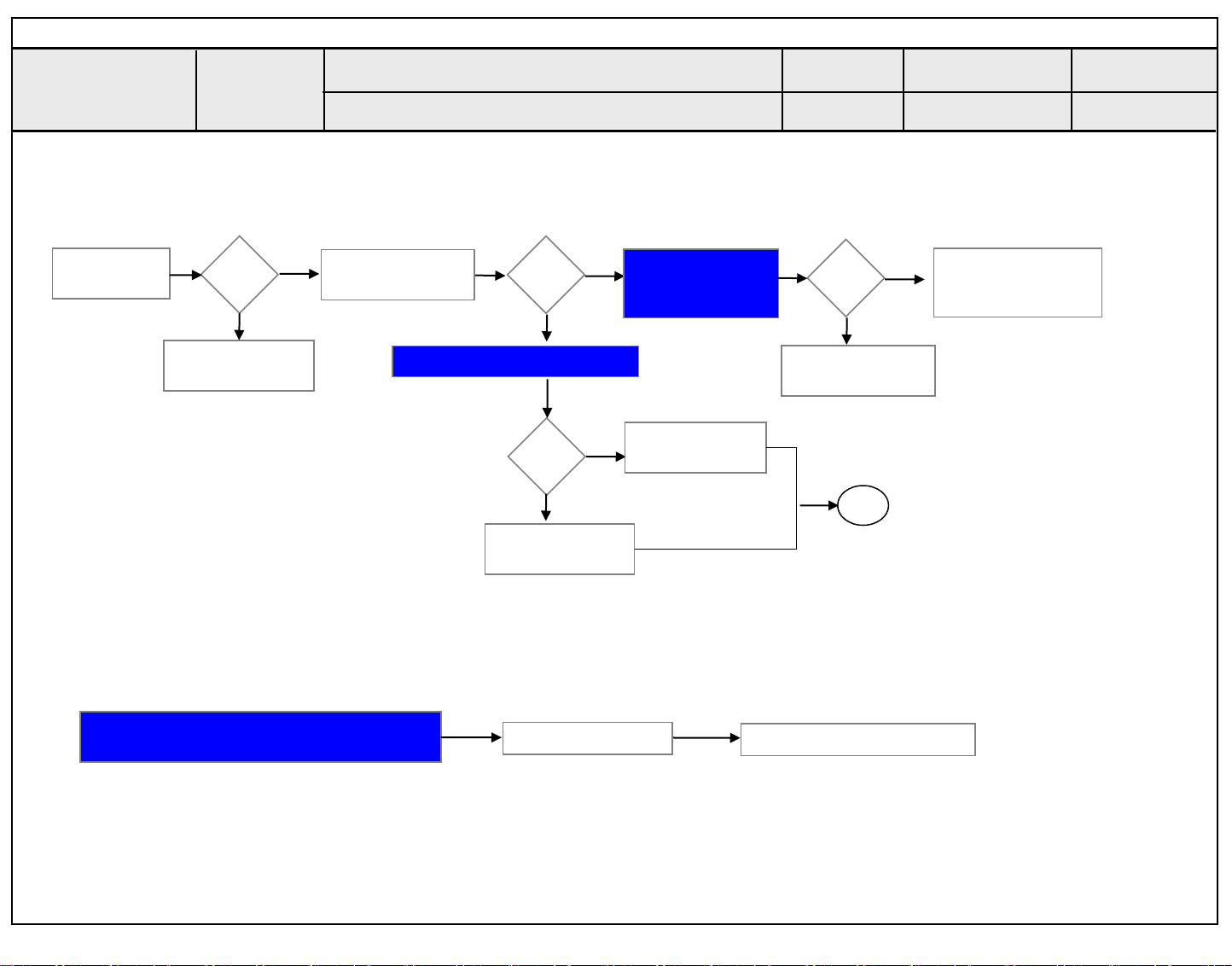

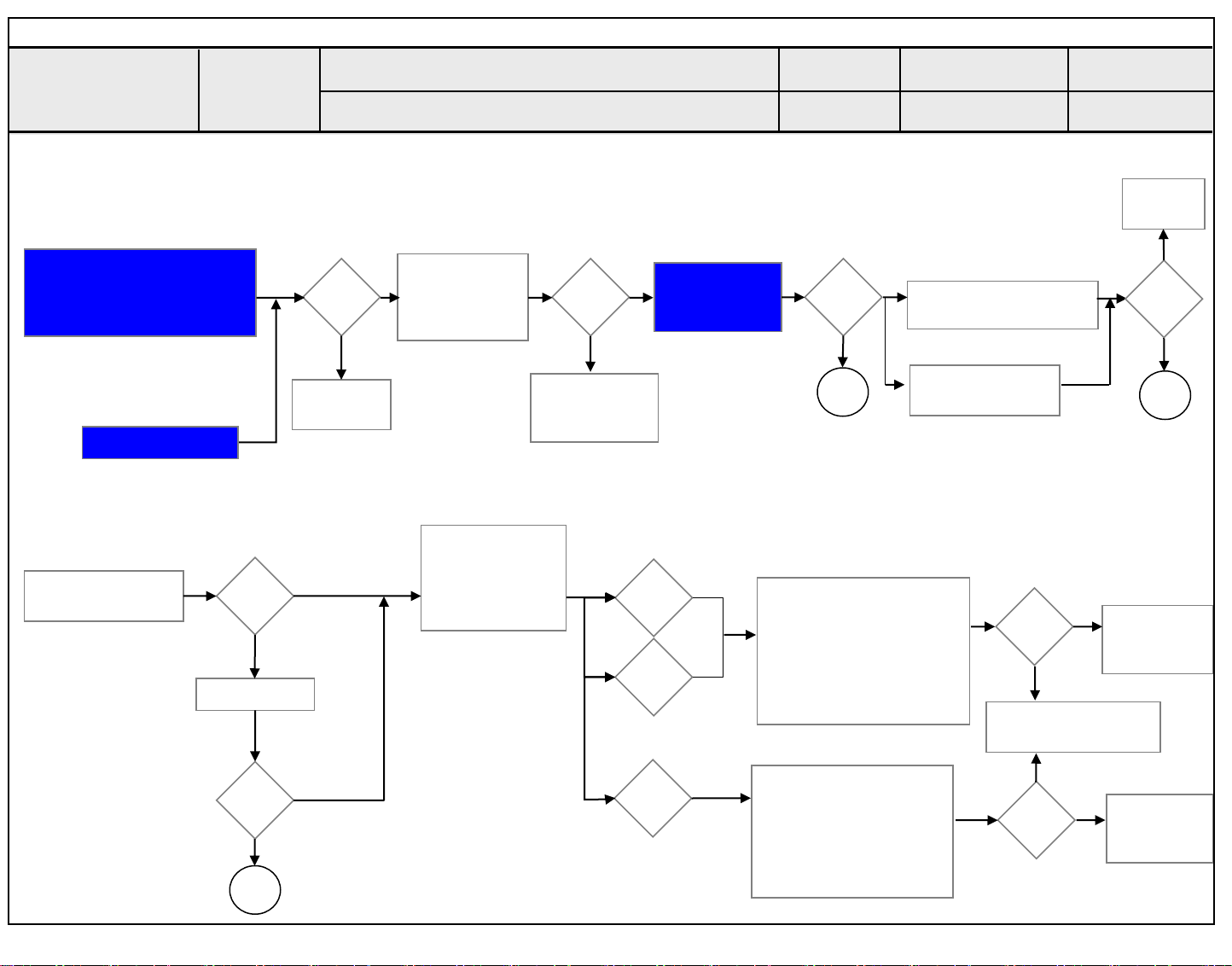

TROUBLE SHOOTING GUIDE ................................................ APPENDIX

Only for training and service purposes

- 2 -

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

General Guidance

An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks.

It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation.

If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified.

When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB.

Keep wires away from high voltage or high temperature parts.

Before returning the receiver to the customer,

always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock.

Leakage Current Cold Check(Antenna Cold Check)

With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer.

Leakage Current Hot Check (See below Figure)

Plug the AC cord directly into the AC outlet.

Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to

0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer.

Leakage Current Hot Check circuit

Only for training and service purposes

- 3 -

SERVICING PRECAUTIONS

CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the

SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conict between the

following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First.

General Servicing Precautions

1. Always unplug the receiver AC power cord from the AC power source before;

a. Removing or reinstalling any component, circuit board mod-

ule or any other receiver assembly.

b. Disconnecting or reconnecting any receiver electrical plug or

other electrical connection.

c. Connecting a test substitute in parallel with an electrolytic

capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explosion hazard.

2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc".

3. Do not spray chemicals on or near this receiver or any of its assemblies.

4. Unless specied otherwise in this service manual, clean

electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength)

CAUTION: This is a ammable mixture. Unless specied otherwise in this service manual, lubrication of

contacts in not required.

5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped.

6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed.

7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last.

8. Use with this receiver only the test xtures specied in this

service manual.

CAUTION: Do not connect the test xture ground strap to any

heat sink in this receiver.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES

devices are integrated circuits and some eld-effect transistors

and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static type solder removal device. Some solder

removal devices not classied as “anti-static” can generate electrical charges sufcient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate

electrical charges sufcient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your

foot from a carpeted oor can generate static electricity sufcient to damage an ES device.)

General Soldering Guidelines

1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F.

2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead.

3. Keep the soldering iron tip clean and well tinned.

4. Thoroughly clean the surfaces to be soldered. Use a mall wirebristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners.

5. Use the following unsoldering technique

a. Allow the soldering iron tip to reach normal temperature.

(500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction-

type solder removal device or with solder braid.

CAUTION: Work quickly to avoid overheating the circuit

board printed foil.

6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature

(500 °F to 600 °F)

b. First, hold the soldering iron tip and solder the strand against

the component lead until the solder melts.

c. Quickly move the soldering iron tip to the junction of the

component lead and the printed circuit foil, and hold it there only until the solder ows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil.

d. Closely inspect the solder area and remove any excess or

splashed solder with a small wire-bristle brush.

Only for training and service purposes

- 4 -

IC Remove/Replacement

Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent at against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above.

Removal

1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts.

2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC.

Replacement

1. Carefully insert the replacement IC in the circuit board.

2. Carefully bend each IC lead against the circuit foil pad and solder it.

3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas).

"Small-Signal" Discrete Transistor Removal/Replacement

1. Remove the defective transistor by clipping its leads as close as possible to the component body.

2. Bend into a "U" shape the end of each of three leads remaining on the circuit board.

3. Bend into a "U" shape the replacement transistor leads.

4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection.

Power Output, Transistor Device Removal/Replacement

1. Heat and remove all solder from around the transistor leads.

2. Remove the heat sink mounting screw (if so equipped).

3. Carefully remove the transistor from the heat sink of the circuit board.

4. Insert new transistor in the circuit board.

5. Solder each transistor lead, and clip off excess lead.

6. Replace heat sink.

Diode Removal/Replacement

1. Remove defective diode by clipping its leads as close as possible to diode body.

2. Bend the two remaining leads perpendicular y to the circuit board.

3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board.

4. Securely crimp each connection and solder it.

5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder.

3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures.

Circuit Board Foil Repair

Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered.

At IC Connections

To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections).

1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary).

2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern.

3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection.

4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire.

At Other Connections

Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board.

1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens.

2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly connected to the affected copper pattern.

3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

Fuse and Conventional Resistor Removal/Replacement

1. Clip each fuse or resistor lead at top of the circuit board hollow stake.

2. Securely crimp the leads of replacement component around notch at stake top.

Only for training and service purposes

- 5 -

SPECIFICATION

NOTE : Specifications and others are subject to change without notice for improvement

.

1. Application range

This spec sheet is applied to the LED TV used UA63J chassis

2. Test condition

Each part is tested as below without special notice.

(1) Temperature : 25 ºC ± 5 ºC(77±9ºF), CST : 40 ºC±5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage

Standard input voltage (100~240V@ 50/60Hz) * Standard Voltage of each products is marked by models.

(4) Specification and performance of each parts are followed

each drawing and specification by part number in accordance with BOM.

(5) The receiver must be operated for about 20 minutes prior

to the adjustment.

3. Test method

(1) Performance: LGE TV test method followed (2) Demanded other specification

- Safety : UL, CSA, CE, IEC specification

- EMC : FCC, ICES, CE, IEC specification

- Wireless : Wireless HD Specification (Option)

4. General Specification

4.1. Model Specification

No Item Specication Remark

1 Market North America

2 Broadcasting system ATSC / NTSC-M, 64 & 256 QAM

3 Available Channel VHF : 2~13

UHF : 14~69

DTV : 2-69

CATV : 1 ~ 135

CADTV : 1 ~ 135

4 Receiving system Digital : ATSC, 64 & 256 QAM

Analog : NTSC-M

5 Video Input NTSC-M Rear RCA

6 Component Input Y/Cb/Cr, Y/ Pb/Pr Rear RCA

7 HDMI Input HDMI 3 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4)

HDMI 2 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

HDMI 1 DTV format, Support HDCP2.2/ PC

(HDMI version 1.4/2.0)

8 Audio Input Component / AV Audio L/R Input ; Rear

9 SPDIF out(1EA) Optical Audio out Rear (1EA),

10 USB Input(3EA) EMF, DivX HD, For SVC (download) Side(1)/Rear(2) :JPEG, MP3, DivX HD

Side,

Side, Support ARC only HDMI2

Side,

Component and av use same jack ; Rear

(Exception, UA65S: USB 1EA)

Only for training and service purposes

- 6 -

4.2. Module Specification

No Item Specication Remark

1 Display Screen Device 79” wide color display module LC790EQF-FHF1 (3D,T240)

70” wide color display module HC700EQF-VHEQ1 (2D,M120)

65” wide color display module LC650EQF-FHM1 (2D,T240)

60” wide color display module LC600EQF-FHM1 (2D,T240)

55” wide color display module LC550EQE-FHM1 (2D,T120)

49” wide color display module LC490EQE-FHM1 (2D,T120)

43” wide color display module LC430EQE-FHM1 (2D,T120)

2 Aspect Ratio 16:9 All

3 LCD Module 79” QWUXGA TFT LCD

70” QWUXGA TFT LCD

65” QWUXGA TFT LCD

60” QWUXGA TFT LCD

55” QWUXGA TFT LCD

49” QWUXGA TFT LCD

43” QWUXGA TFT LCD

4 Operating Environment TFT 1) Temp. : 0 ~ 40 deg

2) Humidity : 0 ~ 85%

ALEF Temp. : 0 ~ 50 deg

Humidity : 20 ~ 90%

5 Storage Environment TFT Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

ALEF Temp. : -20 ~ 60 deg

Humidity : 10 ~ 90%

6 Input Voltage AC100 ~ 240V, 50/60Hz

7 Display Colors 1.06 B (10-bit) Except FHD 60Hz models

16.7 M (8-bit) Only FHD 60Hz models

1.07G colors (8-bit+FRC) V580DJ2-KS5

1.067G V500DJ2-KS5

Surface Treatment Hard coating (2H), Anti-glare

LC790EQF-FGM1 (2D,T240)

LC650EQF-FHM2 (2D,T240) LC650EQF-PHF1 (3D,T240) LC650VQF-FHF1 (3D,T240,Curved)

LC600EQF-PHF1 (3D,T240)

LC550EQE-FHM2 (2D,T120) LC550EQE-PHF1 (3D,T120) LC550VQF-FHF1 (3D,T240,Curved)

LC490EQE-FHM2 (2D,T120) LC490EQE-XHF1 (3D,T120)

LC430EQE-FHM2 (2D,T120)

LGE SPEC

Only for training and service purposes

- 7 -

5. External input format

5.1. 2D Mode

5.1.1. Component input(Y, CB/PB, CR/PR)

No

1 720*480 15.73 60 13.5135 SDTV ,DVD 480I

2 720*480 15.73 59.94 13.5 SDTV ,DVD 480I

3 720*480 31.50 60 27.027 SDTV 480P

4 720*480 31.47 59.94 27.0 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.500 60 148.50 HDTV 1080P

10 1920*1080 67.432 59.94 148.352 HDTV 1080P

Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed

5.1.2. HDMI Input (PC/DTV)

No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed

HDMI-PC DDC

1 640*350 31.46 70.09 25.17 EGA Х

2 720*400 31.46 70.08 28.32 DOS O

3 640*480 31.46 59.94 25.17 VESA(VGA) O

4 800*600 37.87 60.31 40.00 VESA(SVGA) O

5 1024*768 48.36 60.00 65.00 VESA(XGA) O

6 1152*864 54.34 60.05 80.00 VESA O

7 1280*1024 63.98 60.02 108.00 VESA (SXGA) O

8 1360*768 47.71 60.01 85.50 VESA (WXGA) O

9 1920*1080 67.5 60 148.5

10 3840*2160 67.5 30 297.00

11 3840*2160 56.25 25.00 297.00

12 3840*2160 54 24 297.00

13 4096*2160 53.95 23.97 297

14 4096*2160 54 24 297 Only UD Model O

WUXGA(Reduced Blanking)

Only UD Model

O

Only for training and service purposes

- 8 -

HDMI-DTV

1 640 * 480 31.46 59.94 25.125 SDTV 480P

2 640 * 480 31.5 60 25.125 SDTV 480P

3 720 * 480 31.5 60 27.027 SDTV 480P

4 720 * 480 31.47 59.94 27.00 SDTV 480P

5 1280*720 45.00 60.00 74.25 HDTV 720P

6 1280*720 44.96 59.94 74.176 HDTV 720P

7 1920*1080 33.75 60.00 74.25 HDTV 1080I

8 1920*1080 33.72 59.94 74.176 HDTV 1080I

9 1920*1080 67.50 60 148.50 HDTV 1080P

10 1920*1080 67.43 59.94 148.35 HDTV 1080P

11 1920*1080 27.00 24.00 74.25 HDTV 1080P

12 1920*1080 26.97 23.97 74.176 HDTV 1080P

13 1920*1080 33.75 30.00 74.25 HDTV 1080P

14 1920*1080 33.71 29.97 74.176 HDTV 1080P

15 3840*2160 67.5 30.00 297.00 UDTV 2160P

16 3840*2160 61.43 29.97 296.703 UDTV 2160P

17 3840*2160 56.25 25.00 297.00 UDTV 2160P

18 3840*2160 54.0 24.00 297.00 UDTV 2160P

19 3840*2160 53.95 23.98 296.703 UDTV 2160P

20 3840*2160 135 59.94 594 UDTV 2160P

21 3840*2160 135 60 594 UDTV 2160P

22 4096*2160 53.95 23.98 296.703 UDTV 2160P

23 4096*2160 54 24.00 297 UDTV 2160P

24 4096*2160 56.25 25.00 297 UDTV 2160P

25 4096*2160 61.43 29.97 296.703 UDTV 2160P

26 4096*2160 67.5 30.00 297 UDTV 2160P

27 4096*2160 135 59.94 594 UDTV 2160P

28 4096*2160 135 60.00 594 UDTV 2160P

Only for training and service purposes

- 9 -

5.2. 3D Mode

5.2.1. HDMI Input 1.4b (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1 640*480 31.46 / 31.5 59.94/ 60 25.17/25.2 1 Top-and-Bottom

62.93 / 63 59.94/ 60 50.35/50.4 1 Frame packing

31.46 / 31.5 59.94/ 60 50.35/50.4 1 Side-by-side(Full) (SDTV 480P)

2 720*480 31.46 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom

62.93 / 63 59.94 / 60 54/54.06 2,3 Frame packing

31.46 / 31.5 59.94 / 60 54/54.06 2,3 Side-by-side(Full) (SDTV 480P)

3 1280*720 44.96 / 45 59.94 / 60 74.18/74.25 4 Top-and-Bottom

89.91 / 90 59.94 / 60 148.35/148.5 4 Frame packing

44.96 / 45 59.94 / 60 148.35/148.5 4 Side-by-side(Full) (HDTV 720P)

4 1920*1080 33.72 / 33.75 59.94 / 60 74.18/74.25 5 Top-and-Bottom

67.43 / 67.5 59.94 / 60 148.35/148.5 5 Frame packing

33.72 / 33.75 59.94 / 60 148.35/148.5 5 Side-by-side(Full) (HDTV 1080I)

26.97 / 27 23.97 / 24 74.18/74.25 32 Top-and-Bottom

43.94 / 54 23.97 / 24 148.35/148.5 32 Frame packing

26.97 / 27 23.97 / 24 148.35/148.5 32 Side-by-side(Full) (HDTV 1080P)

28.125 25 74.25 33 Top-and-Bottom

56.25 25 148.5 33 Frame packing

28.125 25 148.5 33 Side-by-side(Full) (HDTV 1080P)

33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom

67.432 / 67.5 29.976 / 30.00 148.35/148.5 34 Frame packing

33.716 / 33.75 29.976 / 30.00 148.35/148.5 34 Side-by-side(Full) (HDTV 1080P)

67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom

VIC 3D input proposed

mode

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Field alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Line alternative

Side-by-side(half)

Proposed

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Secondary(SDTV 480P) Secondary(SDTV 480P)

Secondary(SDTV 480P) (SDTV 480P)

Primary(HDTV 720P) Primary(HDTV 720P)

Primary(HDTV 720P) (HDTV 720P)

Secondary(HDTV 1080I) Primary(HDTV 1080I)

Primary(HDTV 1080I) (HDTV 1080I)

Primary(HDTV 1080P) Primary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Secondary(HDTV 1080P) Secondary(HDTV 1080P)

Secondary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Primary(HDTV 1080P) (HDTV 1080P)

Primary(HDTV 1080P) Secondary(HDTV 1080P)

Only for training and service purposes

- 10 -

5.2.2. HDMI 1.4/2.0(3D Supported mode manaually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

(MHz)

1. 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half),

2. 1280*720 45.00 60.00 74.25 HDTV 720P

3. 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D, Side by Side(Half),

4. 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D, Side by Side(Half),

5. 1920*1080 28.12 25 74.25 HDTV 1080P

6. 1920*1080 33.75 30.00 74.25 HDTV 1080P

7. 1920*1080 67.50 60.00 148.5 HDTV 1080P 2D to 3D, Side by Side(Half),

8. 3840*2160 53.95 23.976 296.703 HDTV 2160P

9. 3840*2160 54 24.00 297.00 HDTV 2160P

10. 3840*2160 56.25 25.00 297.00 HDTV 2160P

11. 3840*2160 61.43 29.970 296.703 HDTV 2160P

12. 3840*2160 67.5 30.00 297.00 HDTV 2160P

13. 4096*2160 53.95 23.976 296.703 HDTV 2160P

14. 4096*2160 54 24.00 297.00 HDTV 2160P

15. 4096*2160 56.25 25.00 297.00 HDTV 2160P

16. 4096*2160 61.43 29.970 296.703 HDTV 2160P

17. 4096*2160 67.5 30.00 297.00 HDTV 2160P

18. 3840*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

19. 4096*2160 135 60 594 HDTV 2160P 2D to 3D, Top & Bottom(half),

Proposed 3D input proposed mode

Top & Bottom, Checker Board, Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom

Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Side by Side(half), Port3 Only

5.2.3. HDMI-PC Input (3D) (3D Supported Mode Manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock

1. 1024*768 48.36 60 65 HDTV 768P 2D to 3D,

2. 1360*768 47.71 60 85.5 HDTV 768P 2D to 3D,

3. 1920*1080 67.500 60 148.50 HDTV 1080P 2D to 3D,

4. 3840*2160 4096*2160

5. 3840*2160 4096*2160

6. Others - - - 640*350

54 24.00 296.703 HDTV 2160P 2D to 3D,

56.25 25.00 297

67.5 30.00 296.703

135 60 594 HDTV 2160P 2D to 3D,

(MHz)

Proposed 3D input proposed mode

Side by Side(half), Top & Bottom

Side by Side(half), Top & Bottom, Checker Board, Single Frame Sequential, Row Interleaving, Column Interleaving

Top & Bottom(half), Side by Side(half),

Top & Bottom(half), Side by Side(half), Port3 Only

720*400 640*480 800*600

1152*864

2D to 3D, Side by Side(half), Top & Bottom

- 11 -

Only for training and service purposes

5.2.4. RF Input(3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode

1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom

2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

5.2.5. RF Input (3D supported mode automatically)

No. Signal 3D input proposed mode

1 Frame Compatible Side by Side(Half), Top & Bottom

5.2.6. USB, DLNA (Movie) Input (3D supported mode manually)

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 Under 704x480 - - - 2D to 3D

2 Over 704x480

interlaced

3 Over 704x480

progressive

4 Over 704x480

progressive

5 Over 2160P - 24/25/30/60 - 2D to 3D, Side by Side(Half),

- - - 2D to 3D, Side by Side(Half), Top & Bottom

- 60 - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving, Frame Sequential

- others - 2D to 3D, Side by Side(Half), Top & Bottom, Checker Board, Row Interleaving, Column Interleaving

Top & Bottom, USB Only

5.2.7. USB, DLNA (Photo) Input (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 USB(Photo) - - - 2D to 3D, Side by Side(Half), Top & Bottom

5.2.8. USB, DNLA Input (3D supported mode automatically)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1080P 33.75 30 - Side by Side(Half), Top & Bottom, Checker Board,

2 2160p 67.5 30 297 MPO(Photo), JPS(Photo)

MPO(Photo)

Only for training and service purposes

- 12 -

5.2.9. Component Input(3D supported mode manually)

R

L

R

L

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark

1 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D,

2 1280*720 37.500 50 74.25 HDTV 720P

3 1920*1080 33.75 60.00 74.25 HDTV 1080I

4 1920*1080 28.125 50.00 74.25 HDTV 1080I

5 1920*1080 27.00 24.00 74.25 HDTV 1080P

6 1920*1080 28.12 25 74.25 HDTV 1080P

7 1920*1080 33.75 30.00 74.25 HDTV 1080P

8 1920*1080 67.50 60.00 148.5 HDTV 1080P

9 1920*1080 56.250 50 148.5 HDTV 1080P

10 Others - - - SDTV

Side by Side(Half), Top & Bottom

5.2.10. Miracast, Widi (3D supported mode manually)

No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode

1 1024X768p - 30 / 60 - 2D to 3D, Side by Side(Half), Top & Bottom

2 1280x720p - 30 / 60 -

3 1920X1080p 30 / 60

4 Others - 2D to 3D

**Remark: 3D Input mode

No. Side by Side Top & Bottom Checkerboard Single Frame

Sequential

1

Frame Packing Line

Interleaving

Column

Interleaving

Only for training and service purposes

- 13 -

ADJUSTMENT INSTRUCTION

1. Application Range

This spec. sheet applies to UA63J Chassis applied LED TV all models manufactured in TV factory

2. Specification.

(1) Because this is not a hot chassis, it is not necessary to use

an isolation transformer. However, the use of isolation

transformer will help protect test instrument (2) Adjustment must be done in the correct order. (3) The adjustment must be performed in the circumstance of

25 ±5ºC of temperature and 65±10% of relative humidity if

there is no specific designation (4) The input voltage of the receiver must keep 100~240V,

50/60Hz (5) The receiver must be operated for about 5 minutes prior to

the adjustment when module is in the circumstance of over

15ºC

▪ In case of keeping module is in the circumstance of 0°C, it

should be placed in the circumstance of above 15°C for 2 hours

▪ In case of keeping module is in the circumstance of below

-20°C, it should be placed in the circumstance of above 15°C for 3 hours

* (Caution) When still image is displayed for a period of 20

minutes or longer (especially where W/B scale is strong. Digital pattern 13ch and/or Cross hatch pattern 09ch), there can some afterimage in the black level area.

3. Adjustment items

3.1. Main PCB check process

▪ MAC Address Download ▪ ADC adjustment : 480i Comp1, 1920*1080 Comp1 ▪ EDID/DDC download

Above adjustment items can be also performed in Final Assembly if needed. Both Board-level and Final assembly adjustment items can be check using In-Start Menu 1.ADJUST CHECK.

3.2. Final assembly adjustment

▪ White Balance adjustment ▪ RS-232C functionality check ▪ PING Test ▪ Factory Option setting per destination ▪ Ship-out mode setting (In-Stop)

4. Automatic Adjustment

4.1. ADC Adjustment

ADC adjustment is needed to find the optimum black level and gain in Analog-to-Digital device and to compensate RGB deviation.

4.1.1. Equipment & Condition

(1) USB to RS-232C Jig (2) MSPG-925 Series Pattern Generator(MSPG-925FA,

pattern -65)

- Resolution : 480i Comp1 1080P Comp1

- Pattern : Horizontal 100% Color Bar Pattern

- Pattern level : 0.7±0.1 Vp-p

- Image

4.1.2. Adjustment method

▪ Using USB, adjust items listed in 3.1 in the other shown in

“4.1.3.3”

4.1.3. Adj. protocol

Protocol Command Set ACK

Enter adj. mode aa 00 00 a 00 OK00x

Source change xb 00 40

xb 00 60

Begin adj. ad 00 10

Return adj. result

Read adj. data (main)

ad 00 20

(sub ) ad 00 21

Conrm adj. ad 00 99 NG 03 00x (Fail)

End adj. ad 00 90 a 00 OK90x

(Ref.) ADC Adj. RS232C Protocol_Ver1.0

b 00 OK04x (Adjust 480i, 1080p Comp1 ) b 00 OK06x (Adjust 1920*1080 RGB)

OKx (Case of Success) NGx (Case of Fail)

(main) 000000000000000000000000007c007b006dx

(Sub) 000000070000000000000000007c00830077x

NG 03 01x (Fail) NG 03 02x (Fail) OK 03 03x (Success)

3.3. Etc.

▪ Ship-out mode ▪ Service Option Default ▪ USB Download(S/W Update, Option, Service only) ▪ ISP Download (Option)

Only for training and service purposes

- 14 -

Adj. order

▪ aa 00 00 [Enter ADC adj. mode] ▪ xb 00 04 [Change input source to Component1(480i&1080p)] ▪ ad 00 10 [Adjust 480i&1080p Comp1] ▪ xb 00 06 [Change input source to RGB(1024*768)] ▪ ad 00 10 [Adjust 1920*1080 RGB] ▪ aa 00 90 End adj.

4.2. MAC address, ESN, Widevine, HDCP2.0 key D/L

4.2.1. Equipment & Condition

(1) Play file: keydownload.exe

4.2.2. Communication Port connection

(1) Key Write: Com 1,2,3,4 and 115200 (Baudrate) (2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)

4.2.3. Download process

(1) Select the download items. (2) Mode check: Online Only (3) Check the test process : DETECT -> MAC -> Widevine (4) Play: START (5) Check of result: Ready, Test, OK or NG

4.2.4. Communication Port connection

(1) Connect: PCBA Jig -> RS-232C Port == PC -> RS-232C

Port

4.3. LAN Inspection

4.3.1. Equipment & Condition

▪ Each other connection to LAN Port of IP Hub and Jig

4.3.2. LAN inspection solution

▪ LAN Port connection with PCB ▪ Network setting at MENU Mode of TV ▪ Setting automatic IP ▪ Setting state confirmation

- If automatic setting is finished, you confirm IP and MAC Address.

4.2.5. Download

(1) Models(MAC + Widevine + ESN): Korea model(K2Lp)

4.3.3. LAN PORT INSPECTION (PING TEST)

(1) Play the LAN Port Test PROGRAM. (2) Input IP set up for an inspection to Test Program.

* IP Number : 12.12.2.2.

Only for training and service purposes

- 15 -

4.3.4. LAN PORT inspection (PING TEST)

(1) Play the LAN Port Test Program. (2) connect each other LAN Port Jack. (3) Play Test (F9) button and confirm OK Message. (4) remove LAN CABLE

4.4. Model name & Serial number Download

4.4.1. Model name & Serial number D/L

▪ Press “Power on” key of service remocon.(Baud rate :

115200 bps)

▪ Connect RS-232C Signal to USB Cable to USB. ▪ Write Serial number by use USB port. ▪ Must check the serial number at Instart menu.

* Manual Download (Model Name and Serial Number)

If the TV set is downloaded By OTA or Service man, Sometimes model name or serial number is initialized. ( not always) It is impossible to download by bar code scan, so It need Manual download.

a. Press the ‘INSTART’ key of ADJ remote controller. b. Go to the menu ‘7. Model Number D/L’ like below photo. c. Input the Factory model name or Serial number like

below photo.

d. Check the model name INSTART menu -> Factory name

displayed

e. Check the Diagnostics (DTV country only) -> Buyer

model displayed

4.5. WIFI MAC ADDRESS CHECK

4.5.1. Using RS232 Command

Command Set ACK

Transmission [A][l][][Set ID][][20][Cr] [O][K][x] or [N][G]

■ Check the menu on in-start

■ Method & Notice

A. Serial number D/L is using of scan equipment. B. Setting of scan equipment operated by Manufacturing

Technology Group.

C. Serial number D/L must be conformed when it is produced

in production line, because serial number D/L is mandatory by D-book 4.0

Only for training and service purposes

- 16 -

5. Manual Adjustment

DVI-D to HDMI or HDMI to HDMI

5.1. ADC adjustment is not needed because of OTP (Auto ADC adjustment)

5.2. EDID

(The Extended Display Identification Data) / DDC (Display Data Channel) download

5.2.1. Overview

It is a VESA regulation. A PC or a MNT will display an optimal resolution through information sharing without any necessity of user input. It is a realization of “Plug and Play”.

5.2.2. Equipment

▪ Since embedded EDID data is used, EDID download JIG,

HDMI cable and D-sub cable are not need.

▪ Adjust remocon

5.2.3. Download method

(1) Press Adj. key on the Adjust remocon, then select “12.EDID

D/L”.

By pressing Enter key, enter EDID D/L menu

(2) Select [Start] button by pressing Enter key, HDMI1 / HDMI2

/ HDMI3 / HDMI4 are Writing and display OK or NG.

For HDMI EDID

5.2.4. EDID DATA

▪ Reference

- HDMI1 ~ HDMI3

- In the data of EDID, bellows may be different by Input mode

0 1 2 3 4 5 6 7 8 9 A B C D E F

0x00 00 FF FF FF FF FF FF 00 1E 6D

0x01

0x02 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80

0x03 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C

0x04 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30

0x05 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A

0x06 3E 1E 53 10 00 0A 20 20 20 20 20 20

0x07

0x00 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21

0x01 22 15 01 29 3D 06 C0 15 07 50

0x02

0x03

0x04 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18

0x05 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D

0x06 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E

0x07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ᐗ2

01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26

ཱྀ

ྂ

10 28 10 E3 05 03 01 02 3A 80 18 71 38

྄

ⓐ Product ID ⓑ Serial No: Controlled on production line. ⓒ Month, Year: Controlled on production line:

ex) Monthly : ‘01’ -> ‘01’ Year : ‘2016’ -> ‘1A'

ⓓ Model Name(Hex): LGTV ⓔ Checksum(LG TV): Changeable by total EDID data. ⓕ Vendor Specific(HDMI)

ཿ ྀ

ྂ

01

྄

ᐗ1

5.2.4.1. EDID # DTS HDMI1 (C/S: 9F,B6)_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B6

Only for training and service purposes

- 17 -

#DTS HDMI1 (C/S: 9F, 11)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

#DTS HDMI3 (C/S: 9F, 96 )_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 10 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 11

#DTS HDMI2 (C/S: 9F,A6)_6G_UHD Deep Color ON EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A6

#DTS HDMI2 (C/S: 9F 01)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 20 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 01

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 3A F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 67 D8 30 5D C4 01 78 80 03 E3 05 C0 00 E3 0F 01 10 E3 06 40 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 50 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 60 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 96

#DTS HDMI3 (C/S: 9F F1)_3G_UHD Deep Color OFF EDID Block 0, Bytes 0-127

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

EDID Block 1, Bytes 128-255

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 36 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 29 3D 06 C0 15 07 50 09 57 07 6E 20 03 0C 00 30 00 B8 3C 20 00 80 01 02 03 04 E3 0E 30 61 66 E3 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 40 25 00 40 84 63 00 00 9E 66 21 50 0 51 00 1B 30 50 40 70 36 00 40 84 63 00 00 1E 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 F1

# AC3 HDMI1 (C/S: 9F,BF)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 BF

Only for training and service purposes

- 18 -

# AC3 HDMI1 (C/S: 9F,1A)_ 3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 1A

# AC3 HDMI3 (C/S: 9F,03)_ 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 01 10 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 26 20 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 80 30 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 58 40 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 40 50 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 3A 60 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC FC 70 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 9F

# AC3 HDMI2 (C/S: 9F,AF)_ 6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 37 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 10 00 B8 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 30 78 81 03 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 40 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 00 50 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 63 60 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 AF

# AC3 HDMI2 (C/S: 9F,0A)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 20 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 0A

# AC3 HDMI3 (C/S: 9F,FA)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 33 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 26 15 07 50 09 57 07 6E 03 0C 00 20 30 00 B8 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 30 06 07 01 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 40 84 63 00 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 50 00 40 84 63 00 00 1E 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FA

# PCM HDMI1 (C/S: 9F,31)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 10 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 31

Only for training and service purposes

- 19 -

# PCM HDMI1 (C/S: 9F,8C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 10 00 B8 20 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 8C

# PCM HDMI3 (C/S: 9F,11)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 30 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 11

# PCM HDMI2 (C/S: 9F,21)_6G_UHD Deep Color ON

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 34 F1 50 61 90 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 20 00 B8 20 3C 20 00 80 01 02 03 04 67 D8 5D C4 01 78 80 03 30 E3 05 C0 00 E3 0F 01 10 E3 06 07 01 01 1D 80 18 40 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 66 21 50 50 B0 51 00 1B 30 40 70 36 00 40 84 63 00 00 1E 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 21

# PCM HDMI2 (C/S: 9F,7C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 10 01 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 20 0F 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 30 01 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 40 8A 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 50 58 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 60 3E 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC 70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 20 00 B8 20 3C 20 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 7C

# PCM HDMI3 (C/S: 9F,6C)_3G_UHD Deep Color OFF

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01 01 10 1A 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26 26 20 50 54 A1 08 00 31 40 45 40 61 40 71 40 81 80 80 30 01 01 01 01 01 08 E8 00 30 F2 70 5A 80 B0 58 58 40 00 40 84 63 00 00 1E 02 3A 80 18 71 38 2D 40 40 50 2C 45 00 40 84 63 00 00 1E 00 00 00 FD 00 3A 3A 60 1E 88 3C 00 0A 20 20 20 20 20 20 00 00 00 FC FC 70 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 9F 9F

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 02 03 30 F1 50 61 10 22 20 05 04 03 02 01 5D 5E 10 5F 66 62 63 64 23 09 57 07 6E 03 0C 00 30 00 B8 20 3C 30 00 80 01 02 03 04 E3 0E 61 66 E3 06 07 01 30 01 1D 80 18 71 1C 16 20 58 2C 25 00 40 84 63 00 40 00 9E 66 21 50 B0 51 00 1B 30 40 70 36 00 40 84 50 63 00 00 1E 00 00 00 00 00 00 00 00 00 00 00 00 60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6C

* Checksum (HDMI 1/2/3/4)

2D ONLY PCM

3G 6G

HDMI1 0x9F, 0x8C 0x9F, 0x31

HDMI2 0x9F, 0x7C 0x9F, 0x21

HDMI3 0x9F, 0x6C 0x9F, 0x11

2D ONLY AC3

3G 6G

HDMI1 0x9F, 0x1A 0x9F, 0xBF

HDMI2 0x9F, 0x0A 0x9F, 0xAF

HDMI3 0x9F, 0xFA 0x9F, 0x9F

2D ONLY DTS

3G 6G

HDMI1 0x9F, 0x11 0x9F, 0XB6

HDMI2 0x9F, 0x01 0x9F, 0XA6

HDMI3 0x9F, 0xF1 0x9F, 0x96

Only for training and service purposes

- 20 -

5.3. Camera Port Inspection

(1) Objective : To check how it connects between Camera and

PCBA normally, and their Function

(2) Test Method : This Inspection is available only Power-Only

Status.

1) Push Camera Up

2) Camera’s Preview picture appears on TV Set

3) Push Camera Down

(3) RS-232C Command

RS-232C COMMAND

CMD D ATA ID

Ai 00 23 Camera Function Start.

Ai 00 24 Camera Function End.

Explanation

5.4. V-COM Adjust

(ONLY FOR EPI model, 43/49/55UH6600, 43/49/55UH6500)

5.4.1. Overview

▪ V-COM adj. Objective & How-it-works

- Objective: To reduce each Panel’s V-COM voltage deviation

- How-it-works: When V-COM gain in the adjust-OSD of each SET is at default value, each SET can have flicker by each Panel’s V-COM voltage deviation. In order to prevent flicker of each SET, find the desired each Panel’s V-COM voltage value.

- Adj. condition: normal temperature

1) Surrounding Temperature: 25

2) Warm-up time: About 5 Min

3) Surrounding Humidity: 20% ~ 80%

ºC

± 5

ºC

5.4.4. Adj. Command (Protocol)

<Command Format> CMD ID DATA CR RF

- CMD: Command

- ID : Command

- Data : Command

(Ex) [Send: va 00 00\r\n]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD D ATA ID

va 00 00 V-com pattern

vb 00 00 ~ FE V-com adj.(internal Flicker pattern)

wb 00 FF V-com adj. completed

Explanation

5.4.5. Adjustment method

(1) Set TV in POWER-ONLY mode using POWER ONLY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select Model in “V-com adj. Program” and begin “V-com

adj.” (5) When V-com adj. is complete (OK) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ V-com Adj. must begin as start command “va 00 00” , and

finish as end command “wb 00 ff”

▪ V-com adjust data

43” inch 49” inch 55” inch 65” inch

V-com Data

hex dec hex dec hex dec hex dec

Max B4 180 8B 139 85 133 AB 171

Default 96 150 6D 109 68 104 8D 141

Min 78 120 4F 79 49 73 6F 111

5.4.2. Equipment

(1) Color Analyzer: CA-310 (LED Module : CH 14) or CM-H505 (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Signal : internal flicker Pattern in SET

▪ Color Analyzer Matrix should be calibrated using CS-100

5.4.3. Equipment connection MAP

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

* If TV internal pattern is used, not needed

Only for training and service purposes

RS-232C

Computer

RS-232C

5.4.5.1 Manual adj. method TBD

- 21 -

5.5. White Balance Adjustment

* If TV internal pattern is used, not needed

5.5.1. Overview

5.5.1.1. W/B adj. Objective & How-it-works (1) Objective: To reduce each Panel’s W/B deviation (2) How-it-works: When R/G/B gain in the OSD is at 192, it

means the panel is at its Full Dynamic Range. In order to prevent saturation of Full Dynamic range and data, one of R/G/B is fixed at 192, and the other two is lowered to find the desired value.

(3) Adj. condition: normal temperature

- Surrounding Temperature: 25±5 °C

- Warm-up time: About 5 Min

- Surrounding Humidity: 20% ~ 80%

5.5.2. Equipment

(1) Color Analyzer: CA-210 (LED Module : CH 14) (2) Adj. Computer (During auto adj., RS-232C protocol is

needed) (3) Adjust Remocon (4) Video Signal Generator MSPG-925F 720p/204-Gray

(Model: 217, Pattern: 49) ※ Color Analyzer Matrix should be calibrated using CS-1000

5.5.3. Equipment connection MAP

Color Analyzer

Probe

RS-232C

Pattern Generator

Signal Source

5.5.4. Adj. Command (Protocol)

START 6E A 50 A LEN A 03 A CMD A 00 A VAL A CS A STOP

RS-232C

Computer

RS-232C

(Ex) wb 00 00 -> Begin white balance auto-adj.

wb 00 10 -> Gain adj. ja 00 ff -> Adj. data jb 00 c0 ... ... wb 00 1f -> Gain adj. complete * (wb 00 20(start), wb 00 2f(endc)) -> Off-set adj. wb 00 ff -> End white balance auto adj.

(2) Adjustment Map Applied Model : ALL MODELS

Adj. item

Cool R Gain j g 00 C0 TBD

G Gain j h 00 C0 TBD

B Gain j i 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Medium R Gain j a 00 C0 TBD

G Gain j b 00 C0 TBD

B Gain j c 00 C0 TBD

R Cut TBD

G Cut TBD

B Cut TBD

Warm R Gain j d 00 C0 TBD

G Gain j e 00 C0 TBD

B Gain j f 00 C0 TBD

R Cut TBD

G Cut TBD

Command (lower caseASCII)

CMD1 CMD2 MIN MAX

Data Range (Hex.)

Default (Decimal)

- LEN: Number of Data Byte to be sent

- CMD : Command

- VAL : FOS Data value

- CS : Checksum of sent data

- A : Acknowledge

(Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX]

(1) RS-232C Command used during auto-adj.

RS-232C COMMAND

CMD D ATA ID

wb 00 00 Begin White Balance adj.

wb 00 10 Gain adj.(internal white pattern)

wb 00 1f Gain adj. completed

wb 00 20 Offset adj.(internal white pattern)

wb 00 2f Offset adj. completed

wb 00 ff End White Balance adj.

(internal pattern disappears )

Only for training and service purposes

Explanation

5.5.5. Adjustment method

5.5.5.1. Auto WB calibration (1) Set TV in adj. mode using POWER ONNY key (2) Zero calibrate probe then place it on the center of the

Display (3) Connect Cable (RS-232C to USB) (4) Select mode in adj. Program and begin adj. (5) When adj. is complete (OK Sign), check adj. status pre

mode(Warm, Medium, Cool) (6) Remove probe and RS-232C to USB cable to complete adj.

▪ W/B Adj. must begin as start command “wb 00 00” , and

finish as end command “wb 00 ff”, and Adj. offset if need

- 22 -

5.5.5.2. Manual adj. method (1) Set TV in Adj. mode using POWER ON (2) Zero Calibrate the probe of Color Analyzer, then place it on

the center of LCD module within 10cm of the surface..

(3) Press ADJ key -> EZ adjust using adj. R/C -> 7. White-

Balance then press the cursor to the right (KEY►).

(When KEY(►) is pressed 216 Gray internal pattern will be

displayed)

(4) One of R Gain / G Gain / B Gain should be fixed at 192,

and the rest will be lowered to meet the desired value.

(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of

color temperature.

** R-fix adjustment Adjust modes (Cool), Fix the R gain to 210 (default data) and change the others (G/B Gain ).

- Adjust the R gain more than 210 ( If G gain or B gain is less

than 0 , R gain can adjust more than 210 ) and change the others ( G/B Gain ).

- Adjust two modes (Medium / Warm), Fix the one of R/G/B

gain to 192 (default data) and decrease the others.

▪ If internal pattern is not available, use RF input. In EZ Adj.

menu 7.White Balance, you can select one of 2 Test-pattern: ON, OFF. Default is inner(ON). By selecting OFF, you can adjust using RF signal in 216 Gray pattern.

▪ Adj. condition and cautionary items

(1) Lighting condition in surrounding area Surrounding lighting should be lower 10 lux. Try to isolate

adj. area into dark surrounding.

(2) Probe location

- LCD : Color Analyzer (CA-210) probe should be within 10cm and perpendicular of the module surface (80°~ 100°)

(3) Aging time

- After Aging Start, Keep the Power ON status during 5

Minutes.

- In case of LCD, Back-light on should be checked using no

signal or Full-white pattern.

5.5.6. Reference (White Balance Adj. coordinate and color temperature)

▪ Luminance: 206 Gray ▪ Standard color coordinate and temperature using CS-1000

(over 26 inch)

Mode

Cool 0.271 0.270 13,000K 0.0000

Medium 0.283 0.289 9,300K 0.0000

Warm 0.313 0.329 6,500K 0.0000

Coordinate

X Y

Temp △uv

5.5.7. EDGE & IOL LED White balance table

▪ Edge & ALEF LED module change color coordinate because

of aging time

▪ apply under the color coordinate table, for compensated

aging time

▪ Luminance: 204 Gray, 80IRE

** Except Gumi winter season(Jan~Feb) and except for winter

season (Mar ~ Dec) & Global are same as the table below

▪ Standard color coordinate and temperature using

CA-210(CH-14) – by aging time

Aging time

(Min)

1 0-2 282 289 297 308 324 348

2 3-5 281 287 296 306 323 346

3 6-9 279 284 294 303 321 343

4 10-19 277 280 292 299 319 339

5 20-35 275 277 290 296 317 336

6 36-49 274 274 289 293 316 333

7 50-79 273 272 288 291 315 331

8 80-119 272 271 287 290 314 330

9 Over 120 271 270 286 289 313 329

Cool Medium Warm

X Y X Y X Y

271 270 286 289 313 329

* Use only AUO, INX, Sharp, CSOT, BOE (Cool temp Spec is 13000K)

cool med warm

x y x y x y

spec 271 270 286 289 313 329

target 278 280 293 299 320 339

5.6. Local Dimming Function Check

(Step 1) Turn on TV (Step 2) At the Local Dimming mode, module Edge Backlight

moving right to left Back light of IOP module moving (Step 3) confirm the Local Dimming mode (Step 4) Press “exit” Key

▪ Standard color coordinate and temperature using CA-210

(CH 14)

Mode

Cool 0.271±0.002 0.270±0.002 13000K 0.0000

Medium 0.286±0.002 0.289±0.002 9300K 0.0000

Warm 0.313±0.002 0.329±0.002 6500K 0.0000

Only for training and service purposes

Coordinate

X Y

Temp △uv

- 23 -

5.7. Magic Motion Remocon test

- Equipment : RF Remocon for test, IR-KEY-Code Remocon for test

- You must confirm the battery power of RF-Remocon before

test

(recommend that change the battery per every lot)

- Sequence (test)

a) if you select the ‘start key(OK)’ on the controller, you can

pairing with the TV SET.

b) You can check the cursor on the TV Screen, when select

the ‘OK Key’ on the controller

c) You must remove the pairing with the TV Set by select

‘Mute + OK Key’ on the controller

5.8. 3D function test

(Pattern Generator MSHG-600, MSPG-6100 [SUPPORT HDMI1.4])

* HDMI mode NO. 872 , pattern No.83

5.9 HDMI ARC Function Inspection

5.9.1. Test equipment

- Optic Receiver Speaker

- MSHG-600 (SW: 1220 ↑)

- HDMI Cable (for 1.4 version)

5.9.2. Test method

(1) Insert the HDMI Cable to the HDMI ARC port from the

master equipment (HDMI2)

(2) Check the sound from the TV Set

(1) Please input 3D test pattern like below (HDMI mode NO.

872 , pattern No.83)

(2) When 3D OSD appear automatically , then select green

button

(3) Check the Sound from the Speaker or using AV & Optic

TEST program (It’s connected to MSHG-600)

5.10. EYE-Q Green Function Inspection

(Step 1) Turn on the TV. (Step 2) Press 'EYE button' on the adjustment remote-

controller.

(Step 3) Cover 'Eye Q sensor' on the front of set with your

hands, hold it for 6 seconds.

(Step 4) Check "the Sensor Data" on the screen, make certain

that Data is below 10. If Data isn’t below 10 in 6 seconds, Eye Q sensor would be bad. You should change Eye Q sensor.

(Step 5) Uncover your hands from Eye Q sensor, hold it for 6

seconds.

(Step 6) Check "Back Light(xxx)" on the screen, check data

increase . You should change Eye Q sensor

(3) Don’t wear a 3D Glasses, Check the picture like below

Only for training and service purposes

5.11. Ship-out mode check (In-stop)

▪ After final inspection, press In-Stop key of the Adj. R/C and

check that the unit goes to Stand-by mode.

- 24 -

6. GND and Internal Pressure check

6.1. Method

(1) GND & Internal Pressure auto-check preparation

- Check that Power Cord is fully inserted to the SET. (If loose, re-insert)

(2) Perform GND & Internal Pressure auto-check

- Unit fully inserted Power cord, Antenna cable and A/V arrive to the auto-check process.

- Connect D-terminal to AV JACK TESTER

- Auto CONTROLLER(GWS103-4) ON

- Perform GND TEST

- If NG, Buzzer will sound to inform the operator.

- If OK, changeover to I/P check automatically.

(Remove CORD, A/V form AV JACK BOX)

- Perform I/P test

- If NG, Buzzer will sound to inform the operator.

- If OK, Good lamp will lit up and the stopper will allow the pallet to move on to next process.

6.2. Checkpoint

(1) Test voltage

- GND: 1.5KV/min at 100mA

- SIGNAL: 3KV/min at 100mA

(2) TEST time: 1 second (3) TEST POINT

- GND Test = POWER CORD GND and SIGNAL CABLE

GND.

- Hi-pot Test = POWER CORD GND and LIVE & NEUTRAL.

(4) LEAKAGE CURRENT: At 0.5mArms

8. USB S/W Download (optional, Service only)

(1) Put the USB Stick to the USB socket (2) Automatically detecting update file in USB Stick

- If your downloaded program version in USB Stick is lower than that of TV set, it didn’t work. Otherwise USB data is automatically detected.

(3) Show the message “Copying files from memory”

(4) Updating is staring

(5) Updating Completed, The TV will restart automatically

7. AUDIO output check

No Item Min Typ Max Unit Remark

1 Audio practical

max Output, L/R (Distortion=10% max Output)

2

Speaker

(8Ω Impedance)

*Measurement condition: (1) RF input: Mono, 1KHz sine wave signal, 100% Modulation (2) CVBS, Component: 1KHz sine wave signal (0.4Vrms) (3) RGB PC: 1KHz sine wave signal (0.7Vrms)

10.0

12.0

8.10

10.8WVrms

10 12 W EQ On

EQ Off AVL Off Clear Voice Off

AVL On Clear Voice On

(6) If your TV is turned on, check your updated version and

Tool option.

* If downloading version is more high than your TV have, TV

can lost all channel data. In this case, you have to channel recover. If all channel data is cleared, you didn’t have a DTV/ ATV test on production line.

* After downloading, TOOL OPTION setting is needed again. (1) Push "IN-START" key in service remote controller. (2) Select "Tool Option 1" and Push “OK” button. (3) Punch in the number. (Each model has their number.)

Only for training and service purposes

- 25 -

■ Disassemble screw

ASSEMBLY / DISASSEMBLY

Blue M3*5.5 5EA 5 ~ 7Kgf.cm

Red M4*10 2EA 8 ~ 12Kgf.cm

Green M4*10 1EA 4 ~ 7Kgf.cm

Only for training and service purposes

- 26 -

■ Disassemble Method of Back cover

1. Pull the upward.

2. Rotate 180˚ and disassemble cables

4. Hold the position and change grab.

5. Pull the upward at point of picture.

3. Pull the upward with using snap.

Only for training and service purposes

- 27 -

1. M16 Block Diagram

Audio 1 AMP

(NTP7515)

IC101

M16

Digital Demod

IF (+/-)

OPTIC

LAN

DDR3 2133 X 16

(512MB X 2EA)

HDMI1 (2.0)

HDMI2 (2.0)

HDMI3 (2.0)

Analog Demod

SYSTEM EEPROM

(256Kb)

HDMI

MUX

USB2 (2.0)

USB3 (2.0)

51P

eMMC

(4GB)

Sub Micom

(RENESAS

R5F1000G)

DDR3 2133 X 16

(256MB X 2EA)

60P

X_TAL

24MHz

LM GM

X_TAL

32.768KHz

I2S Out

I2C 0

EPI

VBY1

USB

I2C 4

RS232C

AV

OCP 1.5A

R

E

A

R

S

I

D

E

R

E

A

R

(H)

CVBS/L/R

SPDIF OUT

ETHERNET

I2C 1

LOCAL DIMMING

BLUTOOTH

IR / KEY/EYE

PM

IC

WIFI

SUB

ASSY

VS/SCLK/MOSI

IR

KEY

USB_WIFI-BT

Tuner : I2C 5

LAN

PHY

(Ext EDID)

X_TAL

25MHz

I2C

CVBS/SIF

Tuner

COMP

OCP 1.5A

(ARC)

YPbPr

UART RX/TX

Block Diagram

Only for training and service purposes

- 28 -

2. M16 I2C Map

+3.3V_NORMAL

ZUZr˟

IC102

NVRAM

ZUZr˟

+3.3V_NORMAL

ZZ˟

+3.3V_NORMAL

ZUZr˟

IC5300

NTP7515(AMP)

100 ˟

IC101

M16

IC3000

R5F100GEAFB(MICOM)

IR / KEY/EYE

XWW˟

ZUZr˟

EYE_I2C_SDA

EYE_I2C_SCL

+3.5V_ST

33pF

0x54

0x52

0xA0

I2C_SCL4: AK12[SCL4]

I2C_SDA4: AJ12[SDA4]

I2C_SCL1: AK11[SCL1]

I2C_SDA1: AJ11[SDA1]

I2C_SCL0: AJ13[SCL0]

I2C_SDA0: AH 13[SDA0]

I2C_SCL2: AK11[SCL1]

I2C_SDA2: AJ11[SDA1]

I2C_SCL5: AK21[SCL5]

I2C_SDA5: AJ21[SDA5]

TU6700

Tuner

XU_r˟

+3.3V_TU

ZZ˟

47pF

+3.3V_NORMAL

ZUZr˟

P7201

51PIN Wafer

33 ˟

0xC0

IC8000

PMIC(SW50B3)

33 ˟

100 ˟

V by One

EPI

Only for training and service purposes

- 29 -

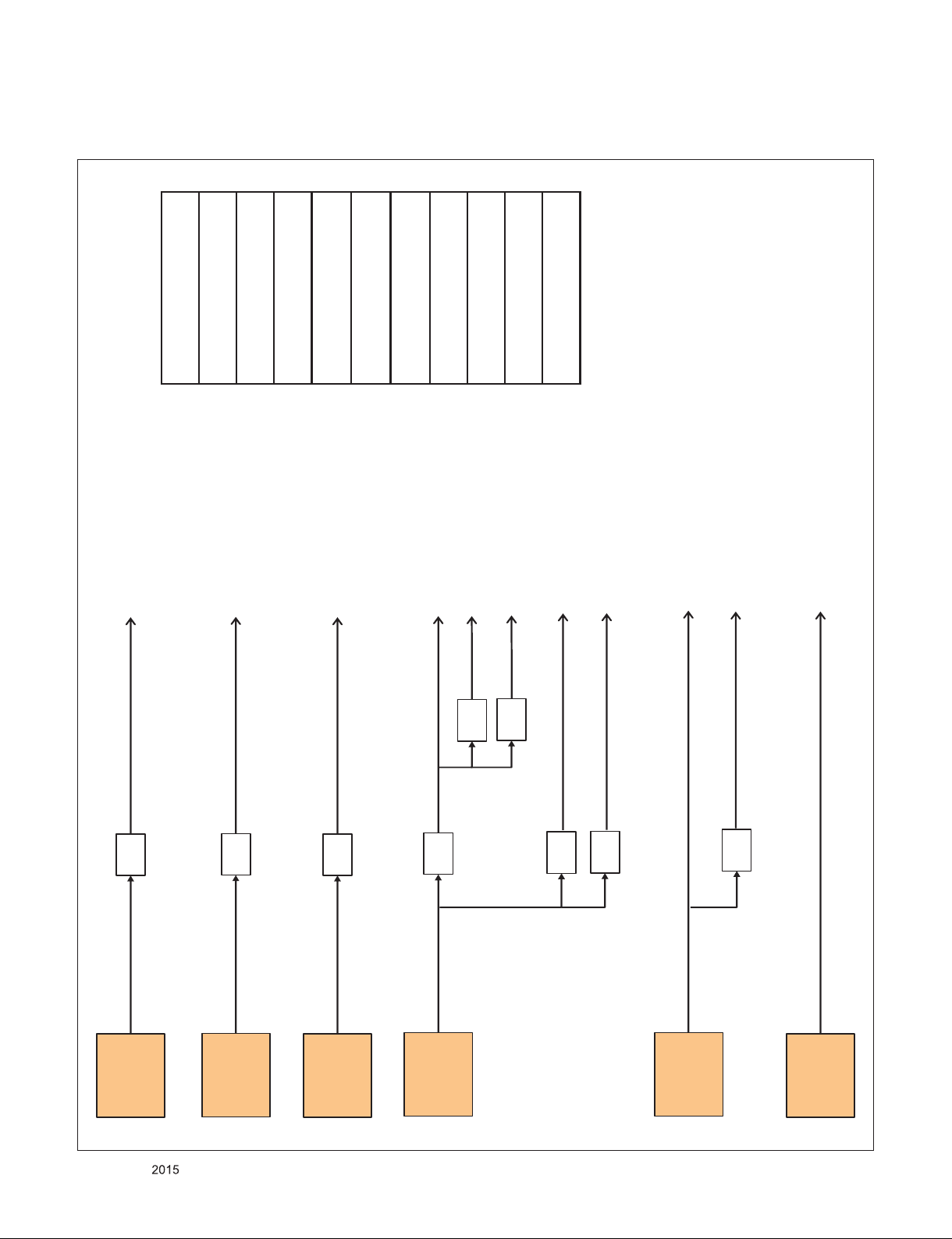

3. Power Block Diagram

[UH65 Main]

13.2V

3.3V Normal 6A

0.9V_CPU DC DC

3A

1.8V IO DC DC

3A

1.5V DDR DC DC

3A

0.9V_CORE DC

DC

10A

2.5V Tuner 2A

+1.8V_IO

ETH

3.5V ST-BY 3A

1A

0.17A

0.6A

0.98A

0.7A

0.19A

0.05A

2.28A

only Japan

5V Normal

6A

WIFI

Panel

TBD

LNB(EU option)

MICOM/IR/ETC

0.5A

0. 26A

1A

0.17A

SOC-M16

0.33A

1.9A

6.7A

0.5A

1A

1.5A

1A

Vin Vout Iout

DC DC Converter

13.2V3.5V_ST 3A

13.2V0.9V_CPU 3A

13.2V0.9V_CORE 10A

13.2V5V_Normal 6A

13.2V3.3V_Normal 6A

13.2V1.8V_IO 3A

3.5V 1.5V_DDR 3A

LDO

3.3V 1.2V 2A

3.3V 0.9V_C4TX 2A

3.3V 2.5V_TU 2A

[DC DC / LDO List]

1.2V Tuner LDO

2A

0.9V DDR&C4TX

LDO 2A

3.8A

1.72A

Only for training and service purposes

- 30 -

4. Tuner Diagram

SIC

M16

AL33 [DMD_ADC_INP]

AL32 [DMD_ADC_INN]

TDJS-H301F

[+3.3V_LNA_TU] 3

+3.3V_TUNER

[I2C_SCL5_TU] 1

[I2C_SDA5_TU] 2

[IF_AGC_TU] 5

FILTER

IF_P

IF_N

IF_AGC

ADC_I_INP

ADC_I_INN

I2C_SCL5

I2C_SDA5

33 ȳ

AK21[SCL5]

AJ21[SDA5]

AK32[IF_AGC]

[IF_P] 7

[IF_N] 8

+3.3V_TUNER

1.8Kȳ

[SIF_TU] 6

SIF

AN32[AAD_ADC_SIF]

[CVBS_TU] 4

CVBS

AM29[CVBS_IN1]

0.1uF

Only for training and service purposes

- 31 -

5. Chip Clock source and frequency

CPU PLL

2016 MHz

1/2

1008 MHz

CORE PLL

1584 MHz

1/4

396 MHz

1/2

198 MHz

1/3

528 MHz

1/4

99 MHz

74.25 MHz

99 MHz

198 MHz

264 MHz

297 MHz

351 MHz

396 MHz

528 MHz

600 MHz

1008 MHz

1056 MHz

DISP PLL

297 MHz

1/4

74.25 MHz

DDR PLL

2112 MHz

1/2

1056 MHz

1/6

264 MHz

GPU PLL

2400 MHz

1/4

600 MHz

PQE PLL

351 MHz

Only for training and service purposes

- 32 -

EXPLODED VIEW

200

400

800

540

521

530

120

LV1

A2

410

950

121

820

901

700

902

A10

IMPORTANT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and EXPLODED VIEW. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer.

Only for training and service purposes

- 33 -

System Configuration

LGE Internal Use Only

Clock for M16

EAW61645502

C101 5pF

50V

MAIN Clock(24Mhz)

+3.3V_TU

R199-*1

2.7K

R198-*1

2.7K

TU_D_JP

R198-*2

1.2K

R199-*2

1.2K

TU_NON_JP_1.2K

X101

X-TAL_1

GND_1

4

1

2

3

+3.3V_NORMAL

R199

1.8K

R198

1.8K

TU_NON_JP_1.8K

I2C

I2C-0 : AMP I2C-1 : MICOM I2C-2 : T-CON,L/DIMING I2C-3 : S/Demod,T2/Demod, LNB I2C-4 : NVRAM I2C-5 : TUNER_MOPLL(T/C,ATV)

GND_2

X-TAL_2

AR104

3.3K

R101 1M

C102 5pF 50V

R102

120

+3.3V_NORMAL

XTAL_IN

XTAL_OUT

I2C PULL UP

AR103

3.3K AR102

3.3K

NVRAM

C104

0.1uF 16V

3.3K

AR101

I2C_SDA0 I2C_SCL0 I2C_SDA1 I2C_SCL1 I2C_SDA2 I2C_SCL2

I2C_SDA4 I2C_SCL4

I2C_SDA5 I2C_SCL5

EAN61133501

IC102

AT24C256C-SSHL-T

A0

1

A1

2

A2

3

GND

4

+3.3V_NORMAL

VCC

8

WP

7

SCL

6

SDA

5

Write Protection

- Low : Normal Operation

- High : Write Protection

1/16W

33

AR106

I2C_SCL4 I2C_SDA4

SOC_RESET

L/DIM0_VS

L/DIM0_SCLK

L/DIM0_MOSI

VX1_AGP

FORCED_JTAG_0

Designated GPIO for OLED

DPC_CTL

+3.3V_NORMAL

R126 10K

OPT

R127

C106

0.1uF 16V

L/DIM0_VS

L/DIM0_SCLK

TCK0 TDI0

L/DIM0_MOSI

VX1_MSEVX1_MSE VX1_AGP

CPU_VID[0] CPU_VID[1]

I2C_SCL1 I2C_SDA1

I2C_SDA3

I2C_SCL5 I2C_SDA5

PWM_DIM2

PWM_DIM

MODEL_OPT_12

EMMC_CLK EMMC_CMD

EMMC_DATA[0-7]

SOC_EMMC_STRB

XTAL_IN

XTAL_OUT

22

BOOT MODE

- ’00 ’: eMMC

- ’10 ’: NAND

- ’X1 ’: NOR (TEST ONLY)

A_SPI_CS_S SPI_SCLK_S SPI_MOSI_S SPI_MISO_S

R173 10K

OPT

R134 4.7K

SOC_RX

SOC_TX UART1_RX UART1_TX

1/16W

I2C_SCL0

33

AR100

I2C_SDA0

I2C_SCL2 I2C_SDA2

I2C_SCL4 I2C_SDA4

PWM2

R139

33

R140

33

R158 10K

EMMC_DATA[7] EMMC_DATA[6] EMMC_DATA[5] EMMC_DATA[4] EMMC_DATA[3] EMMC_DATA[2] EMMC_DATA[1] EMMC_DATA[0]

R188

DEBUG EMMC

EAN63846302

IC101

PAGE 1

LGE1312(M16)

B23

XIN

A24

XOUT

AH18

PORES_N

AA8

BOOT_MODE_0

AB8

BOOT_MODE_1

AD7

PLLSET0

AC7

PLLSET1

AE6

OPM0

AE7

OPM1

AC3

L_VSOUT_LD

AC6

DIM0_SCLK

AD6

DIM1_SCLK

AC5

DIM1_MOSI

AD5

DIM0_MOSI

AJ22

SPI_CS0

AH22

SPI_SCLK0

AJ23

SPI_DO0

AK23

SPI_DI0

AH24

SPI_CS1

AK24

SPI_SCLK1

AH23

SPI_DO1

AJ24

SPI_DI1

AB7

EXT_INTR0

AC8

EXT_INTR1

AD8

EXT_INTR2

AE8

EXT_INTR3

AJ19

UART0_RXD

AH19

UART0_TXD

AH9

UART1_RXD

AH8

UART1_TXD

AH10

UART1_RTS

AJ10

UART1_CTS

AJ13

SCL0

AH13

SDA0

AK11

SCL1

AJ11

SDA1

AH12

SCL2

AH11

SDA2

AK20

SCL3

AJ20

SDA3

AK12

SCL4

AJ12

SDA4

AK21

SCL5

AJ21

SDA5

Y7

PWM0

AA6

PWM1

AA5

PWM2

Y6

PWM_IN

L31

EMMC_CLK

K32

EMMC_CMD

G31

EMMC_DATA7

J32

EMMC_DATA6

J33

EMMC_DATA5

H33

EMMC_DATA4

J31

EMMC_DATA3

G32

EMMC_DATA2

H31

EMMC_DATA1

H32

EMMC_DATA0

L32

EMMC_CAL

OPT

K31

EMMC_STRB

L33

33

R142

10K

EMMC_VCTRL

1%

USB2_0_DP0 USB2_0_DM0

USB2_0_TXRTUNE

USB2_1_DP0 USB2_1_DM0

USB2_1_TXRTUNE

USB3_0_DP0

USB3_0_DM0 USB3_0_TX0P USB3_0_TX0M USB3_0_RX0P USB3_0_RX0M

USB3_0_RESREF

USB3_1_DP0

USB3_1_DM0 USB3_1_TX0P USB3_1_TX0M USB3_1_RX0P USB3_1_RX0M

USB3_1_RESREF

HUB_PORT_OVER0 HUB_VBUS_CTRL0

CAM_IREQ_N

CAM_INPACK_N

CAM_VCCEN_N

CAM_WAIT_N

EB_CS3 EB_CS2 EB_CS1 EB_CS0

EB_WE_N EB_OE_N

EB_WAIT EB_BE_N1 EB_BE_N0

CAM_CD1_N CAM_CD2_N CAM_CE1_N CAM_CE2_N

CAM_RESET

CAM_REG_N

EB_ADDR0 EB_ADDR1 EB_ADDR2 EB_ADDR3 EB_ADDR4 EB_ADDR5 EB_ADDR6 EB_ADDR7 EB_ADDR8 EB_ADDR9

EB_ADDR10 EB_ADDR11 EB_ADDR12 EB_ADDR13 EB_ADDR14 EB_ADDR15

EB_DATA0 EB_DATA1 EB_DATA2 EB_DATA3 EB_DATA4 EB_DATA5 EB_DATA6 EB_DATA7

V33 V32 V31

AM8 AN8 AN7

N32 P31 P32 P33 N31 M32 M33

T32 T31 U32 U33 R32 R33 U31

U30 U29

G28 H28 G29 J28

D28 D29 H29 F28 E28

P29 P30 P28 R30 T29 U28 T28 R29 R28 N29

A31 B31 A32 B32 B33 C31 C33 C32 E32 E33 F33 F31 D31 D32 E31 F32

C30 A30 B30 C29 F29 F30 E30 E29

200

R143

1%

200

R144

1%

C107 0.1uF C108 0.1uF

200

R145

1%

R146

200

1%

EB_ADDR[0] EB_ADDR[1] EB_ADDR[2] EB_ADDR[3] EB_ADDR[4] EB_ADDR[5] EB_ADDR[6] EB_ADDR[7] EB_ADDR[8]

EB_ADDR[9] EB_ADDR[10] EB_ADDR[11] EB_ADDR[12] EB_ADDR[13] EB_ADDR[14]

EB_DATA[0]

EB_DATA[1]

EB_DATA[2]

EB_DATA[3]

EB_DATA[4]

EB_DATA[5]

EB_DATA[6]

EB_DATA[7]

USB2-0

USB2-1

USB3-0

USB2-2

/USB_OCD1 USB_CTL1

/USB_OCD2 USB_CTL2 /USB_OCD3 USB_CTL3

EB_WE_N EB_OE_N

EB_BE_N1 EB_BE_N0

CAM_CD1_N CAM_CD2_N

CAM_IREQ_N CAM_INPACK_N CAM_WAIT_N

USB3_TXP0 USB3_TXM0 USB3_RXP0 USB3_RXM0

USB2_DP0 USB2_DM0

WIFI_DP WIFI_DM

USB3_DP0 USB3_DM0

USB3_DP1 USB3_DM1

/PCM_CE1 /PCM_CE2

PCM_RESET PCM_5V_CTL CAM_REG_NI2C_SCL3

F16_CONNECT_DET

EB_ADDR[0-14]

EB_DATA[0-7]

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L/DIM0_VS

L/DIM0_MOSI

L/DIM0_SCLK

SOC_RESET

FORCED_JTAG_0

+3.3V_NORMAL

TDI0

TCK0

M16

M16 Symbol A

JTAG-0 I/F

12505WS-10A00

6602T12004J

P102

OPT

1

2

3

4

5

6

7

8

9

10

11

2015.02.24 1

26

TP204

LGE Internal Use Only

TP203

DATA_FORMAT_1 DATA_FORMAT_0

PAGE 2

M16 HW Model Option

FE_DEMOD1_TS_DATA[0-7]

TPI_DATA[0-7]

TPI_ERR TPO_ERR

TPO_DATA[0-7]

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA[1] FE_DEMOD2_TS_DATA[2] FE_DEMOD2_TS_DATA[3] FE_DEMOD2_TS_DATA[4] FE_DEMOD2_TS_DATA[5]

FE_DEMOD2_TS_DATA[6] FE_DEMOD2_TS_DATA[7]

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_ERROR

FE_DEMOD3_TS_DATA

EPI_MCLK EPI_GCLK

EPI_EO

EPI_VST

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_ERROR

TP201

TP202

UART1_RX

UART1_TX

FE_DEMOD1_TS_CLK FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[7] FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[3] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[0]

TPI_DATA[0] TPI_DATA[1] TPI_DATA[2] TPI_DATA[3] TPI_DATA[4] TPI_DATA[5] TPI_DATA[6] TPI_DATA[7]

TPO_DATA[0] TPO_DATA[1] TPO_DATA[2] TPO_DATA[3] TPO_DATA[4] TPO_DATA[5] TPO_DATA[6] TPO_DATA[7]

FE_DEMOD2_TS_CLK

FE_DEMOD2_TS_SYNC

FE_DEMOD2_TS_VAL

FE_DEMOD2_TS_ERROR

FE_DEMOD2_TS_DATA FE_DEMOD2_TS_DATA[1] FE_DEMOD2_TS_DATA[2] FE_DEMOD2_TS_DATA[3] FE_DEMOD2_TS_DATA[4] FE_DEMOD2_TS_DATA[5] FE_DEMOD2_TS_DATA[6] FE_DEMOD2_TS_DATA[7]

FE_DEMOD3_TS_CLK

FE_DEMOD3_TS_SYNC

FE_DEMOD3_TS_VAL

FE_DEMOD3_TS_ERROR

FE_DEMOD3_TS_DATA

EPI_MCLK EPI_GCLK

EPI_EO

EPI_VST

LGE1312(M16)

TPI_CLK TPI_SOP TPI_VAL TPI_ERR

TPO_CLK TPO_SOP TPO_VAL TPO_ERR

UART 1 / 2

+3.3V_NORMAL

22

R265

DEBUG_UART

R267

DEBUG_UART

22

EAN63846302

IC101

AC27

TP_DVB_CLK

AD27

TP_DVB_SOP

AC29

TP_DVB_VAL

AC28

TP_DVB_ERR

AF29

TP_DVB_DATA7

AF28

TP_DVB_DATA6

AG29

TP_DVB_DATA5

AG28

TP_DVB_DATA4

AE28

TP_DVB_DATA3

AE27

TP_DVB_DATA2

AD29

TP_DVB_DATA1

AD28

TP_DVB_DATA0

A27

TPI_CLK

C26

TPI_SOP

B26

TPI_VAL

C27

TPI_ERR

B25

TPI_DATA0

B27

TPI_DATA1

C25

TPI_DATA2

A25

TPI_DATA3

B29

TPI_DATA4

C28

TPI_DATA5

B28

TPI_DATA6

A28

TPI_DATA7

K28

TPIO_CLK

L28

TPIO_SOP

M28

TPIO_VAL

L29

TPIO_ERR

N28

TPIO_DATA0

M29

TPIO_DATA1

M30

TPIO_DATA2

L30

TPIO_DATA3

K29

TPIO_DATA4

J29

TPIO_DATA5

J30

TPIO_DATA6

H30

TPIO_DATA7

AJ31

STPI0_CLK

AK30

STPI0_SOP

AH31

STPI0_VAL

AH30

STPI0_ERR

AK27

STPI0_DATA0

AJ27

STPI0_DATA1

AJ28

STPI0_DATA2

AH28

STPI0_DATA3

AK29

STPI0_DATA4

AJ29

STPI0_DATA5

AH29

STPI0_DATA6

AJ30

STPI0_DATA7

AK26

STPI1_CLK

AH25

STPI1_SOP

AH26

STPI1_VAL

AJ25

STPI1_ERR

AJ26

STPI1_DATA

AD3

EPI_SOE

AD1

EPI_MCLK

AD4

EPI_GCLK

AD2

EPI_EO

AC4

EPI_VST

12507WS-04L

R269

10K

LED_SCL LED_SDA

UART_RX UART_TX

DEBUG_UART

P202

1

2

3

4

5

GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8

GPIO9 GPIO10 GPIO11 GPIO12 GPIO13 GPIO14 GPIO15 GPIO16 GPIO17 GPIO18 GPIO19 GPIO20 GPIO21 GPIO22 GPIO23 GPIO24 GPIO25 GPIO26 GPIO27 GPIO28 GPIO29 GPIO30 GPIO31

TX0N TX0P TX1N TX1P TX2N TX2P TX3N TX3P TX4N TX4P TX5N TX5P TX6N TX6P TX7N TX7P TX8N TX8P TX9N

TX9P TX10N TX10P TX11N TX11P

TX_LOCKN

AM10 AK17 AJ7 AH16 AJ17 AK9 AH15 AJ16 AH21 AH5 AJ8 AJ18 AK18 AJ9 AH6 AH20 AH7 AK6 AA7 AB6 AJ6 AK5 AF7 AJ5 AJ15 AJ14 AK15 AK14 AH14 AK8 AH17 AG7

AN3 AN4 AM3 AM4 AM1 AM2 AL3 AL4 AK3 AK4 AK1 AK2 AJ3 AJ4 AH3 AH4 AH1 AH2 AG3 AG4 AF3 AF4 AF1 AF2

AE3

DEBUG

BIT[10] BIT[9] BIT[8] BIT[7] BIT[6] BIT[5] BIT[4] BIT[3] BIT[2] BIT[1]

CORE_VID[1] BIT[0]

CORE_VID[0]

TXA_0P/VX1_0P_SOC TXA_0N/VX1_0N_SOC TXA_1P/VX1_1P_SOC TXA_1N/VX1_1N_SOC TXA_2P/VX1_2P_SOC TXA_2N/VX1_2N_SOC TXA_CLKP/VX1_3P_SOC TXA_CLKN/VX1_3N_SOC TXA_3P/VX1_4P_SOC TXA_3N/VX1_4N_SOC TXA_4P/VX1_5P_SOC TXA_4N/VX1_5N_SOC TXB_0P/VX1_6P_SOC TXB_0N/VX1_6N_SOC TXB_1P/VX1_7P_SOC TXB_1N/VX1_7N_SOC TXB_2P/VX1_8P_SOC TXB_2N/VX1_8N_SOC TXB_CLKP/VX1_9P_SOC TXB_CLKN/VX1_9N_SOC TXB_3P/VX1_10P_SOC TXB_3N/VX1_10N_SOC TXB_4P/VX1_11P_SOC TXB_4N/VX1_11N_SOC

Vx1_LOCK_N

BIT 0/1 : AREA OPTION

BIT [0/1]

0 / 0 0 / 1 1 / 0 1 / 1

TAIWAN/COLOM) CHINA/HONGKONG

+3.3V_NORMAL

For ISP

R280 100

HP_OUT

DVB

EU/CIS

ASIA/AFRICA

R206

R270

27K

OTP_WRITE AV1_CVBS_DET COMP2_DET

MODEL_OPT_14 MODEL_OPT_11

RETENTION_DISABLE INSTANT_BOOT DEBUG

HP_DET BT_RESET

/TU_RESET2 /TU_RESET1 TCON_I2C_EN MODEL_OPT_13 /RST_PHY MODEL_OPT_15

ATSC

N/AMERICA

KOREA S/AMERICA Sri Lanka

OPT

3.3K

DATA_FORMAT_1

DATA_FORMAT_0

TXB_3P/VX1_10P_SOC TXB_3N/VX1_10N_SOC TXB_4P/VX1_11P_SOC TXB_4N/VX1_11N_SOC

JP

JAPAN

Designated GPIO for OLED

QSM_EN ON_RF_DONE

COMPENSATION_DONE

OLED_TCON_FW

1AMP

BIT 2/3 : TUNER OPTION

BIT(2/3)

EU/CIS

T2/C/S2 PIP

0/0

EXT_ATV T2/C/S2

0/1

INT_ATV T2C/S2

1/0

EXT_ATV

1/1

BIT 7/8 : DDR Vender

BIT(7/8)

DDR vender

HYNIX_V1.2 M16 ONLY

00

01

SAMSUNG_V1.2

10

11

R274 100

1/16W 5%

R273-*1

4.7K

Near AMP

C225 1000pF 50V

T EXT_ATV T2/C/S2 INT_ATV

T2/C/S2 EXT_ATV T2 EXT_ATV

AJJA

AMP_RESET_N

2AMP

R273

3K

TW/COL

T2/C PIP EXT_ATV T2 EXT_ATV

T2 INT_ATV

+3.3V_NORMAL

1

G

R

DEBUG_LED

3

CN/HK

EXT_ATV

INT_ATV ATSC+T2

BIT 9/10 : FRC

BIT(9/10)

00

01

10

11

22

R210

DEBUG_LED

2

LD201

4

BIT[10]

MODEL_OPT_11 MODEL_OPT_12 MODEL_OPT_13 MODEL_OPT_14 MODEL_OPT_15

KR

N.America

ATSC+T2

INT_ATV

EXT_ATV INT_ATV ATSC+T2 EXT_ATV

FRC

M16+F16

BIT[0] BIT[1]

BIT[2] BIT[3]

BIT[4] BIT[5] BIT[6]

BIT[7] BIT[8]

BIT[9]

BR

ISDB PIP EXT_ATV ISDB EXT_ATV

ISDB INT_ATV

+3.3V_NORMAL

JP

Default

BIT0_1

R225 10K

BIT0_0

R233 10K

BIT1_1

R226 10K

BIT1_0

R234 10K

BIT2_1

R227 10K

BIT2_0

R235 10K

BIT3_1

R228 10K

BIT3_0

R236 10K

BIT4_1

R229 10K

BIT4_0

R237 10K

BIT5_1

R230 10K

BIT5_0

R238 10K

BIT 4/5/6 : BACK-END OPTION

BIT[4/5/6]

0 / 0 / 0 0 / 0 / 1 0 / 1 / 0 0 / 1 / 1 1 / 0 / 0 1 / 0 / 1 1 / 1 / 0 1 / 1 / 1

DISPLAY TYPE

LCD LCD

OLED

MODEL OPTION

MODEL_OPT_11

MODEL_OPT_12

MODEL_OPT_13

MODEL_OPT_14

MODEL_OPT_15

HDMI

HDMI_INT_EDID

EEPROM

MLE_M+

TUNER TYPE 15Y TUNER16Y TUNER

DDR SIZE

MODULE

DDR2GB

Low

RGB

V15

BIT6_1

R231 10K

BIT6_0

R239 10K

BIT7_1

BIT8_1

R232 10K

BIT7_0

BIT8_0

R240 10K

FHD/UHD

UHD UHD

UHD

FHD

HDMI_EXT_EDID

DDR1.5GB

R241 10K

R249 10K

High

RGBW

V16

BIT9_1

R242 10K

BIT9_0

R250 10K

TYPE VBY1

EPI

VBY1

BIT10_1

R244 10K

R243 10K

HDMI_EXT_EDID

BIT10_0

R252 10K

R251 10K

HDMI_INT_EDID

RGBW

15Y_TUNER

R245 10K

R254 10K

DDR2GB

RGB

R253 10K

R246 10K

16Y_TUNER

COMMENT

M16+F16 / M16 VX1

M16 EPI

RESERVED RESERVED

-

RESERVED

-

RESERVED

V16

DDR1.5GB

R276 10K

V15

R278 10K

R277 10K

R279 10K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

Vx1_LOCK_N

DEBUG_LED

B

R208

220

DEBUG_LED

E

Q201

MMBT3906(NXP)

C

LTST-C155KGJRKT

M16

M16 Symbol B

2015.02.12 2

26

PLACE AT JACK SIDE

LGE Internal Use Only

JACK Side

AV_CVBS_IN

TU_CVBS

COMP2_Pb

COMP2_Y

COMP2_Pr

COMP2/AV_L_IN

COMP2/AV_R_IN

R301 100

R303 100

R307 33

R308 33

R309 33

R312 27K

1%

SOC Side

C303 0.047uF

C307 0.047uF

C308 0.047uF

C311 1000pF

C309 0.047uF

C314 4.7uF

R316 10K

1%

C315 4.7uFR313 27K

R317 10K

1%

AV1_CVBS_IN_SOC

TU_CVBS_SOC

COMP2_Pb_IN_SOC COMP2_Y_IN_SOC COMP2_SOG2_IN_SOC COMP2_Pr_IN_SOC

AUAD_L_CH2_IN

AUAD_R_CH2_IN

Placed as close as possible to IC101

AUAD_L_REF

AUAD_R_REF

AVSS18_AUAD_REF

R35 3

51K

1%

R35 4 47K 1%

L305

120-ohm

AUD_MASTER_CLK

PCMI3_LRCK

PCMI3_SCK

C342

4.7uF 10V

R35 5

51K

1%

R35 6

47K 1%

MNT_V_OUT_SOC

AUDA_OUTL AUDA_OUTR

MAIN I2S_I/F

AUD_MASTER_CLK

AUD_LRCH

AUD_LRCH_TW

AUD_LRCK

AVDD18_AUAD

L302

120-ohm

C343 10uF 10V

C344

4.7uF 10V

AUD_SCK

R364

C324 22pF OPT

TU_SIF_TU

IF_AGC

AV1_CVBS_IN_SOC

MNT_V_OUT_SOC

50V

22K

C348

3300pF

HP_OUT

C323 33pF

OPT

AVDD18_MIP

R362 200 R363 200

50V

R365

22K

C349

3300pF

HP_OUT

C325

C345

22pF

33pF

OPT

OPT C320 1000pF 50V

TU_ALL_IntDemod

C321

0.47uF TU_ALL_IntDemod

Close to IC101

R324

HP_OUT

C327 33pF

OPT

R318

470

68

C346

AUAD_L_REF AUAD_R_REF

SPDIF_OUT

FLASH_WP_F16

0.1uF

16V

ADC_I_INP ADC_I_INN

TU_CVBS_SOC

COMP2_SOG2_IN_SOC

COMP2_Y_IN_SOC COMP2_Pb_IN_SOC COMP2_Pr_IN_SOC

R325 68 R326 68 R327 68

L303

AUAD_L_CH2_IN AUAD_R_CH2_IN

I2S_AMP

PCMI3_LRCK

PCMI3_SCK

C301 0.047uF

C331 0.047uF

120-ohm

R379 4.7K

R304

10K

OPT

R305

10K OPT

C328 0.047uF C329 0.047uF C330 0.047uF

L304

120-ohm

R377 4.7K R378 4.7K

10uF 10VC332

C333 2.2uF

R330 33

R331 R332 R333

R335 R336

R361 0

TP300

C334 0.1uF

TP301

C335 0.1uF

AM29 AL29 AL30

AM30

AM31

AN29 AL28

AN25 AL24 AM23 AM24

AM27 AM26 AN26 AL27

AN23 AM25 AL25

AN22 AM22

AM28 AN28

AM16 AN16

AN20 AM20 AN19 AM19 AM18 AL18

AM17 AN17

AL21 AM21

AL15

10V

AM15

100

AM6

100

AM5

100

AL7 AL5

100

AL6

100

AN5

OPT

AF5 AG6 AG5

AF6

AN32 AM32 AK32

AN31

AL33 AL32 AM33

IC101

LGE1312(M16)

CVBS_IN1 CVBS_IN2 CVBS_IN3

CVBS_VCM

BUF_OUT

SC1_SID SC1_FB

SOY1_IN Y1_IN PB1_IN PR1_IN

SOY2_IN Y2_IN PB2_IN PR2_IN

ADC1_COM ADC2_COM ADC3_COM

AVDD18_AFE3CH_REF AVSS18_AFE3CH_REF

HSYNC VSYNC

AUDA_SCART_OUTL AUDA_SCART_OUTR

AUAD_L_CH1_IN AUAD_R_CH1_IN AUAD_L_CH2_IN AUAD_R_CH2_IN AUAD_L_CH3_IN AUAD_R_CH3_IN

AUDA_OUTL AUDA_OUTR

AUAD_L_REF AUAD_R_REF

AUDA_VBG_EXT

IEC958OUT

AUDCLK_OUT DACLRCH DACSLRCH DACCLFCH DACSCK DACLRCK

PCMI3LRCH PCMI3LRCK PCMI3SCK

FRC_LRSYNC

AAD_ADC_SIF AAD_ADC_SIFM IFAGC

DMD_SIF_OUT

DMD_ADC_INP DMD_ADC_INN DMD_ADC_INCOM

Tuner IF Filter

TU_ALL_IntDemod

ADC_I_INN

To ADC

ADC_I_INP

R351

51

C339 22pF

TU_ALL_IntDemod

R352

51

TU_ALL_IntDemod

Placed as close as possible to IC101

NAND_REN NAND_CLE NAND_ALE NAND_WEN

NAND_D3 NAND_D2 NAND_D1 NAND_D0 NAND_D4 NAND_D5 NAND_D6 NAND_D7

NAND_CS0

RGMII_REF_CLK

RGMII_MDIO

RGMII_MDC

RGMII_RXCTL

RGMII_RX_CLK

RGMII_RXD0 RGMII_RXD1 RGMII_RXD2 RGMII_RXD3

RGMII_TXCTL

RGMII_TX_CLK

RGMII_TXD0 RGMII_TXD1 RGMII_TXD2 RGMII_TXD3

HDMI2_0_SCL HDMI2_0_SDA HDMI2_0_HPD

HDMI2_0_5V_IN

HDMI2_0_ARC_OUT

HDMI2_0_RX0N HDMI2_0_RX0P HDMI2_0_RX1N HDMI2_0_RX1P HDMI2_0_RX2N HDMI2_0_RX2P HDMI2_0_RXCN HDMI2_0_RXCP

HDMI2_1_SCL HDMI2_1_SDA HDMI2_1_HPD

HDMI2_1_5V_IN

HDMI2_1_RX0N HDMI2_1_RX0P HDMI2_1_RX1N HDMI2_1_RX1P HDMI2_1_RX2N HDMI2_1_RX2P HDMI2_1_RXCN HDMI2_1_RXCP

HDMI2_2_SCL HDMI2_2_SDA HDMI2_2_HPD

HDMI2_2_5V_IN

HDMI2_2_CD_SENSE

HDMI2_2_RX0N HDMI2_2_RX0P HDMI2_2_RX1N HDMI2_2_RX1P HDMI2_2_RX2N HDMI2_2_RX2P HDMI2_2_RXCN HDMI2_2_RXCP

TU_ALL_IntDemod

C340

0.01uF

C341

0.01uF

TU_ALL_IntDemod

D24 F25 F24 E25 F26 E26 E24 D25 F22 E22 D22 E23 F23

AM11 AM9 AL9 AL8 AM13 AN14 AL13 AM14 AN13 AN10 AL12 AN11 AL10 AL11 AM12

AB28 AB27 AA29 AJ32 AA28

AG30 AG31 AF30 AF31 AE30 AE31 AH32 AH33

Y29 Y28 AA27 AJ33

AD32 AD33 AC30 AC31 AB30 AB31 AD30 AD31

W29 W28 V28 V29 V30

Y30 Y31 Y32 Y33 W31 W32 AA30 AA31

L301

60-ohm

OPT

R343 33 R344 33

R302

10K

IF_N

IF_P

PAGE 3

SMARTCARD_CLK SMARTCARD_COMMAND SMARTCARD_VCC SMARTCARD_PWR_SEL

SMARTCARD_DET SMARTCARD_DATA

EPHY_REFCLK EPHY_MDIO

EPHY_MDC

EPHY_CRS_DV

EPHY_RXD0

EPHY_RXD1

EPHY_EN

EPHY_TXD0

EPHY_TXD1

5V_HDMI_1

DDC_SCL_1 DDC_SDA_1 HDMI_HPD_1

SPDIF_OUT_ARC

D0-_HDMI1 D0+_HDMI1 D1-_HDMI1 D1+_HDMI1 D2-_HDMI1 D2+_HDMI1 CK-_HDMI1 CK+_HDMI1

DDC_SCL_2 DDC_SDA_2 HDMI_HPD_2

D0-_HDMI2 D0+_HDMI2 D1-_HDMI2 D1+_HDMI2 D2-_HDMI2 D2+_HDMI2 CK-_HDMI2 CK+_HDMI2

DDC_SCL_3 DDC_SDA_3 HDMI_HPD_3

D0-_HDMI3 D0+_HDMI3 D1-_HDMI3 D1+_HDMI3 D2-_HDMI3 D2+_HDMI3 CK-_HDMI3 CK+_HDMI3

5V_HDMI_2

5V_HDMI_3

R345 10

C336 1uF 10V

R346 10

C337

1uF

10V

R347 10

C338 1uF 10V

R348

5.1K

R349

5.1K

R350

5.1K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 Symbol C

2015.02.23 3

26

VREF_M0_0

LGE Internal Use Only

PAGE 4

IC101

LGE1312(M16)

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_DDR_CKE

M0_DDR_ODT

M0_DDR_WEN

M0_DDR_DM0 M0_DDR_DM1 M0_DDR_DM2 M0_DDR_DM3

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7 M0_DDR_DQ8 M0_DDR_DQ9

M0_DDR_CS0

M0_RET

A22 A2

E13 E9 E15 E17 D7 D16 E7 E16 D8 E14 D6 D9 D10 D14 E8 E18

D17 E6 D13

C8 B8 C17 B17 E10

E19 D19 D18 D11

D15

B18 C18 B16 A16 B9 C9 B7 A7

A15 A18 A6 A9

B20 B13 C21 C14 A21 A13 B21 C13 B14 B19 C15 C20 C16 A19 B15 C19 B11 C5 C12 B4 A12 A4 B12 C4 B5 B10 C6 C11 C7 A10 B6 C10

A3

E11 D5

M0_DDR_VREF_0 M0_DDR_VREF_1

M0_DDR_A15/M0_DDR_CS1

M0_DDR_U_CLKP M0_DDR_U_CLKN M0_DDR_D_CLKP M0_DDR_D_CLKN

M0_DDR_RASN M0_DDR_CASN

M0_DDR_RESET_N

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15 M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23 M0_DDR_DQ24 M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

M0_DDR_ZQCAL

Add CS signal for 2T Mode & RET signal for Instant On

R401 240

VREF_M0_1

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8 M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_U_CLK M0_U_CLKN M0_D_CLK M0_D_CLKN M0_DDR_CKE

M0_DDR_ODT M0_DDR_RASN M0_DDR_CASN M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS0 M0_DDR_DQS_N0 M0_DDR_DQS1 M0_DDR_DQS_N1 M0_DDR_DQS2 M0_DDR_DQS_N2 M0_DDR_DQS3 M0_DDR_DQS_N3

M0_DDR_DM0 M0_DDR_DM1 M0_DDR_DM2 M0_DDR_DM3

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7 M0_DDR_DQ8 M0_DDR_DQ9 M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15 M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23 M0_DDR_DQ24 M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29 M0_DDR_DQ30 M0_DDR_DQ31

1%

M0_DDR_CS0 DDR_RET

+1.5V_DDR

R402

1K 1%

R403

1K 1%

R405

100

+1.5V_DDR

R406

2K 1%

R407

2K 1%

+1.5V_DDR

R408

2K 1%

R409

2K 1%

VREF_M0_0

M0_D_CLK

M0_D_CLKN

M0_0_VREFCA

M0_0_VREFDQ

INSTANT_BOOT

+1.5V_DDR

R415

1K 1%

R416

1K 1%

R410 100

+1.5V_DDR

R411

2K 1%

R412

2K 1%

+1.5V_DDR

R413

2K 1%

R414

2K 1%

+1.5V_DDR

R404 1K

VREF_M0_1

M0_U_CLK

M0_U_CLKN

M0_1_VREFCA

M0_1_VREFDQ

10K

R417

R420

C

Q401

B

MMBT3904(NXP)

E

M0_DDR_RESET_N

22

5%

+1.5V_DDR

R421

OPT

1K 1%

DDR_RET

EAN64028101

M0_0_VREFCA

IC401

H5TQ4G63CFR-TEC

DDR3

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13 A14 NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

4Gbit (x16)

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

R418

L8

ZQ

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7

M0_DDR_A9 M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_D_CLK

M0_D_CLKN M0_DDR_CKE

M0_DDR_CS0 M0_DDR_ODT

M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3 T7 M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

M0_DDR_DQS0

M0_DDR_DQS_N0

M0_DDR_DQS1

M0_DDR_DQS_N1

M0_DDR_DM0 M0_DDR_DM1

M0_DDR_DQ0 M0_DDR_DQ1 M0_DDR_DQ2 M0_DDR_DQ3 M0_DDR_DQ4 M0_DDR_DQ5 M0_DDR_DQ6 M0_DDR_DQ7

M0_DDR_DQ8 M0_DDR_DQ24 M0_DDR_DQ9

M0_DDR_DQ10 M0_DDR_DQ11 M0_DDR_DQ12 M0_DDR_DQ13 M0_DDR_DQ14 M0_DDR_DQ15

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

DDR_512MB_HYNIX_2133

INSTANT BOOT MODE

- ’0’ : Normal, Default (Internal Pull-down)

- ’1’: Instant Boot

240 1%

M0_0_VREFDQ

0.1uF

C413

0.1uF

C414

IC401-*1

N3 P7 P3 N2 P8 P2 R8 R2 T8 R3 L7 R7 N7 T3

M7

M2 N8 M3

J7 K7 K9

L2 K1 J3 K3 L3

T2

F3 G3

C7 B7

E7 D3

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

+1.5V_DDR

16V

EAN64108201

K4B4G1646E-BCNB

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC A13

NC_5

BA0 BA1 BA2

CK CK CKE

CS ODT RAS CAS WE

RESET

DQSL DQSL

DQSU DQSU

DML DMU

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

DDR_512MB_SS_2133

M0_DDR_A10 M0_DDR_A11 M0_DDR_A12 M0_DDR_A13 M0_DDR_A14

M0_DDR_BA0 M0_DDR_BA1 M0_DDR_BA2

M0_DDR_CKE

M0_DDR_CS0

M0_DDR_ODT M0_DDR_RASN M0_DDR_CASN

M0_DDR_WEN

M0_DDR_RESET_N

M0_DDR_DQS2

M0_DDR_DQS_N2

M0_DDR_DQS3

M0_DDR_DQS_N3

M0_DDR_DM2

M0_DDR_DM3

M0_DDR_DQ16 M0_DDR_DQ17 M0_DDR_DQ18 M0_DDR_DQ19 M0_DDR_DQ20 M0_DDR_DQ21 M0_DDR_DQ22 M0_DDR_DQ23

M0_DDR_DQ25 M0_DDR_DQ26 M0_DDR_DQ27 M0_DDR_DQ28 M0_DDR_DQ29

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

M0_DDR_DQ30 M0_DDR_DQ31

M0_DDR_A0 M0_DDR_A1 M0_DDR_A2 M0_DDR_A3 M0_DDR_A4 M0_DDR_A5 M0_DDR_A6 M0_DDR_A7 M0_DDR_A8M0_DDR_A8 M0_DDR_A9

M0_U_CLK

M0_U_CLKN

EAN64028101

IC402

H5TQ4G63CFR-TEC

DDR3

N3

4Gbit

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_512MB_HYNIX_2133

(x16)

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

NC_1 NC_2 NC_3 NC_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

ZQ

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M0_1_VREFCA

M0_1_VREFDQ

R419

240 1%

C429 C430

0.1uF

IC402-*1

K4B4G1646E-BCNB

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_512MB_SS_2133

+1.5V_DDR

16V 16V

EAN64108201

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

T7

NC_6

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 DDR3-M0

2015.02.09 4

26

IC101

LGE Internal Use Only

LGE1312(M16)

M1_DDR_VREF_0 M1_DDR_VREF_1

M1_DDR_A0 M1_DDR_A1 M1_DDR_A2 M1_DDR_A3 M1_DDR_A4 M1_DDR_A5 M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11 M1_DDR_A12 M1_DDR_A13 M1_DDR_A14

M1_DDR_A15/M1_DDR_CS1

M1_DDR_BA0 M1_DDR_BA1 M1_DDR_BA2

M1_DDR_U_CLKP M1_DDR_U_CLKN M1_DDR_D_CLKP M1_DDR_D_CLKN

M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM0 M1_DDR_DM1 M1_DDR_DM2 M1_DDR_DM3

M1_DDR_DQ0 M1_DDR_DQ1 M1_DDR_DQ2 M1_DDR_DQ3 M1_DDR_DQ4 M1_DDR_DQ5 M1_DDR_DQ6 M1_DDR_DQ7 M1_DDR_DQ8 M1_DDR_DQ9

M1_DDR_DQ10 M1_DDR_DQ11 M1_DDR_DQ12 M1_DDR_DQ13 M1_DDR_DQ14 M1_DDR_DQ15 M1_DDR_DQ16 M1_DDR_DQ17 M1_DDR_DQ18 M1_DDR_DQ19 M1_DDR_DQ20 M1_DDR_DQ21 M1_DDR_DQ22 M1_DDR_DQ23 M1_DDR_DQ24 M1_DDR_DQ25 M1_DDR_DQ26 M1_DDR_DQ27 M1_DDR_DQ28 M1_DDR_DQ29 M1_DDR_DQ30 M1_DDR_DQ31

M1_DDR_ZQCAL

M1_DDR_CS0

M1_RET

VREF_M1_0

B1 AB1

M5 T5 K5 H5 V4 J4 V5 J5 U4 L5 W4 T4 R4 L4 U5 G5

H4 W5 M4

U3 U2 H3 H2 R5

F5 F4 G4 P4

K4

G2 G3 J2 J1 T2 T3 V2 V1

K1 G1 W1 T1

E2 M2 D3 L3 D1 M1 D2 M3 L2 F2 K3 E3 J3 F1 K2 F3 P2 Y3 N3 AA2 N1 AA1 N2 AA3 Y2 R2 W3 P3 V3 R1 W2 R3

C1

P5 Y4

R501

VREF_M1_1

M1_DDR_A0 M1_DDR_A1

M1_DDR_A2 M1_DDR_A3

M1_DDR_A4

M1_DDR_A5

M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11

M1_DDR_A12

M1_DDR_A13

M1_DDR_A14

M1_DDR_BA0

M1_DDR_BA1

M1_DDR_BA2

M1_U_CLK

M1_U_CLKN

M1_D_CLK

M1_D_CLKN

M1_DDR_CKE

M1_DDR_ODT

M1_DDR_RASN

M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM0

M1_DDR_DM1

M1_DDR_DM2

M1_DDR_DM3

M1_DDR_DQ0

M1_DDR_DQ1

M1_DDR_DQ2

M1_DDR_DQ3

M1_DDR_DQ4

M1_DDR_DQ5

M1_DDR_DQ6

M1_DDR_DQ7

M1_DDR_DQ8

M1_DDR_DQ9

M1_DDR_DQ10

M1_DDR_DQ11

M1_DDR_DQ12

M1_DDR_DQ13

M1_DDR_DQ14

M1_DDR_DQ15

M1_DDR_DQ16

M1_DDR_DQ17

M1_DDR_DQ18

M1_DDR_DQ19

M1_DDR_DQ20

M1_DDR_DQ21

M1_DDR_DQ22

M1_DDR_DQ23

M1_DDR_DQ24

M1_DDR_DQ25

M1_DDR_DQ26

M1_DDR_DQ27

M1_DDR_DQ28

M1_DDR_DQ29

M1_DDR_DQ30

M1_DDR_DQ31

240

1%

M1_DDR_CS0 DDR_RET

+1.5V_DDR

R508

1K

1%

R509 1K 1%

R503 100

+1.5V_DDR

R504 2K 1%

R505 2K 1%

+1.5V_DDR

R506 2K 1%

R507 2K

1%

VREF_M1_0

M1_D_CLK

M1_D_CLKN

M1_0_VREFCA

M1_0_VREFDQ

+1.5V_DDR

1K 1%

R516 1K 1%

R510 100

+1.5V_DDR

R511 2K 1%

R512 2K

+1.5V_DDR

R513

1%

R514 2K 1%

VREF_M1_1

R515

1%

2K

M1_U_CLK

M1_U_CLKN

M1_1_VREFCA

M1_1_VREFDQ

M1_DDR_RESET_N

+1.5V_DDR

R502

OPT

1K 1%

EAN64028101

IC501

M1_0_VREFCA

M1_0_VREFDQ

1_2Gbit : T7(NC_6)

4Gbit : T7(A14)

H5TQ4G63CFR-TEC

0.1uF

+1.5V_DDR

240

M1_DDR_A0 M1_DDR_A1 M1_DDR_A2 M1_DDR_A3 M1_DDR_A4 M1_DDR_A5 M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11 M1_DDR_A12 M1_DDR_A13 M1_DDR_A14

M1_DDR_BA0 M1_DDR_BA1 M1_DDR_BA2

M1_U_CLK

M1_U_CLKN M1_DDR_CKE

M1_DDR_CS0 M1_DDR_ODT

M1_DDR_RASN M1_DDR_CASN

M1_DDR_WEN

M1_DDR_RESET_N

M1_DDR_DQS2

M1_DDR_DQS_N2

M1_DDR_DQS3

M1_DDR_DQS_N3

M1_DDR_DM2 M1_DDR_DM3

M1_DDR_DQ16 M1_DDR_DQ17 M1_DDR_DQ18 M1_DDR_DQ19 M1_DDR_DQ20 M1_DDR_DQ21 M1_DDR_DQ22 M1_DDR_DQ23

M1_DDR_DQ24 M1_DDR_DQ25 M1_DDR_DQ26

M1_DDR_DQ28 M1_DDR_DQ29 M1_DDR_DQ30 M1_DDR_DQ31

N3

M1_DDR_A0 M1_DDR_A1 M1_DDR_A2 M1_DDR_A3 M1_DDR_A4 M1_DDR_A5 M1_DDR_A6 M1_DDR_A7 M1_DDR_A8

M1_DDR_A9 M1_DDR_A10 M1_DDR_A11 M1_DDR_A12 M1_DDR_A13 M1_DDR_A14

M1_DDR_BA0 M1_DDR_BA1 M1_DDR_BA2

M1_D_CLK

M1_D_CLKN M1_DDR_CKE

M1_DDR_CS0 M1_DDR_ODT

M1_DDR_RASN M1_DDR_CASN

M1_DDR_WEN

M1_DDR_DQS0

M1_DDR_DQS_N0

M1_DDR_DQS1

M1_DDR_DQS_N1

M1_DDR_DM0 M1_DDR_DM1

M1_DDR_DQ0 M1_DDR_DQ1 M1_DDR_DQ2 M1_DDR_DQ3 M1_DDR_DQ4 M1_DDR_DQ5 M1_DDR_DQ6 M1_DDR_DQ7

M1_DDR_DQ8 M1_DDR_DQ9

M1_DDR_DQ10 M1_DDR_DQ11 M1_DDR_DQ27 M1_DDR_DQ12 M1_DDR_DQ13 M1_DDR_DQ14 M1_DDR_DQ15

DDR3

A0

P7

4Gbit

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

M8

H1

L8

ZQ

R518

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

C524

C525 0.1uF

DDR_512MB_HYNIX_2133

EAN64108201

IC501-*1

K4B4G1646E-BCNB

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_512MB_SS_2133

EAN64086801

IC501-*2

H5TQ2G63GFR-TEC

M8

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

N3

A0

P7

A1

P3

A2

H1

N2

A3

P8

A4

P2

A5

R8

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_256MB_HYNIX_2133

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

EAN64108201

IC502-*1

K4B4G1646E-BCNB

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_512MB_SS_2133

PAGE 5

VREFCA

VREFDQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

NC_1 NC_2 NC_3 NC_4

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8

VSS_9 VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

ZQ

M1_1_VREFCA

M8

H1

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

M1_1_VREFDQ

R519

0.1uF

C540

C541 0.1uF

+1.5V_DDR

240

EAN64028101

IC502

H5TQ4G63CFR-TEC

N3

DDR3

A0

P7

4Gbit

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_512MB_HYNIX_2133

EAN64086801

IC502-*2

H5TQ2G63GFR-TEC

M8

VREFCA

VREFDQ

VDDQ_1 VDDQ_2 VDDQ_3 VDDQ_4 VDDQ_5 VDDQ_6 VDDQ_7 VDDQ_8 VDDQ_9

VSS_10 VSS_11 VSS_12

VSSQ_1 VSSQ_2 VSSQ_3 VSSQ_4 VSSQ_5 VSSQ_6 VSSQ_7 VSSQ_8 VSSQ_9

N3

A0

P7

A1

P3

A2

H1

N2

A3

P8

A4

P2

A5

R8

L8

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

J1 J9 L1 L9 T7

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_5

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

K3

CAS

L3

WE

T2

RESET

F3

DQSL

G3

DQSL

C7

DQSU

B7

DQSU

E7

DML

D3

DMU

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2

DQU3

A7

DQU4

A2

DQU5

B8

DQU6

A3

DQU7

DDR_256MB_HYNIX_2133

ZQ

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5 VDD_6 VDD_7 VDD_8 VDD_9

NC_1 NC_2 NC_3 NC_4 NC_6

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9

M8

VREFCA

H1

VREFDQ

L8

ZQ

B2

VDD_1

D9

VDD_2

G7

VDD_3

K2

VDD_4

K8

VDD_5

N1

VDD_6

N9

VDD_7

R1

VDD_8

R9

VDD_9

A1

VDDQ_1

A8

VDDQ_2

C1

VDDQ_3

C9

VDDQ_4

D2

VDDQ_5

E9

VDDQ_6

F1

VDDQ_7

H2

VDDQ_8

H9

VDDQ_9

J1

NC_1

J9

NC_2

L1

NC_3

L9

NC_4

A9

VSS_1

B3

VSS_2

E1

VSS_3

G8

VSS_4

J2

VSS_5

J8

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VSS_12

B1

VSSQ_1

B9

VSSQ_2

D1

VSSQ_3

D8

VSSQ_4

E2

VSSQ_5

E8

VSSQ_6

F9

VSSQ_7

G1

VSSQ_8

G9

VSSQ_9

Add CS signal for 2T Mode & RET signal for Instant On

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 DDR3-M1

2016.02.09 5

26

+0.9V_CORE

LGE Internal Use Only

AVDD09_HDMI

+1.5V_DDR

C664

10uF

10V

AVDD33_AUDA

AVDD18_MIP

AVDD18_AUAD

AVDD18_C4TX

AVDD18_HDMI

DVDD09_USB

C665

10uF

10V

C672 10uF

10V

C674 10uF

10V

AVDD33_HDMI

AVDD18_PLL

+1.5V_DDR

C666

C667

10uF

10V

AVDD09_HDMI

AVDD18_HDMI

DVDD33

LGE1312(M16)

L21

DVDD33_IO_1

L22

DVDD33_IO_2

L23

DVDD33_IO_3

W8

DVDD33_IO_4

Y23

DVDD33_IO_5

AA23

DVDD33_IO_6

AF13

DVDD33_IO_7

AF14

DVDD33_IO_8

AF11

AVDD33_BTUSB

AF19

AVDD33_DMD_1

AF20

AVDD33_DMD_2

N23

AVDD33_USB

R23

AVDD33_HDMI_1

T23

AVDD33_HDMI_2

AC17

AVDD33_AUDA

K26

DVDD18_EMMC

AF21

AVDD18_AFE3CH_1

AF22

AVDD18_AFE3CH_2

Y26

AVDD18_APLL

AF23

AVDD18_CVBS

AF24

AVDD18_DMD_1

AF25

AVDD18_DMD_2

L19

DVDD18_XTAL

H18

AVDD18_CPUPLL

M11

AVDD18_DDRPLL

AC18

AVDD18_AUAD

AC11

AVDD18_C4TX_1

AC12

AVDD18_C4TX_2

AC13

AVDD18_C4TX_3

AB11

AVDD18_C4TX_PLL

T26

AVDD18_HDMI_1

U26

AVDD18_HDMI_2

G8

DVDD15_M0_1

G9

DVDD15_M0_2

G10

DVDD15_M0_3

G11

DVDD15_M0_4

G12

DVDD15_M0_5

G13

DVDD15_M0_6

G14

DVDD15_M0_7

G15

DVDD15_M0_8

G16

DVDD15_M0_9

J7

DVDD15_M1_1

K7

DVDD15_M1_2

L7

DVDD15_M1_3

M7

DVDD15_M1_4

N7

DVDD15_M1_5

P7

DVDD15_M1_6

R7

DVDD15_M1_7

T7

DVDD15_M1_8

U7

DVDD15_M1_9

P23

DVDD09_USB

J26

DVDD09_EMMC

U23

AVDD09_HDMI

C669

C668

0.01uF 50V

0.1uF

C671

0.01uF

16V

50V

HDMI POWER CONTROL

+0.9V_CORE

L613

120-ohm

C683

0.1uF 16V

+1.8V_IO

L614

120-ohm

C687

0.1uF 16V

IC101

C673

0.01uF 50V

C677 10uF

10V

DVDD09_C4TX_1 DVDD09_C4TX_2 DVDD09_C4TX_3

DVDD09_C4TX_PLL

DVDD09_CORE_1 DVDD09_CORE_2 DVDD09_CORE_3 DVDD09_CORE_4 DVDD09_CORE_5 DVDD09_CORE_6 DVDD09_CORE_7 DVDD09_CORE_8

DVDD09_CORE_9 DVDD09_CORE_10 DVDD09_CORE_11 DVDD09_CORE_12 DVDD09_CORE_13 DVDD09_CORE_14 DVDD09_CORE_15 DVDD09_CORE_16 DVDD09_CORE_17 DVDD09_CORE_18 DVDD09_CORE_19 DVDD09_CORE_20 DVDD09_CORE_21 DVDD09_CORE_22 DVDD09_CORE_23 DVDD09_CORE_24 DVDD09_CORE_25 DVDD09_CORE_26 DVDD09_CORE_27 DVDD09_CORE_28 DVDD09_CORE_29 DVDD09_CORE_30 DVDD09_CORE_31 DVDD09_CORE_32 DVDD09_CORE_33 DVDD09_CORE_34

DVDD09_CPU_1 DVDD09_CPU_2 DVDD09_CPU_3 DVDD09_CPU_4 DVDD09_CPU_5 DVDD09_CPU_6 DVDD09_CPU_7 DVDD09_CPU_8

DVDD09_CPU_9 DVDD09_CPU_10 DVDD09_CPU_11 DVDD09_CPU_12

DVDD09_CPUPLL DVDD09_DDRPLL

DVDD09_XTAL

DVDD09_DDR_1

DVDD09_DDR_2

DVDD09_DDR_3

DVDD09_DDR_4

AVDD09_AFE3CH

AVDD09_APLL

AVDD09_DMD

AVDD09_LLPLL

SP_VQPS

C676

C675

0.1uF

0.1uF 16V

16V

AVDD33_HDMI

DVDD09_DDR_C4TX

V11 W11 Y11 U11

N15 N17 N18 P15 P17 R15 R17 T15 T17 U13 U15 U17 U19 U21 V13 V15 V17 V19 V21 W13 W15 W17 W19 W21 Y13 Y15 Y17 Y19 Y21 AA13 AA15 AA17 AA19 AA21

P18 P19 P20 P21 R18 R19 R20 R21 T18 T19 T20 T21

L17 L11 L18

N12 N13 P13 R13

AC20 AC22 AC21 AC19

H23

C679

0.01uF 50V

+0.9V_CORE

+0.9V_CPU

AVDD09_PLL

DVDD09_DDR_C4TX

AVDD09_MIP

R601

4.7K

C680

0.1uF 16V

+3.3V_NORMAL

L615

120-ohm

C685

0.1uF 16V

C682

0.1uF 16V

Q604

SSM3K324R

D

G

Q601

SSM3J332R

C684

0.1uF 16V

S

R605

D

G

C686

0.01uF 50V

PANEL_VCC

10K

S

+1.8V_IO

R602 10K

R607

C688

0.01uF 50V

+0.9V_CORE

C601

4.7uF 10V

+0.9V_CPU

C617

4.7uF 10V

+0.9V_CORE

22

OTP_WRITE

C689

0.1uF 16V

C690

0.01uF 50V

C691

0.01uF 50V

+1.5V AC Decoupling Cap

+1.5V_DDR

C661

C662

4.7uF

0.1uF

10V

16V

+1.5V_DDR

C630

C631

0.1uF

0.01uF

16V

50V

C602

4.7uF 10V

AVDD09_PLL

L603

120-ohm

C699

0.01uF 50V

C663

0.1uF

0.01uF

16V

C632

0.1uF

0.1uF 16V

C619

4.7uF 10V

C633

C634

4.7uF

0.1uF

10V

+3.3V_NORMAL

C697

0.1uF

0.1uF 16V

C635

C670

4.7uF 10V

50V

C642

C643

0.01uF

16V

50V

C698

PAGE 6

+0.9V AC Decoupling Cap

C605

C606

4.7uF

0.1uF

10V

16V

+0.9V_CORE

16V

C607

0.1uF

C623

0.1uF

C608

C609

0.1uF

0.1uF 16V

16V

C615

0.1uF

C616

0.1uF

16V

DVDD09_DDR_C4TX

+0.9V_DDR

L601

C626

16V

0.1uF 16V

120-ohm

DVDD09_USB

C627

4.7uF 10V

C628

0.1uF 16V

C629

0.1uF

C681 1000pF

50V

16V

AVDD09_MIP

+0.9V_CORE

L604

120-ohm

C636

0.1uF 16V

L606

120-ohm

C638

0.1uF

C640

C639

4.7uF

0.1uF 10V

16V

+3.3V AC Decoupling Cap

AVDD33_AUDADVDD33

L607

BLM18PG121SN1D

C641

4.7uF 10V

16V

C644

0.1uF

C645

C646

0.1uF

C647

0.1uF

16V

0.1uF

16V

+3.3V_NORMAL

BLM18PG121SN1D

L608

Close to SOC Side

C693

C692 22uF

0.1uF

10V

16V

C694

0.1uF 16V

C695

0.1uF 16V

+1.8V AC Decoupling Cap

C637

4.7uF 10V

C648

0.1uF

AVDD18_MIP

+1.8V_IO

L609

BLM18PG121SN1D

C649

4.7uF 10V

C696 10uF

C653

C652

10V

0.1uF 16V

0.1uF

C654

0.1uF

16V

+1.8V_IO

AVDD18_PLL

+1.8V_IO

L611

C650

0.01uF

16V

50V

120-ohm

C658

4.7uF 10V

C659

0.1uF 16V

+1.8V_IO

AVDD18_C4TX

L610

BLM18PG121SN1D

4.7uF

AVDD18_AUAD

L612

120-ohm

4.7uF

C655

C678

C656

C657

0.1uF 16V

C660

0.1uF 16V

1000pF

50V

10V

IC101

LGE1312(M16)

B3

GND_1

B22

GND_2

B24

GND_3

C2

GND_4

C22

GND_5

C23

GND_6

C24

GND_7

D20

GND_8

D21

GND_9

D27

GND_10

E4

GND_11

E20

GND_12

E21

GND_13

E27

GND_14

F6

GND_15

F7

GND_16

F8

GND_17

F9

GND_18

F10

GND_19

F11

GND_20

F13

GND_21

F14

GND_22

F15

GND_23

F16

GND_24

F17

GND_25

F18

GND_26

F19

GND_27

F20

GND_28

F21

GND_29

F27

GND_30

G6

GND_31

G7

GND_32

G17

GND_33

G18

GND_34

G19

GND_35

G20

GND_36

G21

GND_37

G22

GND_38

G23

GND_39

G24

GND_40

G25

GND_41

G26

GND_42

G27

GND_43

H6

GND_44

H7

GND_45

H8

GND_46

H9

GND_47

H10

GND_48

H11

GND_49

H12

GND_50

H13

GND_51

H14

GND_52

H15

GND_53

H16

GND_54

H17

GND_55

H19

GND_56

H20

GND_57

H21

GND_58

H22

GND_59

H24

GND_60

H25

GND_61

H26

GND_62

H27

GND_63

J6

GND_64

J8

GND_65

J27

GND_66

K6

GND_67

K8

GND_68

K27

GND_69

L6

GND_70

L8

GND_71

L12

GND_72

L13

GND_73

L14

GND_74

L15

GND_75

L16

GND_76

L20

GND_77

L26

GND_78

L27

GND_79

M6

GND_80

M8

GND_81

M12

GND_82

M13

GND_83

M14

GND_84

M15

GND_85

M16

GND_86

M17

GND_87

M18

GND_88

M19

GND_89

M20

GND_90

M21

GND_91

M22

GND_92

M23

GND_93

M26

GND_94

M27

GND_95

M31

GND_96

N8

GND_97

N11

GND_98

N14

GND_99

N16

GND_100

N19

GND_101

N20

GND_102

N21

GND_103

N22

GND_104

N26

GND_105

N27

GND_106

P6

GND_107

P8

GND_108

P11

GND_109

P12

GND_110

P14

GND_111

P16

GND_112

P22

GND_113

P26

GND_114

P27

GND_115

R6

GND_116

R8

GND_117

R11

GND_118

R12

GND_119

R14

GND_120

R16

GND_121

R22

GND_122

R26

GND_123

R27

GND_124

GND_125 GND_126 GND_127 GND_128 GND_129 GND_130 GND_131 GND_132 GND_133 GND_134 GND_135 GND_136 GND_137 GND_138 GND_139 GND_140 GND_141 GND_142 GND_143 GND_144 GND_145 GND_146 GND_147 GND_148 GND_149 GND_150 GND_151 GND_152 GND_153 GND_154 GND_155 GND_156 GND_157 GND_158 GND_159 GND_160 GND_161 GND_162 GND_163 GND_164 GND_165 GND_166 GND_167 GND_168 GND_169 GND_170 GND_171 GND_172 GND_173 GND_174 GND_175 GND_176 GND_177 GND_178 GND_179 GND_180 GND_181 GND_182 GND_183 GND_184 GND_185 GND_186 GND_187 GND_188 GND_189 GND_190 GND_191 GND_192 GND_193 GND_194 GND_195 GND_196 GND_197 GND_198 GND_199 GND_200 GND_201 GND_202 GND_203 GND_204 GND_205 GND_206 GND_207 GND_208 GND_209 GND_210 GND_211 GND_212 GND_213 GND_214 GND_215 GND_216 GND_217 GND_218 GND_219 GND_220 GND_221 GND_222 GND_223 GND_224 GND_225 GND_226 GND_227 GND_228 GND_229 GND_230 GND_231 GND_232 GND_233 GND_234 GND_235 GND_236 GND_237 GND_238 GND_239 GND_240 GND_241 GND_242 GND_243 GND_244 GND_245 GND_246

AVSS18_AUAD_REF

R31 T6 T8 T11 T12 T13 T14 T16 T22 T27 U6 U8 U12 U14 U16 U18 U20 U22 U27 V6 V7 V8 V12 V14 V16 V18 V20 V22 V23 V26 V27 W6 W7 W12 W14 W16 W18 W20 W22 W23 W26 W27 Y5 Y8 Y12 Y14 Y16 Y18 Y20 Y22 Y27 AA11 AA12 AA14 AA16 AA18 AA20 AA22 AA26 AB3 AB4 AB12 AB13 AB14 AB15 AB16 AB17 AB18 AB19 AB20 AB21 AB22 AB23 AB26 AC14 AC15 AC16 AC23 AC26 AD26 AE4 AE26 AF8 AF9 AF10 AF12 AF15 AF16 AF17 AF18 AF26 AF27 AG8 AG9 AG10 AG11 AG12 AG13 AG14 AG15 AG16 AG17 AG18 AG19 AG20 AG21 AG22 AG23 AG24 AG25 AG26 AG27 AH27 AL14 AL16 AL17 AL19 AL22 AL23 AL26 AL31 AM7

AL20

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

VCC & GND

AVSS18_AUAD_REF

2015.02.16 6

27

MODE_SELECT_NON

LGE Internal Use Only

INV_CTL

MODE_SELECT

RL_ON

+3.3V_NORMAL

R1001

1K

MODE_SELECT_NON

+3.5V_ST

R1003100

R1000 10K

R1002 10K

L/DIM0_VS

2N3906S-RTK

Q1000

1

2

PWR_WAFER_18P

3

R1011 33

PWR_WAFER_18P

P1002

SMAW200-H18S5

PWR_WAFER_12P

P1000

SMAW200-H12S5K(BK)(LTR)

2

1

4

3

6

5

2

1

8

7

4

3 9

10

6

5

12

11

8

7

14

13

9

10 16

15

12

11

18

17

13 19

L1002

UBW2012-121F

R1010 33

PWR_WAFER_18P

R1009 33

PWR_WAFER_18P

R1006 100

EPI or OS_MODULE

R1012 100

VBY1_M+_MODULE

OPT

R1013 0

JP-BLOCK-1POWER_13V

D13V

GND

UBW2012-121F

R1008

PWM2

JP1000

L1000

L1001

100

C1002

0.1uF 50V

C1000

0.1uF

C1004

4.7uF

L/DIM0_MOSI

L/DIM0_SCLK

PWM_DIM

PWM_TCON_OUT

C1001

4.7uF

25V

PWM_DIM2

50V

A13V

C1006 10uF 35V

C1003 10uF 25V

C1005 10uF 25V

+13V

’16 UHD 13.2V sole out power

’Net name +13V means 13.2V power output

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/20Power wafer(UHD)

UBW2012-121F

LGE Internal Use Only

UBW2012-121F

C1100

10uF

25V

PANEL_CTL

+13V

L1100

L1101

+13V

C1101

0.1uF 25V

C1102

0.01uF 50V

PANEL_POWER

50V

10pF

C1104

OPT

ENABLE/FAULT

R1100

10K

R1103

1K

OPT C1103

0.1uF 16V

GND

DV/DT

ILIMIT

NC

EAN64130001

IC1100

NIS5132MN2-FN-7

1

2

3

4

5

11

THERMAL

R1101 10

1/10W 1%

10

9

8

7

6

[EP]

SOURCE_5

SOURCE_4

SOURCE_3

SOURCE_2

SOURCE_1

I LIM= 7A

TYP mA

PANEL_VCC

C

1105

C1106

10uF

0.1uF

25V

C1107 10uF 25V

C1108 10uF 25V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

Panel Power

15/08/20

Power_DET

LGE Internal Use Only

PD_+18V R1300-*1 11K 1%

PD_+18V R1301-*1

2.7K 1%

+13V

PD_+12V R1300 14K 1%

PD_+12V R1301

5.1K 1%

+3.5V_ST

R1302

OPT

PD_+3.5V R1303 0 5%

0

EAN62945801

IC1300

BD48K28G

VDD

3

C1300

0.1uF 16V

POWER_DET_1

R1304 100K

1

GND

+3.5V_ST

R1305 10K OPT

VOUT

2

C1301

0.1uF 16V

POWER_DET

not to RESET at 8kV ESD

24V-->3.48V 20V-->3.51V

12V-->3.58V

ST_3.5V-->3.5V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13Power det

+13V

LGE Internal Use Only

+3.3V_NORMAL

POWER_ON/OFF1

L1400

BLM18PG121SN1D

C1400

C1401

10uF

0.1uF

25V

50V

BD86106EFJ

PGND

1

VIN

2

AGND

3

FB

4

C1402

1500pF 50V

IC1400

THERMAL

6A

9

R1401

10K

+3.3V_NORMAL

[EP]

L1401

SW_2

8

SW_1

7

EN

6

COMP

5

R1402

10K

2.2uH

PS064T-2R2MS

C1404

C1403

0.1uF 16V

OPT

Vout=0.8*(1+R1/R2)

10uF

10V

C1405

10uF

10V

C1406

10uF

10V

C1407 10uF 10V

ZD1400

5V

R1403

1.2K 1%

R1404

7.5K 1%

R1405

2.7K 1%

R1

R2

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

2015.06.02

+3.5V_ST

LGE Internal Use Only

BLM18PG121SN1D

L1500

C1500 10uF 10V

C1501

0.1uF 16V

PVIN_1

PVIN_2

PGND_1

PGND_2

+1.5V DDR

OPT

10K

C1502

R1500

0.1uF 16V

[EP]FIN

1

2

3

4

BOOT14PGD15EN16AVIN

THERMAL

17

EAN62870501

IC1500

BD9A300MUV

3A

7

5

6

FB

ITH

AGND8MODE

13

12

11

10

9

SW_3

SW_2

SW_1

SS

R1501

8.2K

C1503

0.1uF

16V

1%

C1504

0.01uF 50V

C1505 2700pF

POWER_ON/OFF2_4

VLS5045EXT-2R2N

L1501

2.2uH

C1506

C1507

10uF

10V

+3.5V_ST

C1508 10uF 10V

R1505

330K

R1502

330K

OPT

+1.5V_DDR

C1509 10uF

10V

R1

PAGE 15

2.5V

ZD1500

OPT

1%

16K

1/1 6W

R15 03

Vout=0.8*(1+R1/R2)

1%

R2

18K

R15 04

1/1 6W

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 UHD-mid Power

2015.06.03 15

100

PAGE 16

LGE Internal Use Only

+13V

L1600

BLM18PG121SN1D

C1600 10uF 25V

C1601

0.1uF 50V

BD86106EFJ

PGND

VIN

AGND

FB

C1602

1500pF 50V

1

2

3

4

IC1600

THERMAL

6A

9

R1600

20K

[EP]

SW_2

8

SW_1

7

EN

6

COMP

5

L1601

4.7uH

0.0068uF

Vout=0.8*(1+R1/R2)

C1603

50V

R1601

10K

POWER_ON/OFF1

C1604

C1605

10uF

10V

C1606 10uF 10V

C1607 10uF 10V

+5V_NORMAL

ZD1600

C1608

5V

10uF

OPT

10V

R1603

R1602

18K

3.3K

R1

1%

R2

1%

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 UHD-mid Power

2015.06.03 16

100

+3.5V_ST

LGE Internal Use Only

PAGE 17

+3.5V_ST

+13V

L1700

BLM18PG121SN1D

C1700 10uF 25V

C1701

0.1uF 25V

R1701

IC1700

SN1501019

GND

VLS6045EXT-4R7M

L1701

4.7uH

C1705

C1703 10uF 10V

C1704 10uF 10V

10uF

10V

C1702 10uF

10K

10V

1

SW

2

VIN

3

EAN63530002

3A

6

5

4

VBST

EN

VFB

0.1uF

16V

C1706

25V

C1707

0.1uF

R2

R17 02

10K

1/1 6W

1%

1% 1/1 6W

33K R17 03

50V

1% 1/1 6W

R17 04

10pF

R1

2K

OPT

C1708

Vout=0.765*(1+R1/R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

M16 UHD-mid Power

2015.06.03 17

100

PAGE 18

LGE Internal Use Only

+13V

L1800

C1801 10uF 25V

C1802

0.1uF 50V

C1803

0.47uF 50V

+1.8V_IO

IC1800

RT7295CG6F

BOOT

GND

1

2

FB

3

SW

6

VIN

5

4

10K

R1800

EN

3.5A

Vout=0.6*(1+R1/R2)

VLS5045EXT-2R2N

L1801

2.2uH

C1806

C1805

10uF

10V

OPT C1804

0.1uF 16V

C1808

C1807

10uF

10V

POWER_ON/OFF1

+1.8V_IO

OPT

C1809 33pF

50V

1%

20K

R1801

1/16W

1%

10K

R1802

1/16W

R1

ZD1800

R2

2.5V OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+0.9V_CORE

LGE Internal Use Only

2.5V

ZD2000

OPT

C2000 10uF 10V

+0.9V_CORE

MAX 7A

R2-3

R20 11

R20 08

150K

1%

R20 09

1%

G

430K

1%

R20 12

270K

1%

D

R2014

G

Q2001

T2N7002AK

S

+3.3V_NORMAL

R2013

10K

R2010

0

+3.3V_NORMAL

R2015

10K

0

R2017

10K

OPT

CORE_VID[0]

R2016

10K

OPT

CORE_VID[1]

POWER_ON/OFF2_3

C2011

0.1uF 16V

C2010

0.1uF

OPT

PGOOD_1

R2002

C2009

LPBN8050T-1R0N

L2000

1.0uH

R2001

3.3

1/10W

5%

OPT

GSNS

C2008 470pF 50V

C2003 10uF 10V

C2005 10uF 10V

C2004 10uF 10V

C2002 10uF 10V

C2001 10uF 10V

R2000

0

0.1uF

4.7

25V

5%

LP#

MODE

BST

SW_1

SW_2

SW_3

SW_4

16V

1

2

3

NC

4

5

6

7

8

9

1K

R2003

[EP]GND

THERMAL

29

IC2000

TPS51362RVER

10

PGND_511PGND_412PGND_313PGND_214PGND_1

REFIN2

REFIN26VREF27RA28EN

24

25

5%

R1

R20 0401/1 6W

1%

39K

R20 05

1/1 6W

1%

R2

39K

1/1 6W

R20 06

GSNS

23

VSNS

22

SLEW

21

TRIP

20

GND

19

V5

18

VIN_1

17

VIN_2

16

VIN_3

15

C2012

0.01uF 50V

+0.9V_CORE

GSNS

debugging point

R2007

0

+5V_NORMAL

C2014

C2013

10uF

25V

C2015

2.2uF 10V

+13V

L2001

R2-2

180K

D

Q2000

T2N7002AK

S

Vout=2*R2/(R1+R2)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

R1:39K/R2:39K//660K, V=0.9713V(CORE_VID0=L,CORE_VID1=H) VH_CORE

R1:39K/R2:39K, V=1.0V(CORE_VID0=L,CORE_VID1=L) VHV_CORE

R1:39K/R2:39K//330K, V=0.9442V(CORE_VID0=H,CORE_VID1=L) MV_CORE

R1:39K/R2:37K//660K//330K, V=0.9185V(CORE_VID0=H,CORE_VID1=H) LV_CORE

CORE_VID0

CORE_VID TABLE

CORE_VID1

L

H

L 1.0V

H

L

H

VOUT

0.9713V

0.9442V

0.9185V

M16_0.9V Core

R2

39 kohm

36.94 kohm

34.87 kohm

33.22 kohm

020.sht

15/06/13

19

73

+13V

LGE Internal Use Only

L2100

BLM18PG121SN1D

+0.9V_CPU

MAX 2.7A

Placed on SMD-TOP

IC2100

C2100 10uF 25V

C2101

0.1uF

25V

C2102

0.47uF 50V

BOOT

GND

FB

RT7295CG6F

1

2

3

3.5A

VLS5045EXT-2R2N

L2101

10K

R2104

2.2uH

C2104 10uF

10V

C2103

0.1uF 16V

SW

6

VIN

5

EN

4

R2-2

R2102

0

CPU_VID[0]

+3.3V_NORMAL

R2100

10K

R2101

5%

R2103

120K

1%

D

G

0

S

CPU_VID[1]

Q2100

T2N7002AK

+3.3V_NORMAL

R2105

Vout=0.6*(1+R1/R2)

R1:9.1K/R2:18K, V=0.9033V(CPU_VID0=L,CPU_VID1=L) LV_CPU R1:9.1K/R2:18K//210K, V=0.9293V(CPU_VID0=L,CPU_VID1=H) MV_CPU R1:9.1K/R2:18K//120K, V=0.9488V(CPU_VID0=H,CPU_VID1=L) LV_CPU

R1:9.1K/R2:18K//210K//120K, V=0.9748V(CPU_VID0=H,CPU_VID1=H) VHV_CPU

C2106

C2105

10uF

10V

POWER_ON/OFF2_3

R2-3

10K

R2106

0

C2107 10uF 10V

R2107

30K

R2108

180K

G

+0.9V_CPU

1%

D

Q2101

S

OPT C2108

33pF

50V

5%

1%

T2N7002AK

2.5V

ZD2100

OPT

R2109

9.1K

1%

R1

0

1/1 6W

R21 10

R2-1

18K

1/1 6W

R21 11

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

CPU_VID0

L

H

CPU_VID TABLE

CPU_VID1

L

H

L

H

M16_0.9V CPU

VOUT

0.9033V

0.9293V

0.9488V

0.9743V

R2

18 kohm

16.57 kohm

15.65 kohm

14.56 kohm

021.sht

15/06/13

20

73

+1.8V_IO

LGE Internal Use Only

+5V_NORMAL

+0.9V DDR & C4TX

POWER_ON/OFF2_3

L2200

R2200

10K

C2200

10uF

10V

C2201

10uF

10V

POK

EN

IN

BIAS

IC2200

TJ2132GDP

1

2

THERMAL

3

4

2A

[EP]GND

GND

8

FB

9

7

OUT

6

SS

5

C2202

0.01uF 50V

C2203 2700pF 50V

Vout=0.6*(1+R2/R1)

R1

8.2K

1%

R2201

R2

1%

4.7K R2202

C2204

10uF

10V

+0.9V_DDR

C2205

0.1uF 16V

ZD2200

2.5V OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16_0.9V DDR & C4TX

022.sht 15/06/13 21

73

Renesas MICOM

LGE Internal Use Only

For Debug

+3.5V_ST

DEBUG_MICOM

P3000

12507WS-04L

1

2

3

4

5

M16/F16 Power SEQUENCE

POWER_ON/OFF1

POWER_ON/OFF2_3

POWER_ON/OFF2_4

POWER_ON/OFF2_1

R3014 10K

DEBUG_MICOM

1K

Don’t remove R3016, not making float P40

R3016

MICOM_DEBUG

MICOM_RESET

R3004

MODE_SELECT(PWM1) MODE_SELECT

10K

MODE_SELECT

EYE_SDA

EYE_SCL

C3006

2.2uF 10V

MODE_SELECT

+3.5V_ST

AR3001

MODE_SELECT(PWM1)

POWER_ON/OFF2_2

3.3K 1/16W

POWER_ON/OFF2_3

WOL/WIFI_POWER_ON

I2C_SCL1

I2C_SDA1

3D&L_DIM_EN

INV_CTL

HDMI_CEC

IR

RETENTION_DISABLE

POWER_DET_1

T_CON_SYS_POWER_OFF

TP3003

P60/SCLA0 P61/SDAA0

P31/TI03/TO03/INTP4

P75/KR5/INTP9/SCK01/SCL01

R3011

P74/KR4/INTP8/SI01/SDA01

100

P73/KR3/SO01 P72/KR2/SO21

P71/KR1/SI21/SDA21

P70/KR0/SCK21/SCL21

P30/INTP3/RTC1HZ/SCK11/SCL11

R3023

+3.5V_ST

P62 P63

MICOM_XTAL_KDS

8pF

33

1K

1

MICOM_XTAL_EPSON

R3017

0.1uF

C3001

VDD

48

X3001-*1

32.768KHz

VSS

47

C3003

C3002 0.47uF

P121/X1

REGC

45

46

2 3 4 5

R5F100GEAFB#30

6

IC3000

EAN62632101

7 8 9 10 11 12

13

14

15

16

MICOM_XTAL_EPSON

18pF

C3003-*1

50V

8pF

C3004

MICOM_XTAL_KDS

X3001

32.768KHz R3018

4.7M OPT

P137/INTP0

P122/X2/EXCLK

43

44

17

18

MICOM_RESET

R3019 33

RESET

P124/XT2/EXCLKS

P123/XT1

40

41

42

19

20

21

50V

15pF

C3004-*1

MICOM_DEBUG

LED_R

P120/ANI19

P41/TI07/TO07

P40/TOOL0

37

38

39

36 35 34 33 32 31 30 29 28 27 26 25

22

23

24

+3.5V_ST

10K

MICOM_RESET_SW

SW3001

R3020

JTP-1127WEM

C3005

0.1uF

OPT

270K

4 3

R3021

16V

WIFI_EN

P140/PCLBUZ0/INTP6 P00/TI00/TXD1 P01/TO00/RXD1 P130 P20/ANI0/AVREFP P21/ANI1/AVREFM P22/ANI2 P23/ANI3 P24/ANI4 P25/ANI5 P26/ANI6 P27/ANI7

BT_WAKEUP_ON/OFF

PAGE 11

12

R3022

33

RL_ON

INSTANT_BOOT

POWER_ON/OFF2_4

POWER_ON/OFF2_1

KEY2

KEY1

MODEL1_OPT_0

MODEL1_OPT_1

MODEL1_OPT_2

MODEL1_OPT_3

SIDE_HP_MUTE

BT_WAKEUP_ON/OFF

TP3002

POWER_ON/OFF2_3

SOC_RESET

MICOM MODEL OPTION

+3.5V_ST

MODEL1_OPT_0 MODEL1_OPT_1 MODEL1_OPT_2 MODEL1_OPT_3

R3002

10K

R3003

2.7K OPT

R3005

10K

R3006

2.7K OPT

R3007

10K

R3008

2.7K OPT

R3009

10K

R3010

2.7K OPT

00 (0.72V)

01 (1.53V)

10 (2.27V)

11 (3.0V)

MODEL_OPT_0

MICOM_NON_LOGO_LCD

LOGO/LCD

MICOM_LOGO_LCD

NON LOGO/OLED

MICOM_NONLOGO_OLED

LOGO/OLED BOX

MICOM_LOGO_OLED

R3003-*1

2.7K

R3003-*2

8.2K

R3003-*3 20K

R3003-*4 75K

MODEL_OPT_1

MICOM_BOX_EYE_Sensor

MICOM_BOX_RGB_Sensor

TV-NON EPI

R3006-*1

2.7K

MICOM_TV_NONEPI

BOX -

R3006-*2

8.2K

TV-EPI

R3006-*3 20K

MICOM_TV_EPI

R3006-*4 75K

MODEL_OPT_2

FHDNON LOGO/LCD

R3008-*1

2.7K

MICOM_FHD

R3008-*2

8.2K

NOT USE

UHD

R3008-*3 20K

MICOM_UD

8K

R3008-*4 75K

MICOM_8K

MODEL_OPT_3

UHD/8K

FHD

M16

MICOM_M16

-

MICOM_RTK

A5LR

MICOM_H15/A5LR

M2

MICOM_M2

M16

R3010-*1

2.7K

RTK

R3010-*2

8.2K

H15

R3010-*3 20K

-

R3010-*4 75K

BT_WAKEUP

TP3001

P17/TI02/TO02

P51/INTP2/SO11

P50/INTP1/SI11/SDA11

P16/TI01/TO01/INTP5

P13/TXD2/SO20

P14/RXD2/SI20/SDA20

P12/SO00/TXD0/TOOLTXD

P15/PCLBUZ1/SCK20/SCL20

P11/SI00/RXD0/TOOLRXD/SDA00

POWER_DET

BT_WAKEUP

POWER_ON/OFF1

WOL/ETH_POWER_ON

WOL_CTL

SOC_RESET

PANEL_CTL

SOC_TX

P146

P147/ANI18

P10/SCK00/SCL00

SOC_RX

EDID_WP

AMP_MUTE

F16_RESET_MICOM

For HDMI CEC (Consumer Electronic Control)

+3.5V_ST

R3033

27K

D3000

BAT54_SUZHO

CEC_REMOTE HDMI_CEC

G

D

Q3001

SSM3K56FS

S

R3034 120K

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

MICOM_NEC

030.sht

2015.06.27 30

99

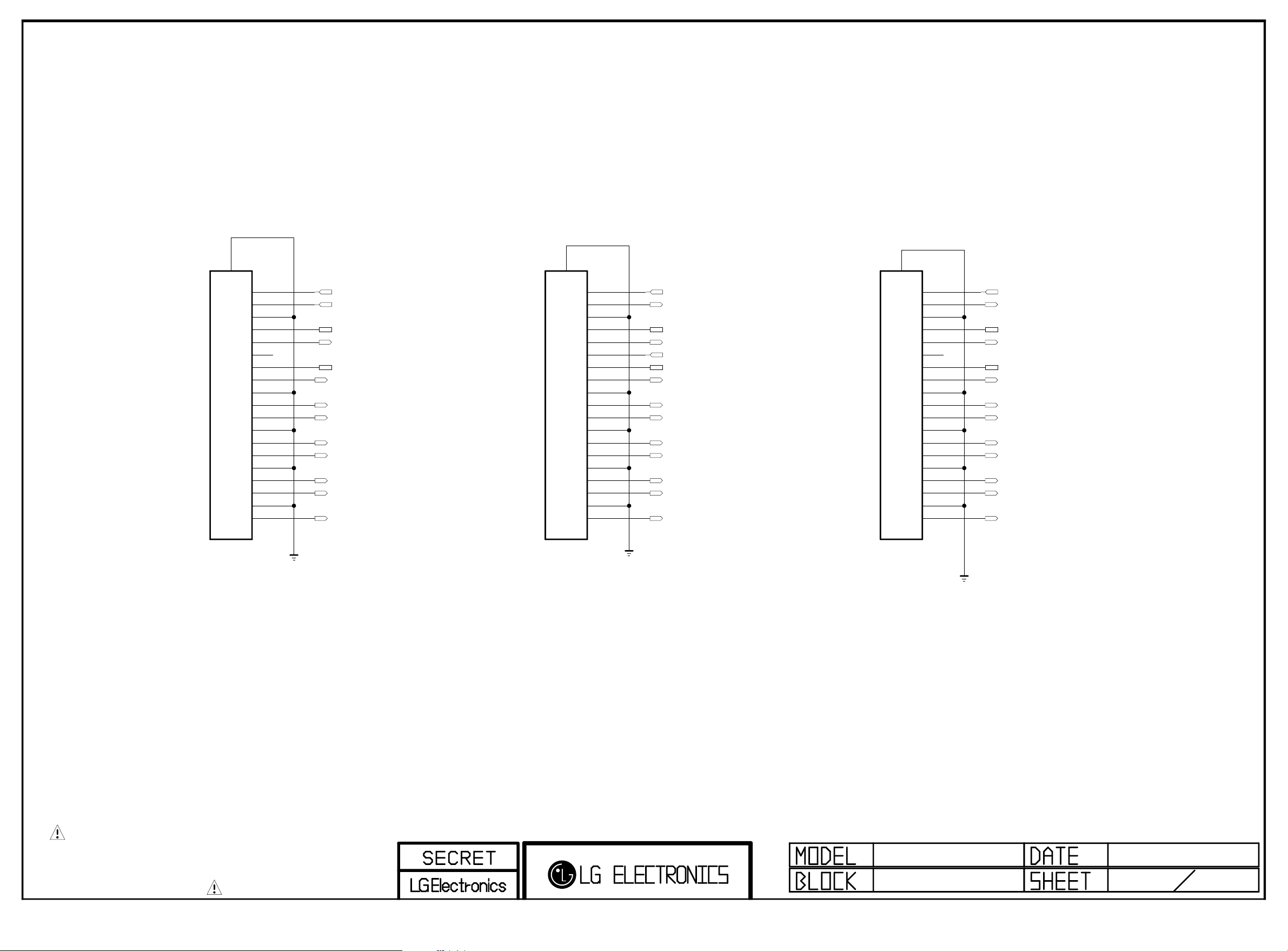

BODY_SHIELD

LGE Internal Use Only

HDMI2 With ARC (2.0) HDMI3 with Ext.EDID (1.4)HDMI1 (2.0)

GND

20

EAG63530101

DAADR019A

JK3103

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HDMI_HPD_3_JACK

5V_HDMI_3

DDC_SCL_3_JACK

CEC_REMOTE

CK-_HDMI3_JACK

CK+_HDMI3_JACK

D0-_HDMI3_JACK

D0+_HDMI3_JACK

D1-_HDMI3_JACK

D1+_HDMI3_JACK

D2-_HDMI3_JACK

D2+_HDMI3_JACK

BODY_SHIELD

20

EAG63530101

JK3100

DAADR019A

19

18

17

16

15

14

13

12

11 10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

ARC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HDMI_HPD_2_JACK

5V_HDMI_2

DDC_SDA_2_JACK

DDC_SCL_2_JACK

SPDIF_OUT_ARC_JACK

CEC_REMOTE

CK-_HDMI2_JACK

CK+_HDMI2_JACK

D0-_HDMI2_JACK

D0+_HDMI2_JACK

D1-_HDMI2_JACK

D1+_HDMI2_JACK

D2-_HDMI2_JACK

D2+_HDMI2_JACK

SHIELD

EAG59023302

JK3102

YKF45-7058V

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

HP_DET

5V

GND

DDC_DATA

DDC_CLK

NC

CE_REMOTE

CK-

CK_GND

CK+

D0-

D0_GND

D0+

D1-

D1_GND

D1+

D2-

D2_GND

D2+

HDMI_HPD_1_JACK

5V_HDMI_1

DDC_SDA_1_JACKDDC_SDA_3_JACK

DDC_SCL_1_JACK

CEC_REMOTE

CK-_HDMI1_JACK

CK+_HDMI1_JACK

D0-_HDMI1_JACK

D0+_HDMI1_JACK

D1-_HDMI1_JACK

D1+_HDMI1_JACK

D2-_HDMI1_JACK

D2+_HDMI1_JACK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

HDMI SYMBOL 73

24

19

LGE Internal Use Only

18

16

15

13 12

10

9

7 6

4 3

1

HDMI_HPD_3_JACK

5V_HDMI_3

DDC_SDA_3_JACK

DDC_SCL_3_JACK

CEC_REMOTE

CK-_HDMI3_JACK

CK+_HDMI3_JACK

D0-_HDMI3_JACK

D0+_HDMI3_JACK

D1-_HDMI3_JACK

D1+_HDMI3_JACK

D2-_HDMI3_JACK

D2+_HDMI3_JACK

5V_HDMI_3

ESD_HDMI

VA3216

VA3212

ESD_HDMI

100K

VA3210

R3267

ESD_HDMI

AR3203

5.1 1/16W

AR3207

5.1 1/16W

VA3211

R3261 33

AR3202

ESD_HDMI

33

DDC_SCL_3

DDC_SDA_3

CEC_REMOTE

CK-_HDMI3

CK+_HDMI3

D0-_HDMI3

D0+_HDMI3

D1-_HDMI3

D1+_HDMI3

D2-_HDMI3

D2+_HDMI3

HDMI_HPD_3

HDMI1 (2.0)

+5V_NORMAL

A2CA1 D3203

AR3205

47K

DDC_SCL_3 DDC_SDA_3

External EDID

0IMMRAL014E

IC3203

AT24C02C-SSHM-T

A0

A1

A2

GND

1

2

3

4

HDMI_EXT_EDID

VCC

8

WP

7

SCL

6

SDA

5

MMBT3904(NXP) HDMI_EXT_EDID

Q3203

HDMI_EXT_EDID

R3271

4.7K

R3258

33

R3259

33

C

B

E

5V_HDMI_1

C3201

0.1uF 16V

HDMI_EXT_EDID

PAGE 12

+5V_NORMAL

A2CA1

D3216

HDMI_NON_BUFFER AR3206 47K

DDC_BUFFER_SW

D3201 BAT54_TSC

30V

HDMI_EXT_EDID_BUFFER

AR3206-*1 10K

DDC_SCL_1 DDC_SDA_1

EDID_WP

DDC_BUFFER_SW

19

HDMI_HPD_2_JACK

18

DDC_SDA_2_JACK

16

DDC_SCL_2_JACK

15

SPDIF_OUT_ARC_JACK

14 13

CK-_HDMI2_JACK

12

CK+_HDMI2_JACK

10

D0-_HDMI2_JACK

9

D0+_HDMI2_JACK

7

D1-_HDMI2_JACK

6

4

D1+_HDMI2_JACK

3

D2-_HDMI2_JACK

D2+_HDMI2_JACK

1

5V_HDMI_2

R3250

AR3208

5.1 1/16W

AR3209

5.1 1/16W

VA3204

33

AR3201

ESD_HDMI

DDC_SCL_2

33

DDC_SDA_2

CK-_HDMI2

CK+_HDMI2

D0-_HDMI2

D0+_HDMI2

D1-_HDMI2

D1+_HDMI2

D2-_HDMI2

D2+_HDMI2

VA3209

ESD_HDMI

VA3208

5V_HDMI_2

CEC_REMOTE CEC_REMOTE

ESD_HDMI

VA3203

R3265

100K

ESD_HDMI

HDMI2 With ARC (2.0)

HDMI_HPD_2

OPT

ARC

R3248 1K

C3202

10V

1uF

C3226

R3249

0.1uF

ESD_HDMI

3.9K OPT

OPT

VA3213

SPDIF_OUT_ARC

DDC I2C Pull-up

+5V_NORMAL

A2CA1

D3200

AR3204 47K

DDC_SCL_2 DDC_SDA_2

HDMI_HPD_1_JACK

19

18

16 15

13 12

10

9

7 6

4 3

1

5V_HDMI_1

DDC_SDA_1_JACK

DDC_SCL_1_JACK

CEC_REMOTE

CK-_HDMI1_JACK

CK+_HDMI1_JACK

D0-_HDMI1_JACK

D0+_HDMI1_JACK

D1-_HDMI1_JACK

D1+_HDMI1_JACK

D2-_HDMI1_JACK

D2+_HDMI1_JACK

5V_HDMI_1

VA3215

ESD_HDMI

CEC_REMOTE

R3268

1K

HDMI_EXT_EDID

ESD_HDMI

VA3205

VA3206

HDMI_INT_EDID

R3266

100K

ESD_HDMI

AR3210

5.1 1/16W

AR3211

5.1 1/16W

HDMI3 with Ext.EDID (1.4)

HDMI_EXT_EDID

Q3206

MMBT3904(NXP)

E

C

B

R3269 1K

HDMI_EXT_EDID

R3251

33

VA3207

ESD_HDMI

R3270

4.7K HDMI_EXT_EDID

AR3200

CK-_HDMI1

CK+_HDMI1

D0-_HDMI1

D0+_HDMI1

D1-_HDMI1

D1+_HDMI1

D2-_HDMI1

D2+_HDMI1

33

HDMI_HPD_1

DDC_BUFFER_SCL DDC_BUFFER_SDA

R3201 0

R3202

HDMI_NON_BUFFER

0

DDC_SCL_1 DDC_SDA_1

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

HDMI RX

2015.02.11 12

73

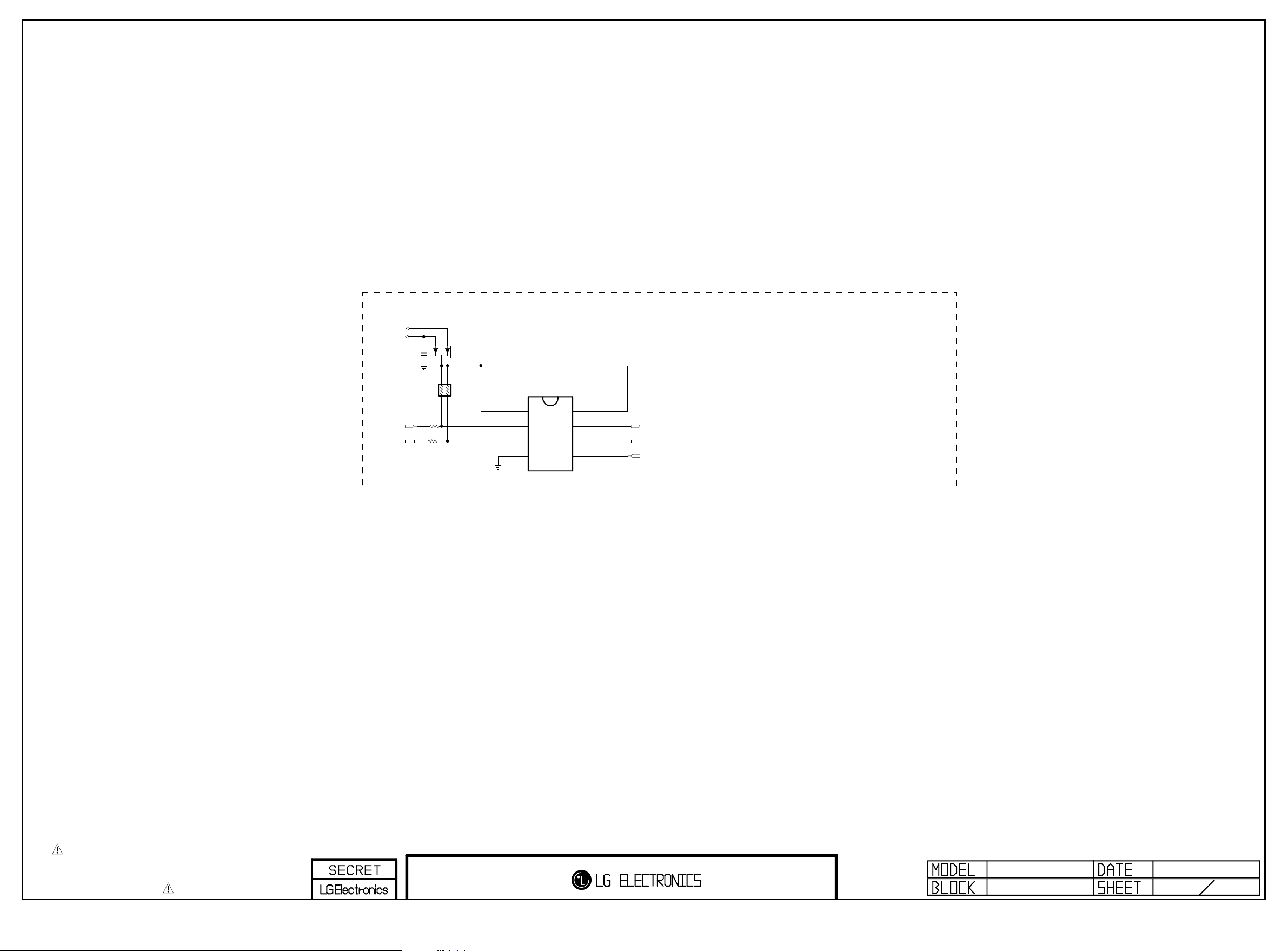

EDID external EEPROM & DDC BUFFER for HDMI3

LGE Internal Use Only

+5V_NORMAL

5V_HDMI_1

HDMI_EXT_EDID_BUFFER

C3304

0.1uF 16V

A2CA1

HDMI_EXT_EDID_BUFFER

MMBD6100 D3310

HDMI_EXT_EDID_BUFFER

DDC_BUFFER_SCL

DDC_BUFFER_SDA

FROM HDMI PORT

AR3312

47K

1/16W

R3301 0

HDMI_EXT_EDID_BUFFER

R3300

0

HDMI_EXT_EDID_BUFFER

DEV_PCA9517_EXTEDID

IC3302

PCA9517DGKR

VCCA

1

SCLA

2

SDAA

3

GND

4

VCCB

8

SCLB

7

SDAB

6

EN

5

DDC_SCL_1

DDC_SDA_1

DDC_BUFFER_SW

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

HDMI

M16

HDMI

2015-01-10

33

PAGE 13

LGE Internal Use Only

JK3400

PPJ245N2-01

6A

[GN/YL]E-LUG

5A

[GN/YL]O-SPRING

4A

[GN/YL]CONTACT

[BL]O-SPRING

5B

[RD1]E-LUG-S

7C

[RD1]O-SPRING

5C

[RD1]CONTACT

4C

[WH]O-SPRING

5D

[RD2]CONTACT

4E

[RD2]O-SPRING

5E

[RD2]E-LUG

6E

5.6V VA3402

5.6V

VA3403

VA3400

5.5V

VA3401

5.6V

R3401 470K

R3402 470K

R3400 75

VA3404

5.5V

VA3405

5.5V

R34 03

75

R34 04

75

L3400

BLM18PG121SN1D

OPT

C3400 330pF 50V

L3401

BLM18PG121SN1D

OPT

C3401 330pF 50V

R3412

0

DEBUG_VOUT

C3402 10pF 50V OPT

C3403 10pF 50V OPT

C3404 10pF 50V OPT

R3405

R3406

R3407

0

C3405 330pF 50V

C3406 330pF 50V

C3407

10pF

50V OPT

C3408

10pF

50V OPT

C3409

10pF

50V OPT

COMP2/AV_L_IN

COMP2/AV_R_IN

MNT_V_OUT

AV_CVBS_IN

COMP2_Y

COMP2_Pb

COMP2_Pr

+3.3V_NORMAL

R3408 10K

C3412

0.1uF 16V

+3.3V_NORMAL

R3409

10K

VA3406

5.6V

R3410 1K

R3413 1K

AV1_CVBS_DET

COMP2_DET

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

SPDIF_OUT

SPDIF OUT

+3.3V_NORMAL

C3410 47pF 50V

C3411

0.1uF 16V

JK3403

2F01TC1-CLM97-4F

GND

1

VCC

2

VIN

3

Fiber Optic

4

SHIELD

SOC_RX

SOC_TX

UART for Debug

+3.5V_ST

12525HS-04A(1.2T)

R3411 10K

VCCRXGND

TX

JP3414

JP-BLOCK-RS232C

M16

AV JACK

OPT

P3402

1

2

3

4

EAG58732903

P3401

12507WS-04L

1

2

3

4

5

034.sht

2015.02.16 13

26

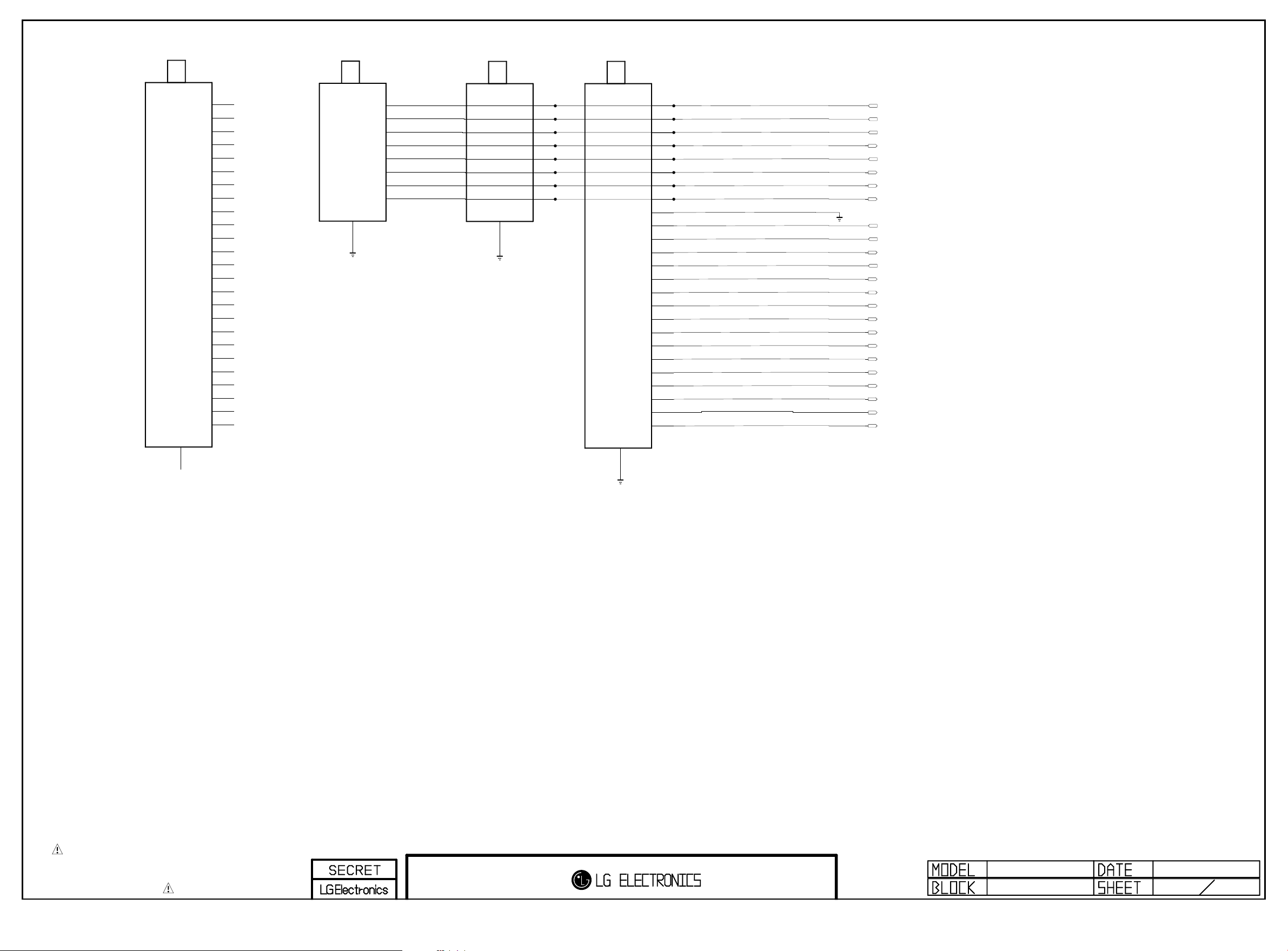

P4000

LGE Internal Use Only

12507WR-H21L2B(BK)

1

2

3

4

5

6

7

8

12

13

14

15

16

17

18

19

20

21

22

+3.5V_WIFI WIFI_DM_JACK WIFI_DP_JACK

WOL/WIFI_POWER_ON_JACK 3D_SYNC_RF_JACK BT_RESET_JACK

EYE_SDA_JACK EYE_SCL_JACK

IR LED_R_JACK

+3.5V_ST KEY2_JACK KEY1_JACK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

WAFER_IR/KEY/WIFI/BT

15/08/25

WIFI/BT CONNECTOR

LGE Internal Use Only

1 2 3

5 6

3D_SYNC_RF_JACK

7

12 13

15 16

18 19 20

+3.5V_WIFI WIFI_DM_JACK WIFI_DP_JACK

WOL/WIFI_POWER_ON_JACK

BT_RESET_JACK

EYE_SDA_JACK EYE_SCL_JACK

LED_R_JACK

+3.5V_ST KEY2_JACK KEY1_JACK

IR

GND

JP-BLOCK-IR

JP4100

PAGE 14

+3.5V_WIFI

Remove L due to voltage drop

C4105

C4104

C4101

0.1uF

D4100

OPT

RCLAMP0502BA

Place to P4000 side

R4102

100

C4100

100

0.1uF

WIFI_11N_COMBO

R4104

2K

R4103

IR

C4102

5pF

OPT

WIFI_11N_ONLY

R4118

0

C4103

5pF

OPT

10uF 10V

R4105 0

R4106 0

+3.5V_ST

10uF 10V

C4106 1000pF

R4115

R4107

R4108

OPT

100

C4107

0.1uF OPT

WIFI_DM WIFI_DP

WOL/WIFI_POWER_ON

0

3D_SYNC_RF

BT_RESET

EYE_SDA EYE_SCL

+3.5V_ST

R4112

10K

IR

C4110

R4111

10K

100pF

R4113 100

R4114 100

LED_R

KEY2 KEY1

C4108

0.1uF OPT

C4109

0.1uF

OPT

LED_R

R4109

1.8K

+3.5V_ST

R4110

10K

IR Reciever on Board : EV board Only

EAV62055001

IC4100

AO-R123C7G-LG

G

V

O

DEBUG_IR

+3.5V_ST

330

DEBUG_IR

R4100

R4101 47

DEBUG_IR

IR

WIFI POWER ENABLE CONTROL

WIFI_EN

+3.5V_ST +3.5V_WIFI

C4113 1uF 25V

R4120 33

R4119 10K

OPT

C4114

0.1uF 16V

EAN64148901

IC4102

TJ2242GSF6

IN

1

GND

2

EN

3

OUT

6

ILIMIT

5

FLAG

4

1%

10K

R4121

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

IR/KEY/WIFI/BT

041.sht

2015.02.09 14

73

USB2 (2.0)

LGE Internal Use Only

MAX 1.5A

JK4400

+5V_USB_2

USB3_DM1_JACK

USB3_DP1_JACK

1234

EAG62571101

USB DOWN ST REA M

5

3AU04S-305-ZC-(LG)

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

JACK_USB2_2.0 73

+5V_USB_2

LGE Internal Use Only

PAGE 16

USB3_DM1

Remove OPT Ce-cap(22uF

C4504

C4500

10uF

10V

OPT

R4507

2.2

R4508

2.2

PJDLC05C-02TB

5V

OPT

ZD4500

EAH63274301

D4500

USB2 (2.0)

MAX 1.5A

JP4504

JP-BLOCK-USB

VBUS DM

+5V_USB_2

USB3_DM1_JACK

USB3_DP1_JACKUSB3_DP1

DPGND

value change

10K(2.63V) --> 4.7K(2.97V)

/USB_OCD2

USB_CTL2

R4501

10K

+3.3V_NORMAL

+5V_NORMAL

R4502

4.7K

C4502 1uF 25V

OCP USB2_2.0

EAN64148901

IC4501

TJ2242GSF6

IN

GND

1

2

EN

3

6

5

4

OUT

ILIMIT

FLAG

+5V_USB_2

1%

10K

R4503

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

USB 2_2.0

045.sht

2015.02.11 16

26

USB3 (2.0)

LGE Internal Use Only

MAX 1.5A

JK4600

+5V_USB_3

USB2_DM0_JACK

USB2_DP0_JACK

1

2

3

4

5

EAG59068702

US-04A-VSD

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

JACK_USB3_2.0 73

+5V_USB_3

LGE Internal Use Only

USB2_DP0

Remove OPT Ce-cap(22uF

C4700

C4701

10uF

10V

OPT

R4700

2.2

R4701

2.2

PJDLC05C-02TB

5V

OPT

ZD4700

EAH63274301

D4700

USB3 (2.0)

MAX 1.5A

JP4700

JP-BLOCK-USB

VBUS DM

+5V_USB_3

USB2_DM0_JACKUSB2_DM0

USB2_DP0_JACK

DPGND

value change

10K(2.63V) --> 4.7K(2.97V)

/USB_OCD3

USB_CTL3

R4702

10K

+3.3V_NORMAL

+5V_NORMAL

R4703

4.7K

C4702 1uF 25V

OCP USB3_2.0

EAN64148901

IC4700

TJ2242GSF6

IN

1

GND

2

EN

3

6

5

4

OUT

ILIMIT

FLAG

+5V_USB_3

1%

10K

R4704

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

USB3_2.0 73

Ethernet Block

LGE Internal Use Only

PAGE 18

EAG35781010

JK5000

RJ45VT-01SN002

1

2

3

4

5

6

7

8

9

D5000

5.5V

C5000

0.1uF

16V

D5001

5.5V

C5001

0.01uF 50V

D5002

5.5V

D5003

5.5V

EPHY_TDP

EPHY_TDN

EPHY_RDP

EPHY_RDN

@optio

L5001

BLM18PG121SN1D

@optio

R50000@optio

R50010@optio

BLM18PG121SN1D

L5000

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

ETHERNET JACK

050.sht

2015.02.09 18

26

PAGE 52

LGE Internal Use Only

+3.5V_WOL

C5200

4.7uF 10V

Place 0.1uF close to each power pins

C5201

0.1uF 16V

EPHY_RDP

EPHY_RDN EPHY_TDP

EPHY_TDN

ETHERNET INTERFACE

- CROSS CONNECTION (PATTERN ISSUE)

LAN_JACK_POWER

C5203

0.1uF 16V

ET_COL/SNI

Place this cap. near IC

C5205

0.1uF 16V

Place this Res. near IC

R5204 2.49K

Route Single 50 Ohm, Differential 100 Ohm

EPHY_RXD0 EPHY_RXD1

C5206 5pF 50V

1%

R5203

X5200

FLOAT_1

1

2

4

3

IN/OUT_2 C5207 8pF 50V

AVDD10OUT

3.3K

IN/OUT_1

1M

EAW62583503

R5202

FLOAT_2

RSET

MDI+[0]

MDI-[0]

MDI+[1]

MDI-[1]

AVDD33_1

RXDV

Place this cap. near IC

C5208

0.1uF 16V

0

OPT

R5218

RXER/FXEN

DVDD10OUT

AVDD33_2

CKXTAL1

CKXTAL2

[EP]

28

29

30

31

32

1

THERMAL

2

33

3

4

5

6

7

8

R5200

EAN62219201

IC5200

RTL8201F-VB-CG

9

11

RXD[0]10RXD[1]

RXD[2]/INTB

RXD[3]/CLK_CTL

3.3K

12

13

RXC

C5209

33pF

CRS/CRS_DV

COL

26

27

14

15

TXC

DVDD33

R5209

R5210

LED1/PHYAD[1]

25

LED0/PHYAD[0]/PMEB

24

MDIO

23

MDC

22

PHYRSTB

21

TXEN

20

TXD[3]

19

TXD[2]

18

TXD[1]

17

16

TXD[0]

51

+3.5V_WOL

R5215

3.3K

ET_RXER

33

ET_COL/SNI

EPHY_CRS_DV

EPHY_ACTIVITY

R5217

3.3K

EPHY_ACTIVITY

ET_RXER

+3.5V_WOL

3.3K

R5212

1.5K

R5219

10K

WOL/ETH_POWER_ON EPHY_MDIO EPHY_MDC /RST_PHY

(from SOC)

EPHY_EN

EPHY_TXD1

EPHY_TXD0

C5211

0.1uF 16V

R5205

WOL POWER ENABLE CONTROL

EAN64130101

IC5201

+3.5V_ST

WOL_CTL

C5204

0.1uF

R5223 33

R5222 10K

OPT

OPT C52001

0.1uF 16V

IN

EN

AP2151AW

5

4

1

2

3

+3.5V_WOL

OUT

GND

FLG

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

3.3K

R5208

C5202

Place near IC

5pF

EPHY_REFCLK

M16

LAN

2015.06.05 52

100

NTP_AMP_Front

LGE Internal Use Only

AMP_RESET_N

AUD_SCK

+3.3V_NORMAL

AMP_MUTE

A13V

I2C_SDA0 I2C_SCL0

+13V_AMP_FRONT

L5305

UBW2012-121F

+3.3V_NORMAL

R5300

10K

B

R5301 10K

C

Q5300

E

MMBT3904(NXP)

AR5300

100

1/16W

AUD_LRCH AUD_LRCK

C5300 33pF 50V

100

L5300

C5302

0.1uF

BLM18PG121SN1D

R5303

16V

C5301 33pF 50V

C5303

1uF

10V

C5304

10V

NC_1

VDD_PLL

NC_2

GND NC_3 DVDD

SDATA

WCK NC_4

SDA

C5305

1000pF

50V

VDD_IO

[EP]GND

40

1 2

THERMAL

3 4 5 6 7 8 9 10

11

SCL

RESET

AD

CLK_I

GND_IO

37

38

39

41

EAN62886102

IC5300

NTP7515

0x54

12

13

14

FAULT

MONITOR_0

MONITOR_1

MONITOR_2

C5307

22000pF

C5306

BST1A

36

15

BST2B

50V

22000pF

PGND1A

34

35

16

17

PGND2B

C5308 10uF 35V

PVDD1A

OUT1A

32

33

18

19

OUT2B

PVDD2B

C5309 10uF 35V

+13V_AMP_FRONT

PVDD1B

31

30 29 28 27 26 25 24 23 22 21

OUT1B PGND1B BST1B VDR1 NC_5 AGND VDR2 BST2A PGND2A OUT2A

20

+13V_AMP_FRONT

PVDD2A

C5310

1uF 10V

C5311

1uF 10V

R5304

3.3 1/10W

C5312 390pF

50V

C5313 390pF 50V

R5305

3.3

1/10W

C5314 22000pF

50V

C5315 22000pF 50V

R5306

3.3

1/10W

C5316

390pF

50V

C5317 390pF 50V

R5307

3.3

1/10W

L5301

10.0uH

NRS6045T100MMGK

L5302

10.0uH

NRS6045T100MMGK

L5303

10.0uH

NRS6045T100MMGK

L5304

10.0uH

NRS6045T100MMGK

C5318

0.47uF 50V

C5319

0.47uF 50V

C5320

0.1uF 50V

C5321

0.1uF 50V

C5322

0.1uF 50V

C5323

0.1uF

50V

R5308

4.7K

R5309

4.7K

R5310

4.7K

R5311

4.7K

SPK_L+_FT

SPEAKER_L

SPK_L-_FT

SPK_R+_FT

SPEAKER_R

SPK_R-_FT

OPT

POWER_DET

R5302

100

WOOFER_MUTE

I2S_AMP

WOOFER_MUTE

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

NTP AMP

053.sht

2015.02.24

20

26

WAFER_AMP_4P_FRONT

LGE Internal Use Only

WAFER_4P_AMP_FRONT

P5800

250A1-WR-H04M

PAGE 58

SPK_R-_FT

SPK_R+_FT

SPK_L-_FT

SPK_L+_FT

1

2

3

4

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

058.sht

HP OUT

LGE Internal Use Only

HP_ROUT_JACK HP_LOUT_JACK

HP_DET

+3.3V_NORMAL

R6200

10K

HP_OUT

VA6200

5.6V

HP_OUT

E_SPRING

R_SPRING

T_SPRING

B_TERMINAL2

T_TERMINAL2

EAG60841811

JK6200

PEJ034-01

3

4

5

7B

6B

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

HP JACK 73

23

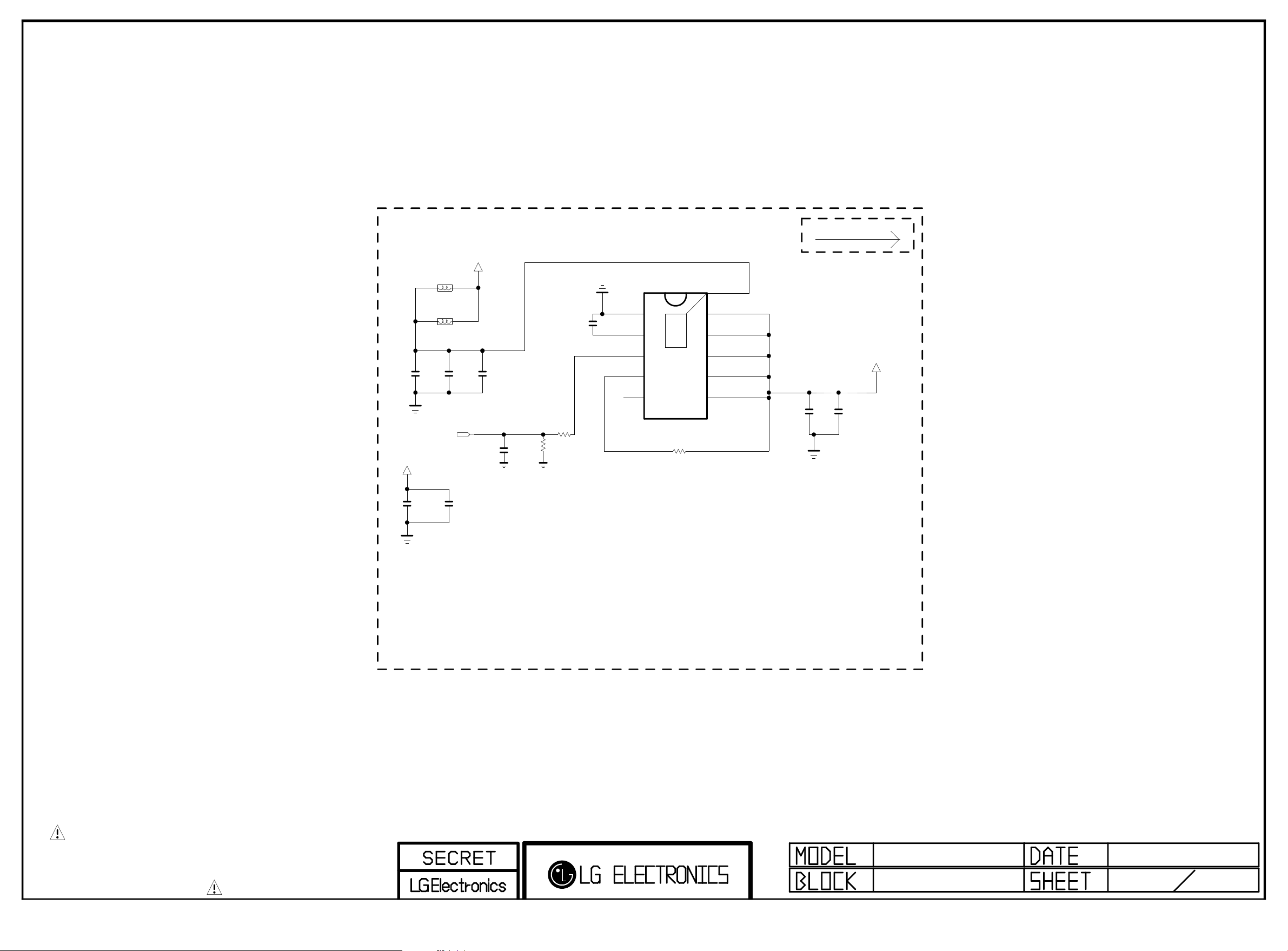

EARPHONE AMP

LGE Internal Use Only

EARPHONE AMP

AUDA_OUTR

HP_ROUT_JACK

SIDE_HP_MUTE

150

HP_OUT

R6300

HP_OUT

C6301

0.22uF 25V

HP_OUT

C6300

2.2uF 10V

HP_OUT

BLM18PG121SN1D

R6301 10K

L6300

HP_OUT

C6302

18pF

R6302

HP_OUT

+3.3V_NORMAL

1%

43K

4.7K

R6304

HP_OUT

R6303 43K

1%

HP_OUT

C6303 1uF 10V

C6304 10pF 50V

+INR

-INR

OUTR

GND_1

MUTE

VSS

CN

EAN62668301

IC6300

TPA6138A2

1

HP_OUT

2

3

4

5

6

7

HP_OUT

C6305 1uF

10V

PAGE 23

R6305 43K

1%

+3.3V_NORMAL

HP_OUT

R6306

HP_OUT

C6307

1uF

10V

C6308 18pF

1%

43K

BLM18PG121SN1D

HP_OUT

C6309

0.1uF

16V

HP_OUT R6307 10K

L6301

HP_OUT

C6310

2.2uF 10V

HP_OUT

C6311

0.22uF 25V

AUDA_OUTL

R6308

150

HP_OUT

HP_LOUT_JACK

+INL

14

-INL

13

OUTL

12

UVP

11

GND_2

10

VDD

9

CP

8

HP_OUT

C6306 10pF 50V

HP_OUT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

HEADPHONE AMP

063.sht

2015.02.09 7323

Ground Width >= 24mils

LGE Internal Use Only

1. should be guarded by ground

2. No via on both of them

3. Signal Width >= 12mils Signal to Signal Width = 12mils

1

2

3

4

5

I2C_SCL5_TU

I2C_SDA5_TU

+3.3V_PLL_TU

TU_CVBS_TU

IF_AGC_TU

close to Tuner

TU_ALL

R6501 0

C6502

0.1uF TU_ALL

close to Tuner

TU_ALL_IntDemod

C6503

0.1uF

16V

C6508 47pF 50V

TU_ALL

C6504 47pF 50V TU_ALL

R6505

TU_ALL_IntDemod

+3.3V_TU

1K

TU_ALL R6507 33

R6508 33

TU_ALL

I2C_SCL5 I2C_SDA5

TU_W_BR/TW R6507-*1 200

R6508-*1 200

TU_W_BR/TW

IF_AGC

TU_EXT_ATV

C6512

0.1uF

FE_DEMOD1_TS_ERROR

+3.3V_TU

0

R6513

TU_EXT_ATV

16V

R6512 200

B

TU_EXT_ATV

R6514

200

E

TU_EXT_ATV Q6502 MMBT3906(NXP)

C

TU_SIF_TU

1608 perallel because of derating

TU_CVBS

TU_ALL

+3.3V_NORMAL

L6504

BLM18PG121SN1D

TU_ALL

C6513

10uF

10V

C6500

10uF

10V

+3.3V_TU

6

7

8

10

11

12

14

15

16

17

18

19

20

21

22

23

24

25

TU_SIF_TU

IF_P_TU

IF_N_TU

/TU_RESET1_TU

+3.3V_D_TU

LNB_TX

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

R6504 10

TU_ALL_IntDemod

R6503 10

TU_ALL_IntDemod

R6506 100

C6510

0.1uF

TU_N/D

IF_P

IF_N

/TU_RESET1

TU_N/D

R6509

0

FE_DEMOD1_TS_ERROR FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0] FE_DEMOD1_TS_DATA[1] FE_DEMOD1_TS_DATA[2] FE_DEMOD1_TS_DATA[3] FE_DEMOD1_TS_DATA[4] FE_DEMOD1_TS_DATA[5] FE_DEMOD1_TS_DATA[6] FE_DEMOD1_TS_DATA[7]

C6507 33pF

should be guarded by ground,Match GND VIA

TU_ALL_IntDemod

C6506 33pF

TU_ALL_IntDemod

TU_N/D

LNB_TX

C6505

16V

0.1uF

TU_N/D

close to Tuner

+3.3V_TU

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TUNER

2015.04.20

65

TU_CO

LGE Internal Use Only

TU6701-*1 TDJN-K301F

TU_BR

TU6702 TDJA-T301F

TU_S_US

TU6700 TDJS-H301F

TU_KR_T2

TU6701 TDJN-H303F

28

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

GND

9

RESET_DEMOD

B2[+3.3V_DEMOD]

NC

B3[+1.2V_DEMOD]

ERROR

MCLK

SYNC

VALID

D0

D1

D2

D3

D4

D5

D6

D7

9

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

9

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

28

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

SHIELD

SCL_RF

1

SDA_RF

2

B1[+3.3V_RF]

3

CVBS

4

IF_AGC

5

SIF

6

IF[N]

7

IF[P]

8

GND

9

RESET_DEMOD

B2[+3.3V_DEMOD]

NC

B3[+1.2V_DEMOD]

ERROR

MCLK

SYNC

VALID

D0

D1

D2

D3

D4

D5

D6

D7

I2C_SCL5_TU

I2C_SDA5_TU

+3.3V_PLL_TU

TU_CVBS_TU

IF_AGC_TU

TU_SIF_TU

IF_N_TU

IF_P_TU

/TU_RESET1_TU

+3.3V_D_TU

LNB_TX

D_Demod_Core

FE_DEMOD1_TS_ERROR

FE_DEMOD1_TS_CLK

FE_DEMOD1_TS_SYNC

FE_DEMOD1_TS_VAL

FE_DEMOD1_TS_DATA[0]

FE_DEMOD1_TS_DATA[1]

FE_DEMOD1_TS_DATA[2]

FE_DEMOD1_TS_DATA[3]

FE_DEMOD1_TS_DATA[4]

FE_DEMOD1_TS_DATA[5]

FE_DEMOD1_TS_DATA[6]

FE_DEMOD1_TS_DATA[7]

1

2

3

4

5

6

7

8

9

10

11

12

13

14

16

17

18

19

20

21

22

23

24

25

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

TU_SYMBOL

2012.09.14 73

+1.2V_DEMOD

LGE Internal Use Only

+3.3V_NORMAL

L6900

BLM18PG121SN1D

TU_N/D

C6900

0.1uF

TU_N/D

POWER_ON/OFF2_2

10K

R6900

TU_N/D

C6901 10uF

+5V_NORMAL

10V

TU_N/D

C6902 1uF 10V

TU_N/D

IC6900

POK

EN

IN

BIAS

TJ2132GDP

1

2

THERMAL

3

2A

4

[EP]GND

GND

8

FB

9

7

OUT

6

SS

5

Vout=0.6*(1+R2/R1)

C6903 2700pF 50V

TU_N/D

C6904

0.01uF 50V

TU_N/D

R1

R2

10K

10.5K

R6902

TU_N/D

R6901

TU_N/D

D_Demod_Core

C6905 10uF 10V

TU_N/D

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

+1.2V_DEMOD

2015.06.27

99

RS-232C Control INTERFACE

LGE Internal Use Only

RS232C

C7200

0.1uF

C7201

0.1uF

C7202

0.1uF

C7203

0.1uF

MAX3232CDR

C1+

V+

C1-

C2+

C2-

V-

DOUT2

RIN2

EAN41348201

RS232C

IC7200

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

+3.5V_ST

VCC

GND

DOUT1

RIN1

ROUT1

DIN1

DIN2

ROUT2

C7204

0.1uF

RS232C

SOC_RX SOC_TX

OPT VA7200

20V

DOUT1

RIN1

OPT VA7201

20V

RS232C TO PHONE JACK (US ONLY)

RS232C

R7200 100

RS232C

R7201 100

HP_ROUT_JACK

HP_LOUT_JACK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/13

73RS232C

P7700

LGE Internal Use Only

SP14-11592-01-51Pin

Vx1 8-Lane OUTPUT(VIDEO)

VX1_LOCK_N

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

VBY1__51PIN_FLIP_TYPE

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

R7703

R7702 0

R7705

OPT

VBY1_M+_MODULE

R7701 0

R7706 0

0

VBY1_LGD/M+_MODULE

10K

VBY1_INX_MODULE

TXB_1P/VX1_7P TXB_1N/VX1_7N

TXB_0P/VX1_6P TXB_0N/VX1_6N

TXA_4P/VX1_5P TXA_4N/VX1_5N

TXA_3P/VX1_4P TXA_3N/VX1_4N

TXA_CLKP/VX1_3P TXA_CLKN/VX1_3N

TXA_2P/VX1_2P TXA_2N/VX1_2N

TXA_1P/VX1_1P TXA_1N/VX1_1N

TXA_0P/VX1_0P TXA_0N/VX1_0N

LOCKAn_IN

PWM_DIM

MLB-201209-0120P-N2

JP7700

VBY1 C7700

10uF 25V

L7700

VBY1

+3.3V_NORMAL

OPT

R7707 10K

R7713

33

R7708

VBY1_M+_MODULE

10K

OPT

PANEL_VCC

VBY1 C7701

10uF 25V

R7715 10K OPT

R7709

100

R7716

K

1

OPT

VBY1_LGD/M+_MODULE

DATA_FORMAT_0

(MPLUS MODE 1)

VX1_AGP

+3.3V_NORMAL

OPT

R7720

4.7K

VBY1_M+ or 40"INX

+3.3V_NORMAL

4.7K

OPT

TXA_0P/VX1_0P_SOC TXA_0N/VX1_0N_SOC TXA_1P/VX1_1P_SOC TXA_1N/VX1_1N_SOC TXA_2P/VX1_2P_SOC

TXA_2N/VX1_2N_SOC TXA_CLKP/VX1_3P_SOC TXA_CLKN/VX1_3N_SOC

TXA_3P/VX1_4P_SOC

TXA_3N/VX1_4N_SOC

TXA_4N/VX1_5N_SOC

TXB_0P/VX1_6P_SOC

TXB_0N/VX1_6N_SOC

TXB_1P/VX1_7P_SOC

TXB_1N/VX1_7N_SOC

Q7700

2N7002KA

G

S

OPT

R7726

33

G

Q7701

R7721

VBY1_M+ or 40"INX

2N7002KA

S

VBY1_M+ or 40"INX

R7727

33 OPT

+3.3V_NORMAL

R7722 10K

VBY1_M+_MODULE

33 R7728

VBY1_M+_MODULE

R7723 10K

OPT

+3.3V_NORMAL

OPT

R7724 10K

R7725 10K

OPT

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

+3.3V_NORMAL

VBY1_M+_MODULE

R7729

D

0

VBY1_M+ or 40"INX

R7730

D

0

DATA_FORMAT_1

(MPLUS MODE 0)

R7731

33

R7733

VBY1_M+_MODULE

R7704 1K

VBY1_M+_MODULE

OPT

0

C7210 C7211 C7212 C7213 C7214 C7215 C7216 C7217 C7218 C7219 C7220 C7221 C7222 C7223 C7224 C7225

R7712

100

I2C_SCL2

I2C_SDA2

DATA_FORMAT_0

PWM_TCON_OUT

0.1uF

TXA_0P/VX1_0P TXA_0N/VX1_0N TXA_1P/VX1_1P TXA_1N/VX1_1N TXA_2P/VX1_2P TXA_2N/VX1_2N TXA_CLKP/VX1_3P TXA_CLKN/VX1_3N TXA_3P/VX1_4P TXA_3N/VX1_4N TXA_4P/VX1_5PTXA_4P/VX1_5P_SOC TXA_4N/VX1_5N TXB_0P/VX1_6P TXB_0N/VX1_6N TXB_1P/VX1_7P TXB_1N/VX1_7N

VX1_MSE

TCON_I2C_EN

R7737 10K

VBY1_M+ or 40"INX

Input Data Format[1:0] ’00’ : Low Power(MLE Off) ’01’ : High Luminance(MLE3) ’10’ : High Luminance(MLE1,2) ’11’ : PC Mode

LOCKAn_IN

+1.8V_IO

R7732 10K

+3.3V_NORMAL

VBY1

OPT R7734 10K

OPT

R7735

10K

+1.8V_IO

B

OPT R7736 10K

C

Q7702 2N3904S

OPT

E

OPT

R7738

10K

B

R7740

R7739 10K

C

E

VBY1

OPT

Q7703 2N3904S

OPT

0

Vx1_LOCK_N

EPI_WAFER

LGE Internal Use Only

P7900

FF05T-60P

EPI 1EPI 2

EPI_WAFER

P7901

FF05T-60P

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61

GMA1 GMA4 GMA5 GMA6 GMA9 GMA10 GMA13 GMA14 GMA15 GMA18

TXA_4P/VX1_5P_SOC TXA_4N/VX1_5N_SOC

TXA_3P/VX1_4P_SOC TXA_3N/VX1_4N_SOC

TXA_CLKP/VX1_3P_SOC TXA_CLKN/VX1_3N_SOC

TXA_2P/VX1_2P_SOC TXA_2N/VX1_2N_SOC

TXA_1P/VX1_1P_SOC TXA_1N/VX1_1N_SOC

TXA_0P/VX1_0P_SOC TXA_0N/VX1_0N_SOC

EPI_LOCK_6

EPI C7900 1uF 16V

EPI

C7901 1uF 16V

EPI C7902 1uF 25V

VCOM1 VCOMLFB VCOM2 VGL1 VST GIP_RST LS_VGL VGH_EVEN VGH_ODD VGH CLK10 CLK9 CLK8 CLK7 CLK6 CLK5 CLK4 CLK3 CLK2 CLK1

VCORE

C7903

0.1uF 25V

VCC18 HVDD VDD_EPI

EPI

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

61

CLK1 CLK2 CLK3 CLK4 CLK5 CLK6 CLK7 CLK8 CLK9

CLK10

VGH

VGH_ODD VGH_EVEN

LS_VGL GIP_RST VST

VGL1 VCOM2

VCOMRFB VCOM1

EPI

C7905

C7904

0.1uF

1uF

25V

EPI_LOCK_6

TXB_4P/VX1_11P_SOC TXB_4N/VX1_11N_SOC

TXB_3P/VX1_10P_SOC TXB_3N/VX1_10N_SOC

TXB_CLKP/VX1_9P_SOC TXB_CLKN/VX1_9N_SOC

TXB_2P/VX1_8P_SOC TXB_2N/VX1_8N_SOC

TXB_1P/VX1_7P_SOC TXB_1N/VX1_7N_SOC

TXB_0P/VX1_6P_SOC TXB_0N/VX1_6N_SOC

EPI_LOCK_12 GMA1 GMA4 GMA5 GMA6 GMA9 GMA10 GMA13 GMA14 GMA15 GMA18

EPI

C7906 1uF 16V

EPI C7907 1uF 16V

EPI_LOCK_12

R205 100

EPI

HVDDVDD_EPI

VCC18 VCORE

EPI_LOCK_12Vx1_LOCK_N

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

EPI_NON_65INCH

LGE Internal Use Only

CLK9

R8064

0

EPI_NON_65INCH

R8065

0

CLK10

<T-CON POWER BLOCK>

VGL2

R8063

PANEL_VCC

VCC18

PM_VCC

R8011

C8002

C8000

1uF

25V

C8003

C8006

0.1uF

1uF

16V

10V

R8072

180

C8004

0.1uF

180

16V

EPI_NON_65INCH

C8008 10uF 10V

C8007 10uF 10V

C8009 10uF 10V

4.3K

C8014 10uF 10V

C8015 10uF 10V

R8017

4.3K

C8017 10uF 10V

C8018 10uF 10V

C8022 10uF 25V

L8000

2.2uH

L8001

22UH

C8019 10uF 25V

R8022

2.2

OPT

C8020 2200pF 50V

C8021 2200pF 50V

C8016 1uF 25V

C8066

0.1uF

C8036

RE

CLK3

CLK6

CLK5

CLK1

CLK4

CLK2

[EP]AGND

GCLK

GCLK MCLK

GST

EO

40V SX34 D8002

R8070

4.3K OPT

OPT

C8067

0.1uF

16V

I2C_SCL2 I2C_SDA2

OPT

D8003 SX34

40V

L8002

10.0uH

AR8000

R802410R8027

10

C8025 680pF 50V

C8026 820pF 50V

VGL2_COMP

VGL_FB

CTRLN TCOMP

33

SWN

VL

MCLK

GND_1

VGL2

VGL2_SW

GND_2

VGL2_COMP

VIN_1

CTRLN TCOMP

PM_VCC

1 2

THERMAL

GST

3

69

E/O

4 5 6 7 8 9 10

VGL

11

SWN

12 13 14

VL

15

SCL

16

SDA

17

18SS19

GND_320VIN_221GND_4

C8028 1uF 10V

SS

R8033 10K

22

23

VCC2

VCC_SWB2

VCC18

IC8000 SW50B3

24

RST

PMIC_RESET

CLK7

EPI

25

VCC1

VCC_SWB1

CLK8

26

GND_528VIN_3

PM_VCC

GIP_RST1

VST1

27

29

GMA_P130GMA_P231GMA_P332GMA_P433GMA_N534GMA_N6

GMA1

GMA5

C8029 10uF 10V

VGH_ODD

VGH_EVEN

EVEN55ODD56RESET57VST58CLK1059CLK960CLK861CLK762CLK663CLK564CLK465CLK366CLK267CLK168RE

54

GMA9

GMA6

VGH53VGH_E/O

52

GMA10

51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35

GMA13

10

VGH_SW GND_9 VCOMFB2 VCOM2 VCOM1 VCOMFB1 GND_8 SWO SWG SWI

HVDD HVDD_SW HVDDVIN GND_7 GND_6

GMA_N8

GMA_N7

R8036

R8035

1uF

10

50V

VGH1

R8041

C8030

C8031

C8032

C8033

C8034

C8035

GMA6

GMA13

C8064 1uF 25V

C8065 1uF 25V

C8037

TP8000

TP8001

OPT

R8042

OPT

R8043

0

R8046

0

SWO SWG SWI

C8038

C8039 10uF 25V

C8040

4.7uF 50V

VCOMFB2

0

10

L8003

10.0uH

GMA18 GMA14

C8041 1uF 25V

R8044 R8045

C8042

4.7uF 50V

C8043

4.7uF 50V

VCOMFB1

EPI_NON_65INCH

PANEL_VCC

C8044

4.7uF 50V

C8045 10uF 16V

R8068 1K

1/16W

VGH1

D8004

R8047

5.1K

1/8W

3.9K R8066

1/10W

R8069 1K 1/16W

EPI_NON_65INCH

HVDD

C8047 10uF 16V

R8049

2.7K

VCOM2 VCOM1

L8004

22.0uH

C8052 10uF 25V

VDD_EPI

C8046 120pF 50V

C8048 120pF 50V

C8050 120pF 50V

C8053 120pF 50V

120pF

50V

Improve the Vertical dot noise

C8056

C8055

C8057 120pF 50V

C8058 120pF 50V

C8059 120pF 50V

C8060 120pF 50V

CLK9

CLK10

CLK10 CLK9 CLK8

CLK7 CLK6

CLK5 CLK4 CLK3 CLK2 CLK1

TP8002

TP8003

R8015

FROM SOC

47

R8016 47

R8014 47

R8013 47

C8010 15pF 50V

C8011 15pF 50V

C8012 15pF 50V

C8013 15pF 50V

R8018 10K OPT

R8019 10K

OPT

R8020 10K

OPT

R8021 10K

OPT

EO

GST

MCLK

GCLK

VCOMLFB

VCOMRFB

VCOMLFB

VCOMRFB

VDD_EPI

VGL1

VGL2

R8026

OPT

R8025

0

R8038

R8037

R8040

R8039

R8002

R8003

0

OPT

0

OPT

VCOMFB1

VCOMFB2

RE

0

OPT

R8007

R8005

0

OPT

R8006

R8008

LS_VGL

PM_VCC

EPI_EO

EPI_VST

EPI_MCLK

EPI_GCLK

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

OPT R8000

300

VST1

GIP_RST1

R8001

0

R8004

CTRLN

SWN

EPI_65INCH

IC8801

EPI_65INCH

R8056

VGH1

VGH_LDO

0

EPI_65INCH C8062

0.1uF 50V

R8034

0

EPI_NON_65INCH

R8055

0

EPI_65INCH

VGH1

C8054

2.2uF 16V

R8023

1.5K

VL

EPI_NON_43INCH

R8051 47K

TH8000 47k-ohm

VGL_FB

C8024 10uF 16V

120K 1%

C8027 10uF 16V

R8052

R8028

EPI_43INCH

R8051-*1 15K

TCOMP

0

VGL2_COMP

R8012

0

C8005

VST

GIP_RST

VST

GIP_RST

Q8000

MMBT3904(NXP)

EBC

1uF 25V

R8048-*1 56K 1%

EPI_65INCH

C8049-*1 1000pF 50V

EPI_65INCH

INSTEAD OF AMCC0208

D8000

1N4148W

100V

D8001

1N4148W

100V

R8048

75K 1%

EPI_NON_65INCH

C8049 4700pF 50V

EPI_NON_65INCH

EPI_65INCH

C8051 100pF 50V

C8023

0.1uF 25V

R8023-*1 750

EPI_65INCH

EPI_NON_65INCH

0

R8029

0

R8030

OPT

0

R8031

0

R8032

R8010

0

R8009

100K

C8001

1uF

25V

VGL1

SS

C8061

0.1uF 16V

SN317LF

IN

OUT

2

3

1

ADJ

EPI_65INCH

R8053 100

R8054 100

R8059

7.5K

R8061

7.5K

240

R8057

EPI_65INCH

240

R8058

EPI_65INCH

R8060

7.5K

EPI_65INCH

R8062

7.5K

EPI_65INCH

EPI_65INCH C8063 1uF 50V

VGH

VGH_LDO

OPTION NAME : EPI

LGE Internal Use Only

<PMIC>

Boost/Buck VDD/VCORE11

PANEL_VCC

10uH

C8100 10uF 25V

C8101 10uF 25V

C8102 10uF 25V

C8103

0.1uF 25V

L8100

SX34 40V

C8104

820pF

50V

SS1

D8100

C8105

820pF 50V

R8100

3.3 C8106

OPT 10uF

25V

NC_1

SW2_1

SW2_2

PGND2

PGND1

SS

[EP]GND

1

2

3

4

5

6

C8107

100pF

50V

OPT

C8111 1uF 25V

SS

SWI

FB

COMP2

FB2

EN2

GND

22

23

24

THERMAL

25

IC8100

RT5043A

7

8

SW_19BOOT10NC_2

SW_2

R8102

180K

OPT

COMP2

NC_4

21

VIN_112VIN_2

S

SSM3J332R

Q8100

FB

SWO

19

20

18

17

16

15

14

13

11

SWG

R8119 0

G

IN2

NC_3

SS2

PVCC

FB

EN

C8115 100pF 50V

D

EPI_NON_49INCH

43K

R8105

EPI_55INCH

R8106

91K

EPI_55INCH

24K

R8104

EPI_NON_49INCH

10uF

25V

0.033uF 50V

20K

R8107

R8105-*1

47K

EPI_43INCH

R8106-*1

82K

EPI_43INCH

C8117

C8118

R8109

2.2K R8110

9.1K

R8105-*2

56K

EPI_49INCH

R8106-*2

91K

EPI_49INCH

R8104-*1

22K

EPI_49INCH

R8107-*1

27K

EPI_49INCH

PVCC

R8111

4.7K

FB_VCC12

SWO

C8121 10uF 25V

C8123 10uF 25V

C8124 10uF 25V

R8112

6.2K

R8113

6.2K

C8126 10uF 25V

FB_VCC12

C8129 10uF 25V

SS1

C8127 2200pF 50V

C8130 1uF 25V

PVCC

C8131 1uF 25V

C8133

0.1uF 25V

COMP2

100K

R8114

C8134 330pF 50V

9.1K R8115

OPT

C8136 1uF 25V

R8117

0

VDD_EPI

Visual inspection for EPI models

EPI_43INCH

R8120 0

EPI_49INCH

R8121 0

EPI_55INCH

R8122 0

C8110

0.1uF 16V

R8101

2.2

C8112 2200pF 50V

C8113 2200pF 50V

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

L8101

VLS5045EXT-2R2N

2.2uH

R8108

1.8K

PM_VCC

C8119 10uF 10V

C8120 10uF 10V

C8122 10uF 10V

C8125 1uF

6.3V

C8128

0.1uF 16V

VCORE

eMMC I/F

LGE Internal Use Only

PAGE 26

+1.8V_EMMC

EMMC_DATA[0-7]

EMMC_CLK EMMC_CMD

SOC_EMMC_STRB

+1.8V / +3.3V - eMMC

+3.3V_NORMAL

L8800

BLM18PG121SN1D

Don’t Connect Power At VDDI

(Just Interal LDO Capacitor)

EMMC_DATA[0] EMMC_DATA[1] EMMC_DATA[2]

EMMC_DATA[3] EMMC_DATA[4]

EMMC_DATA[5] EMMC_DATA[6] EMMC_DATA[7]

DAT3 DAT4 DAT5 DAT6 DAT7

C8812

0.1uF 16V

OPT

+3.3V_EMMC

C8806

0.1uF 16V

AR8800

C8807 10uF 10V

AR8801 22

AR8802 22

22

EAN64106701

10K

AR8803

10K

AR8804

10K

R8801

10K

R8802

EMMC_STRB

EMMC_STRB EMMC_STRB

R8800 10K

EMMC_CLK_BALL

+1.8V_EMMC

EMMC_CMD_BALL

C8800

EMMC_RESET_BALL

EMMC_VDDI

+1.8V_EMMC

0.1uF 16V

C8801

2.2uF 10V

+3.3V_EMMC

C8802

0.1uF 16V

C8803

2.2uF 10V

pattern 0.2mm

C8804

0.1uF 16V

C8805

2.2uF 10V

+1.8V_IO

L8801 BLM18PG121SN1D

C8810

C8808 10uF 10V

C8809

0.1uF 16V

10uF 10V

C8811 10uF 10V

EMMC_VDDI

DAT3 DAT4 DAT7

DAT5

IC8800

THGBMFG6C1LBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A6

VSS_1

A7

RFU_2

C5

NC_21

E5

RFU_4

E8

RFU_5

E9

VSF_1

E10

VSF_2

F10

VSF_3

G3

RFU_9

G10

RFU_10

H5

DS

J5

VSS_5

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

E7

VSS_2

G5

VSS_3

H10

VSS_4

K8

VSS_6

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C7

NC_22

NC_23 NC_24 NC_25 NC_26 NC_27 NC_28 NC_29 NC_30 NC_31 NC_32 NC_33 NC_34 NC_35 NC_36 NC_37 NC_38 NC_39 NC_40 NC_41 NC_42 NC_43 NC_44 NC_45 NC_46 NC_47 NC_48 NC_49 NC_50 NC_51 NC_52 NC_53 NC_54 NC_55 NC_56 NC_57 NC_58 NC_59 NC_60 NC_61 NC_62 NC_63 NC_64 NC_65 NC_66 NC_67 NC_68 NC_69 NC_70 NC_71 NC_72 NC_73 NC_74 NC_75 NC_76 NC_77 NC_78 NC_79 NC_80 NC_81 NC_82 NC_83 NC_84 NC_85 NC_86

EMMC5.1_8G_TOSHIBA

NC_87 NC_88 NC_89 NC_90 NC_91 NC_92 NC_93 NC_94 NC_95 NC_96 NC_97 NC_98

NC_99 NC_100 NC_101 NC_102 NC_103 NC_104 NC_105 NC_106 NC_107

C8 C9 C10 C11 C12 C13 C14 D1 D2 D3 D4 D12 D13 D14 E1 E2 E3 E12 E13 E14 F1 F2 F3 F12 F13 F14 G1 G2 G12 G13 G14 H1 H2 H3 H12 H13 H14 J1 J2 J3 J12 J13 J14 K1 K2 K3 K12 K13 K14 L1 L2 L3 L12 L13 L14 M1 M2 M3 M7 M8 M9 M10 M11 M12 M13 M14 N1 N3 N6 N7 N8 N9 N10 N11 N12 N13 N14 P1 P2 P8 P9 P11 P12 P13 P14

DAT5

DAT6

EMMC_RESET_BALL

EMMC_CLK_BALL

EMMC_CMD_BALL

THGBMBG5D1KBAIL

A3

DAT0

A4

DAT1

A5

DAT2

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

M6

CLK

M5

CMD

A7

RFU_2

E5

RFU_4

E8

RFU_5

G3

RFU_9

G10

RFU_10

K6

RFU_13

K7

RFU_14

K10

RFU_15

P7

RFU_16

P10

RFU_17

H5

DS

E9

VSF_1

E10

VSF_2

F10

VSF_3

K5

RSTN

C6

VCCQ_1

M4

VCCQ_2

N4

VCCQ_3

P3

VCCQ_4

P5

VCCQ_5

E6

VCC_1

F5

VCC_2

J10

VCC_3

K9

VCC_4

C2

VDDI

C4

VSSQ_1

N2

VSSQ_2

N5

VSSQ_3

P4

VSSQ_4

P6

VSSQ_5

A6

VSS_1

E7

VSS_2

G5

VSS_3

H10

VSS_4

J5

VSS_5

K8

VSS_6

A1

NC_1

A2

NC_2

A8

NC_3

A9

NC_4

A10

NC_5

A11

NC_6

A12

NC_7

A13

NC_8

A14

NC_9

B1

NC_10

B7

NC_11

B8

NC_12

B9

NC_13

B10

NC_14

B11

NC_15

B12

NC_16

B13

NC_17

B14

NC_18

C1

NC_19

C3

NC_20

C5

NC_21

EAN63508001

IC8800-*1

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

M12

EMMC5.0_4G_TOSHIBA

NC_86

M13

NC_87

M14

NC_88

N1

NC_89

N3

NC_90

N6

NC_91

N7

NC_92

N8

NC_93

N9

NC_94

N10

NC_95

N11

NC_96

N12

NC_97

N13

NC_98

N14

NC_99

P1

NC_100

P2

NC_101

P8

NC_102

P9

NC_103

P11

NC_104

P12

NC_105

P13

NC_106

P14

NC_107

A3 A4 A5 B2 B3 B4 B5 B6

M6 M5

A7 E5 G3 K6 K7 E8

E9 E10 F10 G10 K10 P10

H5

K5

C6

M4

N4

P3

P5

E6

F5 J10

K9

C2

C4

N2

N5

P4

P6

A6

E7

G5 H10

J5

K8

A1

A2

A8

A9 A10 A11 A12 A13 A14

B1

B7

B8

B9 B10 B11 B12 B13 B14

C1

C3

C5

EAN63829501

IC8800-*2

KLM4G1FEPD-B031

DAT0 DAT1 DAT2 DAT3 DAT4 DAT5 DAT6 DAT7

CLK CMD

RFU_1 RFU_2 RFU_3 RFU_4 RFU_5 RFU_6 RFU_7 RFU_8 RFU_9 RFU_10 RFU_11 RFU_13 DS

RSTN

VDD_1 VDD_2 VDD_3 VDD_4 VDD_5

VDDF_1 VDDF_2 VDDF_3 VDDF_4

VDDI

VSS_1 VSS_2 VSS_3 VSS_4 VSS_5 VSS_6 VSS_7 VSS_8 VSS_9 VSS_10 VSS_11

NC_1 NC_2 NC_3 NC_4 NC_5 NC_6 NC_7 NC_8 NC_9 NC_10 NC_11 NC_12 NC_13 NC_14 NC_15 NC_16 NC_17 NC_18 NC_19 NC_20 NC_21

C7

NC_22

C8

NC_23

C9

NC_24

C10

NC_25

C11

NC_26

C12

NC_27

C13

NC_28

C14

NC_29

D1

NC_30

D2

NC_31

D3

NC_32

D4

NC_33

D12

NC_34

D13

NC_35

D14

NC_36

E1

NC_37

E2

NC_38

E3

NC_39

E12

NC_40

E13

NC_41

E14

NC_42

F1

NC_43

F2

NC_44

F3

NC_45

F12

NC_46

F13

NC_47

F14

NC_48

G1

NC_49

G2

NC_50

G12

NC_51

G13

NC_52

G14

NC_53

H1

NC_54

H2

NC_55

H3

NC_56

H12

NC_57

H13

NC_58

H14

NC_59

J1

NC_60

J2

NC_61

J3

NC_62

J12

NC_63

J13

NC_64

J14

NC_65

K1

NC_66

K2

NC_67

K3

NC_68

K12

NC_69

K13

NC_70

K14

NC_71

L1

NC_72

L2

NC_73

L3

NC_74

L12

NC_75

L13

NC_76

L14

NC_77

M1

NC_78

M2

NC_79

M3

NC_80

M7

NC_81

M8

NC_82

M9

NC_83

M10

NC_84

M11

NC_85

EMMC5.0_4G_SAMSUNG

NC_86 NC_87 NC_88 NC_89 NC_90 NC_91 NC_92 NC_93 NC_94 NC_95 NC_96 NC_97 NC_98

NC_99 NC_100 NC_101 RFU_12 NC_102 NC_103 NC_104 NC_105 NC_106 NC_107

M12 M13 M14 N1 N3 N6 N7 N8 N9 N10 N11 N12 N13 N14 P1 P2 P7 P8 P9 P11 P12 P13 P14

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

M16

eMMC 5.0

081.sht

2015.02.09 26

26

Dummy_Cap_UH65/66

LGE Internal Use Only

C9900 10uF

6.3V

Dummy_Cap_UH70

C9901 10uF

6.3V

EPI_49INCH_OR_EPI_55INCH

M9900

THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION. FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

15/06/16

SMD GASKET 73

TROUBLE SHOOTING GUIDE

LGE Internal Use Only

Contents of Standard Repair Process

LGE Internal Use Only

No. Error symptom (High category) Error symptom (Mid category) Page Remarks

1

2 No video/No audio 2

3 Picture broken/ Freezing 3

4 Color error 4

5

6

7

8

9 Wrecked audio/discontinuation/noise 9

10

11

A. Video error

B. Power error

C. Audio error

No video/Normal audio 1

Vertical/Horizontal bar, residual image,

light spot, external device color error

No power 6

Off when on, off while viewing, power

auto on/off

No audio/Normal video 8

Remote control & Local switch checking

MR15 operating checking 11

5

7

10

12

13 Camera operating checking 13

14 External device recognition error 14

15 E. Noise Circuit noise, mechanical noise 15

16 F. Exterior error Exterior defect 16

D. Function error

First of all, Check whether there is SVC Bulletin in GSCS System for these model.

Wifi operating checking 12

Standard Repair Process

LGE Internal Use Only

Error

symptom

A. Video error

No video/ Normal audio

Established

date

Revised date

First of all, Check whether all of cables between board is inserted properly or not.

(Main B/D↔ Power B/D, LVDS Cable, Speaker Cable, IR B/D Cable,,,)

☞A18

N

Y

Check Back Light On with naked eye

☞A18

On

Check Power Board 13V output

Normal voltage

Repair Power Board or parts

Y N Check Power

Y

N

Board 13V

Replace Inverter or module

Normal

voltage

N

Repair Power Board or parts

End

Replace T-con/Main

Y

Board or module And Adjust VCOM

No video Normal audio

Normal

audio

Move to No video/No audio

1/16

※Precaution

Always check & record S/W Version and White Balance value before replacing the Main Board

☞A4 & A2

Replace Main Board

1

Re-enter White Balance value

Standard Repair Process

LGE Internal Use Only

Error

symptom

No Video/ No audio

☞A18

Check various voltages of Power Board ( 13V)

A. Video error

No video/ No audio

Normal

voltage?

Replace Power Board and repair parts

Y

N

Check and replace MAIN B/D

Established

date

Revised date

End

2/16

2

Standard Repair Process

LGE Internal Use Only

☞ A3

Check RF Signal level

Normal

Signal?

N

Check RF Cable

Connection

1. Reconnection

2. Install Booster

Normal

Picture?

Y

Close

Y

N

Error

symptom

A. Video error

Picture broken/ Freezing

Established

date

Revised date

. By using Digital signal level meter . By using Diagnostics menu on OSD

( Advanced→ Channels→ Channel Tuning→ Manual Tuning → Check the Signal )

- Signal strength (Normal : over 50%)

- Signal Quality (Normal: over 50%)

Check whether other equipments have problem or not.

(By connecting RF Cable at other equipment)

→ DVD Player ,Set-Top-Box, Different maker TV etc`

☞ A4

Normal

Picture?

Contact with signal distributor

or broadcaster (Cable or Air)

Y

S/W Version

N

Check

SVC

Bulletin?

S/W Upgrade

Normal

Picture?

Y

N

Y

N

Check

Tuner soldering

N

Replace

Main B/D

Y

3/16

Close

3

Standard Repair Process

LGE Internal Use Only

☞A6

Check color by input

-External Input

-COMPONENT

-AV

-HDMI

☞A8

Check Test pattern

Error

symptom

Color

error?

N

Check error color input mode

A. Video error

☞ A7

※ Check

and replace

Y

Link Cable (V by one) and contact condition

External Input/

Component

error

Color error

Color

error?

N

Check external device and cable

Y

Replace Main B/D

Established

date

Revised date

External device

/Cable

normal

N

Color

error?

End

Y

4/16

Y

Replace module

N

Replace Main/T-con B/D

HDMI

error

Check external

device and cable

4

Request repair

for external

device/cable

N

External device

/Cable

normal

Y

Replace Main/T-con B/D

Standard Repair Process

LGE Internal Use Only

Error

symptom

Vertical / Horizontal bar, residual image,

A. Video error

light spot, external device color error

Vertical/Horizontal bar, residual image, light spot

☞A6

Check color condition by input

-External Input

-Component

-HDMI

☞A8

Check Test pattern

Screen

normal?

N

Replace module

Check external

Y

device connection condition

Normal?

N

Request repair

for external device

External device screen error-Color error

Check screen condition by input

Check S/W Version

Check

version

Y

S/W Upgrade

N

-External Input

-Component

-HDMI/DVI

Component

☞ A7

Check and

Y

replace Link Cable

External

Input

error

Established

date

Revised date

Y

N

Replace Main/T-con B/D (adjust VCOM)

For LGD panel

Replace Main B/D

Screen

normal?

End

For other panel

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern Generator ,Set-top Box etc.

Screen

normal?

Request repair for external device

N

Y

5/16

Replace Module

N

Screen

normal?

Y

End

Replace Main/T-con B/D

Normal

screen?

End

N

Y

5

HDMI/

DVI

Connect other external device and cable

(Check normal operation of External Input, Component, RGB and HDMI/DVI by connecting Jig, pattern

Generator ,Set-top Box etc.

Y

Screen

normal?

N

Replace Main /T-con B/D

Standard Repair Process

LGE Internal Use Only

symptom

☞A17

Check Logo LED

. Stand-By: Red or Turn On . Operating: Turn Off

Power LED

Check Power cord was inserted properly

Error

On?

N

Normal?

Y

Close

B. Power error

Y

N

Check 13V(For STBY 3.3V)

☞A18

No power

DC Power on by pressing Power Key On Remote control

Y

Normal

Y

voltage?

N

Established

date

Revised date

☞A18

Y

N

Check Power On ‘”High”

Replace Main B/D

Normal

operation?

☞A18

Measure voltage of each output of Power B/D

N

Y

Replace Main B/D

Normal

voltage?

Replace Power B/D

OK?

Y

6/16

Replace

Power B/D

Replace Power B/D

6

Standard Repair Process

LGE Internal Use Only

Check outlet

Check A/C cord

Check for all 3- phase power out

Error

symptom

Error?

Y

Fix A/C cord & Outlet and check each 3 phase out

B. Power error

Off when on, off while viewing, power auto on/off

☞A19

N

Check Power Off Mode

☞A18

(If Power Off mode is not displayed) Check Power B/D voltage

※ Caution Check and fix exterior of Power B/D Part

Abnormal

Established

date

Revised date

CPU

1

Normal

voltage?

Replace Power B/D

Replace Main B/D

Y

N

Replace Power B/D

Replace Main B/D

Normal?

N

7/16

Y

End

* Please refer to the all cases which can be displayed on power off mode.

Status Power off List Explanation

"POWEROFF_REMOTEKEY" Power off by REMOTE CONTROL

"POWEROFF_OFFTIMER" Power off by OFF TIMER

"POWEROFF_SLEEPTIMER" Power off by SLEEP TIMER "POWEROFF_INSTOP" Power off by INSTOP KEY "POWEROFF_AUTOOFF" Power off by AUTO OFF

Normal

Abnormal

"POWEROFF_ONTIMER" Power off by ON TIMER "POWEROFF_RS232C" Power off by RS232C "POWEROFF_RESREC" Power off by Reservated Record "POWEROFF_RECEND" Power off by End of Recording "POWEROFF_SWDOWN" Power off by S/W Download

"POWEROFF_UNKNOWN" Power off by unknown status except listed case

"POWEROFF_ABNORMAL1" Power off by abnormal status except CPU trouble "POWEROFF_CPUABNORMAL" Power off by CPU Abnormal

7

Standard Repair Process

LGE Internal Use Only

No audio Screen normal

Error

C. Audio error

symptom

No audio/ Normal video

☞A20 ☞A21+A18

Check user menu > Speaker off

Off

Y

Cancel OFF

Check audio B+

N

13V of Power Board

Established

date

Revised date

Normal voltage

Replace Power Board and repair parts

Y

N

8/16

Check Speaker disconnection

Disconnection

Y

Replace Speaker

8

N

Replace MAIN Board

End

Standard Repair Process

LGE Internal Use Only

Check input signal

-RF

-External Input

signal

Error

symptom

C. Audio error

Wrecked audio/ discontinuation/noise

Established

date

Revised date

→ abnormal audio/discontinuation/noise is same after “Check input signal” compared to No audio

☞A21+A18

Check audio B+ Voltage (13V)

Y

Normal

voltage?

N

Replace Power B/D

Replace Main B/D

N

Y

Signal

normal?

N

Y

(When RF signal is not received)

Request repair to external

cable/ANT provider

(In case of

External Input

signal error) Check and fix external device

Wrecked audio/

Discontinuation/

Noise for

all audio

Wrecked audio/

Discontinuation/

Noise only

for D-TV

Wrecked audio/

Discontinuation/

Noise only

for Analog

Wrecked audio/

Discontinuation/

Noise only

for External Input

Check and replace speaker and connector

Replace Main B/D

Connect and check other external device

Normal

audio?

9/16

End

Check and fix external device

9

Standard Repair Process

LGE Internal Use Only

Error

symptom

D. Function error

Remote control & Local switch checking

1. Remote control(R/C) operating error

Check R/C itself

Operation

Check R/C Operating

When turn off light

in room

If R/C operate,

Explain the customer

cause is interference

from light in room.

operating?

Normal

Check & Replace

Y

N

Baterry of R/C

Normal

operating?

Replace R/C

Check & Repair Cable connection Connector solder

Y

Close

N

Normal

operating?

Y

Close

Check B+

N

On Main B/D

Established

date

Revised date

Y

N

3.5V

Normal

Voltage?

☞A18

Check 3.5v on Power B/D

Replace Power B/D or

Replace Main B/D

(Power B/D don’t have problem)

Check IR

Output signal

10/16

Replace

Main B/D

Normal

Signal?

N

Repair/Replace

IR B/D

Y

10

Standard Repair Process

LGE Internal Use Only

Error

symptom

D. Function error

MR15R operating checking

2. MR15R(Magic Remocon) operating error

☞A4

Check the

INSTART menu

RF Receiver ver

is “00.00”?

Y

Check & Repair

RF assy

connection

☞A4

RF Receiver ver

is “00.00”?

Y

N

Check MR15

itself Operation

N

Close

Normal

operating?

Check & Replace

Battery of MR15

Normal

operating?

Replace

MR13

Y

N

Y

N

Press the

wheel

Close

Established

date

Revised date

Is show ok

message?

Y

Close

Is show ok

message?

Close

Y

Turn off/on the

N

set and press

the wheel

N

11/16

Press the back

key about 5sec

Down load the Firmware

* INSTART MENU14.RF

Remocon Test3. Firmware

download

* If you conduct the loop at 3times, change the M4.

11

Standard Repair Process

LGE Internal Use Only

Error

symptom

3.Wifi operating error

☞A4

Check the

INSTART menu

Wi-Fi Mac value

is “NG”?

Y

Check & Repair

Wifi cable

connection

☞A4

Wi-Fi Mac value

is “NG”?

D. Function error

Wifi operating checking

N

Check the Wifi wafer

N

Close

1pin

Established

Revised date

Normal

Voltage?

Y

Close

date

N

12/16

Replace

Main B/D

Change the Wifi

Y

assy

12

Standard Repair Process

LGE Internal Use Only

Error

symptom

4.Camera operating error

☞A4

Check the

INSTART menu

Camera module

D. Function error

Camera Ver.

is “NULL”?

Y

Change the

Camera operating checking

N

Reconnect the

Camera module

Established

date

Revised date

Normal

operation?

Y

Close

N

13/16

Replace

Main B/D

13

Standard Repair Process

LGE Internal Use Only

Check input signal

Error

symptom

Y

Signal

input?

N

Check and fix

external device/cable

D. Function error

External device recognition error

Check technical information

- Fix information

- S/W Version

Technical

information?

Fix in

accordance

with technical

information

Y

External Input and

N

Component

Recognition error

HDMI/

DVI, Optical

Recognition error

Established

date

Revised date

14/16

Replace Main B/D

14

Standard Repair Process

LGE Internal Use Only

Identify nose type

Error

symptom

Circuit

noise

Mechanical

noise

Circuit noise, mechanical noise

Check location of noise

E. Noise

※ Mechanical noise is a natural phenomenon, and apply the 1st level description. When the customer does not agree, apply the process by stage. ※ Describe the basis of the description in “Part related to nose” in the Owner’s Manual.

Replace PSU

OR

Established

date

Revised date

※ When the nose is severe, replace the module (For models with fix information, upgrade the

S/W or provide the description)

※ If there is a “Tak Tak” noise from the cabinet, refer to the KMS fix information and then proceed as shown in the solution manual (For models without any fix information, provide the description)

15/16

15

Standard Repair Process

LGE Internal Use Only

Error

symptom

Zoom part with exterior damage

Module

damage

Cabinet

damage

Remote

control

damage

F. Exterior defect

Exterior defect

Replace module

Replace cabinet

Replace remote control

Established

date

Revised date

16/16

Stand

dent

Replace stand

16

Contents of Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

1 A. Video error_ No video/Normal audio Check White Balance value A2

2

A. Video error_ video error /Video lag/stop

3 Version checking method A4

TUNER input signal strength checking method

A3

4 Tuner Checking Part A5

A. Video error _Vertical/Horizontal bar,

5

residual image, light spot

6

A. Video error_ Color error

Connection diagram A6 Check Link Cable (LVDS) reconnection

condition

A7

7 Adjustment Test pattern - ADJ Key A8 8

Exchange Main Board (1) A-1/5

9 Exchange Main Board (2) A-2/5

10 Exchange Power Board (PSU) A-3/5

Defected Type caused by T-Con/ Inverter/ Module

11 Exchange Module (1) A-4/5 12 Exchange Module (2) A-5/5

Contents Standard Repair Process Detail Technical Manual

LGE Internal Use Only

No. Error symptom Content Page Remarks

13

Check front display Indicator A17

B. Power error_ No power

14 Check power input Voltage & ST-BY 3.5V A18

15

16

B. Power error_Off when on, off while viewing

POWER OFF MODE checking method A19 Checking method in menu when there is no

audio

A20

C. Audio error_ No audio/Normal video

17

Voltage and speaker checking method when

there is no audio

A21

Remote control operation checking method A22

18 D. Function error

Motion Remote, Wi-Fi operation checking method

A23

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_No video/Normal audio

Check White Balance value

Established

date

Revised

date

A2

Entry method

1. Press the ADJ button on the remote for adjustment.

1. Press the ADJ button on the remote control for adjustment.

2. Enter into White Balance of item 6.

2. Enter into White Balance of item 13.

3. After recording the R, G, B (GAIN, Cut) value of Color Temp

3. After recording the R, G, B (GAIN, Cut) value of Color Temp (Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

(Cool/Medium/Warm), re-enter the value after replacing the MAIN BOARD.

A2

Standard Repair Process Detail Technical Manual

LGE Internal Use Only

Error

symptom

Content

A. Video error_Video error, video lag/stop

TUNER input signal strength checking method

Established

date

Revised

date

A3

All Settings  Channels Channel Tuning  Manual Tuning  Antenna DTV, Cable DTV

Signal Strength is too strong : Use attenuator (-10dB, -15dB, -20dB etc.) Signal Strength is too weak : Use Signal Booster

A3

LG 43UH6500 Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
