ASSEMBLING AND PREPARING
22MP67D 23MP67D 24MP67VQ
22MP67VQ 23MP67VQ
27MP67VQ
22MP67D 23MP67D 24MP67VQ
22MP67VQ 23MP67VQ
27MP67VQ
4
ENGLISH
ASSEMBLING AND PREPARING
ENG
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
Power Cord
CD(Owner's Manual) /
Card
( Depending on the country )
D-SUB Cable
( This cable is not included in all
countries. )
AC-DC Adapter
DVI-D Cable
22MP67D 23MP67D 24MP67VQ
22MP67VQ 23MP67VQ
( This cable is not included in all
countries. )
or
AC-DC Adapter
( Depending on the country )
27MP67VQ
Stand Body
HDMI Cable
22MP67HQ 23MP67HQ 24MP67HQ 27MP67HQ
22MP67VQ 23MP67VQ
Stand Base
27MP67VQ24MP67VQ
Cable Holder Two Screws
( This cable is not included in all
countries. )
ASSEMBLING AND PREPARING
5
CAUTION
yDo not use any unapproved accessories to ensure the safety and product life span.
yAny damages or injuries by using unapproved accessories are not covered by the warranty.
NOTE
yThe accessories supplied with your product may vary depending on the model.
yProduct specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
ENGLISH
ENG
ENGLISH
ENG
ASSEMBLING AND PREPARING
6
Parts and buttons
Power Indicator
y On: power is on
y Off: power is off
NOTE
(Joystick Button)
Connection panel (See p.14~16)
yThe joystick button is located at the bottom of the monitor.
ASSEMBLING AND PREPARING
7

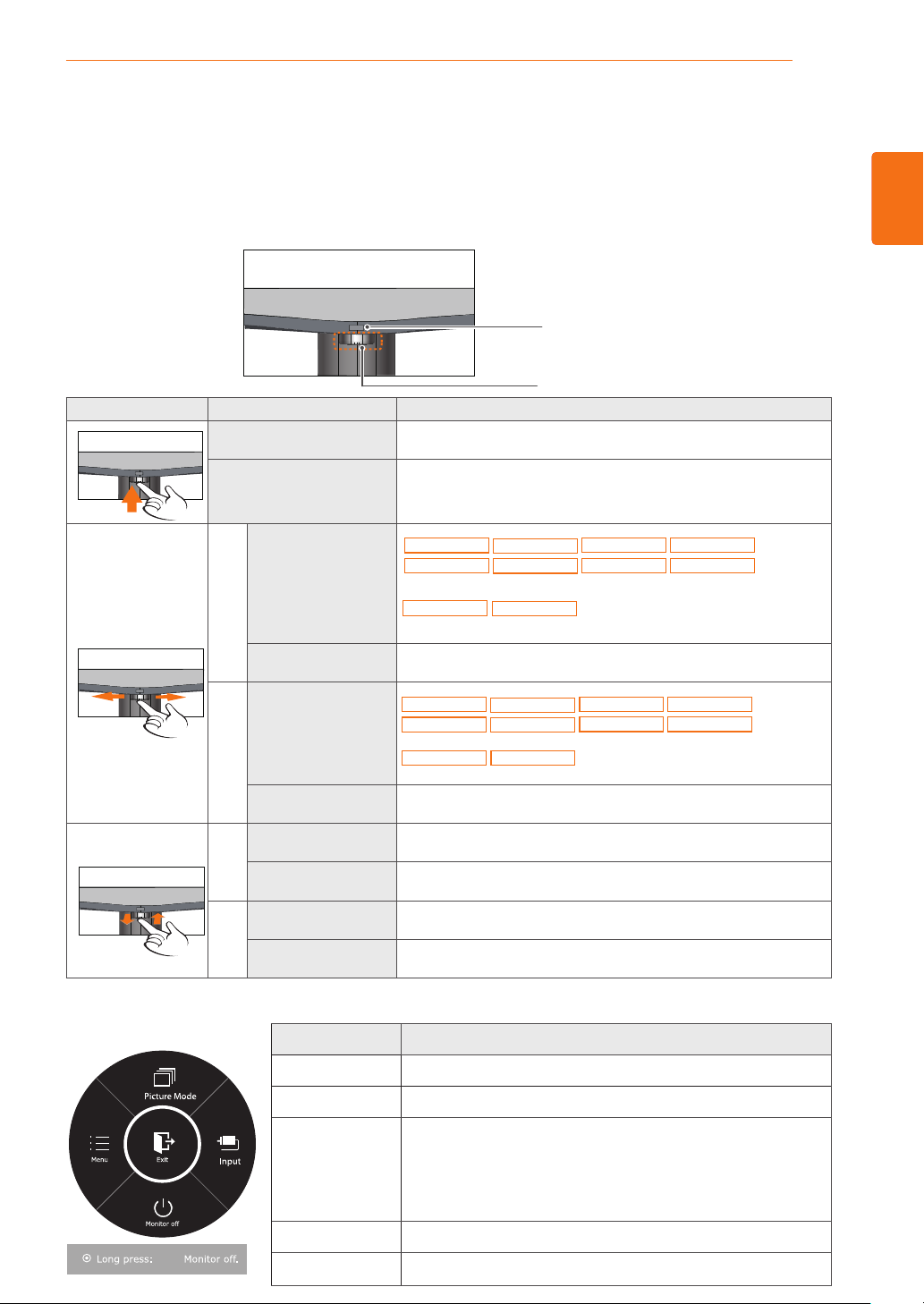

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with
your finger.
Basic Functions
Press the joystick button once with your finger to turn on the
monitor.
Press and hold the joystick button once with your finger to turn off
the monitor.
You can control the volume by moving the joystick button left/right.
◄/►
Power on
Power off
Volume
Control
ENGLISH
ENG
ASSEMBLING AND PREPARING
8
ENGLISH
ENG
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transportation regardless of its shape or size.
yIt is advisable to place the monitor in the
original box or packing material before attempting to move it.
yBefore moving or lifting the monitor, discon-
nect the power cord and all cables.
yHold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
yWhen holding the monitor, the screen should
face away from you to prevent it being
scratched.
yWhen moving the monitor, avoid any strong
shock or vibrations to the product.
yWhen moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
CAUTION
yAs far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
Setting up the Monitor set
Attaching the Stand Base
Place the screen face down.
1
CAUTION
yTo protect the screen from scratches, cover
the surface with a soft cloth.
Check the direction of the stand body
2
(front, back) and then mount the stand body
onto the stand hinge.
Tighten two screws into the back of the stand
body .
ASSEMBLING AND PREPARING
Attach the Cable holder.
4
Cable holder
9
ENGLISH
ENG
Screws
1
3
2
Stand Base
Stand Body
Insert the
stand body
Tighten the screw to the right.
Stand Hinge
stand base
.
into the hook of the
CAUTION
Applying excessive force when tightening
the screws may cause damage to the monitor. Damage caused in this way will not be
covered by the product warranty.
CAUTION
It may hurt your foot off the stand, so be
careful.
Stand Body
ASSEMBLING AND PREPARING
10
ENGLISH
ENG
Detaching the Stand Base
Place the screen face down.
1
CAUTION
yTo protect the screen from scratches, cover
the surface with a soft cloth.
1
Turn the screw to the left.
2
2
Pull out the
Stand Body
Stand Base
As shown in the illustration,put your hand on
3
the right groove of cable holder, pull cable
holder out to separate it from the set.
Stand Base
2
.
Remove the two screws on the back of
4
body.
As shown in the illustration, disconnect the
stand body
Screws
Stand Body
from the
stand hinge.
Stand Hinge
stand
CAUTION
yIllustrations in this document represent typi-
cal procedures, so they may look different
from the actual product.
yDo not carry the monitor upside down by just
holding the stand base. This may cause the
monitor to fall off the stand and could result
in personal injury.
yWhen lifting or moving the monitor, do not
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
yIf you use the monitor panel without the
stand base, its joystick button may cause
the moni-tor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
Cable holder
ASSEMBLING AND PREPARING
11
Mounting on a table
Lift and tilt the Monitor set into its upright
1
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
Press the joystick button on the bottom of the
3
monitor to turn on the monitor.
CAUTION
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
Using the cable holder
ENGLISH
ENG
Connect the AC-DC Adapter and Power Cord
2
to a wall outlet.
(19 V )
or
(19 V )
Cable holder
ASSEMBLING AND PREPARING
12
ENGLISH
ENG
WARNING
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Do not touch or press the screen when
adjusting the angle of the monitor.
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
Connect the Kensington security system cable
between the Monitor set and a table.
http://www.kensington.com
.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
NOTE
Tilt from +20 to -3 degrees up or down to adjust
the angle of the Monitor set to suit your view.
3
NOTE
The Kensington security system is optional.
You can obtain it from most electronics stores.
Front Rear
ASSEMBLING AND PREPARING
13
Mounting on a wall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
10 cm
10 cm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 If you use screw longer than standard, the moni-
tor might be damaged internally.
2 If you use improper screw, the product might be
damaged and drop from mounted position.
In this case, LG Electronics is not responsible
for it.
Model
Wall Mount
(A x B)
Standard
screw
Number of
screws
Wall Mount
Plate
(Optional)
22MP67D
22MP67HQ
22MP67VQ
24MP67HQ
24MP67VQ
75 x 75 100 x 100
23MP67D
23MP67HQ
23MP67VQ
M4 x L10
10 cm
10 cm
27MP67HQ
27MP67VQ
4
RW120
yWall Mount (A x B)
A
B
CAUTION
yDisconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
yIf you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
yUse only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
y Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
yScrew length from outer surface of back
cover should be under 8mm.
Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
yUse the screws that are listed on the VESA
standard screw specifications.
yThe wall mount kit will include an installation
manual and necessary parts.
yThe wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
yThe length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
yFor more information, refer to the
instructions supplied with the wall mount.
ENGLISH
ENG
