2 TABLE OF CONTENTS
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPARING
4 Unpacking
6Parts and buttons
7- How to Use the Joystick Button
8Moving and Lifting the Monitor
9Setting up the Monitor set
9- Attaching the Stand Base
9- Detaching the Stand Base
10- Mounting on a table
11- Using the cable holder
13- Mounting on a wall
14 USING THE MONITOR SET
14Connecting to a PC
14- D-SUB connection
14- DVI-D connection
14- HDMI connection
15Connecting to AV Devices
15- HDMI connection
16Connecting to External Devices
16- Peripheral device connection
17INSTALLING THE LG MONI-
TOR SOFTWARE
17 Installing The Screen Split

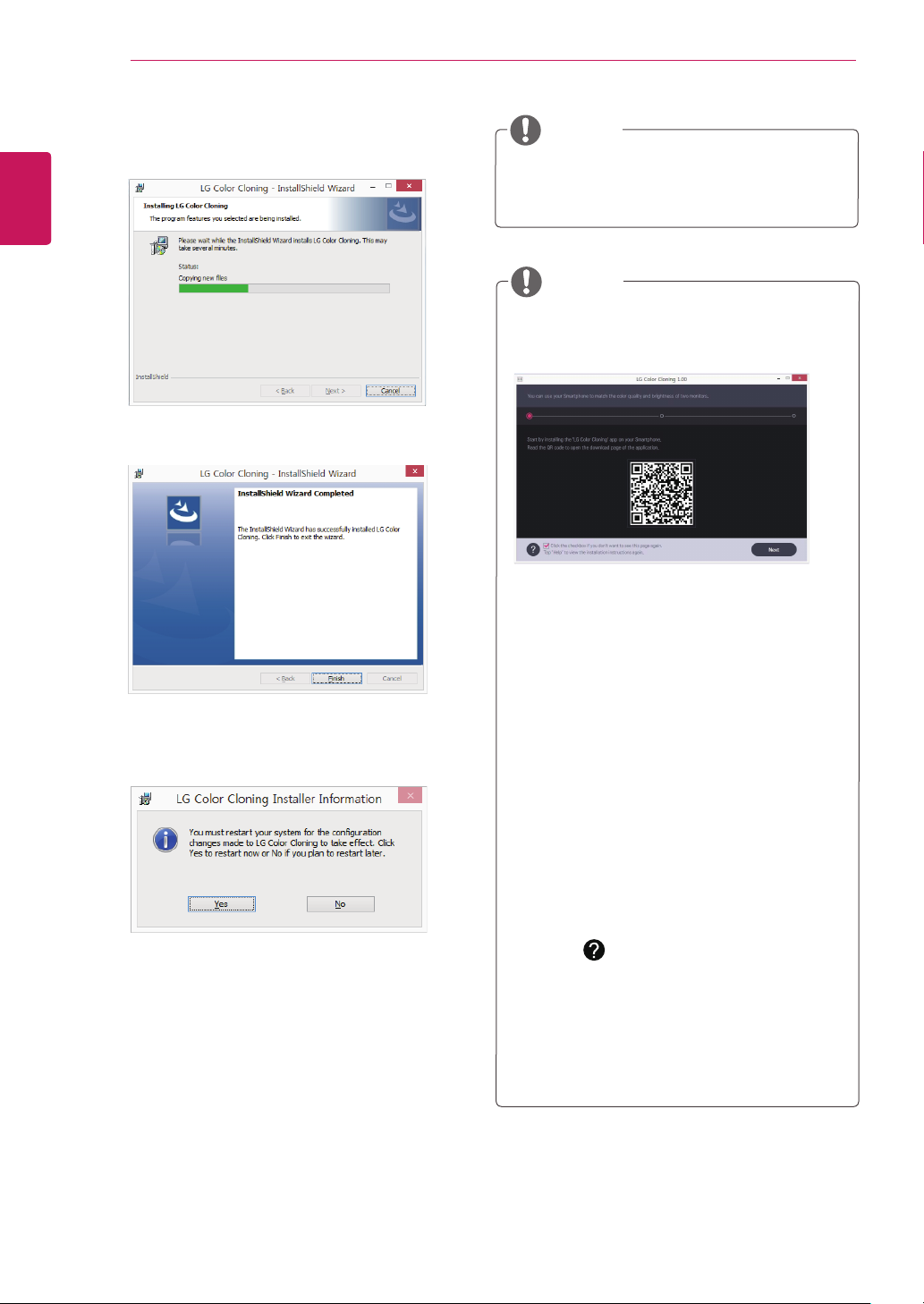

19 Installing The LG Color Cloning
21 CUSTOMIZING SETTINGS
22 Customizing settings
22 - Menu Settings

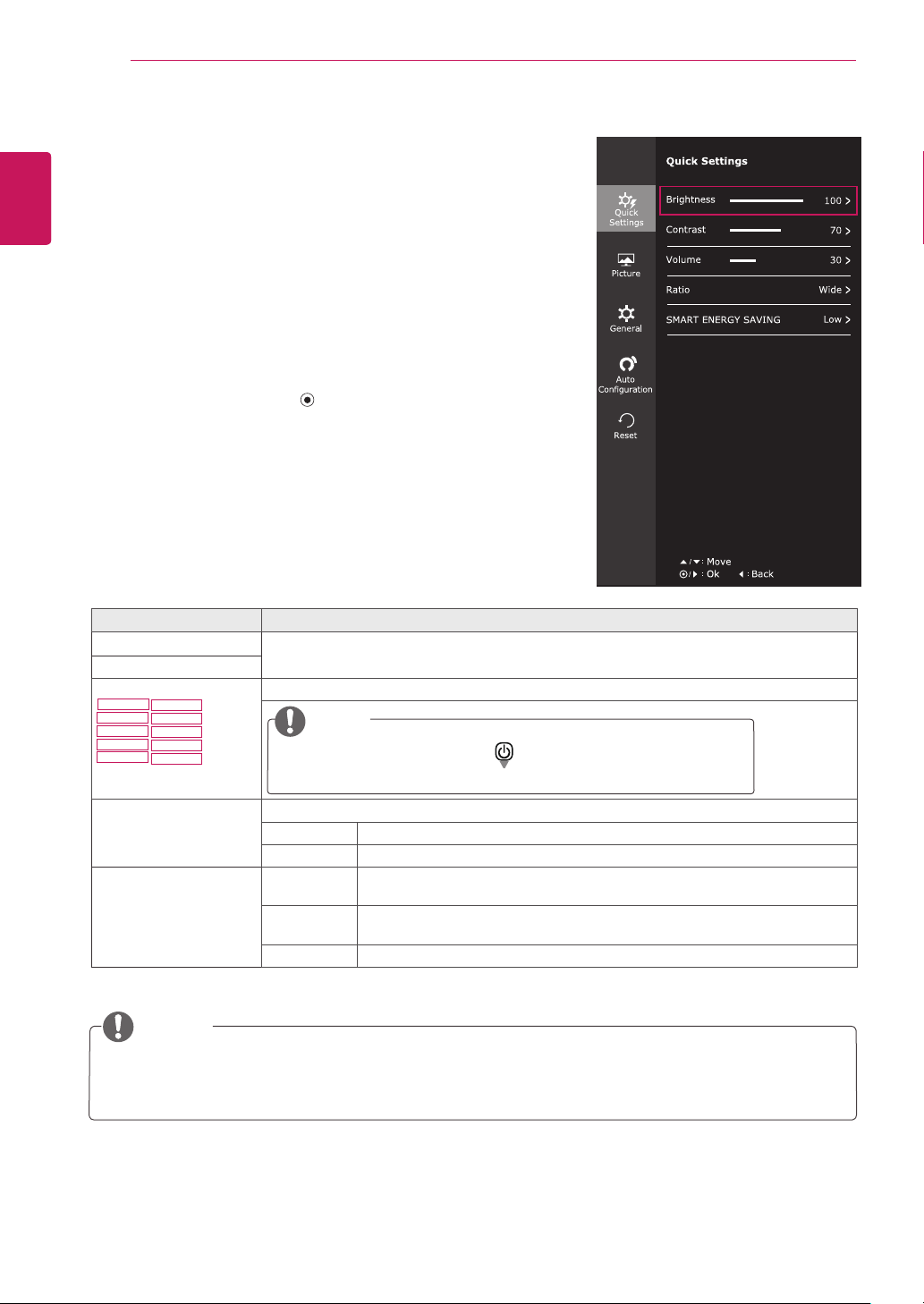

22 - -Quick Settings

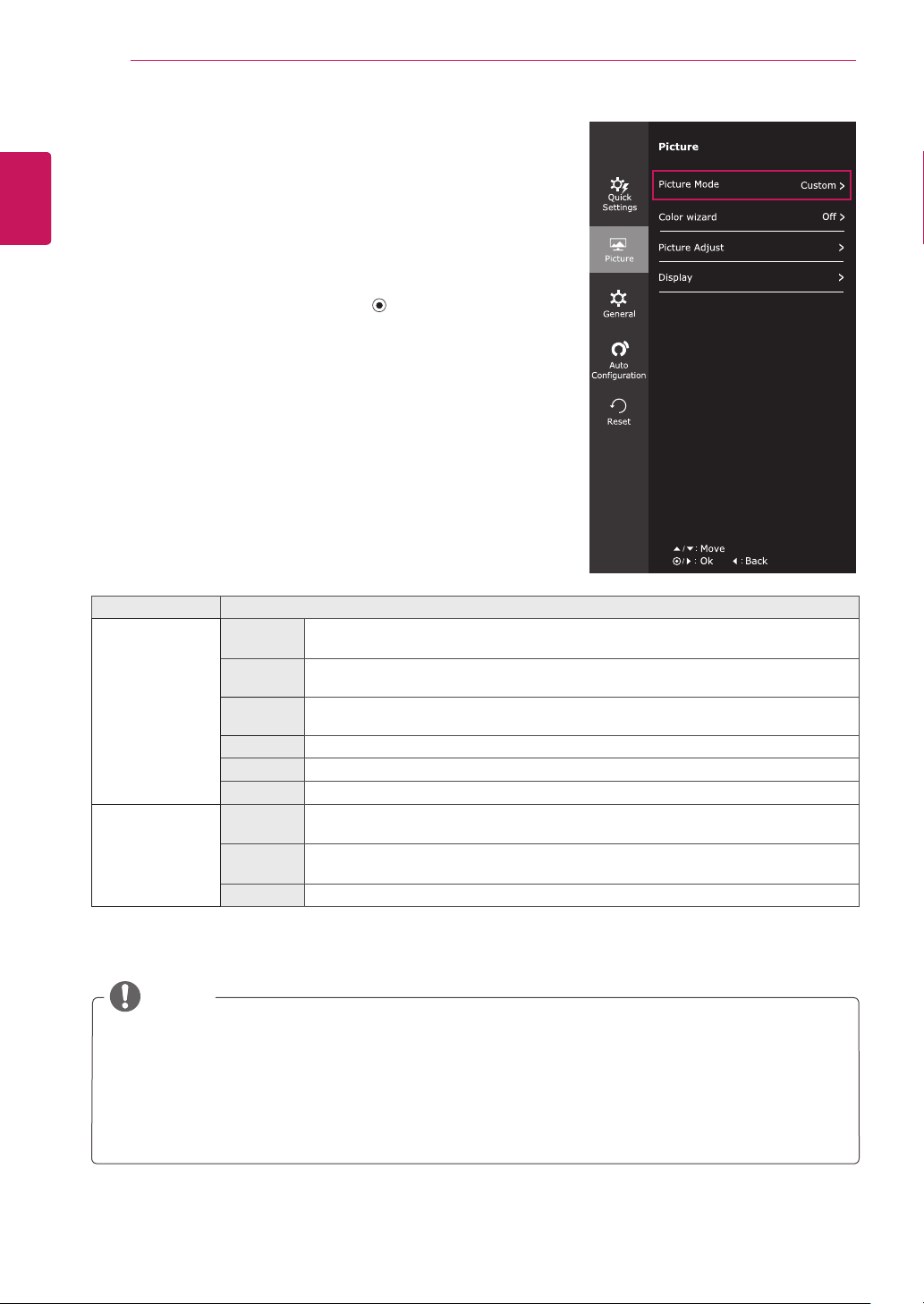

24 - -Picture
26- -General
27- -Auto Configuration

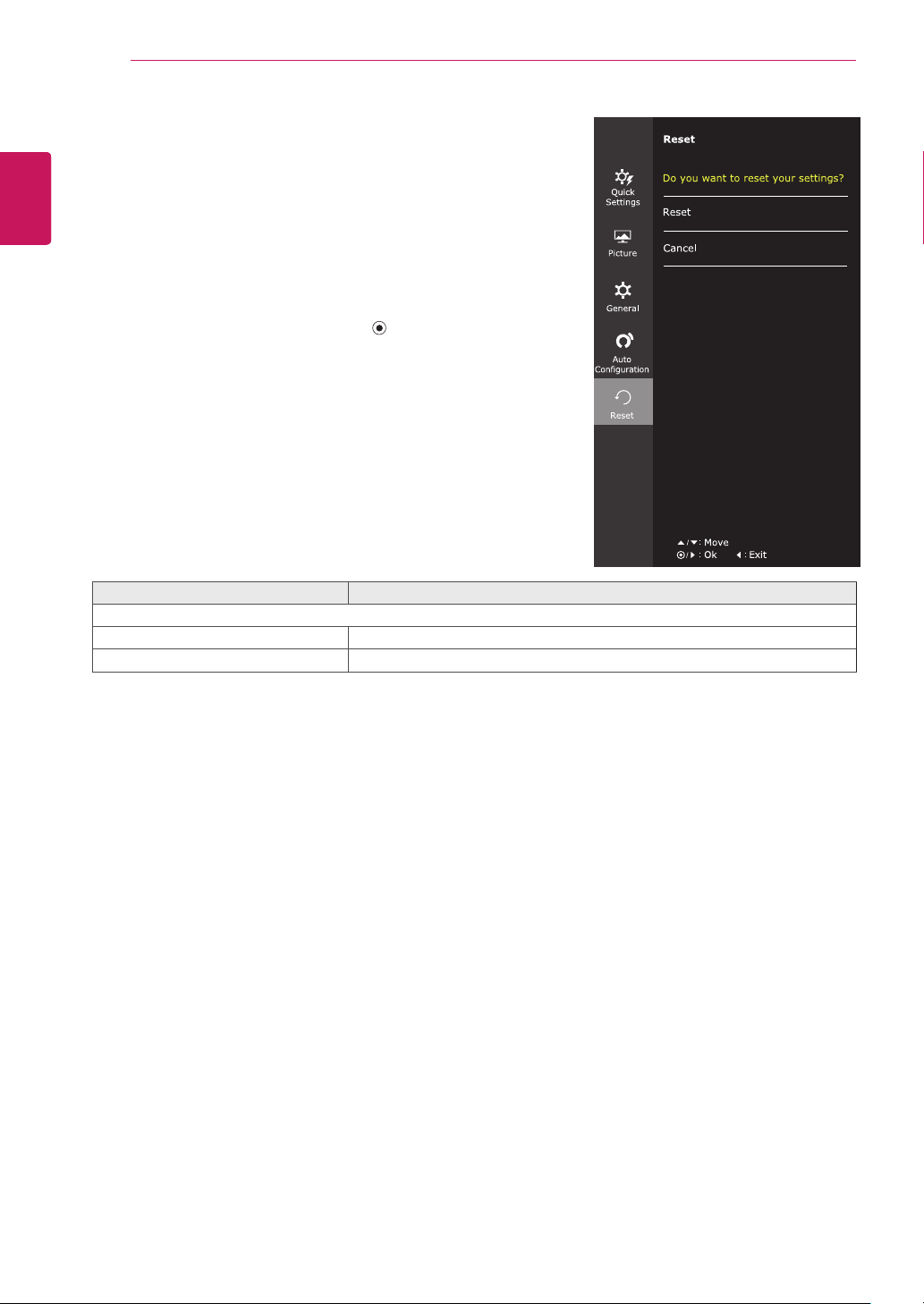

28- -Reset
29- -Picture mode
30TROUBLESHOOTING
32 SPECIFICATIONS
40 Preset Modes (Resolution)
40 Indicator
LICENSE 3
22MP57HQ
22MP57VQ
23MP57H
23MP57HQ
23MP57VQ
24MP57HQ
24MP57VQ 27MP57HQ
27MP57VQ
27MP57HT
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:
*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
*To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
ENGLISH
ENGLISH
4 ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.
CD(Owner's Manual) / |
D-SUB Cable |
|
|
DVI-D Cable |
||
( This cable is not included in all |
|
|
|
|
|
|
|
|
|
|
|
||
Card |
countries. ) |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
( This cable is not included in all |
||||
|
|
|
|
countries. ) |
||
|
|
or |
Power Cord |
AC-DC Adapter |
|
( Depending on the country ) |
AC-DC Adapter |
|
|
|
( Depending on the country ) |
Stand Body |
Stand Base |
Cable Holder |
HDMI Cable
( This cable is not included in all countries. )
ASSEMBLING AND PREPARING 5
CAUTION
yyDo not use any unapproved accessories to ensure the safety and product life span.
yyAny damages or injuries by using unapproved accessories are not covered by the warranty.
NOTE
yyThe accessories supplied with your product may vary depending on the model.
yyProduct specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
ENGLISH
6 ASSEMBLING AND PREPARING
Parts and buttons
ENGLISH
Power Indicator yyOn: power is on yyOff: power is off
(Joystick Button)
Connection panel (See p.14~16)
NOTE
yyThe joystick button is located at the bottom of the monitor.
ASSEMBLING AND PREPARING 7

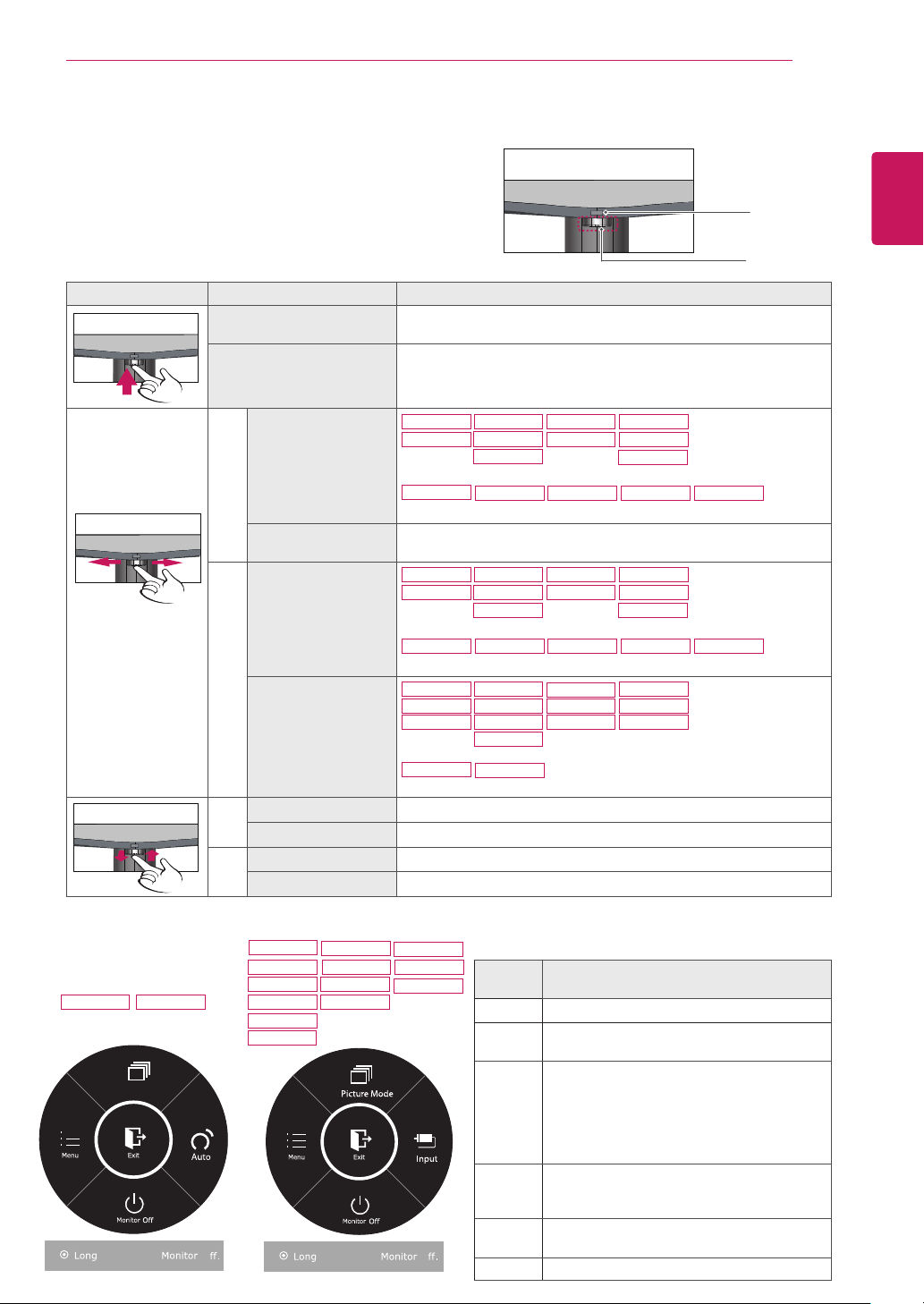

How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.
Basic Functions
|
|
|
|
|
|
|
Power on |
Press the joystick button once with your finger to turn on the |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
monitor. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power off |
Press and hold the joystick button once with your finger to turn off |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
the monitor. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
◄/► |
Volume |
You can control the volume by moving the joystick button left/right. |
|
|
|
|
|
|
|||
|
|
|
|
|
|
Control |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ENGLISH
ENGLISH
8 ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.
yyIt is advisable to place the monitor in the original box or packing material before attempting to move it.
yyBefore moving or lifting the monitor, disconnect the power cord and all cables.
yyHold the top and bottom of the monitor frame firmly. Do not hold the panel itself.
yyWhen holding the monitor, the screen should face away from you to prevent it being scratched.
yyWhen moving the monitor, avoid any strong shock or vibrations to the product.
yyWhen moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.
CAUTION
yyAs far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.
ASSEMBLING AND PREPARING 9
Setting up the Monitor set
Attaching the Stand Base
1Place the Monitor set with the screen side down on a flat and cushioned surface.
CAUTION
Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
21 Insert the Cable Holder.
2 Attach the Stand Body to the monitor set.
3 Attach the Stand Base to Stand Body.
4 Tighten the screw to the right.
Stand Body
3
Stand Base |
4 |
Detaching the Stand Base
1Place the Monitor set with the screen side down on a flat and cushioned surface.
21 Turn the screw to the left.
2 Pull out the Stand Base.
3 Pull out the Stand Body from the monitor set.
4 Separate the Cable Holder.
Stand Body
Stand Base
1
Stand Body
2
Stand Base
3
4
ENGLISH
ENGLISH
10 ASSEMBLING AND PREPARING
CAUTION
yyIllustrations in this document represent typical procedures, so they may look different from the actual product.
yyDo not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.
yyWhen lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.
yyIf you use the monitor panel without the stand base, its joystick button may cause the moni-tor to become unstable and fall, resulting in damage to the monitor or human injury. In addition, this may cause the joystick button to malfunction.
Mounting on a table
1Lift and tilt the Monitor set into its upright position on a table.
Leave a 100 mm (minimum) space from the wall for proper ventilation.
100 mm
100 mm
100 mm
100 mm
2Connect the AC-DC Adapter and Power Cord to a wall outlet.
(19 V
)
or
(19 V
)
ASSEMBLING AND PREPARING 11
3 Press the joystick button on the bottom of the
monitor to turn on the monitor. |
WARNING |
|
When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your
fingers.
CAUTION
Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.
Using the cable holder |
Do not touch or press the screen when |
|
adjusting the angle of the monitor. |
Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.
Cable holder
ENGLISH
ENGLISH
12 ASSEMBLING AND PREPARING
NOTE
22MP57A
23MP57A
24MP57D 22MP57D
23MP57D
24MP57HQ 22MP57HQ
23MP57H
24MP57VQ 22MP57VQ
23MP57HQ
23MP57VQ
Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.
Using the Kensington security system
The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the Monitor set and a table.
Front |
Rear |
NOTE
27MP57HQ
27MP57VQ
27MP57HT
Tilt from +20 to -3 degrees up or down to adjust the angle of the Monitor set to suit your view.
NOTE
The Kensington security system is optional. You can obtain it from most electronics stores.
Front |
Rear |
Mounting on a wall
For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm
100 mm
100 mm
100 mm
If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.
When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.
1If you use screw longer than standard, the monitor might be damaged internally.
2If you use improper screw, the product might be damaged and drop from mounted position.
In this case, LG Electronics is not responsible for it.
Model |
22MP57A |
23MP57A |
24MP57D |
|
22MP57D |
23MP57D |
24MP57HQ |
|
22MP57HQ |
23MP57H |
24MP57VQ |
|
22MP57VQ 23MP57HQ |
|
|
|
27MP57HQ 23MP57VQ |
|
|
|
27MP57VQ 27MP57HT |
|
|
Wall Mount |
|
75 x 75 |
|
(A x B) |
|
|
|
Standard |
|
M4 x L10 |
|
screw |
|
||
|
|
|
|
Number of |
|
4 |
|
screws |
|
|
|
|
|
|
|
Wall Mount |
|
RW120 |
|
Plate |
|
|
|
(Optional) |
|
|
|
ASSEMBLING AND PREPARING 13
yyWall Mount (A x B)
A |
B |
|
CAUTION
yyDisconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.
yyIf you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.
yyUse only an authorized LG wall mount and contact the local dealer or qualified personnel.
yyDo not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
yyUse only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper
accessory are not covered by the warranty. yyScrew length from outer surface of back
cover should be under 8mm. Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
yyUse the screws that are listed on the VESA standard screw specifications.
yyThe wall mount kit will include an installation manual and necessary parts.
yyThe wall mount bracket is optional. You can obtain additional accessories from your local dealer.
yyThe length of screws may differ depending on the wall mount. Be sure to use the proper length.
yyFor more information, refer to the instructions supplied with the wall mount.
ENGLISH
