Lexus SC 430 2006 User Manual

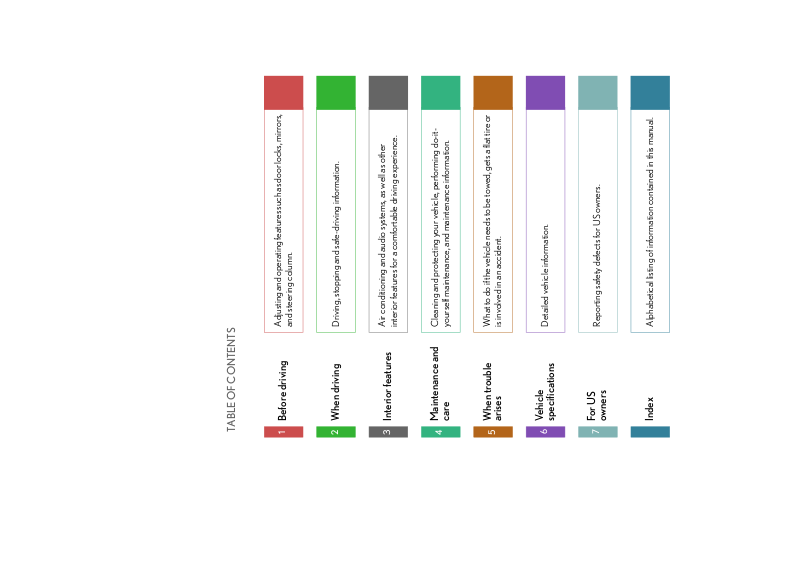

TABLE OF CONTENTS

1

Before driving

Adjusting and operating features such as door locks, mirrors,

and steering column.

2

When driving

Driving, stopping and safe-driving information.

3

Interior features

Air conditioning and audio systems, as well as other

interior features for a comfortable driving experience.

4

Maintenance and

care

Cleaning and protecting your vehicle, performing do-it-

yourself maintenance, and maintenance information.

5

When trouble

arises

What to do if the vehicle needs to be towed, gets a flat tire or

is involved in an accident.

6

Vehicle

specifications

Detailed vehicle information.

7

For US

owners

Reporting safety defects for US owners.

Index

Alphabetical listing of information contained in this manual.

TABLE OF CONTENTS Index

1-1. Key information .............................. 2

Keys ......................................................... 2

1-2. Opening, closing and locking

the doors and trunk ..................... 4

Wireless remote control................. 4

Doors....................................................... 7

Trunk...................................................... 10

1-3. Adjustable components ............. 13

Front seats........................................... 13

Driving position memory

system ................................................ 15

Head restraints.................................. 18

Seat belts ............................................ 20

Steering wheel.................................. 27

Auto anti-glare mirror................... 29

Side mirrors...................................... 30

1-4. Opening and closing the

windows and retractable

hardtop......................................... 32

Power windows................................ 32

Retractable hardtop....................... 35

1-5. Removing the fuel tank cap ...... 39

Removing the fuel tank cap ........ 39

1-6. Theft deterrent system............... 43

Engine immobilizer system......... 43

Alarm.................................................... 44

Theft prevention labels

(U.S.A. Only) ................................. 46

1-7. Safety information ....................... 47

Correct driving posture ............... 47

SRS airbags ....................................... 49

Child restraint system ................... 60

Installing child restraints............... 63

2-1. Driving procedures..................... 74

Driving the vehicle.......................... 74

Starting the engine ......................... 82

Automatic transmission............... 85

Turn signal lever............................... 89

Parking brake ................................... 90

2-2. Instrument cluster and

information display .................... 91

Gauges and meters ........................ 91

Indicators and warning lights ..... 93

Trip information display................ 95

1

Before driving

2

When driving

1

2

3

4

5

6

7

2-3. Operating the headlight and

windshield wipers ...................... 96

Headlight switch.............................. 96

Fog light switch .............................. 100

Windshield wipers and

washer.............................................. 101

Headlight cleaner switch ........... 103

2-4. Using other driving

systems ...................................... 104

Cruise control ................................ 104

Driver assist systems.................... 107

2-5. Driving information..................... 111

Cargo & luggage ............................. 111

Vehicle load limits........................... 114

Winter driving tips .......................... 115

Trailer towing................................... 118

Dinghy towing .................................. 119

3-1. Using the air conditioning

system and defogger.............. 122

Automatic air conditioning

control............................................. 122

Rear window defogger............... 129

3-2. Using the audio system ........... 130

Audio system .................................. 130

Opening the audio door ............ 132

Using the radio............................... 133

Using the cassette player .......... 137

Using the CD changer ............... 140

Optimal use of the audio

system .............................................. 147

Using the steering switches...... 149

3-3. Turning on interior lights......... 152

Interior lights list............................. 152

3-4. Storage......................................... 155

Storage features............................ 155

3-5. Other interior features ............. 161

Sun visors............................................ 161

Clock.................................................. 162

Ashtray .............................................. 163

Cigarette lighter............................ 164

Power outlet.................................... 165

Seat heaters..................................... 166

Floor mats.......................................... 167

Trunk features................................. 168

Garage door opener................... 170

4-1. Maintenance and care ............ 178

Cleaning and protecting the

vehicle exterior ........................... 178

Cleaning and protecting the

vehicle interior.............................. 181

3

Interior features

4

Maintenance and care

TABLE OF CONTENTS Index

4-2. Maintenance .............................. 184

Maintenance requirements ...... 184

General maintenance................. 186

Emission inspection and

maintenance (I/M)

programs ....................................... 189

4-3. Do-it-yourself

maintenance ............................ 190

Do-it-yourself service

precautions................................... 190

Hood................................................... 194

Positioning the jack ...................... 195

Engine compartment................... 197

Tires .................................................... 212

Tire inflation pressure.................. 219

Wheels.............................................. 224

Air conditioning filter.................. 226

Wireless remote control

battery............................................ 228

Blade fuses..................................... 230

Cartridge fuses ............................ 238

Headlight aim................................. 240

Light bulbs....................................... 242

5-1. Essential information............... 248

If your vehicle needs to be

towed............................................. 248

If you think something is

wrong ............................................. 253

Fuel pump shut off system ........ 254

Event data recorder.................... 255

5-2. Steps to take in an

emergency............................... 257

If the warning light turns on...... 257

If you have a flat tire (Vehicles

with run-flat tires) ...................... 268

If you have a flat tire (Vehicles

with standard tires)................... 270

If the engine will not start .......... 279

If the transmission selector

lever cannot be shifted

from P............................................ 280

If you lose your keys..................... 281

If the vehicle has a discharged

battery............................................ 282

If your vehicle overheats .......... 285

If the vehicle becomes stuck... 287

If the retractable hardtop does

not close....................................... 288

6-1. Specifications ........................... 300

Maintenance data....................... 300

Fuel information........................... 309

Tire information.............................. 312

6-2. Owner’s customize.................. 322

Customizable features............... 322

Initializing your Lexus................. 324

5

When trouble arises

6

Vehicle specifications

1

2

3

4

5

6

7

Reporting safety defects for US

owners ........................................... 326

Alphabetical index...................... 328

What to do if.................................. 335

7

For US owners

Index

For your information

Main Owners Manual

Please note that this manual applies to all models and explains all equipment, includ-

ing options. Therefore, you may find some explanations for equipment not installed

on your vehicle.

All specifications provided in this manual are current at the time of printing. How-

ever, because of the Lexus policy of continual product improvement, we reserve the

right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ from

your vehicle in terms of color and equipment.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are

currently available in the market. You should know that Toyota does not warrant

these products and is not responsible for their performance, repair or replacement,

or for any damage they may cause to, or adverse effect they may have on, your

Lexus vehicle.

This vehicle should only be modified using genuine Lexus products. Modification

with non-genuine Lexus products could affect its performance, safety or durability,

and may even violate governmental regulations. In addition, damage or perfor-

mance problems resulting from the modification may not be covered under war-

ranty.

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect

electronic systems such as the multiport fuel injection system/sequential multiport

fuel injection system, cruise control system, anti-lock brake system, SRS airbag sys-

tem and seat belt pretensioner system, be sure to check with your Lexus dealer for

precautionary measures or special instructions regarding installation.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive

chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left

as they are, this may cause an accident such as fire. Be sure to have the systems of

the SRS airbag and seat belt pretensioner removed and disposed of by a qualified

service shop or by your Lexus dealer before you scrap your vehicle.

Leak detection pump

This pump performs fuel evaporation leakage check. This check is done approxi-

mately five hours after the engine is turned off. So you may hear sound coming from

underneath the trunk for several minutes. It does not indicate a malfunction.

CAUTION

n General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of

alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol

and certain drugs delay reaction time, impair judgment and reduce coordination,

which could lead to an accident that will hurt or kill you, your occupants or others.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers

or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts

the driver, such as adjusting controls, talking on a cellular phone or reading can

result in a collision with resulting death or serious injury to you, your occupants or

others.

n When children are in the vehicle

Never leave children unattended in the vehicle.

When left unattended, children may be able to start the vehicle or shift the vehicle

into neutral. There is also a danger that children may injure themselves by playing

with the cigarette lighter, the windows, the retractable hardtop, or other features of

the vehicle. In addition, heat build-up or extremely cold temperatures inside the

vehicle can be fatal to children.

Symbols used throughout this manual

Cautions & Notices

Safety symbol

CAUTION

This is a warning against anything which may cause death or injury to people if the

warning is ignored. You are informed about what you must or must not do in order to

reduce the risk of death or injury to yourself and others.

NOTICE

This is a warning against anything which may cause damage to the vehicle or its

equipment if the warning is ignored. You are informed about what you must or must

not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.

In this manual, you will also see a circle with a slash through it.

This means “Do not”, “Do not do this”, or “Do not let this hap-

pen”.

2

1-1. Key information

Keys

n When to use the master keys and valet key

l Use the master keys for normal daily use.

l For added security, lock the rear console box and the glove box with a master

key and provide the parking attendant with the valet key.

n Key num ber pl ate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that

a key is lost, a new key can be made at your Lexus dealer using the key number plate.

The following keys are provided with the vehicle.

Master keys

Valet key

Key number plate

Flat key

1

2

3

4

3

1-1. Key information

1

Before driving

NOTICE

n To prevent key damage

l Do not bend the keys, expose them to high temperatures by placing them in

direct sunlight, or get them wet.

l Do not expose the keys to electromagnetic materials or any material that blocks

electromagnetic waves.

4

1-2. Opening, closing and locking the doors and trunk

Wireless remote control

n 2-step unlocking function

When you push the UNLOCK button, the driver’s door is unlocked. Pushing the

button again within 3 seconds unlocks the other door.

n Sounding the alarm

Push the PANIC button for about 2 to 3 seconds. An alarm sounds to deter any

person from trying to break into or damage your vehicle.

If you want to stop the alarm, push any button.

This function does not work when the ignition switch is in the ON position.

n Operating indicator

Doors : A buzzer sounds and the hazard lights flash.

(Lock: Once, Unlock: Twice)

Trunk : A buzzer sounds.

n Low battery

If the wireless remote control does not function or if it only operates very close to

the vehicle, the battery may be low. (→P. 2 2 6 )

The wireless remote control can be used to lock and unlock the vehicle and

the trunk from outside the vehicle.

Locks doors

Push and hold to sound alarm.

Unlocks both side doors,

Opens the side windows

(push and hold)

Opens the trunk

1

2

3

5

1-2. Opening, closing and locking the doors and trunk

1

Before driving

n Security feature

If a door is not opened for approximately 30 seconds after the vehicle is unlocked,

the anti-theft system automatically locks the vehicle again.

n Door lock buzzer

If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the

door is made. To stop the buzzer, fully close the door and lock the vehicle once more.

n Customized function

Settings (e.g.: buzzer) can be changed for each remote control. (→P. 3 2 2 )

n Certification for the wireless remote control (for vehicles sold in U.S.A.)

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful inter-

ference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful inter-

ference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC ID: MOZB12UE

6

1-2. Opening, closing and locking the doors and trunk

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

n Certification for the wireless remote control (for vehicles sold in Canada)

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of the device.

7

1

1-2. Opening, closing and locking the doors and trunk

Before driving

Doors

The vehicle can be locked and unlocked using the remote entry system, a key

or the door lock switch.

n Wireless remote control

→P. 4

n Key

Locks both side doors

Closes the side windows

(turn and hold)

Unlocks doors

Turning the key rearward unlocks

the driver’s door. Turning the key

once again unlocks the other door.

Opens the side windows

(turn and hold)

n Door lock switch

Locks both side doors

Unlocks both side doors

1

2

3

4

1

2

8

1-2. Opening, closing and locking the doors and trunk

Locking the side doors from the outside without a key

Push the lock lever to the lock position.

Close the door.

n Door lock prevention

The doors cannot be locked from inside the vehicle, if a side door is open and the

key is in the ignition switch.

n Key reminder function

A buzzer sounds if the driver’s door is opened, while the key is in the LOCK or

ACC position to remind you to remove the key.

n Automatic door locking system

The vehicle locks both side doors automatically, when the automatic transmission

selector lever is moved from the P position with the ignition switch in the ON position.

This feature can be deactivated or changed. (→P.322)

n Inside lock button

Locks the door

Unlocks the door

The side doors can be opened by

pulling the inside handles even if

the lock buttons are in the locked

position.

1

2

9

1-2. Opening, closing and locking the doors and trunk

1

Before driving

n Automatic door unlocking system

The vehicle unlocks both side doors automatically when the automatic transmission

selector lever is moved to the P position with the ignition switch in the ON position.

This feature can be deactivated or changed. (→P. 3 2 3 )

n Customization

The doors that are automatically locked/unlocked, when the key is used can be

changed. (→P. 3 2 3 )

CAUTION

n To prevent an accident

Observe the following precautions while driving the vehicle.

Failing to do so may result in a door opening and cause occupant out, resulting in

death or dangerous injury.

l Always use a seat belt.

l Always lock the doors.

l Ensure that all doors are properly closed.

l Do not pull the inside handle of the door while driving.

10

1-2. Opening, closing and locking the doors and trunk

Tr u nk

The trunk can be opened using the trunk opener or a wireless remote control.

n Trunk opener

Push the switch to release the

trunk lid.

n Wireless remote control

→P. 4

1

11

1-2. Opening, closing and locking the doors and trunk

1

Before driving

Locking the trunk lid opener feature

Operative

Inoperative

The main switch is on the left side in

the glove box.

When required to leave a key to

the vehicle with a parking atten-

dant, provide the attendant with the

valet key.

1

2

n Tr u n k l i g h t

The trunk light turns on when the trunk is opened.

n Tr u n k h a n d le

n When keeping items in the trunk

Turn off the main switch and lock the glove box and rear console box.

The trunk lid can be opened using a loop of wire in the rear console box even with

the main switch in the glove box turned off.

U

se

t

h

e

grip

w

h

en

c

l

osing

t

h

e

trun

k

.

12

1-2. Opening, closing and locking the doors and trunk

n Internal trunk release handle

CAUTION

n Caution while driving

Keep the trunk lid closed.

This not only keeps personal belongings from being thrown out, but also prevents

exhaust gases from entering the vehicle.

n When children are in the vehicle

Never leave children unattended in the vehicle as they may lock themselves in the

vehicle or trunk, which could cause the child to overheat or suffocate resulting in

death or serious injury.

Th

e

trun

k l

i

d

can

b

e

opene

d b

y

pu

ll

ing

d

own

on the glow-in-the-dark handle located on

the inside of trunk lid.

The handle will continue to glow for some

time after the trunk lid is closed.

13

1

Before driving

1-3. Adjustable components

Front seats

Adjust the seat positions using the switches.

Seat position fore/aft control switch

Seatback angle control switch

Seat cushion (front) angle control switch

Vertical height adjust switch

Vertical height adjust switch

Seatback lock release lever

1

2

3

4

5

6

14

1-3. Adjustable components

n The rear seat contact avoidance function

If you push back the seat backward when the seatback reclined too far backward,

the seat will adjust the seatback angle forward.

If you recline the seatback too far backward when the seat is in the pushed back

position, the seat will adjust the seat position forward.

n After first reconnecting the battery

The rear seat contact avoidance function does not work. When you push back the

seat or recline the seatback backward, a buzzer sounds to warn that the rear seat

may interfere with the seatback movement. The following procedure must be per-

formed.

Move the seat position control switch forward until a beeping sound is

emitted.

Move the seatback angle switch forward until a beeping sound is emitted.

CAUTION

n Reclining adjustment

Do not recline the seat more than necessary when the vehicle is in motion, to

reduce the risk of sliding under the lap belt.

If the seat is too reclined during an accident, the lap belt may slide past the hips and

apply restraint forces directly to the abdomen, or your neck may contact the shoul-

der belt, increasing the risk of death or serious injury.

n After adjusting or returning the seatback

Push and pull the seatback to confirm that it is securely locked.

n While the vehicle is moving

Never operate the seatback lock release levers.

15

1

1-3. Adjustable components

Before driving

Driving position memory system

The vehicle will memorize the positions of the driver’s seat, the tilt-and-tele-

scopic steering column and outside rear view mirrors.

Two different driving position profiles can be entered into the computer’s

memory.

The same buttons are found on the front passenger’s side, allowing the posi-

tion of the front passenger’s seat to be memorized.

n Setting the driving position

With the transmission selector lever in the “P” position, turn the

ignition key to the “ON” position.

Adjust the driver’s seat, tilt and telescopic steering column, and

outside rear view mirrors to the desired positions.

While pushing the “SET” button,

push button “1” or “2” until the sig-

nal beeps.

By repeating these three steps and

pressing the other button, the driv-

ing position for another driver can

be recorded.

16

1-3. Adjustable components

n To change the memorized position

Adjust the desired positions of the driver’s seat, tilt and telescopic steering

column and outside mirrors.

While pushing the “SET” button, push button “1” or “2” until the signal

beeps.

n Key off operation

Each memorized position (except for the tilt and telescopic steering column) can

be activated within 30 seconds after the corresponding side door is opened, even if

the key is removed from the ignition switch.

n If any position memory button is pushed while the adjustments are being made

The operation will stop. To reactivate the system, push the desired button (“1” or “2”)

again.

n If the battery is disconnected

The computer’s memory will be erased and the memorized positions will have to be

set again.(→P. 14 , P. 15 )

n Recalling the memorized position

The driving position will be automatically adjusted to the position

recorded for that button when:

The transmission selector

lever is in the “P” position.

The ignition switch is in the

“ON” position.

Pushing button “1” or “2”.

17

1-3. Adjustable components

1

Before driving

CAUTION

n Seat adjustment precaution

Take care during seat adjustment that the seat does not strike the rear passenger or

squeeze your body against the steering wheel.

If this happens, you can stop the movement by pressing another driving position

memory button.

18

1-3. Adjustable components

Head restraints

Adjusting the height of the front head restraints

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

top of the passenger’s ears.

The vertical and horizontal positions of the front head restraints can be

adjusted.

Grip head restraint and twist to

tilt forward or backward.

Grip head restraint and move it

up or down.

Push and hold the lock release but-

ton when lowering or removing the

head restraint.

Removing

Remove the head restraint while

pushing the release button.

1

2

3

n Head restraints of different seats

The head restraints are specially designed for the seats which they are installed.

19

1-3. Adjustable components

1

Before driving

CAUTION

n Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so

may result in death or serious injury.

l Adjust the head restraint to the correct position at all times.

l Do not drive with head restraints removed.

20

1-3. Adjustable components

Seat belts

Make sure that all occupants are wearing their seat belt before driving the

vehicle.

n Correctly using seat belt

Extend the shoulder belt so that

it comes fully over the shoulder,

but does not come into contact

with the neck or slide off the

shoulder.

Position the lap belt as low as

possible over the hips.

Adjust the position of the seat

back. Sit straight and well back

in the seat.

Do not twist the seat belt.

n Wearing and releasing the seat belt

Fastening the belt

Push the tab into the buckle until a

clicking sound is heard.

Releasing the belt

Press the release button.

1

2

3

4

1

2

21

1-3. Adjustable components

1

Before driving

Seat belt guide

The seat belt guides are attached

on the shoulders of the front seats

so that smaller front occupants can

easily use the seat belts.

When you get into or out of the

rear seats, release the seat belt

from the seat belt guide.

Front seat belt pretensioners

The pretensioner helps the seat

belt to quickly restrain the occu-

pant by retracting the seat belt

when the vehicle is subjected to

certain types of severe frontal colli-

sion.

The pretensioner may not activate

in the event of a minor frontal

impact, a side impact and a rear

impact.

22

1-3. Adjustable components

Rear seat belt holders

Hold the rear seat belt with the

holder when not in use.

n Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if

you lean forward too quickly. A slow, easy motion will allow the belt to extend, and

you can move around fully.

n Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even

slightly, the belt is locked in that position and cannot be extended. This feature is

used to hold the CRS firmly. To free the belt again, fully retract the belt and then pull

the belt out once more. (→P. 6 5 )

23

1-3. Adjustable components

1

Before driving

n Pregnant women

n People suffering illness

Obtain medical advice and wear the seat belt in the proper way.

n Child seat belt usage

l Use a child restraint system appropriately for the child, until the child becomes

large enough to properly wear the vehicle’s seat belt. (→P. 2 0 )

l When the child becomes large enough to properly wear the vehicle’s seat belt,

follow the instructions on P.20 regarding seat belt usage.

n Replacing the belt after activation of the pretensioner

The seat belts cannot be used if a pretensioner has activated. After an accident,

have your Lexus dealer inspect the pretensioners and replace them, if necessary.

Ob

tain

me

d

ica

l

a

d

vice

an

d

wear

t

h

e

seat

b

e

l

t

in the proper way.

Women who are pregnant should position

the lap belt as low as possible over the hips in

the same manner as other occupants. Extend

the shoulder belt completely over the shoul-

der and position the belt across the chest.

Avoid belt contact over the rounding of the

abdominal area.

If the seat belt is not worn properly, not only a

pregnant woman, but also the fetus could suf-

fer death or serious injury as a result of sud-

den braking or a collision.

24

1-3. Adjustable components

n Seat belt extender

CAUTION

n Wearing a seat belt

Observe the following precautions to reduce the risk of injury in the event of sud-

den braking or an accident. Failing to do so may cause death or serious injury.

l Ensure that all passengers wear a seat belt.

l Always wear a seat belt.

l Each seat belt should be used by one person only. Do not use the seat belt for

more than one person at the same time, including children.

l Children should be seated in the rear seat and always use a seat belt and/or an

appropriate child restraint system.

l Do not recline the seat any more than necessary to achieve a proper seating

position. The seat belt is most effective when the occupants are sitting up straight

and well back in the seats.

l Do not wear the shoulder belt under your arm.

l Always wear your seat belt low and snug across your hips.

If

your

seat

b

e

l

ts

cannot

b

e

f

astene

d

secure

l

y

because they are not long enough, a person-

alized seat belt extender is available from

your Lexus dealer free of charge.

25

1-3. Adjustable components

1

Before driving

CAUTION

n Seat belt damage and wear

l Do not damage the seat belts by allowing the belt, plate or buckle to be jammed

in the door.

l Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot

protect an occupant from injury.

l Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt

does not function correctly, immediately contact your Lexus dealer.

l Replace the seat assembly, including the belts, if your vehicle has been involved in

a serious accident, even if there is no obvious damage.

l Do not attempt to install, remove, modify, disassemble or dispose of a seat belt.

Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-

dling of the pretensioner may cause it to activate or operate improperly and may

cause death or serious injury.

n Using seat belt extender

l Do not wear the seat belt extender, if you can fasten the seat belt without the

extender.

l Do not use the seat belt extender when installing a child restraint system, because

the belt will not securely hold the child restraint system, increasing the risk of

death or injury in the event of a collision.

l The personalized extender may not be safe on another vehicle, when used by

another person, or at a different seating position other than the one originally

intended.

CAUTION

n When using the seat belt guide

l Always make sure that the belt is not twisted, and runs freely through the guide.

l Always adjust the seat belt, guide and seat position to ensure snug fit and comfort.

n Before fastening the rear seat belt

Release the seat belt holder.

26

1-3. Adjustable components

NOTICE

n When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender,

not on the seat belt.

This helps prevent damage to the vehicle interior and the extender itself.

27

1

1-3. Adjustable components

Before driving

Steering wheel

Auto tilt away and auto return

The steering wheel returns to its stowed position by moving up and away

to enable easier driver entry and exit.*

Remove

Reinserting the key will return the

steering wheel to the memorized

position.

* This feature can be deactivated

(→P. 3 2 3 )

The steering wheel can be adjusted to a comfortable position for the driver

while the key is inserted in the ignition switch.

Up

Down

Toward the driver

Away from the driver

1

2

3

4

1

n Steering column does not move

The steering column adjuster will not operate, if the key is left in the locked position

for more than 30 minutes. To adjust the steering wheel position, turn the key to ON

or remove the key from the ignition switch and reinsert it.

28

1-3. Adjustable components

CAUTION

n Caution while driving

Do not adjust the steering wheel or column while driving.

Doing so may cause the driver to mishandle the vehicle and an accident, resulting in

death or serious injury.

29

1

1-3. Adjustable components

Before driving

Auto anti-glare mirror

n To prevent sensor error

CAUTION

n Caution while driving

Do not adjust the position of the mirror while driving.

Doing so may lead to mishandling of the vehicle and an accident, or resulting in

death or serious injury.

In “AUTO” mode, the inside and side mirror sur faces dim slightly to prevent the

driver’s vision being affected by the headlights of other vehicles.

“DAY” mode:

The mirror reflects normally.

“AUTO” mode:

The mirror surfaces dim auto-

matically to reduce the reflected

light.

Pushing the switch changes the

mode between “AUTO” and “DAY”.

The indicator comes on when the

“AUTO” mode is selected.

T

o

ensure

correct

f

unctioning

o

f

t

h

e

sensors,

do not touch or cover the sensors.

30

1-3. Adjustable components

Side mirrors

Folding the side mirrors

Push backward.

Adjust the mirror angle using the switch.

Select the mirror to adjust

(L: left or R: right).

Adjust the mirror up, down, in or

out using the switch.

1

2

1

n Adjusting the side mirrors downward when reversing

Put the transmission selector lever in the “R” position.

Move the mirror switch to the “L” or “R” position.

The mirrors will return to their previous position if one of the following occurs:

• The selector lever is moved to a position other than “R”.

• The mirror switch is moved to the neutral position.

• The ignition switch is set to ACC.

31

1-3. Adjustable components

1

Before driving

n Side mirror operating conditions

The ignition switch must be turned to ACC or ON.

n When the mirrors are fogged up

Turn on the mirror heaters to defog the mirrors. (→P. 1 2 9 )

CAUTION

n When driving the vehicle

Observe the following precautions while driving.

Failing to do so may result in losing control of the vehicle and cause an accident,

resulting in death or serious injury.

l Do not adjust the mirror while driving.

l Do not drive with the mirrors folded backward.

l Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

n When the mirror heaters are operating

Do not touch the mirror surface as the mirror surface becomes hot.

And do not touch the mirror surface also when the wiper switch is on at lower than

77

°F (25°C) of the outside temperature.

NOTICE

n If the mirror gets icy

Do not scrape the mirror face. Use a spray de-icer to de-ice the mirror.

32

1-4. Opening and closing the windows and retractable hardtop

Power windows

Lock switch

Press the switch down to lock

passenger window switches

Use this switch to prevent children

from accidentally opening or clos-

ing a passenger window.

The power windows can be opened and closed using the following switches:

Closing

One-touch closing*

Opening

One-touch opening*

* Pushing the switch in the oppo-

site direction will stop window

travel partway.

1

2

3

4

1

33

1-4. Opening and closing the windows and retractable hardtop

1

Before driving

n Power window operating conditions

The ignition switch must be turned to ON.

n Integrated door lock window operation

The power windows can be opened and closed using the key, or opened using the

wireless remote control. (→P.4 , P.7 )

n Retained accessory power operation

The power windows can be operated for approximately 45 seconds after the

engine has been stopped. They cannot, however, be operated once the either side

door is opened.

n Jam protection function

If an object becomes caught between the window and the window frame, window

travel is stopped and the window is opened slightly.

n Initializing the power windows

After the battery is reconnected, replaced or recharged, you will need to initialize the

power windows. Otherwise, the jam protection function will not operate correctly.

To initialize the power windows:

Lower each window halfway using the power window on the door for that

window.

Close each window and continue holding the switch for a second, after

the window has fully closed.

Make sure the windows open and close correctly. If not, see your Lexus dealer.

34

1-4. Opening and closing the windows and retractable hardtop

CAUTION

n When closing a window

Observe the following precautions. Failing to do so may result in death or serious

injury.

l Check to make sure that all passengers do not have any part of their body in a

position where it could be caught when a window is being operated.

l Do not allow children to operate the power windows.

l Never try jamming any part of your body to activate the jam protection function

intentionally.

l The jam protection function may not work, if something gets caught just before

the window fully closes.

35

1

1-4. Opening and closing the windows and retractable hardtop

Before driving

Retractable hardtop

The retractable hardtop is opened or closed with a switch located on the auto-

matic air conditioning control panel.

Opening

Hold down the switch.

Closing

Hold down the switch.

The indicator remains on while the retractable hardtop is operating. When the

retractable hardtop is fully opened or closed, the indicator goes off and a beep

sounds.

1

2

36

1-4. Opening and closing the windows and retractable hardtop

n Retractable hardtop operating conditions

l The ignition switch is turned to ON.

l The trunk lid is closed. (→P. 1 0 )

l The trunk lid opener main switch is ON. (→P. 1 0 )

l The luggage cover in the trunk is properly set. (For opening) (→P. 1 6 8 )

When an vehicle is on an incline or gets on the step, the retractable hardtop may

not active properly.

n If the indicator blinks and the retractable hardtop will not activate

If all of the conditions above are fulfilled, perform either of the following and then

operate the retractable hardtop.

l Start the engine.

l Put the selector lever in “P”.

n If the indicator remains on or off with the switch pushed, and the retractable hard-

top does not activate

Have your vehicle checked by your Lexus dealer.

n If the quarter windows are not opened (closed) completely with the retractable

hardtop fully opened (closed)

Hold down the switch on the

“OPEN” (CLOSE) side again.

n Closing the side windows after or when the retractable hardtop is opened

(closed) fully

Hold down the switch on the

“OPEN” (CLOSE) side.

n If a beep continues sounding

Stop your vehicle in a safe place and immediately either open or close the retract-

able hardtop fully.

37

1-4. Opening and closing the windows and retractable hardtop

1

Before driving

n Audio sound adjustment

When you open or close the retractable hardtop, audio sound is automatically

adjusted. (→P. 1 4 7 )

CAUTION

To avoid serious injury, you must do the following:

n When opening or closing the retractable hardtop

l Make sure all passengers and surrounding persons are clear of the mechanism. If

someone does become caught in the mechanism, release the switch immediately

to cease operation.

l Keep hands away from the hinges of the hardtop side rails and any other part of

the hardtop linkage mechanism.

l Do not release the switch in the middle of operation unless absolutely necessary.

The roof will be gradually lowed, resulting in personal injury and damage to the

hardtop mechanism.

l Do not operate in strong winds.

n While the vehicle is moving

l The vehicle should never be driven with the retractable hardtop partially open.

l While the vehicle is moving with the hardtop open, passengers should not stand

on the seats, nor sit on or lean over the package tray.

n When small children are in the vehicle

l Never leave small children alone in the vehicle, especially if the ignition key is

inserted, as they may accidentally become trapped in the retractable hardtop or

windows.

l Never let small children operate the retractable hardtop switch.

38

1-4. Opening and closing the windows and retractable hardtop

NOTICE

n When opening or closing the retractable hardtop

l Make sure there is nothing above the vehicle.

l Make sure there are no items or packages in the package tray.

l Do not sit or place excessive weight on the hardtop.

l Do not open or close the hardtop when the temperature is below -4°F (-20°C),

or if the side windows or quarter windows are frozen shut.

If it is necessary to open the hardtop, side or quarter windows, warm the vehicle

in a heated garage prior to operation.

l Do not open the hardtop if it is wet. Possible interior water damage, water stains

or mildew may result.

l When the hardtop has been retracted, keep the rear window defogger turned

off.

l Do not open the trunk when the hardtop is not fully closed or opened.

l Do not open or close the hardtop repeatedly within a short time. If the motor pre-

vention circuit activates, hardtop operation is disabled. In this case, turn the igni-

tion switch off and attempt operation again after a short wait.

l Do not place anything on the luggage cover.

l If the luggage cover is not closed securely, hardtop operation may be interfered

with.

39

1

Before driving

1-5. Removing the fuel tank cap

Removing the fuel tank cap

Perform the following steps to remove the fuel tank cap.

n Before refueling the vehicle

Stop the engine and ensure that all the doors and windows are closed.

n Removing the fuel tank cap

Push the fuel filler door opener to

open the fuel filler door.

Turn the fuel tank cap slowly to

remove.

Hang the fuel tank cap on the back

of the fuel filler door.

40

1-5. Removing the fuel tank cap

Replacing the fuel tank cap

After refueling, turn the cap clock-

wise until you hear a click. Once

you hear the click, release the fuel

cap.

The cap will revolve slightly in the

opposite direction.

n Fuel types

Use premium unleaded gasoline (91 Octane rating or higher). (→P. 3 0 1 )

n Fuel tank capacity

The fuel tank has a capacity of approximately 19.8 gal. (75 L, 16.5 lmp.gal.).

n In case the fuel filler door does not function

Th

is

is

use

d

in

case

t

h

e

f

ue

l f

i

ll

er

d

oor

cannot

be opened due to a discharged battery or

other trouble.

41

1-5. Removing the fuel tank cap

1

Before driving

CAUTION

n Refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so may

result in death or serious injury.

l Touch the vehicle or some other metal surface to discharge any static electricity.

Sparks resulting from discharging static electricity may cause the fuel vapors to

ignite.

l Always hold the grip on the fuel tank cap and turn it slowly to remove it. A

whooshing sound may be heard when the fuel tank cap is loosened. Wait until the

sound cannot be heard before fully removing the cap. In hot weather, pressurized

fuel may spray out the filler neck and cause injury.

l Do not allow anyone that has not discharged static electricity from their bodies, to

come close to an open fuel tank.

l Do not inhale vaporized fuel.

Fuel contains substances that are harmful to the human body, if inhaled.

l Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

l Do not return to the vehicle or touch any person or object that is statically

charged.

This may cause static electricity to build up, resulting in a possible ignition hazard.

n Fuel cap precaution

Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.

Failure to do so may cause a fire or other incident which may result in death or seri-

ous injury.

42

1-5. Removing the fuel tank cap

NOTICE

n Refueling

Observe the following precautions when refueling the vehicle.

Failing to do so may damages the vehicle, such as causing the exhaust systems to

operate abnormally or damaging fuel system components or the vehicle’s painted

surface.

l Do not use any type of gasoline other than as recommended. (→P. 3 0 1 )

l Do not spill fuel during refueling.

43

1

Before driving

1-6. Theft deterrent system

Engine immobilizer system

n Conditions that may cause the system to malfunction

l If the grip portion of the key is in contact with a metallic object.

l If the key is in close proximity to or touching a key to the security system (key

with a built-in transponder chip) of another vehicle.

NOTICE

n To prevent damage to the key

The key may be damaged if it is:

•Bent

• Subjected to a strong impact

• Left in direct sunlight

•Wet

• Left in close proximity to objects emitting magnetic fields

• In close proximity to an object that interferes with the electromagnetic wave

that is emitted

Keep all keys in a safe place.

The vehicle’s keys have built-in transponder chips that prevent the engine

from starting, if the key has not been previously registered in the vehicle's on-

board computer.

The indicator light flashes to indi-

cate that the system is operating,

after the ignition switch has been

turned to the Lock position.

44

1-6. Theft deterrent system

Alarm

Deactivating or stopping the alarm

Do one of the following:

• Unlock a door or trunk using a

key or remote entry system.

• Turn the ignition switch to ON.

The system will return to standby

mode approximately 30 seconds

after it operates.

The system is designed to trigger the alarm, if forcible entry is detected (horn

sounds and emergency flashers flash).

Shut the retractable hardtop if it is

opened. After exiting the vehicle,

shut the doors, trunk and hood,

and lock both side doors.

The system will begin operating

automatically after 30 seconds.

The security system indicator light

will begin flashing when the system

is set.

45

1-6. Theft deterrent system

1

Before driving

n Items to check before locking the vehicle

To prevent unintended triggering of the alarm, check that there is no one in the vehi-

cle and that all windows are closed before locking the vehicle.

n Alarm operation

The alarm will sound if any of the following conditions occur:

l When a locked door or trunk is opened in any way other than using a key or

wireless remote control, such as someone exiting the vehicle after the alarm is

activated.

l When the hood is lifted open while the vehicle is locked.

l When the battery is reconnected.

n Sounding an alarm

Manually triggering the alarm will help deter anyone from breaking into or damag-

ing your vehicle. (→P. 4 )

n Certifications for the engine immobilizer system (for vehicles sold in U.S.A.)

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

n Certifications for the engine immobilizer system (for vehicles sold in Canada)

This device complies with RSS-210 of Industry Canada. Operation is subject to the

following two conditions:

(1) This device may not cause interference, and (2) this device must accept any inter-

ference, including interference that may cause undesired operation of the device.

FCC ID: MOZRI-4ATY(a)

46

1-6. Theft deterrent system

Theft prevention labels (U.S.A. Only)

Your new vehicle carries theft prevention labels.

These labels are attached to the

vehicle to reduce vehicle theft by

facilitating the tracing and recov-

ery of parts from stolen vehicles.

Do not remove under penalty of

law.

Approximately 1.85 in. (47 mm)

by 0.47 in. (12 mm)

47

1

Before driving

1-7. Safety information

Correct driving posture

Drive with good posture as follows:

Sit upright and well back in the

seat. (→P. 1 3 )

Adjust the position of the seat

forward or backward to ensure

the pedals can be reached and

easily depressed to the extent

required. (→P. 1 3 )

Adjust the seatback so that the

controls are easily operable.

(→P. 1 3 )

Adjust the tilt and telescopic

positions of the steering wheel

downward so the airbag is fac-

ing your chest. (→P. 2 7 )

Lock the head restraint in place

with the center of the head

restraint closest to the top of

your ears. (→P. 1 8 )

Wear the seat belt correctly.

(→P. 2 0 )

1

2

3

4

5

6

48

1-7. Safety information

CAUTION

n When driving:

l Do not adjust the position of the driver’s seat while driving.

Doing so could cause the driver to lose control of the vehicle.

l Do not place a cushion between the driver or passenger and the seat back.

A cushion may prevent correct posture from being achieved and reduce the

effect of the seat belt and head restraint, increasing the risk of injury to the driver

or passenger.

l Do not place anything under the front seats.

Objects placed under the front seats may become jammed in the seat tracks and

stop the seat from locking in place. This may lead to an accident. The adjustment

mechanism may also be damaged.

n Adjusting the seat position:

l Do not recline the seat more than necessary when the vehicle is in motion, to

reduce the risk of sliding under the lap belt.

If the seat is too reclined during an accident, the lap belt may slide past the hips

and apply restraint forces directly to the abdomen, or your neck may contact the

shoulder belt, increasing the risk of death or serious injury.

l Take care when adjusting the seat position, to ensure that other passengers are

not injured by the moving seat.

l Do not put your hands under the seat or near the moving parts, to avoid injury to

hands or fingers.

Fingers or hands may become jammed in the seat mechanism.

49

1

1-7. Safety information

Before driving

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain types of

severe impacts that may cause significant injury to the occupants. They work

together with the seat belts, to help reduce the risk of death or serious injury.

Front airbags

Driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front passenger

from impact by interior components.

Side airbags

Side airbags

Can help protect the torso of the front seat occupants.

1

2

50

1-7. Safety information

Airbag system components

The main SRS airbag system components are shown above. The SRS air-

bag system is controlled by the airbag sensor assembly. The airbag sen-

sor assembly consists of a safing sensor and airbag sensor.

In certain types of severe frontal or side impacts, the SRS airbag system

triggers the airbag inflators. A chemical reaction in the inflators quickly

fills the airbags with non-toxic gas to help restrain the motion of the occu-

pants.

Side airbags

Front passenger airbag

Side airbag sensors

Driver airbag

SRS warning light

Airbag sensor assembly

Front airbag sensors

Door side airbag sensors

Occupant detection sensor

Front passenger’s seat belt

buckle switch

1

2

3

4

5

6

7

8

9

10

51

1-7. Safety information

1

Before driving

n If the SRS airbags deploy (inflate)

l Bruising and slight abrasions may result from contact with a deploying (inflating)

SRS airbag.

l A loud noise and white powder may be emitted.

l Parts of the airbag module (steering wheel hub, airbag cover and inflator), as

well as the front seats, may be hot for several minutes, and the airbags them-

selves will be hot.

l The front windshield may crack.

n Operating conditions (front airbags)

l The SRS front airbags will deploy if the severity of the frontal impact is above the

designed threshold level, comparable to an approximate 15 mph (25 km/h) col-

lision, when the vehicle impacts straight into a fixed barrier that does not move

or deform.

However, this threshold velocity will be considerably higher, if the vehicle strikes

an object, such as a parked vehicle or sign pole, which can move or deform on

impact, or if the vehicle is involved in an underride collision (e.g., a collision in

which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.).

l It is possible that in some collisions where the forward deceleration of the vehi-

cle is very close to the designed threshold level, the SRS front airbags and the

seat belt pretensioners may not activate together.

l The SRS front passenger airbag will not activate, if there is no passenger sitting

in the front passenger seat. However, the front passenger airbag may deploy, if

luggage is put in the seat or the seat belt is buckled up, regardless of the pres-

ence of an occupant in the seat.

n Operating conditions (side airbags)

l The SRS side airbags are designed to inflate, when the passenger compartment

is subjected to a severe impact from the side.

l The SRS side airbag on the passenger seat will not activate, if there is no passen-

ger sitting in the front passenger seat. However, the side airbag on the passen-

ger seat may deploy, if luggage is put in the seat or the seat belt is buckled up,

regardless of the presence of the occupant in the seat.

52

1-7. Safety information

n Conditions under which the SRS airbags may deploy (inflate) other than a collision

The SRS front airbags may also deploy if a serious impact occurs to the underside of

your vehicle. Some examples are shown in the illustration.

n Types of collisions that may not deploy the SRS airbag (front airbags)

The SRS front airbags are generally not designed to inflate, if the vehicle is involved

in a side or rear collision, if it rolls over or if it is involved in a low-speed frontal colli-

sion. But, whenever a collision of any type causes sufficient forward deceleration of

the vehicle, deployment of the SRS front airbags may occur.

l

H

itting

a

cur

b

,

e

d

ge

o

f

pavement

or

hard surface

l Falling into or jumping over a deep hole

l Landing hard or vehicle falling

l

C

o

ll

ision

f

rom

t

h

e

si

d

e

l Collision from the rear

l Vehicle rollover

53

1-7. Safety information

1

Before driving

n Types of collisions that may not deploy the SRS airbag (side airbags)

The SRS side airbag system may not activate, if the vehicle is subjected to a collision

from the side at certain angles or a collision to the side of the vehicle body other

than the passenger compartment.

The SRS side airbags are not generally designed to inflate, if the vehicle is involved

in a frontal or rear collision, if it rolls over or if it is involved in a low-speed side colli-

sion.

l

C

o

ll

ision

f

rom

t

h

e

si

d

e

to

t

h

e

ve

h

ic

l

e

body other than the passenger com-

partment

l Collision from the side at an angle

l

C

o

ll

ision

f

rom

t

h

e

f

ront

l Collision from the rear

l Vehicle rollover

54

1-7. Safety information

n When to contact your Lexus dealer

In the following cases, contact your Lexus dealer as soon as possible. Do not dis-

connect the battery cables before contacting your Lexus dealer.

l

A

ny

o

f

t

h

e

SRS

air

b

ags

h

ave

b

een

inflated.

l The front of the vehicle (shaded in the

illustration) was involved in an accident

that was not severe enough to cause

the SRS front airbags to inflate.

l The portion of the doors (shaded in the

illustration) was involved in an accident

that was not severe enough to cause

the SRS side airbags to inflate.

l The pad section of the steering wheel

or front passenger airbag cover

(shaded in the illustration) is scratched,

cracked or otherwise damaged.

l The surface of the seats with the side

airbag (shaded in the illustration) is

scratched, cracked or otherwise dam-

aged.

55

1-7. Safety information

1

Before driving

CAUTION

n SRS airbag precautions

Observe the following precautions regarding the airbags. Failure to do so may

cause death or serious injury.

l The driver and all passengers in the vehicle must wear their seat belts properly.

The SRS airbags are supplemental devices to be used with seat belts.

l The SRS driver airbag deploys by a considerable force and can cause death or

serious injury especially, if the driver is very close to the airbag. The National

Highway Traffic Safety Administration (“NHTSA”) advises:

Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,

placing yourself 10 in. (250 mm) from your driver airbag provides you with a

clear margin of safety. This distance is measured from the center of the steering

wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can

change your driving position in several ways:

• Move your seat to the rear as far as you can while still reaching the pedals

comfortably.

• Slightly recline the back of the seat. Although vehicle designs vary, many driv-

ers can achieve the 10 in. (250 mm) distance, even with the driver seat all the

way forward, simply by reclining the back of the seat somewhat. If reclining

the back of your seat makes it hard to see the road, raise yourself by using a

firm, non-slippery cushion or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the airbag

toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while still main-

taining control of the foot pedals, steering wheel and your view of the instrument

panel controls.

56

1-7. Safety information

CAUTION

n SRS airbag precautions

l The SRS front passenger airbag also deploys by a considerable force and can

cause death or serious injury especially, if the front passenger is very close to the

airbag. The front passenger seat should be as far from the airbag as possible with

the seatback adjusted, so the front passenger sits upright.

l

If

t

h

e

seat

b

e

l

t

exten

d

er

h

as

b

een

con-

nected to the driver’s seat belt buckle but

the seat belt extender has also not also

been fastened to the latch plate of the

driver’s seat belt, the SRS driver’s airbag

system will judge that the driver is wearing

the seat belt, even though the seat belt has

not been connected. In this case, the

driver’s airbag may not activate correctly, in

a collision, resulting in death or serious

injury in the event of collision. Be sure to

wear the seat belt with the seat belt

extender.

57

1-7. Safety information

1

Before driving

CAUTION

n SRS airbag precautions

l

D

o

not

sit

on

t

h

e

e

d

ge

o

f

t

h

e

seat

or

l

ean

against the dashboard.

l Do not allow a child to stand in front of the

SRS front passenger airbag unit or sit on

the passenger’s knees while the vehicle is

moving.

l Do not drive the vehicle while the driver or

passenger has something resting on his or

her knees.

l Do not lean against the door.

58

1-7. Safety information

CAUTION

n SRS airbag precautions

l Improperly seated and/or restrained infants and children can be killed or seri-

ously injured by the deploying airbags. An infant or child who is too small to use a

seat belt should be properly secured using a child restraint system. Lexus strongly

recommends that all infants and children be placed in the rear seats of the vehicle

and properly restrained. The rear seats are the safest for infants and children.

(→P. 6 0 )

l

D

o

not

a

ll

ow

anyone

to

k

nee

l

on

t

h

e

pas-

senger seat or put their head or hands out-

side the vehicle.

l Do not attach or lean anything against

areas such as the dashboard or steering

wheel pad. These items can become pro-

jectiles when SRS driver and front passen-

ger airbags deploy.

l Do not attach anything to areas such as the

door. These items can become projectiles

and serious injure or kill you, should the

SRS side airbag deploy.

59

1-7. Safety information

1

Before driving

CAUTION

n SRS airbag precautions

l Do not use seat accessories which cover the parts where the SRS side airbags

inflate as this may interfere with inflation of these airbags.

l Do not strike or apply significant levels of force to the area of the SRS airbag

components shown on P.50. Doing so could cause a SRS airbags to malfunction.

l Do not touch any of the component parts immediately after the SRS airbag has

deployed (inflated) as they become hot.

l If breathing becomes difficult, open a door or window to allow fresh air in, or

leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to

prevent skin irritation.

l If the areas where the SRS airbags are stored, such as the steering wheel pad, are

damaged or cracked, have them replaced by your Lexus dealer.

n Modifications and disposal of SRS airbag system components

Do not perform any of the following modifications to or dispose of the vehicle with-

out consulting your Lexus dealer. The SRS airbag may malfunction and may deploy

(inflate) accidentally, causing death or serious injury.

l Installation, removal, disassembly and repair of the SRS airbags.

l Repairs, modifications, removal or replacement of the steering wheel, instrument

panel, dashboard, seats or seat upholstery.

l Repair or modification of the front fender, front bumper or side of the occupant

compartment.

l Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar,

etc.).

l Modifications to the vehicle’s suspension system.

l Installation of electronic devices such as a mobile two-way radio, cassette tape

player or CD player.

60

1-7. Safety information

Child restraint system

Points to remember

Studies have shown that installing a child restraint on a rear seat is much

safer than installing one to the front passenger seat.

l Choose a child restraint system that conforms to the age and size of

the child.

l For installation details, follow the instructions provided with the child

restraint system when installing it.

General installation instructions are provided in this manual. (→P. 6 3 )

Types of child restraints

Child restraint systems are classified into the following three types

according to the age and size of the child.

INFANT SEAT

Lexus strongly recommends the use of child restraint systems.

The laws of all 50 states of the U.S.A. and Canada now require the use of child

restraint system.

61

1-7. Safety information

1

Before driving

CONVERTIBLE SEAT

BOOSTER SEAT

n When the child restraint system is not in use

Leave the child restraint system properly secured on the seat. Do not store the

restraint loosely on a passenger seat or in the trunk.

n When a child is too large for a child restraint system

Get an appropriate child restraint system for the child. If a child is too large for any

child restraint system, sit the child on a rear seat and use the vehicle’s seat belt.

(→P. 2 0 )

62

1-7. Safety information

CAUTION

n Child restraint precautions

l For effective protection in automobile accidents and sudden stops, a child must

be properly restrained, using a seat belt or child restraint system depending on

the age and size of the child. Holding a child in your arms is not a substitute for a

child restraint system. In an accident, the child can be crushed against the wind-

shield, or between you and the vehicle’s interior.

l Lexus strongly urges use of a proper child restraint system which conforms to the

size of the child, installed on the rear seat. According to accident statistics, the

child is safer when properly restrained in the rear seat than in the front seat.

l Never install a rear-facing child restraint system on the front passenger seat. In

the event of an accident, the force of the rapid inflation of the front passenger air-

bag can cause death or serious injury to the child, if the rear-facing child restraint

system is installed on the front passenger seat.

l A forward-facing child restraint system should not be placed on the front passen-

ger seat except when it is unavoidable. Always move the front seat as far back as

possible, because the front passenger airbag could inflate by considerable speed

and force. Otherwise, the child may be killed or seriously injured.

l Do not use the seat belt extender when installing a child restraint system on the

front or rear passenger seat. If installing a child restraint system with the seat belt

extender connected to the seat belt, the seat belt will not securely hold the child

restraint system, which could cause death or serious injury to the child or other

passengers in the event of collision.

l Do not allow the child to lean his/her head or any part of his/her body against the

door or the area of the seat from which the side airbags deploy, even if the child is

seated in the child restraint system. It is dangerous if the side airbags inflate, and

the impact could cause death or serious injury to the child.

l Make sure you have complied with all installation instructions provided by the

child restraint manufacturer and that the system is properly secured. If it is not

secured properly, it may cause death or serious injury to the child in the event of a

sudden stop or accident.

63

1

1-7. Safety information

Before driving

Installing child restraints

Follow the child restraint system manufacture’s instructions. Firmly secure

child restraints using a seat belt or a child restraint lower anchorage belt into

both rear seats. Attach the top strap when installing a child restraint.

Seat belts equipped with a child

restraint locking mechanism.

(ALR/ELR belts except driver’s

seat belt) (→P. 2 0 )

Top st ra p

Child restraint lower anchorage

1

2

3

64

1-7. Safety information

Installing child restraints using a seat belt

n Rear facing child seat-infant/convertible

Place an infant seat on the seat

rear facing rear the rear of the

vehicle.

Run the seat belt through the infant

seat and insert the plate into the

buckle. Make sure that the belt is

not twisted.

65

1-7. Safety information

1

Before driving

Fully extend the shoulder belt and

then allow it to retract slightly in

order to activate the ALR lock

mode.

Lock mode allows the seat belt to

retract only.

While pushing the child seat down

into the rear seat, allow the shoul-

der belt to retract until the child

seat is securely in place.

After the shoulder belt has retracted

to a point where there is no slack in

the belt, pull the belt to check that it

cannot be extended.

66

1-7. Safety information

n Forward facing-Convertible child seats

Place a child seat on the seat fac-

ing the front of the vehicle.

Run the seat belt through the child

seat and insert the plate into the

buckle. Make sure that the belt is

not twisted.

Fully extend the shoulder strap and

then allow it to retract slightly into

the ALR lock mode.

Lock mode allows the seat belt to

retract only.

While pushing the child seat into

the rear seat, allow the shoulder

belt to retract until the child seat is

securely in place.

After the shoulder belt has retracted

to a point where there is no slack in

the belt, pull the belt to check that it

cannot be extended.

67

1-7. Safety information

1

Before driving

n Booster seats

Place a booster seat on the seat

facing the front of the vehicle.

Sit the child in the child seat. Fit the

seat belt to the booster seat

according to the child seat manu-

facture’s instructions and insert the

plate into the buckle. Make sure

that the belt is not twisted.

Check that the shoulder belt is cor-

rectly positioned over the child’s

shoulder, and that the lap belt is as

low as possible. (→P. 4 7 )

CAUTION

n When installing a booster seat

Do not fully extend the child’s shoulder belt, to prevent the belt from going to ALR

lock mode:

l ALR mode causes the belt to tighten only which could cause injury or discomfort

to the child. (→P. 2 2 )

l Do not allow the child to play with the seat belt or the child could be killed or seri-

ously injured.

68

1-7. Safety information

CAUTION

n When installing the child restraint system

l When a booster seat is installed, always ensure that the shoulder belt is posi-

tioned across the center of the child's shoulder. The belt should be kept away

from the child’s neck, but not so that it could fall off the child’s shoulder. Failing to

do so may result in death or serious injury in the event of an accident or sudden

braking.

l Ensure that the belt and tab are securely locked and the seat belt is not twisted.

l Push and pull the child seat in different directions to be sure it is secure.

l Follow all installation instructions provided by the child restraint system manufac-

turer.

n Do not use the seat belt extender

If using the seat belt extender when installing a child seat, the seat belt will not

securely hold the child restraint system, which could cause death or serious injury

to the child or other passengers in the event of collision.

l

If

t

h

e

d

river

’

s

seat

position

d

oes

not

a

ll

ow

sufficient space for safe installation on the

left-hand rear seat, install the child restraint

on the right-hand side seat.

l Only put a forward-facing or booster child

seat on the front seat when unavoidable.

When installing a forward-facing or

booster child restraint on the front passen-

ger seat, move the seat as far back as possi-

ble.

Failing to do so may result in injury or even

death if the airbags deploy (inflate).

69

1-7. Safety information

1

Before driving

Child restraint system with a top strap

Secure the child restraint using a

seat belt or the lower anchorages.

(→P. 6 3 )

Insert your hand under the rear

cover and remove it.

Latch the hook onto the anchor-

age bracket and tighten the top

strap.

Make sure the top strap is securely

latched.

Install the rear cover as shown in

the illustration .

When the top strap is not used,

install the rear cover as shown in

the illustration .

A

B

70

1-7. Safety information

Installation with child restraint lower anchorages

Type A

Widen the gap between the seat

cushion and seatback slightly. Latch

the hooks of the lower straps onto the

anchorages.

Type B

Widen the gap between the seat

cushion and seatback slightly. Latch

the buckles onto the anchorages.

71

1-7. Safety information

1

Before driving

If the child restraint has a top strap, the top strap should be latched onto an

anchorage.

CAUTION

n To install correctly

When using the lower anchorages, be sure that there are no foreign objects around

the anchorages and that the seat belt is not caught behind the child seat.

Make sure the restraint system is securely attached, or it may cause death or seri-

ous injury to the child in the event of a sudden stop or accident.

n When installing a top strap

The retractable hardtop should be open. (→P. 3 5 )

n Child restraint systems that can be installed using the lower anchorages

Child restraint systems conforming to FMVSS225 or CMVSS210.2 specifications

can be used. This vehicle is designed to confirm to the SAE J1819.

72

1-7. Safety information

74

2-1. Driving procedures

Driving the vehicle

The following procedures should be observed to ensure safe driving.

n Starting the engine (→P. 82 )

n Driving

With the brake pedal depressed,

shift the selector lever to D.

(→P. 8 5 )

Release the parking brake.

(→P. 9 0 )

Gradually release the brake pedal and gently push the accelera-

tor pedal to accelerate the vehicle.

n Stopping

With the selector lever in D, push the brake pedal.

If necessary, set the parking brake. (→P. 9 0 )

When the vehicle is stopped for an extended period of time, shift the

selector lever to P or N. (

→P. 8 5 )

75

2-1. Driving procedures

2

When driving

Starting on a steep incline

Firmly set the parking brake and

shift the selector lever to D.

Gently depress the accelerator pedal.

Release the parking brake.

n Parking the vehicle

With the selector lever in D, depress the brake pedal.

Set the parking brake. (→P. 9 0 )

Shift the selector lever to P. (→P. 8 5 )

Stop the engine.

Remove the key, go out and lock the doors.

76

2-1. Driving procedures

n Braking in your new Lexus

To extend the life of the vehicle, observe the following precautions:

For the first 200 miles (300 km):

Avoid sudden stops.

For the first 1000 miles (1600 km):

l Do not drive at excessively high speeds.

l Avoid full throttle acceleration.

l Do not continue to drive in a low gear.

l Do not drive for a long time at any single speed.

n Operation in foreign countries

Comply with the relevant vehicle registration laws and confirm the availability of the

correct fuel (unleaded and minimum octane rating→P. 3 0 9 ) .

CAUTION

n When starting the vehicle

Always keep your foot on the brake pedal while stopped with the engine running.

This prevents the vehicle from creeping.

77

2-1. Driving procedures

2

When driving

CAUTION

n When driving the vehicle

l Do not drive if you are unfamiliar with the location of the brake and accelerator

pedals to avoid depressing the wrong pedal.

Accidentally depressing the accelerator pedal instead of the brake pedal will

result in sudden acceleration that may lead to an accident that could result in

death or serious injury.

l Do not drive the vehicle over or stop the vehicle near flammable materials.

l Do not let the vehicle roll backwards while the selector lever is in a driving posi-

tion, or roll forward while the selector lever is in R.

Doing so may cause the engine to stall or lead to poor brake and steering perfor-

mance, resulting in an accident or damage to the vehicle.

l If you smell exhaust fumes in the vehicle, open the windows and close the trunk lid

to ensure plenty of fresh air enters the vehicle. If you can smell exhaust fumes

even though there are no other vehicles in the surrounding area, have your vehi-

cle checked by your Lexus dealer. Continued inhalation of exhaust fumes can

lead to death by gas poisoning.

l Do not shift the selector lever to P, R or N while the vehicle is moving under any

circumstances.

Doing so can cause significant damage to the transmission system and may result

in a loss of vehicle control.

l Do not turn the engine off while driving.

The power steering and brake booster systems will not operate properly, if the

engine is not running.

l Use engine braking (downshift) to maintain a safe speed when driving down a

steep hill.

Using the brakes continuously may cause the brakes to overheat and lose effec-

tiveness. (→P. 8 5 )

l Do not shift the selector lever to N.

Doing so may cause the engine brake to not operate properly and lead to an

accident.

l When stopped on an inclined surface, use the brake pedal and parking brake to

prevent the vehicle from rolling backward or forward and causing an accident.

78

2-1. Driving procedures

CAUTION

n While driving the vehicle

l Be careful when driving on slippery surfaces, as the vehicle may skid or spin when

downshifting, rapidly accelerating, braking or turning.

l Do not adjust the position of the steering wheel, seat, or mirror while driving.

Doing so may result in losing control of the vehicle and cause an accident, which

may cause death or serious injury.

l Always check that passengers’ arms, heads or other parts of their bodies are not

outside the vehicle, as this may result in death or serious injury.

n When shifting the selector lever

Use caution if accelerating while shifting.

This may lead to unexpected rapid acceleration of the vehicle that may cause an

accident.

n When the vehicle is stopped

l Do not race the engine.

If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly

and unexpectedly, and may cause an accident.

l Do not leave the vehicle with the engine running for a long time.

If such a situation cannot be avoided, park the vehicle in an open space and

check that exhaust fumes do not enter the vehicle interior.

l Always keep a foot on the brake pedal while the engine is running, to prevent an

accident caused by the vehicle moving.

79

2-1. Driving procedures

2

When driving

CAUTION

n When the vehicle is parked

l Do not leave glasses, cigarette lighters, spray cans or soft drink cans in the vehi-

cle in hot areas.

• Gas may leak from a cigarette lighter or spray can and may lead to a fire.

• The temperature inside the vehicle may cause the plastic lenses and plastic

material of eye glasses to deform or crack.

• Soft drink cans may fracture, causing the contents to spray over the interior of

the vehicle, and may also cause a short circuit in the vehicle’s electrical com-

ponents.

l Always set the parking brake, shift the selector lever to P, stop the engine and

lock the vehicle.

Do not leave the vehicle unattended while the engine is running.

l Do not leave the engine running in an area with snow build up, or where snow is

expected to fall.

Exhaust gases may enter the interior of the vehicle and cause gas poisoning.

n When taking a nap in the vehicle

l Always turn the engine off. Otherwise, you may accidentally move the selector

lever or press the accelerator pedal, which could cause an accident or fire due to

abnormal engine overheating. Additionally, if the vehicle is parked in a poorly

ventilated area, exhaust fumes may enter the vehicle and cause gas poisoning.

80

2-1. Driving procedures

CAUTION

n When braking the vehicle

l When the brakes are wet, drive more cautiously.

Braking distance increases when the brakes are wet, and may cause one side of

the vehicle to brake differently than the other side. Also the parking brake may

not securely hold the vehicle.

l If the power brake assist function does not operate, do not follow other vehicles

closely and avoid downhill or sharp turns that require making.

Braking is still possible, but it will require more force on the pedal than usual.

Braking distance may also increase.

l Do not pump the brake pedal if the engine stalls. Each push on the pedal uses up

your reserved brake fluid pressure.

l The brake system has 2 independent hydraulic circuits.

If either circuit should fail, the other will still work. However, the pedal will be

harder to press, and your stopping distance will increase. Also, the brake system

warning light may come on.

NOTICE

n While driving the vehicle

Do not use the accelerator pedal or depress accelerator and brake pedals together

to hold the vehicle on a hill.

n When parking the vehicle

Always put the selector lever in P. The vehicle may begin to move, or the vehicle

may accelerate suddenly if the accelerator pedal is accidentally depressed.

n Avoiding damage to vehicle parts

l Do not turn the steering wheel fully in either direction and hold it there for a long

time. Doing so may damage the power steering pump.

l When driving over bumps in the road, drive as slowly as possible to avoid damag-

ing the wheels, underside of the vehicle, etc.

81

2-1. Driving procedures

2

When driving

NOTICE

n If you hear a squealing or scraping noise (brake pad wear limit indicators)

Have your Lexus dealer check and replace the brake pads as soon as possible.

Expensive rotor damage can result, if the pads are not replaced when needed.

n If a malfunction is detected while driving

A flat or damaged tire may cause the following situations. Hold the steering wheel

firmly and gradually press the brake pedal to slow down the vehicle.

l It may be difficult to control your vehicle.

l The vehicle will make abnormal sounds.

l The vehicle will behave abnormally.

Replace a flat tire with a new one. (→P.268/270)

82

2-1. Driving procedures

Starting the engine

n Steering lock release

n Ignition switch

LOC K:

Inserting and removing the key

ACC:

The audio system and other

accessories can be used when

the engine is stopped.

ON:

When driving the vehicle, the

engine and all accessories are

on.

START:

For starting the engine.

n Starting the engine

Check that the parking brake is set.

Check that the selector lever is set in P.

If you need to restart the engine while the vehicle is moving, put the

selector lever in N.

Sit in the driver’s seat and firmly depress the brake pedal.

Turn the ignition switch to START and start the engine.

1

2

3

4

Wh

en

starting

t

h

e

engine,

t

h

e

ignition

switc

h

may seem stuck in the “LOCK” position. To

free it, turn the ignition key while turning the

steering wheel slightly in either direction.

83

2-1. Driving procedures

2

When driving

n If the engine does not start

Check whether the other keys will start the engine.

If they work, your key may be broken. Have the key checked at your Lexus dealer.

n Leak detection pump

Approximately five hours after the engine is turned off, you may hear sound coming

from underneath the trunk for several minutes. This is normal operation and does

not indicate a malfunction. (→For your information)

n Starting the engine using the flat key

Put the key case away when the indicator light goes out. This means the

engine immobilizer system has turned off.

Start the engine within 60 seconds after the indicator light goes off.

R

emove

t

h

e

fl

at

k

ey

f

rom

its

case.

I

nsert

t

h

e

removed flat key into the ignition switch.

Bring the key case close to the ignition switch

within 10 seconds as indicated by an arrow.

84

2-1. Driving procedures

CAUTION

n When starting the engine

Always start the engine while sitting in the driver’s seat. Do not press the accelera-

tor while starting the engine under any circumstances.

Doing so may cause an accident resulting in death or serious injury.

NOTICE

n To prevent battery discharge

Do not leave the key in the ON position if the engine is not running.

n When starting the engine

l Do not crank for more than 30 seconds at a time. This may overheat the starter

and wiring systems.

l Do not race a cold engine.

l If the engine becomes difficult to start or stalls frequently, have the engine

checked immediately.

85

2-1. Driving procedures

2

When driving

Automatic transmission

Select a shift position appropriate for the driving conditions.

The shift range position can be switched between “6” and “1” by moving the

selector lever.

n Shifting the transmission selector lever

While the engine is running, the brake pedal must be depressed in order to

move the selector lever from P.

n Shift positions

* Always use the “D” position to improve fuel economy and quiet driving.

Shift position

P

Parking the vehicle and starting the engine

(key removal position)

R Reversing

N Neutral

D Normal driving*

S “S” mode driving

6 Economy driving

5 Accelerating/passing at high speed driving

4 Driving on hilly roads or hard towing

3 Driving downhill when strong engine braking is necessary

2 Driving downhill when stronger engine braking is necessary

1

Driving downhill when maximum engine braking is

necessary

86

2-1. Driving procedures

n Selecting a driving mode

The ECT pattern can be selected to suit current driving and operating

conditions.

Power mode

For powerful acceleration and

driving in mountainous regions.

Normal mode

Snow mode

For accelerating and driving on

slippery road surfaces, such as

on snow.

Push to return to regular driving

mode.

1

2

3

3

87

2-1. Driving procedures

2

When driving

Driving in “S” mode

Shift the selector lever to “S”.

Upshifting

Downshifting

“S” mode position

Shift range position indicator

1

2

3

4

88

2-1. Driving procedures

n Shift range when traveling in S mode

Shift ranges are changed automatically to suit the vehicle speed and conditions.

(e.g. If “4” is selected, the shift range used is from “1” to “4”.)

n Downshifting restrictions in “S” mode

The selector lever cannot be downshifted if the following speeds are exceeded. (A

buzzer will sound twice in this situation.)

n Accelerating rapidly

Fully depress the accelerator pedal. Engine speed will increase, and the vehicle will

accelerate rapidly.

n When driving at a set speed using the cruise control system

Engine braking will not operate when driving in “S” mode, even if the selector lever

is downshifted to “5” or “4”. (→P. 1 0 4 )

n SNOW mode automatic deactivation

SNOW mode is automatically deactivated, if the key is turned to ACC or LOCK

after driving in SNOW mode.

n If the transmission selector lever cannot be shifted from P

→P. 2 8 0

n If the shift range position indicator light does not come on when the “S” mode is

engaged

There may be a malfunction in the automatic transmission system.

Have the vehicle inspected by your Lexus dealer immediately.

(In this situation, the vehicle operates as if the selector lever is in D.)

Downshifting

Maximum speed

mph (km/h)

4→3 88 (142)

3→2 60 (97)

2→1 36 (58)

89

2-1. Driving procedures

2

When driving

Turn signal lever

n Turn signal lever operating conditions

The ignition switch must be turned to ON.

n If the indicators flash faster than usual

Check that a light bulb in the front or rear turn signal lights has not burned out.

Left turn

Right turn

Move and hold the lever part-

way to signal a lane change

The left-hand signal will flash until

you release the lever.

Move and hold the lever part-

way to signal a lane change

The right-hand signal will flash until

you release the lever.

1

2

3

4

90

2-1. Driving procedures

Parking brake

NOTICE

n Before driving

Fully release the parking brake.

Driving the vehicle with the parking brake set will lead to brake component over-

heating, which may affect braking performance and increase brake wear.

Sets the parking brake

Depress the brake pedal with

the right foot and fully depress

the parking brake pedal with the

left foot.

Releases the parking brake

Pull the lever to release the

parking brake.

1

2

91

2

When driving

2-2. Instrument cluster and information display

Gauges and meters

When the key is turned to ON:

Tachometer

Displays the number of engine speed in revolutions per minute.

Speedometer

Displays the vehicle speed.

Engine coolant temperature gauge

Displays the engine coolant temperature.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer

Displays the total distance the vehicle has been driven.

Trip meter A and trip meter B

Trip meters display the distance the vehicle has been driven since

the meter was reset.

Odometer/trip meter button

Changes between odometer and trip meter displays.

Trip meter reset button

Resets the distance traveled to 0 mile (0 km).

1

2

3

4

5

6

7

92

2-2. Instrument cluster and information display

Instrument panel light control

The brightness of the instrument panel lights can be adjusted by turning

the instrument panel light control knob.

Darker

Brighter

When the headlight switch is

turned to ON, the brightness will

be reduced slightly unless the

instrument panel light control knob

is turned fully on.

1

2

NOTICE

n To prevent damage to the engine and its components

l Do not let the indicator needle of the tachometer enter the red zone, which indi-

cates the maximum range of engine revolutions.

l The engine may be overheating, if the temperature gauge is in the red zone (H).

Immediately stop the vehicle in a safe place and check the engine. (→P. 2 8 5 )

93

2-2. Instrument cluster and information display

2

When driving

Indicators and warning lights

The indicators and warning lights in the instrument cluster inform the driver of

the operating state of the vehicle.

n Indicators

Informs the driver of the operating status of the vehicle’s various sys-

tems.

Turn signal indicator

(→P. 8 9 )

Shift range position

indicator (→P. 8 5 )

Headlight high beam

indicator (→P. 9 6 )

ECT SNOW indicator

(→P. 8 6 )

Headlight indicator

(U.S.A.) (→P. 9 6 )

ECT PWR indicator

(→P. 8 6 )

Headlight indicator

(Canada) (→P. 9 6 )

Cruise control indica-

tor (→P. 1 0 4 )

Front fog light indicator

(→P.100)

VSC OFF indicator

(→P. 1 0 8 )

Shift position indicator

(→P.85)

Slip indicator

(→P. 1 0 7 )

AFS OFF indicator

(→P. 9 8 )

*

*

*

94

2-2. Instrument cluster and information display

CAUTION

n If a safety system warning light does not come on

Should a safety system light such as ABS, VSC or SRS warning light not come on

when you start the engine, this could mean that these systems are not available to

help protect you in an accident, which could result in death or serious injury. Have

the vehicle inspected by your Lexus dealer immediately if this occurs.

n Warning lights

Warning lights inform the driver of a malfunction in the indicated vehi-

cle’s systems. (→P. 2 5 7 )

* These lights turn on when the ignition switch is turned to ON to indicate

that a system check is being performed. They will turn off after the engine is

started, or after a few seconds.

There may be a malfunction in a system if a light does not come on, or if the

lights does not turn off. Have the vehicle inspected by your Lexus dealer.

(Canada)

(Canada)

(U.S.A.)(Canada)

*

(U.S.A.)

(U.S.A.)

(U.S.A.)
