Lexus SC300 1999, SC400 1999, SC430 1999 Owner Manual

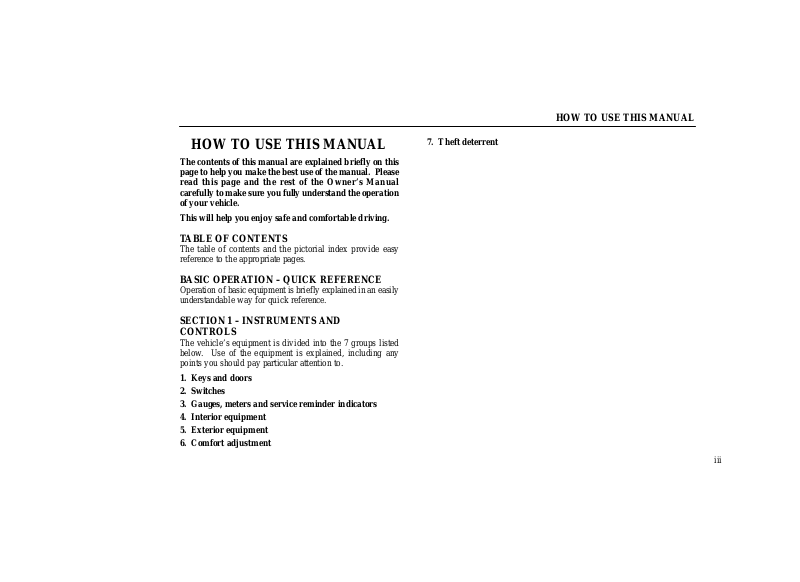

HOW TO USE THIS MANUAL

HOW TO USE THIS MANUAL

The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.

This will help you enjoy safe and comfortable driving.

TABLE OF CONTENTS

The table of contents and the pictorial index provide easy
reference to the appropriate pages.

BASIC OPERATION – QUICK REFERENCE

Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.

SECTION 1 – INSTRUMENTS AND
CONTROLS

The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any
points you should pay particular attention to.

1. Keys and doors

2. Switches

3. Gauges, meters and service reminder indicators

4. Interior equipment

5. Exterior equipment

6. Comfort adjustment

7. Theft deterrent

iii

HOW TO USE THIS MANUAL

SECTION 2 – AIR CONDITIONING AND
AUDIO

The features of the vehicle’s air conditioning and audio are
explained in det a il. Be sure to read this section so that you can
make full use of them.

SECTION 3 – STARTING AND DRIVING

Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember – drive safely!

SECTION 4 – IN CASE OF AN EMERGENCY

This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.

SECTION 5 – MAINTENANCE

This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.

SECTION 6 – SERVICE PROCEDURES AND
SPECIFICATIONS

Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

INDEX

The page number is listed for each item in the Owner’s
Manual so that you can rapidly find the item and page you are
searching for.

GAS STATION INFORMATION

The information you need to know for appropriate servicing
at the gas station is provided here.

QUICK INDEX

This is designed so that you can quickly find the needed
information when an urgent situation arises.

Safety symbol

iv

In this manual, you will also see a circle with a slash through
it. This means ”Do not”, ”Do not do this”, or ”Do not let this
happen”.

HOW TO USE THIS MANUAL

v

HOW TO USE THIS MANUAL

Safety and vehicle damage warnings

In this manual you will see CAUTION and NOTICE
warnings. These are used in the following ways:

CAUTION

This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed what you must or must not do in order to
avoid or reduce the risk to yourself and other people.

NOTICE

This is a warning against something which may cause
damage to the vehicle or its equipment if the warning is
ignored. You are informed what you must or must not do
in order to avoid or reduce the risk of damage to your
Lexus and its equipment.

Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.

vi

INTRODUCTION

New vehicle warranty

Your new vehicle is covered by the following Lexus limited
warranties:

 New vehicle warranty
 Emission control systems warranty
 Others

For further information, please refer to the separate ”Owner’s
Guide”, ”Owner’s Manual Supplement” or ”Warranty
Booklet”.

Your responsibility for maintenance

It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the separate
”Owner’s Manual Supplement/Maintenance Schedule”.

Accessories, spare parts and modification of
your Lexus

A wide variety of non–genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible either for their performance, repair or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non–genuine Lexus
products. Modification with non–genuine Lexus products
could affect its performance, safety or durability, and may
even violate governmental regulations. In addition, damage
or performance problems resulting from the modification
may not be covered under warranty.

Installation of a mobile two–way radio system

As the installation of a mobile two–way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection
system, cruise control system, anti–lock brake system and
SRS airbag system, be sure to check with your Lexus dealer
for precautionary measures or special instructions regarding
installation.

Scrapping of your Lexus

The SRS airbag device in your Lexus contains explosive
chemicals. If the vehicle is scrapped with the airbags left as
they are, it may cause an accident such as a fire. Be sure to
have the SRS airbag system removed and disposed of by a
qualified service shop or by your Lexus dealer before you
scrap your vehicle.

ii

SECTION 7

REPORTING SAFETY DEFECTS
FOR U.S. OWNERS

Reporting safety defects for U.S. owners . . . . . . . . . . . . . . . .

414

413

REPORTING SAFETY DEFECTS

REPORTING SAFETY DEFECTS

FOR U.S. OWNERS

If you believe that your vehicle has a defect which
could cause a crash or could cause injury or death,
you should immediately inform the National
Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales,
U.S.A., Inc. (Toll–free: 1–800–25–LEXUS).

If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA
cannot become involved in individual problems
between you, your dealer, or Toyota Motor Sales,
U.S.A., Inc.

To contact NHTSA, you may either call the Auto
Safety Hotline toll–free at 1–800–424–9393 (or
366–0123 in Washington.D.C. area) or write to:
NHTSA, U.S. Department of Transportation,
Washington. D.C. 20590. You can also obtain
other information about motor vehicle safety from
the Hotline.

414

BASIC OPERATION

QUICK REFERENCE

Driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Steering wheel (Power type) . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Steering wheel (Manual type) . . . . . . . . . . . . . . . . . . . . . . . . .

3

Automatic transmission (SC400) . . . . . . . . . . . . . . . . . . . . . .

4

Automatic transmission (SC300) . . . . . . . . . . . . . . . . . . . . . .

6

Headlight and turn signal switch . . . . . . . . . . . . . . . . . . . . . . .

8

Wiper switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

1

BASIC OPERATION – QUICK REFERENCE

1. DRIVER’S SEAT 2. STEERING WHEEL (Power
type)

 TILT STEERING WHEEL

To tilt the steering wheel up or down to the desired angle,
push the control button in the required direction and
release the button when the steering wheel reaches the
desired angle.

 TELESCOPIC STEERING WHEEL

To move the steering wheel to the desired position, push
the control button away from you or pull it toward you until

2

the steering wheel reaches the desired position.

BASIC OPERATION – QUICK REFERENCE

3. STEERING WHEEL (Manual
type)

 TILT STEERING WHEEL

To tilt the steering wheel up or down to the desired angle:

1. Pull the lever up while holding the steering wheel.

2. Push or pull the steering wheel to the desired angle.

3. Release the lever.

 TELESCOPIC STEERING WHEEL

To move the steering wheel to the desired position:

1. Push the lever down.

2. Push or pull the steering wheel to the desired position.

3. Pull the lever up to lock the steering wheel in position.

3

BASIC OPERATION – QUICK REFERENCE

4. AUTOMATIC TRANSMISSION (SC400)

SELECTOR LEVER POSITION

OPERATION OF SELECTOR
LEVER

 Shift while pressing the brake pedal. (Ignition

switch must be in the ”ON” position.)

4

BASIC OPERATION – QUICK REFERENCE

P: Parking, engine starting and key removal

position

R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into

overdrive possible)

4: Position for engine braking (Shifting into

overdrive not possible)*

3, 2: Position for more powerful engine braking

L: Position for maximum engine braking

*: When the cruise control is being used, even if you downshift from ”D” to ”4”, engine braking will not be applied

because the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 245.

5

BASIC OPERATION – QUICK REFERENCE

5. AUTOMATIC TRANSMISSION (SC300)

SELECTOR LEVER POSITION

OPERATION OF SELECTOR
LEVER

 Shift while pressing the brake pedal. (Ignition

switch must be in the ”ON” position.)

6

BASIC OPERATION – QUICK REFERENCE

P: Parking, engine starting and key removal

position

R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into

overdrive possible)

3: Position for engine braking (Shifting into

overdrive not possible)*

2: Position for more powerful engine braking
L: Position for maximum engine braking

*: When the cruise control is being used, even if you downshift from ”D” to ”3”, engine braking will not be applied

because the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 245.

7

BASIC OPERATION – QUICK REFERENCE

6. HEADLIGHT AND TURN

SIGNAL

SWITCH

 HEADLIGHT SWITCH

With the ignition OFF

With the engine started and parking
brake released

 TURN SIGNAL SWITCH

8

7. WIPER SWITCH

BASIC OPERATION – QUICK REFERENCE

9

BASIC OPERATION – QUICK REFERENCE

10

FOREWORD

Welcome to the growing group of value–conscious people who drive Lexus vehicles.
We are proud of the advanced engineering and quality construction of each vehicle we
build.

This Owner’s Manual explains the features of your new Lexus. Please read it and
follow the instructions carefully so that you can enjoy many years of safe motoring.

When it comes to service, remember that your Lexus dealer knows your vehicle best
and is interested in your complete satisfaction. Your Lexus dealer will provide quality
maintenance and any other assistance you may require.

If there is not a Lexus dealer near you, or you need emergency assistance for any
reason, please call the following number:

U.S. OWNERS

 When traveling in the U.S. mainland or Canada:

Lexus Roadside Assistance 1–800–25–LEXUS (Toll–Free)

 HAWAII:

Lexus Customer Service Assistance 1–800–25–LEXUS (Toll–Free)

Please leave this Owner’s Manual in this vehicle at the time of resale. The next
owner will need this information also.

All information and specifications in this manual are current at the time of
printing. However, because of the Lexus policy of continual product
improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment not
installed on your vehicle.

(1–800–255–3987)

(1–800–255–3987)

i

INSTRUMENT PANEL (SC400)

PICTORIAL INDEX

65S009–3

vii

PICTORIAL INDEX

1 Driving position memory switch 168. . . . . . . . . . . .

2 Power rear view mirror control switch 111. . . . . . . .

3 Door lock switch and power window

switches 30, 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Fuel filler door opener 85. . . . . . . . . . . . . . . . . . . . .

5 Trunk lid opener 84. . . . . . . . . . . . . . . . . . . . . . . . . .

6 Hood lock release lever 81. . . . . . . . . . . . . . . . . . . .

7 Headlight, turn signal and fog

light switch 32, 37. . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Traction control system off switch 246. . . . . . . . . . .

9 Windshield wiper and washer switch 38. . . . . . . . .

10 Cruise control switch 242. . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section.

Page

Page

11 Emergency flasher switch 44. . . . . . . . . . . . . . . . . .

12 Automatic air conditioning controls 177. . . . . . . . .

13 Car audio 186. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 Parking brake lever 215. . . . . . . . . . . . . . . . . . . . . .

15 Driving pattern selector switch 220. . . . . . . . . . . . .

16 Seat heater switches 45. . . . . . . . . . . . . . . . . . . . . . .

17 Ashtray 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 Automatic transmission selector lever 217. . . . . . .

19 Cup holder 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 Cup holder 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21 Glovebox 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

INSTRUMENT PANEL (SC300)

PICTORIAL INDEX

65S014–2

ix

PICTORIAL INDEX

1 Driving position memory switch 168. . . . . . . . . . . .

2 Power rear view mirror control switch 111. . . . . . . .

3 Door lock switch and power window

switches 30, 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Fuel filler door opener 85. . . . . . . . . . . . . . . . . . . . .

5 Trunk lid opener 84. . . . . . . . . . . . . . . . . . . . . . . . . .

6 Hood lock release lever 81. . . . . . . . . . . . . . . . . . . .

7 Headlight, turn signal and fog

light switch 32, 37. . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Traction control system off switch 246. . . . . . . . . .

9 Windshield wiper and washer switch 38. . . . . . . . .

10 Cruise control switch 242. . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each section.

Page

Page

11 Emergency flasher switch 44. . . . . . . . . . . . . . . . . .

12 Automatic air conditioning controls 177. . . . . . . . .

13 Car audio 186. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14 Parking brake lever 215. . . . . . . . . . . . . . . . . . . . . .

15 Driving pattern selector switch 232. . . . . . . . . . . . .

16 Seat heater switches 45. . . . . . . . . . . . . . . . . . . . . . .

17 Ashtray 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18 Automatic transmission selector lever 229. . . . . . .

19 Cup holder 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20 Cup holder 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21 Glovebox 72. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

x

INSTRUMENT CLUSTER (SC400)

65S007–6

PICTORIAL INDEX

xi

PICTORIAL INDEX

1 Turn signal indicator light 37. . . . . . . . . . . . . . . . . .

2 Headlight high beam indicator light 35. . . . . . . . . .

3 Headlight indicator light 32. . . . . . . . . . . . . . . . . . .

4 Automatic transmission indicator lights 217. . . . . .

5 Engine coolant temperature gauge 50. . . . . . . . . . .

6 Tachometer 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Clock 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Cruise information display 60. . . . . . . . . . . . . . . . . .

9 Odometer and trip meter 52. . . . . . . . . . . . . . . . . . .

10 Fuel gauge 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 Low fuel level warning light 59. . . . . . . . . . . . . . . .

12 Traction control system off indicator/warning

light 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 Malfunction indicator lamp 57. . . . . . . . . . . . . . . . .

14 Slip indicator light 246. . . . . . . . . . . . . . . . . . . . . . .

15 Anti–lock brake system warning light 57. . . . . . . . .

Page

Page

16 Snow mode indicator light 241. . . . . . . . . . . . . . . . .

17 Power mode indicator light 220, 241. . . . . . . . . . . .

18 Cruise control indicator light 242. . . . . . . . . . . . . . .

19 Low engine oil level warning light 57. . . . . . . . . . . .

20 Low washer fluid warning light 59. . . . . . . . . . . . . .

21 Rear light failure warning light 58. . . . . . . . . . . . .

22 Seat belt reminder light 56. . . . . . . . . . . . . . . . . . . .

23 Brake system warning light 55. . . . . . . . . . . . . . . . .

24 Open door warning light 58. . . . . . . . . . . . . . . . . . .

25 SRS airbag warning light 56. . . . . . . . . . . . . . . . . . .

26 Discharge warning light 56. . . . . . . . . . . . . . . . . . . .

27 Low oil pressure warning light 56. . . . . . . . . . . . . .

28 Instrument panel light control 64. . . . . . . . . . . . . . .

29 Cruise information display mode

select button 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30 ODO/TRIP, RESET button 52. . . . . . . . . . . . . . . . .

31 H.M : 00 button 69. . . . . . . . . . . . . . . . . . . . . . . . . .

xii

For detailed information, refer to the description given in each section.

INSTRUMENT CLUSTER (SC300)

65S013–2

PICTORIAL INDEX

xiii

PICTORIAL INDEX

1 Turn signal indicator light 37. . . . . . . . . . . . . . . . . .

2 Headlight high beam indicator light 35. . . . . . . . . .

3 Headlight indicator light 32. . . . . . . . . . . . . . . . . . .

4 Automatic transmission indicator lights 229. . . . . .

5 Engine coolant temperature gauge 50. . . . . . . . . . .

6 Tachometer 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Clock 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8 Cruise information display 60. . . . . . . . . . . . . . . . . .

9 Odometer and trip meter 52. . . . . . . . . . . . . . . . . . .

10 Fuel gauge 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11 Low fuel level warning light 59. . . . . . . . . . . . . . . .

12 Traction control system off indicator/warning

light 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13 Malfunction indicator lamp 57. . . . . . . . . . . . . . . . .

14 Slip indicator light 246. . . . . . . . . . . . . . . . . . . . . . .

15 Anti–lock brake system warning light 57. . . . . . . . .

Page

Page

16 Snow mode indicator light 241. . . . . . . . . . . . . . . . .

17 Power mode indicator light 232, 241. . . . . . . . . . . .

18 Cruise control indicator light 242. . . . . . . . . . . . . . .

19 Low engine oil level warning light 57. . . . . . . . . . . .

20 Low washer fluid warning light 59. . . . . . . . . . . . . .

21 Rear light failure warning light 58. . . . . . . . . . . . .

22 Seat belt reminder light 56. . . . . . . . . . . . . . . . . . . .

23 Brake system warning light 55. . . . . . . . . . . . . . . . .

24 Open door warning light 58. . . . . . . . . . . . . . . . . . .

25 SRS airbag warning light 56. . . . . . . . . . . . . . . . . . .

26 Discharge warning light 56. . . . . . . . . . . . . . . . . . . .

27 Low oil pressure warning light 56. . . . . . . . . . . . . .

28 Instrument panel light control 64. . . . . . . . . . . . . . .

29 Cruise information display mode

select button 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30 ODO/TRIP, RESET button 52. . . . . . . . . . . . . . . . .

31 H.M : 00 button 69. . . . . . . . . . . . . . . . . . . . . . . . . .

xiv

For detailed information, refer to the description given in each section.

SEAT AND STEERING WHEEL

65S010–3

PICTORIAL INDEX

xv

PICTORIAL INDEX

Page

1 Tilt and telescopic steering

adjustment switch 104. . . . .

2 Auto mode button 106. . . . .

3 Tilt steering adjustment

lever 107. . . . . . . . . . . . . . . .

4 Telescopic steering

adjustment lever 108. . . . . .

5 Seat position, seat cushion

angle
and height control switch 95

6 Seatback angle control

switch 95. . . . . . . . . . . . . . . .

7 Lumbar support control

switch 97. . . . . . . . . . . . . . . .

8 Seatback lock release lever 98

xvi

For detailed information, refer to
the description given in each
section.

EXTERIOR VIEW

65S012-4

65S011-4

PICTORIAL INDEX

Page

1 Rear window defogger 39. . .

2 Trunk lid 83. . . . . . . . . . . . .

3 Fuel filler door . 85. . . . . . .

4 Hood 81. . . . . . . . . . . . . . . .

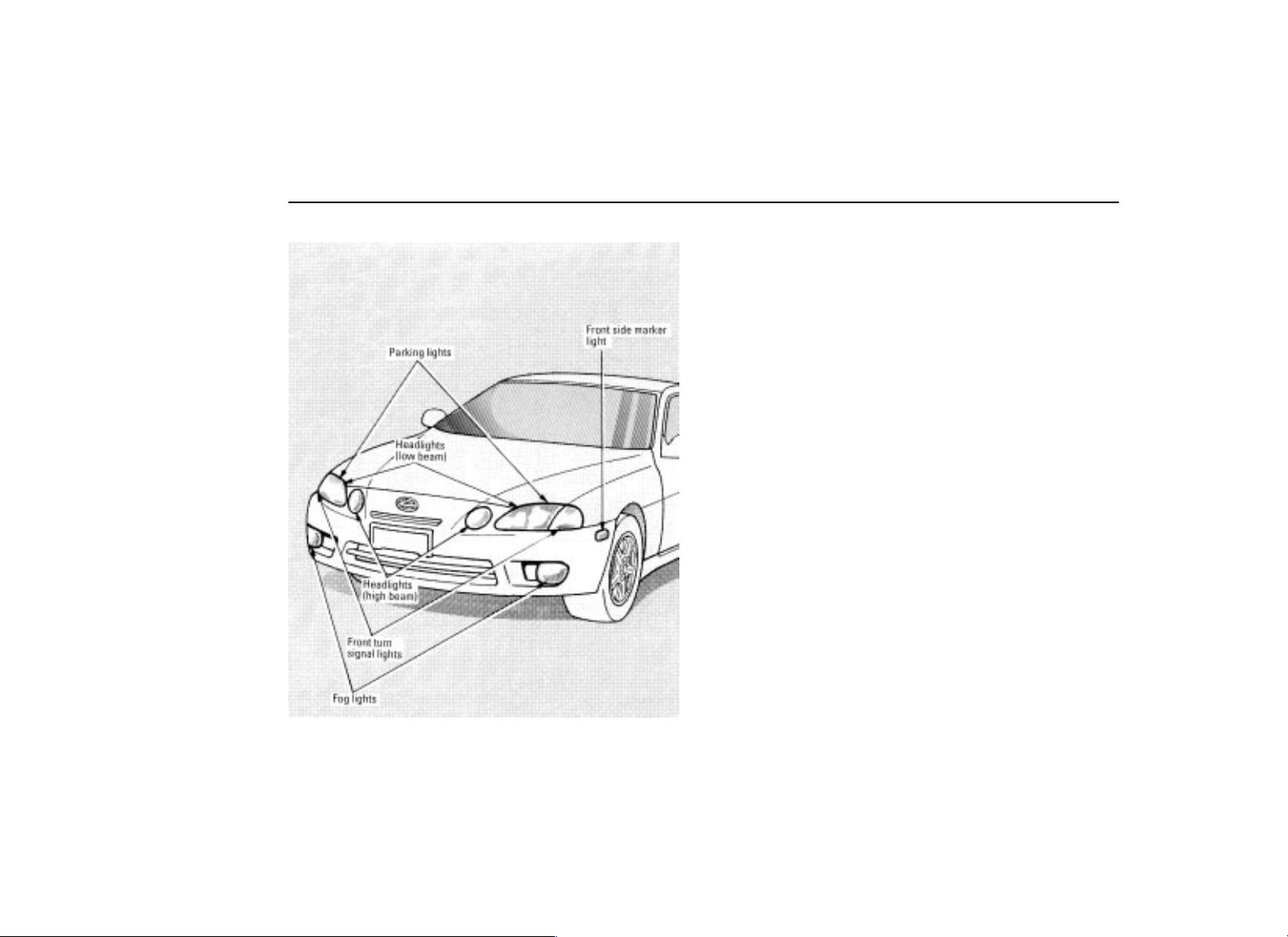

5 Headlights 32, 399. . . . . . . .

6 Moon roof 88. . . . . . . . . . . .

7 Outside rear view mirror 109

8 Door 27. . . . . . . . . . . . . . . . .

9 Windshield wiper and washer

38

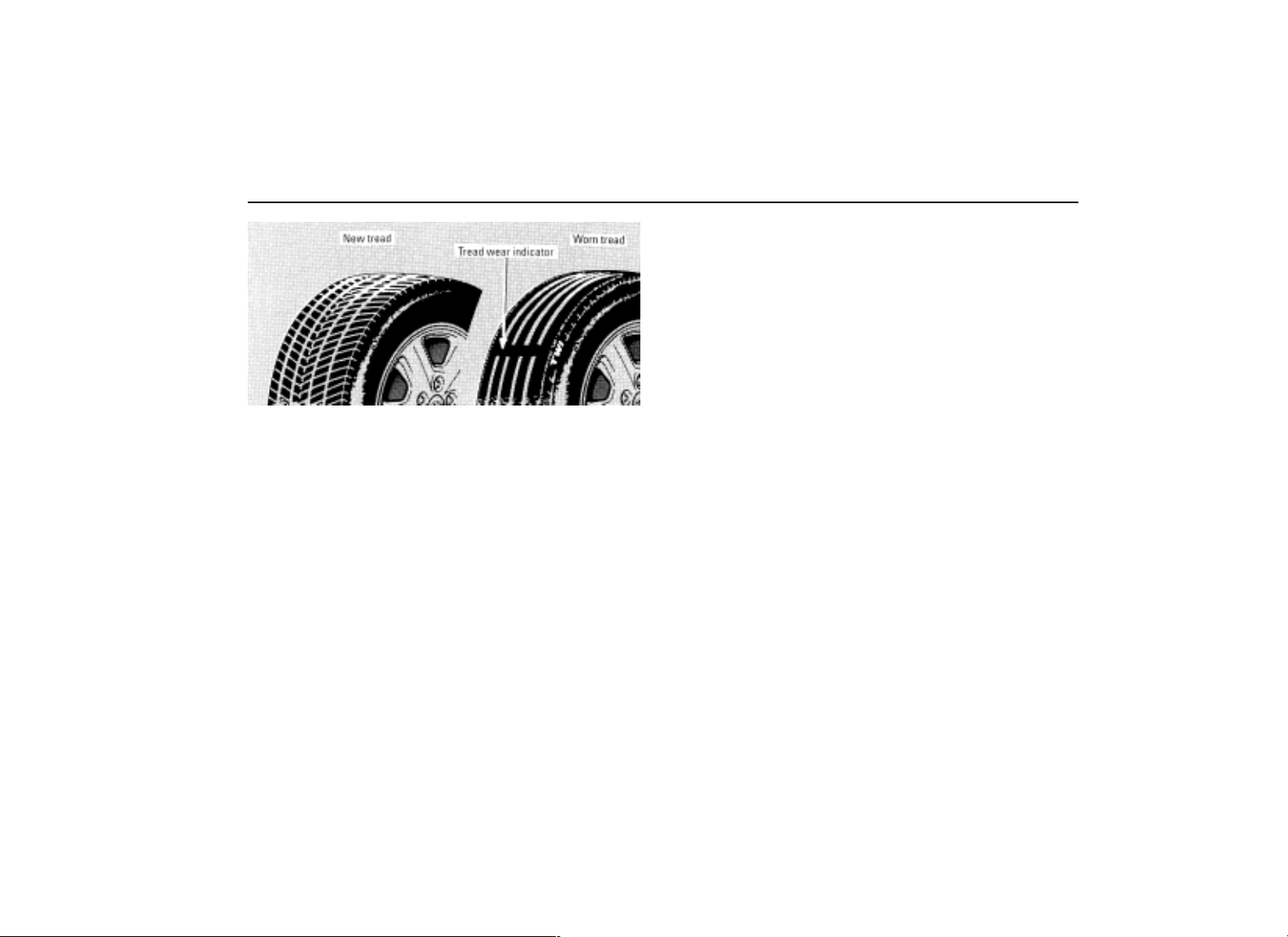

10 Tire and wheel 363. . . . . . . .

For detailed information, refer to
the description given in each
section.

xvii

PICTORIAL INDEX

xviii

SECTION 6 – 5

SERVICE PROCEDURES AND
SPECIFICATIONS

Body

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

405

Protecting your vehicle from corrosion . . . . . . . . . . . . . . . . .

406

Washing and waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

407

Cleaning the interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

409

404

SPECIFICATIONS

– DIMENSIONS AND WEIGHT

Overall length
Overall width
Overall height
Wheelbase
Tread – Front

– Rear

Vehicle capacity weight (occupants + luggage)

*1: without front license plate moulding *2: Unladen vehicle

– FUEL TANK

4900 mm (192.9 in.) / 4890 mm (192.5 in.)*
1800 mm (70.9 in.)
1350 mm (53.1 in.)*
2690 mm (105.9 in.)
1520 mm (59.8 in.)
1525 mm (60.0 in.)
340 kg (750 lb.)

BODY

1

2

Capacity

78 L (20.6 gal., 17.2 lmp.gal.)

405

BODY

PROTECTING YOUR VEHICLE

FROM CORROSION

Proper care of your Lexus can help ensure long–term
corrosion prevention.

The most common causes of corrosion to your vehicle are:

 The accumulation of road salt, dirt and moisture in

hard–to–reach areas under the vehicle.

 Chipping of paint or undercoating caused by minor

accidents or by stones and gravel.

The following conditions will cause or accelerate
corrosion of your vehicle, so it is important to keep your
vehicle, particularly the underside, as clean as possible
and to repair any damage to paint or protective coatings
as soon as possible.

 The presence of road salt or dust control chemicals, salt in

the air near the sea coast, industrial air pollution.

 High humidity, especially at temperatures just above

freezing point.

 Certain parts of your vehicle are wet or damp for an

extended period of time, even though other parts of the
vehicle are dry.

 Components of the vehicle which are prevented from

quick–drying due to lack of proper ventilation are exposed
to high temperature.

To help prevent corrosion on your Lexus, follow these
guidelines:

Keep your vehicle clean by regular washing. In addition,

observe the following points.
 If you drive on salted roads in the winter or if you live near

the ocean, you should hose off the undercarriage at least
once a month to minimize corrosion.

 High pressure water or steam is effective for cleaning the

vehicle’s underside and wheel housings. Pay particular
attention to these areas as it is difficult to see all the mud
and dirt. It will do more harm than good to simply wet the
mud and debris without removing them. The lower edge
of doors, rocker panels and frame members have drain
holes which should not be allowed to clog with dirt as
trapped water in these areas can cause corrosion.

 Wash the underside of the vehicle thoroughly when winter

is over.

See ”Washing and waxing” for more tips.
Check the condition of your vehicle’s paint and trim. If

you find any chips or scratches in the paint, touch them up
immediately to prevent corrosion from starting. If the chips
or scratches have gone through the bare metal, have a
qualified body shop make the repair.

406

BODY

Check the interior of your vehicle. Water and dirt can

accumulate under the floor mats and could cause corrosion.
Occasionally check under the mats to make sure the area is
dry. Be particularly careful when transporting chemicals,
cleansers, fertilizers, salt, etc. These should be transported in
proper containers. If a spill or leak should occur, immediately
clean and dry the area.

Use mud shields on your wheels. If you drive on salted or
gravel roads, mud shields help protect your vehicle. Full size
shields, which come near to the ground as possible, are the
best. We recommend that the fittings and the area where the
shields are installed be treated to resist corrosion. Your Lexus
dealer will be happy to assist in supplying and installing the
shields if they are recommended for your area.

Keep your vehicle in a well ventilated garage or a roofed
place. Do not park your vehicle in a damp, poorly
ventilated garage. If you wash your vehicle in the garage,

or if you drive it in covered with water or snow, your garage
may be so damp it will cause corrosion. Even if your garage
is heated, a wet vehicle can corrode if the ventilation is poor.

WASHING AND WAXING

Washing your Lexus

Keep your vehicle clean by regular washing.

The following cases may cause weakness to the paint or
corrosion to the body and parts. Wash your vehicle as soon
as possible.

 When driving in a coastal area
 When driving on a road sprinkled with antifreeze
 When having stuck of coal tar, tree sap, bird droppings and

carcass of an insect

 When driving in the areas where there is a lot of smoke,

soot, dust, iron dust and chemical substance

 When the vehicle becomes remarkably dirty with dust and

mud

Hand–washing your Lexus

Work in the shade and wait until the vehicle body is not hot
to the touch.

1. Rinse off loose dirt with a hose. Remove any mud or road
salt from the underside of the vehicle or in the wheel wells.

2. Wash with a mild car–wash soap, mixed according to the
manufacturer’s instructions. Use a soft cotton mitt and keep
it wet by dipping it frequently into the wash water. Do not rub
hard – let the soap and water remove the dirt.

407

BODY

Aluminum wheels: Use only a mild soap or neutral

detergent.
Urethane bumpers and side moldings: W ash carefully. Do

not scrub with abrasive cleaners. The bumper and side
molding faces are soft.

Road tar: Remove with turpentine or cleaners that are
marked safe for painted surfaces.

NOTICE

Do not use gasoline or strong solvents, which may be
toxic or cause damage.

3. Rinse thoroughly – dried soap can cause streaking. In hot

weather you may need to rinse each section right after you
wash it.

4. To prevent water spots, dry the vehicle using a clean soft

cotton towel. Do not rub or press hard – you might scratch the
paint.

Automatic car wash

NOTICE

To prevent damage to the antenna, make sure it is
retracted before driving your vehicle through an
automatic car wash.

Your vehicle may be washed in an automatic car wash, but
remember that the paint can be scratched by some type of
brushes, unfiltered washing water, or the washing process
itself. Scratching reduces paint durability and gloss,
especially on darker colors. The manager of the car wash
should be able to advise you whether the process is safe for
the paint on your vehicle.

Waxing your Lexus

Polishing and waxing is recommended to maintain the
original beauty of your Lexus’ finish.

Once a month or if the vehicle does not repel water well, apply
wax.

1. Always wash and dry the vehicle before you begin waxing,
even if you are using a combined cleaner and wax.

2. Use a good quality polish and wax. If the finish has
become extremely weathered, use a car–cleaning polish,
followed by a separate wax. Carefully follow the
manufacturer’s instructions and precautions. Be sure to
polish and wax the chrome trim as well as the paint.

3. Wax the vehicle again when water does not bead but
remains on the surface in large patches.

408

CLEANING THE INTERIOR

CAUTION

Do not wash the vehicle floor with water, or allow water to get
onto the floor when cleaning the vehicle interior or exterior.
Water may get into audio components or other electrical
components above or under the floor carpet (or mat) and
cause a malfunction; and it may cause body corrosion.

BODY

409

BODY

Leather Interior

The selected leather is used in your Lexus. Due to a leather
product, some parts of leather may be rough, uneven or
scratched originally.

To keep good appearance, we recommend you to clean it
periodically twice a year.

Remove dirt on the leather in the following ways:

1. Wipe it o ff lightly using a soft cloth (e.g. gauze) dampened

with 5% solution of neutral detergent for wool.

2. Wring water from a clean cloth and thoroughly wipe off all

traces of detergent with it.

3. Wipe off the surface of the leather with a dry soft cloth.
Allow the leather to dry in a ventilated shaded area. Excess
of wet may cause the hardening or shrinking of the leather.

NOTICE

410

BODY

 Dirt or sand adhered to the leather may damage the

treated surface and cause it to wear earlier. Remove
dirt or sand using a vacuum cleaner.

 If a stain should fail to come out with a neutral

detergent, apply a cleaner that does not contain an
organic solvent.

 Never use organic substances such as benzine, alcohol

or gasoline, or alkaline or acid solutions for cleaning
the leather as these could cause discoloring.

 Use of a nylon brush or synthetic fiber cloth, etc. may

scratch the fine grained surface of the leather.

 Mildew may develop on soiled leather upholstery. Be

especially careful to avoid oil spots. Try to keep your
upholstery always clean.

 Long exposure to direct sunlight may cause the leather

surface to harden and shrink. Keep your vehicle in a
shaded area, especially in the summer.

 The interior of your vehicle is apt to heat up on hot

summer days, so avoid placing on the upholstery items
made of vinyl or plastic or containing wax as these
tend to stick to leather when warm.

 Improper cleaning of the leather upholstery could

result in discoloration or staining.

Synthetic Leather Areas (Dash)

The synthetic leather areas may be easily cleaned with a
mild soap or detergent and water.

First vacuum over the upholstery to remove loose dirt. Then,
using a sponge or soft cloth, apply the soap solution to the
synthetic leather. After allowing it to soak in for a few
minutes to loosen the dirt, remove the dirt and wipe off the
soap with a clean damp cloth. If all the dirt does not come off,
repeat the procedure. Commercial foaming–type cleaners are
also available which work well. Follow the manufacturer’s
instructions.

NOTICE

Do not use solvent, thinner, gasoline or window cleaner
on the interior.

411

BODY

Carpets, Windows and Seat Belts

Begin by vacuuming thoroughly to remove as much dirt as
possible. Several types of foam cleaners are available; some
are in aerosol cans and others are powders or liquids which
you mix with water to produce a foam. To shampoo the
carpets, use a sponge or brush to apply the foam. Rub in
overlapping circles. Do not apply water – the best results are
obtained by keeping the carpet as dry as possible. Read the
shampoo instructions and follow them closely.

The seat belts may be cleaned with mild soap and water or
with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the belts
for excessive wear, fraying or cuts.

NOTICE

 Use a good foam–type shampoo to clean the carpets.
 Do not use dye or bleach on the belts – it may weaken

them.

 Do not use the belts until they become dry.
 The windows may be cleaned with any household

window cleaner.

 When cleaning the inside of the rear window, be

careful not to scratch or damage the heater wires.

Air Conditioning Control Panel, Car Audio,
Instrument Panel, Console Panel, and
Switches

Use a soft damp cloth for cleaning.
Soak a clean soft cloth in water or lukewarm water then

lightly wipe off any dirt.

NOTICE

 Do not use organic substances (solvents, kerosene,

alcohol, gasoline, etc.) or alkaline or acidic solutions.
These chemicals can cause discoloring, staining or
peeling of the surface.

 If you use cleaners or polishing agents, make sure

their ingredients do not include the substances
mentioned above.

 If you use a liquid car freshener, do not spill the liquid

onto the vehicle’ s interior surfaces. It may contain the
ingredients mentioned above. Immediately clean any
spill using the method mentioned above.

If you have any questions about the cleaning of your
Lexus, your local Lexus dealer will be pleased to answer
them.

412

SPECIFICATIONS

–LOCATION OF FUSES

SECTION 6 – 4

SERVICE PROCEDURES AND
SPECIFICATIONS

Electrical components

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

374

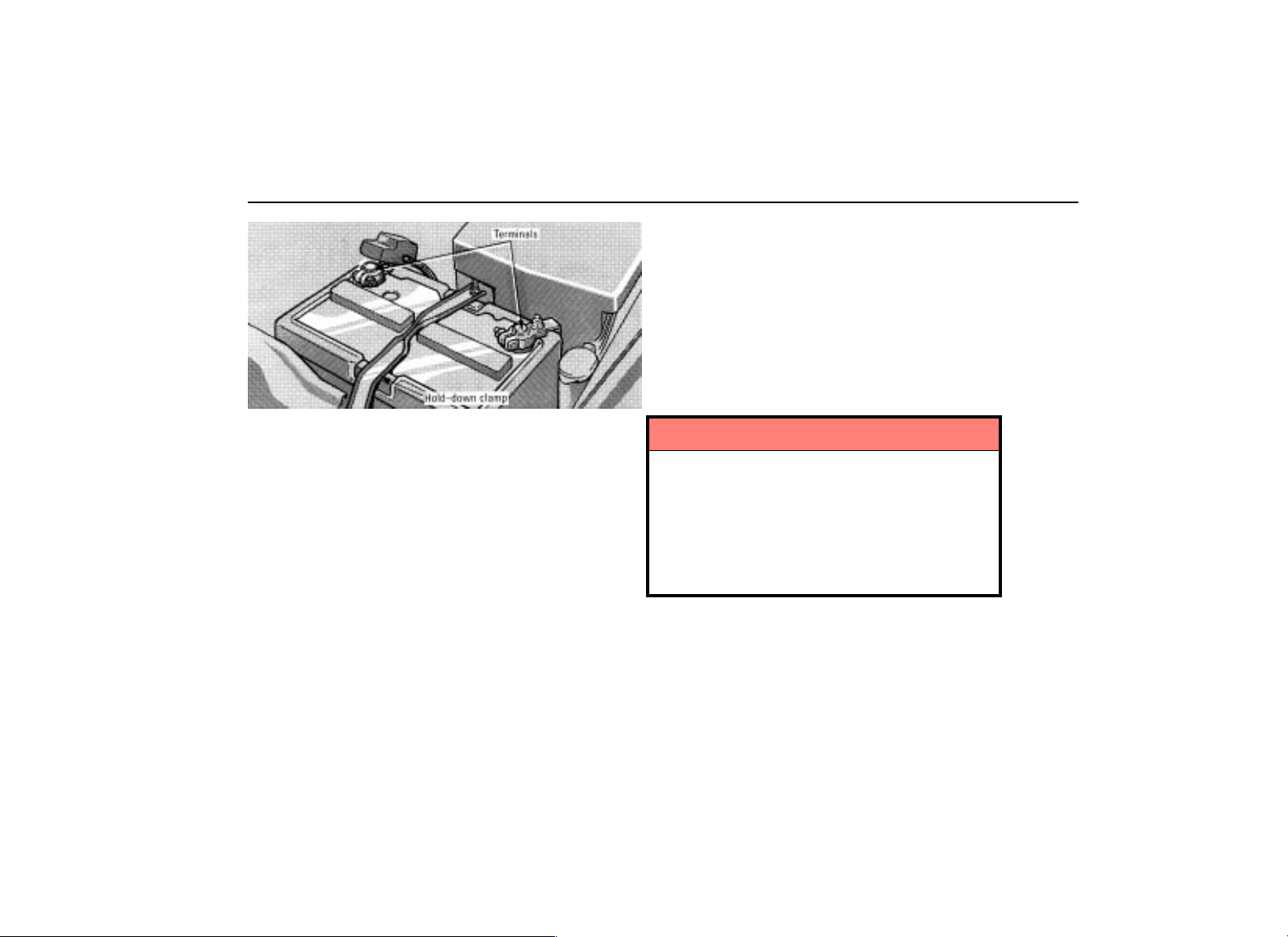

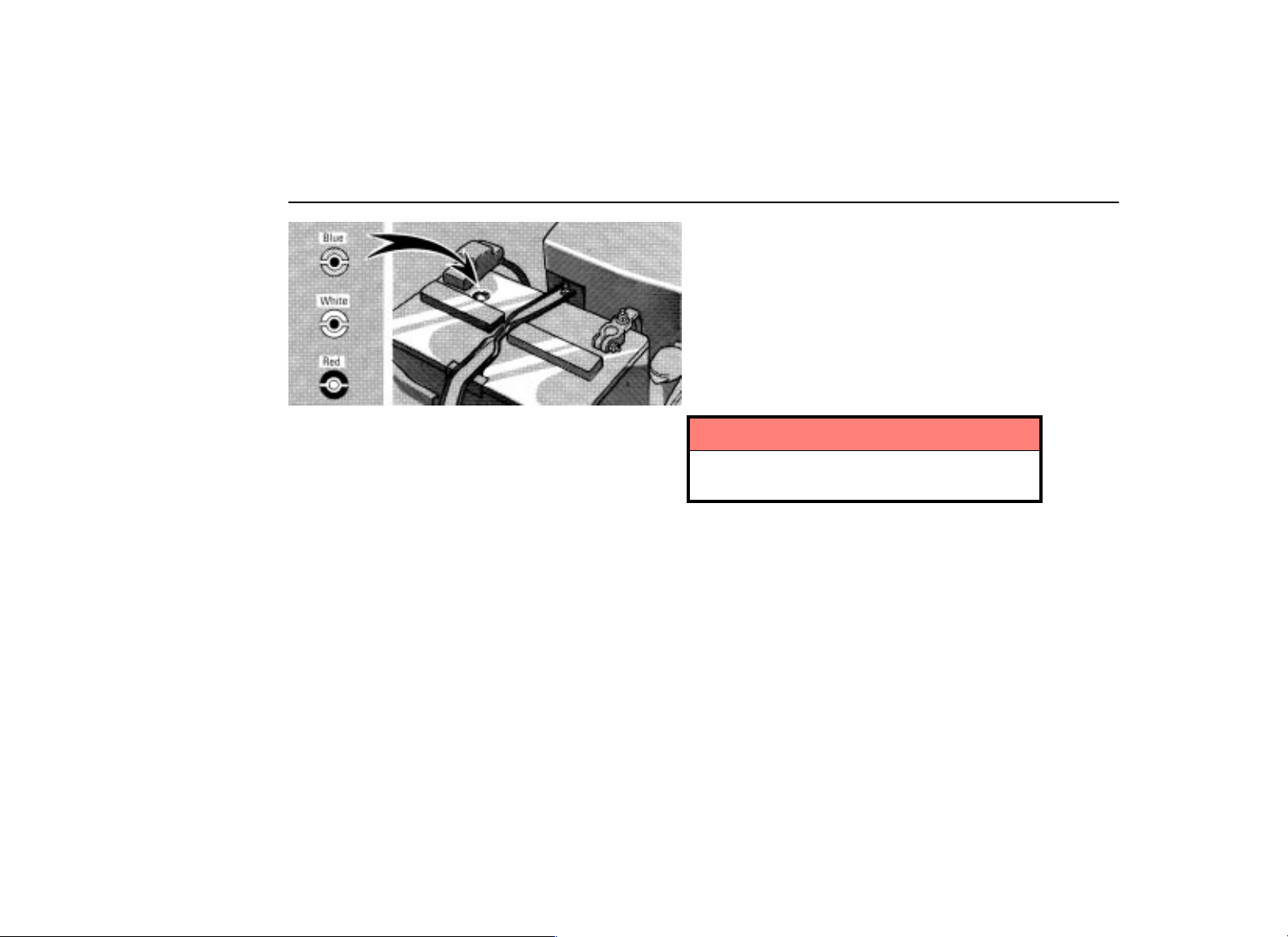

Checking battery condition . . . . . . . . . . . . . . . . . . . . . . . . . . .

380

Battery recharging precautions . . . . . . . . . . . . . . . . . . . . . . . .

386

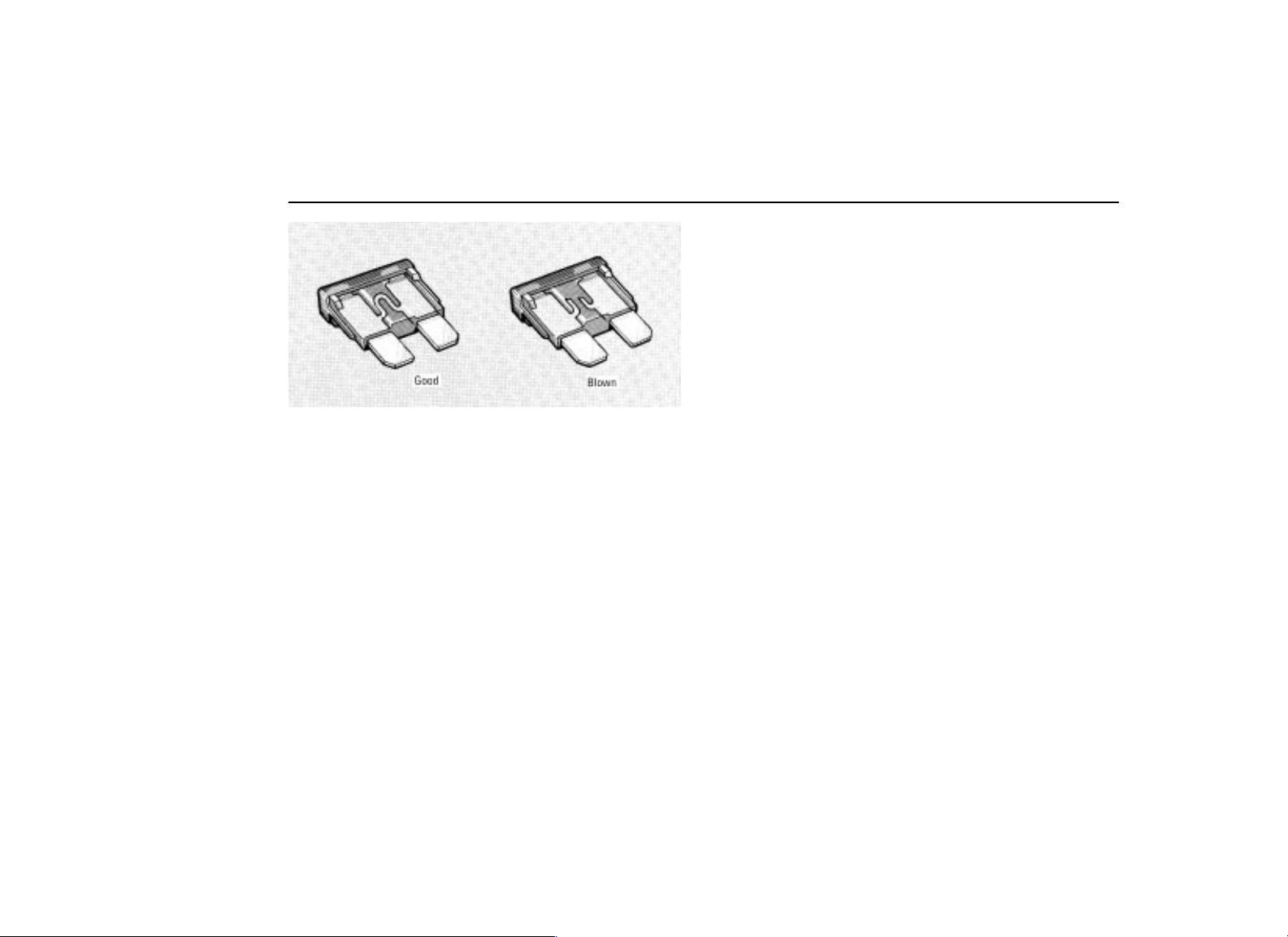

Checking and replacing the blade type fuses . . . . . . . . . . . . .

388

Checking the cartridge type fuses . . . . . . . . . . . . . . . . . . . . . .

393

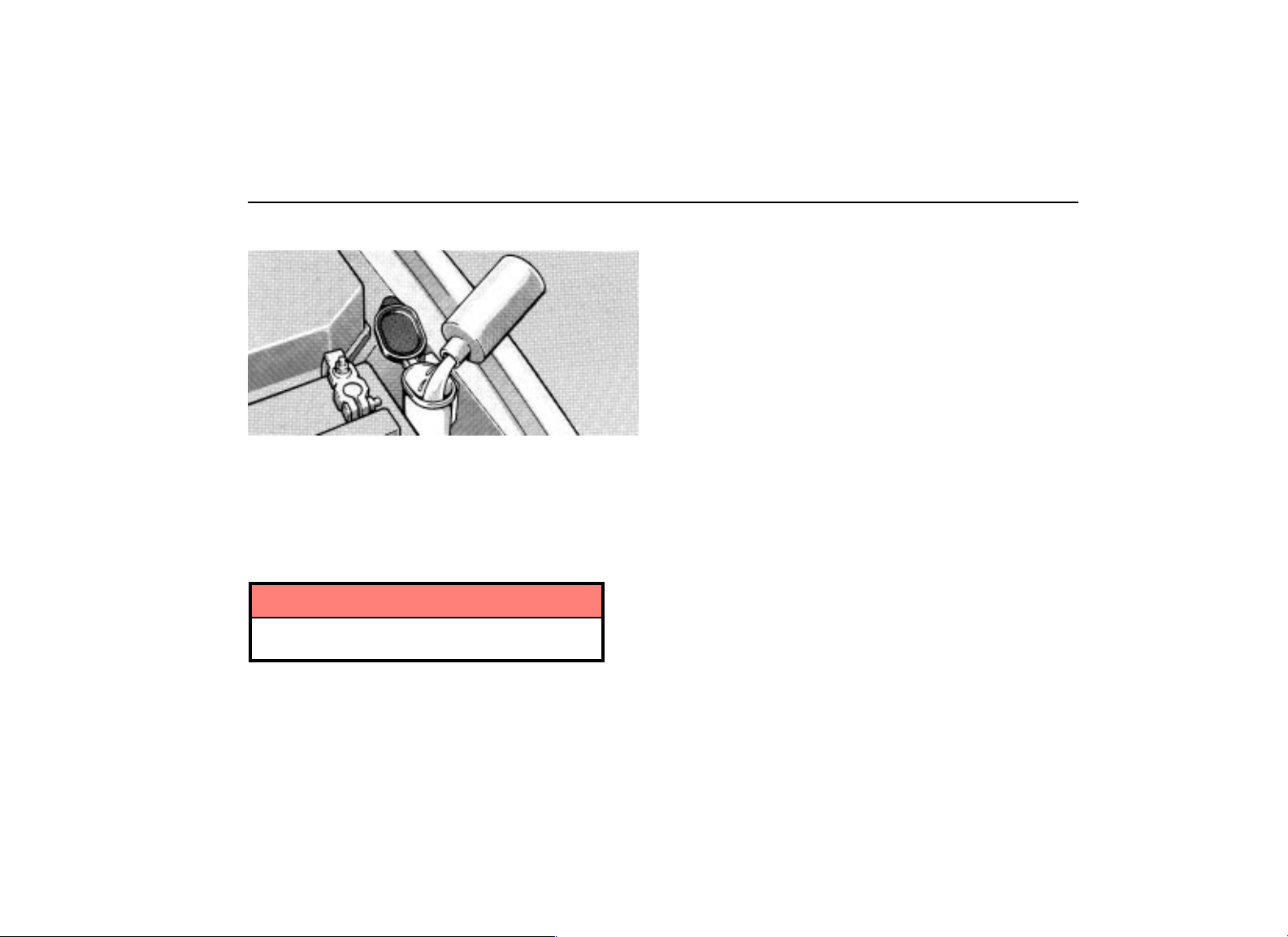

Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

396

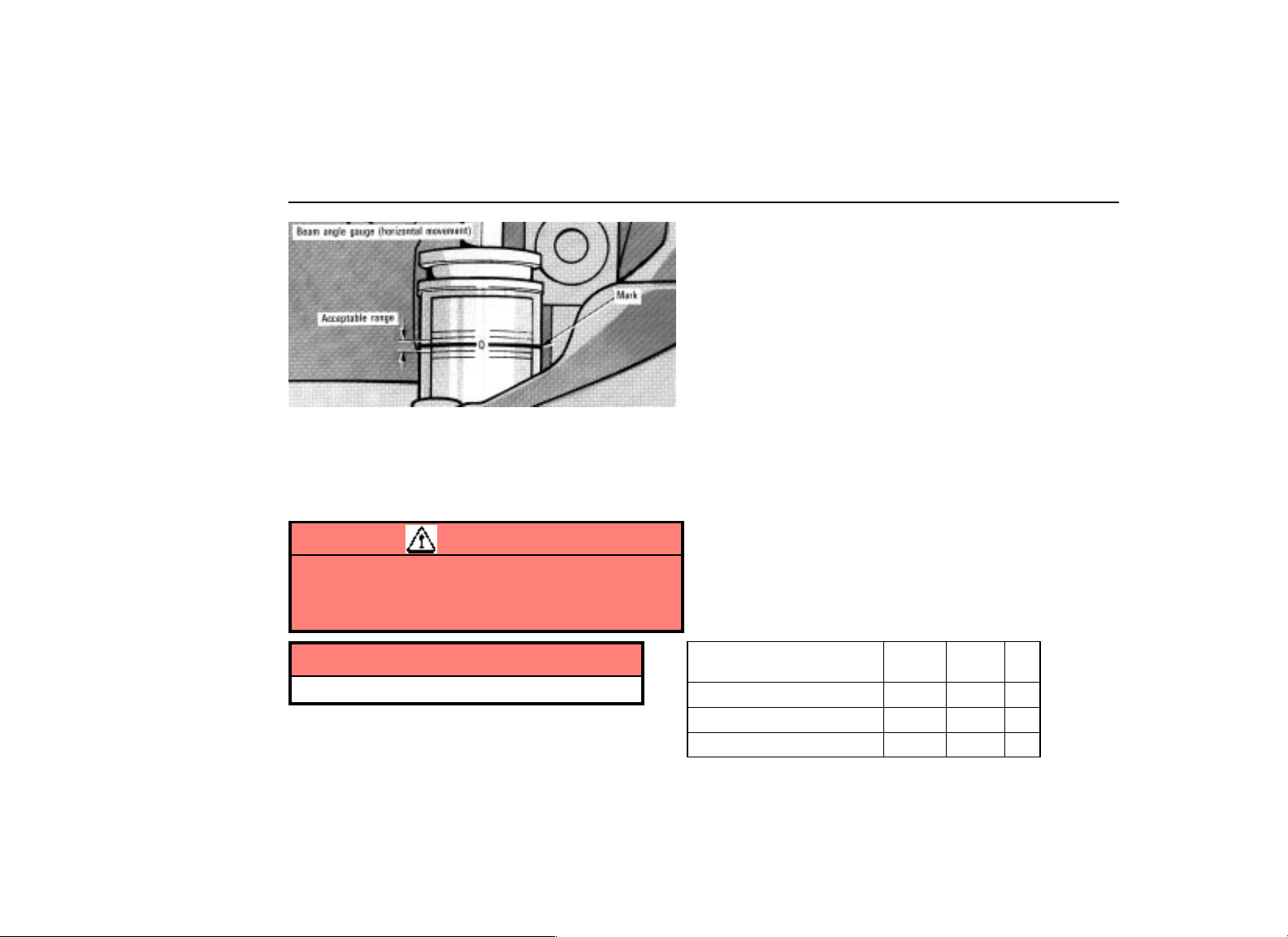

Checking the headlight aim . . . . . . . . . . . . . . . . . . . . . . . . . .

396

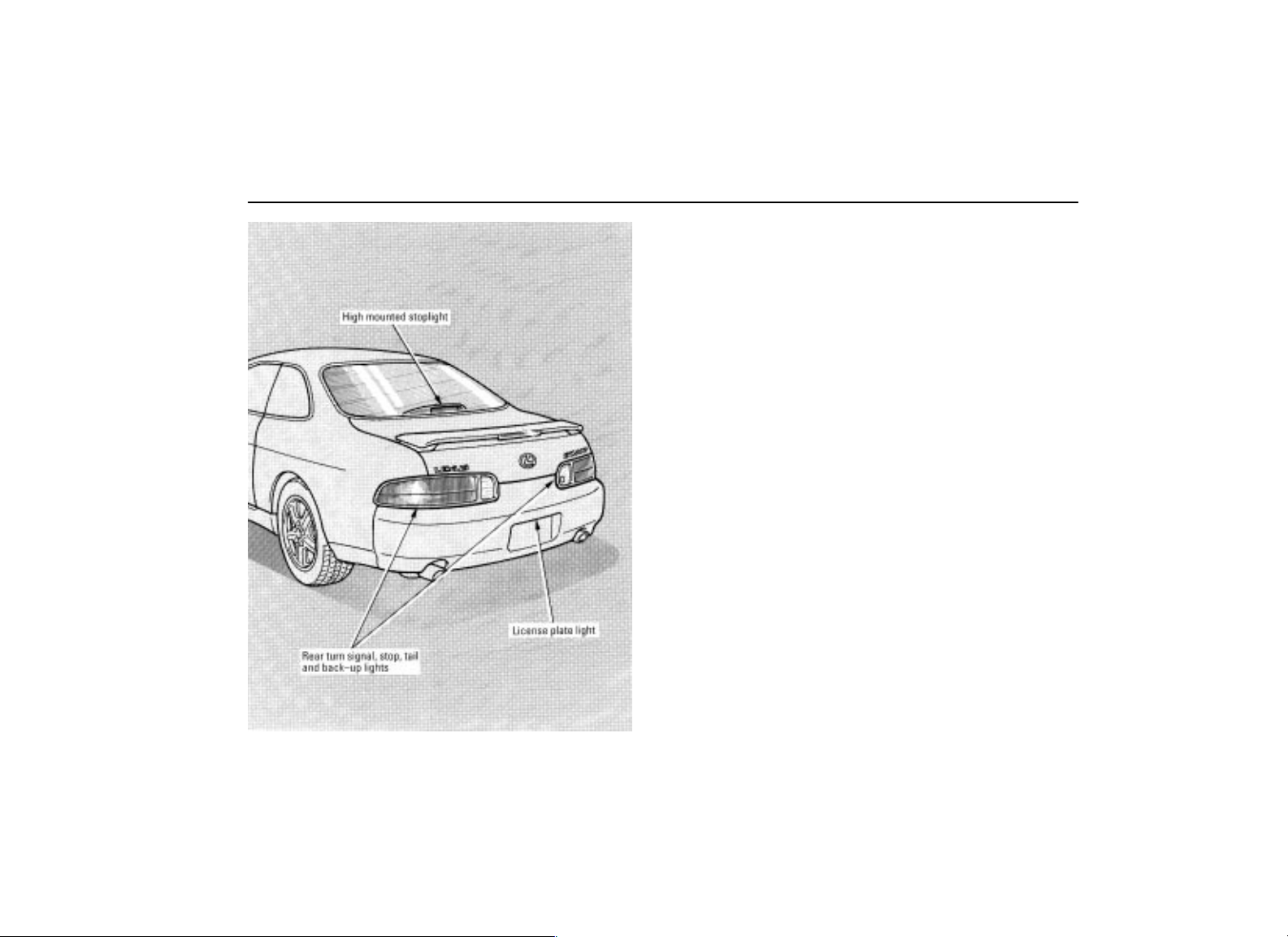

Replacing light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

399

374

ELECTRICAL COMPONENTS

375

ELECTRICAL COMPONENTS

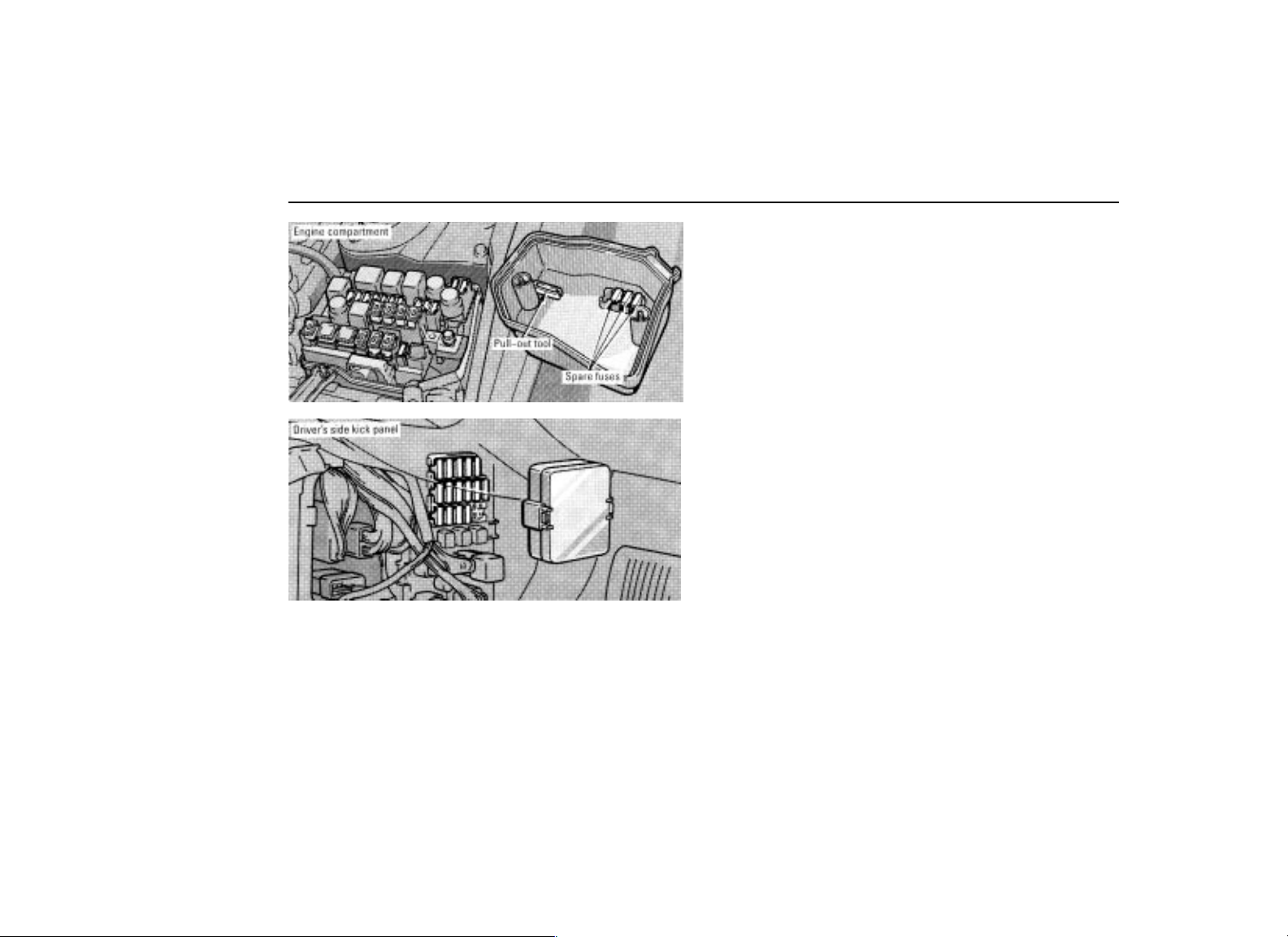

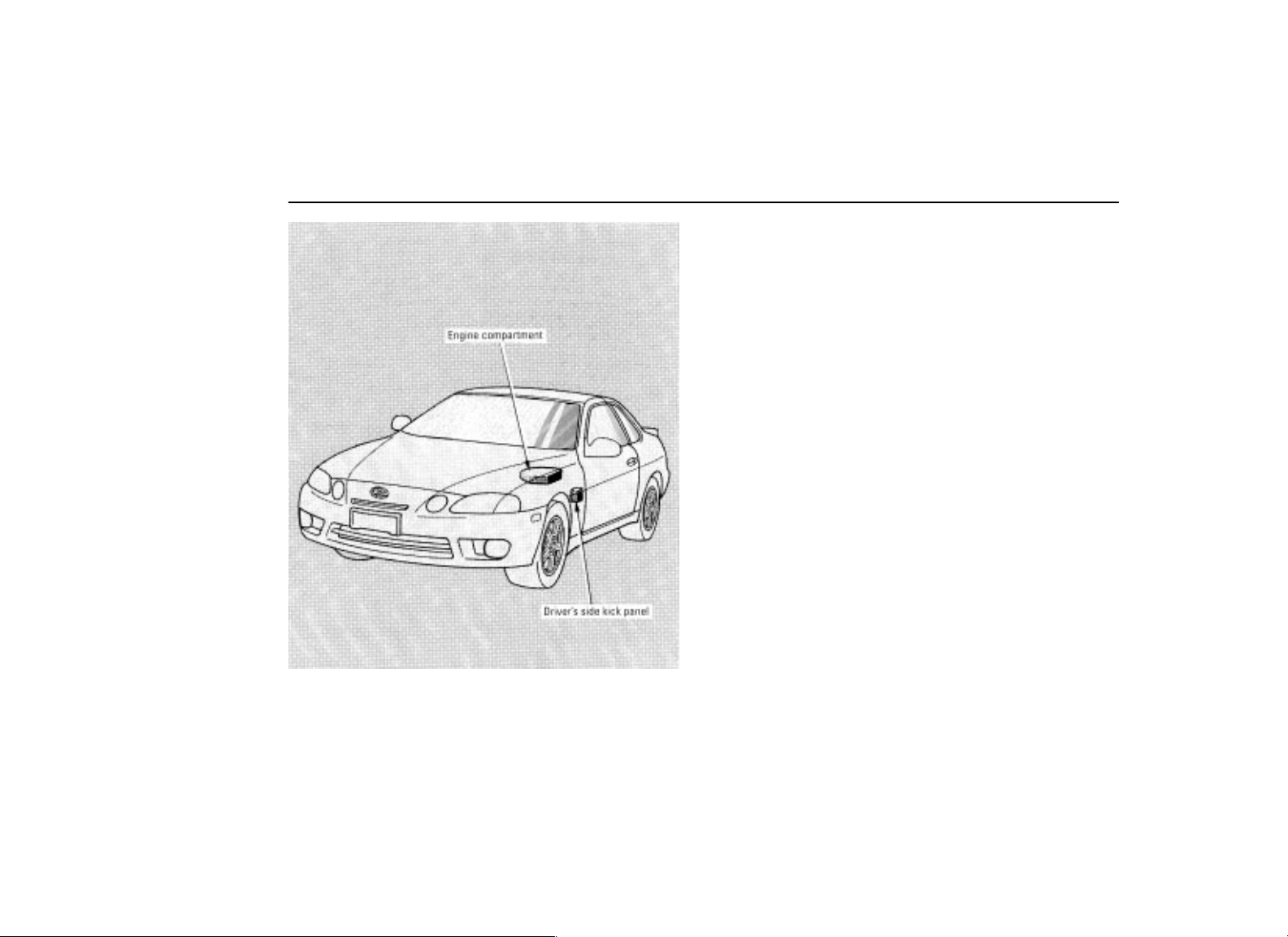

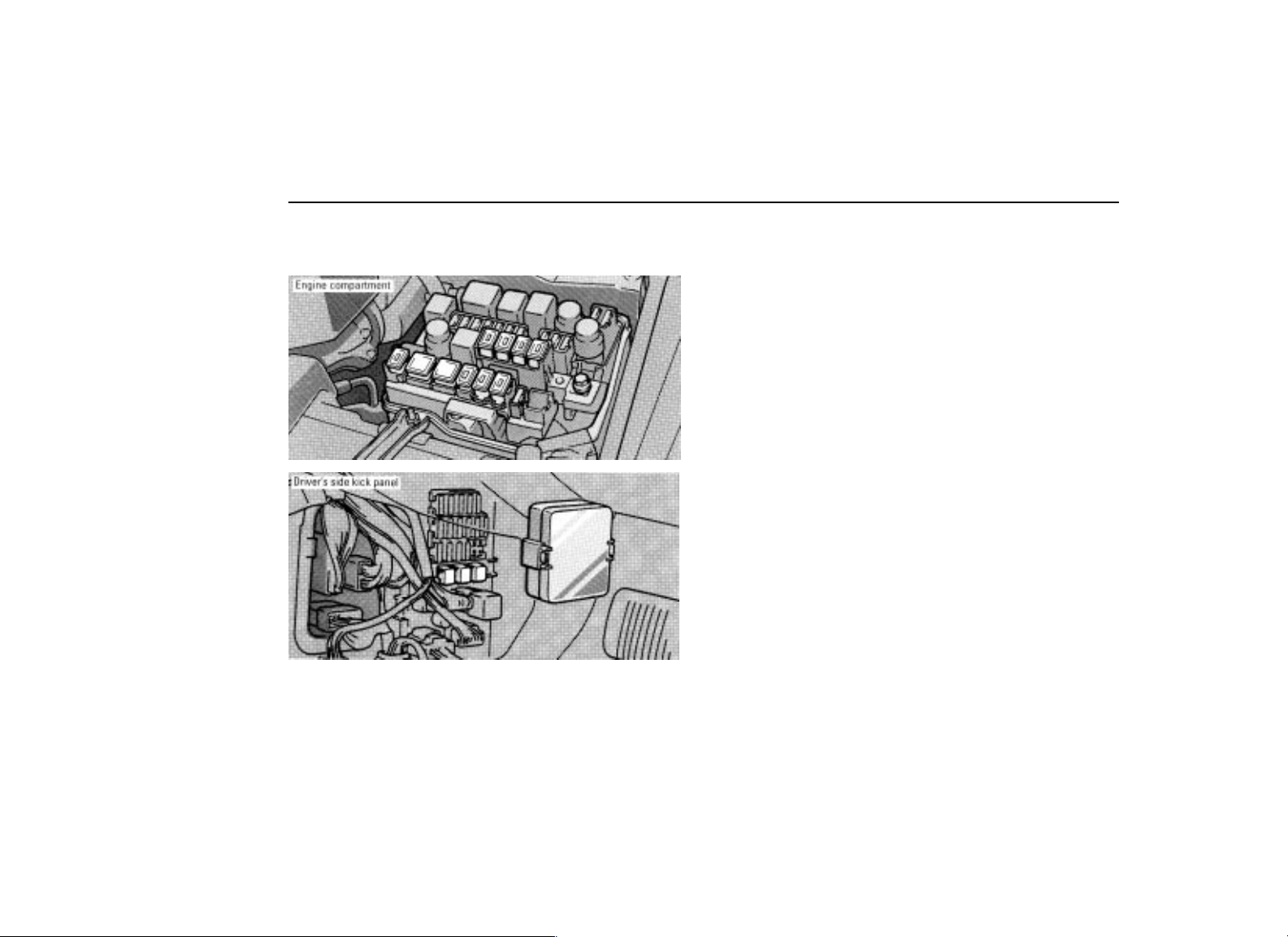

– FUSES

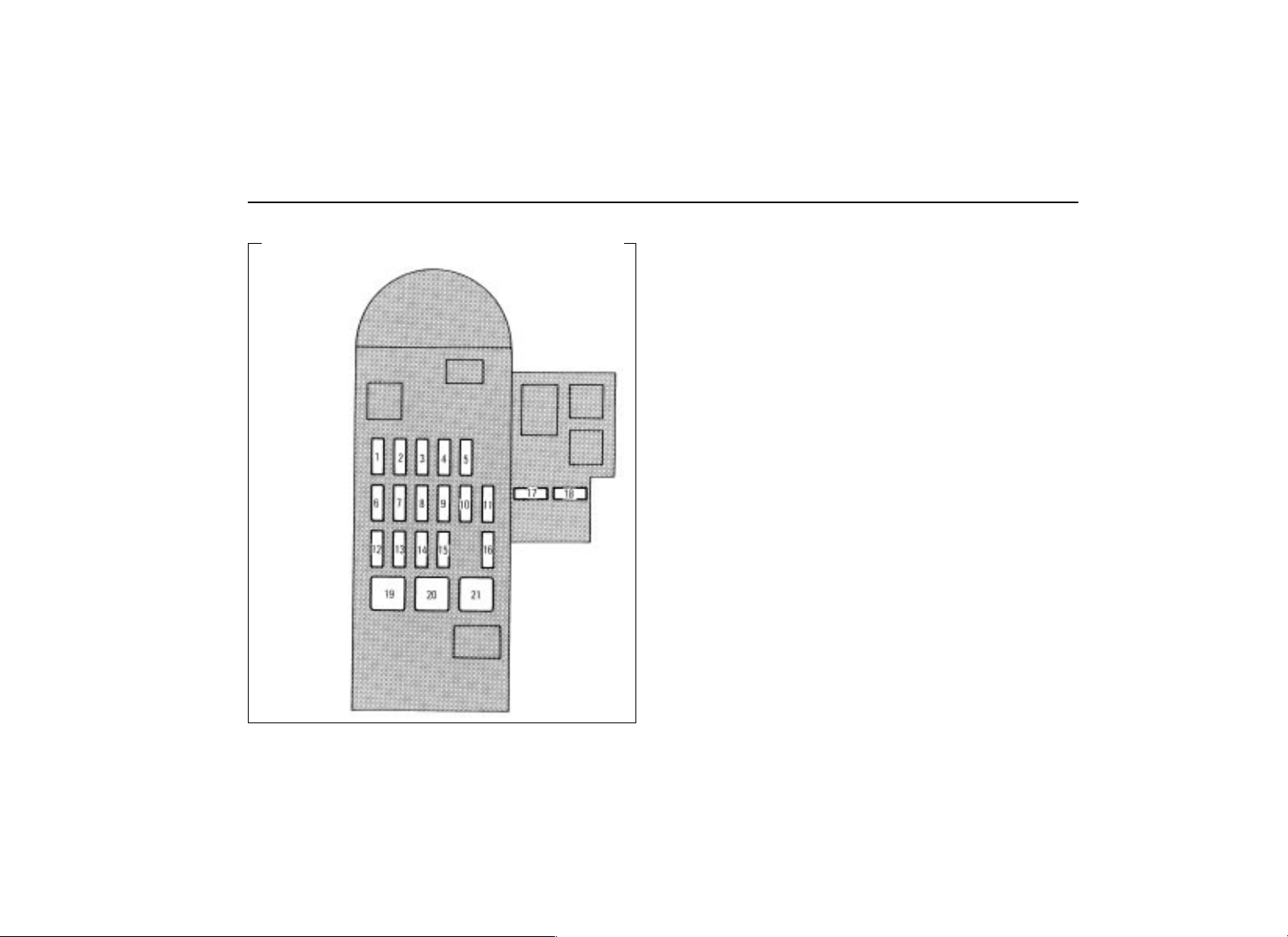

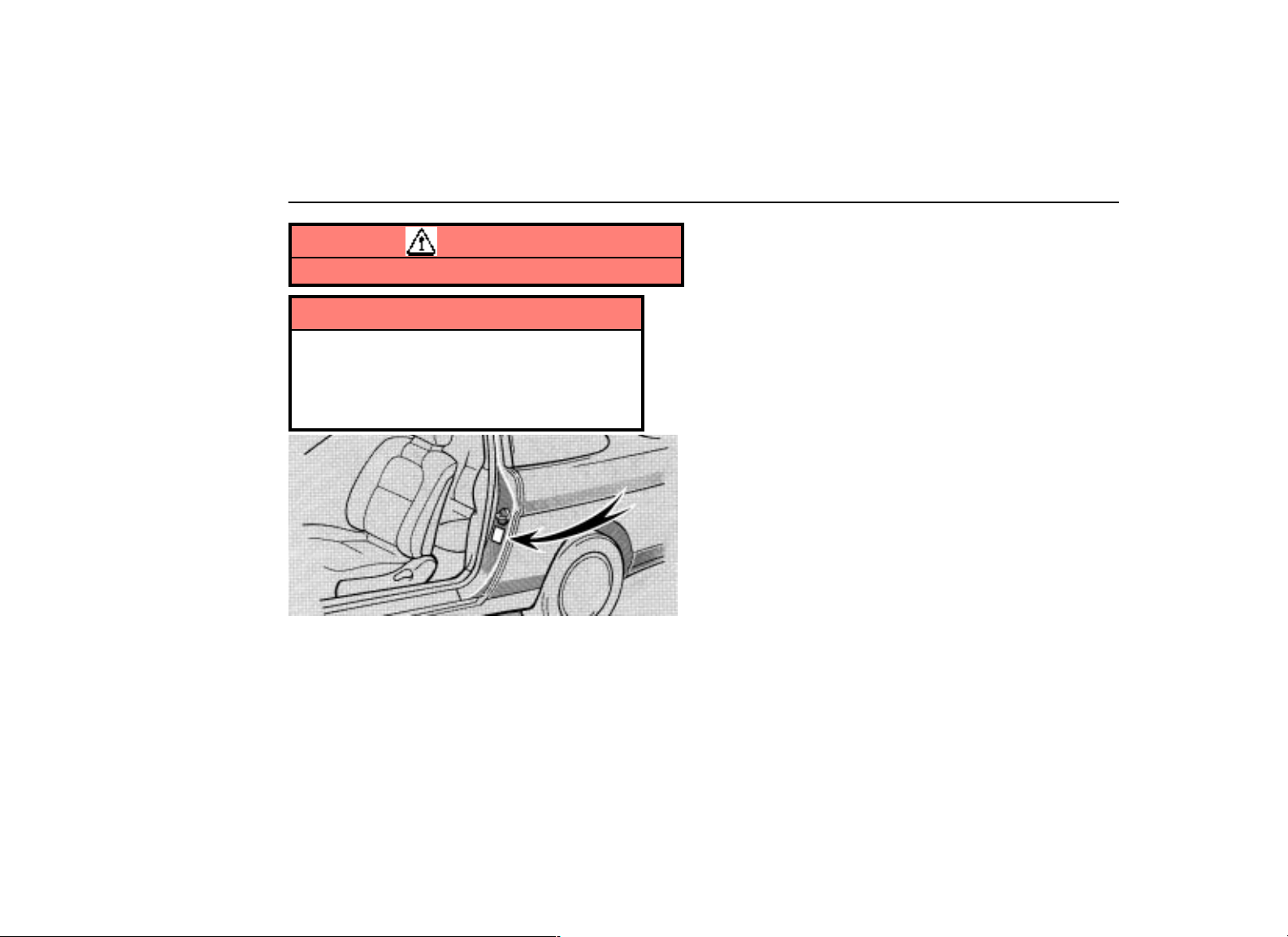

Driver’s side kick panel

376

Engine compartment

ELECTRICAL COMPONENTS

No.

10

FUSE

1

ENGINE 7.5 Charging system

2

HTR 10

3

WIPER 20 Windshield wipers and washer

4

5

6

7
8

9

ST 7.5

IGN 7.5

PANEL 7.5

MIR–HTR 10 Outside rear view mirror defogger

TURN 7.5 Turn signal lights

STOP 15

CIG 15

AMPERE

CIRCUIT

Air conditioning system, rear
window defogger

Starting system, cruise control
system, multiport fuel injection
system/sequential multiport fuel
injection system, instrument panel
lights

Discharge warning light, multiport
fuel injection system/sequential
multiport fuel injection system,
SRS airbag system

Instrument panel lights, glovebox
light

Stop lights, cruise control system
cancel device

Cigarette lighter, theft deterrent
system, shift lock system, SRS
airbag system, instrument panel
lights

377

ELECTRICAL COMPONENTS

No.

RADIO

11

12

13

ECU–IG 15

14

GAUGE 10

15

ECU–B 15

16
17

SEAT–HT

18

FUSE

NO.2

TAIL 7.5

AMPERE

7.5

CIRCUIT

Radio, cassette tape player,
compact disc player, power
antenna, power rear view mirrors

Tail lights, parking lights, side
marker lights, license plate lights

Cruise control system, power
steering control system, shift lock
system, anti–lock brake system,
SRS airbag system, power door
lock system, preset steering system,
traction control system,
electronically controlled
hydraulic–driven cooling system,
passenger’s seat control system

Gauges and meters, service
reminder indicators and warning
buzzers (except discharge and open
door warning lights), back–up
lights, electronically controlled
automatic transmission system,
automatic transmission overdrive
system, headlight

SRS airbag system, power rear
view mirrors

OBD 7.5 On–board diagnosis system
FOG 15 Fog lights

Seat heater

R

15

378

ELECTRICAL COMPONENTS

No.

FUSE

19

PWR 30

20

IG SW 40 Starting system

21

DOOR 30

22

DOME 10

23

24 HAZ–HORN

EFI 30

AMPERE

15 Emergency flashers, horns

CIRCUIT

Preset steering, electronic
moon roof, power windows,
theft deterrent system

Theft deterrent system, seat
control system, fuel opener
control system, power door
lock system

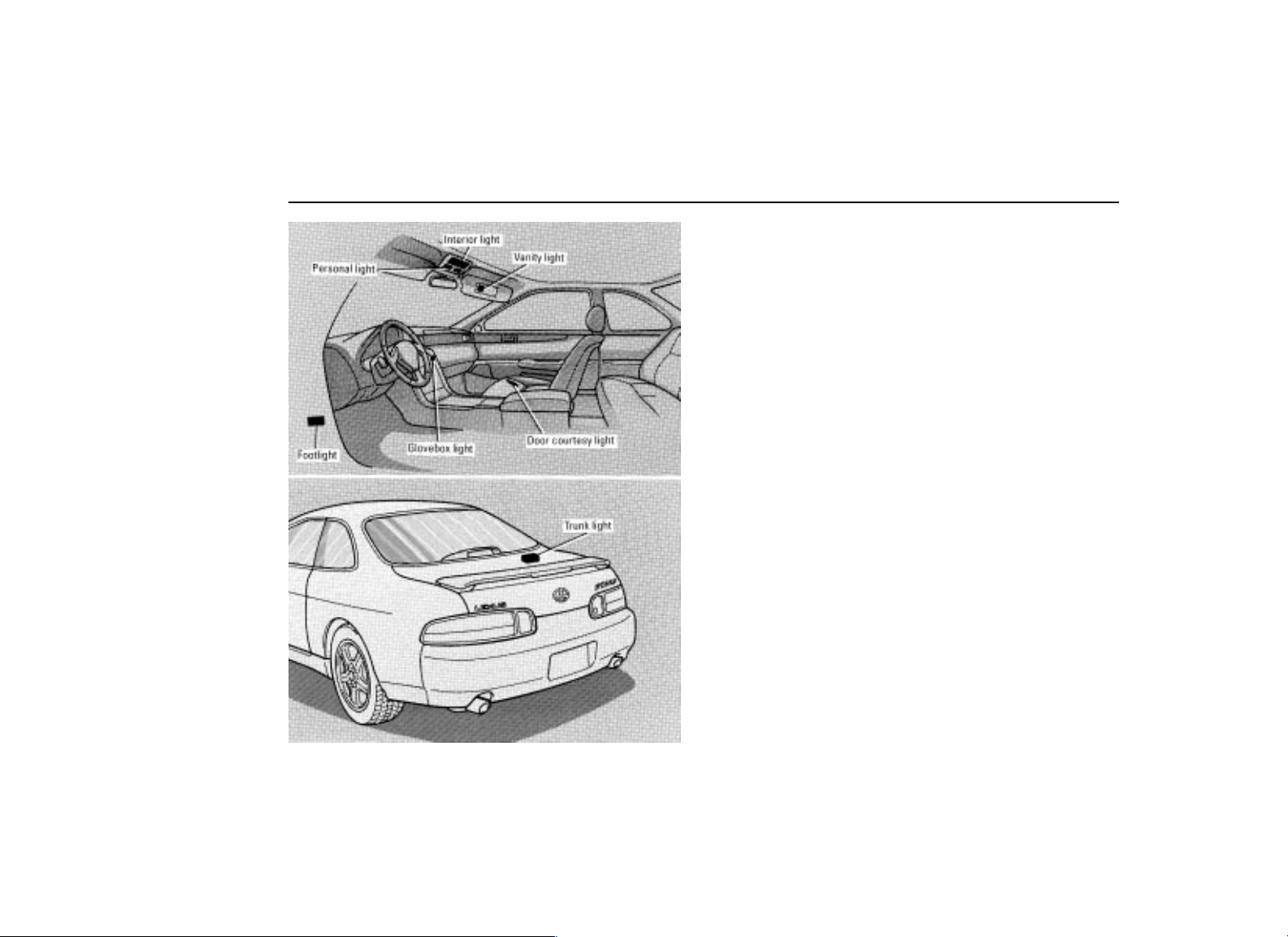

Interior light, personal lights,
door courtesy lights, ignition
switch light, open door
warning light, trunk light,
electronic moon roof system,
preset steering system, seat
belt reminder system, cruise
control system, air
conditioning system, inside
rear view mirror, door lock
and theft deterrent system,
foot light, power rear view
mirror, locking with wireless
remote control system,
passenger’s seat control
system.

Multiport fuel injection
system/sequential multiport
fuel injection system

No.

FUSE

RADIO

25

26

27

28

NO.1

TEL 15 Telephone
ALT

SENCING

ETCS 15 Traction control system

AMPERE

HEAD

29

(RH–LWR)*

1

HEAD

30

(LH–LWR)*

2

30

29

30

31

*1 SC300: HEAD (RH)

2

SC300: HEAD (LH)

*

DRL 7.5

HEAD

(RH–LPR)

HEAD

(LH–LPR)

INJ 30

Radio, cassette tape player,
compact disc player, power

20

antenna

Charging system

7.5

Right–hand headlight (low
beam)

15

Left–hand headlight (low
beam)

15

Daytime Running Light
System

Right–hand headlight (high

15

beam)
Left–hand headlight (high

15

beam)

SC300

Starting system

CIRCUIT

379

ELECTRICAL COMPONENTS

CHECKING BATTERY

CONDITION

Precautions

CAUTION

BATTERY PRECAUTIONS
The battery produces flammable and explosive hydrogen gas.
 Do not cause a spark by contacting the battery terminals

with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive sulfuric acid.

 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near the

battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with clean

water for at least 15 minutes and get immediate medical

attention. If possible, continue to apply water with a sponge

or cloth while traveling to the medical office.

380

ELECTRICAL COMPONENTS

 If electrolyte gets on your skin, thoroughly wash the

contact area. If you feel a pain or burn, get medical
attention immediately.

 If electrolyte gets on your clothes, there is a

possibility of its soaking through to your skin, so
immediately take off the exposed clothing and follow
the procedure above, if necessary.

 If you happen to swallow electrolyte, drink a large

quantity of water or milk. Follow with milk of
magnesia, beaten raw egg or vegetable oil. Then go
immediately for emergency help.

Checking battery exterior

381

ELECTRICAL COMPONENTS

Check the battery for corroded or loose connections,
cracks, or loose hold–down clamps.

1. If the battery is corroded, wash it off with a solution of
warm water and baking soda. Coat the terminals with grease
to prevent further corrosion.

2. If the connections are loose, tighten the clamp bolts –but
do not overtighten.

3. Tighten the hold–down clamp only enough to keep the
battery firmly in place. Overtightening may damage the
battery case.

382

NOTICE

 Make sure the engine and all accessories are turned

off before performing maintenance.

 When checking the battery, remove the ground cable

first and reinstall it last.

 Be careful not to cause a short circuit with tools.
 Take care no solution gets into the battery when

washing it.

ELECTRICAL COMPONENTS

Checking battery fluid

There are 2 types of batteries: maintenance type and
non–maintenance type.

A non–maintenance battery has ”MAINTENANCE FREE
BATTERY” on its top. A maintenance type battery does not
have such indication.

Maintenance type battery

Check the fluid condition by the fluid level lines on the side
of the battery. Or if the battery has a hydrometer on its top,
you can also check the hydrometer.

Non–maintenance battery

Check the battery condition by the hydrometer on the top of
the battery.

(a) Checking by the fluid level lines (Maintenance type
battery only)

383

ELECTRICAL COMPONENTS

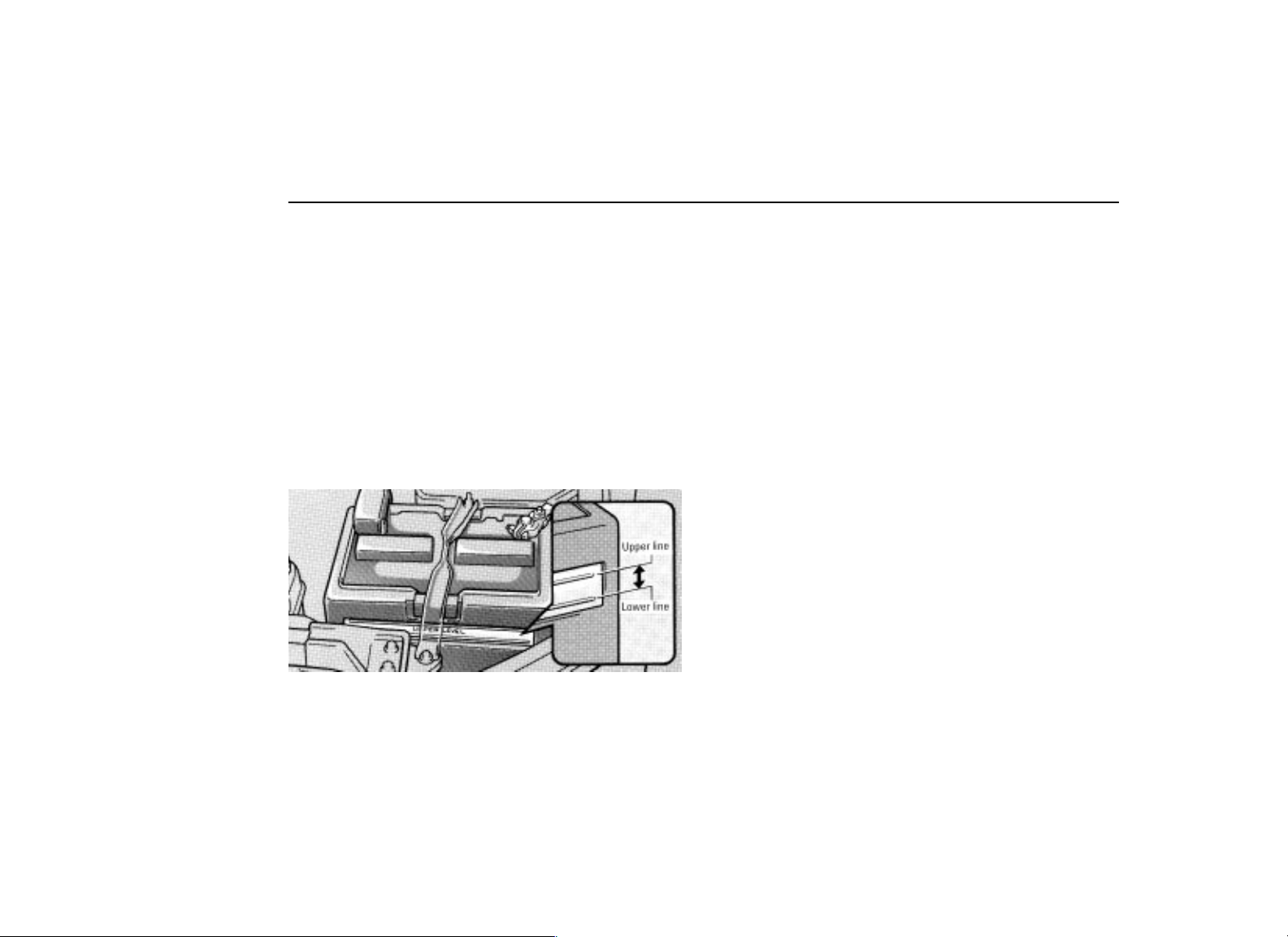

The fluid (electrolyte) level must be between the upper
and lower lines.

When checking the fluid level, look at all six cells, not just one
or two.

If the level is lower than the lower line, add distilled water.
(See ”Adding distilled water” on page 386.)

(b) Checking by the hydrometer

384

ELECTRICAL COMPONENTS

Check the battery condition by the hydrometer color.
Maintenance type battery

BLUE – Good condition.
WHITE – Charging necessary. Have the battery checked by

your Lexus dealer.
RED – Add distilled water. (See ”Adding distilled water” on

page 386.)

Non–maintenance type battery

BLUE – Good condition.
WHITE – Charging necessary. Have the battery checked by

your Lexus dealer.
RED – Have the battery checked by your Lexus dealer.

NOTICE

For non–maintenance battery:
Do not refill the battery with water.

385

ELECTRICAL COMPONENTS

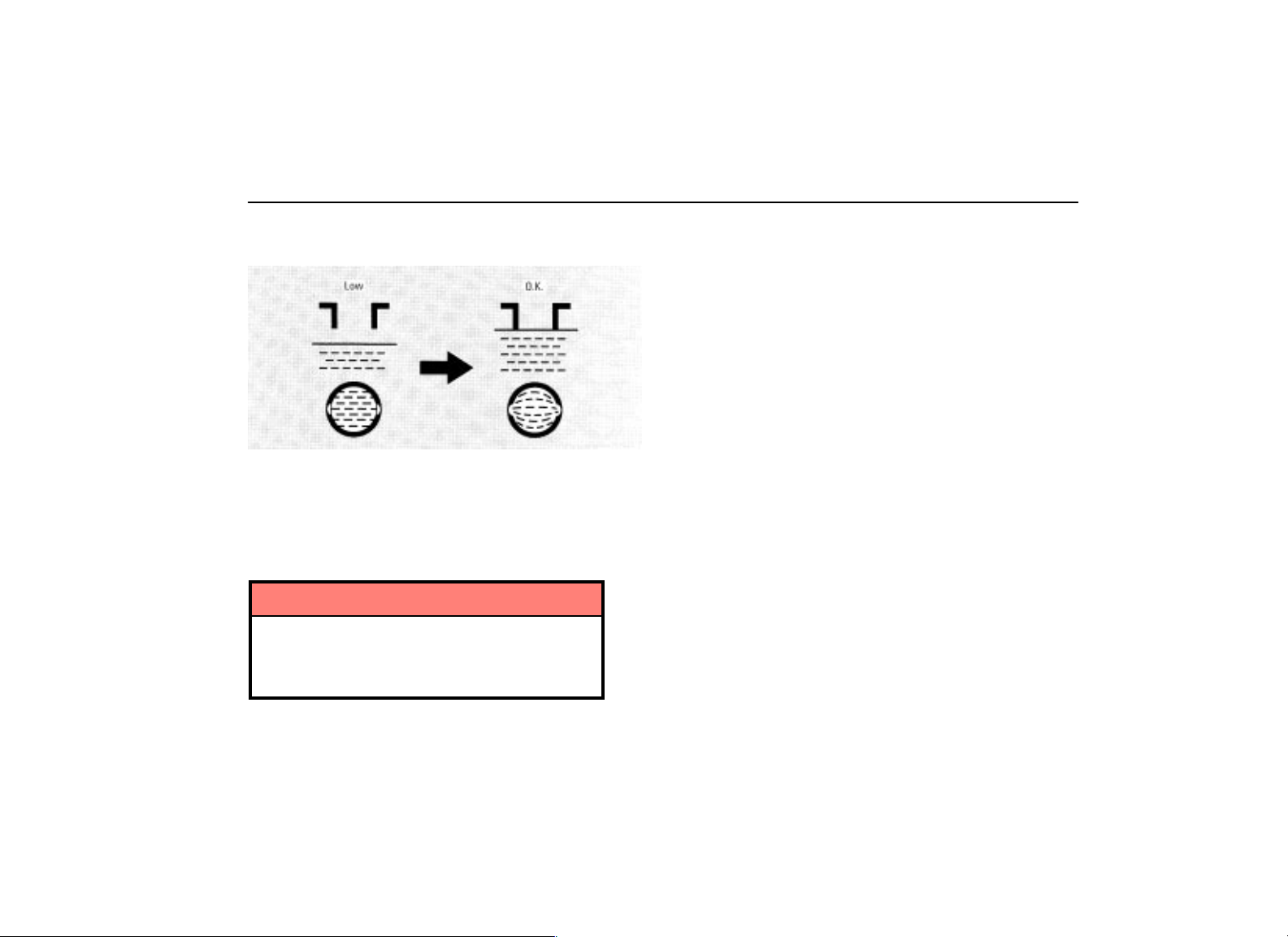

Adding distilled water
(Maintenance type battery only)

1. Remove the vent plugs.

2. Add distilled water to cells needing fluid.
If the side of your battery is covered, check the water level by

looking down directly above the cell as illustrated above.

3. Retighten the vent plugs securely.

NOTICE

 Do not overfill the cells. Excess electrolyte could

squirt out of the battery during heavy charging,

causing corrosion or damage.
 Use a cover on the battery for longer life.

386

BATTERY RECHARGING

PRECAUTIONS

During recharging, the battery is producing hydrogen
gas.

Therefore, before recharging:

1. Maintenance type batteries – Remove the vent plugs.

2. If recharging with the battery installed on the vehicle, be
sure to disconnect the ground cable.

3. Make sure the power switch on the recharger is off when
connecting the charger cables to the battery and when
disconnecting them.

CAUTION

 Always charge the battery in an unconfined area. Do not

charge the battery in a garage or closed room where there
is not sufficient ventilation.

 Non–maintenance batteries: Only do a slow charge (5 A or

less). Charging at a quicker rate is dangerous. The battery
may explode causing personal injuries.

Maintenance type batteries: Be sure to remove the vent
plugs before recharging.

ELECTRICAL COMPONENTS

387

ELECTRICAL COMPONENTS

NOTICE

Never recharge the battery while the engine is running.
Also, make sure all accessories are turned off.

CHECKING AND REPLACING

THE BLADE TYPE FUSES

388

1. Turn the ignition switch off and open the fuse box lid.

Determine which fuse may be causing the problem. The lid
of the fuse box shows the name of the circuit for each fuse.

ELECTRICAL COMPONENTS

389

ELECTRICAL COMPONENTS

2. Make sure the inoperative component is turned off.
Pull the suspected fuse straight out with the pull–out tool
and check it. If it has blown, push a new fuse into the clips.

390

ELECTRICAL COMPONENTS

a. Look carefully at the fuse. If the thin wire is broken, the
fuse has blown. If you are not sure or if it is too dark to see,
try replacing the suspected fuse with one of the same value
that you know is good.

b. Only install a fuse with the amperage rating designated on
the fuse box lid.

If you do not have a spare fuse, in an emergency you can pull
out the ”CIG”, ”RADIO NO.1”, ”DOME” or ”HTR” fuse,
which may be dispensable for normal driving, and use it if its
amperage rating is the same.

If you cannot use one of the same amperage, use one lower
than, but as close as possible to, the amperage. If the
amperage is lower than that specified, the fuse might blow out
again but this does not indicate anything wrong. Be sure to
get the correct fuse as soon as possible and return the
substitute to its original clips.

It is a good idea to purchase a set of spare fuses and keep them
in your vehicle for emergencies.

If the new fuse immediately blows out, there is a problem with
the electrical system. Have your Lexus dealer correct it as
soon as possible.

391

ELECTRICAL COMPONENTS

CAUTION

Never use a fuse with a higher amperage rating, or any other
object, in place of a fuse. This may cause extensive damage
and possibly a fire.

392

CHECKING THE CARTRIDGE

TYPE FUSES

ELECTRICAL COMPONENTS

393

ELECTRICAL COMPONENTS

If the headlights or other electrical components do not
work and the blade type fuses are O.K., check the
cartridge type fuses. If any of the cartridge type fuses are
blown, they must be replaced.

If there is an overload in the circuits from the battery, the fuses
are designed to blow before the entire wiring harness is
damaged.

NOTICE

Before replacing the fuses, have the cause of electrical
overload determined and repaired by your Lexus dealer.

394

CAUTION

Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire – even for a
temporary fix. This may cause extensive damage and possibly
a fire.

ELECTRICAL COMPONENTS

395

ELECTRICAL COMPONENTS

ADDING WASHER FLUID

If the washer tank becomes nearly empty, add washer
fluid.

You may use plain water as washer fluid. However, in cold
areas where temperatures range below the freezing point, use
washer fluid containing antifreeze. This product is available
at your Lexus dealer and most auto parts stores. Follow the
manufacturer’s directions for how much to mix with water.

NOTICE

Do not use engine antifreeze or any other substitute
because it may damage your vehicle’s paint.

396

CHECKING THE HEADLIGHT

AIM

(For low beam only)

Before checking the headlight aim:

1. Be sure that the body around the headlight is not deformed.

2. Park the vehicle on a level spot.

3. The driver should stay in the driver’s seat so that the
vehicle has its normal load (with the tank full).

4. Bounce the vehicle several times.

ELECTRICAL COMPONENTS

397

ELECTRICAL COMPONENTS

To check the headlight aim, check the vertical and
horizontal gauges.

1. Look at the beam angle gauge (vertical movement). The
bubble of the gauge should not deviate from the center of the
gauge by more than two marks on either side of the gauge.

398

ELECTRICAL COMPONENTS

2. Look at the beam angle gauge (horizontal movement).
The blue mark should not deviate by more than one mark on
either side of the gauge.

If the error is over the value specified above, take the vehicle
to your Lexus dealer to adjust the headlight aim.

CAUTION

Halogen bulbs have pressurized gas inside and require special
handling. They can burst or shatter if scratched or dropped.
Hold a bulb only by its plastic or metal case. Do not touch the
glass part of a bulb with bare hands.

NOTICE

Only use a bulb of the listed type.

REPLACING LIGHT BULBS

The illustration on the following pages show the locations of
light bulbs. If it is necessary to replace a bulb, take your
vehicle to your Lexus dealer as soon as possible. Use bulbs
with the bulb numbers and wattage ratings given in the table.

Light Bulbs Bulb

No.
Headlights (low beam) 9006 55 A
Headlights (high beam) 9005 65 B
Fog lights –––– 55 C

W Ty

pe

399

ELECTRICAL COMPONENTS

Parking lights
Front side marker lights 194 3.8 E
Front turn signal lights 1157

Rear turn signal lights 1156 27 D

Light Bulbs Bulb

Stop lights 1156 27 D
Tail lights –––– 5 E
Back–up lights 1156 27 D
High mounted stoplight 921 18 E
License plate lights –––– 5 E
Interior light –––– 10 F
Personal lights –––– 8 D
Glovebox light –––– 1.2 E
Door courtesy lights –––– 5 E
Footlights –––– 1.2 E

–––– 5 E

27/8 D

NA

W Ty

No.

pe

Vanity lights –––– 3 F
Trunk light 194 3.8 E

A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: H3 halogen bulbs
D: Single end bulbs
E: Wedge base bulbs
F: Double end bulbs

400

LIGHT LOCATION

ELECTRICAL COMPONENTS

401

ELECTRICAL COMPONENTS

402

ELECTRICAL COMPONENTS

403

SECTION 6 – 3

SERVICE PROCEDURES AND
SPECIFICATIONS

Chassis

Specifications (SC400) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

355

Specifications (SC300) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

357

Checking brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

359

Checking power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .

361

Checking tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

363

Rotating tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

365

Checking and replacing tires . . . . . . . . . . . . . . . . . . . . . . . . . .

365

Installing snow tires and chains . . . . . . . . . . . . . . . . . . . . . . .

369

Replacing wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

372

Aluminum wheel precautions . . . . . . . . . . . . . . . . . . . . . . . . .

372

Suspension and chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

353

CHASSIS

373

354

SPECIFICATIONS (SC400)

– AUTOMATIC TRANSMISSION

Fluid capacity

Drain and refill

Fluid type

– DIFFERENTIAL

CHASSIS

1.9 L (2.0 qt., 1.7 lmp.qt.)
Automatic transmission fluid Type T – IV or equivalent

Oil capacity
Oil type
Oil viscosity

– BRAKES

Pedal clearance *
Pedal freeplay
Brake pad wear limit
Parking brake lining wear limit *
Parking brake adjustment
Fluid type

*1: Minimum pedal clearance when depressed with the pressure of 490 N (50 kgf, 110 lbf.) with the engine running
*2: Parking brake adjustment when pulled with the force of 196 N (20 kgf, 44 lbf.)

1

2

1.35 L (1.42 qt., 1.19 lmp.qt.)
Hypoid gear oil API GL–5
Above –18C (0F): SAE90

Below –18C (0F): SAE80W or SAE80W–90

89 mm (3.5 in.) Min.
1 – 6 mm (0.04 – 0.24 in.)

1.0 mm (0.04 in.)

1.0 mm (0.04 in.)
5 – 8 clicks
SAE J1703 or FMVSS No. 116 DOT 3

355

CHASSIS

– STEERING

Freeplay
Power steering fluid

– TIRES AND WHEELS

Tire size
Tire inflation pressure

Recommended cold tire inflation pressure

Wheel size
Wheel nut torque

Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRON

225/55R16 94V

2

or bar, 32 psi)

Front 220 kPa (2.2 kgf/cm
Rear 220 kPa (2.2 kgf/cm

2

or bar, 32 psi)
16 x 7 JJ or 16 x 6 1/2 JJ
103 N·m (10.5 kgf·m, 76 ft·lbf.)



II or III

356

SPECIFICATIONS (SC300)

– AUTOMATIC TRANSMISSION

Fluid capacity

Drain and refill

Fluid type

– DIFFERENTIAL

1.6 L (1.7 qt., 1.4 lmp.qt.)
Automatic transmission fluid D–II or DEXRON

(DEXRON



II)

CHASSIS



III

Oil capacity
Oil type
Oil viscosity

1.35 L (1.42 qt., 1.19 lmp.qt.)

Hypoid gear oil API GL–5
Above –18C (0F): SAE90

Below –18C (0F): SAE80W or SAE80W–90

– BRAKES

Pedal clearance *

1

Pedal freeplay
Brake pad wear limit
Parking brake lining wear limit *
Parking brake adjustment
Fluid type

2

89 mm (3.5 in.) Min.
1 – 6 mm (0.04 – 0.24 in.)

1.0 mm (0.04 in.)

1.0 mm (0.04 in.)

5 – 8 clicks
SAE J1703 or FMVSS No. 116 DOT 3

*1: Minimum pedal clearance when depressed with the pressure of 490 N (50 kgf, 110 lbf.) with the engine running
*2: Parking brake adjustment when pulled with the force of 196 N (20 kgf, 44 lbf.)

357

CHASSIS

– STEERING

Freeplay
Power steering fluid

– TIRES AND WHEELS

Tire size
Tire inflation pressure

Recommended cold tire inflation pressure

Wheel size
Wheel nut torque

Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRON

225/55 R16 94V

2

or bar, 32 psi)

Front 220 kPa (2.2 kgf/cm
Rear 220 kPa (2.2 kgf/cm

1/2 JJ

16 x 6

2

or bar, 32 psi)

103 N·m (10.5 kgf·m, 76 ft·lbf.)



II or III

358

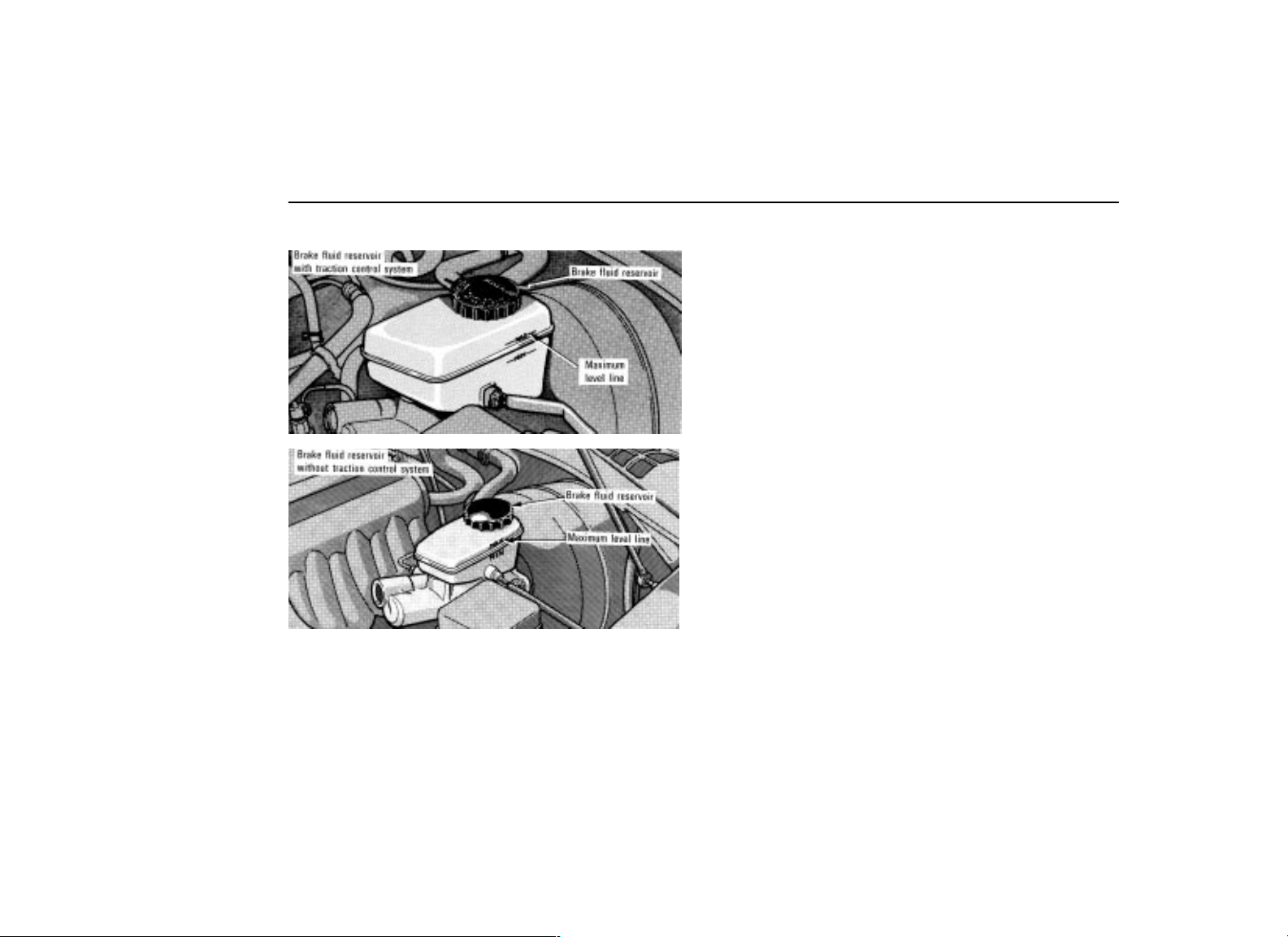

CHECKING BRAKE FLUID

To check the fluid level, simply look at the see–through
reservoir. The level should be between the ”MAX” and
”MIN” lines on the tank.

CHASSIS

359

CHASSIS

It is normal for the brake fluid level to go down slightly as the
brake pads wear. So be sure to keep the reservoir filled.

If the reservoir needs frequent refilling, it may indicate a
serious mechanical problem.

If the level is low, add FMVSS No.116 DOT 3 or SAE
J1703 brake fluid to the brake reservoir.

Remove and replace the reservoir cover by hand. Add brake
fluid up to the ”MAX” line.

Use only newly opened brake fluid. Once opened, brake fluid
absorbs moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.

CAUTION

Take care when filling the reservoir because brake fluid can
harm your hands or eyes and damage painted surfaces. If
fluid gets in your hands or eyes, flush them with clean water.

NOTICE

 If you spill some of the fluid, be sure to wipe it off to

prevent it from damaging the parts or paintwork.

 For vehicles with traction control system only: Idle

the engine while pouring brake fluid into the reservoir.

360

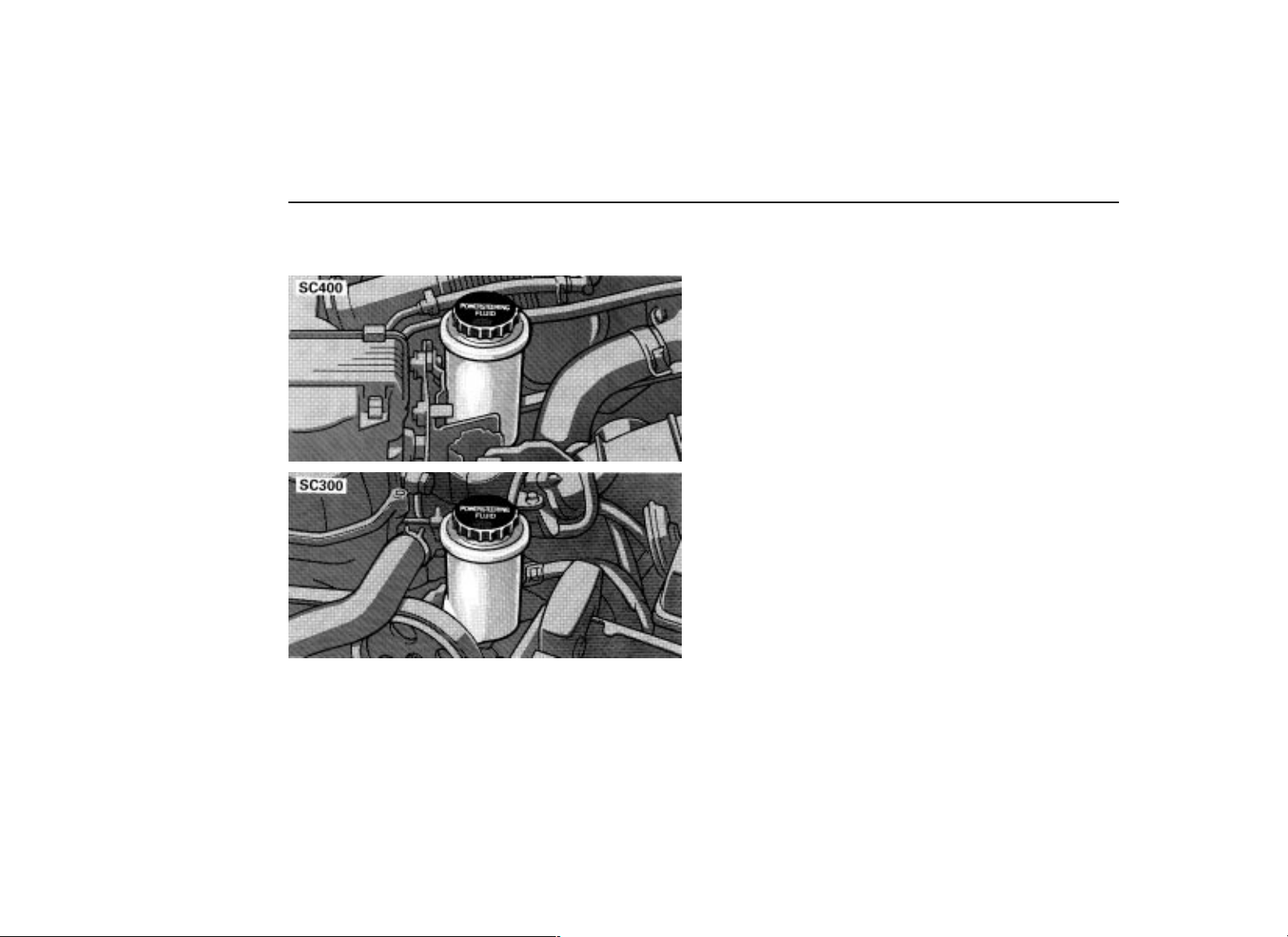

CHECKING POWER STEERING

FLUID

CHASSIS

Check the fluid level on the dipstick. If necessary, add
automatic transmission fluid DEXRON



II or III.

361

CHASSIS

If the vehicle has been driven around 80 km/h (50 mph) for
20 minutes (a little more in frigid temperatures), the fluid is
hot (60C – 80C or 140F – 175F). You may also check
the level when the fluid is cold (about room temperature,
10C – 30C or 50F – 85F) if the engine has not been run
for about five hours.

1. Clean all dirt off the reservoir.

2. Remove the filler cap by turning it counterclockwise and
wipe the dipstick clean.

3. Reinstall the filler cap.

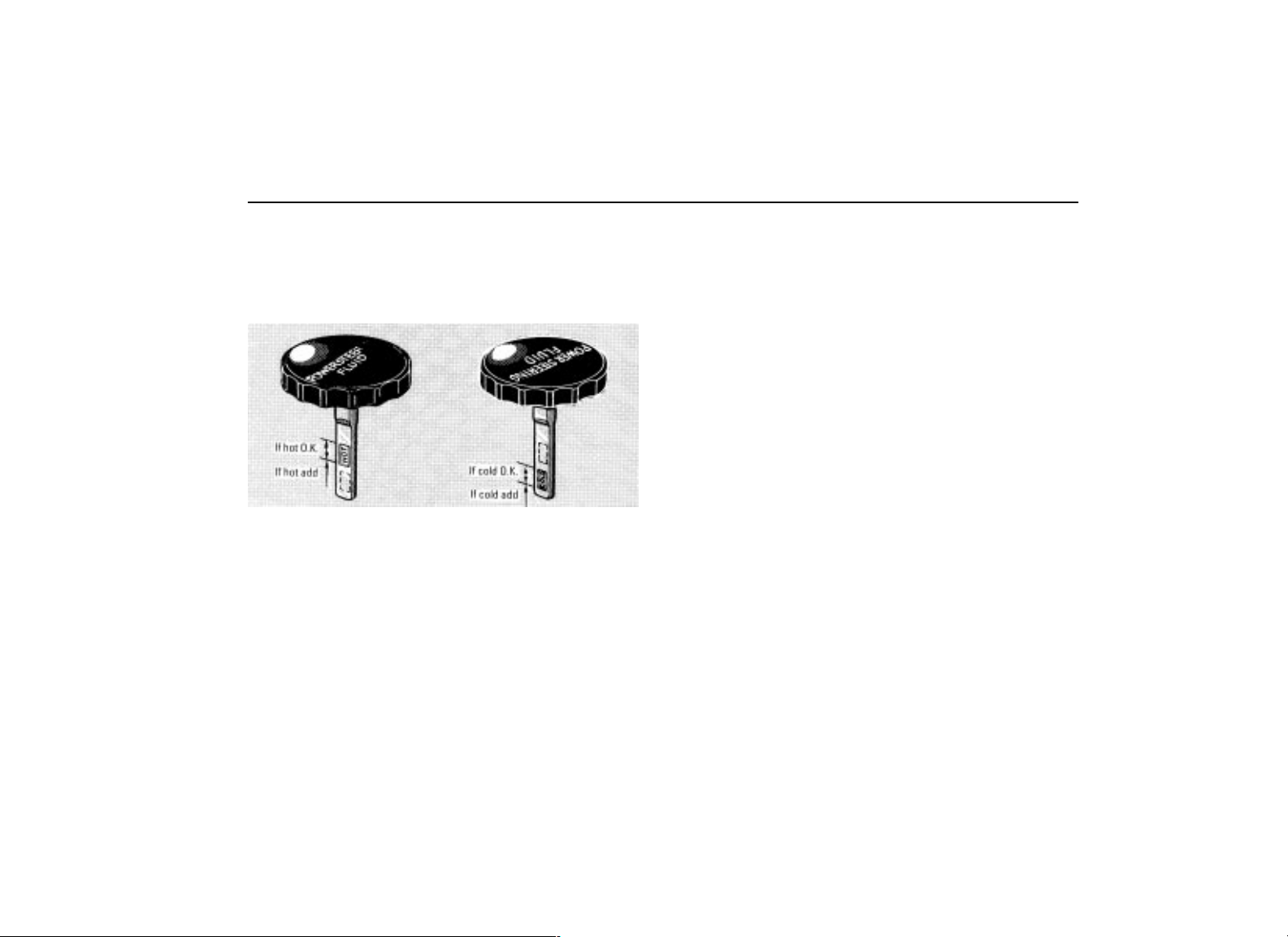

4. Remove the filler cap again and look at the fluid level. If
the fluid is cold, the level should be in the ”COLD” range on
the dipstick. Similarly, if it is hot, the fluid level should be in
the ”HOT” range. If the level is at the low side of either range,
add automatic transmission fluid DEXRON



II or III to bring

the level within the range.

362

5. After replacing the filler cap, visually check the steering
box case, vane pump and hose connections for leaks or
damage.

CAUTION

The reservoir may be hot so be careful not to burn yourself.

CHASSIS

NOTICE

 Avoid overfilling, or the power steering could be

damaged.

 When adding the power steering fluid, avoid spilling

it. The generator under the power steering reservoir
could be damaged if fluid is spilled on it.

CHECKING TIRE PRESSURE

363

CHASSIS

The recommended cold tire pressures, tire size and the
vehicle capacity weight are given on the label.

You should check the tire pressures every two weeks, or at
least once a month. And don’t forget the spare! The pressure
for the spare tire should be same with that for the standard tire.
(See page 356 or 358.) Incorrect tire pressure can reduce tire
life and make your vehicle less safe to drive.

Low tire pressure results in excessive wear, poor handling,
reduced fuel economy, and the possibility of blowouts from
overheated tires. Also, low tire pressure can cause poor
sealing of the tire bead. If the tire pressure is excessively low ,
there is the possibility of wheel deformation and/or tire
separation. So keep your tire pressures at the proper level. If
a tire needs frequent refilling, have it checked by your Lexus
dealer.

High tire pressure produces a harsh ride, handling problems,
excessive wear at the center of the tire tread, and a greater
possibility of tire damage from road hazards.

The following instructions for checking tire pressure should
be observed:

 The pressur e should be checked only when the tir es ar e

cold. If your vehicle has been parked for at least 3 hours

and has not been driven for more than 1.5 km or 1 mile
since, you will get an accurate cold tire pressure reading.

 Always use a tire pressure gauge. The appearance of the

tire can be misleading. Besides, tire pressures that are even
just a few pounds off can degrade handling and ride.

 Do not bleed or reduce tire pressure after driving. It is

normal for the tire pressure to be higher after driving.

 Never exceed the vehicle capacity weight. The

passengers and luggage weight should be located so that
the vehicle is balanced.

 Be sure to reinstall the tire valve caps. Without the valve

caps, dirt or moisture could get into the valve core and
cause air leakage. If the caps have been lost, have new
ones put on as soon as possible.

364

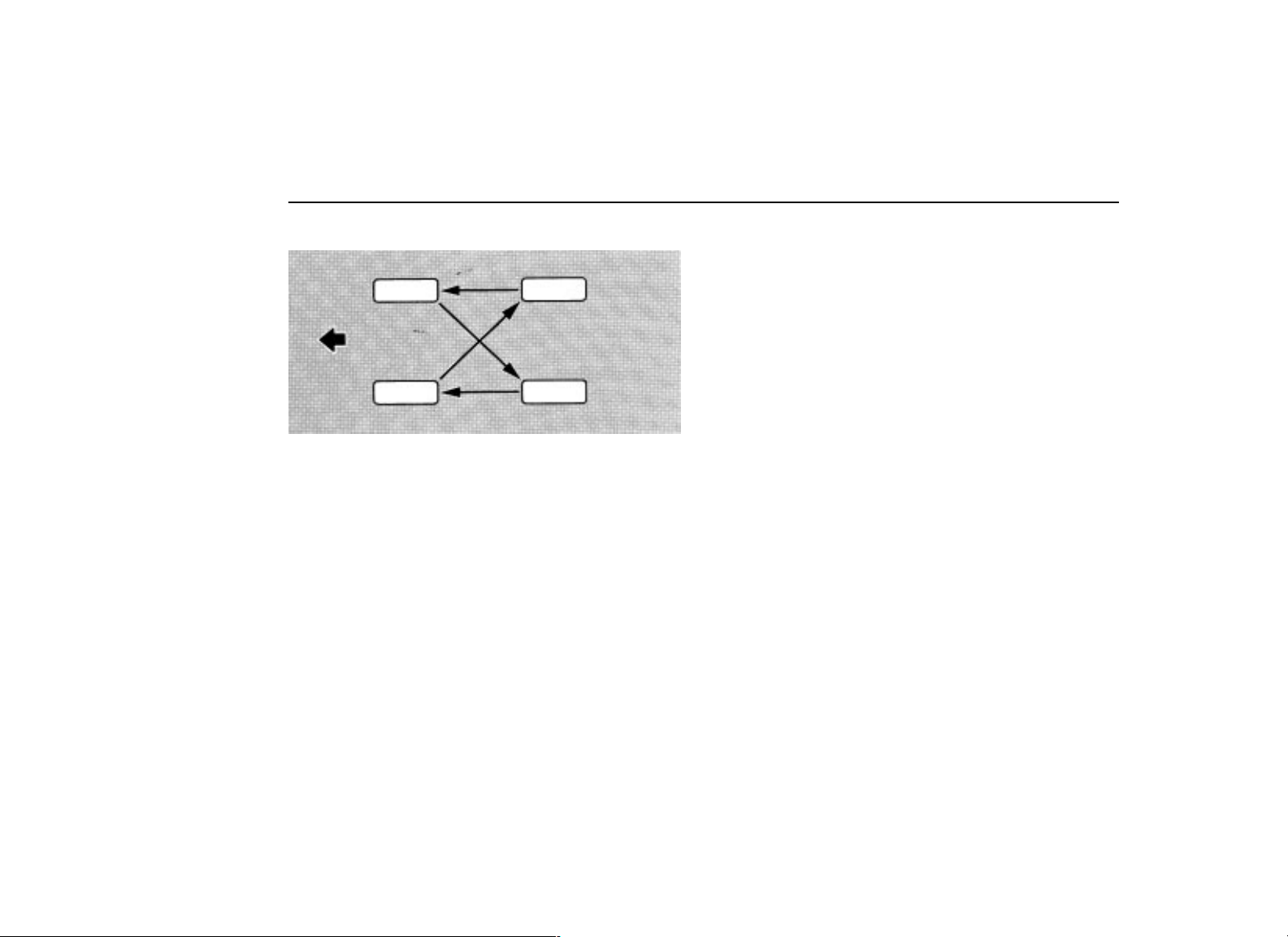

ROTATING TIRES

CHASSIS

To equalize tire wear and help extend tire life, Lexus
recommends that you rotate your tires approximately
every 12000 km (7500 miles). However, the most
appropriate timing for tire rotation may vary according
to your driving habits and road surface conditions.

The wheel assemblies must be rotated as illustrated above.
When rotating tires, check for uneven wear and damage.

Abnormal wear is usually caused by incorrect tire pressure,
improper wheel alignment, out–of balance wheels, or severe
braking.

Before storing radial, snow or studded tires, mark the
direction of rotation and be sure to install them in the same
direction when using them again. Tires should be stored in a
cool dry place.

CHECKING AND REPLACING

TIRES

When to replace your tires

365

CHASSIS

Replace the tires when the tread wear indicators show.
The location of the tread wear indicators is shown by the
”TWI” or ”

The tires on your Lexus have built–in tread wear indicators to
help you know when the tires need replacement. When the
tread depth wears to 1.6 mm (0.06 in.) or less, the indicators
will appear. If you can see the indicators in two or more
adjacent grooves, the tire should be replaced.

The effectiveness of snow tires is lost if the tread wears
down below 4 mm (0.16 in.).

If you have tire damage such as cuts, splits, cracks deep
enough to expose the fabric, or bulges indicating internal
damage, the tire should be replaced.

366

∆” marks molded on the sidewall of each tire.

If a tire often goes flat or cannot be properly repaired due to
the size or location of a cut or other damage, it should be
replaced. If you are not sure, consult with your Lexus dealer.

If an air loss occurs while driving, do not continue driving
with a deflated tire. Driving even a short distance can damage
a tire beyond repair.

Any tires which are over 6 years old must be checked by
a qualified technician even if damage is not obvious.

Tires deteriorate with age even if they have never or seldom
been used.

This also applies to the spare tire and tires stored for future
use.

CHASSIS

Uniform tire quality grading

This information has been prepared in accordance with
regulations issued by the National Highway Traffic Safety
Administration of the U.S. Department of
Transportation. It provides the purchasers and/or
prospective purchasers of Lexus vehicles with
information on uniform tire quality grading.

Your Lexus dealer will help answer any questions you may
have as you read this information.

DOT quality grades – All passenger vehicle tires must
conform to Federal Safety Requirements in addition to
these grades. These quality grades are molded on the
sidewall.

Treadwear – The treadwear grade is a comparative rating

based on the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and a half (1 – 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual
conditions of their use, however , and may depart significantly
from the norm due to variations in driving habits, service
practices and differences in road characteristics and climate.

Traction AA, A, B, C – The traction grades, from highest to
lowest, are AA, A, B and C, and they represent the tire’s
ability to stop on wet pavement as measured under controlled
conditions on specified government test surfaces of asphalt
and concrete. A tire marked C may have poor traction
performance.

Warning: The traction grade assigned to this tire is based on
braking (straight ahead) traction tests and does not include
cornering (turning) traction.

Temperature A, B, C – The temperature grades are A (the
highest), B, and C, representing the tire’s resistance to the
generation of heat and its ability to dissipate heat when tested
under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material
of the tire to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The grade C
corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum

367

CHASSIS

required by law. W arning: The temperature grade of this tire established for a

tire that is properly inflated and not overloaded. Excessive
speed, underinflation, or excessive loading, either separately
or in combination, can cause heat buildup and possible tire
failure.

Tire selection

When replacing a tire, use only the same size and
construction as originally installed and with the same or
greater load capacity.

Using any other size or type of tire may seriously affect
handling, ride, speedometer/odometer calibration, ground
clearance, and clearance between the body and tires or snow
chains.

Do not mix radial, belted, or conventional tires on your
vehicle.

Do not use tires or wheels other than the manufacturer’s
recommended size.

It can cause dangerous handling characteristics, resulting in
loss of control. If you need to change from conventional tires
to radial tires or vice versa, replace them as a set.

368

INSTALLING SNOW TIRES AND

CHAINS

When to use snow tires or chains

Snow tires or chains are recommended when driving on
snow or ice.

On wet or dry road, conventional or radial tires provide better
traction than snow or studded tires.

Snow tire selection

If you need snow tires, select the same size, construction
and load capacity as the original tires on your Lexus.

Do not use tires other than stated above. Since your vehicle
has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires
without first checking local regulations for possible
restrictions.

Snow tire installation

Snow tires should be installed on all wheels.

Installing snow tires on the rear wheels only can lead to an
excessive difference in road grip capability between the front
and rear tires which could cause loss of vehicle control.

CHASSIS

369

CHASSIS

CAUTION

 Snow tires should be inflated as described below, but never

above the maximum cold tire pressure shown on the tire
sidewall.

2

225/55R16 ... 220 kPa (2.2 kgf/cm

 Never drive over 120 km/h (75 mph) with any type of snow

tires.

or bar, 32 psi)

Tire chain selection

Regulations regarding the use of tire chains vary
according to location or type of road. Always check the
local regulations before installing chains.

Use SAE Class ”S” type radial tire chains, with the exception
of radial cable chains or V–bar type chains.

Chain installation

Install the chains on the rear tires as tightly as possible.
Do not use tire chains on the front tires. Retighten chains
after driving 0.5 – 1.0 km (1/4 – 1/2 mile).

When installing chains on your tires, carefully follow the
instructions of the chain manufacturer.

370

CAUTION

 Do not exceed 50 km/h (30 mph) or the chain

manufacturer’s recommended speed limit, whichever is
lower.

 Drive carefully avoiding bumps, holes, and sharp turns,

which may cause the vehicle to bounce.

 Avoid sharp turns or locked–wheel braking, as use of

chains may adversely affect vehicle handling.

CHASSIS

371

CHASSIS

REPLACING WHEELS

When to replace your wheels

If you have wheel damage such as bending, cracks or
heavy corrosion, the wheel should be replaced.

If you fail to replace damaged wheels, a tire may slip off a
wheel or they may cause loss of handling control.

Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.

Wheel selection

When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.

Correct replacement wheels are available at your Lexus
dealer.

A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability,
headlight aim, bumper height, vehicle ground clearance, and
tire or snow chain clearance to the body and chassis.

ALUMINUM WHEEL

PRECAUTIONS

 After driving your vehicle the first 1600 km (1000 miles),

check that the wheel nuts are tight.

 If you have rotated, repaired, or changed your tires, check

that the wheel nuts are still tight after driving 1600 km
(1000 miles).

 When using tire chains, be careful not to damage the

aluminum wheels.

 Use only the Lexus wheel nuts and wrench designed for

your aluminum wheels.

 When balancing your wheels, use only Lexus balance

weights or equivalent and a plastic or rubber hammer.

 As with any wheel, periodically check your aluminum

wheels for damage. If damaged, replace immediately.

372

SUSPENSION AND CHASSIS

CAUTION

Do not modify the suspension/chassis with lift kits, spacers,
springs, etc. It can cause dangerous handling characteristics,
resulting in loss of control.

CHASSIS

373

SECTION 6 – 2

SERVICE PROCEDURES AND
SPECIFICATIONS

Engine

Specifications (SC400) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

330

Specifications (SC300) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

334

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

337

Facts about engine oil consumption . . . . . . . . . . . . . . . . . . . .

339

Used engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

341

Checking the engine oil level . . . . . . . . . . . . . . . . . . . . . . . . .

342

Checking the engine coolant level . . . . . . . . . . . . . . . . . . . . .

347

Checking the engine fan fluid . . . . . . . . . . . . . . . . . . . . . . . . .

349

Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

350

329

ENGINE

SPECIFICATIONS (SC400)

– GENERAL

Model
Type
Bore and stroke
Displacement
Valve clearance (engine cold)

Intake
Exhaust

Drive belt tension

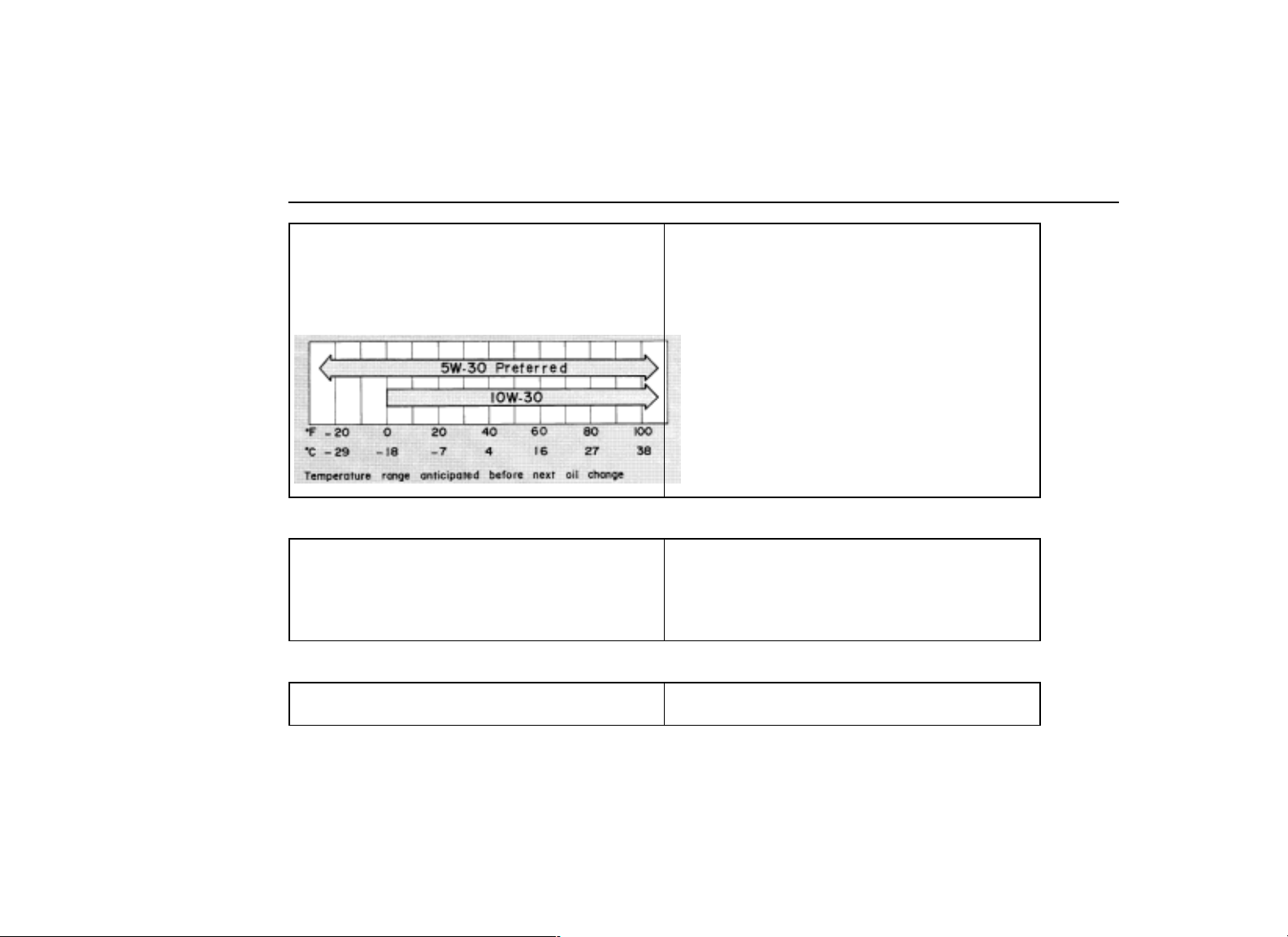

– LUBRICATION SYSTEM

330

1UZ–FE
8 cylinder V type, 4 cycle, gasoline

87.5 X 82.5 mm (3.44 X 3.25 in.)
3969 cm

0.15 – 0.25 mm (0.006 – 0.010 in.)

0.25 – 0.35 mm (0.010 – 0.014 in.)
Automatic adjustment

3

(242.1 cu.in.)

Oil capacity

Drain and refill

with filter
without filter

Oil grade

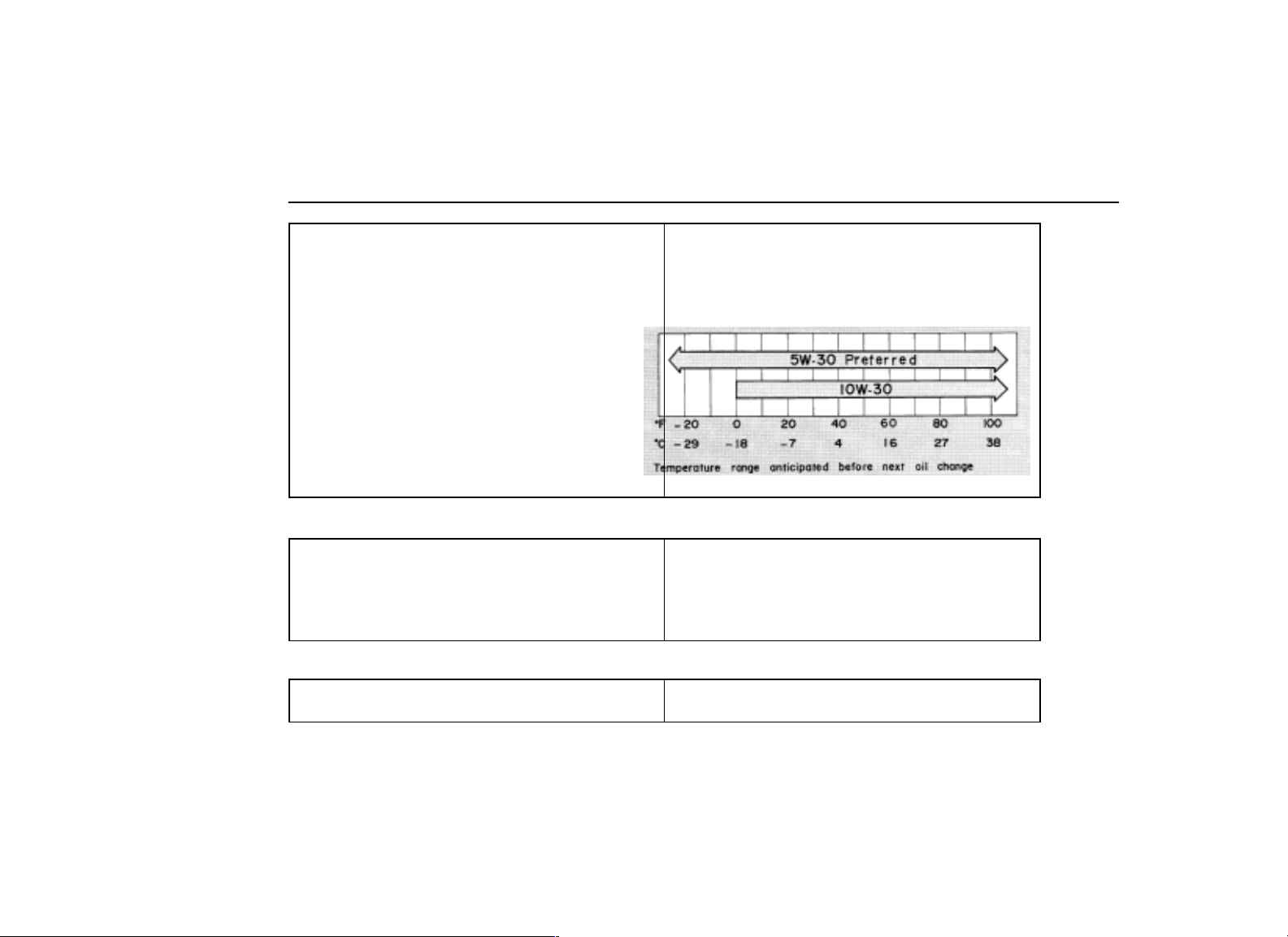

Recommended oil viscosity (SAE):

– COOLING SYSTEM

ENGINE

4.7 L (5.0 qt., 4.2 lmp.qt.)

4.8 L (5.1 qt., 4.2 lmp.qt.)
API SJ, ”Energy–Conserving” multigrade engine oil or
ILSAC multigrade engine oil

Capacity
Coolant type

– FUEL

Fuel type
Octane rating

11.6 L (12.3 qt., 10.2 lmp.qt.)
”Toyota Long Life Coolant” or equivalent

With ethylene–glycol type coolant for a proper corrosion
protection of aluminum components

Do not use alcohol type antifreeze or plain water alone.

Only UNLEADED
91 (Research octane number 96) or higher

331

ENGINE

– IGNITION SYSTEM

Spark plug – Make DENSO

NGK

– Gap

SK20R11
IFR6A11

1.1 mm (0.043 in.)

332

– ELECTRICAL SYSTEM

ENGINE

Battery – Maintenance type battery

Specific gravity reading at 20C (68F):

Charging rates Quick charge

Slow charge

– Non–maintenance battery

Open voltage at 20C (68F):

Charging rates

1.260 Fully charged

1.160 Half charged

1.060 Discharged
15A max.

5A max.

12.7V Fully charged

12.3V Half charged

11.9V Discharged
[Voltage that is checked 20 minutes after the key is
removed with all the lights turned off]

5A max.

333

ENGINE

SPECIFICATIONS (SC300)

– GENERAL

Model
Type
Bore and stroke
Displacement
Valve clearance (engine cold)

Intake
Exhaust

Drive belt tension

– LUBRICATION SYSTEM

334

2JZ–GE
6 cylinder in line, 4 cycle, gasoline

86.0 X 86.0 mm (3.39 X 3.39 in.)
2997 cm

0.15 – 0.25 mm (0.006 – 0.010 in.)

0.25 – 0.35 mm (0.010 – 0.014 in.)
Automatic adjustment

3

(182.9 cu.in.)

Oil capacity

Drain and refill

with filter
without filter

Oil grade

Recommended oil viscosity (SAE):

– COOLING SYSTEM

ENGINE

5.2 L (5.5 qt., 4.5 lmp.qt.)

4.9 L (5.2 qt., 4.4 lmp.qt.)
API SJ, ”Energy–Conserving” multigrade engine oil or
ILSAC multigrade engine oil

Capacity
Coolant type

– FUEL

Fuel type
Octane rating

8.4 L (8.9 qt., 7.4 lmp.qt.)
”Toyota Long Life Coolant” or equivalent

With ethylene–glycol type coolant for a proper corrosion
protection of aluminum components

Do not use alcohol type antifreeze or plain water alone.

Only UNLEADED
91 (Research octane number 96) or higher

335

ENGINE

– IGNITION SYSTEM

Spark plug – Make DENSO

NGK

– Gap

– ELECTRICAL SYSTEM

Battery – Maintenance type battery

Specific gravity reading at 20C (68F):

Charging rates Quick charge

– Non–maintenance battery

Open voltage at 20C (68F):

Charging rates

Slow charge

PK16TR11
BKR5EKPB11

1.1 mm (0.043 in.)

1.260 Fully charged

1.160 Half charged

1.060 Discharged
15A max.

5A max.

12.7V Fully charged

12.3V Half charged

11.9V Discharged
[Voltage that is checked 20 minutes after the key is
removed with all the lights turned off]

5A max.

336

ENGINE

FUEL

Fuel type

Your vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Lexus has a smaller
fuel tank opening. The special nozzle on pumps with
unleaded fuel will fit it, but the larger nozzle on pumps with
leaded gas will not.

At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB

3.5–M93 in Canada.

NOTICE

Do not use leaded gasoline. Use of leaded gasoline will
cause the three–way catalytic converter to lose its
effectiveness and the emission control system to function
improperly. Also, this can increase maintenance costs.

Octane rating

Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for
optimum engine performance. However, if such premium
type cannot be obtained, you may temporarily use
unleaded gasoline with an Octane Rating as low as 87
(Research Octane Number 91).

Use of unleaded fuel with an octane number or rating lower
than stated above will cause persistent heavy knocking. If
severe, this will lead to engine damage.

If your engine knocks ...

If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your Lexus
dealer.

However, now and then, you may notice light knocking for a
short time while accelerating or driving up hills. This is no
cause for concern.

Gasolines containing detergent additives

Lexus recommends use of gasolines that contain detergent
additives to avoid build–up of engine deposits.

For further details, ask your Lexus dealer or a local gasoline
retailer.

Improved gasolines

The American Automobile Manufacturers Association
(AAMA) has developed a specification of improved
gasolines. The AAMA specification offers optimal fuel
information for better vehicle performance and better
protection of your engine.

Lexus recommends the use of gasolines that meet the AAMA
specification, if available, for improved drivability and
emission control system.

337

ENGINE

Gasolines containing MTBE

Gasolines that contain MTBE (Methyl Tertiary–Butyl
Ether) are available in the market. If you use a gasoline
mixed with MTBE, make certain that it does not contain
more than 15% of MTBE.

Gasolines containing MMT

Some gasolines contain an octane–enhancing additive
called MMT (methylcyclopentadienyl manganese
tricarbonyl).

Lexus does not recommend the use of gasolines that contain
MMT. If fuels containing MMT are used, your emission
control system may be adversely affected. The Malfunction
Indicator Lamp on the instrument cluster may come on. If this
happens, contact your Lexus dealer for service.

Gasolines containing alcohol

Gasohol is a mixture of gasoline and ethanol. If you use
gasohol in your Lexus, be sure that it is unleaded, has an
octane rating no lower than 87 and does not contain more
than 10% ethanol. Lexus does not recommend the use of
gasolines containing methanol.

If you use gasoline containing methanol, use only gasoline
meeting the requirements above and also containing less than
5% methanol with cosolvents and corrosion inhibitors for
methanol.

338
