Lexus RX 400h Navigation Manual
RX400h_Navi_U
(L/O 0608)
Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sensors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street
address or a major intersection close to it and the system will guide you
there.
The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.
i
RX400h_Navi_U
(L/O 0608)
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstances. For more information on the limitations of the system, refer to
pages 284 through 285.
ii
Important information about
this manual
Safety Instruction
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are informed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the vehicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in order to avoid or reduce the risk of damage to your vehicle and its equipment.
INFORMATION
This provides additional information.
RX400h_Navi_U
(L/O 0608)
To use this system in the safest possible
manner, follow all the safety tips shown below.
This system is intended to assist in reaching the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and prevents safe driving. The first priority while
driving should always be the safe operation of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly familiar with it. Read the entire Navigation System Owner’s Manual to make sure you understand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may become inoperable when driving. Unavailable touch−screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
iii
RX400h_Navi_U
(L/O 0608)
CAUTION
D For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
D While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instructions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guidance. Use it just for reference. If the system cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street closures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency services. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.
iv
Quick guide —

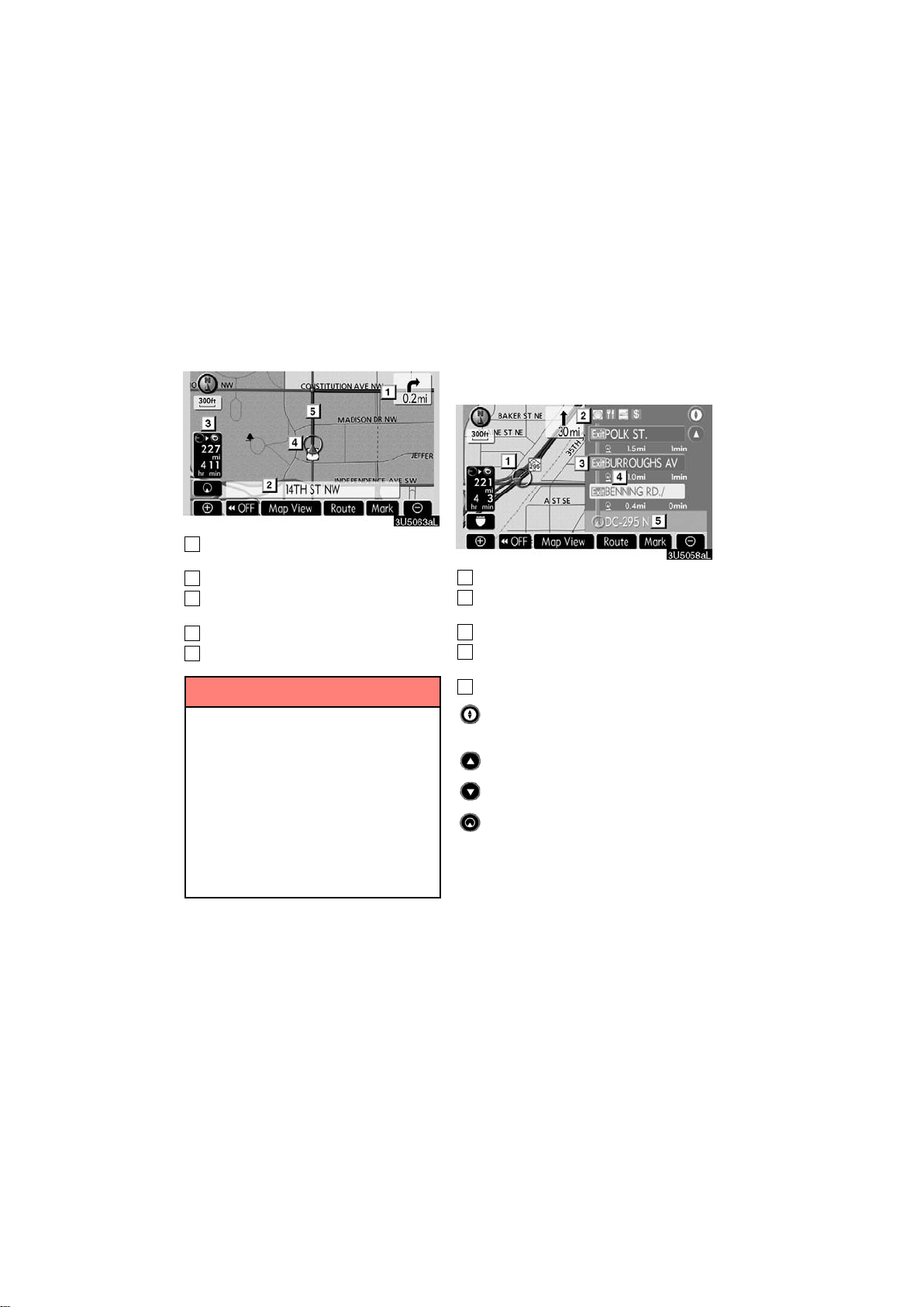

— Overview buttons and guidance screen
No. Name Function Page
North−up or
1
heading−up
symbol
2
Scale indicator This figure indicates the map scale. 14
3
“AAOFF”
4
“Map View”
5
“Route” Touch this button to change the route. 50, 52
6
“Mark”
This symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON""”.
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
Touch this button to register the current
position or the cursor position as a
memory point.
16
86
56, 59, 60, 61
9
v
No. Name Function Page
Zoom out
7
touch−screen
button
“DISPLAY”
8
button
9
“INFO” button
10
“MENU” button
11
“DEST” button
Touch this button to reduce the map
scale.
Push this button to display the “Display”
screen.
Push this button to display the “Information” screen.
Push this button to display the “Menu”
screen.
Push this button to display the “Destination” screen.
14
154
2, 96, 99, 107,
156, 159, 161
vii, ix, 64,
66, 67, 68, 70,
83, 296
xi, xii, 18,
19
Push this button to repeat a voice guid-
“MAP/VOICE”
12
button
ance, cancel one touch scroll, start
guidance, and display the current posi-
8, 48
tion.
Zoom in
13
touch−screen
button
Foot print map
14
touch−screen
button
Touch this button to magnify the map
scale.
Touch this button to display the foot print
map and the building information.
14
15
Screen
configuration
15
touch−screen
Touch this button to change the screen
mode.
12
button
Distance and time
16
to destination
“GPS” (Global
17
Positioning
System) mark
Speech
18
command system
indicator
Displays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
Whenever the vehicle is receiving signals from the GPS, this mark is displayed.
The microphone is shown by pushing
the speech command switch. The
speech command system can be operated while this indicator is shown.
49
284
151
vi
0U5045X
— Registering home
0U5038L

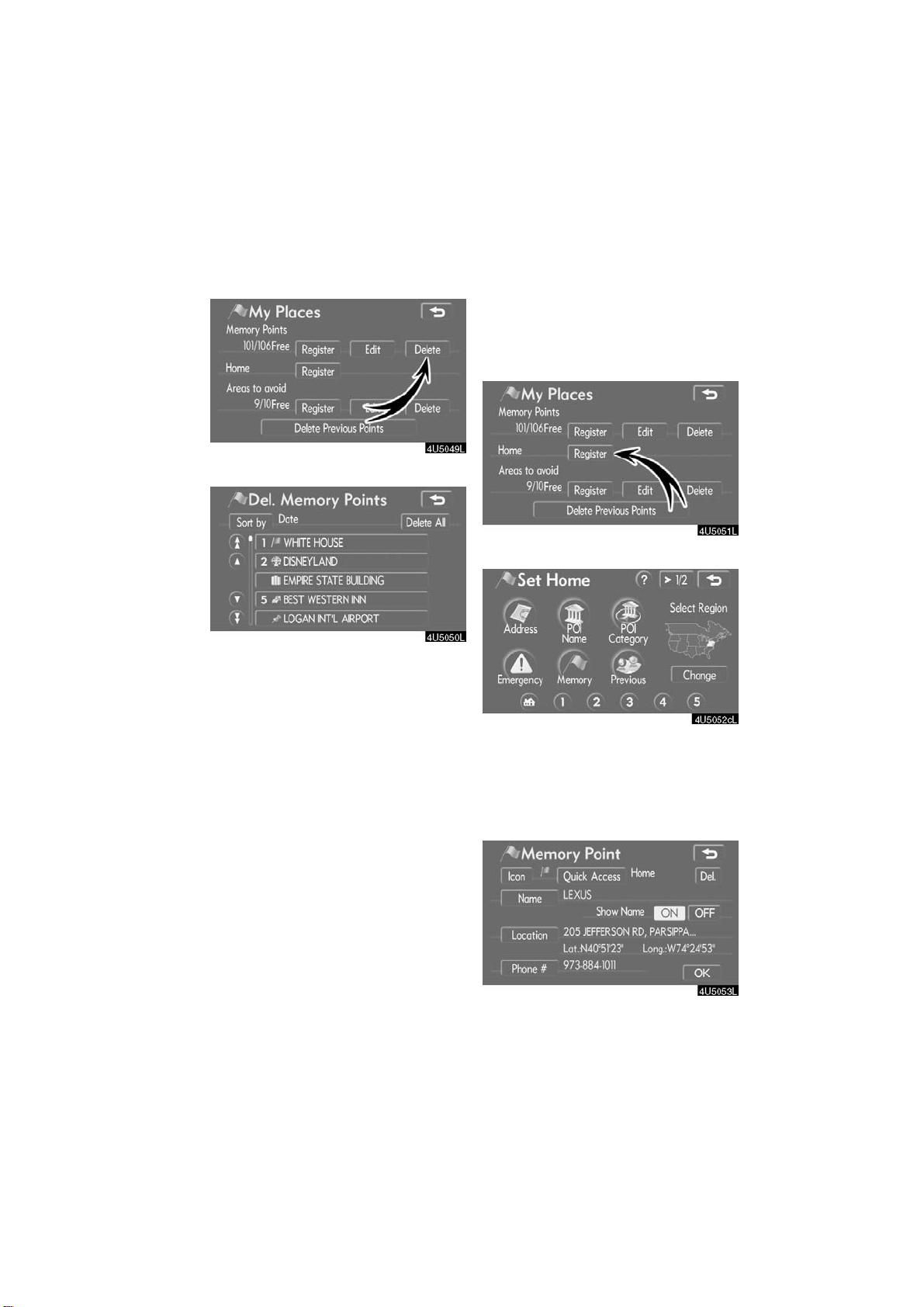

1 Push “MENU” button.
2 Touch “My Places”.
3 T ouch “Register” of the home.
4U5051L
4U5052cL
4 There are 13 different methods t o
search your home.
See “Destination search” on page 19.
vii
1U5046bL
0U5036L
5 T ouch “Enter”.
The “Memory Point” screen is displayed.
6 Touch “OK”.
Registration of home is complete.
You can change the icon, quick access,
name, location and phone number. (See “
— Editing memory points” on page 72.)
viii
— Registering preset memory point
(Quick access)
0U5045X
0U5038L
1 Push “MENU” button.
2 Touch “My Places”.
3 Touch “Register” of the memory
points.
4U5034L
4U5035cL
4 There are 13 different methods t o
search preset memory point.
See “Destination search” on page 19.
ix
1U5046bL
0U5035L
4U5042L
5 T ouch “Enter”.
The “Memory Point” screen is displayed.
6 Touch “Quick Access”.
7 Touch one o f preset buttons 1 to
5.
0U5034L
8 T ouch “OK”.
Registration of preset memory point is
complete.
You can change the icon, quick access,
name, location and phone number. (See “
— Editing memory points” on page 72.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 22.)
x
0U5044X
— Operation flow: guiding the route
0U5002aL
1U5046bL

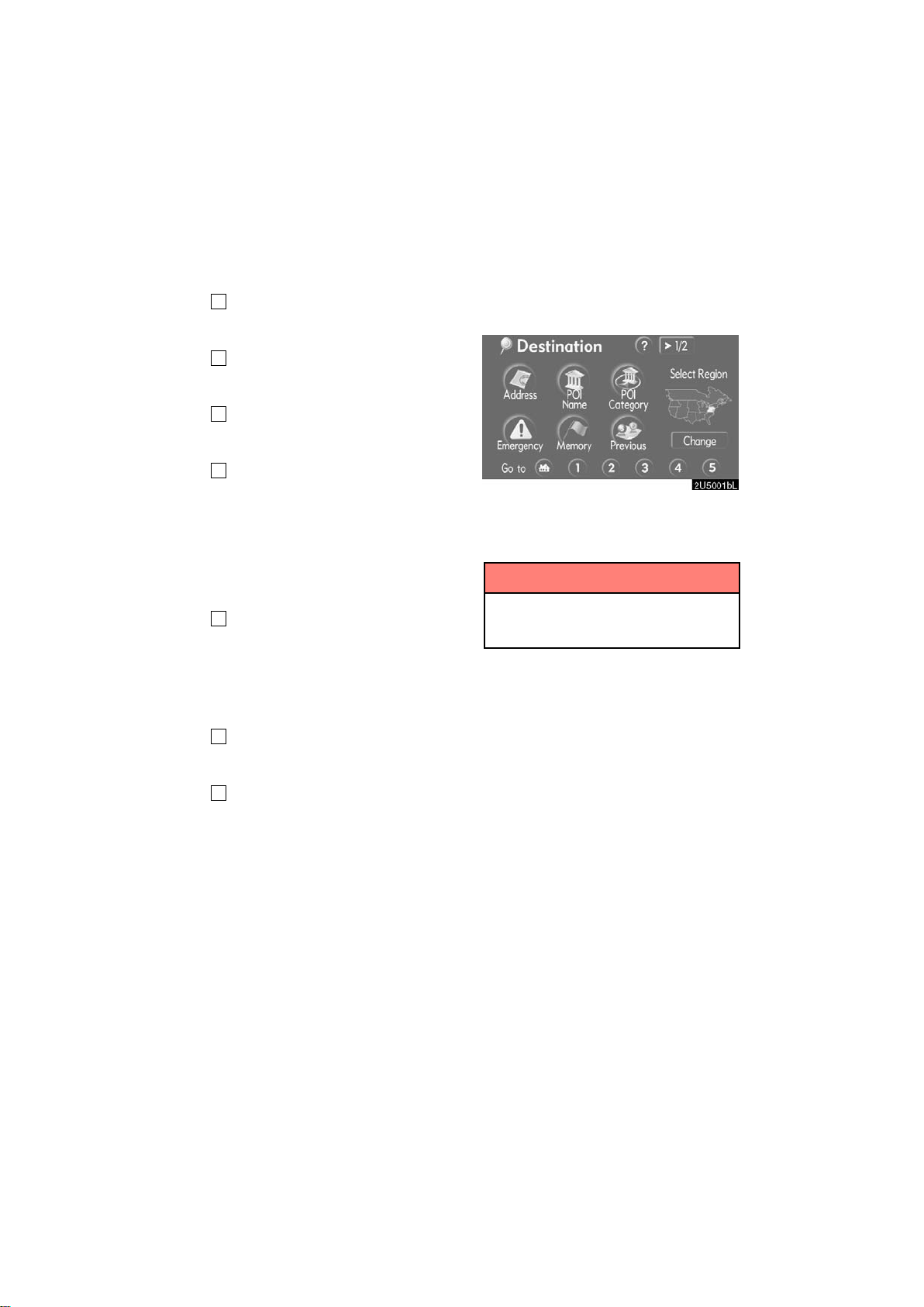

1 Push “DEST” button.
2 There are 13 different methods t o
search destinations.
See “Destination search” on page 19.
3 Touch “Enter”.
The navigation system performs a search
for the route.
1U5040aL
4 Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 38.)
5 Guidance to the destination is
given via voice and on the guidance screen.
xi
0U5044X
— Setting home as the destination
2U5088bL
1 Push “DEST” button.
2
Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page 77.)
3 Touch “Enter”.
The navigation system performs a search
for the route.
1U5061L
1U5040aL
4 Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 38.)
5 Guidance to the destination is
given via voice and on the guidance screen.
xii
SECTION I
BASIC FUNCTIONS
Basic information before operation
D Initial screen 2
D Touch screen operation 3
D Inputting letters and numbers/List screen operation 4
D Function help 7
D Map screen operation 8
Current position display 8
Screen scroll operation 8
Switching the screens 12
Map scale 14
Foot print map 15
Orientation of the map 16
1
When the ignition switch is in the “ACC” or
Initial screen
“ON” position, the initial screen will be
displayed and the system will begin operating.
CAUTION
When the vehicle is stopped with the
hybrid system operating, always apply the parking brake for safety.
D Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Information” screen will be displayed when the
navigation system is in operation.
After a few seconds, the “CAUTION”
screen will be displayed.
Touch “English”, “Français” or “Español” to select a language.
When “I Agree” is touched
screen, the map screen will be displayed.
The “CAUTION” screen will be displayed
when the “INFO” button is pushed and
“Language” is touched. Then select a
language. (See “Selecting a language” on
page 161.)
on the
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not operated for several seconds.
To prevent this information screen from being displayed again, touch “Do Not
Display This Message Again.”.
To register “Maintenance information”, see
“Maintenance information” on page 96.
2
D Memo information
Touch screen operation
This system notifies about a memo entry.
At the specified date, the memo information will be displayed when the navigation
system is in operation. The memo information screen will be displayed every time the
system is turned on.
The memo of the current date can be
viewed by touching “Memo”. (See “ —
Editing a memo” on page 101.)
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not operated for several seconds.
To prevent this information screen from being displayed again, touch “Do Not
Display This Message Again.”.
To register “Memo information”, see “Calendar with memo” on page 99.
This system is operated mainly by the
touch−screen buttons on the screen.
To prevent damage to the screen, lightly touch buttons on the screen with the
finger. When a button on the screen is
touched, a beep sounds.
Do not use objects other than the finger
to touch the screen.
INFORMATION
D If the system does not respond to
a touch on a touch−screen button,
move the finger away from the
screen and then touch it again.
D Dimmed touch−screen buttons
cannot be operated.
D Wipe off fingerprints using a glass
cleaning cloth. Do not use chemical cleaners to clean the touch
screen.
D The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
D Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be deleted. Also, the touch−screen buttons may be harder than usual to
depress.
D When you look at the screen
through polarised material such as
polarised sunglasses, the screen
may be dark and hard to see. If so,
take off your sunglasses.
3
Inputting letters and
numbers/List screen
operation
When searching for an address or a name,
or entering a memo, letters and numbers
can be input via the touch screen.
INFORMATION
Keyboard layout can be changed.
(See page 85.)

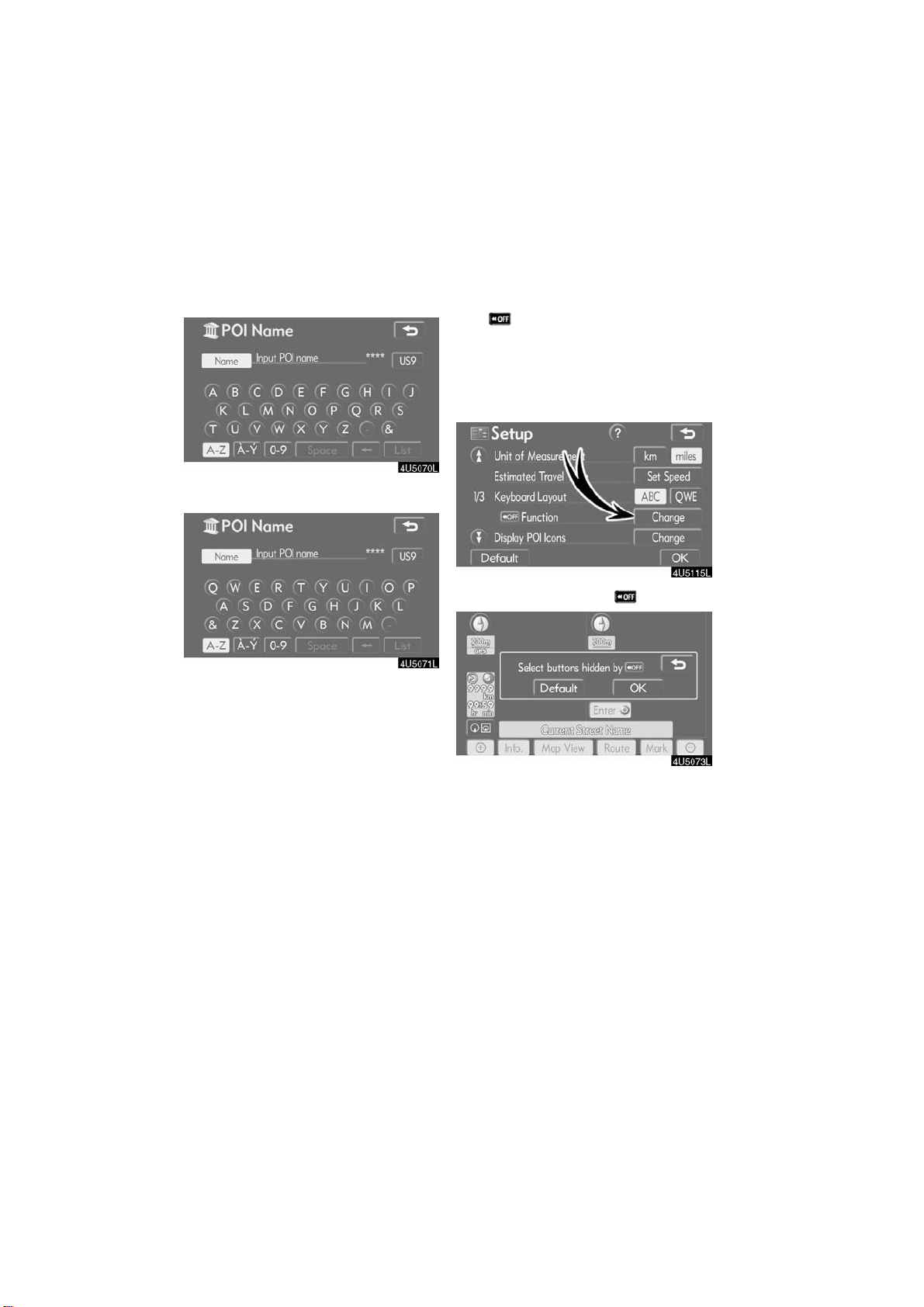

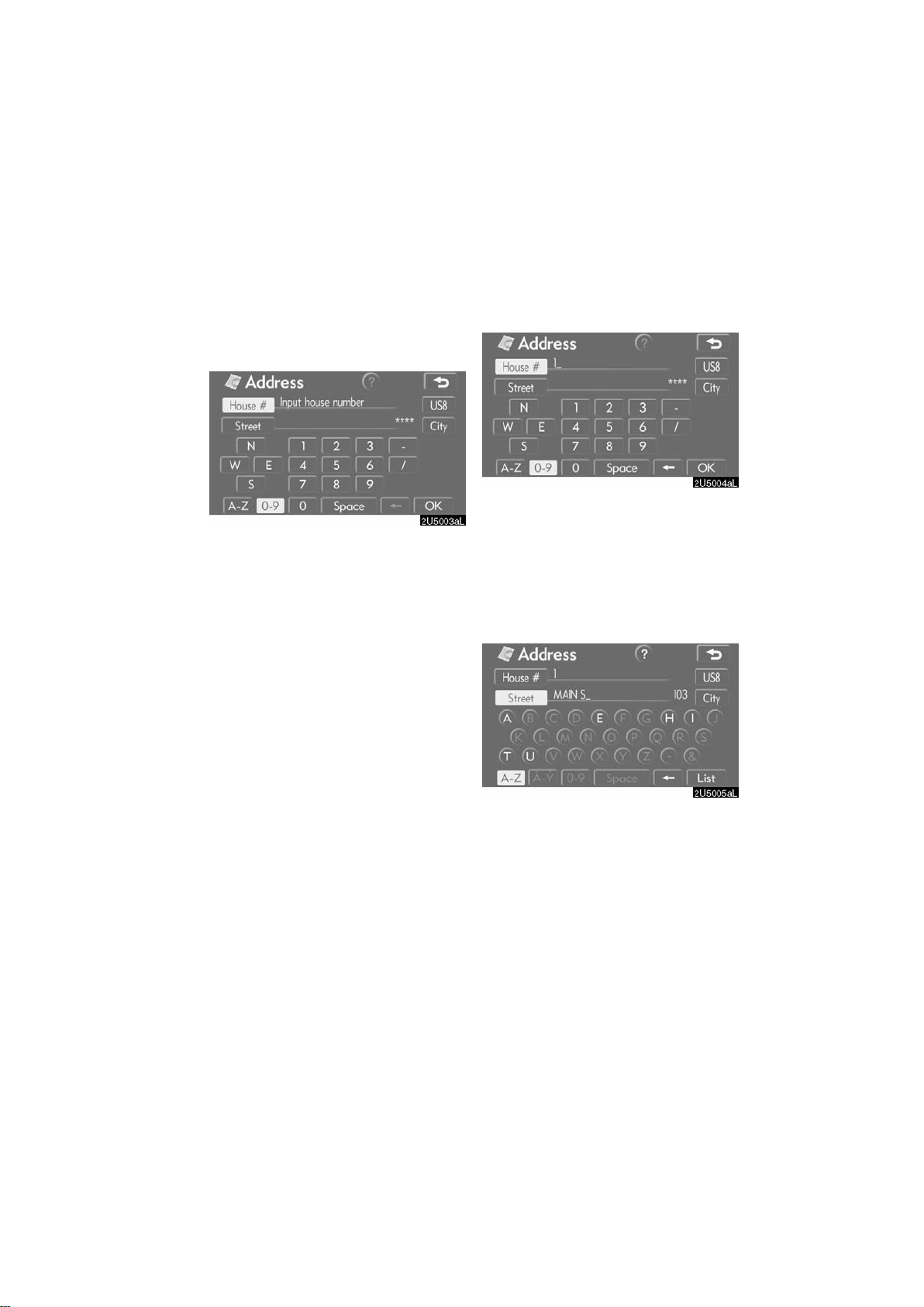

D To input letters
To display the alphabet keys, touch “A−Z”
or
“ ”.
Enter letters by touching the alphabet keys
directly.
: Touching this button erases one
letter. By holding this button, letters will continue to be erased.
On certain letter entry screens, letters can
be entered in upper or lower case.
: To enter in lower case.
: To enter in upper case.
4
D To input numbers and symbols
:
To display the number keys and symbol
keys, touch “0−9”.
Enter numbers and symbols by touching
the number keys and symbol keys directly.
Touching this button erases
one letter. By holding this
button, letters will continue to
be erased.
: Touching this button displays
other symbols.
D To display the list
To search for an address or a name, touch
“List”. Matching items from the database
are listed even if the entered address or
name is incomplete.
If the number of matches is four or less, the
list is displayed without touching “List”.
INFORMATION
The number of matching items is
shown to the right side of the screen.
If the number of matching items is
more than 9,999, the system displays
∗∗∗∗” on the screen.
“
5
D List screen operation
When a list is displayed, use the appropriate button to scroll through the list.
D Sorting
The order of a list displayed on the screen
can be rearranged.
TYPE A
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the beginning
of the name.
1. Touch “Sort by”.
2. Select the desired sorting criteria.
Sorting criteria are as follows:
“Distance”: To sort in the order of dis-
tance from your current location.
“Date”: To sort in the order of the date.
“Category”: To sort in the order of the
category.
“Icon”: To sort in the order of the icons.
“Name”: To sort in order by name.
“Attribute”: To sort in order by attribute.
6
TYPE B
Function help
“Dist. Sort”: To sort in the order of dis-
tance from the current vehicle location.
The distance from current vehicle position
up to the destination is displayed to the
right of the name.
“Name Sort”: To sort in alphabetical order
by name.
Explanations for the functions of the “Destination”, “Setup” and “Menu” screens can
be viewed.
Touch .
: To view the previous page.
: To view the next page.
: To return to the previous screen.
7
Map screen operation —
— Current position display
— Screen scroll operation
(one−touch scroll)
When starting the navigation system, the
current position is displayed first.
This screen displays the current vehicle
position and a map of the surrounding local
area.
The current vehicle position mark (1) appears in the center or bottom center of the
map screen.
A street name will appear on the bottom of
the screen, depending on the scale of the
2
map (
You can return to this map screen that
shows your current position at any time
from any screen by pushing the “MAP/
VOICE” button.
While driving, the current vehicle position
mark is fixed on the screen and the map
moves.
The current position is automatically set as
the vehicle receives signals from the GPS
(Global Positioning System). If the current
position is not correct, it is automatically
corrected after the vehicle receives signals from the GPS.
).
When any point on the map is touched,
that point moves to the center of the screen
and is shown by the cursor mark (
Use the scroll feature to move the desired
point to the center of the screen for looking
at a point on the map that is different from
the current position of the vehicle.
If the finger is continuously held on the
screen, the map will continue scrolling in
that direction until the finger is removed.
A street name, city name, etc. of the
touched point will be shown, depending on
the scale of the map (
the current position to
shown (
After the screen is scrolled, the map remains centered at the selected location
until another function is activated. The current vehicle position mark will continue to
move along your actual route and may
move off the screen. When the “MAP/
VOICE” button is pushed, the current vehicle position mark returns to the center of
the screen and the map moves as the vehicle proceeds along the designated route.
3
).
2
). Distance from
will also be
1
).
D After 12 volt battery disconnec-
tion, or on a new vehicle, the current position may not be correct.
As soon as the system receives
signals from the GPS, the correct
current position is displayed.
D To correct the current position
manually, see page 91.
INFORMATION
INFORMATION
When the one−touch scroll feature is
used, the current vehicle position
mark may disappear from the screen.
Move the map with a one−touch scroll
again or push the “MAP/VOICE” button to return to the current vehicle
position map location display.
8
D To set the cursor position as a des-
tination
A specific point on the map can be set as
a destination using the one−touch scroll
function.
Touch “Enter ”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 38.)
D To register the cursor position as a
memory point
Memory point registration enables easy
access to a specific point.
Touch “Mark”.
When you touch “Mark”, the following
screen appears for a few seconds, and
then the map screen returns.
The registered point is shown by on the
map.
To change the icon or name, etc., see “ —
Editing memory points” on page 72.
Up to 106 memory points can be registered. If there is an attempt to register
more than 106, a message appears for
confirmation.
9

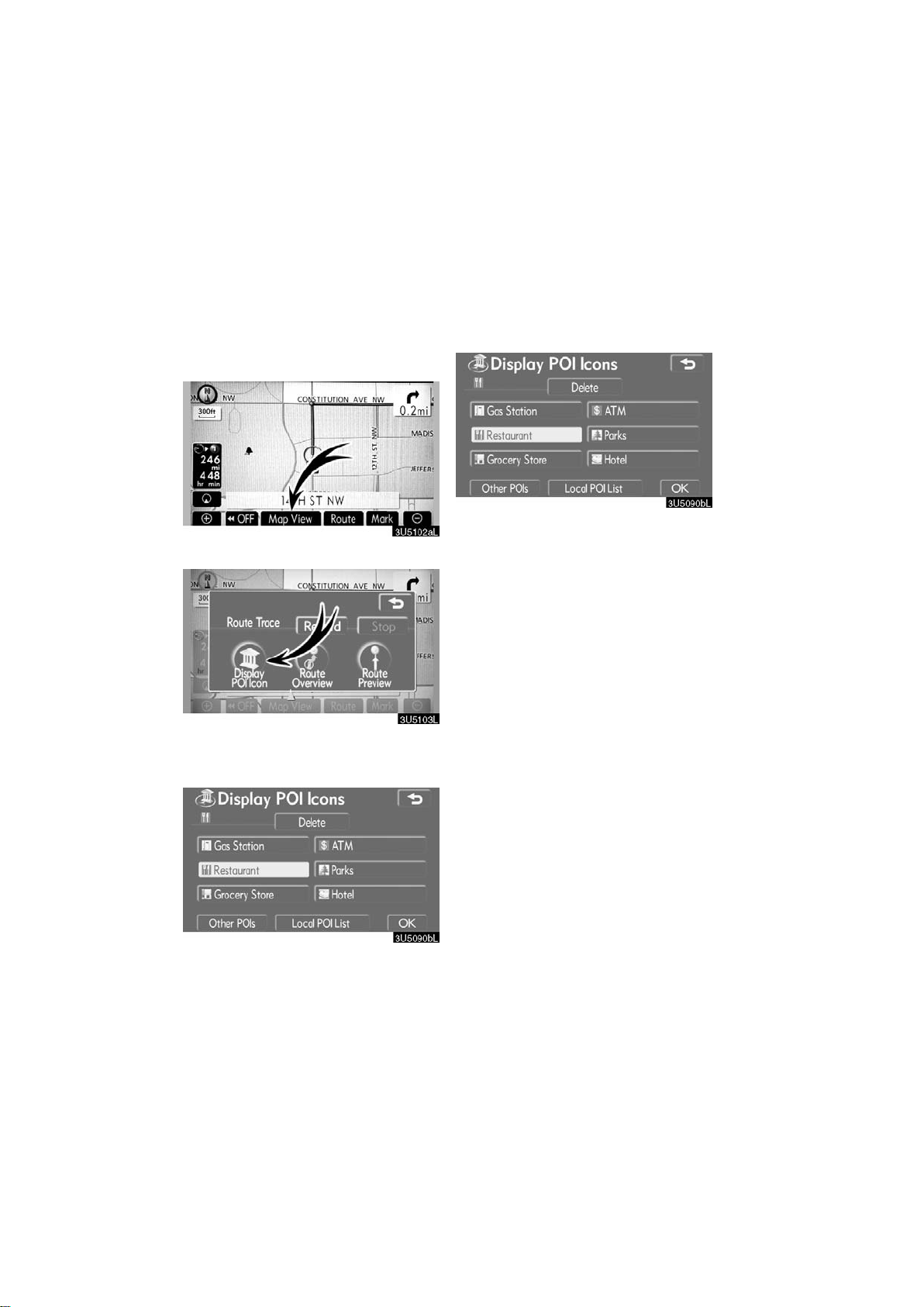

D To see information about the icon
where the cursor is set
To display information about an icon, set
the cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
cursor is set as a destination.
If there is already a set destination, “Add
to
“Add to
“Replace
tinations and set a new one.
To register this POI as a memory point,
touch “Mark”. (See page 71.)
If
number can be called.
” is touched, the position of the
” and “Replace ” are displayed.
”: To add a destination.
”: To delete the existing des-
is touched, the registered telephone
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See “
— Display POI icons” on page 56.)
10
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed
on the top of the screen.
DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
cursor is set as a destination.
If there is already a set destination, “Add
to
“Add to
“Replace
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 72.)
To delete a memory point, touch “Delete”.
If
number can be called.
” is touched, the position of the
” and “Replace ” are displayed.
”: To add a destination.
”: To delete the existing des-
is touched, the registered telephone
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.
is touched, the registered telephone
If
number can be called.
11
Any one of the screen configurations can
— Switching the screens
be selected .
1. Touch this button to display the following screen.
2. To select the desired screen configuration, touch one of the following buttons.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
: To display the single map screen.
(See page 13.)
: To display the dual map screen.
(See page 13.)
: To display the compass mode
screen. (See page 14.)

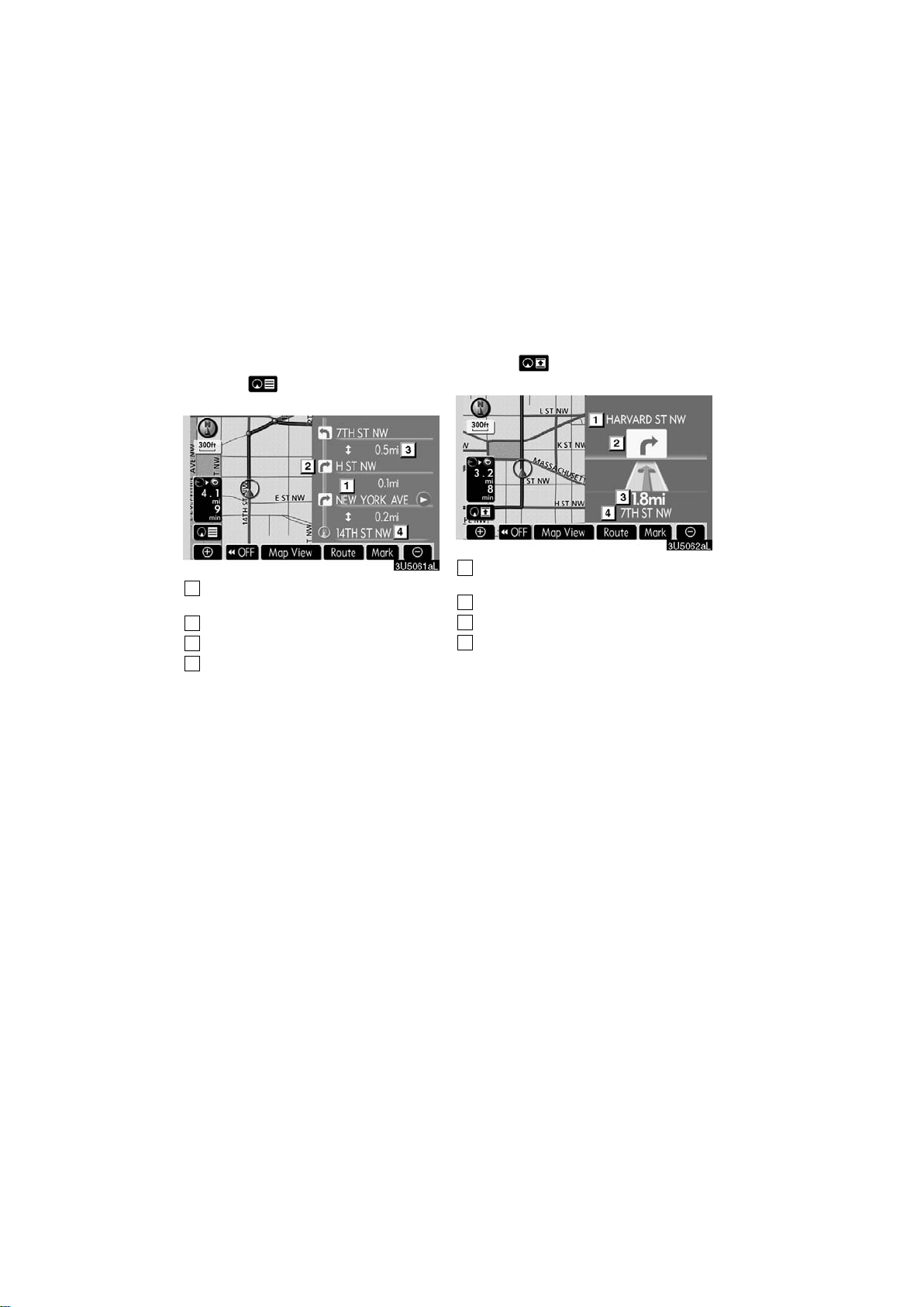

: To display the turn list screen.
(See page 46.)
: To display the arrow screen. (See
page 46.)
: To display the freeway information
screen. (See page 44.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
45.)
12
D Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.
DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited by touching any specific point on the right side map.
This screen can perform the following procedures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete editing.
The screen returns to the dual map screen.
13
COMPASS MODE
— Map scale
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and current position, as well as a compass, is displayed on the screen.
The destination mark is displayed in the direction of the destination. When driving refer to the longitude and latitude coordinates, and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.
Touch or to change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
changes normally. By continuing to touch
the button, the scale bar changes smoothly.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north−up symbol or heading−up symbol at
the top left of the screen.
or until the scale bar
INFORMATION
When the map scale is at the maximum range of 250 miles (400 km),
is not shown. When the map
scale is at the minimum range of 150
feet (50 m), is not shown. In
areas where the foot print map is
available the map scale changes from
to when at the minimum
range.
14
For the area which is covered by the foot
Foot print map
print map (Some areas in the following cities: Detroit, Chicago, N.Y., L.A), you can
switch to the foot print map on a scale of 75
feet (25 m).
D To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
D If the map or the current position is
moved to the area which is not covered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
D On the foot print map, a one way
street is displayed by .
D It is not possible to perform scroll-
ing on the foot print map (one−
touch scroll) while driving.
D To display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map display.
2. Using the eight−direction arrow,
move the cursor to the position of the
building to display building information.
3. Touch “Building Info.”.
15
Details of POIs in some buildings may be
— Orientation of the map
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.
" North−up screen
" Heading−up screen
The orientation of the map can be changed
from North−up to Heading−up by touching
the orientation symbol at the top left of the
screen.
North−up symbol
Regardless of the direction of vehicle travel, North is always up.
Heading−up symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
16
SECTION II
DESTINATION SEARCH
Destination search
D Quick reference (”Destination” screen) 18
D Destination search 19
Selecting the region to search 20
Destination search by Home 22
Destination search by Quick access 22
Destination search by ”Address” 23
Destination search by ”POI Name” 27
Destination search by ”POI Category” 30
Destination search by ”Emergency” 33
Destination search by ”Memory” 34
Destination search by ”Previous” 34
Destination search by ”Map” 35
Destination search by ”Freeway Ent./Exit” 36
Destination search by ”Coordinates” 37
Destination search by ”Phone #” 38

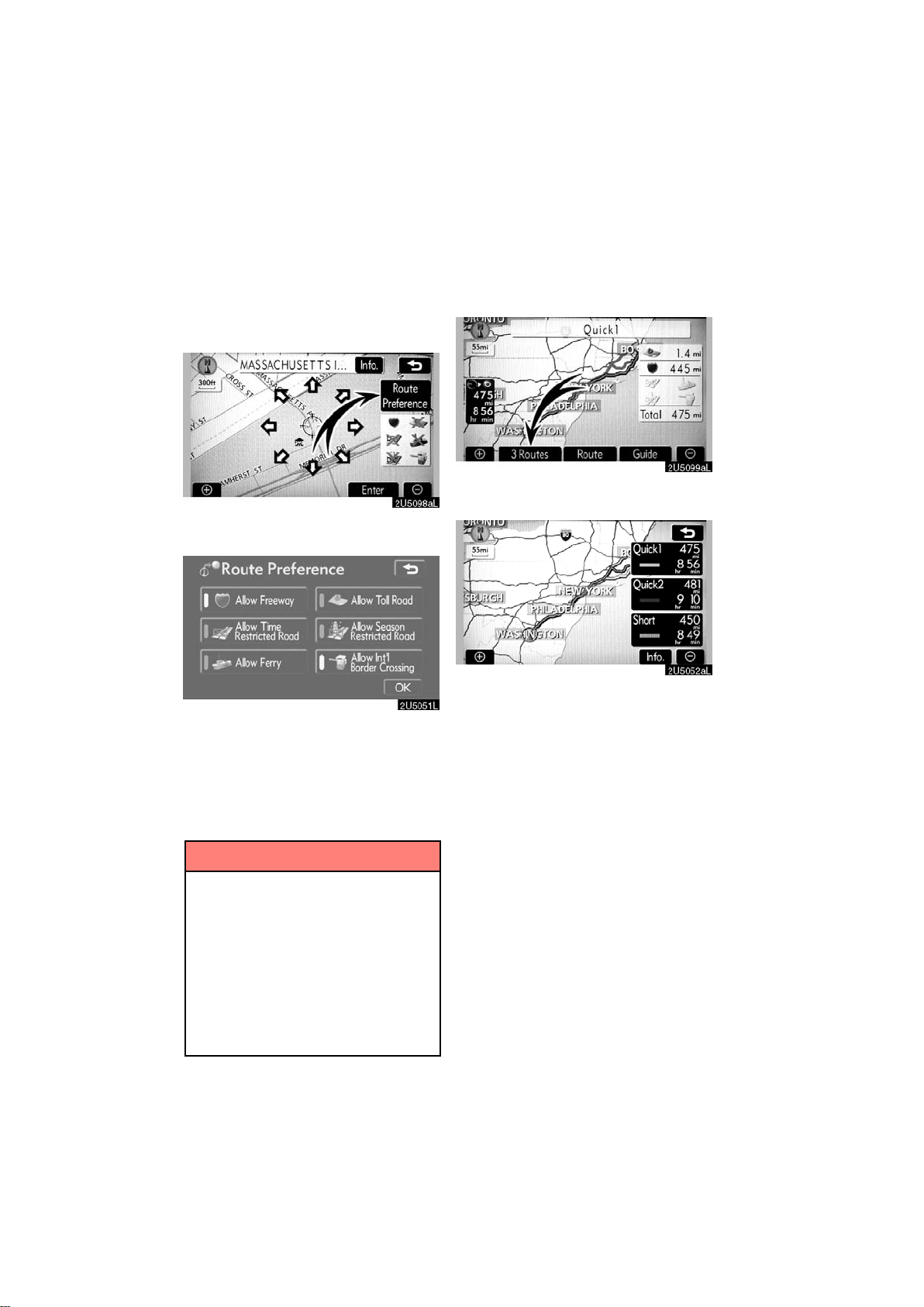

D Starting route guidance 38
17
1
Quick reference (“Destination” screen)

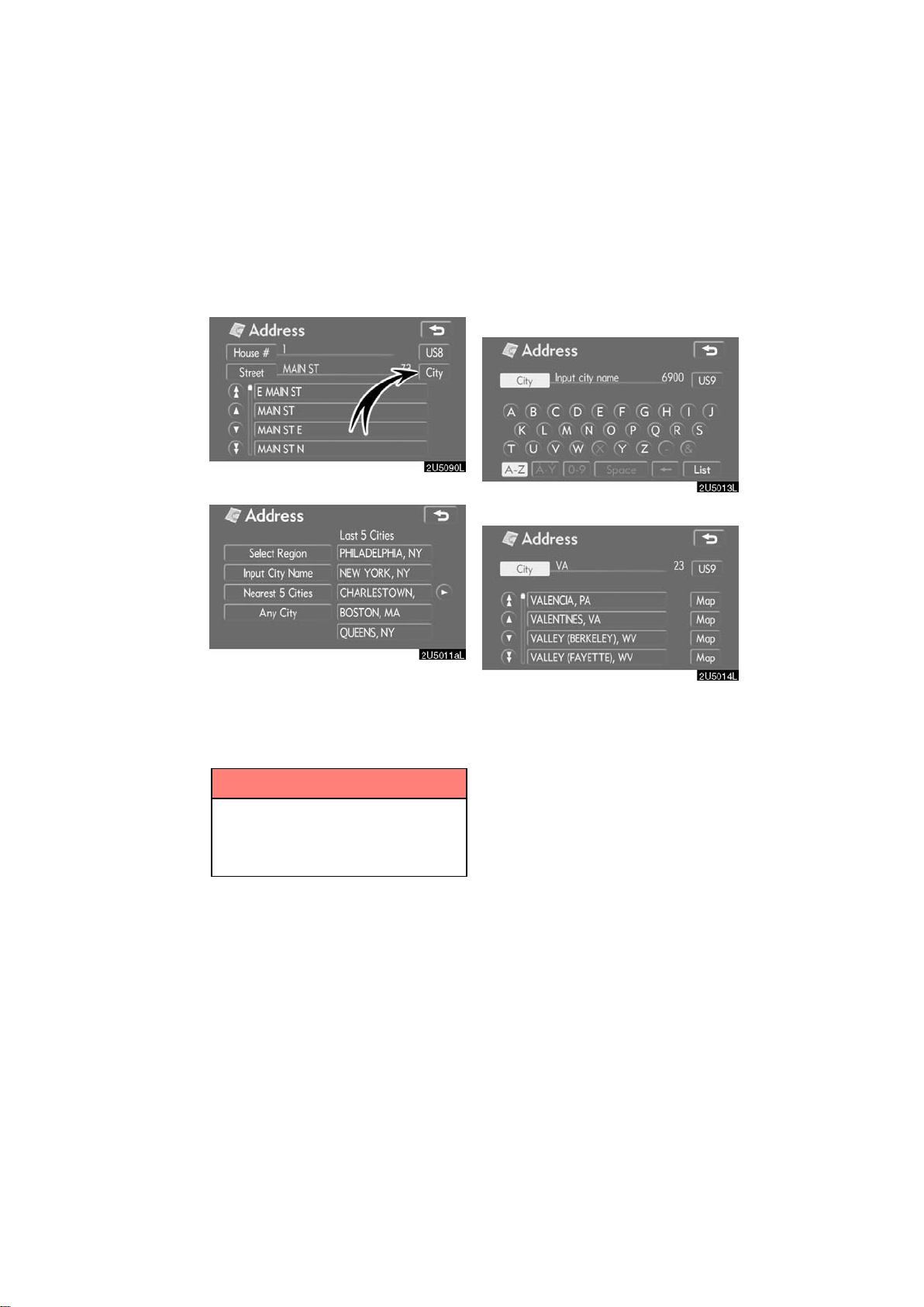

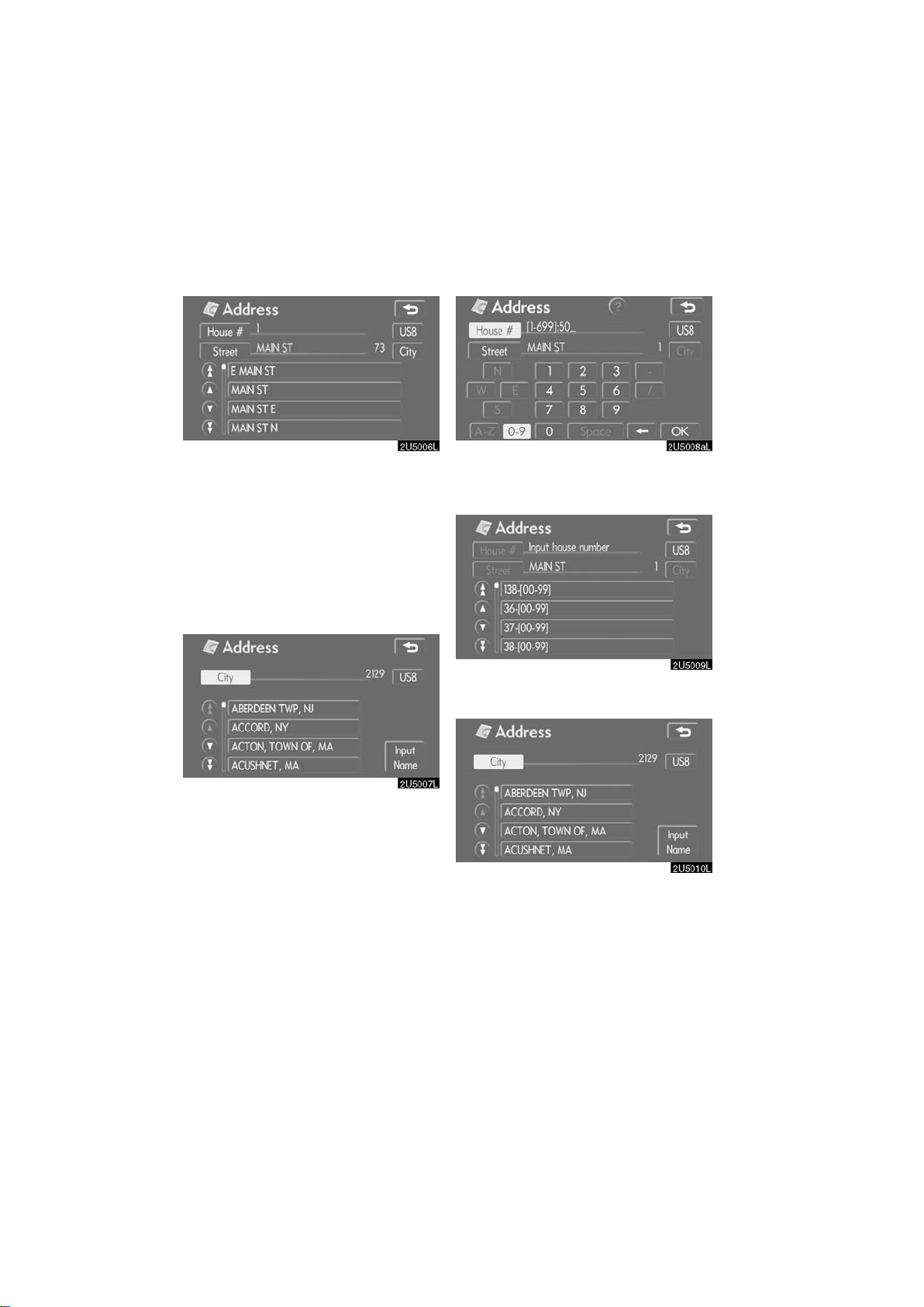

“Address”
A house number and the street address
can be input by using the input keys.
23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2

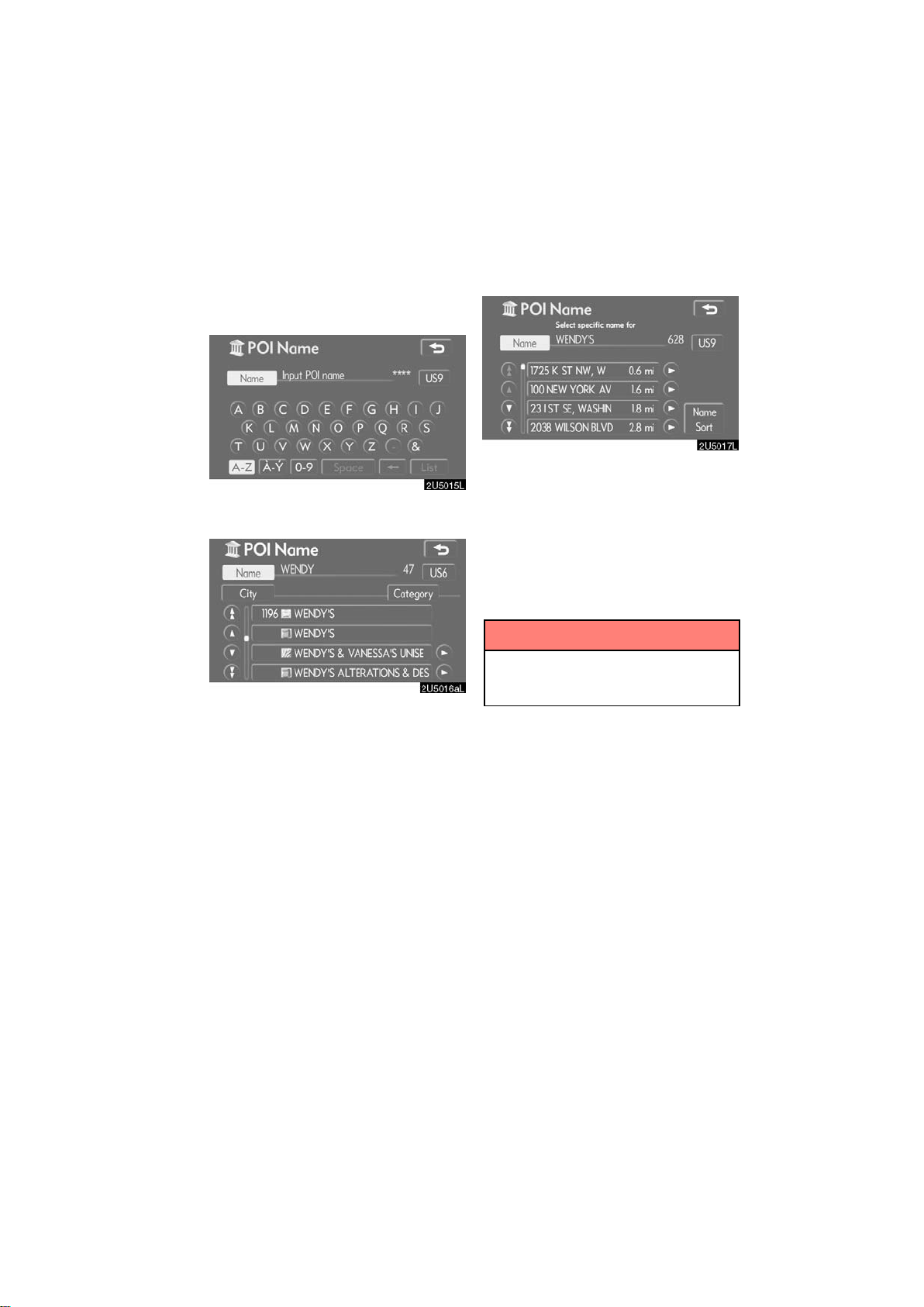

“POI Name”

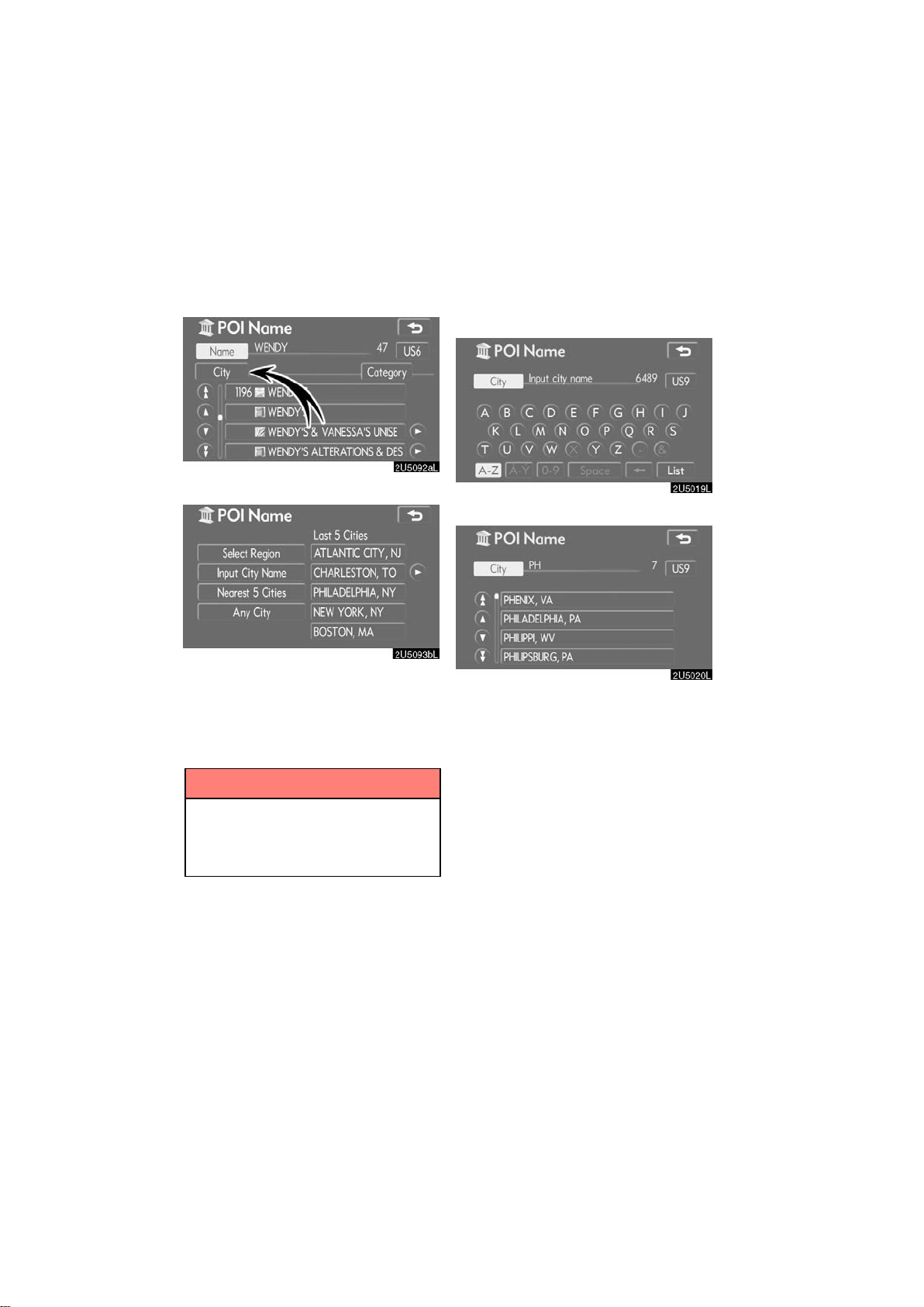

Select one of the many POIs (Points of Interest) that have already been stored in the
system’s database. 27. . . . . . . . . . . . . . . .
3

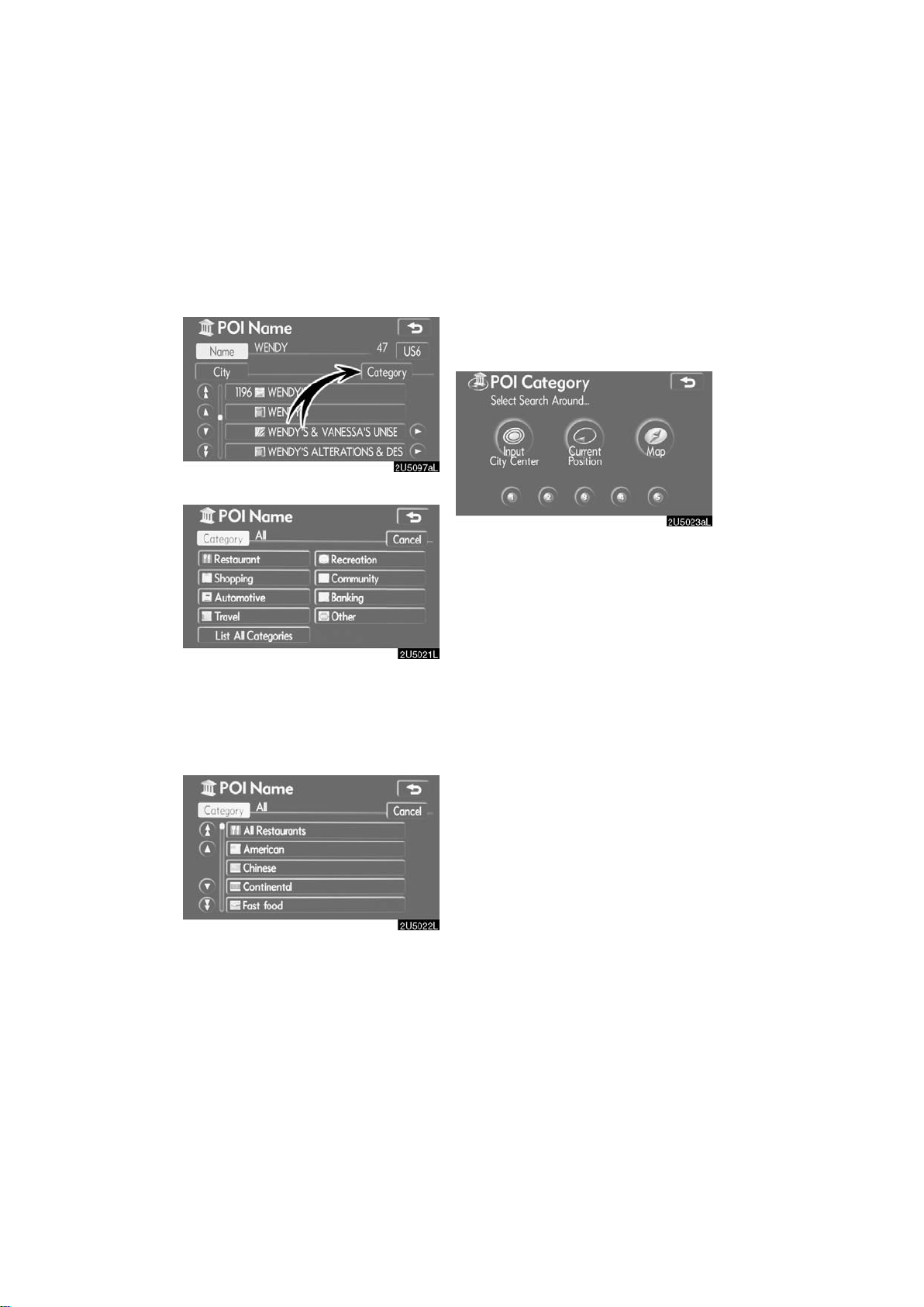

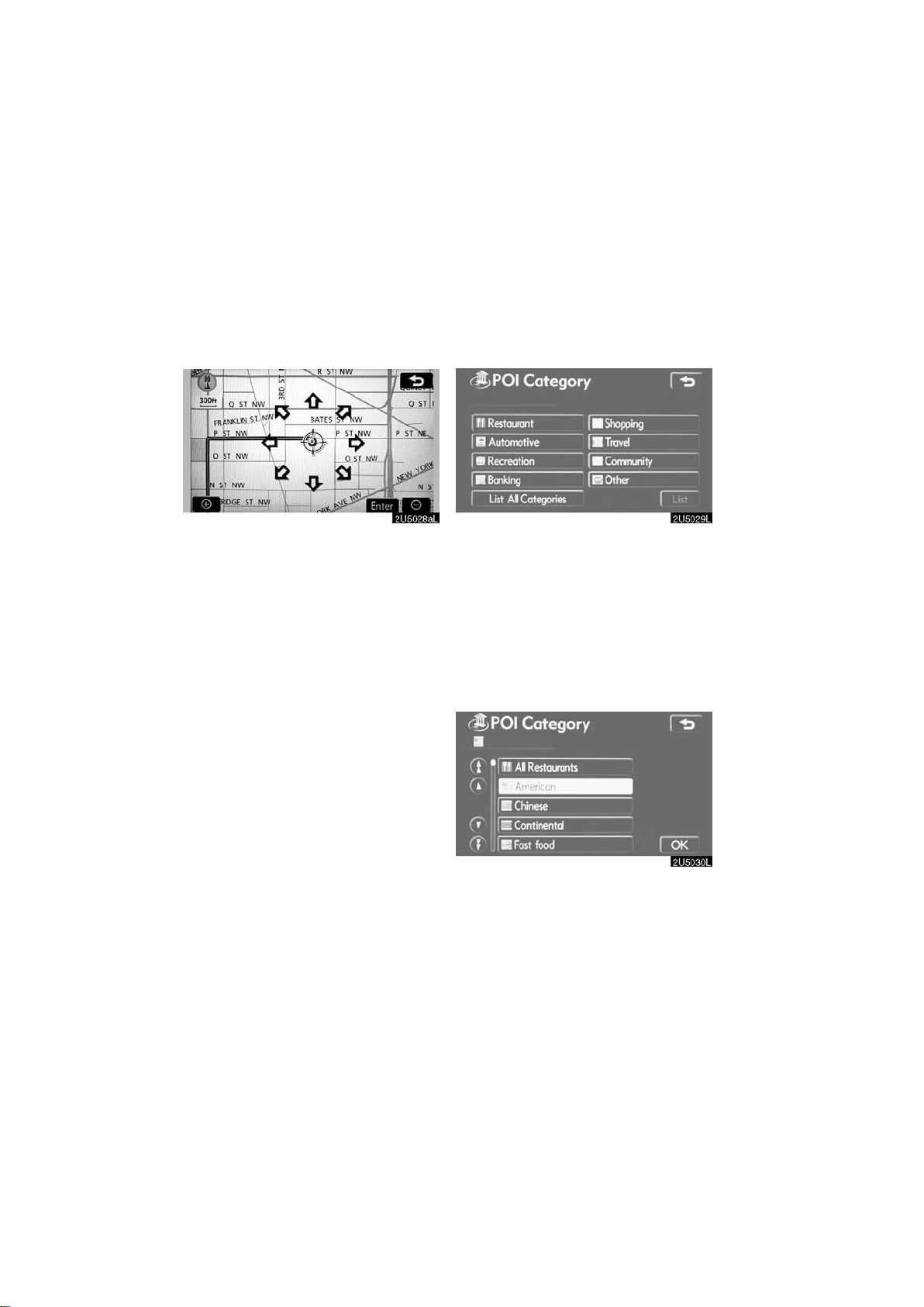

“POI Category”
A destination can be selected from the POI
category. 30. . . . . . . . . . . . . . . . . . . . . . . . .
4
“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point.
34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
“Memory”

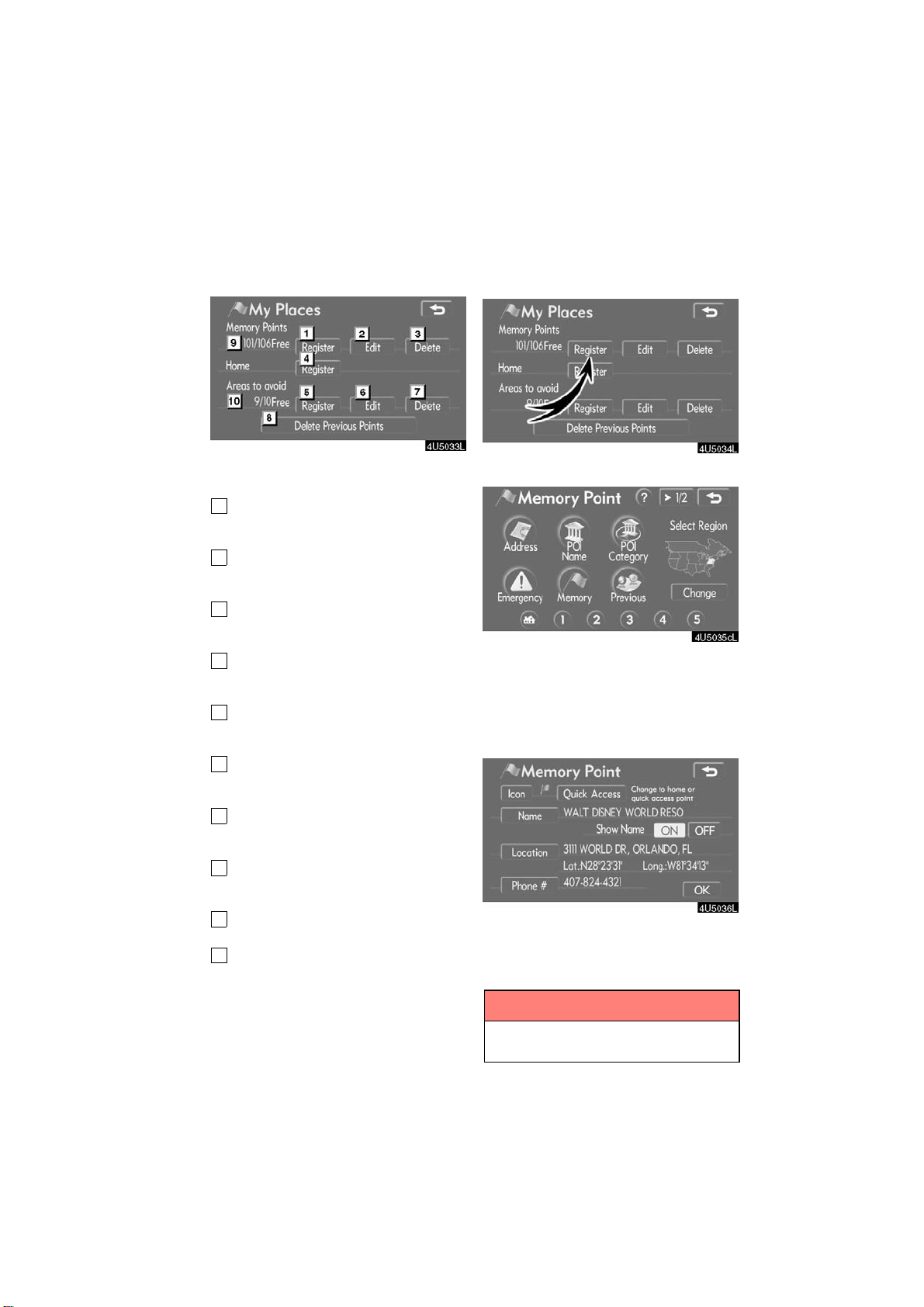

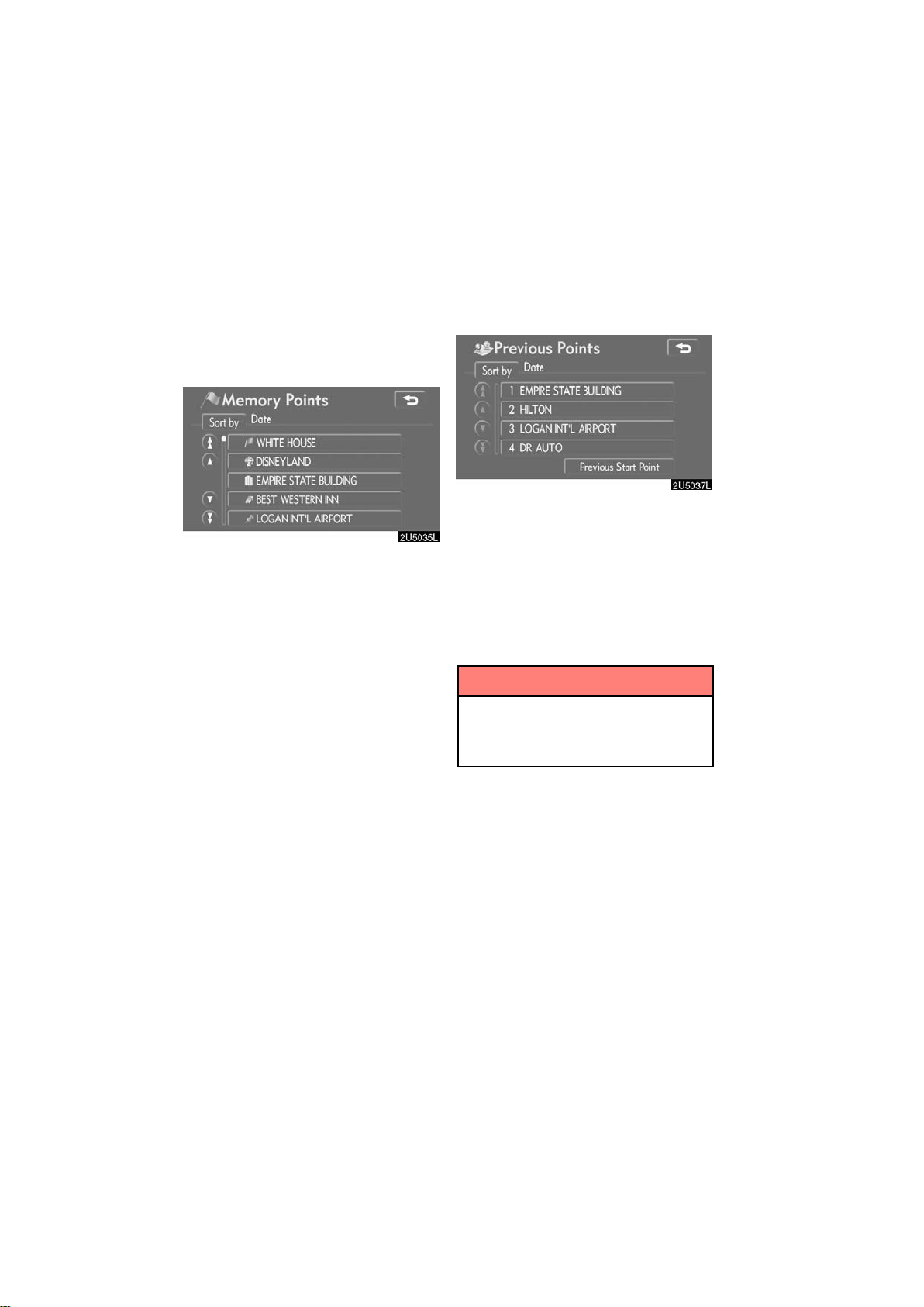

The location can be selected from the registered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 71.) 34. . . . . . . .
6

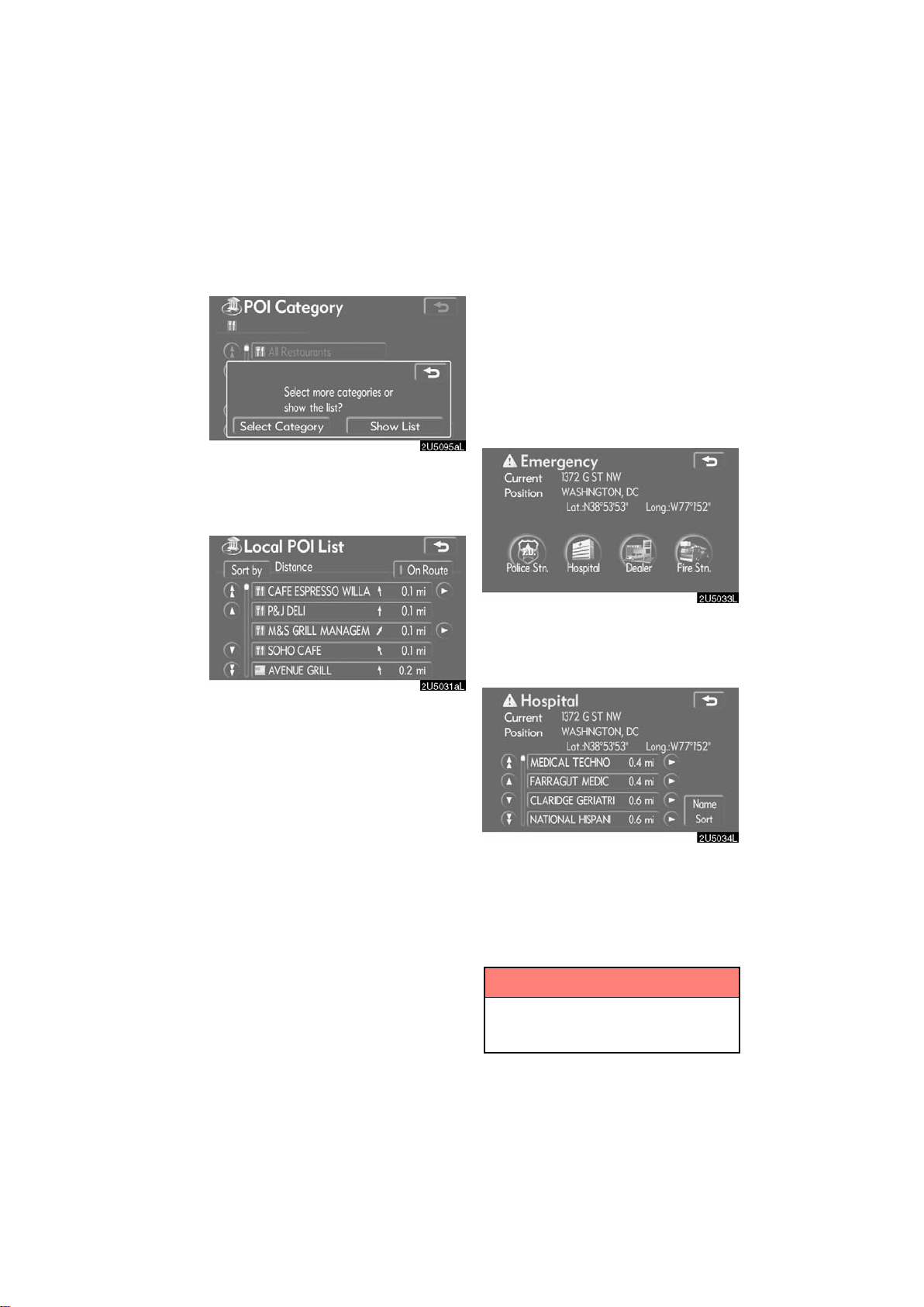

“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected.
33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
“Map”
A destination can be selected simply by
touching the location on the displayed
map. 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

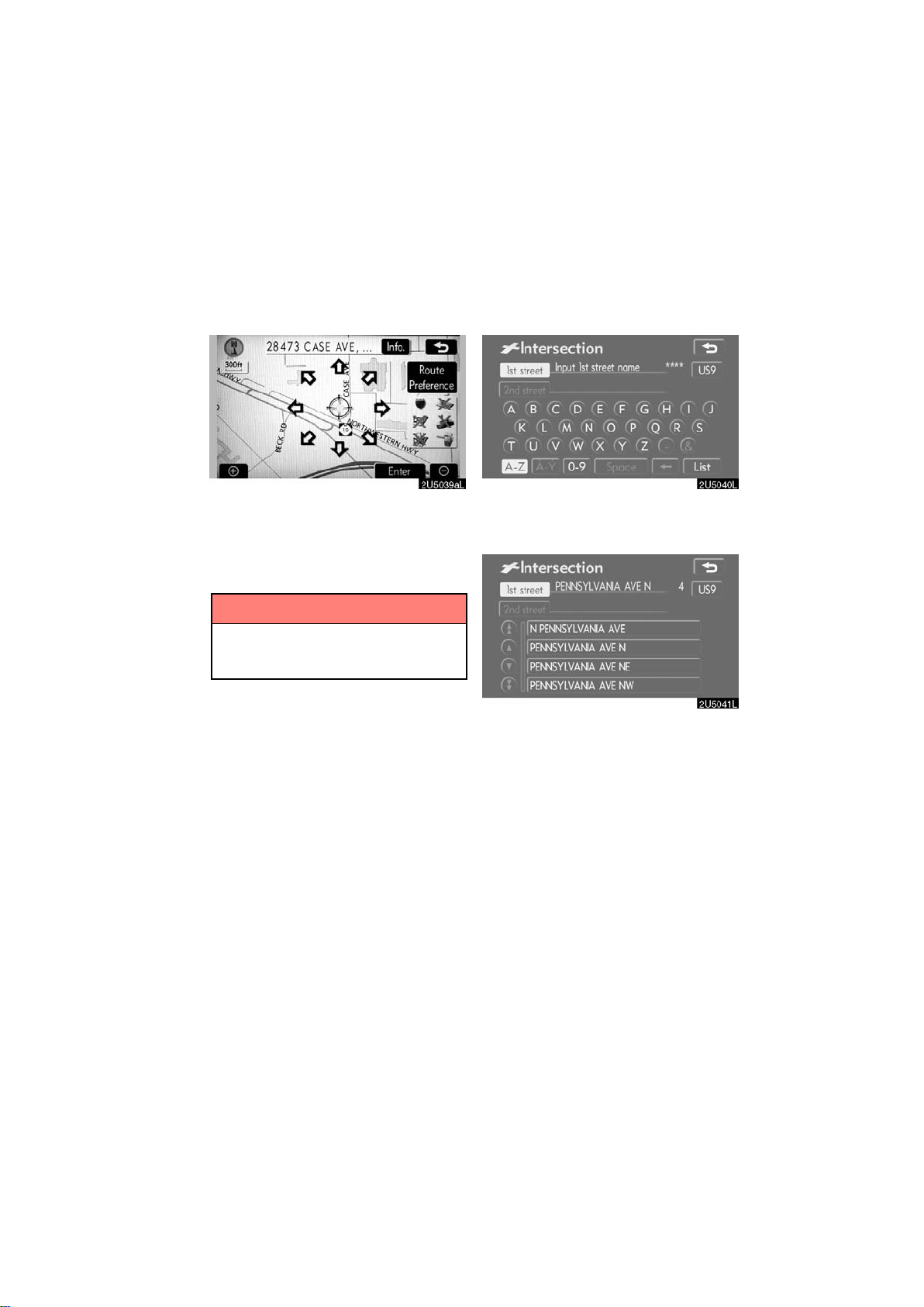

8
“Intersection”
The names of two intersecting streets can
be entered. This is helpful if only the general vicinity, not the specific address, is
known. 35. . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Loading...
