The Quick Guide is not intended as a substitute for your
OWNER’S MANUAL
OWNER’S MANUAL
have a better understanding of your vehicle’s capabilities and
Contents
Pictorial Index............................................................................................................................. 3
Hybrid System
Hybrid System....................................................................................................................................11
Entering and Exiting
Keys...................................................................................................................................................... 14
Smart Entry & Start System........................................................................................................ 16
When Driving
Power (Ignition) Switch................................................................................................................ 17

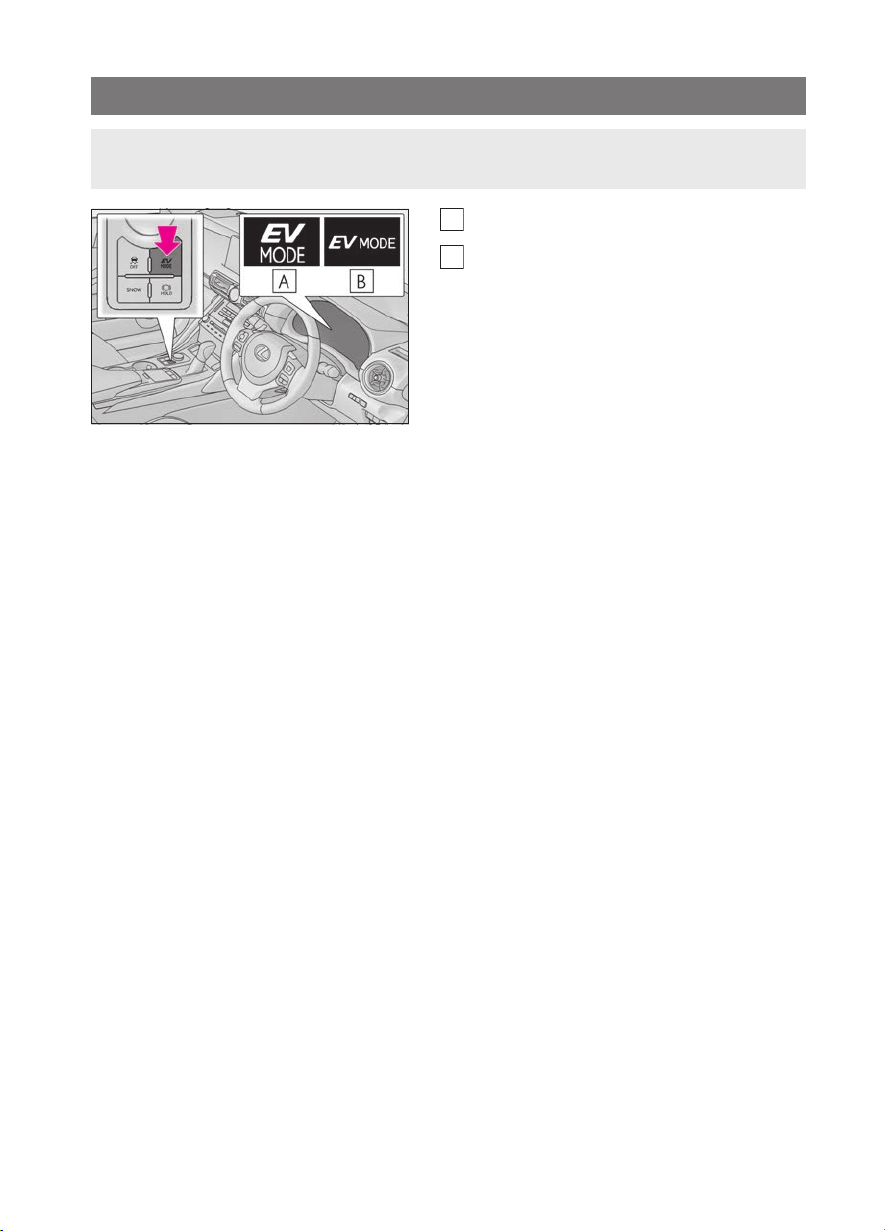

EV Drive Mode ..............................................................................................................................20
Hybrid Transmission...................................................................................................................... 21
Turn Signal Lever...........................................................................................................................24
Parking Brake..................................................................................................................................25

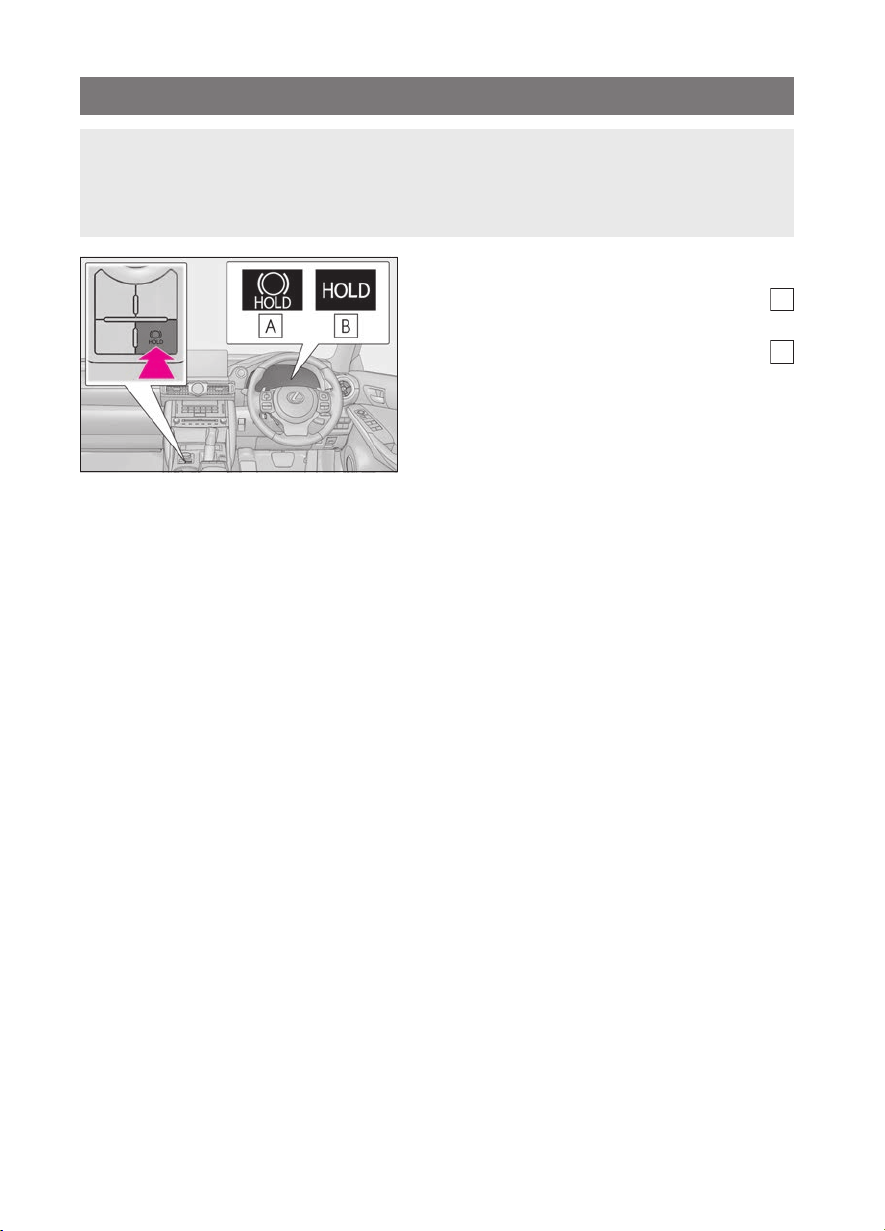

Brake Hold .......................................................................................................................................27
Multi-information Display...........................................................................................................28
Headlight Switch.............................................................................................................................31
AHB (Automatic High Beam)..................................................................................................32
Windshield Wipers and Washer.............................................................................................34

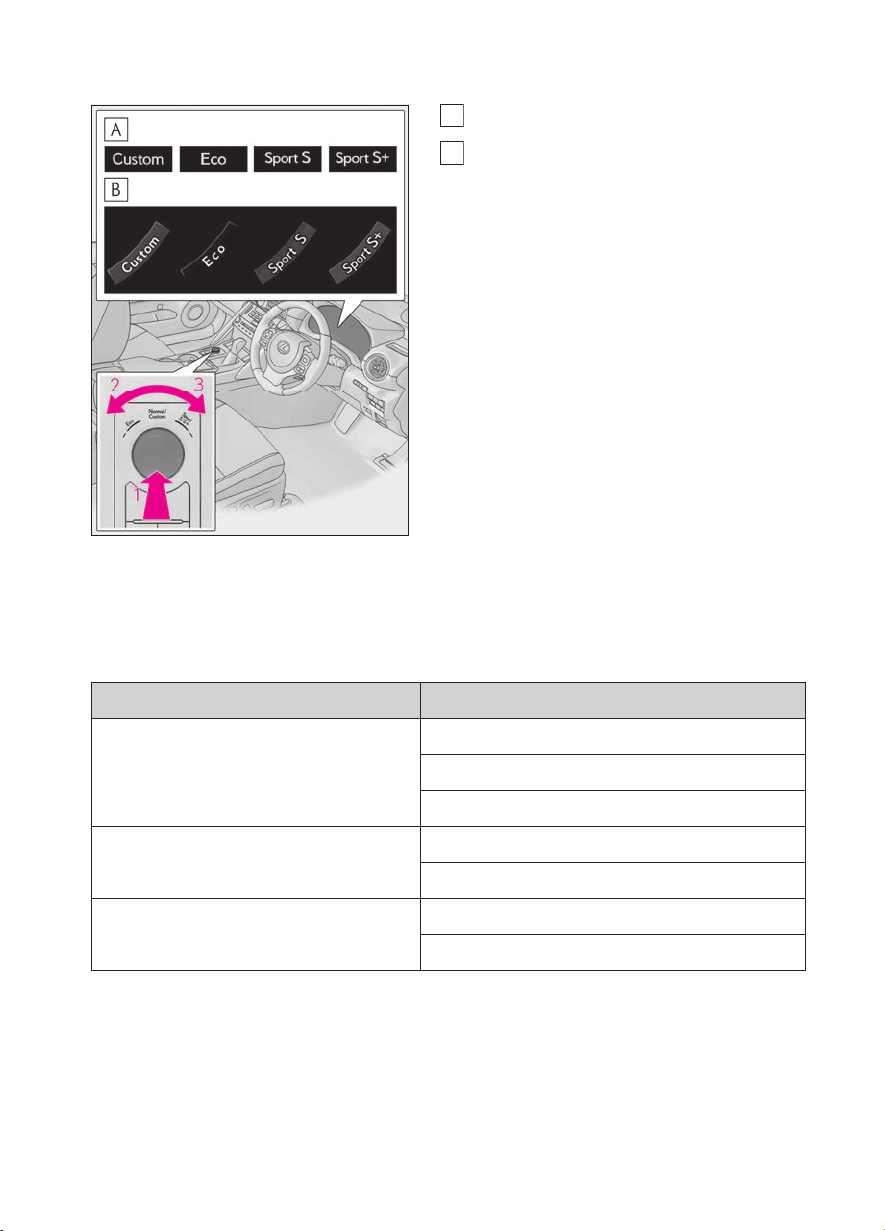

Driving Mode Select Switch .....................................................................................................37
limitations.
. We strongly encourage you to review the
and supplementary manuals so you will
1
Driving Comfort
Remote Touch ................................................................................................................................40

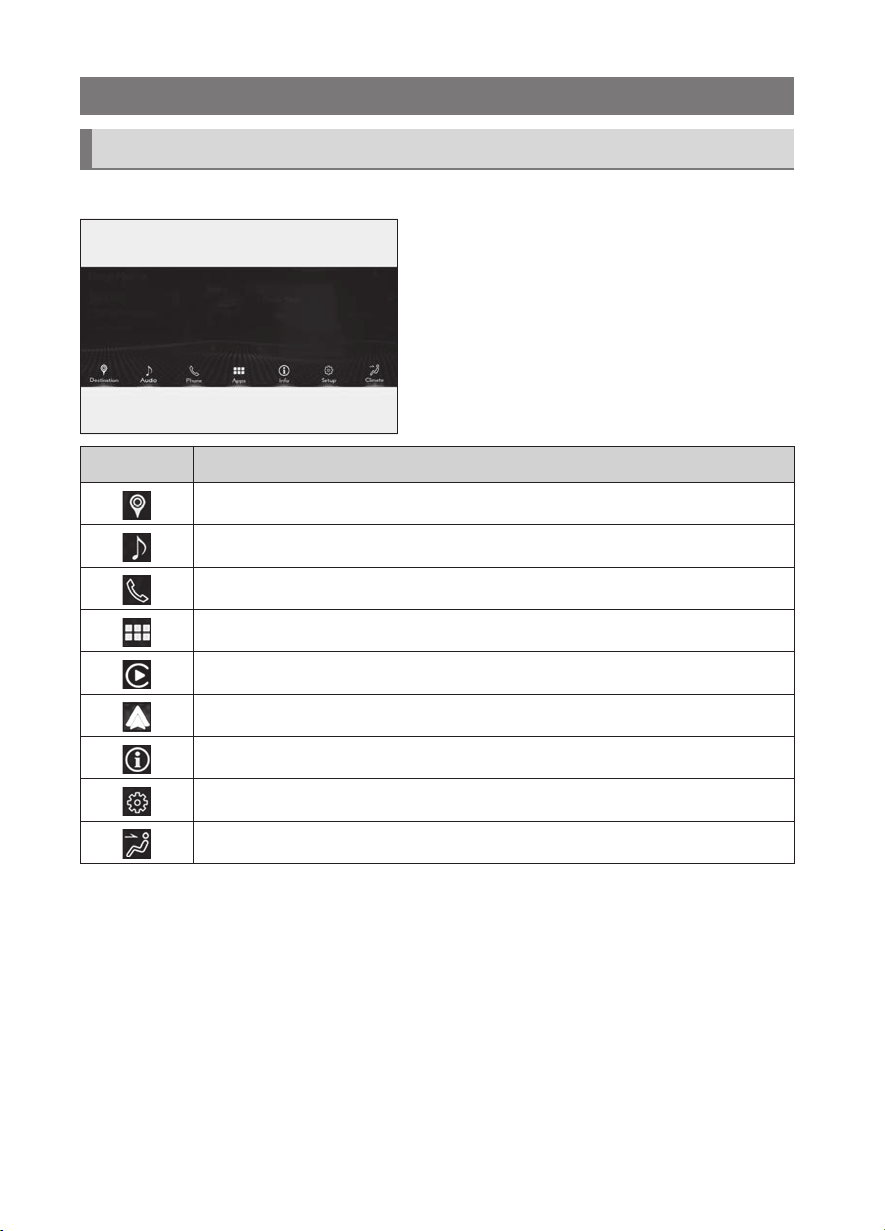

Center Display .................................................................................................................................41
Energy Monitor/Consumption Screen ...............................................................................44
Hands-free System For Cellular Phone .............................................................................. 47
Automatic Air Conditioning System.......................................................................................51
Opening and Closing
Door Locks ......................................................................................................................................54
Power Windows ............................................................................................................................55
Moon Roof .......................................................................................................................................56

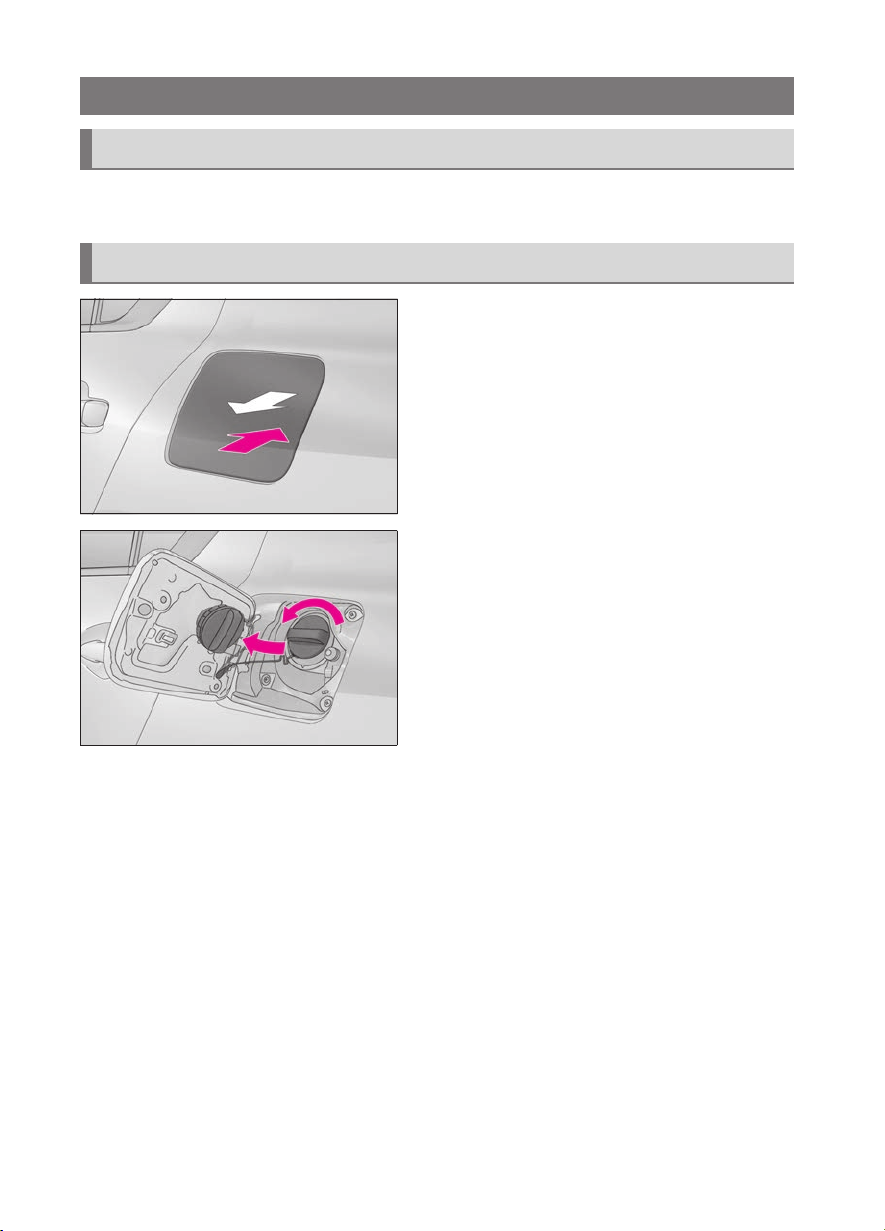

Fuel Tank Cap.................................................................................................................................57
Trunk...................................................................................................................................................58
What to do if...

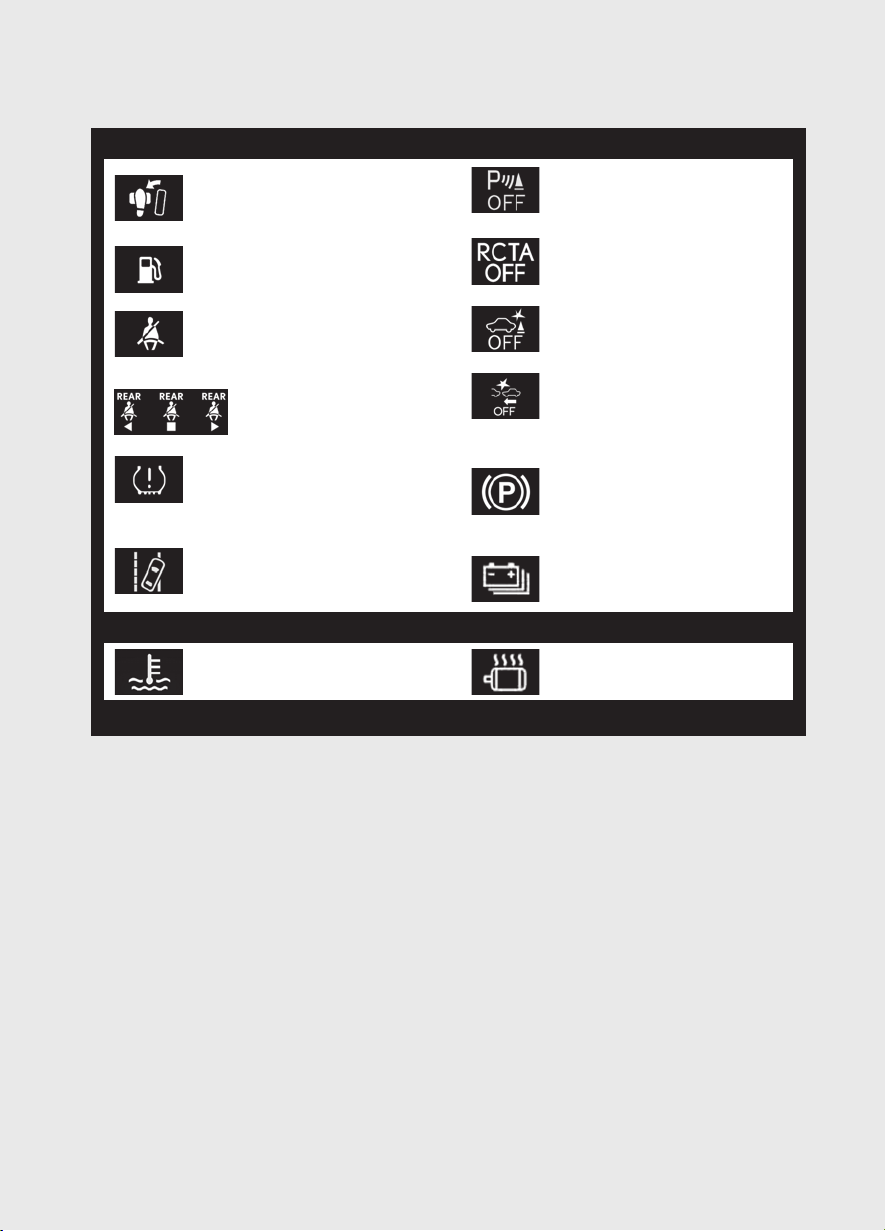

List of Warning/Indicator Lights.............................................................................................59
If the electronic key does not operate properly ...............................................................63
If the hybrid system will not start .............................................................................................65
Depending on specifications, the vehicle shown in the illustration may
differ from your vehicle in terms of equipment.
2

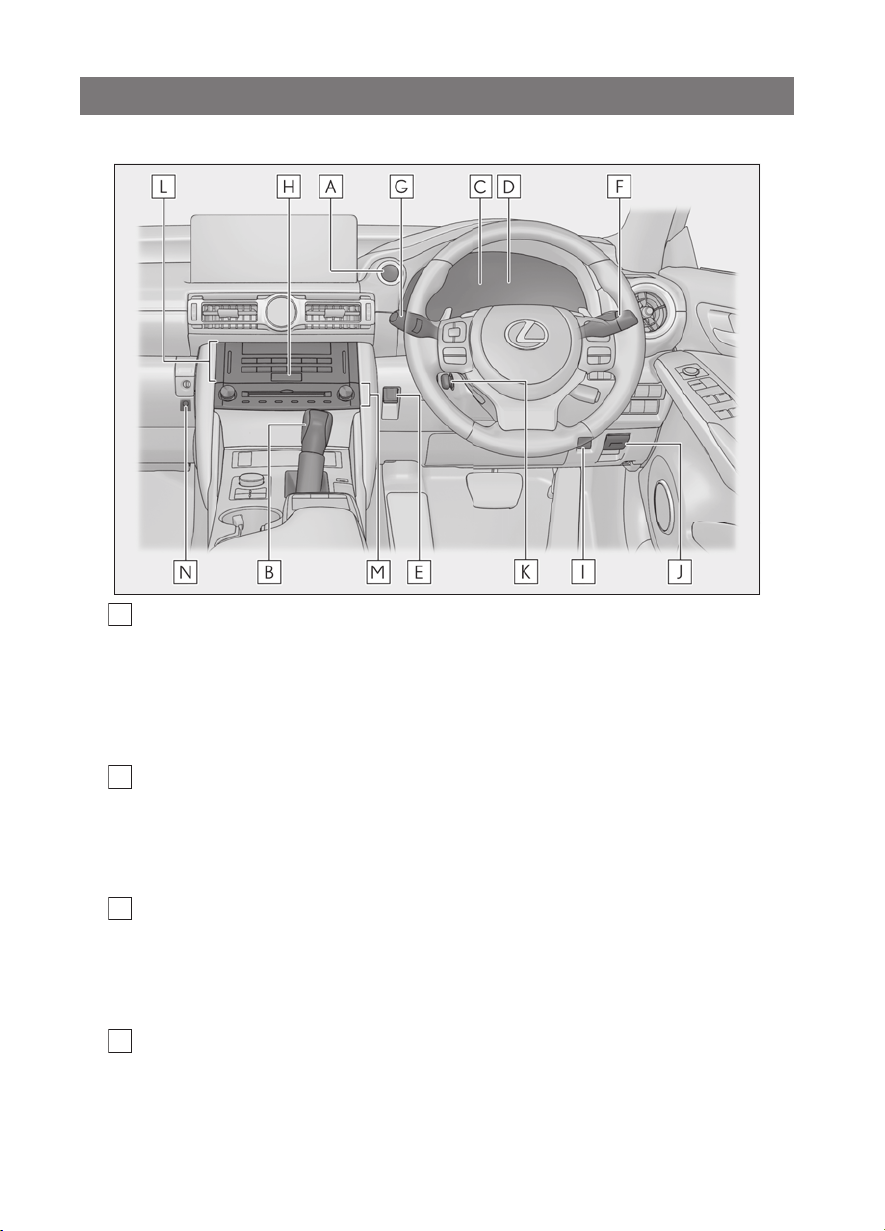

Pictorial Index
B
C
■ Instrument panel
Power switch........................................................................................................................... P.17
A
Starting the hybrid system/changing the modes ..................................................................P.17
Emergency stop of the hybrid system .......................................................................................P.19
When the hybrid system will not start......................................................................................P.65
Warning messages
1
*
Shift lever .................................................................................................................................P.21
Changing the shift position.............................................................................................................P.21
Precautions for towing
When the shift lever does not move
Meters
Reading the meters/adjusting the instrument panel light
Warning lights/indicator lights...................................................................................................P.59
When a warning light comes on
Multi-information display ..................................................................................................P.28
D
Display...................................................................................................................................................P.28
Energy monitor.................................................................................................................................. P.44
When a warning message is displayed
3
1
*
1
*
1
*
1
*
1
*
1
*

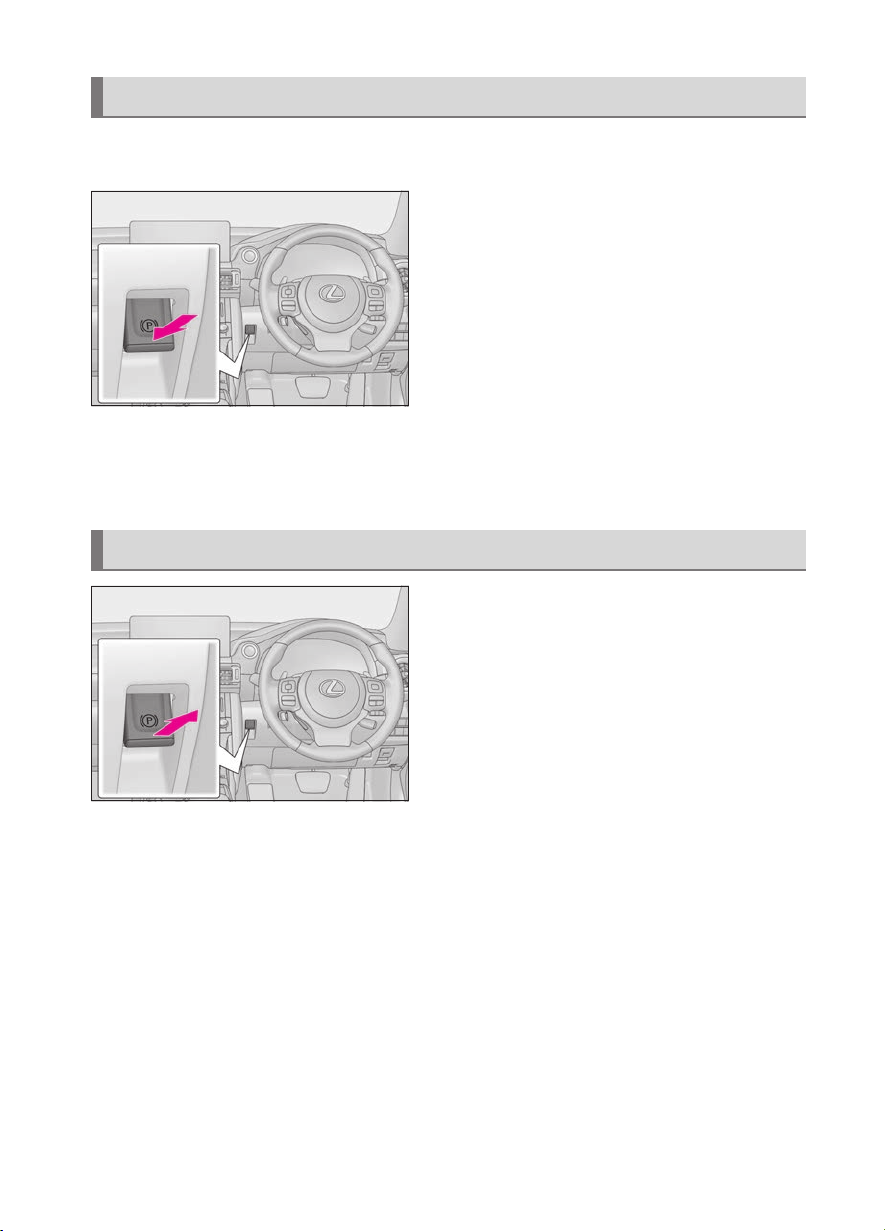

Parking brake switch ...........................................................................................................P.25
E
F
G
H
I
J
K
L
M
N
Applying/releasing.......................................................................................................................... P.25
Precautions for winter season
Warning buzzer/messages
Turn signal lever....................................................................................................................P.24

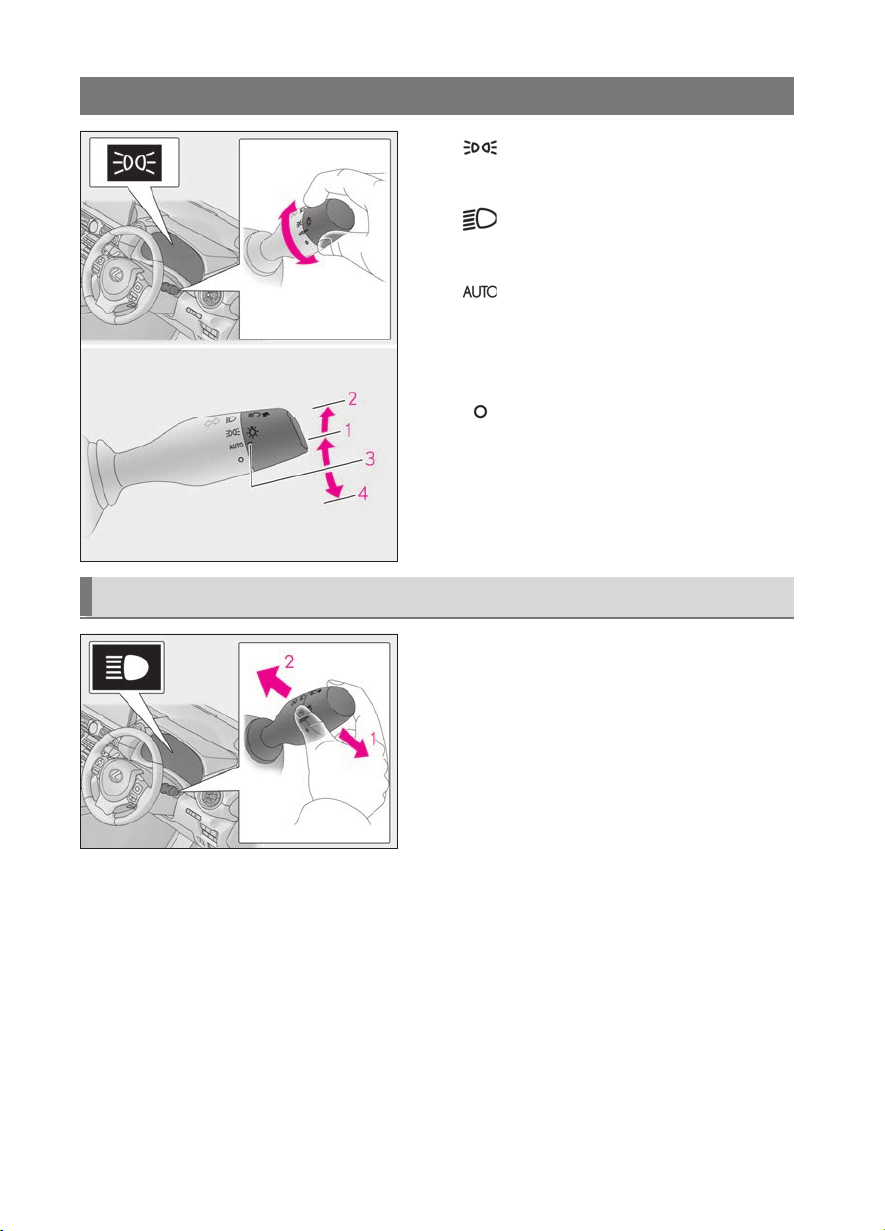

Headlight switch ....................................................................................................................P.31
Headlights/front position lights/tail lights/daytime running lights................................P.31
Windshield wiper and washer switch .............................................................................P.34
Usage.................................................................................................................................................... P.34
Adding washer fluid
Warning messages
Emergency flasher switch
Trunk opener ........................................................................................................................ P.58
Hood lock release lever
Tilt and telescopic steering control switch
Adjustment
Driving position memory

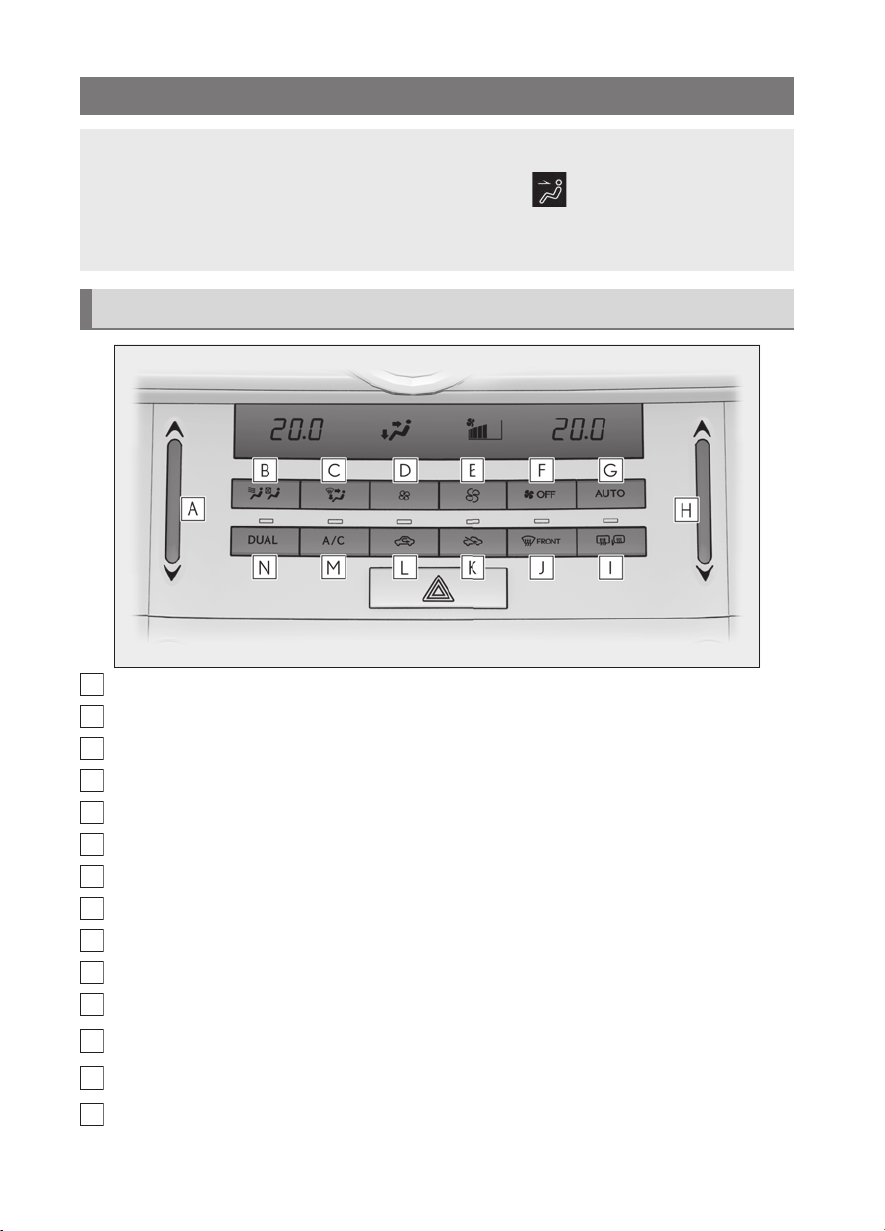

Air conditioning system ....................................................................................................... P.51
Usage......................................................................................................................................................P.51
Rear window defogger....................................................................................................................P.51
Audio system
1
*
1
*
1
*
3
*
1
*
1
*
1
*
1
*
1
*
1, 2
*
Trunk opener main switch................................................................................................. P.58
1
*
: Refer to the “Owner’s Manual”.
2
*
: If equipped
3
*
: Refer to “Navigation System Owner’s Manual”.
4

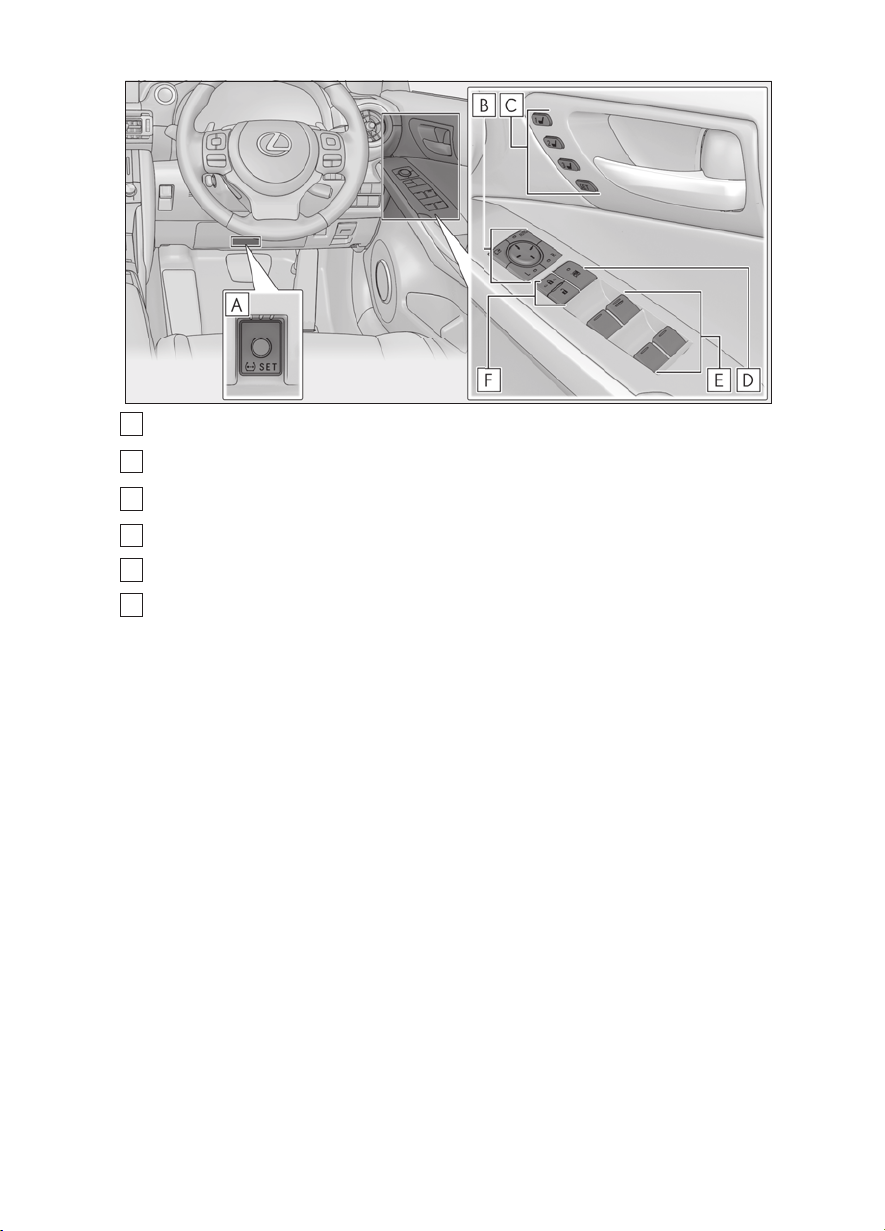

■ Switches

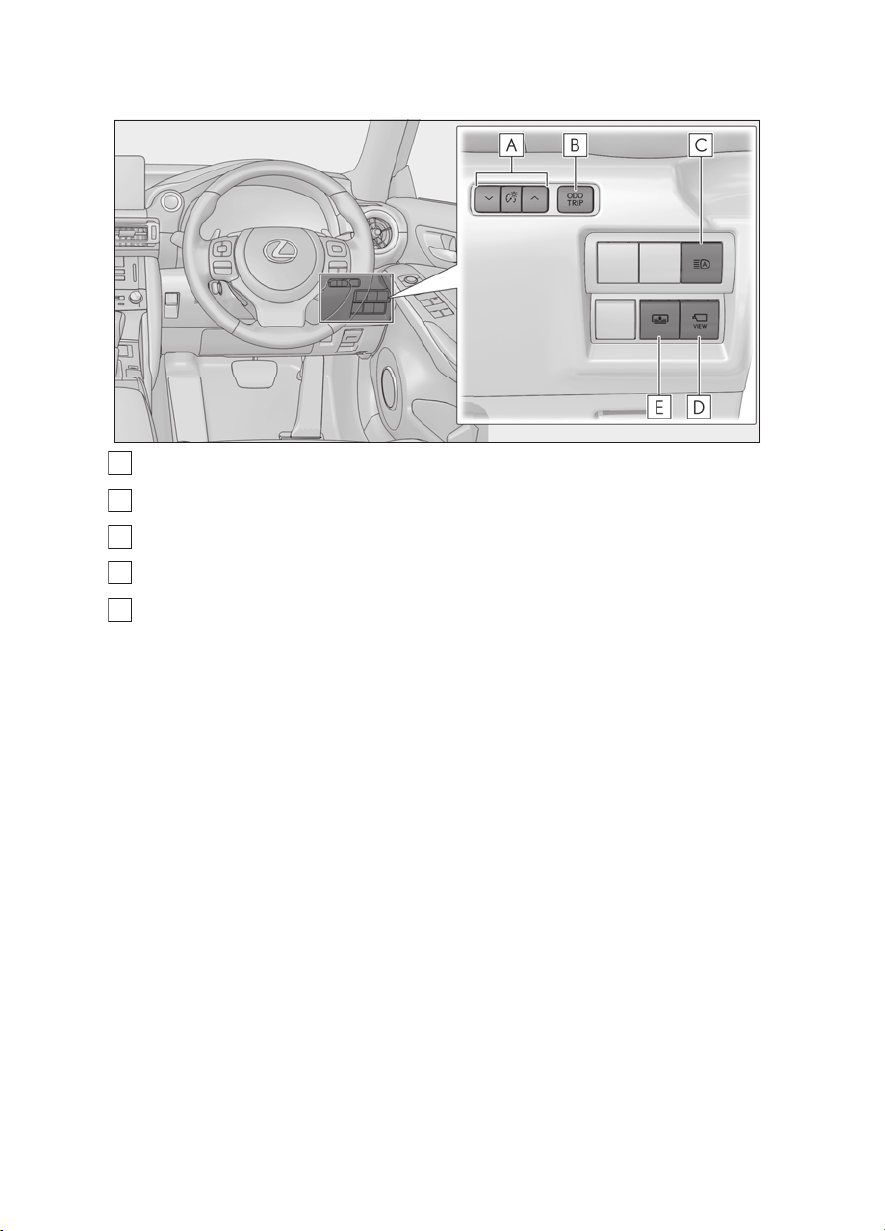

Instrument panel light control switches
A
Odometer/trip meter and trip meter reset button
B
Automatic High Beam switch ...........................................................................................P.32
C
Camera switch
D
Rear sunshade switch
E
1
*
: Refer to the “Owner’s Manual”.
2
*
: If equipped
3
*
: Refer to “Navigation System Owner’s Manual”.
2, 3
*
1, 2
*
1
*
1
*
5
Tire pressure warning reset switch
A
B
C
D
E
F
Outside rear view mirror switches
Driving position memory switches
Window lock switch .............................................................................................................P.55
Power window switches......................................................................................................P.55
Door lock switches ...............................................................................................................P.54
1
*
: Refer to the “Owner’s Manual”.
2
*
: If equipped
1
*
1
*
1, 2
*
6

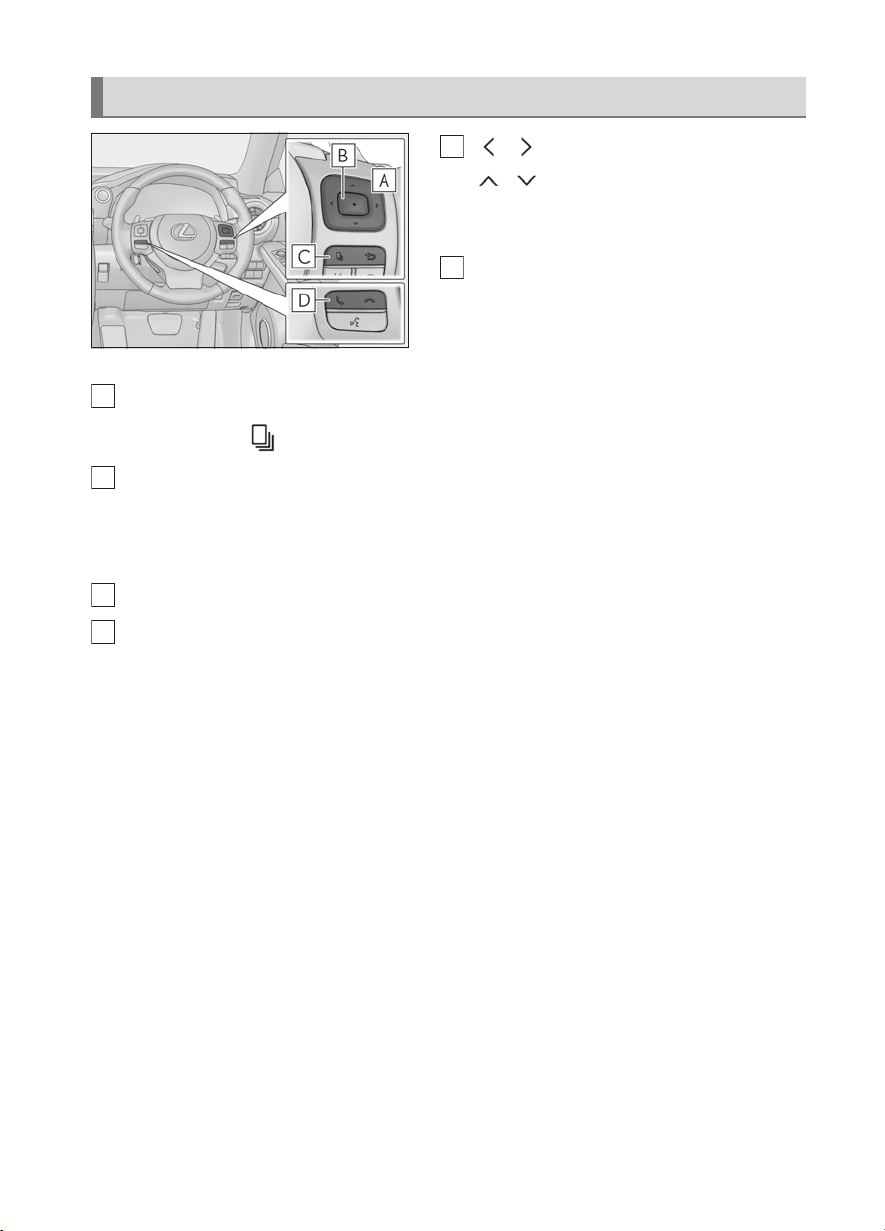

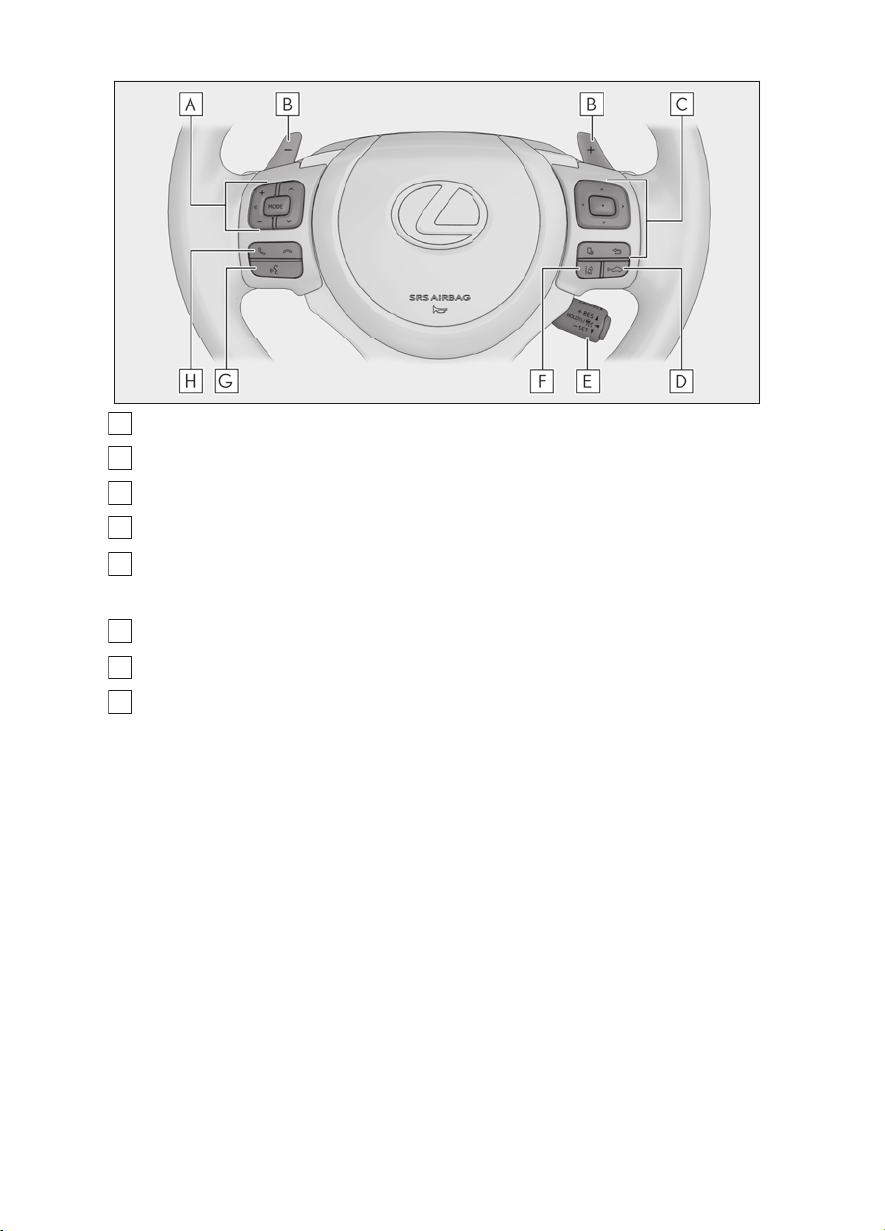

Audio remote control switches ........................................................................................ P.50
A
B
G
Paddle shift switches ................................................................................................... P.22, 23
Meter control switches ......................................................................................................P.30
C
Vehicle-to-vehicle distance switch
D
Cruise control switch
E
Dynamic radar cruise control with full-speed range
*
*
LTA (Lane Tracing Assist) switch
F
Talk switch ..............................................................................................................................P.50
Phone switches...................................................................................................................... P.50
H
*
: Refer to the “Owner’s Manual”.
7
*
Remote Touch .......................................................................................................................P.40
A
B
C
D
E
F
G
H
Driving mode select switch ............................................................................................... P.37
VSC OFF switch
Snow mode switch
EV drive mode switch ..........................................................................................................P.20
Brake hold switch .................................................................................................................P.27

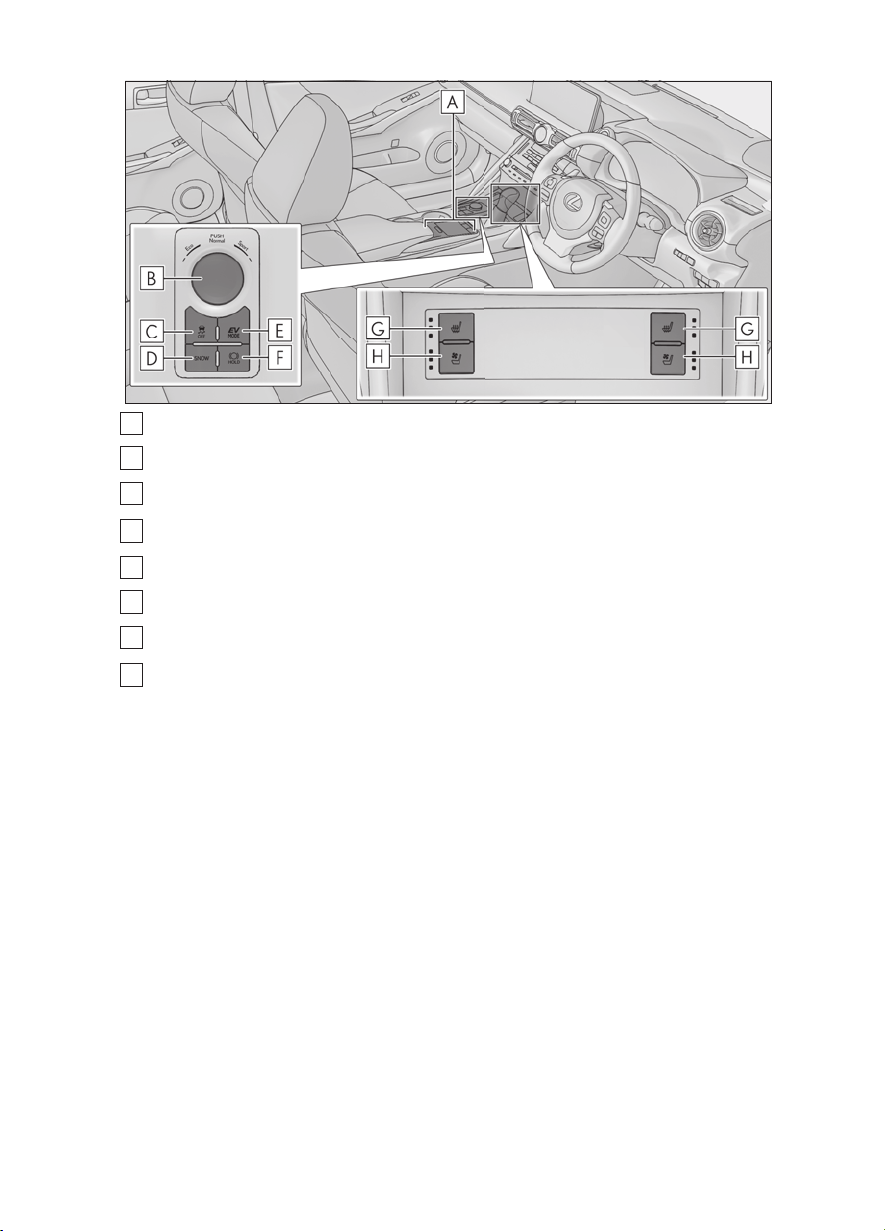

Seat heater switches
Seat ventilator switches
1
*
: Refer to the “Owner’s Manual”.
2
*
: If equipped
1
*
*
1
1, 2
*
1, 2
*
8

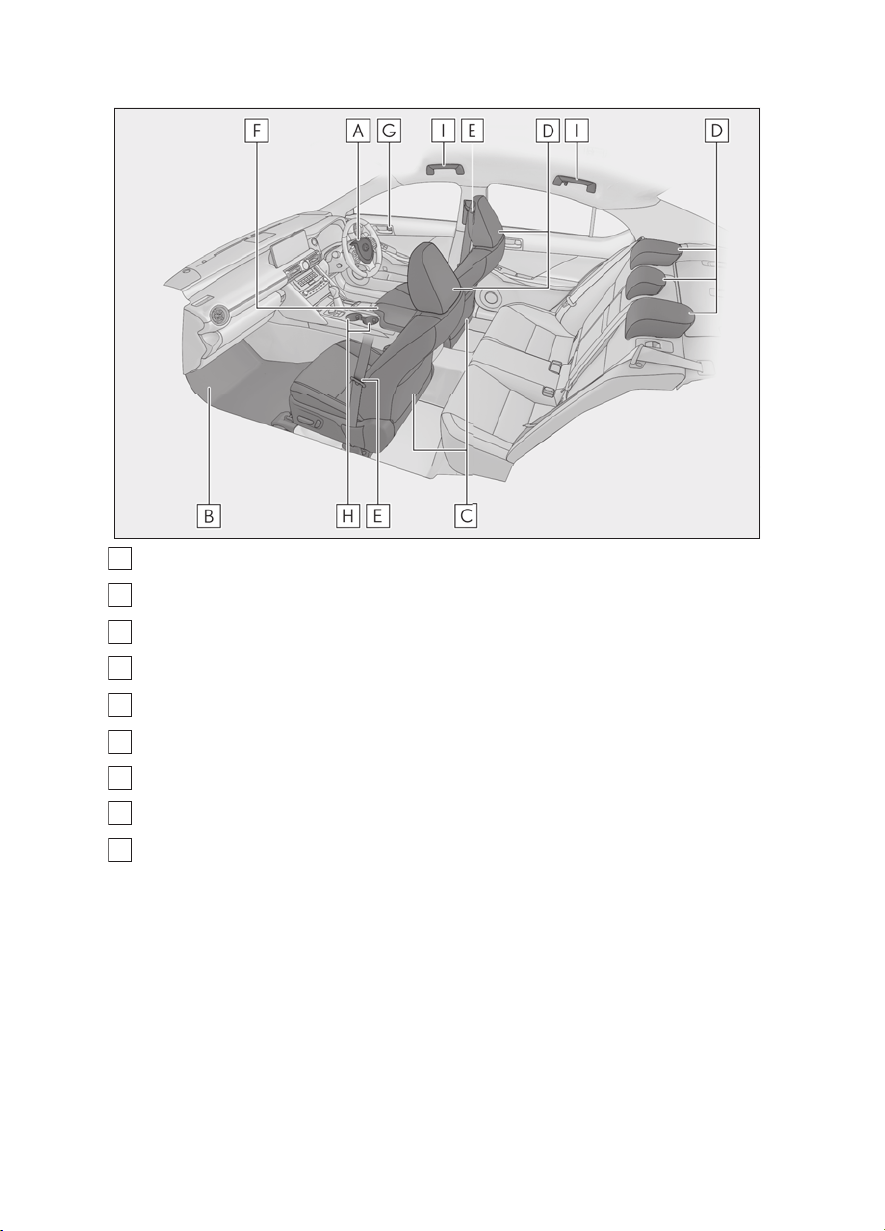

■ Interior
B
D
F
I
SRS airbags
A
Floor mats
Front seats
C
Head restraints
Seat belts
E

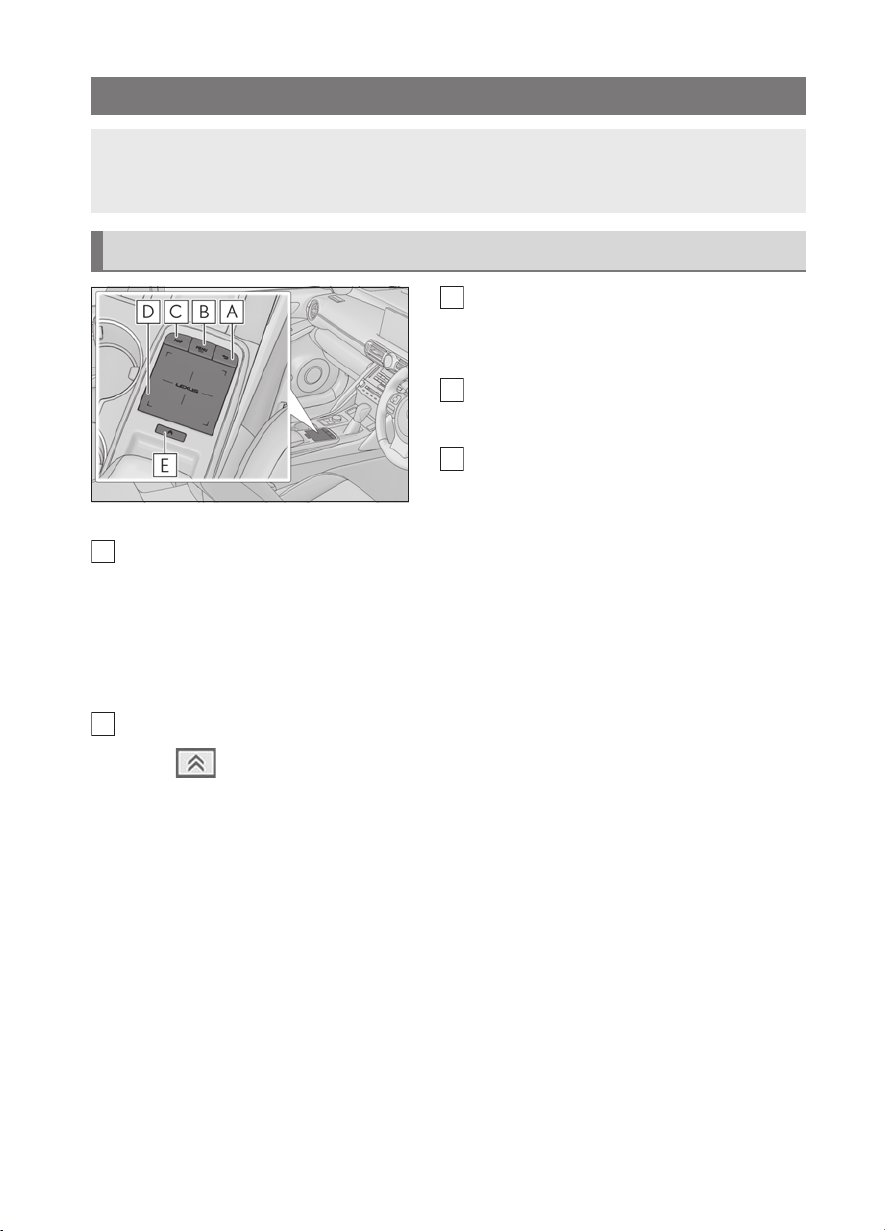

Console box
Inside lock buttons ...............................................................................................................P.54
G
Cup holders
H
Assist grips
*
: Refer to the “Owner’s Manual”.
*
*
*
*
*
*
*
*
9

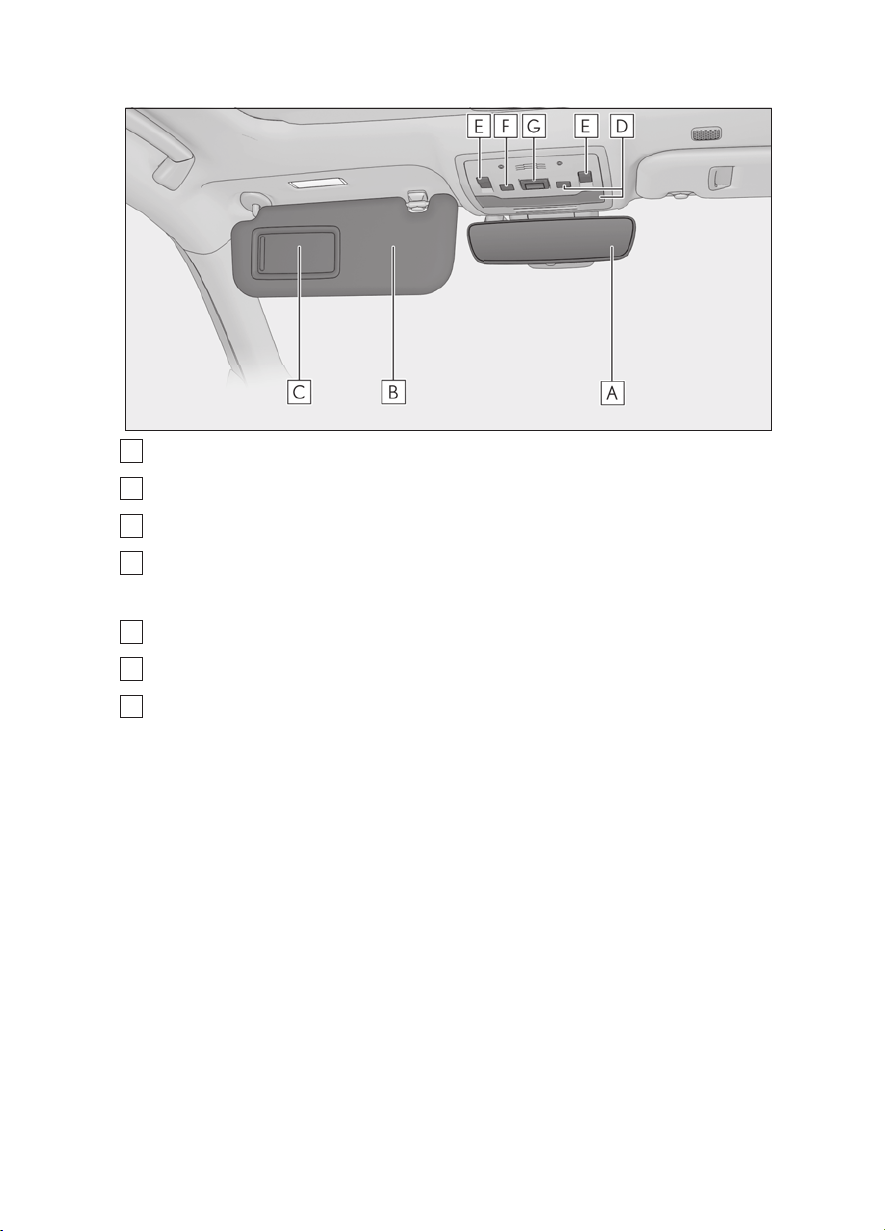

■ Ceiling
A
B
C
D
E
F
G
Inside rear view mirror
Sun visors
Vanity mirrors
Interior light
Personal lights
Moon roof switches
Intrusion sensor and tilt sensor cancel switch
“SOS” button
1
*
: Refer to the “Owner’s Manual”.
2
*
: If equipped
1
*
1
*
1
*
1
*
*
1, 2
*
1
*
2
........................................................................................................ P.56
1
*
10
Hybrid System
Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be
sure you are closely familiar with the characteristics of your vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric motor (traction motor)
according to driving conditions, improving fuel efficiency and reducing exhaust emissions.
For details, refer to the “Owner’s Manual”.

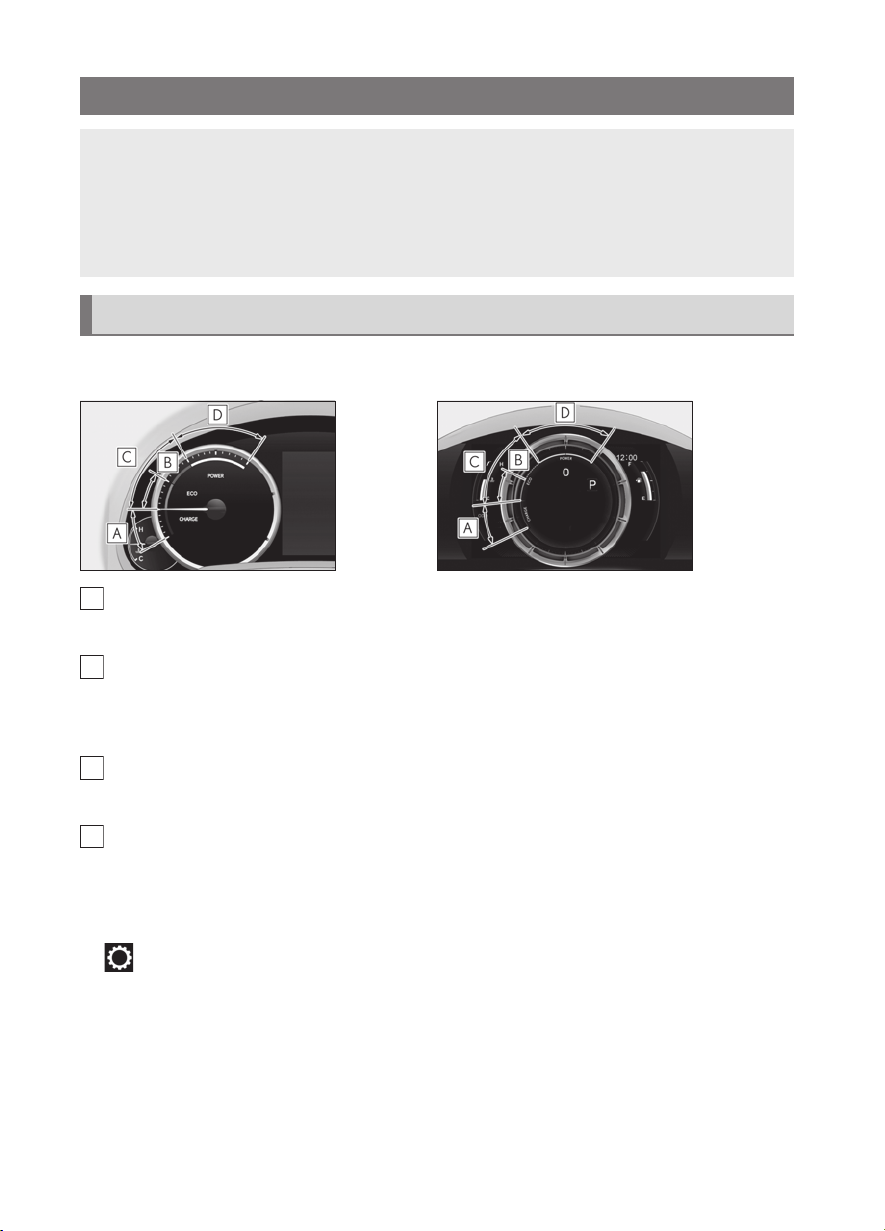

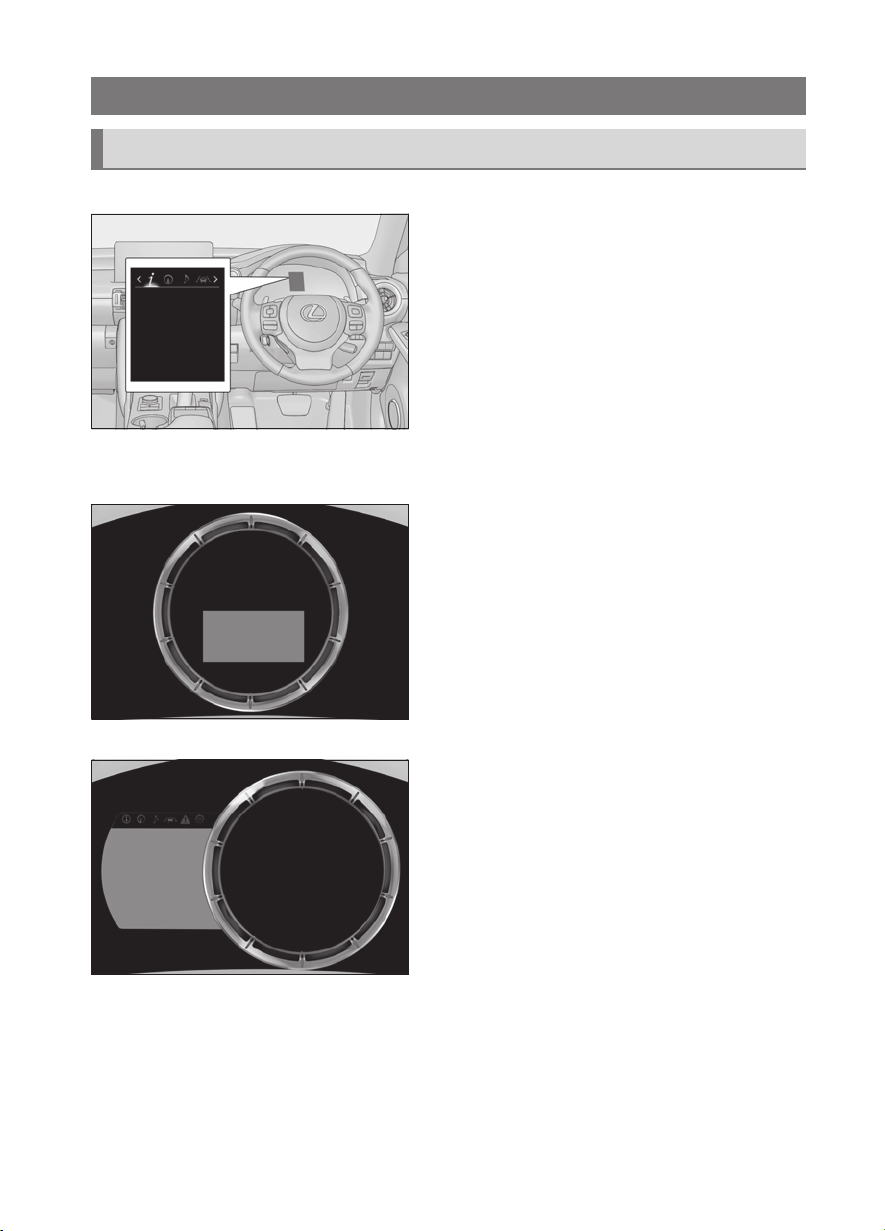

Hybrid System Indicator
Except F SPORT models F SPORT models
Charge area
A
Shows regenerative charging.
Hybrid Eco area
B
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under various conditions.
Eco area
C
Shows that the vehicle is being driven in an Eco-friendly manner.
Power area
D
Shows that an Eco-friendly driving range is being exceeded (during full power driving etc.)
● Depending on the selected driving mode, the Hybrid System Indicator or tachometer will be
displayed. The Hybrid System Indicator or tachometer can be set to always be displayed on
of the multi-information display.
● The Hybrid System Indicator is displayed in the following situations:
• When the tachometer setting is set to change according to the driving mode and Eco drive
mode is selected
• When the tachometer setting is set to always display the Hybrid System Indicator
● By keeping the indicator needle (except F SPORT models) or bar display (F SPORT models)
within the Eco area, more Eco-friendly driving can be achieved.
11
● Charge area indicates regeneration* status. Regenerated energy will be used to charge the
hybrid battery (traction battery).
*
: When used in this manual, regeneration refers to the conversion of energy created by the
movement of the vehicle into electrical energy.
Hybrid battery (traction battery) charge
If the shift lever is in N, the hybrid battery (traction battery) will not be charged even when the
engine is running. Therefore, if the vehicle is left with the shift lever in N for a long period of time,
the hybrid battery (traction battery) will discharge, and this may result in the vehicle not being able
to start.
Regenerative braking
In the following situations, kinetic energy is converted to electric energy and deceleration force
can be obtained in conjunction with the recharging of the hybrid battery (traction battery).
● The accelerator pedal is released while driving with the shift lever in D or S.
● The brake pedal is depressed while driving with the shift lever in D or S.
12
Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to move with the
“READY” indicator is illuminated. For safety, apply the parking brake and make sure to shift the
shift lever to P when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are not a
malfunction:
● Motor sounds may be heard from under the vehicle.
● Relay operating sounds such as a snap or soft clank will be emitted from the hybrid battery
(traction battery), under the rear seats, when the hybrid system is started or stopped.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats when the
hybrid system starts or stops.
● Sounds from the hybrid system may be heard when the trunk lid is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops, when
driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed or as the
accelerator pedal is released.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vent on the right side of the rear seatback.
Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle
with at least enough gasoline to make the low fuel level warning light go off. If there is only a small
amount of fuel, the hybrid system may not be able to start. (The standard amount of fuel is about 10
L [2.7 gal., 2.2 Imp. gal.], when the vehicle is on a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the hybrid system or an
improper operation is attempted.
If a warning message is shown on the multi-information display, read the message and follow the
instructions.
13

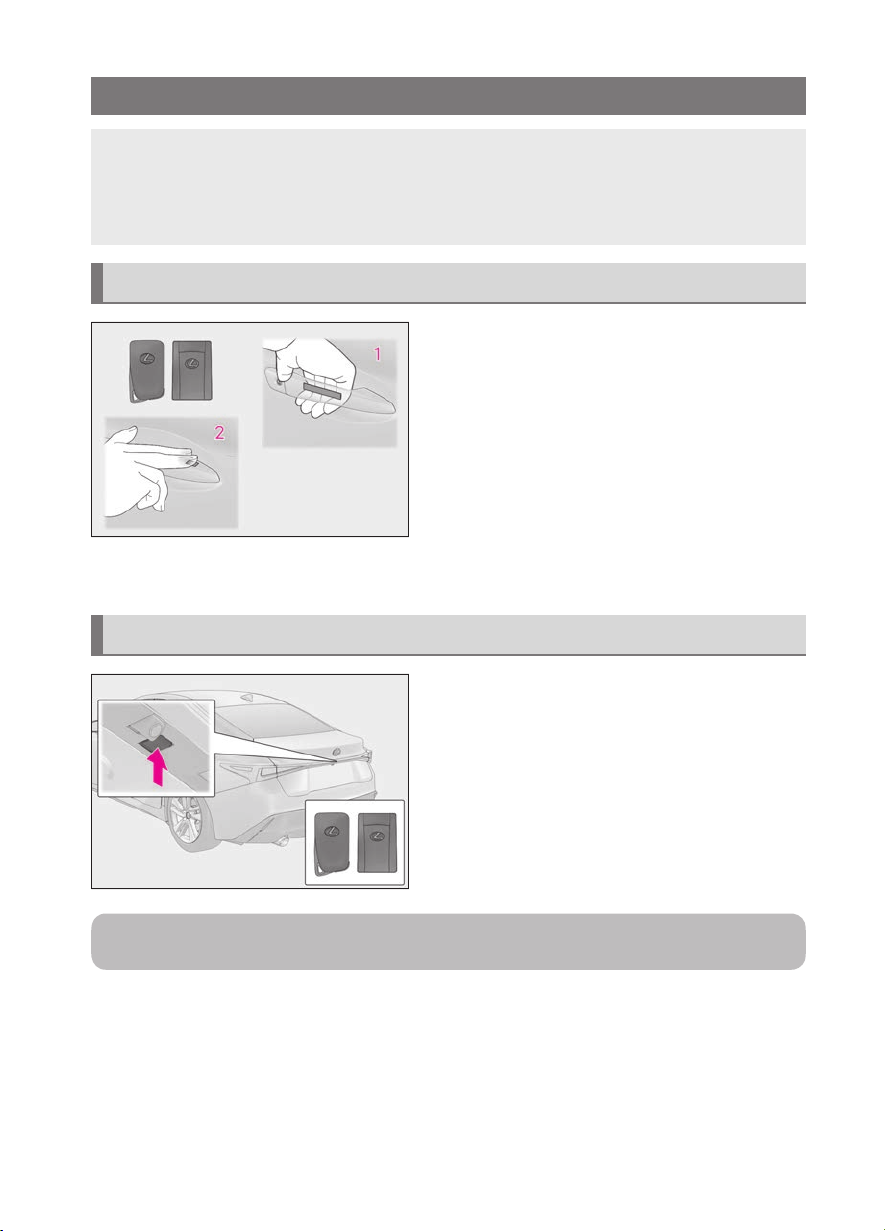

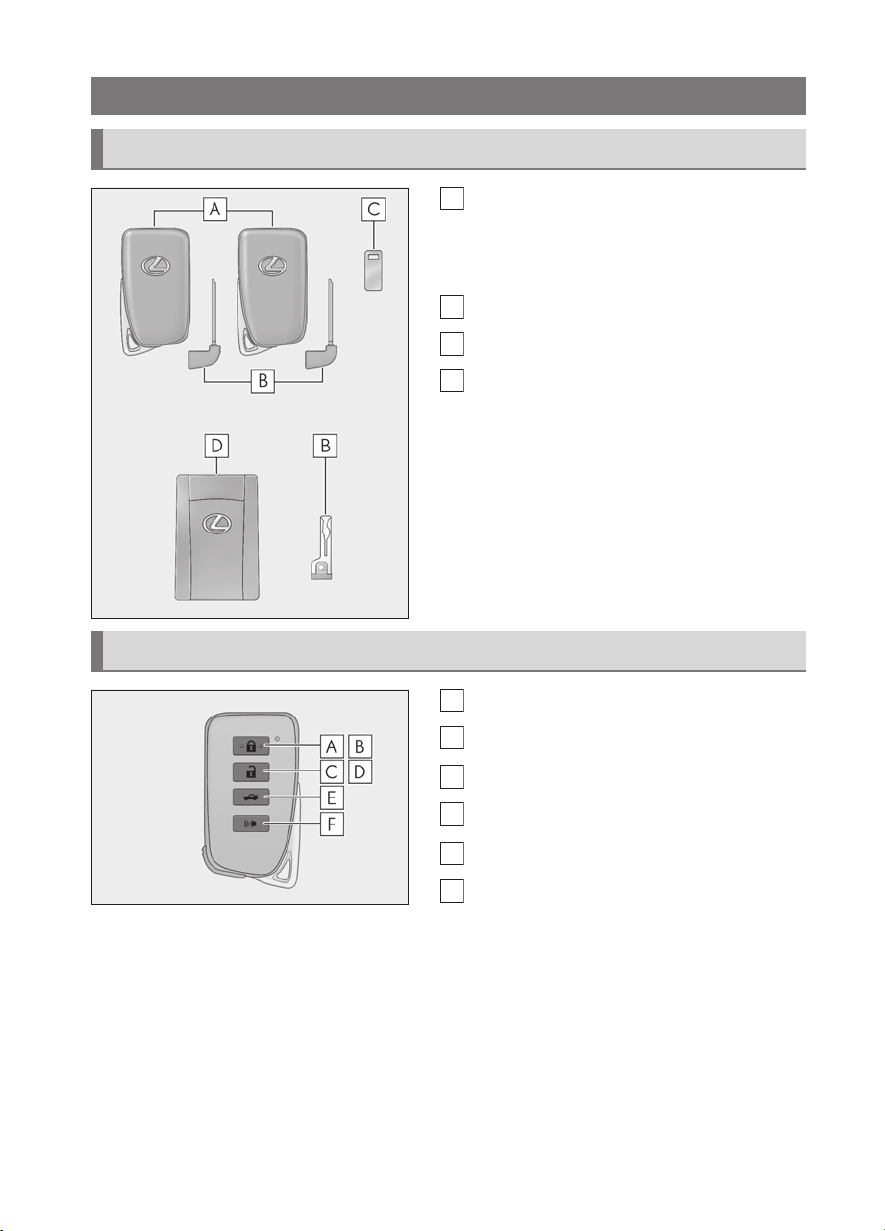

Keys
D
A
D
E
The keys
Wireless remote control
Electronic keys
A
• Operating the smart entry & start system
(P.16)
• Operating the wireless remote control function
Mechanical keys
B
Key number plate
C
Card key (electronic key) (if equipped)
Operating the smart entry & start system
(P.16)
Locks the doors
Closes the windows and moon roof
B
Unlocks the doors
C
Opens the windows and moon roof
Opens the trunk
Sounds the alarm
F
*
: These settings must be customized at your
Lexus dealer.
*
*
14

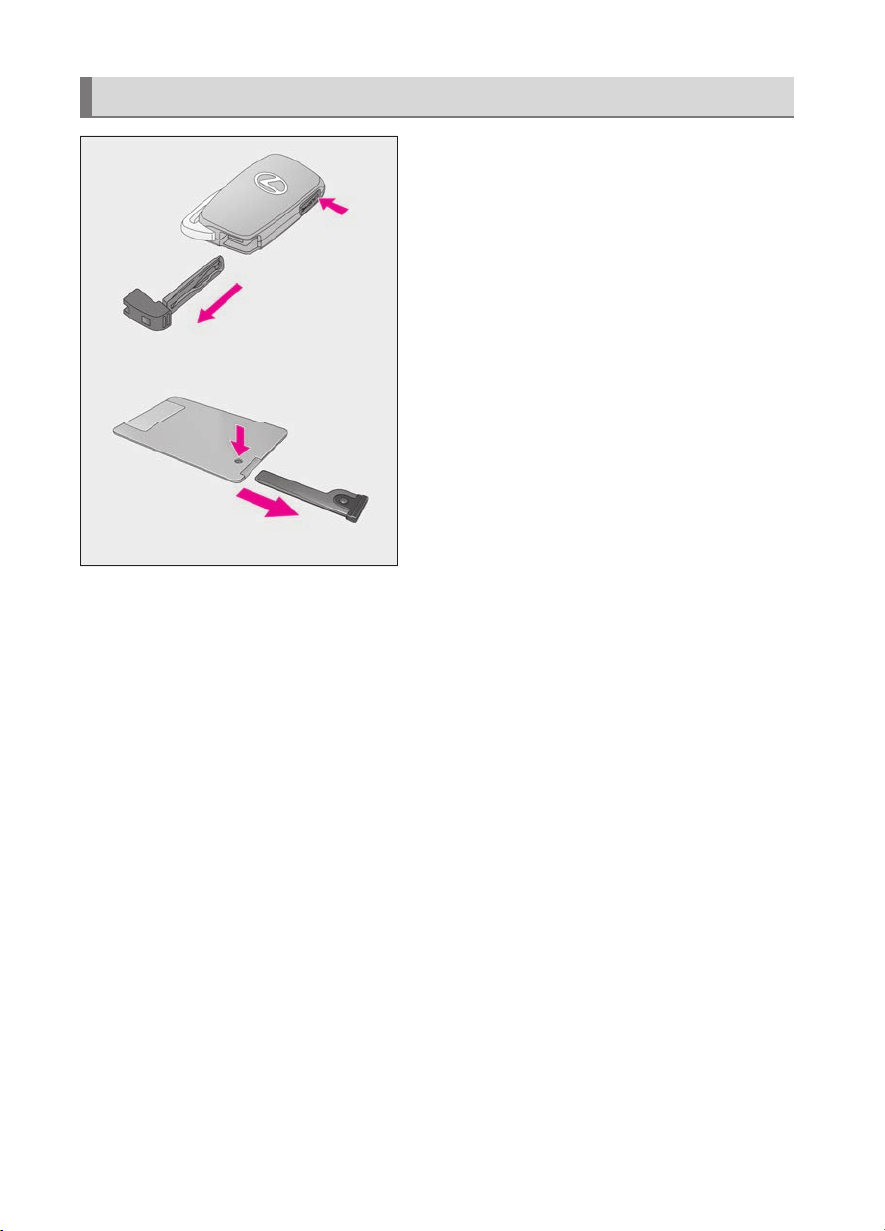

Mechanical key
To take out the mechanical key, push the release
button and take the key out.
The mechanical key can only be inserted in one
direction, as the key only has grooves on one side.
If the key cannot be inserted in a lock cylinder,
turn it over and re-attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the mechanical key together
with the electronic key. If the electronic key battery is depleted or the entry function does not
operate properly, you will need the mechanical
key.
15
Smart Entry & Start System
The following operations can be performed simply by carrying the electronic key (including the
card key) on your person, for example in your pocket. The driver should always carry the electronic key.
For details on starting the hybrid system, see page 17.
Unlocking and locking the doors from the outside
1
Grip the either front door handle to unlock
the doors.
Make sure to touch the sensor on the back of
the handle.
The doors cannot be unlocked for 3 seconds
after the doors are locked.
2
Touch the lock sensor (indentation on the
upper part of the front door handle) to lock
the doors.
Check that the door is securely locked.
Opening the trunk from outside the vehicle
While carrying the electronic key, press the button on the trunk lid.
When all the doors are unlocked with the power
door lock system, the trunk can be opened without carrying the electronic key.
For details on what to do when the electronic key does not operate properly, see page 63.
16

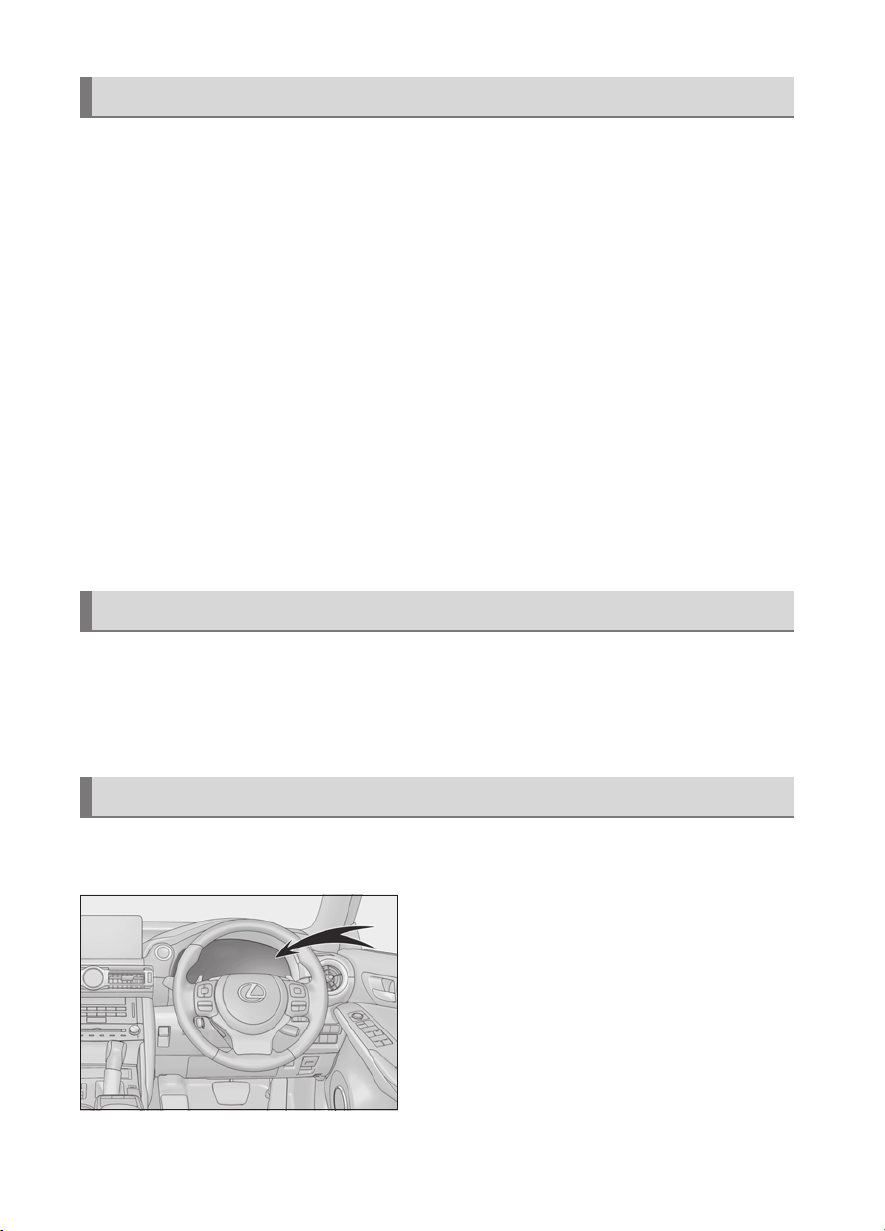

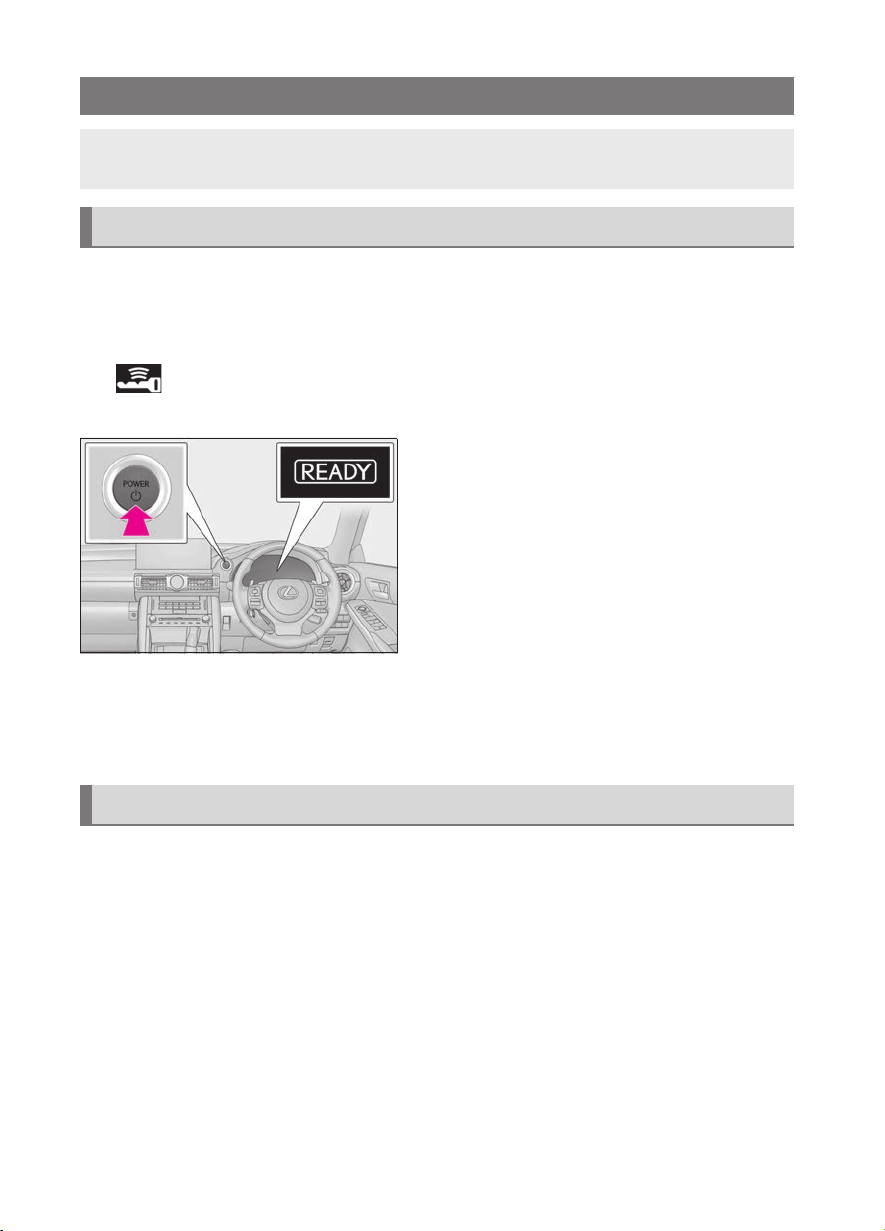

Power (Ignition) Switch
Performing the following operations when carrying the electronic key on your person starts the
hybrid system or changes power switch modes.

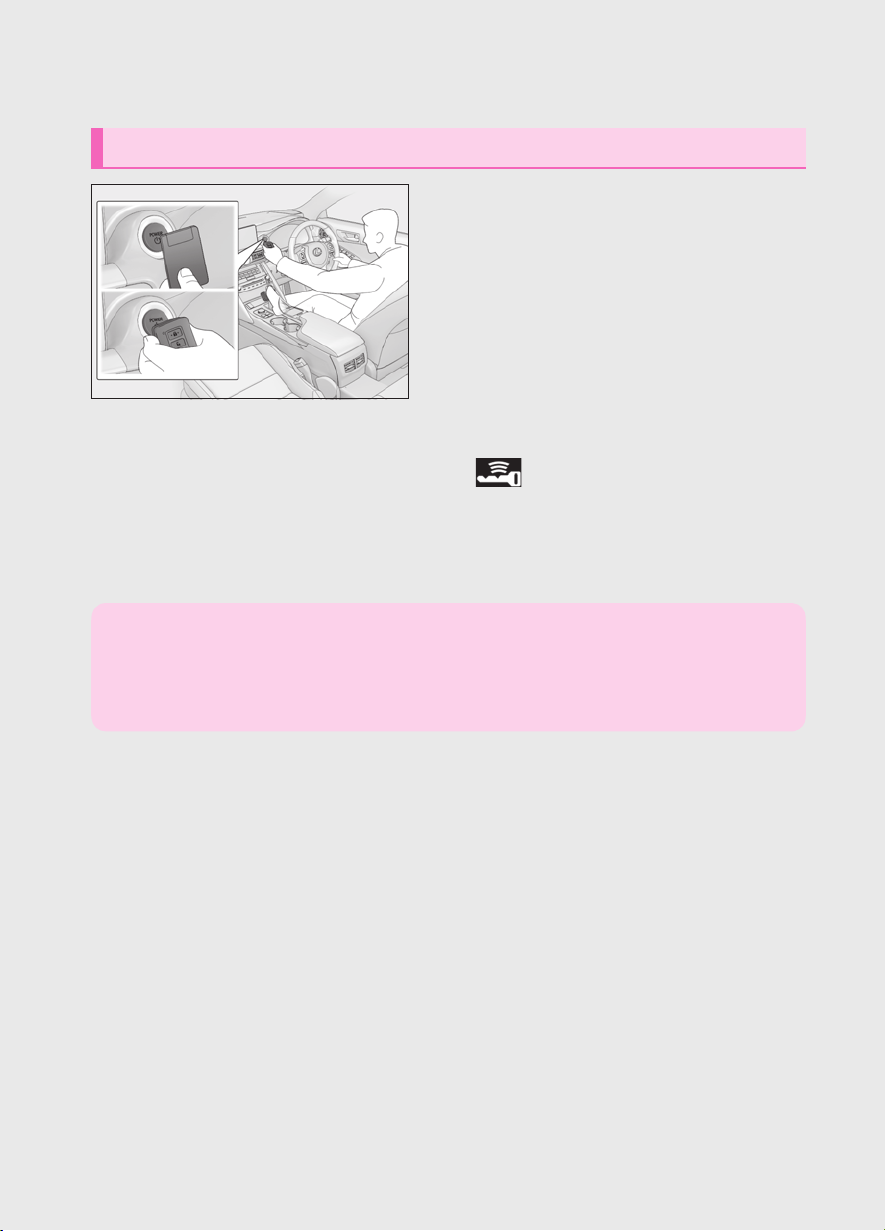

Starting the hybrid system
1
Check that the parking brake is set.
2
Check that the shift lever is in P.
3
Firmly depress the brake pedal.
and a message will be displayed on the multi-information display.
If it is not displayed, the hybrid system cannot be started.
4
Press the power switch shortly and firmly.
When operating the power switch, one short,
firm press is enough. It is not necessary to
press and hold the switch.
If the “READY” indicator turns on, the hybrid
system will operate normally.
Continue depressing the brake pedal until
the “READY” indicator is illuminated.
The hybrid system can be started from any
power switch mode.
5
Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
.
Stopping the hybrid system
1
Stop the vehicle completely.
2
Set the parking brake, and shift the shift lever to P.
3
Press the power switch.
4
Release the brake pedal and check that the display on the meters is off.
17

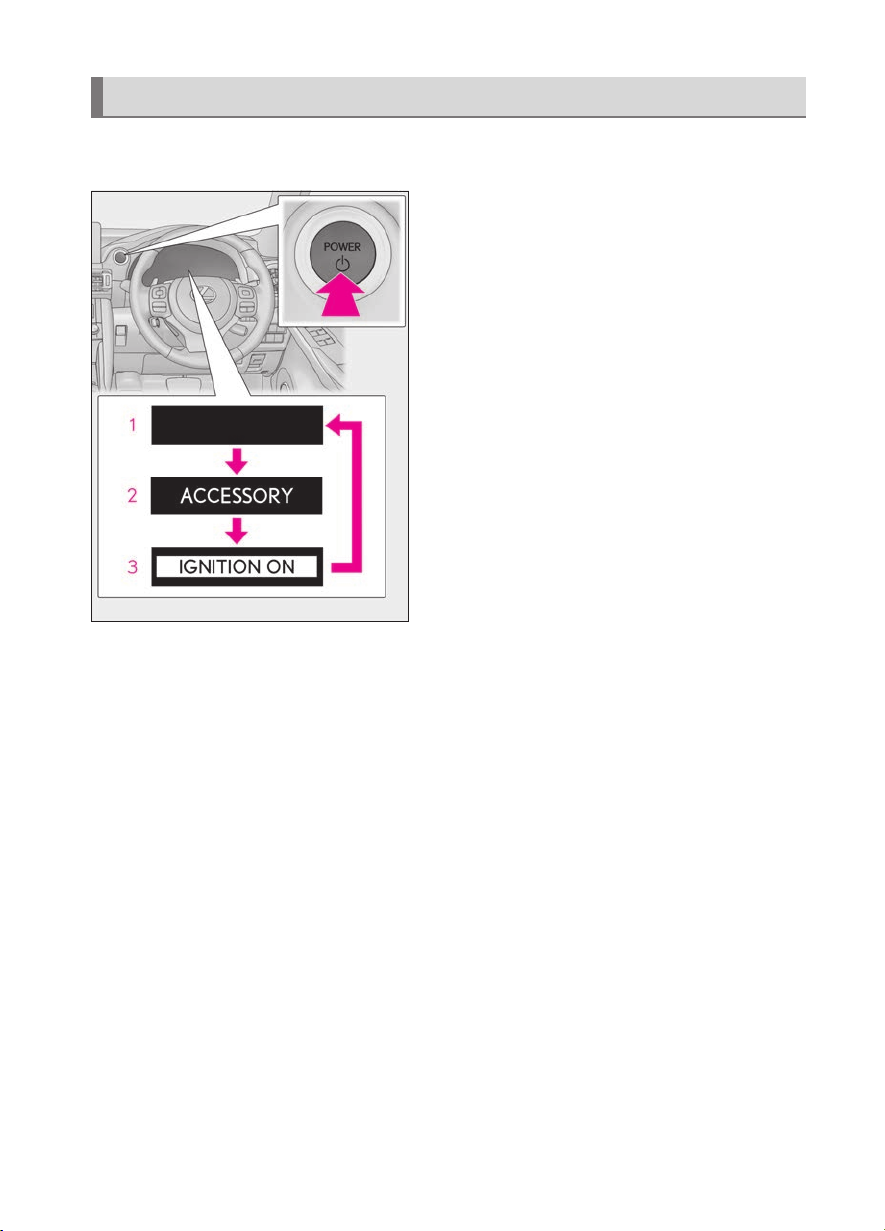

Changing power switch modes
Modes can be changed by pressing the power switch with brake pedal released. (The mode
changes each time the switch is pressed.)
1
Off
*
The emergency flashers can be used.
2
ACCESSORY mode
Some electrical components such as the
audio system can be used.
“ACCESSORY” will be displayed on the
meters.
3
ON mode
All electrical components can be used.
“IGNITION ON” will be displayed on the
meters.
*
: If the shift lever is in a position other than P
when turning off the hybrid system, the power
switch will be turned to ACCESSORY mode,
not to off.
18
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop
the vehicle using the following procedure:
1
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to slow the
vehicle.
2
Shift the shift lever to N.
If the shift lever is shifted to N
3
After slowing down, stop the vehicle in a safe place by the road.
4
Stop the hybrid system.

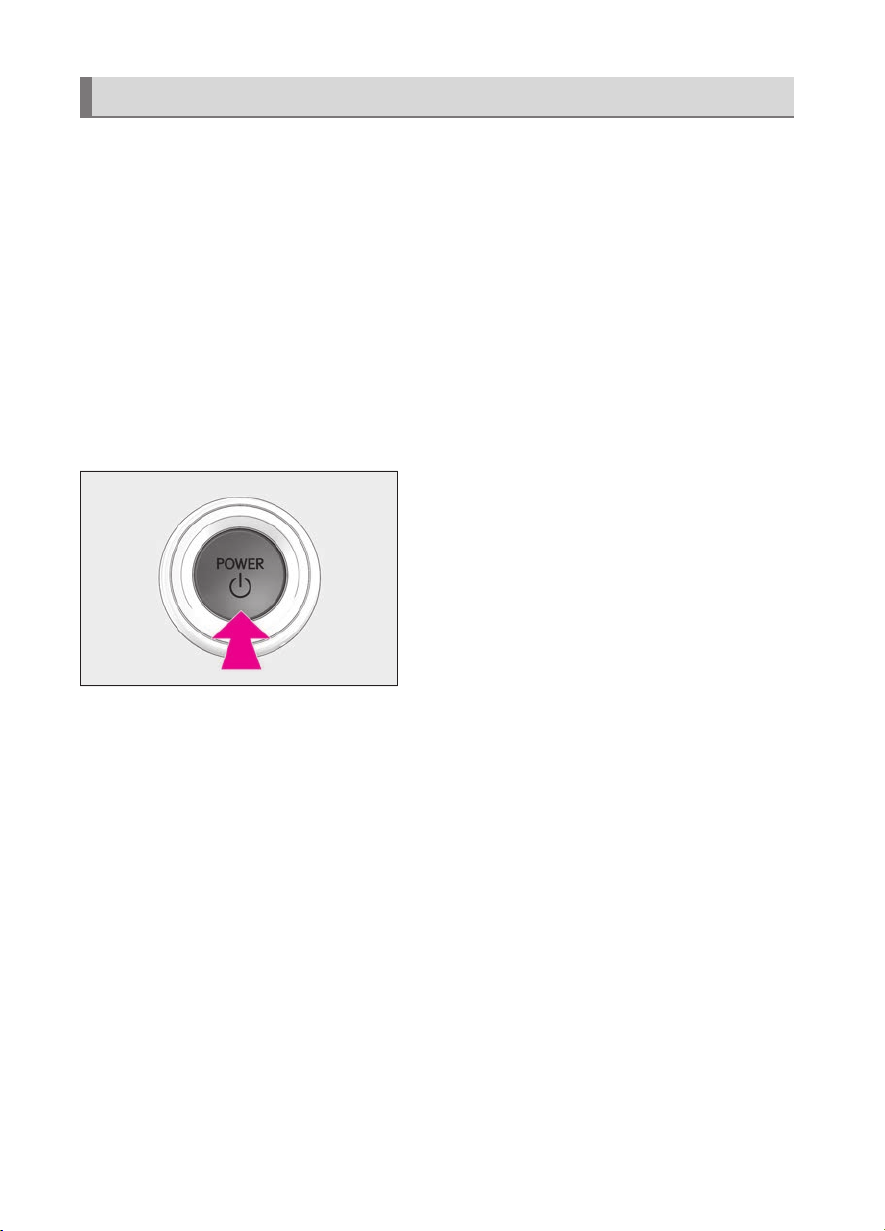

If the shift lever cannot be shifted to N
3
Keep depressing the brake pedal with both feet to reduce vehicle speed as much as possible.
4
To stop the hybrid system, press and hold the
power switch for 2 consecutive seconds or
more, or press it briefly 3 times or more in
succession.
5
Stop the vehicle in a safe place by the road.
19
EV Drive Mode
B
In EV drive mode, electric power is supplied by the hybrid battery (traction battery), and only
the electric motor (traction motor) is used to drive the vehicle.
Except F SPORT models
A
F SPORT models
Turns EV drive mode on/off
When EV drive mode is turned on, the EV drive
mode indicator will come on. Pressing the switch
when in EV drive mode will return the vehicle to
normal driving (using the gasoline engine and
electric motor [traction motor]).
20

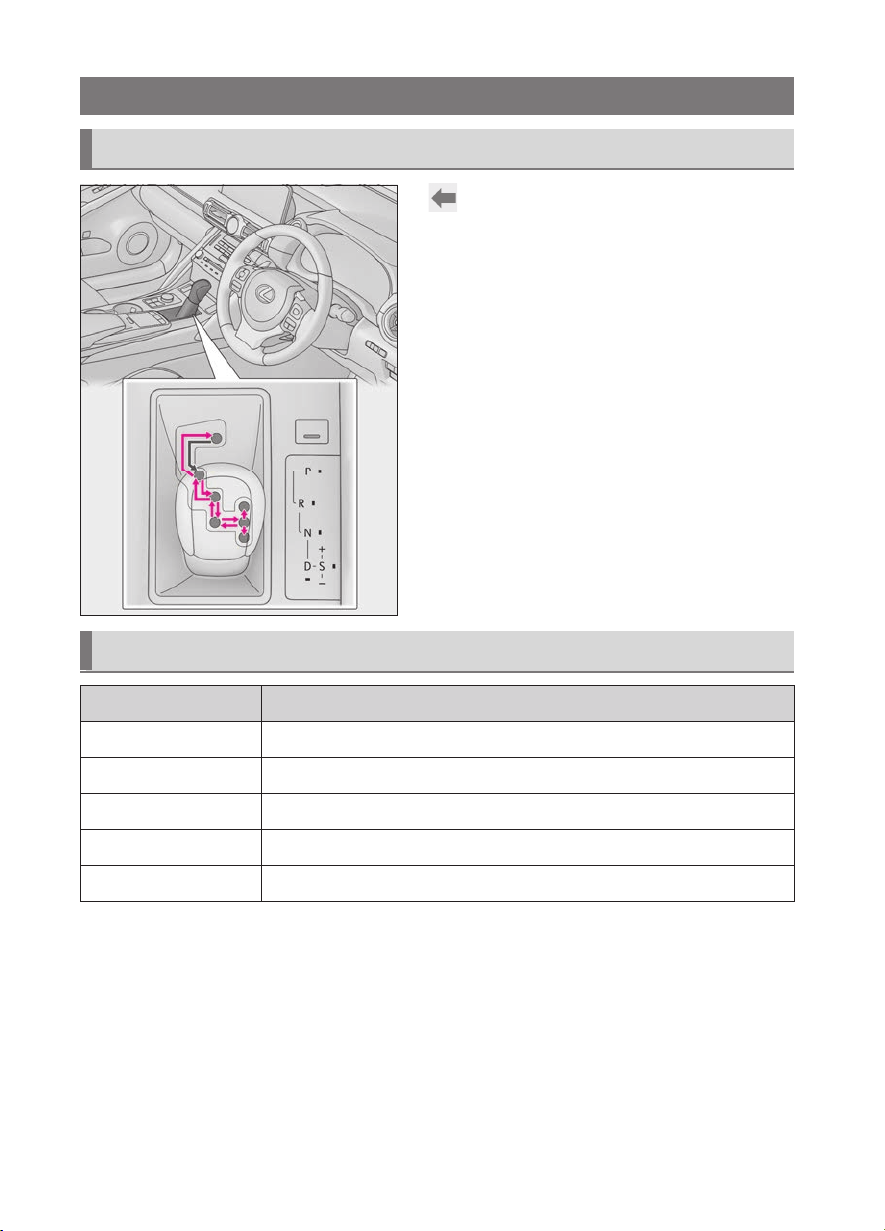

Hybrid Transmission
Shifting the shift lever
Shift position purpose and functions
While the power switch is in ON mode, move
the shift lever with the brake pedal depressed.
When shifting the shift lever between P and D,
make sure that the vehicle is completely stopped.
Shift position Objective or function
P Parking the vehicle/starting the hybrid system
R Reversing
N Neutral (Condition in which the power is not transmitted)
D Normal driving
S S mode driving
1
*
: To improve fuel efficiency and reduce noise, shift the shift lever to D for normal driving.
2
*
: By selecting shift ranges using S mode, you can control accelerating force and engine braking
force.
21
1
*
2
*

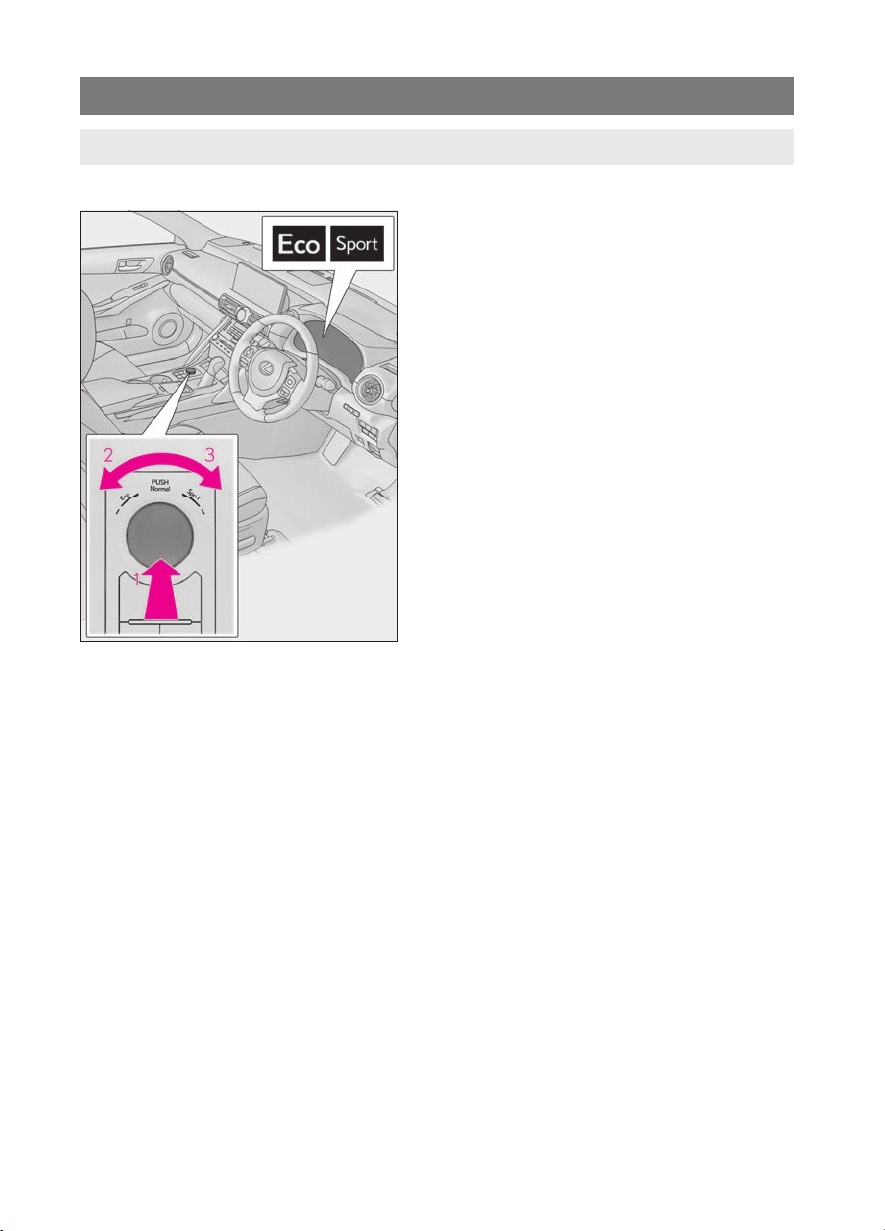

Selecting the driving mode
■
Driving mode
P. 37

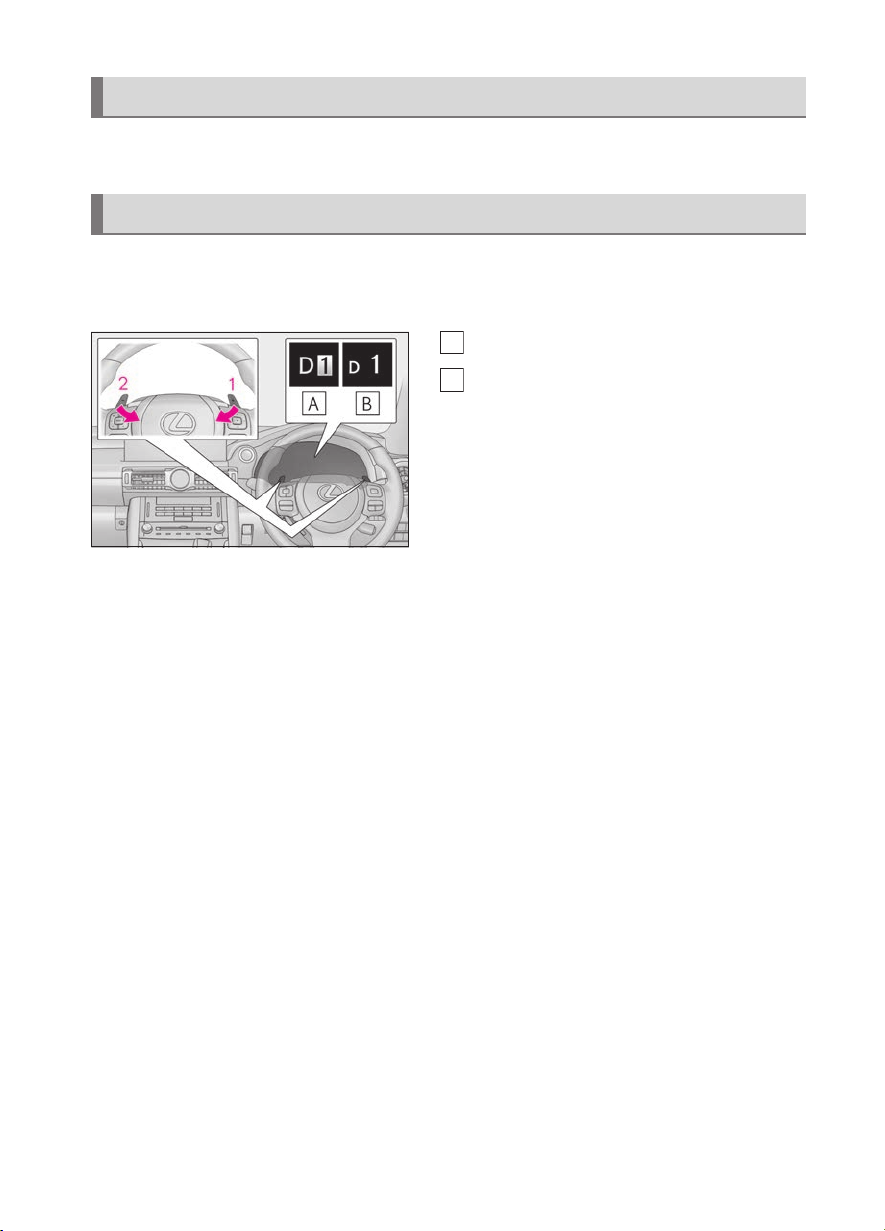

Selecting shift ranges in the D position
To drive using temporary shift range selection, operate the “-” paddle shift switch. Changing the
shift range enables the level of engine braking force to be selected. The shift range can then be
selected by operating the “-” and “+” paddle shift switches.
Except F SPORT models
A
F SPORT models
B
1
Upshifting
2
Downshifting
The selected shift range, from D1 to D6, will be
displayed on the multi-information display.
The initial shift range when the “-” paddle shift
switch is operated is automatically set to D2, D3,
D4 or D5 according to the vehicle speed.
To return to normal D position driving, the “+”
paddle shift switch must be held down for a period
of time.
■
Shift ranges and their functions
● You can choose from 6 levels of engine braking force.
● A lower shift range will provide greater engine braking force than a higher shift range, and the
engine revolutions will also increase.
22

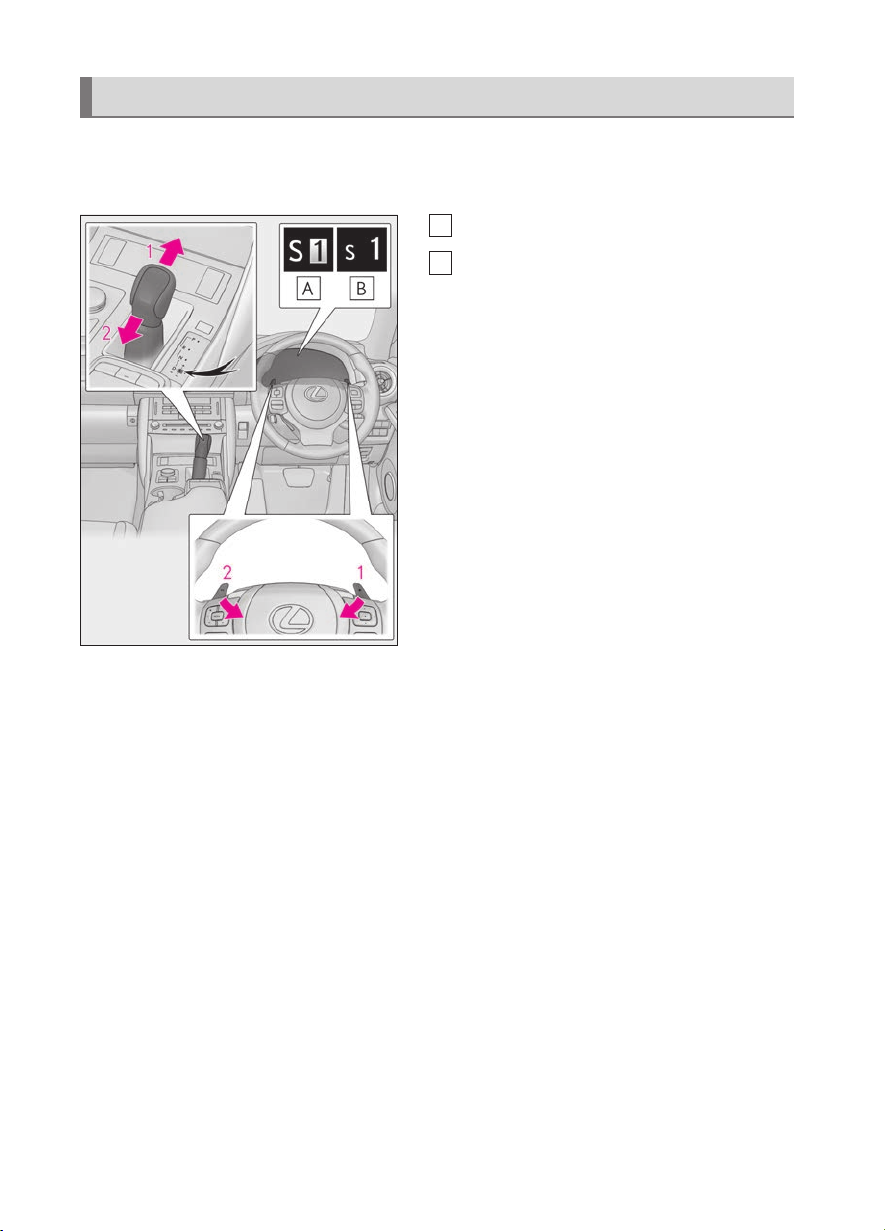

Selecting shift ranges in the S position
A
B
To enter S mode, shift the shift lever to S. Shift ranges can be selected by operating the shift lever
or paddle shift switches, allowing you to drive in the shift range of your choice. The shift range can
be selected by operating the shift lever or the “-” and “+” paddle shift switches.
Except F SPORT models
F SPORT models
1
Upshifting
2
Downshifting
The selected shift range, from S1 to S6, will be displayed on the multi-information display.
The initial shift range in S mode is automatically
set to S2, S3, S4 or S5 according to the vehicle
speed.
■
Shift ranges and their functions
● You can choose from 6 levels of accelerating force and engine braking force.
● A lower shift range will provide greater accelerating force and engine braking force than a
higher shift range, and the engine revolutions will also increase.
● If you accelerate while in ranges 1 to 4, the shift range may automatically increase in accordance with the vehicle speed.
23

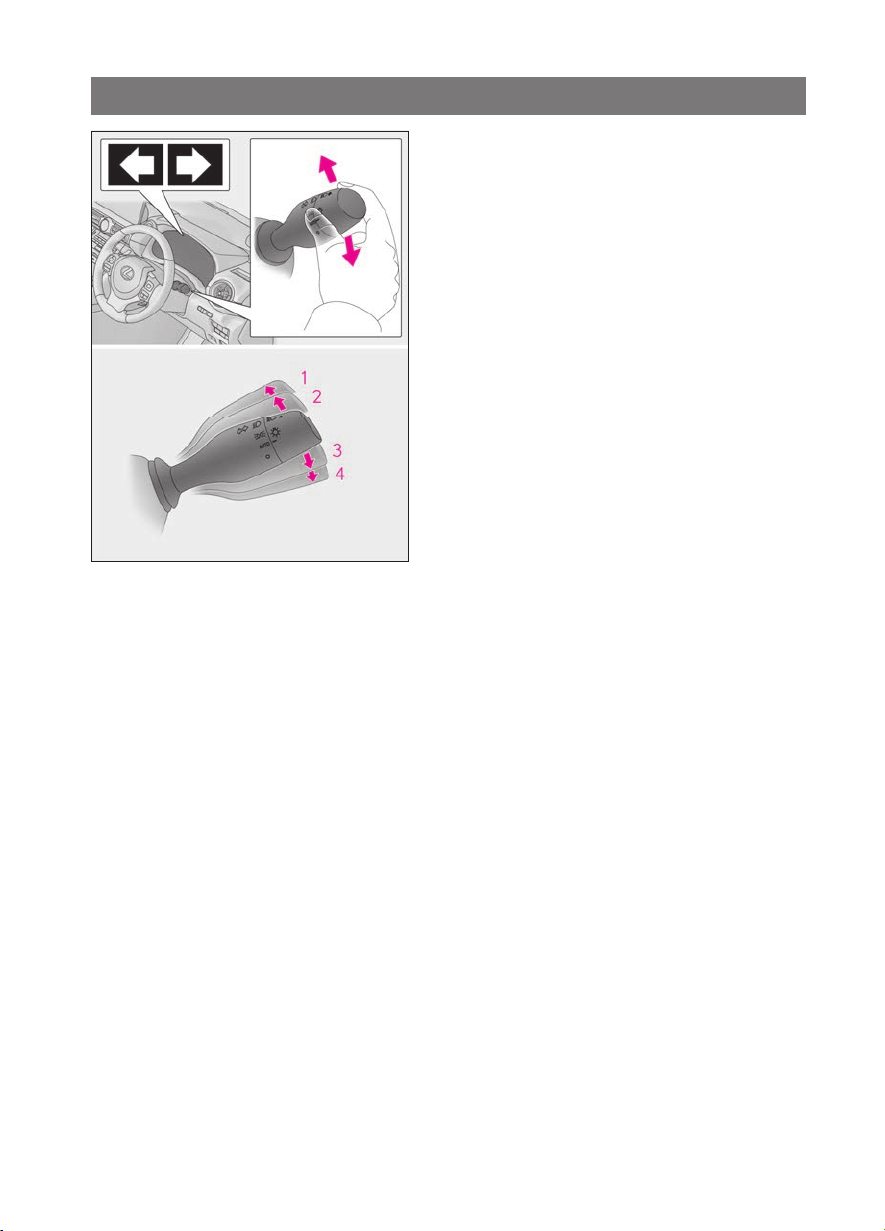

Turn Signal Lever
1
Left turn
2
Lane change to the left (move the lever partway and release it)
The left hand signals will flash 3 times.
3
Lane change to the right (move the lever
partway and release it)
The right hand signals will flash 3 times.
4
Right turn
■
If the turn signals do not stop flashing after turning left or right, or if you want to stop
them flashing
Operate the lever in the opposite direction to either position 2 or 3.
1
If you move the lever to either position
or 4, the selected turn signals will flash.
24

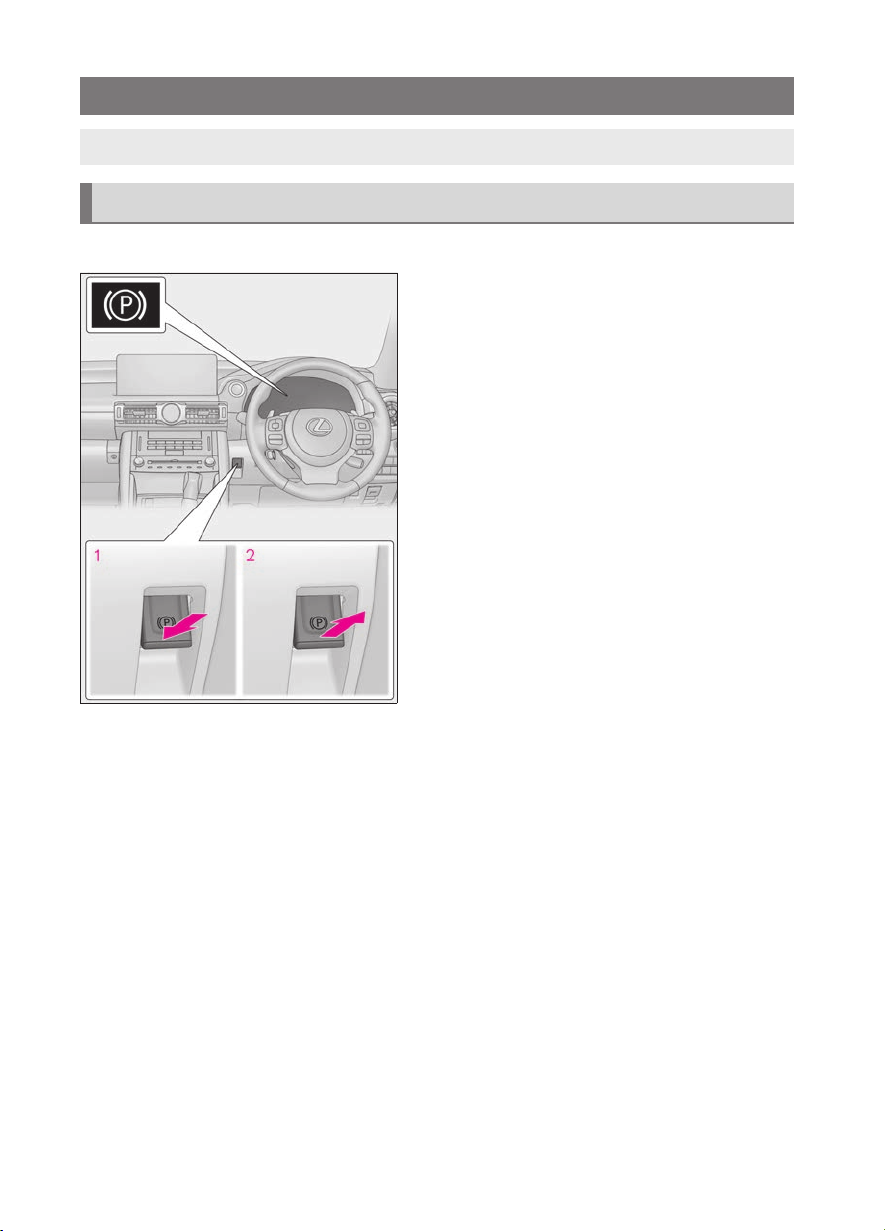

Parking Brake
The parking brake can be set or released automatically or manually.
Using the manual mode
The parking brake can be set and released manually.
1
Push the switch to set the parking brake
The parking brake indicator light will turn on.
Press and hold the parking brake switch if an
emergency occurs and it is necessary to
operate the parking brake while driving.
2
Pull the switch to release the parking brake
•Operate the parking brake switch while
depressing the brake pedal.
• Using the parking brake automatic release
function, the parking brake can be released
by depressing the accelerator pedal. When
using this function, slowly depress the
accelerator pedal.
Make sure that the parking brake indicator
light turn off.
If the parking brake indicator light flashes,
operate the switch again.
25
Turns automatic mode on
In automatic mode, the parking brake can be set or released automatically according to the shift
lever operation. Also, even in automatic mode, the parking brake can be set or released manually.
While the vehicle is stopped, press and hold the
parking brake switch until “EPB Shift Interlock
Function Activated” will be displayed on the multiinformation display.
When the automatic mode is turned on, the parking brake operates as follows.
● When the shift lever is moved out of P, the
parking brake will be released, and the parking
brake indicator light will turn off.
● When the shift lever is moved into P, the parking brake will be set, and the parking brake
indicator light will turn on.
Operate the shift lever with the vehicle stopped and the brake pedal depressed.
Turns automatic mode off
While the vehicle is stopped, pull and hold the
parking brake switch until “EPB Shift Interlock
Function Deactivated” will be displayed on the
multi-information display.
26
Brake Hold
A
B
The brake hold system keeps the brake applied when the shift lever is in D, S or N with the system on and the brake pedal has been depressed to stop the vehicle. The system releases the
brake when the accelerator pedal is depressed with the shift lever in D or S to allow smooth start
off.
Turns the brake hold system on
The brake hold standby indicator (green)
comes on. While the system is holding the brake,
the brake hold operated indicator (yellow)
comes on.
27
Multi-information Display
Display and menu icons
■
Display (except F SPORT models)
■
Display (F SPORT models)
Main meter in center position
By selecting menu icons on the multi-information
display, a variety of driving-related information
can be displayed. The multi-information display
can also be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are also displayed in certain situations.
The multi-information display presents the driver
with a variety of driving-related information.
Warning or advice pop-up displays are also displayed in certain situations.
Main meter moved to the right
By selecting menu icons on the multi-information
display, a variety of driving-related information
can be displayed. The multi-information display
can also be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are also displayed in certain situations.
28
■
Menu icons

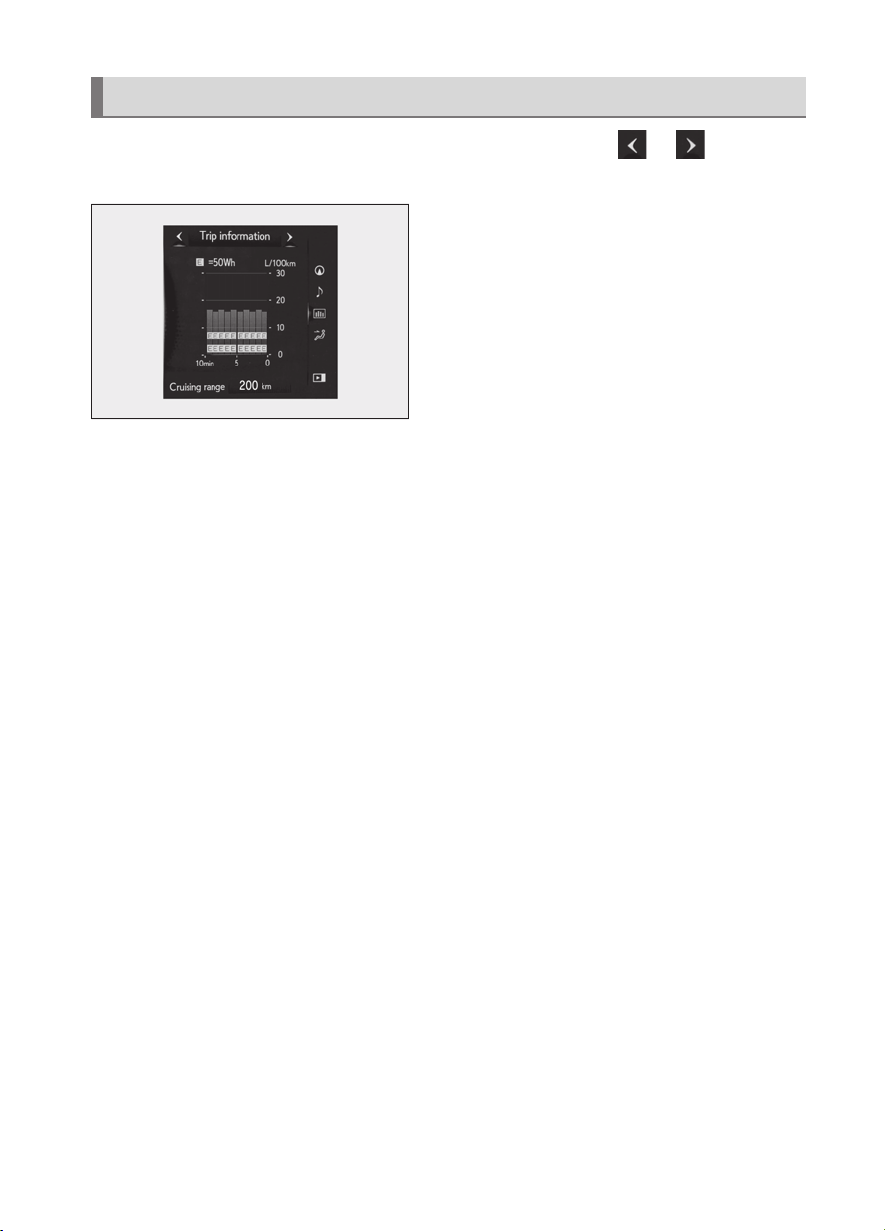

Driving information
Navigation system-linked display
Audio system-linked display
Driving support system information display
Warning message display
Settings display
If a problem is detected in any of the vehicle’s systems, a warning message is shown on the multiinformation display.
29

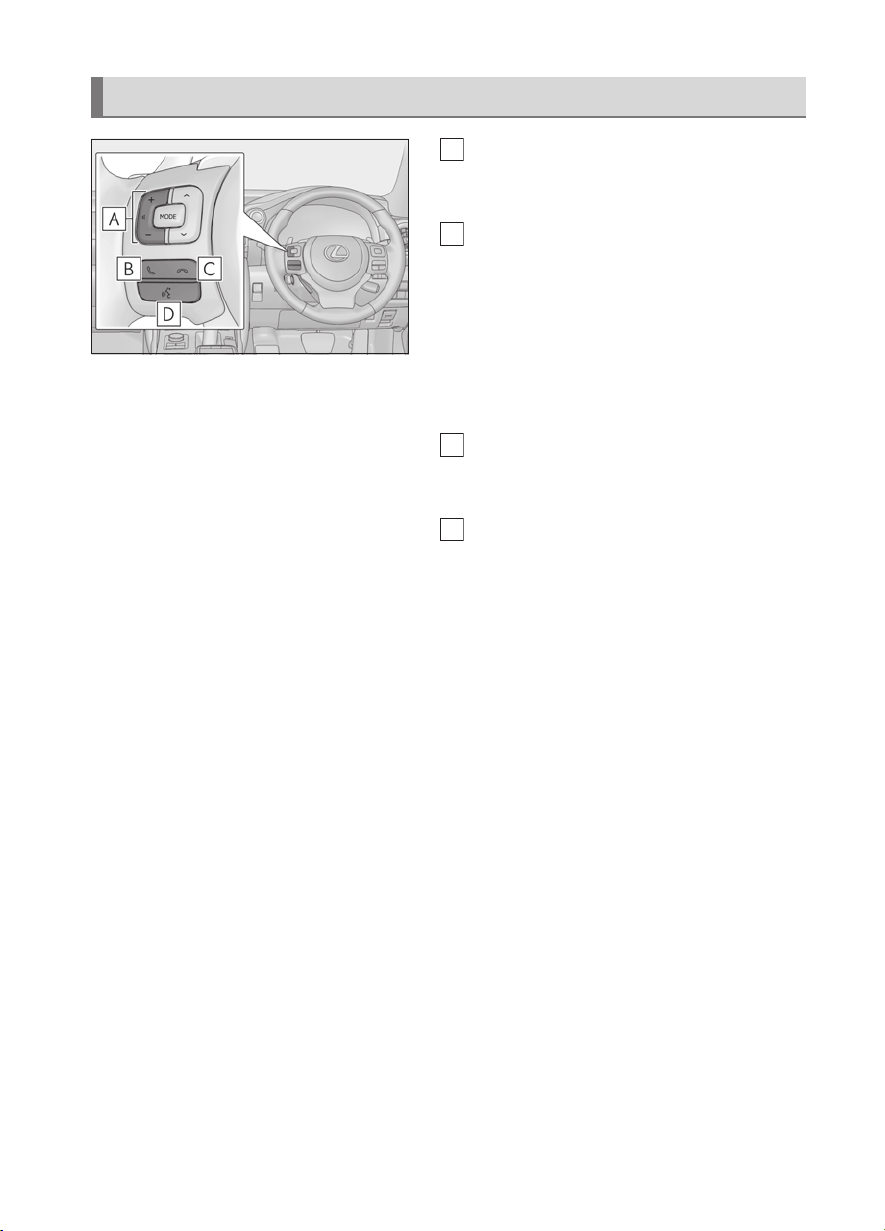

Changing the meter display
C
/ : Select menu icons
A
/ : Change displayed content, scroll
up/down the screen and move the cursor up/
down
Press: Enter/Set
B
Press and hold: Reset
Except F SPORT models
Display the top screen and return to the previous screen
C
Press and hold : Register current screen as the top screen
Call sending/receiving and history display
D
Linked with the hands-free system, sending or receiving call is displayed. For details regarding
the hands-free system, refer to the “Navigation System Owner’s Manual”.
F SPORT models
Move the main meter and return to the previous screen
Call sending/receiving and history display
D
Linked with the hands-free system, sending or receiving call is displayed. For details regarding
the hands-free system, refer to the “Navigation System Owner’s Manual”.
30
Headlight Switch
Turning on the high beam headlights
1
2
3
4
1
2
The front position, tail, license plate and
instrument panel lights turn on.
The headlights and all lights listed above
turn on.
The headlights, daytime running lights
and all the lights listed above turn on and off
automatically. (When the power switch is in
ON mode.)
The daytime running lights turn on.
With the headlights on, push the lever away
from you to turn on the high beams.
Pull the lever toward you to the center position to turn the high beams off.
Pull the lever toward you and release it to
flash the high beams once.
You can flash the high beams with the headlights on or off.
31
AHB (Automatic High Beam)
The Automatic High Beam uses a camera sensor located behind the upper portion of the windshield to assess the brightness of the lights of vehicles ahead, streetlights, etc., and automatically
turns the high beams on or off as necessary.

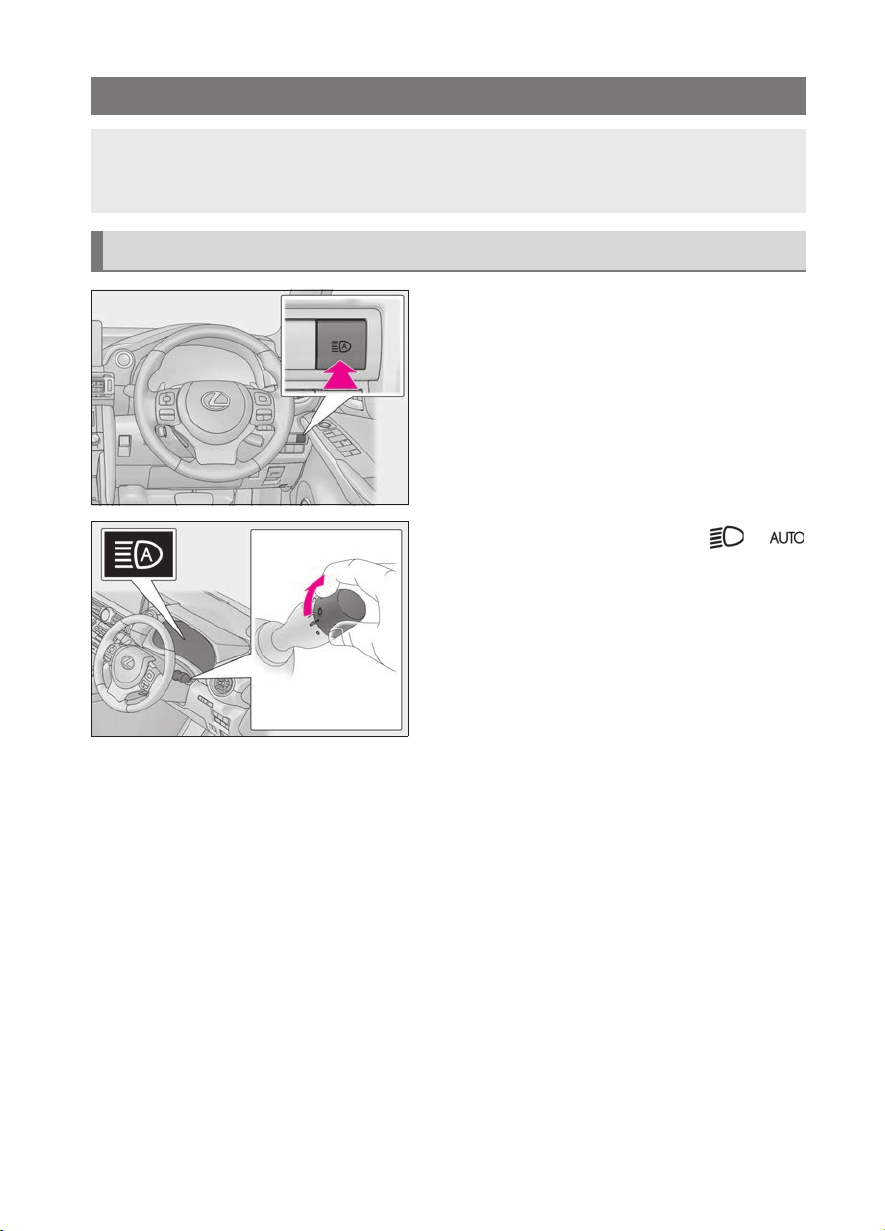

Activating the Automatic High Beam
1
Press the Automatic High Beam switch.
2
Turn the headlight switch to the or
position.
When the headlight switch lever is in the original position, the Automatic High Beam system will be enabled and the Automatic High
Beam indicator will illuminate.
32

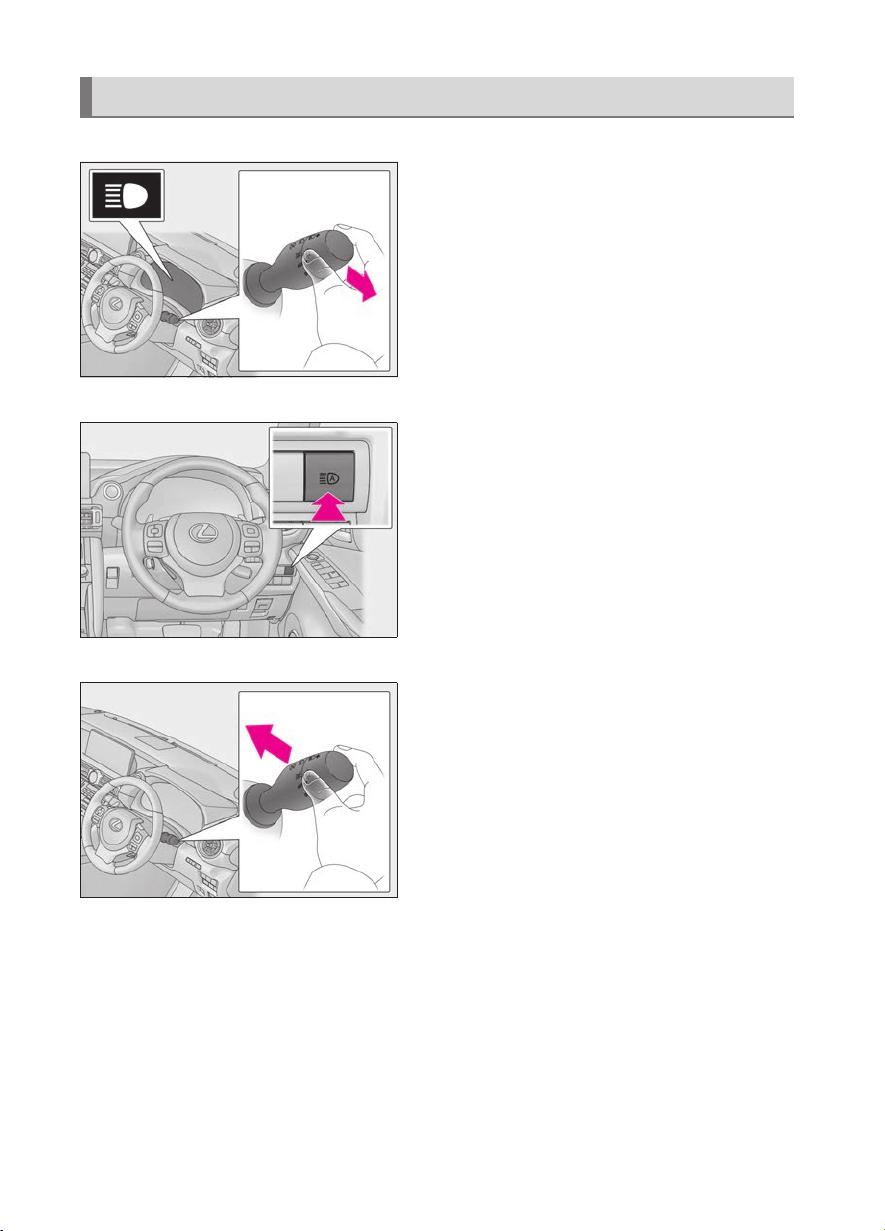

Turning the high beams on/off manually
■
Switching to the high beams
■
Switching to the low beams
■
Temporarily switching to the low beams
Push the lever away from you.
The Automatic High Beam indicator will turn off
and the high beam indicator will turn on.
Pull the lever to its original position to activate the
Automatic High Beam system again.
Press the Automatic High Beam switch.
The Automatic High Beam indicator will turn off.
Press the switch to activate the Automatic High
Beam system again.
Pull the lever toward you and then return it to its
original position.
The high beams are on while the lever is pulled
toward you, however, after the lever is returned to
its original position, the low beams remain on for a
certain amount of time. Afterwards, the Automatic High Beam will be activated again.
33

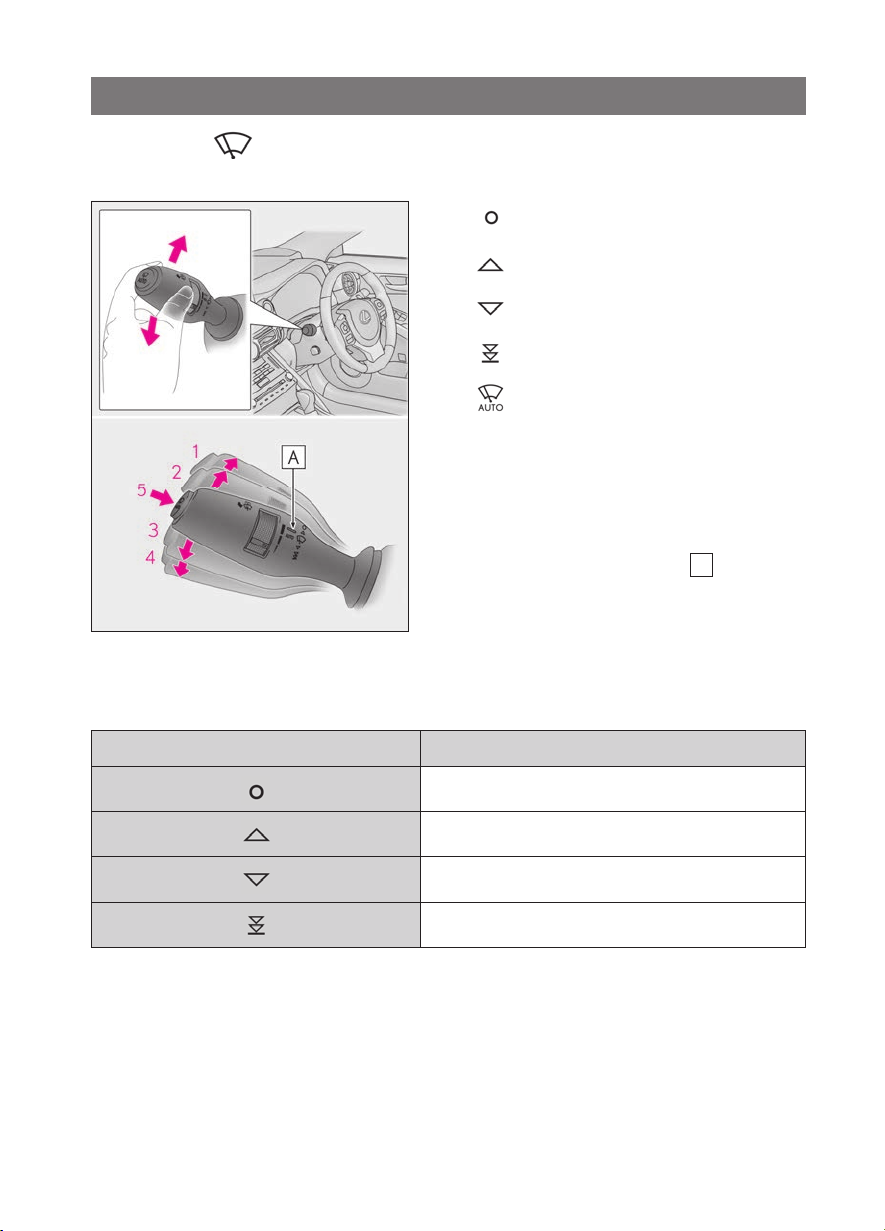

Windshield Wipers and Washer
A
Operating the lever operates the wipers or washer as follows. The lever will return to its
original position immediately after operation.
1
2
3
4
5
Depending on the operating state of the wipers when the wiper lever is operated, the wipers will
operate as follows.
Current wiper operation: Off
Wiper lever operation Wiper operation
Move the lever up by 2 levels
Move the lever up by 1 level
Move the lever down by 1 level
Move the lever down by 2 levels
AUTO mode on/off switch
With AUTO mode selected, the wipers will
operate automatically when the sensor
detects falling rain. The system automatically
adjusts wiper timing in accordance with rain
volume and vehicle speed.
The AUTO mode indicator will turn on
when AUTO mode is selected.
Temporary operation
Temporary operation
Low speed operation
High speed operation
34
Current wiper operation: Low speed operation
Wiper lever operation Wiper operation
High speed operation
High speed operation
Current wiper operation: High speed operation
Wiper lever operation Wiper operation
Low speed operation
No change
No change
Current wiper operation: AUTO mode (Intermittent operation)
Wiper lever operation Wiper operation
Off
Off
Off
1
*
: After temporary operation, the mode will return to AUTO mode.
2
*
: AUTO mode will be canceled.
35
Off
Temporary operation
Low speed operation
High speed operation
1
*
2
*
2
*
Current wiper operation: AUTO mode (Continuously)
Wiper lever operation Wiper operation
Off
No change
*
: AUTO mode will be canceled.
Low speed operation
High speed operation

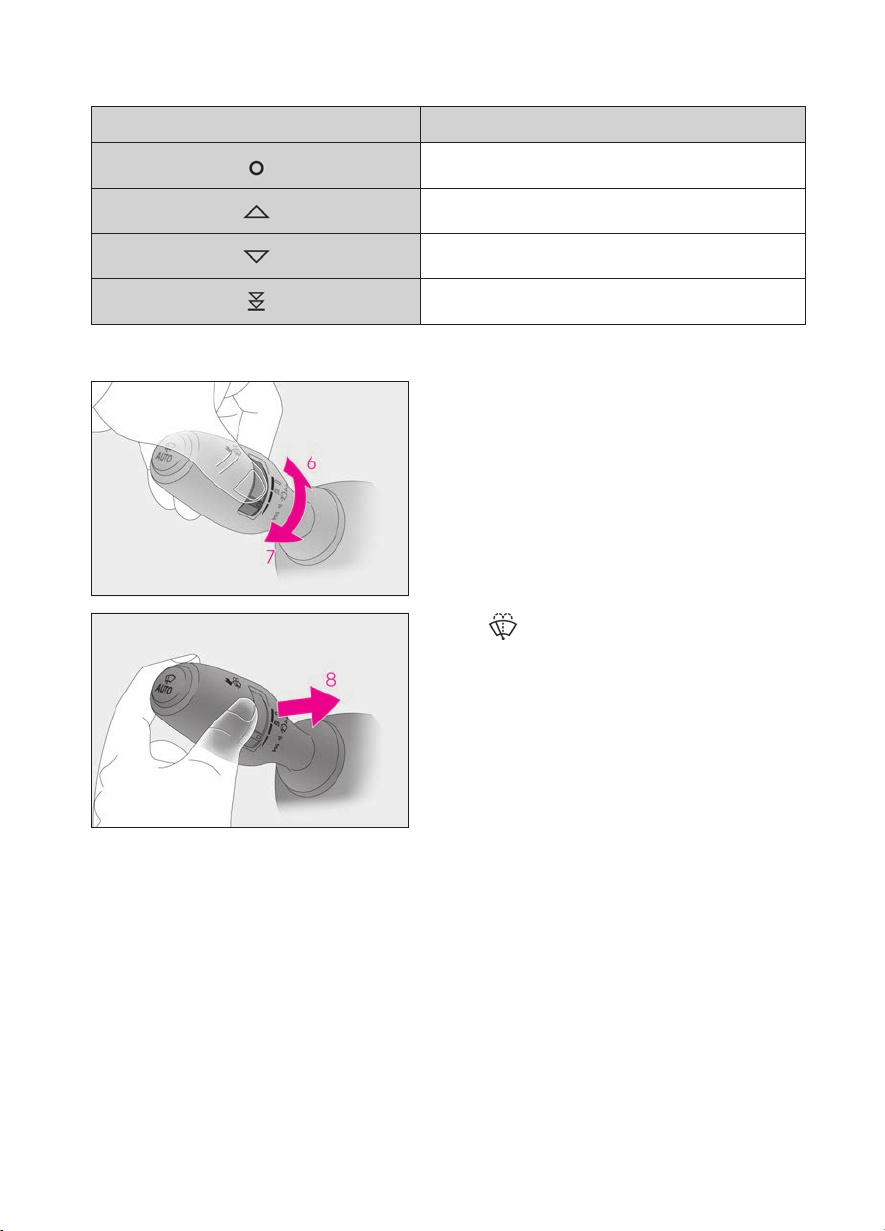

When AUTO mode is selected, the sensor sensitivity can be adjusted by turning the switch ring.
6
Increases the sensitivity
7
Decreases the sensitivity
8
Washer/wiper dual operation
Pulling the lever operates the wipers and
washer.
The wipers will automatically operate a couple of times after the washer squirts.
When the power switch is in ON mode and
the headlights are on, if the lever is pulled, the
headlight cleaners will operate once. After
this, the headlight cleaners will operate every
5th time the lever is pulled.
*
*
36
Driving Mode Select Switch
The driving modes can be selected to suit driving condition.
Vehicles without AVS (Adaptive Variable Suspension System)
1
Normal mode
Provides an optimal balance of fuel economy,
quietness, and dynamic performance. Suitable for city driving.
Press the switch to change the driving mode
to normal mode when Eco drive mode or
sport mode is selected.
2
Eco drive mode
Helps the driver accelerate in an eco-friendly
manner and improve fuel economy through
moderate throttle characteristics and by controlling the operation of the air conditioning
system (heating/cooling).
When not in Eco drive mode, if the driving
mode select switch is turned to the left, the
Eco drive mode indicator will come on.
3
Sport mode
Controls the hybrid system to provide quick, powerful acceleration. This mode also changes
the steering feel, making it suitable for when agile driving response is desired, such as when
driving on roads with many curves.
When not in sport mode and the driving mode select switch is turned to the right, the
“SPORT” indicator comes on, and the hybrid system indicator changes to the tachometer.
37
Vehicles with AVS (Adaptive Variable Suspension System)
A
Except F SPORT models
F SPORT models
B
1
Normal mode/Customized mode
Normal mode and customized mode are
selected by pressing the driving mode select
switch. Each time the switch is pressed, the
driving mode changes between normal
mode and customized mode. When customized mode is selected, the “Customize” indicator will be illuminated.
When Eco drive mode or sport mode is
selected, pressing the switch changes the
driving mode to normal mode.
• Normal mode
Provides an optimal balance of fuel economy, quietness, and dynamic performance. Suitable for
city driving.
• Customized mode
Allows you to drive with the following functions set to your preferred settings. Customized
mode settings can only be changed on the drive mode customization display of the Center
Display.
Function Setting
Normal
Powertrain
Power
Eco
Normal
Chassis
Sport
Normal
Air conditioning system
Eco
38
2
Eco drive mode
Helps the driver accelerate in an eco-friendly manner and improve fuel economy through
moderate throttle characteristics and by controlling the operation of the air conditioning system (heating/cooling).
When not in Eco drive mode, if the driving mode select switch is turned to the left, the Eco
drive mode indicator will come on.
3
Sport mode
• SPORT S mode
Controls the hybrid system to provide quick, powerful acceleration. This mode is suitable for
when agile driving response is desired, such as when driving on roads with many curves.
When not in sport mode and the driving mode select switch is turned to the right, the
“SPORT” indicator comes on, and the hybrid system indicator changes to the tachometer.
• SPORT S+ mode
Helps to ensure steering performance and driving stability by simultaneously controlling the
steering and suspension in addition to the hybrid system. Suitable for sportier driving.
When in SPORT S mode, if the driving mode select switch is turned to the right, the “SPORT
S+” indicator will come on.
39
Remote Touch
D
E
The Remote Touch can be used to operate the Center Display.
Remote Touch is the name for the device that includes the “MAP” button, “MENU” button, back
button, touchpad and sub function button.
Names and operations of each part
Back button
A
Press this button to display the previous
screen.
“MENU” button
B
Press this button to display the menu screen.
“MAP” button
C
Press this button to display the vehicle’s current position.
Touchpad
Slide your finger on the touchpad and move the pointer to select a function, letter and screen
button.
Press the touchpad to enter the selected function, letter or screen button. Certain finger
movements on the touchpad can perform functions, such as changing map scale and scrolling list screens.
Sub function button
When is displayed on the screen, a function screen assigned to the screen can be displayed.
40
Center Display
Menu screen
Press the “MENU” button on the Remote Touch to display the menu screen.
Switch Function
Select to display the “Destination” screen.
1
*
Select to display the audio control screen.
Select to display the hands-free control screen.
Select to display the “Apps” screen.
Select to display the home screen of Apple CarPlay.
Select to display the home screen of Android Auto.
Select to display the information screen.
Select to display the setup screen.
Select to display the air conditioning control screen. (P. 51)
1
*
: Refer to “Navigation System Owner’s Manual”.
2
*
: This function is not available on some models.
*
1, 2
*
1
1
*
1
*
(P. 44)
1
*
1, 2
*
1, 2
*
41

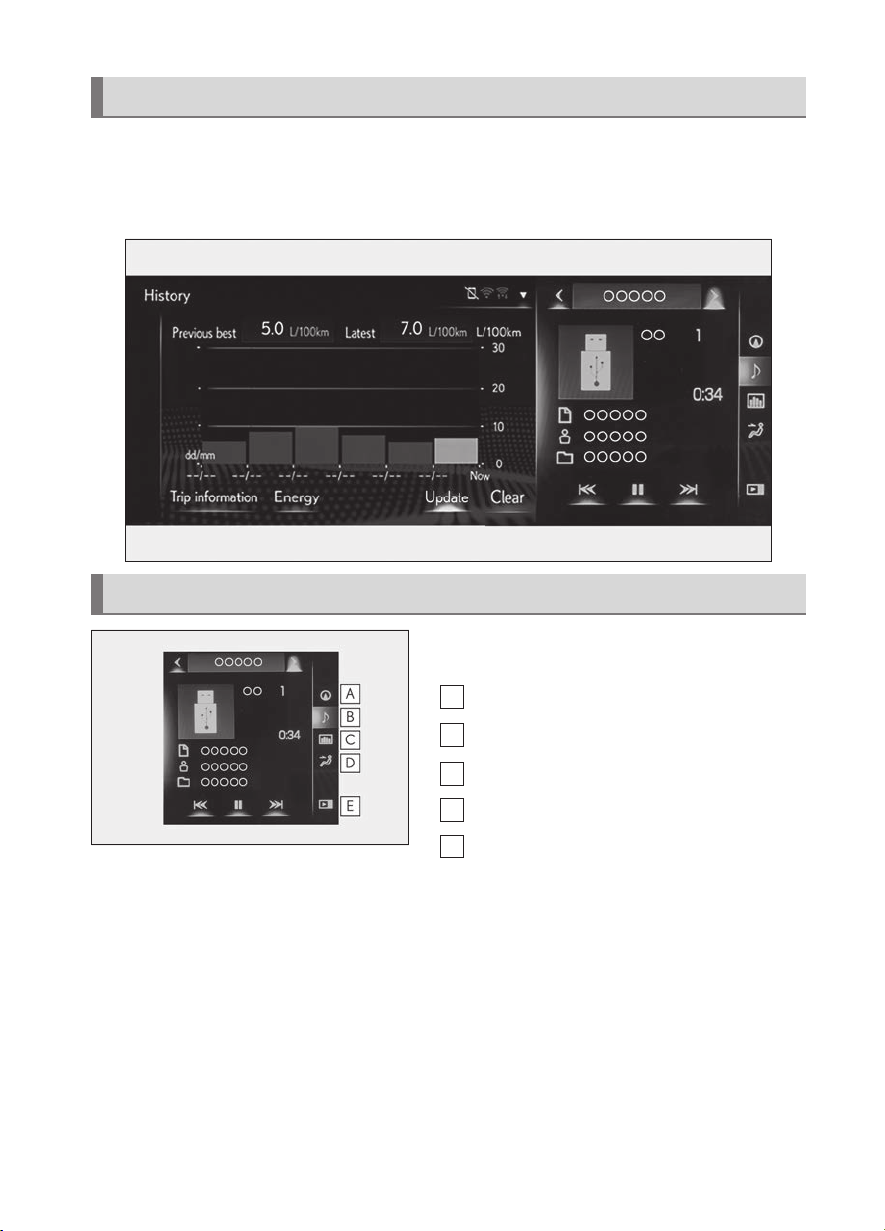

Split-screen display
A
B
C
D
E
Different information can be displayed on the left and right sides of the screen. For example, air
conditioning system screen can be displayed and operated while the fuel consumption information screen is being displayed. The large screen on the left of the display is called the main display,
and the small screen to the right is called the side display.
Side display
The following functions can be displayed and
operated on the side display.
Navigation system
Audio
*
Vehicle information (P. 46)
Air conditioning system (P. 53)
Show/hide the side display
: Refer to “Navigation System Owner’s Man-
*
ual”.
*
*
42

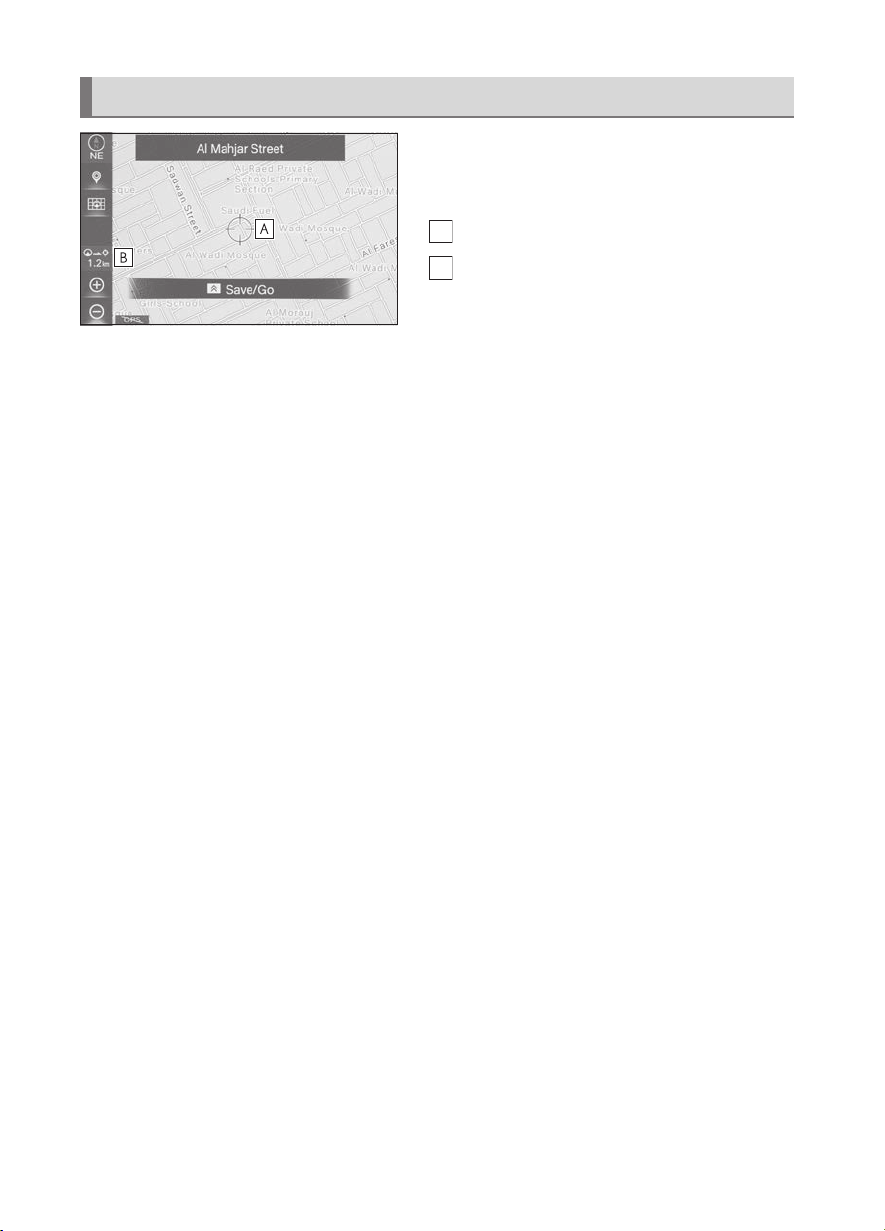

Map scroll operation
A
B
Select the desired point on the map screen.
Move the desired point on the center of the map
screen.
Cursor mark
Distance from the current position to the cursor mark
Press the “MAP” button on the Remote Touch to return to the current position.
43

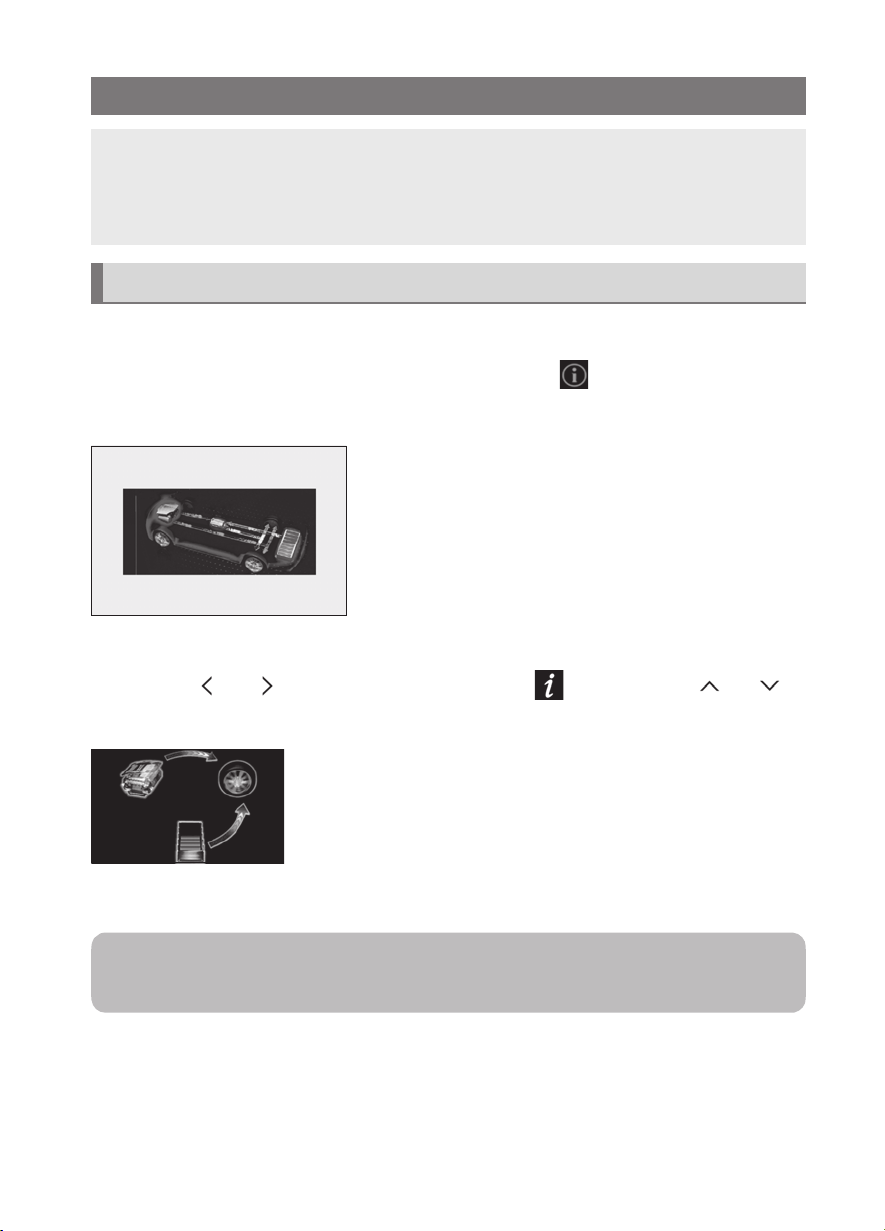

Energy Monitor/Consumption Screen
The state of the hybrid system can be viewed on the multi-information display and Center Display.
The energy monitor or consumption screen can be displayed and operated on the side display.
For details, refer to the “Owner’s Manual”.
Energy monitor
■
How to display on the Center Display
Press the “MENU” button on the Remote Touch, then select on the menu screen.
If a screen other than “Energy monitor” is displayed, select “Energy”.
The flow of energy is displayed on the Center Display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery
A light blue arrow appears when regenerative braking
occurs.
■
How to display on the multi-information display
Press the or meter control switch and select , and then press or to
select the energy monitor display.
The flow of energy is indicated by the movement of the arrows on
the multi-information display.
Red: gasoline energy
Amber: electrical energy
Light blue: energy recovery
A light blue arrow appears when regenerative braking occurs.
The displayed energy flow, battery level, etc. will change in response to the current driving conditions.
44

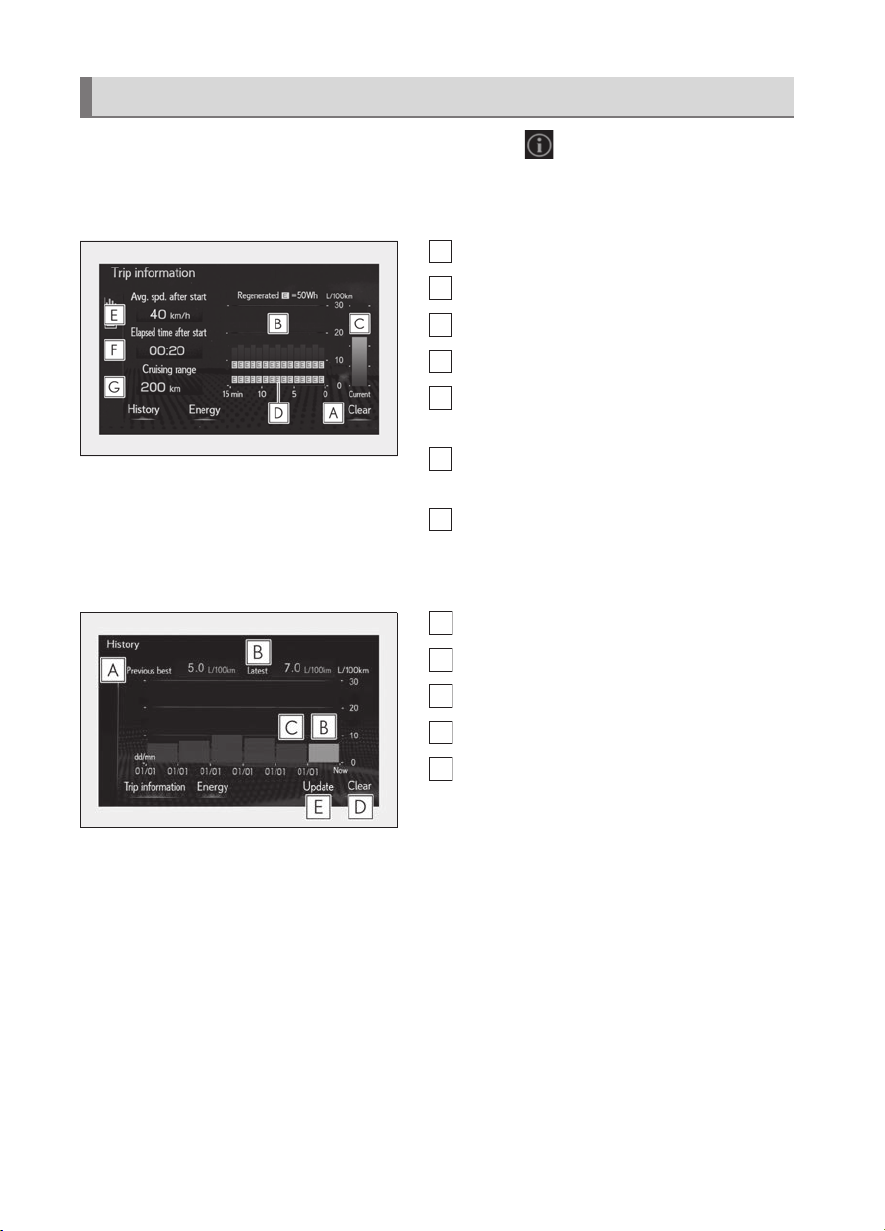

Consumption
A
B
C
D
E
F
G
A
B
C
D
E
Press the “MENU” button on the Remote Touch, then select on the menu screen.
■
Trip information
If a screen other than “Trip information” is displayed, select “Trip information”.
Resetting the consumption data
Fuel consumption in the past 15 minutes
Current fuel consumption
Regenerated energy in the past 15 minutes
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was
started.
Cruising range
■
History
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption data
45
Side display
Vehicle information can be displayed on the side display, then select or to select the
desired screen.
● Trip information (type A/type B)
● History
● Energy monitor
46
Hands-free System For Cellular Phone

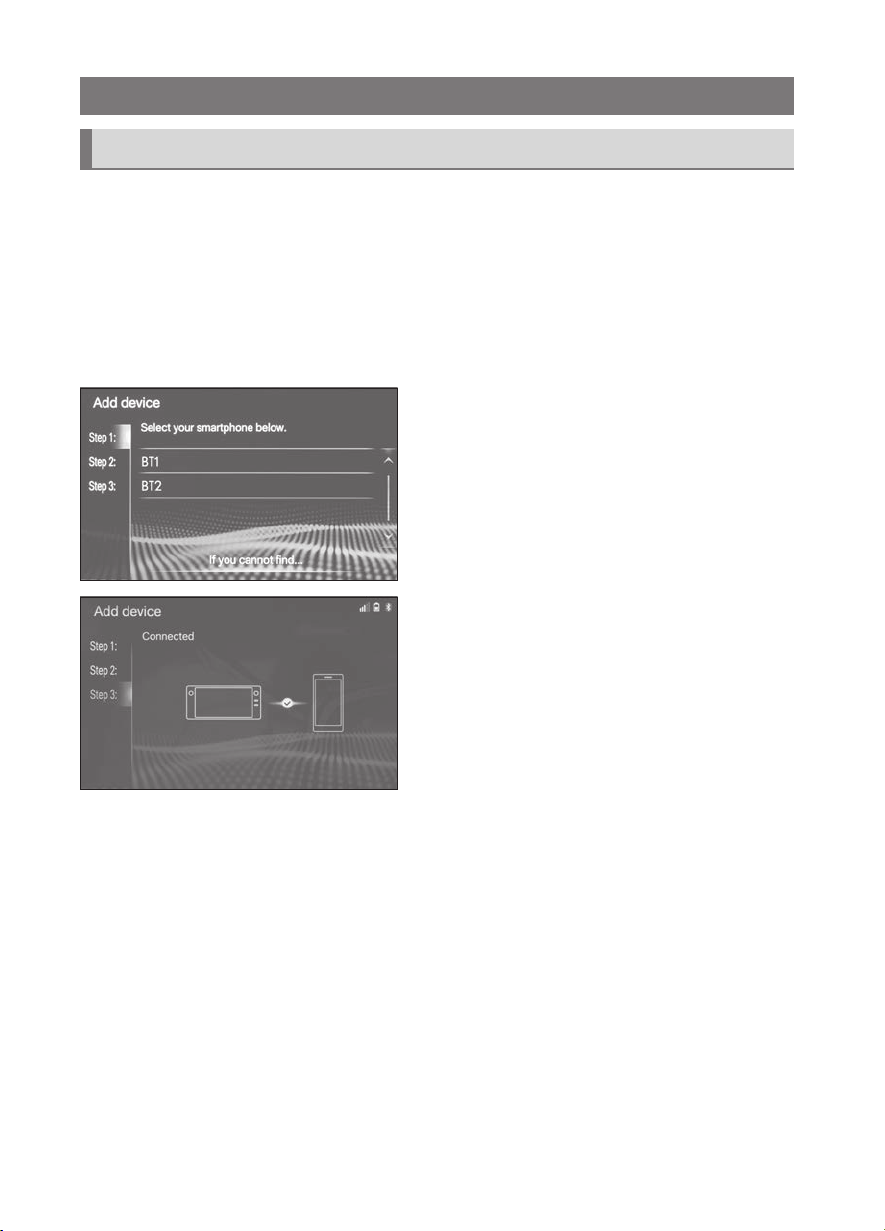

Registering/connecting a Bluetooth® device
To use the hands-free system, it is necessary to register a Bluetooth® phone with the system.
Please refer to the cellular phone manufacturer’s user guide for pairing procedures.
1
Turn the Bluetooth® connection setting of your cellular phone on.
2
Press the “MENU” button on the Remote Touch.
3
Select “Phone”.
4
Select “Yes” to register a phone.
5
Select the desired Bluetooth® device.
6
Register the Bluetooth® device using your
Bluetooth
7
Check that the following screen is displayed,
indicating pairing was successful.
8
Check that “Connected” is displayed and
registration is complete.
®
device.
47
Contacts transfer
1
Press the “MENU” button on the Remote Touch.
Please refer to P. 40 for the Remote Touch operation.
2
Select “Setup”.
3
Select “Phone” on the sub menu.
4
Select “Contacts/Call history”.
5
Select “Transfer Contacts from Device”.
6
Select “From phone (Bluetooth*)”.
7
Transfer the contact data to the system using a Bluetooth® phone.
8
Check that a confirmation screen is displayed when the operation is complete.
*
: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
Contacts transfer may not be possible depending on the type of phone.
Registering the contacts in the favorites list
1
Press the “MENU” button on the Remote Touch.
Please refer to P. 40 for the Remote Touch operation.
2
Select “Setup”.
3
Select “Phone” on the sub menu.
4
Select “Contacts/Call history”.
5
Select “Add favourite”.
6
Select the desired contact to add to the favorites list.
7
Check that a confirmation screen is displayed when the operation is complete.
48

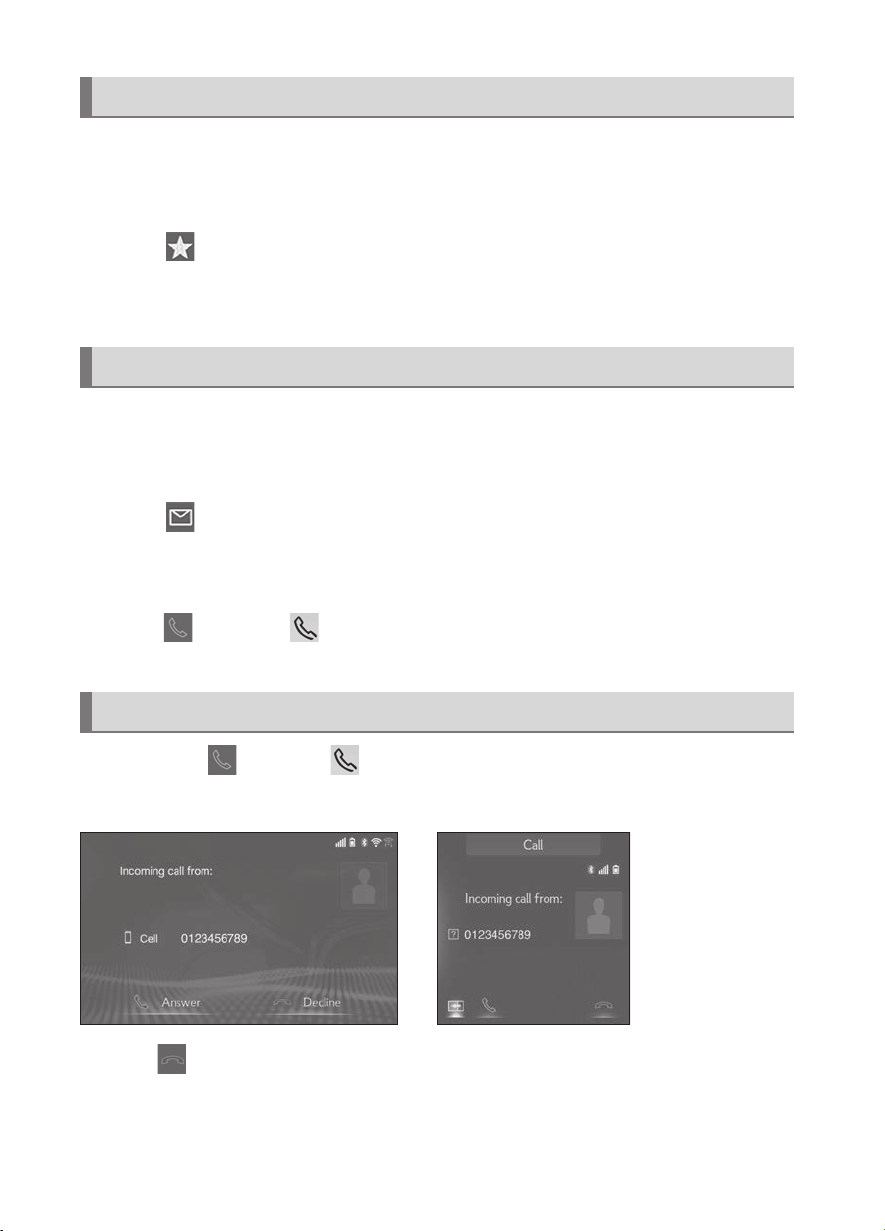

Calling by favorites list
1
Press the “MENU” button on the Remote Touch.
Please refer to P. 40 for the Remote Touch operation.
2
Select “Phone”.
3
Select “Favourites” on the sub menu and select the desired contact.
4
Select the desired number.
5
Check that the dialing screen is displayed.
Calling the message sender
1
Press the “MENU” button on the Remote Touch.
Please refer to P. 40 for the Remote Touch operation.
2
Select “Phone”.
3
Select “Message” on the sub menu.
4
Select a desired account name that is displayed on the left side of screen.
5
Select the desired message.
6
Select , or press the switch on the steering wheel.
7
Check that the dialing screen is displayed.
Receiving a call
Select “Answer”/ or press the switch on the steering wheel to talk on the phone.
Main display Side display
“Decline”/ : Select to refuse to receive the call.
49
Steering switches
A
C
Volume control switch
• Press the “+” side to increase the volume.
• Press the “-” side to decrease the volume.
Off hook switch
B
• Press to start talking.
• Press to put a call on hold.
• Depending on the system, if the switch is
pressed when an Apple CarPlay connection is established, the Apple CarPlay
phone application will be displayed on the
system screen.
On hook switch
• Press to end talking/dialing.
• Press to refuse to receive the call.
Talk switch
D
• Press the talk switch to call by the voice tag
function.
• Press the talk switch to start the speech
command system.
• To cancel speech command system and
voice tag, press and hold the talk switch.
*
: This function is not available in some countries
or areas.
*
50
Automatic Air Conditioning System
C
D
F
G
I
J
L
Air outlets and fan speed are automatically adjusted according to the temperature setting.
Press the “MENU” button on the Remote Touch, then select to display the air conditioning
control screen. For information regarding Remote Touch, P.40.
The air conditioning system can be displayed and operated on the side display.
Air conditioning controls
Left-hand side temperature control switch
A
S-FLOW mode switch
B
Air flow mode switch
Fan speed decreases switch
Fan speed increases switch
E
OFF switch
Automatic mode switch
Right-hand side temperature control switch
H
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch
Outside air mode switch
K
Recirculated air mode switch
A/C switch
M
DUAL switch
N
51

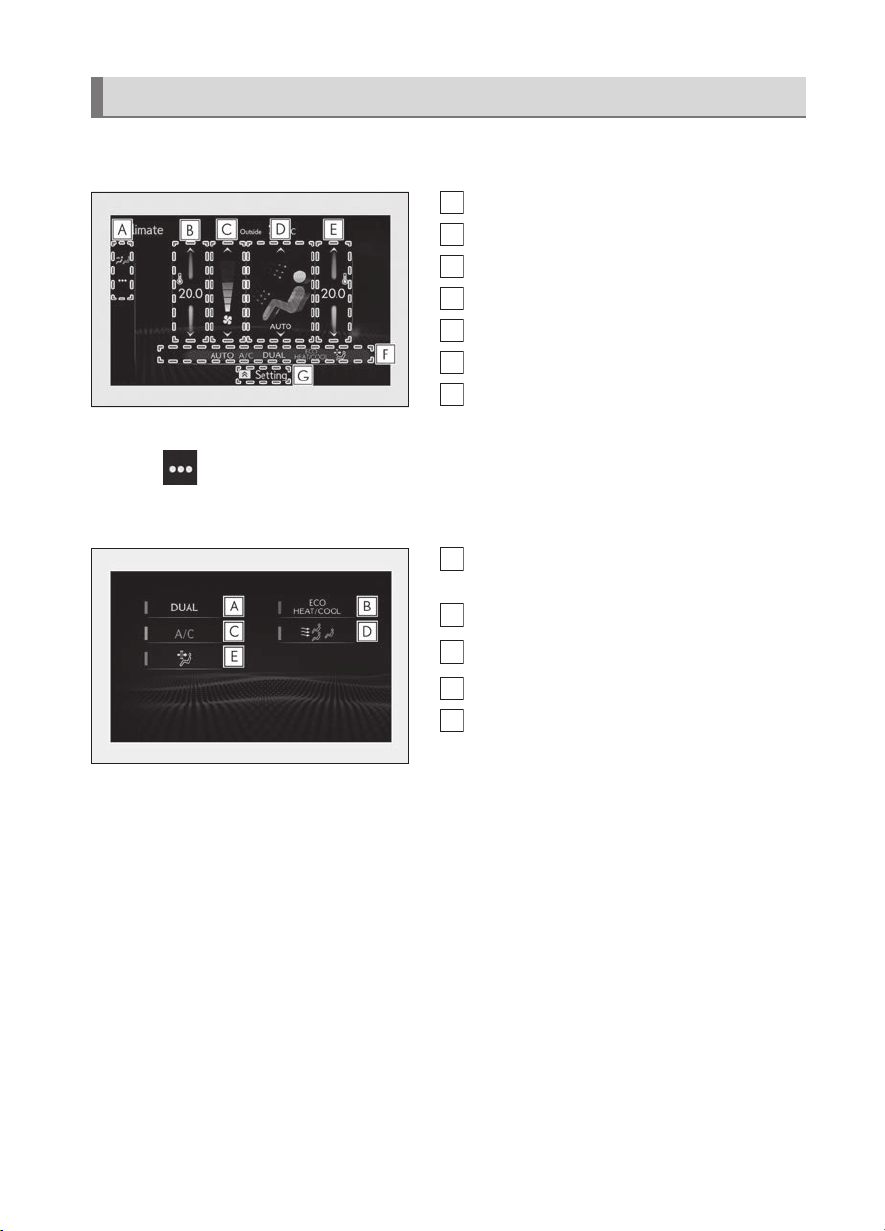

Air conditioning control screen
C
F
A
D
■
Main control screen
Using the touchpad of the Remote Touch, select the button on the screen.
Sub menu
A
Adjust the left side seat temperature setting
B
Adjust the fan speed setting
Select the air flow mode
D
Adjust the right side seat temperature setting
E
Function on/off indicators
Sub function menu
G
■
Option control screen
Select on the sub menu to display the option control screen.
The functions can be switched on and off.
When the function is on, the indicator illuminates on the screen.
Adjusting the temperature for driver and passenger seats separately (“DUAL” mode)
Set eco air conditioning mode
B
Cooling and dehumidification function
C
Select S-FLOW mode
Removing pollen from the air (Pollen removal
E
mode)
52
■
A
B
C
D
E
F
Side display
Adjust the left side seat temperature setting
Adjust the fan speed setting
Adjust the right side seat temperature setting
Set cooling and dehumidification function
on/off
Adjusting the temperature for driver and passenger seats separately (“DUAL” mode)
Select the air flow mode
Using automatic mode
1
Press the automatic mode switch or select “AUTO” on the sub function menu.
2
Adjust the temperature setting.
3
To stop the operation, press the off switch or select “Off” on the sub function menu.
53

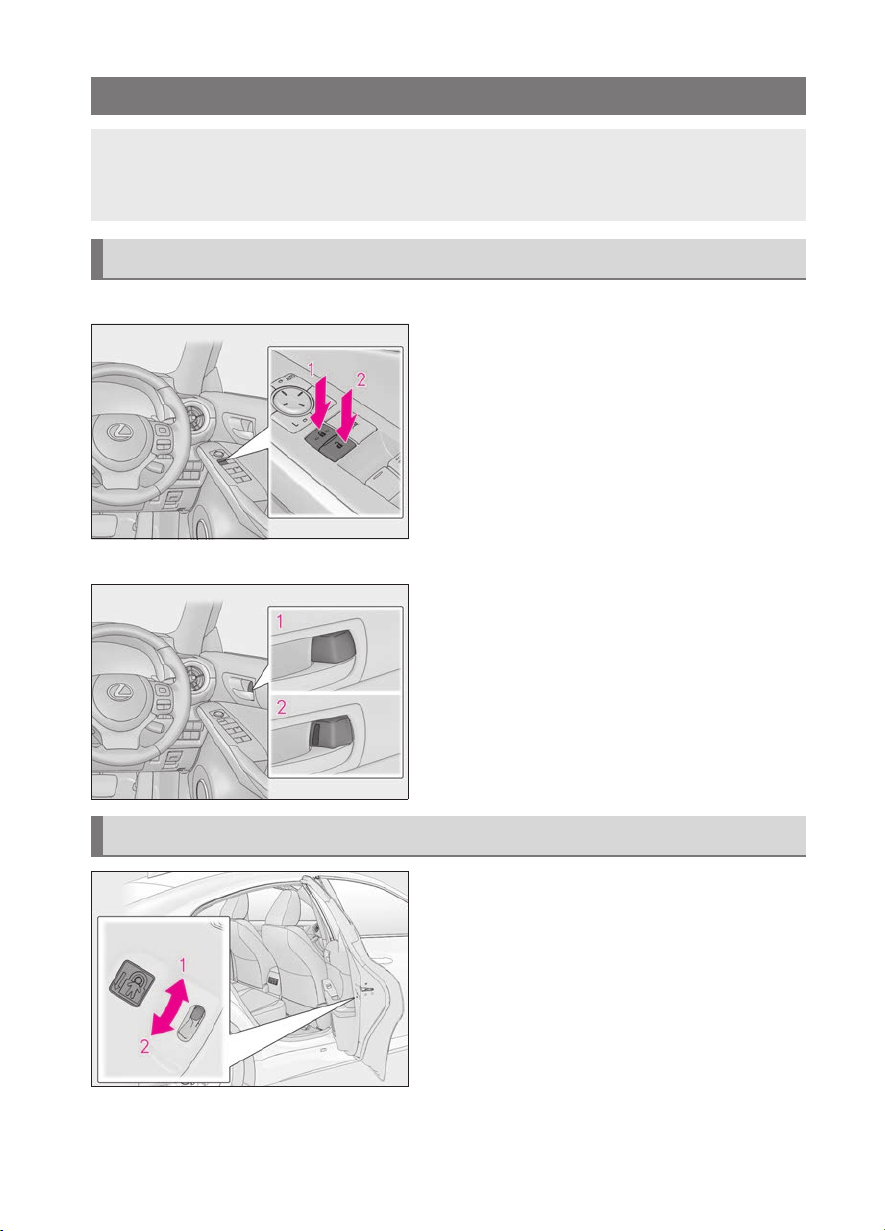

Door Locks
The vehicle can be locked and unlocked using the entry function, wireless remote control or
door lock switches.
For details about the entry function or wireless remote control, refer to P. 14, 16.
Unlocking and locking the doors from the inside
■
Door lock switches (to lock/unlock)
1
Locks all the doors
2
Unlocks all the doors
■
Inside lock buttons (to lock/unlock)
Locks the door
1
2
Unlocks the door
The front doors can be opened by pulling the
inside handle even if the lock buttons are in the
lock position.
Rear door child-protector lock
The door cannot be opened from inside the vehicle when the lock is set.
1
Unlock
2
Lock
These locks can be set to prevent children from
opening the rear doors. Push down on each rear
door switch to lock both rear doors.
54

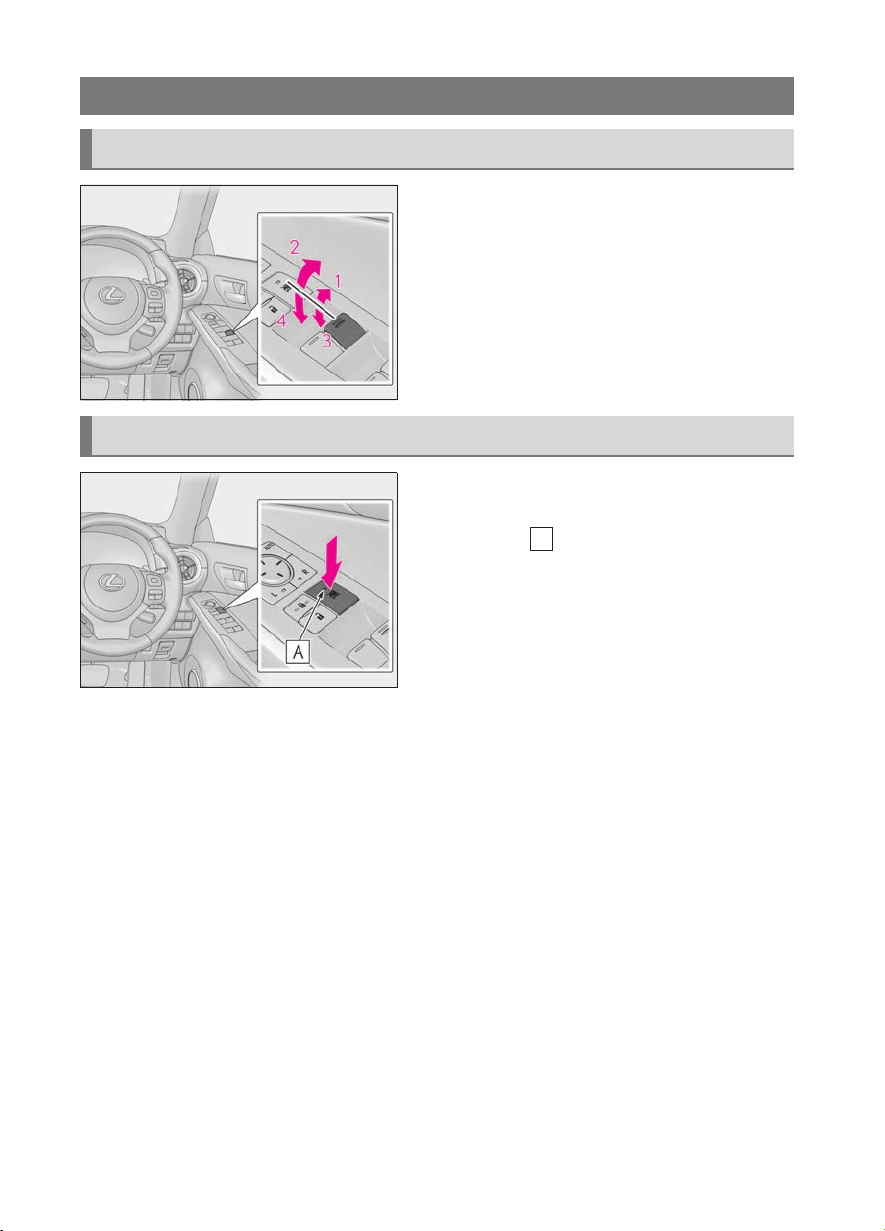

Power Windows
Opening and closing the power windows
1
Closing
2
One-touch closing
3
Opening
4
One-touch opening
: To stop the window partway, operate the
*
switch in the opposite direction.
Preventing accidental operation (window lock switch)
Press the switch to lock the passenger window
switches.
*
*
The indicator will come on.
Use this switch to prevent children from accidentally opening or closing a passenger window.
A
55

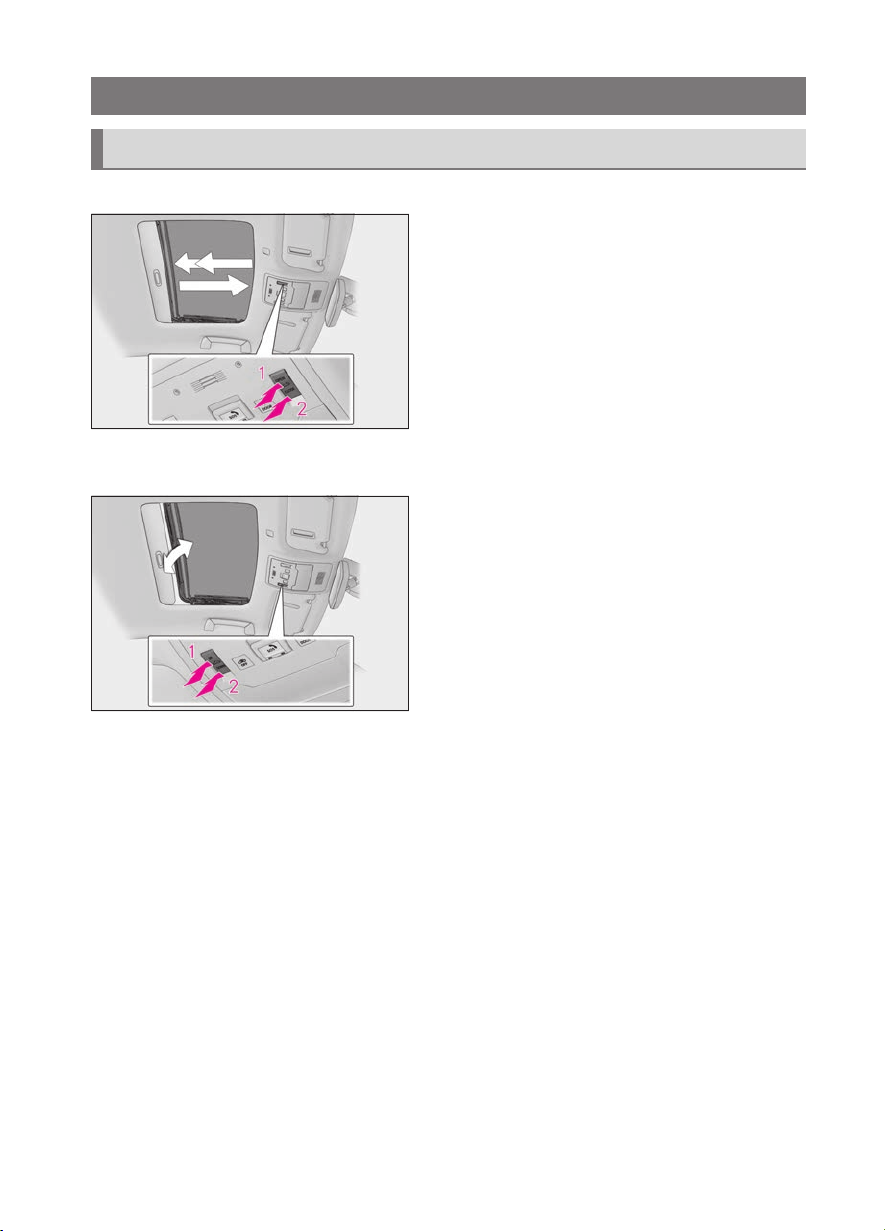

Moon Roof (if equipped)
Operating the moon roof
■
Opening and closing
■
Tilting up and down
1
Opens the moon roof
The moon roof stops slightly before the fully
open position to reduce wind noise.
Press the switch again to fully open the moon
roof.
2
Closes the moon roof
: Lightly press either way of the moon roof
*
switch to stop the moon roof partway.
1
Tilts the moon roof up
2
Tilts the moon roof down
: Lightly press either way of the moon roof
*
switch to stop the moon roof partway.
*
*
*
*
56

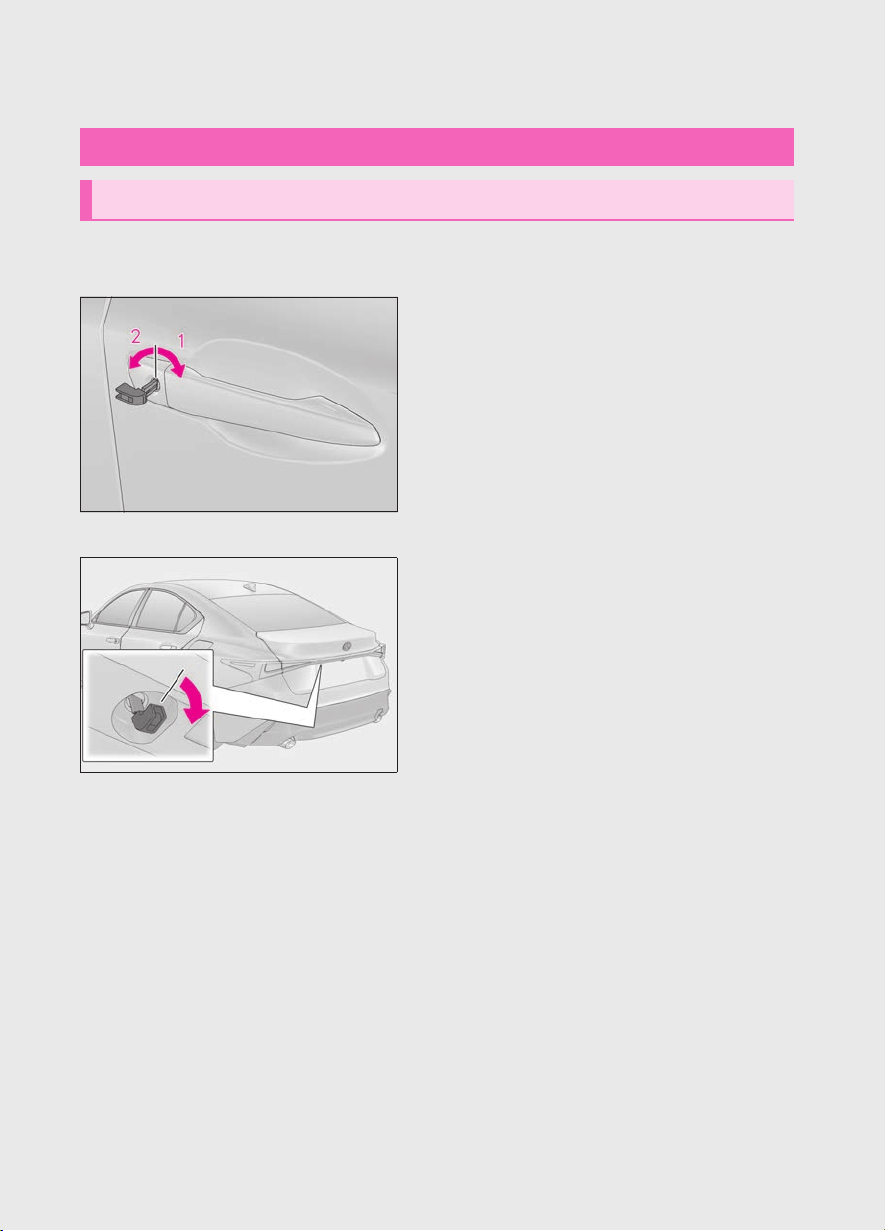

Fuel Tank Cap
Before refueling the vehicle
● Close all the doors and windows, and turn the power switch off.
● Confirm the type of fuel.
Opening the fuel tank cap
1
With the doors unlocked, press the center of
the rear edge of the fuel filler door.
Push until you hear a click and take your hand
away to slightly open the fuel filler door. Then
open the door fully by hand.
2
Turn the fuel tank cap slowly to remove it and
put it into the holder on the fuel filler door.
57

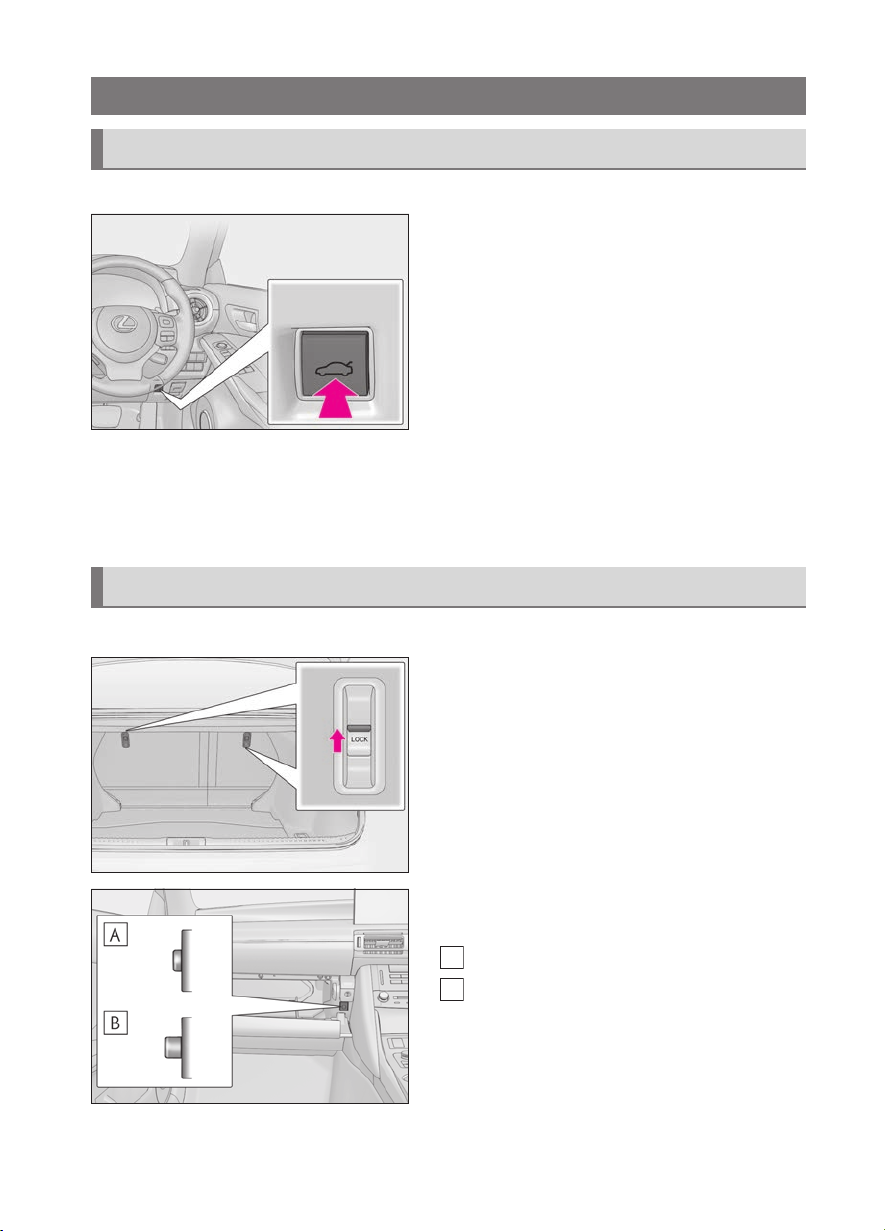

Trunk
B
Opening the trunk
■
Trunk opener switch
Press the trunk opener switch.
■
Smart entry & start system
P.16
■
Wireless remote control
P.14
Luggage security system
To protect luggage stored in the trunk against theft, the luggage security system can be set to on.
1
Move the luggage security system levers to
the lock position.
2
To disable the trunk opener, turn the main
switch in the glove box off.
On
A
Off
When the main switch is off, the trunk lid cannot be opened even with the wireless remote
control or entry function.
58
What to do if...

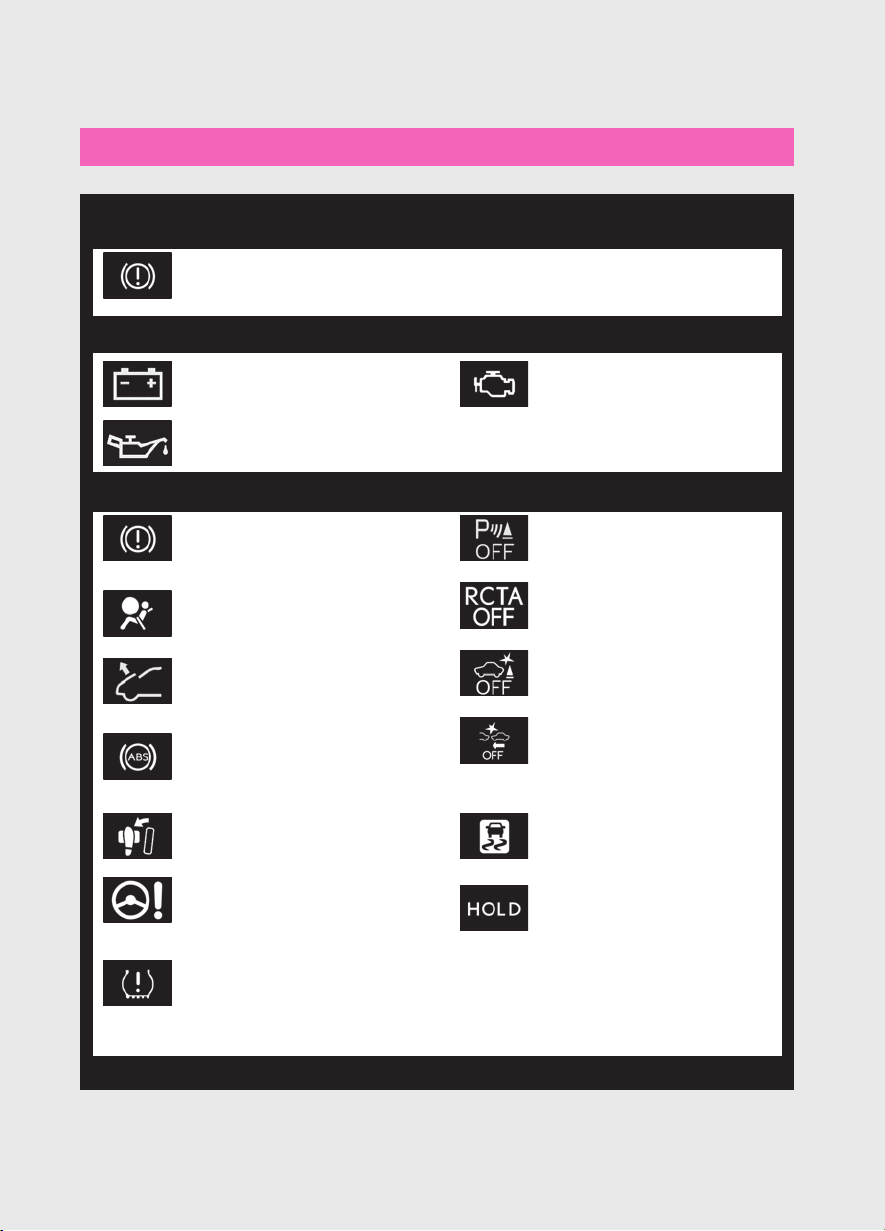

List of Warning/Indicator Lights
Immediately stop the vehicle in a safe place and contact your Lexus dealer. Continuing to
drive the vehicle may be dangerous.
Brake system warning light
(red)
Immediately stop the vehicle in a safe place and contact your Lexus dealer.
Charging system warning light
Malfunction indicator lamp
Low engine oil pressure warning
light
Have the vehicle inspected by your Lexus dealer immediately.
Lexus parking assist-sensor
OFF indicator
RCTA OFF indicator
PKSB OFF indicator
PCS warning light
(yellow)
Brake system warning light
SRS warning light
Pop Up Hood warning light
ABS warning light
(flashes)
(flashes)
(flashes)
(flashes or illu-
minates)
Brake Override System warning
light/Drive-Start Control warn-
Slip indicator
ing light
Brake hold operated indicator
(red or
yellow)
Electric power steering
system warning light
(flashes)
59
(Blinking and
then continu-
ously on)
Tire pressure warning light
For further information, refer to the “Owner’s Manual”.

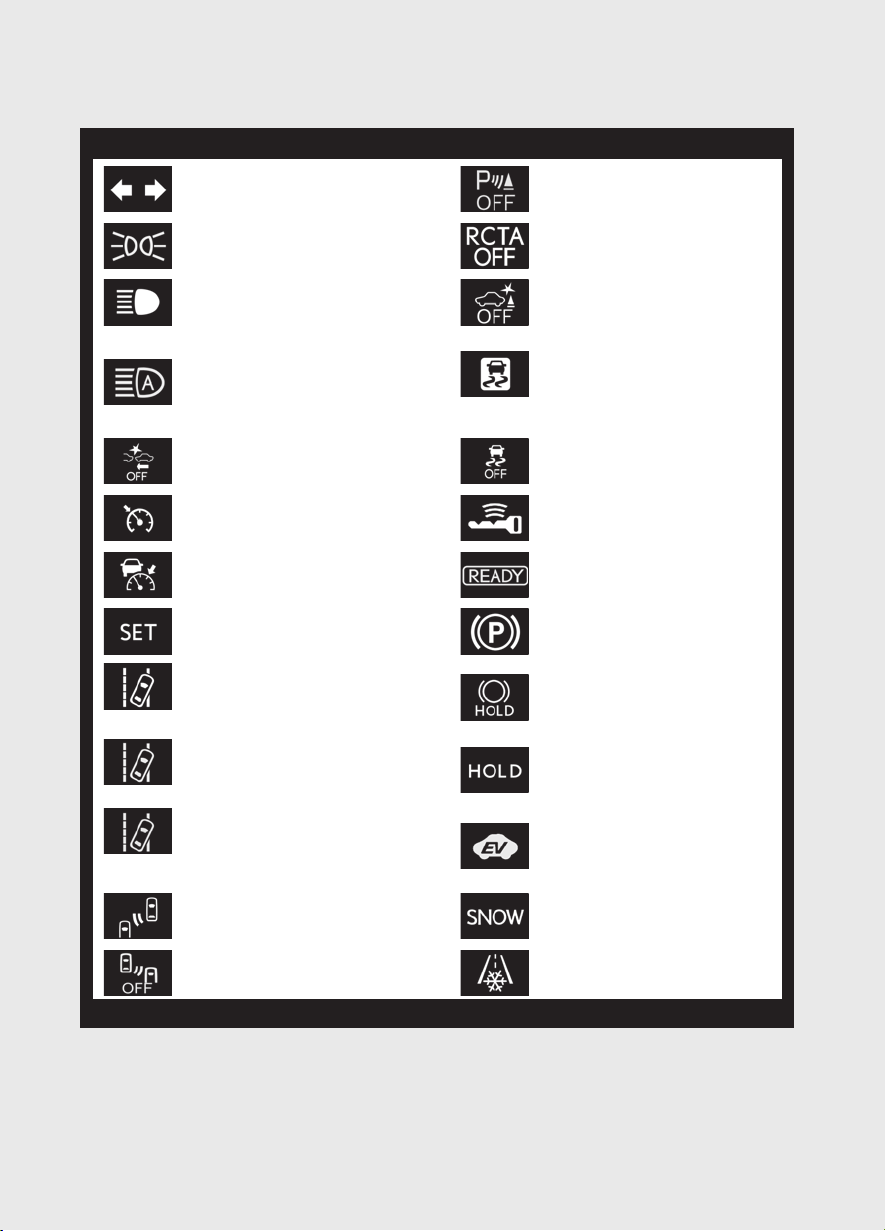

What to do if...
Follow the correction procedures.
Brake Override System warning
light/Drive-Start Control warning light
(flashes)
Lexus parking assist-sensor
OFF indicator
Low fuel level warning light
Driver’s and front passenger’s
seat belt reminder light
Tire pressure warning light
(Illuminates
without
blinking)
LTA indicator
(orange)
Stop and check.
High coolant temperature warning light
RCTA OFF indicator
(flashes)
PKSB OFF indicator
(flashes)
Rear passengers’ seat belt
reminder light
*
(flashes or illu-
minates)
(flashes)
PCS warning light
Parking brake indicator
Low traction battery warning
light
Hybrid system overheat warning
light
For further information, refer to the “Owner’s Manual”.
60
What to do if...
See the “Owner’s Manual”.
Turn signal indicator
Tail light indicator RCTA OFF indicator
Lexus parking assist-sensor
OFF indicator
(white)
(green)
(orange)
(flashes)
Headlight high beam indicator
Automatic High Beam indicator
(flashes)
PKSB OFF indicator
Slip indicator
PCS warning light VSC OFF indicator
Cruise control indicator
Dynamic radar cruise control
indicator
Smart entry & start system indicator
“READY” indicator
Cruise control “SET” indicator Parking brake indicator
LTA indicator Brake hold standby indicator
LTA indicator Brake hold operated indicator
LTA indicator EV indicator
BSM outside rear view mirror
indicators
(if equipped)
BSM OFF indicator
(if equipped)
Snow mode indicator
Low outside temperature indicator
For further information, refer to the “Owner’s Manual”.
61
What to do if...
See the “Owner’s Manual”.

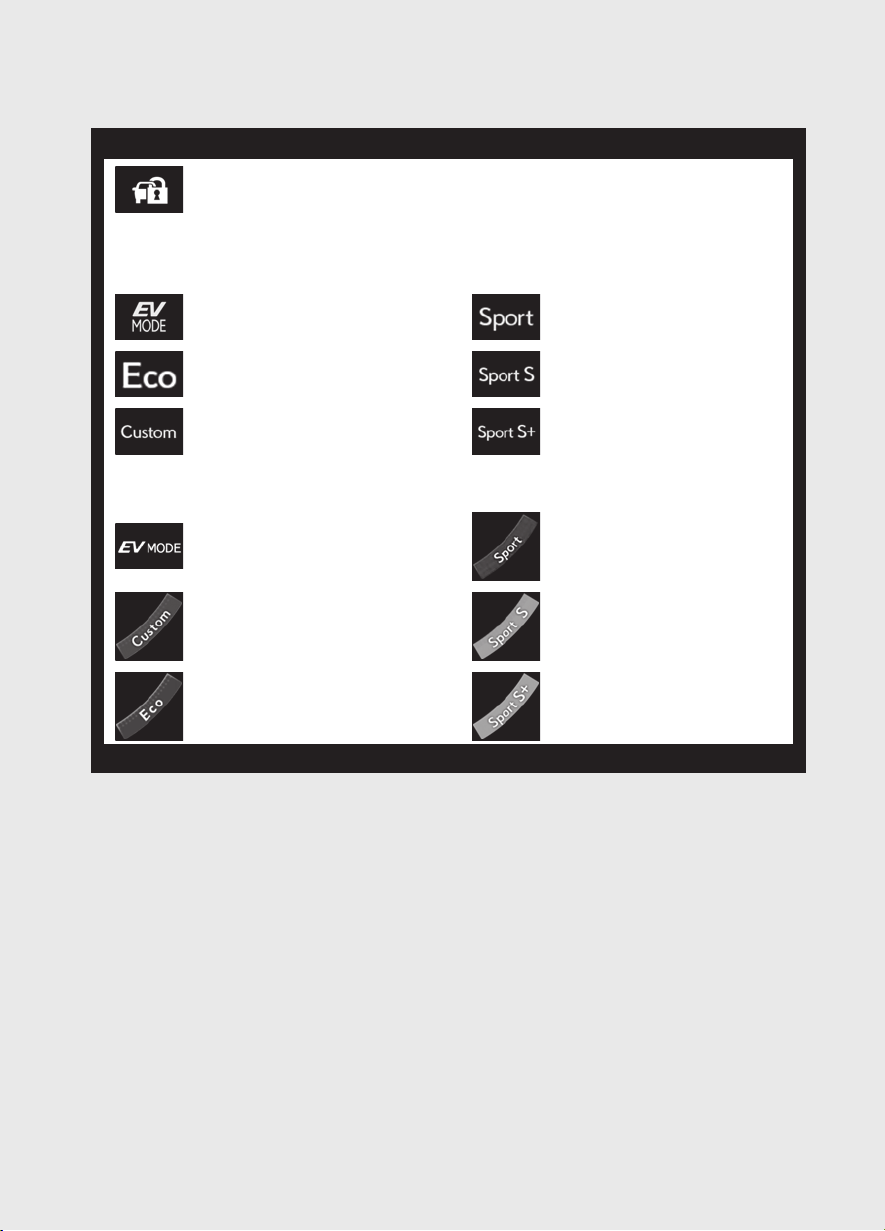

Security indicator
● Drive mode indicators
Except F SPORT models
EV drive mode indicator
Eco drive mode indicator
Custom mode indicator
(if equipped)
F SPORT models
Sport mode indicator
(if equipped)
SPORT S mode indicator
(if equipped)
Sport S+ mode indicator
(if equipped)
EV drive mode indicator
Custom mode indicator
(if equipped)
Eco drive mode indicator
For further information, refer to the “Owner’s Manual”.
*
: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure to the specified level. The
light will turn off after a few minutes. In case the light does not turn off even if the tire inflation
pressure is adjusted, have the system checked by your Lexus dealer.
Sport mode indicator
(if equipped)
Sport S mode indicator
(if equipped)
Sport S+ mode indicator
(if equipped)
62
What to do if...
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk
■
Doors
Use the mechanical key in order to perform the following operations:
1
Locks all the doors
2
Unlocks all the doors
Turning the key rearward unlocks the driver’s
door. Turning the key once again within 5
seconds unlocks the other doors.
■
Trunk
Turn the mechanical key clockwise to open.
63
What to do if...
Starting the hybrid system
1
Ensure that the shift lever is in P and depress
the brake pedal.
2
Touch the Lexus emblem side of the electronic key to the power switch.
When the electronic key is detected, a
buzzer sounds and the power switch will turn
to ON mode.
When the smart entry & start system is deactivated in customization setting, the power
switch will turn to ACCESSORY mode.
3
Firmly depress the brake pedal and check that is shown on the multi-information display.
4
Press the power switch.
In the event that the hybrid system still cannot be started, contact your Lexus dealer.
If the electronic key battery becomes depleted, a warning message will be shown on the multiinformation display. Replace the battery with a new one. For instructions on replacing the battery,
refer to the “Owner’s Manual”.
If you need further assistance, contact your Lexus dealer.
64
What to do if...
Brake pedal
If the hybrid system will not start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the hybrid
system. (P. 17)
If the hybrid system still does not start, see the “Owner’s Manual” for more information or contact
your Lexus dealer.
65
©2020 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
