LEXUS AALH10R, AALH15R, TALH17R owners manuals

Pictorial index

Search by illustration

For safety
and security

Vehicle status
information and
indicators

Before driving

Driving

Interior features

Maintenance
and care

When trouble
arises

Vehicle
specifications

Make sure to read through them
(Main topics: Child seat, theft deterrent system)

Reading driving-related information
(Main topics: Meters, multi-information display)

Opening and closing the doors and windows, adjustment
before driving
(Main topics: Keys, doors, seats, power windows)

Operations and advice which are necessary for driving
(Main topics: Starting hybrid system, refueling)

Usage of the interior features
(Main topics: Air conditioner, storage features)

Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)

What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)

Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)

1

2

3

4

5

6

7

8

Index

Search by symptom

Search alphabetically

2

TABLE OF CONTENTS

For your information......................................6

Reading this manual......................................11

How to search ................................................12

Pictorial index.................................................13

1

For safety and security

1-1. For safe use

Before driving....................................24

For safe driving..................................25

Seat belts .............................................26

SRS airbags ....................................... 30

Exhaust gas precautions.............. 36

1-2. Child safety

Riding with children........................ 38

Child restraint systems .................38

1-3. Emergency assistance

Lexus Connected Services..........52

1-4. Hybrid system

Hybrid system features................. 55

Hybrid system precautions......... 59

1-5. Theft deterrent system

Immobilizer system .........................64

Alarm ................................................... 65

Vehicle status information and

2

indicators

2-1. Instrument cluster

Warning lights and indicators.... 70

Gauges and meters ........................74

Multi-information display............. 82

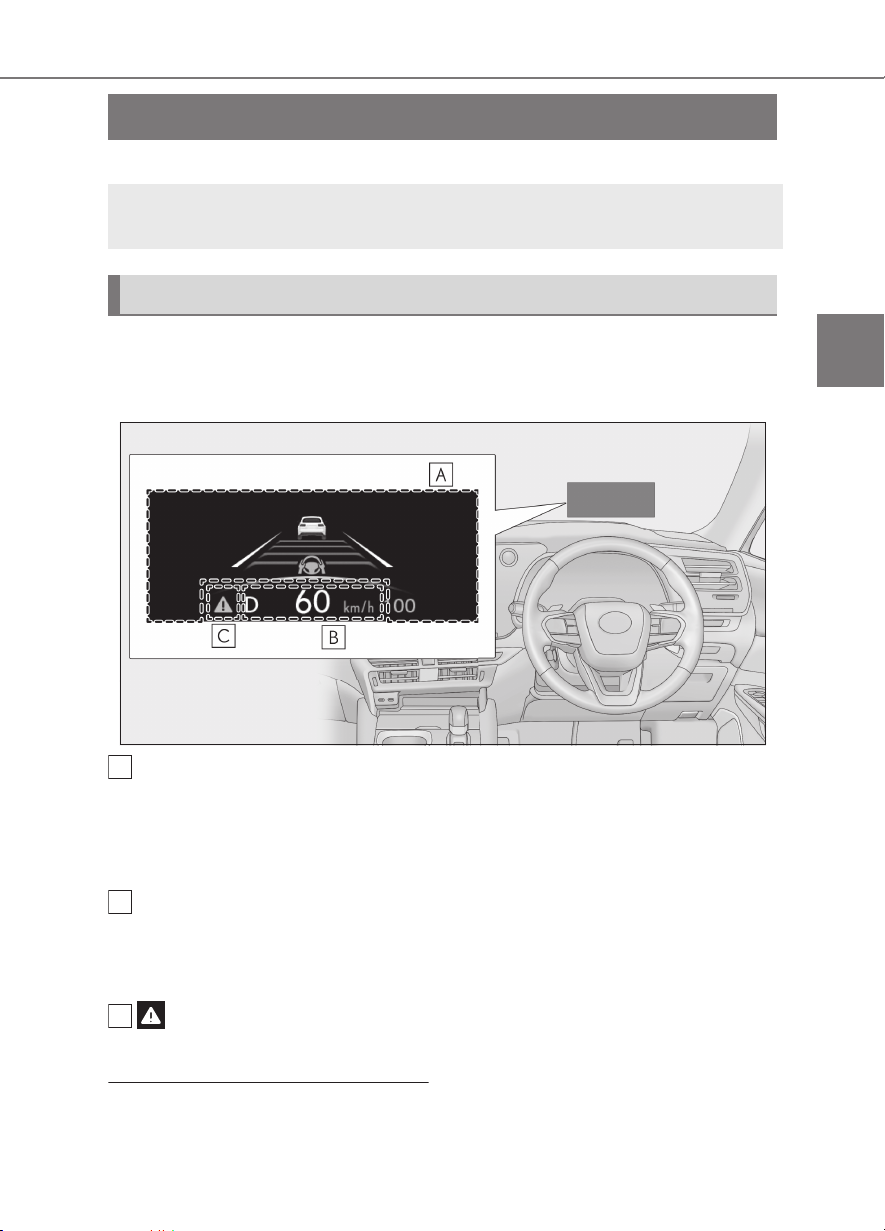

Head-up display .............................. 85

Displayed content...........................88

3

Before driving

3-1. Key information

Keys.......................................................98

3-2. Opening, closing and locking the

doors

Side doors........................................ 102

Power back door ..........................107

Smart entry & start system.........122

3-3. Adjusting the seats

Front seats.........................................127

Rear seats..........................................129

Head restraints ...............................136

3-4. Adjusting the steering wheel and

mirrors

Steering wheel ................................139

Inside rear view mirror ............... 140

Digital Rear-view Mirror .............141

Outside rear view mirrors......... 150

3-5. Opening, closing the windows and

moon roof

Power windows ..............................153

Moon roof.........................................156

Panoramic moon roof..................159

3-6. Favorite settings

Driving position memory............163

My Settings...................................... 168

4

Driving

4-1. Before driving

Driving the vehicle.........................173

Cargo and luggage.......................179

TABLE OF CONTENTS

3

Trailer towing (vehicles without

towing package).......................... 181

Trailer towing (vehicles with towing

package)......................................... 181

4-2. Driving procedures

Power (ignition) switch............... 187

EV drive mode ...............................190

Automatic transmission.............. 192

Hybrid transmission .....................199

Turn signal lever ...........................205

Parking brake ................................205

Brake Hold......................................208

ASC (Acceleration Sound Control)

............................................................ 210

4-3. Operating the lights and wipers

Headlight switch............................. 211

AHS (Adaptive High-beam Sys-

tem).................................................. 213

AHB (Automatic High Beam)

............................................................ 217

Fog light switch .............................. 219

Windshield wipers and washer

........................................................... 220

Rear window wiper and washer

........................................................... 224

4-4. Refueling

Opening the fuel tank cap........ 226

4-5. Using the driving support systems

Lexus Safety System + ...............228

Driver monitor............................... 235

PCS (Pre-Collision System).... 236

LTA (Lane Tracing Assist)........ 247

LDA (Lane Departure Alert).. 252

RSA (Road Sign Assist)............. 257

Dynamic radar cruise control

.......................................................... 259

Cruise control.................................271

Emergency Driving Stop System

...........................................................276

BSM (Blind Spot Monitor)....... 278

Safe Exit Assist.............................. 283

Lexus parking assist-sensor .... 287

RCTA (Rear cross traffic alert)

function ......................................... 296

RCD (Rear Camera Detection)

function ......................................... 302

PKSB (Parking Support Brake)

.......................................................... 305

Lexus Teammate Advanced Park

............................................................317

Driving mode select switch ......342

Trail Mode ...................................... 344

Driving assist systems ................ 345

4-6. Driving tips

Hybrid electric vehicle driving tips

.......................................................... 353

Winter driving tips....................... 355

Utility vehicle precautions........ 358

5

Interior features

5-1. Lexus Climate Concierge

Lexus Climate Concierge ........362

5-2. Using the air conditioning system

and defogger

Front automatic air conditioning

system............................................ 363

Rear air conditioning system ....371

Heated steering wheel/seat heat-

ers/seat ventilators ...................372

1

2

3

4

5

6

7

8

4

TABLE OF CONTENTS

5-3. Using the interior lights

Interior lights list............................ 375

5-4. Using the storage features

List of storage features ..............378

Luggage compartment features

........................................................... 382

5-5. Using the other interior features

Other interior features ..............386

6

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the vehi-

cle exterior...................................398

Cleaning and protecting the vehi-

cle interior ....................................402

6-2. Maintenance

Maintenance requirements..... 405

6-3. Do-it-yourself maintenance

Do-it-yourself service precautions

........................................................... 407

Hood .................................................408

Positioning a floor jack...............409

Engine compartment................... 410

12-volt battery................................. 417

Tires ...................................................420

Tire inflation pressure................. 430

Wheels............................................... 431

Air conditioning filter.................. 432

Cleaning the hybrid battery (trac-

tion battery) air intake vents

........................................................... 434

Electronic key battery................ 437

Checking and replacing fuses

........................................................... 440

Light bulbs........................................442

7

When trouble arises

7-1. Essential information

Emergency flashers .................... 446

If your vehicle has to be stopped in

an emergency ............................ 446

If the vehicle is submerged or water

on the road is rising...................447

7-2. Steps to take in an emergency

If your vehicle needs to be towed

.......................................................... 449

If you think something is wrong

.......................................................... 453

If a warning light turns on or a warn-

ing buzzer sounds..................... 455

If a warning message is displayed

.......................................................... 463

If you have a flat tire .................... 476

If the hybrid system will not start

.......................................................... 484

If you lose your keys.................... 486

If the electronic key does not oper-

ate properly................................. 486

If a door cannot be opened using

the door opener switch ..........488

If the 12-volt battery is discharged

.......................................................... 490

If your vehicle overheats........... 497

If the vehicle becomes stuck ...502

8

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil level,

etc.) .................................................

506

Fuel information............................. 517

8-2. Customization

Customizable features ...............518

8-3. Initialization

Items to initialize........................... 534

TABLE OF CONTENTS

5

Index

What to do if... (Troubleshooting)

........................................................... 536

Alphabetical Index ......................538

1

2

3

4

5

6

7

8

6

For your information

Main Owner’s Manual

Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.

All specifications provided in this man­ual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.

Depending on specifications, the vehi­cle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.

Accessories, spare parts and
modification of your Lexus

A wide variety of non-genuine spare
parts and accessories for Lexus vehi­cles are currently available in the mar­ket. Using these spare parts and
accessories which are not genuine
Lexus products may adversely affect
the safety of your vehicle, even though
these parts may be approved by cer­tain authorities in your country. Toyota
Motor Corporation therefore cannot
accept any liability or guarantee spare
parts and accessories which are not
genuine Lexus products, nor for
replacement or installation involving
such parts.

This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even vio­late governmental regulations. In addi­tion, damage or performance
problems resulting from the modifica­tion may not be covered under war­ranty.

Also, remodeling like this will have an
effect on advanced safety equipment
such as Lexus Safety System + and
there is a danger that it will not work
properly or the danger that it may work
in situations where it should not be
working.

Cyber Attack Risk

Installing electronic devices and radios
increases the risk of cyber attacks
through the installed parts, which may
lead to unexpected accidents and
leakage of personal information.

Lexus does not make any guarantees
for problems caused by installing
non-genuine Lexus products.

Installation of an RF-transmitter
system

The installation of an RF-transmitter
system in your vehicle could affect
electronic systems such as:

 Hybrid system

 Multiport fuel injection sys-

tem/sequential multiport fuel injec-

7

tion system

 Lexus Safety System +

 Anti-lock brake system

 Vehicle dynamics integrated man-

agement (if equipped)

 SRS airbag system

 Seat belt pretensioner system

Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installa­tion of an RF-transmitter system.

Further information regarding fre­quency bands, power levels, antenna
positions and installation provisions for
the installation of RF-transmitters, is
available on request at your Lexus
dealer.

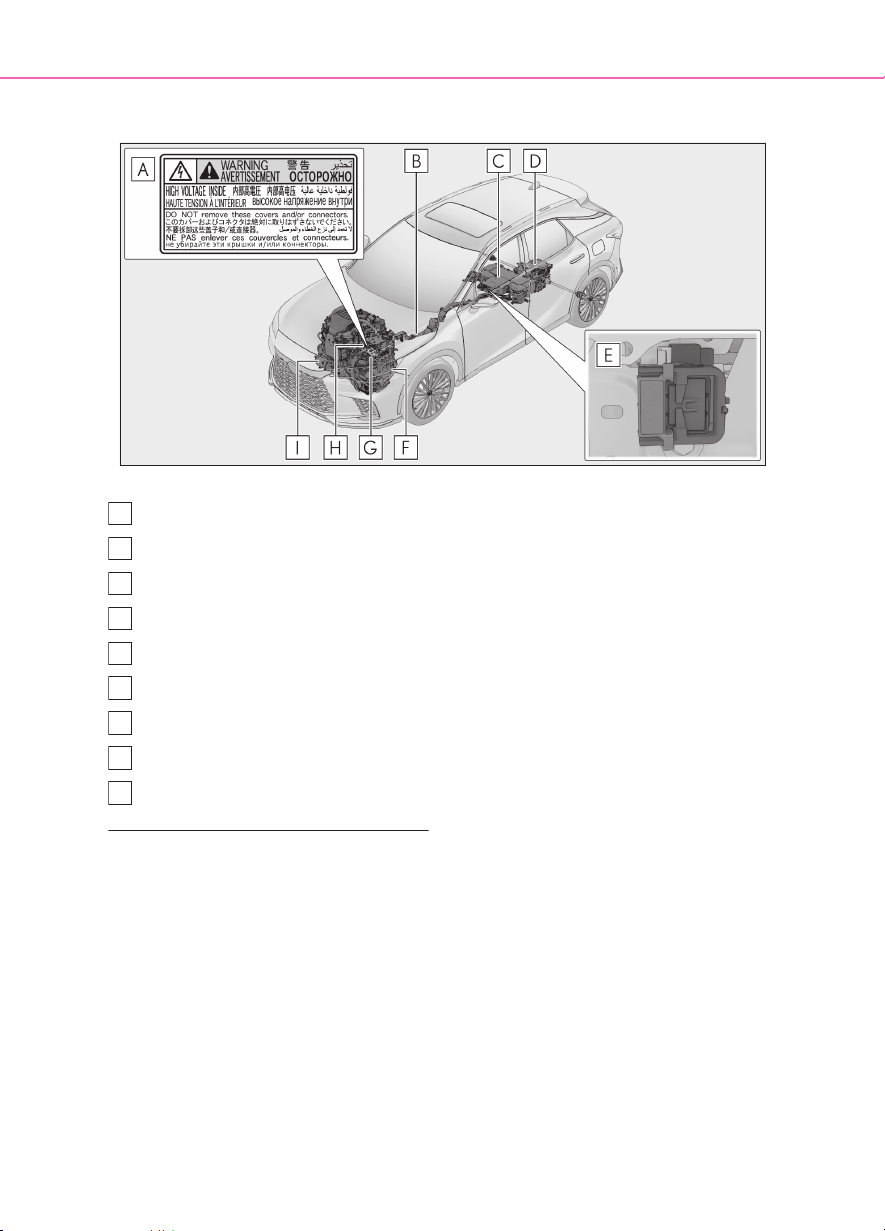

High voltage parts and cables on the
hybrid electric vehicles emit approxi­mately the same amount of electro­magnetic waves as the conventional
gasoline powered vehicles or home
electronic appliances despite of their
electromagnetic shielding.

Unwanted noise may occur in the
reception of the radio frequency trans­mitter (RF-transmitter).

recorded depending on the operation
timing and status of each function.

 Engine speed/Electric motor speed

(traction motor speed)

 Accelerator status

 Brake status

 Vehicle speed

 Operation status of the driving

assist systems

 Images from the cameras

Your vehicle is equipped with cameras.
Contact your Lexus dealer for the location
of recording cameras.

The recorded data varies according to
the vehicle grade level and options
with which it is equipped.

These computers do not record con­versations or sounds, and only record
images outside of the vehicle in certain
situations.

■

Data usage

Lexus may use the data recorded in
this computer to diagnose malfunc­tions, conduct research and develop­ment, and improve quality.

Lexus will not disclose the recorded
data to a third party except:

Vehicle data recording

This vehicle is equipped with sophisti­cated computers that record certain
data regarding vehicle controls and
operations.

■

Data recorded by the computers

Certain data, such as the following, is

 With the consent of the vehicle

owner or with the consent of the les­see if the vehicle is leased

 In response to an official request by

the police, a court of law or a gov­ernment agency

 For use by Lexus in a lawsuit

 For research purposes where the

8

data is not tied to a specific vehicle
or vehicle owner

Image information recorded by the vehicle
can be erased by your Lexus dealer.

The image recording function can be disa­bled. However, if the function is disabled,
data from when systems operate will not be
available.

If you wish to stop the collection of Lexus
Safety System + data by the Toyota servers
for the purpose of research and develop­ment and provision to individual services,
contact your Lexus dealer.

Usage of data collected through
Lexus Connected Services

If your Lexus has Lexus Connected
Services and if you have subscribed to
those services, please refer to the
Lexus Connected Services usage con­tract for information on data collected
and its usage.

For more information, visit
https://www.lexus.com.au/privacy

.

recorded depending on the severity
and type of a crash.

The EDR in this vehicle is designed to
record such data as:

• How various systems in your vehicle
were operating;

• How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.

NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situa­tion occurs; no data are recorded by
the EDR under normal driving condi­tions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired dur­ing a crash investigation.

Event data recorder

This vehicle is equipped with an event
data recorder (EDR). The main pur­pose of an EDR is to record, in certain
crash or near crash-like situations, such
as an airbag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynam­ics and safety systems for a short
period of time, typically 30 seconds or
less. However, data may not be

To read data recorded by an EDR, spe­cial equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.

 Disclosure of the EDR data

Lexus will not disclose the data recorded in
an EDR to a third party except when:

• An agreement from the vehicle’s owner

(or the lessee for a leased vehicle) is

9

WARNING

obtained

• In response to an official request by the
police, a court of law or a government
agency

• For use by Lexus in a lawsuit

However, if necessary, Lexus may:

• Use the data for research on vehicle
safety performance

• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner

Scrapping of your Lexus

The SRS airbag and seat belt
pretensioner devices in your Lexus
contain explosive chemicals. If the
vehicle is scrapped with the airbags
and seat belt pretensioners left as they
are, this may cause an accident such as
fire. Be sure to have the systems of the
SRS airbag and seat belt pretensioner
removed and disposed of by a qualified
service shop or by your Lexus dealer
before you scrap your vehicle.

Driver distraction: Always give your full
attention to driving. Anything that dis­tracts the driver, such as adjusting con­trols, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.

■

General precaution regarding chil­dren’s safety

Never leave children unattended in the
vehicle, and never allow children to have
or use the key.

Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof or panoramic moon roof,
or other features of the vehicle. In addi­tion, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.

■

General precaution regarding a coin
battery and button battery

■

General precautions while driving

Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordina­tion, which could lead to an accident that
could result in death or serious injury.

Defensive driving: Always drive defen­sively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.

This product contains a coin battery or
button battery. Observe the following
precautions. Failure to do so may result in
death or serious injury.

●

Keep away new and removed batteries
from children.

●

Do not swallow the battery. Doing so
may cause chemical burns.

●

If a battery is swallowed, it may cause
severe chemical burns in as little as 2
hours and may result in death or seri­ous injury.

10

WARNING

●

If you accidentally swallow a battery or
put a battery into a part of your body,
get emergency medical attention
immediately.

11

Reading this manual

Explains symbols used in this man­ual.

Symbols in this manual

Symbols Meanings

WARNING:

Explains something that,
if not obeyed, could
cause death or serious
injury to people.

NOTICE:

Explains something that,
if not obeyed, could
cause damage to or a
malfunction in the vehi­cle or its equipment.

Indicates operating or
working procedures. Fol­low the steps in numeri­cal order.

Symbols in illustrations

Symbols Meanings

Indicates the action
(pushing, turning, etc.)
used to operate switches
and other devices.

Indicates the outcome of
an operation (e.g. a lid
opens).

Symbols Meanings

Indicates the component
or position being
explained.

Means Do not, Do not do

this, or Do not let this
happen.

12

How to search

■

Searching by name

 Alphabetical index: P.538

■

Searching by installation position

 Pictorial index: P.13

■

Searching by symptom or sound

 What to do if... (Troubleshooting):

P.536

■

Searching by title

 Table of contents: P.2

Pictorial index

■Exterior

Pictorial index

13

The shape of the lights may differ depending on the grade, etc.

Side doors................................................................................................................. P.102

A

Locking/unlocking.............................................................................................................P.102

Opening/closing the side doors..................................................................................P.105

Opening/closing the side windows............................................................................P.153

Locking/unlocking by using the mechanical key................................................P.486

Warning messages..........................................................................................................P.463

Back door ..................................................................................................................P.107

B

Opening from inside the cabin.....................................................................................P.109

Opening from outside......................................................................................................P.109

Warning messages..........................................................................................................P.463

Outside rear view mirrors ................................................................................... P.150

C

Adjusting the mirror angle..............................................................................................P.150

Folding the mirrors .............................................................................................................P.151

Driving position memory

*

...............................................................................................P.163

14

N

Pictorial index

Defogging the mirrors....................................................................................................P.368

Windshield wipers................................................................................................. P.220

D

Precautions for winter season.....................................................................................P.355

Precautions for car wash...............................................................................................P.400

Fuel filler door .........................................................................................................P.226

E

Refueling method..............................................................................................................P.226

Fuel type/fuel tank capacity.........................................................................................P.507

Tires ...........................................................................................................................P.420

F

Tire size/inflation pressure.................................................................................P.420, 515

Winter tires/tire chains..................................................................................................P.355

Checking/rotation/tire pressure warning system .............................................P.420

Coping with flat tires ........................................................................................................P.476

Hood ......................................................................................................................... P.408

G

Opening...............................................................................................................................P.408

Engine oil..............................................................................................................................P.509

Coping with overheating ...............................................................................................P.497

Warning messages..........................................................................................................P.463

Light bulbs of the exterior lights for driving

(Replacing method: P.442, Watts: P.516)

Headlights/front position lights/daytime running lights/front turn signal lights

H

P.205, 211

Cornering lights

I

Front fog lights .........................................................................................................P.219

J

Side turn signal lights ........................................................................................... P.205

K

Rear side marker lights ..........................................................................................P.211

L

Stop/tail lights ...........................................................................................................P.211

M

*

.....................................................................................................P.212

Emergency brake signal.................................................................................................P.347

Stop lights/rear turn signal lights ............................................................. P.205, 211

Emergency brake signal.................................................................................................P.347

Back-up lights

O

Shifting the shift position to R ............................................................................P.193, 200

Q

Rear fog lights .......................................................................................................... P.219

P

License plate lights .................................................................................................. P.211

*

:If equipped

Pictorial index

15

16

B

C

D

Pictorial index

■Instrument panel

Power switch ............................................................................................................P.187

A

Starting the hybrid system/changing the modes..................................................P.187

Emergency stop of the hybrid system...................................................................... P.446

When the hybrid system will not start...................................................................... P.484

Warning messages..........................................................................................................P.463

Shift lever......................................................................................................... P.192, 199

Shifting the shift position......................................................................................P.193, 200

Precautions for towing...................................................................................................P.449

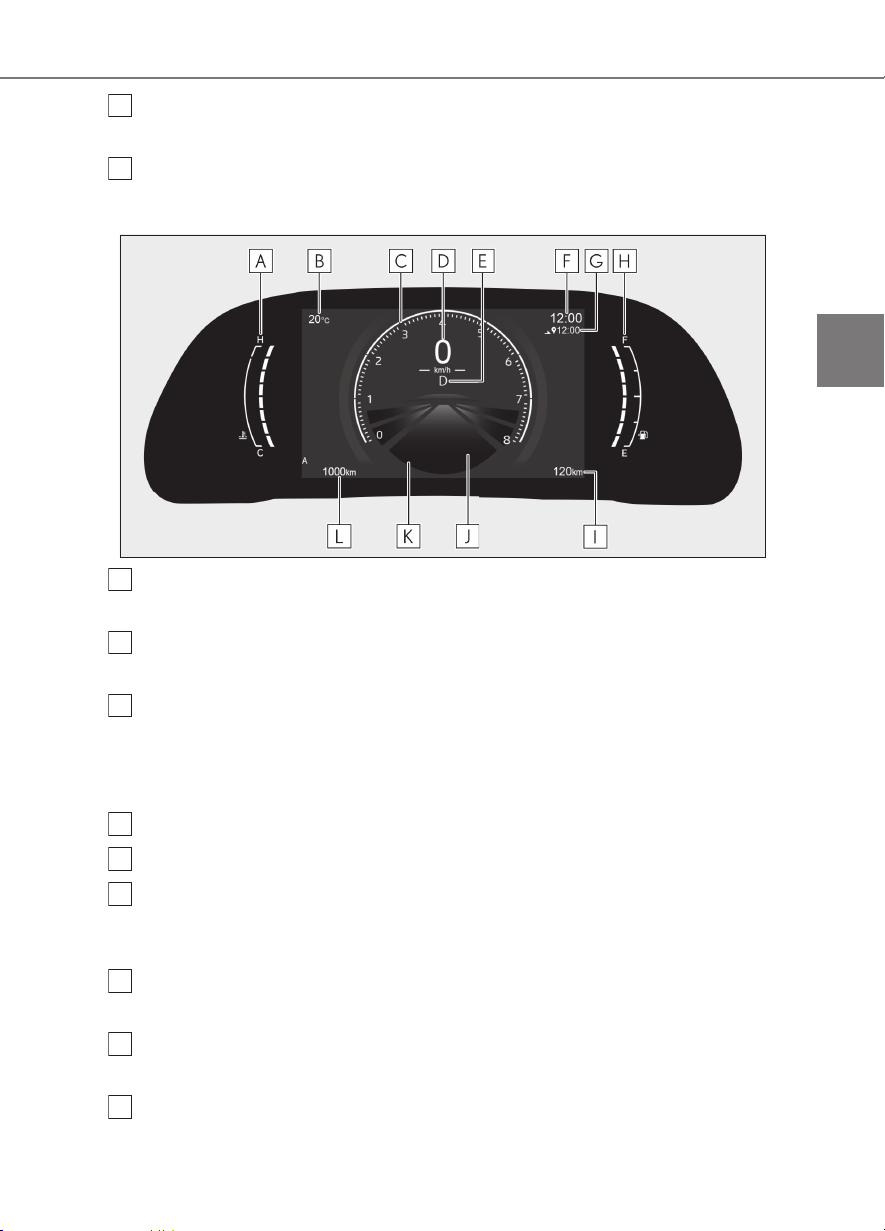

Meters ..........................................................................................................................P.74

Reading the meters/adjusting the instrument panel light .......................... P.74, 82

Warning lights/indicator lights.......................................................................................P.70

When a warning light turns on....................................................................................P.455

Multi-information display ...................................................................................... P.82

Display......................................................................................................................................P.82

Energy monitor.....................................................................................................................P.90

Pictorial index

I

J

When the warning messages are displayed ......................................................... P.463

Turn signal lever .................................................................................................... P.205

E

Headlight switch.......................................................................................................P.211

Headlights/front position lights/tail lights/rear side marker lights/license plate

lights/daytime running lights .......................................................................................... P.211

Front fog lights/rear fog light ........................................................................................P.219

Windshield wiper and washer switch ....................................................P.220, 224

F

Usage .........................................................................................................................P.220, 224

Adding washer fluid...........................................................................................................P.416

Warning messages..........................................................................................................P.463

Emergency flasher switch ................................................................................... P.446

G

Hood lock release lever ...................................................................................... P.408

H

Tilt and telescopic steering control switch ......................................................P.139

Adjustment............................................................................................................................P.139

Driving position memory

*1

..............................................................................................P.163

17

Air conditioning system....................................................................................... P.363

Usage ....................................................................................................................................P.363

Rear window defogger ..................................................................................................P.368

Audio system

K

*1

: If equipped

*2

: Refer to the “Multimedia Owner’s Manual”.

*2

18

A

E

■Switches

Pictorial index

Camera switch

Advanced Park (parking assist system) main switch*2................................ P.317

B

Instrument panel light control switches ............................................................ P.82

C

“ODO TRIP” switch ................................................................................................ P.80

D

*1

Driving position memory switches

Power back door switch ........................................................................................P.109

F

Fuel filler door opener switch .............................................................................P.227

G

*1

: Refer to the “Multimedia Owner’s Manual”.

*2

: If equipped

*2

................................................................. P.163

Pictorial index

A

A

Outside rear view mirror switches ................................................................... P.150

Door lock switches ................................................................................................ P.105

B

Power window switches ........................................................................................P.153

C

Window lock switch................................................................................................P.155

D

19

Paddle shift switches ................................................................................... P.196, 202

Meter control switches .......................................................................................... P.88

B

Cruise control switch

C

Dynamic radar cruise control ..................................................................................... P.259

Cruise control......................................................................................................................P.271

20

D

E

G

I

A

D

E

Pictorial index

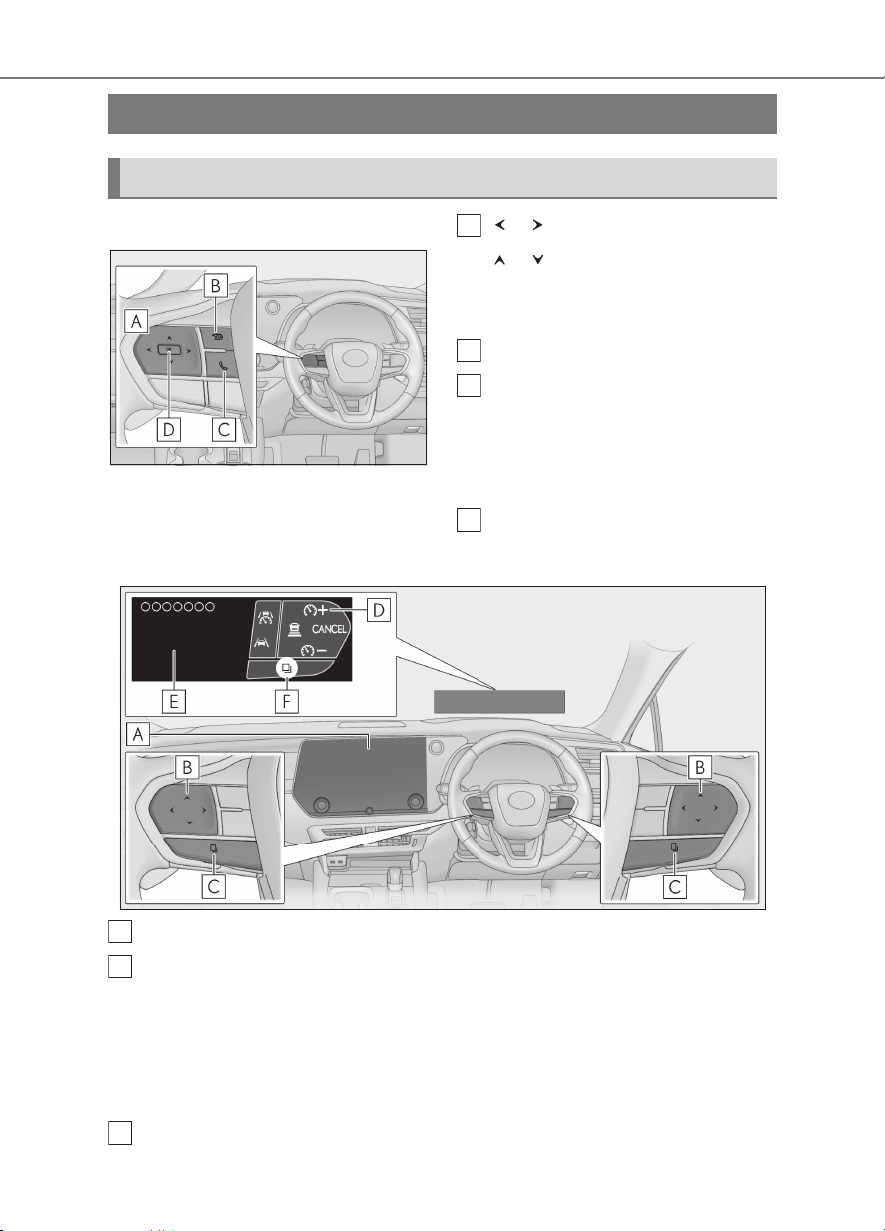

Audio remote control switches

LTA (Lane Tracing Assist) switch ......................................................................P.247

Telephone switch

F

Talk switch

Audio remote control switches/telephone switch/talk switch

H

*

*

Switch function change switch

*

: Refer to the “Multimedia Owner’s Manual”.

*

*

P position switch ...........................................................................................P.193, 200

Brake hold switch .................................................................................................. P.208

B

VSC OFF switch .....................................................................................................P.347

C

*

Trail Mode switch

................................................................................................ P.344

Parking brake switch............................................................................................ P.205

Applying/releasing..........................................................................................................P.205

Precautions for winter season.....................................................................................P.356

Warning buzzer/messages ......................................................................................... P.463

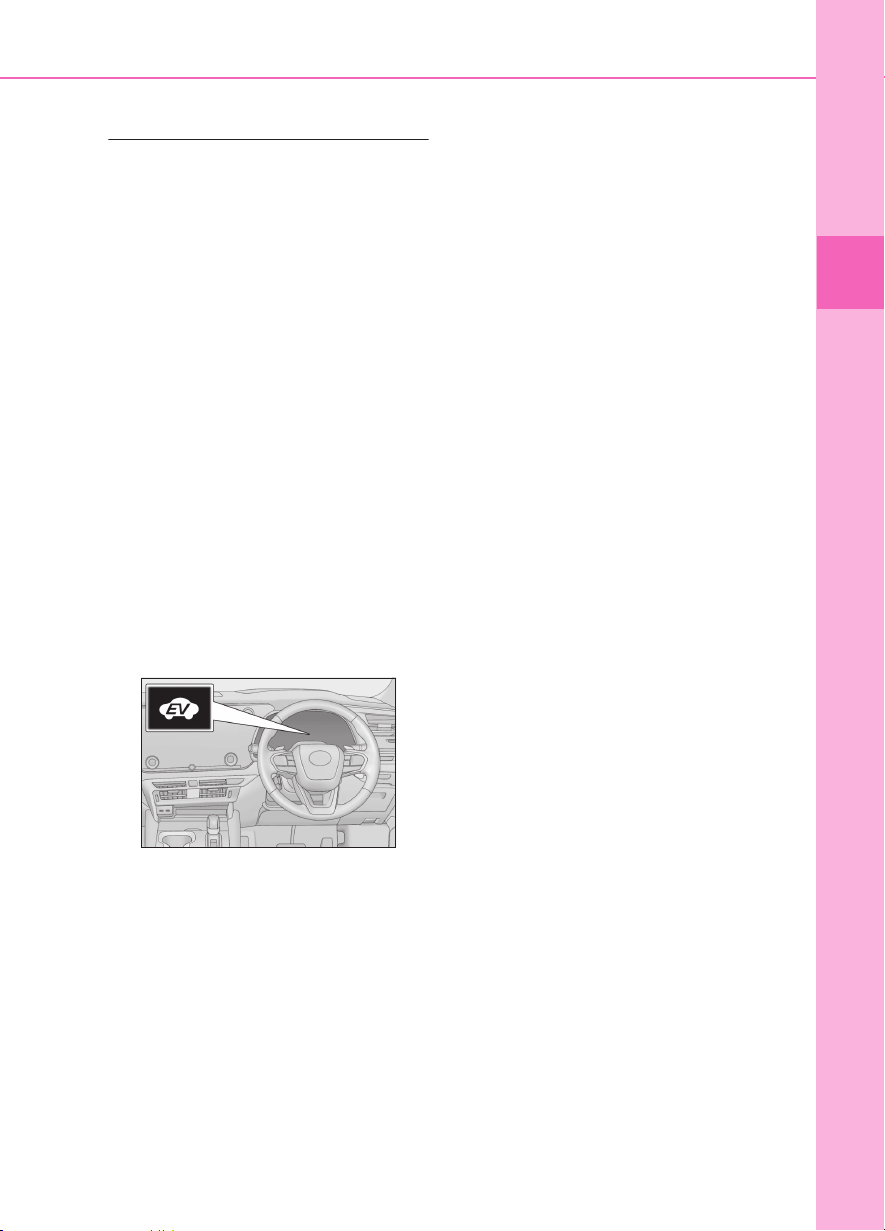

EV drive mode switch

F

*

:If equipped

*

...........................................................................................P.190

■Interior

B

C

D

E

Pictorial index

21

Head restraints ........................................................................................................P.136

A

Assist grips .............................................................................................................. P.394

Seat belts .....................................................................................................................P.26

SRS airbags ................................................................................................................ P.30

Floor mats ................................................................................................................... P.24

Cup holders ............................................................................................................ P.380

F

Console box .............................................................................................................P.379

G

Front seats ................................................................................................................. P.127

H

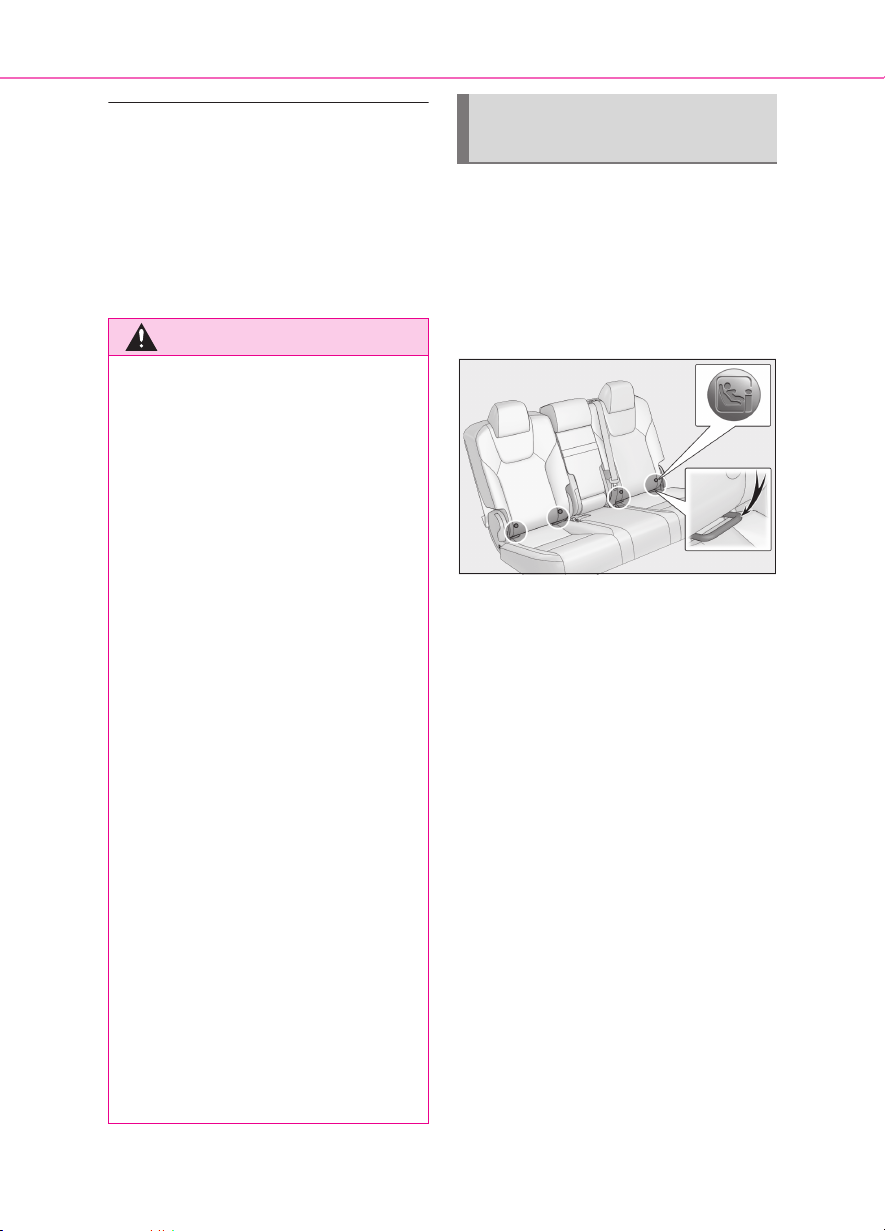

Rear seats ..................................................................................................................P.129

I

22

A

B

C

F

G

■Ceiling

Pictorial index

Interior light .............................................................................................................P.376

*1

Personal lights

Moon roof switches
Panoramic moon roof switches

......................................................................................................P.376

*2

............................................................................................ P.156

*2

...................................................................... P.159

Door-linked interior light switch ....................................................................... P.376

*2

“SOS” button

D

Auxiliary box............................................................................................................ P.381

E

Inside rear view mirror
Digital Rearview Mirror

Sun visors

......................................................................................................... P.52

*2

......................................................................................P.140

*2

..................................................................................... P.141

*3

............................................................................................................. P.395

Vanity mirrors ........................................................................................................ P.395

H

*1

: The illustration shows the front, but they are also equipped in the rear.

*2

: If equipped

*3

: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIR-

BAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur. (P.40)

23

For safety and security

.

1-1. For safe use

Before driving.................................24

For safe driving...............................25

Seat belts ..........................................26

SRS airbags .................................... 30

Exhaust gas precautions ........... 36

1-2. Child safety

Riding with children .................... 38

Child restraint systems .............. 38

1-3. Emergency assistance

Lexus Connected Services.......52

1-4. Hybrid system

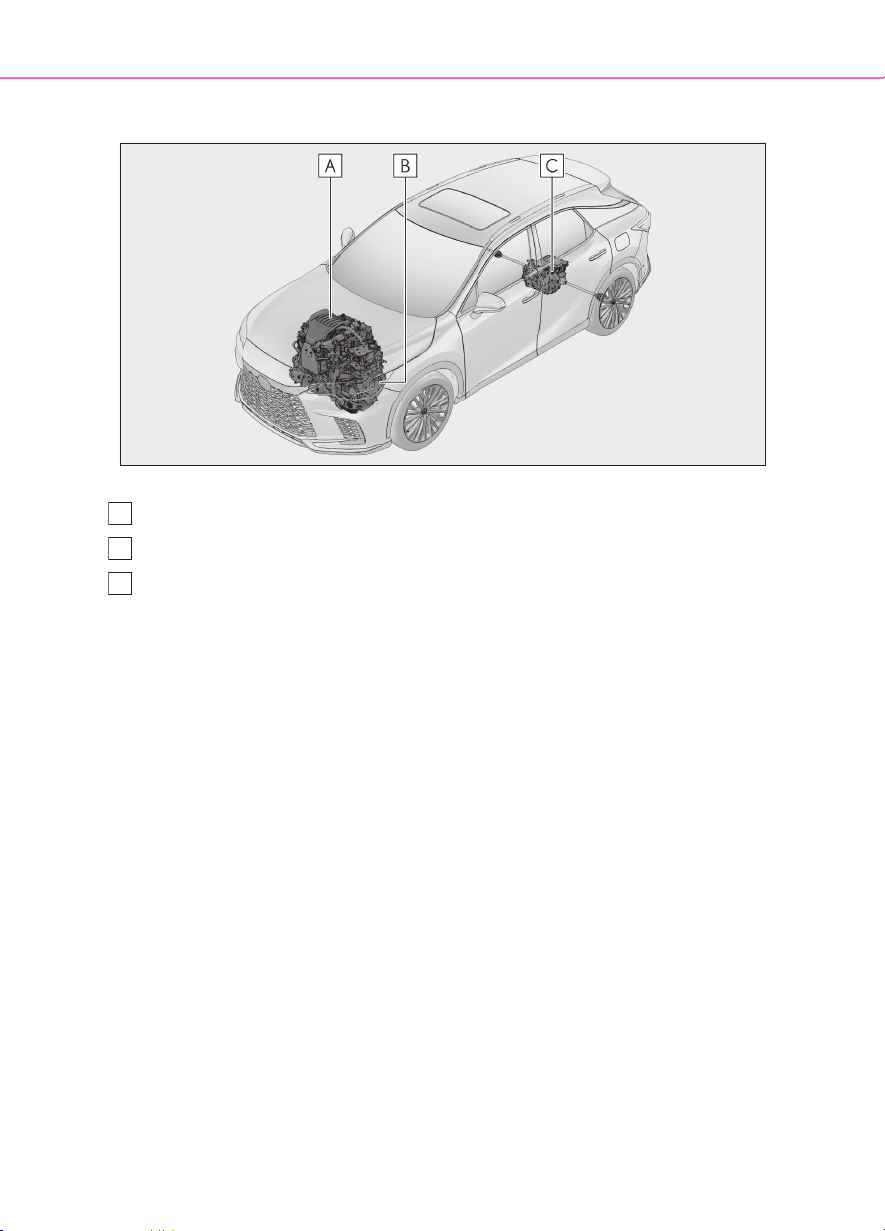

Hybrid system features.............. 55

Hybrid system precautions...... 59

1-5. Theft deterrent system

Immobilizer system ......................64

Alarm ................................................ 65

1

1

For safety and security

24

WARNING

1-1.For safe use

1-1. For safe use

Before driving

tion.

Observe the following before start­ing off in the vehicle to ensure
safety of driving.

Installing floor mats

Use only floor mats designed specifi­cally for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.

1 Insert the retaining hooks (clips)

into the floor mat eyelets.

2 Turn the upper knob of each retain-

ing hook (clip) to secure the floor
mats in place.

Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpect­edly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.

■

When installing the driver’s floor mat

●

Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genu­ine floor mats.

●

Only use floor mats designed for the
driver’s seat.

●

Always install the floor mat securely
using the retaining hooks (clips) pro­vided.

●

Do not use two or more floor mats on
top of each other.

●

Do not place the floor mat bot­tom-side up or upside-down.

■

Before driving

●

Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.

Always align the marks .

The shape of the retaining hooks (clips)
may differ from that shown in the illustra-

●

A

With the hybrid system stopped and
the shift position in P, fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

For safe driving

WARNING

C

D

For safe driving, adjust the seat and
mirror to an appropriate position
before driving.

Correct driving posture

Adjust the angle of the seatback so

A

that you are sitting straight up and
so that you do not have to lean for­ward to steer. (P.127)

Adjust the seat so that you can

B

depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.127)

Lock the head restraint in place
with the center of the head restraint
closest to the top of your ears.
(P.136)

Wear the seat belt correctly.
(P.26)

1-1. For safe use

●

Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.

●

Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct pos­ture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.

●

Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.

●

Always observe the legal speed limit
when driving on public roads.

●

When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to con­tinue driving and take a break immedi­ately.

Correct use of the seat belts

Make sure that all occupants are wear­ing their seat belts before driving the
vehicle. (P.26)
Use a child restraint system appropri­ate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.38)

25

1

For safety and security

■

For safe driving

Observe the following precautions.
Failure to do so may result in death or
serious injury.

Adjusting the mirrors

Make sure that you can see backward
clearly by adjusting the inside and out­side rear view mirrors properly.

26

WARNING

1-1. For safe use

(P.140, 141, 150)

Seat belts

Make sure that all occupants are
wearing their seat belts before driv­ing the vehicle.

Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or seri­ous injury.

■

Wearing a seat belt

●

Ensure that all passengers wear a seat
belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, includ­ing children.

●

Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.

●

To achieve a proper seating position,
do not recline the seat more than nec­essary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.

●

Do not wear the shoulder belt under
your arm.

●

Always wear your seat belt low and
snug across your hips.

1-1. For safe use

WARNING

■

People suffering illness

27

●

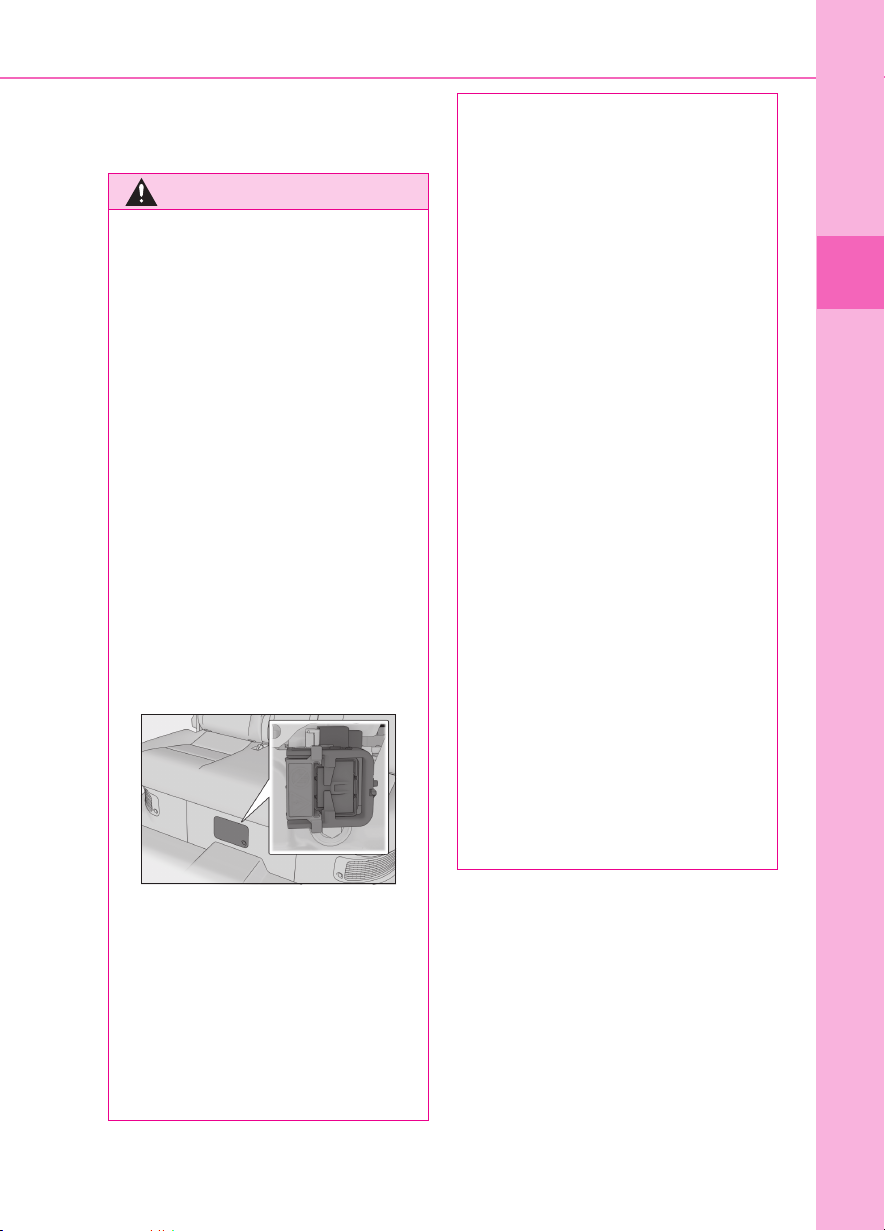

When using the rear center seat seat
belt, check that the portion in the

illustration is buckled.
If not buckled, make sure to buckle it
before using the seat belt.

■

Pregnant women

A

Obtain medical advice and wear the seat
belt in the proper way. (

■

When children are in the vehicle



P.48

■

Seat belt damage and wear

●

Do not damage the seat belts by allow­ing the belt, plate, or buckle to be
jammed in the door.

●

Inspect the seat belt system periodi­cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.

●

Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt does not function cor­rectly, immediately contact your Lexus
dealer.

●

Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there is no obvious damage.



P.27)

1

For safety and security

Obtain medical advice and wear the seat
belt in the proper way. (

Women who are pregnant should posi­tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid­ing belt contact with the rounding of the
abdominal area.

If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli­sion.



P.27)

●

Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inap­propriate handling may lead to incor­rect operation.

Correct use of the seat belts

28

1-1. For safe use

 Extend the shoulder belt so that it

comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.

 Position the lap belt as low as possi-

ble over the hips.

 Adjust the position of the seatback.

Sit up straight and well back in the
seat.

 Do not twist the seat belt.

■

Child seat belt usage

The seat belts of your vehicle were princi­pally designed for persons of adult size.

●

Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.38)

●

When the child becomes large enough to
properly wear the vehicle’s seat belt, fol­low the instructions regarding seat belt
usage. (P.26)

■

Seat belt regulations

If seat belt regulations exist in the country
where you reside, please contact your
Lexus dealer for seat belt replacement or
installation.

Fastening and releasing the seat
belt

plate into the buckle until a click
sound is heard.

2 To release the seat belt, press the

release button .

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sud­den stop o r on impa ct. It may al so lock i f you
lean forward too quickly. When the seat belt
locks, pull the belt strongly and then release
the belt, then a slow and easy pulling will
allow the belt to extend.

A

Adjusting the seat belt shoulder
anchor height (front seats)

1 Push the seat belt shoulder anchor

down while pressing the release
button .

2 Push the seat belt shoulder anchor

up while pressing the release but­ton .

Move the height adjuster up and down as
needed until you hear a click.

A

A

1 To fasten the seat belt, push the

WARNING

■

WARNING

Adjustable shoulder anchor

Always make sure the shoulder belt is
positioned across the center of your
shoulder. The belt should be kept away
from your neck, but not falling off your
shoulder. Failure to do so could reduce
the amount of protection in an accident
and cause death or serious injuries in the
event of a sudden stop, sudden swerve or
accident.

Seat belt pretensioners (front
and outboard rear seats)

When the vehicle is subjected to a
severe frontal or side impact, the
pretensioners retract the seat belts of
the front seats and rear outer seats to
securely restrain the occupants.

The pretensioners will not operate in minor
frontal or side impacts, rear impacts, or
vehicle rollovers.

1-1. For safe use

Failure to do so may result in death or
serious injury.

29

1

For safety and security

■

Replacing the belt after the
pretensioner has been activated

If the vehicle is involved in multiple colli­sions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.

■

PCS-linked control

If the PCS (Pre-Collision System) deter­mines that the possibility of a collision with a
vehicle is high, the seat belt pretensioners
will be prepared to operate.

■

Seat belt pretensioners

If a pretensioner has operated, the SRS
warning light will illuminate. In this situa­tion, the seat belt cannot be used and
must be replaced by your Lexus dealer.

30

B

E

1-1. For safe use

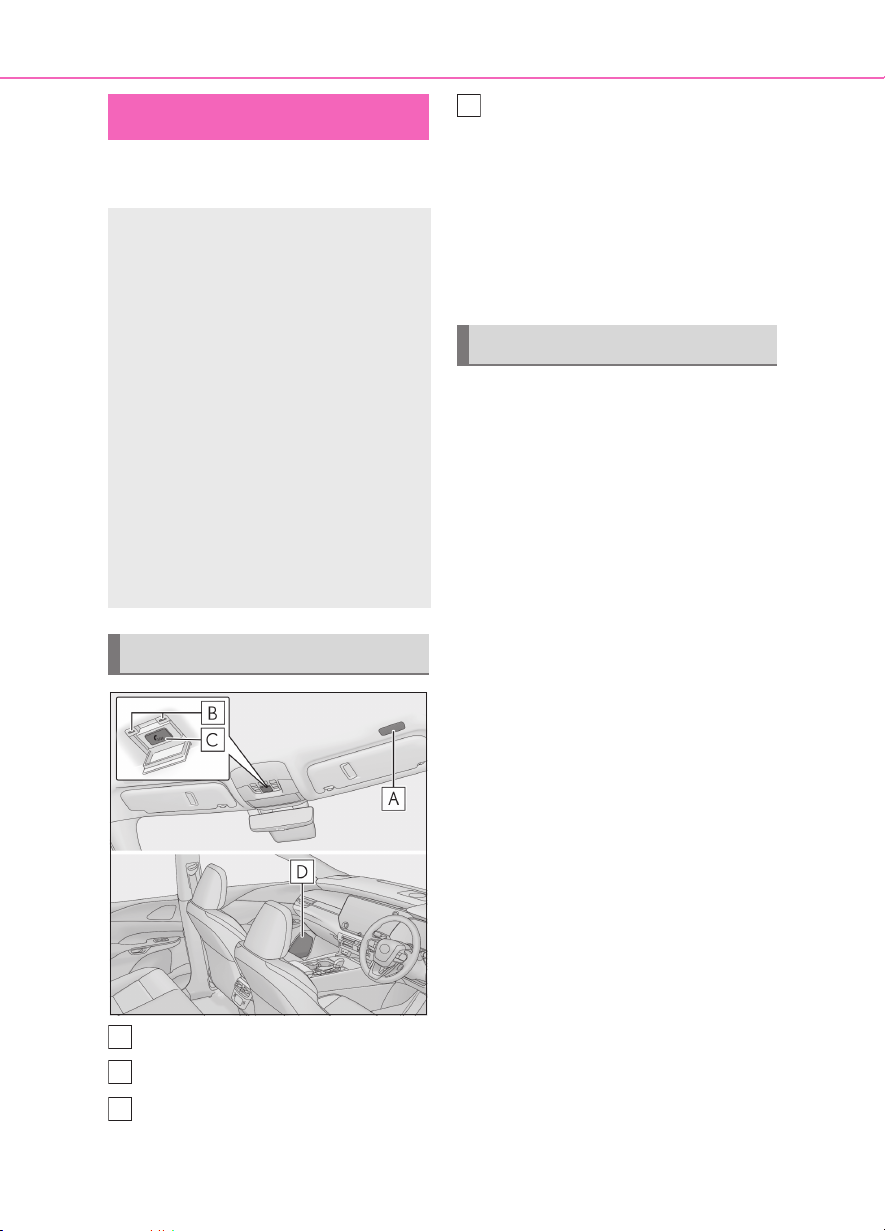

SRS airbags

The SRS airbags deploy when the vehicle is subjected to certain types of
severe impact that may cause significant injury to the occupants. The airbags
work together with the seat belts to help reduce the risk of death or serious
injury.

SRS airbag system

SRS driver airbag/front passenger airbag

A

Help reduce impact to the head and chest of the driver and front passenger

SRS knee airbag

Help reduce impact to the driver

SRS side airbags

C

• Help reduce impact to the chest of the occupants of the front seats

SRS curtain shield airbags

D

Help reduce impact to the heads of the occupants of the front and rear outer seats

SRS front center airbags

Help reduce impact to the head and neck of the occupants of the front seats

The main SRS airbag system components are shown above. The SRS airbag sys-

1-1. For safe use

tem is controlled by the airbag sensor assembly. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.

■

■

If the SRS airbags deploy (inflate)

●

Slight abrasions, burns, bruising, etc., may
be sustained from SRS airbags, due to the
extremely high speed of deployment
(inflation) by hot gases.

●

A loud noise and white powder will be
emitted.

●

Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the parts around the airbags may
be hot for several minutes. The airbag
itself may also be hot.

●

The windshield may crack.

●

The hybrid system will be stopped and
fuel supply to the engine will be stopped.
(P.63)

●

All of the doors will be unlocked.
(P.103)

●

The brakes and stop lights will be con­trolled automatically. (P.347)

●

The interior lights will turn on automati­cally. (P.377)

●

The emergency flashers will turn on auto­matically. (P.446)

●

Vehicles with Lexus Connected Services:
If any of the following situations occur, the
system is designed to send an emergency
call to the response center, notifying them
of the vehicle’s location (without needing
to push the “SOS” button) and an agent
will attempt to speak with the occupants
to ascertain the level of emergency and
assistance required. If the occupants are
unable to communicate, the agent auto­matically treats the call as an emergency
and helps to dispatch the necessary
emergency services. (P.52)

• When an SRS airbag has been deployed

• When a seat belt pretensioner has oper­ated

• When the vehicle has been involved in a
severe rear-end collision

The SRS airbags deploy in a frontal
impact when

●

The following SRS airbags will deploy in
the event of an impact that exceeds a
threshold level (level of force corre­sponding to an approximately 20 - 30
km/h [12 - 18 mph] frontal collision with a
fixed wall that does not move or deform):

• SRS front airbags

• SRS knee airbags

●

The threshold level at which the SRS
airbags will deploy will be higher than
normal in the in the following situations:

• When the vehicle collides with an object,
such as a parked vehicle or sign pole,
which moves or deforms on impact

• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle “underrides”, or goes
under, the bed of a truck

●

Depending on the type of collision, only
the following may deploy:

• Seat belt pretensioners

●

In the event of an especially severe frontal
collision, the left and right SRS curtain
shield airbags may also deploy.

■

The SRS airbags deploy in a side impact
when

●

The following SRS airbags will deploy in
the event of an impact that exceeds the
set threshold level (level of force corre­sponding to the impact force produced
by an approximately 1500 kg [3300 lb.]
vehicle colliding with the passenger com­partment at a perpendicular angle at an
approximate speed of 20 - 30 km/h [12 ­18 mph]):

• SRS side airbags

• SRS curtain shield airbags

• SRS front center airbags

■

The SRS airbags deploy in an underside
impact when

●

The following airbags may deploy if the
underside of the vehicle collides with a
hard object:

31

1

For safety and security

32

1-1. For safe use

•SRS front airbags

• SRS knee airbags

• SRS side airbags

• SRS curtain shield airbags

■

The SRS side airbags will not deploy
when

●

The following SRS airbags will not nor­mally deploy in side or rear collisions,
vehicle rollovers, or low speed frontal
collisions. However, if such a collision
causes sufficient sudden deceleration,
the SRS airbags may deploy.

•SRS front airbags

• SRS knee airbags

mally deploy in front or rear collisions,
vehicle rollovers, or low speed side colli­sions:

• SRS side airbags

• SRS front center airbags

●

The following SRS airbags will not nor­mally deploy in rear collisions, end over
end vehicle rollovers, or low speed front
or side collisions:

• SRS curtain shield airbags

●

The following SRS airbags may not
deploy if the vehicle is collided with at a
certain angle or in a side collision where
an area of the vehicle other than the pas­senger compartment is collided with:

• SRS side airbags

• SRS curtain shield airbags

• SRS front center airbags

●

The following SRS airbags will not nor-

■

When to contact your Lexus dealer

In the following situations, the vehicle will
require inspection and/or repair. Contact
your Lexus dealer as soon as possible.

●

When any of the SRS airbags have been
deployed

●

When the front of the vehicle is damaged
or deformed, or was involved in a colli­sion that was not severe enough to cause
any of the following SRS airbags to
deploy:

• SRS front airbags

• SRS knee airbags

●

WARNING

When a door or its surrounding area is
damaged, deformed or has had a hole
made in it, or was involved in a collision
that was not severe enough to cause any
of the following SRS airbags to deploy:

• SRS side airbags

• SRS curtain shield airbags

• SRS front center airbags

●

When the pad section of the steering
wheel, the dashboard near the front pas­senger SRS airbag or the lower side of
the instrument panel is scratched,
cracked, or otherwise damaged.

●

When the surface of a seat with an SRS
side airbag or SRS front center airbag is
scratched, cracked, or otherwise dam­aged.

●

When the part of a front pillar, rear pillar
or roof side rail garnish (padding) which
covers a SRS curtain shield airbag is
scratched, cracked, or otherwise dam­aged.

■

SRS airbag precautions

Observe the following precautions.
Failure to do so may result in death or
serious injury.

●

The driver and all passengers must
wear their seat belts correctly.
The SRS airbags are supplemental
devices to be used with the seat belts.

1-1. For safe use

●

The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury, especially if the
driver is very close to the airbag.

Since the risk zone for the driver’s airbag
is the first 50-75 mm (2-3 in.) of inflation,
placing yourself 250 mm (10 in.) from
your driver airbag provides you with a
clear margin of safety. This distance is
measured from the center of the steering
wheel to your breastbone. If your current
driving position places you less than 250
mm (10 in.) away from the driver airbag,,
you can change your driving position in
several ways:

• Move your seat to the rear as far as
possible while still being able to reach
the pedals comfortably.

• Slightly recline the seatback. Although
vehicle designs vary, many drivers can
achieve the 250 mm (11 in.) distance,
even with the driver seat all the way
forward, simply by reclining the
seatback somewhat. If reclining the
seatback makes it hard to see the road,
raise yourself by using a firm, non-slip­pery cushion, or raise the seat if your
vehicle has that feature.

•If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck. The seat should be adjusted
as recommended above, while still
being able to control the vehicle with
the pedals and steering wheel, and
maintaining your view of the instru­ment panel controls.

●

The SRS front passenger airbag
deploys with considerable force, and
can cause death or serious injury,
especially if the front passenger is very
close to the airbag. The front passen­ger seat should be positioned as far
possible from the airbag with the
seatback adjusted so that the passen­ger is sat upright.

33

1

For safety and security

34

WARNING

1-1. For safe use

●

Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front pas­senger seat. (

●

Do not sit on the edge of the seat or
lean against the dashboard.

●

Do not allow a child to stand in front of
the SRS front passenger airbag or sit
on the lap of a front passenger.



P.38)

●

Do not lean against the door, roof side
rail, or front, side, or rear pillar.

●

Do not allow anyone to kneel on a seat
toward the door or put their head or
hands outside the vehicle.

●

Do not attach anything to or lean any­thing against areas such as the dash­board, steering wheel pad and lower
portion of the instrument panel.

●

Front seat occupants should never
hold items on their lap.

●

Do not attach anything to areas such
as the doors, windshield, side windows,
front or rear pillars, roof side rails and
assist grips.

WARNING

●

Do not hang coat hangers or other
hard objects on the coat hooks. These
items could become projectiles if the
SRS curtain shield airbags deploy, pos­sibly leading to death or serious injury.

●

If a vinyl cover is attached to the area
where the SRS knee airbag deploys,
be sure to remove it.

●

Do not use seat accessories which
cover the parts from which the SRS
airbags deploy, as they may interfere
with inflation of the SRS airbags. Such
accessories may prevent the SRS
airbags from deploying correctly, may
disable the system or cause the SRS
airbags to inflate unintentionally, possi­bly resulting in death or serious injury.

●

Do not strike or apply significant force
to the SRS airbag system components,
front doors or their surrounding area.
Doing so may cause the SRS airbags
to malfunction.

●

Do not touch any components of the
SRS airbags immediately after the SRS
airbags have deployed (inflated) as
they may be hot.

●

If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possi­ble to prevent skin irritation.

●

If a part where an SRS airbag is stored
is damaged or cracked, have it
replaced by your Lexus dealer.

■

Modification and disposal of SRS
airbag system components

1-1. For safe use

●

Removal, installation, disassembly or
repair of the SRS airbags

●

Repair, removal or modification of the
following parts or their surrounding

• Steering wheel

•Instrument panel

•Dashboard

•Seats

• Seat upholstery

• Front pillars

• Side pillars

• Rear pillars

•Roof side rails

• Front door panels

• Front door trim

• Front door speakers

●

Modifications to the front door panels
(such as making holes in them)

●

Repair or modification of the following
parts or their surrounding

•Front fender

•Front bumper

• Sides of the vehicle interior

●

Installation of the following parts or
accessories

• Bull bars or kangaroo bars

•Snow plows

•Winches

35

1

For safety and security

Do not dispose of your vehicle or per­form any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy unintentionally, possibly leading
to death or serious injury.

• Roof lugguage carriers

●

Modifications to the vehicle’s suspen­sion

36

WARNING

WARNING

1-1. For safe use

●

Installation of electronic devices such
as mobile two-way radios (RF-trans­mitter) and CD players

Exhaust gas precautions

Harmful substance to the human
body is included in exhaust gases if
inhaled.

Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precau­tions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.

■

Important points while driving

●

Keep the back door closed.

●

If you smell exhaust gases in the vehi­cle even when the back door is closed,
open the windows and have the vehi­cle inspected at your Lexus dealer as
soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the hybrid system.

●

Do not leave the vehicle with the
hybrid system on for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.

●

Do not leave the hybrid system operat­ing in an area with snow build-up, or
where it is snowing. If snowbanks build
up around the vehicle while the hybrid
system is operating, exhaust gases
may collect and enter the vehicle.

WARNING

■

Exhaust pipe

The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.

1-1. For safe use

37

1

For safety and security

38

WARNING

1-2.Child safety

1-2. Child safety

Riding with children

Child restraint systems

Observe the following precautions
when children are in the vehicle.
Use a child restraint system appro­priate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.

 It is recommended that children

sit in the rear seats to avoid acci­dental contact with the shift lever,
wiper switch, etc.

 Use the rear door child-protector

lock or the window lock switch to
avoid children opening the door
while driving or operating the
power window accidentally.
(P.106, 155)

 Do not let small children operate

equipment which may catch or
pinch body parts, such as the
power window, hood, back door,
seats etc.

■

When children are in the vehicle

Never leave children unattended in the
vehicle, and never allow children to have
or use the key.

Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof or panoramic moon roof,
or other features of the vehicle. In addi­tion, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.

Before installing a child restraint
system in the vehicle, there are pre­cautions that need to be observed,
different types of child restraint sys­tems, as well as installation meth­ods, etc., written in this manual.

Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child
restraint system to a rear seat. Be
sure to follow the installation
method that is in the operation
manual enclosed with the restraint
system.

Table of contents

Points to remember: P.38

When using a child restraint system:
P.39

Child restraint system compatibility for
each seating position: P.42

Child restraint system installation
method

• Fixed with a seat belt: P.46

• Fixed with an ISOFIX rigid anchor:
P.48

• Using a child restraint anchor fitting:
P.49

Points to remember

 Prioritize and observe the warn-

ings, as well as the laws and regula-

1-2. Child safety

WARNING

39

tions for child restraint systems.

 Use a child restraint system until the

child becomes large enough to
properly wear the vehicle’s seat belt.

 Choose a child restraint system

appropriate to the age and size of
the child.

 Note that not all child restraint sys-

tems can fit in all vehicles.
Before using or purchasing a child
restraint system, check the compati­bility of the child restraint system
with seat positions. (P.42)

■

When a child is riding

Observe the following precautions.
Failure to do so may result in death or
serious injury.

●

For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
which is correctly installed. For installa­tion details, refer to the operation man­ual enclosed with the child restraint
system. General installation instruction
is provided in this manual.

●

Lexus strongly urges the use of a
proper child restraint system that con­forms to the weight and size of the
child, installed on the rear seat.
According to accident statistics, the
child is safer when properly restrained
in the rear seat than in the front seat.

●

Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the wind­shield or between the holder and the
interior of the vehicle.

■

Handling the child restraint system

If the child restraint system is not prop­erly fixed in place, the child or other pas­sengers may be seriously injured or even
killed in the event of sudden braking, sud­den swerving, or an accident.

●

If the vehicle were to receive a strong
impact from an accident, etc., it is pos­sible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.

●

Depending on the child restraint sys­tem, installation may be difficult or
impossible. In those cases, check
whether the child restraint system is
suitable for installment in the vehicle.
(P.42) Be sure to install and observe
the usage rules after carefully reading
the child restraint system fixing
method in this manual, as well as the
operation manual enclosed with the
child restraint system.

●

Keep the child restraint system prop­erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.

●

If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the lug­gage compartment.

When using a child restraint sys­tem

■

When installing a child restraint
system to a front passenger seat

For the safety of a child, install child
restraint systems to a rear seats. When
installing child restraint system to a
front passenger seat is unavoidable,
adjust the seat as follows and install the

1

For safety and security

40

WARNING

1-2. Child safety

child restraint system.

 Move the seat fully rearward.

 Move the seat height to the upper

most position.

 Adjust the seatback angle to the

most upright position.

If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.

 If the head restraint interferes with

your child restraint system, and the
head restraint can be removed,
remove the head restraint.

Otherwise, put the head restraint in the
upper most position.

●

Extreme Hazard! Do not use a rear­ward facing child restraint on a seat
protected by an airbag in front of it!
This is because the force of the rapid
inflation of the front passenger airbag
can cause death or serious injury to
the child.

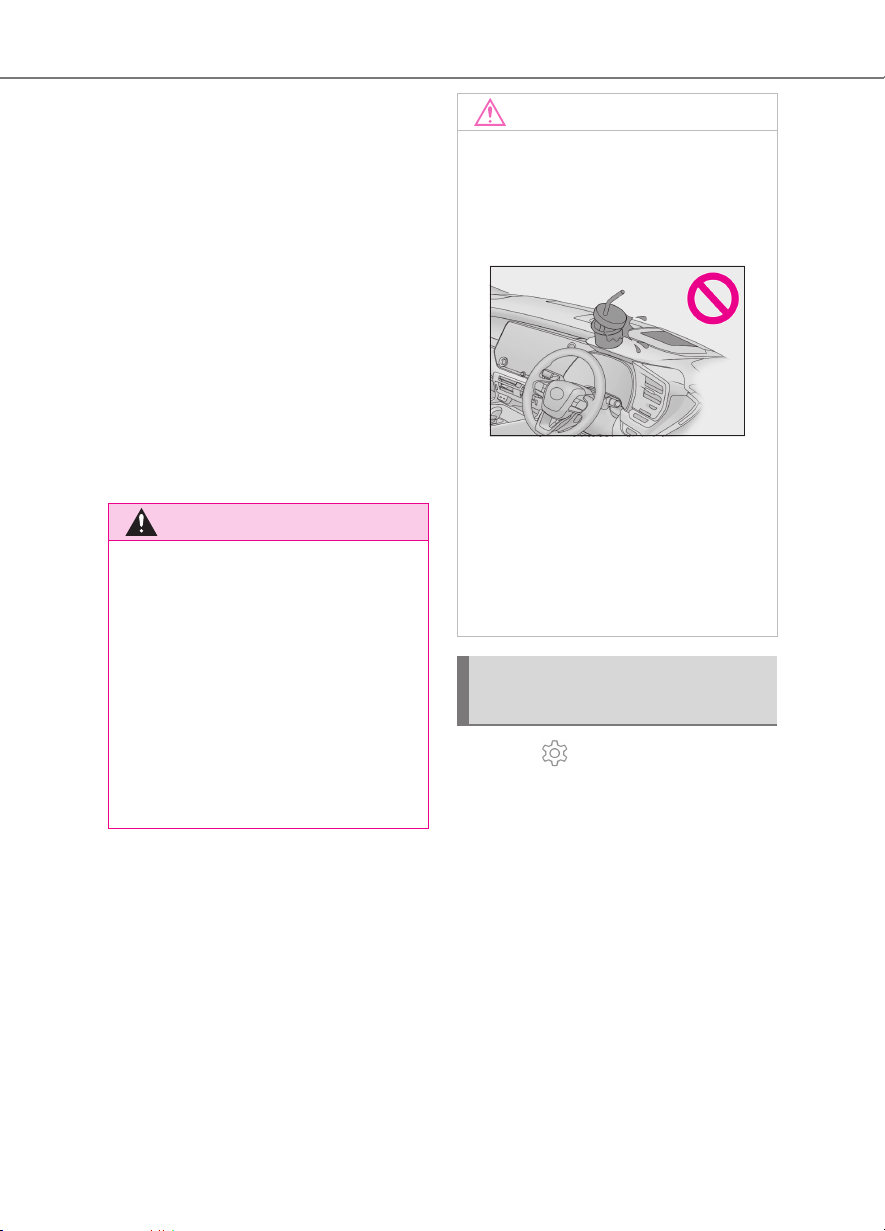

There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

■

When using a child restraint system

Observe the following precautions.
Failure to do so may result in death or
serious injury.

WARNING

WARNING

●

Only put a forward-facing child
restraint system on the front seat when
unavoidable. When installing a for­ward-facing child restraint on the front
passenger seat, move the seat as far
back as possible. Failing to do so may
result in death or serious injury if the
airbags deploy (inflate).

1-2. Child safety

●

Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front or rear pillars, or roof side rails
from which the SRS side airbags or
SRS curtain shield airbags deploy even
if the child is seated in the child
restraint system. It is dangerous if the
SRS side airbags and curtain shield
airbags inflate, and the impact could
cause death or serious injury to the
child.

41

1

For safety and security

●

When a junior seat (booster seat) is
installed, always ensure that the shoul­der belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.

42

WARNING

A

B

1-2. Child safety

●

Use child restraint system suitable to
the age and size of the child and install
it to the rear seat.

●

If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
left-hand rear seat.

●

Adjust the front passenger seat so that
it does not interfere with the child
restraint system.

Child restraint system compati­bility for each seating position

■

Before confirming the compatibil­ity of each seating position with
child restraint systems

1 Checking the child restraint system

standards.
Use a child restraint system that

conforms to UN(ECE) R44

*1, 2

UN(ECE) R129

.

*1

or

The following approval mark is dis­played on child restraint systems
which are conformed.
Check for an approval mark
attached to the child restraint sys­tem.

■

Child restraint system compatibil­ity for each seating position

Compatibility of each seating position
with child restraint systems (P.43)
displays the type of child restraint sys­tems that can be used and possible
seating positions for installation using
symbols.
Check the selected child restraint sys­tem together with the following
[Before confirming the compatibility of
each seating position with child
restraint systems].

Example of the displayed regulation num­ber

UN(ECE) R44 approval mark

*3

The weight range of the child who is
applicable for an UN(ECE) R44
approval mark is indicated.

UN(ECE) R129 approval mark

*3

The height range of the child who is
applicable as well as available
weights for an UN(ECE) R129
approval mark is indicated.

1-2. Child safety

43

2 Checking the category of the child

restraint system.
Check the approval mark of the
child restraint system for which of
the following categories the child
restraint system is suitable.
Also, if there are any uncertainties,
check the user’s guide included
with the child restraint system or
contact the retailer of the child
restraint system.

• “universal”

•“semi-universal”

•“restricted”

• “vehicle specific”

■

Compatibility of each seating posi­tion with child restraint systems

*1, 2, 3

*2, 3

*4

1

For safety and security

*1

: UN(ECE) R44 and UN(ECE) R129

are U.N. regulations for child restraint
systems.

*2

: The child restraint systems mentioned in

the table may not be available outside of
the EU area.

*3

: The displayed mark may differ depend-

ing on the product.

*2, 3

*2, 3

Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for fixed installing a for­ward-facing child seat with vehicle
seat belt “universal” category child
restraint system.

Suitable for i-Size and ISOFIX
child restraint system.

44

1-2. Child safety

Includes a top tether anchorage
point.

Never use a rear-facing child
restraint system on the front pas­senger seat.

*1

: Move the front seat fully rearward. If the

passenger seat height can be adjusted,
move it to the upper most position.

*2

: Adjust the seatback angle to the most

*3

: If the head restraint interferes with your

upright position. When installing a for­ward-facing child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback angle
until good contact is achieved.

*4

: Use only a front-facing child restraint

■

Detail information for child restraint systems installation

Seating position

Seat position number

child restraint system, and the head
restraint can be removed, remove the
head restraint.
Otherwise, put the head restraint in the
upper most position.

system.

Seating position suitable for universal

belted (Yes/No)

Forward

facing only

Yes Yes Yes

i-Size seating position (Yes/No) No Yes No Yes

Yes

Seating position suitable for lateral

fixture (L1/L2/No)

Suitable rearward facing fixture

(R1/R2X/R2/R3/No)

Suitable forward facing fixture

(F2X/F2/F3/No)

Suitable junior seat fixture

(B2/B3/No)

No No No No

No

R1, R2X,

R2, R3

No

R1, R2X,

R2, R3

No F2X, F2, F3 No F2X, F2, F3

No B2, B3 No B2, B3

ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in the seating positions for “fixture” mentioned in the
table above. For kind of “fixture” relation, confirm the following table.

If your child restraint system has no kind of “fixture” (or if you cannot find informa-

1-2. Child safety

tion in the table below), please refer to the child restraint system “vehicle list” for
compatibility information or ask the retailer of your child seat.

Fixture Description

F3 Full-height, forward-facing child restraint systems

F2 Reduced-height forward-facing child restraint systems

F2X Reduced-height forward-facing child restraint systems

45

1

R3 Full-size, rearward-facing child restraint systems

R2 Reduced-size, rearward-facing child restraint systems

R2X Reduced-size, rearward-facing child restraint systems

R1 Rearward-facing infant seat

L1 Left lateral-facing (carrycot) infant seat

L2 Right lateral-facing (carrycot) infant seat

B2 Junior seat

B3 Junior seat

When securing some types of child
restraint systems in rear seat, it may not
be possible to properly use the seat
belts in positions next to the child
restraint without interfering with it or
affecting seat belt effectiveness. Be
sure your seat belt fits snugly across
your shoulder and low on your hips. If it
does not, or if it interferes with the child
restraint, move to a different position.
Failure to do so may result in death or
serious injury.

For safety and security

the seatback rearward until there is
no interference.

 If the seat belt shoulder anchor is

ahead of the child seat belt guide,
move the seat cushion forward.

 When installing a child restraint in

the rear seats, adjust the front seat
so that it does not interfere with the
child or child restraint system.

 When installing a child seat with

support base, if the child seat inter­feres with the seatback when latch­ing it into the support base, adjust

 When installing a junior seat, if the

child in your child restraint system is
in a very upright position, adjust the
seatback angle to the most comfort­able position. And if the seat belt
shoulder anchor is ahead of the

46

1-2. Child safety

child seat belt guide, move the seat cushion forward.

Child restraint system installation method

Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.

Installation method Page

Seat belt attachment P.46

ISOFIX rigid anchor attach-

ment

Child restraint anchor fitting

attachment

Child restraint system fixed with
a seat belt

■

Installing child restraint system

P.48

P.49

using a seat belt

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys-

1-2. Child safety

47

tem.

If the child restraint system on hand is
not within the “universal” category (or
the necessary information is not in the
table), refer to the “Vehicle List” pro­vided by the child restraint system
maker for various possible installation
positions, or check the compatibility
after asking the retailer of the child
seat. (P.42)

1 If installing the child restraint sys-

tem to the front passenger seat is
unavoidable, refer to P.39for the
front passenger seat adjustment.

2 Adjust the seatback angle to the

most upright position.

When installing a forward-facing child
seat, if there is a gap between the child seat
and the seatback, adjust the seatback
angle until good contact is achieved.

3 If the head restraint interferes with

the child restraint system installa­tion and the head restraint can be
removed, remove the head
restraint. Otherwise, put the head
restraint in the upper most position.
(P.136)

4 Run the seat belt through the child

restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted. Securely fix the
seat belt to the child restraint sys­tem in accordance to the directions

enclosed with the child restraint
system.

5 If your child restraint system is not

equipped with a lock-off (a seat belt
locking feature), secure the child
restraint system using a locking clip.

6 After installing the child restraint

system, rock it back and forth to
ensure that it is installed securely.
(P.48)

■

Removing a child restraint system
installed with a seat belt

Press the buckle release button and
fully retract the seat belt.

When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.

Since the seat belt automatically reels itself,
slowly return it to the stowing position.

1

For safety and security

48

WARNING

1-2. Child safety

■

When installing a child restraint system

You may need a locking clip to install the
child restraint system. Follow the instruc­tions provided by the manufacturer of the
system. If your child restraint system does
not provide a locking clip, you can purchase
the following item from your Lexus dealer:
Locking clip for child restraint system
(Part No. 73119-22010)

■

When installing a child restraint sys­tem

Observe the following precautions.
Failure to do so may result in death or
serious injury.

●

Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious inju­ries that could result in death. If this
occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.

●

Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.

●

After securing a child restraint system,
never adjust the seat.

●

When a junior seat (booster seat) is
installed, always ensure that the shoul­der belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.

●

Follow all installation instructions pro­vided by the child restraint system
manufacturer.

Child restraint system fixed with
an ISOFIX rigid anchor

■

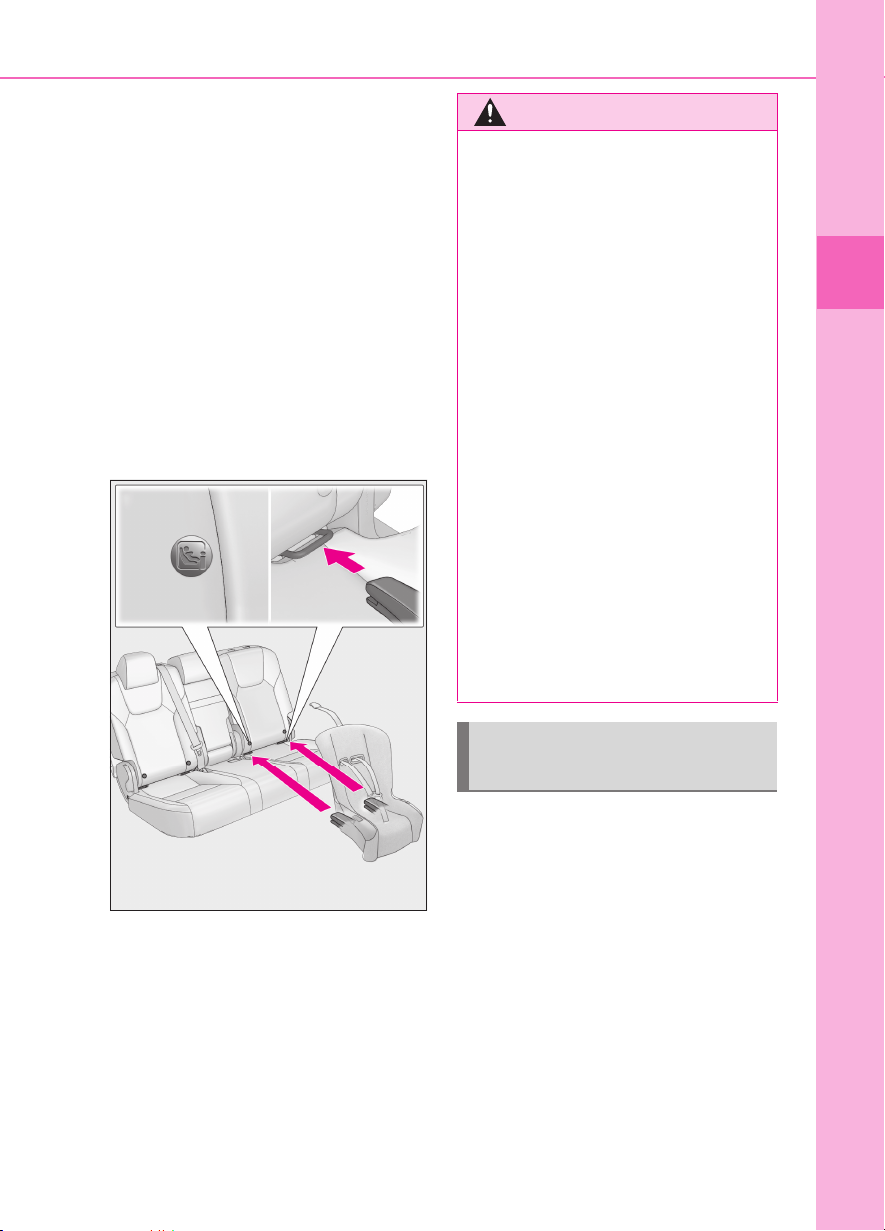

ISOFIX rigid anchors (ISOFIX
child restraint system)

Lower anchors are provided for the
outboard seats. (Buttons displaying the
location of the anchors are attached to
the seats.)

■

Installation with ISOFIX rigid
anchor (ISOFIX child restraint sys­tem)

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys­tem.

If the child restraint system on hand is
not within the “universal” category (or
the necessary information is not in the
table), refer to the “Vehicle List” pro­vided by the child restraint system
maker for various possible installation
positions, or check the compatibility
after asking the retailer of the child
seat. (P.42)

1 Adjust the seatback angle to the

most upright position.

When installing a forward-facing child
seat, if there is a gap between the child seat

and the seatback, adjust the seatback

WARNING

angle until good contact is achieved.

2 If the head restraint interferes with

the child restraint system installa­tion and the head restraint can be
removed, remove the head
restraint. Otherwise, put the head
restraint in the upper most position.
(P.136)

3 Check the positions of the exclu-

sive fixing bars, and install the child
restraint system to the seat.

The bars are installed in the clearance
between the seat cushion and seatback.

1-2. Child safety

■

When installing a child restraint sys­tem

Observe the following precautions.
Failure to do so may result in death or
serious injury.

●

After securing a child restraint system,
never adjust the seat.

●

When using the lower anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.

●

Follow all installation instructions pro­vided by the child restraint system
manufacturer.

■

Using child restraint anchorages

WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts,
harnesses, or for attaching other items or
equipment to the vehicle.

49

1

For safety and security

4 After installing the child restraint

system, rock it back and forth to
ensure that it is installed securely.
(P.48)

Using a child restraint anchor fit­ting

■

Child restraint anchor fitting

Anchor fittings are provided for each
rear seat.

Use anchor fittings when fixing the top
strap.

50

A

B

A

B

1-2. Child safety



Outboard rear seats

Anchor fittings

Upper anchorage strap



Rear center seat

raise it to the uppermost position.

2 Open the anchor fitting cover, latch

the attaching clip onto the anchor
fitting and tighten the upper
anchorage strap.

Make sure the upper anchorage strap is
securely latched. (P.48)

When installing the child restraint system
with the head restraint being raised, be
sure to have the upper anchorage strap
pass underneath the head restraint.



Outboard rear seats

Anchor fittings

A

Upper anchorage strap

B

■

Fixing the strap to the anchor fit­ting

Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint sys­tem.

Attaching clip

Upper anchorage strap

1 Remove the head restraint if it inter-

feres with your child restraint sys­tem. (P.136)

If the head restraint cannot be removed,



WARNING

A

B

NOTICE

Rear center seat

Attaching clip

Upper anchorage strap

■

When installing a child restraint sys­tem

Observe the following precautions.
Failure to do so may result in death or
serious injury.

●

Firmly attach the upper anchorage
strap and make sure that the belt is not
twisted.

1-2. Child safety

■

Using child restraint anchorages

WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts,
harnesses, or for attaching other items or
equipment to the vehicle.

■

Child restraint anchor fitting

When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.

51

1

For safety and security

●

Do not attach the upper anchorage
strap to anything other than the anchor
fitting of the seat the child restraint sys­tem is installed to.

●

After securing a child restraint system,
never adjust the seat.

●

Follow all installation instructions pro­vided by the child restraint system
manufacturer.

●

When installing the child restraint sys­tem with the head restraint being
raised, after the head restraint has
been raised and then the anchor fitting
has been fixed, do not lower the head
restraint.

52

C

D

1-3.Emergency assistance

1-3. Emergency assistance

Lexus Connected Services

*

: Operates within the Lexus Connected

Services coverage.

Lexus Connected Services are
telematics services that use Global
Positioning System (GPS) data and
embedded cellular technology to
enable the following emergency
calls to be made: ACN (Automatic
Collision Notification) and SOS
Emergency Call (Manual emer­gency service notification) (by
pressing the “SOS” button).

For more information about Lexus
Connected Services, please visit:
https://www.lexus.com.au/
connectivity

System components

*

Speaker

*

: This button is intended for communica-

tion with the Emergency Call Centre.
Other SOS buttons available in other
systems of a motor vehicle do not relate
to the device and are not intended for
communication with the Emergency
Call Centre.

Lexus Connected Services

■

ACN (Automatic Collision Notifi­cation)

If any airbag deploys, the system is
designed to automatically call the

*

Emergency Call Centre.
Centre Agent will determine your
vehicle’s location, the time of the inci­dent and the vehicle VIN, and attempt
to speak with the vehicle occupants to
assess the situation. If the occupants
are unable to communicate, the Call
Centre Agent automatically treats the
call as an emergency and contacts
emergency services to describe the
situation and request that assistance be
sent to the location.

*

: In some cases, the call cannot be made.

(P.53)

■

SOS Emergency Call (Manual
emergency service notification)

The Call

In the event of an emergency, press the
“SOS” button to call the Emergency

*

Microphone

A

Indicator lights

B

“SOS” button

Call Center.
will determine your vehicle’s location,
assess the situation, and dispatch the

*

necessary assistance required.

The Call Centre Agent

Make sure to open the cover before

1-3. Emergency assistance

WARNING

53

pressing the “SOS” button.

If you accidentally press the “SOS” button,
tell the Call Centre Agent that you are not
experiencing an emergency.

*

: In some cases, the call cannot be made.

(P.53)

Indicator lights

When the power switch is turned to
ON, the red/green indicator lights will
blink intermittently, then the green indi­cator light will remain ON, indicating
that the system is enabled. The indica­tor lights indicate the following:

 If the green indicator light illumi-

nates and stays on, the system is
enabled.

 If the green indicator light flashes

twice per second, the ACN/SOS
service is being made.

 If the red indicator light illuminates

at any time other than immediately
after the power switch is turned to
ON, the system may be malfunc­tioning or the backup battery may
be depleted. Contact your Lexus
dealer.

■

Free/Open Source Software Informa­tion

This product contains Free/Open Source
Software (FOSS). The license information
and/or the source code of such FOSS can
be found at the following URL.

http://www.opensourceautomotive.com/
dcm/lexus/19MC/

■

When the ACN/SOS may not be
made

●

It may not be possible to make
ACN/SOS in any of the following situ­ations. In such cases, report to emer­gency services provider (000 system
etc.) by other means such as nearby
public phones.

• Even when the vehicle is in the cellular
phone service area, it may be difficult
to connect to the Emergency Call
Centre if the reception is poor or the
line is busy. In such cases, you may not
be able to connect to the Emergency
Call Centre.

• When the vehicle is out of the cellular
phone service area, the ACN/SOS
cannot be made.

• When any related equipment (such as
the “SOS” button panel, indicator
lights, microphone, DCM, antenna, or
any wires connecting the equipment)
is malfunctioning, damaged or broken,
the ACN/SOS cannot be made.

• Enabled Lexus vehicles collect and
transmit vehicle data to provide con­nected services. SOS and Automatic
Collision Notification may be disabled
if green LED under SOS button is not
illuminated. For more info including
reactivation, visit
https://www.lexus.com.au/privacy

1

For safety and security

54

WARNING

NOTICE

1-3. Emergency assistance

• During an ACN/SOS service, the sys­tem makes repeated attempts to con­nect to the Emergency Call Centre.
However, if it cannot connect to the
Emergency Call Centre due to poor
radio wave reception, the system may
not be able to connect to the cellular
network and the call may finish without
connecting. A voice prompt notifica­tion will play from the vehicle speaker
to indicate call disconnection.

●

If the 12-volt battery’s voltage
decreases or there is a disconnection,
the system may not be able to connect
to the Emergency Call Centre.

●

The ACN/SOS system might not work
outside of Australia region, depending
on the available infrastructure in the
country.

■

When the ACN/SOS system is
replaced with a new one

The ACN/SOS system should be regis­tered. Contact your Lexus dealer.

●

If the airbags deploy when the system
is operating normally, the system
makes emergency call. The system
also makes emergency call when the
vehicle is struck from the rear or rolls
over, even if the airbags do not deploy.

●

For safety, do not press the “SOS” but­ton while driving.
Making calls during driving may cause
mishandling of the steering wheel,
which may lead to unexpected acci­dents.
Stop the vehicle and confirm the safety
of your surroundings before pressing
the “SOS” button.

●

When changing fuses, please use the
specified fuses. Using other fuses may
cause ignition or smoke in the circuit
and lead to a fire.

●

Using the system while there is smoke
or an unusual smell may cause a fire.
Stop using the system immediately and
consult your Lexus dealer.

■

For your safety

●

Please drive safely.
The function of this system is to assist
you in contacting the appropriate
emergency services in case of acci­dents such as traffic accidents or sud­den medical emergencies, and it does
not protect the driver or passengers in
any way. Please drive safely and fasten
your seatbelts at all times for your
safety.

●

In case of an emergency, ensure pres­ervation of life is prioritised first.

●

If you smell anything burning or other
unusual smells, leave the vehicle and
evacuate to a safe area immediately.

■

To prevent damage

Do not pour any liquids onto the “SOS”
button panel, etc. and do not impact it.

■

If the “SOS” button panel, speaker or
microphone malfunctions during an
ACN/SOS service

It may not be possible to make
ACN/SOS, confirm the system status, or
communicate with the Call Centre
Agent. If any of the above equipment is
damaged, please consult your Lexus
dealer.

1-4. Hybrid system

B

C

1-4.Hybrid system

Hybrid system features

Your vehicle is a hybrid electric vehicle. It has characteristics different from
conventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate it with care.

55

The hybrid system combines the use of a gasoline engine and an electric motor
(traction motor) according to driving conditions, improving fuel efficiency and
reducing exhaust emissions.

System components



RX350h

The illustration is an example for explanation and may differ from the actual item.

Gasoline engine

A

1

For safety and security

Front electric motor (traction motor)

Rear electric motor (traction motor)

*

: AWD models only

*

56

C



The illustration is an example for explanation and may differ from the actual item.

1-4. Hybrid system

RX500h

Gasoline engine

A

Front electric motor (traction motor)

B

Rear electric motor (traction motor)

■

When stopped/during start off

*

The gasoline engine stops

when the
vehicle is stopped. During start off, the
electric motor (traction motor) drives
the vehicle. At slow speeds or when
traveling down a gentle slope, the

engine is stopped

*

and the electric

motor (traction motor) is used.

RX350h: When the shift position is in
N, the hybrid battery (traction battery)
is not being charged.

*

: When the hybrid battery (traction bat-

tery) requires charging or the engine is
warming up, etc., the gasoline engine will
not automatically stop. (P.57)

■

During normal driving

The gasoline engine is predominantly
used. The electric motor (traction

motor) charges the hybrid battery
(traction battery) as necessary.

AWD models: Depending on the driv­ing conditions, the rear electric motor
(traction motor) is powered by the
front electric motor (traction motor) to
drive the rear wheels.

■

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of the
hybrid battery (traction battery) is
added to that of the gasoline engine via
the electric motor (traction motor).

■

When braking (regenerative brak­ing)

The wheels operate the electric motor
(traction motor) as a power generator,
and the hybrid battery (traction bat-

1-4. Hybrid system

57

tery) is charged.

■

Regenerative braking

In the following situations, kinetic energy is
converted to electric energy and decelera­tion force can be obtained in conjunction
with the recharging of the hybrid battery
(traction battery).

●

RX350h: The accelerator pedal is
released while driving with the shift posi­tion in D or S.

●

RX500h: The accelerator pedal is
released while driving with the shift posi­tion in D or M.

●

RX350h: The brake pedal is depressed
while driving with the shift position in D or
S.

●

RX500h: The brake pedal is depressed
while driving with the shift position in D or
M.

■

EV indicator

The EV indicator comes on when the vehi­cle is driven using only the electric motor
(traction motor) or the gasoline engine is
stopped.

■

Conditions in which the gasoline engine
may not stop

The gasoline engine starts and stops auto­matically. However, it may not stop auto­matically in the following conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction battery)
charging

●

When the temperature of the hybrid bat­tery (traction battery) is high or low

●

When the heater is switched on

●

When the hood is opened during

“READY” indicator is illuminated

Depending on the circumstances, the gaso­line engine may also not stop automatically
in other situations.

■

Charging the hybrid battery (traction
battery)

As the gasoline engine charges the hybrid
battery (traction battery), the battery does
not need to be charged from an outside
source. However, if the vehicle is left parked
for a long time the hybrid battery (traction
battery) will slowly discharge. For this rea­son, be sure to drive the vehicle at least
once every few months for at least 30 min­utes or 16 km (10 miles). If the hybrid bat­tery (traction battery) becomes fully
discharged and you are unable to start the
hybrid system, contact your Lexus dealer.

■

Charging the 12-volt battery

P.495

■

After the 12-volt battery has discharged
or when the terminal has been removed
and installed during exchange, etc.

The gasoline engine may not stop even if
the vehicle is being driven by the hybrid bat­tery (traction battery). If this continues for a
few days, contact your Lexus dealer.

■

Sounds and vibrations specific to a
hybrid electric vehicle

Because there is no engine sound or vibra­tion, it is easy to mistake the hybrid electric
vehicle for being off when it is actually still
running, as indicated by the “READY” indi­cator being illuminated. For safety, make
sure to always shift the shift position to P
and apply the parking brake when parked.

The following sounds or vibrations may
occur when the hybrid system is operating
and are not a malfunction:

●

Motor sounds may be heard from the
engine compartment.

●

Sounds may be heard from the hybrid
battery (traction battery) behind the rear
seats when the hybrid system starts or
stops.

●

Relay operating sounds such as a snap or
soft clank will be emitted from the hybrid

1

For safety and security

58

1-4. Hybrid system

battery (traction battery), under the rear
seats, when the hybrid system is started
or stopped.

●

Sounds from the hybrid system may be
heard when the back door is open.

●

Sounds may be heard from the transmis­sion when the gasoline engine starts or
stops, when driving at low speeds, or dur­ing idling.

●

Engine sounds may be heard when
accelerating sharply.

●

Sounds may be heard due to regenera­tive braking when the brake pedal is
depressed or as the accelerator pedal is
released.

●

Vibration may be felt when the gasoline
engine starts or stops.

●

Cooling fan sounds may be heard from
the air intake vents under the rear seats.

■

Maintenance, repair, recycling, and dis­posal

Contact your Lexus dealer regarding main­tenance, repair, recycling and disposal. Do
not dispose of the vehicle yourself.

1-4. Hybrid system

C

D

E

Hybrid system precautions

Take care when handling the hybrid system, as it is a high voltage system (about

*1

650 V

or 393.6 V*2 at maximum) as well as contains parts that become
extremely hot when the hybrid system is operating. Obey the warning labels
attached to the vehicle.

*1

:RX350h

*2

:RX500h

System components



RX350h

59

1

For safety and security

The illustration is an example for explanation and may differ from the actual item.

Warning label

A

High voltage cables (orange)

B

Hybrid battery (traction battery)

Rear electric motor (traction motor)

Service plug

Front electric motor (traction motor)

F

Power control unit

G

Air conditioning compressor

H

60

C

D

E

F



The illustration is an example for explanation and may differ from the actual item.

1-4. Hybrid system

RX500h

Warning label

A

High voltage cables (orange)

B

Hybrid battery (traction battery)

Rear electric motor (traction motor)/Inverter (rear)

Service plug

Front electric motor (traction motor)

Inverter (front)

G

DC/DC converter

H

Air conditioning compressor

I

■

■

Running out of fuel

When the vehicle has run out of fuel and the
hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to
make the low fuel level warning light
(P.458) go off. If there is only a small
amount of fuel, the hybrid system may not
be able to start. (The standard amount of
fuel is about 9.8 L [2.6 gal., 2.2 Imp. gal.],
when the vehicle is on a level surface. This
value may vary when the vehicle is on a
slope. Add extra fuel when the vehicle is
inclined.)

Electromagnetic waves

●

High voltage parts and cables on hybrid
electric vehicles incorporate electro­magnetic shielding, and therefore emit
approximately the same amount of elec­tromagnetic waves as conventional gaso­line powered vehicles or home electronic
appliances.

●

Your vehicle may cause sound interfer­ence in some third party-produced radio
parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery) has a
limited service life. The lifespan of the

1-4. Hybrid system

WARNING

61

hybrid battery (traction battery) can
change in accordance with driving style and
driving conditions.

■

High voltage precautions

This vehicle has high voltage DC and AC
systems as well as a 12-volt system. DC
and AC high voltage is very dangerous
and can cause severe burns and electric
shock that may result in death or serious
injury.

●

Never touch, disassemble, remove or
replace the high voltage parts, cables
or their connectors.

●

The hybrid system will become hot
after starting as the system uses high
voltage. Be careful of both the high
voltage and the high temperature, and
always obey the warning labels
attached to the vehicle.

●

Never try to open the service plug
access hole located under the rear
seat. The service plug is used only
when the vehicle is serviced and is
subject to high voltage.

●

Do not touch the high voltage parts,
cables and connectors.

●

If electric wires are exposed inside or
outside your vehicle, an electric shock
may occur. Never touch exposed elec­tric wires.

●

If a fluid leak occurs, do not touch the
fluid as it may be strong alkaline elec­trolyte from the hybrid battery (trac­tion battery). If it comes into contact
with your skin or eyes, wash it off
immediately with a large amount of
water or, if possible, boric acid solu­tion. Seek immediate medical atten­tion.

●

If a fire occurs in the hybrid electric
vehicle, leave the vehicle as soon as
possible. Never use a fire extinguisher
that is not meant for electric fires.
Using even a small amount of water
may be dangerous.

●

If your vehicle needs to be towed, do
so with front wheels (2WD models) or
four wheels (AWD models) raised. If
the wheels connected to the electric
motor (traction motor) are on the
ground when towing, the motor may
continue to generate electricity.This
may cause a fire. (



P.449)

1

For safety and security

■

Road accident cautions

Observe the following precautions to
reduce the risk of death or serious injury:

●

Stop the vehicle in a safe place to pre­vent subsequent accidents. While
depressing the brake pedal, apply the
parking brake and shift the shift posi­tion to P to stop the hybrid system.
Then, slowly release the brake pedal.

●

Carefully inspect the ground under the
vehicle. If you find that liquid has
leaked onto the ground, the fuel sys­tem may have been damaged. Leave
the vehicle as soon as possible.

62

WARNING

NOTICE

1-4. Hybrid system

■

Hybrid battery (traction battery)

●

Never resell, hand over or modify the
hybrid battery. To prevent accidents,
hybrid batteries that have been
removed from a disposed vehicle are
collected through your Lexus dealer.
Do not dispose of the battery yourself.
Unless the battery is properly col­lected, the following may occur, result­ing in death or serious injury:

• The hybrid battery may be illegally dis­posed of or dumped, and it is hazard­ous to the environment or someone
may touch a high voltage part, result­ing in an electric shock.

• The hybrid battery is intended to be
used exclusively with your hybrid vehi­cle. If the hybrid battery is used outside
of your vehicle or modified in any way,
accidents such as electric shock, heat
generation, smoke generation, an
explosion and electrolyte leakage may
occur.

When reselling or handing over your
vehicle, the possibility of an accident is
extremely high because the person
receiving the vehicle may not be aware
of these dangers.

■

Hybrid battery (traction battery) air
intake vents

Do not carry large amounts of water
such as water cooler bottles in the vehi­cle. If water spills onto the hybrid battery
(traction battery), the battery may be
damaged. Have the vehicle inspected by
your Lexus dealer.

Hybrid battery (traction bat­tery) air intake

The air intake vents for the hybrid bat­tery (traction battery) are located
under the rear seats.

If the air intake vents are blocked, it
could lead to a reduction in hybrid bat­tery (traction battery) output.

If input/output of the hybrid battery (trac­tion battery) becomes limited and the dis­tance that the vehicle can be driven using
the electric motor (traction motor) is
reduced, the fuel economy may ber­educed.

●

If your vehicle is disposed of without
the hybrid battery having been
removed, there is a danger of serious
electric shock if high voltage parts,
cables and their connectors are
touched. In the event that your vehicle
must be disposed of, the hybrid battery
must be disposed of by your Lexus
dealer or a qualified service shop. If
the hybrid battery is not disposed of
properly, it may cause electric shock
that can result in death or serious
injury.

NOTICE

■

Hybrid battery (traction battery) air
intake vents

●

Make sure not to block the air intake
vent with anything, such as a seat
cover, plastic cover, or luggage.The
input/output of the hybrid battery
(traction battery) may be restricted,
leading to a reduction in hybrid battery
(traction battery) output and a mal­function.

●

Periodically clean the air intake vents
to prevent them from clogging.
(P.434)

●

Do not get water or foreign materials
in either the air intake vents as this may
cause a short circuit and damage the
hybrid battery (traction battery).

Emergency shut off system

When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu­tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.

1-4. Hybrid system

■

If a warning light comes on, a warning
message is displayed, or the 12-volt bat­tery is disconnected

The hybrid system may not start. In this
case, try to start the system again. If the
“READY” indicator does not come on, con­tact your Lexus dealer.

63

1

For safety and security

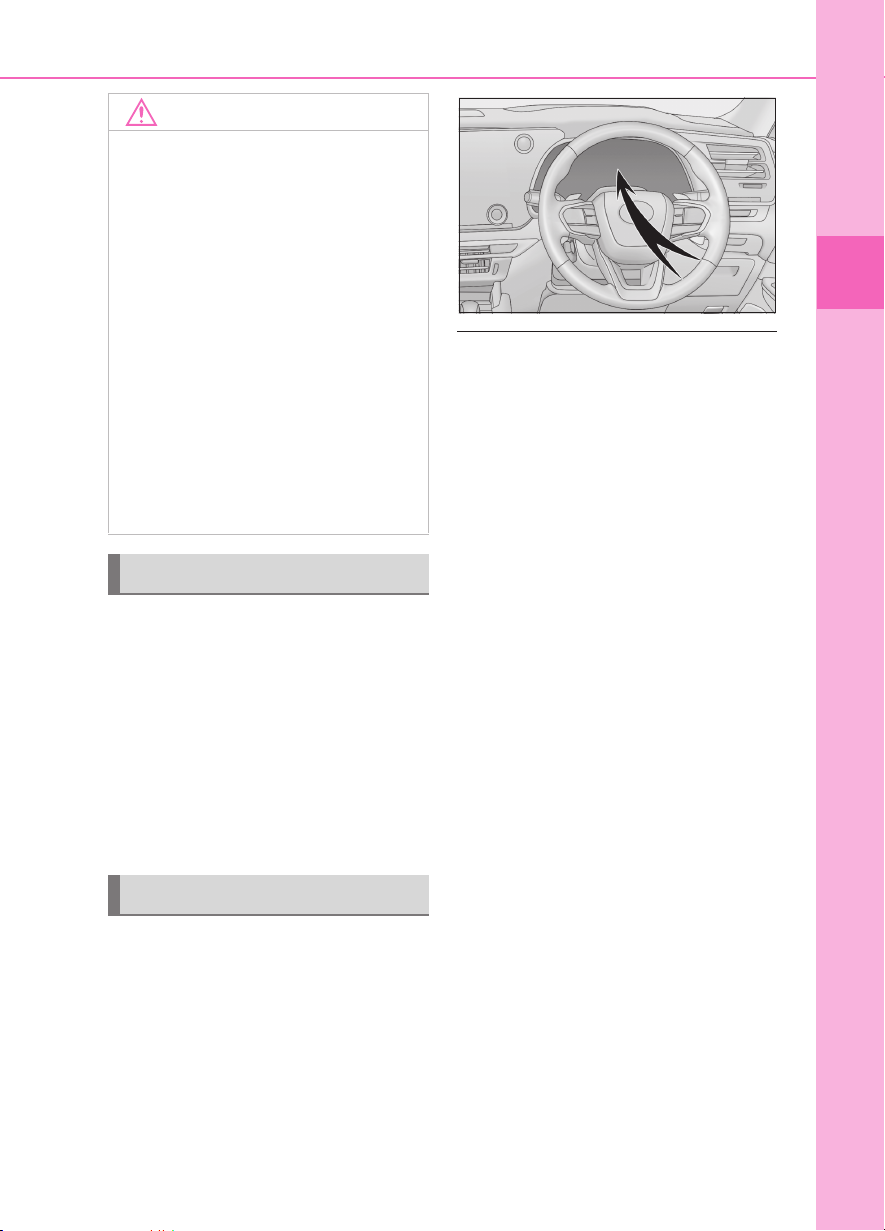

Hybrid warning message

A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera­tion is attempted.

If a warning message is shown on the
multi-information display, read the
message and follow the instructions.

64

NOTICE

1-5.Theft deterrent system

1-5. Theft deterrent system

Immobilizer system

The vehicle’s keys have built-in
transponder chips that prevent the
hybrid system from starting if a key
has not been previously registered
in the vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre­vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

The indicator light flashes after the
power switch has been turned off to
indicate that the system is operating.

■

Conditions that may cause the system to
malfunction

●

If the grip portion of the key is in contact
with a metallic object

●

If the key is in close proximity to or touch­ing a key registered to the security sys­tem (key with a built-in transponder chip)
of another vehicle

■

To ensure the system operates cor­rectly

Do not modify or remove the system. If
modified or removed, the proper opera­tion of the system cannot be guaranteed.

The indicator light stops flashing after
the power switch has been turned to
ACC or ON to indicate that the sys­tem has been canceled.

■

System maintenance

The vehicle has a maintenance-free type
immobilizer system.

1-5. Theft deterrent system

65

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow­ing situations when the alarm is set:

 A locked door or back door is

unlocked or opened in any way
other than using the entry func­tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)

 The hood is opened.

 The intrusion sensor detects

something moving inside the
vehicle. (Example: an intruder
breaks a window and gets into the
vehicle.)

 The tilt sensor detects a change of

vehicle inclination.

Setting/deactivating/stopping
the alarm system

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:

 Nobody is in the vehicle.

 The windows, moon roof (if

equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.

 No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, back door and hood,
and lock all the doors. The system will
be set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Deactivating or stopping

Do one of the following to deactivate
or stop the alarms:

 Unlock the doors.

 Turn the power switch to ACC or

ON, or start the hybrid system. (The
alarm will be deactivated or stopped
after a few seconds.)

■

Setting the alarm

The alarm can be set if all the doors are
closed even with the hood open.

■

System maintenance

The vehicle has a maintenance-free type
alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)

●

A person inside the vehicle opens a door,
the back door or hood, or unlocks the
vehicle.

1

For safety and security

66

NOTICE

●

■

In the following cases, depending on the sit­uation, the door may automatically lock to
prevent improper entry into the vehicle:

●

●

●

1-5. Theft deterrent system

The 12-volt battery is recharged or
replaced when the vehicle is locked.
(P.490)

Alarm-operated door lock

When a person remaining in the vehicle
unlocks the door and the alarm is acti­vated.

While the alarm is activated, a person
remaining in the vehicle unlocks the door.

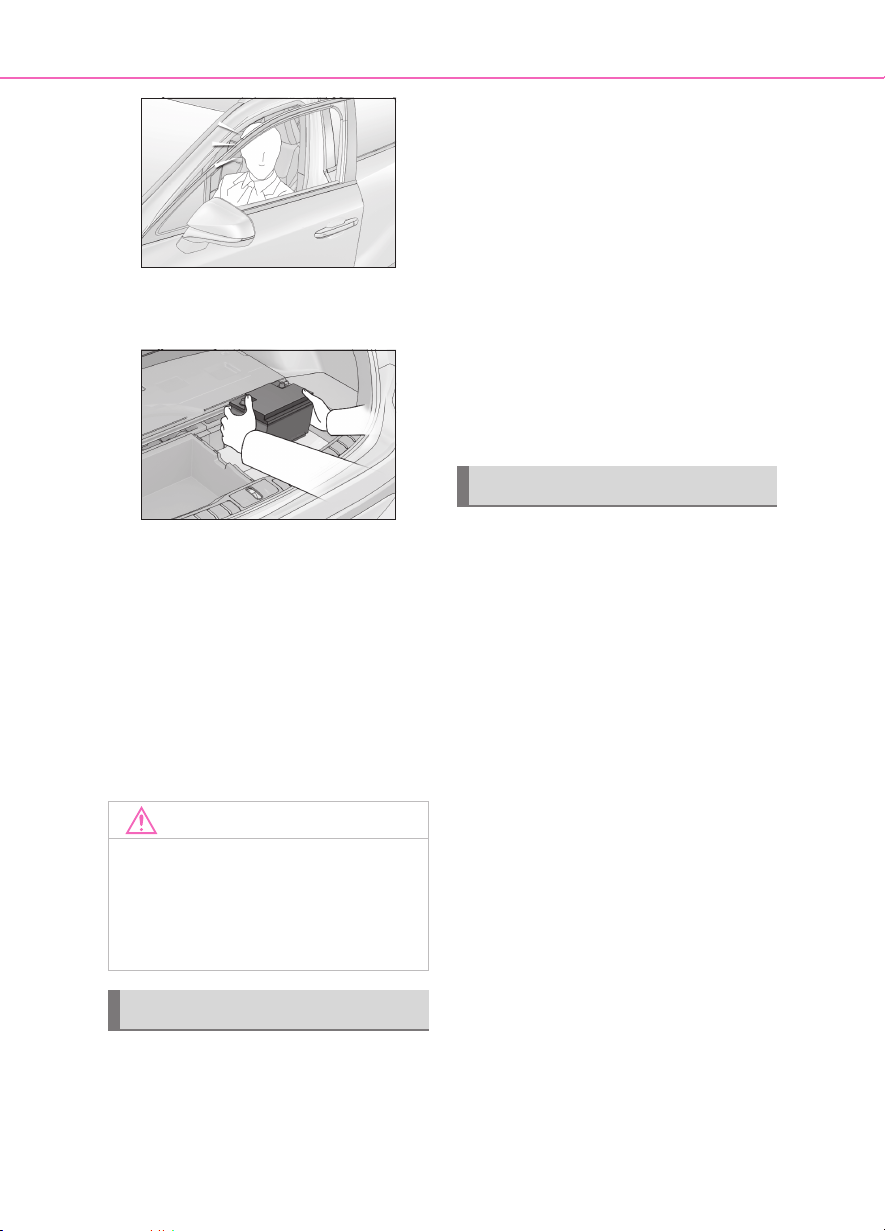

When recharging or replacing the 12-volt
battery

■

To ensure the system operates cor­rectly

Do not modify or remove the system. If
modified or removed, the proper opera­tion of the system cannot be guaranteed.

If either the door is locked again or the
pre-alarm is stopped within those 10
seconds, an alarm will sound.

Do any of the following in order to
deactivate or stop the pre-alarm:

 Close the doors, and lock all doors

by smart access system or wireless
remote control.

 Turn the power switch to ACC or

ON, or start the hybrid system. (The
alarm will be deactivated or stopped
after a few seconds.)

Intrusion sensor and tilt sensor

■

The intrusion sensor and tilt sensor
detection

 The intrusion sensor detects intrud-

ers or movement in the vehicle.

 The tilt sensor detects changes in

vehicle inclination, such as when the
vehicle is towed away.

This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.

■

Setting the intrusion sensor and tilt
sensor

The intrusion sensor and tilt sensor will
be set automatically when the alarm is
set. (P.65)

Pre-alarm

If a door is unlocked with the mechani­cal key while the alarm is being set, the
pre-alarm will sound for 10 seconds.

■

Canceling the intrusion sensor and
tilt sensor

If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt

1-5. Theft deterrent system

67

sensor before setting the alarm, as they
will respond to movement inside the
vehicle.

1 Select the Shortcut screen switch.

2 Press the .

Operation of the intrusion sensor and tilt
sensor will be canceled, and a symbol turns
into white on the center display.

Select the switch again to set the intru­sion/tilt sensor again.

Turn OFF/ON the intrusion/tilt sensor, the
symbol changes to center display.

■

Canceling and automatic re-enabling of
the intrusion sensor and tilt sensor

●

The alarm will still be set even when the
intrusion sensor and tilt sensor are
canceled.

●

After the intrusion sensor and tilt sensor
are canceled, pressing the power switch
or unlocking the doors using the entry
function or wireless remote control will
re-enable the intrusion sensor and tilt
sensor.

●

The intrusion sensor and tilt sensor will
automatically be re-enabled when the
alarm system is deactivated.

■

Intrusion sensor detection considera­tions

The sensor may trigger the alarm in the fol­lowing situations:

●

People or pets are in the vehicle.

lowing:

• Wind or the movement of objects such as
leaves and insects inside the vehicle

• Ultrasonic waves emitted from devices
such as the intrusion sensors of other
vehicles

• The movement of people outside the
vehicle

●

Small insects such as moths or flies are in
the vehicle.

●

Unstable items, such as dangling acces­sories or clothes hanging on the coat
hooks, are in the vehicle.

●

The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.

1

For safety and security

●

A window or the moon roof (if equipped),
panoramic moon roof (if equipped) is
open.

In this case, the sensor may detect the fol-

●

Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.

68

NOTICE

●

1-5. Theft deterrent system

The vehicle is inside an automatic or
high-pressure car wash.

●

The vehicle experiences impacts, such as
hail, lightning strikes, and other kinds of
repeated impacts or vibrations.

■

Tilt sensor detection considerations

The sensor may trigger the alarm in the fol­lowing situations:

●

The vehicle is transported by a ferry,
trailer, train, etc.

●

The vehicle is parked in a parking garage.

●

The vehicle is inside a car wash that
moves the vehicle.

●

Any of the tires loses air pressure.

●

The vehicle is jacked up.

●

An earthquake occurs or the road caves
in.

●

Cargo is loaded onto or unloaded from
the roof luggage carrier.

●

Do not spray air fresheners or other
products directly into the sensor holes.

●

Installing accessories other than genu­ine Lexus parts or leaving objects
between the driver’s seat and front
passenger’s seat may reduce the
detection performance.

■

To ensure the intrusion sensor func­tion correctly

●

To ensure that the sensors operate
properly, do not touch or cover them.

69

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indicators

........................................................... 70

Gauges and meters .....................74

Multi-information display.......... 82

Head-up display ........................... 85

Displayed content........................88

2

2

Vehicle status information and indicators

70

2-1.Instrument cluster

2-1. Instrument cluster

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear
view mirrors inform the driver of the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instrument cluster

For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.



Vehicles without a head-up display



Vehicles with a head-up display

2-1. Instrument cluster

71

Warning lights

Warning lights inform the driver of mal­functions in the indicated vehicle’s sys­tems.

Brake system warning light*1
(P.455)

(red)

Brake system warning light*1

(yellow)

(P.455)

High coolant temperature
warning light

*2

(P.455)

Hybrid system overheat warn-

*2

ing light

(P.456)

Charging system warning

*2

(P.456)

light
Low engine oil pressure warn-

*2

ing light
Malfunction indicator lamp

(P.456)

*1

(P.456)

SRS warning light

ABS warning light

*1

(P.457)

*1

(P.457)

Inappropriate pedal operation
warning light

*2

(P.457)

(Vehicles without a

head-up display)

(Vehicles with a

head-up display)

Tire pressure warning light
(P.459)

Lexus parking assist-sensor
OFF indicator (P.459)

PCS warning light

LTA indicator (P.459)

(orange)

LDA indicator (P.460)

(orange)

Dynamic radar cruise control

(orange)

indicator (P.460)

Cruise control indicator

(orange)

(P.460)

Driving assist information indi­cator

Rear passengers’ seat
belt reminder light
(P.458)

Rear passengers’ seat
belt reminder light
(P.458)

*1

(P.459)

*1

(P.460)

*1

2

Vehicle status information and indicators

(red)

(yellow)

Electric power steering system
warning light

*1

(P.457)

Electric power steering system
warning light

*1

(P.457)

Low fuel level warning light
(P.458)

Driver’s and front passenger’s
seat belt reminder light
(P.458)

Slip indicator*1 (P.461)

(illuminates)

Parking brake indicator

(flashes)

(P.461)

Brake hold operated indicator*1

(flashes)

*1

: These lights come on when the power

(P.461)

switch is turn ed to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is
started, or after a few seconds. There

72

WARNING

2-1. Instrument cluster

may be a malfunction in a system if the
lights do not come on, or turn off. Have
the vehicle inspected by your Lexus
dealer.

*2

: This light illuminates on the multi-infor-

mation display.

■

If a safety system warning light does
not come on

Should a safety system light such as the
ABS and SRS warning lights not come on
when you start the hybrid system, this
could mean that these systems are not
available to help protect you in an acci­dent, which could result in death or seri­ous injury. Have the vehicle inspected by
your Lexus dealer immediately if this
occurs.

Indicators

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(green/whit

e)

(green/whit

e)

(green/whit

e)

(green/whit

e)

Cruise control indicator
(P.271)

Dynamic radar cruise control
indicator (P.262)

LDA indicator (P.255)

LDA OFF indicator

*2

(P.255)

LTA indicator (P.251)

BSM outside rear view mirror

*3

indicators

(P.278, 283,

296)

Lexus parking assist-sensor
OFF indicator

*2

(P.288)

Driving assist information indi-

*1, 2

cator

(P.278, 283)

Turn signal indicator (P.205)

Tail light indicator (P.211)

Headlight high beam indicator
(P.212)

AHS indicator (if equipped)
(P.214)

AHB indicator (if equipped)
(P.217)

Front fog light indicator
(P.219)

Rear fog light indicator
(P.219)

PCS warning light

*1, 2

(P.246)

(flashes)

Slip indicator*1 (P.347)

VSC OFF indicator

*1, 2

(P.347)

“READY” indicator (P.187)

Parking brake indicator
(P.205)

Brake hold standby indicator
(P.208)

Brake hold operated indicator
(P.208)

EV indicator (P.57)

*1

*1

Low outside temperature indi-

*4

(P.74)

cator

Stop light indicator

 Drive mode indicators

EV drive mode indicator
(RX350h only) (P.190)

Eco drive mode indicator
(P.342)

Sport mode indicator
(P.342)

Customize mode indicator
(P.342)

Trail Mode indicator (if
equipped) (P.344)

*1

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the hybrid system is
started, or after a few seconds. There
may be a malfunction in a system if the
lights do not come on, or turn off. Have
the vehicle inspected by your Lexus
dealer.

*2

: This light comes on when the system is

turned off.

*3

: This light illuminates on the outside rear

view mirrors.

*4

: When the outside temperature is

approximately 3°C (37°F) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

*5

: This light comes on when the stop lights

are illuminated by the operation of the
brake pedal or the driving assist system.

2-1. Instrument cluster

*5

73

2

Vehicle status information and indicators

74

C

F

2-1. Instrument cluster

Gauges and meters

Meter display

■

Locations of gauges and meters (except F SPORT models)



Vehicles without a head-up display

Multi-information display

A

Presents the driver with a variety of vehicle data and displays warning messages if a mal­function occurs. (P.82, 463)

Shift position/shift range

B

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 60°C (140°F).

Tachometer/Hybrid System Indicator/Speedometer

D

Tachometer: Displays the engine speed in revolutions per minute.
Hybrid System Indicator: Displays hybrid system output or regeneration level. (P.79)
Depending on the selected drive mode or certain settings, the display will change.

Background color of driving mode

E

Background color changes according to the driving mode.

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “Multimedia Owner’s Manual”.

Engine coolant temperature gauge

G

Displays the engine coolant temperature.

2-1. Instrument cluster

B

F

Fuel gauge

H

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display (P.80)

I



Vehicles with a head-up display

Engine coolant temperature gauge

A

Displays the engine coolant temperature.

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 60°C (140°F).

Tachometer/Hybrid System Indicator/Analog speedometer

C

Tachometer: Displays the engine speed in revolutions per minute.
Hybrid System Indicator: Displays hybrid system output or regeneration level. (P.79)
Depending on the selected drive mode or certain settings, the display will change.

Digital speedometer

D

75

2

Vehicle status information and indicators

Shift position/shift range

E

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “Multimedia Owner’s Manual”.

Navigation system estimated time of arrival display

G

Displays the estimated time of arrival according to the navigation system.

Fuel gauge

H

Displays the quantity of fuel remaining in the tank.

Distance to empty

I

Displays the driving range with remaining fuel.

76

L

B

Presents the driver with a variety of vehicle data and displays warning messages if a mal­function occurs. (P.82, 463)

Background color changes according to the driving mode.

2-1. Instrument cluster

Multi-information display

J

Background color of driving mode

K

Odometer and trip meter display (P.80)

■

Locations of gauges and meters (F SPORT models)

Depending on the shift position or current drive mode, the meter displays or posi­tion of some gauges will change.



Ring display state

Engine coolant temperature gauge

A

Displays the engine coolant temperature.

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 60°C (140°F).

Tachometer/Hybrid System Indicator/Analog speedometer

C

Tachometer: Displays the engine speed in revolutions per minute.

• Rev indicator

•Rev peak
Hybrid System Indicator: Displays hybrid system output or regeneration level. (P.79)
Depending on the selected drive mode or certain settings, the display will change.

Digital speedometer

D

Shift position/shift range/gear position

E

Clock

F

2-1. Instrument cluster

H

J

L

B

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “Multimedia Owner’s Manual”.

Navigation system estimated time of arrival display

G

Displays the estimated time of arrival according to the navigation system.

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Distance to empty

I

Displays the driving range with remaining fuel.

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a mal­function occurs. (P.82, 463)

Background color of driving mode

K

Background color changes according to the driving mode.

Odometer and trip meter display (P.80)



Bar display state

77

2

Vehicle status information and indicators

Engine coolant temperature gauge

A

Displays the engine coolant temperature.

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 60°C (140°F).

Tachometer/Hybrid System Indicator

C

Tachometer: Displays the engine speed in revolutions per minute.

• Rev indicator

•Rev peak
Hybrid System Indicator: Displays hybrid system output or regeneration level. (P.79)

78

F

H

J

Depending on the selected drive mode or certain settings, the display will change.

Automatically adjusts the time by using the GPS time information (GPS clock). For details,
refer to the “Multimedia Owner’s Manual”.

2-1. Instrument cluster

Shift position/shift range/gear position/digital speedometer

D

Clock

E

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

Fuel gauge

G

Displays the quantity of fuel remaining in the tank.

Distance to empty

Displays the driving range with remaining fuel.

Multi-information display

I

Presents the driver with a variety of vehicle data and displays warning messages if a mal­function occurs. (P.82, 463)

Background color of driving mode

Background color changes according to the driving mode.

Odometer and trip meter display (P.80)

K

■

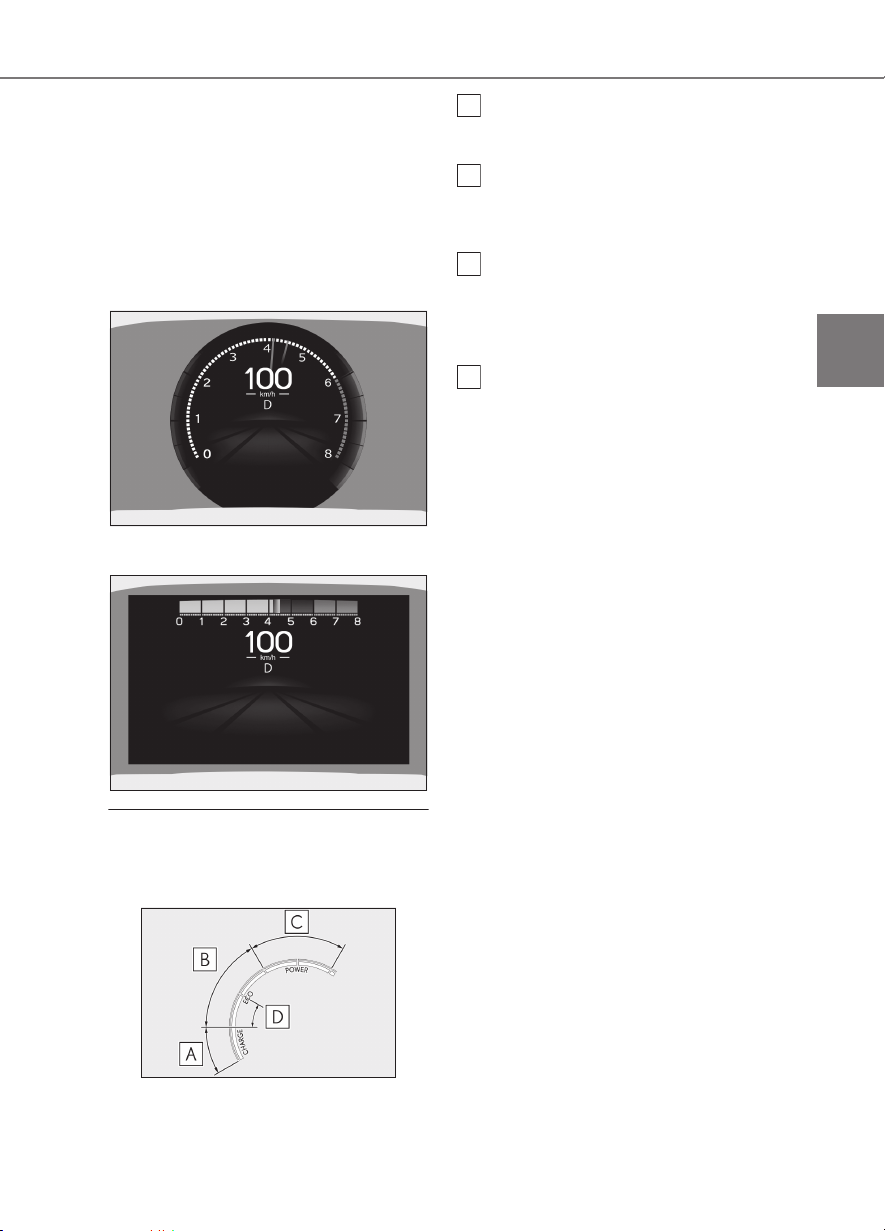

Rev indicator (F SPORT models)



Ring display state

When the engine speed reaches a set
speed or the red zone, the tachometer
will be highlighted.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.

The engine speed at which the Rev indica­tor is displayed can be changed on the
center display. (P.518)



Bar display state

■

A

B

C

D

Rev peak (F SPORT models)

When the engine speed reaches or
exceeds 4000 r/min, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi­mately 1 second.



Ring display state



Bar display state

■

The meters and display illuminate when

The power switch is in ON.

■

Hybrid System Indicator

This illustration is for explanation only and
may differ depending on the specifications
of the vehicle.

2-1. Instrument cluster

Charge area

Shows regeneration

*

status.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

Hybrid Eco area

Shows that gasoline engine power is not
being used very often.

The gasoline engine will automatically stop
and restart under various conditions.

●

By keeping the indicator needle within
Eco area, more Eco-friendly driving can
be achieved.

●

Charge area indicates regeneration* sta­tus. Regenerated energy will be used to
charge the hybrid battery (traction bat­tery).

*

: When used in this manual, regeneration

refers to the conversion of energy cre­ated by the movement of the vehicle into
electrical energy.

■

Engine speed

On hybrid electric vehicles, engine speed is
precisely controlled in order to help
improve fuel efficiency and reduce exhaust
emissions etc.
There are times when the engine speed that
is displayed may differ even when vehicle
operation and driving conditions are the
same.

■

Outside temperature display

●

In the following situations, the correct
outside temperature may not be dis­played, or the display may take longer
than normal to change:

• When stopped, or driving at low speeds
(less than 20 km/h [12 mph])

• When the outside temperature has

79

2

Vehicle status information and indicators

80

WARNING

NOTICE

2-1. Instrument cluster

changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.

■

Distance to empty

●

This distance is computed based on your
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.

●

When only a small amount of fuel is
added to the tank, the display may not be
updated. When refueling, turn the power
switch off. If the vehicle is refueled with­out turning the power switch off, the dis­play may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.

■

Free/Open Source Software Informa­tion

This product contains Free/Open Source
Software (FOSS). The license information
and/or the source code of such FOSS can
be found at the following URL.

https://www.denso.com/global/en/
opensource/meter/toyota/

For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak­ing and possibly an accident resulting in
death or injury.

■

To prevent damage to the engine and
its components

●

Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H); or “Engine Cool­ant Temp High Stop in a Safe Place
See Owner’s Manual” is shown on the
multi-information display. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. (P.497)

Odometer and trip meter dis­play

■

Display items

■

The information display at low tem­peratures

Allow the interior of the vehicle to warm
up before using the liquid crystal infor­mation display. At extremely low temper­atures, the information display monitor
may respond slowly, and display changes
may be delayed.

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

2-1. Instrument cluster

81

■

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis­played, pressing and holding the switch
will reset the trip meter.

Changing between the tachom­eter/hybrid system indica­tor/speedometer displays

Depending on the current drive mode
or settings, the displays will change as
follows. Settings can be changed on
the center display. (P.518)



Vehicles without a head-up display

 Tachometer

The tachometer will be displayed in the fol­lowing situations when the meter display
type setting is set to display type 1 or dis­play type 3.

• When the tachometer setting is set to
always display the tachometer

• When the tachometer setting is set to
change according to the driving mode
and sport mode is selected

 Hybrid System Indicator

The hybrid system indicator will be dis­played in the following situations when the
meter display type setting is set to display

type 1 or display type 3.

• When the tachometer setting is set to
always display the hybrid system indica­tor

• When the tachometer setting is set to
change according to the driving mode
and a driving mode other than sport
mode is selected

 Speedometer

Always displayed.

The display will change between a digital
speedometer and/or analog speedometer
depending on the meter display type set­ting.



Vehicles with a head-up display

 Tachometer

Displayed when the meter display type set­ting is set to display type 1.

F SPORT models: Also displayed in the fol­lowing situations when the setting is set to
display type 3.

• When the tachometer setting is set to
always display the tachometer

• When the tachometer setting is set to
change according to the driving mode
and sport mode is selected

 Hybrid System Indicator

Displayed when the meter display type set­ting is set to display type 1.

F SPORT models: Also displayed in the fol­lowing situations when the setting is set to
display type 3.

• When the tachometer setting is set to
always display the hybrid system indica­tor

• When the tachometer setting is set to
change according to the driving mode
and a driving mode other than sport

2

Vehicle status information and indicators

82

A

B

A

2-1. Instrument cluster

mode is selected

 Speedometer

A digital speedometer is always displayed.

When the meter display type setting is set
to display type 2, an analog speedometer
will also be displayed.

Changing the instrument panel
light brightness

The brightness of the instrument panel
lights can be adjusted.

1 Darker
2 Brighter

Multi-information display

Displayed contents summary

■

Display area

A variety of driving-related information
can be displayed. Depending on the
situation, warning or advice pop-up
displays will also be displayed.



Vehicles without a head-up display

Content display area

Driving support system informa­tion display area

■

Brightness of the meters (day mode and
night mode)

The brightness of the meters is changed
between day mode and night mode.

●

Day mode: When the tail lights are off or
when the tail lights are on but the sur­rounding area is bright

●

Night mode: When the tail lights are on
and the surrounding area is dark

When a menu icon other than is

selected, if the driving support system
operates, the system operating state will be
displayed.



Vehicles with a head-up display

Navigation system-linked display

2-1. Instrument cluster

B

WARNING

83

area

If the navigation system linked-display is
not displayed in the content display area,
route guidance will be displayed.

Driving support system informa­tion display area

When driving support system information
is not displayed in the content display area,
if the driving support system operates, the
system operating state will be displayed.

Content display area

C

■

Items displayed in the content dis­play area



Vehicles without a head-up display

By selecting menu icons on the
multi-information display, the following
items can be displayed.

Driving information display

Navigation system-linked dis­play

Audio system-linked display

Driving support system infor­mation display

Warning message



Vehicles with a head-up display

The following items can be displayed.

temperature gauge/engine oil pres­sure gauge

 G-force

 RX500h: Gear Position

 Driving support system information

*

display

 Blank (No items)

*

: Displayed on the head-up display when

the display mode is set to display the
maximum.

■

Liquid crystal display

P.80

■

Caution for use while driving

●

When operating the multi-information
display while driving, pay extra atten­tion to the safety of the area around the
vehicle.

●

Do not look continuously at the
multi-information display while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.

■

The information display at low tem­peratures

P.80

■

Cautions during setting up the dis­play

2

Vehicle status information and indicators

 Drive information 1

 Drive information 2

 Energy monitor/EV driving ratio

 Audio system-linked display

 Navigation system-linked display

 RX500h: Boost gauge/engine oil

As the hybrid system needs to be operat­ing during setting up the display, ensure
that the vehicle is parked in a place with
adequate ventilation. In a closed area
such as a garage, exhaust gases includ­ing harmful carbon monoxide (CO) may

*

collect and enter the vehicle. This may
lead to death or a serious health hazard.

84

NOTICE

2-1. Instrument cluster

■

While setting up the display

To prevent 12-volt battery discharge,
ensure that the hybrid system is operat­ing while setting up the display features.

2-1. Instrument cluster

B

85

Head-up display

*

:If equipped

*

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

The content displayed will differ according to the driving conditions and display
mode of the head-up display. Depending on the situation, pop-up displays will also
be displayed.

2

Vehicle status information and indicators

Main display area

A

Displays the following items:

• Driving support system information display

• Hybrid System Indicator/Tachometer

•Compass

Driving information display area

Displays the following items:

• Speedometer

• Shift position/shift range/gear position

: Master warning icon

C

Displayed when a warning message is displayed.

■

■

Head-up display will operate when

The power switch is in ON.

Head-up display

The head-up display may seem dark or hard
to see when viewed through sunglasses,

86

WARNING

NOTICE

especially polarized sunglasses. Adjust the
brightness of the head-up display or
remove your sunglasses.

■

When the following conditions are met, the
tachometer or hybrid system indicator will
be displayed on the head-up display.

●

●

●

●

2-1. Instrument cluster

The tachometer/hybrid system indica­tor is displayed when

The head-up display is set to display the
maximum. (P.518)

LTA (Lane Tracing Assist) is disabled.
(P.249)

LDA (Lane Departure Alert) is disabled.
(P.518)

The cruise control, selected by pressing
the driving assist mode select switch, is
canceled. (P.272, 273)

■

Before using the head-up display

●

Check that the position and brightness
of the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s
view and lead to an accident, resulting
in death or serious injury.

■

To prevent damage to components

●

Do not place any drinks near the
head-up display projector. If the pro­jector gets wet, electrical malfunctions
may result.

●

Do not place anything on or put stick­ers onto the head-up display projector.
Doing so could interrupt head-up dis­play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector. Doing so
could cause mechanical malfunctions.

Changing settings of the
head-up display

●

Do not continuously look at the
head-up display while driving as you
may fail to see pedestrians, objects on
the road, etc. ahead of the vehicle.

1 Select on the center display.

2 Select “Vehicle customise”.

3 Select “Head-up display”.

The following settings for the head-up dis­play can be changed. (P.518)

 Display on/off

 Display mode

 Height

 Brightness

 Angle

■

WARNING

NOTICE

Changing settings with the steering
wheel switches

If any of the following items have been set as
as a favorite steering wheel switch function,
settings of the head-up display can be
changed using the steering wheel switches.

●

: Display on/off

2-1. Instrument cluster

■

When changing the settings of the
head-up display

To prevent 12-volt battery discharge,
ensure that the hybrid system is operat­ing while the changing the settings of the
head-up display.

87

●

●

●

■

Enabling/disabling of the head-up dis-

: Display mode

/: Height

/: Brightness

play

If the head-up display is disabled, it will
remain disabled when the power switch is
turned off then back to ON.

■

Display brightness

In addition to the brightness setting, the
brightness of the display will change auto­matically according to the ambient bright­ness.

■

Head-up display automatic position
adjustment (vehicles with driving posi­tion memory)

If the display position is recorded into mem­ory, the head-up display will be automati­cally adjusted to the desired position.

■

Caution for changing settings of the
head-up display

2

Vehicle status information and indicators

As the hybrid system needs to be operat­ing while changing the settings of the
head-up display, ensure that the vehicle
is parked in a place with adequate venti­lation. In a closed area such as a garage,
exhaust gases including harmful carbon
monoxide (CO) may collect and enter
the vehicle. This may lead to death or a
serious health hazard.

88

A

B

C

D

2-1. Instrument cluster

Displayed content

Components/Operations



Vehicles without a head-up display



Vehicles with a head-up display

/ : Select menu icons

/ : Change displayed con­tent, scroll up/down the screen and
move the cursor up/down

Return to the previous screen

Start/receive call

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “Multimedia Owner’s Manual”.

Enter/Set

Center display

A

Steering switch

B

The function of each switch differs depending on the conditions and settings.
When a switch is touched, the function of each switch is displayed on the head-up display. If

the head-up display is off, or when it is not possible to display content on the head-up dis­play, the functions will be displayed on the multi-information display.

Also, preferred functions for each switch can be set on the center display.

Switch function change switch

C

2-1. Instrument cluster

F

E

Each time this switch is pressed, the functions will change.

Switch icon display

D

The icon of each switch will be displayed. The touched switch will be highlighted. ( )

Switch function guide display

The function guide for the touched switch will be displayed.

■

Switching the display of the
multi-information display (vehicles
without a head-up display)

increased. (P.518)

■

Switching with the steering wheel
switches (vehicles with a head-up dis­play)

1 Press or of the meter con-

trol switch.

 Switching driving information

If / is set as a favorite
steering wheel switch function, the display

can be switched by pushing or

1 Press the or meter control

switch to select . Then press

.

89

2

Vehicle status information and indicators

or .

■

Switching the display of the
multi-information display (vehicles
with a head-up display)

1 Select on the center display.

2 Select “Vehicle customise”.

3 Select “Meter”.

4 Select or of “Display

switching”.

The display changes each time the switch is
selected.

■

If the steering wheel switches do not
respond when touched (vehicles with a
head-up display)

●

It is easier to make the steering wheel
switches respond by moving your thumb
while touching them.

●

If the surface of a steering wheel switch is
dirty, turn the power switch off and then
clean the switches.

●

By turning winter glove mode on, the sen­sitivity of the switch sensors can be

Display of drive information

Driving related information is dis­played on the following displays.

 Multi-information display

 Head-up display (If equipped)

 Center display

The items displayed will differ depend­ing on the display.

Drive information 1

The following items can be displayed
on the multi-information display.

Use the displayed values as a refer­ence only.

 Current fuel consumption

Displays instantaneous current fuel con­sumption

 Average fuel consumption

90

A

B

C

2-1. Instrument cluster

Drive information 2

The following items can be displayed
on the multi-information display.

 Average vehicle speed

■

Energy monitor

The energy monitor can be used to
check the vehicle drive status, hybrid
system operation status and energy
regeneration status.

 Total driving time

Drive information 3 (vehicles
without a head-up display)

The following items can be displayed
on the multi-information display.

 Distance to empty

Displays the driving range with remaining
fuel.

 Average fuel economy since start-

ing

Displays the average fuel consumption
since starting.

■

Distance to empty

P.80

Energy monitor/EV driving ratio
(If equipped)

The energy monitor and EV driving
ratio can be displayed on the
multi-information display.

The arrows will appear in accordance
with the energy flow. When there is no
energy flow, arrows will not be dis­played.

The color of the arrows will change as
follows

 Blue: When the hybrid battery (trac-

tion battery) is regenerated or
charged.

 Orange: When the hybrid battery

(traction battery) is in use.

 Red: When the gasoline engine is in

use.

The image shows all the arrows as an
example. The actual display will vary
depending on conditions.



Multi-information display

The energy monitor screen can be dis­played on the center display.

■

Displaying Energy monitor screen
on the center display

1 Select on the main menu.

2 Select “Energy flow”.

Gasoline engine

Tires

Hybrid battery (traction battery)

This illustration is for explanation only and
may differ depending on the specifications

2-1. Instrument cluster

C

D

E

A

B

C

91

of the vehicle.



Center display

Gasoline engine

A

Front electric motor (traction

B

motor)

Hybrid battery (traction battery)

Rear electric motor (traction
motor) (if equipped)

Rear tires

Front tires

F

■

EV driving ratio since starting (If
equipped)

Displays the percentage of EV driving
since starting.

It is reset each time the hybrid system
stops.

■

Color of the hybrid battery (traction
battery) on the center display

It will be green when the hybrid battery
(traction battery) is being charged, and yel­low when the hybrid battery (traction bat­tery) is being used.

■

Remaining charge amount warning of
hybrid battery (traction battery)

●

The buzzer sounds intermittently when
the hybrid battery (traction battery)
remains without charging while the shift
position is in N, or the remaining charge
amount drops below a certain level. If the
remaining charge amount drops further,

the buzzer sounds continuously.
(RX350h)

●

When a warning message is shown on
the multi-information display and the
buzzer sounds, follow the instructions
displayed on the screen to perform trou­bleshooting.

Boost gauge/engine oil tempera­ture gauge/engine oil pressure
gauge (RX500h)

The following items can be displayed
on the multi-information display.

Boost gauge

Displays the boost pressure. The display
will change color if the specified pressure is
exceeded.

Engine oil temperature gauge

Displays the engine oil temperature. The
display will flash if the engine oil tempera­ture exceeds 140 °C (284 °F).

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer
will sound and warning message will be
displayed if the engine oil pressure
becomes low. (P.463)

This display is intended for use as a guide­line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

2

Vehicle status information and indicators

92

C

D

E

2-1. Instrument cluster

G-force

Displays lateral G-forces on the vehi­cle on the multi-information display.

Displays around the periphery of the
G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure.

Acceleration G-force on the vehi-

A

cle

Current G-force value (analyzed

B

value of front/rear and left/right
G-forces)

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

G-force display

●

The G-force values may not be zero even
when the vehicle is parked, such as when
it is parked on an incline.

●

Depending on the vehicle usage condi­tions, the brake fluid pressure display may
not reach its maximum reading even
though the brake pedal is fully depressed.

●

If a 12-volt battery terminal is discon­nected and reconnected, the steering
amount display may be disabled tempo­rarily. After driving the vehicle for a while,
the display will be enabled.

Gear Position (RX500h)

Displays the current shift range or gear
position when the shift position is in D
or M.

Blank (No items)

Record of the maximum G-forces

Accelerator pedal input

Displays no drive information contents
on the multi-information display.

Brake fluid pressure

Left steering amount

F

Right steering amount

G

This display is intended for use as a guide­line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

 Resetting the record of maximum

G-forces

The display is reset each time the hybrid
system is started.

Current fuel consumption/his­tory screen

Fuel consumption information can be
displayed on the center display.

■

Displaying fuel consumption/his­tory screen on the center display

1 Select on the main menu.

2 Select “Trip information”.

3 Select “Current” or “History”.

 Peak hold function

■

A

B

C

E

Current fuel consumption screen

Resetting the history data

Fuel consumption in the past 15
minutes

Current fuel consumption

Average vehicle speed since the

D

hybrid system was started.

Trip range

E

Elapsed time since the hybrid sys-

F

tem was started.

Use the displayed average fuel consump­tion as a reference. The image is an exam­ple only, and may vary slightly from actual
conditions.

■

History fuel consumption screen

2-1. Instrument cluster

tion data

Use the displayed average fuel consump­tion as a reference. The image is an exam­ple only, and may vary slightly from actual
conditions.

■

Updating the history data

Update the latest fuel consumption by
selecting “Update” to measure the current
fuel consumption again.

■

Resetting the data

The fuel consumption data can be deleted
by selecting “Clear data”.

■

Trip range

Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.

This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.

AWD operation status display
(AWD models)

AWD operation status display can be
displayed on the center display.

93

2

Vehicle status information and indicators

■

Displaying AWD operation status
display on the center display

1 Select on the main menu.

2 Select “All wheel drive”.

■

AWD operation status

Torque distribution display: Displays

Latest fuel consumption

A

the drive status of each wheel in 6
steps from 0 to 5.

Best recorded fuel consumption

B

The illustration used is intended as an

Previous fuel consumption record

C

Resetting the history data

D

Updating the latest fuel consump-

example, and may differ from the
image that is actually displayed on the
center display.

94

2-1. Instrument cluster

 Compass

■

Display position (vehicles with a
head-up display)

Depending on the display settings of the
head-up display, some content may be dis­played on the head-up display and not in
the content display area of the multi-infor­mation display.

Tire pressure

The tire pressure detected by the tire
pressure warning system can be dis­played on the center display.

■

Displaying the tire pressure on the
center display

1 Select on the main menu.

2 Select “Tyre pressure”.

■

Tire inflation pressure

P.422

Audio system-linked display

The audio system-linked display dis­plays the operating state of the audio
system on the multi-information dis­play.

Operations such as selecting the audio
source or track, etc. can be performed.

Navigation system-linked dis­play

Driving support system informa­tion display

The operating state of the following
systems can be displayed on the
multi-information display or head-up
display (if equipped).

 Dynamic radar cruise control

(P.259)

 Cruise control (P.271)

 LTA (Lane Tracing Assist) (P.247)

 LDA (Lane Departure Alert)

(P.252)

 RSA (Road Sign Assist) (P.257)

 PCS (Pre-Collision System)

(P.236)

■

Display position (vehicles with a
head-up display)

When the display mode of the head-up dis­play is set to display the maximum, driving
support system information will be dis­played on the head-up display and not in
the content display area of the multi-infor­mation display.

The following information is displayed
on the multi-information display.

 Route guidance to destination

 Street name

Pop-up display information

Pop-up displays will be displayed on
the multi-information display or the
head-up display (if equipped) when

2-1. Instrument cluster

95

necessary.

When a pop-up display is displayed, a cur­rent display may no longer be displayed. In
this case, the display will return after the
pop-up display disappears.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel­evant system.

 Dynamic radar cruise control

 Cruise control

 LTA (Lane Tracing Assist)

 LDA (Lane Departure Alert)

 PCS (Pre-Collision System)

 RSA (Road Sign Assist)

 SEA (Safe Exit Assist [with Door

Opening Control])

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

Suggestion function

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the steering switches.

 Suggestion to enable the power

back door

If the power back door system is disabled
(setting on the center display set to off) and
the power back door switch on the instru-

ment panel is operated, a suggestion mes­sage will be displayed asking if you wish to
enable the power back door system.

To enable the power back door system,
select “Yes”.

After enabling the power back door sys­tem, press the power back door switch
again to open or close the power back
door.

 Suggestion to close the power win-

dows (linked to windshield wiper
operation)

If the windshield wipers are operated with
a power window open, a suggestion mes­sage will be displayed asking if you wish to
close the power windows.

To close all of the power windows, select
“Yes”.

 Suggestion to close the power win-

dows (Driving at high speeds)

If the vehicle speed exceeds a certain
speed with a power window open, a sug­gestion message will be displayed asking if
you wish to close the power windows.

To close all of the power windows, select
“Yes”.

■

Steering wheel switch operation
display



Vehicles without a head-up display

Displayed when an audio remote con­trol switch or a talk switch on the steer­ing wheel is operated.



Vehicles with a head-up display

When a steering wheel switch is
touched, the icon of each switch and a
function guide is displayed.

2

Vehicle status information and indicators

96

■

2-1. Instrument cluster

Navigation system-linked informa­tion

Depending on the situation, navigation
system-linked route guidance to desti­nation may be displayed.

Items displayed when the power
switch is turned off

The following items will be displayed
on the multi-information display when
the power switch is turned off.

 Average fuel consumption since

*

starting

 Distance driven since starting

 Driving time since starting

 EV driving ratio since starting

Displays the percentage of EV driving
since starting.

*

: It is reset each time the hybrid system

stops.

*

*

*

97

Before driving

.

3-1. Key information

Keys ................................................... 98

3-2. Opening, closing and locking the

doors

Side doors .....................................102

Power back door .......................107

Smart entry & start system..... 122

3-3. Adjusting the seats

Front seats..................................... 127

Rear seats...................................... 129
