Pictorial index
NOT FOR REPRODUCTION
For safety
1
and security
Search by illustration
Make sure to read through them
2
Instrument cluster
Operation of
3
each component
4
Driving
Lexus Display
5
Audio system
6
Interior features
Maintenance
7
and care
When trouble
8
arises
Vehicle
9
specifications
How to read the gauges and meters, the variety of warning
lights and indicators, etc.
Opening and closing the doors and windows, adjustment
before driving, etc.
Operations and advice which are necessary for driving
Operating the Lexus Display Audio system
Usage of the interior features, etc.
Caring for your vehicle and maintenance procedures
What to do in case of malfunction or emergency
Vehicle specifications, customizable features, etc.
Index
Search by symptom
Search alphabetically
TABLE OF CONTENTS2
NOT FOR REPRODUCTION
For your information ...................................8
Reading this manual..................................12
How to search..............................................13

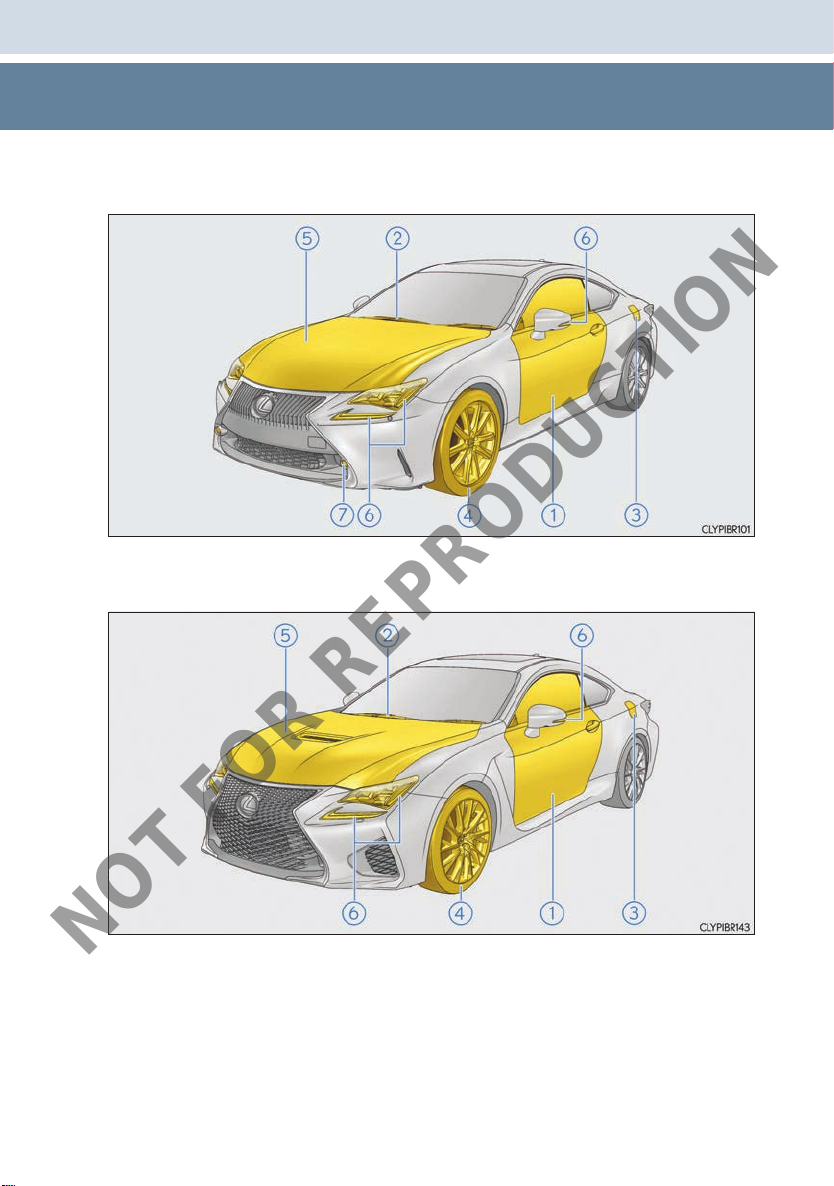

Pictorial index .............................................. 14
1
For safety and security
1-1. For safe use
Before driving.................................30
For safety drive...............................32

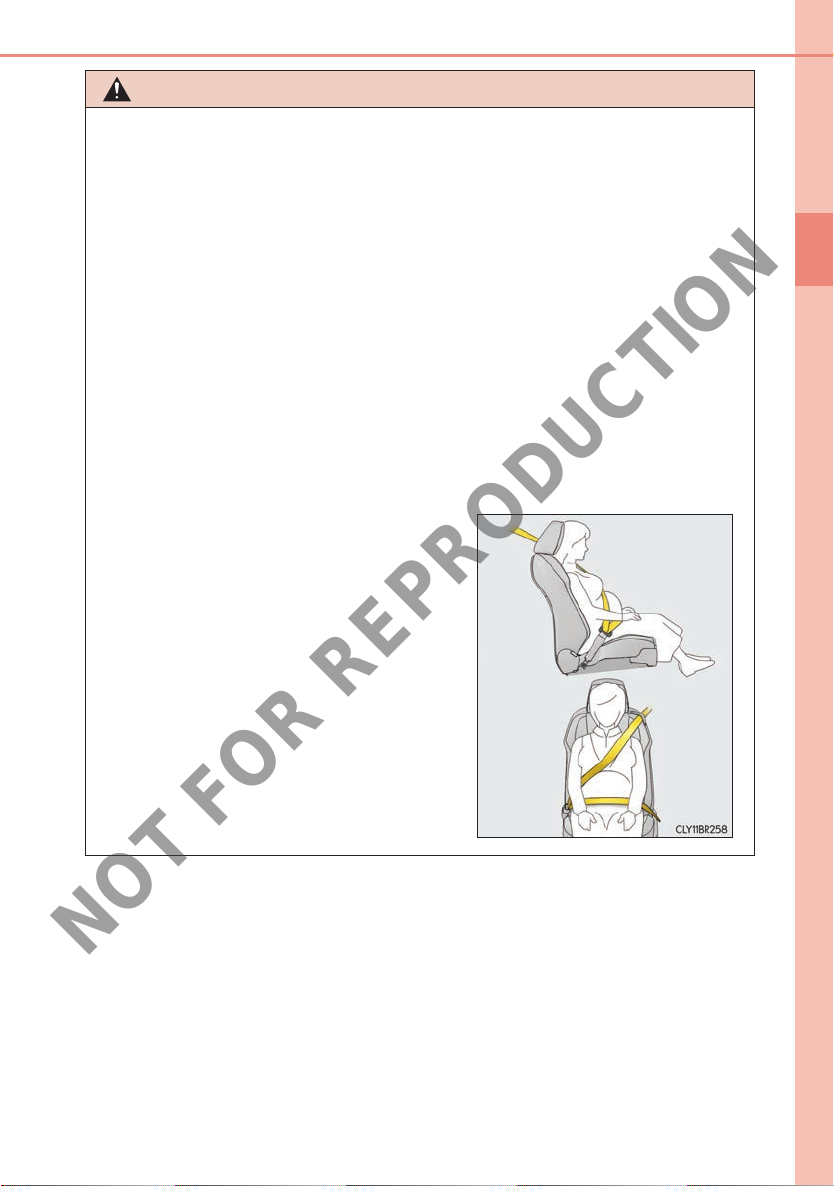

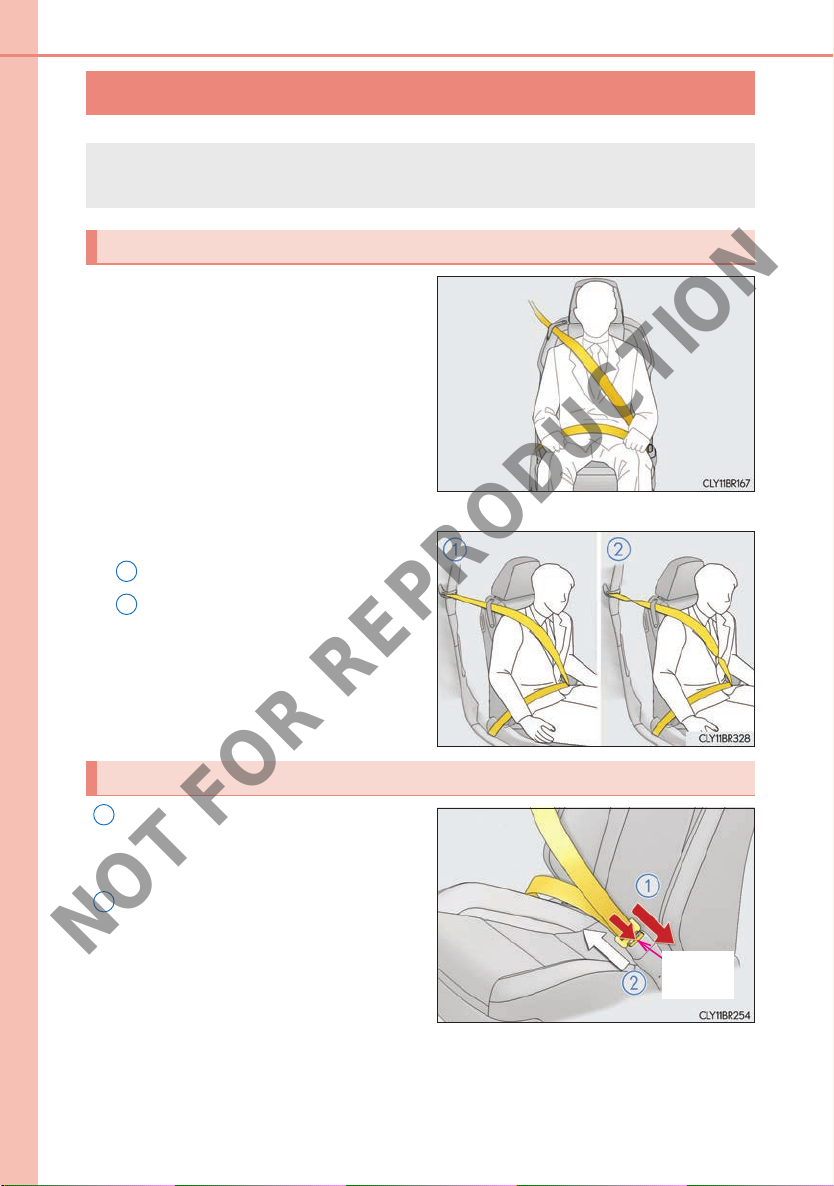

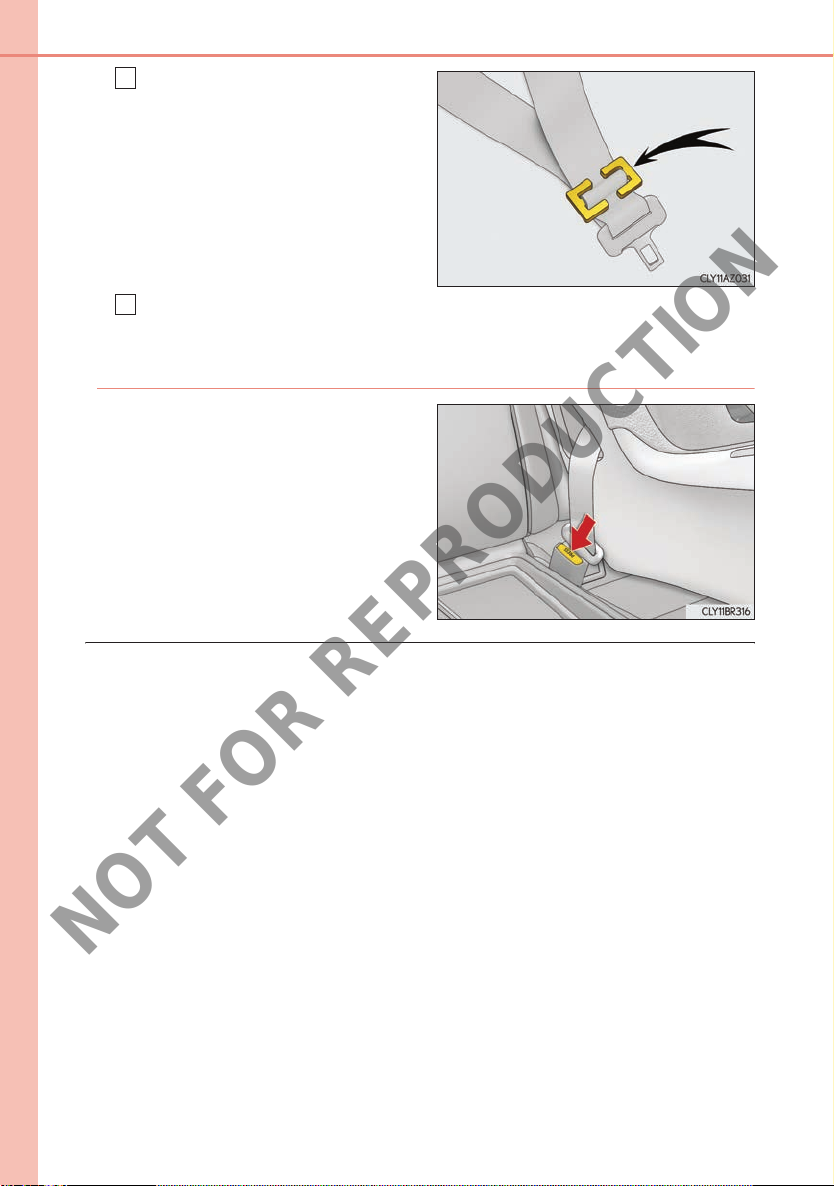

Seat belts..........................................34
SRS airbags .....................................39

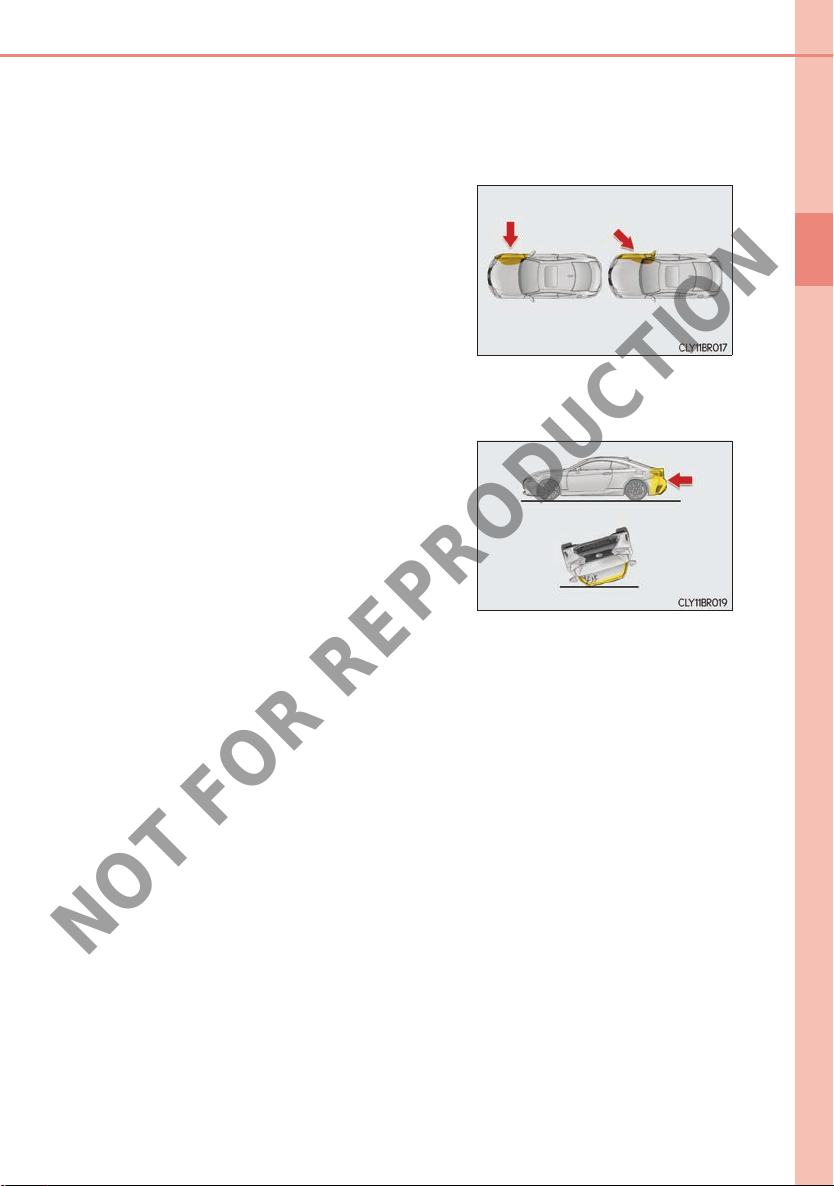

Pop Up Hood..................................50
Safety information
for children....................................53
Child restraint systems................54
Exhaust gas precautions............78
1-2. Theft deterrent system
Engine immobilizer
system.............................................79
Alarm ................................................80
2
Instrument cluster
2. Instrument cluster
Warning lights and
indicators.......................................86
Gauges and meters
(RC350/RC200t)...................94
Gauges and meters
(RC F) ...........................................100
Multi-information display
(RC350/RC200t).................107
Multi-information display
(RC F) .............................................115
Fuel consumption
information...................................127
Operation of
NOT FOR REPRODUCTION
3
each component
4
3
Driving
3-1. Key information
Keys...................................................134
3-2. Opening, closing and locking
the doors and trunk
Doors ...............................................140
Trunk .................................................146
Smart entry & start system........151
3-3. Adjusting the seats
Front seats.......................................157
Rear seats.......................................160
Driving position memory ......... 162
Head restraints.............................166
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................. 169
Inside rear view mirror................171
Outside rear view mirrors........173
3-5. Opening, closing the
windows and moon roof
Power windows .............................177
Moon roof.......................................181
4-1. Before driving
Driving the vehicle......................186
Cargo and luggage....................195
Trailer towing................................. 196
4-2. Driving procedures
Engine (ignition) switch .............197
Automatic transmission...........202
Turn signal lever ......................... 208
Parking brake...............................209
ASC (Acceleration
Sound Control)
(RC350/RC200t).................210
ASC (Acceleration
Sound Control) (RC F)............211
4-3. Operating the lights and
wipers
Headlight switch.......................... 212
Automatic High Beam.............. 214
Fog light switch.............................218
Windshield wipers and
washer...........................................219
4-4. Refueling
Opening the fuel tank
cap.................................................227
1
2
3
4
5
6
7
8
9
TABLE OF CONTENTS4
NOT FOR REPRODUCTION
4-5. Using the driving support
systems
Stop & Start system
(Smart Stop)............................... 231
Cruise control..............................240
Dynamic radar cruise
control..........................................244
LDA
(Lane Departure Alert)........257
Lexus parking
assist-sensor..............................263
Rear view monitor
system..........................................270
Driving mode select
switch ...........................................279
Driving assist systems...............283
PCS (Pre-Crash Safety
system).......................................... 291
BSM
(Blind Spot Monitor).............. 297
• BSM function..........................301
• RCTA function......................305
Active rear wing ........................ 309
TVD (Torque Vectoring
Differential)................................. 312
4-6. Driving tips
Winter driving tips ......................314
5
Lexus Display Audio system
5-1. Basic Operations
Lexus Display Audio
System .........................................320

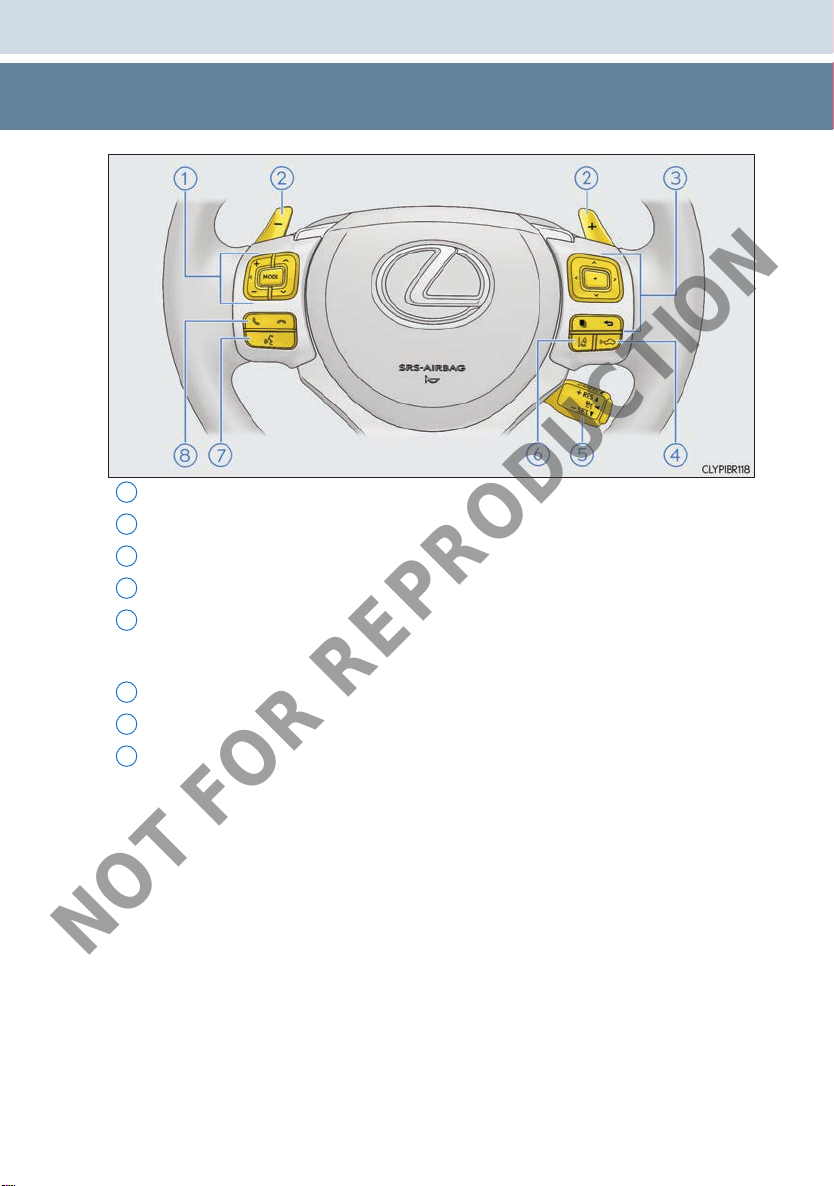

Steering wheel audio
switches.......................................325
USB/AUX ports .........................326
5-2. Setup
Setup menu...................................328
General settings.........................329
Voice settings...............................332
Display settings...........................333
5-3. Using the audio system
Selecting the audio
source..........................................335
Optimal use of the audio
system..........................................336
Audio settings..............................337
Audio menu screen
operation...................................340
5-4. Using the radio
Radio operation..........................343
5-5. Playing an audio CD and
MP3/WMA/AAC discs
Audio CD player
operation....................................345
5-6. Using an external device
Listening to an iPod .................. 350
Using USB memory
device...........................................354
Using the AUX port................. 358
5
NOT FOR REPRODUCTION
5-7. Connecting Bluetooth
Steps for using Bluetooth®
devices.........................................359
Registering a Bluetooth
device............................................ 361
Selecting a Bluetooth
®
device...........................................362
Connecting a Bluetooth
audio player...............................363
Connecting a Bluetooth
phone ...........................................364
Displaying a Bluetooth
device details............................365
Detailed Bluetooth
®
settings.........................................366
5-8. Bluetooth
®
Audio
Listening to Bluetooth
Audio............................................367
5-9. Bluetooth
Using a Bluetooth
®
Phone
®
Phone...........................................369
Making a call..................................371
Receiving a call............................374
Speaking on the phone............375
®
Using a Bluetooth
phone
message...................................... 377
Using the steering wheel
switches.......................................379
Bluetooth
®
phone
settings........................................380
®
5-10. Phonebook
Contact settings.........................382
Messaging setting..................... 385
®
5-11. Bluetooth
What to do if...
®
(Troubleshooting)................... 386
Bluetooth
5-12. Other function
®
“Information” screen.................393
USB photo ....................................394
®
Speech command
®
®
.................................. 389
1
2
3
system..........................................396
4
®
5
6
7
8
9
TABLE OF CONTENTS6
NOT FOR REPRODUCTION
6
Interior features
6-1. Using the air conditioning
system
Automatic air conditioning
system.........................................400
Heated steering wheel/
seat heaters/
seat ventilators..........................410
6-2. Using the interior lights
Interior lights list...........................413
• Interior lights...........................414
• Personal lights.........................415
6-3. Using the storage features
List of storage features.............. 416
• Glove box..................................417
• Console box.............................417
• Cup holders.............................418
Trunk features ...............................419
6-4. Using the other interior
features
Other interior features ............. 421
• Sun visors.................................. 421
• Vanity mirrors .........................421
• Clock.........................................422
• Power outlet...........................422
• Armrest....................................423
• Trunk storage
extension..................................424
• Assist grips..............................425
• Coat hooks.............................425
7
Maintenance and care
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.................428
Cleaning and protecting
the vehicle interior..................433
7-2. Maintenance
Maintenance
requirements.............................436
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions............................... 438
Hood ...............................................440
Positioning a floor jack.............. 441
Engine compartment ...............443
Tires ..................................................459
Tire inflation pressure................ 467
Wheels ...........................................469
Air conditioning filter..................471
Electronic key battery..............473
Checking and replacing
fuses..............................................475
Light bulbs..................................... 478
8
When trouble arises
8-1. Essential information
Emergency flashers..................488
If your vehicle has to
be stopped in an
emergency.................................489
7
NOT FOR REPRODUCTION
8-2. Steps to take in an
emergency
If your vehicle needs to be
towed............................................490
If you think something is
wrong........................................... 497
Fuel pump shut off
system..........................................498
If a warning light turns
on or a warning buzzer
sounds..........................................499
If a warning message is
displayed.................................... 504
If you have a flat tire
(vehicles with a spare
tire)................................................524
If you have a flat tire
(vehicles with
an emergency tire
puncture repair kit).................536
If the engine will not start ........549
If the shift lever cannot be
shifted from P.............................551
If the electronic key does
not operate properly..............552
If the vehicle battery is
discharged.................................556
If your vehicle overheats .......... 561
If the vehicle becomes
stuck..............................................567
9
Vehicle specifications
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)...................570
Fuel information.........................585
9-2. Customization
Customizable features............ 586
9-3. Items to initialize
Items to initialize .........................597
Index
What to do if...
(Troubleshooting)...............................600
Alphabetical index.................................604
1
2
3
4
5
6
7
8
9
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Audio/video system
• Lexus parking assist-sensor
• Lexus parking assist monitor
•Lexus Enform
8
NOT FOR REPRODUCTION
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, including
options. Therefore, you may find some explanations for equipment not installed on your
vehicle.
All specifications provided in this manual are current at the time of printing. However,
because of the Lexus policy of continual product improvement, we reserve the right to
make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ from your
vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are currently available in the market. Using these spare parts and accessories which are not
genuine Lexus products may adversely affect the safety of your vehicle, even though
these parts may be approved by certain authorities in your country. Toyota Motor Corporation therefore cannot accept any liability or guarantee spare parts and accessories
which are not genuine Lexus products, nor for replacement or installation involving such
parts.
This vehicle should not be modified with non-genuine Lexus products. Modification with
non-genuine Lexus products could affect its performance, safety or durability, and may
even violate governmental regulations. In addition, damage or performance problems
resulting from the modification may not be covered under warranty.
Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect electronic
systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Dynamic radar cruise control system
● Cruise control system
● Anti-lock brake system
● Vehicle dynamics integrated management
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Lexus dealer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna positions and
installation provisions for the installation of RF-transmitters, is available on request at
your Lexus dealer.
Vehicle data recordings
NOT FOR REPRODUCTION
Your Lexus is equipped with several sophisticated computers that will record certain
data, such as:
• Engine speed
• Accelerator status
•Brake status
• Vehicle speed
•Shift position
The recorded data varies according to the vehicle grade level and options with which it is
equipped. Furthermore, these computers do not record conversations, sounds or pictures.
● Data usage
Lexus may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle
is leased
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a law suit
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner
9
10
NOT FOR REPRODUCTION
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an airbag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. However, data may not
be recorded depending on the severity and type of a crash.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under normal driving conditions and no personal data
(e.g., name, gender, age, and crash location) are recorded. However, other parties, such
as law enforcement, could combine the EDR data with the type of personally identifying
data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as
law enforcement, that have the special equipment, can read the information if they have
access to the vehicle or the EDR.
● Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is
obtained
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a law suit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing informa-
tion about the specific vehicle or vehicle owner
Scrapping of your Lexus
NOT FOR REPRODUCTION
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as
they are, this may cause an accident such as fire. Be sure to have the systems of the SRS
airbag and seat belt pretensioner removed and disposed of by a qualified service shop or
by your Lexus dealer before you scrap your vehicle.
WA R N I N G
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or
pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a
collision with resulting death or serious injury to you, your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon
roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
11
12
NOT FOR REPRODUCTION

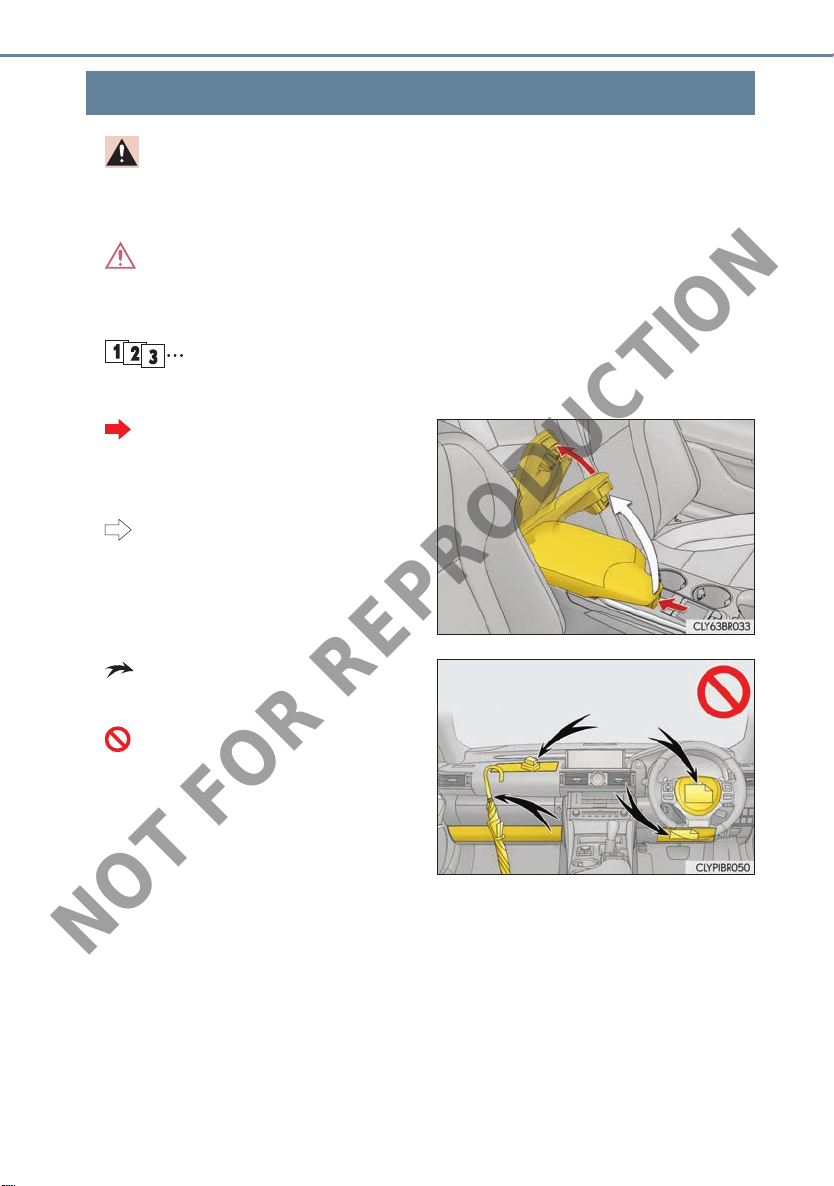

Reading this manual
WA R NI N G :
Explains something that, if not obeyed, could cause death or serious injury
to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps in
numerical order.
Indicates the action (pushing,
turning, etc.) used to operate
switches and other devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or position being explained.
Means “Do not”, “Do not do this”,
or “Do not let this happen”.
How to search
NOT FOR REPRODUCTION
■ Searching by name
• Alphabetical index................P. 604
■ Searching by installation position
• Pictorial index ..............................P. 14
■ Searching by symptom or sound
• What to do if...
(Troubleshooting)................. P. 600
13
■ Searching by title
• Table of contents.......................... P. 2
14
NOT FOR REPRODUCTION
Pictorial index
Pictorial index
■ Exterior (front)
X RC350/RC200t
X RC F
The shape of the headlights may differ depending on the grade, etc.
The shape of the headlights may differ depending on the grade, etc.
Pictorial index
NOT FOR REPRODUCTION
1
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 140
Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 140
Opening/closing the side window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 177
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . .P. 552
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 500, 506
2
Windshield wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 430
3
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 27
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Fuel type/fuel tank capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 573
4
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 459
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 582
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . . . . .P. 459
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 524, 536
5
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 440
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 561
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 506
15
Light bulbs of the exterior lights for driving
(Replacing method: P. 478, Watts: P. 584)
6
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208, 212
7
Front fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 218
*: If equipped
16
NOT FOR REPRODUCTION

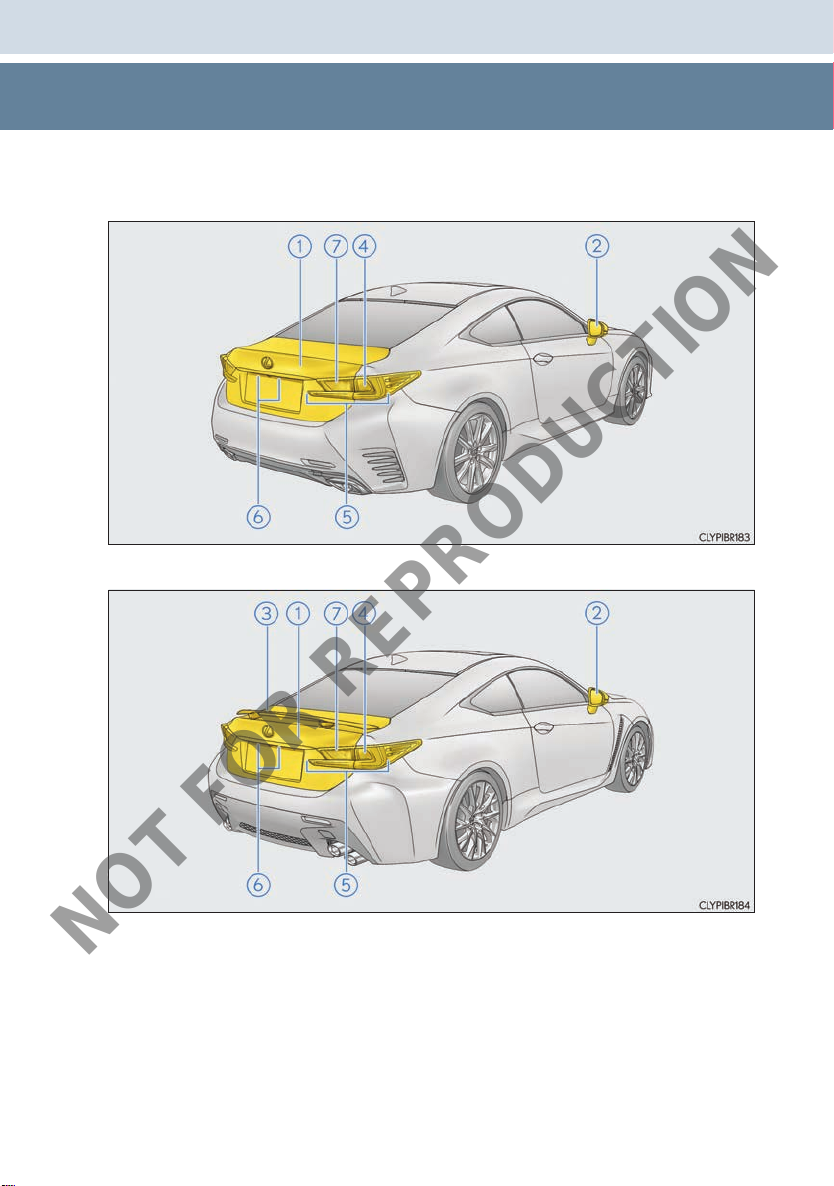

■ Exterior (rear)
Pictorial index
X RC350/RC200t
X RC F
Pictorial index
NOT FOR REPRODUCTION
1
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Opening from inside the cabin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Opening by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 553
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 500, 506
2
Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
Adjusting the mirror angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 173
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Driving position memory
Defogging the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 405
3
Active rear wing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 309
Light bulbs of the exterior lights for driving
(Replacing method:P. 478, Watts: 584)
4
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
5
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 212
Stop lights
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
6
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 212
7
Back up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 162
17
*: If equipped
18
NOT FOR REPRODUCTION
Pictorial index

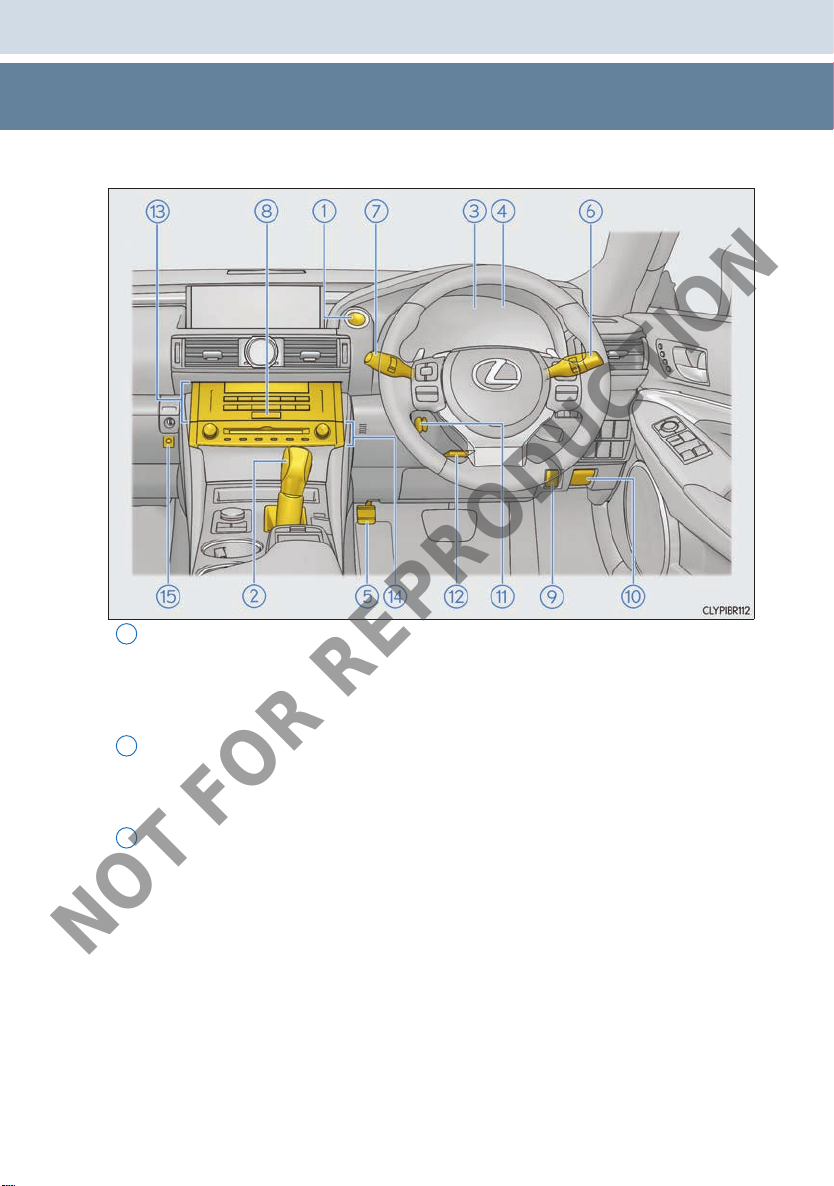

■ Instrument panel
1
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 1 97
Starting the engine/changing the mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 197
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 489
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 549
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 520
2
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 202
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 490
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 551
3

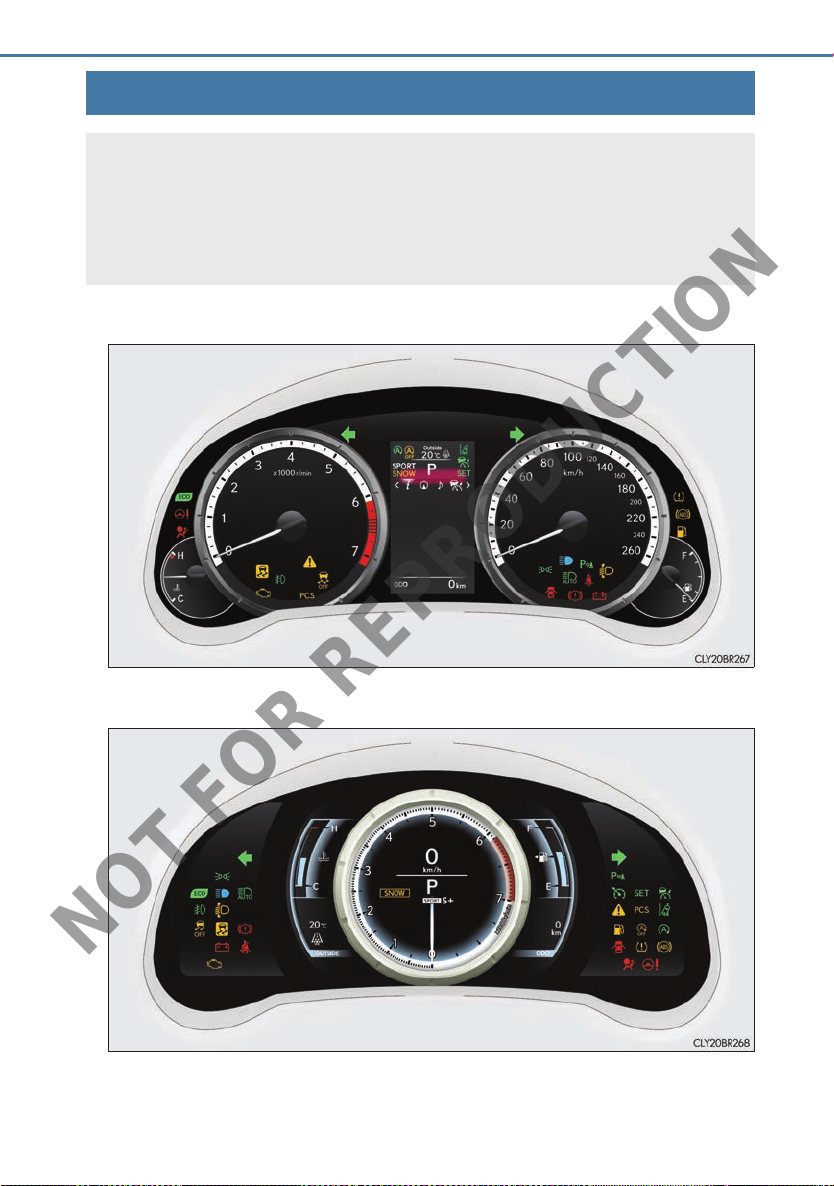

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94, 1 00
Reading the meters/adjusting the instrument panel lights . . . . . . . . . . . P. 94, 100
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 86
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 499
Pictorial index
NOT FOR REPRODUCTION
4
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107, 115
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 107, 115
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 504
5
Parking brake. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 209
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 504
6
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 208
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 212
Headlights/front position lights/tail lights/daytime running lights . . . . . . . . .P. 212
Front fog lights
7
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 458
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 516
Headlight cleaners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
8
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 488
9
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
10
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
11
Tilt and telescopic steering control switch
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 169
Driving position memory*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 162
12
Tilt and telescopic steering lock release lever*1 . . . . . . . . . . . . . . . . . . . . P. 169
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 169
13
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 400
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 405
14
Audio system*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Audio system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 320
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 369
15
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 148
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 218
1
*
. . . . . . . . . . . . . . . . . . . . . . . . P. 169
19
1
*
2
*
: For vehicles with a navigation system, refer to “Navigation System Owner's Manual”.
: If equipped
20
NOT FOR REPRODUCTION
■ Swit ches
Pictorial index
X RC350/RC200t
X RC F
Pictorial index
NOT FOR REPRODUCTION

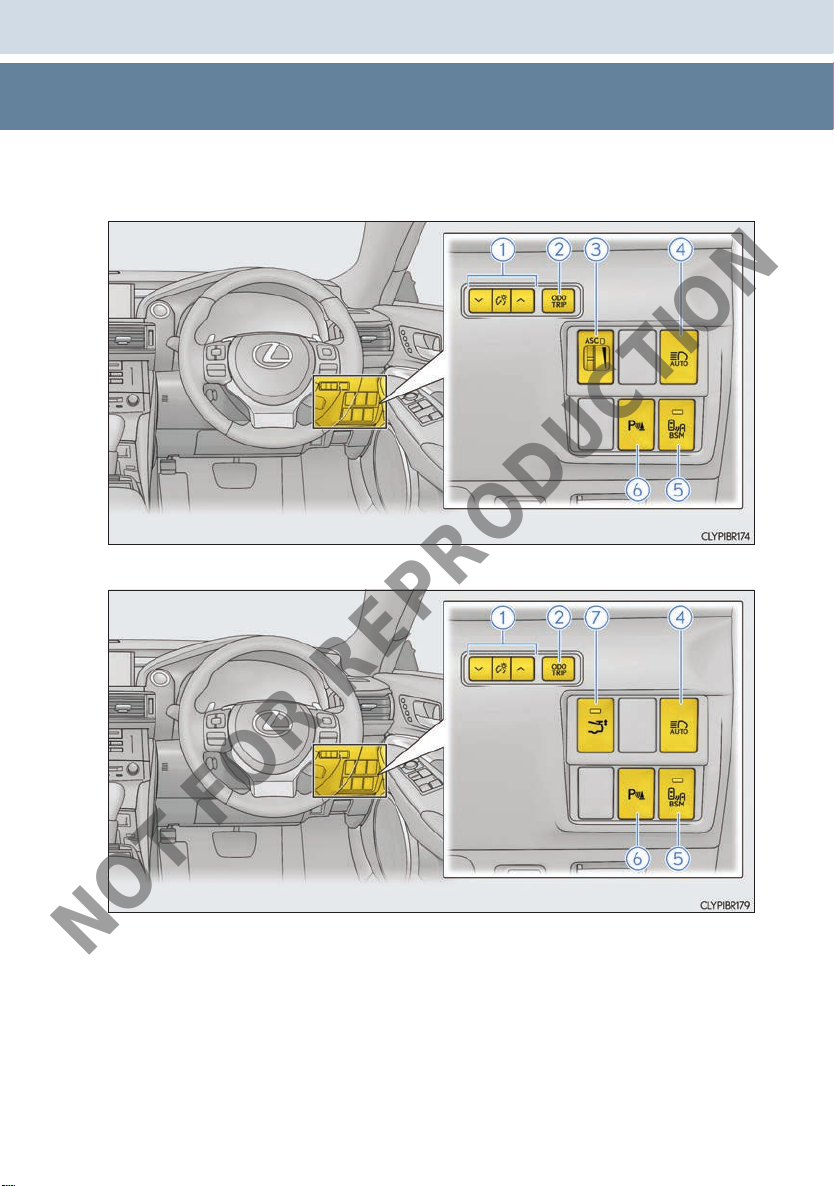

1
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . P. 98, 105
2
Odometer/trip meter/trip meter reset button . . . . . . . . . . . . . . . . . .P. 97, 104
3
ASC switch
4
Automatic high beam switch
5
BSM (Blind Spot Monitor) main switch
6
Lexus parking assist-sensor switch
7
Active rear wing switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 309
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 210
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 214
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
1, 2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
21
1
*
2
*
: For vehicles with a navigation system, refer to “Navigation System Owner's Manual”.
: If equipped
22
NOT FOR REPRODUCTION

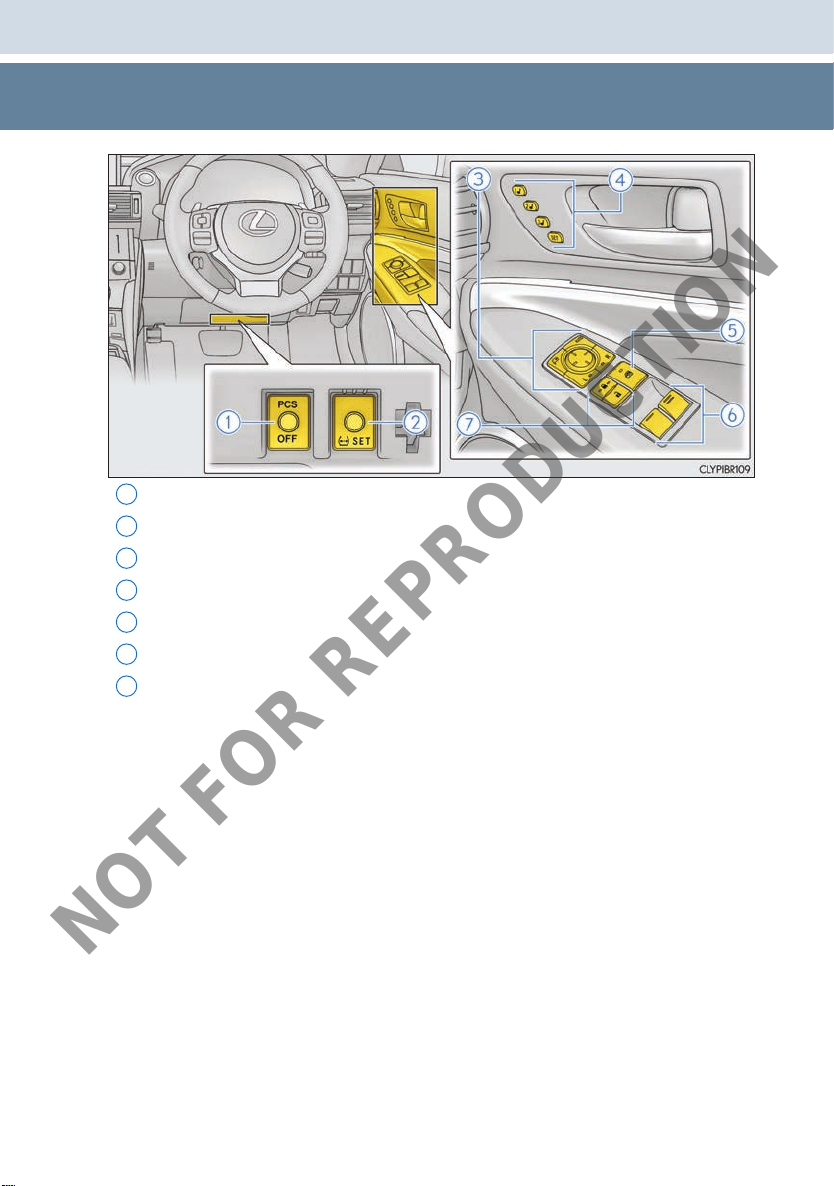

Pictorial index
1
PCS OFF switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
2
Tire pressure warning reset switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
3
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
4
Driving position memory switches
5
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
6
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 177
7
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
Pictorial index
NOT FOR REPRODUCTION
1
Audio remote control switches*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 325
2
Paddle shift switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204, 205
3
Meter control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 109, 116
4
Vehicle-to-vehicle distance button
5
Cruise control switch
Cruise control*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 240
Dynamic radar cruise control
6
LDA (Lane Departure Alert) switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
7
Ta l k sw i t c h
8
Telephone switches
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
*
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244
23
1
*
2
*
: For vehicles with a navigation system, refer to “Navigation System Owner's Manual”.
: If equipped
24
NOT FOR REPRODUCTION
Pictorial index
X RC350/RC200t
X RC F
Pictorial index
NOT FOR REPRODUCTION

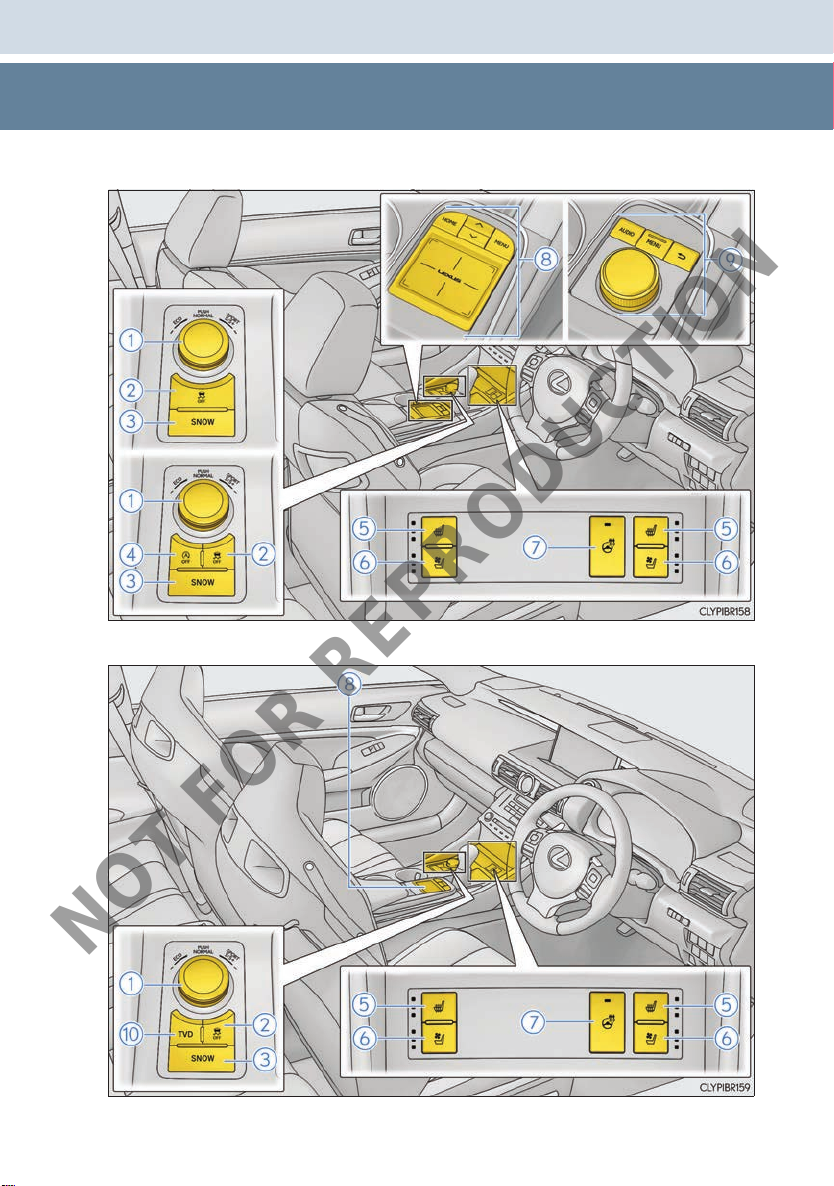

1
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
2
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
3
Snow mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 203
4
Stop & Start cancel switch
5
Seat heater switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
6
Seat ventilator switches
7
Heated steering wheel switch
8
Remote Touch
9
Lexus Display Audio controller*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
10
TVD switch
1, 2
*
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 312
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 410
25
1
*
2
*
: Refer to “Navigation System Owner’s Manual”.
: If equipped
26
NOT FOR REPRODUCTION

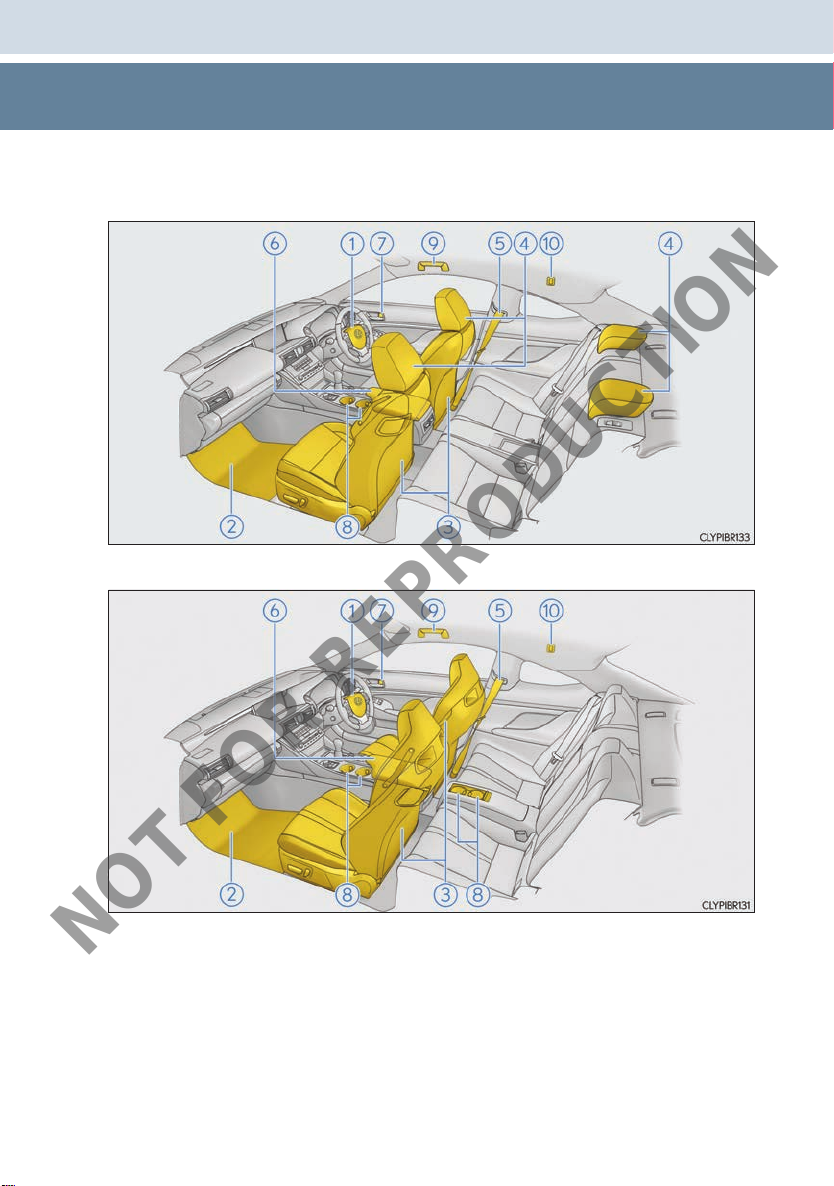

■ Interior
Pictorial index
X RC350/RC200t
X RC F
Pictorial index
NOT FOR REPRODUCTION
1
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 39
2
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 30
3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157
4
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
5
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34
6
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 17
7
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 142
8
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 4 18
9
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
10
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 25
27
28
*
1
NOT FOR REPRODUCTION

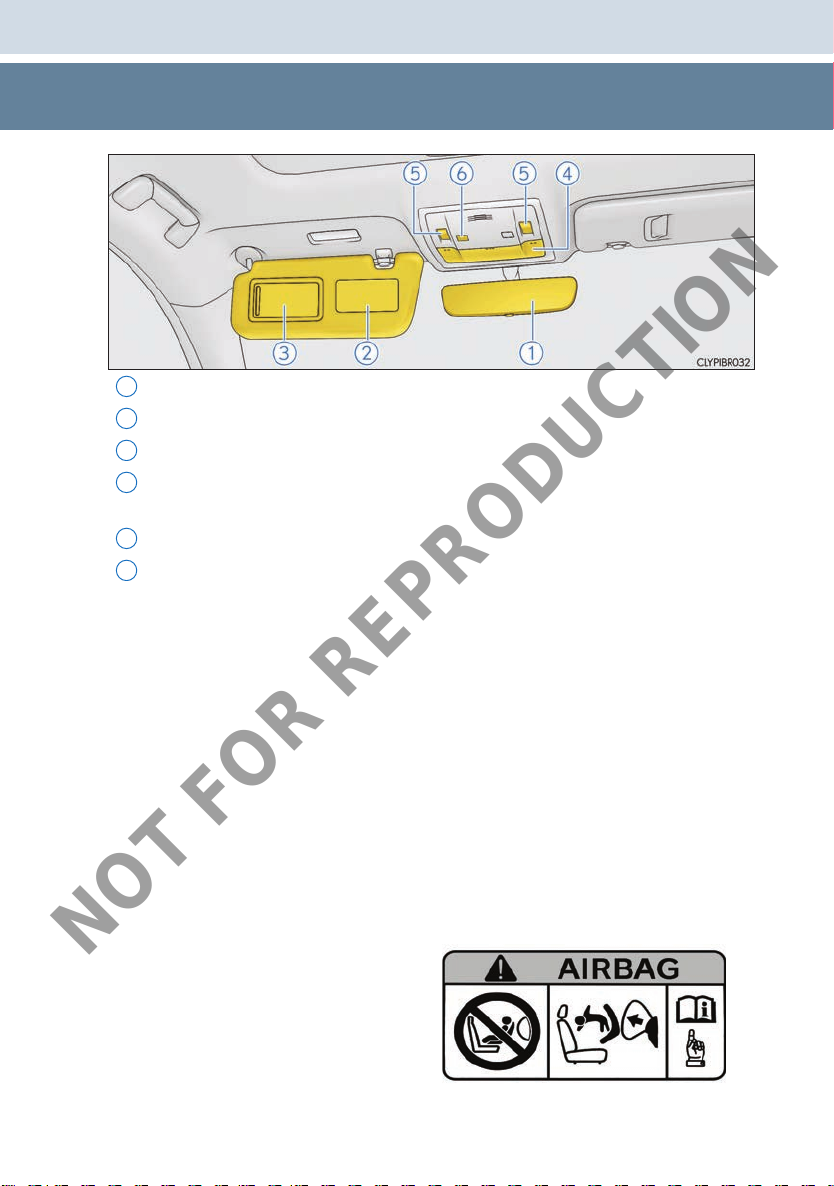

Pictorial index
1
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 171
2
Sun visors
3
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 42 1
4
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41 5
5
Moon roof switches
6
Intrusion sensor cancel switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 82
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 421
2
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181

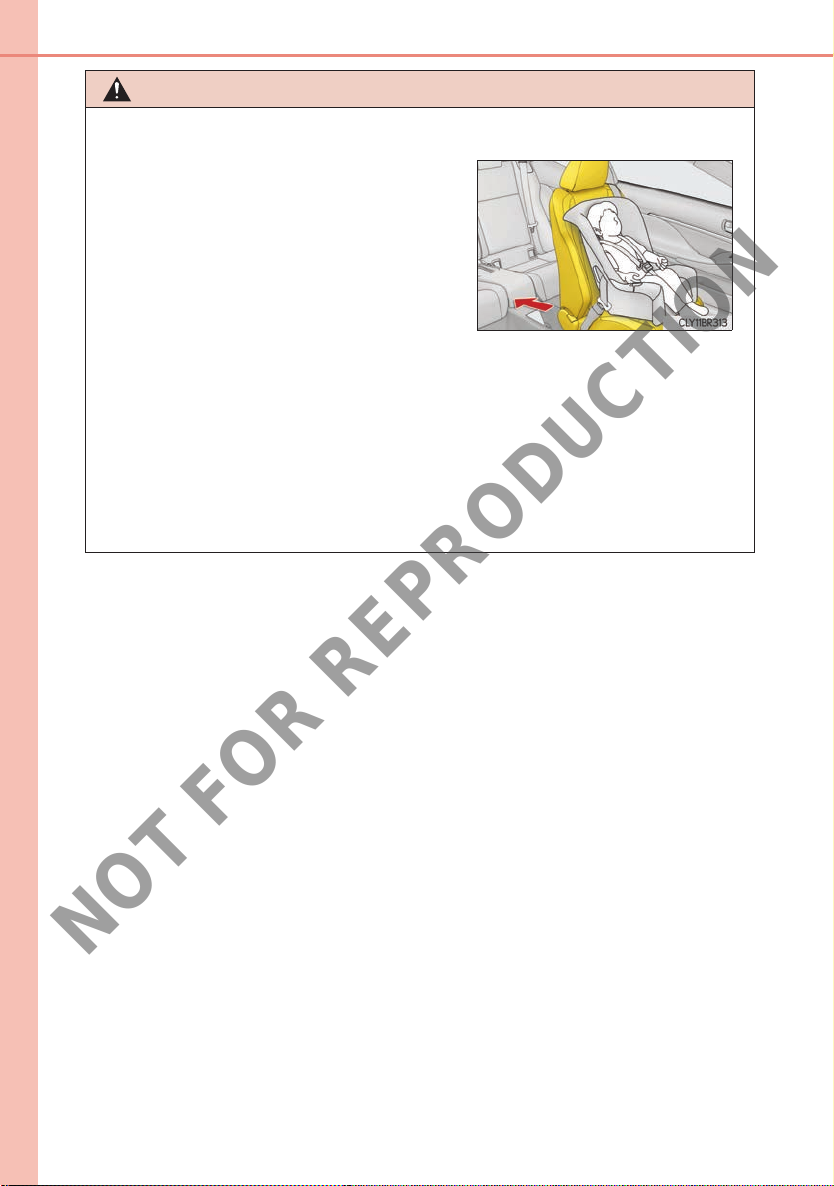

: NEVER use a rearward facing child re-
straint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or
SERIOUS INJURY to the CHILD can
occur. (→P. 61)
2
*
: If equipped
29
NOT FOR REPRODUCTION
For safety and security
1
1-1. For safe use
Before driving.................................30
For safety drive...............................32
Seat belts..........................................34
SRS airbags.....................................39
Pop Up Hood .................................50
Safety information
for children...................................53
Child restraint systems...............54
Exhaust gas precautions............ 78
1-2. Theft deterrent system
Engine immobilizer
system............................................. 79
Alarm.................................................80
30
NOT FOR REPRODUCTION
1-1. For safe use
Before driving

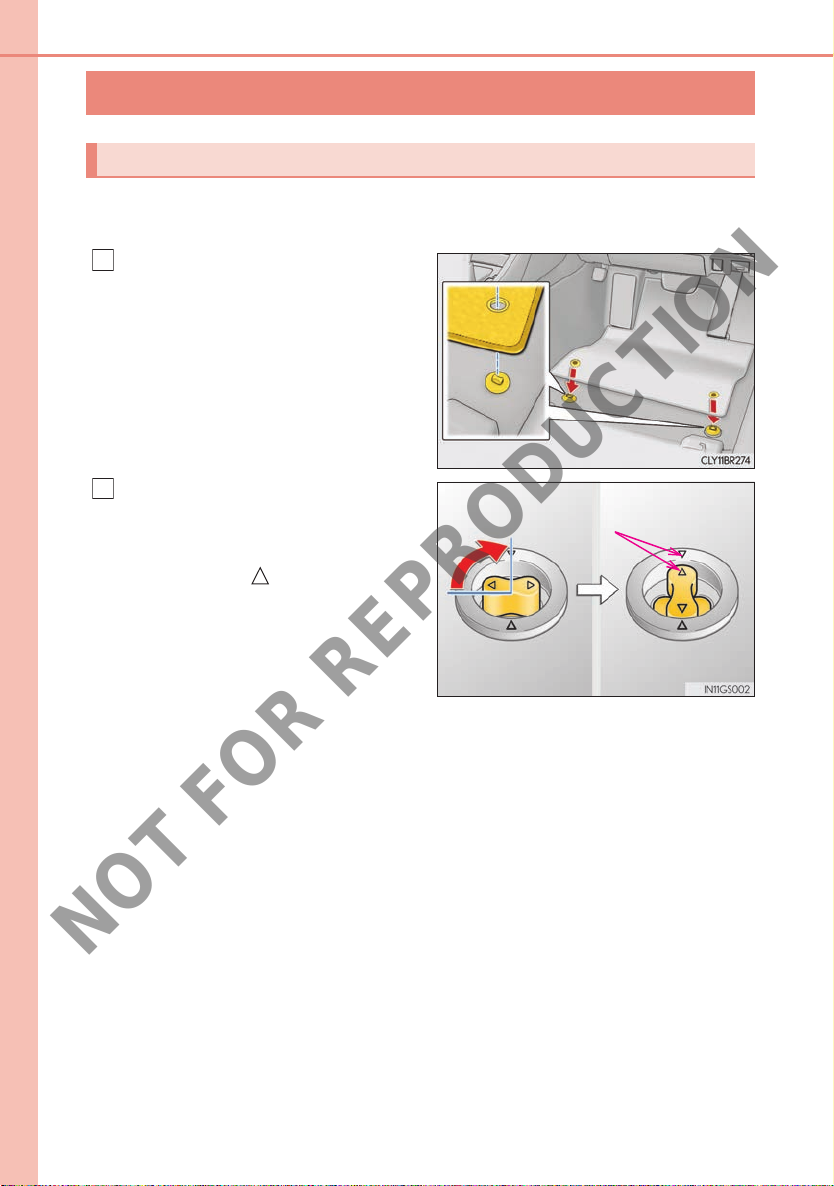

Floor mat
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
1
Insert the retaining hooks (clips) into
the floor mat eyelets.
2
Turn the upper knob of each retaining hook (clip) to secure the floor
mats in place.
*: Always align the marks.
*
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
1-1. For safe use
NOT FOR REPRODUCTION

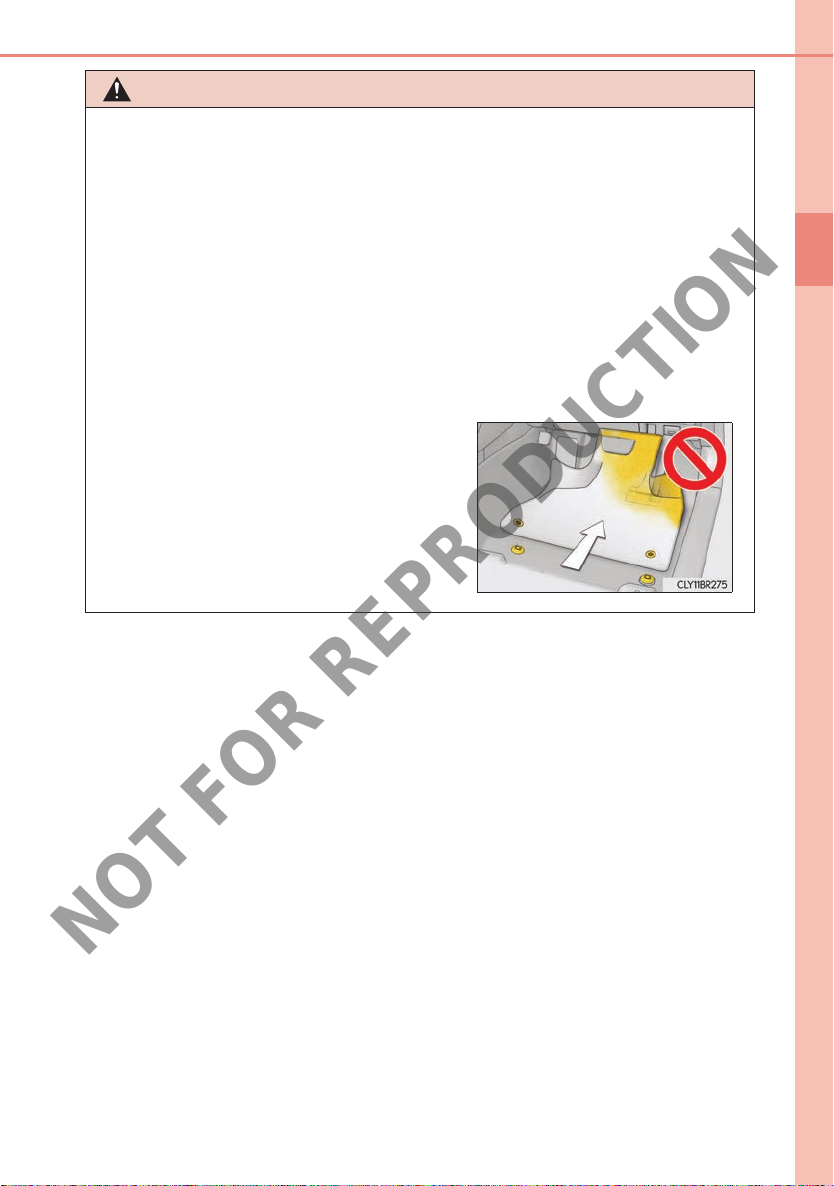

WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driving. An unexpectedly high speed may result or it may become difficult to
stop the vehicle. This could lead to an accident, resulting in death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) provided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
● Check that the floor mat is securely fixed in
the correct place with all the provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor.
● With the engine stopped and the shift lever in
P, fully depress each pedal to the floor to
make sure it does not interfere with the floor
mat.
31
1
For safety and security
32
NOT FOR REPRODUCTION
1-1. For safe use
For safety drive
For safe driving, adjust the seat and mirror to an appropriate position before
driving.

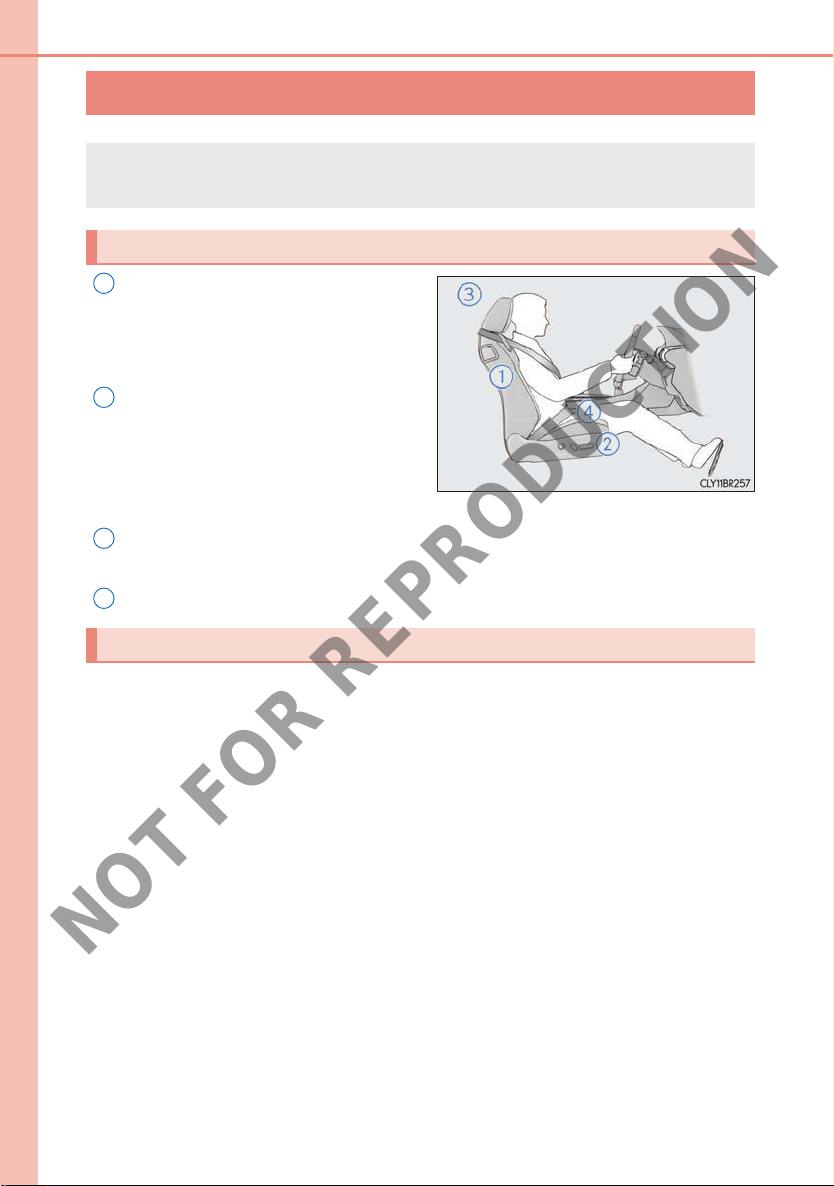

Correct driving posture
1
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 15 7)
2
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
(→P. 1 57 )
3
RC350/RC200t: Lock the head restraint in place with the center of the head
restraint closest to the top of your ears. (→P. 166)
4
Wear the seat belt correctly. (→P. 3 4)
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the vehicle. (→P. 34 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. (→P. 54)
1-1. For safe use
NOT FOR REPRODUCTION
Adjusting the mirrors
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. (→P. 171, 173)
WA R N I N G
33
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving
and take a break immediately.
1
For safety and security
34
NOT FOR REPRODUCTION
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
● Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
● Position the lap belt as low as possi-
ble over the hips.
● Adjust the position of the seatback.
Sit up straight and well back in the
seat.
● Do not twist the seat belt.
1
Not twisted
2
Tw i s t e d
Fastening and releasing the seat belt
1
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
2
To release the seat belt, press the
release button.
Release
button
1-1. For safe use
NOT FOR REPRODUCTION

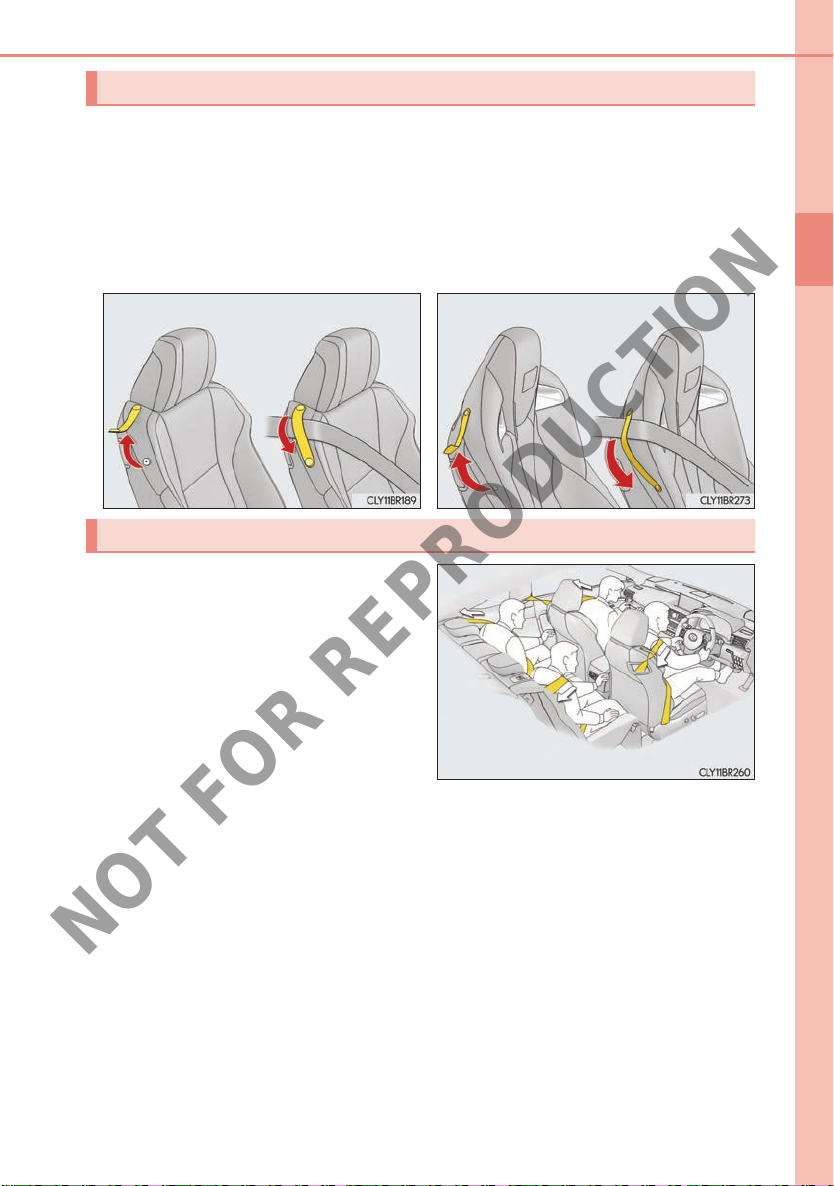

Seat belt guide
When fastening a front seat belt, ensure that it is passed through the seat belt
guide. Passing the seat belt through the guide enables the seat belt to be easily
extended.
When you get into or out of the rear seats, release the seat belt from the seat belt
guide.
X RC350/RC200t X RC F
Seat belt pretensioners
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal collision.
The front seat belt pretensioners also
activate when the vehicle is subjected to
certain types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
35
1
For safety and security
36
NOT FOR REPRODUCTION
■ Emergency locking retractor (ELR)
■ Child seat belt usage
■ Replacing the belt after the pretensioner has been activated
■ Seat belt regulations
1-1. For safe use
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (→P. 54 )
● When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regarding seat belt usage. (→P. 3 4)
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
If seat belt regulations exist in the country where you reside, please contact your Lexus
dealer for seat belt replacement or installation.
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
● Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (→P. 3 4)
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.
37
1
For safety and security
38
NOT FOR REPRODUCTION
1-1. For safe use
WA R N I N G
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (→P. 3 4)
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■ Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer.
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus dealer.
● Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to incorrect operation.
■ When using the seat belt guide
● Always make sure that the belt is not twisted, and runs freely through the guide.
● Regardless of whether the guide is used or not, always secure the seat belt guide but-
ton.
● Do not hang from or pull the guide forcefully.
1-1. For safe use
NOT FOR REPRODUCTION
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
39
1
For safety and security

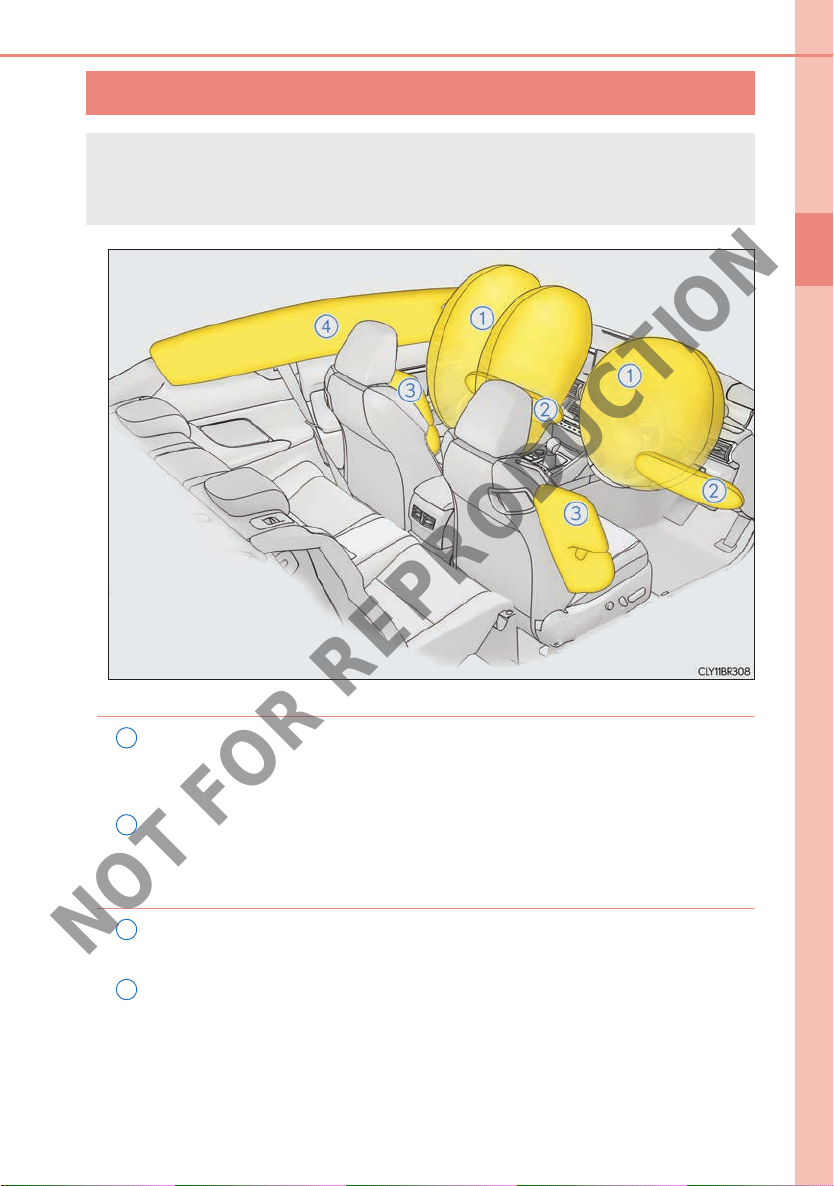

◆ SRS front airbags
1
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
2
SRS knee airbags
Can help provide driver and front passenger protection

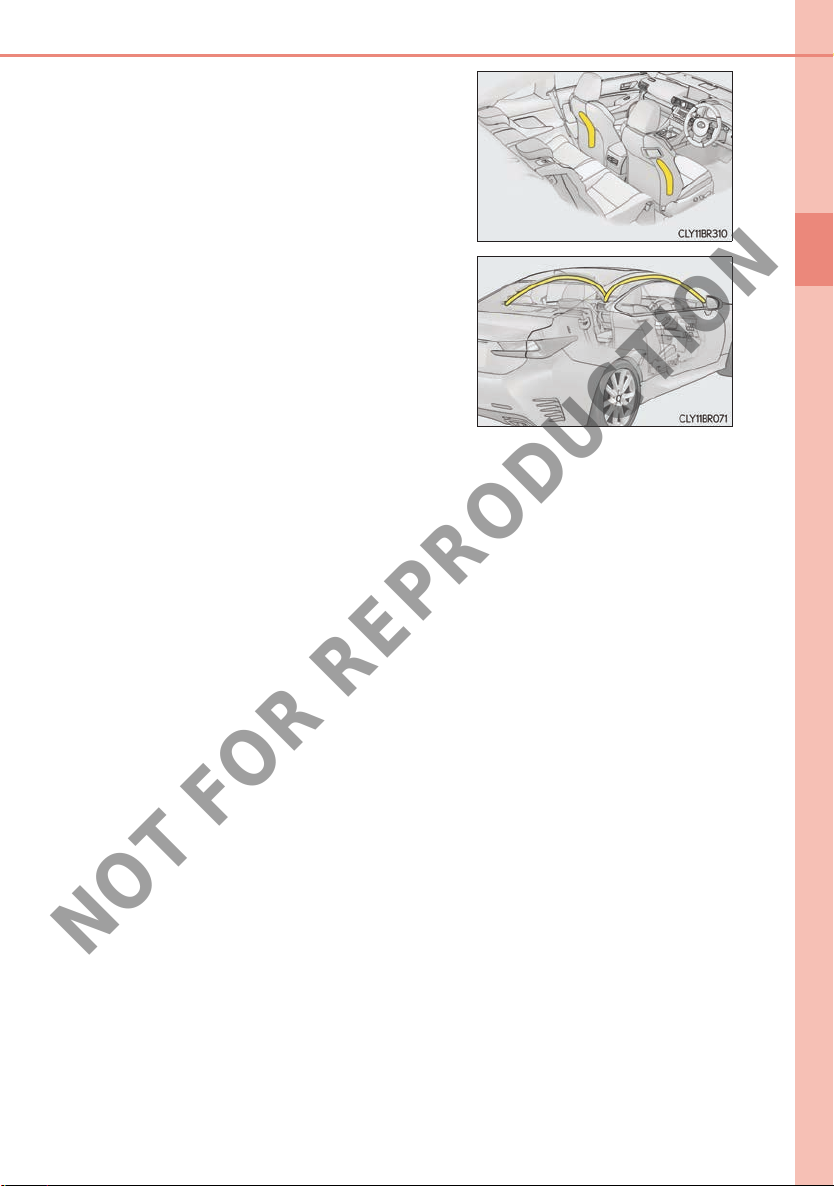

◆ SRS side and curtain shield airbags
3
SRS side airbags
Can help protect the torso of the front seat occupants
4
SRS curtain shield airbags
Can help protect primarily the head of occupants
40
NOT FOR REPRODUCTION
1-1. For safe use

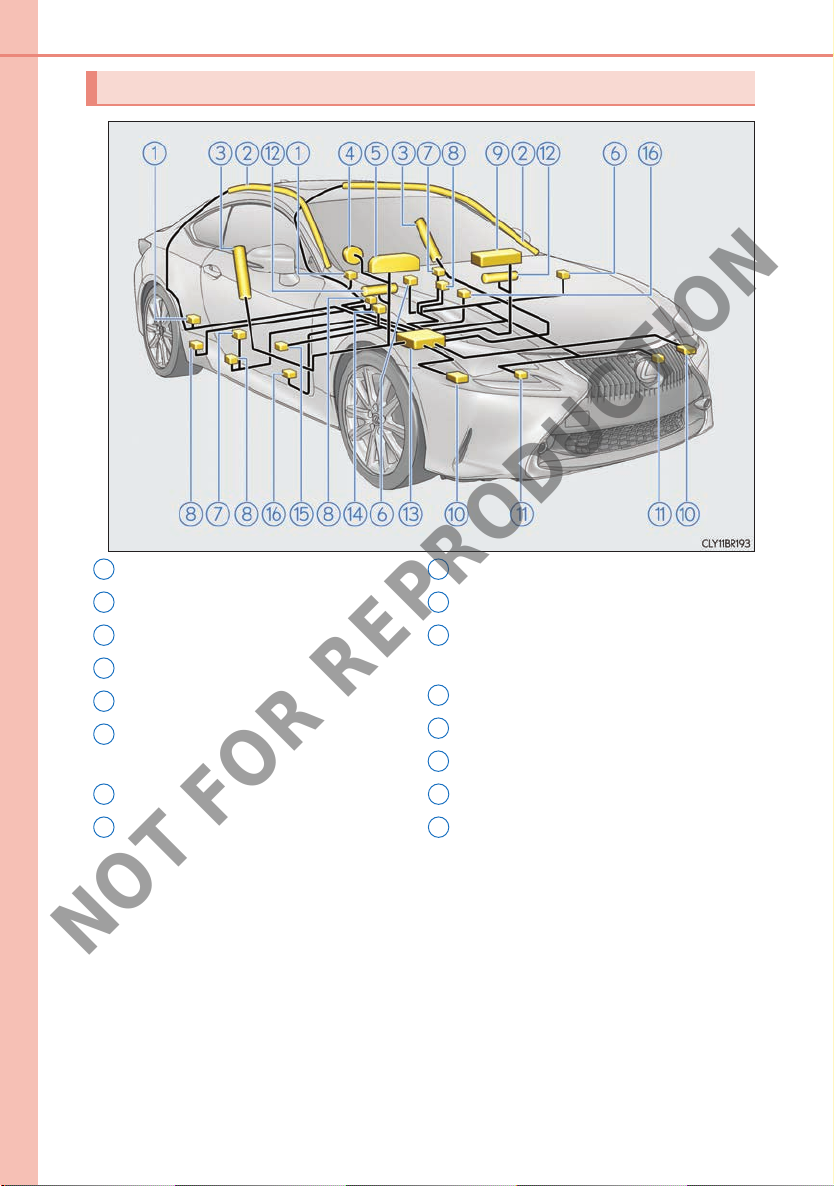

SRS airbag system components
1
Side impact sensors (rear)
2
Curtain shield airbags
3
Front side airbags
4
Driver airbag
5
SRS warning light
6
Pop up hood lifters (RC350/
RC200t)
7
Side impact sensors (front)
8
Seat belt pretensioners and force
9
Front passenger airbag
10
Front impact sensors
11
Pop up hood sensors (RC350/
RC200t)
12
Knee airbags
13
Airbag sensor assembly
14
Driver’s seat belt buckle switch
15
Driver’s seat position sensor
16
Side impact sensors (door)
limiters
The main SRS airbag system and Pop Up Hood components are shown above.
The SRS airbag system and Pop Up Hood are controlled by the airbag sensor
assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to help restrain the motion of the occupants.
When the Pop Up Hood is activated, a non-toxic gas is released due to a chemical reaction in the lifters, which causes the pistons to eject quickly and raise the
rear portion of the hood. (Pop Up Hood: →P. 5 0)
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation,
placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If you sit less than 250 mm (10 in.) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.) distance, even with the driver seat all the way forward, simply by reclining the back of
the seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle
has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining control
of the foot pedals, steering wheel, and your view of the instrument panel controls.
41
1
For safety and security
42
NOT FOR REPRODUCTION
1-1. For safe use
WA R N I N G
■ SRS airbag precautions
● The SRS front passenger airbag also deploys with considerable force, and can cause
death or serious injury especially if the front passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits upright.
● Improperly seated and/or restrained infants and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front
passenger seat. (→P. 54 )

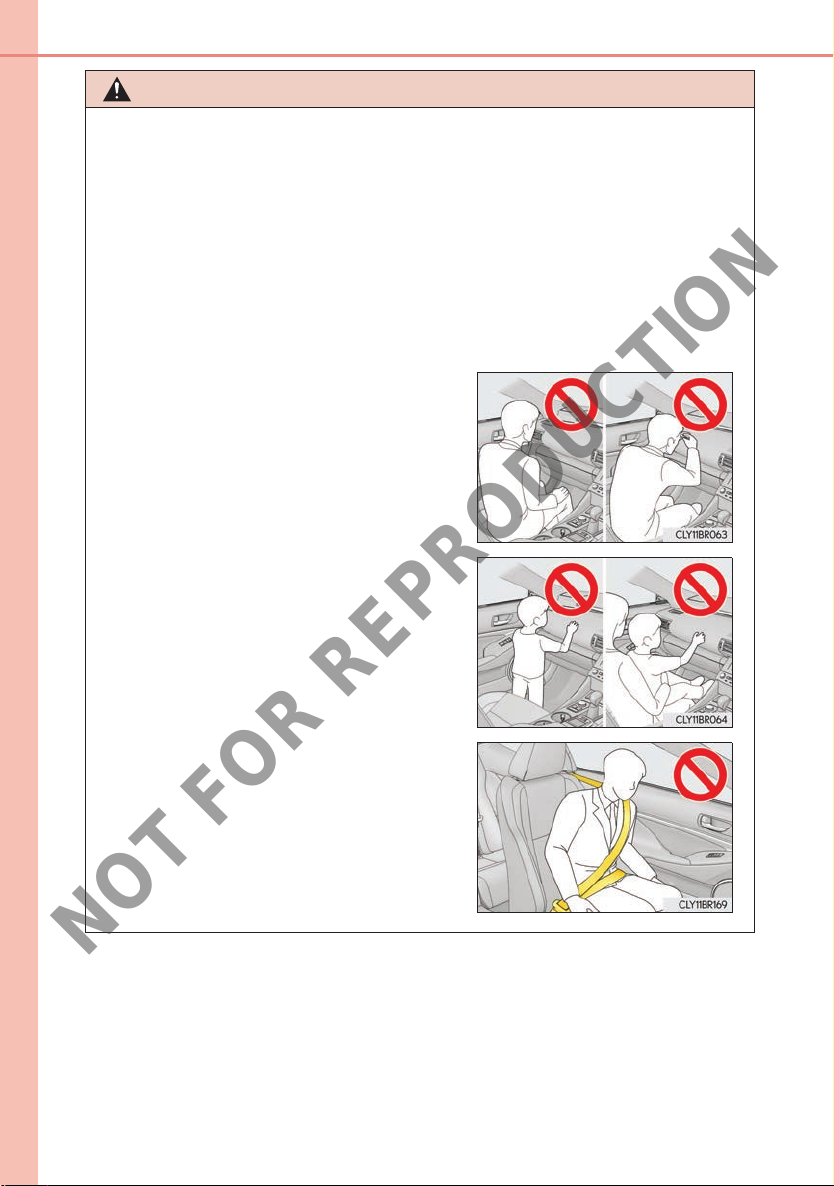

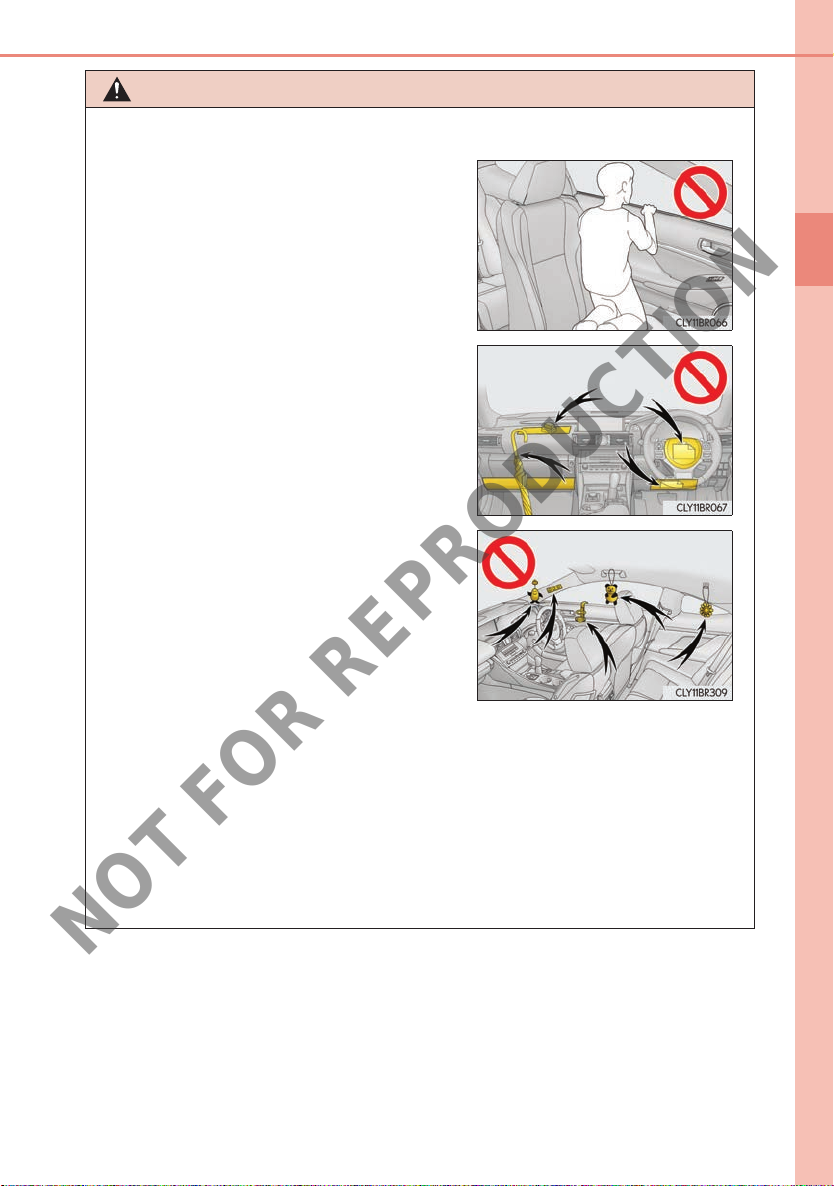

● Do not sit on the edge of the seat or lean
against the dashboard.
● Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on the
knees of a front passenger.
● Do not allow the front seat occupants to hold
items on their knees.
● Do not lean against the door, the roof side rail
or the front, side and rear pillars.
WA R N I N G
NOT FOR REPRODUCTION
■ SRS airbag precautions
● Do not allow anyone to kneel on the passen-
ger seats toward the door or put their head or
hands outside the vehicle.
● Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower portion of the instrument panel.
These items can become projectiles when the
SRS driver, front passenger and knee airbags
deploy.
● Do not attach anything to areas such as a door,
windshield, side window, front or rear pillar,
roof side rail and assist grip.
(Except for the speed limit sticker →P. 5 42 )
1-1. For safe use
43
1
For safety and security
● Do not hang coat hangers or hard objects on the coat hooks. All of these items could
become projectiles and may cause death or serious injury, should the SRS curtain
shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
● Do not use seat accessories which cover the parts where the SRS side airbags inflate
as they may interfere with inflation of the airbags. Such accessories may prevent the
side airbags from activating correctly, disable the system or cause the side airbags to
inflate accidentally, resulting in death or serious injury.
44
NOT FOR REPRODUCTION
1-1. For safe use
WA R N I N G
■ SRS airbag precautions
● Do not strike or apply significant levels of force to the area of the SRS airbag compo-
nents.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by your
Lexus dealer.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer. The SRS airbags may malfunction or deploy (inflate)
accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players
● Modifications to your vehicle for a person with a physical disability
1-1. For safe use
NOT FOR REPRODUCTION
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
front seats, parts of the front and rear pillars, and roof side rails may be hot for several
minutes. The airbag itself may also be hot.
● The windshield may crack.
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the set thresh-
old level (the level of force corresponding to an approximately 20 - 30 km/h [12 - 18
mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move
or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
● Depending on the type of collision, it is possible that only the seat belt pretensioners will
activate.
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 1500 kg [3300 lb.] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
sp eed of 20 - 30 km/h [12 - 18 mph]).
● The SRS side and curtain shield airbags will deploy in the event of a severe frontal colli-
sion.
45
1
For safety and security
46
NOT FOR REPRODUCTION

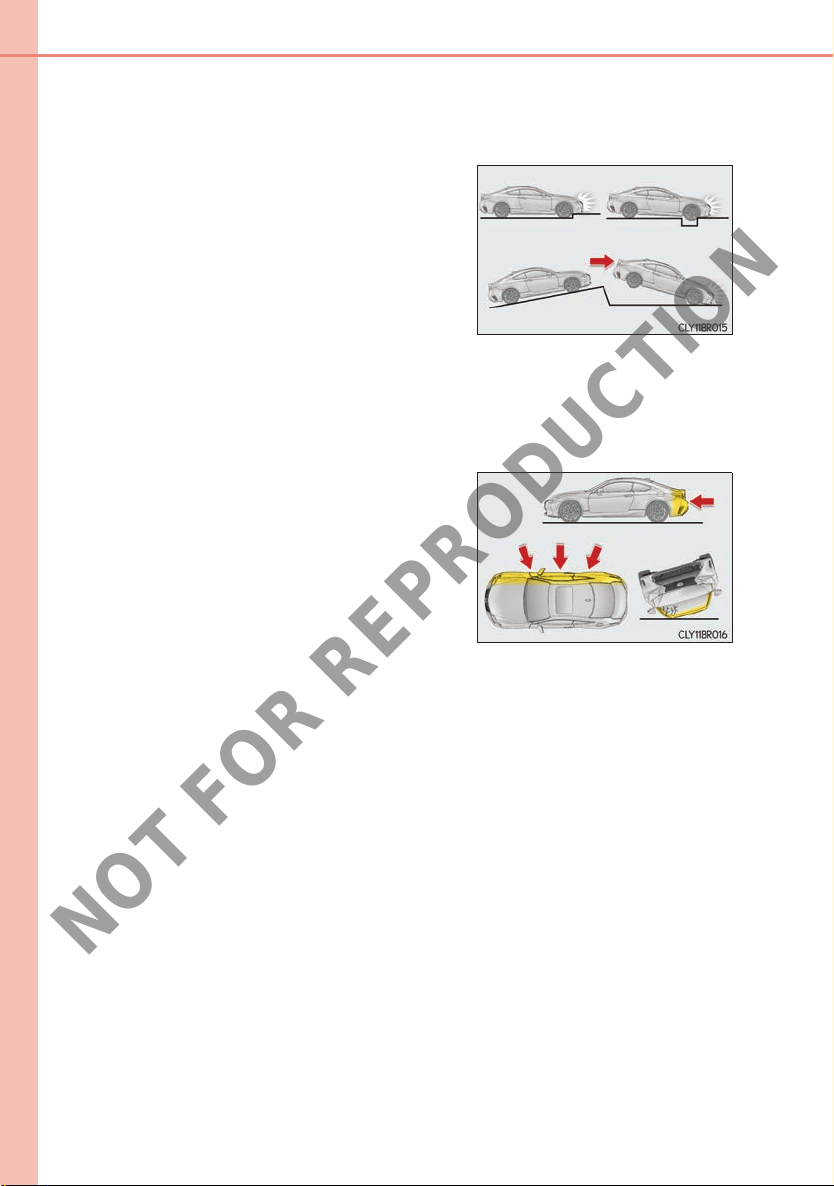

■ Conditions under which the SRS airbags may deploy (inflate), other than a collision
■ Types of collisions that may not deploy the SRS airbags (SRS front airbags)
1-1. For safe use
The SRS front airbags, SRS side and curtain shield airbags may also deploy if a serious
impact occurs to the underside of your vehicle. Some examples are shown in the illustration.
● Hitting a curb, edge of pavement or hard sur-
face
● Falling into or jumping over a deep hole
● Landing hard or falling
The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear
collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a
collision of any type causes sufficient forward deceleration of the vehicle, deployment of
the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
1-1. For safe use
NOT FOR REPRODUCTION
■ Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield air-
bags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a
collision from the side at certain angles, or a collision to the side of the vehicle body other
than the passenger compartment.
● Collision from the side to the vehicle body
other than the passenger compartment
● Collision from the side at an angle
The SRS side and curtain shield airbags do not generally inflate if the vehicle is involved in
a rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
● Collision from the rear
● Vehicle rollover
47
1
For safety and security
48
NOT FOR REPRODUCTION

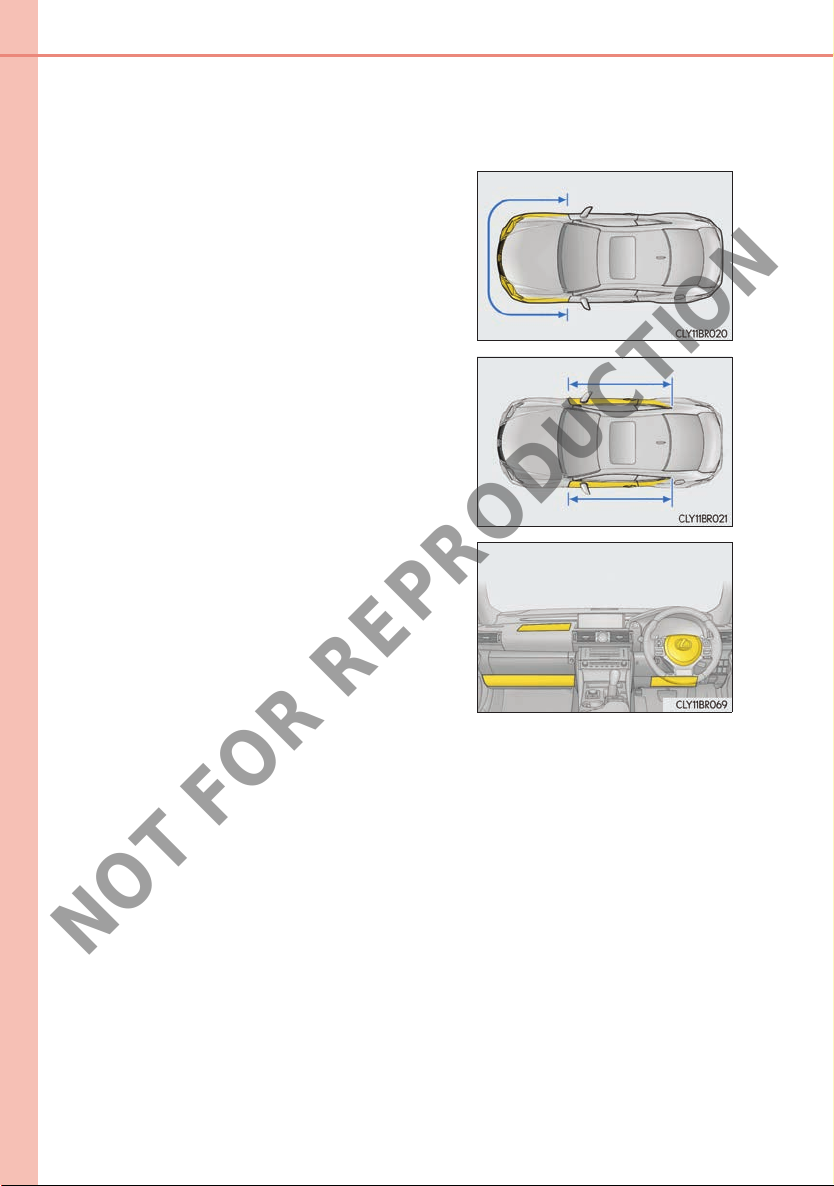

■ When to contact your Lexus dealer
1-1. For safe use
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident that
was not severe enough to cause the SRS front
airbags to inflate.
● A portion of a door or its surrounding area is
damaged or deformed, or the vehicle was
involved in an accident that was not severe
enough to cause the SRS side and curtain
shield airbags to inflate.
● The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
● The surface of the seats with the side airbag is
NOT FOR REPRODUCTION
scratched, cracked, or otherwise damaged.
1-1. For safe use
49
● The portion of the front pillars, rear pillars or
roof side rail garnishes (padding) containing
the curtain shield airbags inside is scratched,
cracked, or otherwise damaged.
1
For safety and security
50
NOT FOR REPRODUCTION
1-1. For safe use
Pop Up Hood (RC350/RC200t)
In the event of a frontal collision with a body, such as a pedestrian, the Pop Up
Hood system raises the rear portion of the hood to reduce the possibility of a
serious impact to the pedestrian’s head area by adding clearance to the
engine compartment.

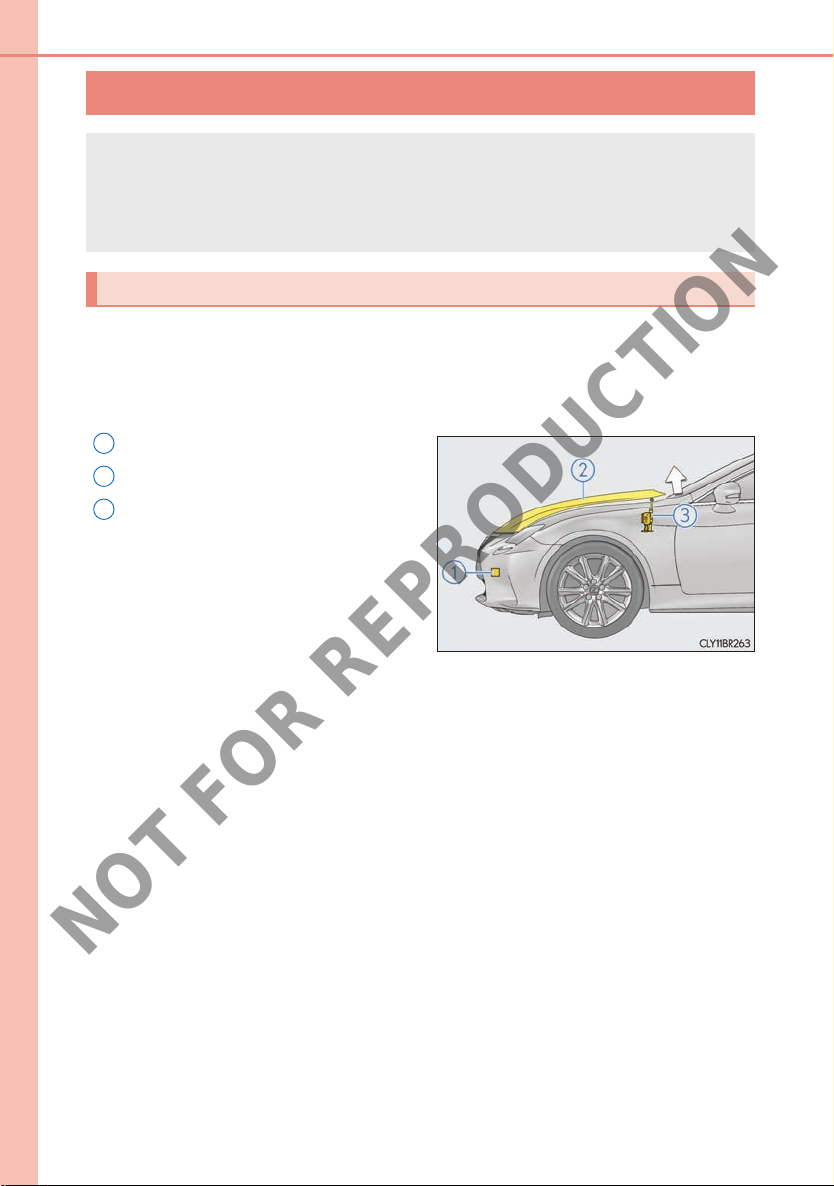

Pop Up Hood mechanism
When the sensors located at the back of the front bumper detect an impact with
a body, such as a pedestrian, which meets or exceeds the threshold level while
the vehicle is being driven within the operational speed range, the system
becomes operational and raises the rear portion of the hood.
1
Sensors
2
Hood
3
Lifters
1-1. For safe use
NOT FOR REPRODUCTION
Pop Up Hood operational conditions
The Pop Up Hood will operate when the vehicle detects an impact such as the
following:
● The front bumper detects a frontal impact equivalent to or greater than that of
a pedestrian while the vehicle being driven within the operational speed range
of approximately 25 to 55 km/h (16 to 34 mph). (The system is operated by
an impact of threshold level or greater, even in the case of a minor collision
that may not leave a trace on the front bumper. Also, depending on the impact
conditions or vehicle speed, the system may be operated by a collision with a
light or small object or a small animal.)
● In other situations the system may operate when an impact is applied to the
lower part of the vehicle or front bumper, such as the following:
• Colliding with a curb
• Falling into a deep hole
•Landing hard
• Hitting the slope of a parking lot, an undulating road, a protruding object or
falling object
WA R N I N G
51
1
For safety and security
■ When the Pop Up Hood is operated
● Do not pull the hood lock release lever. Doing so after the Pop Up Hood has oper-
ated will further raise the hood and may cause an injury.
Do not drive with the hood raised, as doing so may block the driver’s vision, possibly
causing an accident.
Do not forcibly push down the hood. As the popped up hood cannot be lowered by
hand, doing so may deform the hood or cause an injury.
If the Pop Up Hood has operated, have the vehicle inspected by your Lexus dealer. If
the Pop Up Hood has operated, stop the vehicle in a safe place and contact your
Lexus dealer.
● Do not touch the lifters immediately after the Pop Up Hood has operated, as the lift-
ers may be hot and burn you.
52
NOT FOR REPRODUCTION
■ Pop U p H ood pr eca uti on s
1-1. For safe use
● Before scrapping your vehicle, make sure to contact your Lexus dealer.
● The Pop Up Hood system cannot be reused once it has operated. Have it replaced by
your Lexus dealer.
■ Conditions under which the Pop Up Hood may not operate properly
The Pop Up Hood may not operate properly under the following conditions:
● If a pedestrian collides with the right or left corner of the front bumper or the side of the
vehicle. As such impacts may be difficult to detect, the system may not operate.
● If the vehicle speed is not detected correctly, such as if the vehicle is sliding sideways,
the system may not operate properly.
■ Conditions under which the Pop Up Hood may not operate
The Pop Up Hood may not operate in the following situations:
● Colliding with a lying pedestrian
● A frontal impact applied to the front bumper while driving at speeds outside of the
operational speed range
● A side impact or rear impact
● A vehicle rollover (In some accident situations, the Pop Up Hood may operate.)
NOTICE
■ Pop Up Hood precautions
● Make sure to close the hood before driving, as the system may not operate properly if
the hood is not fully closed.
● Make sure that all 4 tires are of the specified size and inflated to the specified tire
pressure (→P. 582). If tires of a different size are used, the system may not operate
properly.
● If something has hit the area around the front bumper, the sensors may be damaged
even if the Pop Up Hood has not operated. Have the vehicle inspected by your Lexus
dealer.
● Do not remove or repair the parts or wiring of the Pop Up Hood, as doing so may
cause accidental operation or prevent the system from operating properly. If repair or
replacement is necessary, contact your Lexus dealer.
● Do not remove such components as the front bumper, hood or suspension, or
replace them with non-genuine parts, as doing so may prevent the system from operating properly.
● Do not install anything to the front bumper or hood, as doing so may prevent the sen-
sors from detecting an impact correctly and prevent the system from operating properly.
● Do not close the hood with force or apply load to the lifters, as doing so may damage
the lifters and prevent the system from operating properly.
● Do not modify the suspension, as changes made to the vehicle height may prevent
the system from operating properly.
1-1. For safe use
NOT FOR REPRODUCTION
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
53
● It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch, etc.
● Use the window lock switch to avoid children operating the power window
accidentally.
● Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, trunk, seats etc.
WA R N I N G
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
1
For safety and security
54
NOT FOR REPRODUCTION
1-1. For safe use
Child restraint systems
Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different types of child restraint systems, as well as
installation methods, etc., written in this manual.
Use a child restraint system when riding with a small child that cannot properly
use a seat belt. For the child’s safety, install the child restraint system to a rear
seat. Be sure to follow the installation method that is in the operation manual
enclosed with the restraint system.
Table of contents
Points to remember......................................................................................................... P. 54
Child restraint system .................................................................................................... P. 56
When using a child restraint system on the front passenger seat ............... P. 60
When using a child restraint system on a rear seat ........................................... P. 63
Child restraint system installation method
• Fixed with a seat belt................................................................................................. P. 64
• Fixed with ISOFIX rigid anchors ......................................................................... P. 70
• Using a child restraint anchor fitting ................................................................... P. 76
Points to remember
● Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems.
● Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
● Use a child restraint system suitable for installation in the vehicle which con-
forms to ECE R44
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
*.
*: ECE R44 is a U.N. regulation for Child restraint systems.
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child.
● Lexus strongly urges the use of a proper child restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in the rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield or between
the holder and the interior of the vehicle.
● Place one child to a child restraint system and then secure the child with the harness
of the child restraint system.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers
may be seriously injured or even killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is possible that
the child restraint system has damage that is not readily visible. In such cases, do not
reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or impossible. In
those cases, check whether the child restraint system is suitable for installment in the
vehicle. (→P. 64, 70) Be sure to install and observe the usage rules after carefully
reading the child restraint system fixing method in this manual, as well as the operation manual enclosed with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is not in use. Do
not store the child restraint system unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk.
55
1
For safety and security
56
NOT FOR REPRODUCTION
1-1. For safe use
Child restraint system
Install the available child restraint system in vehicle upon confirming the following
items.
■ Standards for child restraint systems
Use a child restraint system that conforms to ECE R44
The following approval mark is displayed on child restraint systems which are
conformed.
Check for an approval mark attached to the child restraint system.

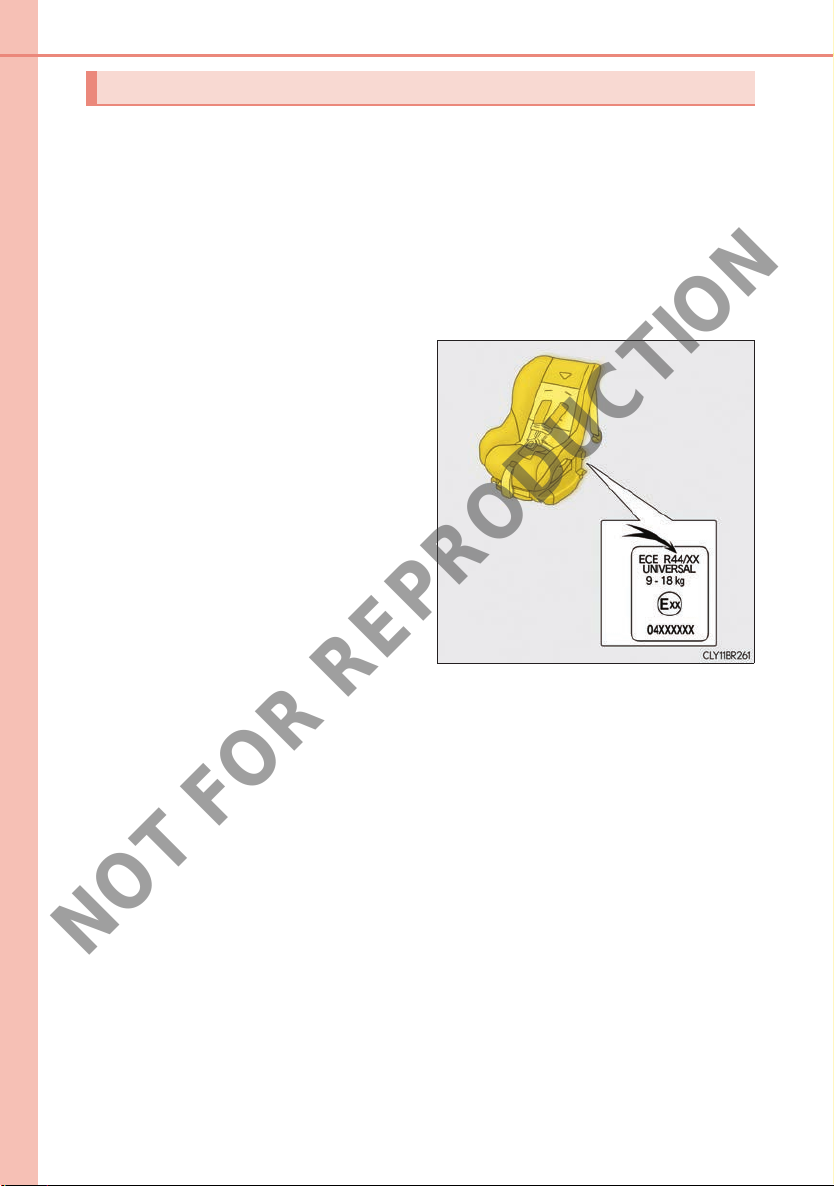

Example of the displayed regulation
number
2
ECE R44 approval mark
The weight range of the child who is
applicable for an ECE R44 approval
mark is indicated.
*
1
*
.
1
*
: ECE R44 is a U.N. regulation for child restraint systems.
2
*
: The displayed mark may differ depending on the product.
1-1. For safe use
NOT FOR REPRODUCTION
■ Mass group
This Mass group table is required when confirming the [Child restraint system
suitability table]. Confirm in accordance with the [Child restraint system suitability table] (→P. 6 5, 72 )
The child restraint system which conforms to the standard of ECE R44 is categorized into 5 groups according to the weight of the child.
Mass group Child weight Reference age*
Group 0 until 10 kg (22 lb.) about 9 months
Group 0+ until 13 kg (28 lb.) about 1.5 years
57
1
For safety and security
Group I
Group II
Group III
9 - 18 kg
(20 - 39 lb.)
15 - 25 kg
(34 - 55 lb.)
22 - 36 kg
(49 - 79 lb.)
from 9 months - about 4 years
from 3 years - about 7 years
from 6 years - about 12 years
*: The age range is a standard approximation. Choose according to the weight of the
child.
58
NOT FOR REPRODUCTION
1-1. For safe use

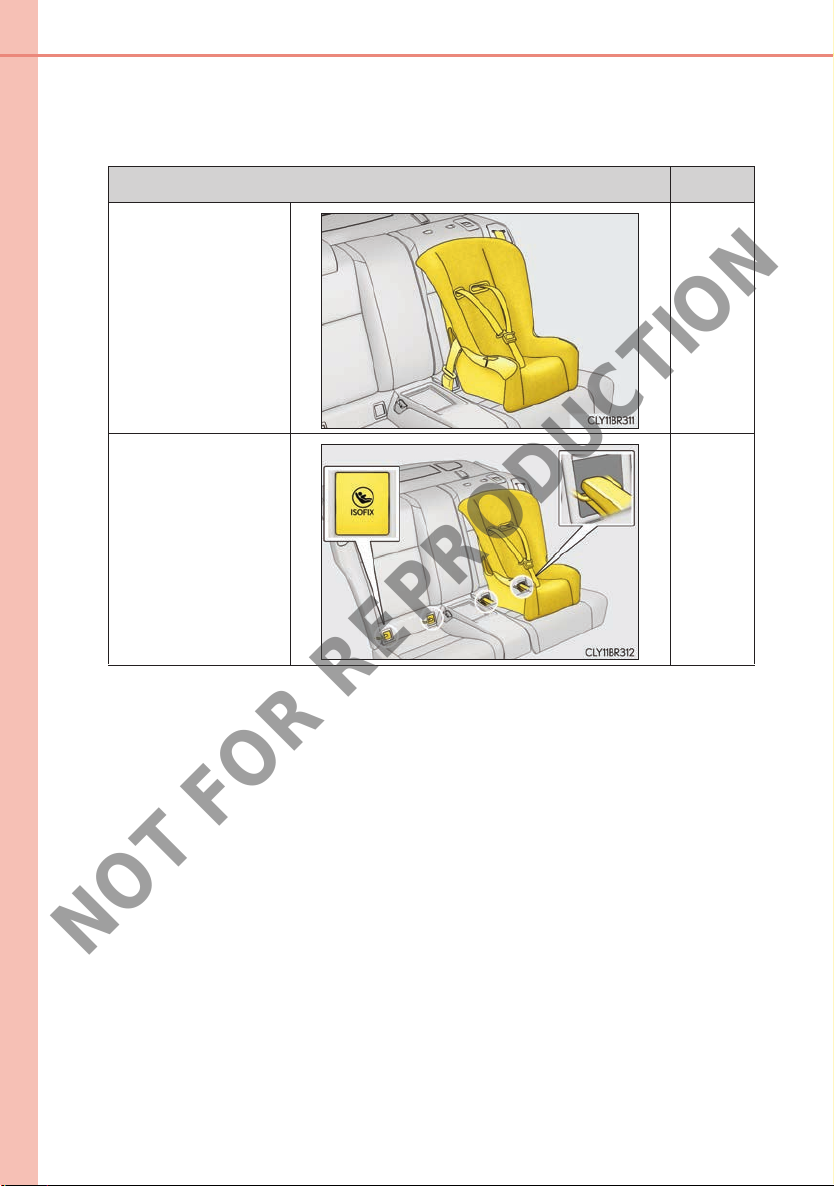

■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system
about the installation of the child restraint system.
Installation method Pag e
Seat belt attachment P. 64
ISOFIX rigid anchor
attachment
P. 70
1-1. For safe use
NOT FOR REPRODUCTION

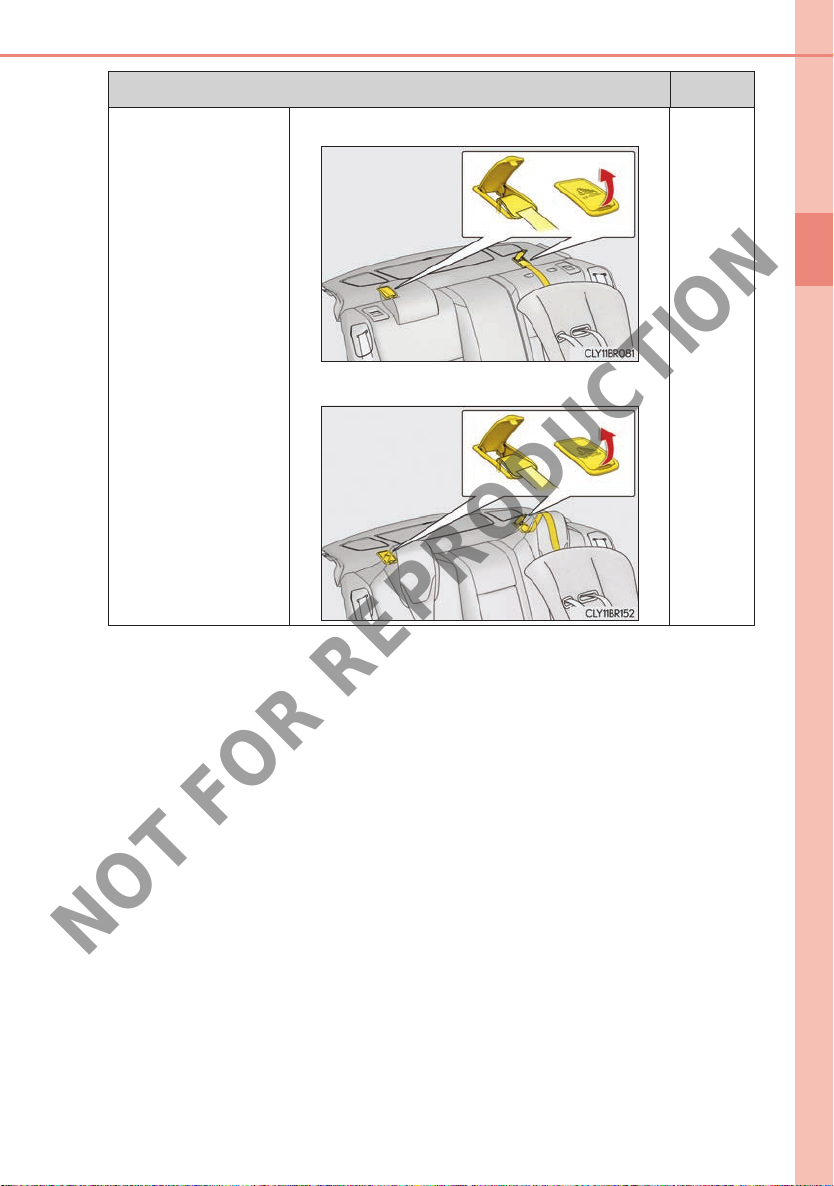

Installation method Pag e
X RC350/RC200t
59
1
For safety and security
Child restraint anchor
fitting attachment
X RC F
P. 76
60
NOT FOR REPRODUCTION
1-1. For safe use
When using a child restraint system on the front passenger seat
■ When installing a child restraint system to a passenger seat
For the safety of a child, install child restraint systems to a rear seat. When
installing child restraint system to a front passenger seat is unavoidable, adjust
the passenger seat as follows and install the child restraint system.

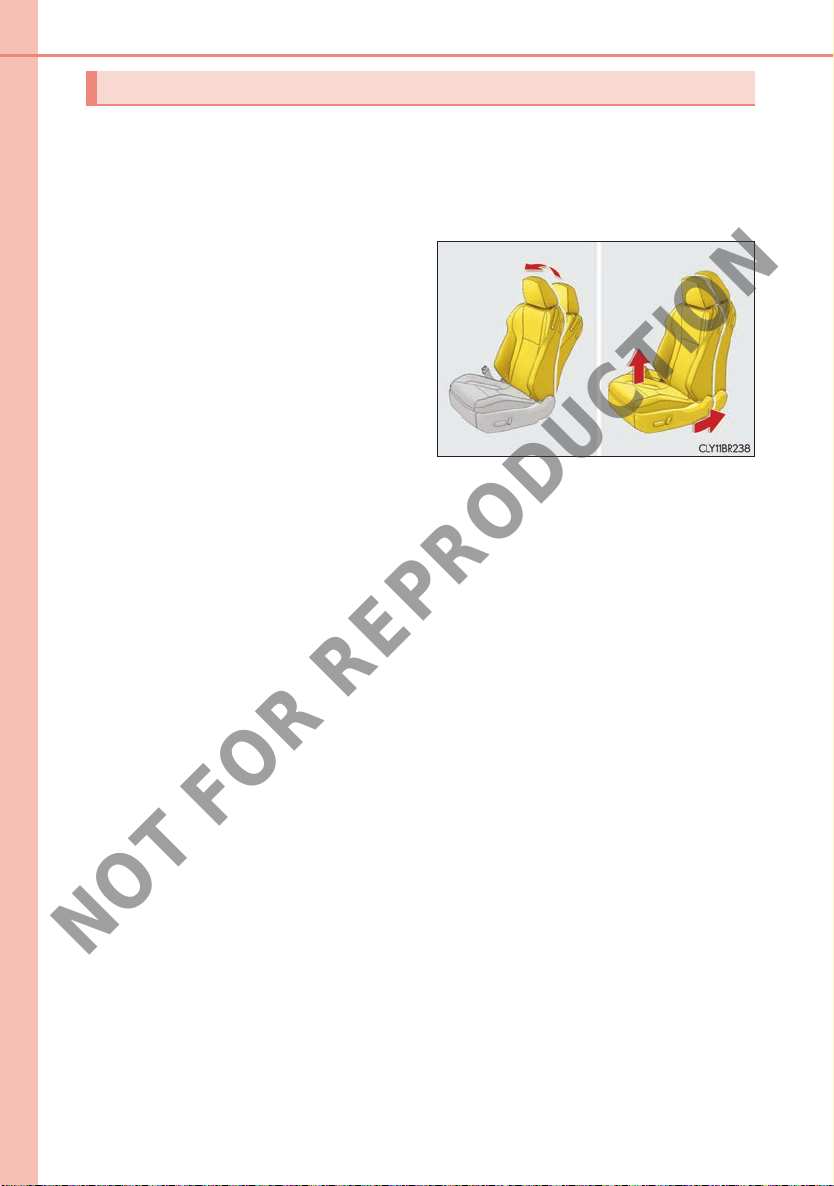

● The seatback to the most upright
position
● Move the seat to the rearmost
position
● Raise the seat to the highest posi-
tion
● If the head restraint interferes
with the installation of the child
restraint system, and the head
restraint can be removed, remove
the head restraint.
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
■ When installing a child restraint system
Observe the following when installing child restraint system to the front passenger seat
if it is unavoidable. The front passenger SRS airbag inflates with considerable speed
and force that if not observed may lead to death or serious injury to the child.

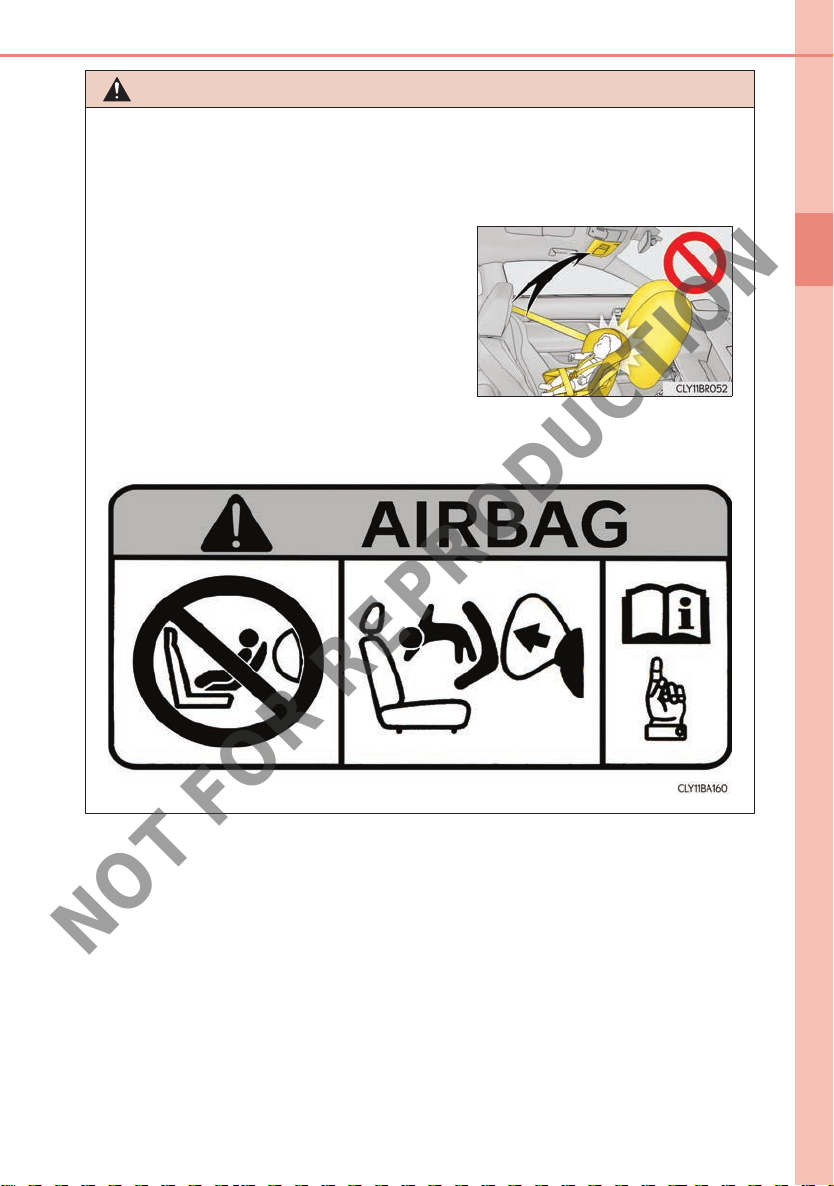

● Extreme Hazard! Do not use a rearward fac-
ing child restraint on a seat protected by an
airbag in front of it! This is because the force
of the rapid inflation of the front passenger
airbag can cause death or serious injury to
the child.
There is a label(s) on the passenger side sun
visor, indicating it is forbidden to attach a rearfacing child restraint system to the front passenger seat.
Details of the label(s) are shown in the illustration below.
61
1
For safety and security
62
NOT FOR REPRODUCTION
1-1. For safe use
WA R N I N G
■ When installing a child restraint system
● When installing a forward-facing child
restraint system to the front passenger seat,
adjust the seatback to the most upright position, move the seat to the rearmost position,
raise the seat to the highest position, and then
install.
If the head restraint interferes with the installation of the child restraint system, and the
head restraint can be removed, remove the
head restraint.
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillars or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the SRS side and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
● When a junior seat (booster seat) is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be kept away
from the child’s neck, but not so that it could fall off the child’s shoulder.
1-1. For safe use
NOT FOR REPRODUCTION
When using a child restraint system on a rear seat
WA R N I N G
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Use child restraint system suitable to the age and size of the child and install it to the
rear seat.

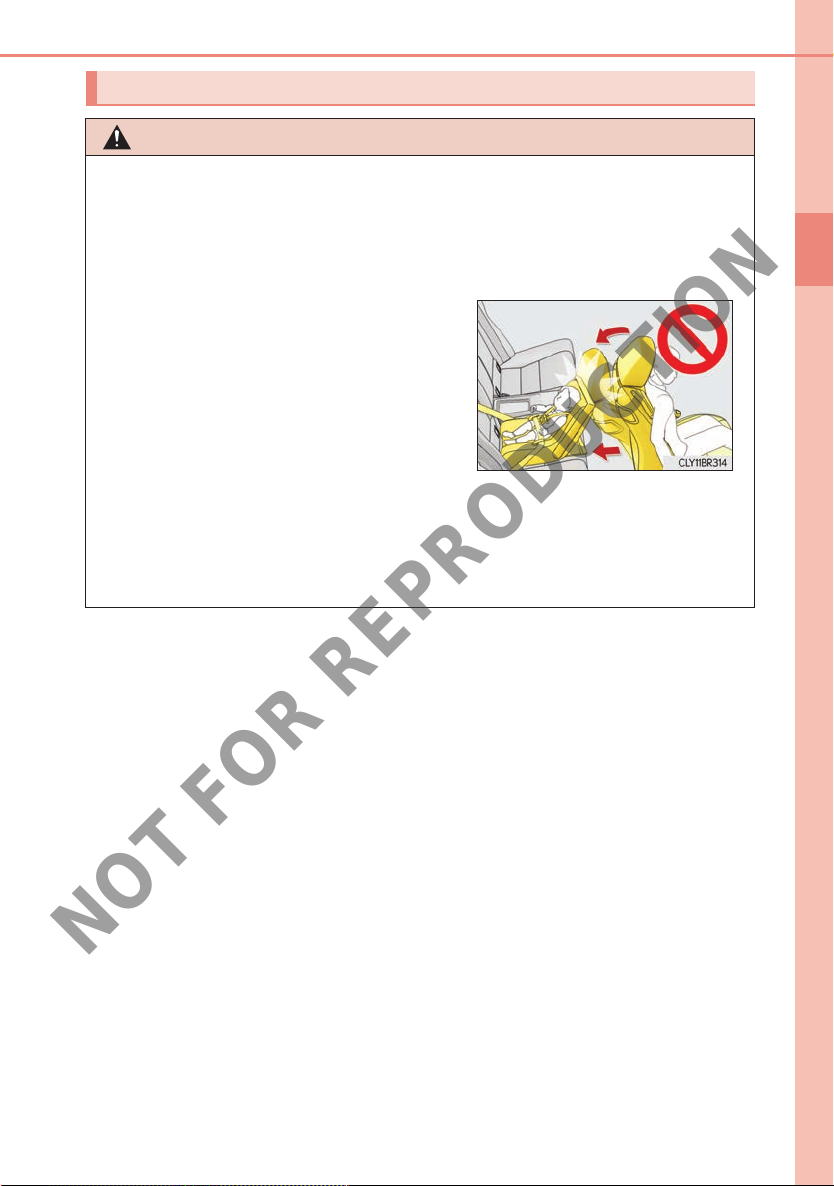

● If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the left-hand rear seat.
● Adjust the front passenger seat so that it does
not interfere with the child restraint system.
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, rear pillars or roof side rails from which the SRS curtain
shield airbag deploys even if the child is seated in the child restraint system. It is dangerous if the SRS curtain shield airbag inflates, and the impact could cause death or
serious injury to the child.
63
1
For safety and security
64
NOT FOR REPRODUCTION
1-1. For safe use
Child restraint system fixed with a seat belt
■ Child restraint system suitability table
The child restraint system suitability table (→P. 65), with symbols, displays the
types of usable child restraint systems and possible seating position installation for the child restraint system owned by the customer. Confirm also in
accordance with [Confirming the possible installation seating positions and
the Mass Group for the seat belt installation type child restraint systems].
◆ Confirming the possible installation seating positions and the Mass Group
for the seat belt installation type child restraint systems
1
Confirm the corresponding [Mass group] from the weight of the child
(→P. 57 )
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
2
Confirm and select the appropriate possible seating position for the child
restraint system and the corresponding type of system from the [Child
restraint system suitability table]. (→P. 6 5)
1-1. For safe use
NOT FOR REPRODUCTION
◆ Child restraint system suitability table (Installed using seat belts)
Information provided in the table shows your child restraint system suitability
for various seating positions.
X Front seat
65
Mass groups
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
Seating position
Passeng er seat
X
X
Rearward-facing —
X
Forward-facing —
UF
UF
1
*
1
*
1
For safety and security
66
NOT FOR REPRODUCTION
1-1. For safe use
X Rear seat
Seating position
Mass groups
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg (34 to 79 lb.)
(4 - 12 years)
Right-hand Left-hand
UU
UU
2
U
*
2
U
*
U*
U*
2
2
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in
this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems
approved for use in this mass group.
X: Seat position not suitable for children in this mass group.
1
*
: Adjust the front seatback to the most upright position. Move the front seat to the rear-
most position.
If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint. If the passenger seat is equipped with a
vertical height adjuster, it must be placed in the upper most position.
2
*
: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
● When using child restraint systems other than “universal” category, the suit-
ability of the systems must be carefully checked with the child restraint system
manufacturer concerned and the seller of those seats.
1-1. For safe use
NOT FOR REPRODUCTION
◆ Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.

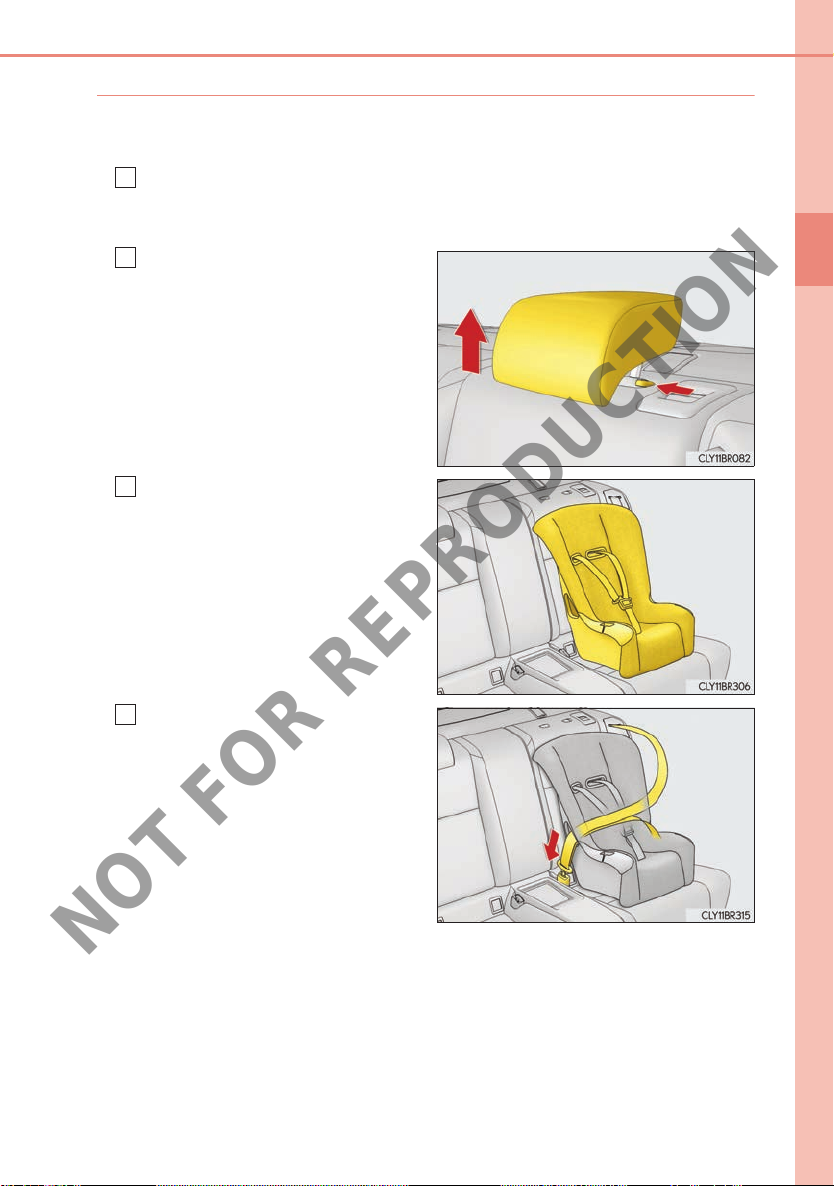

1
When using the front seat: Adjust the seatback
If there is gap between the child seat and the seatback, adjust the seatback until
good contact is achieved.
2
RC350/RC200t: Remove the
head restraint if it interferes with
your child restraint system.
(→P. 166)
3
Place the child restraint system
on the seat.
67
1
For safety and security
4
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the
child restraint system in accordance to the directions enclosed
with the child restraint system.
68
NOT FOR REPRODUCTION
1-1. For safe use
5
If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
6
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
◆ Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the instructions
provided by the manufacturer of the system. If your child restraint system does not provide a locking clip, you can purchase the following item from your Lexus dealer:
Locking clip for child restraint system (Part No. 73119-22010)
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could result
in death. If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not twisted.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat (booster seat) is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be kept away
from the child’s neck, but not so that it could fall off the child’s shoulder.
● Follow all installation instructions provided by the child restraint system manufacturer.
69
1
For safety and security
70
NOT FOR REPRODUCTION
1-1. For safe use
Child restraint system fixed with ISOFIX rigid anchors

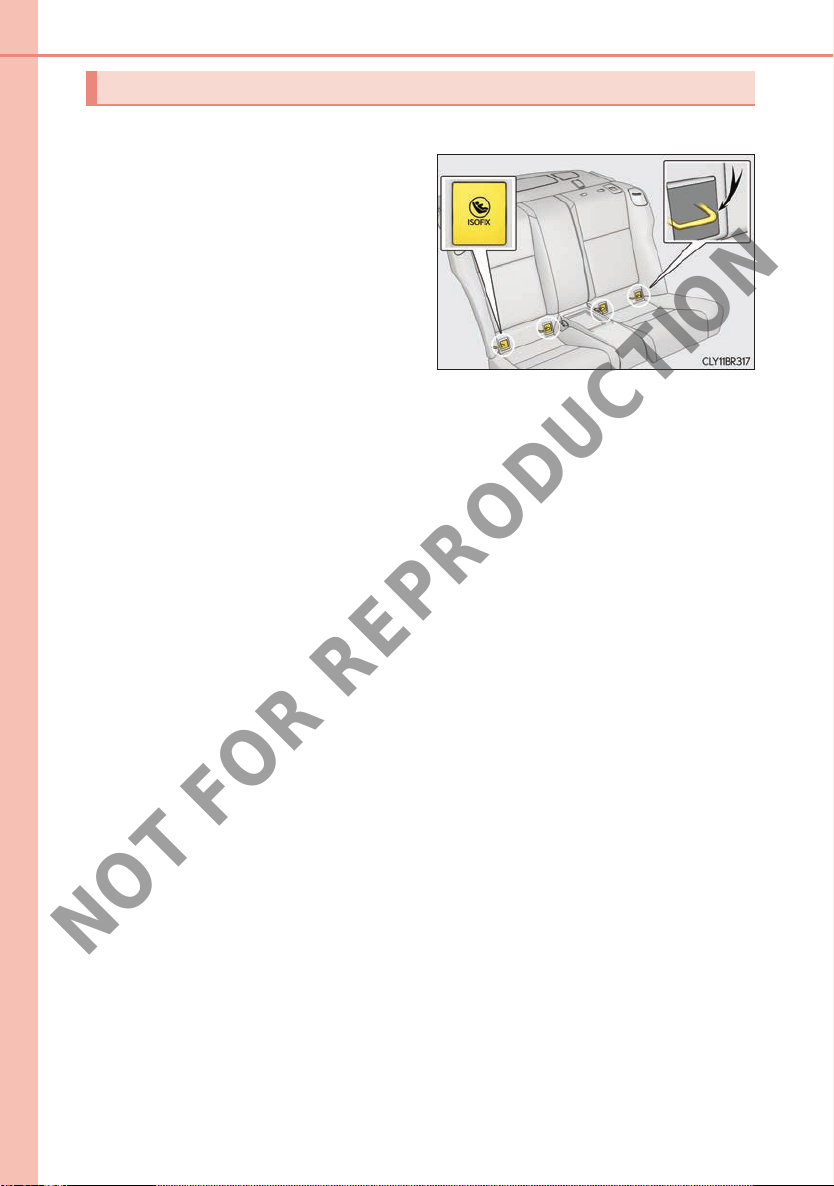

■ ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
each rear seats. (Mark displaying
the location of the anchors are
attached to the seats.)
■ Use a child restraint system that conforms to ECE R44*
Approval marks are displayed on child restraint systems which have conformed. (→P. 5 6)
*: ECE R44 is a U.N. regulation for child restraint systems.
■ Child restraint system suitability table
The child restraint system suitability table (→P. 72), with symbols, displays the
types of usable child restraint systems and possible seating position installation for the child restraint system owned by the customer. Confirm in accordance with the listed Size class, Anchor, as well as [Confirming the Mass
group and Size class for ECE R44 ISOFIX corresponding child restraint systems].
1-1. For safe use
NOT FOR REPRODUCTION
■ ECE R44 child restraint system size classes and anchors
Class Code which represents the child restraint system and the accompanying installation anchor code.
71
Size class Anchor Shape/Size
A ISO/F3 Full-Height Forward-facing Small child
Reduced-
Height
Reduced-
Height
B1
C
D
G
B
E
F
ISO/F2
ISO/F2X
ISO/R3 Full-Size Rearward-facing Small child
ISO/R2 Reduced-Size Rearward-facing Small child
ISO/R1 — Rearward-facing Infant
ISO/L1 Carrycot* Left-facing Infant
ISO/L2 Carrycot* Right-facing Infant
Directional
usage
For ward- facin g Small child
For ward- facin g Small child
Child size
*: Carrycot is a seat for babies which can be attached sideways and orientated to allow
the infant to sleep. For further details, inquire with the child restraint system manufacturer or dealer.
■ Confirming the Mass group and Size class for ECE R44 ISOFIX corre-
sponding child restraint systems
1
Confirm the corresponding [Mass group] from the weight of the child
(→P. 57 )
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
2
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in step
from the [Child restraint system suitability table] (→P. 72 )
*.
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1],
[C], [D].
*: However, listings that are marked with [X] cannot be selected, despite having the
corresponding size class in the suitability table of the [Vehicle ISOFIX position].
1
For safety and security
1
72
NOT FOR REPRODUCTION
1-1. For safe use
■ Child restraint system suitability table
(Installed using ISOFIX [Child restraint system conforms with ECE R44])
Information provided in the table shows your child restraint system suitability
for various seating positions.
X Rear seat
Mass groups Size class Fixture
Vehicle ISOFIX
positions
Right-hand Left-hand
Carrycot
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
FISO/L1 X X
GISO/L2 X X
EISO/R1IL
EISO/R1IL
DISO/R2 X X
CISO/R3 X X
DISO/R2 X X
CISO/R3 X X
BISO/F2IUF
B1 ISO/F2X IUF*
AISO/F3 X X
1
*
1
*
2
*
2
IL*
IL*
IUF*
IUF*
1
1
2
2
1-1. For safe use
NOT FOR REPRODUCTION
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of universal cat-
egory approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for “specific
vehicles”, “restricted”, or “semi-universal”, approved for use in this mass
group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass
group and/or this size class.
1
*
: When installing an ISOFIX child restraint system on a rear seat, move the front seat as
far forward as possible.
2
*
: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
● When using child restraint systems other than “universal” category, the suit-
ability of the systems must be carefully checked with the child restraint system
manufacturer concerned and the seller of those seats.
73
1
For safety and security
74
NOT FOR REPRODUCTION
1-1. For safe use

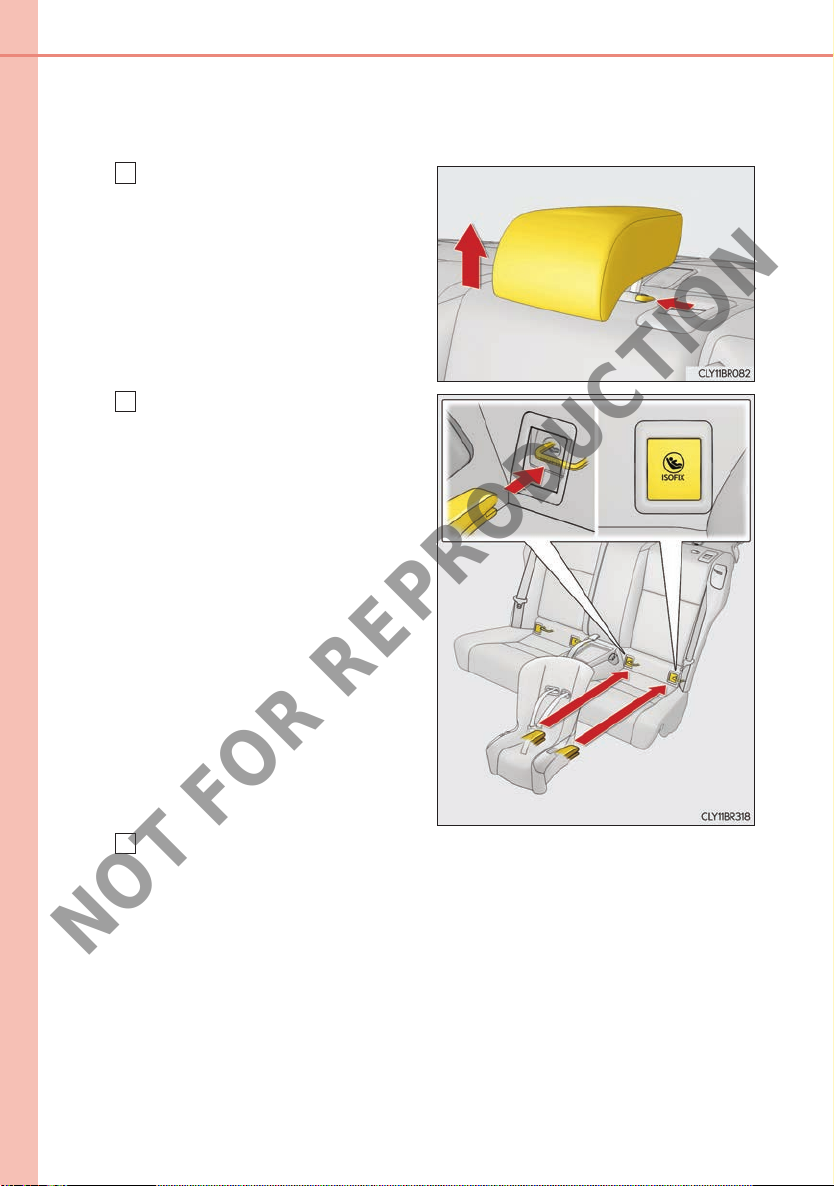

■ Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
1
RC350/RC200t: Remove the
head restraint if it interferes with
your child restraint system.
(→P. 166)
2
Check the positions of the exclusive fixing bars, and install the
child restraint system to the seat.
3
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
1-1. For safe use
NOT FOR REPRODUCTION
WA R N I N G
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system.
● Follow all installation instructions provided by the child restraint system manufacturer.
■ Using child restraint anchorages
WARNING: child restraint anchorages are designed to withstand only those loads
imposed by correctly fitted child restraints. Under no circumstances are they to be
used for adult seatbelts, harnesses, or for attaching other items or equipment to the
vehicle.
75
1
For safety and security
76
NOT FOR REPRODUCTION
1-1. For safe use
Using a child restraint anchor fitting

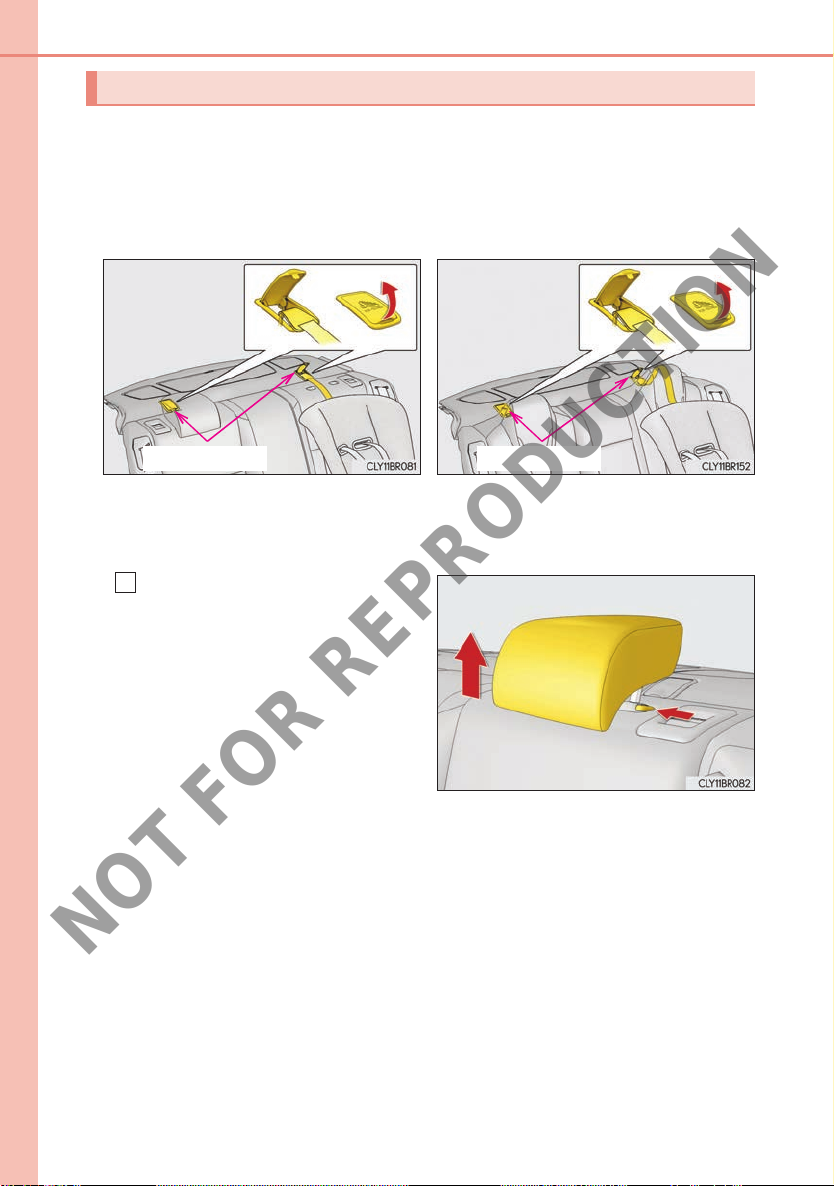

■ Child restraint anchor fitting
Anchor fittings are provided for the each rear seat.
Use anchor fitting when fixing the strap.
X RC350/RC200t X RC F
Anchor fittings Anchor fittings
■ Fixing the strap to the anchor fitting
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
1
RC350/RC200t: Remove the
head restraint if it interferes with
your child restraint system.
(→P. 166)
1-1. For safe use
NOT FOR REPRODUCTION

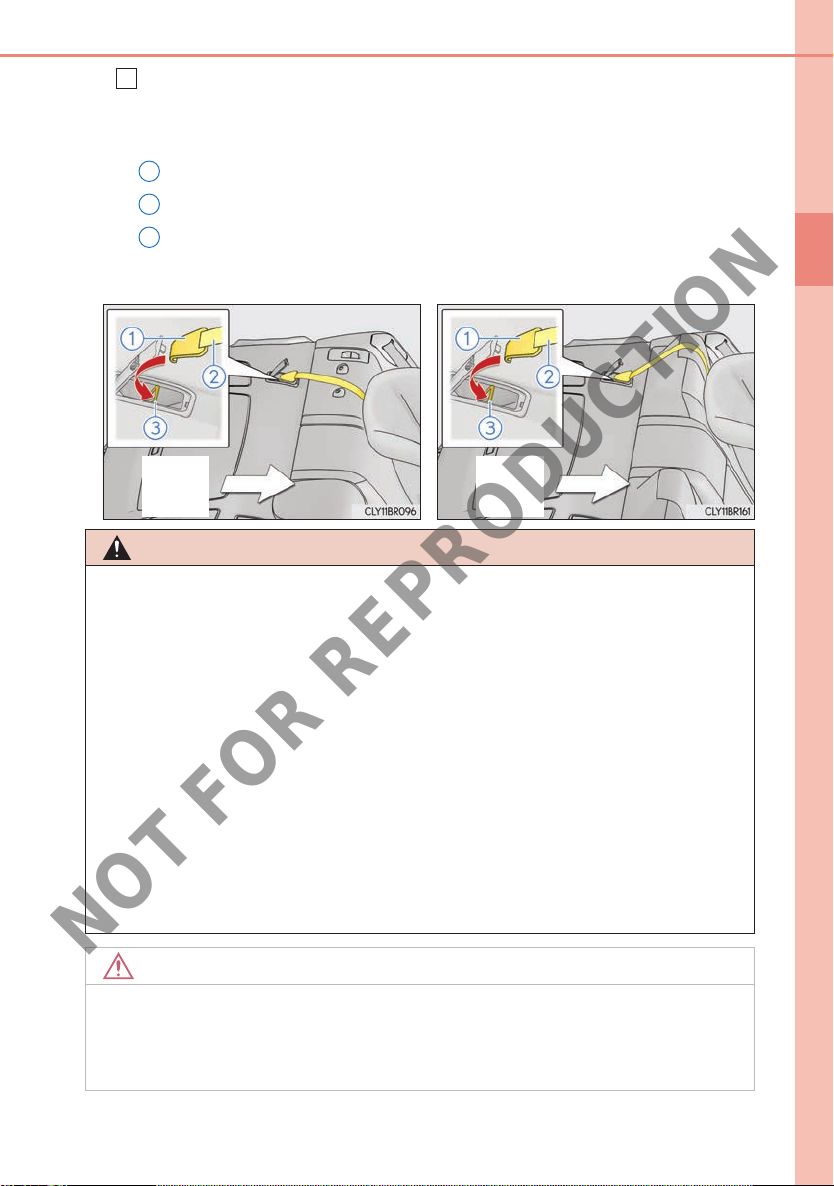

2
Open the anchor fitting cover, latch the attaching clip onto the anchor fitting and tighten the upper anchorage strap.
Make sure the upper anchorage strap is securely latched.
1
Attaching clip
2
Upper anchorage strap
3
Anchor fitting
X RC350/RC200t X RC F
77
1
For safety and security
Front of
vehicle
WA R N I N G
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the upper anchorage strap and make sure that the belt is not twisted.
● Do not attach the upper anchorage strap to anything other than the anchor fitting.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system manufacturer.
■ Using child restraint anchorages
WARNING: child restraint anchorages are designed to withstand only those loads
imposed by correctly fitted child restraints. Under no circumstances are they to be
used for adult seatbelts, harnesses, or for attaching other items or equipment to the
vehicle.
NOTICE
■ Child restraint anchor fitting
When not in use, make certain to close the lid. If it remains open, the lid may be damaged.
Front of
vehicle
78
NOT FOR REPRODUCTION
1-1. For safe use
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
WA R N I N G
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■ Important points while driving
● Keep the trunk lid closed.
● If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
● Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
● Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle while the engine is running, exhaust gases
may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.
1-2. Theft deterrent system
NOT FOR REPRODUCTION

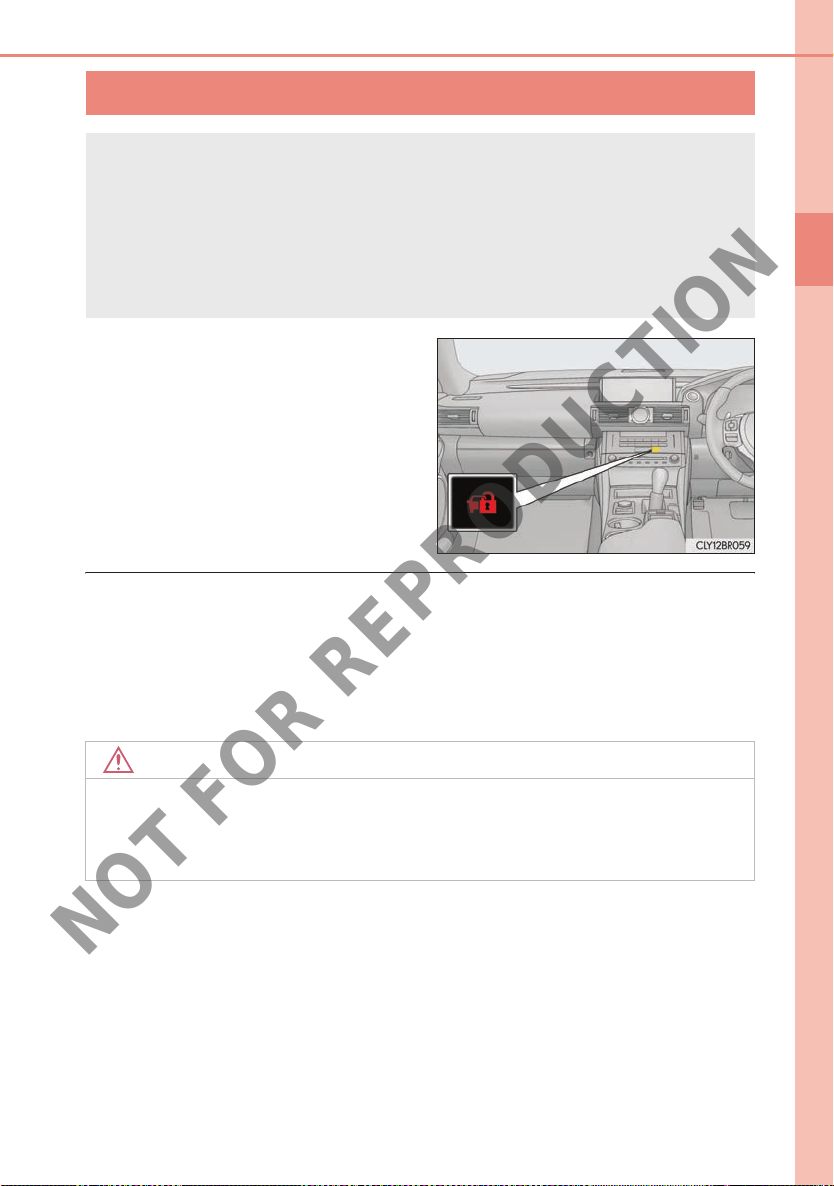

Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s onboard computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■ System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
79
1
For safety and security
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
80
NOT FOR REPRODUCTION
1-2. Theft deterrent system

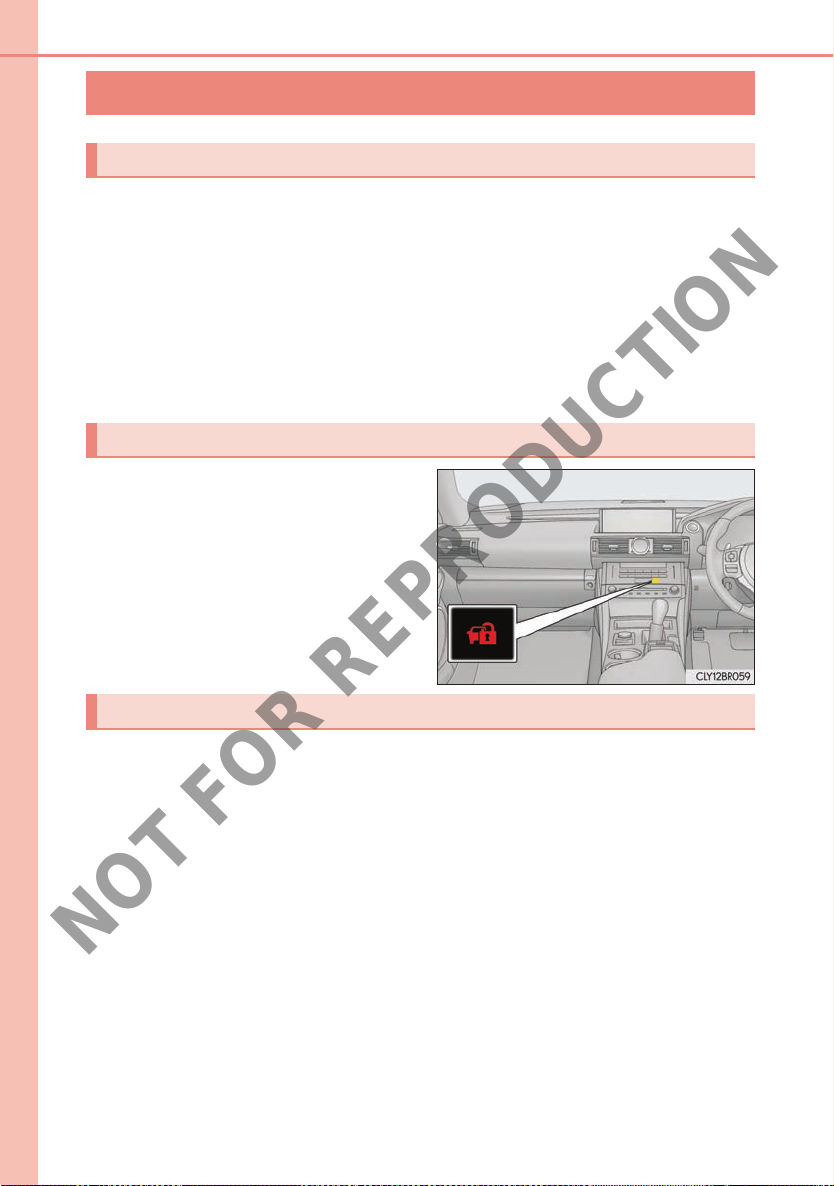

Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
● A locked door or trunk is unlocked or opened in any way other than using the
entry function, wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened.
● The intrusion sensor detects something moving inside the vehicle. (Example:
an intruder breaks a window and gets into the vehicle.)
Setting the alarm system
Close the doors, trunk and hood, and
lock both side doors. The system will be
set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm:
● Unlock the doors or open the trunk.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivated or stopped after a few seconds.)
1-2. Theft deterrent system
NOT FOR REPRODUCTION
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following:
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.

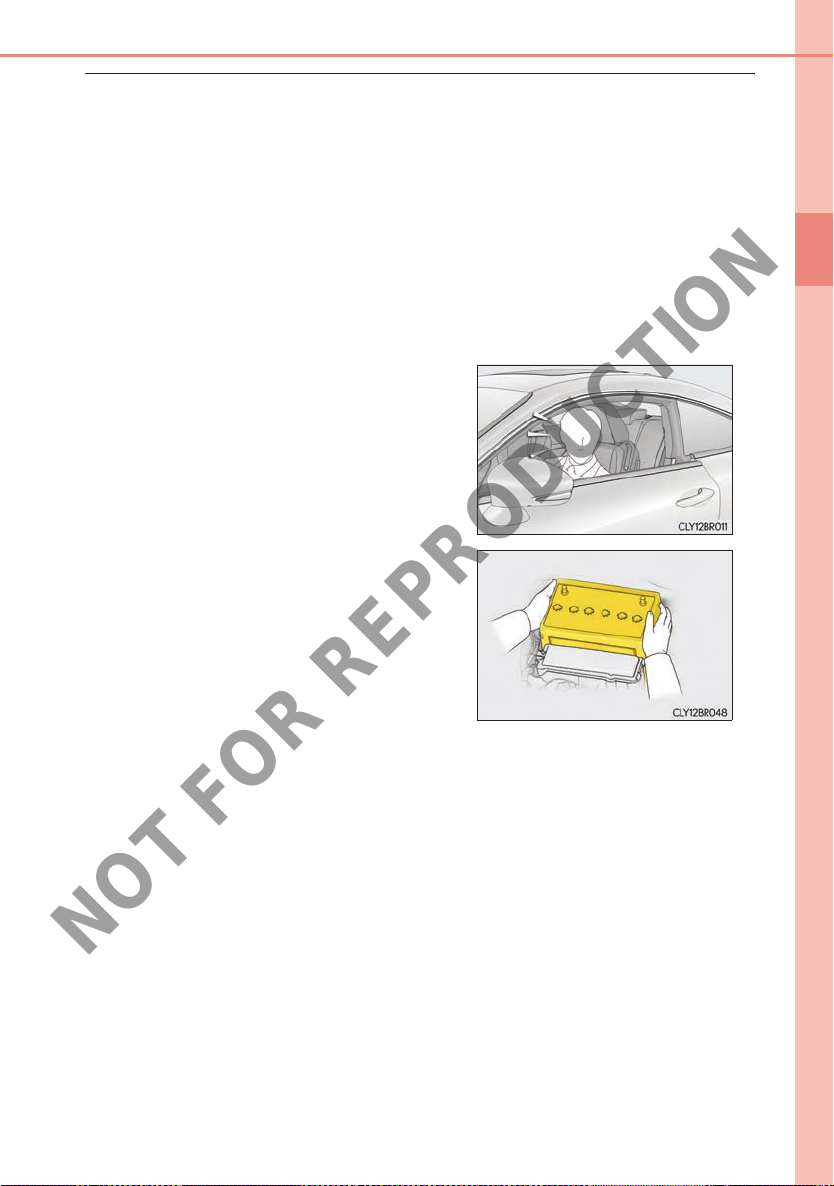

■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using a
inside lock button.
● The battery is recharged or replaced when the
vehicle is locked. (→P. 5 59 )
81
1
For safety and security
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the door.
● When recharging or replacing the battery
82
NOT FOR REPRODUCTION
1-2. Theft deterrent system
NOTICE
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

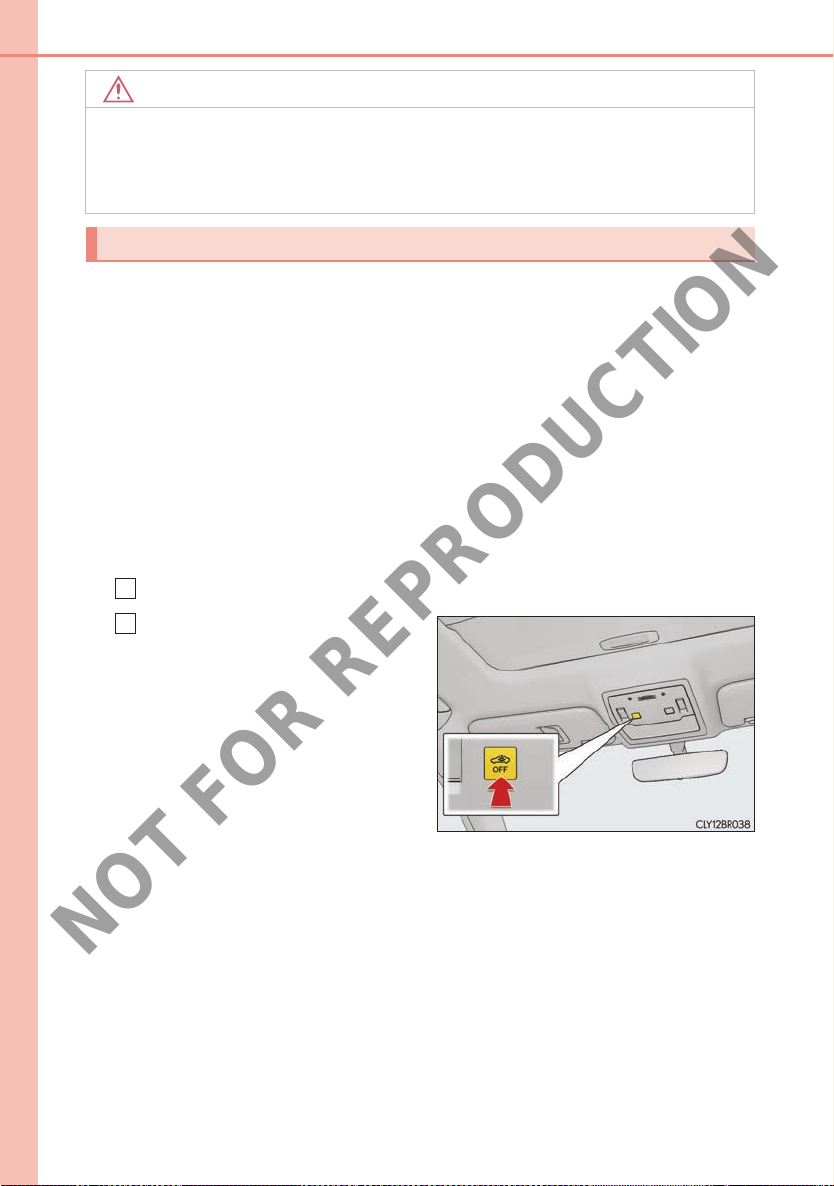

Intrusion sensor
The intrusion sensor detects intruders or movement in the vehicle. When an
intruder or movement is detected, the alarm will be triggered.
This system is designed to deter and prevent vehicle theft but does not guarantee
absolute security against all intrusions.
■ Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm is set. (
■ Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor before setting the alarm, as it will respond to
movement inside the vehicle.
1
Turn the engine switch off.
2
Press the intrusion sensor cancel
switch.
Press the switch again to re-enable
the intrusion sensor.
Each time the intrusion sensor is
canceled/set, a message will be
shown on the multi-information display in the instrument cluster.
→P. 8 0)
1-2. Theft deterrent system
NOT FOR REPRODUCTION
■ Canceling and automatic re-enabling of the intrusion sensor
● The alarm will still be set even when the intrusion sensor is canceled.
● After the intrusion sensor is canceled, pressing the engine switch or unlocking the
doors using the entry function, wireless remote control or mechanical key will reenable the intrusion sensor.
● The intrusion sensor and will automatically be re-enabled when the alarm system is
deactivated.

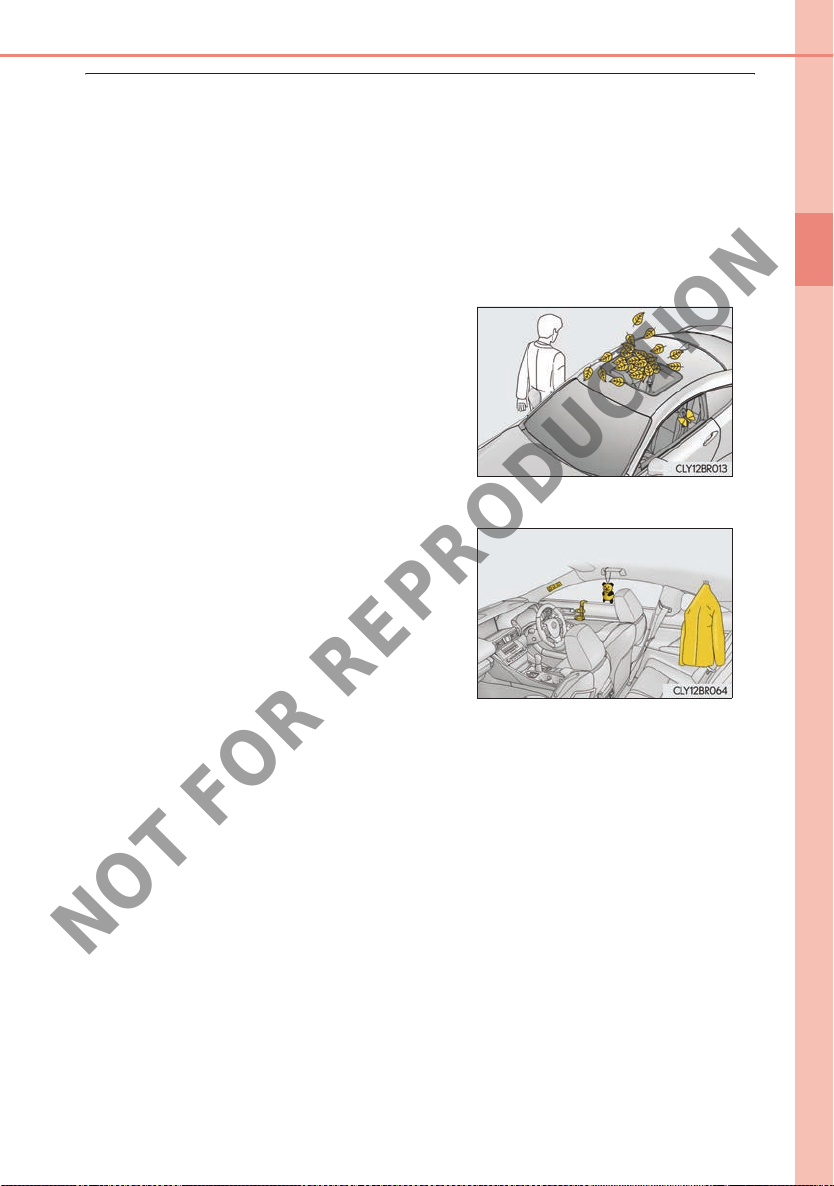

■ Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
● A window or the moon roof is open.
In this case, the sensor may detect the following:
• Wind or the movement of objects such as
leaves and insects inside the vehicle
• Ultrasonic waves emitted from devices
such as the intrusion sensors of other vehicles
• The movement of people outside the vehicle
● Unstable items, such as dangling accessories
or clothes hanging on the coat hooks, are in
the vehicle.
83
1
For safety and security
● Places with extreme vibrations or noises, or situations in which the vehicle is subject to
repeated impacts or vibrations:
• When parked in a parking garage
• When ice adhering to the vehicle is removed
• When the vehicle is in an automatic or high-pressure car wash
• When in a hail or lightning storm
84
NOT FOR REPRODUCTION
1-2. Theft deterrent system
NOTICE

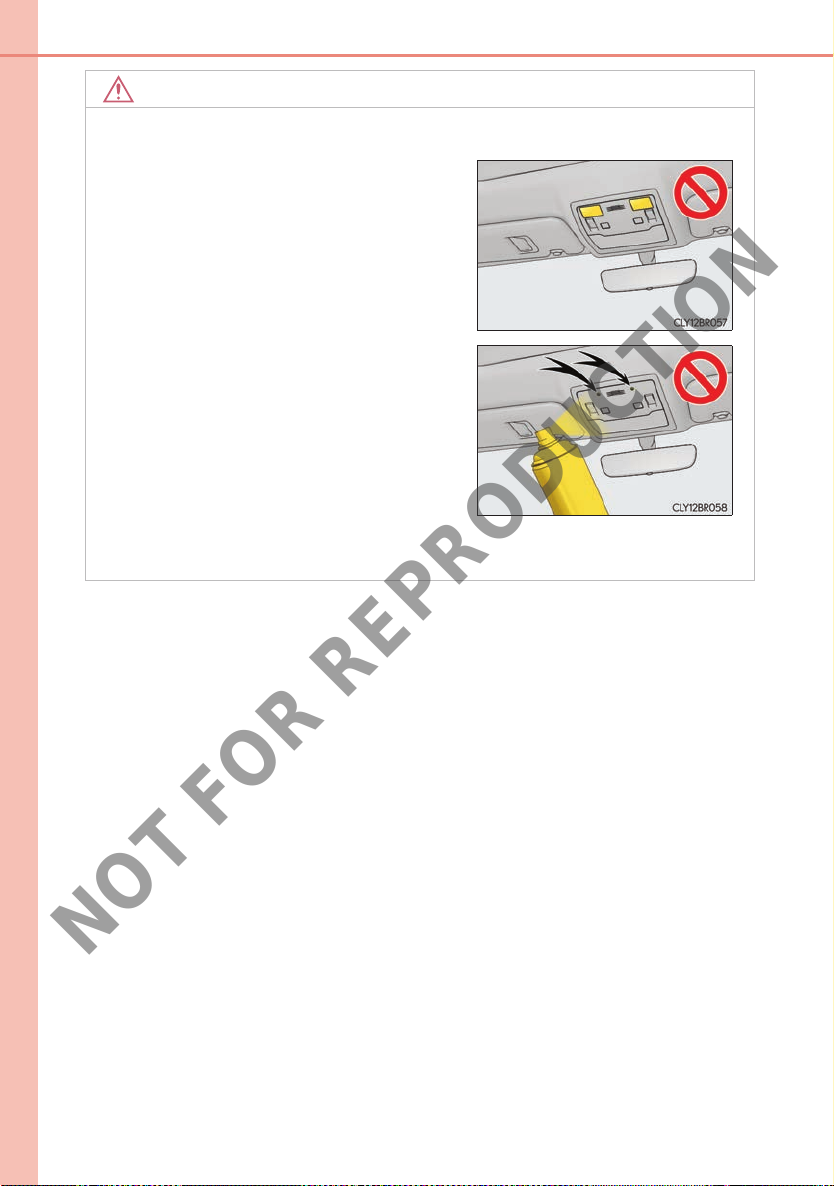

■ To ensure the intrusion sensor functions correctly
● To ensure that the sensors operate properly,
do not touch or cover them.
● Do not spray air fresheners or other products
directly into the sensor holes.
● Installing accessories other than genuine Lexus parts or leaving objects between the
driver’s seat and front passenger’s seat may reduce the detection performance.
85
NOT FOR REPRODUCTION
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators.......................................86
Gauges and meters
(RC350/RC200t)...................94
Gauges and meters
(RC F)...........................................100
Multi-information display
(RC350/RC200t)..................107
Multi-information display
(RC F).............................................115
Fuel consumption
information ..................................127
86
NOT FOR REPRODUCTION
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.
X RC350/RC200t (except F SPORT models)
X RC350/RC200t (F SPORT models)

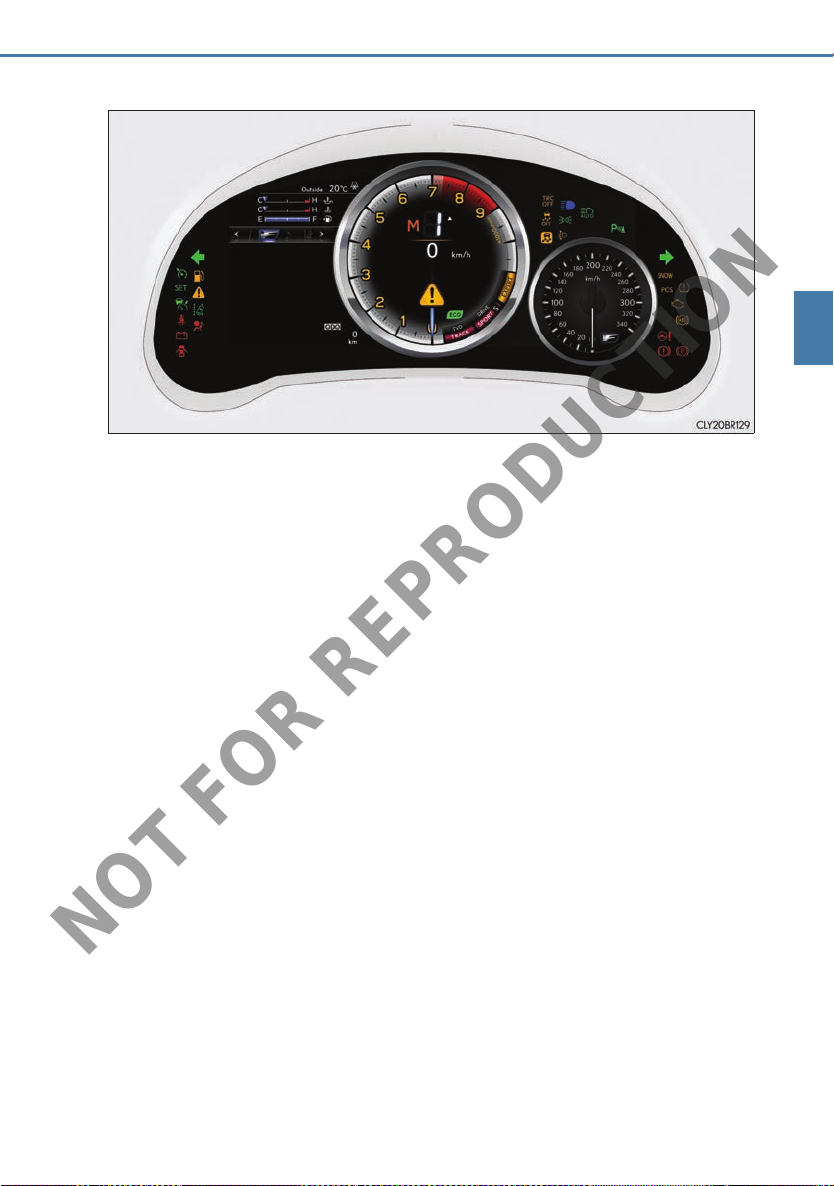

X RC F
NOT FOR REPRODUCTION
2. Instrument cluster
87
2
Instrument cluster
88
NOT FOR REPRODUCTION
2. Instrument cluster

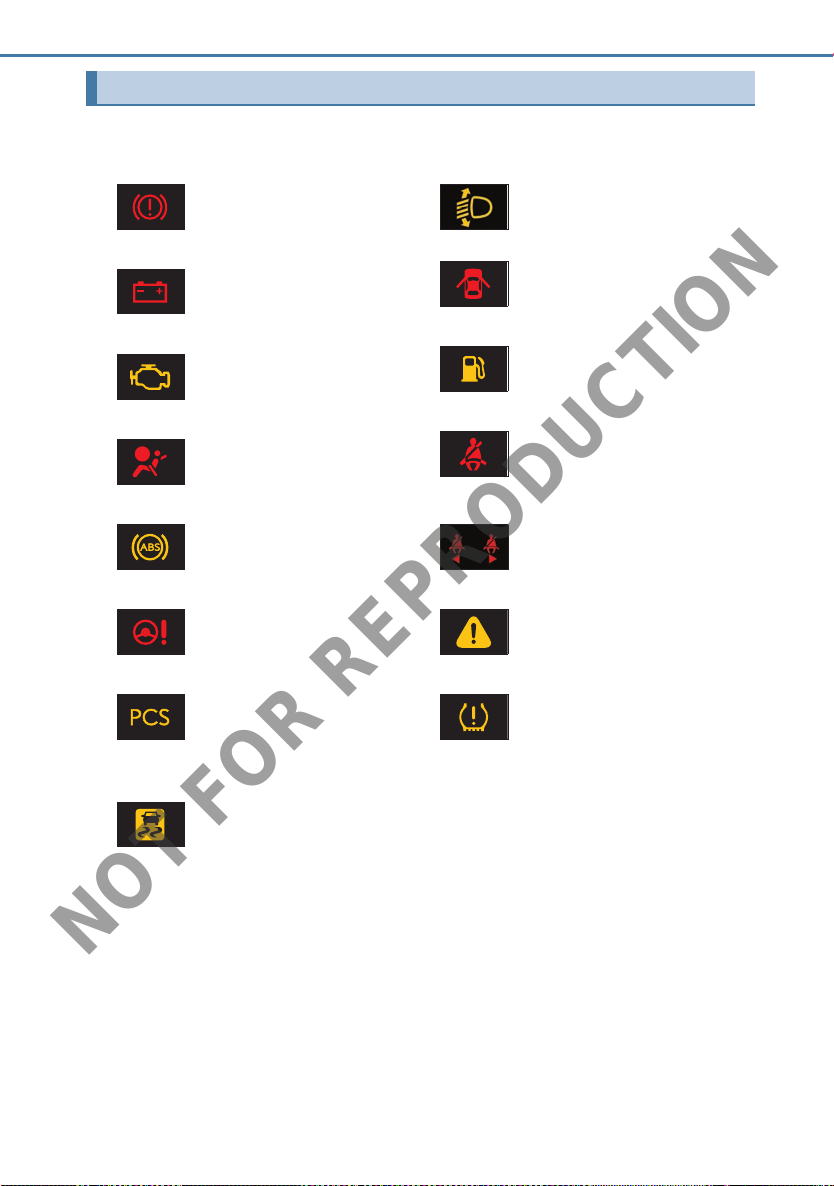

Wa rn i ng li gh ts
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
1, 2
*
(if equipped)
1
*
Brake system warning light
(→P. 49 9)
1
*
Charging system warning
light (→P. 49 9)
1
*
Malfunction indicator
lamp (→P. 49 9)
1
*
SRS warning light
(→P. 49 9)
1
*
ABS warning light
(→P. 49 9)
1
Electric power steering sys-
*
tem warning light
(→P. 50 0)
Pre-crash safety system
warning light (→P. 5 00 )
1
Automatic headlight
*
leveling system warning
light (→P. 500)
Open door warning light
(→P. 500)
Low fuel level warning light
(→P. 500)
Driver’s and front passenger’s seat belt reminder light
(→P. 500)
3
*
Rear passengers’ seat belt
reminder lights (→P. 5 00 )
1
*
Master warning light
(→P. 50 1)
1
*
Tire pressure warning light
(→P. 50 1)
1
*
Slip indicator
(→P. 50 0)
1
*
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by your Lexus dealer.
2
*
: The light flashes to indicate a malfunction.
3
*
: This light illuminates on the center panel.
2. Instrument cluster
NOT FOR REPRODUCTION

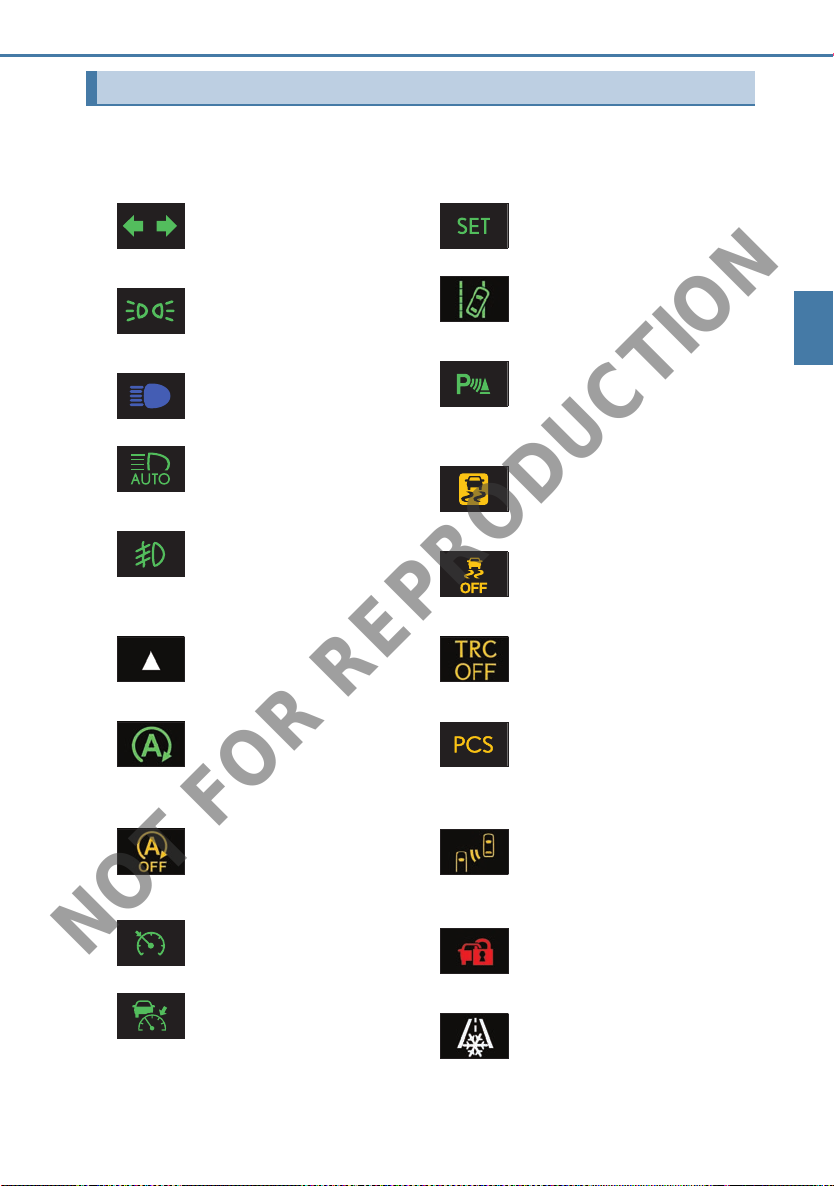

Indicators
The indicators inform the driver of the operating state of the vehicle’s various systems.
89
(if equipped)
(if equipped)
*
(if equipped)
Turn signal indicator
(→P. 20 8)
Tail light indicator
(→P. 212)
Headlight high beam indicator (→P. 212)
Automatic High Beam indicator (→P. 21 4)
Front fog light indicator
(→P. 21 8)
8
Gear Shift Indicator
(→P. 20 6)
1
*
Stop & Start indicator
(→P. 23 1)
(if equipped)
(if equipped)
*
*
*
(if equipped)
Cruise control “SET” indicator (→P. 240, 244)
LDA (Lane Departure
Alert) indicator (→P. 2 57)
Lexus parking assist-sensor
indicator (→P. 2 63 )
1, 2
Slip indicator
(→P. 28 5)
1
*
VSC OFF indicator
(→P. 28 6)
1, 8
TRC OFF indicator
(→P. 28 5)
1, 3
Pre-crash safety system
warning light (→P. 29 2)
2
Instrument cluster
(if equipped)
(if equipped)
1
*
Stop & Start cancel
indicator (→P. 23 3)
Cruise control indicator
(→P. 240, 244)
Dynamic radar cruise control indicator (→P. 244)
4, 6
*
(if equipped)
*
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (→P. 2 97 )
7
*
Security indicator
(→P. 79 , 8 0)
5
Low outside temperature
indicator (→P. 9 4, 10 0)
90
NOT FOR REPRODUCTION
2. Instrument cluster

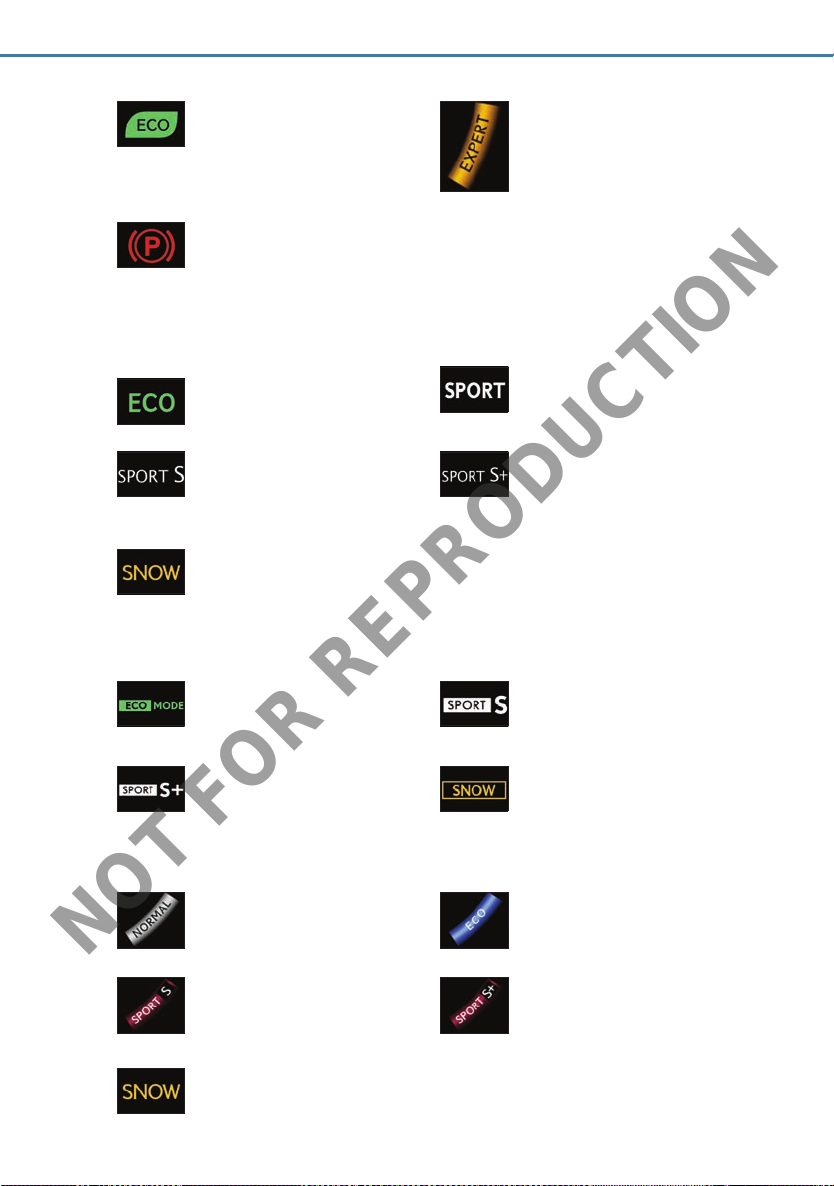

1
*
Eco Driving Indicator Light
(→P. 92 )
8
*
Parking brake indicator
(→P. 20 9)
● Drive mode indicators
X RC350/RC200t (except F SPORT models)
Eco drive mode indicator
(→P. 27 9)
“SPORT S” indicator
(if equipped)
X RC350/RC200t (F SPORT models)
(→P. 27 9)
Snow mode indicator
(→P. 20 3)
*
(if equipped)
(if equipped)
8
“EXPERT” indicator
(→P. 28 7)
“SPORT” indicator
(→P. 27 9)
“SPORT S+” indicator
(→P. 27 9)
Eco drive mode indicator
(→P. 27 9)
“SPORT S+” indicator
(→P. 27 9)
X RC F
“NORMAL” indicator
(→P. 27 9)
“SPORT S” indicator
(→P. 27 9)
Snow mode indicator
(→P. 20 3)
“SPORT S” indicator
(→P. 27 9)
Snow mode indicator
(→P. 203 )
Eco drive mode indicator
(→P. 27 9)
“SPORT S+” indicator
(→P. 27 9)
2. Instrument cluster
NOT FOR REPRODUCTION
● TVD (Torque Vectoring Differential) control mode indicators (RC F)
91
“STANDARD” indicator
(if equipped)
(if equipped)
1
*
: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by your Lexus dealer.
2
*
: The light flashes to indicate that the system is operating.
3
*
: The light comes on when the system is turned off. The light will flash quickly when the
system is operating.
4
*
: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is turned on.
• When the BSM main switch is turned on while the engine switch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
5
*
: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
6
*
: This light illuminates on the outside rear view mirrors.
7
*
: This light illuminates on the center panel.
8
*
:RC F
(→P. 31 2)
(if equipped)
“TRACK” indicator
(→P. 31 2)
“SLALOM” indicator
(→P. 312 )
2
Instrument cluster
92
NOT FOR REPRODUCTION

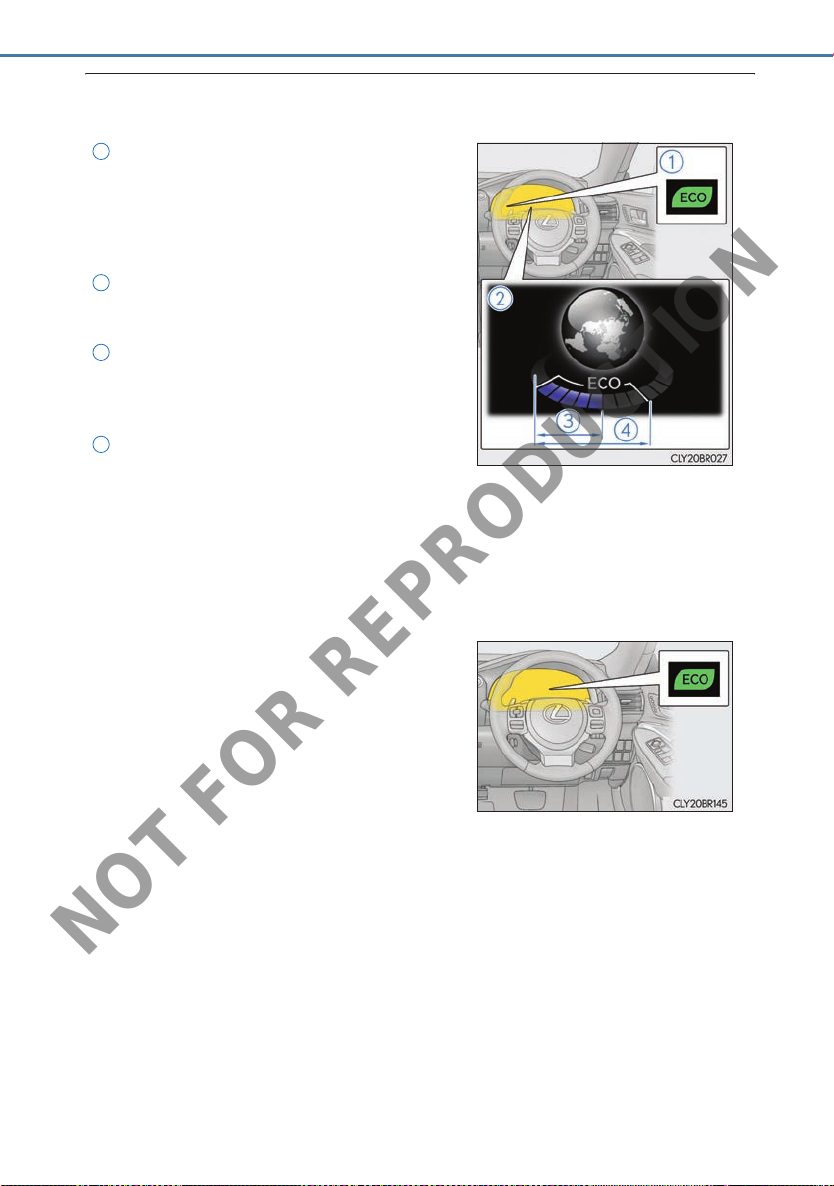

■ Eco Driving Indicator
2. Instrument cluster
X RC350/RC200t
Eco Driving Indicator Light
1
During Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will turn
on. When the acceleration exceeds the Zone
of Eco driving, or when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Zone Display
2
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
3
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indicator Zone Display will illuminate.
Zone of Eco driving
4
Eco Driving Indicator will not operate under the following conditions:
● The shift lever is in any position other than D.
● A paddle shift switch is operated.
● Neither normal mode nor Eco drive mode is selected. (→P. 27 9)
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
X RC F
During Eco-friendly acceleration (Eco driving),
the Eco Driving Indicator Light will turn on.
When the acceleration exceeds the Zone of
Eco driving, or when the vehicle is stopped, the
light turns off.
Eco Driving Indicator will not operate under the following conditions:
● The shift lever is in any position other than D.
● A paddle shift switch is operated.
● Neither normal mode nor Eco drive mode is selected. (→P. 27 9)
● The vehicle speed is approximately 130 km/h (80 mph) or higher.
2. Instrument cluster
NOT FOR REPRODUCTION
WA R N I N G
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.
93
2
Instrument cluster
94
NOT FOR REPRODUCTION
2. Instrument cluster

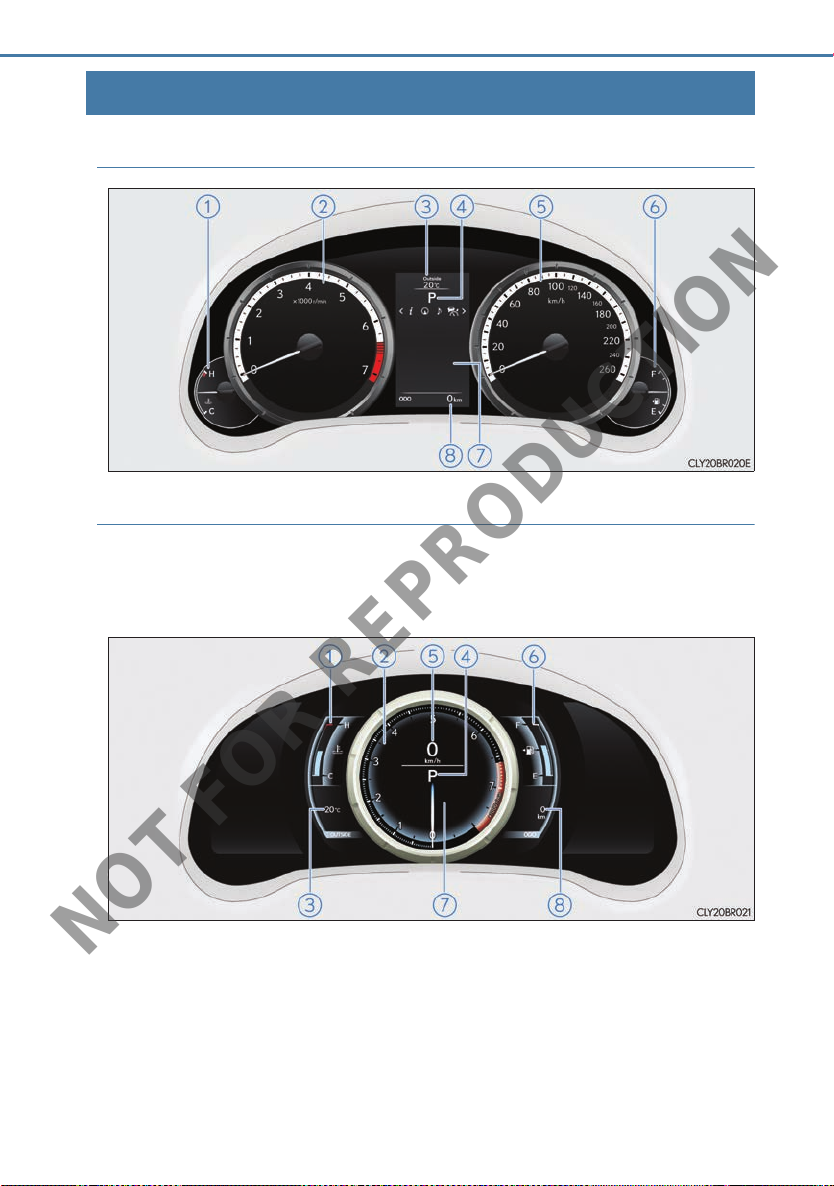

Gauges and meters (RC350/RC200t)
◆ Except F SPORT models
◆ F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
X Main meter in center position
2. Instrument cluster
NOT FOR REPRODUCTION

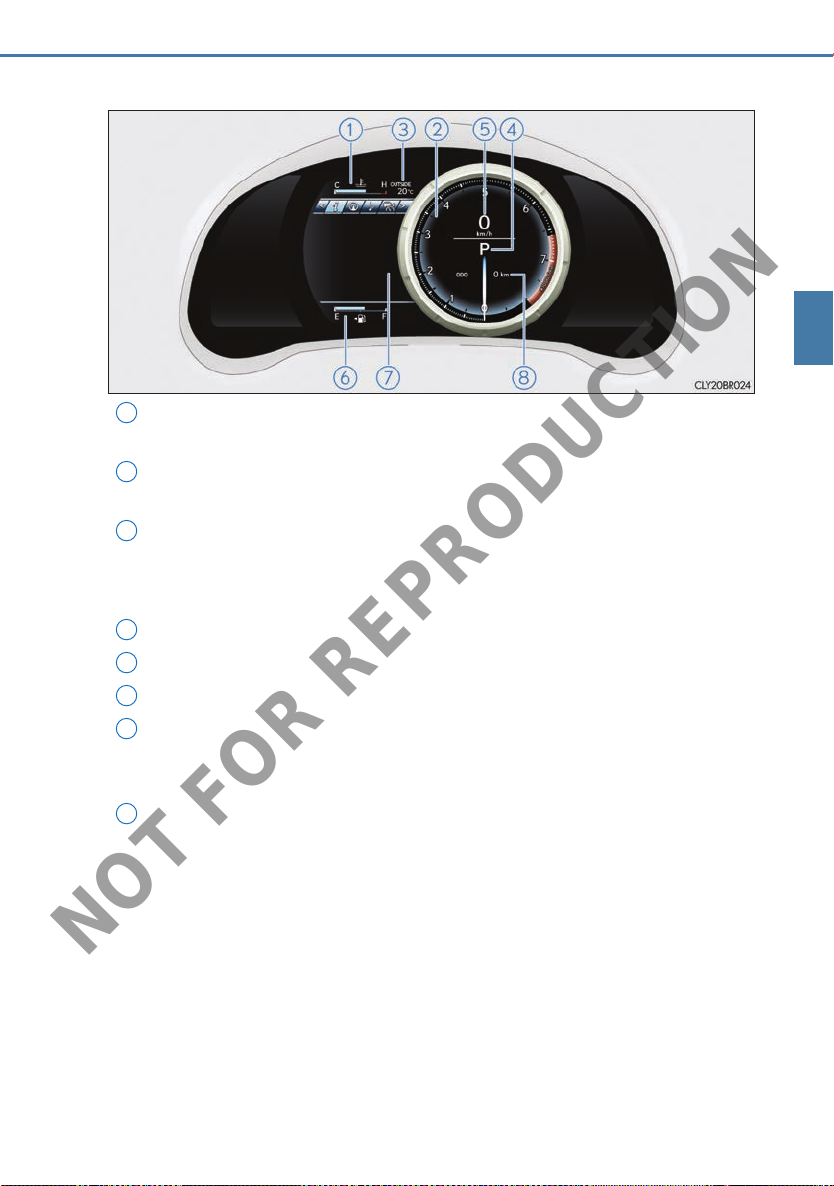

X Main meter moved to the right
1
Engine coolant temperature gauge
Displays the engine coolant temperature
2
Tachometer
Displays the engine speed in revolutions per minute
3
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or lower.
4
Shift position and gear position (→P. 202)
5
Speedometer
6
Fuel gauge
7
Multi-information display
Presents the driver with a variety of vehicle data (→P. 107 )
Displays warning messages in case of a malfunction (→P. 5 04)
8
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr ip me te r:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances independently.
95
2
Instrument cluster
96
NOT FOR REPRODUCTION
2. Instrument cluster

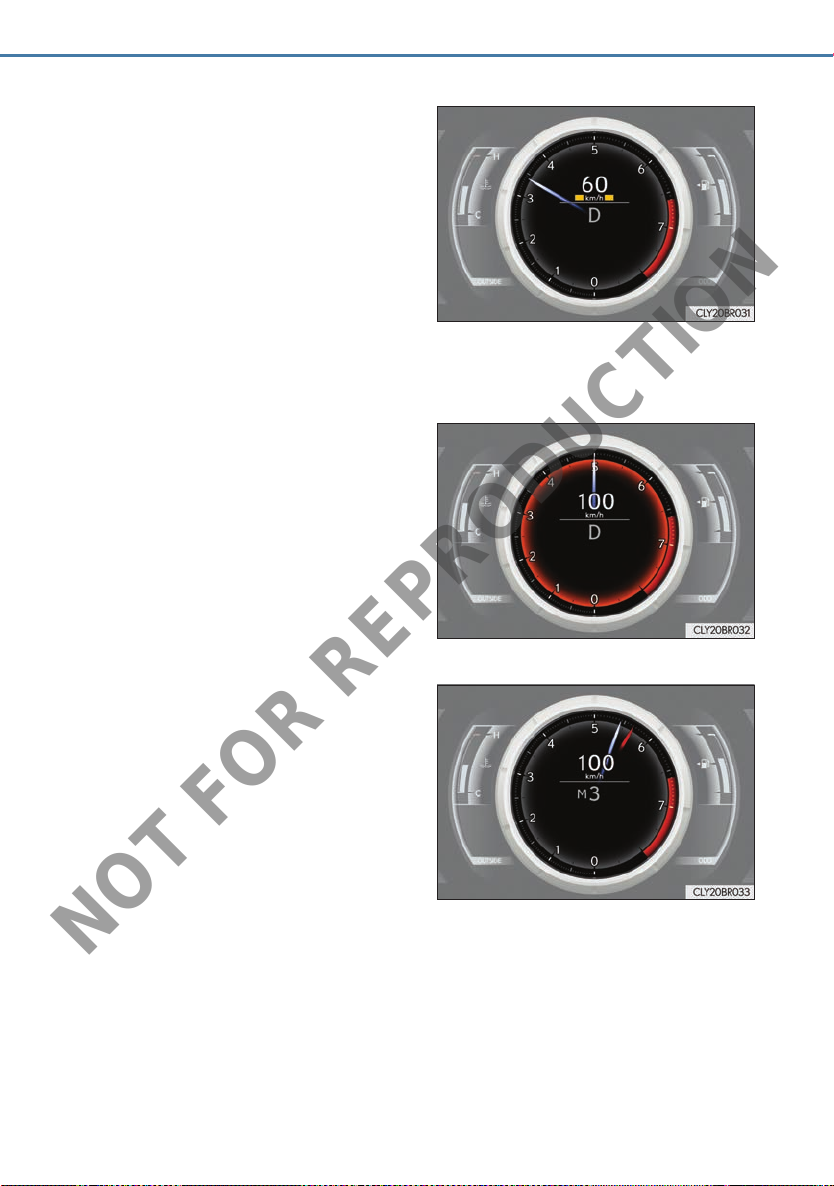

■ Speed indicator (F SPORT models)
When the vehicle reaches a set
speed, indicators will be displayed
on both sides of the displayed speed
unit.
The indicators will be displayed in
yellow (corresponding to a speed set
by a user) or red (fixed at 200 km/h
[125 mph])
This setting can be enabled on the
multi-information display.
*.
*: Always observe the legal speed limit when driving on public roads.
■ Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
■ Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 r/min, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 0.5 seconds.

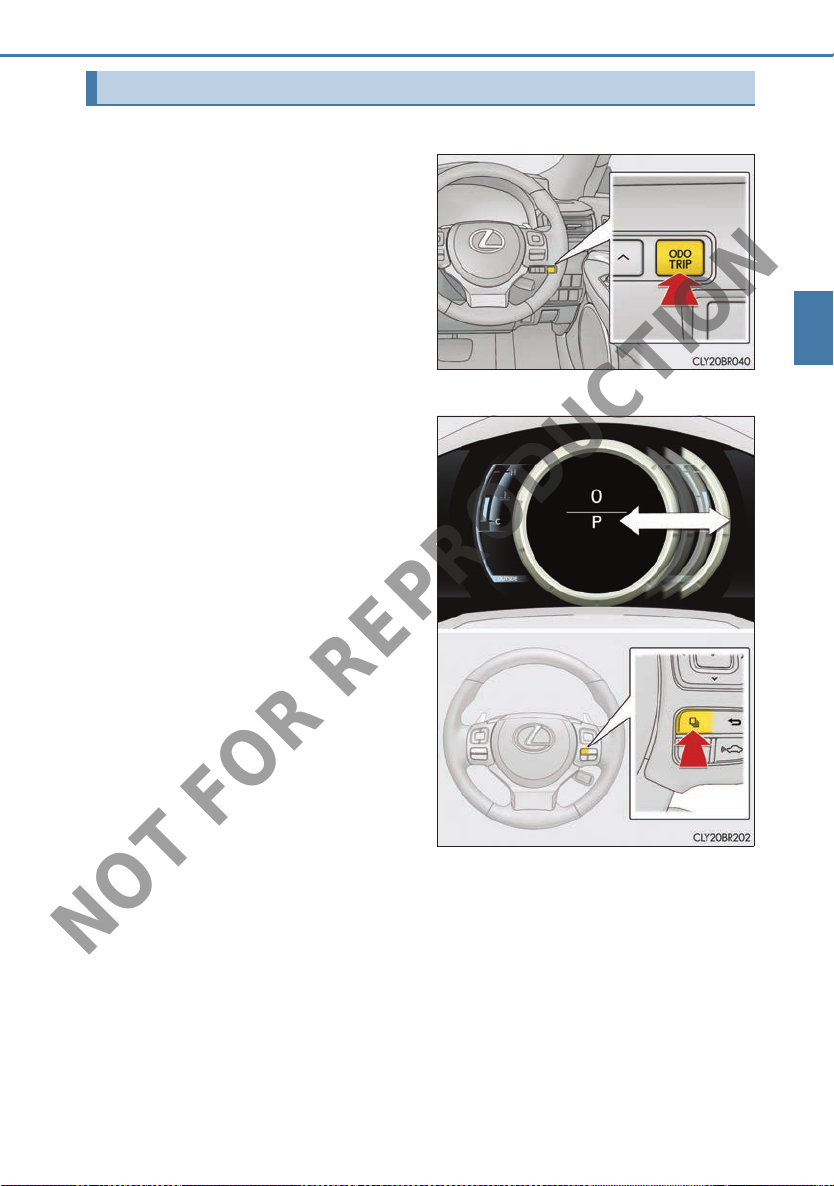

Changing the display
NOT FOR REPRODUCTION
■ Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
2. Instrument cluster
97
2
■ Main meter (F SPORT models)
Moves between center and rightside positions.
Instrument cluster
98
NOT FOR REPRODUCTION
2. Instrument cluster

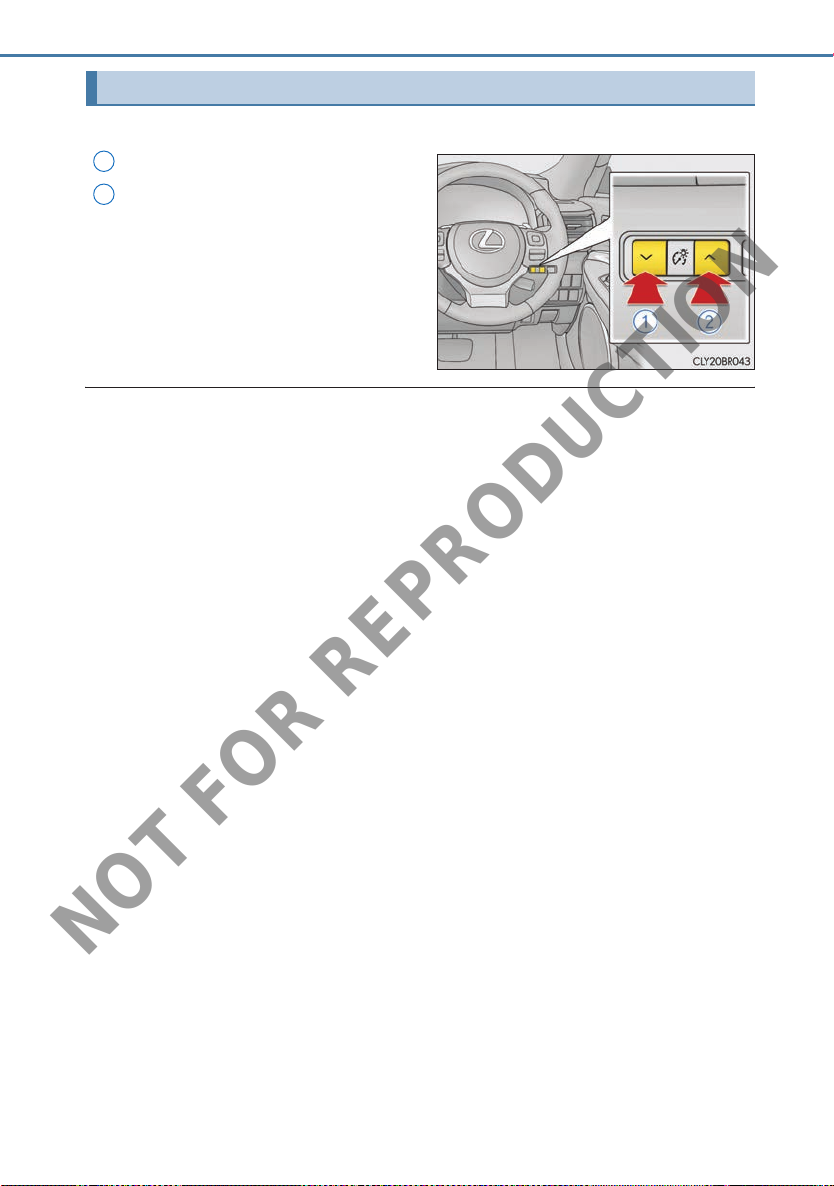

Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
1
Darker
2
Brighter
■ The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■ Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (daytime, etc.), turning on the tail
lights will not change the instrument panel brightness.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
● When “− −” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■ Pop- up di sp la y
● In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display or the odometer/trip meter
screen (F SPORT models only).
● Some pop-up displays can be set on/off. (→P. 11 2)
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■ Customization
The meter display can be customized on the multi-information display. (→P. 1 07 )
