Quick guide

Basic function

Navigation system

• Giving guidance for the route quickly

•Information to be read before operation

• Setting initial settings before operation

• Connecting the Bluetooth

• Operating the map screen

• Searching the map

• Activating the route guidance

device

Audio/visual system

Speech command system

Peripheral monitoring system

Phone

Lexus App Suite

Index

• Listening to the radio

• Enjoying music and video

• Operating the speech command system

• Checking the situation around the vehicle

• Operating the phone

(Hands-free system for cellular phones)

• Operating the Lexus App Suite

• Search alphabetically

TABLE OF CONTENTS

Introduction .......................................................5

Reading this manual....................................... 7

Quick guide

1-1. Basic function

Display and operation switches

................................................................12

Remote Touch....................................14

Menu screen.......................................16

Status icon........................................... 18

“Setup” screen.................................. 20

Information screen ...........................21

1-2. Navigation operation

Operating the map screen ..........22

Guiding the route ............................23

Registering home.............................24

Basic function

2-1. Basic information before opera-

tion

Initial screen ...................................... 28

How to use the touchpad/touch

screen ................................................29

Operating the screen.................... 33

Using side display ........................... 35

Entering letters and numbers/list

screen operation...........................37

Linking multi-information display

and the system............................... 40

2-2. Connectivity settings

Registering/Connecting a

Bluetooth

Setting Bluetooth

device ........................41

details ...........45

Connecting to Miracast

Wi-Fi

...............................................53

via

2-3. Apple CarPlay/Android Auto™

Apple CarPlay/Android Auto...56

2-4. Other settings

General settings...............................63

Voice settings....................................67

Vehicle settings ................................68

Navigation system

3-1. Basic operation

Navigation ..........................................72

Map screen operation...................74

Map screen information ...............78

Traffic information ...........................82

3-2. Destination search

Destination search operation .....84

Starting route guidance ................92

3-3. Route guidance

Route guidance screen .................96

Typical voice guidance prompts

............................................................ 101

Editing route ................................... 102

3-4. Setup

Navigation settings ...................... 105

Detailed navigation settings.......112

Traffic settings ................................ 120

3-5. Tips for the navigation system

GPS (Global Positioning System)

............................................................125

Map database version and covered

area...................................................127

TABLE OF CONTENTS

Audio/visual system

4-1. Basic operation

Quick reference............................130

Some basics...................................... 131

4-2. Radio operation

AM/FM/DAB radio ....................137

4-3. Media operation

CD....................................................... 142

DVD ................................................... 144

USB memory .................................. 147

iPod/iPhone

(Apple CarPlay)......................... 149

Android Auto.................................. 152

Bluetooth

Miracast

audio.......................... 153

........................................ 157

AUX................................................... 159

4-4. Audio/visual remote controls

Steering switches..........................160

4-5. Setup

Audio settings................................. 162

4-6. Tips for operating the audio/visual

system

Operating information................168

Speech command system

5-1. Speech command system opera-

tion

Speech command system .........182

Command list .................................184

Peripheral monitoring system

6-1. Lexus parking assist monitor

Lexus parking assist monitor.... 190

Estimated course line display mode

............................................................193

Parking assist guide line display

mode ................................................194

Distance guide line display mode

............................................................195

Lexus parking assist monitor pre-

cautions...........................................196

Things you should know............. 201

6-2. Panoramic view monitor

Panoramic view monitor........... 203

Checking around the vehicle ..210 Checking the front and around the

vehicle...............................................211

Checking the sides of the vehicle

............................................................214

Checking the rear and around the

vehicle............................................ 220

When folding the outside rear view

mirrors............................................227

Magnifying function.................... 228

Customizing the panoramic view

monitor...........................................229

Panoramic view monitor precau-

tions ................................................ 230

Things you should know..............241

Phone

7-1. Phone operation (Hands-free sys-

tem for cellular phones)

Quick reference............................246

TABLE OF CONTENTS

Some basics.................................... 247

Placing a call using the Bluetooth

hands-free system...................... 251

Receiving a call using the

Bluetooth® hands-free system

........................................................... 254

Talking on the Bluetooth

hands-free system..................... 255

Bluetooth

phone message func-

tion................................................... 257

7-2. Setup

Phone settings................................ 261

7-3. What to do if...

Troubleshooting ...........................270

Lexus App Suite

8-1. Lexus App Suite-overview

Lexus App Suite service............ 276

8-2. Lexus App Suite operation

Lexus App Suite ...........................278

8-3. Setup

Lexus App Suite settings...........282

Index

Alphabetical Index ...................... 284

Introduction

Navigation system owner’s manual

This manual explains the operation of the navigation system. Please read this manual carefully to ensure proper use. Keep this manual in your vehicle at all times.

The screen shots in this document and the actual screens of the navigation system differ depending on whether the functions and/or a contract existed and the map data available at the time of producing this document.

The screens in this manual will also differ if the screen theme settings have been changed. (Theme setting: P.63)

In some situations when changing between screens, it may take longer than normal for the screen to change, the screen may be blank momentarily or noise may be displayed.

Please be aware that the content of this manual may be different from the navigation system in some cases, such as when the system’s software is updated.

The company names and product names appearing on this manual are trademarks and registered trademarks of their respective companies.

Navigation system

The navigation system is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the system indicates your present position and assists in locating a desired destination.

The navigation system is designed to select efficient routes from your present starting location to your destination. The system is also designed to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses TomTom maps. The calculated routes may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calculated routes.

The navigation system’s database includes Point of Interest categories to allow you to easily select destinations such as restaurants and hotels. If a destination is not in the database, you can enter the street address close to it and the system will guide you there.

The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining and the direction to turn in when approaching an intersection. These voice instructions will help you keep your eyes on the road and are

timed to provide enough time to allow you to maneuver, change lanes or slow down.

Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly. The accuracy of the vehicle’s position depends on satellite conditions, road configuration, vehicle condition or other circumstances. For more information on the limitations of the system, refer to page 125.

TOYOTA MOTOR CORPORATION

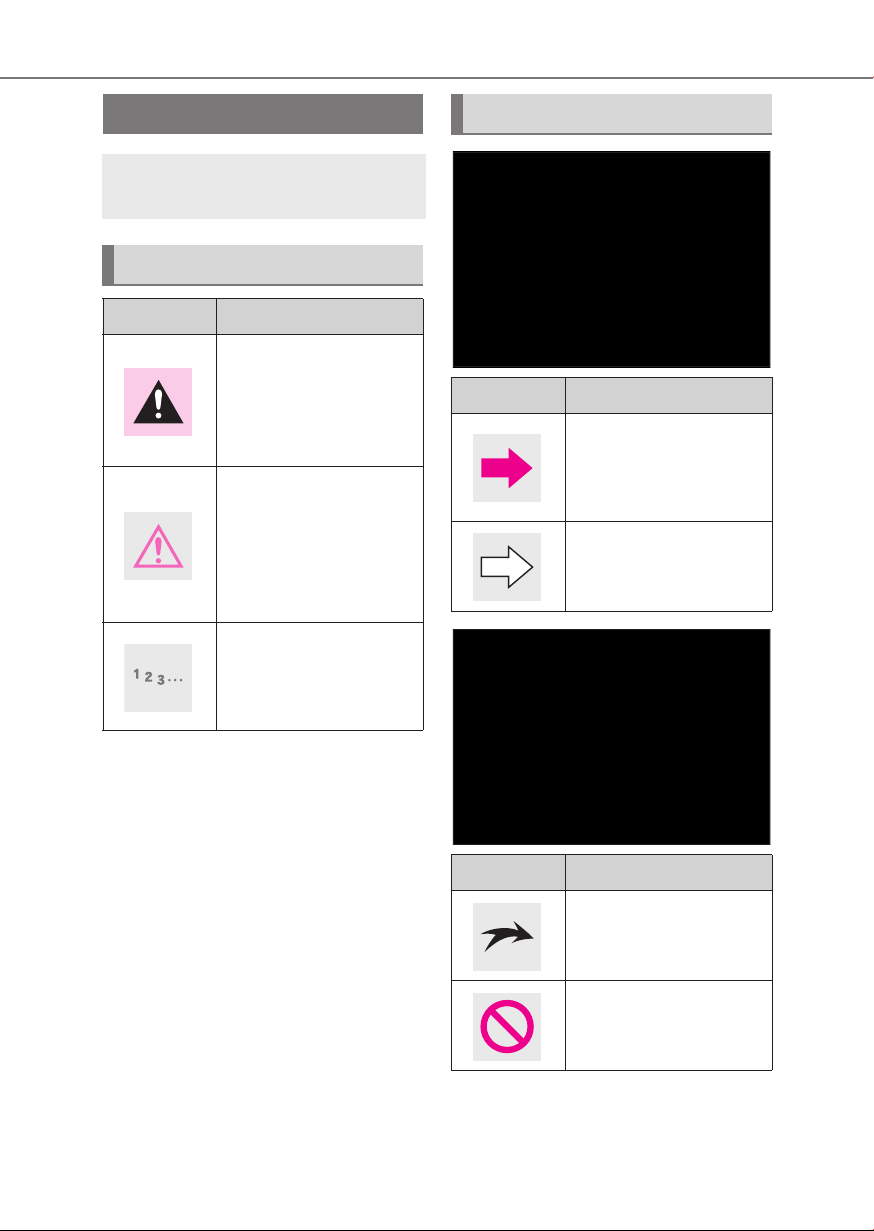

Reading this manual

Explains symbols used in this manual

Symbols in this manual

Symbols Meanings

WARNING: Explains something that, if not obeyed, could cause death or serious injury to people.

NOTICE: Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment.

Indicates operating or working procedures. Follow the steps in numerical order.

Symbols in illustrations

Symbols Meanings

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Symbols Meanings

Indicates the component or position being explained.

Means Do not, Do not do

this, or Do not let this happen.

WARNING

Different writing styles for gasoline and hybrid vehicles

Information for hybrid vehicles is written in brackets next to the information for gasoline vehicles.

Example

Turn the engine switch* switch>* <ON mode>*

to IGNITION ON mode*1

: RX300/RX350/RX350L

:RX450h/RX450hL

<power

Safety instruction

To use this system in the safest possible manner, follow all the safety tips shown below.

This system is intended to assist in reaching the destination and, if used properly, can do so. The driver is solely responsible for the safe operation of your vehicle and the safety of your passengers.

Do not use any feature of this system to the extent it becomes a distraction and prevents safe driving. The first priority while driving should always be the safe operation of the vehicle. While driving, be sure to observe all traffic regulations.

Prior to the actual use of this system, learn how to use it and become thoroughly familiar with it. Read the entire manual to make sure you understand the system. Do not allow other people

to use this system until they have read and understood the instructions in this manual.

For your safety, some functions may become inoperable when driving. Unavailable screen buttons are dimmed. Only when the vehicle is not moving, can the destination and route selection be done.

●

For safety, the driver should not operate the system while he/she is driving. Insufficient attention to the road and traffic may cause an accident.

●

While driving, be sure to obey the traffic regulations and maintain awareness of the road conditions. If a traffic sign on the road has been changed, route guidance may not have the updated information such as the direction of a one way street.

While driving, listen to the voice instructions as much as possible and glance at the screen briefly and only when it is safe. However, do not totally rely on voice guidance. Use it just for reference. If the system cannot determine the current position correctly, there is a possibility of incorrect, late, or non-voice guidance.

The data in the system may occasionally be incomplete. Road conditions, including driving restrictions (no left turns, street closures, etc.) frequently change. Therefore, before following any instructions from the system, look to see whether the instruction can be done safely and legally.

This system cannot warn about such things as the safety of an area, condition of streets, and availability of emergency services. If unsure about the safety of an area, do not drive into it.

Under no circumstances is this system a substitute for the driver’s personal judgement.

Use this system only in locations where it is legal to do so. Some areas may have laws prohibiting the use of navigation screens next to the driver.

Quick guide

1-1. Basic function

Display and operation switches

.............................................................12

Remote Touch.................................14

Menu screen....................................16

Status icon........................................ 18

“Setup” screen............................... 20

Information screen ........................21

1-2. Navigation operation

Operating the map screen .......22

Guiding the route .........................23

Registering home..........................24

Quick guide

1-1.Basic function

1-1. Basic function

Display and operation switches

Names of each part

Display (P.31)

Steering switches (P.160, 182, 249)

Microphone (P.182, 249)

USB/AUX port (P.132)

Touchpad (P.29)

Remote Touch (P.14)

Audio control switch (P.130)

●

When the temperature is -20°C or less, the navigation system may not operate.

●

When the LCD screen is viewed at an angle, it looks lighter or darker.

●

When light from the sun or another external light source strikes the screen, the screen is difficult to see.

●

When wearing sunglasses with polarized lenses, the screen looks lighter or darker.

WARNING

●

NOTICE

For safety reasons, drivers should avoid performing operations as much as possible while driving. Performing operations while driving may cause the driver to mistakenly operate the steering wheel, which may lead to an accident. Stop the vehicle before using. Furthermore, avoid looking at the screen as much as possible while driving.

●

Always follow the actual traffic regulations and drive according to the road conditions. Routes displayed by the destination guidance may include routes where the vehicle is prohibited from entering due to changes to speed limit signs and routes where the road is too narrow to pass through.

●

To prevent the 12-volt battery from becoming fully depleted, do not use the Remote Touch for long periods of time while the engine <hybrid system> is turned off.

1-1. Basic function

Quick guide

Software license for the

12.3-inch display

TOYOTA Free/Open Source Software Website

Some of our products are using the Free/Open Source Software (FOSS).

This web site provides the license information and the source code of FOSS used in such products. Please click the following links to access the information.

http://www.globaldenso.com/en/ opensource/ivi/toyota/

1-1. Basic function

Remote Touch

The navigation system is primarily operated by the Remote Touch.

Remote Touch is the name for the device that includes the “MAP” button, “MENU” button, back button, touchpad and sub function button.

Names and operations of each part

“MAP” button

Press to display the current location. (P.72, 74)

“MENU” button

Press to display the menu screen. (P.16)

Back button

Press to display the previous screen.

Touchpad

Operate to select/confirm a button on the screen. (P.29) Operate to scroll list screens and enlarge/shrink the map. (P.31)

Sub function button

When is displayed on the screen, a function screen assigned to the screen can be displayed. (P.15)

1-1. Basic function

Using the sub function button

Optional functions assigned to the screen can be operated.

1 When the is displayed on the

screen, press the button on the Remote Touch.

2 Select the desired item.

Quick guide

1-1. Basic function

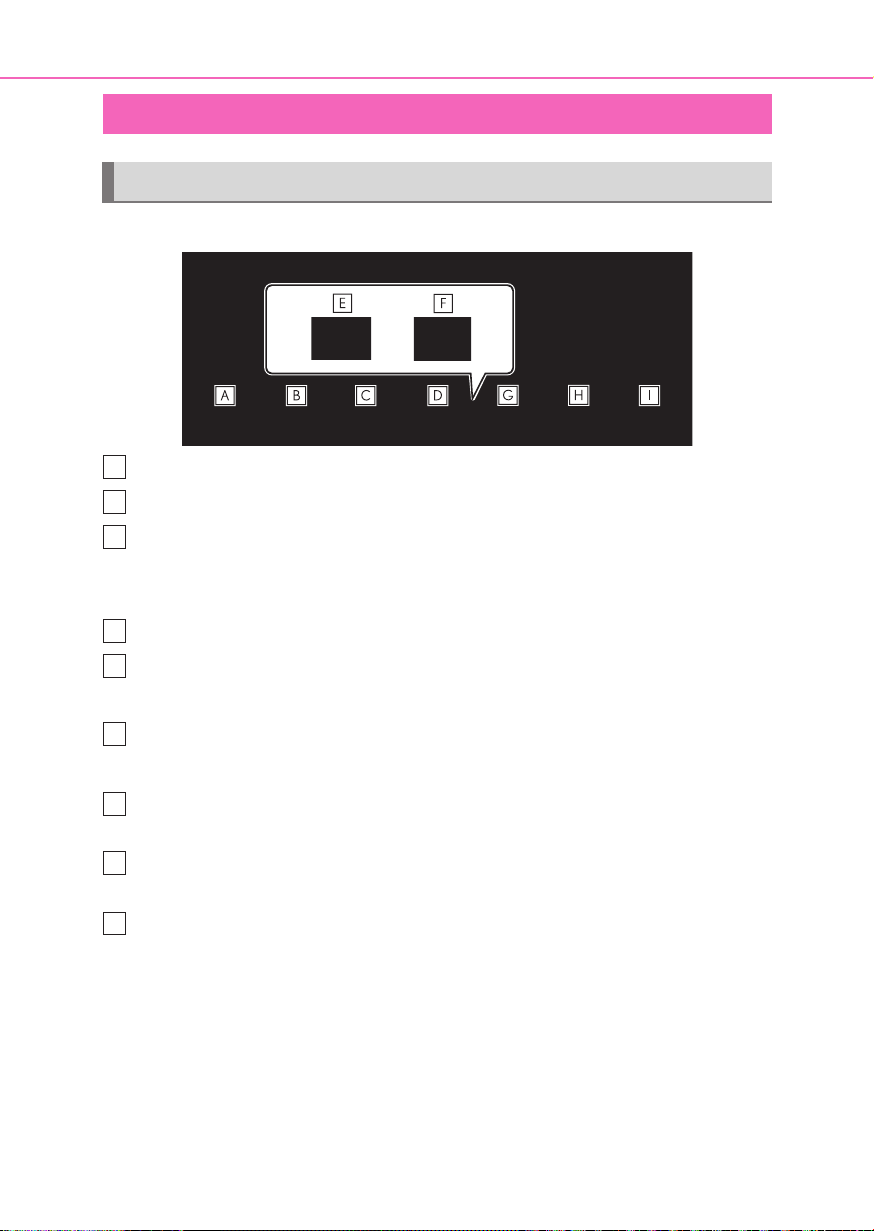

Menu screen

Menu screen operation

Press the “MENU” button on the Remote Touch to display the menu screen.

Select to display the destination screen. (P.84)

Select to display the audio control screen. (P.130)

Select to display the hands-free control screen. (P.246)

When an Apple CarPlay connection is established, select to display the Phone app

screen.*

(P.56)

Select to display the “Apps” screen.*

1, 2

(P.278)

When an Apple CarPlay connection is established and this button is displayed,

select to display the home screen of Apple CarPlay.*

When an Android Auto connection is established and this button is displayed,

select to display the Android Auto screen.*

Select to display the energy monitor*

• Move the cursor over the sub menu icon to display the information screen. (P.21)

Select to display the general settings screen. (P.63)

• Move the cursor over the sub menu icon to display the “Setup” screen.(P.20)

(P.57)

or fuel consumption screen.*

Select to display the air conditioning control screen.*

: This function is not available in some countries or areas.

: When an Apple CarPlay/Android Auto connection is established, this function will be

unavailable.

: Vehicles with hybrid system

: Refer to the “Owner’s Manual”.

(P.56)

1-1. Basic function

How to use “On cursor shortcut”

Moving the cursor over a switch on the menu screen causes shortcut switches to display for that switch.

The shortcut switches can be used to perform operation procedures more quickly.

On cursor shortcut

Quick guide

1-1. Basic function

Status icon

Status icons are displayed at the top of the screen.

Status icon explanation

This status bar is shown on all modes.

The reception level of the connected phone display (P.18)

Remaining battery charge display (P.19)

Bluetooth

condition display (P.19)

Shown during data communication

performed via Miracast

phone connection

(P.18)

Reception level display

The level of reception does not always correspond with the level displayed on the cellular phone. The level of reception may not be displayed depending on the phone you have.

When the cellular phone is out of the service area or in a place inaccessible

by radio waves, is displayed.

“Rm” is displayed when receiving in a roaming area. While roaming, display “Rm” top-left on the icon.

The receiving area may not be displayed depending on the type of

Bluetooth



phone you have.

While connected with cellular phone

Level Indicators

Poor

Excellent



When using Miracast

Level Indicators

No connection

Poor

●

The number of status icons that can be displayed differs depending on the displayed screen.

Excellent

●

When Miracast® fu nctio n is off, no i tem is displayed.

1-1. Basic function

Remaining battery charge display

The amount displayed does not always correspond with the amount displayed

on the Bluetooth

device.

The amount of battery charge left may not be displayed depending on the

type of the Bluetooth

device con-

nected.

This system does not have a charging function.

Remaining charge Indicators

Empty

Low

Full

Bluetooth® connection condition display

Leave the Bluetooth

phone in a place

where the condition of the Bluetooth connection is good.

Indicators Conditions

Indicates that the condition

(Blue)

(Gray)

of the Bluetooth tion is good.

While in this condition, sound quality during phone calls may deteriorate.

Indicates that the cellular phone is not connected via

Bluetooth

connec-

Quick guide

An antenna for the Bluetooth

connection is built into the instrument panel.

The condition of the Bluetooth

connection may deteriorate and the system may not function when a

Bluetooth

phone is used in the fol-

lowing conditions and/or places:

The cellular phone is obstructed by certain objects (such as when it is behind the seat or in the glove box or console box).

The cellular phone is touching or is covered with metal materials.

1-1. Basic function

“Setup” screen

The “Setup” screen can be reached by the following methods:

1 Press the “MENU” button on the

Remote Touch.

2 Select “Setup”.

 Move the cursor over the sub menu

icon to display the “Setup” screen.

3 Select the desired item.

Select to set the voice settings. (P.67)

Select to set vehicle information such as vehicle customization. (P.68)

Select to set memory points (home, favourites entries, areas to avoid), or navigation details. (P.105)

Select to set Wi-Fi

connection

settings. (P.53)

Select to set Lexus App Suite settings.* (P.282)

Select to set traffic information.* (P.120)

: This function is not available in some

countries or areas.

Select to change the operation

sound, etc. (P.63)

Select to set Bluetooth

and Bluetooth

device

system settings.

(P.45)

Select to set audio settings.

(P.162)

Select to set the phone sound, contacts, etc. (P.261)

1-1. Basic function

Information screen

The information screen can be reached by the following methods:

1 Press the “MENU” button on the

Remote Touch.

2 Select “Information”.

 Move the cursor over the sub menu

icon to display the information screen.

3 Select the desired item.

Quick guide

Select to display the energy moni-

tor

or fuel consumption screen.

Select to display traffic informa-

tion.

(P.82)

: Vehicles with hybrid system

: Refer to the “Owner’s Manual”.

: This function is not available in some

countries or areas.

1-2.Navigation operation

1-2. Navigation operation

Operating the map screen

Moving the map screen

Displaying the current position of the vehicle on the map screen

1 Press the “MAP” button on the

Remote Touch.

 The current position of the vehicle is

displayed on the map screen.

1 Select the desired point on the map

screen.

 Move the desired point on the cen-

tre of the map screen.

 Press the “MAP” button on the

Remote Touch to return to the current position.

■

Displaying the map screen

The following operations can also be performed.

 Changing the map direction

(P.76)

 Displaying 3D map (P.75)

 Changing the map colour (P.112)

 Displaying the micro city map

(P.75)

1-2. Navigation operation

Zooming in/out the map Guiding the route

■

Zooming in the map

1 Select or pinch out on the

touchpad of the Remote Touch. (P.74)

■

Zooming out the map

1 Select or pinch in on the

touchpad of the Remote Touch. (P.74)

Setting the destination

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 There are different kinds of meth-

ods to search for a destination. (P.84)

Quick guide

4 Select “Go directly”.

 Check that the route overview is

displayed. (P.93)

5 Select “OK”.

 Selecting routes other than the one

recommended (P.94)

 Guidance to the destination is dis-

played on the screen and can be heard via voice guidance.

1-2. Navigation operation

Deleting destinations Registering home

When route guidance is no longer necessary, such as when you know the rest of the route to your destination, the destination can be deleted.

1 Press the “MAP” button on the

Remote Touch.

2 Select .

Registering home

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 Select “Go home”.

4 Select “Yes”.

5 There are different kinds of meth-

ods to search for your home. (P.84)

6 Select “Enter”.

 If the map screen is not operated for

a certain amount of time, will be hidden. If “Auto hide buttons” on the detailed navigation settings screen

is set to off, will be displayed continuously. (P.112)

3 Select “Yes” when the confirmation

screen appears.

 When more than 1 destination has

been set, a list will be displayed on the screen. Select the item(s) to be deleted.

7 Select “OK”.

 Registration of home is complete.

• Registering home in a different way: P.106

• Editing the name, location and icon: P.106

• Setting home as the destination: P.88

1-2. Navigation operation

Setting home as the destination

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 Select “Go home”.

4 Select “OK”.

 Selecting routes other than the one

recommended (P.94)

 Guidance to the destination is dis-

played on the screen and can be heard via voice guidance.

Quick guide

1-2. Navigation operation

Basic function

2-1. Basic information before opera-

tion

Initial screen ................................... 28

How to use the touchpad/touch

screen .............................................29

Operating the screen................. 33

Using side display ........................ 35

Entering letters and numbers/list

screen operation........................37

Linking multi-information display

and the system............................ 40

2-2. Connectivity settings

Registering/Connecting a

Bluetooth

Setting Bluetooth® details........45

Connecting to Miracast® via

Wi-Fi

2-3. Apple CarPlay/Android Auto

Apple CarPlay/Android Auto

........................................................... 56

2-4. Other settings

General settings........................... 63

Voice settings.................................67

Vehicle settings............................. 68

device .....................41

........................................... 53

Basic function

WARNING

2-1.Basic information before operation

Initial screen

2-1. Basic information before operation

 To register maintenance informa-

tion: P.69

When the engine switch <power switch> is turned to ACCESSORY or IGNITION ON mode <ON mode>, the initial screen will be displayed and the system will begin operating.

Caution screen

After a few seconds, the caution screen will be displayed.

Waiting about 5 seconds or selecting “Continue” switches to the last displayed screen.

●

When the vehicle is stopped with the engine running <hybrid system operating>, always apply the parking brake for safety.

Maintenance information

Restarting the system

When system response is extremely slow, the system can be restarted.

1 Press and hold the “PWR•VOL”

knob for 3 seconds or more.

This system reminds users when to replace certain parts or components and shows dealer information (if registered) on the screen.

When the vehicle reaches a previously set driving distance or date specified for a scheduled maintenance check, the maintenance remainder screen will be displayed when the system is turned on.

 To prevent this screen from being

displayed again, select “Do not tell me again.”.

2-1. Basic information before operation

How to use the touchpad/touch screen

This system can be operated by the touchpad when the engine switch <power switch> is in ACCESSORY or IGNITION ON mode <ON mode>.

Touchpad operation

1 Use the touchpad of the Remote

Touch to select the desired button on the screen.

2 The buttons on the screen can be

selected by either depressing or double tapping on the touchpad. Once a button has been selected, the screen will change.

 When the pointer moves close to a

button, it will automatically snap to

that button and the Remote Touch feedback force (vibration) is generated by the touchpad. This feedback force can be adjusted. (P.63)

●

Perform touchpad operations using a finger. Do not use nails or other objects like pens, etc.

●

Perform pointer movement operations using only one finger. The pointer cannot be operated by using more than one finger.

●

When water or other foreign materials are on the touchpad, a malfunction may occur. In those cases, wipe off the water or foreign materials and wait about 30 seconds before operating the touchpad.

●

In the following cases, there is a possibility that the touchpad may not react normally:

• When wearing gloves, etc.

• When operated with a wet hand.

• When a film, paint-like substance, etc., is on the touchpad.

• When water or other foreign matter is on the touchpad.

• Near a TV tower, electrical power plant, gas station, large display, airport or other facility that generates strong radio waves or electrical noise.

• When wireless devices, such as portable radios and mobile phones are nearby.

• When the following metal items are placed on the touchpad: Coins Keys Metal parts of a wallet or purse A card in which aluminum foil, etc., is attached A box of cigarettes that uses aluminum foil Disposable hand warmers Media such as CD/DVDs, USB cables, etc.

• When the temperature is -20°C or less

●

If a hand or object was placed on the touchpad when the engine switch <power switch> is in ACCESSORY or IGNI-

Basic function

NOTICE

2-1. Basic information before operation

TION ON mode <ON mode>, the touchpad may not react normally. In those cases, remove what was set on the touchpad and operate it after waiting about 30 seconds. If there still no reaction, turn off the engine switch <power switch> and then turn it to ACCESSORY or IGNITION ON mode <ON mode> again.

●

Clean the touchpad frequently, as the reaction of the touch operation may worsen if the touchpad is dirty. In order to prevent malfunctions when cleaning the touchpad, turn the engine switch <power switch> off.

●

Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit cigarettes as doing so may cause damage.

●

Do not subject the Remote Touch to excessive pressure or strong impact as doing so may cause damage.

●

Do not push the touchpad with a strong force or use a sharp pointed object to operate the pad, as it is possible to cause damage.

Touchpad gestures

Operations are performed by touching the touchpad with your finger.

●

Setting for the touchpad, such as movement speed of the pointer, can be changed. (P.63)

Trace

Trace the pad surface while maintaining contact with the touchpad.

 Moving the cursor and the pointer.

Double tap

Tap the touchpad twice, quickly.

 Selecting the button on the screen.

2-1. Basic information before operation

Flick

Quick and long movement along the touchpad with your finger.

 Moving the list screen or map

screen.

●

To move the map, “Map flick” on the detailed navigation settings is required to be “On”. (P.112)

●

The behavior of the flick operation differs depending on whether the vehicle is in motion or parked.

Pinch in/Pinch out*

: The Apple CarPlay Maps app is not

compatible with pinch multi-touch gestures.

Slide fingers toward each other or apart on the touchpad.

Touch screen operation

Operations are performed by touching the touch screen directly with your finger.

Touch

Quickly touch and release once.

 Selecting the button on the screen.

Pinch in/Pinch out*

: The Apple CarPlay Maps app is not

compatible with pinch multi-touch gestures.

Slide fingers toward each other or apart on the screen.

 Changing the scale of the map.

Basic function

 Changing the scale of the map.

●

The button(P.15) and on cursor shortcut button(P.17) cannot be oper-

NOTICE

2-1. Basic information before operation

ated by touching them. Additionally, trace and flick operations cannot be used on the touch screen.

●

To prevent damaging the screen, lightly touch the screen buttons with your finger.

●

Do not use objects other than your finger to touch the screen.

●

If the system does not respond to touching a screen button, move your finger away from the screen and then touch it again.

●

When or is displayed on the screen, select or to

return to the previous screen.

●

In the following situations, the touch screen may become unresponsive or may not function properly:

• When wearing gloves, etc.

• If the screen is touched by a fingernail

• If your palm touches the operable area of another button during operation

• If a screen cover or coating has been applied to the screen

• If the screen is dirty or wet

• Near a TV tower, electrical power plant, gas station, large display, airport or other facility that generates strong radio waves or electrical noise.

•When wireless devices, such as portable radios and mobile phones are nearby.

• If the operable part of a touch screen button is touched by or covered with a metal object, such as the following, it may not operate properly: Coins Keys Metal parts of a wallet or purse A card in which aluminum foil, etc., is attached A box of cigarettes that uses aluminum foil Disposable hand warmers Media such as CD/DVDs, USB cables, etc.

• When the temperature is -20°C or less

●

If the operable part of a touch screen button is wiped, it may operate unintentionally.

●

If a touch screen button is being touched

when the engine switch <power switch> is changed to ACCESSORY or IGNITION ON mode <ON mode>, the button may not operate properly. In this case, remove anything touching the button, turn the engine switch <power switch> to OFF and then turn it to ACCESSORY or IGNITION ON mode <ON mode>, or restart the system by press and hold the “PWR•VOL” knob for 3 seconds or more.

●

Do not use the following liquids to clean the screen, as they may cause discolouration: Organic solutions, such as benzine, gasoline or alcohol, and alkaline solutions.

2-1. Basic information before operation

Operating the screen

The screen can be operated in full screen or split-screen mode.

Split-screen mode can display different information side-by-side.

 When the split-screen is displayed, it is necessary to select the screen you

wish to operate.

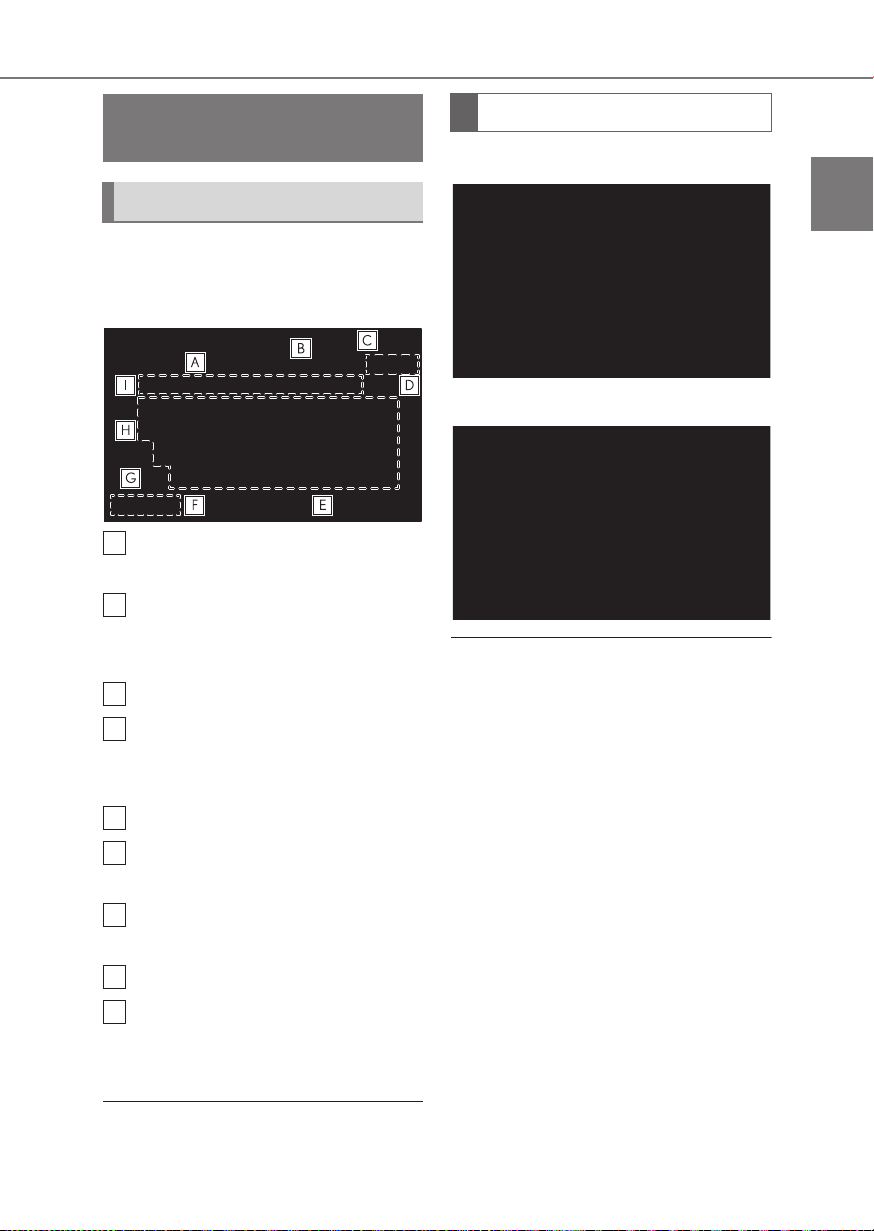

Names and operations of each part

Basic function

Sub menu

Selecting the sub menu item switches the information displayed on the main display. The displayed items differ according to the function.

Main display

For details about the functions and operation of the main display, refer to the respective

section.

The side menu can be displayed by moving the cursor over an icon and selecting the desired screen.

2-1. Basic information before operation

Side display icon

Sub menu icon

Move the cursor over an icon to display its sub menu.

• The sub menu can also be displayed by touching the sub menu icon.

Side display

The following functions can be displayed and operated on the side display.

• Navigation system (P.35)

•Audio (P.36)

• Vehicle information*

• Air conditioning*

: Refer to the “Owner’s Manual”.

2-1. Basic information before operation

Using side display

Switching the side display

To change the screen displayed on the side display, use the screen buttons on the right side of the display.

1 Select the desired button.

Select to display the navigation

screen. (P.35)

Select to display the audio control

screen. (P.36)

Select to display the vehicle infor-

mation screen.*

Select to display the air condition-

ing control screen.*

Select to hide/show the side display.

: Refer to the “Owner’s Manual”.

Navigation system

Basic function

Map scale

1 Select or to change the

scale of the map screen.

Orientation of the map

1 Select , or .

Switching the map mode

1 Select or to change the

map mode.

 For details about the map mode,

refer to “Switching the map mode on the side display”. (P.80)

2-1. Basic information before operation

Editing map

1 Select any point on the side map.

2 Select the desired item.

Select to display POI icons. (P.79)

Select to show traffic information. (P.82)

Audio/visual system

Switching modes

screen.

Select to select a chapter/track/file. Select and hold to fast rewind.

Select to stop the video screen.

Select to play/pause.

Select to select a chapter/track/file.

• During playback: Select and hold to fast forward.

• During a pause: Select and hold to slow forward.

●

Depending on the audio source, some functions may not be available.

1 Select .

2 Select the desired source.

■

Radio operation

On the side display, preset stations or station list can be selected.

■

Media operation

Operations such as selecting a chapter, file or track are carried out on the

2-1. Basic information before operation

Entering letters and numbers/list screen operation

Entering letters and numbers

When searching by an address, name, etc., or entering data, letters and numbers can be entered via the screen.

Text field. Entered character(s) will

be displayed.

Select to erase one character.

Select and hold to continue erasing characters.

Select to move the cursor.

Changing character type

1 Select “Change type”.

2 Select the desired character.

●

Depending on the screen being displayed, it may not be possible to change keyboard characters.

Basic function

Select to display a list of predictive

text candidates when there is more than one. (P.38)

Select to make a space on cursor.

Select to change character types. (P.37)

Select to enter characters in lower case or in upper case.

Select to enter desired characters.

Select to display predictive text

candidates for entered text. (P.38)

●

Keyboard layout can be changed. (P.63)

2-1. Basic information before operation

Displaying predictive text candidates

When text is input, the system predicts the text that may complete the currently unconfirmed text and displays predictive replacement candidates that match the beginning of the text.

1 Input text.

2 Select the desired candidate.

 To select a candidate that is not dis-

played, select , and then select the desired predictive replacement candidate.

List screen

The list screen may be displayed after entering characters. When a list is displayed, use the appropriate screen button to scroll through the list.

Scrolling list screen

Select this part to scroll the list by operating the scroll bar. To release scrolling the list, select the scroll bar again.

Select to scroll the list.

●

Matching items from the database are listed even if the entered address or name is incomplete.

●

The list will be displayed automatically if the maximum number of characters is entered or matching items can be displayed on a single list screen.

●

The number of matching items is shown on the right side of the screen. If the number of matching items is more than 999, the system displays “***” on the screen.

●

It can be performed even if the “Map flick” is set to “Off”. (P.112)

2-1. Basic information before operation

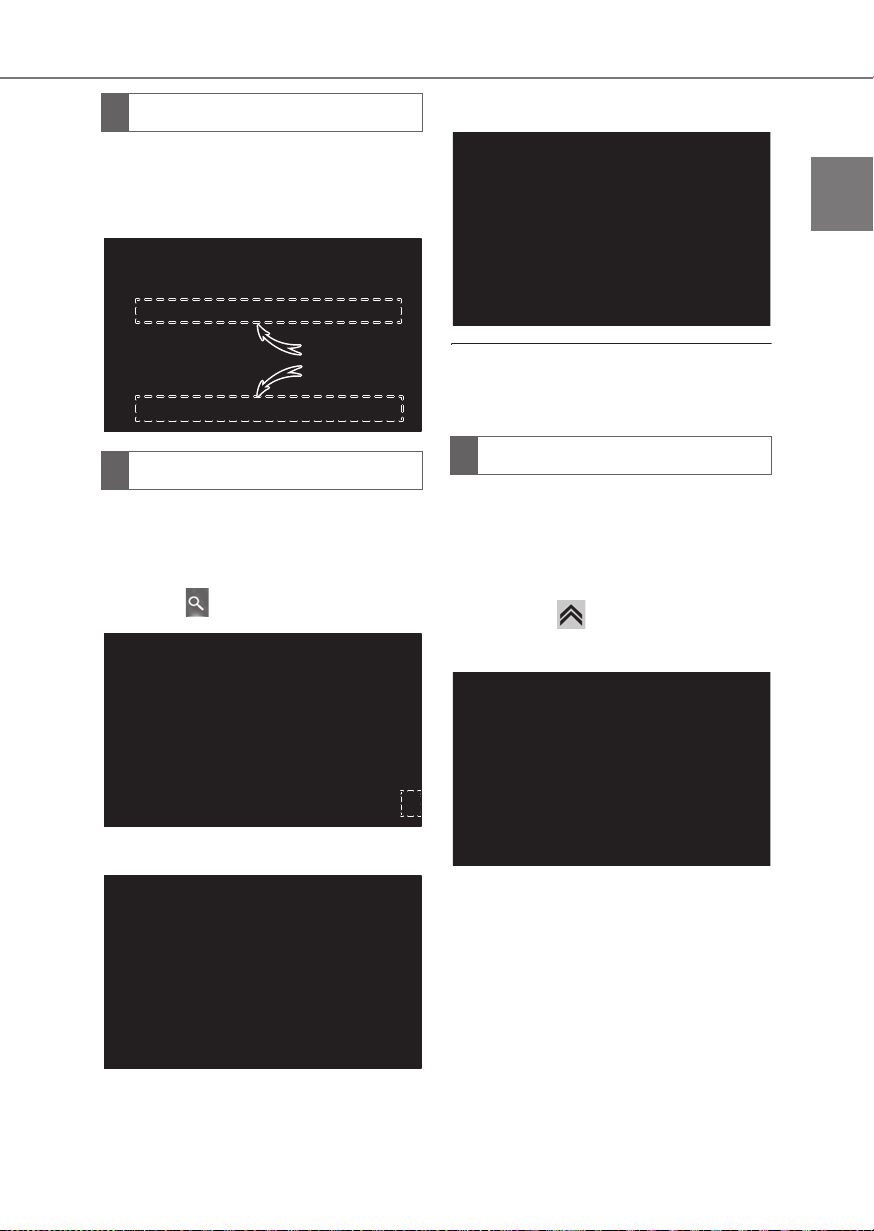

List screen flick operation

The list can be scrolled by flick operation when the cursor is over the top or bottom part of the list.

Searching a list

Items are displayed in the list with the most similar results of the search at the top.

1 Select .

4 The list is displayed.

●

When text is input, a candidate list of items to search for is displayed on the side screen.

Sorting

The order of a list displayed on the screen can be sorted in the order of distance from the current location, date, category, etc.

1 Press the button on the Remote

Touch.

Basic function

2 Input text.

3 Select “Search”.

2 Select the desired sorting criteria.

2-1. Basic information before operation

Linking multi-information display and the system

The following functions of the system are linked with the multi-information display in the instrument cluster:

 Audio

 Phone*

etc.

These functions can be operated using the meter control switches on the steering wheel. For details, refer to “Owner’s Manual”.

: When an Apple CarPlay connection is

established, this function will be unavailable.

2-2.Connectivity settings

Registering/Connecting a Bluetooth

To use the hands-free system, it is necessary to register a Bluetooth

phone with the system.

Once the phone has been registered, it is possible to use the hands-free system.

This operation cannot be performed while driving.

When an Apple CarPlay connection is established, Bluetooth

functions of the system will become unavailable and any connected

Bluetooth

nected.

When connecting to Android Auto, a Bluetooth made automatically.

device

devices will be discon-

connection will be

2-2. Connectivity settings

Registering a Bluetooth® phone for the first time

■

Registering from the navigation

system

1 Turn the Bluetooth

connection

setting of your cellular phone on.

2 Press the “MENU” button on the

Remote Touch.

3 Select “Phone”.

4 Select “Yes” to register a phone.

5 Select the desired Bluetooth

device.

Basic function

When an Android Auto connection is established, some Bluetooth

functions other than hands-free system cannot be used.

: This function is not available in some

countries or areas.

 If the desired Bluetooth

phone is not on the list, select “If you cannot find...” and follow the guidance on the screen. (P.42)

6 Register the Bluetooth

using your Bluetooth

device

device.

2-2. Connectivity settings

 For details about operating the

Bluetooth

device, see the manual

that comes with it.

 A PIN code is not required for SSP

(Secure Simple Pairing) compatible Bluetooth the type of Bluetooth

devices. Depending on

device being connected, a message confirming registration may be displayed on the

Bluetooth

device’s screen.

Respond and operate the Bluetooth

device according to the

confirmation message.

7 Check that the following screen is

displayed, indicating pairing was successful.

 The system is connecting to the reg-

istered device.

 At this stage, the Bluetooth

func-

tions are not yet available.

8 Check that “Connected” is dis-

played and registration is complete.

 If an error message is displayed, fol-

low the guidance on the screen to try again.

●

If a cellular phone does not operate properly after being connected, turn the cellular phone off and on and then connect it again.

■

Registering from phone

When registering from the navigation system is failed, or the phone name doesn’t appear on the registering screen, you need to connect the

Bluetooth

phone manually.

1 Press the “MENU” button on the

Remote Touch.

2 Select “Phone”.

3 Select “Yes” to register a phone.

4 Select “If you cannot find…”.

5 Select “Register from phone”.

6 Register the Bluetooth

using your Bluetooth

device

device.

 For details about operating the

Bluetooth

device, see the manual

that comes with it.

 A PIN code is not required for SSP

2-2. Connectivity settings

(Secure Simple Pairing) compatible Bluetooth the type of Bluetooth

devices. Depending on

device being connected, a message confirming registration may be displayed on the

Bluetooth

device’s screen.

Respond and operate the Bluetooth

device according to the

confirmation message.

7 Check that the following screen is

displayed, indicating pairing was successful.

 The registered device is connecting

to the system.

 At this stage, the Bluetooth

func-

tions are not yet available.

8 Check that “Connected” is dis-

played and registration is complete.

●

If a cellular phone does not operate properly after being connected, turn the cellular phone off and on and then connect it again.

Registering a Bluetooth® audio player for the first time

To use the Bluetooth® audio, it is necessary to register an audio player with the system.

Once the player has been registered, it is possible to use the Bluetooth

audio.

This operation cannot be performed while driving.

For details about registering a Bluetooth

1 Turn the Bluetooth

device: P.48

setting of your audio player on.

 This function is not available when

the Bluetooth

connection setting

of your audio player is set to off.

2 Press the “MENU” button on the

Remote Touch.

connection

Basic function

 If an error message is displayed, fol-

low the guidance on the screen to try again.

3 Select “Audio”.

4 Select “Source” on the sub menu.

2-2. Connectivity settings

5 Select “Bluetooth”.

6 Select “Yes” to register an audio

player.

7 Follow the steps in “Registering a

Bluetooth

phone for the first time”

from step 5. (P.41)

Profiles

This system supports the following services.

• This is a profile to transfer contacts data.

 PBAP (Phone Book Access Profile)

Ver. 1.0 (Recommended: Ver. 1.2)

• This is a profile to transfer phonebook data.

 MAP (Message Access Profile)

Recommended: Ver. 1.2

• This is a profile to use phone message functions.

 SPP (Serial Port Profile) Ver. 1.1

(Recommended: Ver. 1.2)

• This is a profile to use the "Lexus App Suite" and smartphone collaboration function.

 A2DP (Advanced Audio Distribu-

tion Profile) Ver. 1.0 (Recommended: Ver. 1.3)

• This is a profile to transmit stereo audio or high quality sound to the audio/visual system.

 AVRCP (Audio/Video Remote

Control Profile) Ver. 1.0 (Recommended: Ver. 1.6)

• This is a profile to allow remote control the A/V equipment.

■

Bluetooth® Core Specification

 Ver. 2.0 (Recommended: Ver. 4.2)

■

Profiles:

 HFP (Hands Free Profile) Ver. 1.0

(Recommended: Ver. 1.7)

• This is a profile to allow hands-free phone calls using a cellular phone. It has outgoing and incoming call functions.

 OPP (Object Push Profile) Ver. 1.1

(Recommended: Ver. 1.2)

●

This system is not guaranteed to operate with all Bluetooth

●

If your cellular phone does not support HFP, registering the Bluetooth

or using OPP, PBAP, MAP or SPP profiles individually will not be possible.

●

If the connected Bluetooth® device version is older than recommended or

incompatible, the Bluetooth function may not work properly.

devices.

device

phone

●

Certification

2-2. Connectivity settings

Setting Bluetooth® details

Bluetooth is a registered trademark of Bluetooth SIG, Inc.

When an Apple CarPlay connection is established, this function will

be unavailable.

When an Android Auto connection is established, some functions will

be unavailable.

: This function is not available in some

countries or areas.

Displaying the Bluetooth® setup screen

1 Press the “MENU” button on the

Remote Touch.

Basic function

2 Select “Setup”.

3 Select “Bluetooth” on the sub

menu.

4 Select the desired item to be set.

2-2. Connectivity settings

Bluetooth® setup screen

Connecting a Bluetooth® device

device

system

device

and editing the Bluetooth information (P.46, 49)

Registering a Bluetooth (P.48)

Deleting a Bluetooth (P.49)

Setting the Bluetooth

(P.51)

device

3 Select the device to be connected.

“Add”: Registering a Bluetooth® device. (P.48)

“Preferred device settings”: Select to change the automatic connection priority

of the registered Bluetooth (P.51)

“Remove”: Deleting a Bluetooth (P.49)

devices.

device.

 Supported profile icons will be dis-

played.

: Phone

: Audio player

Connecting a Bluetooth® device

Up to 5 Bluetooth

devices (Phones

: Phone/ Lexus App Suite service

 The profile icon for a currently con-

nected device will be displayed in colour.

(HFP) and audio players (AVP)) can be registered.

If more than 1 Bluetooth

device has been registered, select which device to connect to.

1 Display the Bluetooth

setup

screen:

 Selecting a profile icon which is not

currently connected will switch the connection to the function.

 If the desired Bluetooth

device is not on the list, select “Add new device” to register the device. (P.48)

 “MENU” button  “Setup” 

“Bluetooth”

2 Select “Registered device”.

2-2. Connectivity settings

4 Select the desired connection.



When another Bluetooth® device is connected

 To disconnect the Bluetooth

device, select “Yes”.

5 Check that a confirmation screen is

displayed when the connection is complete.

 If an error message is displayed, fol-

low the guidance on the screen to try again.

●

It may take time if the device connection is carried out during Bluetooth

playback.

●

Depending on the type of Bluetooth® device being connected, it may be necessary to perform additional steps on the device.

●

When disconnecting a Bluetooth® device, it is recommended to disconnect using the system.

audio

Connecting a Bluetooth® device in a different way (from phone setup screen)

1 Press the “MENU” button on the

Remote Touch.

2 Select “Setup”.

3 Select “Phone” on the sub menu.

4 Select “Connect phone”.

5 Select desired device name from

the list.

Connecting a Bluetooth

device in a different way (from phone screen)

1 Press the “MENU” button on the

Remote Touch.

2 Select “Phone”.

3 Select “Select device” on the sub

menu.

4 Select desired device name from

the list.

Basic function

2-2. Connectivity settings

Connecting a Bluetooth

device

in a different way (from

Bluetooth

audio screen)

1 Press the “MENU” button on the

Remote Touch.

2 Select “Audio”.

3 Select “Source” on the sub menu.

4 Select “Bluetooth”.

5 Select “Connect” on the sub menu.

6 Select desired device name from

the list.

■

Auto connection mode

To turn auto connection mode on, set “Bluetooth power” to on. (P.51)

Leave the Bluetooth

device in a location where the connection can be established.

 When the engine switch <power

switch> is in ACCESSORY or IGNITION ON mode <ON mode>, the system searches for a nearby registered device.

 The system will connect with the

registered device that was last connected, if it is nearby. When automatic connection priority is set to on and there is more than one regis-

tered Bluetooth

phone available,

the system will automatically connect to the Bluetooth

phone with

the highest priority. (P.51)

■

Connecting manually

When the auto connection has failed or “Bluetooth power” is turned off, it is

necessary to connect Bluetooth

manually.

1 Display the Bluetooth

setup

screen:

 “MENU” button  “Setup” 

“Bluetooth”

2 Follow the steps in “Connecting a

Bluetooth

device” from step 2.

(P.46)

■

Reconnecting the Bluetooth® phone

If a Bluetooth

phone is disconnected

due to poor reception from the Bluetooth

network when the engine switch <power switch> is in ACCESSORY or IGNITION ON mode <ON mode>, the system automatically

reconnects the Bluetooth

phone.

Registering a Bluetooth® device

Up to 5 Bluetooth registered.

Bluetooth

and audio players (AVP) can be registered simultaneously.

This operation cannot be performed while driving.

1 Display the Bluetooth

screen:

 “MENU” button  “Setup” 

“Bluetooth”

2 Select “Add new device”.

devices can be

compatible phones (HFP)

setup

2-2. Connectivity settings



When another Bluetooth® device is connected

 To disconnect the Bluetooth

device, select “Yes”.



When 5 Bluetooth® devices have already been registered

 A registered device needs to be

replaced. Select “Yes”, and select the device to be replaced.

3 Follow the steps in “Registering a

Bluetooth

phone for the first time”

from step 5. (P.41)

Deleting a Bluetooth® device

This operation cannot be performed while driving.

1 Display the Bluetooth

screen:

 “MENU” button  “Setup” 

“Bluetooth”

2 Select “Remove device”.

3 Select the desired device.

setup

5 Check that a confirmation screen is

displayed when the operation is complete.

●

When deleting a Bluetooth® phone, the contact data will be deleted at the same time.

Editing the Bluetooth® device information

The Bluetooth® device’s information can be displayed on the screen. The displayed information can be edited.

This operation cannot be performed while driving.

1 Display the Bluetooth

screen:

 “MENU” button  “Setup” 

“Bluetooth”

2 Select “Registered device”.

3 Select the desired device to be

edited.

4 Select “Device info”.

setup

Basic function

4 Select “Yes” when the confirmation

screen appears.

2-2. Connectivity settings

5 Confirm and change the

Bluetooth

The name of the Bluetooth

device information.

is displayed. It can be changed to a desired name. (P.50)

Select to set the Bluetooth

player connection method. (P.50)

device

audio

tered with the same device name, the devices can be distinguished referring to the device’s address.

●

Depending on the type of Bluetooth® phone, some information may not be displayed.

Changing a device name

1 Select “Device name”.

2 Enter the name and select “OK”.

●

Even if the device name is changed, the name registered in your Bluetooth

device does not change.

Setting audio player connection method

1 Select “Connect audio player

from”.

2 Select the desired connection

method.

Device address is unique to the

device and cannot be changed.

Phone number is unique to the

Bluetooth changed.

Select to set smartphone collabo-

ration on/off.

Compatibility profile is unique to

Bluetooth changed.

phone and cannot be

device and cannot be

“Vehicle”: Select to connect the audio player from the vehicle's audio/visual system.

“Device”: Select to connect the vehicle's audio/visual system from the audio player.

 Depending on the audio player, the

“Vehicle” or “Device” connection method may be best. As such, refer

Select to reset all setup items.

to the manual that comes with the audio player.

●

If 2 Bluetooth® devices have been regis-

2-2. Connectivity settings

“Detailed settings” screen

The Bluetooth® settings can be confirmed and changed.

1 Display the Bluetooth

screen:

 “MENU” button  “Setup” 

“Bluetooth”

2 Select “Detailed settings”.

3 Select the desired item to be set.

Select to set Bluetooth

tion on/off. (P.51)

Select to change the automatic

connection priority of the registered Bluetooth

Select to edit the system informa-

tion. (P.52)

setup

connec-

devices. (P.51)

Changing “Bluetooth power”

1 Select “Bluetooth power”.

When “Bluetooth power” is on: The Bluetooth

device is automatically connected when the engine switch <power switch> is in ACCESSORY or IGNITION ON mode <ON mode>.

When “Bluetooth power” is off: The Bluetooth

device is disconnected, and the system will not connect to it next time.

●

While driving, the auto connection state can be changed from off to on, but cannot be changed from on to off.

Setting automatic connection priority

The automatic connection priority of the registered Bluetooth

devices can

be changed.

1 Select “Preferred device settings”.

2 Select the desired item to be set.

Basic function

Select to reset all setup items.

Select to set automatic connection priority on/off.

Select to change the automatic connection priority of the regis-

tered Bluetooth

phones. (P.52)

2-2. Connectivity settings

Select to change the automatic

connection priority of the registered Bluetooth

audio players.

(P.52)

Select to reset all setup items.

■

Changing phone automatic connection priority

1 Select “Preferred phones”.

2 Select the desired Bluetooth

device and select “Move up” or “Move down” to change the preferred order.

will automatically be given the highest automatic connection priority.

Editing the system information

1 Select “System information”.

2 Select the desired item to be set.

■

Changing audio player automatic connection priority

1 Select “Preferred audio players”.

2 Select the desired Bluetooth

device and select “Move up” or “Move down” to change the preferred order.

Displays system name. Can be changed to a desired name. (P.53)

PIN code used when the Bluetooth

device was registered. Can be changed to a desired code. (P.53)

Device address is unique to the device and cannot be changed.

Select to set the connection status display of the phone on/off.

Select to set the connection status display of the audio player on/off.

Compatibility profile of the system

●

A newly registered Bluetooth® device

Select to reset all setup items.

■

Editing the system name

1 Select “System name”.

2 Enter a name and select “OK”.

■

Editing the PIN code

1 Select “System PIN code”.

2 Enter a PIN code and select “OK”.

2-2. Connectivity settings

Connecting to Miracast® via

Wi-Fi

Using the Wi-Fi® function, this system can connect to Miracast

. But this function is not for connecting to internet. It’s only for connecting to

Miracast

Displaying the Wi-Fi® settings screen

1 Press the “MENU” button on the

Remote Touch.

Basic function

2 Select “Setup”.

3 Select “Wi-Fi*” on the sub menu.

4 Select the desired items to be set.

:Wi-Fi® is a registered trademark of

Wi-Fi Alliance

WARNING

2-2. Connectivity settings

Wi-Fi® settings screen

Select to turn the Wi-Fi® function

on/off. (P.54)

Displays status of the Miracast connection.

“On”: Connecting “Off”: Not connecting

• Miracast

only for Miracast

status should be displayed

supported models.

Turning Wi-Fi® function on/off

1 Display the Wi-Fi® settings screen:

 “MENU” button  “Setup” 

“Wi-Fi

”

2 Select “Wi-Fi

power”.

 Each time it is selected, the “Wi-Fi

power” is turned on/off.

:Wi-Fi® is a registered trademark of

Wi-Fi Alliance

Wi-Fi® function operating hints

●

If the vehicle is near a radio antenna, radio station or other source of strong radio waves and electrical noise, communication may be slow or impossible.

●

Use Wi-Fi® devices only when safe and legal to do so.

●

Your audio unit is fitted with Wi-Fi® antennas. People with implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should maintain a reasonable distance between themselves and

the Wi-Fi The radio waves may affect the operation of such devices.

●

Before using Wi-Fi® devices, users of any electrical medical device other than implantable cardiac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

antennas.

Conditions displayed with Wi-Fi® icon

2-2. Connectivity settings

Reception level appears on the right upper side of the screen. (P.18)

Specifications

 Communication standards

IEEE 802.11b IEEE 802.11g IEEE 802.11n (2.4 GHz)

 Security

WPA2™

• WPA2™ is a trademark of Wi-Fi

Alliance

Basic function

2-3.Apple CarPlay/Android Auto

2-3. Apple CarPlay/Android Auto

Apple CarPlay/Android

Auto

Establishing an Apple CarPlay connection

: This function is not available in some

countries or areas.

Apple CarPlay/Android Auto allows some applications, such as Map, Phone, and Music, to be used on the system.

When an Apple CarPlay/Android Auto connection is established, Apple CarPlay/Android Auto compatible applications will be displayed on the system display.

 Compatible devices

Apple iPhone (iOS Ver. 11 or later) that supports Apple CarPlay.

For details, refer to https://www.apple.com/ios/

carplay/.

Android™ devices with Android OS ver 5.0 or higher which support Android Auto and have the Android Auto application installed.

For details, refer to https://www.android.com/auto/

: Some devices may not operate with

this system.

1 Enable Siri on the device to be con-

nected.

2 Connect the device to the USB

port. (P.132)

3 Select “Always enable” or “Enable

once”.

 If “Do not enable” is selected, an

Apple CarPlay connection will not be established. In this case, the device can be operated as a normal Apple device, such as an iPod. Apple CarPlay will remain off until “Apple CarPlay” of “Projection settings” on the general settings screen is turned on. (P.63)

 Depending on the device con-

nected, it may take approximately 3 to 6 seconds before the system returns to previous screen.

 The screen may change to “step 6”

depending on the system.

4 Press the “MENU” button on the

Remote Touch.

5 Select “Apple CarPlay”.

2-3. Apple CarPlay/Android Auto

6 Check that home screen of Apple

CarPlay is displayed.

Select to display the system screen.

Select to start the application. User can use any iPhone application supported by Apple CarPlay.

Select to display the home screen

of Apple CarPlay. Select and hold to activate Siri.

Establishing an Android Auto connection

1 Check that the Android Auto appli-

cation is installed to the device to be connected.

2 Connect the device to the USB

port. (P.132)

3 Select “On” to enable the function.

 “Off”: Select to not enable Android

Auto. Android Auto will remain off until “Android Auto” of “Projection settings” on the general settings screen is turned on. (P.63)

 Depending on the device con-

nected, it may take approximately 3 to 6 seconds before the system returns to previous screen.

 The screen may change to “step 6”

depending on the system.

4 Press the “MENU” button on the

Remote Touch.

5 Select “Android Auto”.

6 Check that Android Auto screen is

displayed.

●

When an Apple CarPlay/Android Auto connection is established, the function of some system buttons will change.

●

When an Apple CarPlay/Android Auto connection is established, some system functions, such as the following, will be replaced by similar Apple CarPlay/ Android Auto functions or will become unavailable:

• iPod (Audio Playback)

• USB audio/USB video

• Bluetooth

• Lexus App Suite

●

When an Android Auto connection is established while using Miracast Miracast

●

When an Apple CarPlay/Android Auto connection is established, speech command system (Siri/Google Assistant) and map application voice guidance volume can be changed by selecting “Voice volume” on the voice settings screen. (P.67) It cannot be changed by “PWR•VOL” knob on Audio control panel.

●

Apple CarPlay/Android Auto is an application developed by Apple Inc/Google

audio

phone (Apple CarPlay only)

may become unavailable.

Basic function

WARNING

2-3. Apple CarPlay/Android Auto

LLC. Its functions and services may be terminated or changed without notice depending on the connected device’s operation system, hardware and software, or due to changes in Apple CarPlay/Android Auto specifications.

●

For a list of the apps supported by Apple CarPlay or Android Auto, refer to their respective website.

●

While using these functions, vehicle and user information, such as location and vehicle speed, will be shared with the respective application publisher and the cellular service provider.

●

By downloading and using each application, you agree to their terms of use.

●

Data for these functions is transmitted using the internet and may incur charges. For information about data transmission fees, contact your cellular service provider.

●

Depending on the application, certain functions, such as music playback, may be restricted.

●

As the applications for each function are provided by a third-party, they may be subject to change or discontinuation without notice. For details, refer to the website of the function.

●

If the vehicle’s navigation system is being used for route guidance and a route is set using the Apple CarPlay/Android Auto Maps app, route guidance will be performed through Apple CarPlay/Android Auto. If the Apple CarPlay/Android Auto Maps app is being used for route guidance and a route is set using the vehicle’s navigation system, route guidance will be performed by the vehicle’s navigation system.

●

If the USB cable is disconnected, operation of Apple CarPlay/Android Auto will end. At this time, sound output will stop and change to the system screen.

●

Use of the Apple CarPlay logo means that a vehicle user interface meets Apple performance standards. Apple is not responsible for the operation of this vehicle or its compliance with safety and regulatory standards. Please note that the use of this product with iPhone or iPod may affect wireless performance.

●

Apple CarPlay is a trademark of Apple Inc.

●

Compatible models

Made for

•iPhone X

•iPhone 8

• iPhone 8 Plus

•iPhone 7

• iPhone 7 Plus

•iPhone SE

•iPhone 6s

• iPhone 6s Plus

•iPhone 6

•iPhone 6 Plus

•iPhone 5s

•iPhone 5c

•iPhone 5

●

Android and Android Auto are trademarks of Google LLC.

●

Do not connect smartphone or operate the controls while driving.

NOTICE

●

Do not leave your smartphone in the vehicle. In particular, high temperatures inside the vehicle may damage the smartphone.

●

Do not push down on or apply unnecessary pressure to the smartphone while it is connected as this may damage the smartphone or its terminal.

●

Do not insert foreign objects into the port as this may damage the smartphone or its terminal.

2-3. Apple CarPlay/Android Auto

Basic function

2-3. Apple CarPlay/Android Auto

Troubleshooting

If you are experiencing difficulties with Apple CarPlay/Android Auto, check the following table.

Symptom Solution

Check if the device supports Apple CarPlay/Android Auto. Check if Apple CarPlay/Android Auto is enabled on the connected device. Check if that the Android Auto application is installed to the device to be connected. For details, refer to Apple CarPlay: https://www.apple.com/ios/carplay/ Android Auto: https://www.android.com/auto/

An Apple CarPlay/Android Auto connection cannot be established.

For available countries or areas for Apple CarPlay, refer to https://www.apple.com/ios/feature-availability/ #apple-carplay.

Check if “Apple CarPlay”/“Android Auto” of “Projection settings” on the general settings screen is set to on. (P.63)

When an Apple CarPlay/ Android Auto connection is established and a video is being played, the video is not displayed, but audio is output through the system.

Check if the USB cable being used is securely connected to the device and USB port. Check that the device is connected directly to the USB port of the system and not connected to a USB hub. For Apple CarPlay: Check if the Lightning cable being used is certified by Apple. Check if Siri is enabled.

After checking all of the above, try to establish an Apple CarPlay/Android Auto connection. (P.56, 57)

As the system is not designed to play video through Apple CarPlay/Android Auto, this is not a malfunction.

Symptom Solution

Although an Apple CarPlay/ Android Auto connection is established, audio is not output through the system.

The Apple CarPlay/Android Auto screen has artifacts and/or audio from Apple CarPlay/Android Auto has noise.

The map display of the Apple CarPlay Maps app (Apple Maps) cannot be enlarged or contracted with pinch multi-touch gestures.

The Apple CarPlay screen is only displayed in the centre of the 12.3-inch display and does not take up the entire screen.

2-3. Apple CarPlay/Android Auto

The system may be muted or the volume may be low. Increase the system volume.

Check if the USB cable being used to connect the device to the system is damaged. To check if the USB cable is damaged internally, connect the device to another system, such as a PC, and check if the device is recognized by the connected system. (The device should begin charging when connected.)

After checking all of the above, try to establish an Apple CarPlay/Android Auto connection. (P.56, 57)

As the Apple CarPlay Maps app (Apple Maps) is not compatible with pinch multi-touch gestures, this is not a malfunction.

The 12.3-inch display is supported by iOS Ver. 10 and later. Update to the latest iOS version.

Basic function

The touchpad does not vibrate on the Apple CarPlay screen.

During Apple CarPlay music application (Apple Music, Spotify, etc.) playback, if the iPhone is operated to start and play audio from an application that is not compatible with Apple

CarPlay device volume is changed, the audio of the incompatible application stops and the system resumes playback of the original music application.

and the onboard

Vibration feedback is supported by iOS Ver. 11 and later. Update to the latest iOS version.

This operation is performed according to the specification of the onboard device, this is not a malfunction.

2-3. Apple CarPlay/Android Auto

Symptom Solution

After interrupt audio (such as navigation route guidance) is played from an application that is not compatible with Apple CarPlay while the onboard device is playing audio (FM/AM, CD, etc.), the system does not resume playback of the original audio (FM/AM, CD,

This operation is performed according to the specification of the onboard device, this is not a malfunction. Manually change the audio source by yourself. Or, do not use applications that are not compatible with Apple

CarPlay.

Due to some navigation applications are compatible from iOS 12, update to the latest iOS and application versions.

etc.).

When using Apple CarPlay, route guidance arrows and turn by turn navigation are not displayed on the multi-information display and system display. When using Android Auto, turn

This is not a malfunction as display of these items is not possible with this function.

by turn navigation is not displayed on the multi-information display and system display.

Disconnect the phone from the USB cable and check if hands-free call audio can be heard using the hands-free

When using Android Auto, hands-free call audio cannot be heard from the vehicle’s speakers.

system.

Connect the phone to the system using Android Auto, turn up the volume on the system and check if hands-free call audio can be heard. Check if other sounds can be heard from the vehicle’s speakers.

: Applications not compatible with Apple CarPlay are applications installed on the iPhone

that are not displayed on the Apple CarPlay screen application list. (such as visual voicemail)

2-4.Other settings

General settings

2-4. Other settings

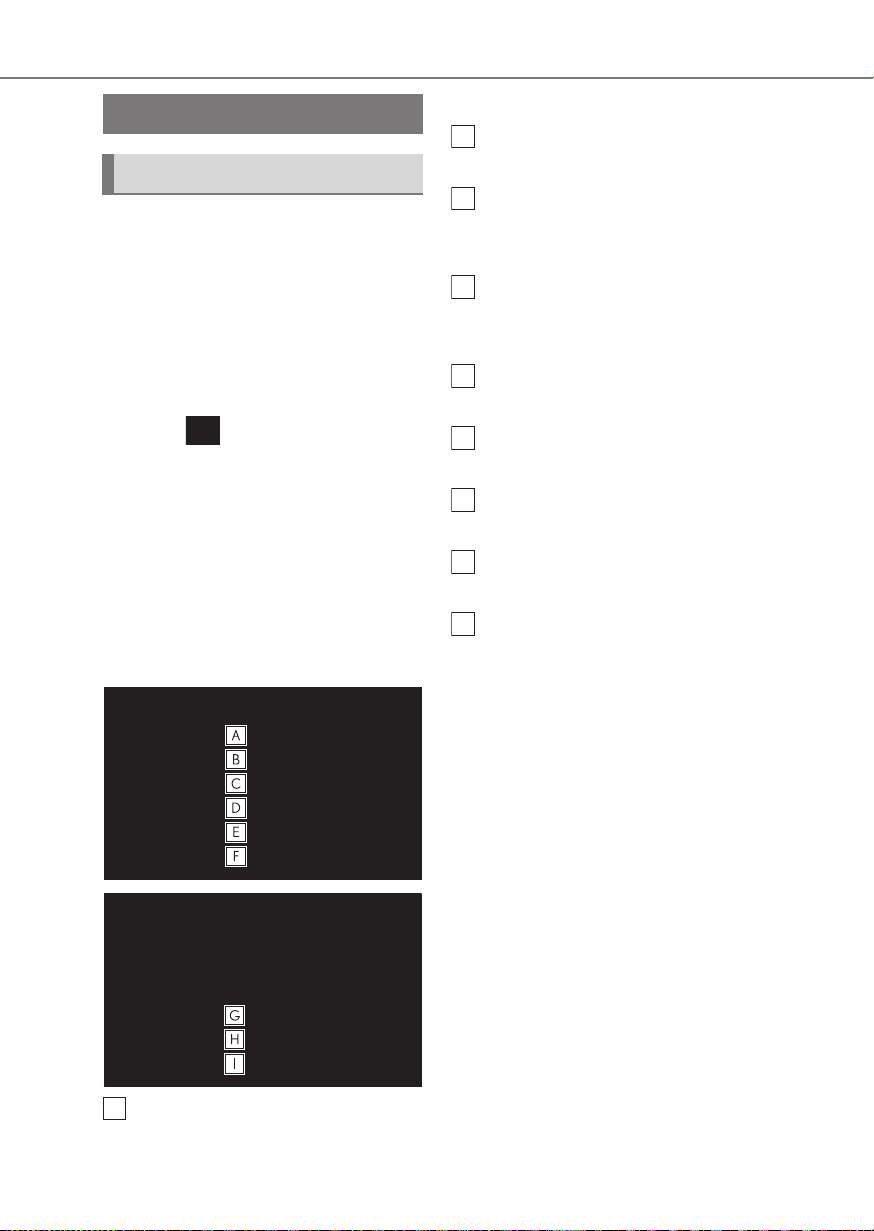

General settings screen

Settings are available for automatic screen change, operation sounds, etc.

Displaying the general settings screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Setup”.

 If the general settings screen is not

displayed, select “General”.

3 Select the desired items to be set.

 “Clock”

Select to change the time zone, set the daylight saving time on/off and set the automatic adjustment of the clock on/off. (P.64)

 “Display”

Select to adjust the contrast and brightness of the screens, turn the screen off, etc. (P.65)

 “Projection settings”

Select to set automatic Apple CarPlay/ Android Auto connection establishment on/off. (P.66)

 “Theme settings”

Select to change the screen theme setting.

 “Units of measurement”

Select to change the unit of measure for distance/fuel consumption.

 “Auto change to screen”

Select to set automatic screen changes from the audio/air conditioning control screen to the map screen to on/off. When set to on, the screen will automatically return to the map screen from the audio/air conditioning control screen after 20 seconds.

 “Selection sound”

Select to set the selection sounds on/off.

 “Pointer sound”

Select to set the pointer sounds on/off.

 “Error sound”

Select to set the error sounds on/off.

 “Pointer sound volume”

Select to adjust the pointer sound volume.

Basic function

2-4. Other settings

 “Feedback force”

Select to adjust the level of the feedback force (vibration) to the touchpad, when selecting a screen button.

 “Cursor speed”

Select to adjust the pointer speed.

 “Multi-touch command”

Select to set the multi-touch command on/off.

 “Keyboard layout”

Select to change the keyboard layout.

 “Delete keyboard history”

Select to delete the keyboard history.

 “Memorise keyboard history”

Select to set the memorize keyboard history on/off.

 “Delete search history”

Select to delete the search history.

 “Delete personal data”

Select to delete personal data. (P.66)

 “Software update”

Select to update software versions. For details, contact your Lexus dealer.

 “Software information”

Select to display the software information. Notices related to third party software used in this product are enlisted. (This includes instructions for obtaining such software, where applicable.)

: This function is not available in some

countries or areas.

Clock settings

Used for changing the time zone and setting of daylight saving time and automatic time adjustment on/off.

1 Display the general settings screen:

 “MENU” button  “Setup” 

“General”

2 Select “Clock”.

3 Select the desired items to be set.

Select to change the time zone. (P.64)

Select to set daylight saving time on/off.

Select to set automatic adjustment of the clock by GPS on/off. When set to off, the clock can be manually adjusted. (P.65)

Setting the time zone

1 Select “Time zone”.

2 Select the desired time zone.

 If “Other” is selected, the zone can

be adjusted manually. Select “+” or “-” to adjust the time zone.

2-4. Other settings

Manual clock setting

When “Auto adjust by GPS” is turned “Off”, the clock can be manually adjusted.

1 Select the desired item.

Select “+” to set the time forward

one hour and “-” to set the time back one hour.

Select “+” to set the time forward one minute and “-” to set the time back one minute.

Select to round to the nearest hour.

e.g.

1:00 to 1:29  1:00

1:30 to 1:59  2:00

Display settings (screen adjustment)

The contrast and brightness of the screen display and the image of the camera display can be adjusted. The screen can also be turned off, and/or changed to either day or night mode. (For information regarding audio/visual screen adjustment: P.134)

1 Display the general settings screen:

 “MENU” button  “Setup” 

“General”

2 Select “Display”.

3 Select the desired items to be set.

Select to turn the screen off. To turn it on, press any button on the audio control switch or on the Remote Touch.

Basic function

Select to turn day mode on/off. (P.66)

Select to adjust the screen display. (P.66)

Select to adjust the camera display. (P.66)

2-4. Other settings

Changing between day and night mode

Depending on the position of the headlight switch, the screen changes to day or night mode. This feature is available when the headlight is switched on.

1 Select “Day mode”.

●

If the screen is set to day mode with the headlight switch turned on, this condition is memorized even with the engine <hybrid system> turned off.

Adjusting the contrast/brightness

The contrast and brightness of the screen can be adjusted according to the brightness of your surroundings.

1 Select “General” or “Camera”.

2 Select the desired item.

 “Display (General)” screen only:

Select or to select the desired display.

 “Contrast”

“+”: Select to strengthen the contrast of the screen.

“-”: Select to weaken the contrast of the screen.

 “Brightness”

“+”: Select to brighten the screen.

“-”: Select to darken the screen.

Projection settings*

: This function is not available in some

countries or areas.

1 Display the general settings screen:

 “MENU” button  “Setup” 

“General”

2 Select “Projection settings”.

3 Select the desired items to be set.

Select to turn Apple CarPlay connection establishment on/off when a compatible iPhone is connected to the system via USB. (P.56) Depending on the system, this setting cannot be changed when a device is connected to the system via USB. Disconnect the device before attempting to change the setting.

Select to turn Android Auto connection establishment on/off when a compatible device is connected to the system via USB. (P.57) Depending on the system, this setting cannot be changed when a device is connected to the system via USB. Disconnect the device before attempting to change the setting.

2-4. Other settings

Deleting personal data

Registered or changed personal settings will be deleted or returned to their default conditions.

1 Display the general settings screen:

 “MENU” button  “Setup” 

“General”

2 Select “Delete personal data”.

3 Select “Delete”.

4 Select “Yes” when the confirmation

screen appears.

Examples of settings that can be returned to their default conditions:

 Navigation settings

 Audio settings

 Phone settings

 Lexus App Suite settings

etc.

Voice settings

Voice volume, etc. can be set.

Displaying the voice settings screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Setup”.

3 Select “Voice” on the sub menu.

4 Select the desired items to be set.

Basic function

2-4. Other settings

Voice settings screen

Select to adjust the volume of voice

guidance.

Select to set the voice guidance

during route guidance on/off.

Select to set the voice guidance

during audio/visual and/or air conditioning system use on/off.

Select to set the voice recognition

prompts on/off.

Select to set the beep sound of nav-

igation guidance.

Select to reset all setup items.

: When an Apple CarPlay/Android Auto

connection is established, speech command system (Siri/Google Assistant) and map application voice guidance volume can be changed.

Vehicle settings

Settings are available for maintenance, vehicle customization, etc.

Displaying the vehicle settings screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Setup”.

3 Select “Vehicle” on the sub menu.

4 Select the desired items to be set.

2-4. Other settings

BCD

Vehicle settings screen

Select to set maintenance. (P.69)

Select to set vehicle customization.

Select to set driving mode.

: Refer to the “Owner’s Manual”.

: If equipped

*1, 2

Maintenance

When the system is turned on, the maintenance reminder screen displays when it is time to replace a part or certain components. (P.28)

1 Display the vehicle settings screen:

or component. (P.69)

Select to add a reminder other than the provided ones.

Select to cancel all reminders which have been entered.

Select to reset all reminders which have expired.

Select to register/edit dealer information. (P.70)

The system is set to give maintenance information with the maintenance reminder screen. (P.28)

●

When the vehicle needs to be serviced, the screen button colour will change to orange.

Maintenance information setting

1 Select the desired part or compo-

nent screen button.

2 Set the conditions.

Basic function

 “MENU” button  “Setup” 

“Vehicle”

2 Select “Maintenance”.

3 Select the desired item.

Select to enter the next maintenance date.

Select to enter the driving distance until the next maintenance check.

Select to cancel the conditions which have been entered.

Select to set a reminder for a part

Select to reset the conditions which

2-4. Other settings

have expired.

3 Select “OK” after entering the con-

ditions.

●

For scheduled maintenance information, refer to “Warranty and Service Booklet”.

●

Depending on driving or road conditions, the actual date and distance that maintenance should be performed may differ from the stored date and distance in the system.

Dealer setting

Dealer information can be registered in the system. With dealer information registered, route guidance to the dealer is available.

1 Select “Set dealer”.

2 Select the desired item to search

for the location. (P.84)

 The editing dealer screen appears

after setting the location.

3 Select the desired items to be

edited.

(P.70)

Select to delete the dealer information displayed on the screen.

Select to set the displayed dealer as a destination. (P.93)

Editing dealer or contact name

1 Select “Dealer” or “Contact”.

2 Enter the name and select “OK”.

Editing the location

1 Select “Location”.

2 Scroll the map to the desired point

(P.77) and select “Enter”.

Editing phone number

1 Select “Phone no.”.

2 Enter the phone number and select

“OK”.

Select to enter the name of a dealer. (P.70)

Select to enter the name of a dealer member. (P.70)

Select to set the location. (P.70)

Select to enter the phone number.

Navigation system

3-1. Basic operation

Navigation........................................72

Map screen operation ................74

Map screen information............ 78

Traffic information........................ 82

3-2. Destination search

Destination search operation

........................................................... 84

Starting route guidance..............92

3-3. Route guidance

Route guidance screen ............. 96

Typical voice guidance prompts

.......................................................... 101

Editing route................................. 102

3-4. Setup

Navigation settings....................105

Detailed navigation settings

.......................................................... 112

Traffic settings ............................. 120

3-5. Tips for the navigation system

GPS (Global Positioning System)

......................................................... 125

Map database version and cov-

ered area .................................... 127

Navigation system

3-1.Basic operation

3-1. Basic operation

Navigation

The navigation system indicates your present position and assists in locating a desired destination. To display the map screen, press the “MAP” button on the Remote Touch.

Map screen overview

2D north up, 2D heading up or 3D heading up symbol (P.76)

• Indicates whether the map orientation is set to north-up or heading-up. The letter(s) under this symbol indicate the vehicle’s heading direction (e.g. N for north). In 3D map, only a heading-up view is available.

Destination button (P.84)

• Select to display the destination screen.

Map options button (P.78)

• Select to display the map options screen.

Route options button (P.102)

• Select to display the route options screen.

Mute button

• Select to mute the voice guidance.

Micro city map button (P.75)

3-1. Basic operation

• Select to display the micro city map screen.

Zoom in/out button (P.74)

• Select to magnify or reduce the map scale. When either button is selected, the map scale indicator bar appears at the bottom of the screen.

Route information change button (P.96)

• Select to display the estimated travel time/arrival time to the destination or the traffic information.

Route information bar (P.96)

• Displays the distance to the destination and the estimated travel time/destination arrival time or traffic information. The route information bar fills from left to right as the vehicle progresses on the route.

Delete destination button (P.24)

• Select to delete destinations.

Speed limit icon (P.78)

• Indicates the speed limit on the current road when speed limit information is available. The display of the speed limit icon can be set to on/off.

Lane guidance

• Displayed when lane information is available.

●

When the vehicle is not receiving GPS signals, such as when driving in a tunnel,

will be displayed at the bot-

tom left corner of the screen.

●

Certain screen buttons on the map screen will disappear several seconds after stop operating the Remote Touch. This setting can be changed so that all the screen buttons will always be displayed. (P.112)

●

Press the “MAP” button on the Remote Touch to display the address of the curren t posi tion o n the map screen or repeat voice guidance.

Navigation system

3-1. Basic operation

Map screen operation

Current position display

1 Press the “MAP” button on the

Remote Touch.

2 Check that the current position

map is displayed.

 To correct the current position man-

ually: P.115

●

While driving, the current position mark is fixed on the screen and the map moves.

●

The current position is automatically set as the vehicle receives signals from the GPS (Global Positioning System). If the current position is not correct, it is automatically corrected after the vehicle receives signals from the GPS.

●

After the 12-volt battery disconnection, or on a new vehicle, the current position may not be correct. As soon as the navigation system receives signals from the GPS, the correct current position is displayed.

Map scale

1 Select or to change the

scale of the map screen.

●

The scale indicator bar appears at the bottom of the screen.

●

Select and hold or to continue changing the scale of the map screen.

●

The scale of the map screen can also be changed by selecting the scale bar directly. This function is not available while driving.

●

The scale of the map screen can be changed on the touchpad of the Remote Touch with your finger. Pinch out on the touchpad to zoom in and pinch in to zoom out. (P.31)

●

In areas where a micro city map is available, will change to when the

map screen is set to the smallest scale.

3-1. Basic operation

Micro city map

For areas covered by the micro city map (some major cities), a micro city map can be selected.

When the map is scaled down to 50 m,

changes to and can be

selected to display the micro city map.

1 Select on the map screen.

2 Check that the micro city map is

displayed.

Select to set display of one way street marks on/off.

3D suburb model map

A 3D suburb model map can be displayed for some areas in major cities when the map scale is 100 m or less on the 3D map screen.

●

To display the normal map, select .

●

The 3D suburb model map can be set the display on/off. (P.112)

Rotating 3D map

3D map and 3D suburb model map can be rotated when arrows appear around the cursor while scrolling.

1 Select an arrow to rotate.

Navigation system

●

To return to the normal map display, select .

●

If the map or the current position is moved to the area which is not covered by the micro city map, the screen scale automatically changes to 50 m.

●

Scrolling the micro city map is not available while driving.

●

Certification

Building micro cities in the database were created and provided by TomTom.

3-1. Basic operation

Orientation of the map

The orientation of the map can be changed between 2D north-up, 2D heading-up and 3D heading-up by selecting the orientation symbol displayed at the top left of the screen.

: North-up symbol Regardless of the direction of vehicle travel, north is always up.

: Heading-up symbol The direction of vehicle travel is always up.

: 3D Heading-up symbol The direction of vehicle travel is always up.

 The letter(s) under this symbol indi-

cate the vehicle’s heading direction (e.g. N for north).

Map scroll operation

The map can be scrolled to view locations that are different than your current position.

1 Select the desired point on the map

screen.

 Move the desired point on the cen-

tre of the map screen.

Cursor mark

Distance from the current position to the cursor mark

 Press the button on the Remote

Touch. The following buttons can be displayed.

“Save”: Select to register as a memory point. To change the icon, name, etc.: P.105

“Go”: Select to set as a destination. (P.92)

 Press the “MAP” button on the

Remote Touch to return to the current position.

Flick scroll operation

The map screen can be moved to drag or flick the touchpad on the Remote Touch. To activate drag/flick operation, “Map flick” is required to be “On”. (P.112)

1 Select the desired point on the map

screen.

 Move the desired point on the cen-

tre of the map screen.

 After the screen is scrolled, it is pos-

sible to do the drag or flick operation on the touchpad.

2 Press the touch pad again, the

switches on the display can be selected.

3-1. Basic operation

Adjusting location in small increments

The cursor location can be adjusted in small increments. 8 directional arrows may appear in the following cases.

• When “Adjust location” is selected

on the map screen

• When changing the location of

memory points on the editing screen (P.108, 111)

• When adjusting the current posi-

tion mark manually on the calibration screen (P.115)

1 Select one of the 8 directional

arrows to move the cursor to the

desired point and then select “OK”.

Displaying the point searched for

When the list screen is displayed (such as when searching for destinations, etc.), the point currently being selected on the list screen is displayed on the side display.

Select the map to switch it between displaying only the area around the destination and the area from the current location to the destination.

Navigation system

3-1. Basic operation

Map screen information

Information such as POI icons, route trace, speed limit, etc. can be displayed on the map screen.

Displaying the map options screen

1 Select on the map screen.

2 Select the desired items to be dis-

played.

Select to display the desired map

configuration. (P.78)

Select to select or change POI

icons. (P.79)

Select to display the map version

and legal information. (P.127)

Select to display speed limit icon.

Select to display traffic information.

(P.83)

Changing the map mode

1 Select on the map screen.

2 Select “Map mode”.

3 Select the desired configuration

button.

Select to display the single map screen.

Select to display the turn list screen. (P.100)

Select to display the motorway exit list screen. (P.98)

Select to display the intersection guidance screen or the guidance screen on the motorway. (99)

Select to display the turn-by-turn arrow screen. (P.100)

 Depending on the conditions, cer-

tain screen configuration buttons cannot be selected.

Select to display route trace.

(P.80)

3-1. Basic operation

Selecting the POI icons

1 Select on the map screen.

2 Select “POI icons”.

3 Select the desired POI category

and select “OK”.

Displays up to 5 selected POI

icons on the map screen.

Select to cancel the selected POI

icons.

Displays up to 6 POI icons as

favourite POI categories. (P.114)

If a POI category is selected to be

displayed on the map, its icon will

be displayed above.

Select to display other POI catego-

ries if the desired POIs cannot be

found on the screen. (P.79)

Select to search for the nearest

POIs. (P.79)

Selecting other POI icons to be displayed

1 Select “Other POIs”.

2 Select the desired POI categories

and select “OK”.

“List all categories”: Select to display all POI categories.

Displaying the local POI list

POIs that are within 32 km of the current position will be listed from among the selected categories.

1 Select “Around me”.

2 Select the desired POI.

 Press the button on the Remote

Touch. The following buttons can be displayed.

“Near here”: Select to search for POIs near the current position.

“Along my route”: Select to search for POIs along the route.

“Web search”: Select to search for POI using online database. (P.89)

3 Check that the selected POI is dis-

played on the map screen.

Navigation system

3-1. Basic operation

Route trace

The traveled route can be stored and retraced on the map screen. This feature is available when the map scale is 50 km or less.

Start recording the route trace

1 Select on the map screen.

2 Select “Breadcrumbs”.

 The route trace starts.

3 Check that the traveled line is dis-

played.

Stop recording the route trace

Switching the map mode on the side display

The map mode on the side display can be changed.

1 Select or to change the

map mode.

“Map”: Display the single map screen.

“Compass”: Display the compass mode screen. (P.80)

Compass

Information about the destination, current position and a compass are displayed on the screen.

1 Select on the map screen.

2 Select “Breadcrumbs” again.

3 A confirmation screen will be dis-

played.

“Yes”: Select to keep the recorded route trace.

“No”: Select to erase the recorded route trace.

●

The traveled route can be stored up to 1000 km in each route trace.

●

The destination mark is displayed in the direction of the destination. When driving, refer to the longitude and latitude coordinates, and the compass, to make sure that the vehicle is headed in the direction of the destination.

●

When the vehicle travels out of the coverage area, the guidance screen changes to the whole compass mode screen.

3-1. Basic operation

Displaying information about the icon where the cursor is set

When the cursor is placed over an icon on the map screen, and the button

on the Remote Touch is pressed, the name of icon is displayed. If “Information” appears on the bottom of the name, detailed information can be displayed.

1 Place the cursor over an icon.

2 Press the button on the Remote

Touch.

3 Select “Information”.

and “Information” will be displayed for a while after traffic information has been received.

●

In some situations, calls to a POI may automatically change to an international call or may not be possible as a domestic call.

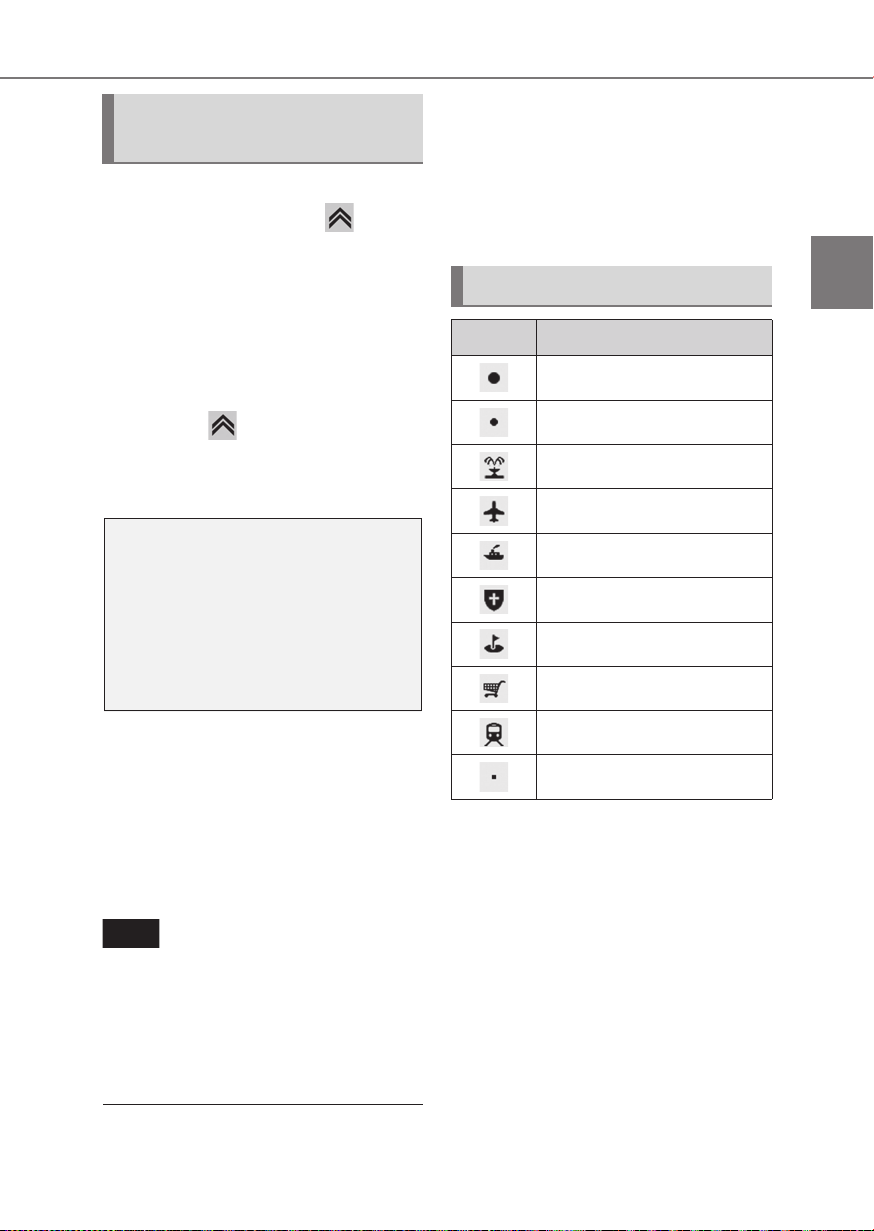

Standard map icons

Icon Name

Capital

Suburb

Green space/Park

Airport

Ferry terminal

Hospital

Golf

Navigation system

4 Check that the information screen

is displayed.

“Save”: Select to register as a memory point. To change the icon, name, etc.: P.105

“Go” / “Enter”: Select to set as a destination.

: Select to call the registered num-

ber.

“Delete”: Select to delete destination or memory point.

“Edit”: Select to display the edit memory point screen.

●

Even when traffic information is not currently being received, traffic information

Shopping mall

Station

Other

3-1. Basic operation

Traffic information*

: This function is not available in some

countries or areas.

Traffic data can be received via FM Radio broadcast to display traffic information on the map screen.

Displaying the traffic screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Information”.

3 Select “Traffic incidents”.

4 Select the desired item.

“Traffic events on current road”: Select to display traffic information for the current road. (P.82)

“Traffic events on current route”: Select to display traffic information for the set route. (P.83)

“Traffic events nearby”: Select to display nearby traffic information. (P.82)

“My traffic routes”: Select to display traffic along the saved routes. (P.83)

Displaying traffic information

A list of current traffic information can be displayed along with information on the location of each incident.

1 Display the traffic incidents screen:

 “MENU” button  “Information”

 “Traffic incidents”

2 Select “Traffic events on current

road”, “Traffic events on current route” or “Traffic events nearby”.

3 Select the desired traffic informa-

tion.



When “Traffic events nearby” is selected, depending on whether the traffic flow information is enabled/disabled, the following will be displayed:

When enabled: Traffic event and congestion information

When disabled: Traffic event information only

4 Check that the traffic information is

displayed.

“Details”: Select to display detailed traffic information.

●

If a large amount of information is being received, it may take longer than normal for the information to be displayed on the screen

3-1. Basic operation

My traffic routes

Traffic information along the saved routes can be displayed. To use this function, it is necessary to register a route. (P.121)

1 Display the traffic incidents screen:

 “MENU” button  “Information”

 “Traffic incidents”

2 Select “My traffic routes”.

 If map data has been updated, a

confirmation screen will be displayed. Select “OK” or “Do not tell me again.”.

3 Select the desired route.

“Options”: Select to add, edit or delete personal traffic routes. (P.121)

 If routes have not been registered

yet, a confirmation screen will be displayed. Select “Yes” to register the route.

Displaying traffic information on the map

1 Select on the map screen.

2 Select “Traffic information”.

3 Check that the traffic information is

displayed.

●

The icons indicate traffic incidents such as construction, accidents, etc. Select an icon to hear more detail by voice.

●

The arrows indicate the flow of traffic. The colour changes depending on the speed.

Navigation system

4 Select the desired traffic informa-

tion.

5 Check that the traffic information is

displayed.

“Details”: Select to display detailed traffic information.

EFGHI

3-2.Destination search

3-2. Destination search

Destination search operation

Destination search screen

The destination screen enables to search for a destination. The destination screen can be reached by the following methods:

■

From the map screen

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 Follow the steps in “From the menu

screen” from step 3. (P.84)

■

From the menu screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Destination”.

3 Select the desired search method.

(P.85)

Select to search for a destination by address. (P.86)

Select to search for a destination from recent set destinations. (P.87)

Select to search for a destination from a registered entry in “Favourites”. (P.87)

Select to set a destination by home. (P.88)

Select to search for a destination by point of interest. (P.88)

Select to search for a destination by online database. (P.280)

Select to search for a destination by coordinates. (P.90)

Select to search for a destination from emergency service points. (P.91)

Select to search for a destination by

entering any search terms.

3-2. Destination search

Selecting search area Searching by keyword

The selected state (province) can be changed to set a destination from a different state (province) by using “Address” or “Point of interest”.

■

From the map screen

1 Press the “MAP” button on the

Remote Touch.

2 Select .

3 Follow the steps in “From the menu

screen” from step 3. (P.85)

■

From the menu screen

1 Press the “MENU” button on the

Remote Touch.

2 Select “Destination”.

3 Select “Address” or “Point of inter-

est”.

4 Select “Change state”.

The destination can be searched by entering various keywords.

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Search”.

3 Enter characters on the keyboard

and select “Search”.

 When entering characters, if a list of

predicted destinations is displayed on the side display, a destination can be selected from the list.

4 Select the desired destination.

●

A search term can be searched using only the body part of its name. For example: S WESTERN AVE

• A search can be performed by entering “S WESTERN AVE”, “WESTERN AVE” or “WESTERN”.

Navigation system

5 Select the desired state (province).

 To change countries, select the

“Australia” or “New Zealand” button.

3-2. Destination search

Searching by address

There are 2 methods to search for a destination by address.

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Address”.

3 Select the desired search method.

Select to change the search area. (P.85)

Select to search by suburb. (P.86)

Select to search by street address. (P.87)

Searching by suburb

1 Select “Suburb”.

2 Enter a suburb name and select

“OK”.

“Option”: Select to select a suburb in a different way. (P.86)

3 Select the desired suburb name.

4 Enter a street name and select

“OK”.

5 Select the desired street name.

6 Enter a house number and select

“OK”.

 If multiple locations with the same

address exist, the address list screen will be displayed. Select the desired address.

Selecting a suburb in a different way

1 Select “Option”.

2 Select the desired item.

“Postal code”: Select to enter the postal code. (P.86)

“Last 5 suburbs”: Select from the last 5 suburbs.

“Nearest 5 suburbs”: Select from the nearest 5 suburbs.

3 Select the desired suburb name.

■

By entering the postal code

1 Select “Postal code”.

2 Enter the postal code and select

“OK”.

3 Select the desired postal code.

●

If the navigation system has never been used, selecting the suburb name from

3-2. Destination search

“Last 5 suburbs” will not be available.

Searching by street address

1 Select “Street address”.

2 Enter a house number and select

“OK”.

3 Enter a street name and select

“OK”.

4 Select the desired street name.

5 Enter a suburb name and select

“OK”.

6 Select the desired suburb name.

 If multiple locations with the same

address exist, the address list screen will be displayed. Select the desired address.

Searching from recent destinations

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Recent”.

Deleting recent destinations

1 Select “Delete recent destinations”.

2 Select the desired recent destina-

tion(s) to be deleted.

 Press the button on the Remote

Touch. The following button can be displayed.

“Delete all previous destinations”: Select to delete all recent destinations on the list.

3 Select “Yes” when the confirmation

screen appears.

Searching by favourites list

To use this function, it is necessary to register an favourites list entry. (P.105)

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Favourites”.

3 Select the desired favourites list

entry.

Navigation system

3 Select the desired destination.

 Press the button on the Remote

Touch. The following button can be displayed.

“Delete recent destinations”: Select to delete the recent destination. (P.87)

●

Up to 100 previously set destinations are displayed on the screen.

3-2. Destination search

Setting home as destination

To use this function, it is necessary to register a home address. (P.105)

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Go home”.

 The navigation system performs a

search for the route and the route overview is displayed. (P.93)

Searching by point of interest

There are 3 methods to search for a destination by Points of Interest.

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Point of interest”.

3 Select the desired search method.

(P.89)

Select to search by phone number. (P.90)

Searching by name

1 Select “Name”.

2 Enter a POI name and select “OK”.

3 Select the desired POI.

 Press the button on the Remote

Touch. The following buttons can be displayed.

“Change POI category”: Select to search for POI from the category list. (P.89)

“En ter a s uburb name”: S elect to sea rch fo r POI in the desired suburb. (P.89)

“Web search”: Select to search for POI using online database. (P.89)

 When entering the name of a spe-

cific POI, and there are 2 or more sites with the same name, the list screen will be displayed. Select the desired POI.

Select to change the search area. (P.85)

Select to search by name. (P.88)

Select to search by category.

3-2. Destination search

Selecting a suburb to search

1 Press the button on the Remote

Touch.

2 Select “Enter a suburb name”.

3 Enter a suburb name and select

“OK”.

“Any suburb”: Select to cancel the suburb setting.

“Option”: Select to select a suburb in a different way. (P.86)

4 Select the desired suburb name.

5 Select the desired POI.

Selecting from the categories

1 Press the button on the Remote

Touch.

2 Select “Change POI category”.

3 Select the desired category.

Searching for POI using web search

1 Press the button on the Remote

Touch.

2 Select “Web search”.

3 Select the desired search engine

icon.

 For the procedure on how to con-

duct a search via a search engine, follow the steps in “Setting a destination using Lexus App Suite” from step 5. (P.280)

Searching by category

1 Select “Category”.

2 Select the desired search point.

Navigation system

 If there is more than 1 result for the

selected category, a detailed list will be displayed.

“List all categories”: Select to display all POI categories.

4 Select the desired POI.

Select to search for POIs near your current position.

Select to search for POIs along the set route.

Select to search for POIs near a specific city centre. (P.90)

Select to search for POIs near a destination. When more than 1 destination has been set, a list will be displayed on the screen. Select the desired destination.

3 Select the desired POI category.

3-2. Destination search

 If there is more than 1 result for the

selected category, a detailed list will be displayed.

“List all categories”: Select to display all POI categories.

“Favourites POI categories”: Select to use the 6 POIs that have been previously set. (P.114)

4 Select the desired POI.

The direction mark ( )displayed on the list screen always shows north up.

The arrow shows the direction to POI.

●

The names of POIs located within approximately 300 km from the selected search point can be displayed.

When “Near a suburb” is selected

1 Select “Near a suburb”.

2 Enter a suburb name and select

“OK”.

“Option”: Select to select a suburb in a different way. (P.86)

3 Select the desired suburb name.

4 Select “OK” when the suburb cen-

tre map screen is displayed.

Searching by phone number

1 Select “Phone no.”.

2 Enter a phone number and select

“OK”.

 If multiple locations with the same

phone number exist, the list screen will be displayed.

Searching by coordinates

Searching by latitude and longitude coordinates is available using both DMS format (for example: 12°34’56.7”), DEG format (for example: 12.34567) and DMM format (for example: 12°34.567’).

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Coordinates”.

3 Enter the latitude and longitude,

and select “OK”.

5 Follow the steps in “Searching by

category” from step 3. (P.89)

3-2. Destination search

Changing the coordinates format

1 Select “Coordinates Format”.

2 Select the desired coordinates for-

mat and select “OK”.

Searching by emergency

1 Display the destination search

screen by either operation:

 “MAP” button 

 “MENU” button  “Destination”

2 Select “Emergency”.

3 Select the desired emergency cat-

egory.

4 Select the desired destination.

●

The navigation system does not guide in areas where route guidance is unavailable. (P.125)

One-touch setting home/favourite as a destination

To use this function, it is necessary to register a home and/or a favourite location. Up to 2 favourites can be registered as preset destinations. (P.105, 106)

To set the home or a preset destination as the destination, select the corresponding button.

1 Turn the engine switch <power

switch> to ACCESSORY or IGNITION ON mode <ON mode>.

3 Select the desired item.

Select to set a registered favourite as the destination. (Up to 2 favourites can be registered as preset destinations.)

Select to set the registered home as the destination.

 The distance with estimated time of

arrival to the registered home and preset destinations from the current position will be displayed.

 If the home or a preset destination

has not been registered, “Set home” or “Set favourite” will be displayed, respectively. To register a home or preset destination, select the corresponding button.

●

The one-touch buttons for home and favourites will disappear after the vehicle has been driven for a while.

●

The colour of the estimated arrival time indicator may change depending on the traffic information received.

●

This function is available when “Automatic destination list info” is set to on. (P.112)

Navigation system

2 Press the “MAP” button on the

Remote Touch.

3-2. Destination search

Searching by smartphone collaboration

The location received from a smartphone can be set as a destination. It is necessary to connect between the smartphone and the navigation system. (P.46)

1 Operate the smartphone to search

for the desired location.

2 Check that the confirmation screen

is displayed and select “Yes”.

 If a destination has already been set,

“Go directly” and “Add to route” will be displayed.

“Go directly”: Select to delete the existing destination(s) and set a new one.

“Add to route”: Select to add a destination.

 The navigation system performs a

search for the route and the route overview is displayed. (P.93)

Starting route guidance

When the destination is set, the confirm destination screen will be displayed.

Starting route guidance

1 Select “Go directly” on the confirm

destination screen.

 For details about this screen: P.93

2 Select “OK” on the route overview

screen.

●

The smartphone collaboration can be set to on/off. (P.46)

●

Contact your Lexus dealer about smartphones and applications for smartphone collaboration.

 For details about this screen: P.93

●

The route for returning may not be the same as that for going.

●

The route guidance to the destination may not be the shortest route or a route without traffic congestion.

●

Route guidance may not be available if there is no road data for the specified location.

●

WARNING

When setting the destination on a map with a scale more than 800 m, the map scale changes to 800 m automatically. If this occurs, set the destination again.

●

If a destination that is not located on a road is set, the vehicle will be guided to the point on a road nearest to the destination. The road nearest to the selected point is set as the destination.

●

Be sure to obey traffic regulations and keep road conditions in mind while driving. If a traffic sign on the road has been changed, the route guidance may not indicate such changed information.

Confirm destination screen

3-2. Destination search

to the current route.

Route overview screen

Current position

Destination point

Select to display a list of the turns required to reach the destination. (P.94)

Select the desired route from 3 possible routes. (P.94)

Navigation system

Select to adjust the position in

smaller increments. (P.77)

Select to call the registered num-

ber.

Select to register as a memory point.

Select to search for the route. (P.92)

• If a destination has already been set, “Go directly” and “Add to route” will be displayed.

“Go directly”: Select to delete the existing destination(s) and set a new one.

“Add to route”: Select to add a destination

Select to change the route. (P.95)

Type of route and its distance

Distance of the entire route

Select to start guidance. Select and hold to start demo mode. (P.94)

 When the side display is hidden, the

turn list screen will be displayed on the side display.

3-2. Destination search

Starting demo mode

Before starting the route guidance, the demonstration of the route guidance can be viewed.

1 Select and hold “OK” on the route

overview screen until a beep sounds.

 Press the “MAP” button on the

Remote Touch to end demo mode.

3 routes selection

1 Select “3 route options”.

2 Select the desired route.

Displaying 3 routes information

1 Select “Information”.

2 Check that the 3 routes informa-

tion screen is displayed.

Time necessary for the entire trip

Distance of the entire trip

Distance of the toll road

Distance of the motorway

Distance of the ferry trip

Displaying turn list

A list of turn information from the cur-

Select to display the quickest route.

Select to display the route that is

the shortest distance to the set destination.

Select to display the alternative

rent position to the destination can be displayed.

1 Select “Turn list”.

2 Check that the turn list is displayed.

route.

Select to display the information

about the 3 routes. (P.94)

 When the side display is hidden, the

3 routes information screen will be displayed on the side display.

Current position

Turn direction at the intersection

Distance to the next turn

Select to display the map of the

selected point.

●

Not all road names on the route may appear on the list. If a road changes its name without requiring a turn (such as on a street that runs through 2 or more cities), the name change will not appear on the list. The street names will be displayed in order from the starting point, along with the distance to the next turn.

Editing route

Destinations can be added, reordered or deleted, and conditions for the route to the destination can be changed.

1 Select “Edit route”.

2 Select the desired item.

3-2. Destination search

Adding destinations



When the vehicle is stopped

1 Select “Add”.

2 Search for an additional destination

in the same way as a destination search. (P.84)

 Up to 5 destinations can be set.

3 Select “Add destination here” at the

position in the route which you want to add the destination.



While driving

1 Select “Add”.

2 Search for an additional destination

in the same way as a destination search. (P.84)

 Up to 5 destinations can be set.

3 Select “Beginning” or “End”.

Navigation system

Deleting destinations

1 Select “Delete”.

2 Select “Yes” when the confirmation

Select to add destinations. (P.95)

Select to delete destinations. (P.95)

Select to reorder destinations. (P.102)

Select to set route preferences.

(P.103)

screen appears.

 If more than 1 destination has been

set, select the destination(s) to be deleted. (The navigation system will recalculate route(s) to the remaining set destination(s).)

 Press the button on the Remote

Touch, and all the destinations on the list can be deleted. Select “Yes” when the confirmation screen appears.

3-3.Route guidance

3-3. Route guidance

Route guidance screen

During the route guidance, various types of guidance screens can be displayed depending on conditions.

Screen for route guidance

Distance to the next turn and an

arrow indicating the turning direction

Current position

Guidance route

completely digitized in our database. For this reason, the route guidance may select a road that should not be traveled on.

●

When the automatic zoom function is enabled, the map will automatically change to a detailed map as the vehicle approaches a guidance point.

●

Vehicle with head-up display: When the head-up display is set to on, turn-by-turn guidance arrows will be displayed on the windshield.

Changing route information

When the vehicle is on the guidance route, the route information bar displays the distance to the destination and the estimated travel time/destination arrival time or traffic information.

1 Select to change the display

between the distance with the estimated travel/ arrival time (P.96) and the traffic information (P.97).

Select to mute the voice guidance.

Route information change button (P.96)

Route information bar (P.96)

Select to delete destinations.

(P.24)

• If the map screen is not operated for a

certain amount of time,

will be hidden. If “Auto hide buttons” on the detailed navigation settings screen is

set to off, will be displayed continuously. (

●

If the vehicle goes off the guidance route, the route will be recalculated.

●

For some areas, the roads have not been

P.112)

■

Distance and time to destination

To use this function, it is necessary to be selected the distance with the estimated travel/arrival time for route information bar (P.96).



When the set destination is 1

1 Select the route information bar to

change the display of the route information bar between the esti-

mated travel time and the estimated arrival time.

3-3. Route guidance

●

The route information bar fills from left to right as the vehicle progresses on the route.



When the set destinations are more than 1

1 Select the route information bar.

2 Check that the list of the distance

and time is displayed.

“Arrival time”: Select to display the estimated arrival time.

“Time to dest.”: Select to display the estimated travel time.

 By selecting one of the number but-

tons, the desired route information is displayed.

●

When the vehicle is on the guidance route, the distance measured along the route is displayed. Travel time and arrival time are calculated based on the average speed of the specified speed limits and current traffic information.

●

When the vehicle gets off the guidance route, the arrow facing the destination is displayed instead of the estimated travel/arrival time.

■

Traffic information

When traffic information is received, the traffic information bar is displayed.

The colour of the bar indicates specific road conditions. Red indicates a traffic jam. Yellow indicates a crowded road. Green indicates a vacant road. White

indicates

other traffic regulations.

1 Select the route information

change button (P.96) to change the display of the route information bar.

2 Check that the traffic information is

displayed.

 When multiple destinations are set,

traffic information are displayed up to the nearest destination area.

: This function is not available in some

countries or areas.

Navigation system

3-3. Route guidance

During motorway driving

During motorway driving, the motorway information screen will be displayed on the side display.

Name of the motorway exit/rest area.

Distance from the current position to the motorway exit/rest area.

POIs that are close to a motorway

exit

Select to display the selected map

of the exit vicinity.

Select to scroll to farther motorway

exits/rest areas.

Select to scroll to closer motorway

exits/rest areas.

Select to display the nearest motor-

way exits/rest areas from the current position.

When approaching motorway exit or junction

When the vehicle approaches an exit or junction, the motorway guidance screen will be displayed on the side display.

Next exit or junction name

Lane guidance

Select to hide the motorway guidance screen.

• To return to the motorway guidance screen, press the “MAP” button on the Remote Touch.

Distance from the current position to the exit or junction

Remaining distance bar to the guidance point

●

This function is available when “Intersection zoom map” is set to on. (P.112)
