Lexmark X952de User Guide

Download

X950 Series

User's Guide

July 2017 www.lexmark.com

Machine type(s):

7558

Model(s):

032, 036, 232, 236, 432, 436, 496

Contents 2

Safety information.........................................................................................7

Learning about the printer...........................................................................9

Finding information about the printer.............................................................................................................9

Selecting a location for the printer................................................................................................................10

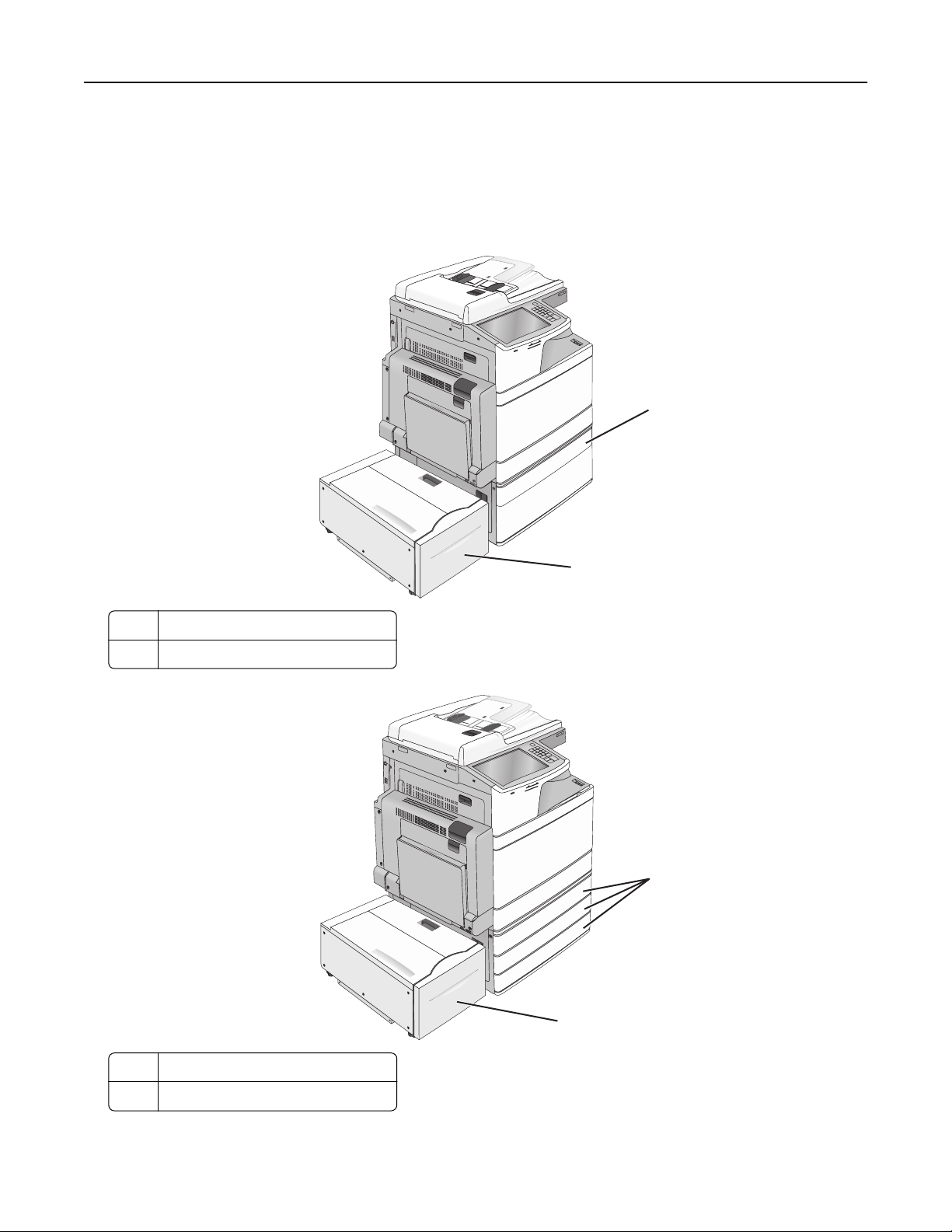

Printer conﬁgurations......................................................................................................................................... 11

Basic functions of the scanner........................................................................................................................13

Understanding the ADF and scanner glass................................................................................................ 14

Understanding the printer control panel......................................................................................................15

Understanding the home screen.............................................................. 16

Understanding the home screen................................................................................................................... 16

Using the touch-screen buttons.....................................................................................................................18

Setting up and using the home screen applications..............................21

Accessing the Embedded Web Server.........................................................................................................21

Showing or hiding icons on the home screen............................................................................................21

Activating the home screen applications....................................................................................................22

Setting up Remote Operator Panel.............................................................................................................. 24

Exporting and importing a conﬁguration.....................................................................................................24

Additional printer setup.............................................................................26

Turning on the printer.......................................................................................................................................26

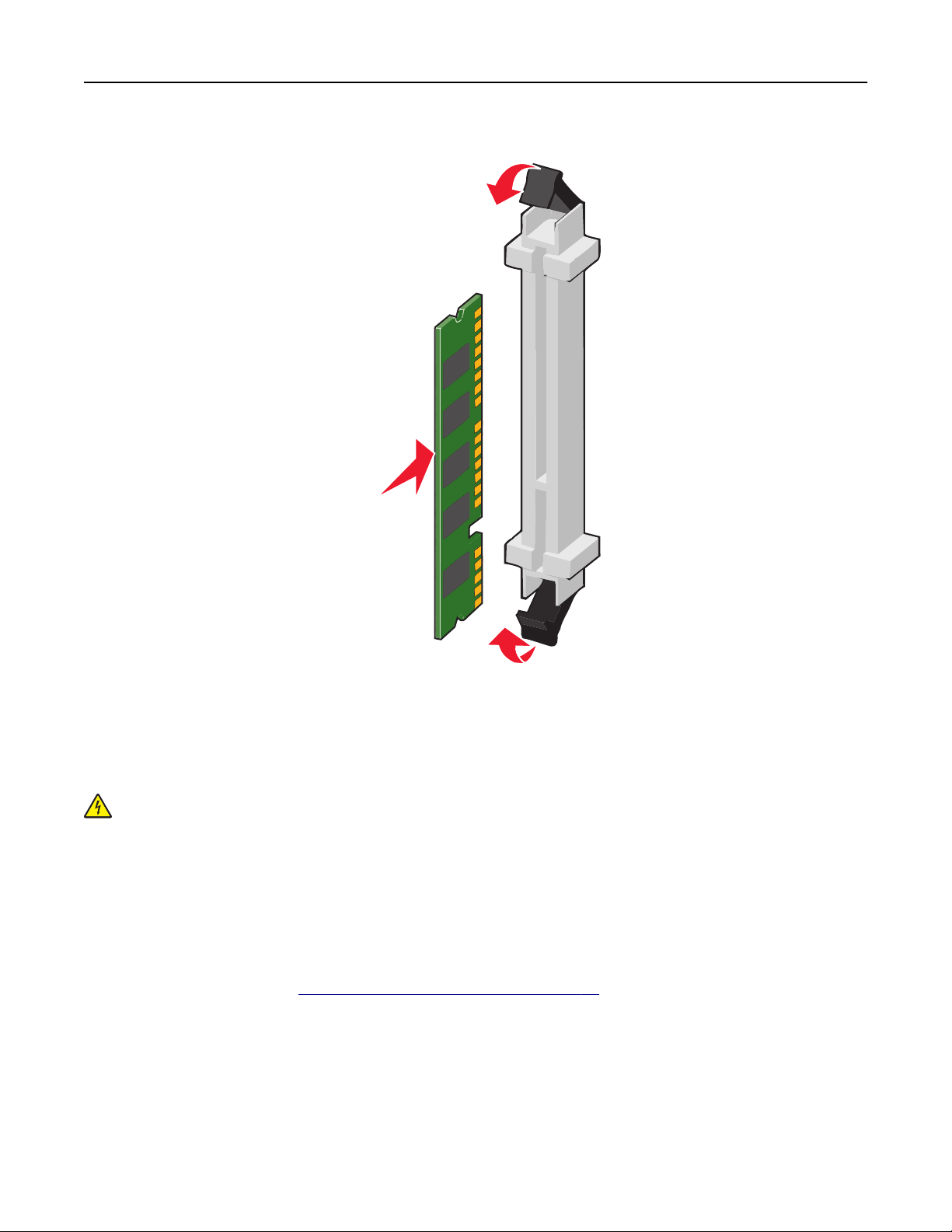

Installing internal options................................................................................................................................ 27

Installing hardware options..............................................................................................................................41

Attaching cables................................................................................................................................................44

Verifying printer setup......................................................................................................................................45

Setting up the printer software......................................................................................................................46

Networking..........................................................................................................................................................48

Minimizing your printer's environmental impact................................... 56

Saving paper and toner...................................................................................................................................56

Saving energy.....................................................................................................................................................57

Recycling............................................................................................................................................................. 59

Contents 3

Loading paper and specialty media..........................................................61

Setting the paper size and type..................................................................................................................... 61

Conﬁguring Universal paper settings........................................................................................................... 61

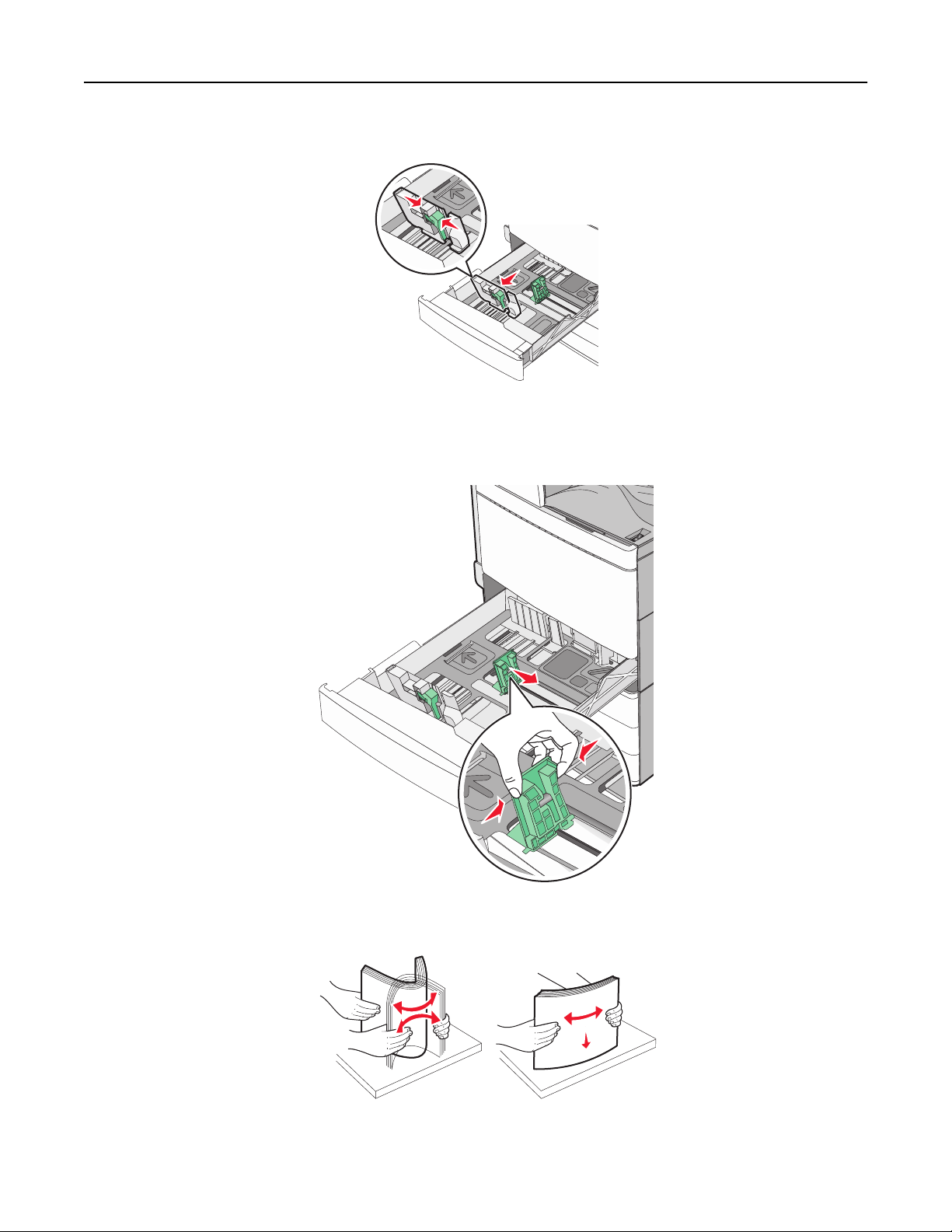

Loading the standard or optional 520‑sheet tray......................................................................................61

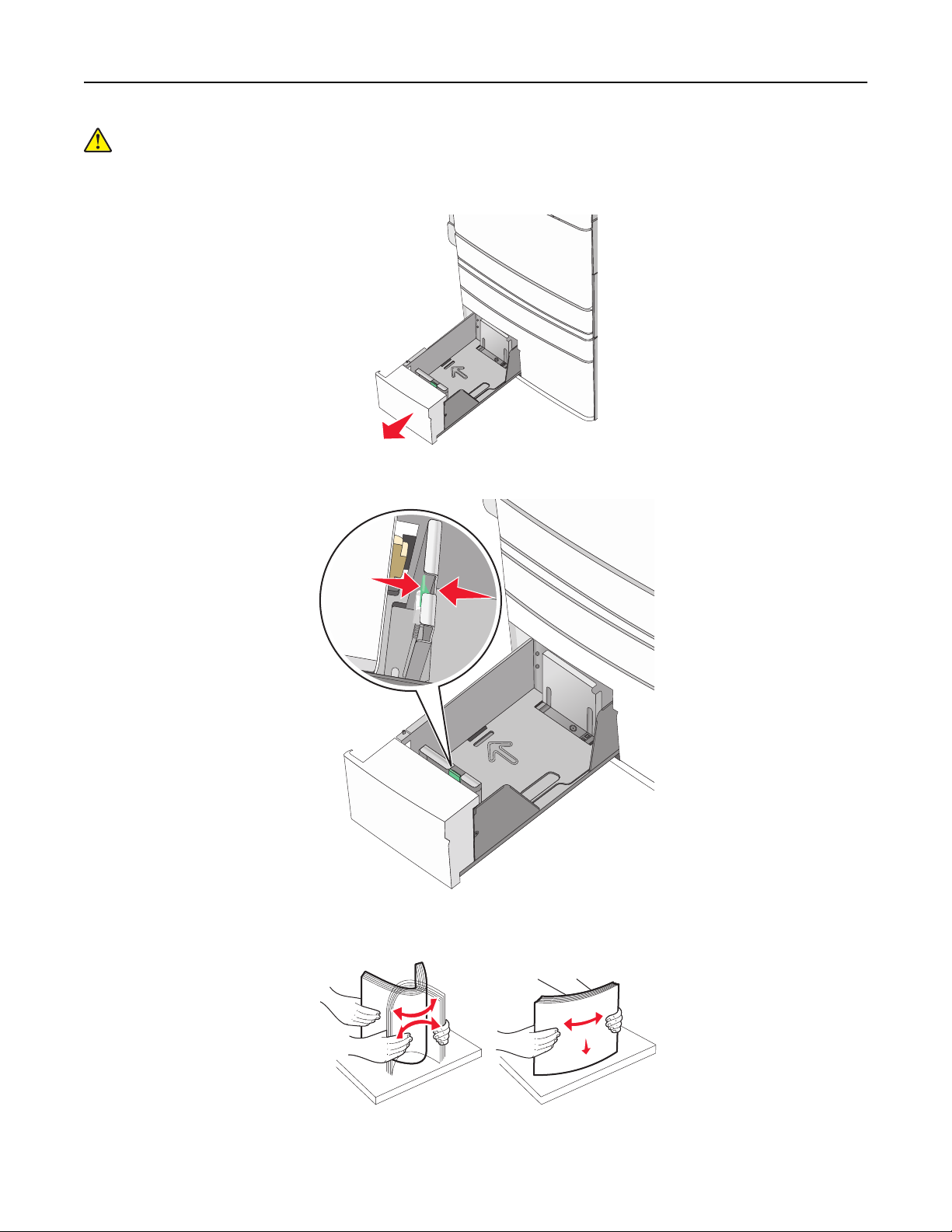

Loading the optional 850‑ and 1,150‑sheet trays......................................................................................64

Loading the 2000‑sheet high‑capacity feeder..........................................................................................67

Loading the multipurpose feeder................................................................................................................. 69

Linking and unlinking trays............................................................................................................................. 72

Paper and specialty media guide............................................................. 74

Paper guidelines................................................................................................................................................74

Supported paper sizes, types, and weights............................................................................................... 78

Printing.........................................................................................................86

Printing a document......................................................................................................................................... 86

Printing from a mobile device........................................................................................................................ 87

Printing from a ﬂash drive...............................................................................................................................88

Printing on specialty media............................................................................................................................90

Printing conﬁdential and other held jobs....................................................................................................92

Printing information pages..............................................................................................................................94

Canceling a print job........................................................................................................................................ 94

Copying........................................................................................................96

Making copies....................................................................................................................................................96

Copying ﬁlm photos..........................................................................................................................................97

Copying on specialty media........................................................................................................................... 97

Customizing copy settings..............................................................................................................................98

Placing information on copies......................................................................................................................103

Canceling a copy job...................................................................................................................................... 103

Understanding the copy screens and options.........................................................................................104

E-mailing.....................................................................................................107

Getting ready to e-mail...................................................................................................................................107

Creating an e-mail shortcut...........................................................................................................................108

E-mailing a document.....................................................................................................................................109

Customizing e-mail settings...........................................................................................................................110

Canceling an e-mail..........................................................................................................................................110

Contents 4

Understanding the e-mail options.................................................................................................................111

Faxing..........................................................................................................114

Getting the printer ready to fax.....................................................................................................................114

Creating shortcuts........................................................................................................................................... 120

Sending a fax.....................................................................................................................................................121

Customizing fax settings................................................................................................................................123

Canceling an outgoing fax............................................................................................................................ 124

Understanding the fax options.....................................................................................................................125

Holding and forwarding faxes.......................................................................................................................127

Scanning.....................................................................................................129

Scanning to an FTP address.........................................................................................................................129

Scanning to a computer or ﬂash drive........................................................................................................ 131

Understanding the FTP options................................................................................................................... 133

Understanding the printer menus.......................................................... 136

Menus list...........................................................................................................................................................136

Supplies menu.................................................................................................................................................. 137

Paper menu....................................................................................................................................................... 139

Reports menu....................................................................................................................................................148

Network/Ports menu.......................................................................................................................................150

Security menu...................................................................................................................................................163

Settings menu...................................................................................................................................................168

Help menu......................................................................................................................................................... 221

Securing the hard disk and other installed memory........................... 223

Statement of Volatility....................................................................................................................................223

Erasing volatile memory................................................................................................................................224

Erasing non‑volatile memory....................................................................................................................... 224

Erasing printer hard disk memory.............................................................................................................. 224

Conﬁguring printer hard disk encryption................................................................................................. 225

Maintaining the printer............................................................................ 227

Cleaning the exterior of the printer............................................................................................................227

Cleaning the scanner glass..........................................................................................................................228

Cleaning the printhead lenses.................................................................................................................... 229

Emptying the hole punch box......................................................................................................................233

Contents 5

Storing supplies...............................................................................................................................................234

Checking the status of parts and supplies...............................................................................................235

Ordering parts and supplies........................................................................................................................235

Replacing parts and supplies.......................................................................................................................237

Moving the printer..........................................................................................................................................258

Administrative support............................................................................260

Finding advanced networking and administrator information............................................................260

Checking the status of the printer..............................................................................................................260

Checking the virtual display.........................................................................................................................260

Setting up e‑mail alerts................................................................................................................................. 260

Viewing reports................................................................................................................................................ 261

Restoring factory default settings................................................................................................................261

Clearing jams............................................................................................ 262

Avoiding jams.................................................................................................................................................. 262

Understanding jam numbers and locations.............................................................................................262

201–202 paper jams......................................................................................................................................264

203 paper jam................................................................................................................................................. 265

230 paper jam................................................................................................................................................. 266

231 paper jam...................................................................................................................................................267

24x paper jam..................................................................................................................................................268

250 paper jam..................................................................................................................................................274

281 paper jam...................................................................................................................................................275

4yy.xx paper jams............................................................................................................................................277

455 staple jam..................................................................................................................................................281

28y.xx paper jams...........................................................................................................................................283

Troubleshooting....................................................................................... 284

Understanding the printer messages........................................................................................................284

Solving basic printer problems................................................................................................................... 300

Solving printing problems..............................................................................................................................301

Solving copy problems..................................................................................................................................304

Solving scanner problems............................................................................................................................307

Solving fax problems..................................................................................................................................... 309

Solving home screen application problems............................................................................................. 312

Solving option problems................................................................................................................................313

Contents 6

Solving paper feed problems....................................................................................................................... 316

Solving print quality problems...................................................................................................................... 317

Solving color quality problems....................................................................................................................329

Embedded Web Server does not open.................................................................................................... 332

Contacting customer support......................................................................................................................332

Notices.......................................................................................................334

Product information........................................................................................................................................334

Edition notice................................................................................................................................................... 334

Power consumption........................................................................................................................................338

Index.......................................................................................................... 350

Safety information 7

Safety information

Connect the power cord directly to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible.

CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of accessories can be easily overloaded by a laser printer and may result in poor printer performance, property damage, or potential ﬁre.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn the printer o using the power switch, and then unplug the power cord from the wall outlet.

• Disconnect all cords and cables from the printer before moving it.

• Lift the printer o the optional drawer, and set it aside instead of trying to lift the drawer and printer at the

same time.

Note: Use the handholds located on both sides of the printer to lift it o the optional drawer.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—POTENTIAL INJURY: To reduce risk of provided with this product or a UL Listed 26 AWG or larger replacement when connecting this product to the public switched telephone network.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

use only the telecommunications (RJ‑11) cord

ﬁre,

and unplug the power

o,

This product is designed, tested, and approved to meet strict global safety standards with the use of manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

speciﬁc

Safety information 8

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of ﬁre or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a professional service person.

CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer, unplug the power cord from the wall outlet and disconnect all cables from the printer before proceeding.

CAUTION—SHOCK HAZARD: Do not use the fax feature during a lightning storm. Do not set up this product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray separately. Keep all other drawers or trays closed until needed.

CAUTION—TIPPING HAZARD: Floor-mounted conﬁgurations require additional furniture for stability. You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

SAVE THESE INSTRUCTIONS.

Learning about the printer 9

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Conﬁguring printer settings

Setup documentation—The setup documentation came with the printer and is also available at

http://support.lexmark.com.

User's Guide and Quick Reference Guide—The guides are available at

Note: These guides are also available in other languages.

http://support.lexmark.com.

• Viewing and printing documents and photos

• Setting up and using the printer software

• Conﬁguring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Information on setting up and conﬁguring the accessibility features of your printer

Help using the printer software Windows or Mac Help—Open a printer software

Lexmark Accessibility Guide—This guide is available

http://support.lexmark.com.

program or application, and then click Help.

Click

Notes:

to view context‑sensitive information.

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Learning about the printer 10

What are you looking for? Find it here

The latest supplemental information, updates, and customer support:

• Documentation

• Driver downloads

• Live chat support

• E‑mail support

• Voice support

Lexmark support Web site—

http://support.lexmark.com

Note: Select your country or region, and then select

your product to view the appropriate support site. Support telephone numbers and hours of operation

for your country or region can be found on the support Web site or on the printed warranty that came with your printer.

Record the following information (located on the store receipt and at the back of the printer), and have it ready when you contact customer support so that they may serve you faster:

• Machine Type number

• Serial number

• Date purchased

• Store where purchased

Warranty information Warranty information varies by country or region:

• In the U.S.—See the Statement of Limited

Warranty included with this printer, or go to

http://support.lexmark.com.

• In other countries and regions—See the printed

warranty that came with this printer.

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or

more trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airﬂow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical

Committee 156 standard.

• Provide a ﬂat, sturdy, and stable surface.

• Keep the printer: – Away from the direct airﬂow of air conditioners, heaters, or ventilators – Free from direct sunlight, humidity extremes, or temperature ﬂuctuations – Clean, dry, and free of dust – Away from stray staples and paper clips

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 11

1 Right side 307.34 mm (12.1 in.)

2 Front 444.5 mm (17.5 in.)

3 Left side 374.65 mm (14.75 in.)

4 Rear 100 mm (3.9 in.)

5 Top 304.8 mm (12 in.)

Printer conﬁgurations

CAUTION—TIPPING HAZARD: Floor‑mounted conﬁgurations require additional furniture for stability.

You must use either a printer stand or printer base if you are using a high‑capacity input tray, a duplex unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

Basic model

Learning about the printer 12

1 Automatic Document Feeder (ADF)

2 ADF input tray

3 ADF exit bin

4 Printer control panel

5 Exit tray 2

6 Standard exit bin

7 Standard 520‑sheet tray

8 Multipurpose feeder

Conﬁgured models

You can

conﬁgure

your basic printer by adding optional trays. A 2,000-sheet high‑capacity feeder and a

bin can also be added.

1 Optional 520‑sheet tray (Tray 2)

2 Optional 520‑sheet tray (Tray 2, Tray 3, and Tray 4)

3 Optional 520‑sheet tray (Tray 2)

4 Optional 2,000‑sheet tandem‑tray module

• 850‑sheet tray (Tray 3)

• 1,150‑sheet tray (Tray 4)

ﬁnisher

Learning about the printer 13

Fully conﬁgured model

1 Finisher bin

The ﬁnisher bin can either be one of the following:

• Standard ﬁnisher (Punch/Stapler)

• Booklet ﬁnisher (Punch/Stapler/Booklet)

2 2,000‑sheet high‑capacity feeder

Basic functions of the scanner

The scanner provides copy, fax, and scan-to-network capability for large workgroups. You can:

• Make quick copies, or change the settings on the printer control panel to perform

speciﬁc

• Send a fax using the printer control panel.

• Send a fax to multiple fax destinations at the same time.

• Scan documents and send them to your computer, an e-mail address, a ﬂash drive, or an FTP destination.

• Scan documents and send them to another printer (PDF by way of FTP).

copy jobs.

Learning about the printer 14

Understanding the ADF and scanner glass

Automatic Document Feeder (ADF) Scanner glass

Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards

or photos), transparencies, photo paper, or thin media (such as magazine clippings).

You can use the ADF or the scanner glass to scan documents.

Using the ADF

The ADF can scan multiple pages including two‑sided (duplex) pages. When using the ADF:

Note: Duplex scanning is available only in select printer models.

• Load the document into the ADF faceup, short edge ﬁrst.

• Load up to 110 sheets of plain paper into the ADF.

• Scan sizes from 125 x 85 mm (4.9 x 3.35 in.) wide to 297 x 432 mm (11.69 x 17 in.) long.

• Scan media weights from 38 to 128 g/m

(25.67 to 86.48 lb).

• Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine

clippings) into the ADF. Place these items on the scanner glass.

Using the scanner glass

The scanner glass can be used to scan or copy single pages or book pages. When using the scanner glass:

• Place a document facedown on the scanner glass in the corner with the green arrow.

• Scan or copy documents up to 297 x 432 mm (11.69 x 17 in.).

• Copy books up to 12.7 mm (0.5 in.) thick.

Learning about the printer 15

Understanding the printer control panel

A B C3D E F

@ ! .

J K L6M N O

G H I

P Q R S8T U V9W X Y Z

Item Description

1 Display Shows the status of the printer, and allows printer setup and operation

2 Indicator light

• O—The printer is o.

• Blinking green—The printer is warming up, processing data, or printing.

• Solid green—The printer is on, but idle.

• Blinking red—The printer requires operator intervention is needed.

3 Sleep Enables Sleep Mode or Hibernate Mode

The following are the statuses of the indicator light and the Sleep button:

• Entering or waking from Sleep Mode—The indicator light is illuminated solid green, Sleep

button is unilluminated.

• Operating in Sleep Mode—The indicator light is illuminated solid green, Sleep button is

illuminated solid amber.

• Entering or waking from Hibernate Mode—The indicator light is illuminated solid green,

Sleep button is illuminated blinking amber.

• Operating in Hibernate Mode—The indicator light is unilluminated, Sleep button is

blinking amber for 1/10 of a second, then go completely unilluminated for 1.9 seconds in pulsing pattern.

The following actions wake the printer from Sleep Mode:

• Touching the screen or any hard button presses.

• Opening an input tray, cover, or door.

• Sending a print job from the computer.

• Performing a Power On Reset (POR) with the main power switch.

4 Keypad Lets you enter numbers, letter, or symbols

5 Submit Lets you submit changes made in the printer settings

6 Stop/Cancel Stops all printer activity

Note: A list of option is displayed once Stopped appears on the display.

7 Home Lets you navigate back to the home screen

Understanding the home screen 16

Understanding the home screen

When the printer is turned on, the display shows a basic screen, referred to as the home screen. Touch the home screen buttons and icons to initiate an action such as copying, faxing, or scanning; to open the menu screen; or to respond to messages.

Note: Your home screen, icons, and buttons may vary depending on your home screen customization settings, administrative setup, and active embedded solutions.

123.123.123.123

To uc h To

Copy Access the Copy menus and make copies.

E-mail Access the E-mail menus and send e‑mails.

Fax Access the Fax menus and send fax.

Access the printer menus. Note: These menus are available only when the printer is in the Ready state.

FTP Access the File Transfer Protocol (FTP) menus and scan documents directly to an FTP

server.

Status message bar

• Show the current printer status such as Ready or Busy.

• Show printer conditions such as Toner Low or Cartridge Low.

• Show intervention messages so the printer can continue processing.

Status/Supplies

• Display a warning or error message whenever the printer requires intervention to

continue processing.

• Access the messages screen for more information on the message, and how to clear

it.

USB or USB Thumbdrive

View, select, print, scan, or e‑mail photos and documents from a ﬂash drive. Note: This button appears only when you return to the home screen while a memory

card or ﬂash drive is connected to the printer.

Bookmarks Create, organize, and save a set of bookmarks (URL) into a tree view of folders and ﬁle

links. Note: The tree view supports only bookmarks created from this function, and not from

any other application.

Understanding the home screen 17

To uc h To

Held Jobs Display all current held jobs.

Other buttons that may appear on the home screen:

To uc h To

Search held jobs Search on any of the following items:

• User name for held or

conﬁdential

print jobs

• Job names for held jobs, excluding conﬁdential print jobs

• Proﬁle names

• Bookmark container or print job names

• USB container or print job names for supported ﬁle types

Release Held Fax Access the list of held faxes.

Note: This button appears only when there are held faxes with a scheduled hold time previously set.

Lock Device Open a password entry screen. Enter the correct password to lock

the printer control panel. Note: This button appears only when the printer is unlocked and

password has been set.

Unlock Device Open a password entry screen. Enter the correct password to

unlock the printer control panel. Note: This button appears only when the printer is locked. The

printer control panel buttons and shortcuts cannot be used while this appears.

Cancel Jobs Open the Cancel Jobs screen. The Cancel Jobs screen shows

three headings: Print, Fax, and Network. The following options are available under the Print, Fax, and

Network headings:

• Print job

• Copy job

• Fax proﬁle

• FTP

• E-mail send

Each heading has a list of jobs shown in a column under it which can show only three jobs per screen. If more than three jobs exist in a column, then an arrow appears enabling you to scroll through the jobs.

Change Language Launch the Change Language pop‑up window that lets you

change the primary language of the printer.

Understanding the home screen 18

Features

Feature Description

Menu trail line Sample:

Settings > Number of Copies

Attendance message alert

Warning

Printer IP address Sample: 123.123.123.123

Menus > Settings > Copy

A menu trail line is located at the top of each menu screen. This feature shows the path taken to arrive at the current menu.

Touch any of the underlined words to return to that menu. Number of Copies is not underlined since this is the current screen. If you

touch an underlined word on the Number of Copies screen before the Number of Copies is set and saved, then the selection is not saved, and it does not become the default setting.

If an attendance message aects a function, then this icon appears and the red indicator light blinks.

If an error condition occurs, then this icon appears.

The IP address of your network printer is located at the top left corner of the home screen and appears as four sets of numbers separated by periods. You can use the IP address when accessing the Embedded Web Server so you can view and remotely conﬁgure printer settings even when you are not physically near the printer.

Using the touch-screen buttons

Note: Your home screen, icons, and buttons may vary depending on your home screen customization

settings, administrative setup, and active embedded solutions.

Sample touch screen

To uc h To

Submit Submit changes made in the printer settings.

Sample Copy Print a sample copy.

Understanding the home screen 19

To uc h To

Right arrow

Left arrow

Home

Right increase

Left decrease

Scroll to the right.

Scroll to the left.

Return to the home screen.

Select a higher value.

Select a lower value.

Exit

Tips

Exit from the current screen.

Open a context-sensitive Help dialog on the touch screen.

Other touch-screen buttons

To uc h To

Cancel

Save a setting.

• Cancel an action or a selection.

• Exit a screen and return to the previous screen without saving changes.

Understanding the home screen 20

To uc h To

Reset

Reset values on the screen.

Setting up and using the home screen applications 21

Setting up and using the home screen applications

Notes:

• Your home screen, icons, and buttons may vary depending on your home screen customization settings,

administrative setup, and active embedded applications.

• There may be additional solutions and applications available for purchase. For more information, go to

http://support.lexmark.com or contact the place where you purchased the printer.

Accessing the Embedded Web Server

The Embedded Web Server is the printer Web page that lets you view and remotely conﬁgure printer settings even when you are not physically near the printer.

1 Obtain the printer IP address:

• From the printer control panel home screen

• From the TCP/IP section in the Network/Ports menu

• By printing a network setup page or menu settings page, and then ﬁnding the TCP/IP section

Note: An IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

2 Open a Web browser, and then type the printer IP address in the address ﬁeld.

3 Press Enter.

Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly.

Showing or hiding icons on the home screen

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

2 Click Settings > General Settings > Home screen customization.

A list of basic printer functions appears.

3 Select the check boxes to specify which icons appear on the printer home screen.

Note: Cleared check box items are hidden.

4 Click Submit.

Setting up and using the home screen applications 22

Activating the home screen applications

Your printer comes with preinstalled home screen applications. Before you can use these applications, activate and set up these applications using the Embedded Web Server. For more information about accessing the Embedded Web Server, see

For detailed information about conﬁguring and using the home screen applications, go to the Lexmark Web site at

http://support.lexmark.com.

“Accessing the Embedded Web Server” on page 21.

ﬁrst

Setting up Forms and Favorites

Icon Description

The application helps you simplify and streamline work processes by letting you quickly ﬁnd and print frequently used online forms directly from the home screen.

Note: The printer must have permission to access the network folder, FTP site, or Web site where the bookmark is stored. From the computer where the bookmark is stored, use sharing, security, and ﬁrewall settings to allow the printer at least a read access. For help, see the documentation that came with your operating system.

1 Open a Web browser, and then type the printer IP address in the address

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

ﬁeld.

2 Click Settings > Device Solutions > Solutions (eSF) > Forms and Favorites.

3 Deﬁne the bookmarks, and then customize the settings.

4 Click Apply.

To use the application, touch Forms and Favorites on the printer home screen, and then navigate through form categories, or search for forms based on a form number, name, or description.

Setting up Scan to Network

Icon Description

The application lets you capture a digital image of a hard‑copy document and route it to a shared network folder. You can deﬁne up to 30 unique folder destinations.

Notes:

• The printer must have permission to write to the destinations. From the computer where

the destination is at least a write access. For help, see the documentation that came with your operating system.

speciﬁed,

• The Scan to Network icon appears only when one or more destinations are

use sharing, security, and

ﬁrewall

settings to allow the printer

deﬁned.

Setting up and using the home screen applications 23

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

2 Click Settings > Device Solutions > Solutions (eSF) > Scan to Network.

3 Specify the destinations, and then customize the settings.

4 Click Apply.

To use the application, touch Scan to Network on the printer home screen, and then follow the instructions on the printer display.

Setting up My MFP

Icon Description

The application lets you customize your touch‑screen settings and store those preferences in a ﬂash drive. Each time you want to copy, fax, or scan, insert the ﬂash drive into the USB port of the printer. All your personal preferences are automatically uploaded, including job settings, home screen preferences, and address book.

Note: The icon appears only when a ﬂash drive with My MFP settings is inserted into the USB port of the printer.

To set up My MFP, insert a ﬂash drive into the USB port of the printer, and then follow the instructions on the printer display to run the setup wizard.

To use My MFP, insert the ﬂash drive into the USB port of the printer when you want to copy, fax, or scan.

Understanding WS‑Scan

Icon Description

The Web Services‑Scan application lets you scan documents at the network printer, and then send the scanned image to your computer. WS‑Scan is a Microsoft application that is similar to Scan to Network, but has the capability of sending the scanned image to a Windows‑based application. To learn more about WS‑Scan, see the Microsoft documentation.

Note: The icon appears on the printer home screen only when there is a computer registered with the network printer. The computer must have either Windows 8, Windows 7, or Windows Vista operating system installed.

Setting up and using the home screen applications 24

Setting up Remote Operator Panel

This application shows the printer control panel on your computer screen and lets you interact with the printer control panel, even when you are not physically near the network printer. From your computer screen, you can view the printer status, release held print jobs, create bookmarks, and do other print-related tasks you might normally do while standing at the network printer.

1 Open a Web browser, and then type the printer IP address in the address

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

ﬁeld.

2 Click Settings > Device Solutions > Solutions (eSF) > Remote Operator Panel.

3 Select the Enabled check box, and then customize the settings.

4 Click Apply.

To use the application, from the Embedded Web Server, click Applications > Remote Operator Panel > Launch VNC Applet.

Exporting and importing a conﬁguration

You can export conﬁguration settings into a text ﬁle, and then import it to apply the settings to other printers.

Exporting a

conﬁguration

1 Open a Web browser, and then type the printer IP address in the address

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

2 Click Settings or Conﬁguration.

to a

ﬁle

ﬁeld.

3 Click Device Solutions > Solutions (eSF), or click Embedded Solutions.

4 From Installed Solutions, click the name of the application you want to conﬁgure.

5 Click

Conﬁgure

6 Follow the instructions on the computer screen to save the

name or use the default name.

Note: If a JVM Out of Memory error occurs, then repeat the export process until the is saved.

Importing a

1 Open a Web browser, and then type the printer IP address in the address

Note: View the printer IP address on the printer control panel home screen. The IP address appears as

four sets of numbers separated by periods, such as 123.123.123.123.

> Export.

conﬁguration

from a

ﬁle

conﬁguration ﬁle,

ﬁeld.

and then type a unique

conﬁguration ﬁle

2 Click Settings or Conﬁguration.

3 Click Device Solutions > Solutions (eSF), or click Embedded Solutions.

4 From Installed Solutions, click the name of the application you want to conﬁgure.

ﬁle

Setting up and using the home screen applications 25

5 Click Conﬁgure > Import.

6 Browse to the saved conﬁguration ﬁle that was exported from a previously conﬁgured printer, and then load

or preview it.

Note: If a timeout occurs and a blank screen appears, then refresh the Web browser, and then click Apply.

Additional printer setup 26

Additional printer setup

Turning on the printer

1 Open the front door.

2 Press the printer power switch.

3 Close the front door.

Additional printer setup 27

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

Available internal options

• Memory cards – Printer memory – Flash memory – Fonts

• Firmware cards – Bar Code – PrintCryption

• Printer hard disk

• Lexmark

– RS‑232‑C Serial ISP – Parallel 1284‑B ISP – MarkNet – MarkNet N8130 10/100 Fiber ISP – MarkNet N8120 10/100/1000 Ethernet ISP

Internal Solutions Ports (ISP)

N8250 802.11 b/g/n Wireless ISP

and unplug the power

o,

Note: An external kit is needed to support the ISP.

Accessing the system board

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer o, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

Additional printer setup 28

Note: This task requires a ﬂathead screwdriver.

1 Turn the screws counterclockwise to loosen them.

2 Pull the system board forward to remove it.

3 Use the following illustration to locate the appropriate connectors.

Warning—Potential Damage: System board electronic components are easily damaged by static

electricity. Touch something metal on the printer before touching any system board electronic components or connectors.

Additional printer setup 29

1 ISP connector

2 Firmware and ﬂash memory card connectors

3 Memory card connectors

4 Push the system board back into place.

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch something metal on the printer before touching any system board electronic components or connectors.

An optional memory card can be purchased separately and attached to the system board.

1 Access the system board.

For more information, see

Note: This task requires a

“Accessing the system board” on page 27.

ﬂathead

screwdriver.

2 Unpack the memory card.

and unplug the power

o,

Note: Avoid touching the connection points along the edge of the card.

Additional printer setup 30

3 On the system board, open the memory card connector latches.

4 Align the notch on the memory card to the ridge on the connector.

1 Notch

2 Ridge

Additional printer setup 31

5 Push the memory card into the connector until it clicks into place.

Installing a ﬂash memory or ﬁrmware card

The system board has two connections for an optional ﬂash memory or ﬁrmware card. Only one of each may be installed, but the connectors are interchangeable.

1 Access the system board.

For more information, see

Notes:

“Accessing the system board” on page 27.

• This task requires a ﬂathead screwdriver.

• Do not unplug the fan cable upon opening the metal panel.

2 Unpack the card.

Note: Avoid touching the connection points along the edge of the card.

and unplug the power

o,

Additional printer setup 32

3 Holding the card by its sides, align the plastic pins on the card with the holes on the system board.

1 Plastic pins

2 Metal pins

4 Push the card

Notes:

• The entire length of the connector on the card must touch and be

ﬁrmly

into place.

ﬂush

• Be careful not to damage the connectors.

Installing an Internal Solutions Port

The system board supports one optional Lexmark Internal Solutions Port (ISP).

against the system board.

Note: This task requires a ﬂathead screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

Additional printer setup 33

1 Access the system board.

For more information, see

“Accessing the system board” on page 27.

2 Remove the printer hard disk.

For more information, see

“Removing a printer hard disk” on page 39

3 Unpack the ISP kit.

1 ISP solution

2 Screws for the ISP solution

3 Screws for the plastic bracket

4 Plastic bracket

4 Use the provided screws to attach the plastic bracket to the ISP solution.

Additional printer setup 34

5 Use the provided screw to attach the ISP solution to the system board cage.

6 Connect the ISP solution interface cable into the receptacle of the system board.

Additional printer setup 35

7 Firmly connect the ISP solution to the system board cage using two screws.

Installing a printer hard disk

Note: This task requires a ﬂathead screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

1 Access the system board.

For more information, see

“Accessing the system board” on page 27.

2 Unpack the printer hard disk.

Additional printer setup 36

3 Locate the appropriate connector on the system board.

Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.

To install a printer hard disk onto the ISP:

a Using a ﬂathead screwdriver, loosen the screws.

b Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.

Additional printer setup 37

c Align the standos of the printer hard disk to the holes in the ISP, and then press down on the printer

hard disk until the standos are in place.

d Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 38

To install a printer hard disk directly on the system board:

a Align the standos of the printer hard disk to the holes in the system board, and then press down on

the printer hard disk until the standos are in place.

b Use the two provided screws to attach the printer hard disk mounting bracket.

c Insert the plug of the printer hard disk interface cable into the receptacle of the system board.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 39

Removing a printer hard disk

Note: This task requires a

ﬂathead

screwdriver.

Additional printer setup 40

1 Access the system board.

For more information, see

“Accessing the system board” on page 27.

2 Unplug the printer hard disk interface cable from the system board, leaving the cable attached to the printer

hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling the cable out.

Additional printer setup 41

3 Remove the screws while holding the printer hard disk in place, and then remove the printer hard disk.

4 Set aside the printer hard disk.

Installing hardware options

Order of installation

CAUTION—TIPPING HAZARD: Floor-mounted

You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or

conﬁgurations

require additional furniture for stability.

Additional printer setup 42

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

Install the printer and any optional trays or ﬁnishers you have purchased in the following order:

Using a one‑tray module

•

Optional 520‑sheet tray (Tray 2)

• Printer

• 2,000‑sheet high‑capacity feeder

• Finisher

Using a three‑tray module

•

Three‑tray module

• Printer

• 2,000‑sheet high‑capacity feeder

• Finisher

Using a tandem‑tray module

•

Tan de m‑tray module

• Printer

• 2,000‑sheet high‑capacity feeder

• Finisher

For information on installing a one‑tray module, three‑tray module, tandem‑tray module, high‑capacity feeder, or any of the

ﬁnishers,

see the setup documentation that came with the option.

Installing optional trays

The printer supports the following optional trays:

• 1‑tray module

• 3‑tray module

• Tan de m‑tray module

• High‑capacity feeder

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—SHOCK HAZARD: If you are accessing the system board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer o, and unplug the power cord from the wall outlet before continuing. If you have any other devices attached to the printer, then turn them o as well, and unplug any cables going into the printer.

CAUTION—TIPPING HAZARD: Floor-mounted You must use either a printer stand or printer base if you are using a high-capacity input tray, a duplex unit and an input option, or more than one input option. If you purchased a multifunction printer (MFP) that scans, copies, and faxes, you may need additional furniture. For more information, see

www.lexmark.com/multifunctionprinters.

conﬁgurations

require additional furniture for stability.

Additional printer setup 43

1 Unpack the optional tray, and then remove all packing material.

2 Place the tray near the printer.

3 Tur n

the printer.

o

4 Align the printer with the tray, and then lower the printer into place.

1 1‑tray module

2 2,000-sheet high‑capacity feeder

1 3‑tray module

2 2,000‑sheet high‑capacity feeder

Additional printer setup 44

1 Tan de m‑tray module

2 2,000‑sheet high‑capacity feeder

5 Turn the printer back on.

6 Set the printer software to recognize the optional tray. For more information, see “Updating available options

in the printer driver” on page 47.

Attaching cables

CAUTION—POTENTIAL INJURY: Do not use the fax feature during a lightning storm. Do not set up this

product or make any electrical or cabling connections, such as the fax feature, power cord, or telephone, during a lightning storm.

Connect the printer to the computer using a USB cable or Ethernet cable.

Be sure to match the following:

• The USB symbol on the cable with the USB symbol on the printer

• The appropriate Ethernet cable to the Ethernet port

Additional printer setup 45

1 Telephone port

2 Fax port

3 Ethernet port

4 USB printer port

5 USB port

Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown

while actively printing. A loss of data or a malfunction can occur.

Verifying printer setup

Once all hardware and software options are installed and the printer is turned on, verify that the printer is set up correctly by printing the following:

• Menu settings page—Use this page to verify that all printer options are installed correctly. A list of installed

options appears toward the bottom of the page. If an option you installed is not listed, then it is not installed correctly. Remove the option and install it again.

• Network setup page—If your printer is a network model and is attached to a network, print a network setup

page to verify the network connection. This page also provides important information that aids network printing conﬁguration.

Printing a menu settings page

From the home screen, navigate to:

> Reports > Menu Settings Page

Additional printer setup 46

Printing a network setup page

If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing conﬁguration.

1 From the home screen, navigate to:

> Reports > Network Setup Page

2 Check the

If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning. Consult a system support person for a solution, and then print another network setup page.

section of the network setup page, and

ﬁrst

conﬁrm

that the status is Connected.

Setting up the printer software

Installing the printer software

Notes:

• If you installed the printer software on the computer before but need to reinstall the software, then

uninstall the current software ﬁrst.

• Close all open software programs before installing the printer software.

1 Obtain a copy of the software installer package.

• From the Software and Documentation CD that came with your printer.

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

2 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using a Software and Documentation CD and the installation dialog does not appear, then do the

following:

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK.

In Windows 7 or earlier

Click or click Start, and then click Run.

b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter, or click OK.

In Macintosh

Click the CD icon on the desktop.

Note: D is the letter of your CD or DVD drive.

Additional printer setup 47

3 Click Install, and then follow the instructions on the computer screen.

Updating available options in the printer driver

When any hardware options are installed, you may need to manually add the options in the printer driver to make them available for use.

For Windows users

1 Open the printers folder.

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type control printers > OK

In Windows 7 or earlier

a Click or click Start, and then click Run. b In the Start Search or Run dialog, type control printers. c Press Enter, or click OK.

2 Depending on your device, do either of the following:

• Press and hold the printer you want to update.

• Right‑click the printer you want to update.

3 From the menu that appears, do either of the following:

• For Windows 7 or later, select Printer properties.

• For earlier versions, select Properties.

4 Click the Conﬁguration tab.

5 Do either of the following:

• Click Update Now ‑ Ask Printer.

• Under Conﬁguration Options, manually add any installed hardware options.

6 Click Apply.

For Macintosh users

1 From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan > select your printer > Options & Supplies > Driver

• System Preferences > Print & Fax > select your printer > Options & Supplies > Driver

2 Add any installed hardware options, and then click OK.

Additional printer setup 48

Networking

Notes:

• Purchase a MarkNet N8352 wireless network adapter before setting up the printer on a wireless

network. For information on installing the wireless network adapter, see the instruction sheet that came with the adapter.

• A Service Set Identiﬁer (SSID) is a name assigned to a wireless network. Wired Equivalent Privacy (WEP),

Wi-Fi Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.

Preparing to set up the printer on an Ethernet network

To conﬁgure your printer to connect to an Ethernet network, organize the following information before you begin:

Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the printer.

• A valid, unique IP address for the printer to use on the network

• The network gateway

• The network mask

• A nickname for the printer (optional)

Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to use the default printer nickname, or assign a name that is easier for you to remember.

You will need an Ethernet cable to connect the printer to the network and an available port where the printer can physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a damaged cable.

Preparing to set up the printer on a wireless network

Notes:

• Make sure your access point (wireless router) is turned on and is working properly.

• Do not connect the installation or network cables until prompted to do so by the setup software.

Make sure you have the following information before setting up the printer on a wireless network:

• SSID—The SSID is also referred to as the network name.

• Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.

• Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.

Some ad hoc networks will also require the automatic setting. Check with your system support person if you are not sure which channel to select.

Additional printer setup 49

• Security Method—There are four basic options for Security Method: – WEP key

If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key currently in use on the network by selecting the default WEP transmit key.

– WPA or WPA2 preshared key or passphrase

WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set for the same type on the router and on the printer, or the printer will not be able to communicate on the network.

– 802.1X–RADIUS

If you are installing the printer on an 802.1X network, then you may need the following:

• Authentication type

• Inner authentication type

• 802.1X user name and password

• Certiﬁcates

– No security

If your wireless network does not use any type of security, then you will not have any security information.

Note: Using an unsecured wireless network is not recommended.

Notes:

– If you do not know the SSID of the network that your computer is connected to, then launch the wireless

utility of the computer network adapter, and then look for the network name. If you cannot ﬁnd the SSID or the security information for your network, then see the documentation that came with the access point or contact your system support person.

– To

that came with the access point, see the Embedded Web Server associated with the access point, or consult your system support person.

the WPA/WPA2 preshared key or passphrase for the wireless network, see the documentation

ﬁnd

Installing the printer on a wireless network (Windows)

Before installing the printer on a wireless network, make sure:

• Your wireless network is set up and is working properly.

• The computer you are using is connected to the same wireless network where you want to set up the printer.

1 Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the

printer.

Additional printer setup 50

Note: Make sure the printer and the computer are fully on and ready.

Warning—Potential Damage: Do not connect the USB cable until instructed to do so on the computer

screen.

2 Obtain a copy of the software installer package.

• From the Software and Documentation CD that came with your printer.

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

3 Double‑click the software installer package.

Wait for the installation dialog to appear. If you are using the Software and Documentation CD and the installation dialog does not appear, then do

the following:

In Windows 8

From the Search charm, type run, and then navigate to: Apps list > Run > type D:\setup.exe > OK

In Windows 7 or earlier

Click or click Start, and then click Run.

b In the Start Search or Run dialog, type D:\setup.exe. c Press Enter or click OK.

Note: D is the letter of your CD or DVD drive.

4 Click Install, and then follow the instructions on the computer screen.

5 Select Wireless connection when asked to choose a connection type.

Additional printer setup 51

6 From the Wireless Conﬁguration dialog, select Guided Setup (Recommended).

Note: Choose Advanced Setup only if you want to customize your installation.

7 Temporarily connect a USB cable between the computer on the wireless network and the printer.

Note: After the printer is conﬁgured, the software will instruct you to disconnect the temporary USB cable

so you can print wirelessly.

8 Follow the instructions on the computer screen.

Note: For more information on allowing other computers on the network to use the wireless printer, see the

Networking Guide.

Installing the printer on a wireless network (Macintosh)

Note: Make sure to disconnect the Ethernet cable when installing the printer on a wireless network.

Prepare to conﬁgure the printer

Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.

2 Locate the printer MAC address.

a From the printer control panel, navigate to:

> Reports > > Network Setup Page >

> Reports > Network Setup Page

b In the Standard Network Card section, look for UAA (MAC).

Note: You will need this information later.

Additional printer setup 52

Enter the printer information

Access the AirPort options:

In Mac OS X version 10.5 or later

From the Apple menu, navigate to either of the following:

• System Preferences > Network > Wi‑Fi

• System Preferences > Network > AirPort

In Mac OS X version 10.4

From the Finder, navigate to:

Applications > Internet Connect > AirPort

2 From the Network Name pop‑up menu, select print server [yyyyyy], where the y’s are the last six digits of

the MAC address located on the MAC address sheet.

3 Open a Web browser.

4 From the Bookmarks menu, select Show or Show All Bookmarks.

5 Under COLLECTIONS, select Bonjour or Rendezvous, and then double‑click the printer name.

Note: The application referred to as Rendezvous in Mac OS X version 10.2 is now called Bonjour by

Apple Inc.

6 From the Embedded Web Server, navigate to the location of the wireless settings information.

Conﬁgure the printer for wireless access

Type the network name (SSID) in the appropriate

ﬁeld.

2 Select Infrastructure as your Network Mode setting if you are using an access point (wireless router).

3 Select the type of security you want to use to protect the wireless network.

4 Enter the security information necessary for the printer to connect to the wireless network.

5 Click Submit.

6 Open the AirPort application on the computer:

In Mac OS X version 10.5 or later

From the Apple menu, navigate to either of the following:

• System Preferences > Network > Wi‑Fi

• System Preferences > Network > AirPort

In Mac OS X version 10.4

From the Finder, navigate to:

Applications > Internet Connect > AirPort

7 From the Network pop‑up menu, select the name of the wireless network.

Additional printer setup 53

Conﬁgure your computer to use the printer wirelessly

To print on a network printer, each Macintosh user must install a custom printer driver queue in the Printer Setup Utility or Print Center.

1 Install a printer driver ﬁle on the computer:

a Obtain a copy of the software installer package.

• From the Software and Documentation CD that came with your printer.

• From our Web site:

Go to

http://support.lexmark.com, and then navigate to:

SUPPORT & DOWNLOAD > select your printer > select your operating system

b Double‑click the installer package for the printer. c Follow the instructions on the computer screen. d Select a destination, and then click Continue. e From the Easy Install screen, click Install.

f Type the user password, and then click OK.

All necessary applications are installed in the computer.

g Click Close when the installation is complete.

2 Add the printer:

a For IP printing:

In Mac OS X version 10.5 or later

1 From the Apple menu, navigate to either of the following:

• System Preferences > Print & Scan

• System Preferences > Print & Fax

2 Click +. 3 If necessary, click Add Printer or Scanner or Add Other Printer or Scanner. 4 Click the IP tab. 5 Type the IP address of the printer in the address ﬁeld, and then click Add.

and create a print

ﬁle

In Mac OS X version 10.4

1 From the Finder, navigate to:

Applications > Utilities

2 Double‑click Printer Setup Utility or Print Center. 3 From the Printer List, choose Add, and then click IP Printer. 4 Type the IP address of the printer in the address

and then click Add.

ﬁeld,

b For AppleTalk printing:

Notes:

• Make sure AppleTalk is activated on your printer.

• This feature is supported only in Mac OS X version 10.5 or earlier.

Additional printer setup 54

In Mac OS X version 10.5

1 From the Apple menu, navigate to:

System Preferences > Print & Fax

2 Click +, and then navigate to:

AppleTalk > select the printer from the list > Add

In Mac OS X version 10.4

1 From the Finder, navigate to:

Applications > Utilities

2 Double‑click Printer Setup Utility or Print Center. 3 From the Printer List, click Add. 4 Click Default Browser tab > More Printers. 5 From the ﬁrst pop‑up menu, select AppleTalk. 6 From the second pop‑up menu, select Local AppleTalk Zone. 7 Select the printer from the list, and then click Add.

Changing port settings after installing a new network ISP

Notes:

• If the printer has a static IP address, then you do not need to make any changes.

• If the computers are conﬁgured to use the network name, instead of an IP address, then you do not

need to make any changes.

• If you are adding a wireless ISP to a printer previously conﬁgured for an Ethernet connection, then make

sure the printer is disconnected from the Ethernet network.

For Windows users

Open the printers folder.

2 From the shortcut menu of the printer with the new ISP, open the printer properties.

3 Conﬁgure the port from the list.

4 Update the IP address.

5 Apply the changes.

For Macintosh users

From System Preferences in the Apple menu, navigate to the list of printers, and then select + > IP.

2 Type the IP address in the address ﬁeld.

3 Apply the changes.

Setting up serial printing (Windows only)

After installing the serial or communication (COM) port, conﬁgure the printer and the computer.

Additional printer setup 55

Note: Serial printing reduces print speed.

1 Set the parameters in the printer.

a From the control panel, navigate to the menu for the port settings. b Locate the menu for the serial port settings, and then adjust the settings, if necessary. c Save the settings.

2 From your computer, open the printers folder, and then select your printer.

3 Open the printer properties, and then select the COM port from the list.

4 Set the COM port parameters in Device Manager.

Use the Run dialog box to open the command prompt, and then type devmgmt.msc.

Minimizing your printer's environmental impact 56

Minimizing your printer's environmental impact

Lexmark is committed to environmental sustainability and is continually improving its printers to reduce their impact on the environment. We design with the environment in mind, engineer our packaging to reduce materials, and provide collection and recycling programs. For more information, see:

• The Notices chapter

• The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment

• The Lexmark recycling program at www.lexmark.com/recycle

By selecting certain printer settings or tasks, you may be able to reduce your printer's impact even further. This chapter outlines the settings and tasks that may yield a greater environmental beneﬁt.

Saving paper and toner

Studies show that as much as 80% of the carbon footprint of a printer is related to paper usage. You can signiﬁcantly reduce your carbon footprint by using recycled paper and the following printing suggestions, such as printing on both sides of the paper and printing multiple pages on one side of a single sheet of paper.

To save paper and energy using one printer setting, see

“Using Eco‑Mode” on page 57.

Using recycled paper

As an environmentally conscious company, Lexmark supports the use of recycled oce paper produced speciﬁcally for use in laser/LED printers. For more information on recycled papers that work well with your printer, see

“Using recycled paper and other oce papers” on page 76.

Conserving supplies

Use both sides of the paper

If your printer model supports two‑sided printing, then you can control whether print appears on one or two sides of the paper.

Notes:

• Two-sided printing is the default setting in the print driver.

• For a complete list of supported products and countries, go to http://support.lexmark.com.

Place multiple pages on one sheet of paper

You can print up to 16 consecutive pages of a multiple‑page document onto one side of a single sheet of paper by setting multiple page printing (N‑Up) for the print job.

Check your

Before printing or making multiple copies of a document:

• Use the preview feature to see how the document looks like before you print it.

• Print one copy of the document to check its content and format for accuracy.

draft for accuracy

ﬁrst

Minimizing your printer's environmental impact 57

Avoid paper jams

Correctly set the paper type and size to avoid paper jams. For more information, see “Avoiding jams” on

page 262.

Saving energy

Using Eco‑Mode

1 Type the printer IP address into the address

If you do not know the IP address of the printer, you can:

of your Web browser.

ﬁeld

• View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.

• Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.

2 Click Settings > General Settings > Eco‑Mode > select a setting > Submit.

Choose To

O Use factory default settings for all settings associated with Eco‑Mode. This setting supports the

performance speciﬁcations of your printer.

Energy Reduce energy use, especially when the printer is idle.

• Printer engine motors do not start until it is ready to print. You may notice a short delay before

the

• The printer enters Sleep mode after one minute of inactivity.

• When the printer enters Sleep mode, the printer control panel display and the standard exit bin

lights are turned o.

• If scanning is supported, the scanner lamps are activated only when a scan job is started.

Energy/Paper Use all the settings associated with Energy mode and Paper mode.

Paper

• Enable the automatic duplex feature.

• Turn o print log features.

page is printed.

ﬁrst

Reducing printer noise

To select a Quiet Mode setting using the Embedded Web Server:

1 Type the printer IP address into the address ﬁeld of your Web browser.

If you do not know the IP address of the printer, you can:

• View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.

• Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.

2 Click Settings > General Settings > Quiet Mode > select a setting > Submit.

Minimizing your printer's environmental impact 58

Choose To

O Note: Selecting Photo from the driver may disable

Quiet Mode and provide better print quality and full speed printing.

On Reduce printer noise.

Use factory default settings. This setting supports the performance speciﬁcations of your printer.

• Print jobs will process at a reduced speed.

• Printer engine motors do not start until a document is

ready to print. There will be a short delay before the ﬁrst page is printed.

• If your printer has faxing capability, fax sounds are

reduced or disabled, including those made by the fax speaker and ringer. The fax is placed in standby mode.

• The alarm control and cartridge alarm sounds are

turned

o.

• The printer will ignore the Advance Start command.

Adjusting Sleep mode

1 From the home screen, navigate to:

> Settings > General Settings > Timeouts > Sleep Mode

2 In the Sleep Mode ﬁeld, select the number of minutes the printer is idle before it enters Sleep mode.

3 Apply the changes.

Using Hibernate Mode

Hibernate is an ultra‑low power operating mode. When operating in Hibernate mode, the printer is essentially o, and all other systems and devices are powered down safely.

Note: The Hibernate and Sleep modes can be scheduled.

Using the Embedded Web Server

Type the printer IP address in the address ﬁeld of your Web browser.

If you do not know the IP address of the printer, then you can:

• View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.

• Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.

2 Click Settings > General Settings > Sleep Button Settings.

3 From the Press Sleep Button or Press and Hold Sleep Button drop‑down, select Hibernate.

4 Click Submit.

Minimizing your printer's environmental impact 59

Using the printer control panel

From the home screen, navigate to:

> Settings > General Settings > Press Sleep Button or Press and Hold Sleep Button > Hibernate

2 To u ch Submit.

Adjusting the brightness of the printer display

To save energy, or if you have trouble reading from the display, adjust the brightness of the display.

Using the Embedded Web Server

Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• The IP address is located on the upper portion of the home screen. It appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Select Settings > General Settings.

3 In the Screen Brightness ﬁeld, enter the brightness percentage you want for the display.

4 Apply the changes.

Using the control panel

From the home screen, navigate to:

> Settings > General Settings

2 In the Screen Brightness ﬁeld, enter the brightness percentage you want for the display.

3 Apply the changes.

Recycling

Lexmark provides collection programs and environmentally progressive approaches to recycling. For more information, see:

• The Notices chapter

• The Environmental Sustainability section of the Lexmark Web site at www.lexmark.com/environment

• The Lexmark recycling program at www.lexmark.com/recycle

Recycling Lexmark products

To return Lexmark products for recycling:

1 Go to www.lexmark.com/recycle.

2 Find the product type you want to recycle, and then select your country or region from the list.

3 Follow the instructions on the computer screen.

Minimizing your printer's environmental impact 60

Note: Printer supplies and hardware not listed in the Lexmark collection program may be recycled through your local recycling center. Contact your local recycling center to determine the items they accept.

Recycling Lexmark packaging

Lexmark continually strives to minimize packaging. Less packaging helps to ensure that Lexmark printers are transported in the most ecient and environmentally sensitive manner and that there is less packaging to dispose of. These eciencies result in fewer greenhouse emissions, energy savings, and natural resource savings.

Lexmark cartons are 100% recyclable where corrugated recycling facilities exist. Facilities may not exist in your area.

The foam used in Lexmark packaging is recyclable where foam recycling facilities exist. Facilities may not exist in your area.

When you return a cartridge to Lexmark, you can reuse the box that the cartridge came in. Lexmark will recycle the box.

Returning Lexmark cartridges for reuse or recycling

Lexmark Cartridge Collection Program diverts millions of Lexmark cartridges from landﬁlls annually by making it both easy and free for Lexmark customers to return used cartridges to Lexmark for reuse or recycling. One hundred percent of the empty cartridges returned to Lexmark are either reused or demanufactured for recycling. Boxes used to return the cartridges are also recycled.

To return Lexmark cartridges for reuse or recycling, follow the instructions that came with your printer or cartridge and use the prepaid shipping label. You can also do the following:

1 Go to www.lexmark.com/recycle.

2 From the Toner Cartridges section, select your country or region.

3 Follow the instructions on the computer screen.

Loading paper and specialty media 61

Loading paper and specialty media

Setting the paper size and type

The Paper Size setting is automatically sensed according to the position of the paper guides in each tray except the multipurpose feeder. The Paper Size setting for the multipurpose feeder must be set manually from the Paper Size menu. The Paper Type setting must be set manually for all trays that do not contain plain paper.

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type > Submit

Conﬁguring Universal paper settings

The Universal Paper Size is a user‑ printer menus. Set paper size to Universal for the the Paper Size menu. Then specify all of the following Universal size settings for your paper:

• Units of Measure

• Portrait Width

• Portrait Height

The following are the supported Universal sizes:

• 76.2–296.93 x 76.2–1219.2 mm (3–11.69 x 3–48 inches)

• 297.18–320.29 x 76.2–609.6 mm (11.70–12.61 x 3–24 inches)

• 320.55–609.6 x 76.2–320.29 mm (12.62–24 x 3–12.61 inches)

• 609.85–1219.2 x 76.2–296.93 mm (24.01–48 x 3–11.69 inches)

1 From the home screen, navigate to:

> Paper Menu > Universal Setup > Units of Measure > select a unit of measure

2 To u ch Portrait Width or Portrait Height.

3 Select the width or height, and then touch Submit.

deﬁned

setting that lets you print on paper sizes that are not preset in the

speciﬁed

tray when the size you want is not available from

Loading the standard or optional 520‑sheet tray

The printer has one standard 520‑sheet tray (Tray 1), and may have one or more optional 520‑sheet trays. All 520‑sheet trays support the same paper sizes and types.

Loading paper and specialty media 62

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray separately. Keep all other drawers or trays closed until needed.

1 Pull the tray out.

Notice the size indicators at the bottom of the tray. Use these indicators to help position the length and width guides.

Loading paper and specialty media 63

2 Squeeze and then slide the width guide to the correct position for the paper size loaded.

3 Squeeze and then slide the length guide to the correct position for the paper size loaded.

Note: The length guide has a locking device. To unlock, slide the button on top of the length guide down.

To lock, slide the button up when a length has been selected.

4 Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a

level surface.

5 Load the paper stack with the recommended print side faceup.

Loading paper and specialty media 64

Notes:

• Place print side facedown for duplex printing.

• Place pre-punched paper with the holes toward the front of the tray.

• Place letterheads with the header on the left side of the tray.

• Make sure the paper is below the maximum ﬁll line located on the edge of the paper tray.

Warning—Potential Damage: Overloading the tray can cause paper jams and possible printer damage.

6 Insert the tray.

7 From the printer control panel, verify the Paper Size and Paper Type setting for the tray based on the paper

you loaded.

Loading the optional 850‑ and 1,150‑sheet trays

The 850‑ and 1,150‑sheet trays support the same paper sizes and types, and require the same process for loading paper.

Loading paper and specialty media 65

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray separately. Keep all other drawers or trays closed until needed.

1 Pull the tray out.

2 Squeeze and then slide the length guide to the correct position for the paper size you are loading.

3 Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a

level surface.

Loading paper and specialty media 66

4 Load the paper stack with the recommended print side faceup.

Notes:

• Place print side facedown for duplex printing.

• Place pre-punched paper with the holes toward the front of the tray.

• Place letterheads faceup with the header on the left side of the tray.

• Place letterheads facedown with the header on the right side of the tray for duplex printing.

• Make sure the paper is below the maximum ﬁll line located on the edge of the paper tray.

Warning—Potential Damage: Overloading the tray can cause paper jams and possible printer damage.

5 Insert the tray.

6 From the printer control panel, verify the Paper Size and Paper Type setting for the tray based on the paper

you loaded.

Loading paper and specialty media 67

Loading the 2000‑sheet high‑capacity feeder

The high‑capacity feeder can hold up to 2,000 sheets of letter‑, A4‑, and legal‑size paper (80 g/m2 or 20 lb).

1 Pull the tray out.

2 Adjust the width guide as necessary.

Loading paper and specialty media 68

3 Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a

level surface.

4 Load paper into the tray with the print side faceup.

Note: Make sure the paper is below the maximum ﬁll line located on the edge of the paper tray.

Overloading the tray can cause paper jams and possible printer damage.

Loading paper and specialty media 69

Notes:

• Place pre-punched paper with the holes toward the front of the tray.

• Place letterheads faceup with the header on the left side of the tray.

• Place letterheads facedown with the header on the right side of the tray for duplex printing.

5 Insert the tray.

Loading the multipurpose feeder

The multipurpose feeder can hold several sizes and types of print media, such as transparencies, labels, card stock, and envelopes. It can be used for single-page or manual printing, or as an additional tray.

The multipurpose feeder can hold approximately:

• 100 sheets of 75‑g/m

• 10 envelopes

• 75 transparencies

The multipurpose feeder accepts paper or specialty media within the following dimensions:

• Width—89 mm (3.5 in.) to 229 mm (9.02 in.)

• Length—127 mm (5 in.) to 1270 mm (50 in.)

(20‑lb) paper

Note: Maximum width and length can be applied only to short-edge feeding.

Note: Do not add or remove paper or specialty media when the printer is printing from the multipurpose

feeder or when the printer control panel indicator light is blinking. Doing so may cause a jam.

1 Pull down the multipurpose feeder door.

Loading paper and specialty media 70

2 For paper or specialty media that is longer than letter-size paper, gently pull the extension until it is fully

extended.

3 Flex the sheets of paper or specialty media back and forth to loosen them. Do not fold or crease them.

Straighten the edges on a level surface.

Paper

Envelopes

Transparencies Note: Avoid scratching or touching the print side.

Loading paper and specialty media 71

4 Push the paper pick tab, and then load the paper or specialty media. Slide the stack gently into the

multipurpose feeder until it comes to a stop, and then release the paper pick tab.

Warning—Potential Damage: Pulling the paper out, without pushing the paper pick tab jams or the paper pick tab to break.

may cause

ﬁrst,

• Load paper and transparencies with the recommended print side facedown and the long edge entering

the printer ﬁrst.

• For duplex letterhead printing, place the letterhead faceup and the header entering the printer last.

• Load envelopes with the ﬂap side up and to the right.

Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer.

Notes:

• Do not exceed the maximum stack height by forcing paper or transparencies under the stack height

limiter.

• Load only one size and type of paper at a time.

Loading paper and specialty media 72

5 Adjust the width guide to lightly touch the edge of the stack. Make sure the paper or specialty media ﬁts

loosely in the multipurpose feeder, lies ﬂat, and is not bent or wrinkled.

6 From the printer control panel, set the Paper Size and Paper Type for the multipurpose feeder (MP Feeder

Size and MP Feeder Type) based on the paper or specialty media loaded.

Linking and unlinking trays

When one linked tray becomes empty, paper feeds from the next linked tray. We recommend giving all custom paper, such as letterhead and dierent colored plain papers, a dierent custom type name so that the trays they are in do not automatically link.

Linking and unlinking trays

1 Open a Web browser, and then type the printer IP address in the address ﬁeld.

Notes:

• View the printer IP address on the printer home screen. The IP address appears as four sets of

numbers separated by periods, such as 123.123.123.123.

• If you are using a proxy server, then temporarily disable it to load the Web page correctly.

2 Click Settings > Paper Menu.

3 Change the paper size and type settings for the trays you are linking.

• To link trays, make sure the paper size and type for the tray match that of the other tray.

• To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.

4 Click Submit.

Note: You can also change the paper size and type settings using the printer control panel. For more

information, see

“Setting the paper size and type” on page 61.

Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer. The temperature of the fuser varies according to the speciﬁed paper type. Printing issues may occur if settings are not properly conﬁgured.

Loading paper and specialty media 73

Creating a custom name for a paper type

If the printer is on a network, you can use the Embedded Web Server to deﬁne a name other than Custom Type [x] for each of the custom paper types loaded into the printer.

1 Type the printer IP address into the address ﬁeld of your Web browser.

Note: If you do not know the IP address of the printer, then you can:

• View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.

• Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.

2 Click Settings > Paper Menu > Custom Name > type a name > Submit.

Note: This custom name will replace the Custom Type [x] name under the Custom Types and Paper Size

and Type menus.

3 Click Custom Types > select a paper type > Submit.

Assigning a custom paper type name

Assign a custom paper type name to a tray when linking or unlinking trays.

From the home screen, navigate to:

> Paper Menu > Paper Size/Type > select a custom paper type name > select a tray > Submit

Conﬁguring

If the printer is on a network, then you can use the Embedded Web Server to deﬁne a name other than Custom Type [x] for each of the custom paper types loaded into the printer.

1 Type the printer IP address in the address

Note: If you do not know the IP address of the printer, then you can:

a custom name

of your Web browser.

ﬁeld

• View the IP address on the printer control panel in the TCP/IP section under the Networks/Ports menu.

• Print a network setup page or the menu settings pages and locate the IP address in the TCP/IP section.

2 Click Settings > Paper Menu > Custom Types > select the custom name you want to conﬁgure > select a

paper or specialty media type > Submit.

Paper and specialty media guide 74

Paper and specialty media guide

Notes:

• Make sure that the paper size, type, and weight are set correctly on the computer or on the printer

control panel.

• Flex, fan, and straighten specialty media before loading them.

• The printer may print at a reduced speed to prevent damage to the fuser.

• For more information on card stock and labels, see the Card Stock & Label Guide on the Lexmark

support Web site at

Paper guidelines

Paper characteristics

The following paper characteristics aect print quality and reliability. Consider these characteristics when evaluating new paper stock.

http://support.lexmark.com.

Weight

The printer trays can automatically feed paper weights from 60 to 300 g/m2 (16–80 lb bond) grain long. Paper lighter than 60 g/m

75 g/m 90 g/m

Notes:

(20 lb bond) grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 in.), we recommend

(24 lb) or heavier paper.

• The duplex unit supports only 60–169 g/m

• The multipurpose feeder supports 60–300 g/m

(16 lb) might not be sti enough to feed properly, causing jams. For best performance, use

(16–32 lb bond) paper weights.

(16–80 lb bond) paper weights.

Curl

Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid, cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding problems.

Smoothness

Paper smoothness directly aects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheeld points; however, smoothness between 150 and 200 Sheeld points produces the best print quality.

Moisture content

The amount of moisture in paper aects both print quality and the ability of the printer to feed the paper correctly. Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that can degrade its performance.

Paper and specialty media guide 75

Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend the time to several days if the storage or transportation environment is very dierent from the printer environment. Thick paper may also require a longer conditioning period.

Grain direction

Grain refers to the alignment of the paper of the paper, or grain short, running the width of the paper.

For 60–135 g/m grain short is recommended.

(16–36 lb bond) paper, grain long paper is recommended. For papers heavier than 135 g/m2,

in a sheet of paper. Grain is either grain long, running the length

ﬁbers

Fiber content

Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing ﬁbers such as cotton can negatively aect paper handling.

Unacceptable paper

The following paper types are not recommended for use with the printer:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers,

carbonless copy paper (CCP), or no carbon required (NCR) paper

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be

aected

• Preprinted papers that require a registration (the precise print location on the page) greater than ±2.3 mm

(±0.9 in.), such as optical character recognition (OCR) forms In some cases, registration can be adjusted with a software application to successfully print on these forms.

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough‑edged, rough or heavily textured surface papers, or curled papers

• Recycled papers that fail EN12281:2002 (European)

• Paper weighing less than 60 g/m

• Multiple‑part forms or documents

by the temperature in the printer fuser

(16 lb)

Selecting paper

Using the appropriate paper prevents jams and helps ensure trouble‑free printing.

To help avoid paper jams and poor print quality:

• Always use new, undamaged paper.

• Before loading paper, know the recommended printable side of the paper. This information is usually

indicated on the paper package.

• Do not use paper that has been cut or trimmed by hand.

• Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.

• Do not use coated papers unless they are speciﬁcally designed for electrophotographic printing.

Paper and specialty media guide 76

Selecting preprinted forms and letterhead

Use these guidelines when selecting preprinted forms and letterhead:

• Use grain long for 60 to 90 g/m

• Use only forms and letterhead printed using an oset lithographic or engraved printing process.

• Avoid papers with rough or heavily textured surfaces.

Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand temperatures up to 190°C (374°F) without melting or releasing hazardous emissions. Use inks that are not latex inks might not. When in doubt, contact the paper supplier.

Preprinted papers such as letterhead must be able to withstand temperatures up to 190°C (374°F) without melting or releasing hazardous emissions.

aected

by the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements;

(16 to 24 lb) weight paper.

Using recycled paper and other

As an environmentally conscientious company, Lexmark supports the use of recycled paper produced speciﬁcally for use in laser (electrophotographic) printers.

While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that represent recycled cut size copier papers available on the global market. This with rigor and discipline. Many factors are taken into consideration both separately and as a whole, including the following:

oce

papers

scientiﬁc

testing is conducted

• Amount of post-consumer waste (Lexmark tests up to 100% post-consumer waste content.)

• Temperature and humidity conditions (Testing chambers simulate climates from all over the world.)

• Moisture content (Business papers should have low moisture: 4–5%.)

• Bending resistance and proper stiness means optimum feeding through the printer.

• Thickness (impacts how much can be loaded into a tray)

• Surface roughness (measured in Sheeld units, impacts print clarity and how well toner fuses to the paper)

• Surface friction (determines how easily sheets can be separated)

• Grain and formation (impacts curling, which also

moves through the printer)

inﬂuences

the mechanics of how the paper behaves as it

• Brightness and texture (look and feel)

Recycled papers are better than ever; however, the amount of recycled content in a paper of control over foreign matter. And while recycled papers are one good path to printing in an environmentally responsible manner, they are not perfect. The energy required to de-ink and deal with additives such as colorants and “glue” often generates more carbon emissions than does normal paper production. However, using recycled papers enables better resource management overall.

aects

the degree

Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To gain a better understanding of the impact of printers on the environment, the company commissioned a number of life cycle assessments and found that paper was identiﬁed as the primary contributor (up to 80%) of carbon emissions caused throughout the entire life of a device (from design to end-of-life). This is due to the energy-intensive manufacturing processes required to make paper.

Thus, Lexmark seeks to educate customers and partners on minimizing the impact of paper. Using recycled paper is one way. Eliminating excessive and unnecessary paper consumption is another. Lexmark is wellequipped to help customers minimize printing and copying waste. In addition, the company encourages purchasing paper from suppliers who demonstrate their commitment to sustainable forestry practices.

Paper and specialty media guide 77

Lexmark does not endorse speciﬁc suppliers, although a converter’s product list for special applications is maintained. However, the following paper choice guidelines will help alleviate the environmental impact of printing:

1 Minimize paper consumption.

2 Be selective about the origin of wood ﬁber. Buy from suppliers who carry certiﬁcations such as the Forestry

Stewardship Council (FSC) or the Program for the Endorsement of Forest certiﬁcations environmentally and socially responsible forest management and restoration practices.

guarantee that the paper manufacturer uses wood pulp from forestry operators that employ

3 Choose the most appropriate paper for printing needs: normal 75 or 80 g/m

paper, or recycled paper.

Certiﬁcation

certiﬁed

(PEFC). These

paper, lower weight

Unacceptable paper examples

Test results indicate that the following paper types are at risk for use with laser printers:

• Chemically treated papers used to make copies without carbon paper, also known as carbonless papers

• Preprinted papers with chemicals that may contaminate the printer

• Preprinted papers that can be

aected

• Preprinted papers that require a registration (the precise location on the page) greater than ± 2.3 mm (±

0.9 in.), such as optical character recognition (OCR) forms. In some cases, registration can be adjusted with a software application to successfully print on these forms.)

• Coated papers (erasable bond), synthetic papers, thermal papers

• Rough-edged, rough or heavily textured surface papers or curled papers

• Recycled papers that fail EN12281:2002 (European testing)

• Paper weighing less than 60 g/m

• Multiple part forms or documents

by the temperature in the printer fuser

(16 lb)

For more information about Lexmark, visit be found at the Environmental Sustainability link.

www.lexmark.com. General sustainability-related information can

Storing paper

Use these paper storage guidelines to help avoid jams and uneven print quality:

• For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent.

Most label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity between 40 and 60 percent.

• Store paper in cartons, on a pallet or shelf, rather than on the ﬂoor.

• Store individual packages on a

• Do not store anything on top of individual paper packages.

• Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and

wrapper help keep the paper clean, dry, and ﬂat.

surface.

ﬂat

Paper and specialty media guide 78

Supported paper sizes, types, and weights

The following tables provide information on standard and optional paper sources and the sizes, types, and weights of paper they support.

Note: To use a paper size that is unlisted,

Supported paper sizes

Paper size and dimension
