LevelOne WBR-3601 User Manual

LevelOne

User Manual

Ver. 1.0

WBR-3601

11g Wireless ADSL2+ Modem Router

Table of Contents

Product Overview ............................................................................................................................. 3

Product Description .......................................................................................................................... 3

Specification ..................................................................................................................................... 4

LED Meaning ................................................................................................................................... 6

Back Panel Connectors ................................................................................................................... 7

Factory Default Settings ................................................................................................................... 8

Hardware Requirements .................................................................................................................. 8

Setting up the Hardware Environment ............................................................................................. 8

Installation & Setup .......................................................................................................................... 9

Configuration Procedures .............................................................................................................. 12

WBR-3601 Router Configuration ................................................................................................... 16

Technology Glossary ...................................................................................................................... 23

Introduction of the Web Configuration ............................................................................................ 27

Accessing WBR-3601 Router Web Configuration .......................................................................... 27

Quick Start Guide .................................................................................................................... 29

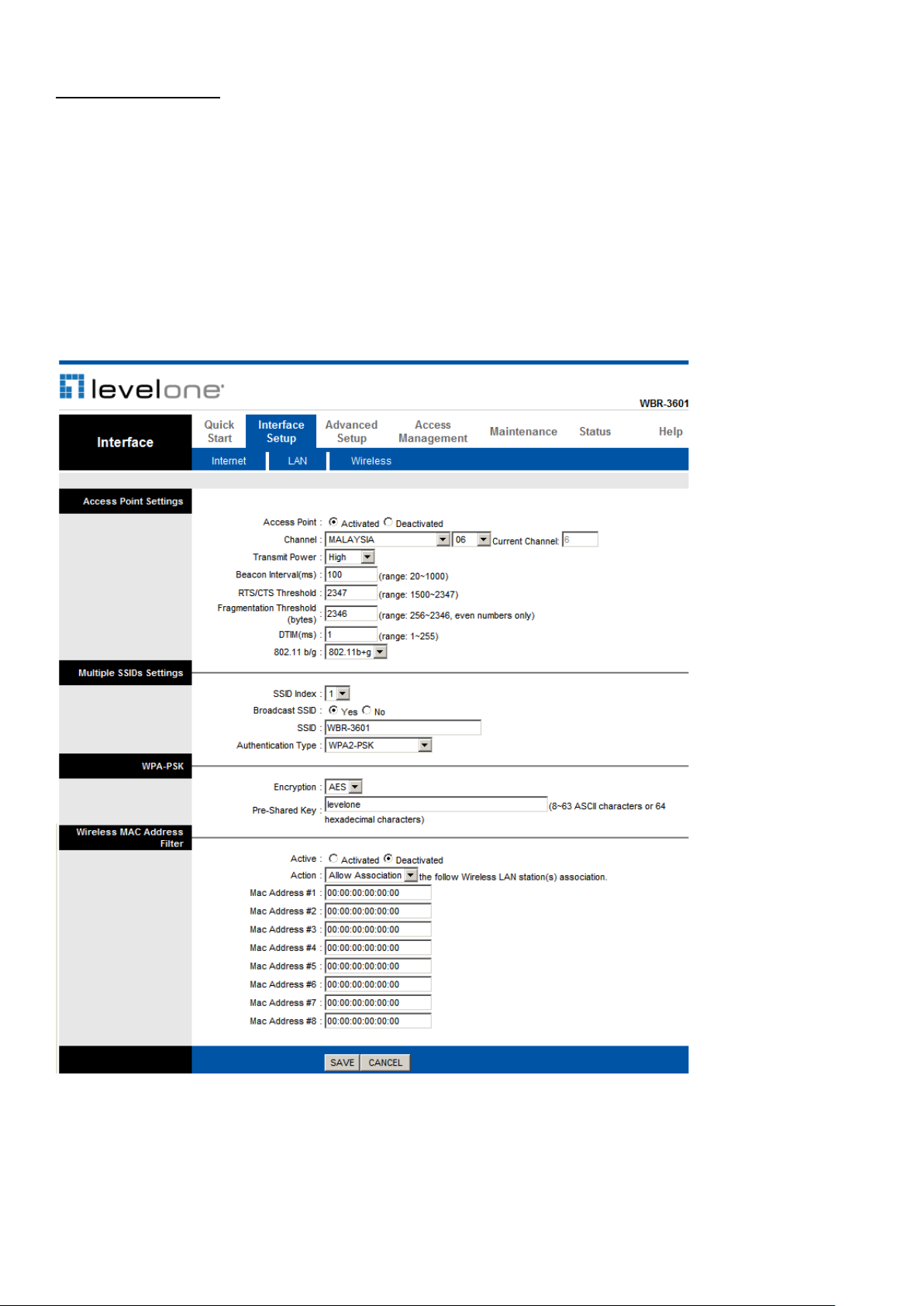

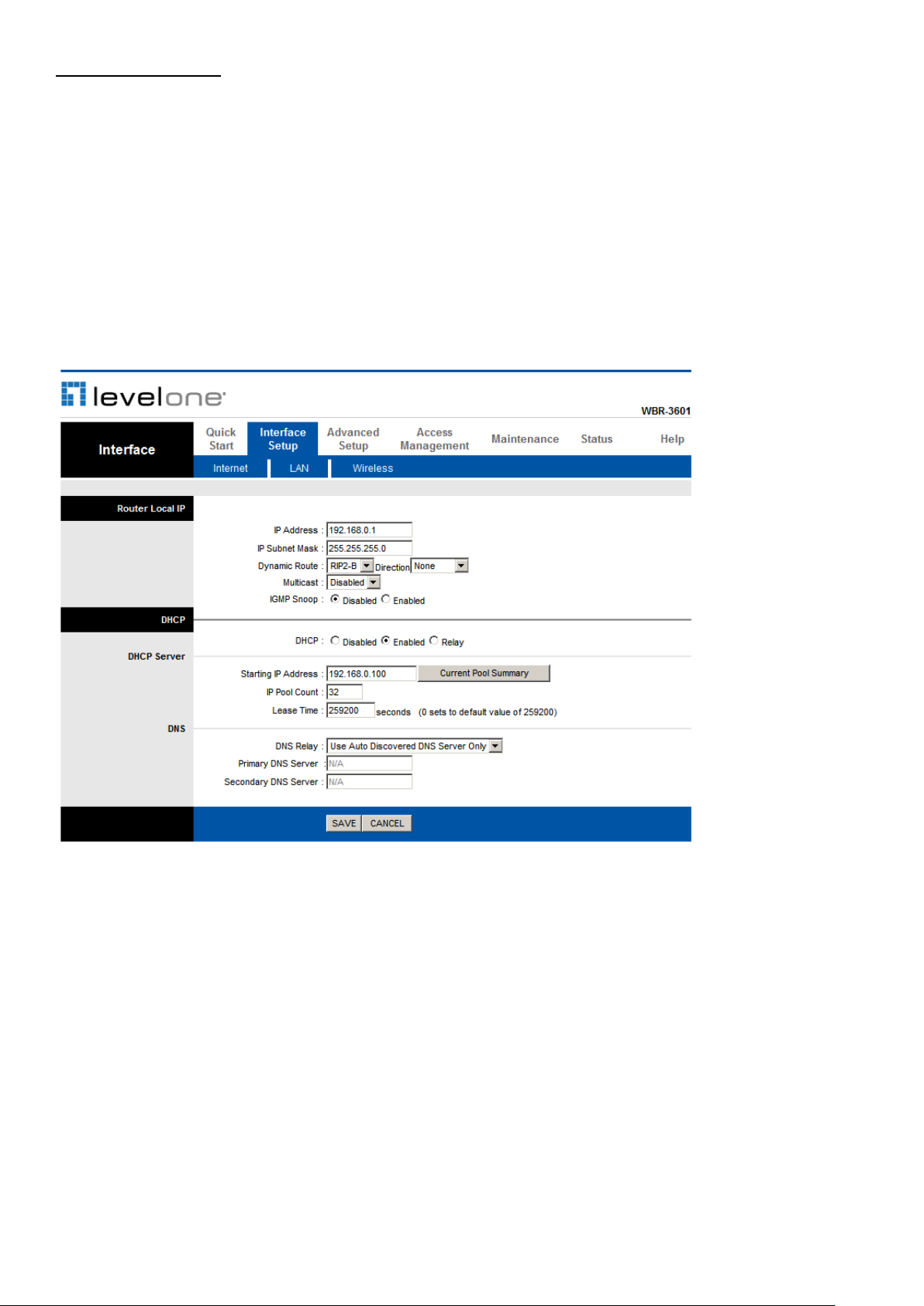

Interface Setup ....................................................................................................................... 33

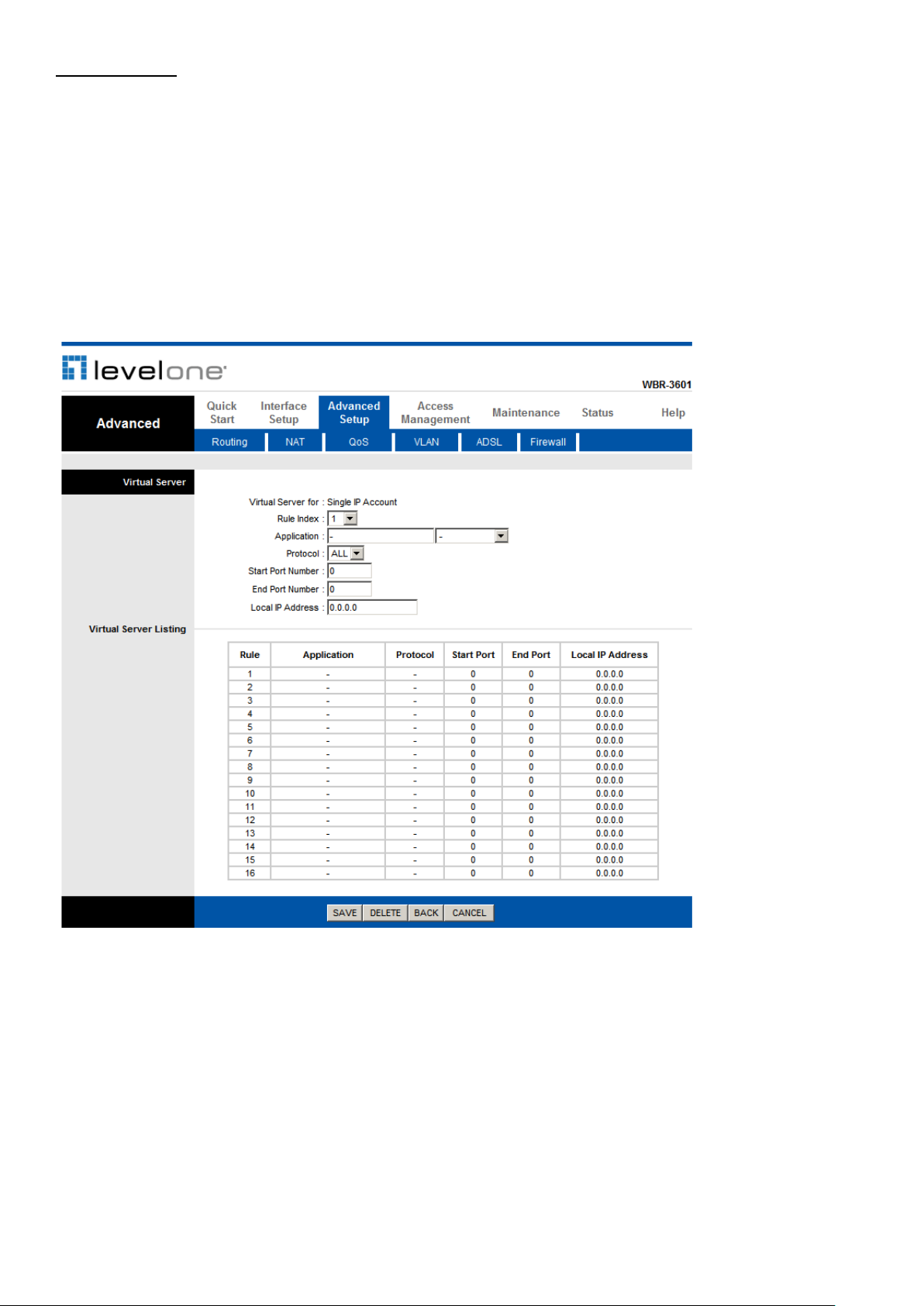

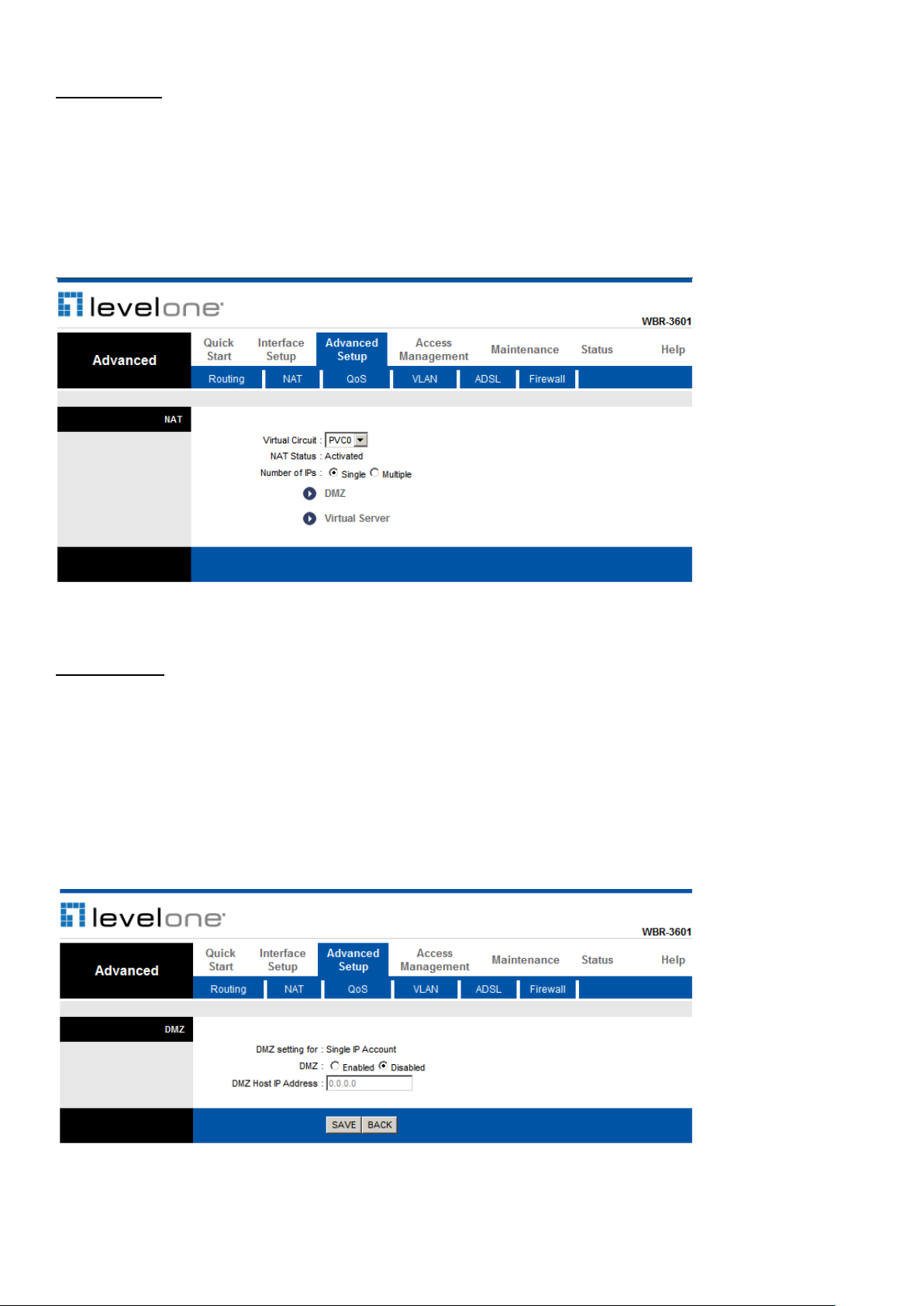

Advanced Setup ..................................................................................................................... 38

Access Management .............................................................................................................. 44

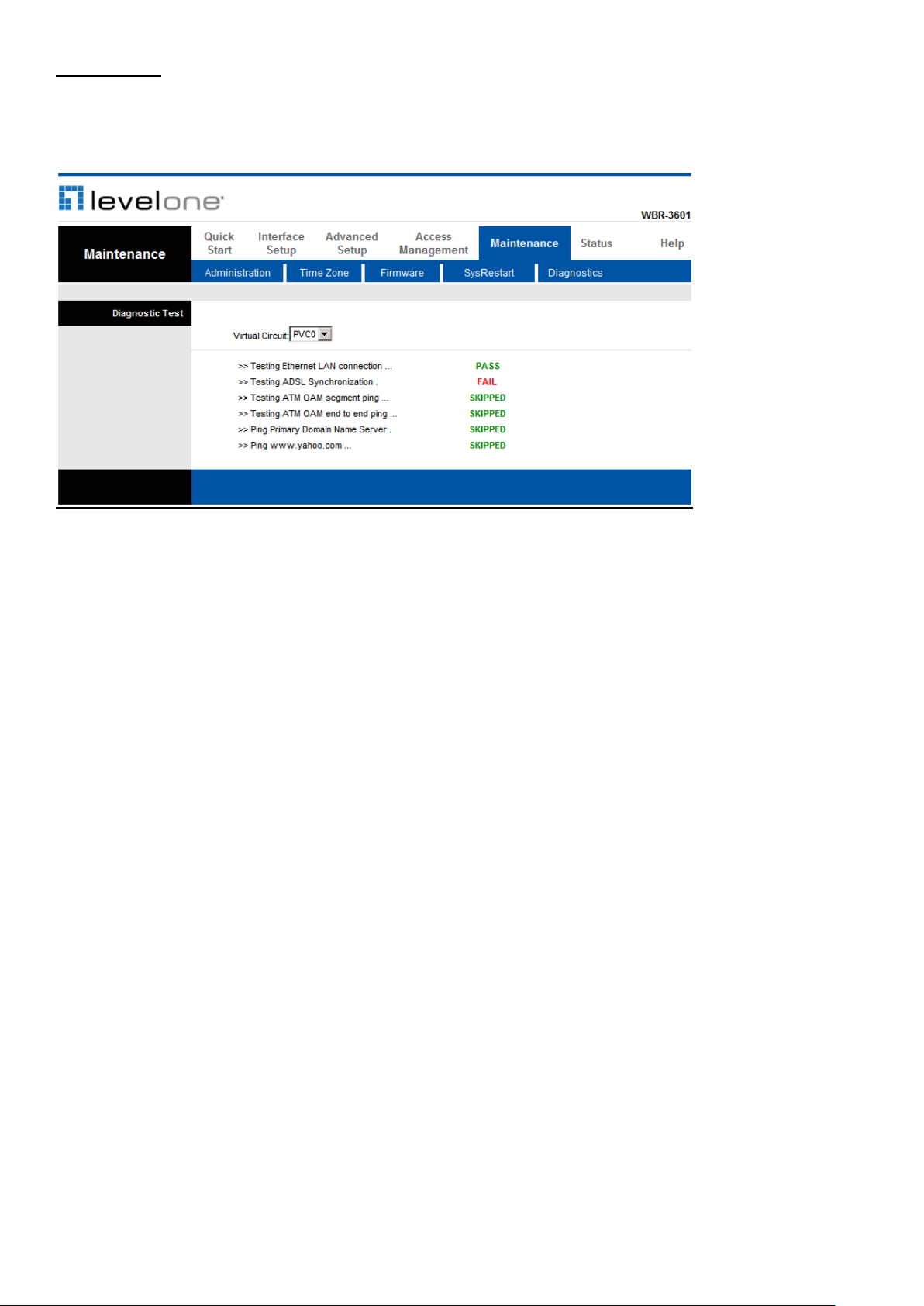

Maintenance ........................................................................................................................... 48

Status ...................................................................................................................................... 51

Universal Plug-and-Play (UPnP) .................................................................................................... 53

Troubleshooting ............................................................................................................................. 55

Note! This section documents general product features

available in the WBR-3601 Router product series. Please refer to the release notes for a current list of upgraded hardware and software specifications.

Product Overview

This section provides an overview of the WBR-3601 Router. It also describes the general applications available with the WBR-3601 Router.

Product Description

WBR-3601 Router is a low cost, high performance and high-speed device that provides a full rate ADSL2+ Router with the superb reliability and a complete solution for home and office router. WBR-3601 Router can have a maximum downstream data rate of up to 24Mbps and an upstream of up to 1Mbps. When configured as a DHCP server, it will assign IP address to every connected PC and acts as the only externally recognized Internet device on your local area network. With build-in NAT, WBR-3601 Router serves as an Internet firewall, protecting your network from being accessed by outside users. You can safely enjoy the new generation broadband Internet with WBR-3601 Router.

Specification

ADSL Standards supported

●Compliant to ITU-T G.992.1 (G.dmt), G.992.2 (G.lite), G.992.3 (ADSL2), G.992.4 (splitterless ADSL2), G.992.5 (ADSL2+) for Annex A, B

●G.lite (G.992.2) with line rate support of up to 1.5Mbps downstream and 512Kbps upstream.

●Supports Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.994.1 and G.996.1(for

ISDN only); G.991.1;G.lite (G992.2)).

●Supports OAM F4/F5 loop-back, AIS and RDI OAM cells.

●ATM Forum UNI 3.1/4.0 PVC.

●Supports up to 8 PVCs (UBR, CBR, VBR).

●Multiple Protocols over AAL5 (RFC 1483).

●PPP over AAL5 (RFC 2364).

●PPP over Ethernet (RFC 2516).

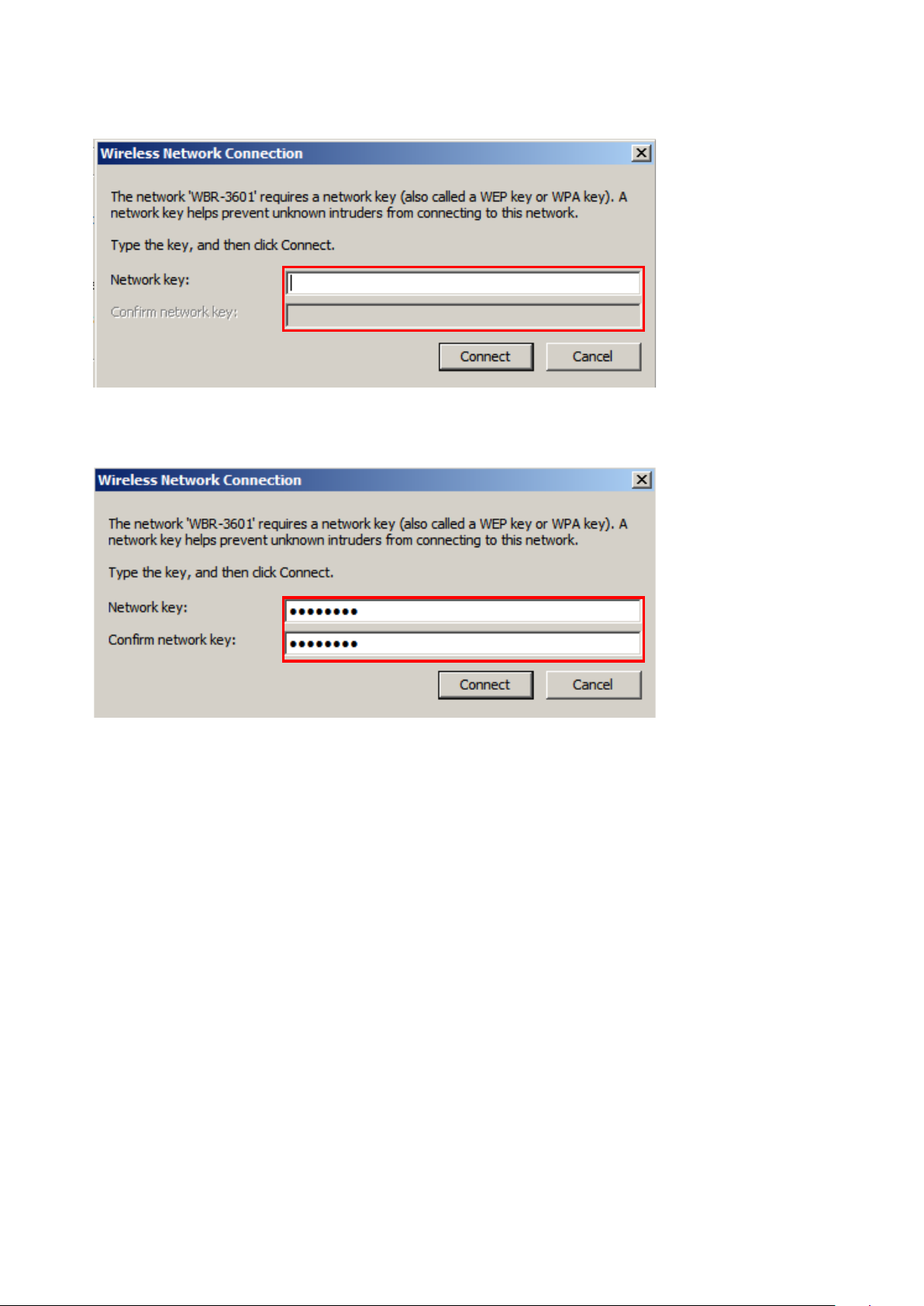

Wireless Ethernet 802.11g

With built-in 802.11g access point for extending the communication media to WLAN while providing the WEP and WPA/WPA2 for securing your wireless networks.

Network Address Translation (NAT) Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).

Universal Plug and Play (UPnP) Using the standard TCP/IP protocol, the WBR-3601 Router and other UPnP enabled devices can dynamically join a network, obtain an IP address and convey its capabilities to other devices on the network.

10/100M Auto-negotiation Ethernet / Fast Ethernet Interface This auto-negotiation feature allows the WBR-3601 Router to detect the speed of incoming transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network.

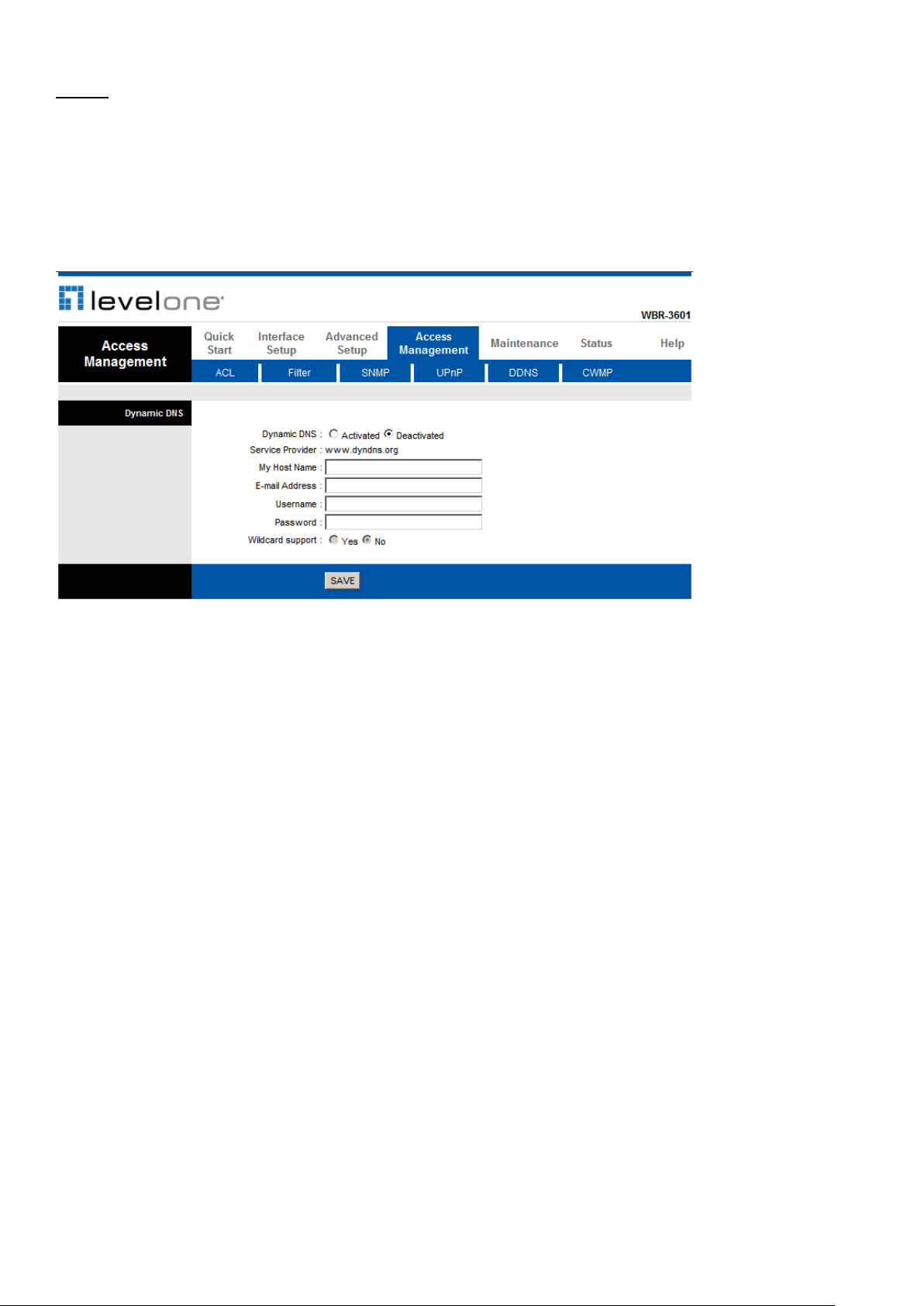

Dynamic DNS Support With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address,

Multiple PVC (Permanent Virtual Circuits) Support

Your WBR-3601 Router supports up to 8 PVC’s.

DHCP Support DHCP (Dynamic Host Configuration Protocol) allows individual clients (computers) to obtain TCP/IP configuration at start-up from a centralized DHCP server. The WBR-3601 Router has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to DHCP clients. The WBR-3601 Router can now also act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the actual real DHCP server to the clients.

Power indicator

ADSL Link indicator

Internet Active indicator

Wireless Active indicator

Ethernet Active indicator

Label

Color

Flash

Off

Green

Ready

Not Ready

Power Off

Green

Connect to

DSLAM

Disconnect to DSLAM

N/A

Green

Connect to

Internet /IDLE

Transmit / Receive Data

Disconnect to

Internet

Green

N/A

Wireless Activated

Deactivated

Green

Ethernet

Connected

Transmit / Receive Data

Ethernet

Disconnected

LED Meaning

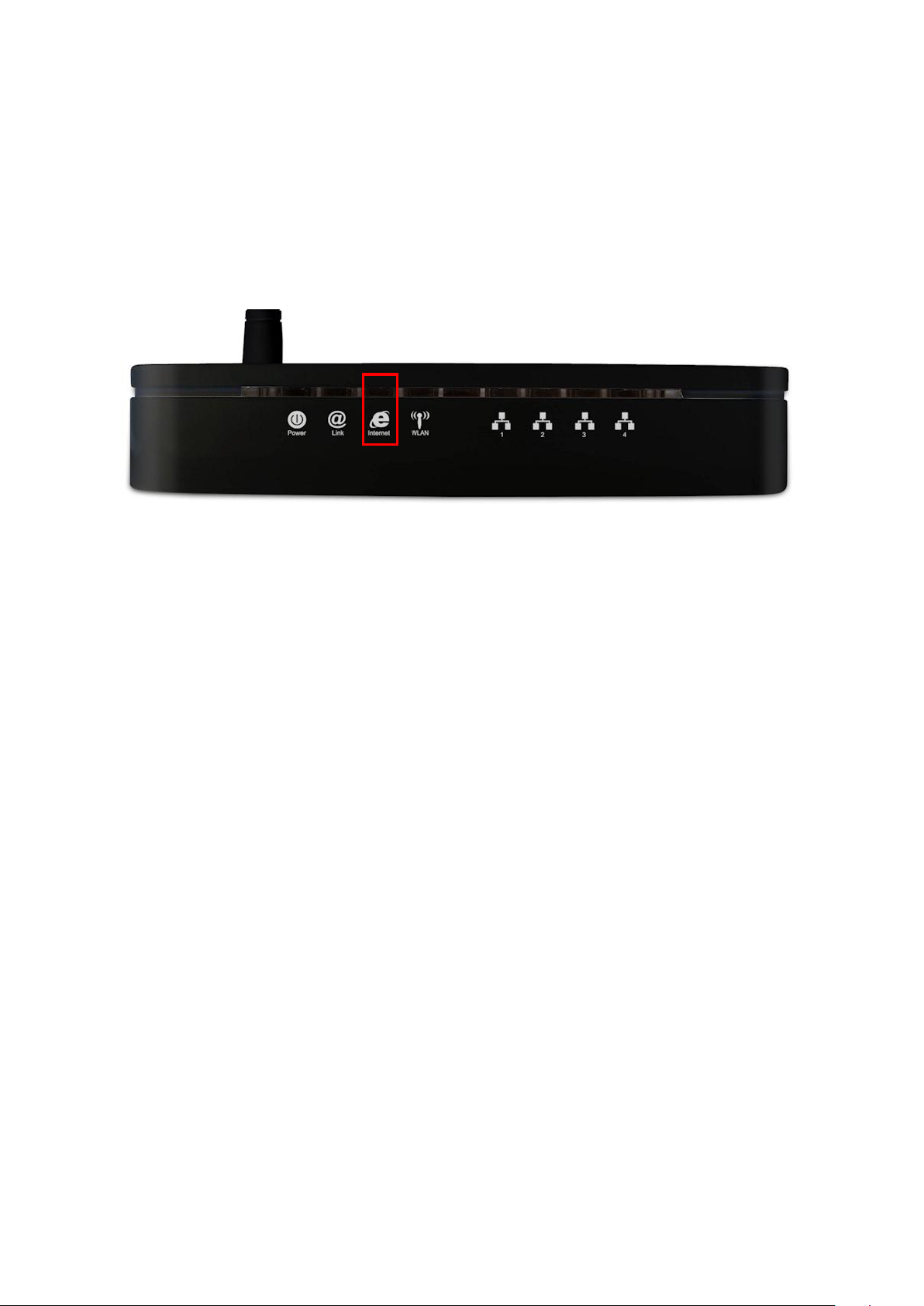

Your WBR-3601 Router has indicator lights on the front side. Please see below for an explanation of the function of each indicator light.

Table 1. LED function

Connector

Description

RESET

Reset button, RESET the WBR-3601 Router to its default settings

SWITCH

Power Switch

POWER

Connects to your WBR-3601 Router 12V power adaptor

LAN1~4

RJ-45 Jack (Ethernet Cable) connection to your PC, or HUB

LINE

Connects to your ADSL2+ line – for ADSL2+ Line input

Back Panel Connectors

Table 2 shows the function of each connector and switch of the WLAN ADSL2+ Router’s back panel. Figure 1 illustrated the connectors.

Table 2. Function / Description of Connectors

Figure1. Rear View of the WBR-3601 Router

Note! Be sure that you are well insulated from any power

source to avoid electricity shock.

Factory Default Settings

Before configuration, please refer to following default settings,

Web interface:

Username: admin

Password: password

LAN IP Settings:

IP Address: 192.168.0.1

Subnet Mask: 255.255.255.0

DHCP:

DHCP Server: Enable

Hardware Requirements

To use WBR-3601 Router, please have following hardware / accessories ready. A PC with Pre-installed Ethernet Adapter (Required)

12V power adaptor (Included in the package) RJ-45 Ethernet cable (Included in the package) RJ-11cable (Included in the package)

Setting up the Hardware Environment

Please kindly refer to chapter 4.0 “Installation & Setup”

Installation & Setup

Follow each STEP carefully and only go to the next step once you have complete the previous STEP.

1. Connect the ADSL activated Telephone line

2. Connect the Computer LAN cable to an available LAN port.

3. Plug in the Power Adapter

4. Press the Power ON switch on the rear of the router.

5. Wait until the PWR and ADSL Link lights remain lit green (not blinking) and

the relevant LAN is lit.

Note: If the ADSL Link light continues to blink, it means that that router cannot find an active ADSL connection. Please contact your Internet Service Provider for support.

6. Installation is now complete. You can now begin to set up the device.

Configuration Procedures

Before starting the WBR-3601 Router configuration, please kindly configure the PC computer as below, to have automatic IP address / DNS Server.

For Windows 98SE/ME/2000/XP

1. Click on "Start” -> “Control Panel” (in Classic View). In the Control Panel; double click on

"Network Connections" to continue.

2. Single RIGHT click on “Local Area connection", then click "Properties".

3. Double click on "Internet Protocol (TCP/IP)".

4. Check "Obtain an IP address automatically" and “Obtain DNS

server address automatically” then click on "OK" to continue.

5. Click "Show icon in notification area when connected" (see screen

image in 3. above) then Click on "OK" to complete the setup procedures.

For Windows Vista-32/64

1. Click on "Start” -> “Control Panel” (in Classic View) -> “Network and Sharing Center”.

In the Manage network connections, double click

on "Manage Network Connections" to continue.

2. Single RIGHT click on “Local Area connection", then click "Properties".

3. The screen will display the information “User Account Control” and click

“Continue” to continue.

4. Double click on "Internet Protocol Version 4 (TCP/IPv4)"

5. Check "Obtain an IP address automatically" and “Obtain DNS server

address automatically” then click on "OK" to continue.

6. You can see the screen will appear as shown in Step 4. above, then click “OK”

to complete the setup procedures.

User Name: admin

Password: password

WBR-3601 Router Configuration

1. Start your WEB browser. In the Address box, enter the following:

http://192.168.0.1

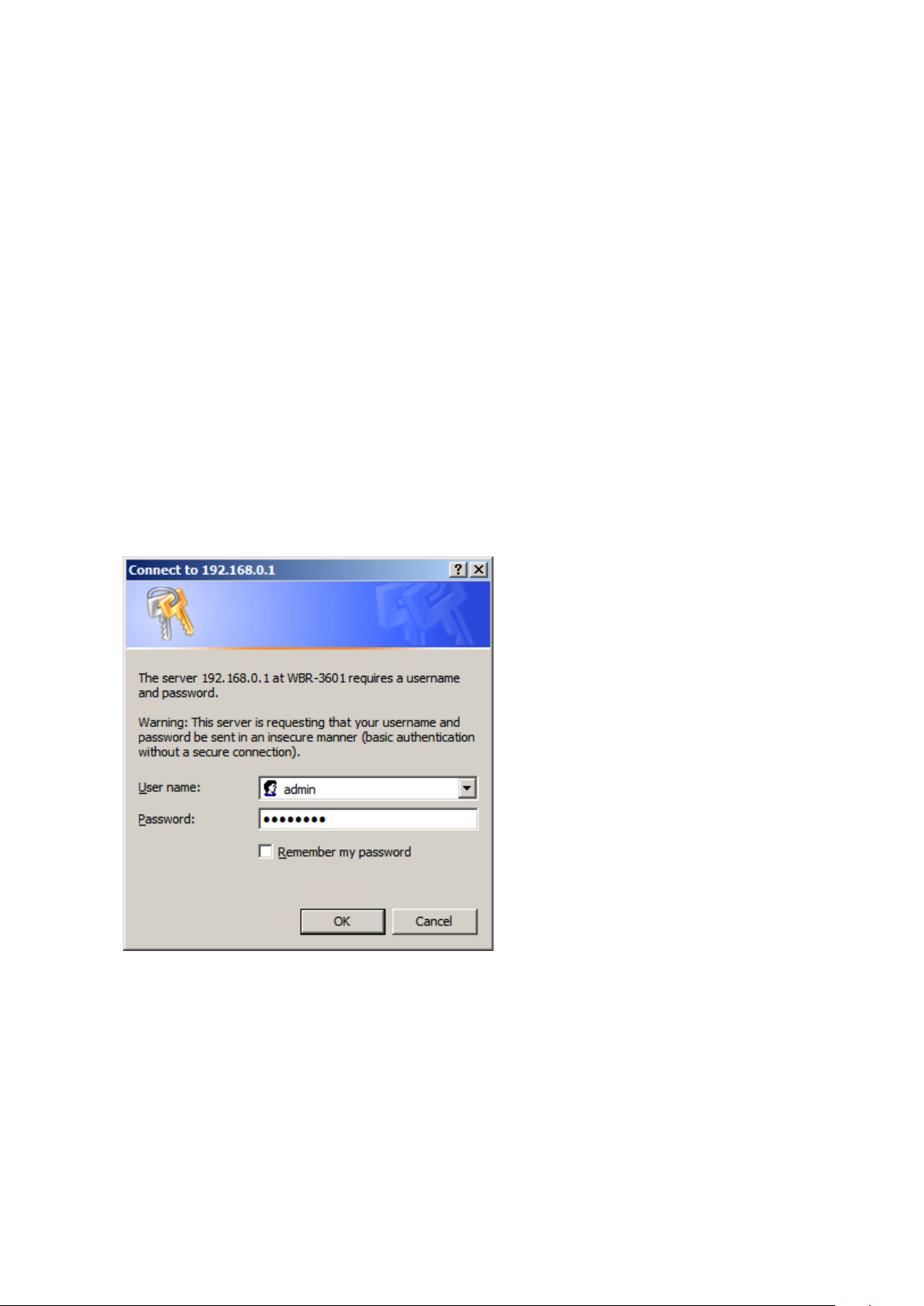

2. When prompted, use the following username and password.

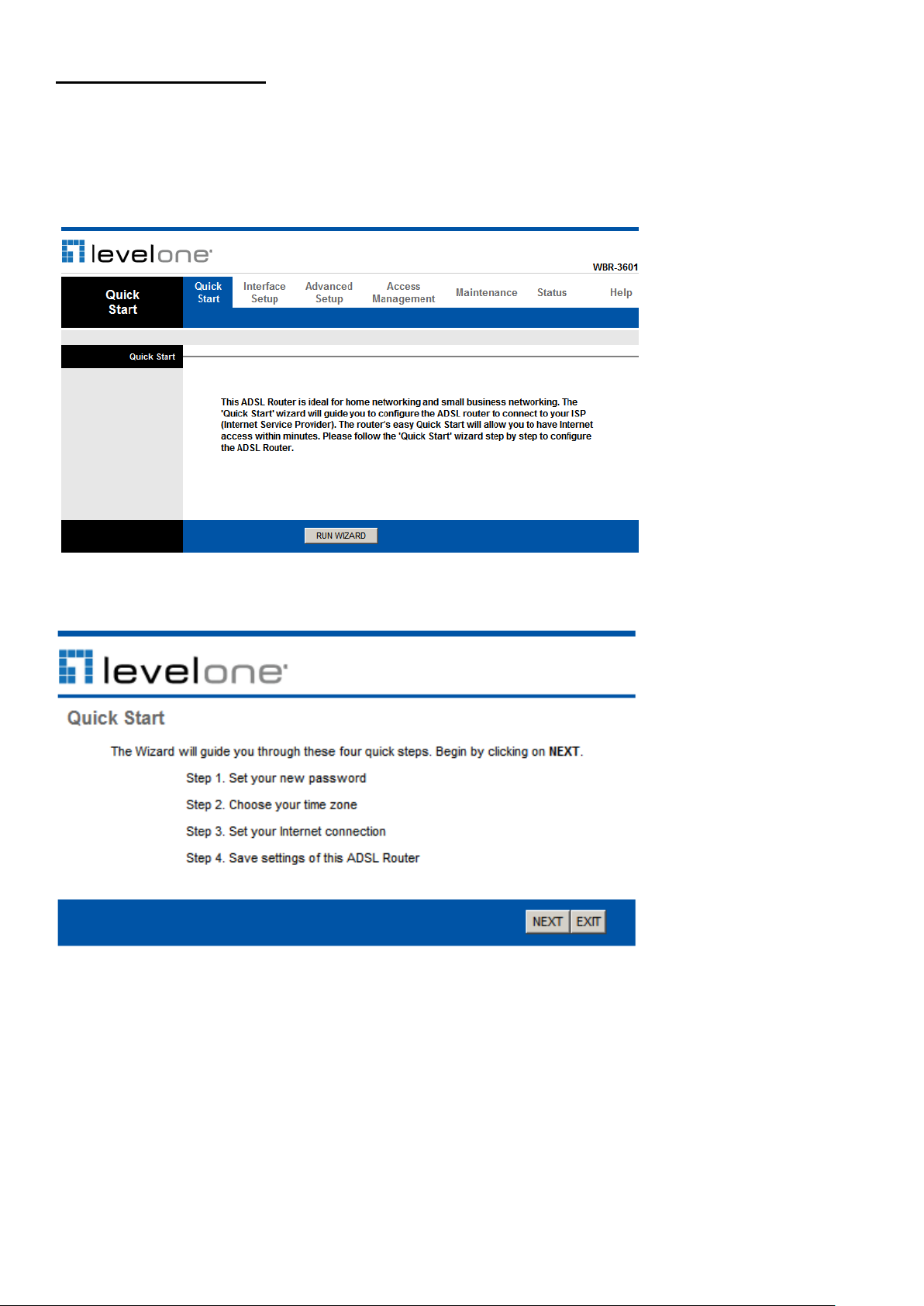

3. The first time you connect to the WBR-3601, you should run the Quick Start Wizard to configure

the ADSL and Internet Connection. Click Quick Start on the menu.

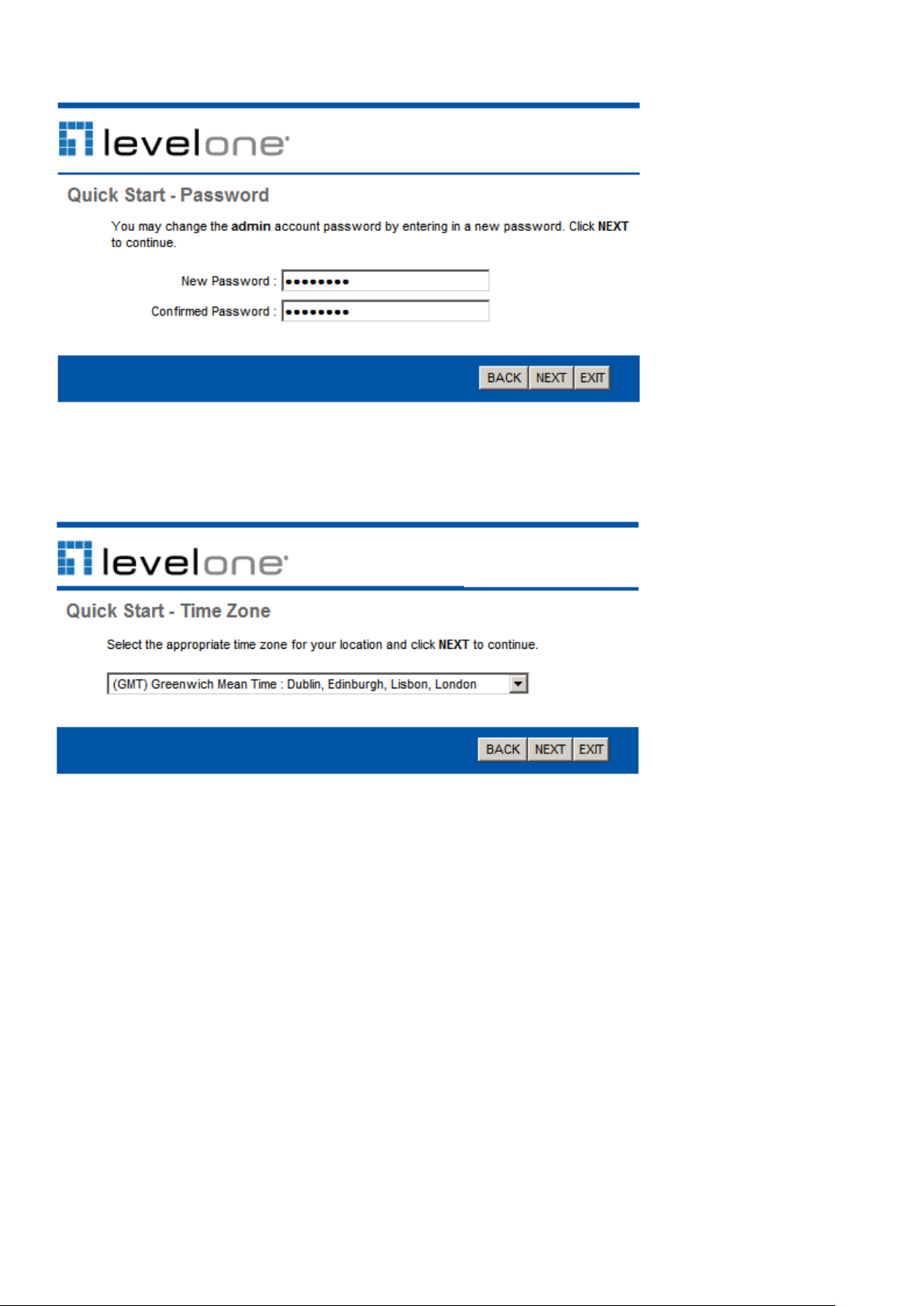

4. Please create a new password for the router.

Leaving it as default could be a security risk.

5. Select your Time Zone.

Connection Type

Data required.

Dynamic IP Address

Usually, none.

Static (Fixed) IP Address

IP Address allocated to you, and related information, such as Network Mask, Gateway IP address, and DNS address.

PPPoE, PPPoA

a) User name and password are always required. b) If using a Static (Fixed) IP address, you need the IP

address and related information (Network Mask, Gateway IP address, and DNS address)

Bridge Mode

The authentication process is not done by the WBR-3601, but by another device or PC. Note that the router and firewall functions do not apply under this mode.

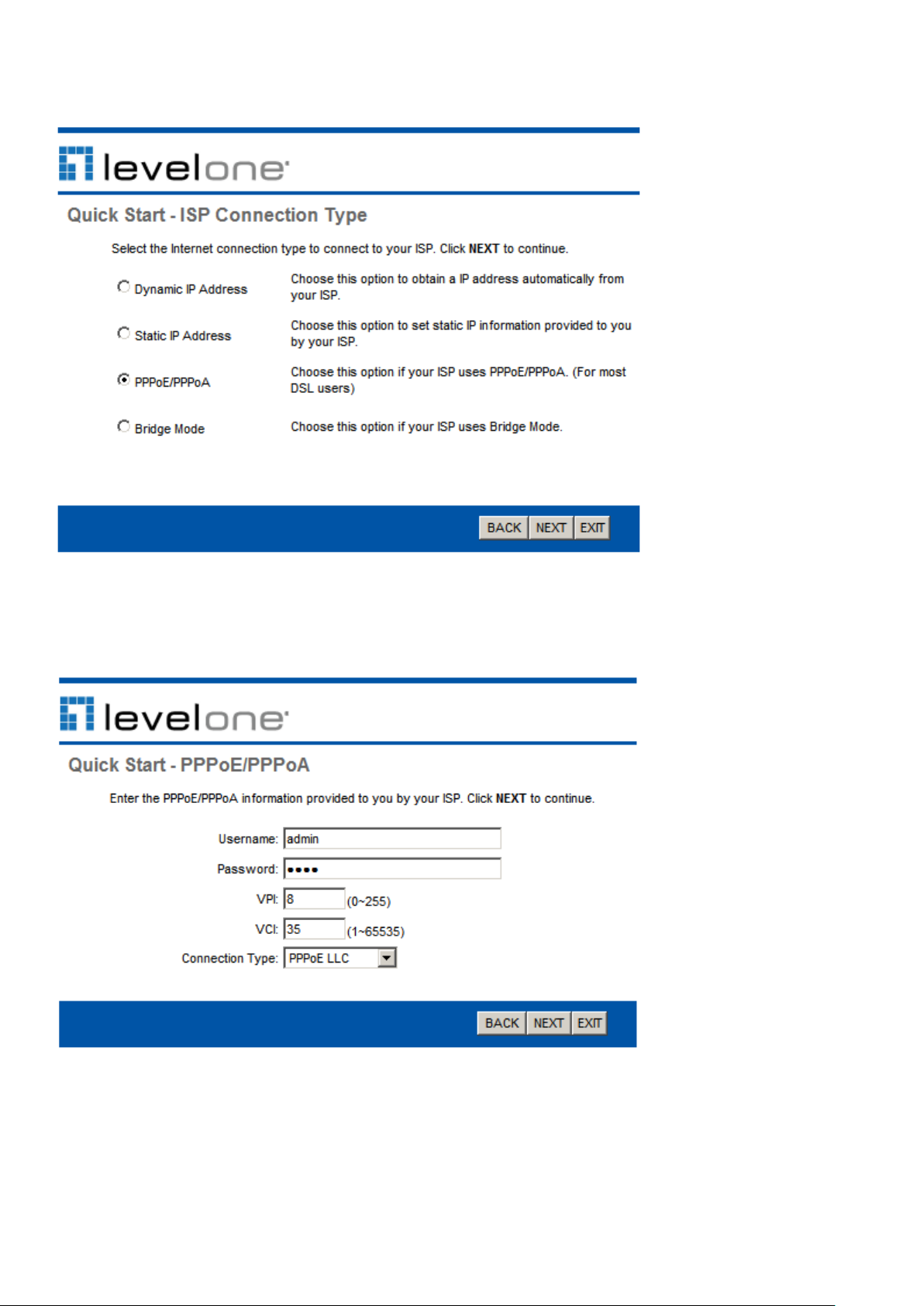

6. There are many ways to connect to your Internet Service Provider. Please refer to the table

below to ensure your choices are correct.

In all cases, you will be required to enter the VPI and VCI settings. This must be provided to you by your Internet Service Provider.
