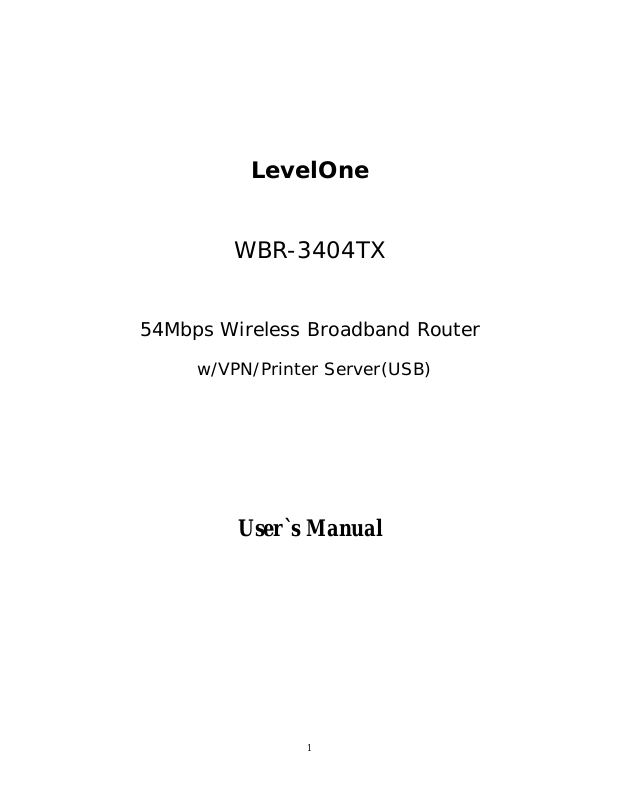

LevelOne WBR-3404TX User Manual

LevelOne

WBR-3404TX

54Mbps Wireless Broadband Router

w/VPN/Printer Server(USB)

User`s Manual

1

Copyright

The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in
an information retrieval system, translated into any language, or transmitted in any form or by any
means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the
prior written permission.

Trademarks

All product, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.

2

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and radiate
radio frequency energy and, if not installed and used in accordance with the instructions in this manual,
may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause interference, in which case the user, at his own expense, will be required to take
whatever measures are necessary to correct the interference.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B, and EN 50082-1. This meets the essential protection requirements of the European
Council Directive 89/336/EEC on the approximation of the laws of the member states relation to
electromagnetic compatibility.

3

Table of Contents

Chapter 1 Introduction............................................................................6

Functions and Features......................................................................6

Packing List......................................................................................8

Chapter 2 Hardware Installation.............................................................8

2.1 Panel Layout ..............................................................................8

2.2 Procedure for Hardware Installation...........................................11

Chapter 3 Network Settings and Software Installation..........................13

3.1 Make Correct Network Settings of Your Computer....................13

3.2 Install the Software into Your Computers...................................13

Chapter 4 Configuring LevelOne WBR-3404TX..................................17

4.1 Start-up and Log in....................................................................17

4.2 Status.........................................................................................18

4.3 Wizard.......................................................................................19

4.4 Basic Setting..............................................................................21

4.4.1 Primary Setup – WAN Type, Virtual Computers......................22

4.4.2 DHCP Server..........................................................................27

4.4.3 Wireless Setting, and 802.1X setting.......................................29

4.4.4 Change Password....................................................................31

4.5 Forwarding Rules......................................................................32

4.5.1 Virtual Server..........................................................................33

4.5.2 Special AP..............................................................................34

4.5.3 Miscellaneous Items...............................................................35

4.6 Security Settings........................................................................36

4.6.1 Packet Filter............................................................................37

4.6.2 Domain Filter.........................................................................42

4.6.3 URL Blocking........................................................................44

4.6.4 MAC Address Control............................................................46

4.6.5 VPN setting............................................................................48

4.6.6 Miscellaneous Items...............................................................54

4.7 Advanced Setting.......................................................................55

4.7.1 System Time...........................................................................56

4.7.2 System Log.............................................................................57

4.7.3 Dynamic DNS........................................................................58

4.7.4 SNMP Setting.........................................................................60

4.7.5 Routing Table.........................................................................62

4.8 Toolbox.....................................................................................64

4

4.8.1 System Log.............................................................................65

4.8.2 Firmware Upgrade..................................................................66

4.8.3 Backup Setting.......................................................................67

4.8.4 Reset to default.......................................................................67

4.8.5 Reboot....................................................................................67

4.8.6 Miscellaneous Items...............................................................68

Chapter 5 Print Server..........................................................................69

5.1 Configuring on Windows 95/98 Platforms.................................69

5.2 Configuring on Windows NT Platforms.....................................72

5.3 Configuring on Windows 2000 and XP Platforms......................73

5.4 Configuring on Unix based Platforms........................................80

Appendix A TCP/IP Configuration for Windows 95/98........................81

A.1 Install TCP/IP Protocol into Your PC........................................81

A.2 Set TCP/IP Protocol for Working with NAT Router...................82

5

Chapter 1 Introduction

Congratulations on your purchase of
product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO
solution for Internet surfing, and is easy to configure and operate even for non-technical users.
Instructions for installing and configuring this product can be found in this manual. Before you install
and use this product, please read this manual carefully for fully exploiting the functions of this product.

LevelOne WBR-3404TX

Wireless Broadband Router. This

Functions and Features

High speed for wireless LAN connection

l

Up to 54Mbps data rate by incorporating Orthogonal Frequency Division Multiplexing
(OFDM).

Roaming

l

Provides seamless roaming within the IEEE 802.11b(11M) and IEEE 802.11g(54M) WLAN
infrastructure.

IEEE 802.11b compatible(11M)

l

Allowing inter-operation among multiple vendors.

IEEE 802.11g compatible(54M)

l

Allowing inter-operation among multiple vendors.

Auto fallback

l

54M, 48M, 36M, 24M, 18M, 12M, 6M data rate with auto fallback in 802.11g mode.
11M, 5.5M, 2M, 1M data rate with auto fallback in 802.11b mode

Broadband modem and NAT Router

l

Connects multiple computers to a broadband (cable or DSL) modem or an Ethernet router to
surf the Internet.

Auto-sensing Ethernet Switch

l

Equipped with a 4-port auto-sensing Ethernet switch.

VPN supported

l

Supports multiple PPTP sessions and allows you to setup VPN server and VPN clients.

Printer sharing

l

Embeds a print server to allow all of the networked computers to share one printer.
Built-in USB host to connect to USB printer for printer sharing

Firewall

l

All unwanted packets from outside intruders are blocked to protect your Intranet.

DHCP server supported

l

All of the networked computers can retrieve TCP/IP settings automatically from this product.

Web-based configuring

l

Configurable through any networked computer’s web browser using Netscape or Internet
Explorer.

Packet filter supported

l

6

Packet Filter

allows you to control access to a network by analyzing the incoming and
outgoing packets and letting them pass or halting them based on the IP address of the source
and destination.

Universal Plug and Play (UPnP) supported

l

Universal Plug and Play (UPnP)

plugged into a network and automatically know about each other.

Virtual Server supported

l

enable devices such as PCs, routers or other devices to be

Enables you to expose WWW, FTP and other services on your LAN to be accessible to
Internet users.

User-Definable Application Sensing Tunnel

l

User can define the attributes to support the special applications requiring multiple
connections, like Internet gaming, video conferencing, Internet telephony and so on, then this
product can sense the application type and open multi-port tunnel for it.

DMZ Host supported

l

Lets a networked computer be fully exposed to the Internet; this function is used when
special application sensing tunnel feature is insufficient to allow an application to function
correctly.

Domain Filter Supported

l

let you prevent users under this device from accessing specific URLs.

URL Blocking Supported

l

URL Blocking can block hundreds of websites connection by simply a

SNMP Supported

l

keyword.

In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a
user the capability to remotely manage a computer network by polling and setting terminal
values and monitoring network events.

Routing Table Supported

l

Routing Tables

allow you to determine which physical interface address to use for outgoing
IP data grams. If you have more than one routers and subnets, you will need to enable routing
table to allow packets to find proper routing path and allow different subnets to communicate
with each other.

System time Supported

l

Allow you to synchronize system time with network time server.

Statistics of WAN Supported

l

Enables you to monitor inbound and outbound packets

VPN Supported

l

7

Enables you to create virtual private tunnels to remote VPN gateways.

802.1X supported

l

When the 802.1X function is enable, the Wireless user must Authenticate to this router first to
use the Network service.

Virtual Computers supported:

l

feature, and allows you to setup the one-to-one mapping of multiple global IP address and
local IP address.

Virtual Computer enables you to use the original NAT

Packing List

l LevelOne WBR-3404TX Wireless Broadband Router
l Installation CD-ROM

l Power adapter
l CAT-5 UTP Fast Ethernet cable

Chapter 2 Hardware Installation

2.1 Panel Layout

2.1.1. Front Panel

LED:

LED Function Color

POWER

STATUS

WAN

Power indication

System status

WAN port

activity

Green

Orange

Green

Figure 2-1 Front Panel

Status Description

Power is being applied to this

On

product.
This product is functioning

Blinking

properly.

On The WAN port is linked.

The WAN port is sending or

Blinking

receiving data.

8

WLAN

Wireless activity

Green

Blinking

Sending or receiving data via
wireless

Link/Act.

Link status Green

1~4

10/100 Data Rate Green

USB port

USB

activity

Green

On

An active station is connected to
the corresponding LAN port.

The corresponding LAN port is

Blinking

sending or receiving data.
Data is transmitting in 100Mbps

On

on the corresponding LAN port.

On The USB port is linked.

The USB port is sending or

Blinking

receiving data.

9

Port:

LED, they will flash 8 times and then STATUS

RESET

To reset system settings to factory defaults, please follow the steps:

1. Power off the device,

2. Press the reset button and hold,

3. Power on the device,

4. Keep the button pressed about 5 seconds,

5. Release the button,

6. Watch the STATUS
flash once per second.

10

2.1.2. Rear Panel

the port where you will connect your cable (or DSL) modem or

the ports where you will connect networked computers and other

Ports:

Port Description

Figure 2-2 Rear Panel

5VDC
WAN

Port 1-4

PRINTER

Power inlet: DC 5V, 1.5A (minimum)

Ethernet router.

devices.

USB Printer Port (Optional)

2.2 Procedure for Hardware Installation

1. Decide where to place your Wireless Broadband Router

You can place your WBR-3404TX on a desk or other flat surface, or you can mount it on a wall.
For optimal performance, place your Wireless Broadband Router in the center of your office (or
your home) in a location that is away from any potential source of interference, such as a metal
wall or microwave oven. This location must be close to power and network connection.

11

2. Setup LAN connection

a.

Wired LAN connection: connects an Ethernet cable from your computer’s Ethernet port to one
of the LAN ports of this product.

b.

Wireless LAN connection: locate this product at a proper position to gain the best transmit
performance.

Figure 2-3 Setup of LAN and WAN connections for this product.

3. Setup WAN connection

Prepare an Ethernet cable for connecting this product to your cable/xDSL modem or Ethernet
backbone. Figure 2-3 illustrates the WAN connection.

4. Connecting this product with your printer

Use the printer cable to connect your printer to the printer port of this product.

5. Power on

Connecting the power cord to power inlet and turning the power switch on, this product will
automatically enter the self-test phase. When it is in the self-test phase, the indicators STATUS will
be lighted ON for about 10 seconds, and then STATUS will be flashed 3 times to indicate that the
self-test operation has finished. Finally, the STATUS will be continuously flashed once per second
to indicate that this product is in normal operation.

12

Chapter 3 Network Settings and Software Installation

LevelOne WBR-3404TX

To use
computers and install the attached setup program into your MS Windows platform (Windows
95/98/NT/2000).

3.1 Make Correct Network Settings of Your Computer

The default IP address of this product is 192.168.123.254, and the default subnet mask is

255.255.255.0. These addresses can be changed on your need, but the default values are used in this
manual. If the TCP/IP environment of your computer has not yet been configured, you can refer to
Appendix A to configure it. For example,

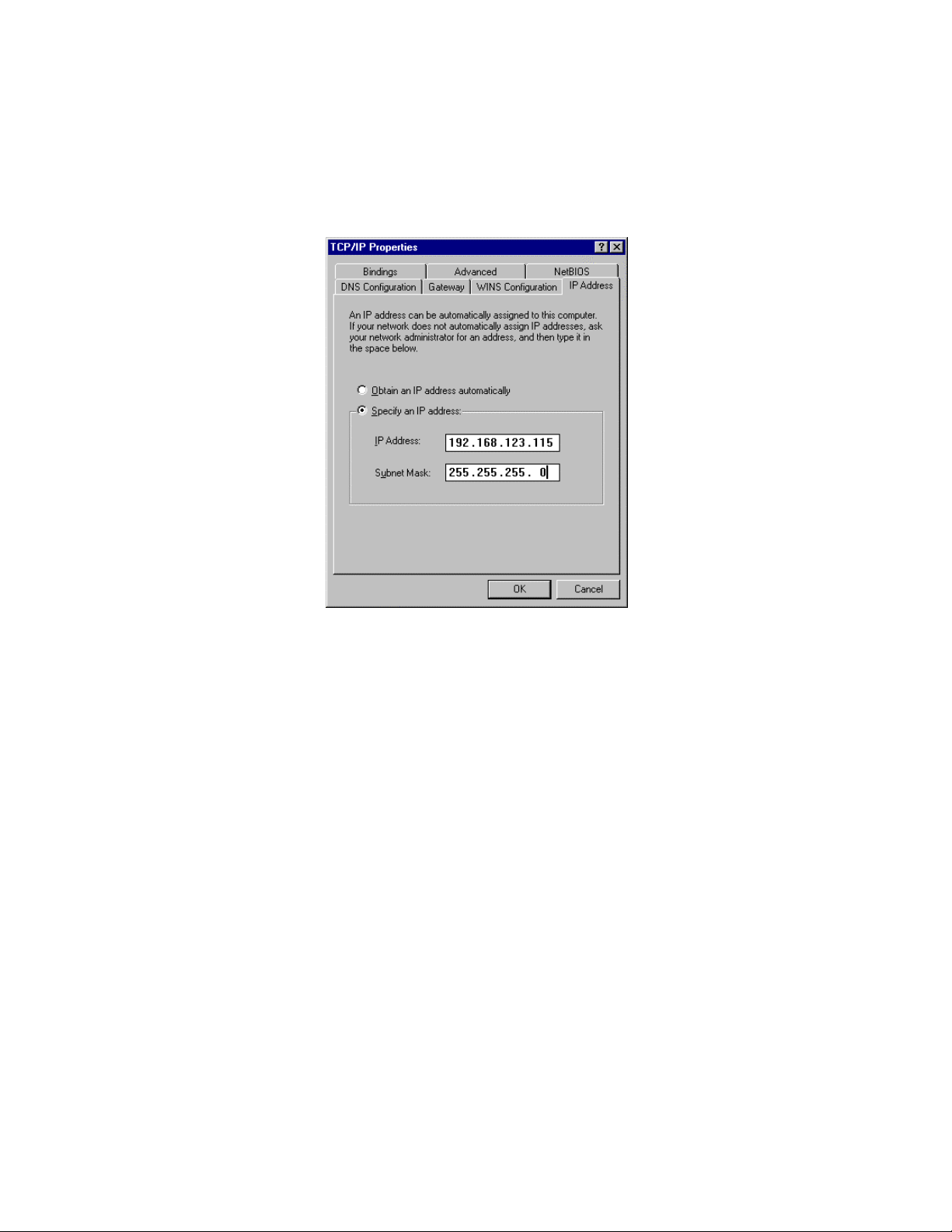

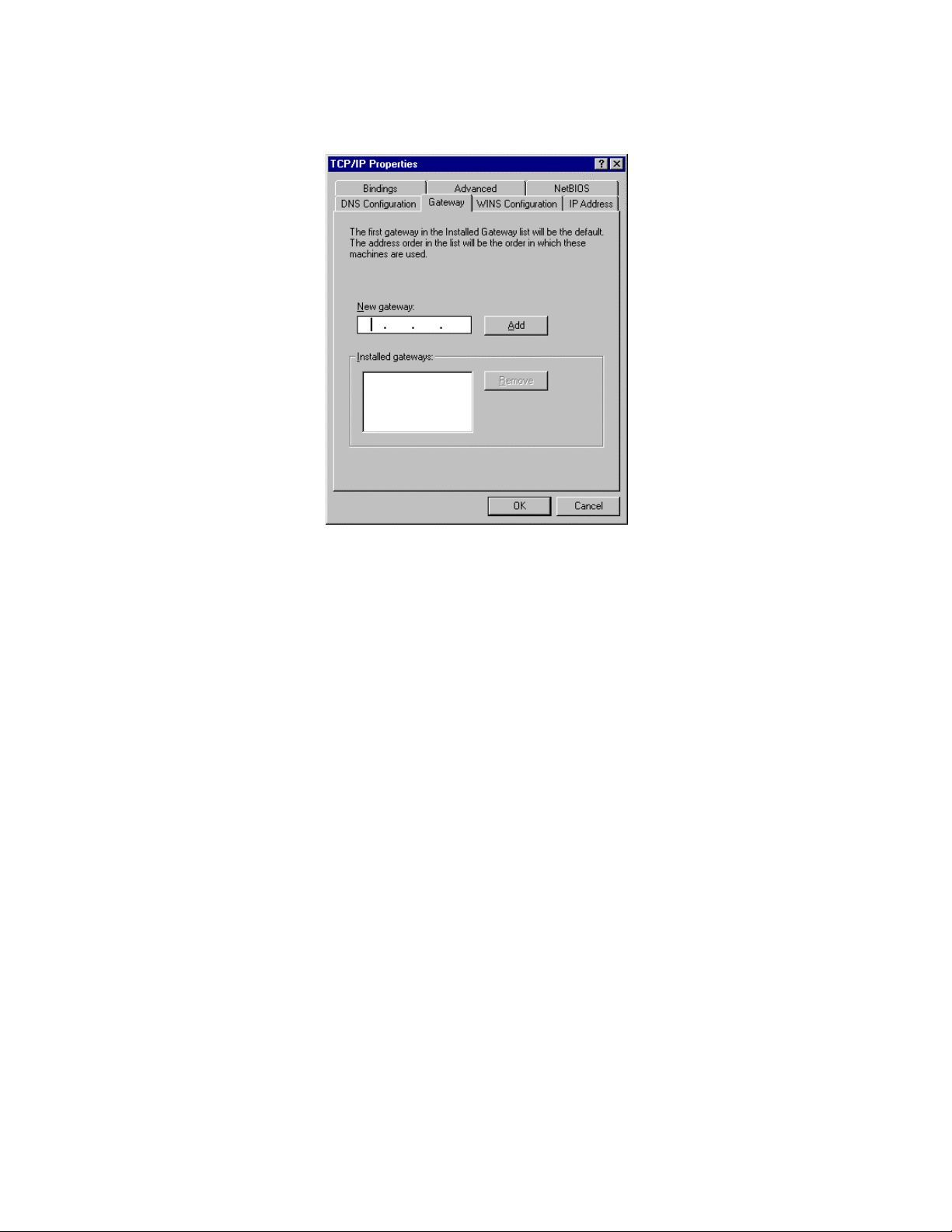

1. configure IP as 192.168.123.1, subnet mask as 255.255.255.0 and gateway as

192.168.123.254, or more easier,

2. configure your computers to load TCP/IP setting automatically, that is, via DHCP server of
this product.

After installing the TCP/IP communication protocol, you can use the ping command to check if your
computer has successfully connected to this product. The following example shows the ping procedure
for Windows 95 platforms. First, execute the ping command

correctly, you have to properly configure the network settings of your

192.168.123.254

ping

If the following messages appear:

Pinging 192.168.123.254 with 32 bytes of data:
Reply from 192.168.123.254: bytes=32 time=2ms TTL=64

a communication link between your computer and this product has been successfully established.
Otherwise, if you get the following messages,

Pinging 192.168.123.254 with 32 bytes of data:

Request timed out.

There must be something wrong in your installation procedure. You have to check the following items
in sequence:

1. Is the Ethernet cable correctly connected between this product and your computer?

Tip

: The LAN LED of this product and the link LED of network card on your computer must be

lighted.

2. Is the TCP/IP environment of your computers properly configured?

Tip

: If the IP address of this product is 192.168.123.254, the IP address of your computer must

be 192.168.123.X and default gateway must be 192.168.123.254.

3.2 Install the Software into Your Computers

Skip this section if you do not want to use the print server function of this product.

13

Step 1: Insert the installation CD-ROM into the CD-ROM drive. The following window will be

shown automatically. If it isn’t, please run “install.exe” on the CD-ROM.

14

Step 2: Click on the INSTALL button. Wait until the following Welcome dialog to appear, and click on

the Next button.

Step 3: Select the destination folder and click on the Next button. Then, the setup program will begin to

install the programs into the destination folder.

15

Step 4: When the following window is displayed, click on the Finish button.

Step 5: Select the item to restart the computer and then click the OK button to reboot your computer.

Step 6: After rebooting your computer, the software installation procedure is finished.
Now, you can configure the NAT Router (refer to Chapter 4) and setup the Print Server (refer to

Chapter 5).

16

Chapter 4 Configuring LevelOne WBR-3404TX

WBR-3404TX provides Web based configuration scheme, that is, configuring by your Web browser,
such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS
Windows, Macintosh or UNIX based platforms.

4.1 Start-up and Log in

Activate your browser, and disable the proxy or add the IP address of this product into the exceptions.
Then, type this product’s IP address in the Location (for Netscape) or Address (for IE) field and press
ENTER. For example: http://192.168.123.254.

After the connection is established, you will see the web user interface of this product. There are two
appearances of web user interface: for general users and for system administrator.

To log in as an administrator, enter the system password (the factory setting is ”admin”) in the System
Password field and click on the Log in button. If the password is correct, the web appearance will be
changed into administrator configure mode. As listed in its main menu, there are several options for
system administration.

17

4.2 Status

This option provides the function for observing this product’s working status:

A. WAN Port Status.

If the WAN port is assigned a dynamic IP, there may appear a “
on the Sidenote column. You can click this button to renew or release IP manually.

B. Printer Status. The possible kinds of printer status include “Ready”, “Not ready”,

“Printing…”, and “Device error”.

When a job is printing, there may appear a “
can click this button to kill current printing job manually.

C. Statistics of WAN: enables you to monitor inbound and outbound packets

Kill Job

” button on the Sidenote column. You

Renew

” or “

Release

” button

18

4.3 Wizard

Setup Wizard will guide you through a basic configuration procedure step by step.
Press ”Next >”

19

Setup Wizard - Select WAN Type: For detail settings, please refer to 4.4.1 primary
setup.

20

4.4 Basic Setting

21

4.4.1 Primary Setup – WAN Type, Virtual Computers

Press “Change”

22

This option is primary to enable this product to work properly. The setting items and the web
appearance depend on the WAN type. Choose correct WAN type before you start.

1. LAN IP Address: the local IP address of this device. The computers on your network must use the

LAN IP address of your product as their Default Gateway. You can change it if necessary.

2. WAN Type: WAN connection type of your ISP. You can click

one from the following four options:

A. Static IP Address: ISP assigns you a static IP address.
B. Dynamic IP Address: Obtain an IP address from ISP automatically.
C. Dynamic IP Address with Road Runner Session Management.(e.g. Telstra BigPond)
D. PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.
E. PPTP: Some ISPs require the use of PPTP to connect to their services.

4.4.1.1 Static IP Address

WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper setting
provided by your ISP.

4.4.1.2 Dynamic IP Address

1. Host Name: optional. Required by some ISPs, for example, @Home.

2. Renew IP Forever: this feature enables this product to renew your IP address automatically when

23

Change

button to choose a correct

the lease time is expiring-- even when the system is idle.

4.4.1.3 Dynamic IP Address with Road Runner Session Management.(e.g. Telstra BigPond)

LAN IP Address is the IP address of this product. It must be the default gateway of your
computers.

WAN Type is Dynamic IP Address. If the WAN type is not correct, change it!

Host Name: optional. Required by some ISPs, e.g. @Home.

• Renew IP Forever: this feature enable this product renew IP address

automatically when the lease time is being expired even the system is in idle
state.

4.4.1.4 PPP over Ethernet

1. PPPoE Account and Password: the account and password your ISP assigned to you. For security,
this field appears blank. If you don't want to change the password, leave it empty.

2. PPPoE Service Name: optional. Input the service name if your ISP requires it. Otherwise, leave it
blank.

3. Maximum Idle Time: the amount of time of inactivity before disconnecting your PPPoE session.
Set it to zero or enable Auto-reconnect to disable this feature.

4.4.1.5 PPTP

1. My IP Address and My Subnet Mask: the private IP address and subnet mask your ISP assigned

to you.

2. Server IP Address: the IP address of the PPTP server.

3. PPTP Account and Password: the account and password your ISP assigned to you. If you don't

want to change the password, keep it empty.

4. Connection ID: optional. Input the connection ID if your ISP requires it.

5. Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to zero or
enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this product will
automatically connect to ISP after system is restarted or connection is dropped.

24

25

4.4.1.7 Virtual Computers

Virtual Computer enables you to use the original NAT feature, and allows you to setup the one-to-one
mapping of multiple global IP address and local IP address.

• Global IP: Enter the global IP address assigned by your ISP.

• Local IP: Enter the local IP address of your LAN PC corresponding to the global IP address.

• Enable: Check this item to enable the Virtual Computer feature.

26

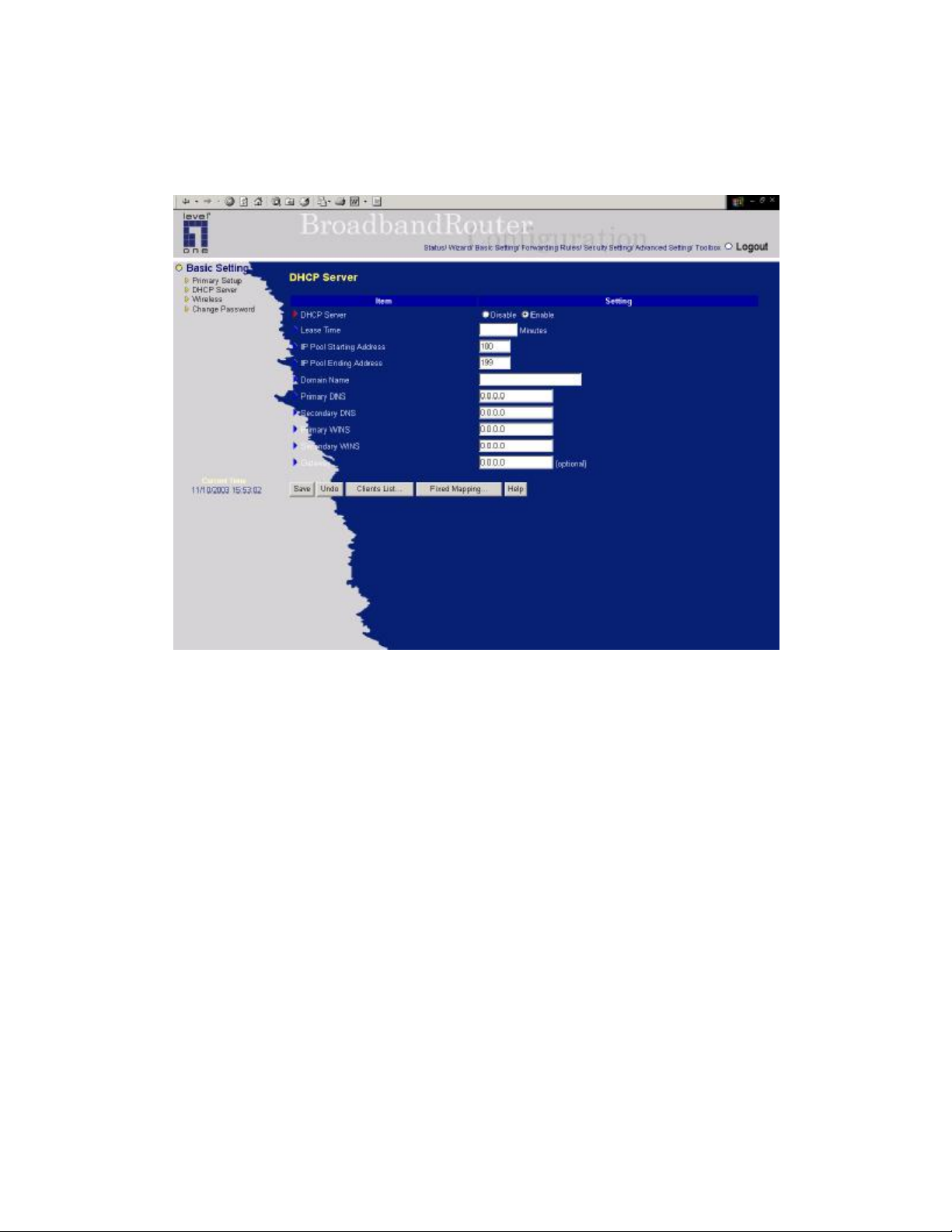

4.4.2 DHCP Server

Press

“More>>”

27

The settings of a TCP/IP environment include host IP, Subnet Mask, Gateway, and DNS configurations.
It is not easy to manually configure all the computers and devices in your network. Fortunately, DHCP
Server provides a rather simple approach to handle all these settings. This product supports the function
of DHCP server. If you enable this product’s DHCP server and configure your computers as “automatic
IP allocation” mode, then when your computer is powered on, it will automatically load the proper
TCP/IP settings from this product. The settings of DHCP server include the following items:

1. DHCP Server: Choose “Disable” or “Enable.”

2. Lease Time: this feature allows you to configure IP’s lease time (DHCP client).

3. IP pool starting Address/ IP pool starting Address: Whenever there is a request, the DHCP

server will automatically allocate an unused IP address from the IP address pool to the
requesting computer. You must specify the starting and ending address of the IP address pool.

4. Domain Name: Optional, this information will be passed to the client.

5. Primary DNS/Secondary DNS: This feature allows you to assign DNS Servers

6. Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers

7. Gateway: The Gateway Address would be the IP address of an alternate Gateway.

This function enables you to assign another gateway to your PC, when DHCP server offers an

28

IP to your PC.

4.4.3 Wireless Setting, and 802.1X setting

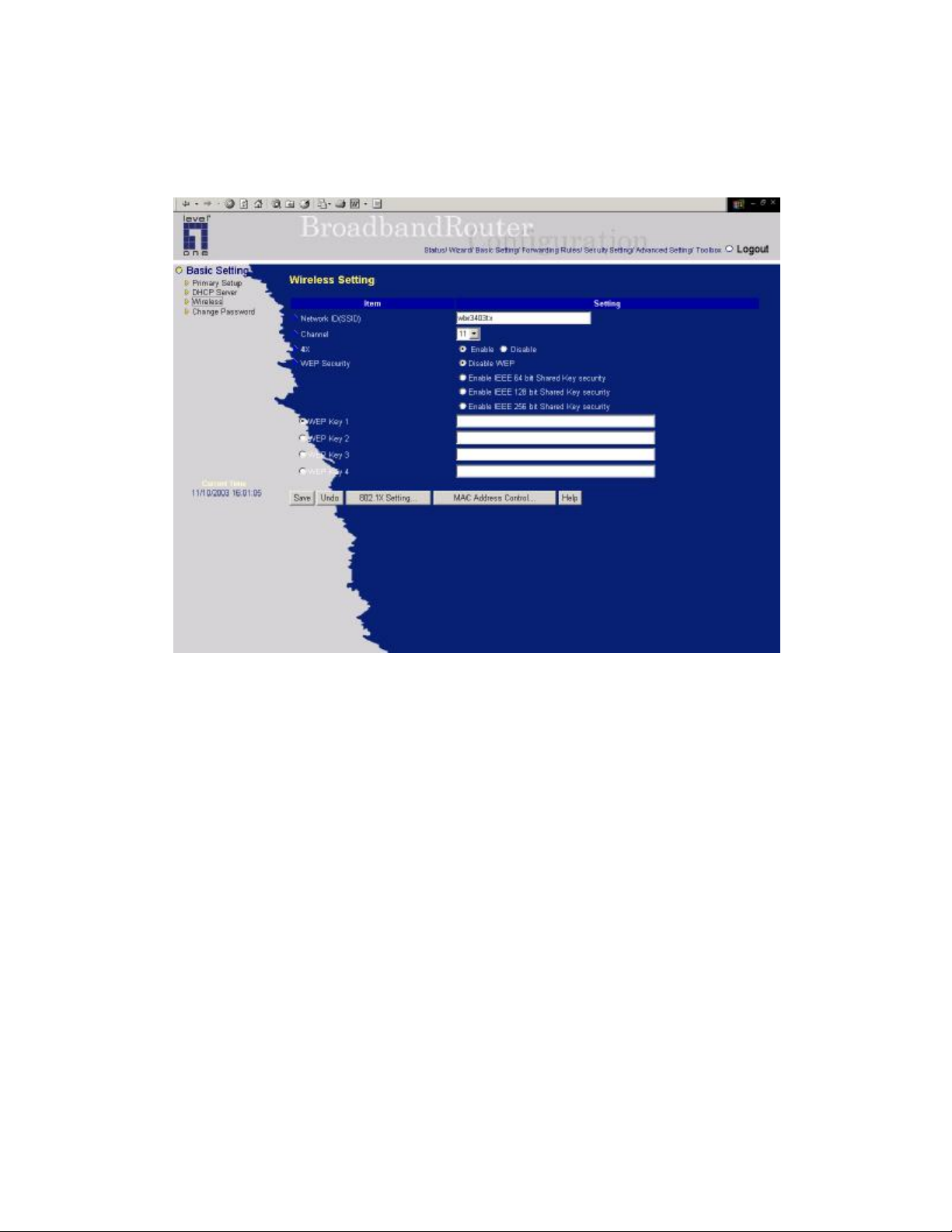

Wireless settings allow you to set the wireless configuration items.

1. Network ID(SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client

stations can roam freely over this product and other Access Points that have the same Network ID.
(The factory setting is “default”)

2. Channel: The radio channel number. The permissible channels depend on the Regulatory Domain.

The factory setting is as follow: channel 6 for North America; channel 7 for European (ETSI);
channel 7 for Japan.

3. 4X : WBR-3404TX adopted TI for main chipset. With other TI 11g wireless products, the wireless

transferring rate will be doubled when the 4X mode is enable.

4. WEP Security: Select the data privacy algorithm you want. Enabling the security can protect your

data while it is transferred from one station to another. The standardized IEEE 802.11 WEP (128 or
64-bit) is used here.

5. WEP Key 1, 2, 3 & 4: When you enable the 128 or 64 bit WEP key security,

please select one WEP key to be used and input 26 or 10 hexdecimal (0, 1, 2…8, 9,
A, B…F) digits.

29

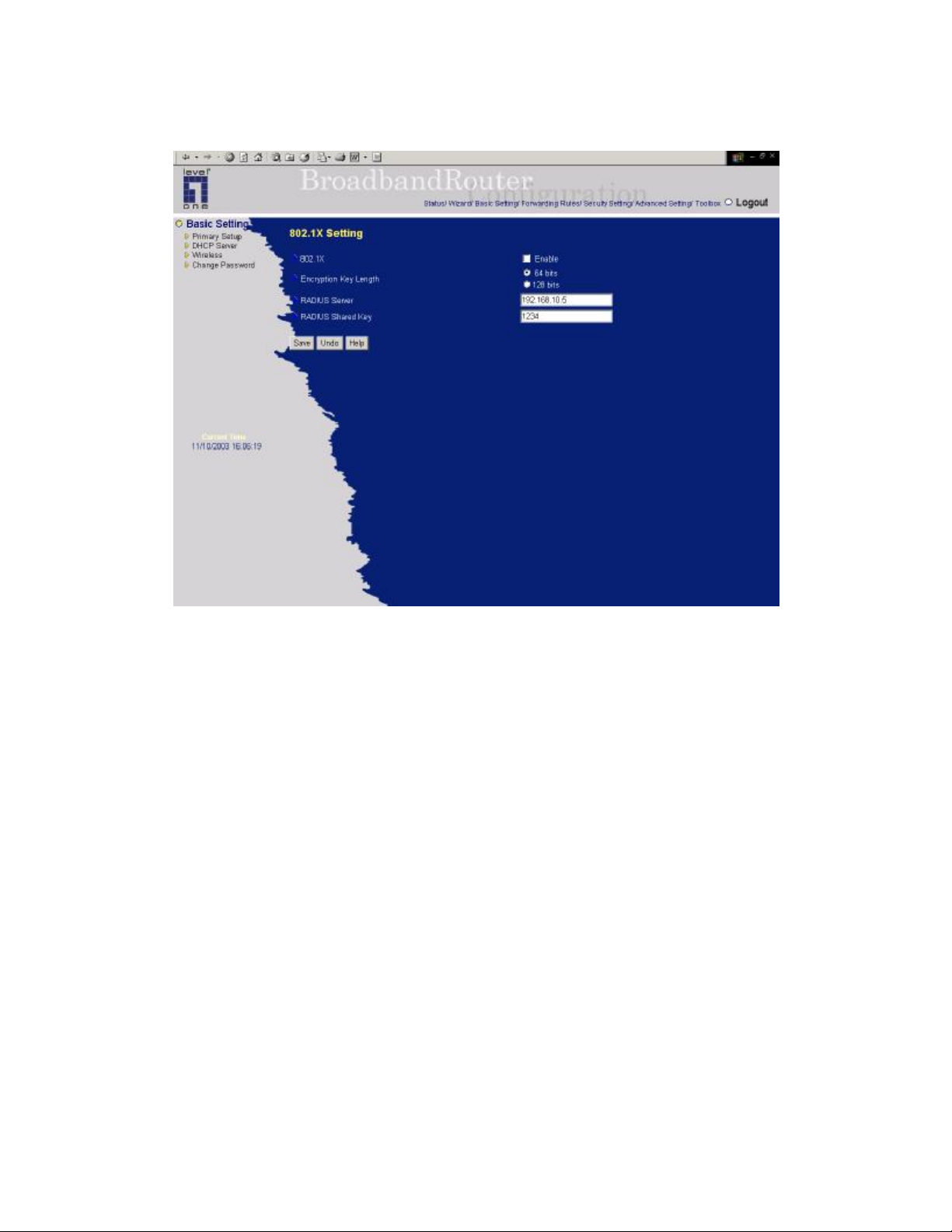

7. 802.1X Setting

802.1X

CheckBox was used to switch the function of the 802.1X. When the 802.1X function
is enable, the Wireless user must authenticate to this router first to use the Network
service.

Encryption Key Length

Allows user to select the length for WEP encryption.

RADIUS Server

IP address or the 802.1X server’s domain-name.

RADIUS Shared Key

Key value shared by the RADIUS server and this router. This key value is consistent
with the key value in the RADIUS server.

30

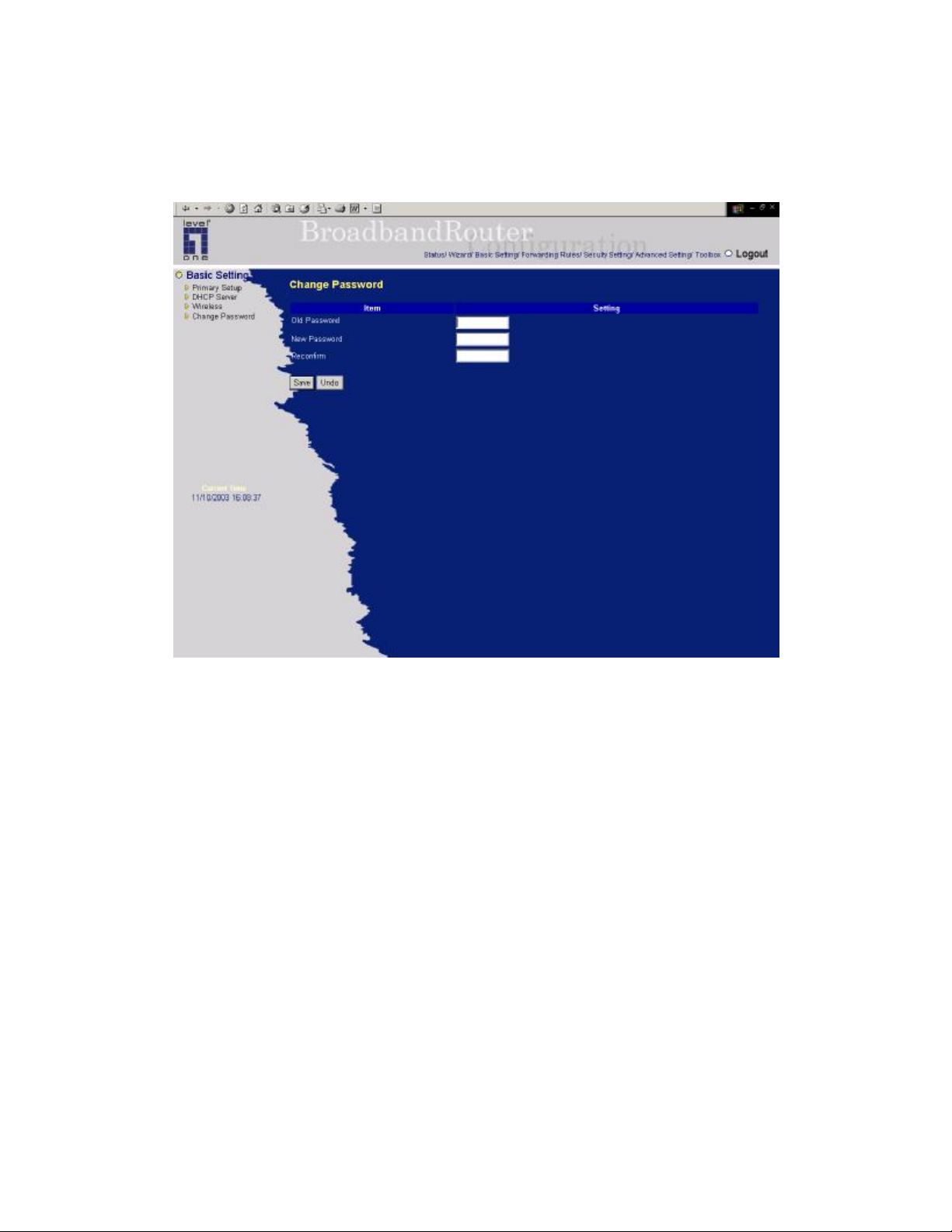

4.4.4 Change Password

You can change Password here. We strongly recommend you to change the system
password for security reason.

31

4.5 Forwarding Rules

32

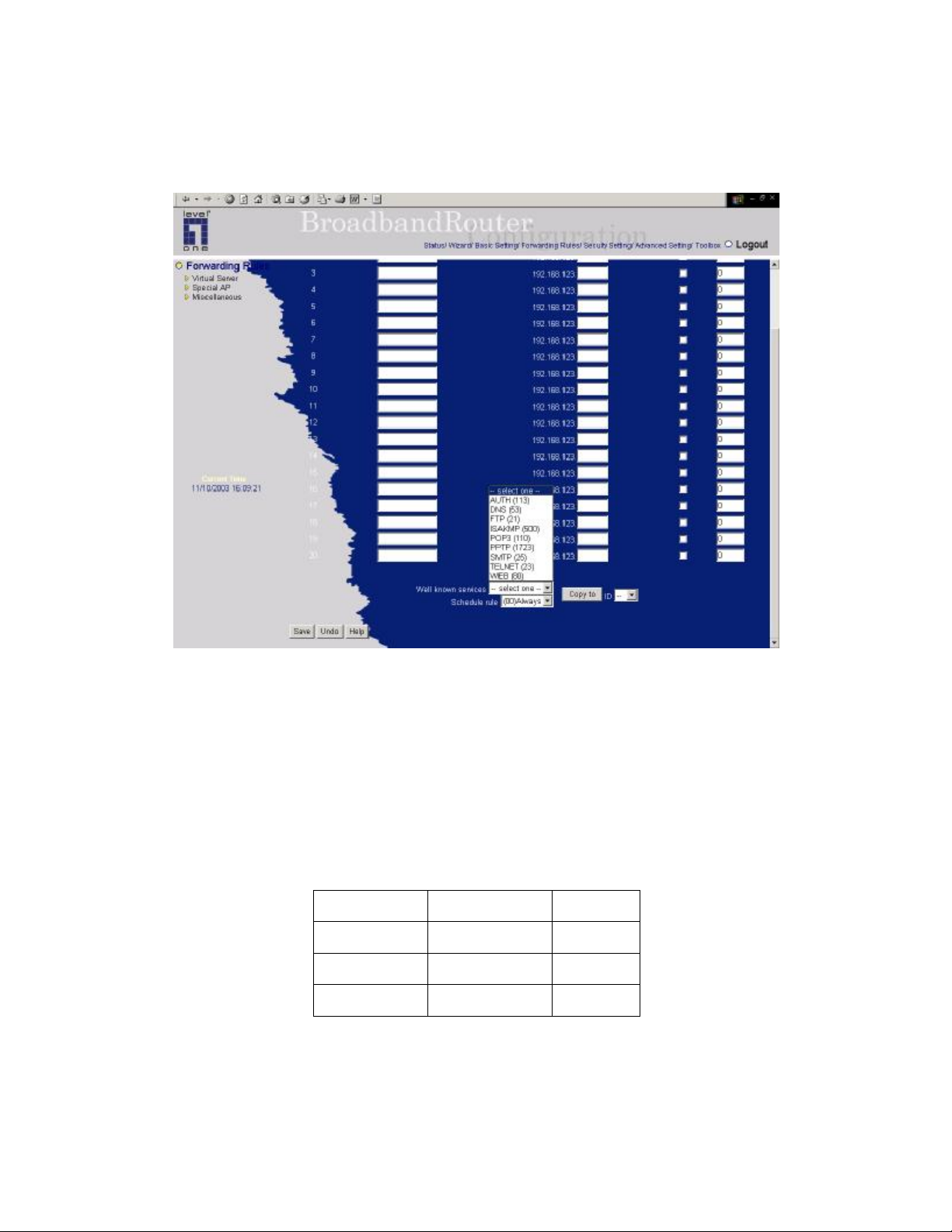

4.5.1 Virtual Server

This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts
behind this product are invisible to the outside world. If you wish, you can make some of them
accessible by enabling the Virtual Server Mapping.

A virtual server is defined as a Service Port, and all requests to this port will be redirected to the
computer specified by the Server IP.

For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80) at

192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the following virtual

server mapping table:

Service Port Server IP Enable

21 192.168.123.1 V
80 192.168.123.2 V

1723 192.168.123.6 V

33

4.5.2 Special AP

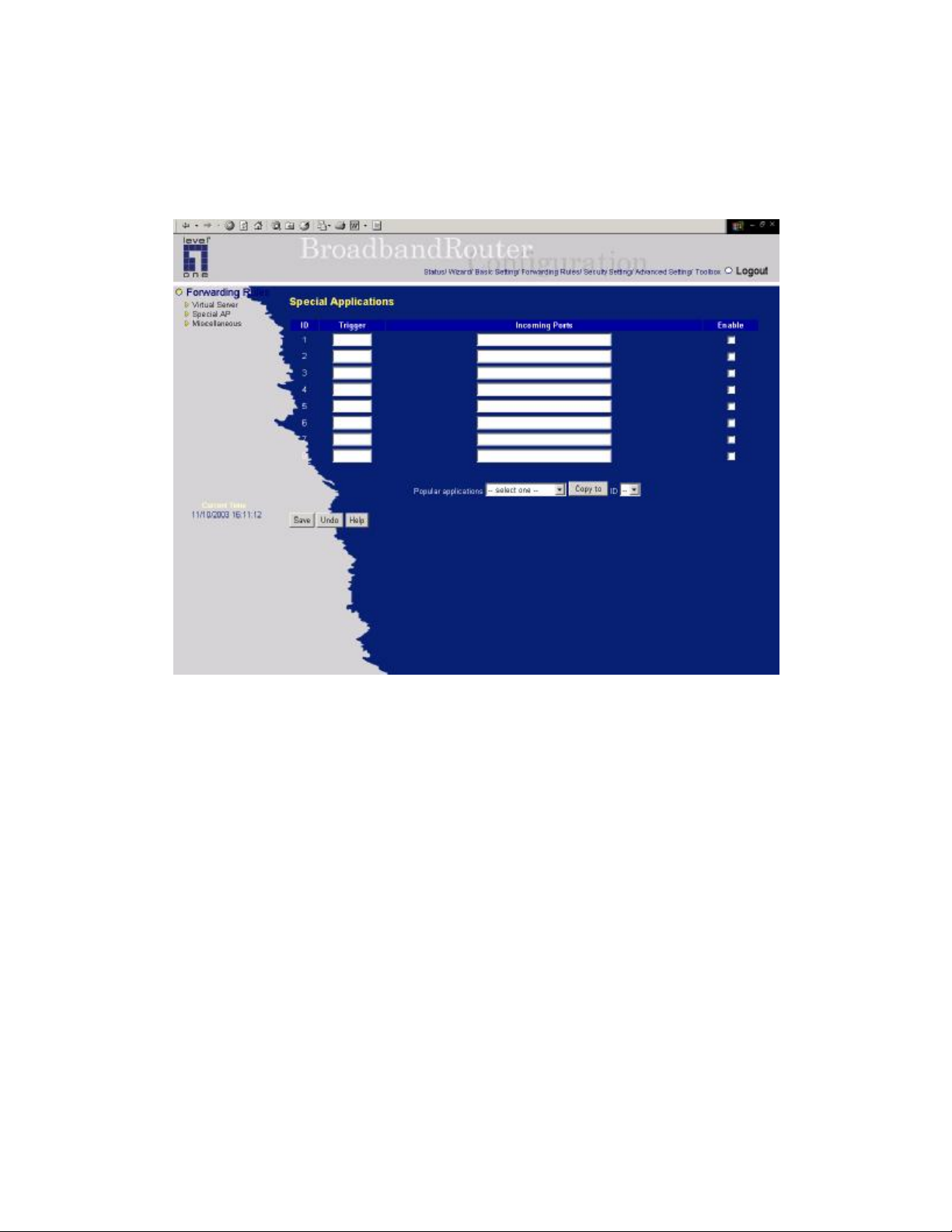

Some applications require multiple connections, like Internet games, Video conferencing, Internet
telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router.

Special Applications

The
mechanism of Special Applications fails to make an application work, try setting your computer as the

DMZ

host instead.

1. Trigger: the outbound port number issued by the application..

2. Incoming Ports: when the trigger packet is detected, the inbound packets sent to the specified
port numbers are allowed to pass through the firewall.

This product provides some predefined settings Select your application and click
predefined setting to your list.

Note! At any given time, only one PC can use each Special Application tunnel.

feature allows some of these applications to work with this product. If the

Copy to

to add the

34

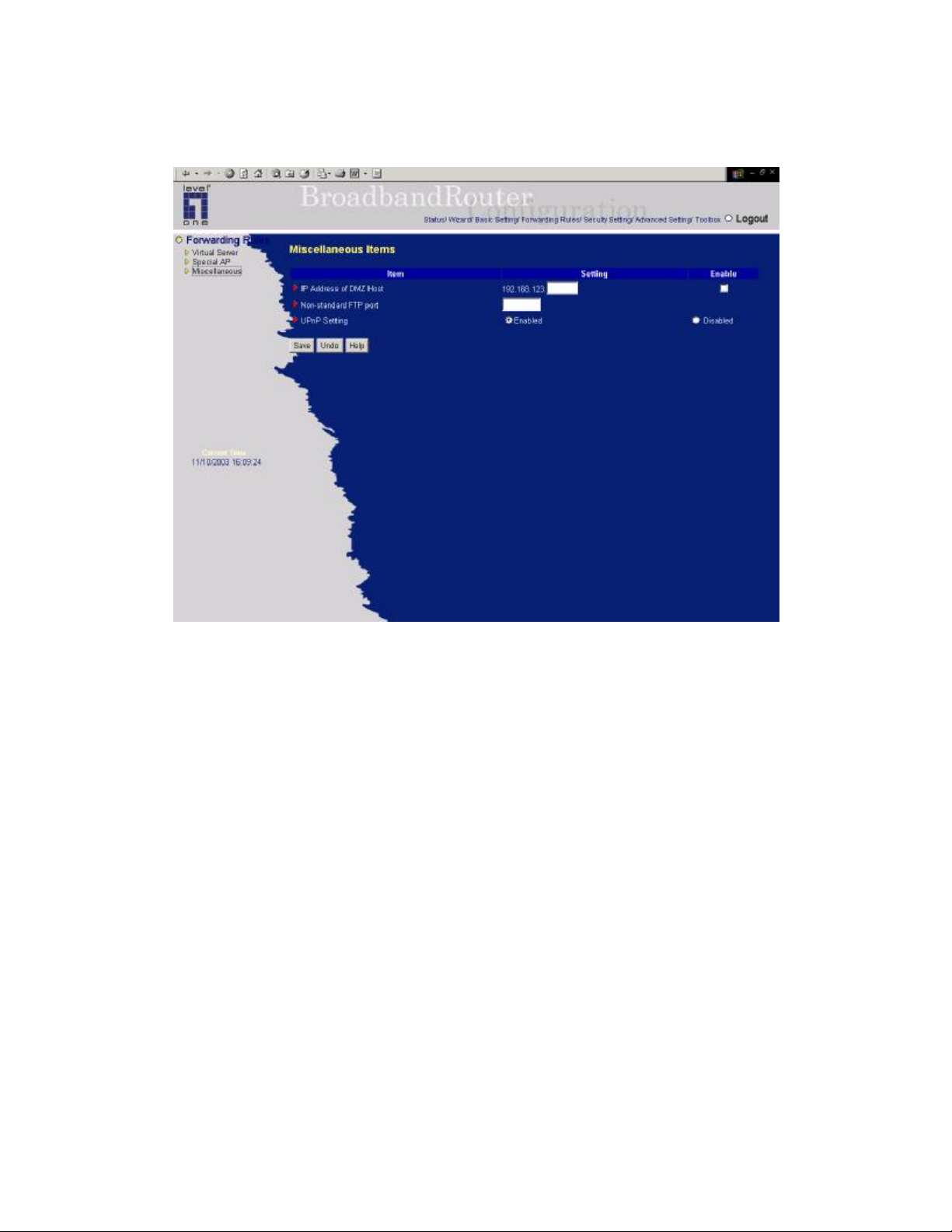

4.5.3 Miscellaneous Items

IP Address of DMZ Host

DMZ (DeMilitarized Zone) Host is a host without the protection of firewall. It allows a computer to be
exposed to unrestricted 2-way communication for Internet games, Video conferencing, Internet
telephony and other special applications.

NOTE: This feature should be used only when needed.

Non-standard FTP port

You have to configure this item if you want to access an FTP server whose port number is not 21. This
setting will be lost after rebooting.

UPnP Setting

Allows user to enable or disable UPnP(Universal Plug and Play) function.

35

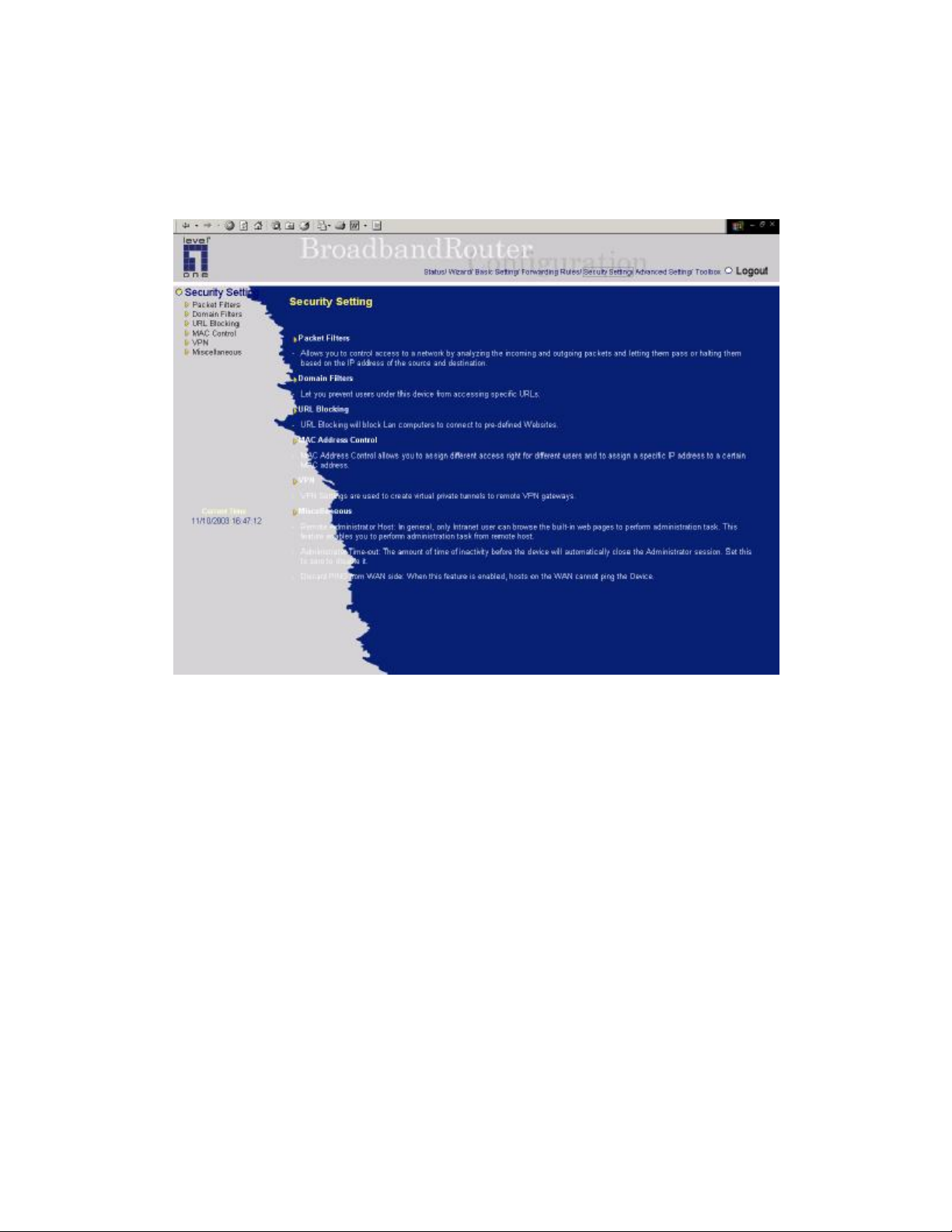

4.6 Security Settings

36

4.6.1 Packet Filter

Packet Filter enables you to control what packets are allowed to pass the router. Outbound filter applies
on all outbound packets. However, Inbound filter applies on packets that destined to Virtual Servers or
DMZ host only. You can select one of the two filtering policies:

1. Allow all to pass except those match the specified rules

2. Deny all to pass except those match the specified rules

You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define the
following:

•

Source IP address

•

Source port address

•

Destination IP address

•

Destination port address

•

Protocol: TCP or UDP or both.

For source or destination IP address, you can define a single IP address (4.3.2.1) or a range of IP

37

addresses (4.3.2.1-4.3.2.254). An empty implies all IP addresses.

For source or destination port, you can define a single port (80) or a range of ports (1000-1999). Add
prefix "T" or "U" to specify TCP or UDP protocol. For example, T80, U53, U2000-2999. No prefix
indicates both TCP and UDP are defined. An empty implies all port addresses.

Each rule can be enabled or disabled individually.

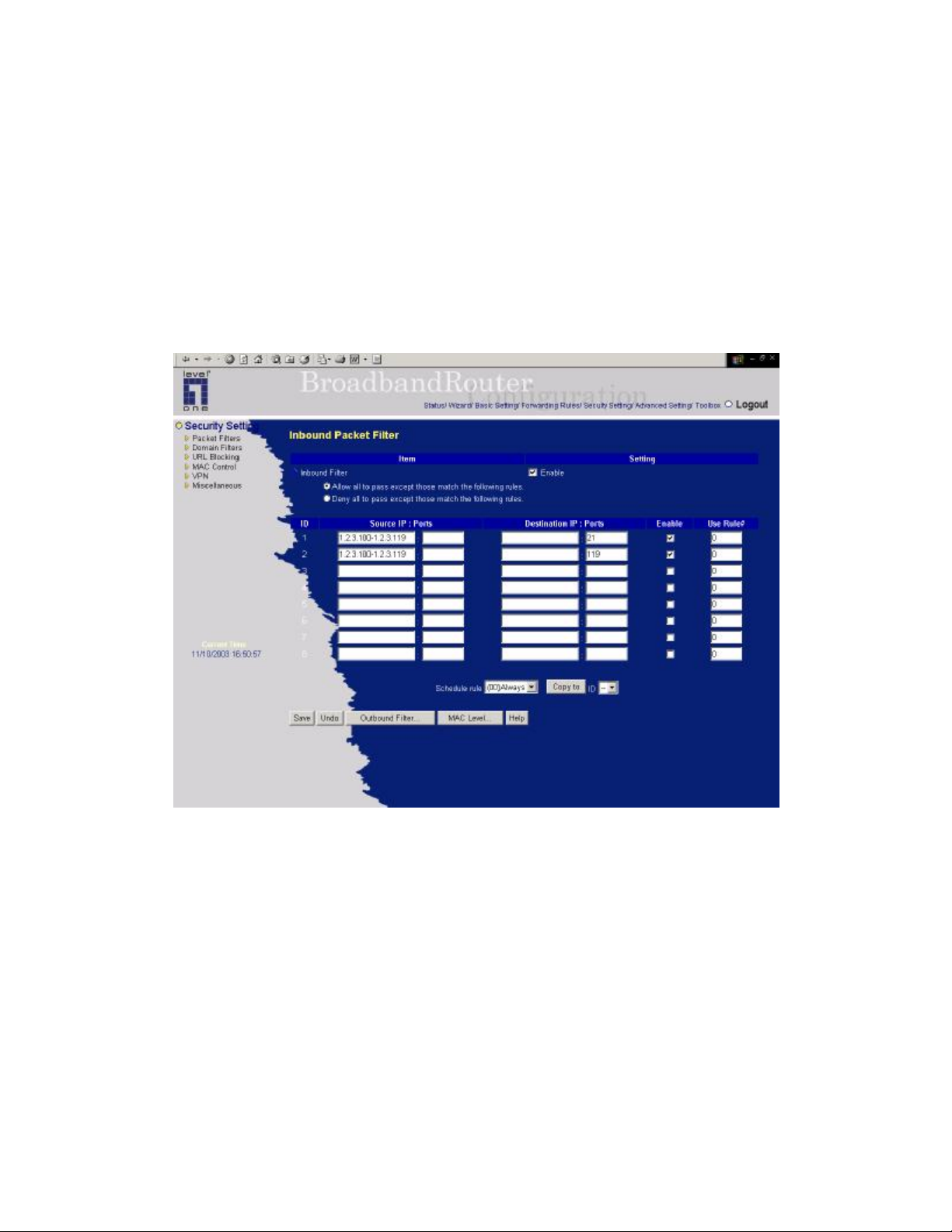

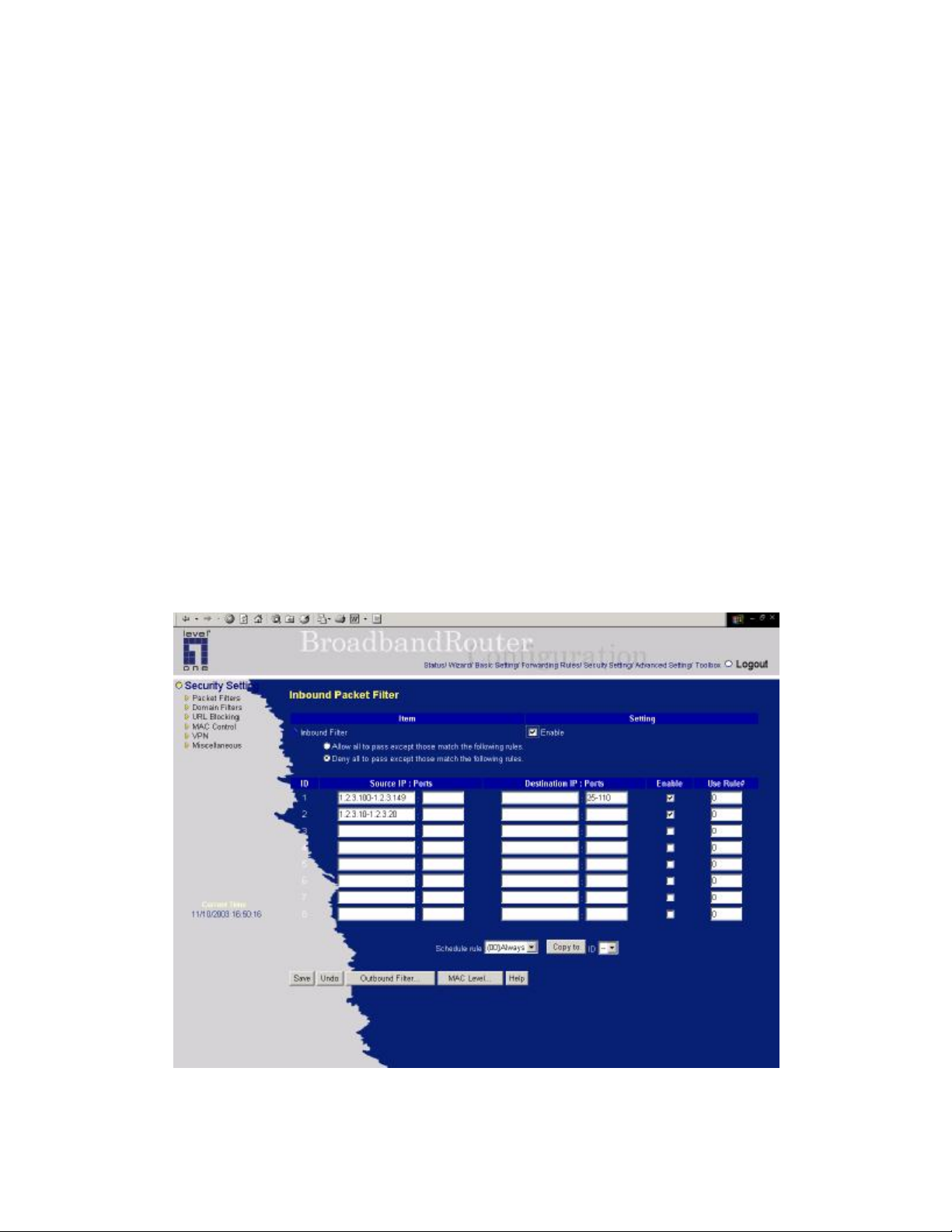

Inbound Filter:

To enable Inbound Packet Filter click the check box next to Enable in the Inbound Packet
Filter field.

Suppose you have SMTP Server (25), POP Server (110), Web Server (80), FTP Server
(21), and News Server (119) defined in Virtual Server or DMZ Host.
Example 1:

(1.2.3.100-1.2.3.149) They are allow to send mail (port 25), receive mail (port 110),
and browse the Internet (port 80)

38

(1.2.3.10-1.2.3.20) They can do everything (block nothing)

Others are all blocked.

Example 2:

(1.2.3.100-1.2.3.119) They can do everything except read net news (port 119) and
transfer files via FTP (port 21)
Others are all allowed.

After Inbound Packet Filter setting is configured, click the save button.

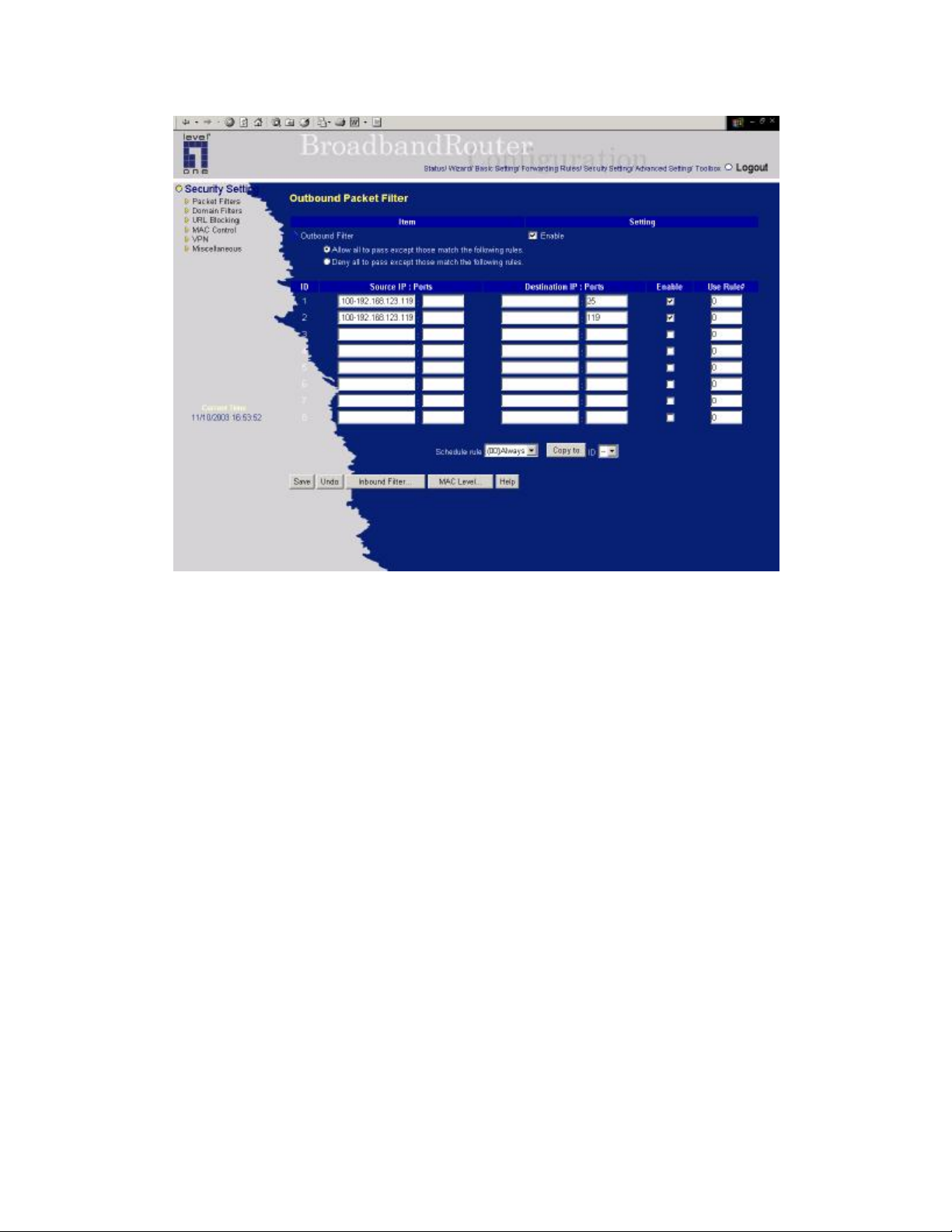

Outbound Filter:

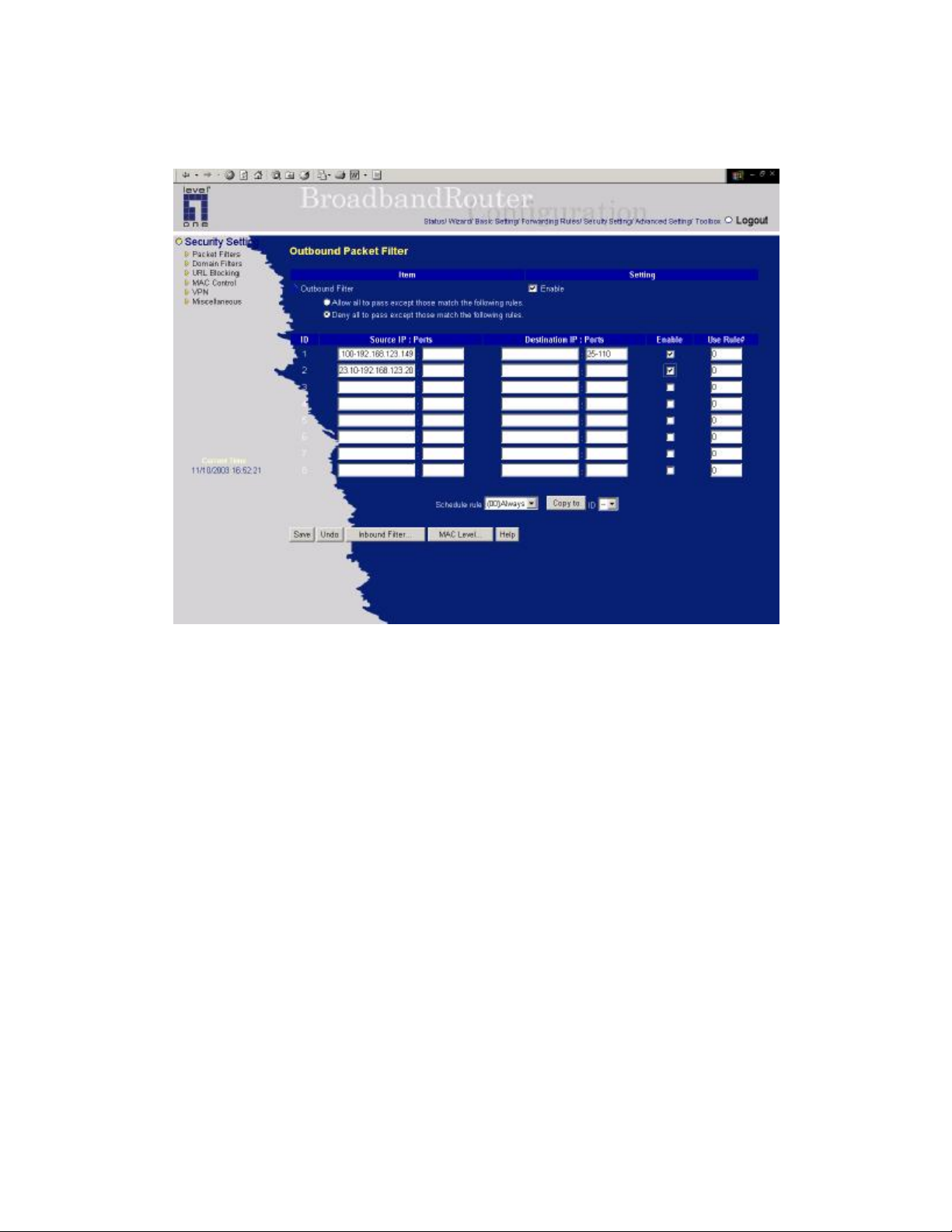

To enable Outbound Packet Filter click the check box next to Enable in the Outbound
Packet Filter field.

39

Example 1:

(192.168.123.100-192.168.123.149) They are allowed to send mail (port 25), receive
mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve
the domain name.

(192.168.123.10-192.168.123.20) They can do everything (block nothing)
Others are all blocked.

Example 2:

40

(192.168.123.100-192.168.123.119) They can do everything except read net news
(port 119) and transfer files via FTP (port 21)

Others are allowed

After Outbound Packet Filter setting is configured, click the save button.

41

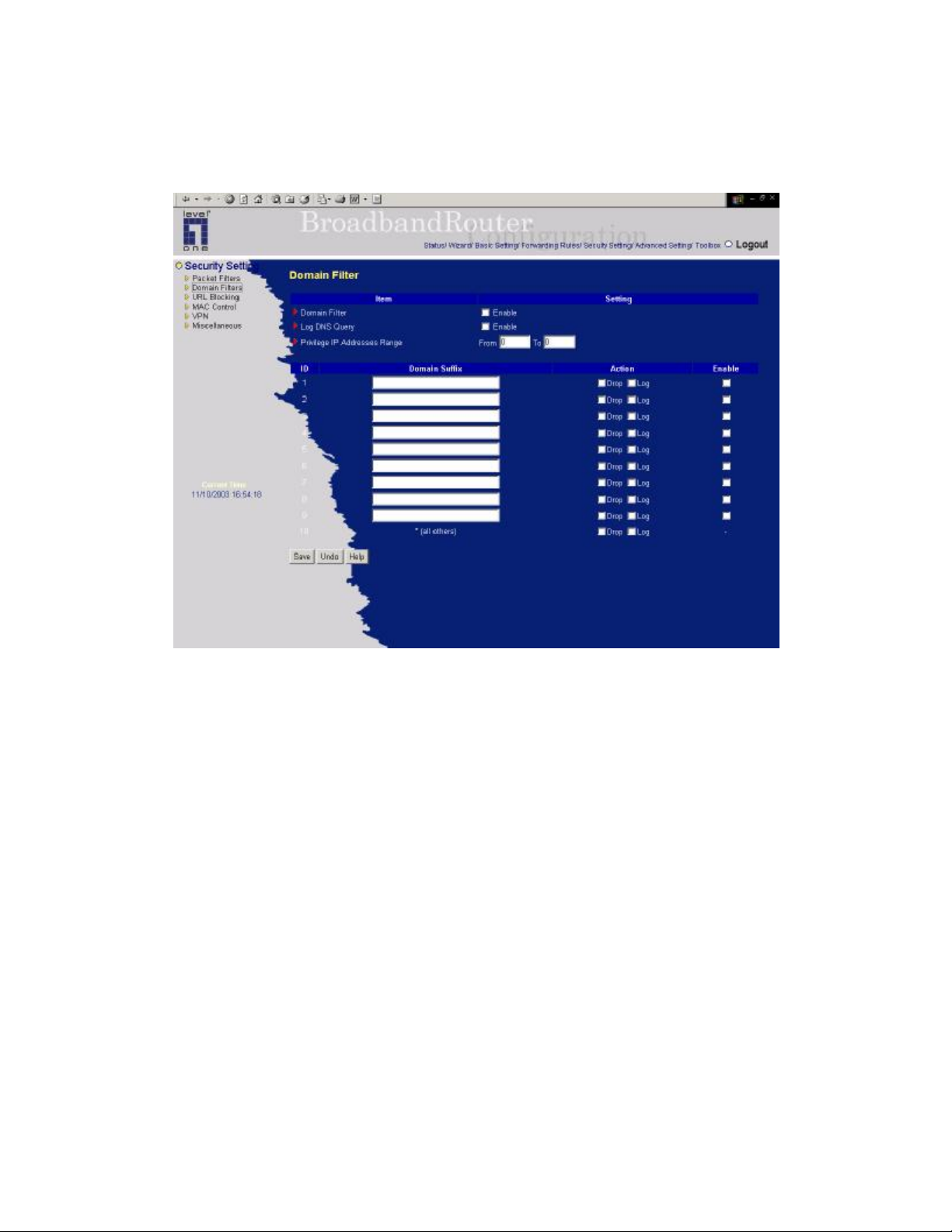

4.6.2 Domain Filter

Domain Filter

Domain Filter Enable

Checke if you want to enable Domain Filter.

Log DNS Query

Checke if you want to log the action when someone accesses the specific URLs.

Privilege IP Addresses Range

Setting a group of hosts and privilege these hosts to access network without restriction.

Domain Suffix

A suffix of URL to be restricted. For example, ".com", "xxx.com".

Action

When someone is accessing the URL met the domain-suffix, what kind of action you want.
Checke

Enable

Checke to enable each rule.

let you prevent users under this device from accessing specific URLs.

drop

to block the access. Checke

log

to log these access.

42

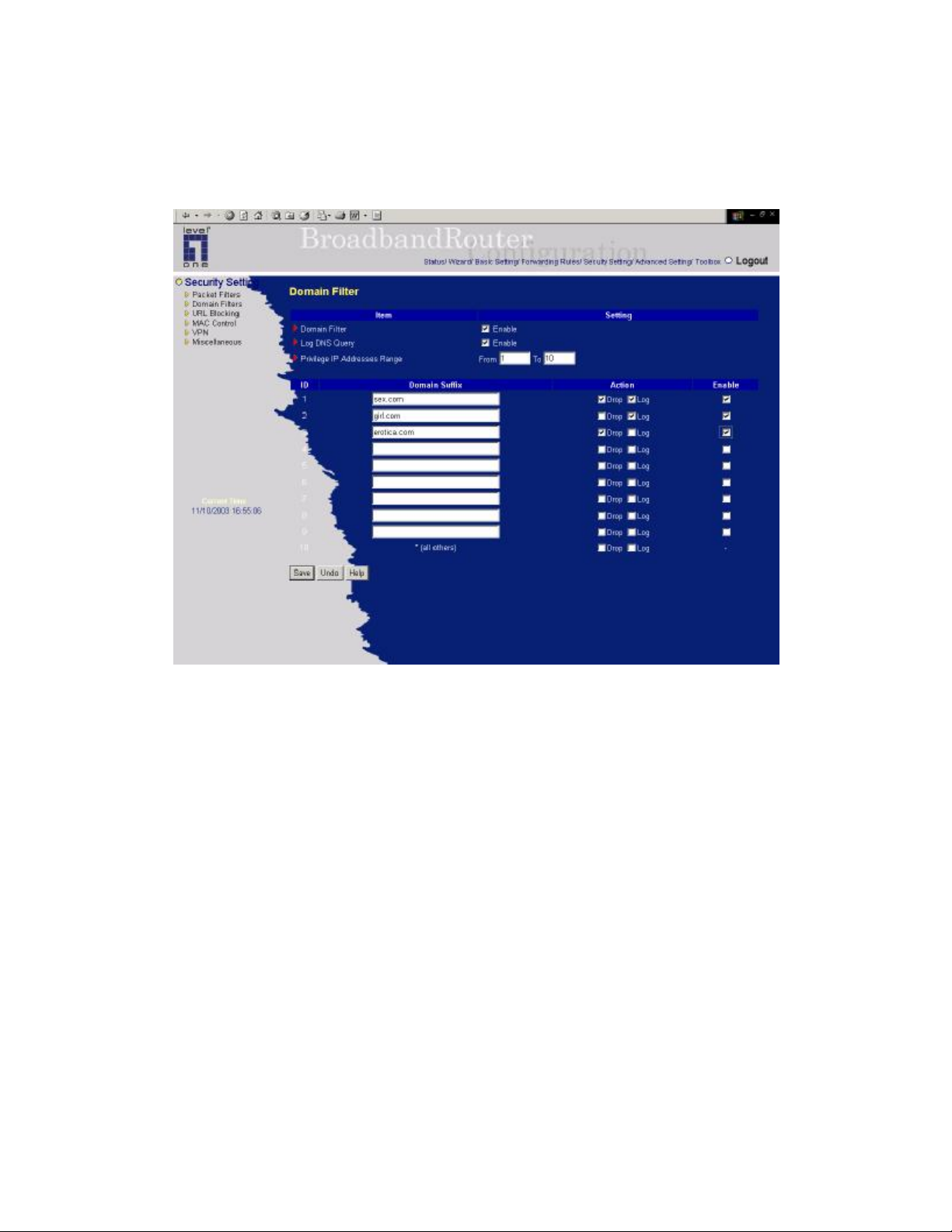

Example:

In this example:

1. URL include “sex.com” will be blocked, and the action will be record in log-file.

2. URL include “girl.com” will not be blocked, but the action will be record in log-file.

3. URL include “erotica.com” will be blocked, but the action will not be record in log-file.

4. IP address X.X.X.1~ X.X.X.10 can access network without restriction.

43

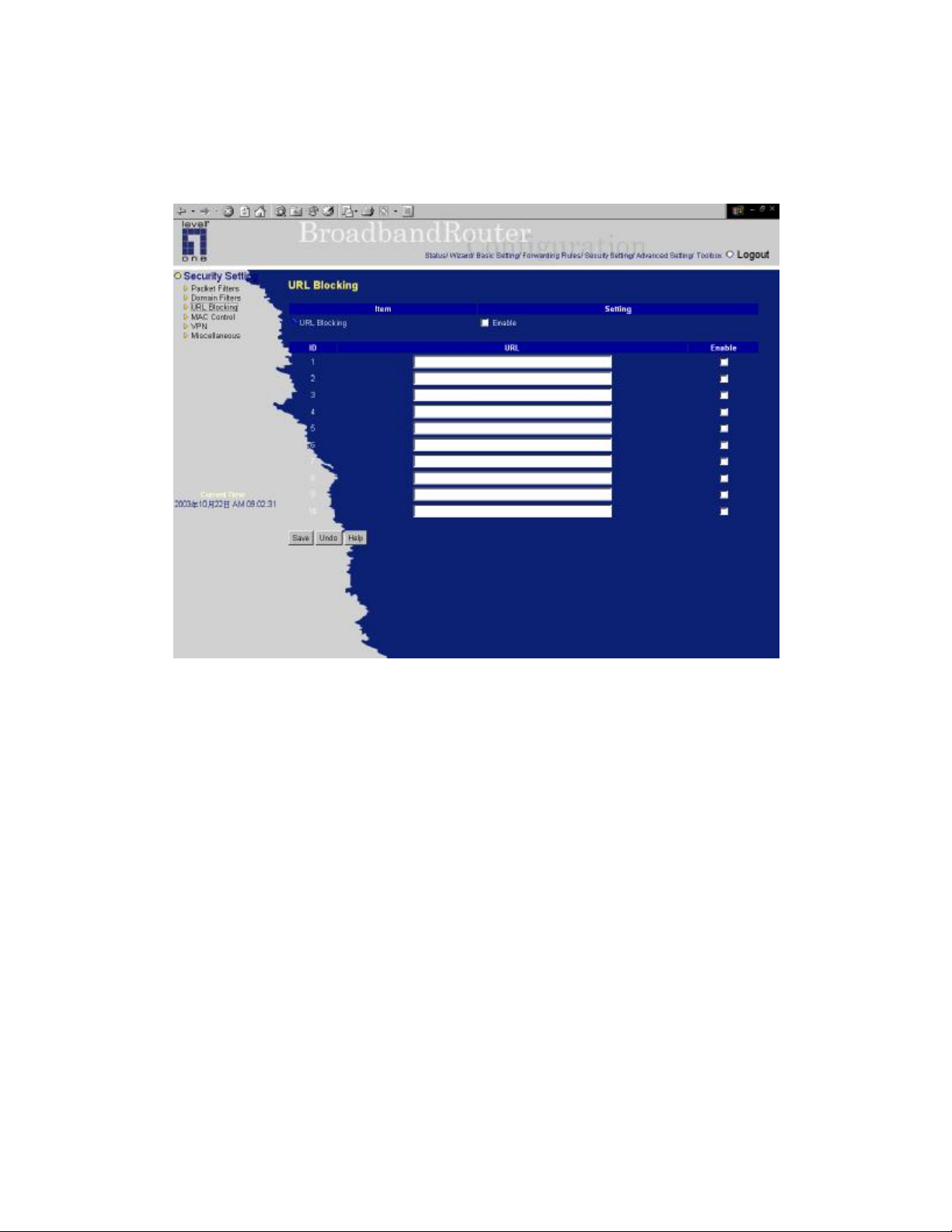

4.6.3 URL Blocking

URL Blocking

The major difference between “Domain filter” and “URL Blocking” is Domain filter require user to
input suffix (like .com or .org, etc), while URL Blocking require user to input a keyword only. In other
words, Domain filter can block specific website, while URL Blocking can block hundreds of websites
by simply a

URL Blocking Enable

Checked if you want to enable URL Blocking.

URL

If any part of the Website's URL matches the pre-defined word, the connection will be blocked.
For example, you can use pre-defined word "sex" to block all websites if their URLs contain
pre-defined word "sex".

Enable

Checked to enable each rule.

will block LAN computers to connect to pre-defined Websites.

keyword

.

44

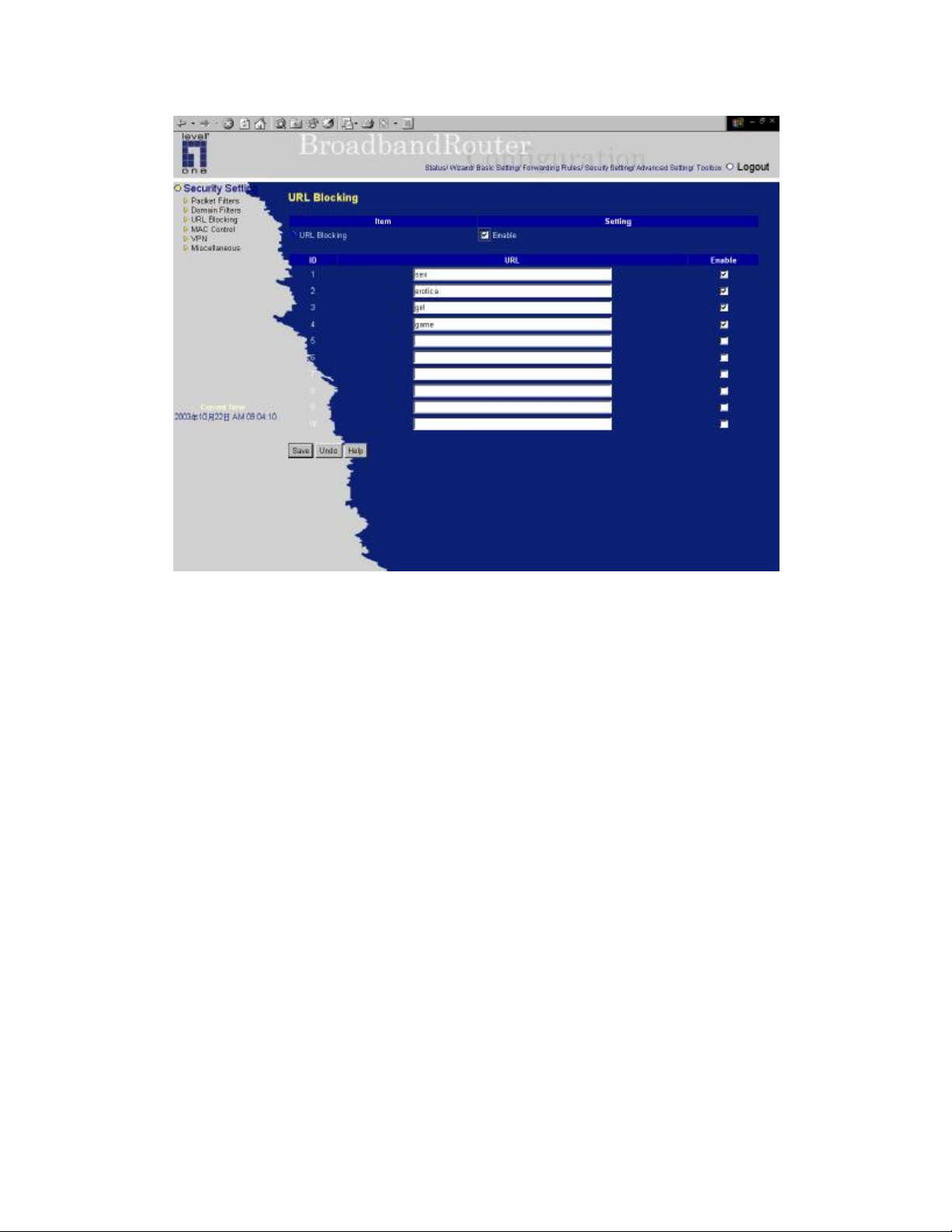

In this example:

1.URL include “sex” will be blocked, and the action will be record in log-file.

2.URL include “erotica” will be blocked, but the action will be record in log-file

3.URL include “girl” will not be blocked, but the action will be record in log-file.

4. URL include “game” will be blocked, but the action will be record in log-file

45

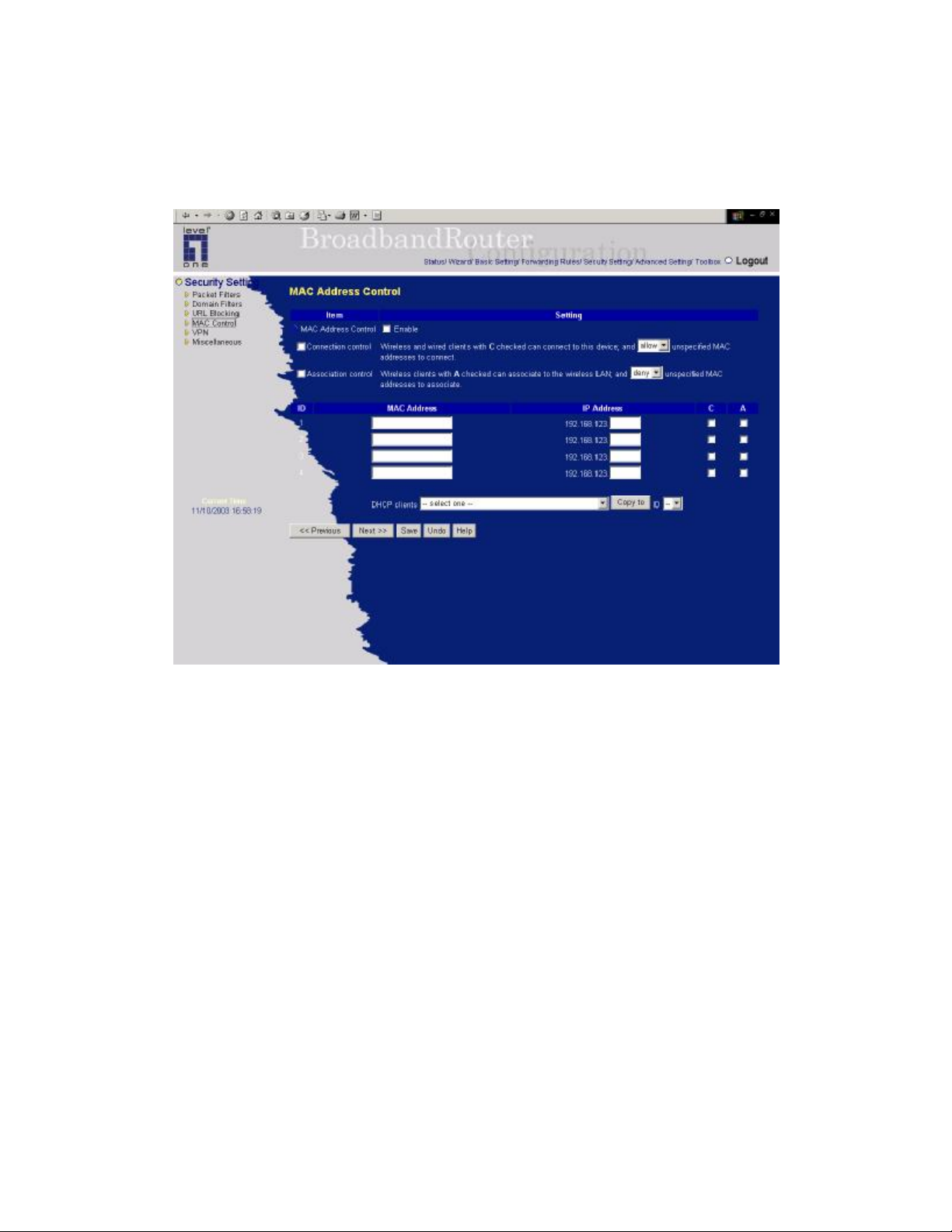

4.6.4 MAC Address Control

MAC Address Control allows you to assign different access right for different users and to assign a
specific IP address to a certain MAC address.

MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the

settings in this page will take effect only when “Enable” is checked.

Connection control

Association control

Check "Connection control" to enable the controlling of whether wired

and wireless clients can connect to this device. If a client is denied to
connect to this device, it means the client can't access to the Internet
either. Choose "allow" or "deny" to allow or deny the clients, whose
MAC addresses are not in the "Control table" (please see below), to
connect to this device.

Check "Association control" to enable the controlling of which wireless
client can associate to the wireless LAN. If a client is denied to associate to

the wireless LAN, it means the client can't send or receive any data via this
device. Choose "allow" or "deny" to allow or deny the clients, whose MAC
addresses are not in the "Control table", to associate to the wireless LAN.

46

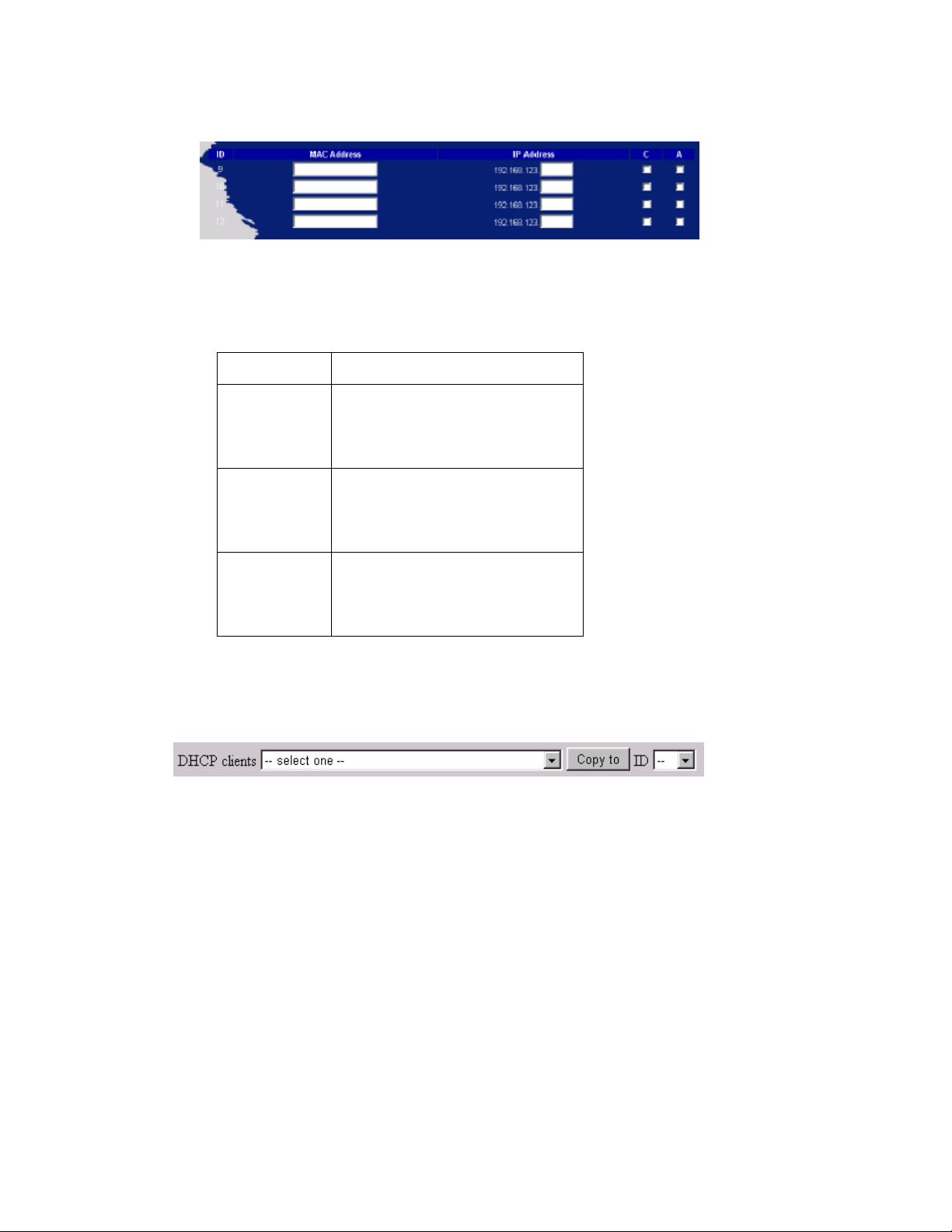

Control table

"Control table" is the table at the bottom of the "MAC Address Control"
page. Each row of this table indicates the MAC address and the expected
IP address mapping of a client. There are four columns in this table:

MAC Address

IP Address

C When "

A When "

In this page, we provide the following Combobox and button to help you to input the MAC address.

You can select a specific client in the “DHCP clients” Combobox, and then click on the “Copy to”
button to copy the MAC address of the client you select to the ID selected in the “ID” Combobox.

MAC address indicates a specific client.
Expected IP address of the corresponding

client. Keep it empty if you don't care its
IP address.

Connection control

check "C" will allow the corresponding
client to connect to this device.

Association control

check "A" will allow the corresponding
client to associate to the wireless LAN.

" is checked,

" is checked,

Previous page and Next Page

47

To make this setup page simple and clear, we have divided the

“Control table” into several pages. You can use these buttons to
navigate to different pages.

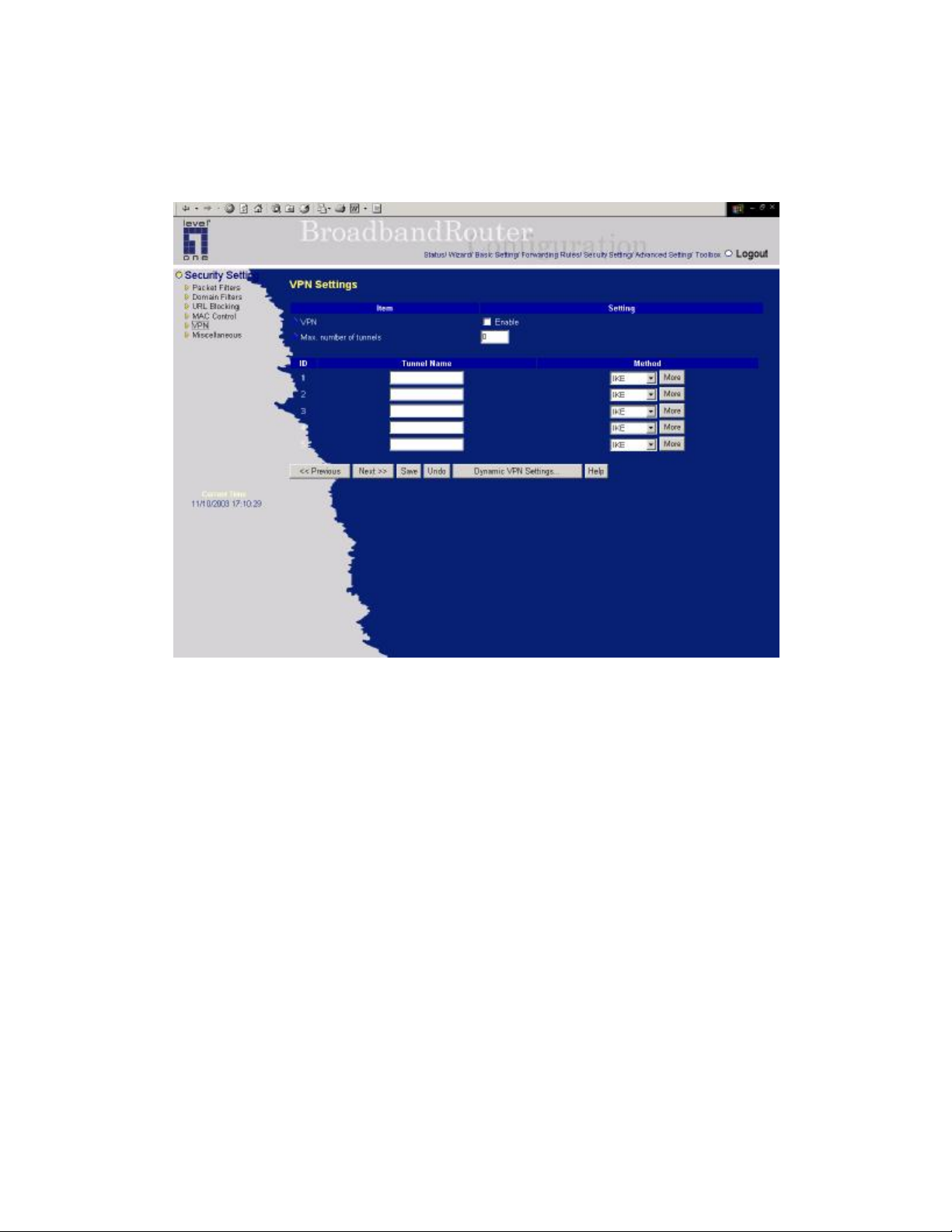

4.6.5 VPN setting

VPN Settings are settings that are used to create virtual private tunnels to remote VPN gateways. The
tunnel technology supports data confidentiality, data origin authentication and data integrity of network
information by utilizing encapsulation protocols, encryption algorithms, and hashing algorithms.

VPN enable item

•

VPN protects network information from ill network inspectors. But it greatly degrades network throughput.
Enable it when you really need a security tunnel. It is disabled for default.

• Max. number of tunnels item

Since VPN greatly degrades network throughput, the allowable maximum number of tunnels is limited.
Be careful to set the value for allowing the number of tunnels can be created simultaneously. Its value
ranges from 1 to 5.

• Tunnel name

Indicate which tunnel that is focused now.

• Method

IPSec VPN supports two kinds of key-obtained methods: manual key and automatic key exchange.
Manual key approach indicates that two end VPN gateways setup authenticator and encryption key by
system managers manually. However, IKE approach will perform automatic Internet key exchange.

48

System managers of both end gateways only need set the same pre-shared key.

Function of Buttons
More

: To setup detailer configuration for manual key or IKE approaches by clicking the "More"

button.

•

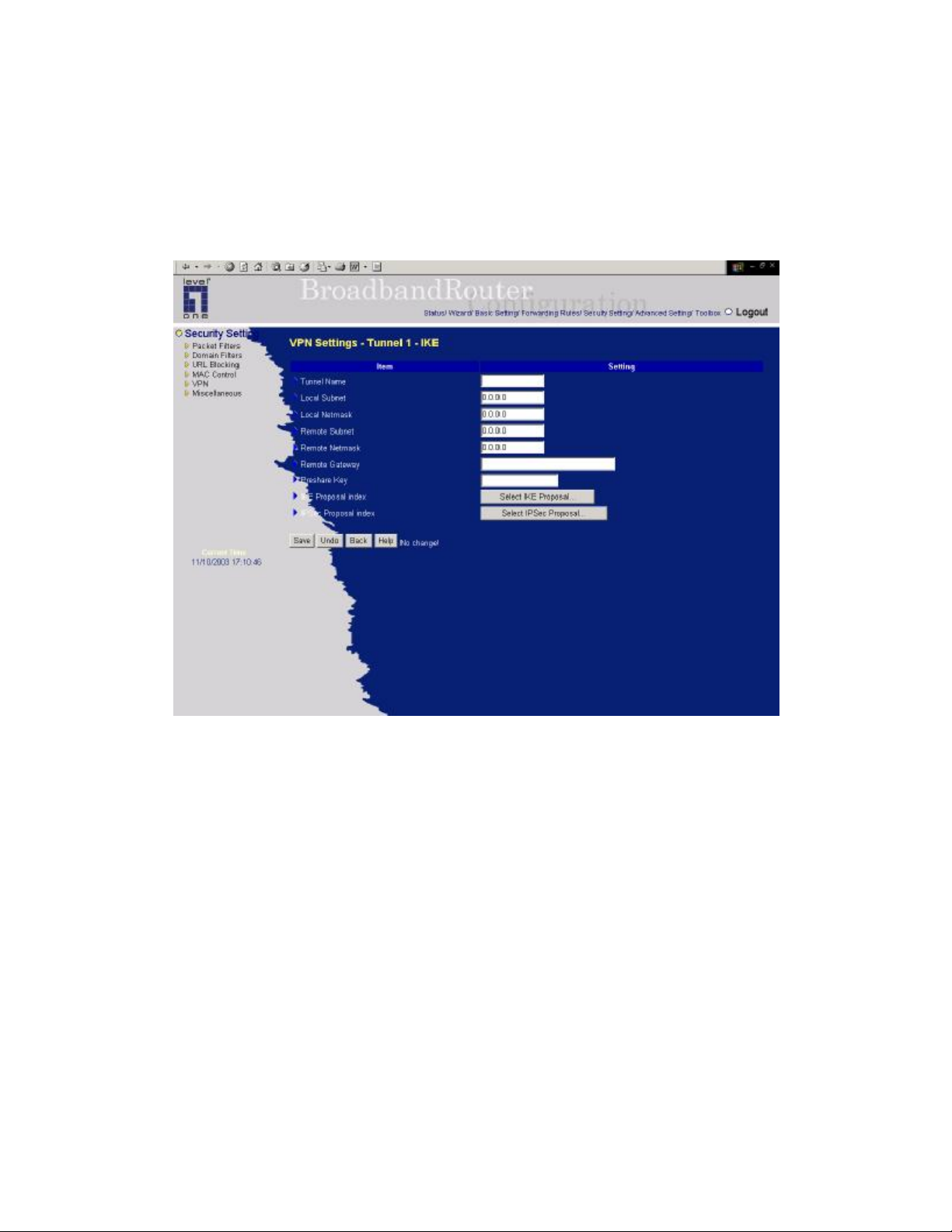

VPN Settings - IKE

There are three parts that are necessary to setup the configuration of IKE for the dedicated tunnel: basic
setup, IKE proposal setup, and IPSec proposal setup.
Basic setup includes the setting of following items: local subnet, local netmask, remote subnet, remote
netmask, remote gateway, and pre-shared key. The tunnel name is derived from previous page of VPN
setting. IKE proposal setup includes the setting of a set of frequent-used IKE proposals and the
selecting from the set of IKE proposals. Similarly, IPSec proposal setup includes the setting of a set of
frequent-used IPSec proposals and the selecting from the set of IPSec proposals.

- Basic setup:

Local subnet

The subnet of LAN site of local VPN gateway. It can be a host, a partial subnet, and the whole subnet
of LAN site of local gateway.

49

Local netmask

Local netmask combined with local subnet to form a subnet domain.

Remote subnet

The subnet of LAN site of remote VPN gateway, it can be a host, a partial subnet, and the whole subnet
of LAN site of remote gateway.

Remote netmask

Remote netmask combined with remote subnet to form a subnet domain of remote end.

Remote gateway

The IP address of remote VPN gateway.

Pre-shared key

The first key that supports IKE mechanism of both VPN gateways for negotiating further security keys.
The pre-shared key must be same for both end gateways.

Function of Buttons

Select IKE proposal:

Select IPSec proposal:

Click the button to setup a set of frequent-used IKE proposals and select from

the set of IKE proposals for the dedicated tunnel. proposals for the
dedicated tunnel.

Click the button to setup a set of frequent-used IPSec proposalsand select

from the set of IKE proposals for the dedicated tunnel.

50

•

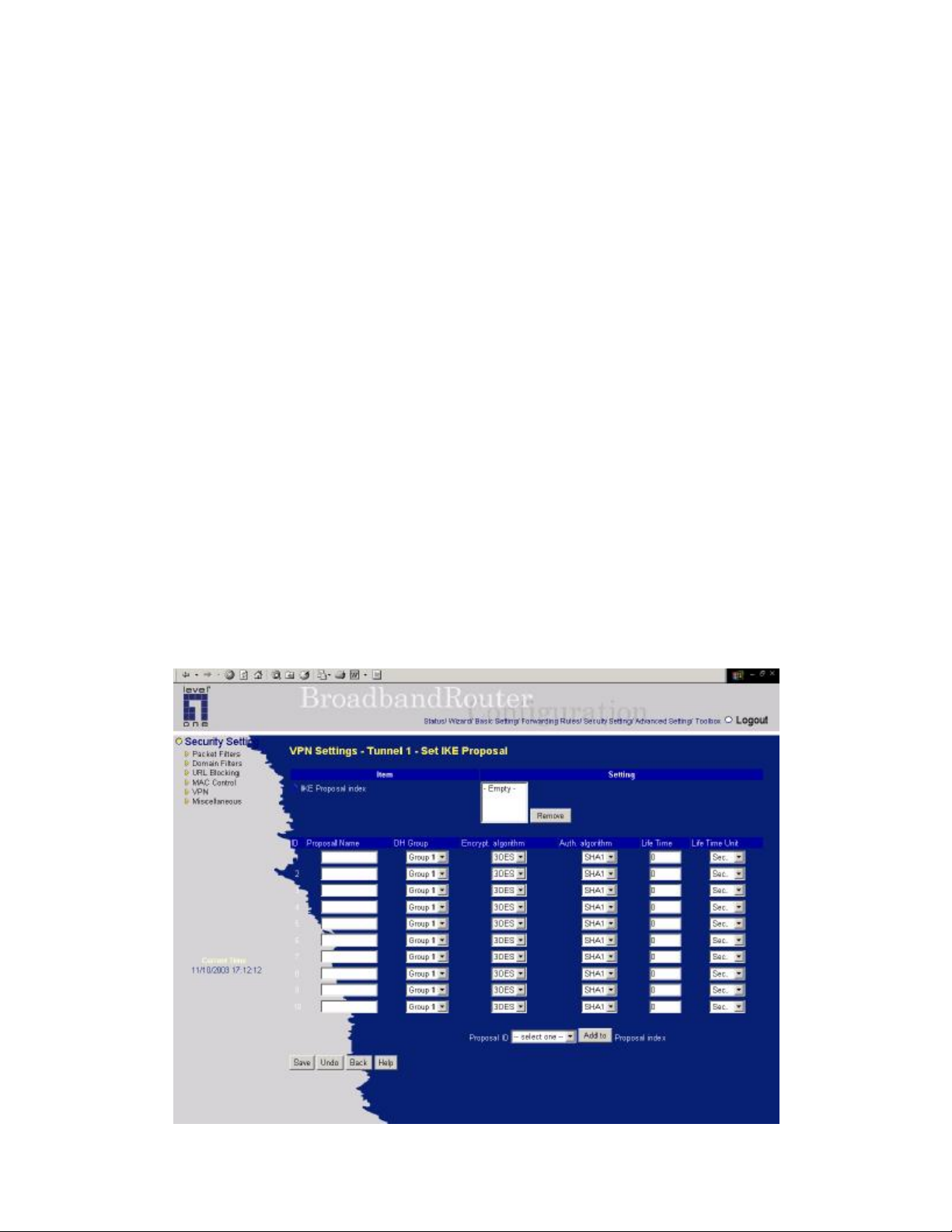

VPN Settings - Set IKE Proposal

IKE Proposal index

A list of selected proposal indexes from the IKE proposal pool listed below. The selecting activity is
performed by selecting a proposal ID and clicking "add to" button in the bottom of the page. There are
only four indexes can be chosen from the proposal pool for the dedicated tunnel. Remove button beside
the index list can remove selected proposal index before.

Proposal name

It indicates which IKE proposal to be focused. First char of the name with 0x00 value stands for the
IKE proposal is not available.

• DH group

There are three groups can be selected: group 1 (MODP768), group 2 (MODP1024), group 5
(MODP1536).

Encryption algorithm

There are two algorithms can be selected: 3DES and DES.

Authentication algorithm

There are two algorithms can be selected: SHA1 and MD5.

Life time

The unit of life time is based on the value of Life Time Unit. If the value of unit is second, the value of
life time represents the life time of dedicated VPN tunnel between both end gateways. Its value ranges
from 300 seconds to 172,800 seconds. If the value of unit is KB, the value of life time represents the
maximum allowable amount of transmitted packets through the dedicated VPN tunnel between both
end gateways. Its value ranges from 20,480 KBs to 2,147,483,647 KBs.

Life time unit

There are two units can be selected: second and KB.

Proposal ID

The identifier of IKE proposal can be chosen for adding corresponding proposal to the dedicated tunnel.
There are total ten proposals can be set in the proposal pool. At most only four proposals from the pool
can be applied to the dedicated tunnel as shown in the proposal index list.

Function of Buttons
Add to

button: Click it to add the chosen proposal indicated by proposal ID to IKE Proposal index list.
The proposals in the index list will be used in phase 1 of IKE negotiation for getting the IKSAMP SA
of dedicated tunnel.

51

•

VPN Settings -Set IPSec Proposal

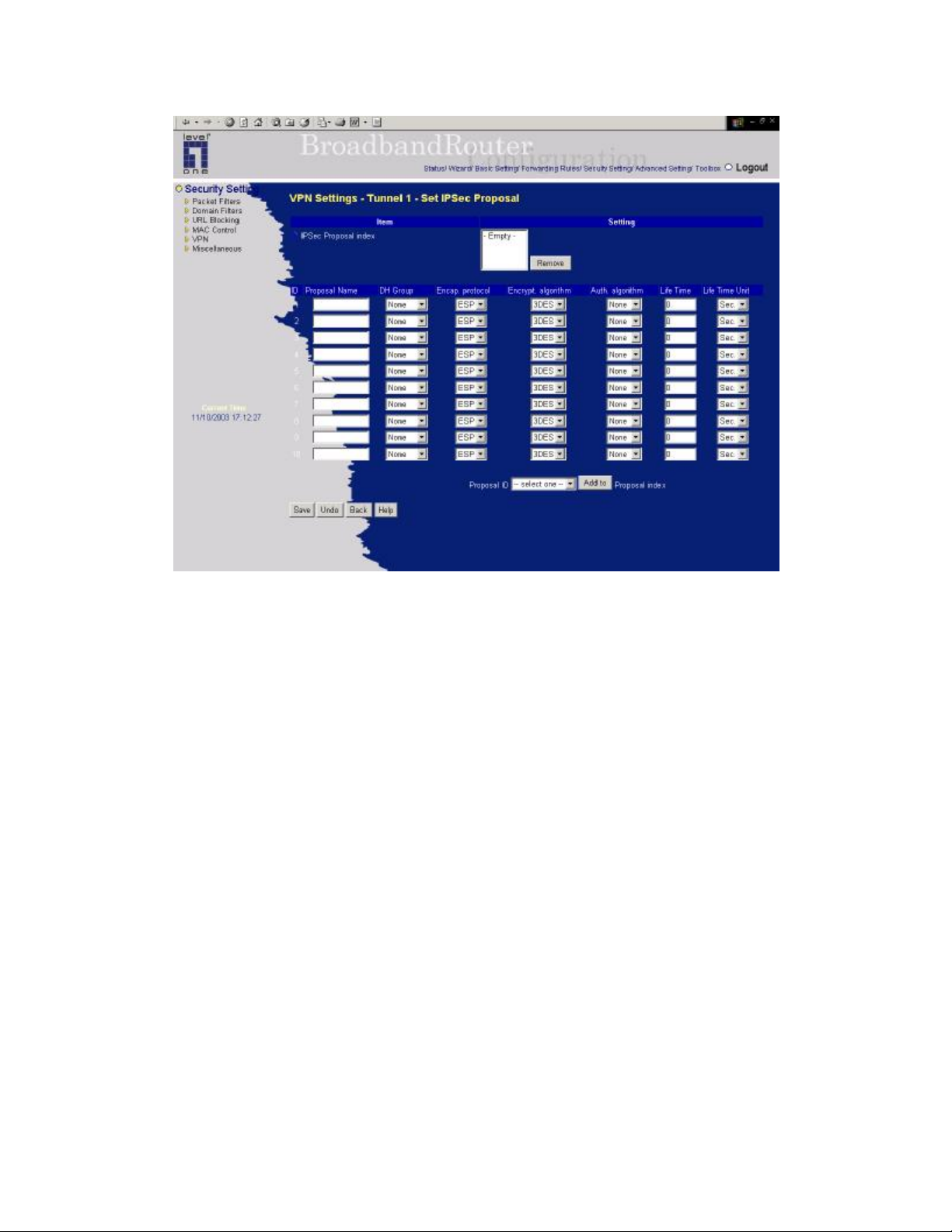

IPSec Proposal index

A list of selected proposal indexes from the IPSec proposal pool listed below. The selecting activity is
performed by selecting a proposal ID and clicking "add to" button in the bottom of the page. There are
only four indexes can be chosen for the dedicated tunnel. Remove button beside the index list can
remove selected proposal index before.

Proposal name

It indicates which IPSec proposal to be focused. First char of the name with 0x00 value stands for
the proposal is not available.

• DH group

There are three groups can be selected: group 1 (MODP768), group 2 (MODP1024), group 5
(MODP1536). But none also can be selected here for IPSec proposal.

Encapsulation protocol

There are two protocols can be selected: ESP and AH.

Encryption algorithm

There are two algorithms can be selected: 3DES and DES. But when the encapsulation protocol is AH,
encryption algorithm is unnecessarily set.

Authentication algorithm

There are two algorithms can be selected: SHA1 and MD5. But none also can be selected here for

52

IPSec proposal.

Life time

The unit of life time is based on the value of Life Time Unit. If the value of unit is second, the value of
life time represents the life time of dedicated VPN tunnel between both end gateways. Its value ranges
from 300 seconds to 172,800 seconds. If the value of unit is KB, the value of life time represents the
maximum allowable amount of transmitted packets through the dedicated VPN tunnel between both
end gateways for. Its value ranges from 20,480 KBs to 2,147,483,647 KBs.

Life time unit

There are two units can be selected: second and KB.

Proposal ID

The identifier of IPSec proposal can be chosen for adding the proposal to the dedicated tunnel. There
are total ten proposals can be set in the proposal pool. At most only four proposals from the pool can be
applied to the dedicated tunnel as shown in the proposal index list.

Function of Buttons
Add to

list. The proposals in the index list will be used in phase 2 of IKE negotiation for getting the IPSec SA
of dedicated tunnel.

button: Click it to add the chosen proposal indicated by proposal ID to IPSec Proposal index

53

4.6.6 Miscellaneous Items

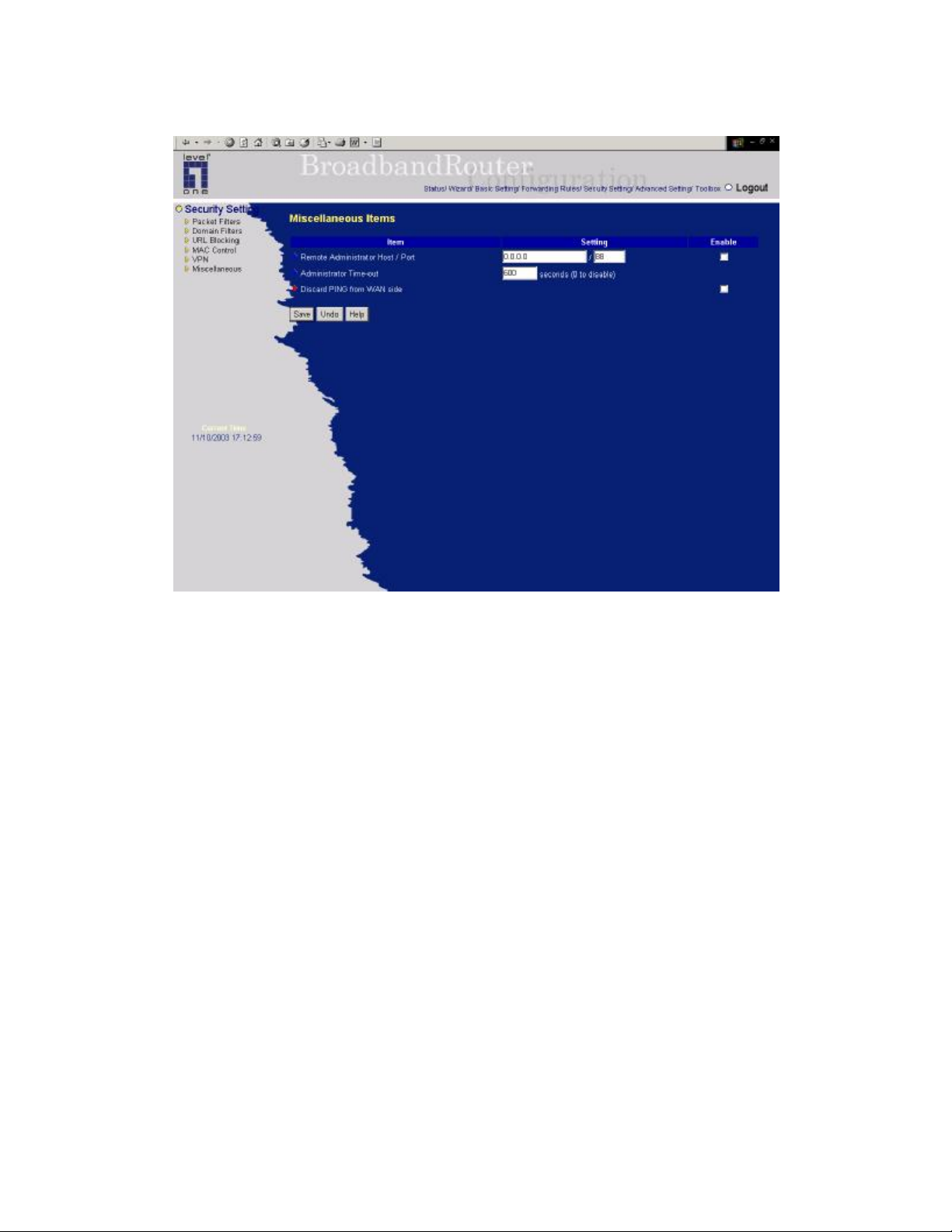

Remote Administrator Host/Port

In general, only Intranet user can browse the built-in web pages to perform administration task. This
feature enables you to perform administration task from remote host. If this feature is enabled, only the
specified IP address can perform remote administration. If the specified IP address is 0.0.0.0, any host
can connect to this product to perform administration task. You can use subnet mask bits "/nn" notation
to specified a group of trusted IP addresses. For example, "10.1.2.0/24".

NOTE: When Remote Administration is enabled, the web server port will be shifted to 88. You can
change web server port to other port, too.

Administrator Time-out

The time of no activity to logout automatically. Set it to zero to disable this feature.

Discard PING from WAN side

When this feature is enabled, any host on the WAN cannot ping this product.

54

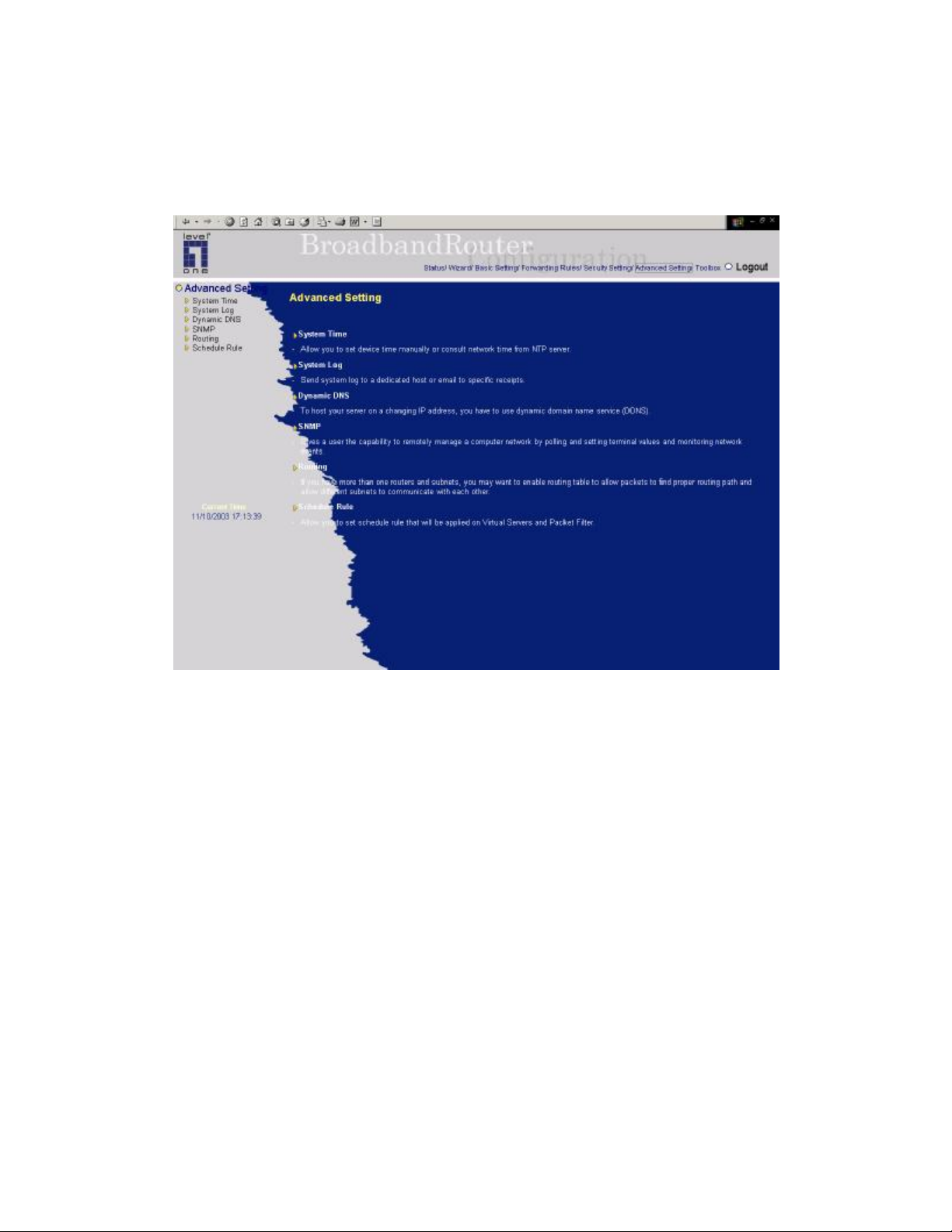

4.7 Advanced Setting

55

4.7.1 System Time

Get Date and Time by NTP Protocol

Selected if you want to Get Date and Time by NTP Protocol.

Time Server

Select a NTP time server to consult UTC time

Time Zone

Select a time zone where this device locates.

Set Date and Time manually

Selected if you want to Set Date and Time manually.

Function of Buttons
Sync Now:

Synchronize system time with network time server

56

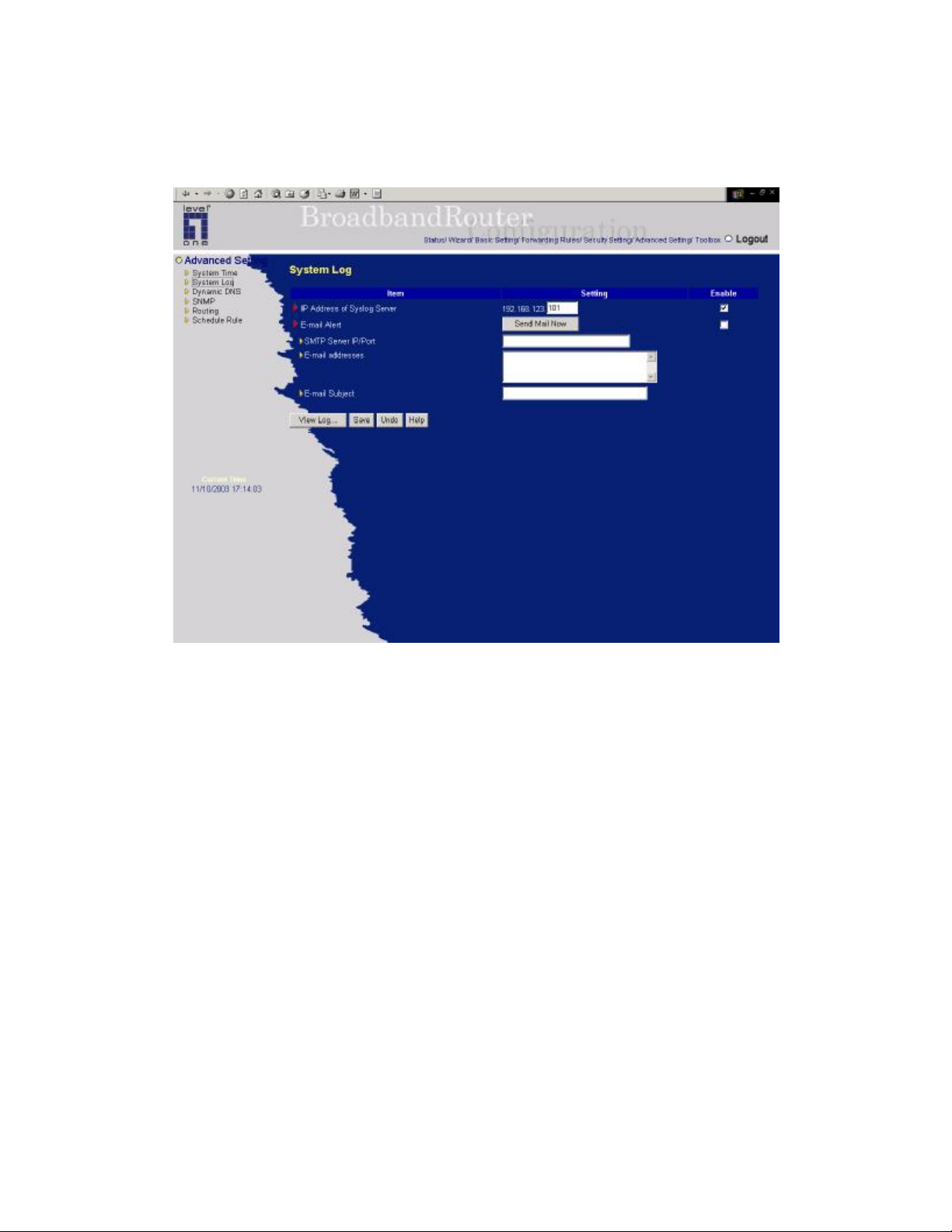

4.7.2 System Log

This page support two methods to export system logs to specific destination by means of
syslog(UDP) and SMTP(TCP). The items you have to setup including:

IP Address for Syslog

Host IP of destination where syslogs will be sent to.

Check Enable to enable this function.

E-mail Alert Enable

Check if you want to enable Email alert(send syslog via email).

SMTP Server IP and Port

Input the SMTP server IP and port, which are concated with ':'. If you do not specify
port number, the default value is 25.
For example, "mail.your_url.com" or "192.168.1.100:26".

Send E-mail alert to

The recipients who will receive these logs. You can assign more than 1 recipient,
using ';' or ',' to separate these email addresses.

57

E-mail Subject

The subject of email alert. This setting is optional.

4.7.3 Dynamic DNS

To host your server on a changing IP address, you have to use dynamic domain name service (DDNS).

So that anyone wishing to reach your host only needs to know the name of it. Dynamic DNS will map
the name of your host to your current IP address, which changes each time you connect your Internet
service provider.

Before you enable
servers that we list in

To enable

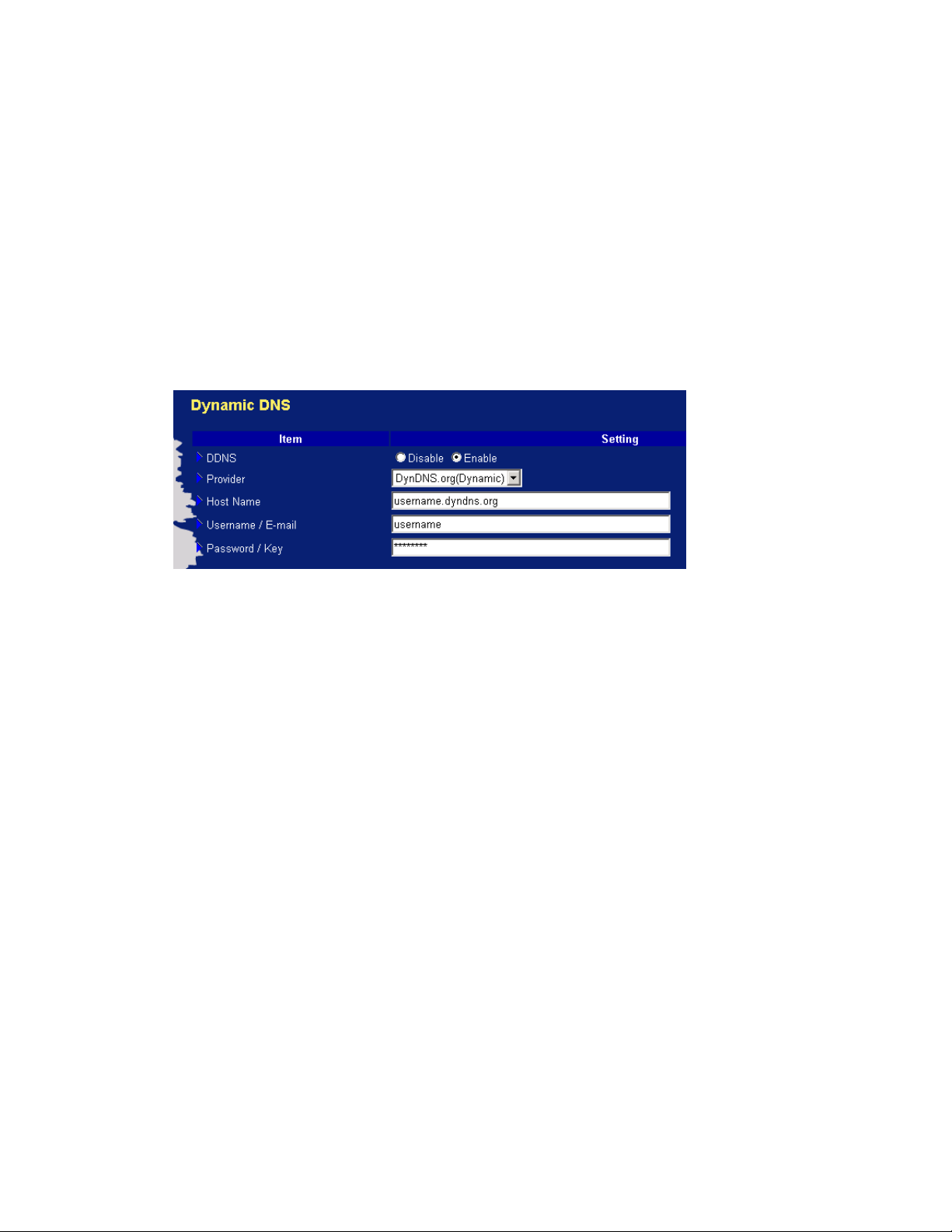

Next you can enter the appropriate information about your Dynamic DNS Server.

You have to define:

Provider

58

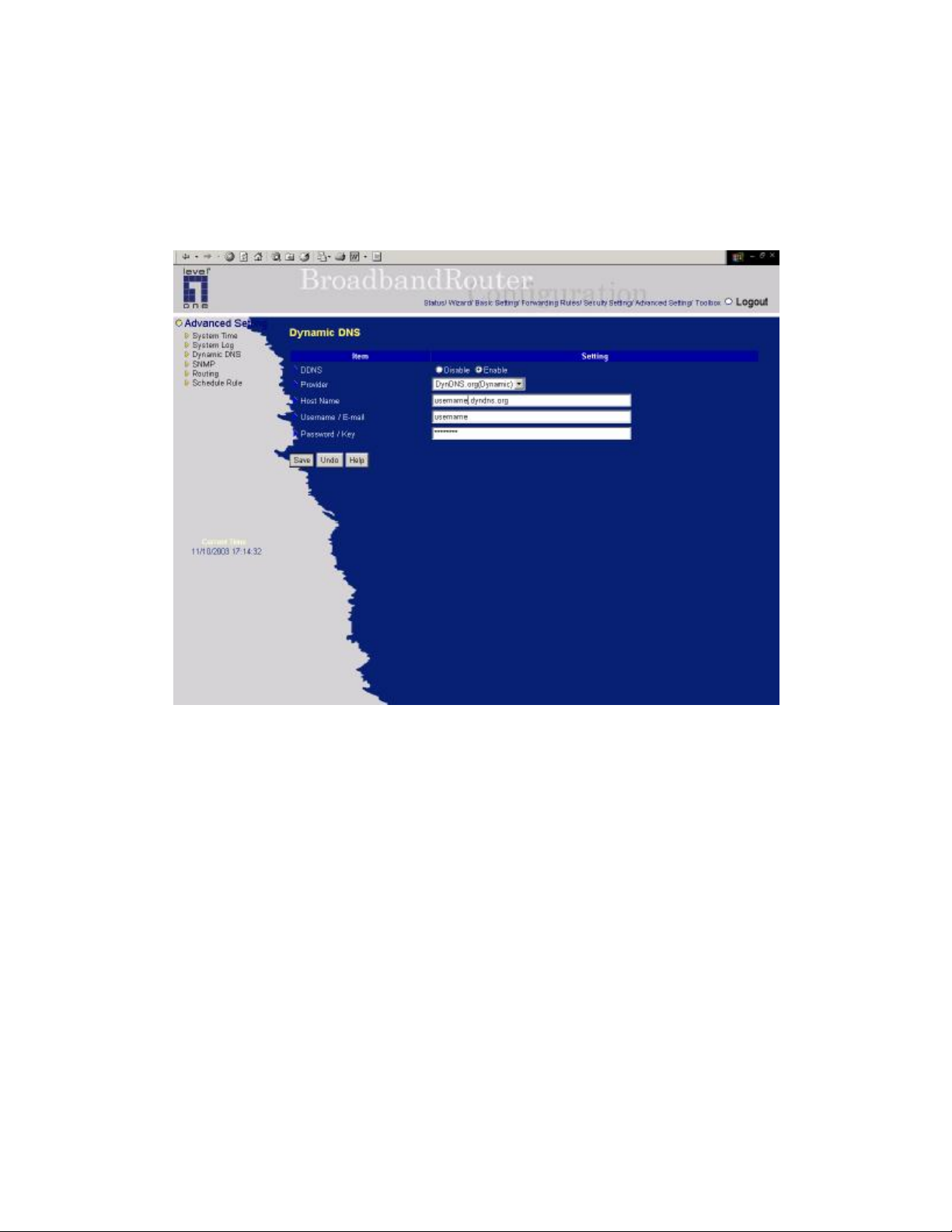

Dynamic DNS

Dynamic DNS

provider

click the check box next to

, you need to register an account on one of these Dynamic DNS

field.

Enable

in the

DDNS

field.

Host Name

Username/E-mail

Password/Key

You will get this information when you register an account on a Dynamic DNS server.

Example:

After Dynamic DNS setting is configured, click the save button.

59

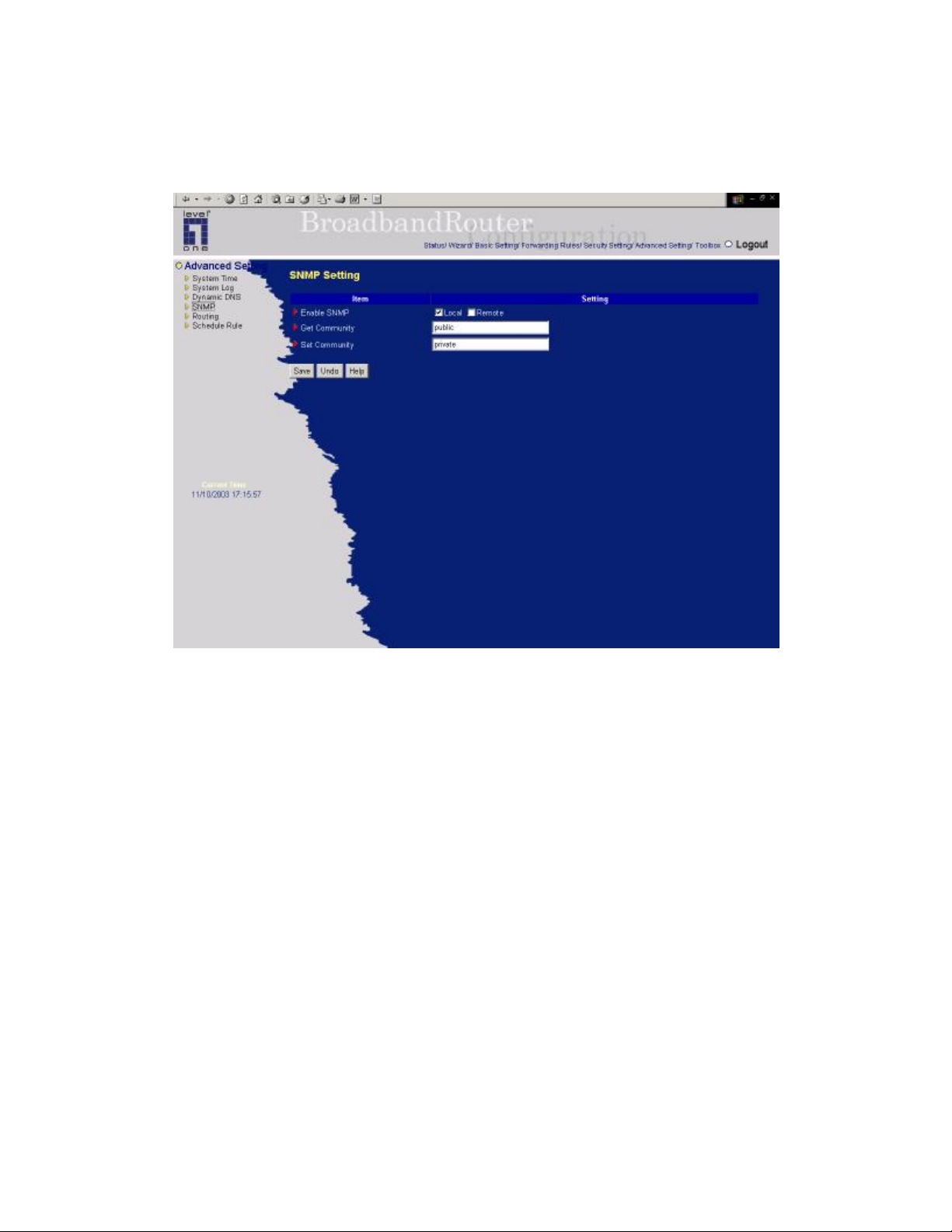

4.7.4 SNMP Setting

In brief, SNMP, the Simple Network Management Protocol, is a protocol designed to give a user the
capability to remotely manage a computer network by polling and setting terminal values and
monitoring network events.

Enable SNMP

You must check either Local or Remote or both to enable SNMP function. If Local is checked, this
device will response request from LAN. If Remote

from WAN.

Get Community

Setting the community of GetRequest your device will response.

Set Community

Setting the community of SetRequest your device will accept.

is checked, this

device will response request

Example:

60

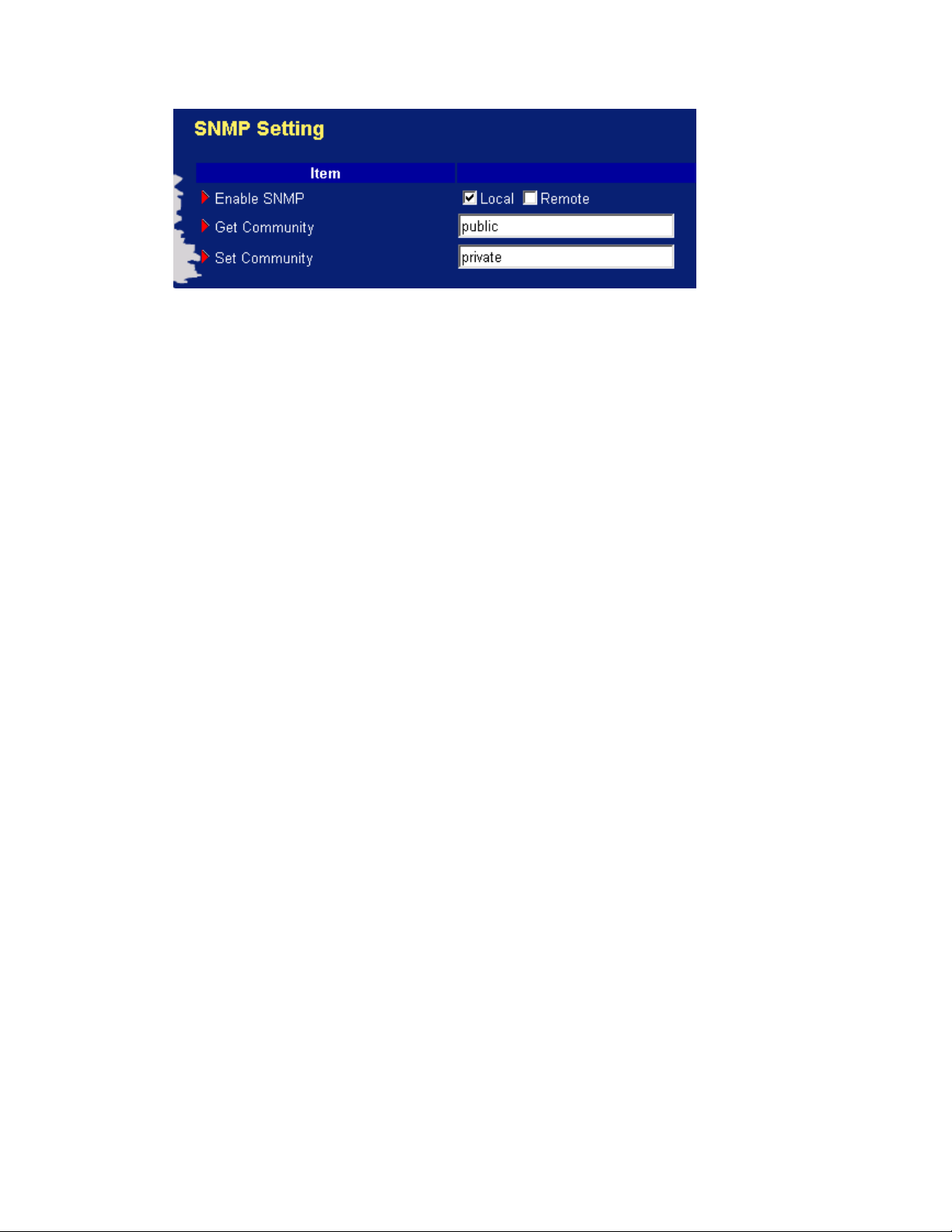

1. This device will response to SNMP client which’s

2. This device will response to SNMP client which’s

3. This device will response request from both LAN and WAN

get community

set community

is set as “public”
is set as “private”

61

4.7.5 Routing Table

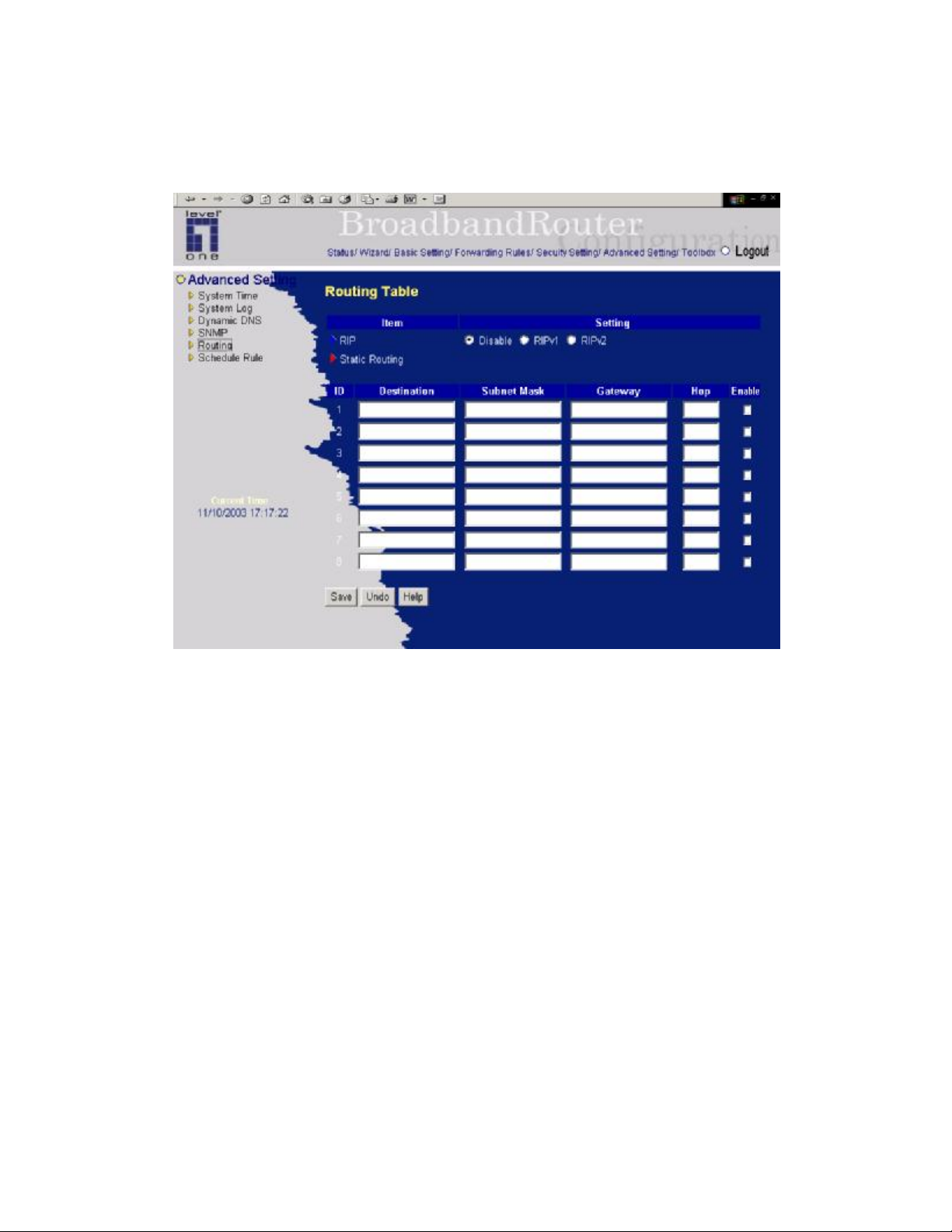

Routing Tables

grams. If you have more than one routers and subnets, you will need to enable routing table to allow
packets to find proper routing path and allow different subnets to communicate with each other.

allow you to determine which physical interface address to use for outgoing IP data

Routing Table settings are settings used to setup the functions of static and dynamic routing.

RIP Enable:

Check to enable RIP function.

Static Routing: For static routing, you can specify up to 8 routing rules. You can
enter the destination IP address, subnet mask, gateway, hop for each routing rule, and
then enable or disable the rule by checking or unchecking the Enable checkbox.

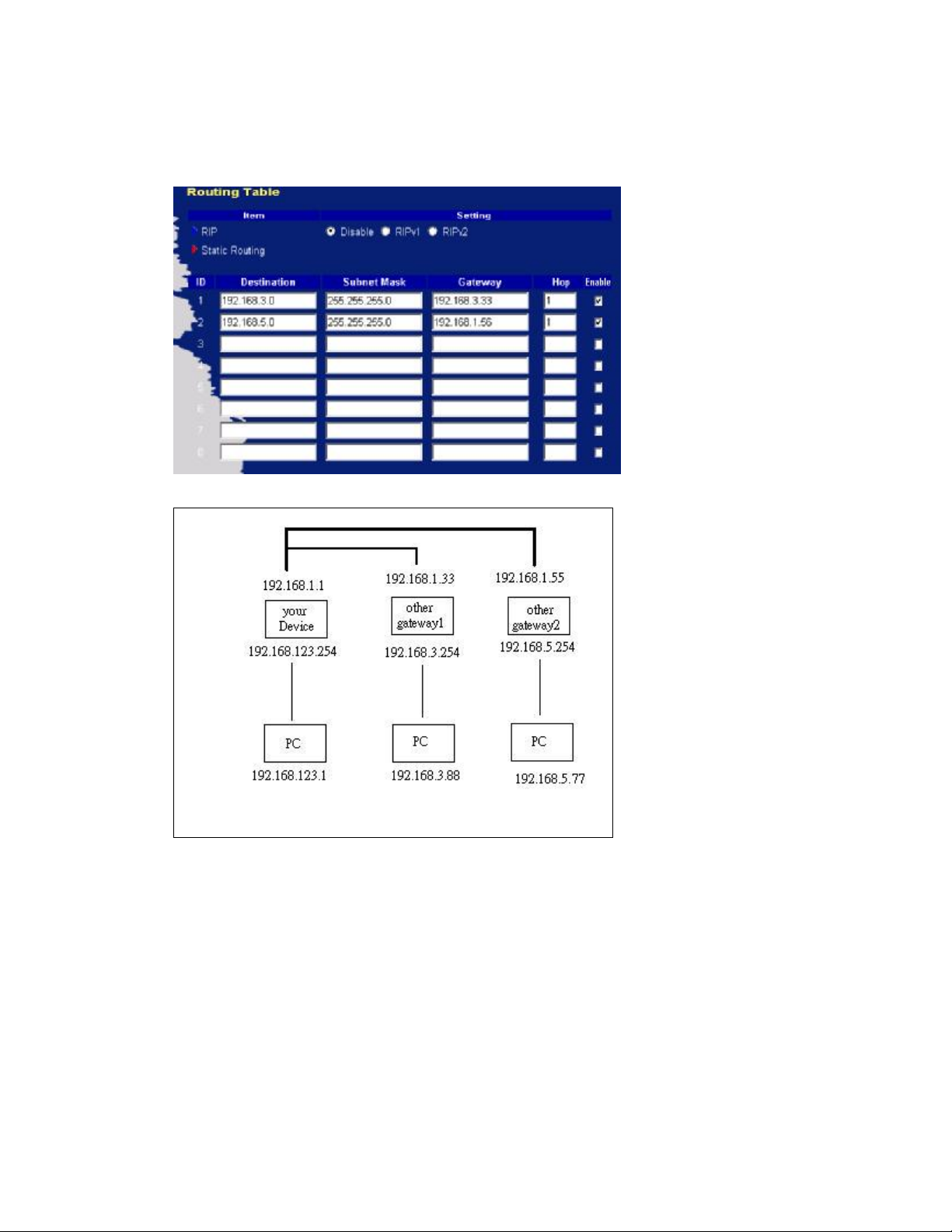

Example:

62

So if, for example, the host wanted to send an IP data gram to 192.168.3.88, it would use the above
table to determine that it had to go via 192.168.1.33 (a gateway),
And if it sends Packets to 192.168.5.77 will go via 192.168.1.55

Each rule can be enabled or disabled individually.

routing table

After

setting is configured, click the

save

button.

63

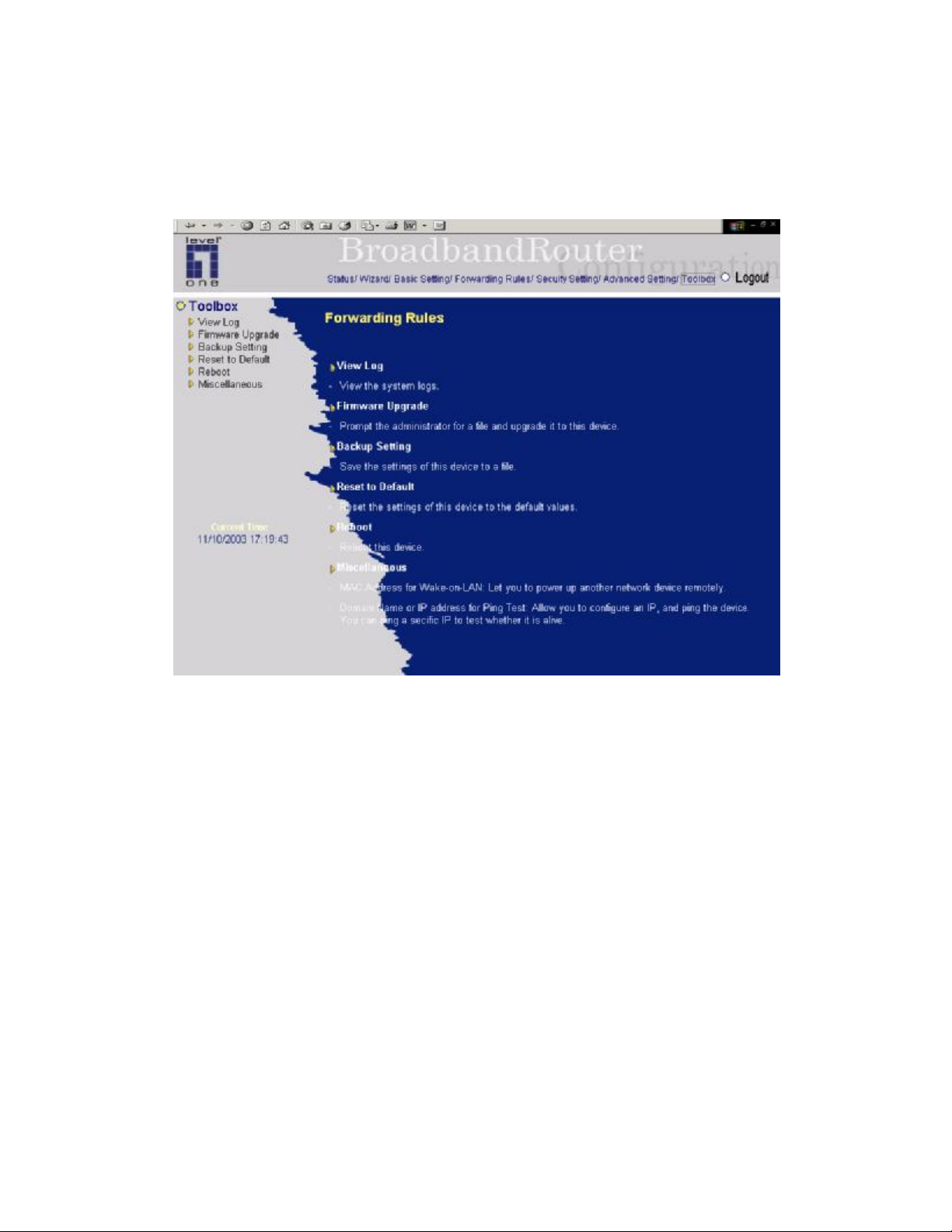

4.8 Toolbox

64

4.8.1 System Log

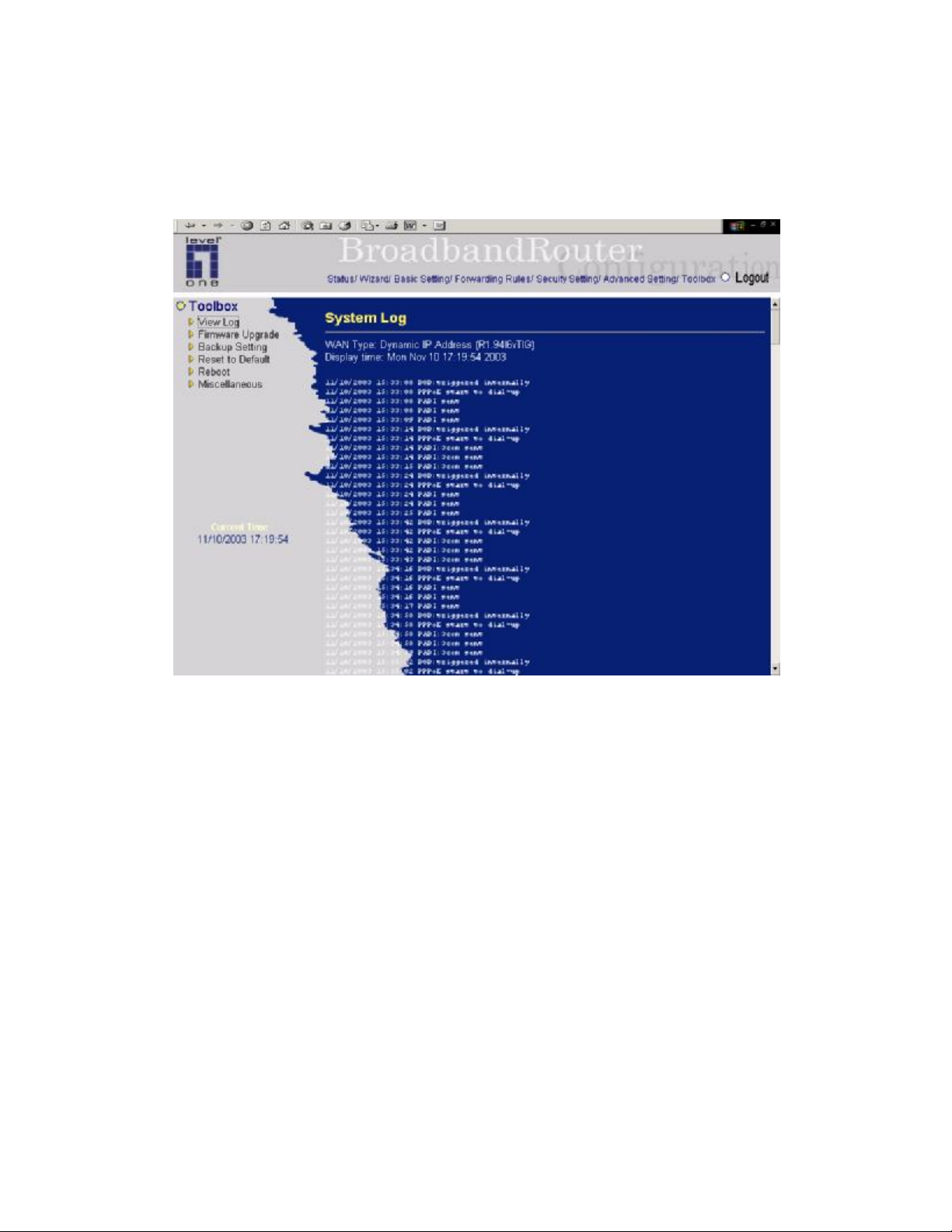

You can View system log by clicking the View Log button

65

4.8.2 Firmware Upgrade

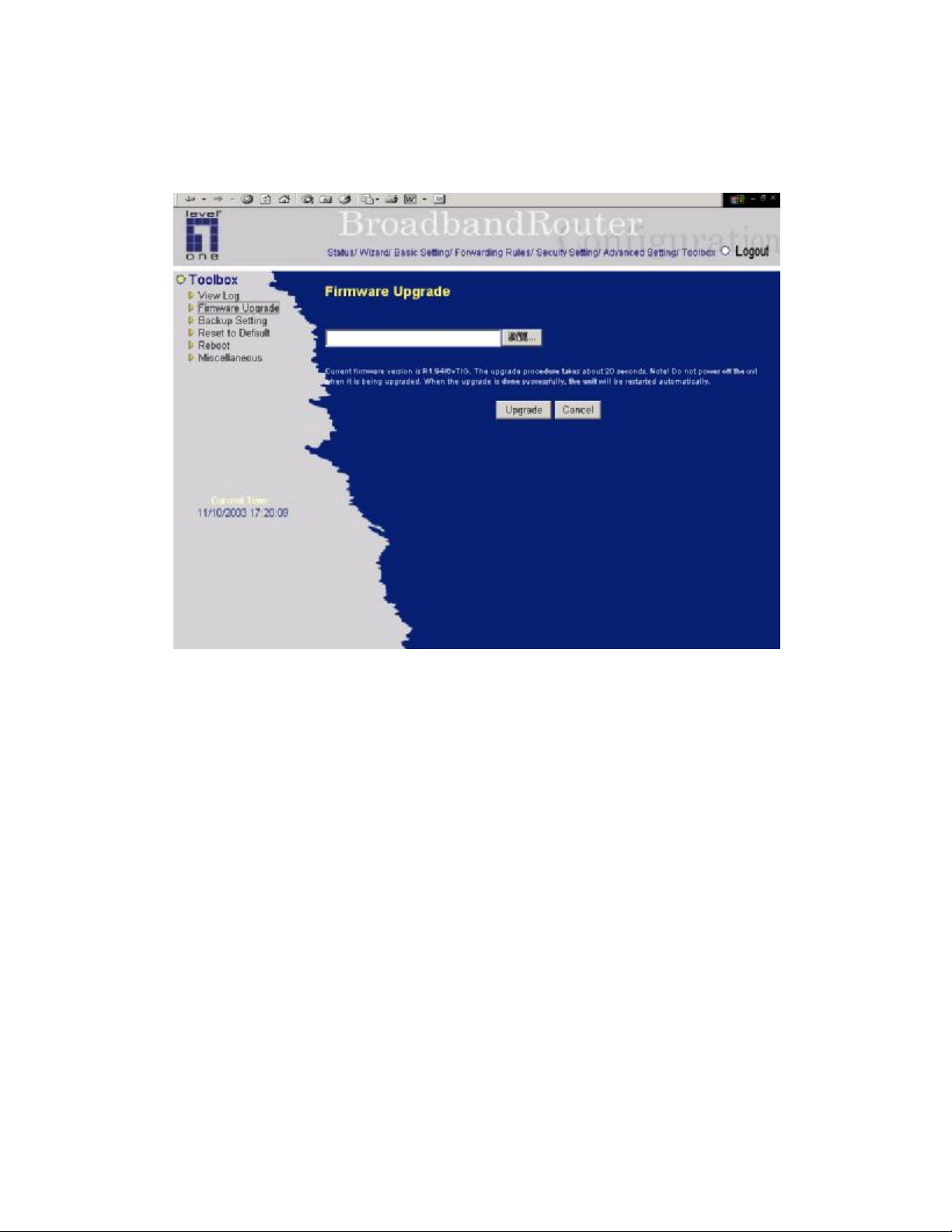

You can upgrade firmware by clicking

Firmware Upgrade

button.

66

4.8.3 Backup Setting

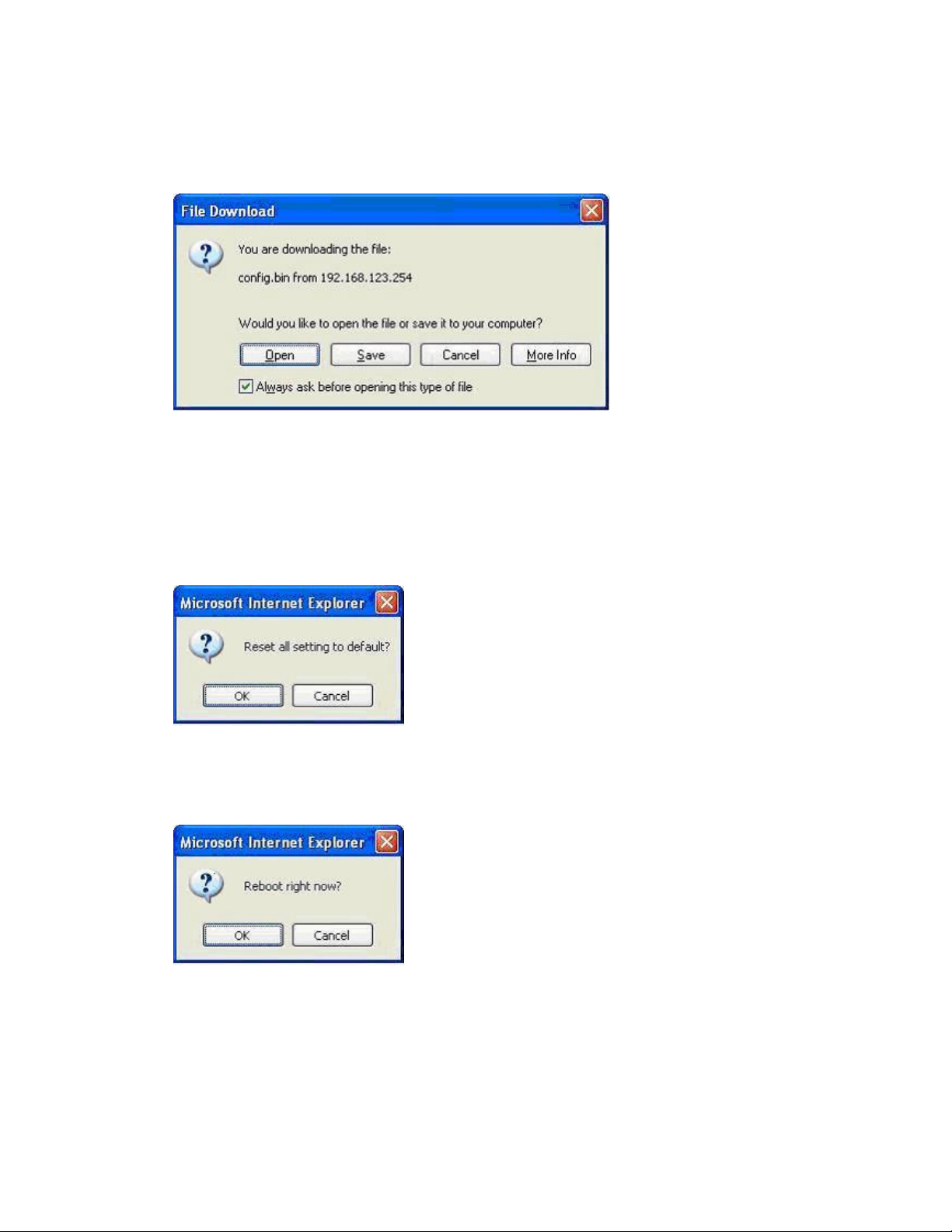

You can backup your settings by clicking the Backup Setting button and save it as a
bin file. Once you want to restore these settings, please click Firmware Upgrade
button and use the bin file you saved.

4.8.4 Reset to default

You can also reset this product to factory default by clicking the

4.8.5 Reboot

You can also reboot this product by clicking the

Reboot

button.

67

Reset to default

button.

4.8.6 Miscellaneous Items

MAC Address for Wake-on-LAN

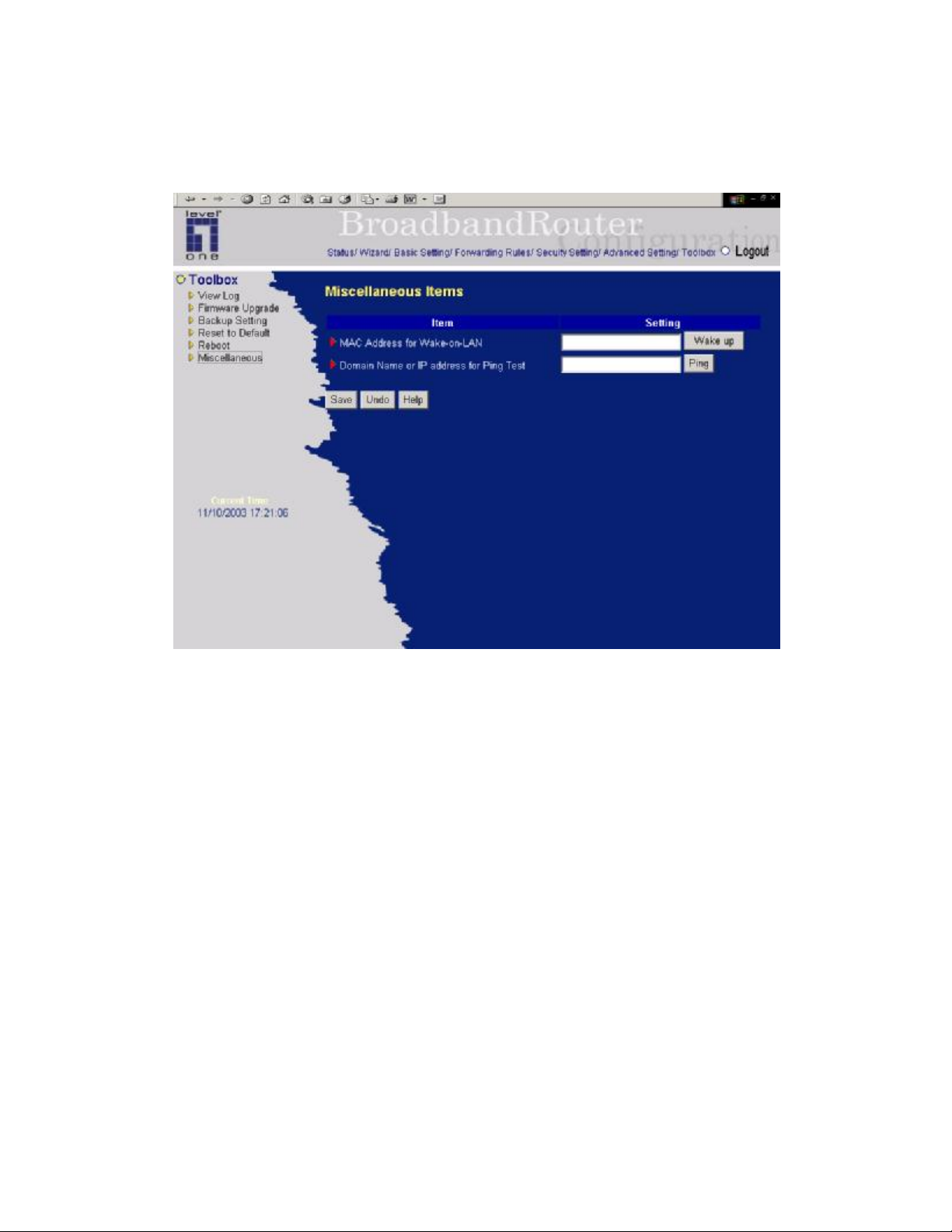

Wake-on-LAN is a technology that enables you to power up a networked device remotely. In order to
enjoy this feature, the target device must be Wake-on-LAN enabled and you have to know the MAC
address of this device, say 00-11-22-33-44-55. Clicking "Wake up" button will make the router to send
the wake-up frame to the target device immediately.

Domain Name or IP address for Ping Test

Allow you to configure an IP, and ping the device. You can ping a specific IP to test
whether it is alive.

68

Chapter 5 Print Server

LevelOne WBR-3404TX provides the function of network print server for MS Windows
95/98/NT/2000 and Unix based platforms. (If the product you purchased doesn’t have printer port,
please skip this chapter.)

5.1 Configuring on Windows 95/98 Platforms

After you finished the software installation procedure described in Chapter 3, your computer has
possessed the network printing facility provided by this product. For convenience, we call the printer
connected to the printer port of this product as server printer. On a Windows 95/98 platform, open the

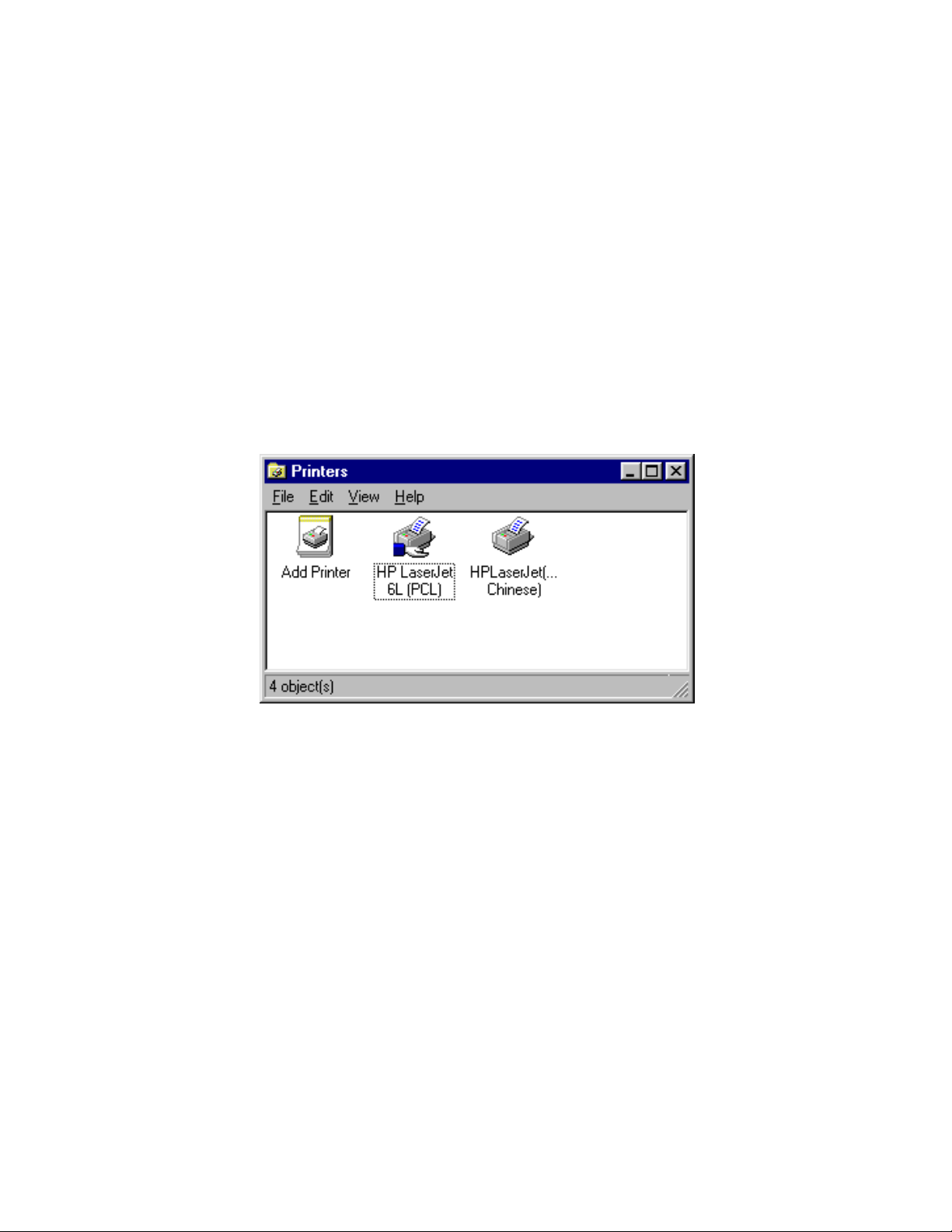

Printers window in the My Computer menu:

Now, yon can configure the print server of this product:

69

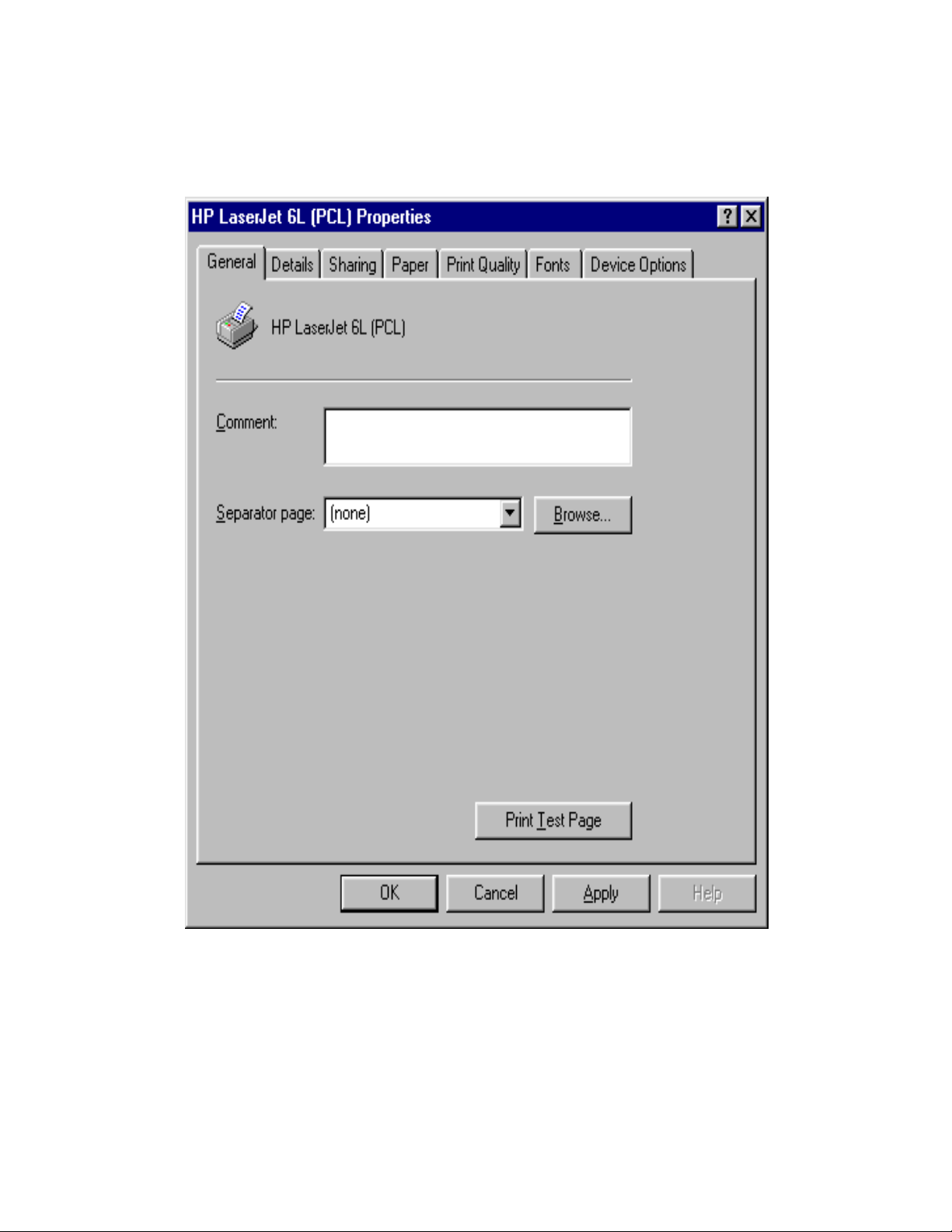

1. Find out the corresponding icon of your server printer, for example, the

LaserJet 6L

. Click the mouse’s right button on that icon, and then select the Properties

item:

HP

2. Click the Details item:

70

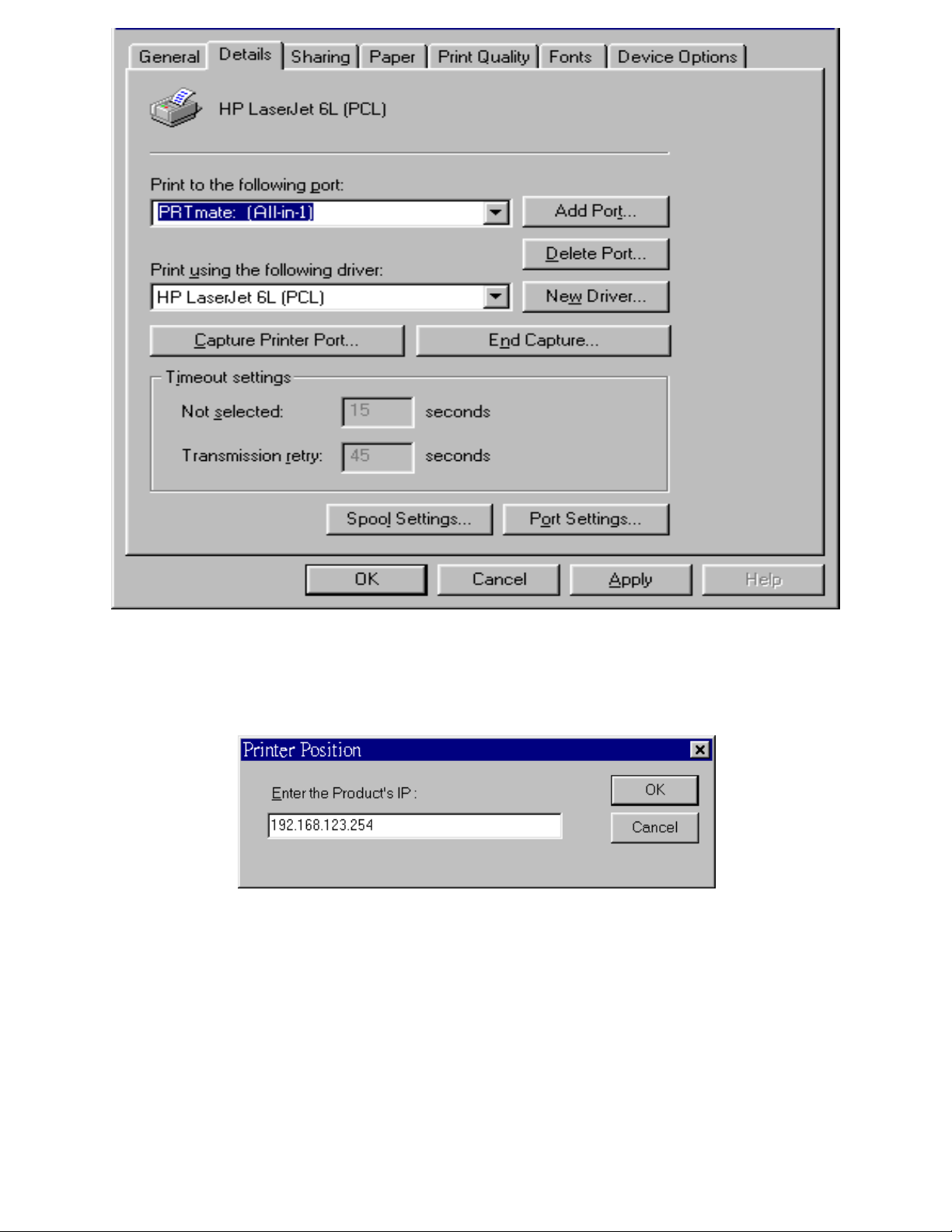

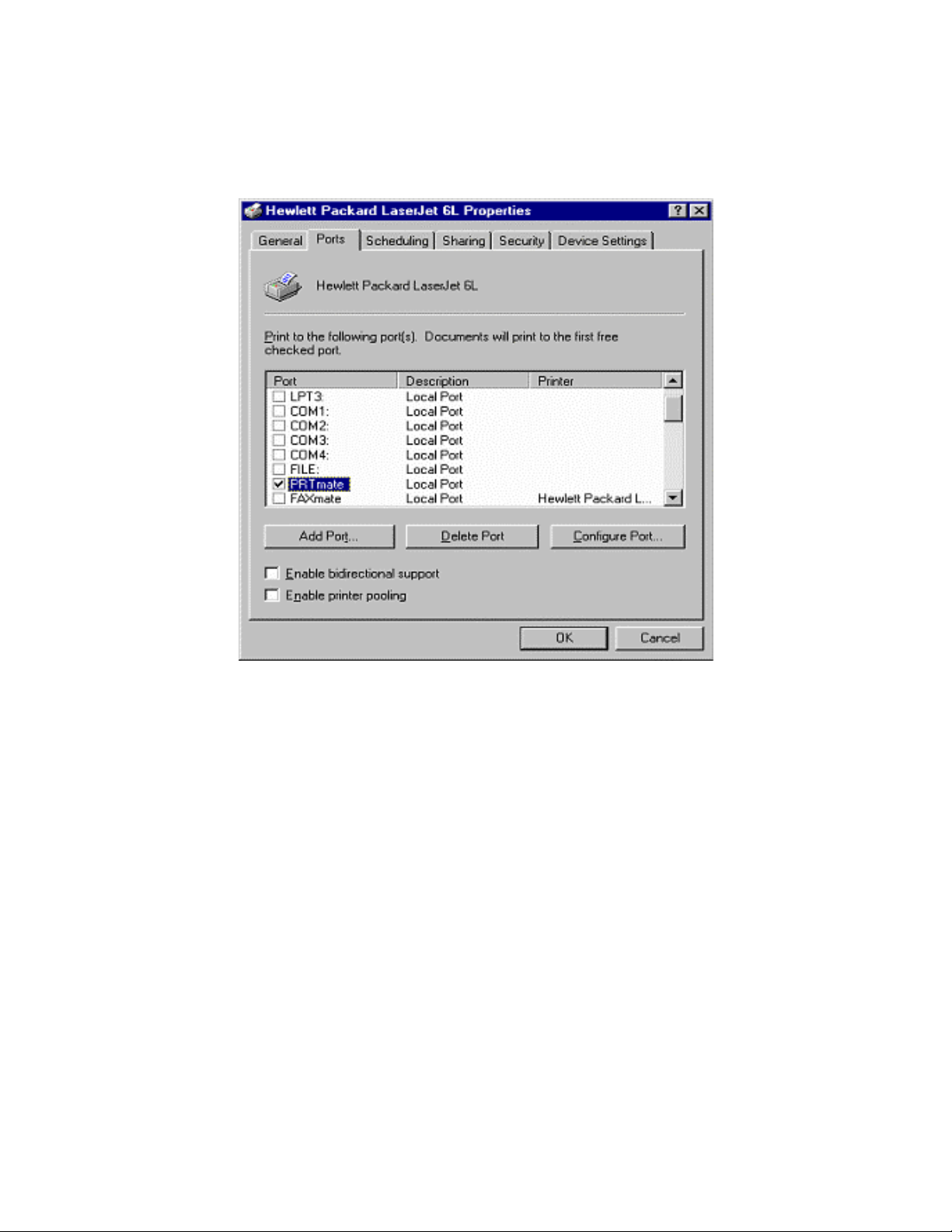

3. Choose the “PRTmate: (All-in-1)” from the list attached at the Print To item. Be sure that the

Printer Driver item is configured to the correct driver of your server printer.

4. Click on the button of Port Settings:

Type in the IP address of this product and then click the OK button.

5. Make sure that all settings mentioned above are correct and then click the OK button.

71

5.2 Configuring on Windows NT Platforms

The configuration procedure for a Windows NT platform is similar to that of Windows 95/98 except the
screen of printer Properties:

Compared to the procedure in last section, the selection of Details is equivalent to the selection of

Ports

, and Port Settings is equivalent to Configure Port.

72

5.3 Configuring on Windows 2000 and XP Platforms

Windows 2000 and XP have built-in LPR client, users could utilize this feature toPrint.

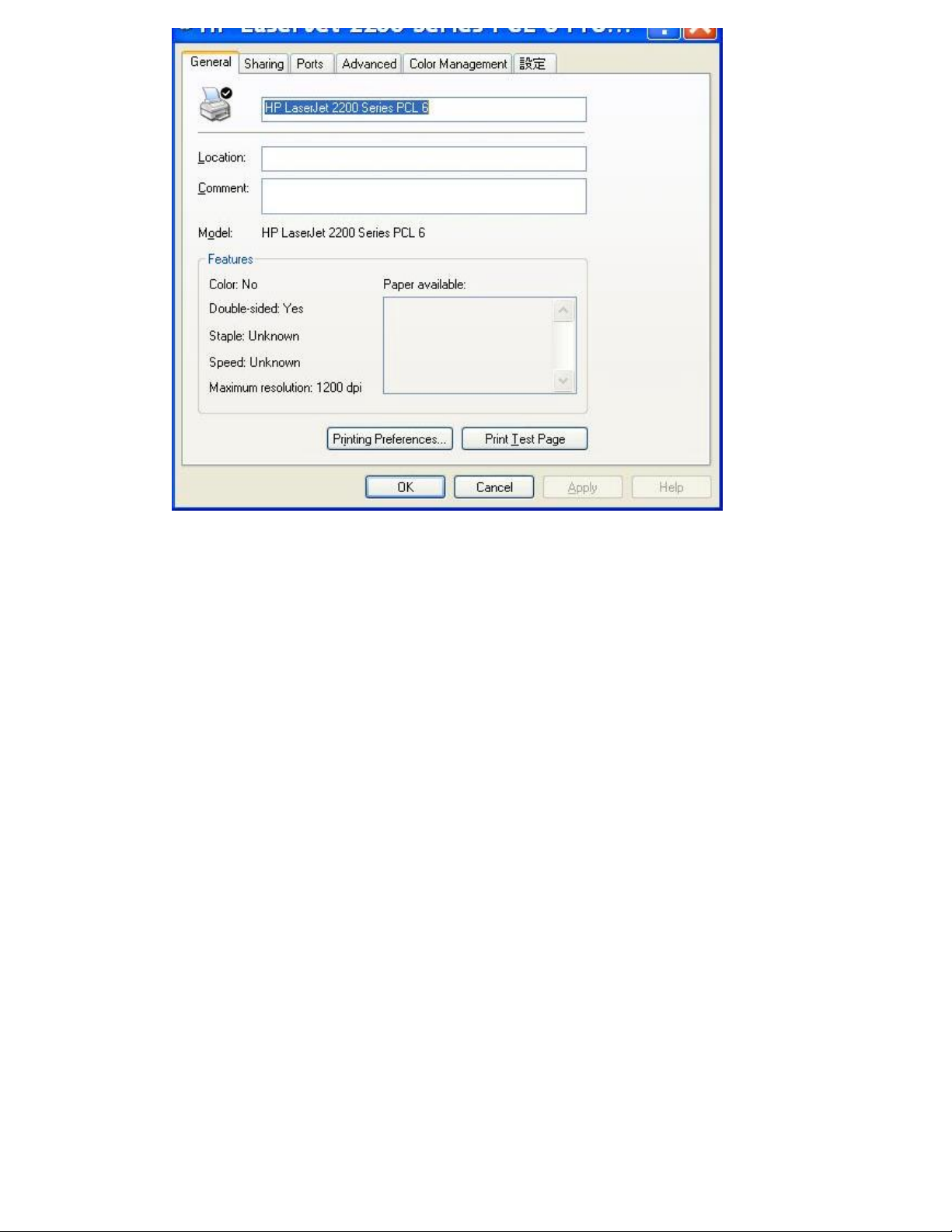

You have to install your Printer Driver on LPT1 or other ports before you preceed the following
sequence.

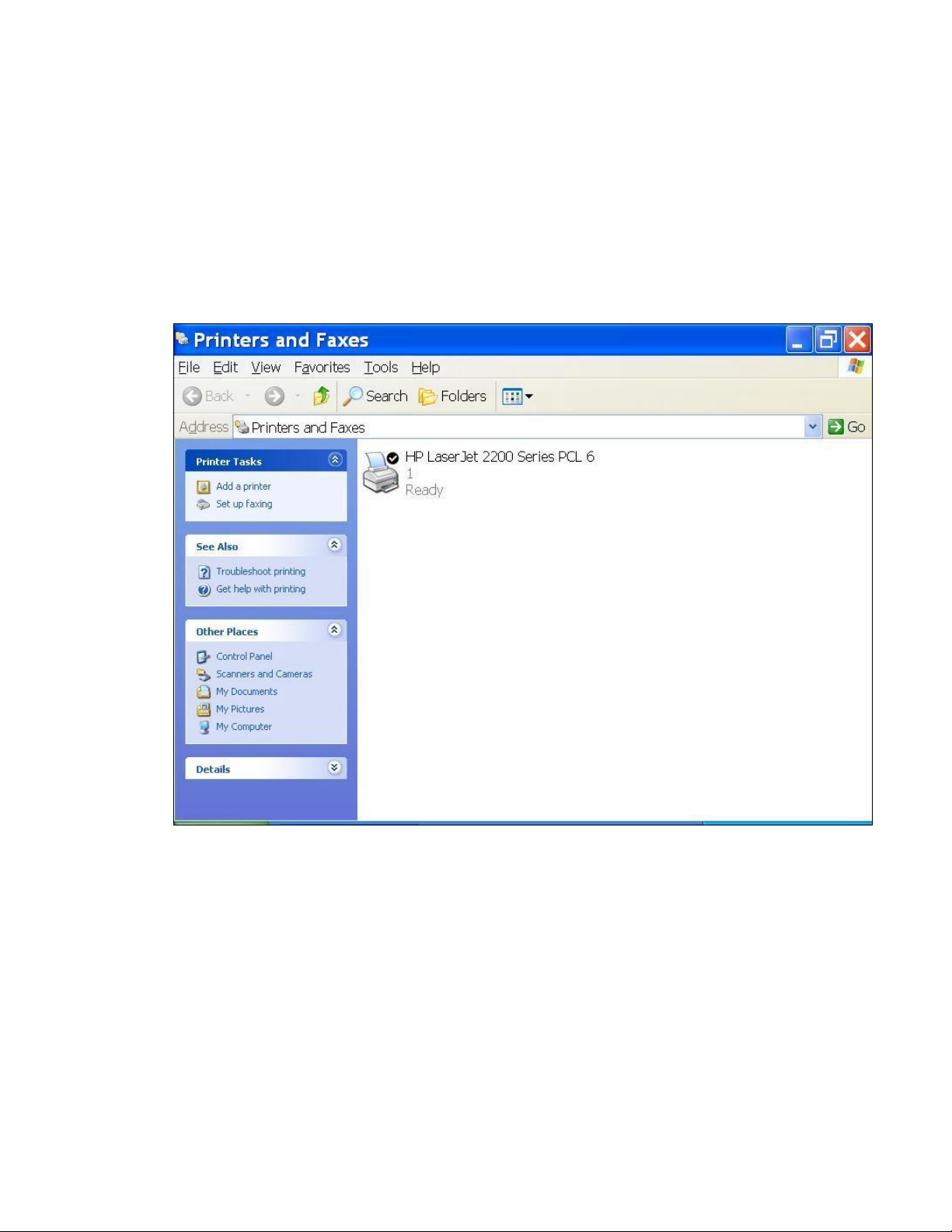

1. Open Printers and Faxs.

73

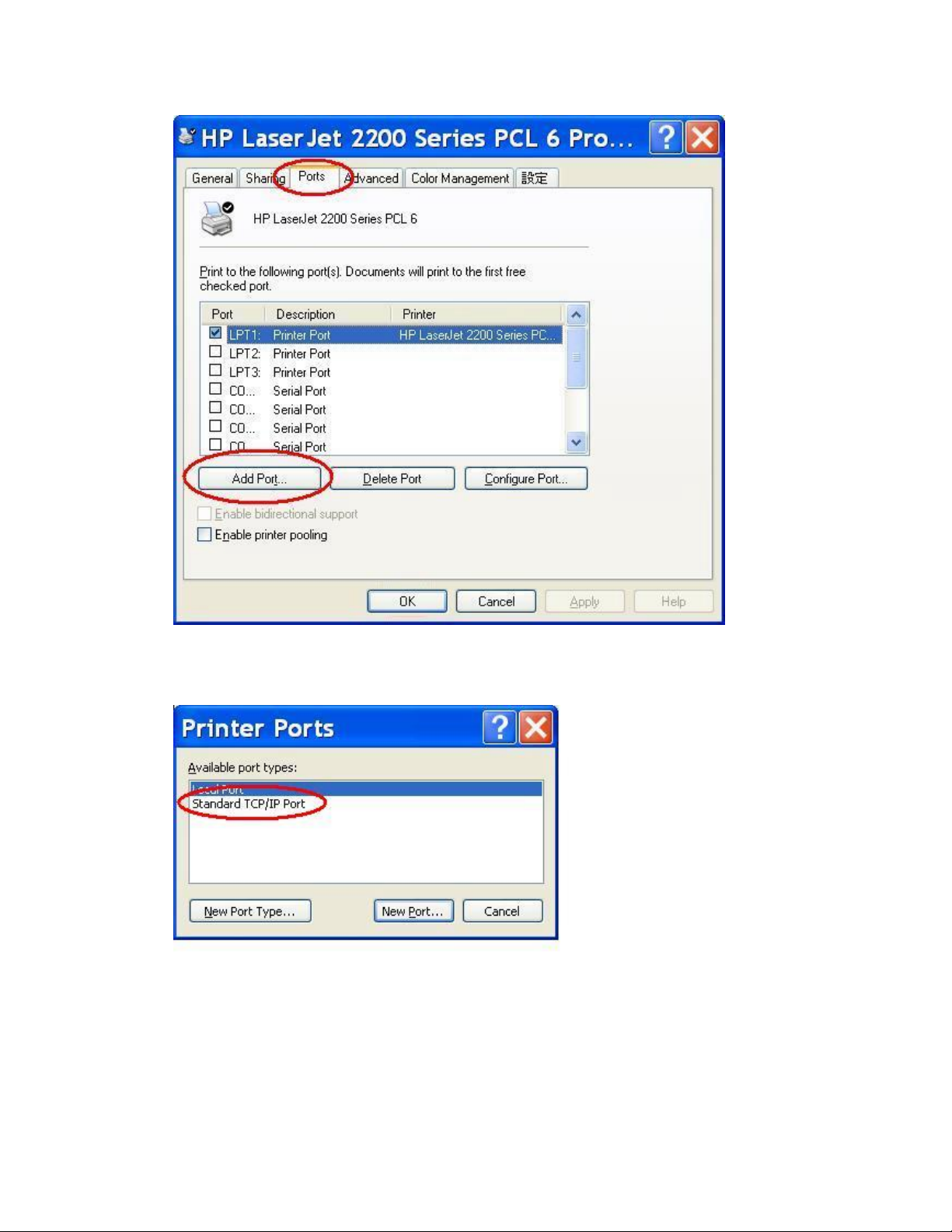

2. Select “Ports” page, Click “Add Port…”

74

3. Select “Standard TCP/IP Port”, and then click “New Port…”

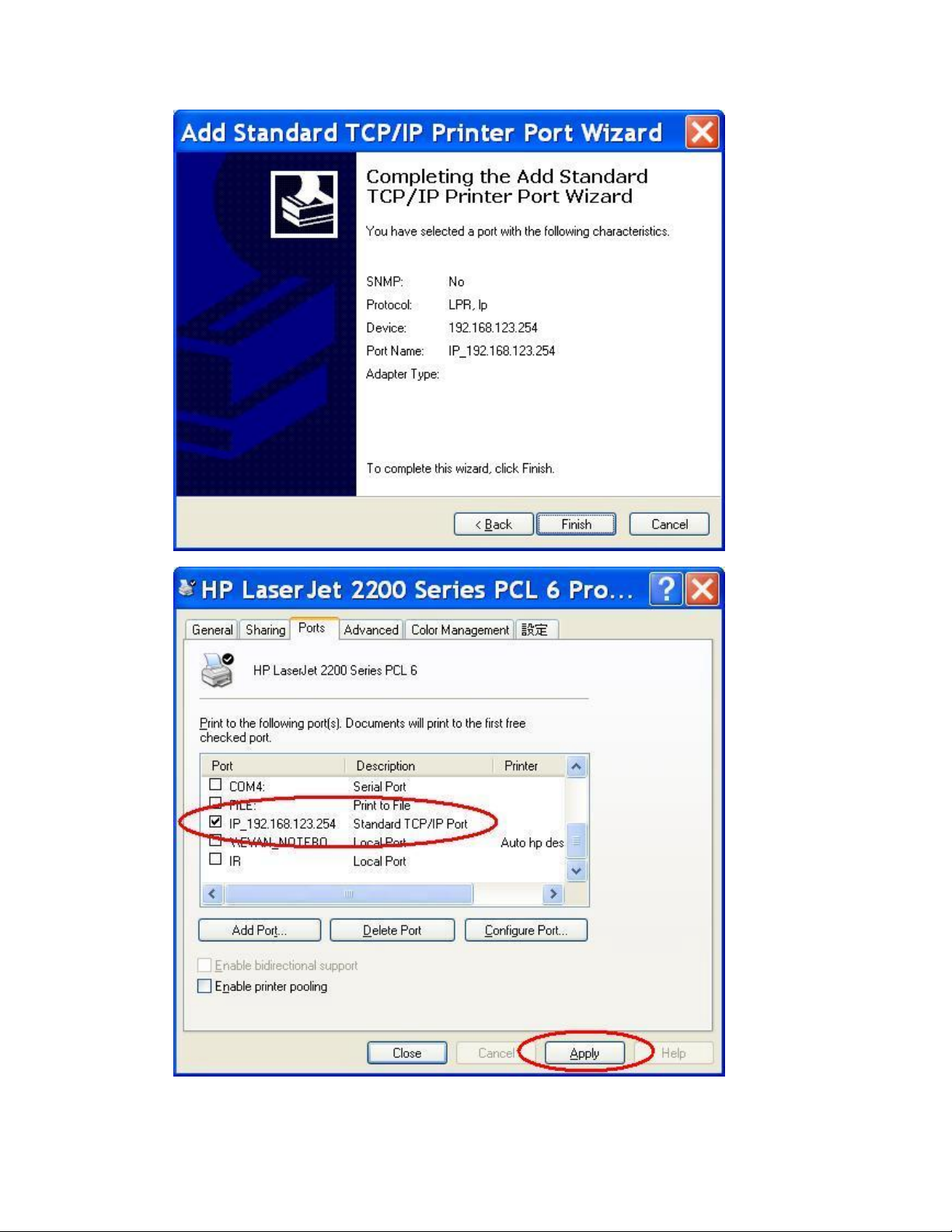

4. Click Next and then provide the following information:

Type address of server providing LPD that is our NAT device:192.168.123.254

75

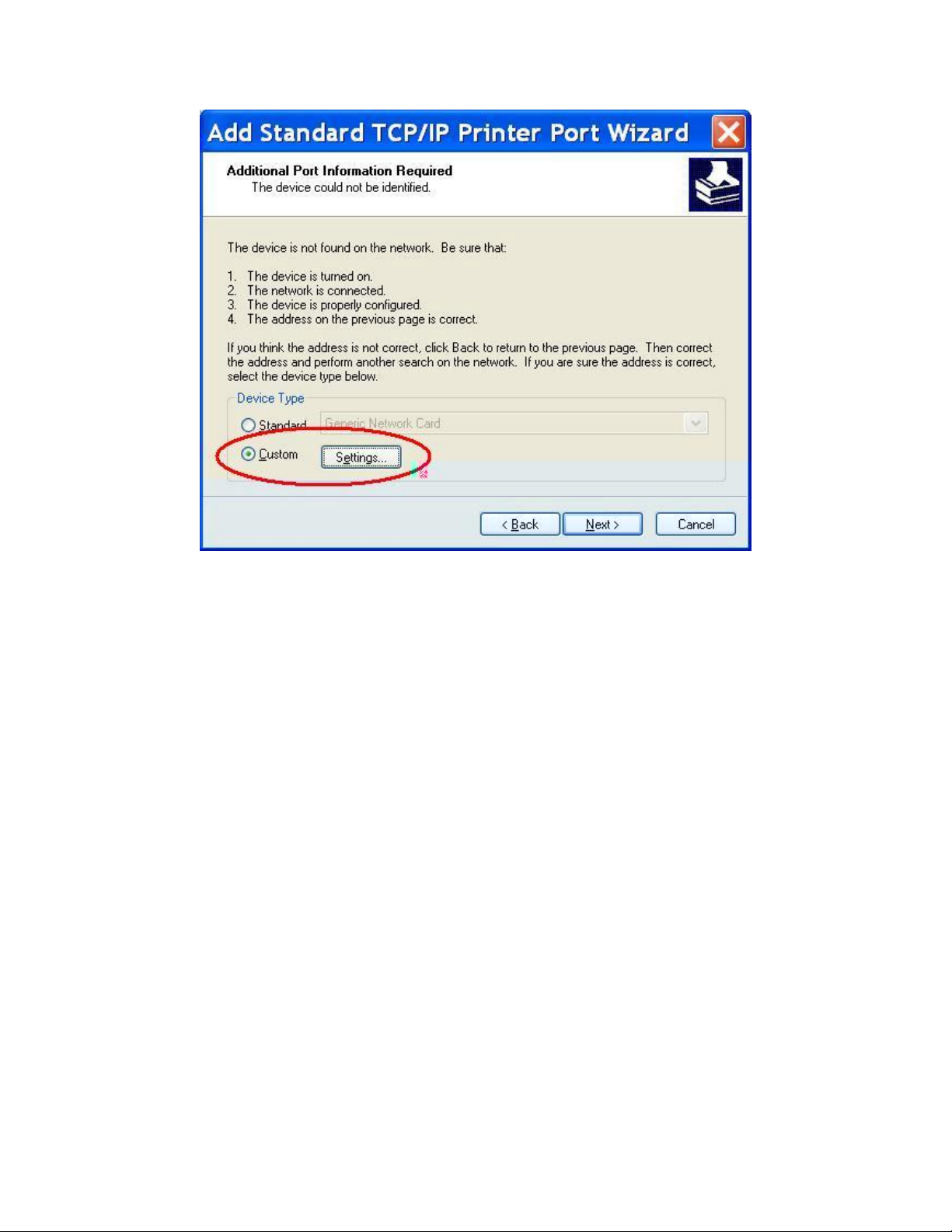

5. Select Custom, then click “Settings…”

76

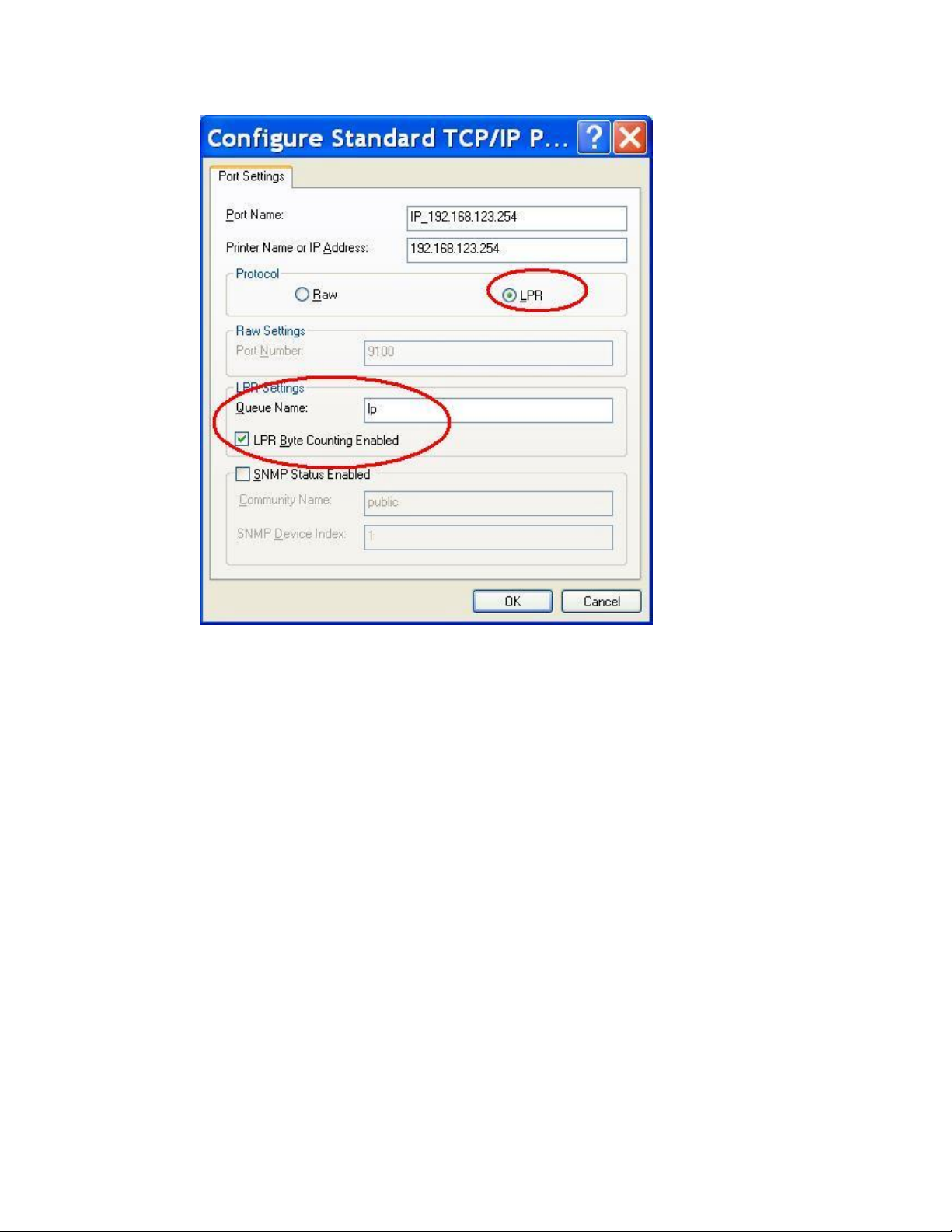

6. Select “LPR”, type ” lp“ lowercase letter in “Queue Name:”

And enable “LPR Byte Counting Enabled”.

77

7. Apply your settings

78

79

5.4 Configuring on Unix based Platforms

Please follow the traditional configuration procedure on Unix platforms to setup the print server of this
product. The printer name is “lp.”

80

Appendix A TCP/IP Configuration for Windows 95/98

This section introduces you how to install TCP/IP protocol into your personal computer. And suppose
you have been successfully installed one network card on your personal computer. If not, please refer
to your network card manual. Moreover, the Section B.2 tells you how to set TCP/IP values for
working with this NAT Router correctly.

A.1 Install TCP/IP Protocol into Your PC

1. Click Start button and choose Settings, then click Control Panel.

2. Double click Network icon and select Configuration tab in the Network window.

3. Click Add button to add network component into your PC.

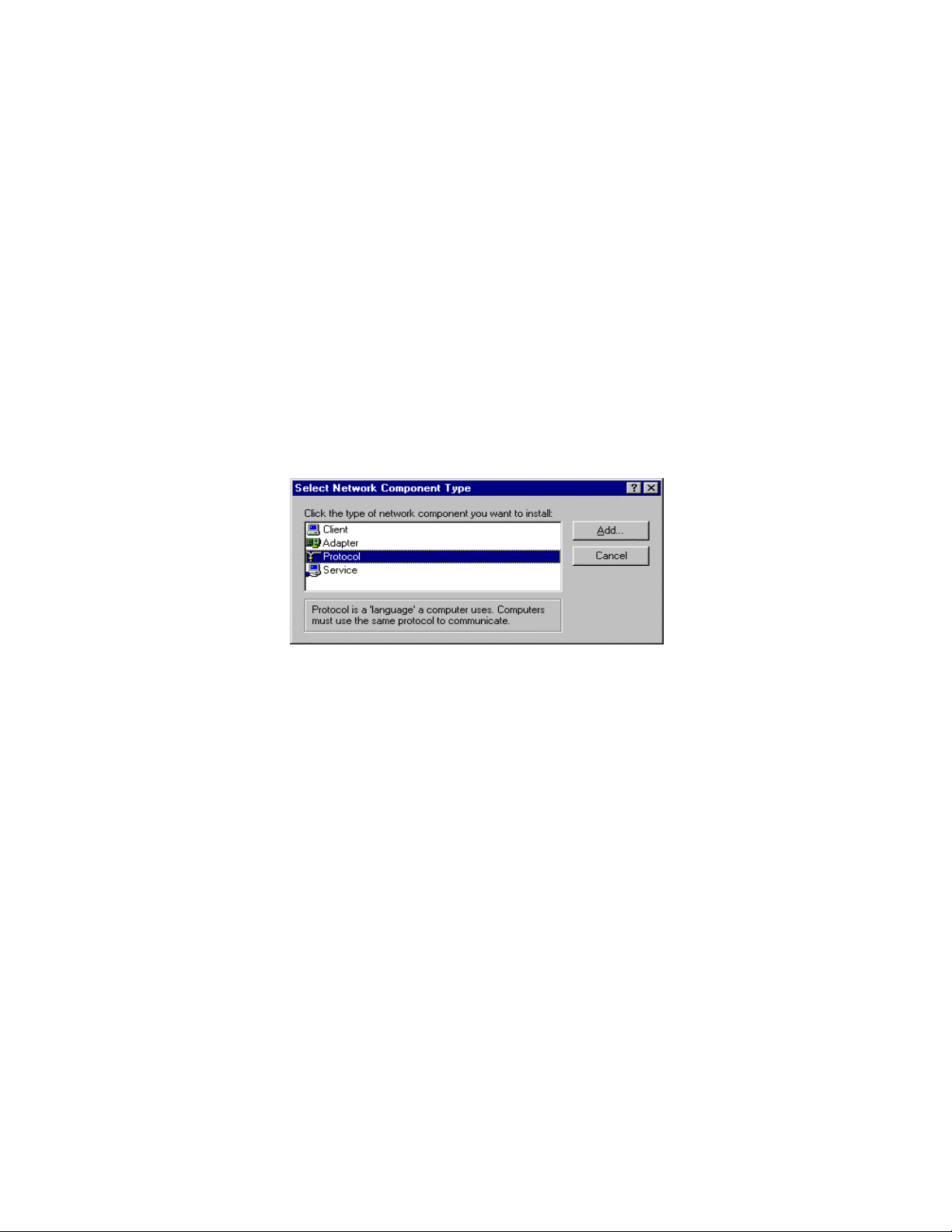

4. Double click Protocol to add TCP/IP protocol.

81

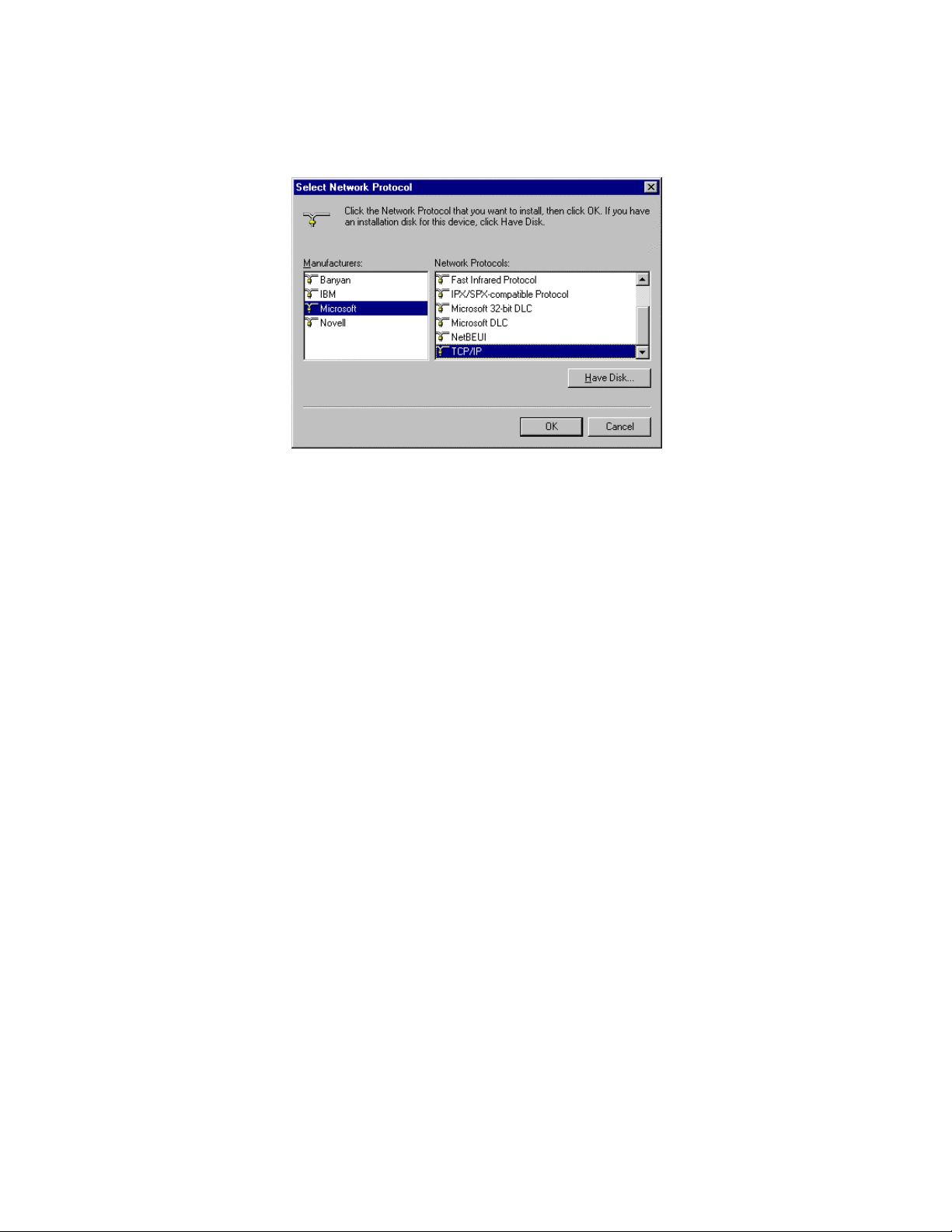

5. Select Microsoft item in the manufactures list. And choose TCP/IP in the Network Protocols.

Click OK button to return to Network window.

6. The TCP/IP protocol shall be listed in the Network window. Click OK to complete the install

procedure and restart your PC to enable the TCP/IP protocol.

A.2 Set TCP/IP Protocol for Working with NAT Router

1. Click Start button and choose Settings, then click Control Panel.

82

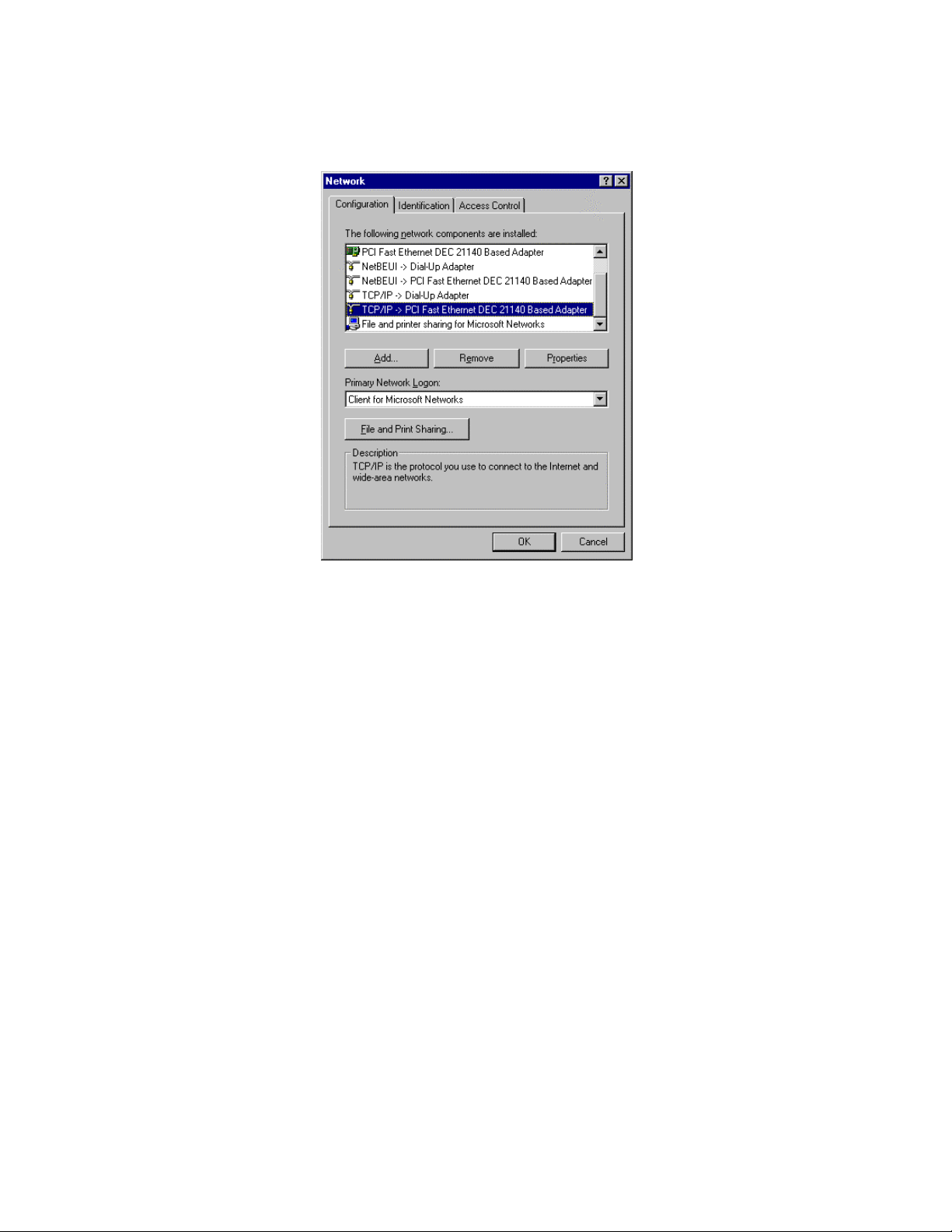

2. Double click Network icon. Select the TCP/IP line that has been associated to your network card in

the Configuration tab of the Network window.

3. Click Properties button to set the TCP/IP protocol for this NAT Router.

4. Now, you have two setting methods:

A. Get IP via DHCP server

83

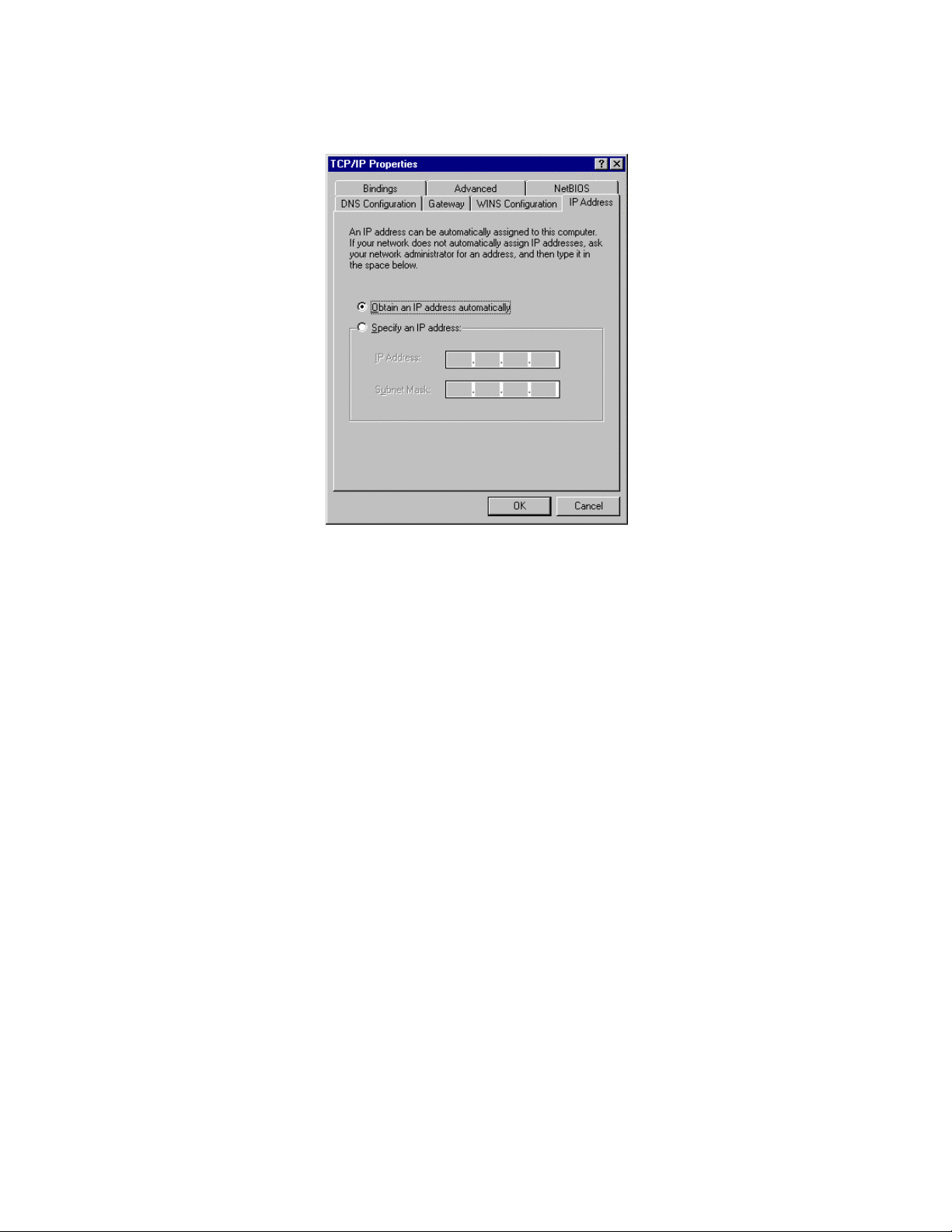

a. Select Obtain an IP address automatically in the IP Address tab.

84

b. Don’t input any value in the Gateway tab.

85

c. Choose Disable DNS in the DNS Configuration tab.

86

B. Configure IP manually

a. Select Specify an IP address in the IP Address tab. The default IP address of this

product is 192.168.123.254. So please use 192.168.123.xxx (xxx is between 1 and 253)
for IP Address field and 255.255.255.0 for Subnet Mask field.

87

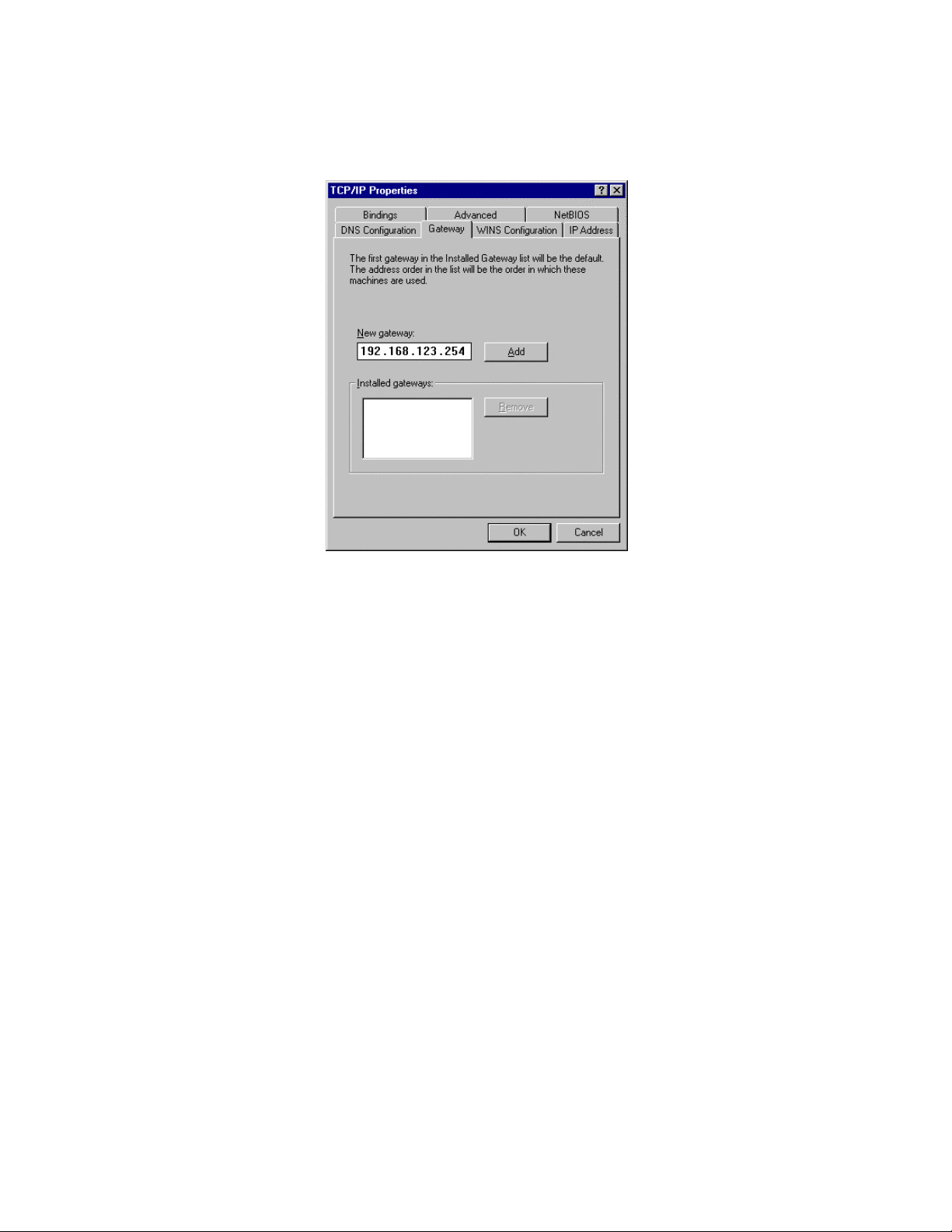

b. In the Gateway tab, add the IP address of this product (default IP is 192.168.123.254)

in the New gateway field and click Add button.

88

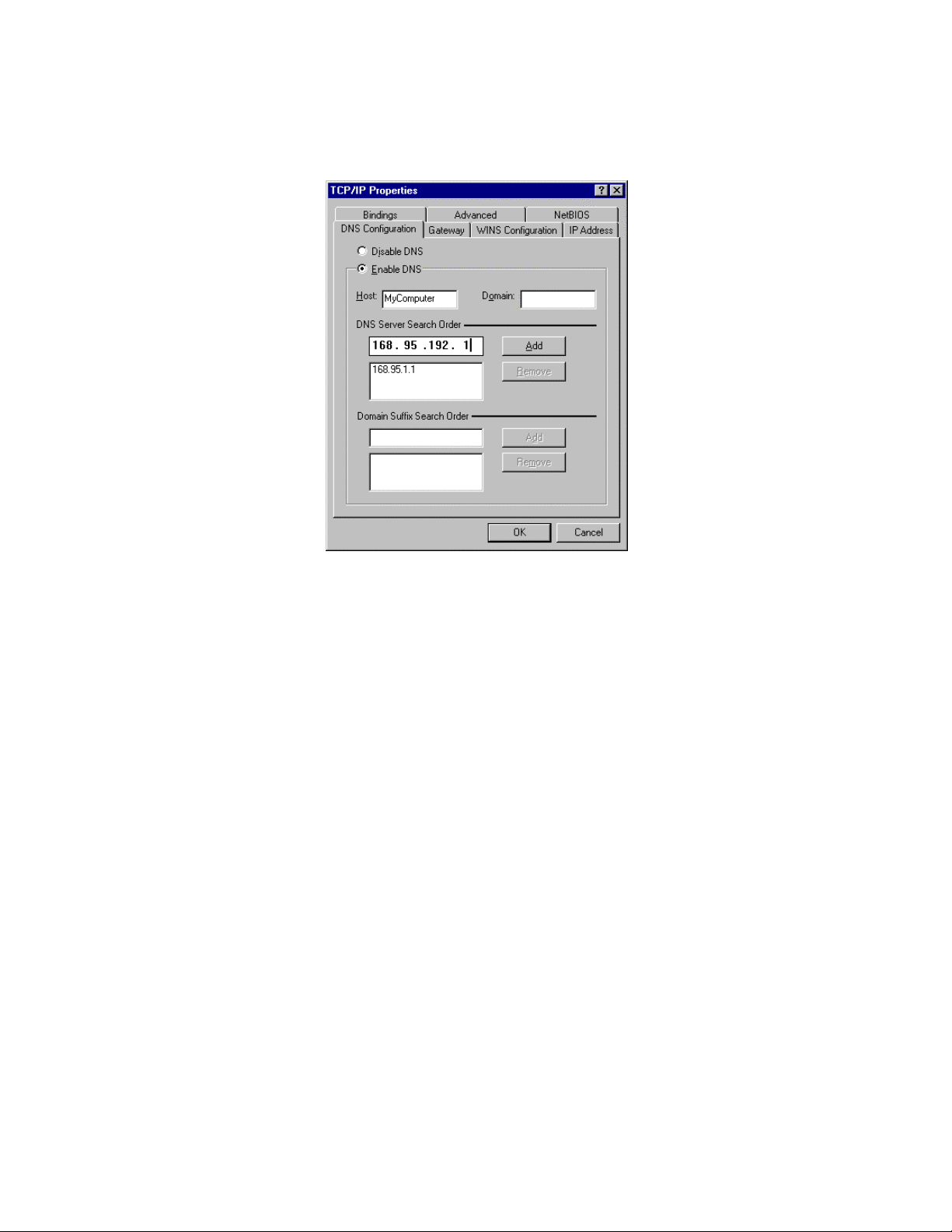

c. In the DNS Configuration tab, add the DNS values which are provided by the ISP into

DNS Server Search Order field and click Add button.

89
