LevelOne WBR-6601 User Manual

LevelOne

WBR-6601

150Mbps N Wireless ADSL2 + Modem Router

User Manual

V1.0.0

Table of Contents

CHAPTER 1 INTRODUCTION .............................................................................................. 1

Wireless ADSL Router Features ...................................................................................... 1

Package Contents .............................................................................................................. 4

Physical Details .................................................................................................................. 5

CHAPTER 2 INSTALLATION ............................................................................................... 7

Requirements ..................................................................................................................... 7

Procedure ........................................................................................................................... 7

CHAPTER 3 SETUP ................................................................................................................. 9

Overview ............................................................................................................................ 9

Configuration Program ................................................................................................... 11

Setup Wizard ................................................................................................................... 12

Home Screen .................................................................................................................... 15

LAN Screen ...................................................................................................................... 16

Wireless Screen ................................................................................................................ 18

Wireless Security ............................................................................................................. 21

Trusted Wireless Stations ............................................................................................... 26

Password Screen .............................................................................................................. 28

Mode Screen ..................................................................................................................... 29

CHAPTER 4 PC CONFIGURATION................................................................................... 30

Overview .......................................................................................................................... 30

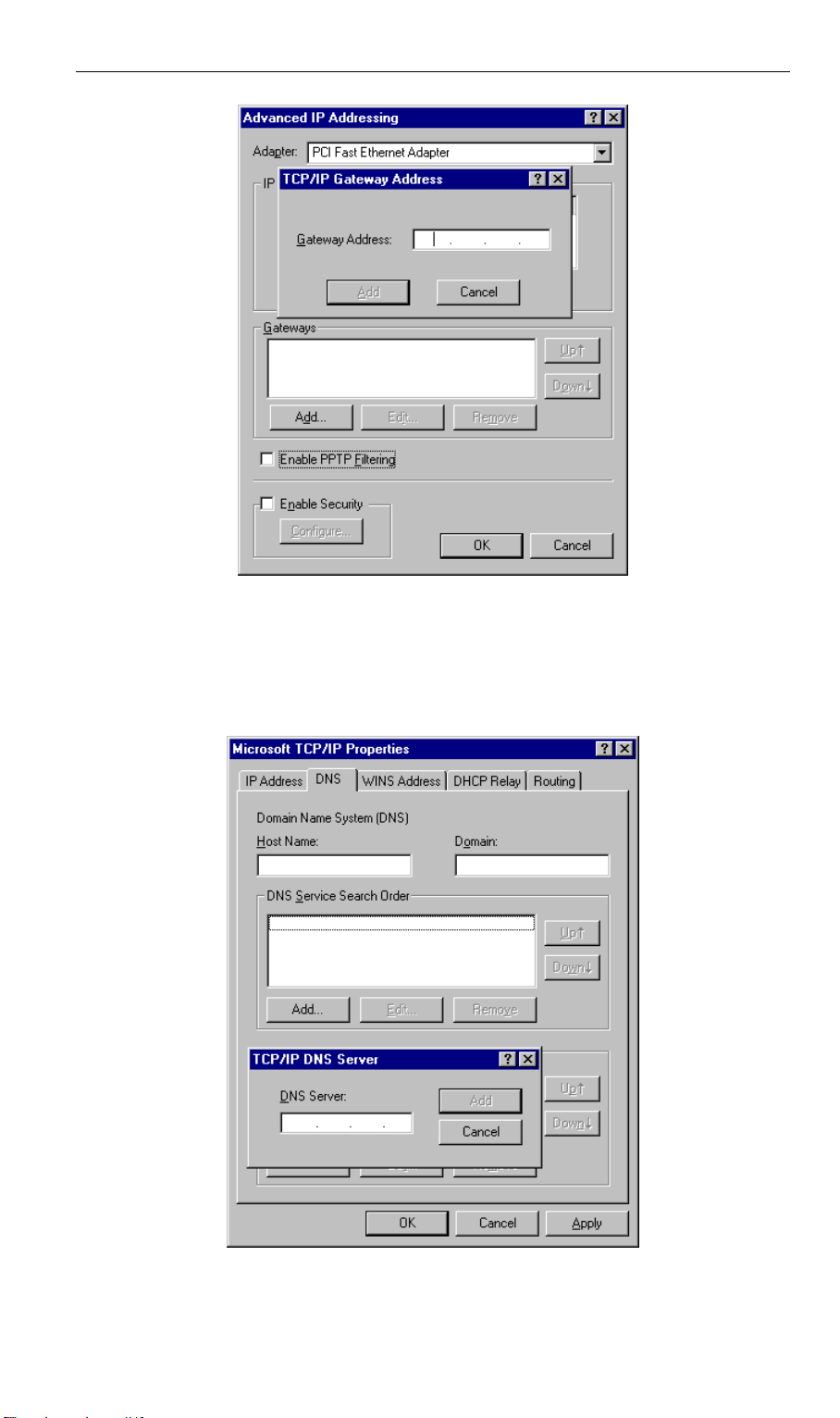

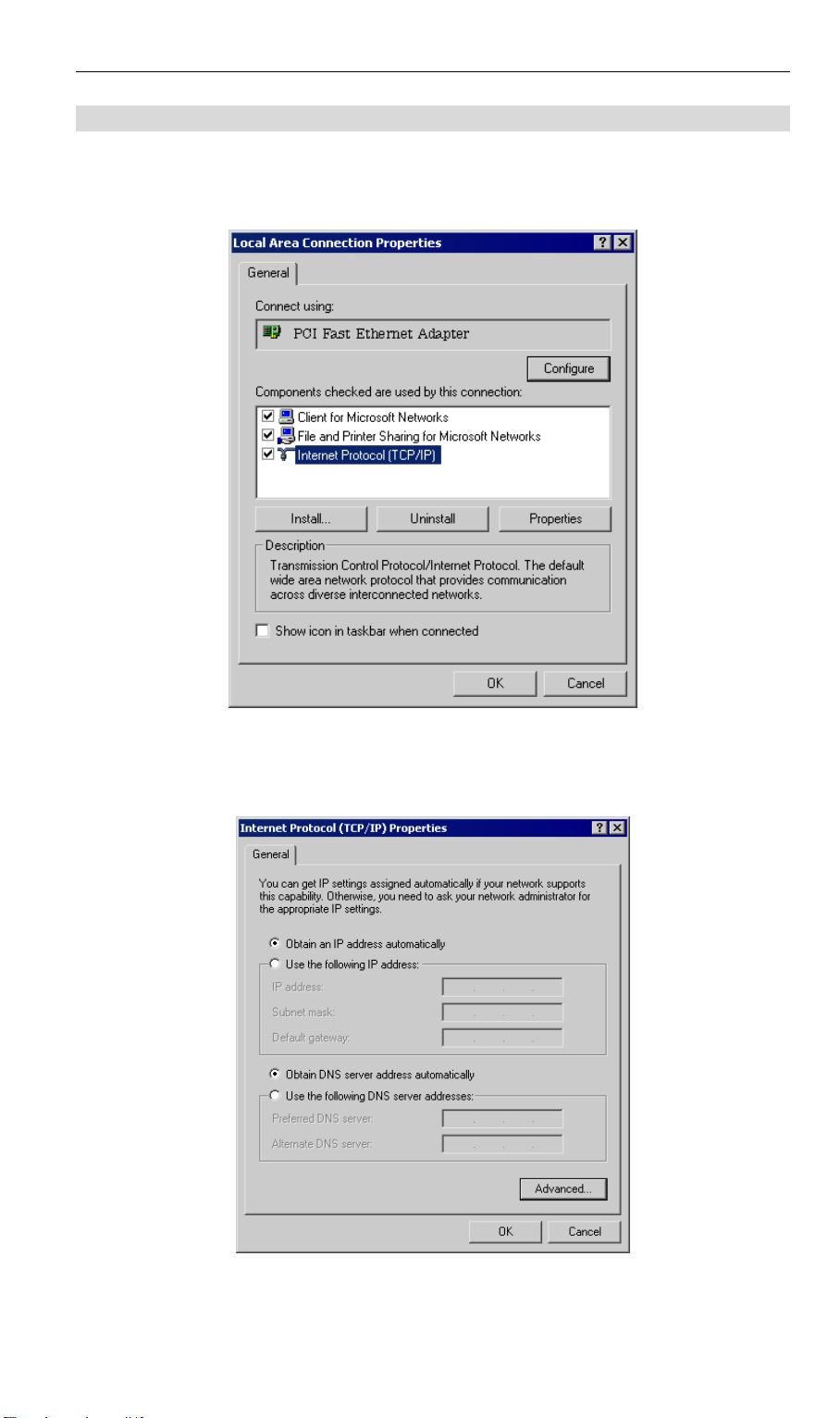

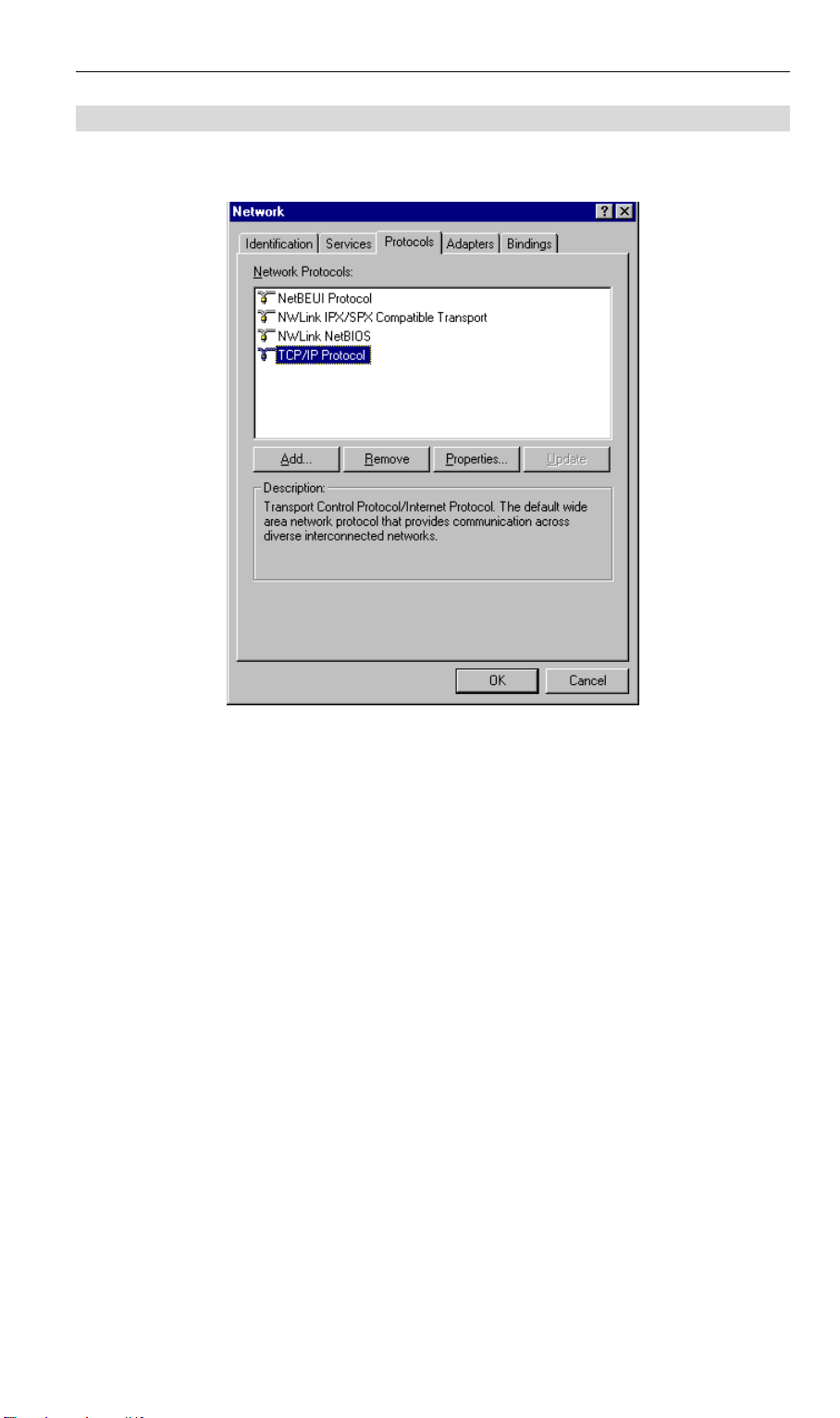

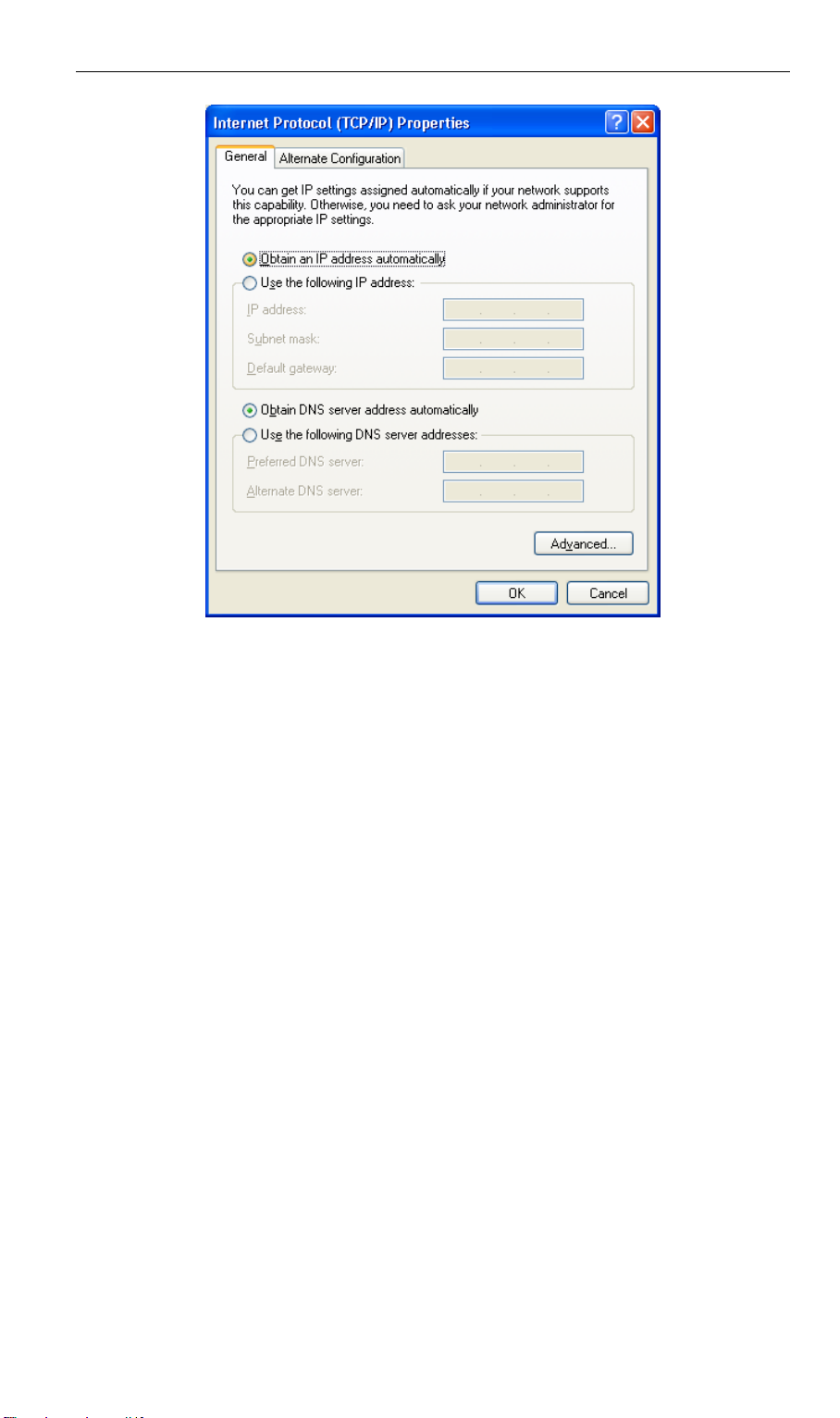

Windows Clients .............................................................................................................. 30

Macintosh Clients ............................................................................................................ 41

Linux Clients .................................................................................................................... 41

Other Unix Systems ................................................................................................ ......... 41

Wireless Station Configuration ...................................................................................... 42

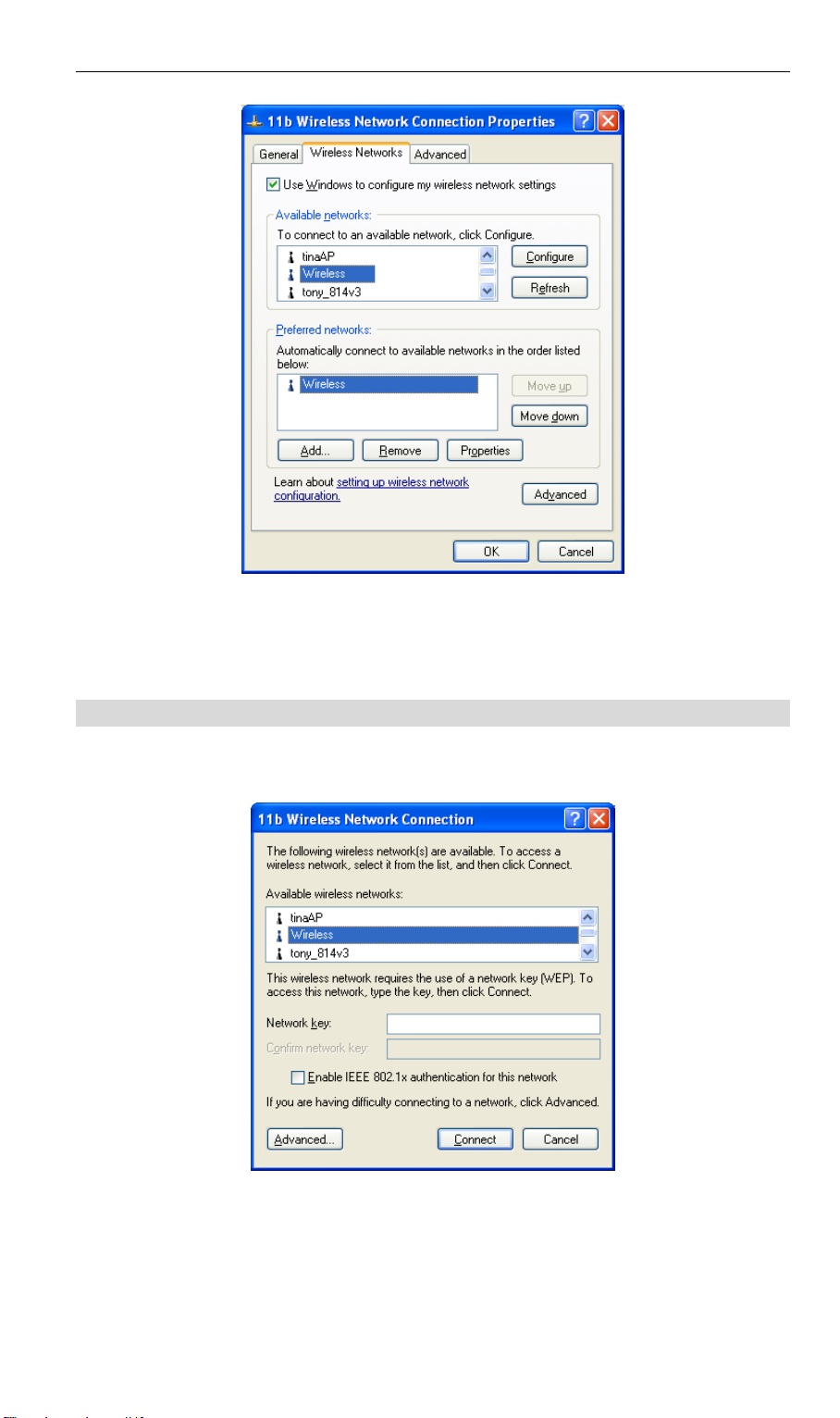

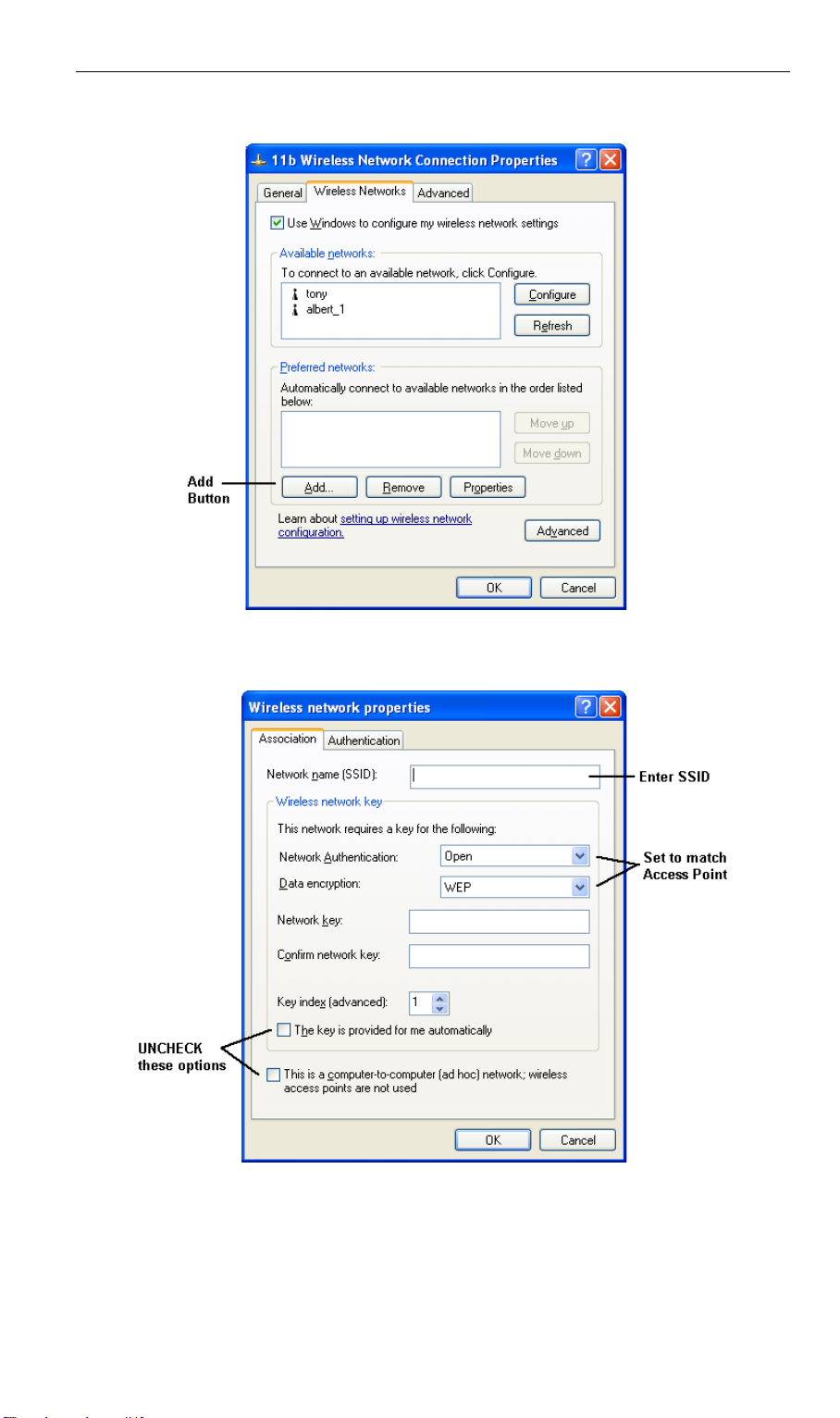

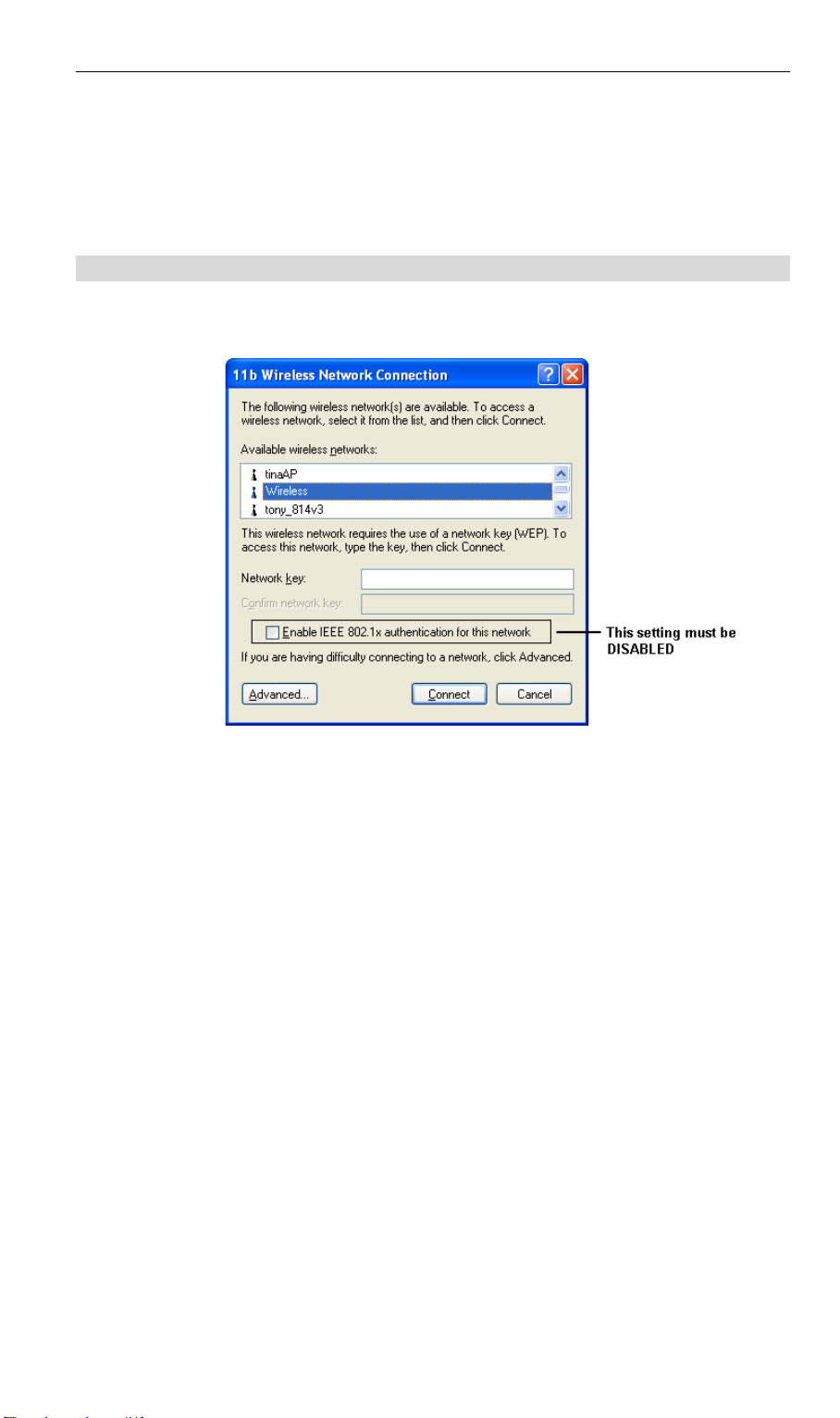

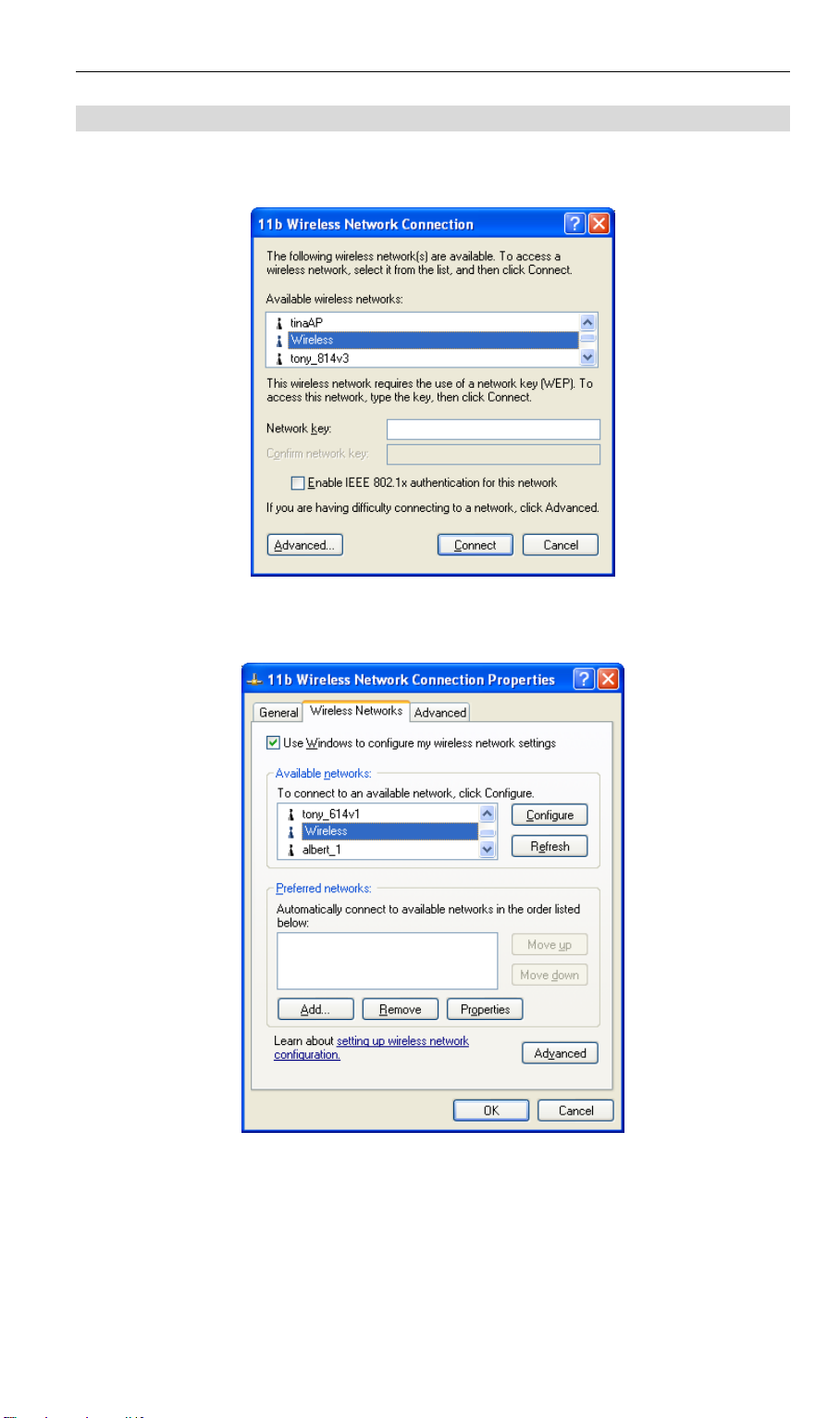

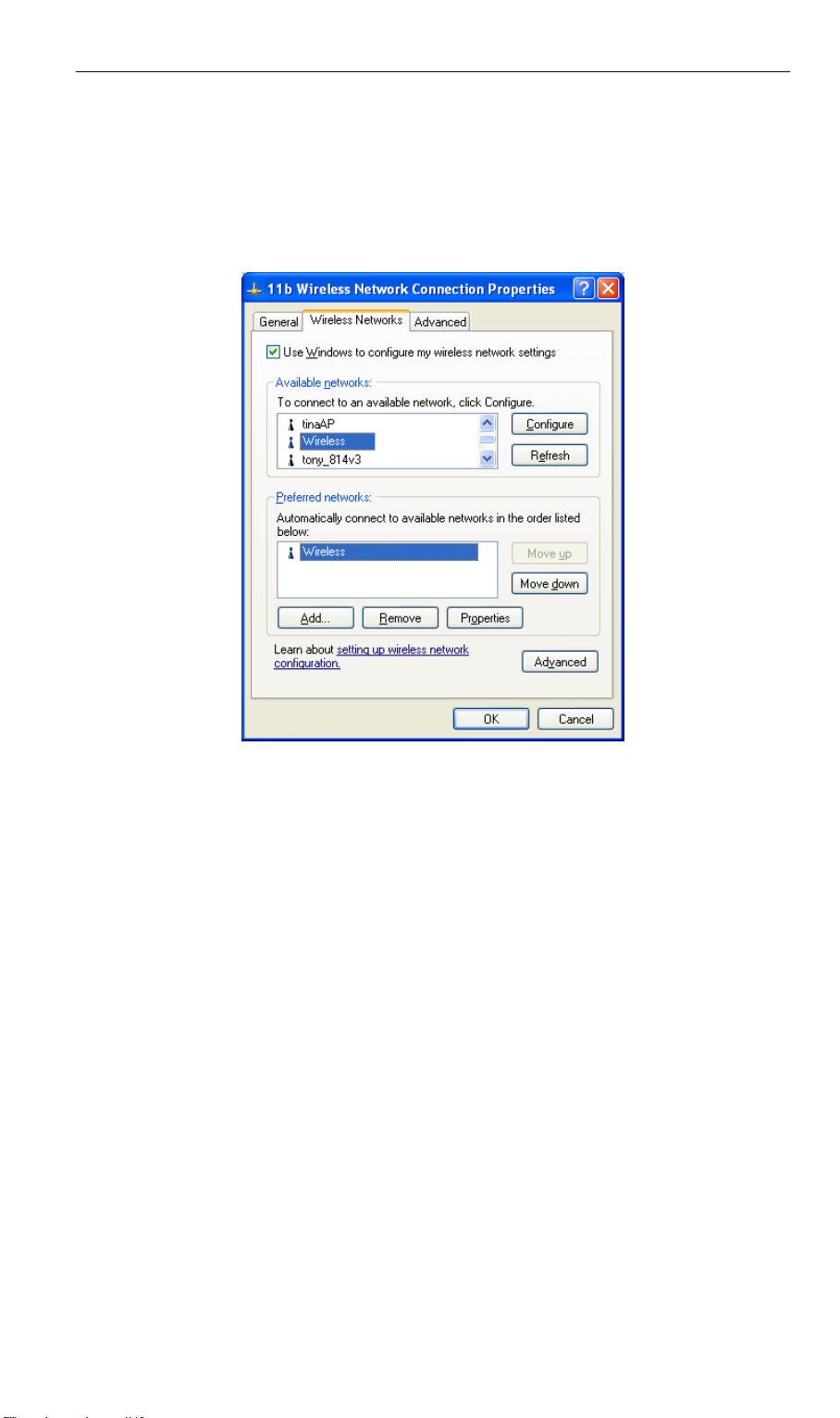

Wireless Configuration on Windows XP ....................................................................... 42

CHAPTER 5 OPERATION AND STATUS ......................................................................... 52

Operation - Router Mode ............................................................................................... 52

Status Screen .................................................................................................................... 52

Connection Status - PPPoE & PPPoA ........................................................................... 55

Connection Details - Dynamic IP Address..................................................................... 56

Connection Details - Fixed IP Address .......................................................................... 57

CHAPTER 6 ADVANCED FEATURES ............................................................................... 58

Overview .......................................................................................................................... 58

Internet ............................................................................................................................. 58

Access Control ................................................................................................................. 61

Dynamic DNS (Domain Name Server) ........................................................................... 63

Options ............................................................................................................................. 65

Schedule ............................................................................................................................ 66

Port Trigger ..................................................................................................................... 67

Port Forward ................................................................................................................... 69

Port Range Forward ....................................................................................................... 70

QoS.................................................................................................................................... 71

CHAPTER 7 ADVANCED ADMINISTRATION ................................................................ 73

Overview .......................................................................................................................... 73

PC Database ..................................................................................................................... 74

Config File ........................................................................................................................ 78

Logs ................................................................................................................................... 79

E-mail ............................................................................................................................... 81

Diagnostics ....................................................................................................................... 83

Remote Administration ................................................................................................... 84

i

Routing ............................................................................................................................. 86

Upgrade Firmware .......................................................................................................... 90

CHAPTER 8 MODEM MODE .............................................................................................. 91

Overview .......................................................................................................................... 91

Management Connections ............................................................................................... 91

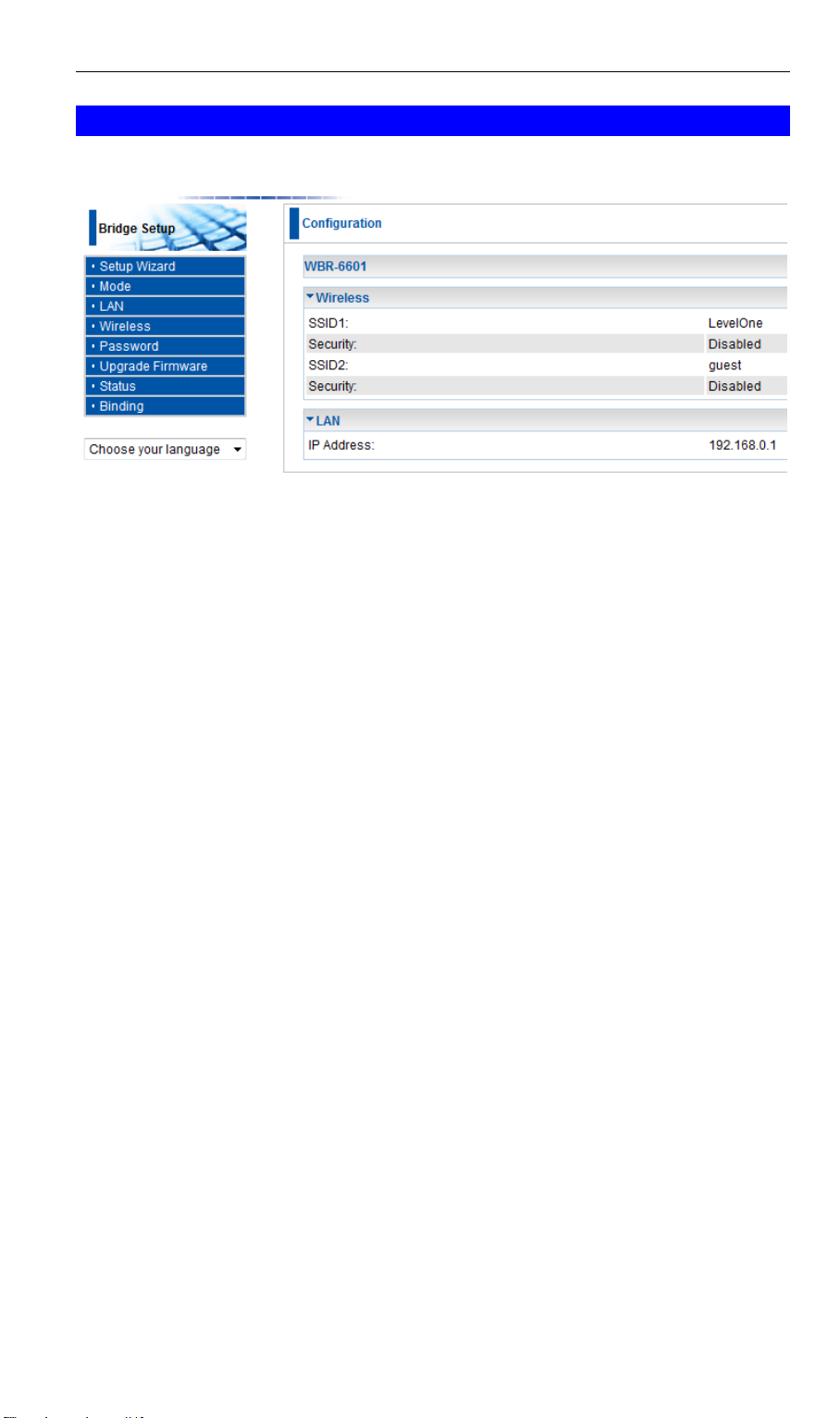

Home Screen .................................................................................................................... 92

Mode Screen ..................................................................................................................... 93

Operation ......................................................................................................................... 93

Status Screen .................................................................................................................... 94

APPENDIX A TROUBLESHOOTING ................................................................................ 96

Overview .......................................................................................................................... 96

General Problems ............................................................................................................ 96

Internet Access ................................................................................................................. 96

Wireless Access ................................................................................................................ 97

APPENDIX B ABOUT WIRELESS LANS .......................................................................... 99

Modes ............................................................................................................................... 99

BSS/ESS ............................................................................................................................ 99

Channels ......................................................................................................................... 100

WEP ................................................................................................................................ 100

WPA-PSK ...................................................................................................................... 100

WPA2-PSK .................................................................................................................... 101

WPA-802.1x ................................................................................................................... 101

Wireless LAN Configuration ........................................................................................ 101

APPENDIX C SPECIFICATIONS ...................................................................................... 102

Multi-Function Wireless ADSL Router ....................................................................... 102

Wireless Interface .......................................................................................................... 102

Regulatory Approvals ................................................................................................... 103

Copyright  2009. All Rights Reserved.
All trademarks and trade names are the properties of their respective owners.

ii

1

Chapter 1

Introduction

This Chapter provides an overview of the Wireless ADSL Router's features
and capabilities.

Congratulations on the purchase of your new Wireless ADSL Router. The Wireless ADSL
Router is a multi-function device providing the following services:

 WBR-6601 Wireless ADSL2 + Modem Router
 Shared Broadband Internet Access for all LAN users.
 Wireless Access Point for 802.11b, 802.11g and 802.11n ( )Wireless Stations.
 4-Port Switching Hub for 10BaseT or 100BaseT connections.

Wireless ADSL Router Features

The Wireless ADSL Router incorporates many advanced features, carefully designed to pro­vide sophisticated functions while being easy to use.

Internet Access Features

 Shared Internet Access. All users on the LAN or WLAN can access the Internet

 Built-in ADSL Modem. The Wireless ADSL Router has a built-in ADSL modem,

 IPoA, PPPoE, PPPoA, Direct Connection Support. The Wireless ADSL Router

Figure 1: Wireless ADSL Router

through the Wireless ADSL Router, using only a single external IP Address. The local
(invalid) IP Addresses are hidden from external sources. This process is called NAT (Net­work Address Translation).

supporting all common ADSL connections.

supports all common connection methods.

1

 Auto-detection of Internet Connection Method. In most situations, the Wireless

ADSL Router can test your ADSL and Internet connection to determine the connection me­thod used by your ISP.

 Fixed or Dynamic IP Address. On the Internet (ADSL port) connection, the Wireless

ADSL Router supports both Dynamic IP Address (IP Address is allocated on connection)
and Fixed IP Address.

Advanced Internet Functions

 Application Level Gateways (ALGs). Applications which use non-standard connec-

tions or port numbers are normally blocked by the Firewall. The ability to define and allow
such applications is provided, to enable such applications to be used normally.

 Dynamic DNS Support. DDNS, when used with the Virtual Servers feature, allows

users to connect to Servers on your LAN using a Domain Name, even if you have a dynam­ic IP address which changes every time you connect.

 URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
 Access Control. Using the Access Control feature, you can assign LAN users to different

groups, and determine which Internet services are available to each group.

 Firewall. As well as the built-in firewall to protect your LAN, you can define Firewall

Rules to determine which incoming and outgoing traffic should be permitted.

 Scheduling. Both the URL Filter and Firewall rules can be scheduled to operate only at

certain times. This provides great flexibility in controlling Internet -bound traffic.

 Logs. Define what data is recorded in the Logs, and optionally send log data to a Syslog

Server. Log data can also be E-mailed to you.

 Port Triggering. This feature, also called Special Applications, allows you to use

Internet applications which normally do not function when used behind a firewall.

 Port Forwarding. This feature allows Internet users to access Internet servers on your

LAN. The required setup is quick and easy.

 QoS Support Quality of Service can be used to handle packets so that more important

connections receive priority over less important one.

 VPN Pass through Support. PCs with VPN (Virtual Private Networking) software

using PPTP, L2TP and IPSec are transparently supported - no configuration is required.

Wireless Features

 Standards Compliant. The Wireless ADSL Router complies with the IEEE802.11g

(DSSS) specifications for Wireless LANs.

 Supports 11n Wireless Stations. The 802.11n standard provides for backward compa-

tibility with the 802.11b standard, so 802.11n, 802.11b and 802.11g Wireless stations can
be used simultaneously.

 WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key sizes of 64

Bit and 128 Bit are supported. WEP encrypts any data before transmission, providing pro­tection against snoopers.

 WPA-PSK support. Like WEP, WPA-PSK encrypts any data before transmission,

providing protection against snoopers. The WPA-PSK is a later standard than WEP, and
provides both easier configuration and greater security than WEP.

 WPA2-PSK support. Support for WPA2 is also included. WPA2 uses the extremely

secure AES encryption method.

 802.1x Support. Support for 802.1x mode is included, providing for the industrial-

strength wireless security of 802.1x authentication and authorization.

2

Introduction

 Wireless MAC Access Control. The Wireless Access Control feature can check the

MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless
Stations can access your LAN.

 WPS Support. WPS (Wi-Fi Protected Setup) can simplify the process of connecting any

device to the wireless network by using the push button configuration (PBC) on the Wire­less Access Point, or entering PIN code if there's no button.

 WDS Support. Support for WDS (Wireless Distribution System) allows the Wireless

Access Point to act as a Wireless Bridge. Both Point-to-Point and Multi-Point Bridge
modes are supported.

 Simple Configuration. If the default settings are unsuitable, they can be changed

quickly and easily.

LAN Features

 4-Port Switching Hub. The Wireless ADSL Router incorporates a 4-port 10/100BaseT

switching hub, making it easy to create or extend your LAN.

 DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP

address to PCs and other devices upon request. The Wireless ADSL Router can act as a
DHCP Server for devices on your local LAN and WLAN.

Configuration & Management

 Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu-

ration.

 Configuration File Upload/Download. Save (download) the configuration data from

the Wireless ADSL Router to your PC, and restore (upload) a previously-saved configura­tion file to the Wireless ADSL Router.

 Remote Management. The Wireless ADSL Router can be managed from any PC on

your LAN or Wireless LAN. And, if the Internet connection exists, it can also (optionally)
be configured via the Internet.

 Network Diagnostics. You can use the Wireless ADSL Router to perform a Ping or

DNS lookup.

Security Features

 Password - protected Configuration. Password protection is provided to prevent

unauthorized users from modifying the configuration data and settings.

 Wireless LAN Security. WPA-PSK, WEP and Wireless access control by MAC address

are all supported. The MAC-level access control feature can be used to prevent unknown
wireless stations from accessing your LAN.

 NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech-

nology is that by allowing all LAN users to share a single IP address, the location and even
the existence of each PC is hidden. From the external viewpoint, there is no network, only
a single device - the Wireless ADSL Router.

 Firewall. All incoming data packets are monitored and all incoming server requests are

filtered, thus protecting your network from malicious attacks from external sources.

 Protection against DoS attacks. DoS (Denial of Service) attacks can flood your

Internet connection with invalid packets and connection requests, using so much bandwidth
and so many resources that Internet access becomes unavailable. The Wireless ADSL Rou­ter incorporates protection against DoS attacks.

3

Package Contents

The following items should be included. If any of these items are damaged or missing, please
contact your dealer immediately.

 The Wireless ADSL Router Unit
 1 Ethernet cable
 Power Adapter
 Quick Installation Guide
 CD-ROM containing the on-line manual.

4

Introduction

Power LED
(Orange)

On - Power on.
Off - No power.

LAN (Blue)

On - The LAN port is active.
Off - No active connection on the LAN (Ethernet) port.
Flashing - Data is being transmitted or received via the corresponding

LAN port.

WLAN (Blue)

On - Wireless enabled.
Off - Wireless disabled.
Flashing - Data is being transmitted or received via the Wireless access

point. This includes "network traffic" as well as user data.

ADSL
(Green)

On - ADSL connection established.
Off - No ADSL connection currently exists.
Flashing - ADSL is synchronizing.

Internet
(Blue/Yellow)

On (Blue) - Internet connection is available.
Off - No Internet connection available.
Flashing (Blue) - Data is being transmitted or received via the ADSL

connection.

Physical Details

Front-mounted LEDs

Figure 2: Front Panel

5

ADSL port

Connect this port to your ADSL line.

10/100BaseT
LAN connections

Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.

Note:

Any LAN port on the Wireless ADSL Router will automatically
function as an "Uplink" port when required. Just connect any port to a
normal port on the other hub, using a standard LAN cable.

Reset Button
(Reset to Defaults)

This button will reset the Wireless ADSL Router to the factory
default settings.
To do this, press and hold the Reset Button for five (5) seconds, until
the Status LED is lit, then release the Reset Button, and wait the
Wireless ADSL Router to restart using the factory default values.

Power port

Connect the supplied power adapter here.

Rear Panel

Figure 3: Rear Panel

6

For best Wireless reception and performance, the Wireless
ADSL Router should be positioned in a central location with
minimum obstructions between the Wireless ADSL Router
and the PCs.

Also, if using multiple Access Points, adjacent Access
Points should use different Channels.

2

Chapter 2

Installation

This Chapter covers the physical installation of the Wireless ADSL Router.

Requirements

 Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
 TCP/IP protocol must be installed on all PCs.
 For Internet Access, an Internet Access account with an ISP, and a DSL connection.
 To use the Wireless Access Point, all Wireless devices must be compliant with the IEEE

802.11g, IEEE 802.11b or IEEE 802.11n specifications.

Procedure

Figure 4: Installation Diagram

1. Choose an Installation Site

Select a suitable place on the network to install the Wireless ADSL Router.

7

2. Connect LAN Cables

Use standard LAN cables to connect PCs to the Switching Hub ports on the Wireless
ADSL Router. Both 10BaseT and 100BaseT connections can be used simultaneously.

If required, connect any port to a normal port on another Hub, using a standard LAN cable.

3. Connect ADSL Cable

Connect the supplied ADSL cable from to the ADSL port on the Wireless ADSL Router
(the RJ11 connector) to the ADSL terminator provided by your phone company.

4. Power Up

Connect the supplied power adapter to the Wireless ADSL Router. Use only the power
adapter provided. Using a different one may cause hardware damage.

5. Check the LEDs

 The Power LED should be ON.
 For each LAN (PC) connection, one of the LAN LEDs should be ON (provided the PC is

also ON.)

 The WLAN LED should be ON
 The ADSL LED should be ON if ADSL line is connected.
 The Internet LED may be OFF. After configuration, it should come ON.

For more information, refer to Front-mounted LEDs in Chapter 1.

8

To Do this:

Refer to:

Configure PCs on your LAN.

Chapter 4:
PC Configuration

Check Wireless ADSL Router operation and Status.

Chapter 5:
Operation and Status

Use any of the following Advanced features:

 Internet (DMZ, URL Filter)
 Access Control
 Dynamic DNS
 Options
 Schedule
 Port Trigger
 Port Forward
 Port Range Forward
 QoS

Chapter 6:
Advanced Features

3

Chapter 3

Setup

This Chapter provides Setup details of the Wireless ADSL Router.

Overview

This chapter describes the setup procedure for:

 Internet Access
 LAN configuration
 Wireless setup
 Assigning a Password to protect the configuration data.

PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Confi­guration.

Other configuration may also be required, depending on which features and functions of the
Wireless ADSL Router you wish to use. Use the table below to locate detailed instructions for
the required functions.

9

Use any of the following Administration Configuration
settings or features:

 PC Database
 Config File
 Logging
 E-mail
 Diagnostics
 Remote Admin
 Routing
 Upgrade Firmware

Chapter 7
Advanced Administration

10

Setup

Configuration Program

The Wireless ADSL Router contains an HTTP server. This enables you to connect to it, and
configure it, using your Web Browser. Your Browser must support JavaScript.

The configuration program has been tested on the following browsers:

 Netscape 7.1 or later.
 Mozilla 1.6 or later
 Internet Explorer V5.5 or later

Preparation

Before attempting to configure the Wireless ADSL Router, please ensure that:
 Your PC can establish a physical connection to the Wireless ADSL Router. The PC and

the Wireless ADSL Router must be directly connected (using the Hub ports on the Wire­less ADSL Router) or on the same LAN segment.

 The Wireless ADSL Router must be installed and powered ON.
 If the Wireless ADSL Router's default IP Address (192.168.0.1) is already used by another

device, the other device must be turned OFF until the Wireless ADSL Router is allocated a
new IP Address during configuration.

Using your Web Browser

To establish a connection from your PC to the Wireless ADSL Router:

1. After installing the Wireless ADSL Router in your LAN, start your PC. If your PC is

already running, restart it.

2. Start your WEB browser.

3. In the Address box, enter "HTTP://" and the IP Address of the Wireless ADSL Router, as

in this example, which uses the Wireless ADSL Router's default IP Address:

HTTP://192.168.0.1

4. When prompted for the User name and Password, enter values as follows:

 User name admin
 Password password

11

If you can't connect

If the Wireless ADSL Router does not respond, check the following:
 The Wireless ADSL Router is properly installed, LAN connection is OK, and it

is powered ON. You can test the connection by using the "Ping" command:

 Open the MS-DOS window or command prompt window.
 Enter the command:

ping 192.168.0.1
If no response is received, either the connection is not working, or your
PC's IP address is not compatible with the Wireless ADSL Router's IP Ad­dress. (See next item.)

 If your PC is using a fixed IP Address, its IP Address must be within the range

192.168.0.2 to 192.168.0.254 to be compatible with the Wireless ADSL Rou­ter's default IP Address of 192.168.0.1. Also, the Network Mask must be set to

255.255.255.0. See Chapter 4 - PC Configuration for details on checking your
PC's TCP/IP settings.

 Ensure that your PC and the Wireless ADSL Router are on the same network

segment. (If you don't have a router, this must be the case.)

 Ensure you are using the wired LAN interface. The Wireless interface can only

be used if its configuration matches your PC's wireless settings.

Setup Wizard

The first time you connect to the Wireless ADSL Router, you should run the Setup Wizard to
configure the ADSL and Internet Connection.

1. Click the Setup Wizard link on the main menu

2. On the first screen, select Auto-detect or Manual Selection, then click "Next"

Figure 5: Setup Wizard Home Page

12

Setup

3. If Manual Selection is selected, you will see the VC 1 screen shown below. Enter the VPI

and VCI values provided by your ISP, then click "Next".

Figure 6: Setup Wizard - VC 1

Figure 7: Setup Wizard - Internet Access

4. On the Internet Access Screen, shown above, select the correct connection type, as used by

your ISP. Click "Next" and complete the configuration for your connection method.

 You need the data supplied by your ISP. Your ISP's data will also have the DSL Mul-

tiplexing Method ( LLC or VC )

 The common connection types are explained in the following table..

13

Connection Type

Details

ISP Data required

Dynamic
IP Address

Your IP Address is allocated
automatically, when you connect
to you ISP.

Often, none.
Some ISP's may require you to

use a particular Hostname or
Domain name, or MAC (physical)
address.

Static (Fixed)
IP Address

Your ISP allocates a permanent
IP Address to you.
Usually, the connection is
"Always on".

IP Address allocated to you, and
related information, such as
Network Mask, Gateway IP
address, and DNS address.

PPPoE, PPPoA

You connect to the ISP only
when required. The IP address is
usually allocated automatically.

a) User name and password are
always required.

b) If using a Static (Fixed) IP
address, you need the IP address
and related information (Network
Mask, Gateway IP address, and
DNS address)

IPoA
(IP over ATM)

Normally, the connection is
"Always on".

IP Address allocated to you, and
related information, such as
Network Mask, Gateway IP
address, and DNS address.

5. Step through the Wizard until finished.

6. On the final screen of the Wizard, run the test and check that an Internet connection can be

established.

7. If the connection test fails:

 Check all connections, and the front panel LEDs.
 Check that you have entered all data correctly.

14

Setup

On each screen, clicking the "Help" button will
display help for that screen.

Home Screen

After finishing the Setup Wizard, you will see the Home screen. When you connect in future,
you will see this screen when you connect. An example screen is shown below.

Figure 8: Home Screen

Main Menu

The main menu, on the left, contains links to the most-commonly used screen. To see the links
to the other available screens, click "Advanced" or "Administration".

The main menu also contains two (2) buttons:
 Log Out - When finished, you should click this button to logout.

Navigation & Data Input

 Use the menu bar on the left of the screen, and the "Back" button on your Browser, for

navigation.

 Changing to another screen without clicking "Save" does NOT save any changes you may

have made. You must "Save" before changing screens or your data will be ignored.

15

TCP/IP

IP Address

IP address for the Wireless ADSL Router, as seen from the local LAN.
Use the default value unless the address is already in use or your LAN
is using a different IP address range. In the latter case, enter an unused
IP Address from within the range used by your LAN.

Subnet Mask

The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which the Wireless ADSL Router is attached (the same
value as the PCs on that LAN segment).

DHCP Server

 If Enabled, the Wireless ADSL Router will allocate IP Addresses

to PCs (DHCP clients) on your LAN when they start up. The de­fault (and recommended) value is Enabled.

 If you are already using a DHCP Server, this setting must be

Disabled, and the existing DHCP server must be re-configured to
treat the Wireless ADSL Router as the default Gateway. See the
following section for further details.

 The Start IP Address, Finish IP Address and Lease Time fields

set the values used by the DHCP server when allocating IP Ad­dresses to DHCP clients. This range also determines the number of
DHCP clients supported.

See the following section for further details on using DHCP.

LAN Screen

Use the LAN link on the main menu to reach the LAN screen. An example screen is shown
below.

Figure 9: LAN Screen

Data - LAN Screen

16

Setup

You can assign Fixed IP Addresses to some devices
while using DHCP, provided that the Fixed IP Addresses
are NOT within the range used by the DHCP Server.

DHCP

What DHCP Does

A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a
DHCP Client (PC or device) upon request.

 The client request is made when the client device starts up (boots).
 The DHCP Server provides the Gateway and DNS addresses to the client, as well as

allocating an IP Address.

 The Wireless ADSL Router can act as a DHCP server.
 Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client.

This is the default Windows setting for the TCP/IP network protocol. However, Windows
uses the term Obtain an IP Address automatically instead of "DHCP Client".

 You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your

LAN does not have other Routers, this means there must only be one (1) DHCP Server on
your LAN.)

Using the Wireless ADSL Router's DHCP Server

This is the default setting. The DHCP Server settings are on the LAN screen. On this screen,
you can:

 Enable or Disable the Wireless ADSL Router's DHCP Server function.
 Set the range of IP Addresses allocated to PCs by the DHCP Server function.

Using another DHCP Server

You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP
Server, rather than the Wireless ADSL Router's, the following procedure is required.

 Disable the DHCP Server feature in the Wireless ADSL Router. This setting is on the LAN

screen.

 Configure the DHCP Server to provide the Wireless ADSL Router's IP Address as the

Default Gateway.

To Configure your PCs to use DHCP

This is the default setting for TCP/IP for all non-Server versions of Windows.
See Chapter 4 - Client Configuration for the procedure to check these settings.

17

Region

Region

Select the correct domain for your location. It is your responsibility to
ensure:

 That the Wireless ADSL Router is only used in domains for which

is licensed.

 That you select the correct domain, so that only the legal channels

for that domain can be selected.

Multi SSID

SSID

With Multiple SSIDs, you can have 2 SSIDs on one AP. For example, a
Guest SSID without encryption for visitors to have Internet access only,
and a Admin SSID with encryption for private use to secure your
company resources.

Select the desired SSID from the list to configure.

Wireless Screen

The Wireless ADSL Router's settings must match the other Wireless stations.
Note that the Wireless ADSL Router will automatically accept both 802.11b and 802.11g

connections, and no configuration is required for this feature.
To change the Wireless ADSL Router's default settings for the Wireless Access Point feature,

use the Wireless link on the main menu to reach the Wireless screen. An example screen is
shown below.

Figure 10: Wireless Screen

Data - Wireless Screen

18

Setup

SSID 1/2

This is also called the "Network Name".
 If using an ESS (Extended Service Set, with multiple access

points) this ID is called an ESSID (Extended Service Set Identifi­er).

 To communicate, all Wireless stations should use the same

SSID/ESSID.

Broadcast SSID

If enabled, the Wireless ADSL Router will broadcast its SSID. This
allows PCs and other wireless stations to detect this Access Point and
use the correct SSID.

If disabled, PC users will have to manually enter the SSID and other
details of the wireless interface before they can connect to this Access
Point.

Isolation within
SSID

If Enabled, devices that have the same SSID will not be able to see
each other.

Security Setting

The current Wireless security is displayed. The default value is Dis­abled.

Configure SSID
1/2 Button

Click this button to access the Wireless security sub-screen, and view
or change the settings. See the following section for details.

Options

802.11 Mode

Select the desired mode:

 Off - Wireless is disabled.
 B only - Only 802.11b connections are available. 802.11g Wire-

less Stations will only be able to use the Wireless Router if they are
fully backward-compatible with the 802.11b standard.

 G only - Only 802.11g Wireless stations can use the Wireless

Router.

 11b/g/n - 802.11.g, 802.11b and 802.11n Wireless stations can use

the Wireless Broadband Router.

Channel NO.

Select the Channel you wish to use on your Wireless LAN.
 If you experience interference (shown by lost connections and/or

slow data transfers) you may need to experiment with different
channels to see which is the best.

 If using multiple Access Points, adjacent Access Points should use

different Channels to reduce interference.

Isolation
between SSID

If Enabled, devices that have the different SSIDs will not be able to
communicate with each other.

WMM Support

Enable or disable this feature as required.

Bandwidth

Select the desired bandwidth from the list.

19

MAC Address Filter

Allow access
by …

Use this feature to determine which Wireless stations can use the
Access Point. The options are:
 All Wireless Stations - All wireless stations can use the access

point, provided they have the correct SSID and security settings.

 Trusted Wireless stations only - Only wireless stations you

designate as "Trusted" can use the Access Point, even if they have
the correct SSID and security settings.
This feature uses the MAC address to identify Wireless stations.
The MAC address is a low-level network identifier which is unique
to each PC or network device.
To define the trusted wireless stations, use the "Set Stations" but­ton.

Set Stations
Button

Click this button to manage the trusted PC database.

WiFi Protect Setup

Enable WPS

Enable this if you want to use Wireless WPS function.

AP PIN Code

Use the default displayed value or click the Regenerate button to have
the new pin code in the field.

Input Client PIN
Code

Enter the client’s PIN code in the field and click OK to add the client
device.

WDS

Enable WDS

This feature allows you to make a completely wireless network by
using multiple access points without connecting them with a wire LAN.

In order to make the WDS working successfully, the access point must
use the same channel, SSID, as well as the wireless encryption method.

MAC Address
List

Enter the MAC address(es) of the AP(s) into the fields to allow the
following access points to be connected to the wireless router.

20

Setup

WEP Data Encryption

Authentication
Type

Normally, this should be left at the default value of "Automatic". If
changed to "Open System" or "Shared Key", ensure that your Wireless
Stations use the same setting.

WEP Data
Encryption

Select the desired option, and ensure the Wireless Stations use the same
setting.

Wireless Security

This screen is accessed by clicking the "Configure SSID" button on the Wireless screen. There
are 6 options for Wireless security:

 Disabled - no data encryption is used.
 WEP - data is encrypted using the WEP standard.
 WPA-PSK - data is encrypted using the WPA-PSK standard. This is a later standard than

WEP, and provides much better security than WEP. If all your Wireless stations support
WPA-PSK, you should use WPA-PSK rather than WEP.

 WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security,

using the AES (Advanced Encryption Standard) method of encryption.

 WPA-PSK and WPA2-PSK - This method, sometimes called "Mixed Mode", allows

clients to use EITHER WPA-PSK OR WPA2-PSK.

 802.1x - This uses the 802.1x standard for client authentication, and WEP for data encryp-

tion.
If this option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server.
 Each user's wireless client must support 802.1x and provide the login data when re-

quired.

 All data transmission is encrypted using the WEP standard. You only have to select

the WEP key size; the WEP key is automatically generated.

WEP Wireless Security

Data - WEP Screen

Figure 11: WEP

21

 64 Bit - data is encrypted, using the default key, before being

transmitted. You must enter at least the default key. For 64 Bit En­cryption, the key size is 10 chars in HEX (0~9 and A~F).

 128 Bit - data is encrypted, using the default key, before being

transmitted. You must enter at least the default key. For 128 Bit
Encryption, the key size is 26 chars in HEX (0~9 and A~F).

Default Key

Select the key you wish to be the default. Transmitted data is
ALWAYS encrypted using the Default Key; the other Keys are for
decryption only.

You must enter a Key Value for the Default Key.

Key Value

Enter the key value or values you wish to use. The Default Key is
required, the other keys are optional. Other stations must have the same
key.

Passphrase

If desired, you can generate a key from a phrase, instead of entering the
key value directly. Enter the desired phrase, and click the "Generate
Keys" button.

Security
System

WPA-PSK

Like WEP, data is encrypted before transmission. WPA is more
secure than WEP, and should be used if possible. WPA-PSK is the
version of WPA, which does NOT require a Radius Server on your
LAN.

PSK

Enter the PSK (network key). Data is encrypted using a key derived
from the network key. Other Wireless Stations must use the same
network key. The PSK must be from 8 to 63 characters in length.

WPA Encryption

The WPA-PSK standard allows different encryption methods to be
used. Select the desired option. Wireless Stations must use the same
encryption method.

WPA-PSK Wireless Security

Figure 12: WPA-PSK

Data - WPA-PSK Screen

22

Setup

WPA2-PSK

PSK

Enter the key value. Data is encrypted using a 256Bit key derived
from this key. Other Wireless Stations must use the same key.

Encryption

The WPA2-PSK standard allows different encryption methods to
be used. Select the desired option. Wireless Stations must use the
same encryption method.

Security Settings - WPA2-PSK

This is a further development of WPA-PSK, and offers even greater security, using the AES
(Advanced Encryption Standard) method of encryption.

Figure 13: WPA2-PSK Wireless Security Screen

Data - WPA2-PSK Screen

23

WPA2-PSK

PSK

Enter the key value. Data is encrypted using a 256Bit key derived
from this key. Other Wireless Stations must use the same key.

Encryption

This standard allows different encryption methods to be used.
Select the desired option. Wireless Stations must use the same
encryption method.

Security Settings - Mixed WPA-PSK/WPA2-PSK

This method, sometimes called "Mixed Mode", allows clients to use EITHER WPA-PSK OR
WPA2-PSK.

Figure 14: Mixed WPA-PSK WPA2-PSK Wireless Security Screen

Data - WPA2-PSK Screen

24

Setup

Server Address

Enter the server address here.

Radius Port

Enter the port number used for connections to the Radius Server.

Shared Key

Enter the shared key. Data is encrypted using a key derived from the
network key. Other Wireless Stations must use the same key. The key
must be from 8 to 63 characters in length.

Encryption

The encryption method is TKIP. Wireless Stations must also use
TKIP.

Security Settings - 802.1x

This uses the 802.1x standard for client authentication, and WEP for data encryption. If this
option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server. Normally, a Certificate is used to

authenticate each user. See Chapter4 for details of user configuration.

 Each user's wireless client must support 802.1x.
 All data transmission is encrypted using the WEP standard. You only have to select the

WEP key size; the WEP key is automatically generated.

Figure 15: 802.1x Wireless Security Screen

Data - 802.1x Screen

25

Trusted Wireless
Stations

This lists any Wireless Stations which you have designated as
“Trusted”.

Other Wireless
Stations

This list any Wireless Stations detected by the Access Point, which
you have not designated as "Trusted".

Name

The name assigned to the Trusted Wireless Station. Use this when
adding or editing a Trusted Station.

Address

The MAC (physical) address of the Trusted Wireless Station. Use
this when adding or editing a Trusted Station.

Buttons

<<

Add a Trusted Wireless Station to the list (move from the "Other
Stations" list).

 Select an entry (or entries) in the "Other Stations" list, and click

the " << " button.

 Enter the Address (MAC or physical address) of the wireless

station, and click the "Add " button.

>>

Delete a Trusted Wireless Station from the list (move to the "Other
Stations" list).

 Select an entry (or entries) in the "Trusted Stations" list.
 Click the " >> " button.

Trusted Wireless Stations

This feature can be used to prevent unknown Wireless stations from using the Access Point.
This list has no effect unless the setting Allow access by trusted stations only is enabled.

To change the list of trusted wireless stations, use the Modify List button on the Access Control
screen. You will see a screen like the sample below.

Figure 16: Trusted Wireless Stations

Data - Trusted Wireless Stations

26

Setup

Edit

Use this to change an existing entry in the "Trusted Stations" list:

1. Select the Station in the Trusted Station list.

2. Click the Edit button. The address will be copied to the "Ad-

dress" field, and the Add button will change to Update.

3. Edit the address (MAC or physical address) as required.

4. Click Update to save your changes.

Add (Update)

To add a Trusted Station which is not in the "Other Wireless Sta­tions" list, enter the required data and click this button.

When editing an existing Wireless Station, this button will change
from Add to Update.

Clear

Clear the Name and Address fields.

27

Old Password

Enter the existing password in this field.

New password

Enter the new password here.

Verify password

Re-enter the new password here.

Password Screen

The password screen allows you to assign a password to the Wireless ADSL Router.

Figure 17: Password Screen

You will be prompted for the password when you connect, as shown below.

Figure 18: Password Dialog

 The "User Name" is always admin, Password is “password”
 Enter the password for the Wireless ADSL Router, as set on the Password screen above.

28

Setup

Router

Both the ADSL Modem and the Router features are operational. In this
mode, this device can provide shared Internet Access to all your LAN users.
Also, by default, it acts a DHCP Server, providing an IP address and related
information to all Wireless and LAN users.

Modem

Only the ADSL Modem component is operational.
 All Router features are disabled. This device is "transparent" - it does

not perform any operations or make any changes to the network traffic
passing through it.

 You need to have a DHCP Server on your LAN to provide IP addresses

to the Wireless clients using this Access Point.

 All traffic received on either the Wireless or LAN interface will be sent

over the ADSL connection.

Mode Screen

Use this screen to change the mode between Router mode and Modem (Bridge) mode.

Figure 19: Mode Screen

Select the desired option, and click "Save".

Notes:

 Generally, you should NOT use modem mode. Only select this mode if you are sure this is

what you want.

 After changing the mode, this device will restart, which will take a few seconds. The menu

will also be changed, depending on the mode you are in.

 The Wireless Access Point can function in either Router or Modem mode. But generally it

is not a good idea to combine a Modem with an Access Point, because all data received
from the wireless stations will be sent over the modem connection. (Since the modem is
transparent, it does not examine the traffic to determine whether the traffic is for the LAN
or the WAN.)

 For details on using Modem Mode, see Chapter 8.

29

If your LAN has a Router, the LAN Administrator must re­configure the Router itself. Refer to Chapter 8 - Advanced
Setup for details.

4

Chapter 4

PC Configuration

This Chapter details the PC Configuration required on the local ("Internal")
LAN.

Overview

For each PC, the following may need to be configured:

 TCP/IP network settings
 Internet Access configuration
 Wireless configuration

Windows Clients

This section describes how to configure Windows clients for Internet access via the Wireless
ADSL Router.

The first step is to check the PC's TCP/IP settings.
The Wireless ADSL Router uses the TCP/IP network protocol for all functions, so it is essential

that the TCP/IP protocol be installed and configured on each PC.

TCP/IP Settings - Overview

If using the default Wireless ADSL Router settings, and the default Win­dows TCP/IP settings, no changes need to be made.

 By default, the Wireless ADSL Router will act as a DHCP Server, automatically providing

a suitable IP Address (and related information) to each PC when the PC boots.

 For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP

client.

If using a Fixed (specified) IP address, the following changes are re­quired:

 The Gateway must be set to the IP address of the Wireless ADSL Router
 The DNS should be set to the address provided by your ISP.

30

PC Configuration

Checking TCP/IP Settings - Windows 9x/ME:

1. Select Control Panel - Network. You should see a screen like the following:

Figure 20: Network Configuration

2. Select the TCP/IP protocol for your network card.

3. Click on the Properties button. You should then see a screen like the following.

Figure 21: IP Address (Win 95)

Ensure your TCP/IP settings are correct, as follows:

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.

Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.

Using "Specify an IP Address"

If your PC is already configured, check with your network administrator before making the
following changes:

31

 On the Gateway tab, enter the Wireless ADSL Router's IP address in the New Gateway

field and click Add, as shown below. Your LAN administrator can advise you of the IP
Address they assigned to the Wireless ADSL Router.

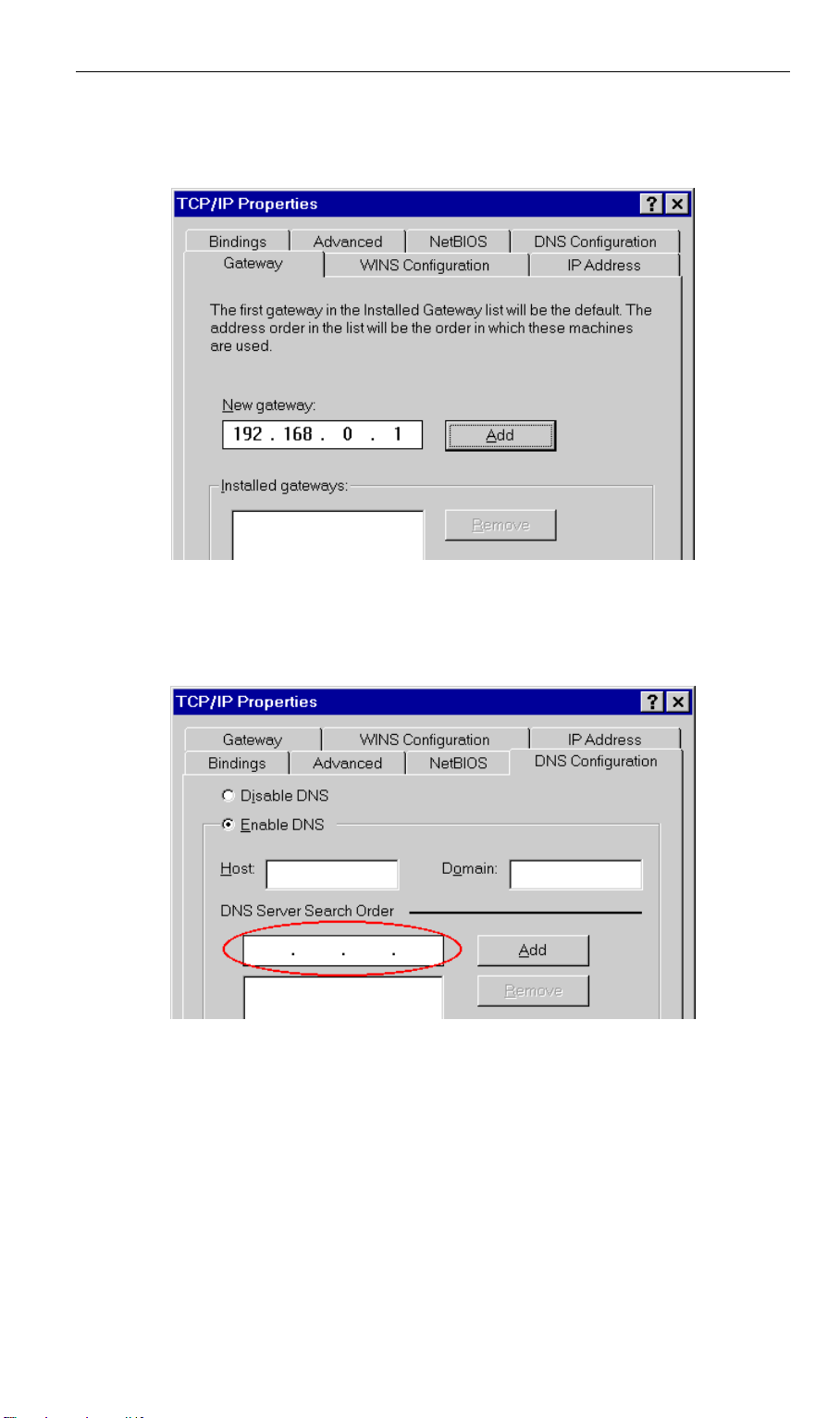

Figure 22: Gateway Tab (Win 95/98)

 On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search

Order list is empty, enter the DNS address provided by your ISP in the fields beside the
Add button, then click Add.

Figure 23: DNS Tab (Win 95/98)

32

PC Configuration

Checking TCP/IP Settings - Windows NT4.0

1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as

shown below.

Figure 24: Windows NT4.0 - TCP/IP

2. Click the Properties button to see a screen like the one below.

33

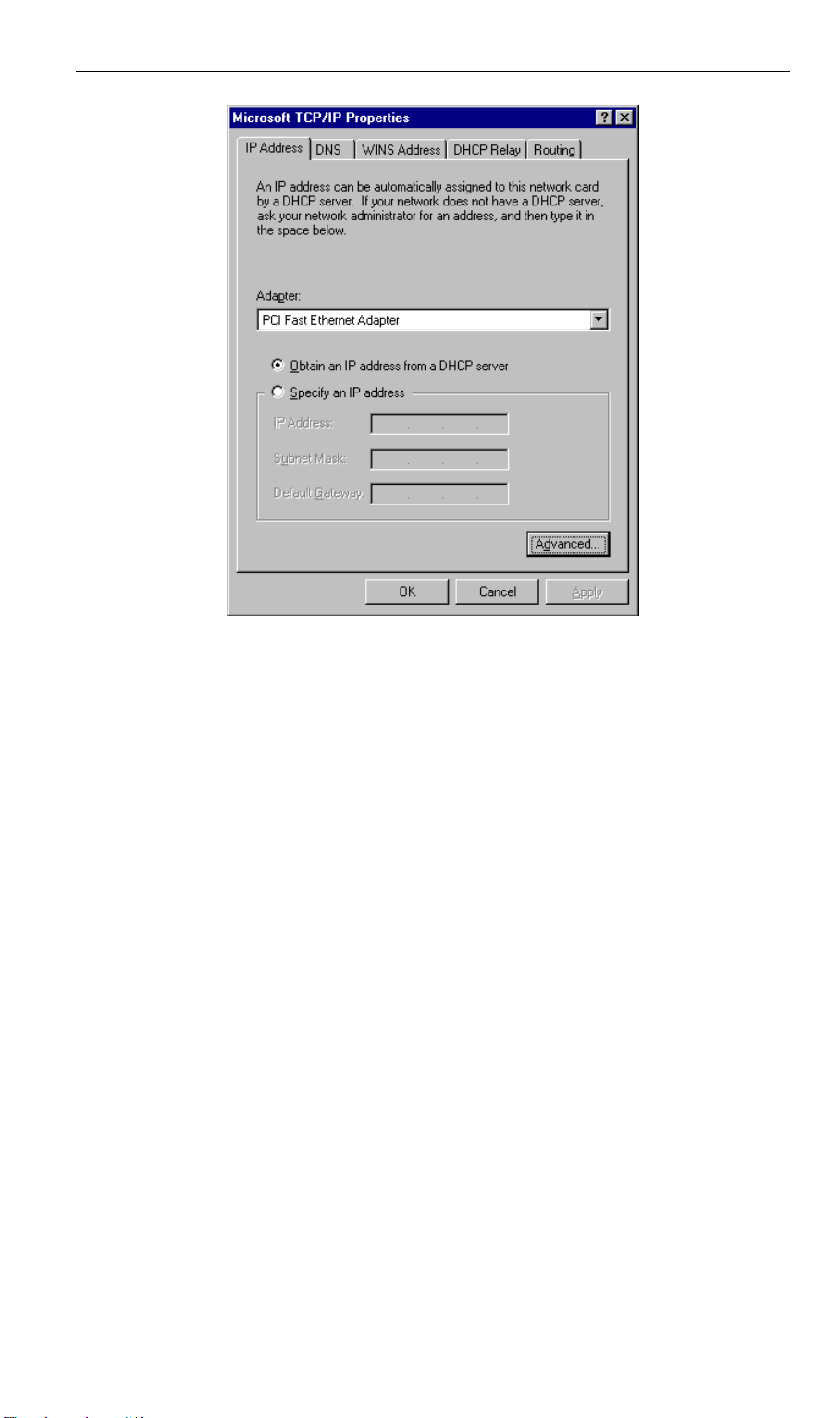

Figure 25: Windows NT4.0 - IP Address

3. Select the network card for your LAN.

4. Select the appropriate radio button - Obtain an IP address from a DHCP Server or Specify

an IP Address, as explained below.

Obtain an IP address from a DHCP Server

This is the default Windows setting. Using this is recommended. By default, the Wireless
ADSL Router will act as a DHCP Server.

Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.

Specify an IP Address

If your PC is already configured, check with your network administrator before making the
following changes.

1. The Default Gateway must be set to the IP address of the Wireless ADSL Router. To set

this:

 Click the Advanced button on the screen above.
 On the following screen, click the Add button in the Gateways panel, and enter the

Wireless ADSL Router's IP address, as shown in Figure 26 below.

 If necessary, use the Up button to make the Wireless ADSL Router the first entry in

the Gateways list.

34

PC Configuration

Figure 26 - Windows NT4.0 - Add Gateway

2. The DNS should be set to the address provided by your ISP, as follows:

 Click the DNS tab.
 On the DNS screen, shown below, click the Add button (under DNS Service Search

Order), and enter the DNS provided by your ISP.

Figure 27: Windows NT4.0 - DNS

35

Checking TCP/IP Settings - Windows 2000:

1. Select Control Panel - Network and Dial-up Connection.

2. Right - click the Local Area Connection icon and select Properties. You should see a

screen like the following:

Figure 28: Network Configuration (Win 2000)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.

Figure 29: TCP/IP Properties (Win 2000)

36

PC Configuration

5. Ensure your TCP/IP settings are correct, as described below.

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.

Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.

Using a fixed IP Address ("Use the following IP Address")

If your PC is already configured, check with your network administrator before making the
following changes.

 Enter the Wireless ADSL Router's IP address in the Default gateway field and click OK.

(Your LAN administrator can advise you of the IP Address they assigned to the Wireless
ADSL Router.)

 If the DNS Server fields are empty, select Use the following DNS server addresses, and

enter the DNS address or addresses provided by your ISP, then click OK.

37

Checking TCP/IP Settings - Windows XP

1. Select Control Panel - Network Connection.

2. Right click the Local Area Connection and choose Properties. You should see a screen

like the following:

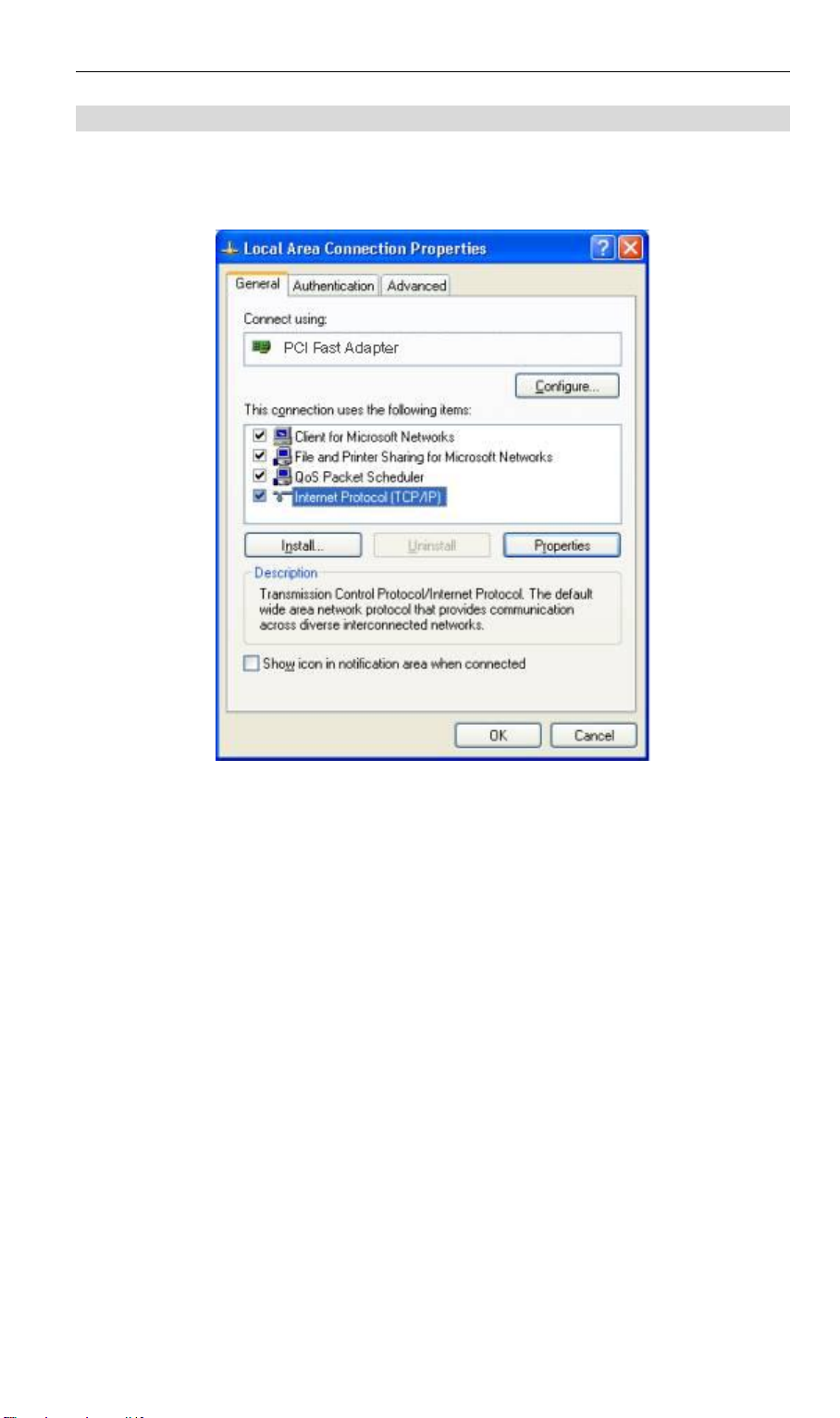

Figure 30: Network Configuration (Windows XP)

3. Select the TCP/IP protocol for your network card.

4. Click on the Properties button. You should then see a screen like the following.

38

PC Configuration

Figure 31: TCP/IP Properties (Windows XP)

5. Ensure your TCP/IP settings are correct.

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the Wireless ADSL Router will act
as a DHCP Server.

Restart your PC to ensure it obtains an IP Address from the Wireless ADSL Router.

Using a fixed IP Address ("Use the following IP Address")

If your PC is already configured, check with your network administrator before making the
following changes.

 In the Default gateway field, enter the Wireless ADSL Router's IP address and click OK.

Your LAN administrator can advise you of the IP Address they assigned to the Wireless
ADSL Router.

 If the DNS Server fields are empty, select Use the following DNS server addresses, and

enter the DNS address or addresses provided by your ISP, then click OK.

39

Internet Access

To configure your PCs to use the Wireless ADSL Router for Internet access:

 Ensure that the DSL modem, Cable modem, or other permanent connection is functional.
 Use the following procedure to configure your Browser to access the Internet via the LAN,

rather than by a Dial-up connection.

For Windows 9x/ME/2000

1. Select Start Menu - Settings - Control Panel - Internet Options.

2. Select the Connection tab, and click the Setup button.

3. Select "I want to set up my Internet connection manually, or I want to connect through a

local area network (LAN)" and click Next.

4. Select "I connect through a local area network (LAN)" and click Next.

5. Ensure all of the boxes on the following Local area network Internet Configuration screen

are unchecked.

6. Check the "No" option when prompted "Do you want to set up an Internet mail account

now?".

7. Click Finish to close the Internet Connection Wizard.

Setup is now completed.

For Windows XP

1. Select Start Menu - Control Panel - Network and Internet Connections.

2. Select Set up or change your Internet Connection.

3. Select the Connection tab, and click the Setup button.

4. Cancel the pop-up "Location Information" screen.

5. Click Next on the "New Connection Wizard" screen.

6. Select "Connect to the Internet" and click Next.

7. Select "Set up my connection manually" and click Next.

8. Check "Connect using a broadband connection that is always on" and click Next.

9. Click Finish to close the New Connection Wizard.

Setup is now completed.

Accessing AOL

To access AOL (America On Line) through the Wireless ADSL Router, the AOL for Windows
software must be configured to use TCP/IP network access, rather than a dial-up connection.
The configuration process is as follows:

 Start the AOL for Windows communication software. Ensure that it is Version 2.5, 3.0 or

later. This procedure will not work with earlier versions.

 Click the Setup button.
 Select Create Location, and change the location name from "New Locality" to "Wireless

ADSL Router".

 Click Edit Location. Select TCP/IP for the Network field. (Leave the Phone Number blank.)
 Click Save, then OK.

Configuration is now complete.

 Before clicking "Sign On", always ensure that you are using the "Wireless ADSL Router"

location.

40

PC Configuration

Macintosh Clients

From your Macintosh, you can access the Internet via the Wireless ADSL Router. The proce­dure is as follows.

1. Open the TCP/IP Control Panel.

2. Select Ethernet from the Connect via pop-up menu.

3. Select Using DHCP Server from the Configure pop-up menu. The DHCP Client ID field

can be left blank.

4. Close the TCP/IP panel, saving your settings.

Note:

If using manually assigned IP addresses instead of DHCP, the required changes are:

 Set the Router Address field to the Wireless ADSL Router's IP Address.
 Ensure your DNS settings are correct.

Linux Clients

To access the Internet via the Wireless ADSL Router, it is only necessary to set the Wireless
ADSL Router as the "Gateway".

Ensure you are logged in as "root" before attempting any changes.

Fixed IP Address

By default, most Unix installations use a fixed IP Address. If you wish to continue using a fixed
IP Address, make the following changes to your configuration.

 Set your "Default Gateway" to the IP Address of the Wireless ADSL Router.
 Ensure your DNS (Name server) settings are correct.

To act as a DHCP Client (recommended)

The procedure below may vary according to your version of Linux and X -windows shell.

1. Start your X Windows client.

2. Select Control Panel - Network

3. Select the "Interface" entry for your Network card. Normally, this will be called "eth0".

4. Click the Edit button, set the "protocol" to "DHCP", and save this data.

5. To apply your changes

 Use the "Deactivate" and "Activate" buttons, if available.
 OR, restart your system.

Other Unix Systems

To access the Internet via the Wireless ADSL Router:
 Ensure the "Gateway" field for your network card is set to the IP Address of the Wireless

ADSL Router.

 Ensure your DNS (Name Server) settings are correct.

41

Mode

The mode must be set to Infrastructure (rather than Ad-hoc)
Access points only operate in Infrastructure mode.

SSID (ESSID)

This must match the value used on the Wireless ADSL Router. The
default value is Admin.

Note! The SSID is case sensitive.

Wireless
Security

By default, Wireless security on the Wireless ADSL Router is disabled.
 If Wireless security remains disabled on the Wireless ADSL Router,

all stations must have wireless security disabled.

 If Wireless security is enabled on the Wireless Router, each station

must use the same settings as the Wireless ADLS Router.

Wireless Station Configuration

This section applies to all Wireless stations wishing to use the Wireless ADSL Router's Access
Point, regardless of the operating system which is used on the client.

To use the Wireless Access Point in the Wireless ADSL Router, each Wireless Station must
have compatible settings, as follows:

Wireless Configuration on Windows XP

If using Windows XP to configure the Wireless interface on your PC, the configuration proce­dure is as follows:

1. Open the Network Connections folder. (Start - Settings - Network Connections).

Figure 32: Network Connections (Windows XP)

2. Right-click the Wireless Network Connection, check that it is enabled (menu option says

Disable, rather than Enable) and then select View Available Wireless Networks.

3. You will then see a list of wireless networks.

42

PC Configuration

If the "Broadcast SSID" setting on the Wireless ADSL
Router has been disabled, its SSID will NOT be listed.
See the following section "If the SSID is not listed" for
details of dealing with this situation.

Figure 33 Wireless Networks (Windows XP)

4. The next step depends on whether or not Wireless security has been enabled on the Wire-

less ADSL Router.

If Wireless Security is Disabled

If Wireless security on the Wireless ADSL Router is disabled, Windows will warn you that the
Wireless network is not secure.

Figure 34: Insecure Wireless Network (Windows XP)

43

To connect:

 Check the checkbox Allow me to connect to the selected wireless network, even though it

is not secure.

 The Connect button will then be available. Click the Connect button, and wait a few

seconds for the connection to be established.

If using WEP Data Encryption

If WEP data encryption has been enabled on the Wireless ADSL Router, Windows will detect
this, and show a screen like the following.

Figure 35: WEP (Windows XP)

To connect:

 Enter the WEP key, as set on the Wireless ADSL Router, in the Network Key field.
 Re-enter the WEP key into the Confirm Network key field.
 Disable the checkbox Enable IEEE 802.1x authentication for this network.
 Click the Connect button.

If this fails, click the Advanced button, to see a screen like the following:

44

PC Configuration

Figure 36: Advanced - Wireless Networks

Select the SSID for the Wireless ADSL Router, and click Configure, to see a screen like the
following:

Figure 37: Wireless Network Properties - WEP

Configure this screen as follows:

 Set Network Authentication to match the Wireless ADSL Router. (If the setting on the

Wireless ADSL Router is "Auto", then either Open or Shared can be used.)

 For Data Encryption, select WEP.

45

 For the Network key and Confirm network key, enter the default key value used on the

Wireless ADSL Router. (Windows will determine if 64bit or 128bit encryption is used.)

 The Key index must match the default key index on the Wireless ADSL Router. The

default value is 1.

 Ensure the options The key is provided for me automatically and This is a computer-to-

computer (ad hoc) network are unchecked.

 Click OK to save and close this dialog.
 This wireless network will now be listed in Preferred Networks on the screen below.

Figure 38: Preferred Networks

Click OK to establish a connection to the Wireless ADSL Router.

46

PC Configuration

If using WPA-PSK Data Encryption

If WPA-PSK data encryption has been enabled on the Wireless ADSL Router, it does not
matter which network is selected on the screen below. Just click the Advanced button.

Figure 39: Wireless Networks (Windows XP)

You will then see a screen like the example below.

Figure 40: Advanced - Wireless Networks

Select the SSID for the Wireless ADSL Router, and click Configure, to see a screen like the
following:

47

Figure 41: Wireless Network Properties- WPA-PSK

Configure this screen as follows:

 Set Network Authentication to WPA-PSK.
 For Data Encryption, select TKIP.
 For the Network key and Confirm network key, enter the network key (PSK) used on the

Wireless ADSL Router.

 Ensure the option This is a computer-to-computer (ad hoc) network is unchecked.
 Click OK to save and close this dialog.
 This wireless network will now be listed in Preferred Networks on the screen below.

48

PC Configuration

Figure 42: Preferred Networks

Click OK to establish a connection to the Wireless ADSL Router.

If the SSID is not listed

If the "Broadcast SSID" setting on the Wireless ADSL Router has been disabled, its SSID will
NOT be listed on the screen below.

Figure 43: Wireless Networks (Windows XP)

In this situation, you need to obtain the SSID from your network administrator, then follow this
procedure:

49

1. Click the Advanced button to see a screen like the example below.

Figure 44: Unlisted Wireless Network

2. Click the Add button. You will see a screen like the example below.

Figure 45: Add Wireless Network

3. Configure this screen as follows:
 Enter the correct SSID, as used on the Wireless ADSL Router. Remember the SSID is

case-sensitive, so be sure to match the case, not just the spelling.

 Set Network Authentication and Data Encryption to match the Wireless ADSL Router.

50

PC Configuration

 If using data encryption (WEP or WPA-PSK), enter the key used on the Wireless

ADSL Router. See the preceding sections for details of WEP and WPA-PSK.

 Uncheck the options The key is provided for me automatically and This is a computer-

to-computer (ad hoc) network.

 Click OK to save and exit.

4. This wireless network will then be listed in Preferred Networks on the screen below.

Figure 46: Preferred Networks

5. Click OK to establish a connection to the Wireless ADSL Router.

51

ADSL

Modem Status

This indicates the status of the ADSL modem component.

DownStream
Connection Speed

Displays the speed for the DownStream Connection.

UpStream Connection
Speed

If connected, displays the speed for the Up Stream (upload)
ADSL Connection.

Internet

Connection Method

Displays the current connection method, as set in the Setup
Wizard.

Connection Status

This indicates the current status of the Internet Connection

5

Chapter 5

Operation and Status

This Chapter details the operation of the Wireless ADSL Router and the status
screens. For Details of operation in Bridge (Modem) mode, see Chapter 8 ­Modem Mode.

Operation - Router Mode

Once both the Wireless ADSL Router and the PCs are configured, operation is automatic.

However, there are some situations where additional Internet configuration may be required.
Refer to Chapter 6 - Advanced Features for further details.

Status Screen

Use the Status link on the main menu to view this screen.

Figure 47: Status Screen

Data - Status Screen

52

Operation and Status

 Active - Connection exists
 Idle - No current connection, but no error has been detected.

This condition normally arises when an idle connection is au­tomatically terminated.

 Failed - The connection was terminated abnormally. This

could be caused by Modem failure, or the loss of the connec­tion to the ISP's server.

If there is an error, you can click the "Connection Details" button
to find out more information.

Internet IP Address

This IP Address is allocated by the ISP (Internet Service Provid­er). If using a dynamic IP address, and no connection currently
exists, this information is unavailable.

WAN MAC Address

It displays the MAC address for the WAN.

Connection Details

Click this button to open a sub-window and view a detailed
description of the current connection. Depending on the type of
connection, a "log" may also be available.

LAN

IP Address

The IP Address of the Wireless ADSL Router.

Network Mask

The Network Mask (Subnet Mask) for the IP Address above.

DHCP Server

This shows the status of the DHCP Server function. The value
will be "Enabled" or "Disabled".

MAC Address

This shows the MAC Address for the Wireless ADSL Router, as
seen on the LAN interface.

Wireless

SSID 1

It displays the name of the SSID 1.

MAC Address

It displays the MAC address of the SSID 1.

SSID 2

It displays the name of the SSID 2.

MAC Address

It displays the MAC address of the SSID 2.

Region

The current region, as set on the Wireless screen.

Channel

This shows the Channel currently used, as set on the Wireless
screen.

Wireless AP

This indicates whether or not the Wireless Access Point feature is
enabled.

Broadcast Name

This indicates whether or not the SSID is Broadcast. This setting
is on the Wireless screen.

System

Device Name

The current name of the Router. This name is also the "hostname"
for users with an "@Home" type connection.

Firmware Version

The version of the current firmware installed.

Buttons

Connection Details

Click this button to open a sub-window and view a detailed

53

description of the current connection.

Attached Devices

This will open a sub-window, showing all LAN and Wireless
devices currently on the network.

Refresh Screen

Update the data displayed on screen.

54

Operation and Status

Connection Time

This indicates how long the current connection has been estab­lished.

PPPoE Link Status

This indicates whether or not the connection is currently estab­lished.

 If the connection does not exist, the "Connect" button can be

used to establish a connection.

 If the connection currently exists, the "Disconnect" button

can be used to break the connection.

Negotiation

This indicates the status of the PPPoE Server login.

IP Address

The IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).

Network Mask

The Network Mask associated with the IP Address above.

Buttons

Connect

If not connected, establish a connection to your ISP.

Disconnect

If connected to your ISP, hang up the connection.

Close

Close this window.

Connection Status - PPPoE & PPPoA

If using PPPoE (PPP over Ethernet) or PPPoA (PPP over ATM), a screen like the following
example will be displayed when the "Connection Details" button is clicked.

Figure 48: PPPoE Status Screen

Data - PPPoE/PPPoA Screen

55

Internet

IP Address

The current IP Address of this device, as seen by Internet users. This
address is allocated by your ISP (Internet Service Provider).

Network Mask

The Network Mask associated with the IP Address above.

Default Gateway

The IP address of the remote Gateway or Router associated with the
IP Address above.

DHCP Server

The IP address of your ISP's DHCP Server.

DNS Server

The IP address of the Domain Name Server which is currently used.

Lease Obtained
Lease Expires

This indicates when the current IP address was obtained, and how
long before this IP address allocation (the DCHP lease) expires.

Buttons

Release

If an IP Address has been allocated to the Wireless ADSL Router (by
the ISP's DHCP Server, clicking the "Release" button will break the
connection and release the IP Address.

Renew

If the ISP's DHCP Server has NOT allocated an IP Address for the
Wireless ADSL Router, clicking the "Renew" button will attempt to
re-establish the connection and obtain an IP Address from the ISP's
DHCP Server.

Close

Close this window.

Connection Details - Dynamic IP Address

If your access method is "Direct" (no login), with a Dynamic IP address, a screen like the
following example will be displayed when the "Connection Details" button is clicked.

Figure 49: Connection Details - Fixed/Dynamic IP Address

Data - Dynamic IP address

56

Operation and Status

Internet

IP Address

The IP Address of this device, as seen by Internet users. This address
is allocated by your ISP (Internet Service Provider).

Network Mask

The Network Mask associated with the IP Address above.

Default Gateway

The IP Address of the remote Gateway or Router associated with the
IP Address above.

DNS Server

The IP Address of the Domain Name Server which is currently used.

Connection Details - Fixed IP Address

If your access method is "Direct" (no login), with a fixed IP address, a screen like the following
example will be displayed when the "Connection Details" button is clicked.

Figure 50: Connection Details - Fixed/Dynamic IP Address

Data - Fixed IP address Screen

57

6

Chapter 6

Advanced Features

This Chapter explains when and how to use the Wireless ADSL Router's "Ad­vanced" Features.

Overview

The following advanced features are provided:

 Internet:

 DMZ
 URL filter

 Access Control
 Dynamic DNS
 Options
 Schedule
 Port Trigger
 Port Forward
 Port Range Forward
 QoS

Internet

This screen provides access to the DMZ and URL Filter features.

Figure 51: Internet Screen

DMZ

This feature, if enabled, allows the DMZ computer on your LAN to be exposed to all users on
the Internet.

 This allows almost any application to be used on the "DMZ PC".
 The "DMZ PC" will receive all "Unknown" connections and data.
 If the DMZ feature is enabled, you must enter the IP address of the PC to be used as the

"DMZ PC".

58

Advanced Features

The "DMZ PC" is effectively outside the Firewall, mak­ing it more vulnerable to attacks. For this reason, you
should only enable the DMZ feature when required.

Current Filter Strings

Current Filter
Strings

The list contains the current list of items to block.

 To add to the list, use the "Add" option below.
 To delete an entry, select it and click Delete button.
 To delete all entries, click the Delete All button.

URL Filter

If you want to limit access to certain sites on the Internet, you can use this feature. The URL
filter will check each Web site access. If the address, or part of the address, is included in the
block site list, access will be denied.

On the Advanced Internet screen, select the desired setting:

 Disable - disable this feature.
 Block Always - allow blocking all of the time, independent of the Schedule page.
 Block By Schedule - block according to the settings on the Schedule page.

Click the Configure URL Filter button to open the URL Filter screen, allowing you to create
or modify the filter strings which determine which sites will be blocked.

The URL Filter screen is displayed when the Configure URL Filter button on the Internet
screen is clicked.

Figure 52: URL Filter Screen

Data - URL Filter Screen

59

Add Filter String

To add to the current list, type the word or domain name you want to
block into the field provided, then click the Add button.

Filter strings should be as specific as possible. Otherwise, you may
block access to many more sites than intended.

Trusted PC

Allow this PC..

Enable this to allow one computer to have unrestricted access to the
Internet. For this PC, the URL filter will be ignored.

If enabled, you must select the PC to be the trusted PC.

Trusted PC

Select the PC to be the Trusted PC.

60

Advanced Features

Restrictions are imposed by blocking "Services", or types of
connections. All common Services are pre-defined.
If required, you can also define your own Services.

Internet Access

Access Control

Select the desired options for the current group:
 Disable - Nothing is blocked. Use this to create the least

restrictive group.

 Block all Internet access - All traffic via the WAN port is

blocked. Use this to create the most restrictive group.

 Block selected Services - You can select which Services are to

block. Use this to gain fine control over the Internet access for
a group.

Access Control

This feature is accessed by the Access Control link on the Advanced menu.

Overview

The Access Control feature allows administrators to restrict the level of Internet Access availa­ble to PCs on your LAN. With the default settings, everyone has unrestricted Internet access.

Access Control Screen

To view this screen, select the Access Control link on the Advanced menu.

Figure 53: Access Control Screen

Data - Access Control Screen

61

Blocked Services

This lists all defined Services. Select the Services you wish to
block. To select multiple services, hold the CTRL key while select­ing. (On the Macintosh, hold the SHIFT key rather than CTRL.)

Schedule

If Internet access is being blocked, you can choose to apply the
blocking only during scheduled times. (If access is not blocked, no
Scheduling is possible, and this setting has no effect.)

Trusted PCs

Click to Enable
Trusted PC

If enabled, restrictions set on this screen do not apply to Trusted
PCs.

"Set Trusted PCs"
Button

Click this button to add or remove PCs of the Trusted PCs.
See the following section for details of the Trusted PCs screen.

Trusted PC Screen

This screen is displayed when the Set Trusted PCs button on the Access Control screen is
clicked.

Figure 54: Trusted PC

Use this screen to add or remove PCs from the current group.
 The "Del >>" button will remove the selected PC (in the Trusted PCs list) from the current

group.

 The "<< Add" button will add the selected PC (in the Other PCs list) to the Trusted PCs

group.

62

Advanced Features

DDNS Service

Use a Dynamic
DNS Service

Use this to enable or disable the DDNS feature as required.

Service Provider

Select the desired DDNS Service provider.

Web Site

Click this button to open a new window and connect to the Web site
of the selected DDNS service provider.

Dynamic DNS (Domain Name Server)

This free service is very useful when combined with the Virtual Server feature. It allows Inter­net users to connect to your Virtual Servers using a URL, rather than an IP Address.

This also solves the problem of having a dynamic IP address. With a dynamic IP address, your
IP address may change whenever you connect, which makes it difficult to connect to you.

DDNS Services work as follows:

1. You must register for the service at one of the listed DDNS Service providers.

2. After registration, use the Service provider's normal procedure to obtain your desired
Domain name.

3. Enter your DDNS data on the Wireless ADSL Router's DDNS screen, and enable the
DDNS feature.

4. The Wireless ADSL Router will then automatically ensure that your current IP Address is
recorded at the DDNS service provider's Domain Name Server.

5. From the Internet, users will be able to connect to your Virtual Servers (or DMZ PC) using
your Domain name, as shown on this screen.

Dynamic DNS Screen

Select Advanced on the main menu, then Dynamic DNS, to see a screen like the following:

Figure 55: DDNS Screen

Data - Dynamic DNS Screen

63

DDNS Data

Host Name

Enter the domain name allocated to you by the DDNS Service. If you
have more than one name, enter the name you wish to use.

User Name

Enter your Username for the DDNS Service. (TZO.com uses your E­mail address.)

Password

Enter your current password for the DDNS Service. (TZO.com calls
this a key.)

DDNS Status

 This message is returned by the DDNS Server.
 Normally, this message should be "Update successful"
 If the message indicates some problem, you need to connect to

the DDNS Service provider and correct this problem.

64

Advanced Features

Internet

Respond to Ping

 If checked, the Wireless Router will respond to Ping (ICMP)

packets received from the Internet.

 If not checked, Ping (ICMP) packets from the Internet will be

ignored. Disabling this option provides a slight increase in securi­ty.

MTU Size

Enter a value between 600 and 1500.
Note: MTU (Maximum Transmission Unit) size should only be

changed if advised to do so by Technical Support.

UPnP

UPnP

 UPnP (Universal Plug and Play) allows automatic discovery and

configuration of equipment attached to your LAN. UPnP is by
supported Windows ME, XP, or later.

 If Enabled, this device will be visible via UPnP.
 If Disabled, this device will not be visible via UPnP.

Advertisement
Period

Enter the desired value, in minutes. The valid range is from 1 to 1440.

Advertisement
Time to Live

Enter the desired value, in hops. The valid range is from 1 to 255.

Options

This screen allows advanced users to enter or change a number of settings. For normal opera­tion, there is no need to use this screen or change any settings.

An example Options screen is shown below.

Data - Options Screen

Figure 56: Options Screen

65

Schedule

Day

Each day of the week can scheduled independently.

Session 1
Session 2

Two (2) separate sessions or periods can be defined. Session 2 can
be left blank if not required.

Start

Enter the start using a 24 hr clock.

Finish

Enter the finish time using a 24 hr clock.

Local Time

Time Zone

In order to display your local time correctly, you must select your
"Time Zone" from the list.

Adjust for Daylight
Savings Time

If your region uses Daylight Savings Time, you must manually check
"Adjust for Daylight Savings Time" at the beginning of the adjust­ment period, and uncheck it at the end of the Daylight Savings
period.

Use this NTP
Server

If you prefer to use a particular NTP server as the primary NTP
server, check the checkbox "Use this NTP Server" and enter the
Server's IP address in the fields provided.

If this setting is not enabled, the default NTP Servers are used.

Current Time

This displays the current time on the Wireless ADSL Router, at the
time the page is loaded.

Schedule

This Schedule can be used for the Firewall Rules and the URL filter.

Figure 57: Schedule Screen

Data - Schedule Screen

66

Advanced Features

Port Trigger

Enable

Use this to Enable or Disable this Special Application as required.

Name

Enter a descriptive name to identify this Special Application.

Outgoing
Ports

 Type - Select the protocol (TCP or UDP) used when you send

data to the remote system or service.

 Start - Enter the beginning of the range of port numbers used

by the application server, for data you send to it. If the applica­tion uses a single port number, enter it in both the "Start" and
"Finish" fields.

 Finish - Enter the end of the range of port numbers used by the

application server, for data you send to it. If the application
uses a single port number, enter it in both the "Start" and
"Finish" fields.

Port Trigger

If you use Internet applications which use non-standard connections or port numbers, you may
find that they do not function correctly because they are blocked by the Wireless ADSL Rou­ter's firewall. In this case, you can define the application as a "Port Trigger".

The Port Trigger screen can be reached by clicking the Port Trigger on the screen.
You can then define your Port Trigger. You will need detailed information about the applica-

tion; this is normally available from the supplier of the application.
Also, note that the terms "Incoming" and "Outgoing" on this screen refer to traffic from the

client (PC) viewpoint

Figure 58: Port Trigger Screen

Data - Port Trigger Screen

67

Incoming
Ports

 Type - Select the protocol (TCP or UDP) used when you

receive data from the special application or service. (Note:
Some applications use different protocols for outgoing and in­coming data).

 Start - Enter the beginning of the range of port numbers used

by the application server, for data you receive. If the applica­tion uses a single port number, enter it in both the "Start" and
"Finish" fields.

 Finish - Enter the end of the range of port numbers used by the

application server, for data you receive.

68

Advanced Features

Port Forwarding

Application

Enter the desired application type.

External Port

Traffic from the Internet using this port number will be sent to the
Server. This is normally the same as the Internal Port Number. If it
is different, this device will perform a "mapping" or "translation"
function, allowing the server to use a different port to the clients.

Internal Port

Enter the port numbers which the Server software is configured to
use.

Protocol

Select the protocol (TCP or UDP) used by the Server.

IP Address

Enter the desired IP address.

Enabled

Use this to Enable or Disable support for this Server, as required.

Port Forward

This feature allows you to make Servers on your LAN accessible to Internet users. Normally,
Internet users would not be able to access a server on your LAN because:

 Your Server does not have a valid external IP Address.
 Attempts to connect to devices on your LAN are blocked by the firewall in this device.

Figure 59: Single Port Forwarding Screen

Data - Single Port Forwarding Screen

69

Port Range Forwarding

Application

Enter the desired application type.

Start

Enter the beginning of the range of port numbers used by the
application server.

End

Enter the end of the range of port numbers used by the application
server.

Protocol

Select the protocol (TCP, UDP or Both) used by the Server.

IP Address

Enter the desired IP address.

Enable

Use this to Enable or Disable support for this Server, as required.

Port Range Forward

This feature allows you to make Servers on your LAN accessible to Internet users. Normally,
Internet users would not be able to access a server on your LAN because:

Figure 60: Port Range Forwarding Screen

Data - Port Range Forwarding Screen

70

Advanced Features

QoS Setting

QoS Setting

To disable QoS (Quality of Service), keep the default setting, Disable.
To enable QoS (Quality of Service), click Enable and follow these
instructions.

WAN Setting

Downlink

Enter the desired value for the DownStream Connection.

Uplink

Enter the desired value for the UpStream Connection.

Get from WAN

Click this button to get the values for DownStream and UpStream from
WAN.

QoS

The QoS (Quality of Service) feature allows you specify priorities for different traffic. Lower
priority traffic will be slowed down to allow greater throughput or less delay for high priority
traffic.

An example QoS screen is shown below.

Figure 61: QoS Screen

Data - QoS Screen

71

Category

 Normal-Applications:

 Add a New Application (Once selected, please complete the

following setups.)

 Ip/Net: Enter the IP addresses.
 Outbound Rate: Enter the desired rate value.
 Inbound Rate: Enter the desired rate value.
 Priority: Select the desired option (High, Normal, Low)

 Self-Define

 Name. Enter a name for your device.
 Port Range: Enter the values for the desired port range.
 Protocol: Select the desired option.
 Ip/Net: Enter the IP addresses of your device.
 Outbound Rate: Enter the desired rate value.
 Inbound Rate: Enter the desired rate value.
 Priority: Select the option (High, Normal, Low) from the list.

 Special-Applications:

 Add a New Application (Once selected, please complete the

following setups.)

 Ip/Net: Enter the IP addresses.
 Outbound Rate: Enter the desired rate value.
 Inbound Rate: Enter the desired rate value.
 Priority: Select the desired option (High, Normal, Low)

Summary

Priority

The priority of the application.

Name

The Name of this Application or IP Address.

Information

The general Information of this Application or IP Address.

72

PC Database

This is the list of PCs shown when you select the "DMZ PC" or a
"Virtual Server". This database is maintained automatically, but
you can add and delete entries for PCs which use a Fixed (Static)
IP Address.

Config File

Backup or restore the configuration file for the Wireless ADSL
Router. This file contains all the configuration data.

Logs & Email

View or clear all logs, set E-Mailing of log files and alerts.

Diagnostics

Perform a Ping or DNS Lookup.

Remote Admin

Allow settings to be changed from the Internet.

Routing

Only required if your LAN has other Routers or Gateways.

Upgrade Firmware

Upgrade the Firmware (software) installed in your Wireless
ADSL Router.

7

Chapter 7

Advanced Administration

This Chapter explains the settings available via the "Administration" section
of the menu.

Overview

Normally, it is not necessary to use these screens, or change any settings. These screens and
settings are provided to deal with non-standard situations, or to provide additional options for
advanced users.

The available settings and features are:

73

PC Database

The PC Database is used whenever you need to select a PC (e.g. for the "DMZ" PC).

 It eliminates the need to enter IP addresses.
 Also, you do not need to use fixed IP addresses on your LAN.

However, if you do use a fixed IP address on some devices on your LAN, you should enter
details of each such device into the PC database, using the PC Database screen.

PC Database Screen

An example PC Database screen is shown below.

Figure 62: PC Database

 PCs which are "DHCP Clients" are automatically added to the database, and updated as

required.

 By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called

"Obtain an IP Address automatically".

 The Wireless ADSL Router uses the "Hardware Address" to identify each PC, not the

name or IP address. The "Hardware Address" can only change if you change the PC's net­work card or adapter.

 This system means you do NOT need to use Fixed (static) IP addresses on your LAN.

However, you can add PCs using Fixed (static) IP Addresses to the PC database if required.

74

Advanced Administration

Known PCs

This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.

Buttons

Refresh

Update the data on screen.

Advanced
Administration

View the Advanced version of the PC database screen - PC Database
(Admin). See below for details.

Data - PC Database Screen

75

Known PCs

This lists all current entries. Data displayed is name (IP Address) type.
The "type" indicates whether the PC is connected to the LAN.

PC Properties

Name

If adding a new PC to the list, enter its name here. It is best if this
matches the PC's "hostname".

IP Address

Select the appropriate option:
 Automatic - The PC is set to be a DHCP client (Windows: "Ob-

tain an IP address automatically"). The Wireless ADSL Router will
allocate an IP address to this PC when requested to do so. The IP
address could change, but normally won't.

 DCHP Client - Reserved IP Address - Select this if the PC is set

to be a DCHP client, and you wish to guarantee that the Wireless
ADSL Router will always allocate the same IP Address to this PC.
Enter the required IP address.

 Fixed IP Address - Select this if the PC is using a Fixed (Static)

IP address. Enter the IP address allocated to the PC. (The PC itself
must be configured to use this IP address.)

PC Database - Advanced

This screen is displayed if the "Advanced Administration" button on the PC Database is
clicked. It provides more control than the standard PC Database screen.

Figure 63: PC Database (Admin)

Data - Advanced PC Database

76

Advanced Administration

MAC Address

Select the appropriate option
 Automatic discovery - Select this to have the Wireless ADSL

Router contact the PC and find its MAC address. This is only poss­ible if the PC is connected to the LAN and powered On.

 MAC address is - Enter the MAC address on the PC. The MAC

address is also called the "Hardware Address", "Physical Address",
or "Network Adapter Address". The Wireless ADSL Router uses
this to provide a unique identifier for each PC. Because of this, the
MAC address can NOT be left blank.

Buttons

Add as New
Entry

Add a new PC to the list, using the data in the "Properties" box.
If "Automatic discovery" (for MAC address) is selected, the PC will be
sent a "ping" to determine its hardware address. This will fail unless the
PC is connected to the LAN, and powered on.

Update Selected
PC

Update (modify) the selected PC, using the data in the "Properties"
box.

Clear Form

Clear the "Properties" box, ready for entering data for a new PC.

Refresh

Update the data on screen.

Standard Screen

Click this to view the standard PC Database screen.

77

Backup Config

Use this to download a copy of the current configuration, and store the
file on your PC. Click Backup to start the download.

Restore Config

This allows you to restore a previously-saved configuration file back to
the Wireless ADSL Router.

Click Browse to select the configuration file, then click Restore to
upload the configuration file.

WARNING!
Uploading a configuration file will destroy (overwrite) ALL of the

existing settings.

Default Config

Clicking the Factory Defaults button will reset the Wireless ADSL
Router to its factory default settings.

WARNING!
This will delete ALL of the existing settings.

Config File

This feature allows you to download the current settings from the Wireless ADSL Router, and
save them to a file on your PC.

You can restore a previously-downloaded configuration file to the Wireless ADSL Router, by
uploading it to the Wireless ADSL Router.

This screen also allows you to set the Wireless ADSL Router back to its factory default confi­guration. Any existing settings will be deleted.

An example Config File screen is shown below.

Figure 64: Config File Screen

Data - Config File Screen

78

Advanced Administration

Logs

Current Time

The current time on the Wireless ADSL Router is displayed.

Log Data

Current log data is displayed in this panel.

Buttons

There are three (3) buttons

 Refresh - Update the log data.
 Clear Log - Clear the log, and restart it. This makes new

messages easier to read.

 Send Log - E-mail the log immediately. This is only func-

tional if the E-mail screen has been configured.

Logs

The Logs record various types of activity on the Wireless ADSL Router. This data is useful for
troubleshooting, but enabling all logs will generate a large amount of data and adversely affect
performance.

Since only a limited amount of log data can be stored in the Wireless ADSL Router, log data
can also be E-mailed to your PC. Use the E-mail screen to configure this feature.

Data - Logs Screen

Figure 65: Logs Screen

79

Logs

Include (Checkboxes)

Use these checkboxes to determine which events are included in
the log. Checking all options will increase the size of the log, so it
is good practice to disable any events which are not really re­quired.

 Attempted access to blocked sites - If checked, attempted

Internet accesses which were blocked are logged.

 Connections to the Web-based interface of this Router - If

checked, this will log connections TO this Router, rather than
through this Router to the Internet.

 Router operation - If checked, other Router operations (not

covered by the selections above) will be logged.

 Known DoS attacks and Port Scans - If checked, Denial of

Service attacks, as well as port scans, will be logged.

 Outgoing Connections - If selected, Outgoing Internet

connections are logged.

 Access Control - If enabled, the log will include attempted

outgoing connections which have been blocked by the
"Access Control" feature.

Syslog

Disable

Data is not sent to a Syslog Server.

Broadcast on LAN

The Syslog data is broadcast, rather than sent to a specific Syslog
server. Use this if your Syslog Server does not have a fixed IP
address.

Sent to this Syslog
Server

If your Syslog server has a fixed IP address, select this option, and
enter the IP address of your Syslog server.

80

Advanced Administration

E-Mail Notification

Turn E-mail
Notification on

Check this box to enable this feature. If enabled, the E-mail address
information (below) must be provided.

Send to this E-mail
address

Enter the E-mail address the Log is to be sent to. The E-mail will also
show this address as the Sender's address.

Outgoing (SMTP)
Mail Server

Enter the address or IP address of the SMTP (Simple Mail Transport
Protocol) Server you use for outgoing E-mail.

Mail Sender
Address

Enter the mail address of the sender. The E-mail will also show this
address as the Sender's address.

My SMTP Mail
Server requires
authentication

To stop spanners, many SMTP mail servers require you to log in to
send mail. In this case, enable this checkbox, and enter the login
information (User name and Password) in the fields below.

User Name

If you have enabled "My SMTP Mail Server requires authentication"
above, enter the User Name required to login to your SMTP Server.

Password

If you have enabled "My SMTP Mail Server requires authentication"
above, enter the password required to login to your SMTP Server.

E-mail

This screen allows you to E-mail Logs and Alerts. A sample screen is shown below.

Figure 66: E-mail Screen

Data - E-mail Screen

81

E-mail Alerts

Send E-mail alerts
immediately

You can choose to have alerts E-mailed to you, by checking the
desired checkboxes. The Broadband ADSL Router can send an
immediate alert when it detects a significant security incident such as

 A known hacker attack is directed at your IP address
 A computer on the Internet scans your IP address for open ports
 Someone on your LAN (Local Area Network) tries to visit a

blocked site.

E-mail Logs

Send Logs

Select the desired option for sending the log by E-mail.

 Never (default) - This feature is disabled; Logs are not sent.
 When log is full - The time is not fixed. The log will be sent

when the log is full, which will depend on the volume of traffic.

 Hourly, Daily, Weekly... - The log is sent on the interval

specified.
 If Daily is selected, the log is sent at the time specified.

Select the time of day you wish the E-mail to be sent.

 If Weekly is selected, the log is sent once per week, on the

specified day, at the specified time.
Select the day and the time of day you wish the E-mail to be
sent.

Note:

If the log is full before the time specified to send it, it will be sent
regardless of the day and time specified.

82

Advanced Administration

Ping

IP Address

Enter the IP address you wish to ping. The IP address can be on your
LAN, or on the Internet. Note that if the address is on the Internet,
and no connection currently exists, you could get a "Timeout" error.
In that case, wait a few seconds and try again.

Ping Button

After entering the IP address, click this button to start the "Ping"
procedure. The results will be displayed in the Ping Results pane.

DNS Lookup

Internet name

Enter the Domain name or URL for which you want a DNS (Domain
Name Server) lookup. Note that if the address in on the Internet, and
no connection currently exists, you could get a "Timeout" error. In
that case, wait a few seconds and try again.

Lookup Button

After entering the Domain name/URL, click this button to start the
"DNS Lookup" procedure.

Routing

Display

Click this button to display the internal routing table. This informa­tion can be used by Technical Support and other staff who understand
Routing Tables.

Diagnostics

This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful
in solving network problems.

An example Network Diagnostics screen is shown below.

Figure 67: Network Diagnostics Screen

Data - Network Diagnostics Screen

83

Remote Administration

Enable Remote
Management

Check to allow administration/management via the Internet. (To
connect, see below).

If Disabled, this device will ignore Administration connection at­tempts from the Internet.

Current
IP Address

This is the current address you will use when accessing this device
from the Internet. To connect, see details and an example below.

Port Number

Enter a port number between 1 and 65535. The default for HTTP
(Web) connections is port 80, but using port 80 will prevent the use
of a Web "Virtual Server" on your LAN. So using a different port
number is recommended. The default value is 8080.

The port number must be specified in your Browser when you con­nect. See the following section for details.

Access Permission

Allow Remote
Access

Select the desired option.

 Everyone - allow access by everyone on the Internet.
 Only This Computer - allow access by only one IP address.

Enter the desired IP address.

 IP Address Range - allow access from a range of IP addresses

on the Internet. Enter a beginning and ending IP address to define
the allowed range.

For security, you should restrict access to as few external IP ad­dresses as practical.

Remote Administration

If enabled, this feature allows you to manage the Wireless ADSL Router via the Internet.

Figure 68: Remote Administration Screen

Data - Remote Administration Screen

To connect from a remote PC via the Internet

1. Ensure your Internet connection is established, and start your Web Browser.

2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of the Wireless
ADSL Router. If the port number is not 80, the port number is also required. (After the IP

84

Advanced Administration

Address, enter ":" followed by the port number.)
e.g.

HTTP://123.123.123.123:8080

This example assumes the WAN IP Address is 123.123.123.123, and the port number is

8080.

3. You will then be prompted for the login name and password for this device.

85

Routing

Overview

 If you don't have other Routers or Gateways on your LAN, you can ignore the "Routing"

page completely.

 If the Wireless ADSL Router is only acting as a Gateway for the local LAN segment,

ignore the "Routing" page even if your LAN has other Routers.

 If your LAN has a standard Router (e.g. Cisco) on your LAN, and the Wireless ADSL

Router is to act as a Gateway for all LAN segments, enable RIP (Routing Information Pro­tocol) and ignore the Static Routing table.

 If your LAN has other Gateways and Routers, and you wish to control which LAN seg-

ments use each Gateway, do NOT enable RIP (Routing Information Protocol). Configure
the Static Routing table instead. (You also need to configure the other Routers.)

 If using Windows 2000 Data center Server as a software Router, enable RIP on the Wire-

less ADSL Router, and ensure the following Windows 2000 settings are correct:

 Open Routing and Remote Access
 In the console tree, select Routing and Remote Access, [server name], IP Routing,

RIP

 In the "Details" pane, right-click the interface you want to configure for RIP version 2,

and then click "Properties".

 On the "General" tab, set Outgoing packet protocol to "RIP version 2 broadcast", and

Incoming packet protocol to "RIP version 1 and 2".

Routing Screen

The routing table is accessed by the Routing link on the Administration menu.

Using this Screen

Generally, you will use either RIP (Routing Information Protocol) OR the Static Routing Table,
as explained above, although is it possible to use both methods simultaneously.

Static Routing Table

 If RIP is not used, an entry in the routing table is required for each LAN segment on your

Network, other than the segment to which this device is attached.

 The other Routers must also be configured. See Configuring Other Routers on your LAN

later in this chapter for further details and an example.

86

Advanced Administration

RIP

RIP Direction

Select the desired RIP Direction.

RIP Version

Choose the RIP Version for the Server.

Static Routing

Static Routing
Table Entries

This list shows all entries in the Routing Table.

 This area shows details of the selected item in the list.
 Change any the properties as required, then click the "Edit"

button to save the changes to the selected entry.

Buttons

Add

Add a new entry to the Static Routing table, using the data shown in
the "Properties" area on screen. The entry selected in the list is
ignored, and has no effect.

Edit

Update the current Static Routing Table entry, using the data shown
in the table area on screen.

Delete

Delete the current Static Routing Table entry.

Save

Save the RIP setting. This has no effect on the Static Routing Table.

Destination IP Address

Normally 0.0.0.0, but check your router documentation.

Data - Routing Screen

Figure 69: Routing Screen

Configuring Other Routers on your LAN

It is essential that all IP packets for devices not on the local LAN be passed to the Wireless
ADSL Router, so that they can be forwarded to the external LAN, WAN, or Internet. To
achieve this, the local LAN must be configured to use the Wireless ADSL Router as the Default
Route or Default Gateway.

Local Router

The local router is the Router installed on the same LAN segment as the Wireless ADSL Router.
This router requires that the Default Route is the Wireless ADSL Router itself. Typically,
routers have a special entry for the Default Route. It should be configured as follows.

87

Network Mask

Normally 0.0.0.0, but check your router documentation.

Gateway IP Address

The IP Address of the Wireless ADSL Router.

Metric

1

Entry 1 (Segment 1)

Destination IP Address

192.168.1.0

Network Mask

255.255.255.0 (Standard Class C)

Gateway IP Address

192.168.0.100 (Wireless ADSL Router's local
Router)

Metric

2

Entry 2 (Segment 2)

Destination IP Address

192.168.2.0

Network Mask

255.255.255.0 (Standard Class C)

Other Routers on the Local LAN

Other routers on the local LAN must use the Wireless ADSL Router's Local Router as the
Default Route. The entries will be the same as the Wireless ADSL Router's local router, with
the exception of the Gateway IP Address.

 For a router with a direct connection to the Wireless ADSL Router's local Router, the

Gateway IP Address is the address of the Wireless ADSL Router's local router.

 For routers which must forward packets to another router before reaching the Wireless

ADSL Router's local router, the Gateway IP Address is the address of the intermediate rou­ter.

Static Routing - Example

Figure 70: Routing Example

For the Wireless ADSL Router's Routing Table

For the LAN shown above, with 2 routers and 3 LAN segments, the Wireless ADSL Router
requires 2 entries as follows.

88

Advanced Administration

Gateway IP Address

192.168.0.100

Metric

3

Destination IP Address

0.0.0.0

Network Mask

0.0.0.0

Gateway IP Address

192.168.0.1 (Wireless ADSL Router's IP
Address)

Destination IP Address

0.0.0.0

Network Mask

0.0.0.0

Gateway IP Address

192.168.1.80 (Wireless ADSL Router's local
router)

For Router A's Default Route

For Router B's Default Route

89

The Wireless ADSL Router is unavailable during the
upgrade process, and must restart when the upgrade
is completed. Any connections to or through the
Wireless ADSL Router will be lost.

Upgrade Firmware

The firmware (software) in the Wireless ADSL Router can be upgraded using your Web
Browser.

You must first download the upgrade file, then select Upgrade Firmware on the Administration
menu. You will see a screen like the following.

Figure 71: Router Upgrade Screen

To perform the Firmware Upgrade:

1. Click the Browse button and navigate to the location of the upgrade file.

2. Select the upgrade file. Its name will appear in the Upgrade File field.

3. Click the Upload button to commence the firmware upgrade.

90

8

Chapter 8

Modem Mode

This Chapter explains configuration and operation when in "Modem" or
"Bridge" mode..

Overview

There are two modes available on the Mode screen.
 Router - Both the ADSL Modem and the Router features are operational. In this mode,

this device can provide shared Internet Access to all your LAN users. Also, by default, it
acts a DHCP Server, providing an IP address and related information to all Wireless and
LAN users.

 Modem - Only the ADSL Modem component is operational. All Router features are

disabled. This device is "transparent" - it does not perform any operations or make any
changes to the network traffic passing through it. You need to have a DHCP Server on
your LAN to provide IP addresses to the Wireless clients using this Access Point.

This Chapter describes operation while in Modem Mode, also called Bridge Mode.

Management Connections

When this device restarts in Modem mode, the IP address does not change, but the DHCP
server is disabled. However, your PC will usually retain the IP address provided by the DHCP
Server, so the connection will be automatically re-established. You then need to ensure that the
IP address of this modem is suitable for your LAN.

 You need to have a DHCP Server on your LAN to provide IP addresses to the Wireless

clients using this Access Point.

 This Modem/AP must be a valid device on your LAN, to allow management connections.

You must assign a (fixed) IP address which is within the address range used on your LAN,
but not within the address range used by your DHCP server.

When you connect in future, just connect normally, using the IP address you assigned.

1. Start your WEB browser.

2. In the Address box, enter "HTTP://" and the current IP Address of the Wireless ADSL
Modem, as in this example, which uses the Wireless ADSL Modem's default IP Address:

HTTP://192.168.0.1

3. When prompted for the User name and Password, enter admin for the user name, and the
current password, as set on the password screen. (The password is the same regardless of
the mode.)

91

Home Screen

If in Modem mode, the home screen will look like the example below.

Figure 72: Home Screen - Modem Mode

Note that the menu has changed, many of the options in Router mode are not available. The
screens available are:

 Mode - change back to Router mode, if desired.
 LAN - set IP address, mask and gateway. This is the same as in Router mode, except that

the DHCP server is not available while in Modem mode.

 Wireless - this screen, and related sub-screens, is the same as in Router mode.
 Password - this screen is the same as in Router mode.
 Upgrade FW - this screen is the same as in Router mode.
 Status - displays current settings and status. See the following section for details.

92

Modem Mode

Device Name

This field displays the current name of this device.

Device Mode

Select the desired device mode for the router:
 Router - Both the ADSL Modem and the Router features are opera-

tional. In this mode, this device can provide shared Internet Access to
all your LAN users. Also, by default, it acts a DHCP Server, providing
an IP address and related information to all Wireless and LAN users.

 Modem - Only the ADSL Modem component is operational. All

Router features are disabled. This device is "transparent" - it does not
perform any operations or make any changes to the network traffic
passing through it. You need to have a DHCP Server on your LAN to
provide IP addresses to the Wireless clients using this Access Point.
This mode is also called Bridge Mode.

After changing the mode, this device will restart, which will take a few
seconds. The menu will also change, depending on the mode you are in.

Mode Screen

This screen is change back to Router mode, if desired.

Figure 73: Mode Screen

Data - Mode Screen

Operation

Operation is automatic and transparent.
 Wireless clients can connect to the Access Point if they have the correct SSID and security,

but they must obtain an IP address from the DHCP Server on your LAN.

 The modem will act like any other ADSL modem. No routing will be performed, and no

client login will be done. If a client login is required, it must be performed by your Rou­ter/Gateway or by software on your PC.

93

ADSL

Modem Status

This indicates the status of the ADSL modem component.

DownStream
Connection Speed

Displays the speed for the DownStream Connection.

UpStream Connection
Speed

If connected, displays the speed for the Up Stream (upload)
ADSL Connection.

LAN

IP Address

The IP Address of the Wireless ADSL Router.

Status Screen

In Modem mode, the Status screen looks like the example below.

Figure 74: Status Screen - Bridge Mode

Data - Status Screen (Bridge Mode)

94

Modem Mode

Network Mask

The Network Mask (Subnet Mask) for the IP Address above.

MAC Address

This shows the MAC Address for the Wireless ADSL Router, as
seen on the LAN interface.

Wireless

SSID 1

It displays the name of the SSID 1.

MAC Address

It displays the MAC address of the SSID 1.

SSID 2

It displays the name of the SSID 2.

MAC Address

It displays the MAC address of the SSID 2.

Region

The current region, as set on the Wireless screen.

Channel

This shows the Channel currently used, as set on the Wireless
screen.

Wireless AP

This indicates whether or not the Wireless Access Point feature is
enabled.

Broadcast Name

This indicates whether or not the SSID is Broadcast. This setting
is on the Wireless screen.

System

Device Name

The current name of the Router. This name is also the "hostname"
for users with an "@Home" type connection.

Firmware Version

The version of the current firmware installed.

Buttons

Attached Devices

This will open a sub-window, showing all LAN and Wireless
devices currently on the network.

Refresh Screen

Update the data displayed on screen.

95

Problem 1:

Can't connect to the Wireless ADSL Router to configure it.

Solution 1:

Check the following:
 The Wireless ADSL Router is properly installed, LAN connections are

OK, and it is powered ON.

 Ensure that your PC and the Wireless ADSL Router are on the same

network segment. (If you don't have a router, this must be the case.)

 If your PC is set to "Obtain an IP Address automatically" (DHCP

client), restart it.

 If your PC uses a Fixed (Static) IP address, ensure that it is using an IP

Address within the range 192.168.0.2 to 192.168.0.254 and thus com­patible with the Wireless ADSL Router's default IP Address of

192.168.0.1.
Also, the Network Mask should be set to 255.255.255.0 to match the
Wireless ADSL Router.
In Windows, you can check these settings by using Control Panel-
Network to check the Properties for the TCP/IP protocol.

Problem 1:

When I enter a URL or IP address I get a time out error.

Solution 1:

A number of things could be causing this. Try the following troubleshooting
steps.

 Check if other PCs work. If they do, ensure that your PCs IP settings are

correct. If using a Fixed (Static) IP Address, check the Network Mask,
Default gateway and DNS as well as the IP Address.

 If the PCs are configured correctly, but still not working, check the

Wireless ADSL Router. Ensure that it is connected and ON. Connect to
it and check its settings. (If you can't connect to it, check the LAN and
power connections.)

 Check the Wireless ADSL Router's status screen to see if it is working

correctly.

A

Appendix A

Troubleshooting

This Appendix covers the most likely problems and their solutions.

Overview

This chapter covers some common problems that may be encountered while using the Wireless
ADSL Router and some possible solutions to them. If you follow the suggested steps and the
Wireless ADSL Router still does not function properly, contact your dealer for further advice.

General Problems

Internet Access

96
