Level Mount HE400TW User Manual [en, es, fr]

Installation Instructions

HE400F, HE400FW

Fixed and/or Tilt TV Wall Mount ﬁ ts 22” - 47” (558,8 mm - 1194,8 mm)

HE400T, HE400TW

Flat Panel Displays - up to 200 lbs (90kg)

(One Wall Plate with both Fixed and Tilt arms)

HE400FT

HE600F

Fixed and/or Tilt TV Wall Mount ﬁ ts 26” - 57” (558,8 mm - 1194,8 mm)

Fixed and/or Tilt TV Wall Mount ﬁ ts 37” - 85” (939,8 mm - 2159 mm)

HE600FT

HE600T

(One Wall Plate with both Fixed and Tilt arms)

Flat Panel Displays - up to 200 lbs (90kg)

HE800FT, HE800FTW

HE800T - HE885THE800F

(One Wall Plate with both Fixed and Tilt arms)

Flat Panel Displays - up to 200 lbs (90kg)

Please read these Installation Instructions entirely, including the Warnings, before you start the installation and assembly of the TV Wall Mount.

Instructions en Francais, Page 11 Instrucciones en Español, Página 20

Need Help?

Helpful Hints

If you have installation questions about your TV Wall Mount, please go to www.levelmount.com to view product tutorials.

Contacting Level Mount Customer Service

If you have questions, our trained Customer Service Department is happy to assist you 24 hours a day, 7 days a week, every day of the year. Contact Level Mount Customer Service as follows:

• In the North America dial: 1-888-229-1459

• In Europe dial: +0044 844 567 2657

• In the United Kingdom dial: 0844 567 2657

• E-mail Level Mount at www.customersupport@elexausa.com

DO NOT RETURN THIS PRODUCT TO THE STORE OR WEB SITE FROM WHICH IT WAS PURCHASED

If you believe the product is defective, has a missing or broken part or are having difﬁ culty with assembly, please contact Level Mount directly 24 hours a day, 7 days a week, 365 days a year as listed above, for a quick and efﬁ cient solution to your problem.

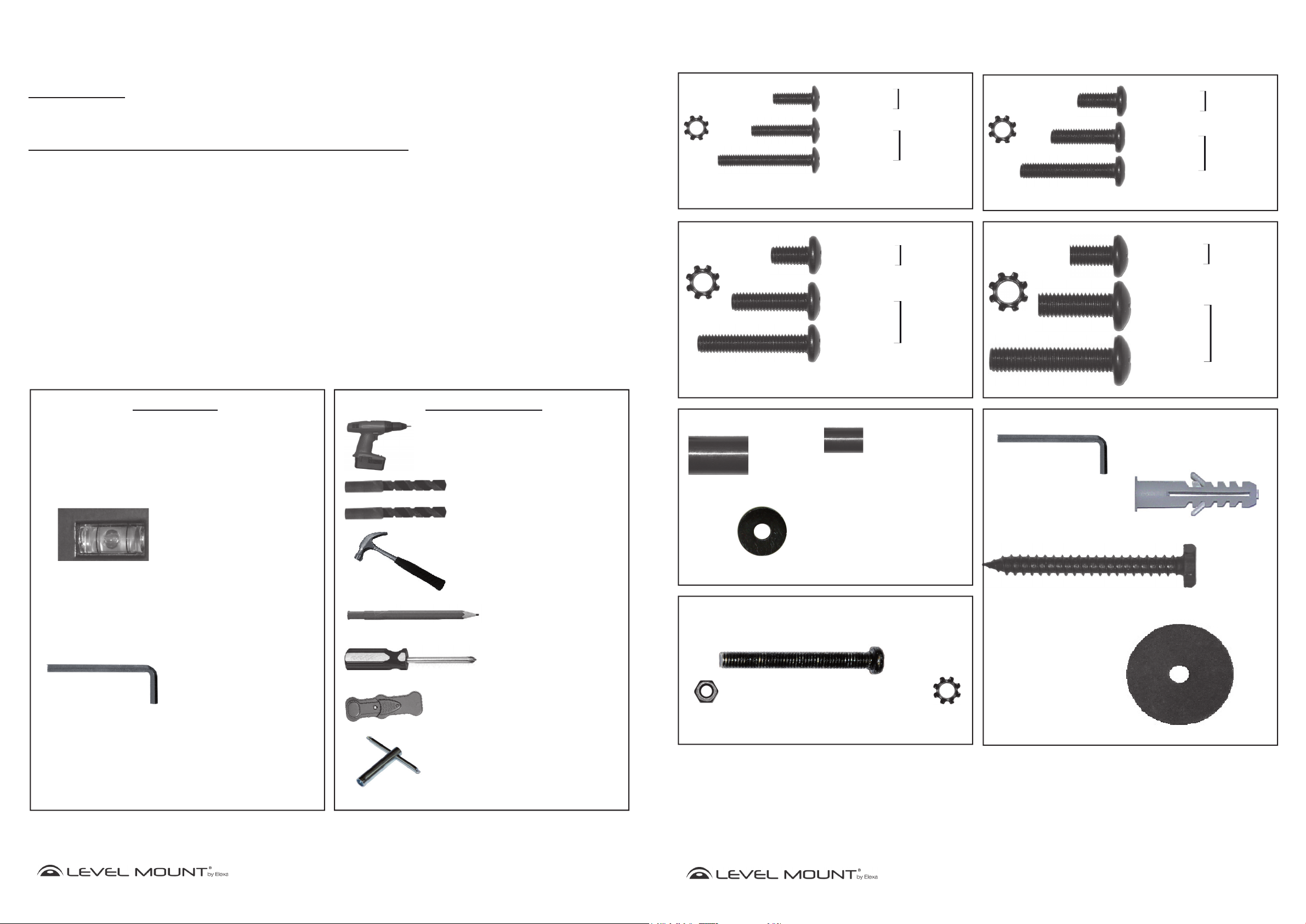

Tools Required

Included

Built-in Bubble Level

(HE400T, HE400FT

HE800FT, HE800FTW)

Spirit Level

Allen Wrench

HE600T, HE600FT

HE800T, HE885T,

Not Included

Drill

Drill Bit 4mm

Drill Bit Masonry 12mm

Hammer

Pencil

Phillips

Screwdriver

Stud Finder

Hex Wrench

www.levelmount.com

1-888-229-1459

EU: +0044 844 567 2657

UK: 0844 567 2657

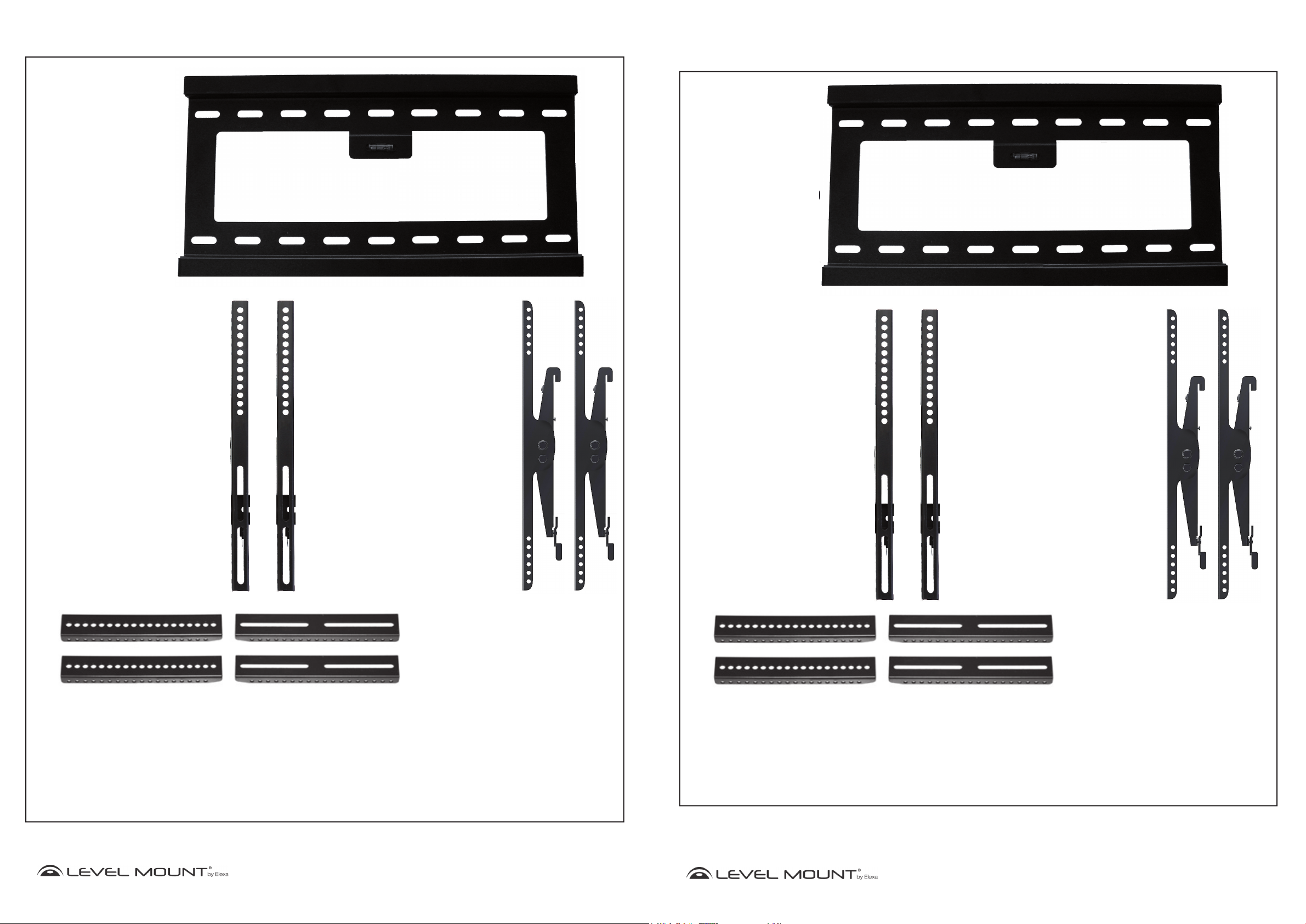

What’s in the box?

Wall Plate

(HE400 Shown)

Fixed Arms

HE400F, HE400FT, HE400FW

HE600F, HE600FT HE800F, HE800FT

Tilt Arms

HE400T, HE400FT HE600T, HE600FT

HE800T, HE885T,

HE800FT, HE800FTW

Extension Arms (Not Included in 400 Series)

www.levelmount.com

1-888-229-1459

EU: +0044 844 567 2657

UK: 0844 567 2657

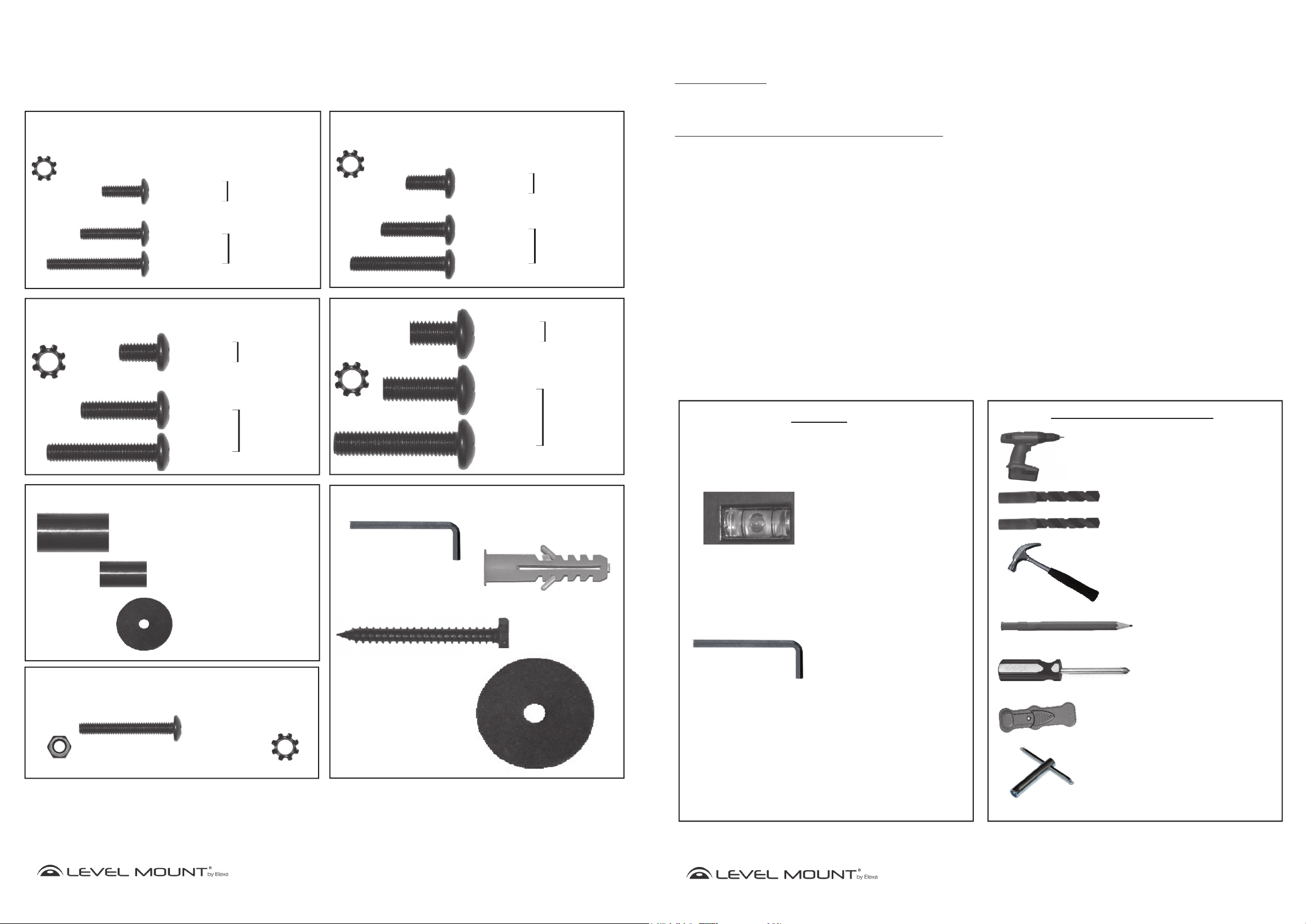

What’s in the box?

Bag 1

(4) M4 Lock Washer

Bag 3

(4) M6 Lock Washer

(4) M4 x 12mm Phillips Bolt

(4) M4 x 20mm Phillips Bolt

(4) M4 x 30mm Phillips Bolt

(4) M6 x 12mm Phillips Bolt

(4) M6 x 24mm Phillips Bolt

(4) M6 x 35mm Phillips Bolt

Flat Back

TV Hardware

Recessed Back

TV Hardware

Flat Back

TV Hardware

Recessed Back

TV Hardware

Bag 2

(4)M5 Lock Washer

Bag 4

(4) M8 Lock Washer

(4) M5 x 12mm Phillips Bolt

(4) M5 x 20mm Phillips bolt

(4) M5 x 30mm Phillips Bolt

(4) M8 x 16mm Phillips Bolt

(4) M8 x 25mm Phillips Bolt

(4) M8 x 40mm Phillips Bolt

Flat Back

TV Hardware

Recessed Back

TV Hardware

Flat Back

TV Hardware

Recessed Back

TV Hardware

Bag 5

(4) Spacer Ø17.5 x Ø8.3 x 22.5 mm

(4) Spacer Ø12.5 x Ø5.5 x 16.5 mm

(4) Washer Ø20 x Ø5.5 x 1.0 mm

Bag 7 (Not Included in 400 Series)

Phillips Bolt

(8) M5 Nut

(8) M5 Lock Washer

(8) M5 x 40mm

Bag 6

(1) Allen Wrench Key

(Tilt Mounts Only)

(6) Hex Wood Screw Ø6.3 x 75mm

28mm x Ø8mm x 1.5mm

Products, Inc. All other trademarks are the property of their respective owners.

Elexa Consumer Products, Inc. Toutes les autres marques de commerce appartiennent à leurs proprié-

taires ou détenteurs respectifs.

(6) Concrete Anchors

Ø12 x 60 mm

de Elexa Consumer Products, Inc. El resto de marcas registradas pertenecen a sus correspondi-

entes dueños.

(6) Washer

www.levelmount.com

1-888-229-1459

EU: +0044 844 567 2657

UK: 0844 567 2657

Placa de soporte Pegado a la Pared

Brazos fijos o

en la pared

posterior de la televisión

Brazos

Placa de soporte

TVTV

ave Alle

Allen

Montaje/Instalación

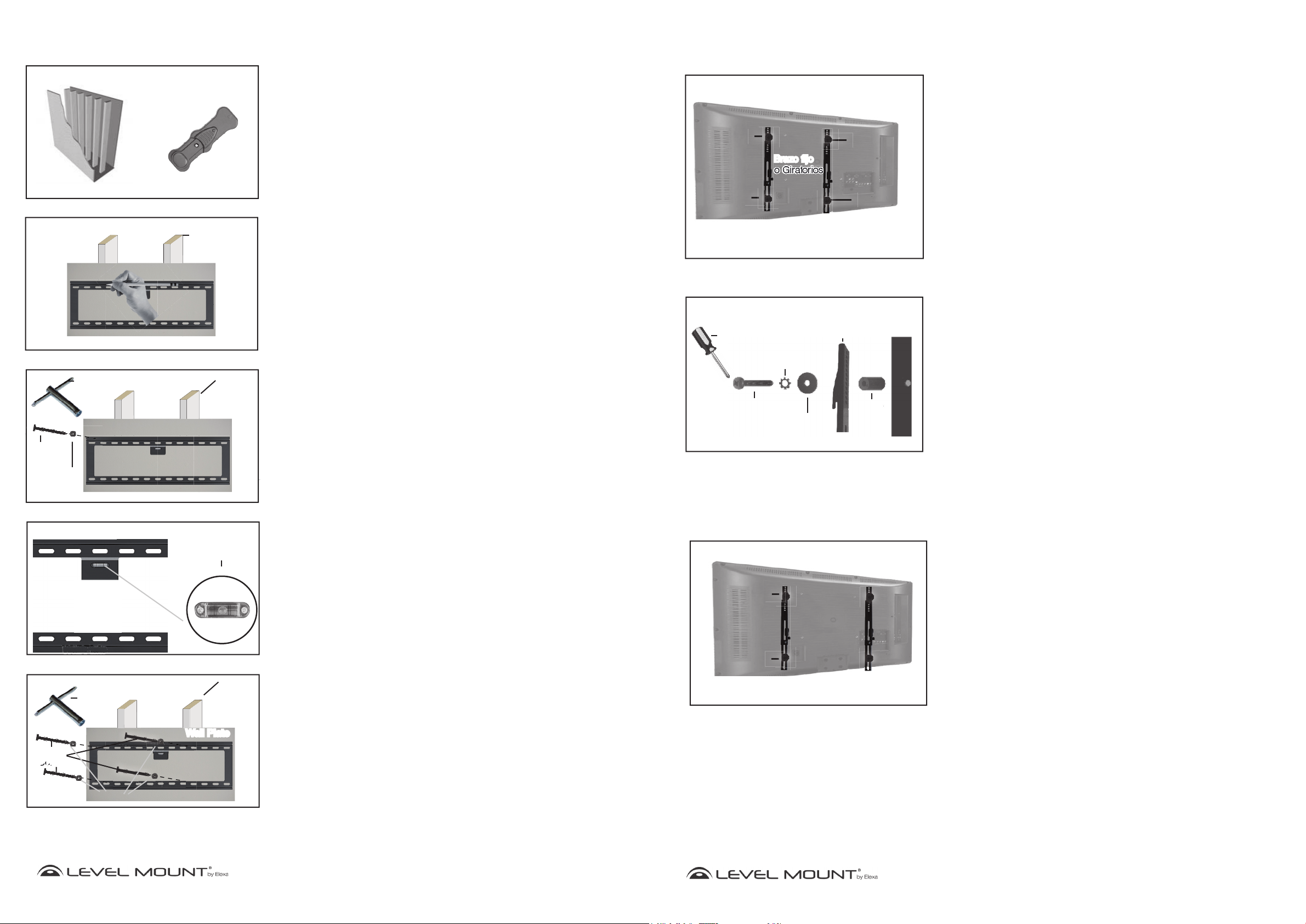

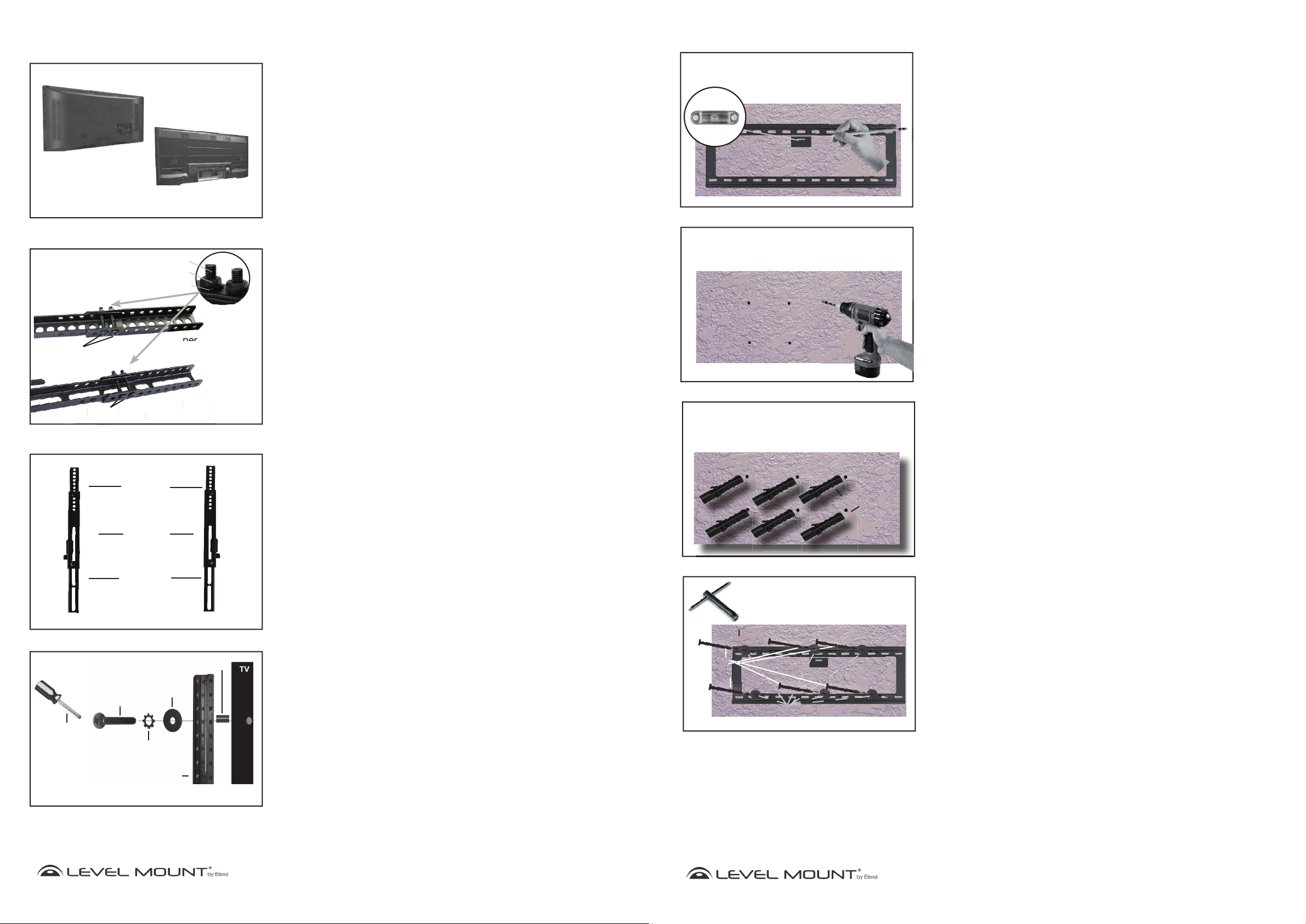

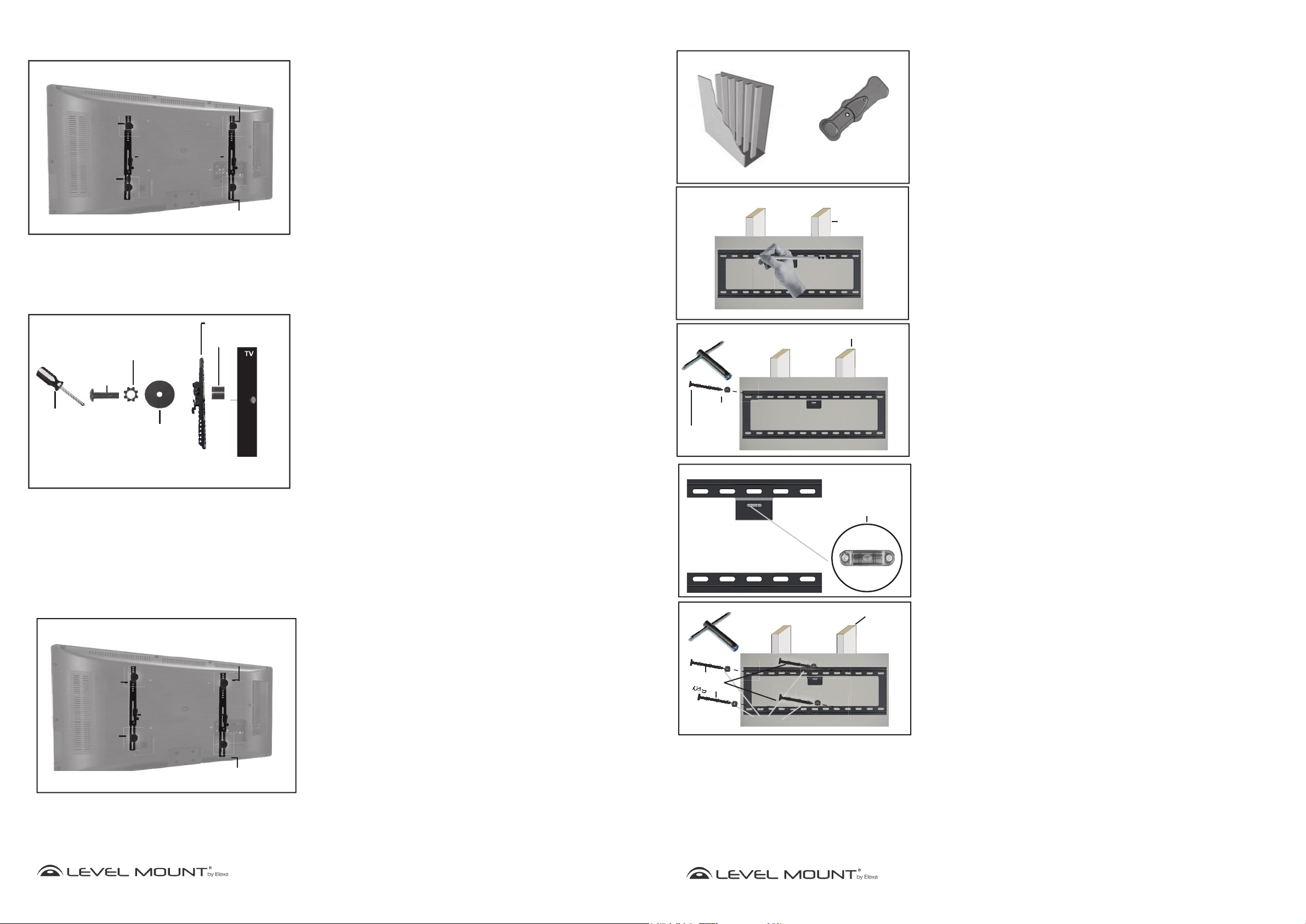

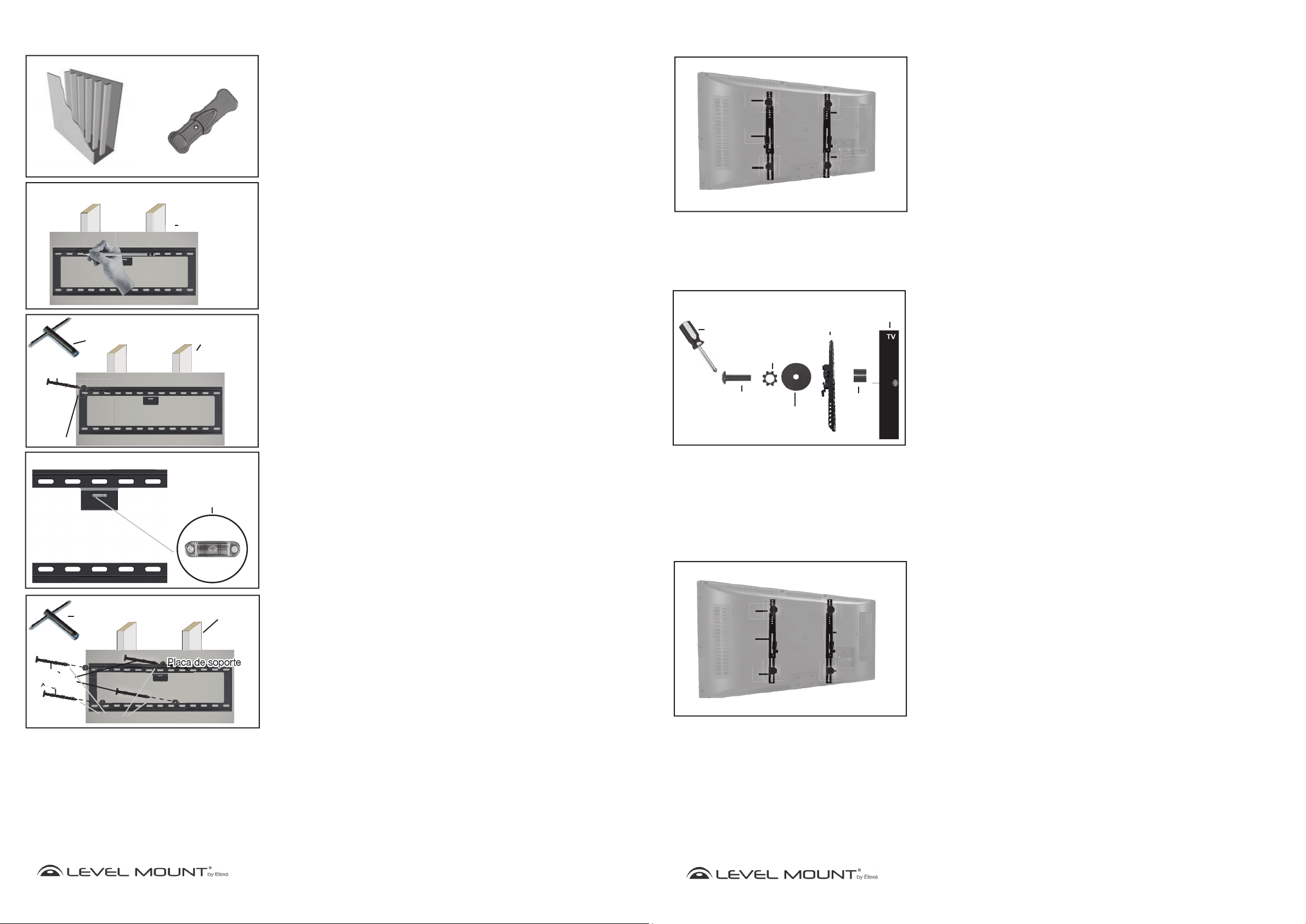

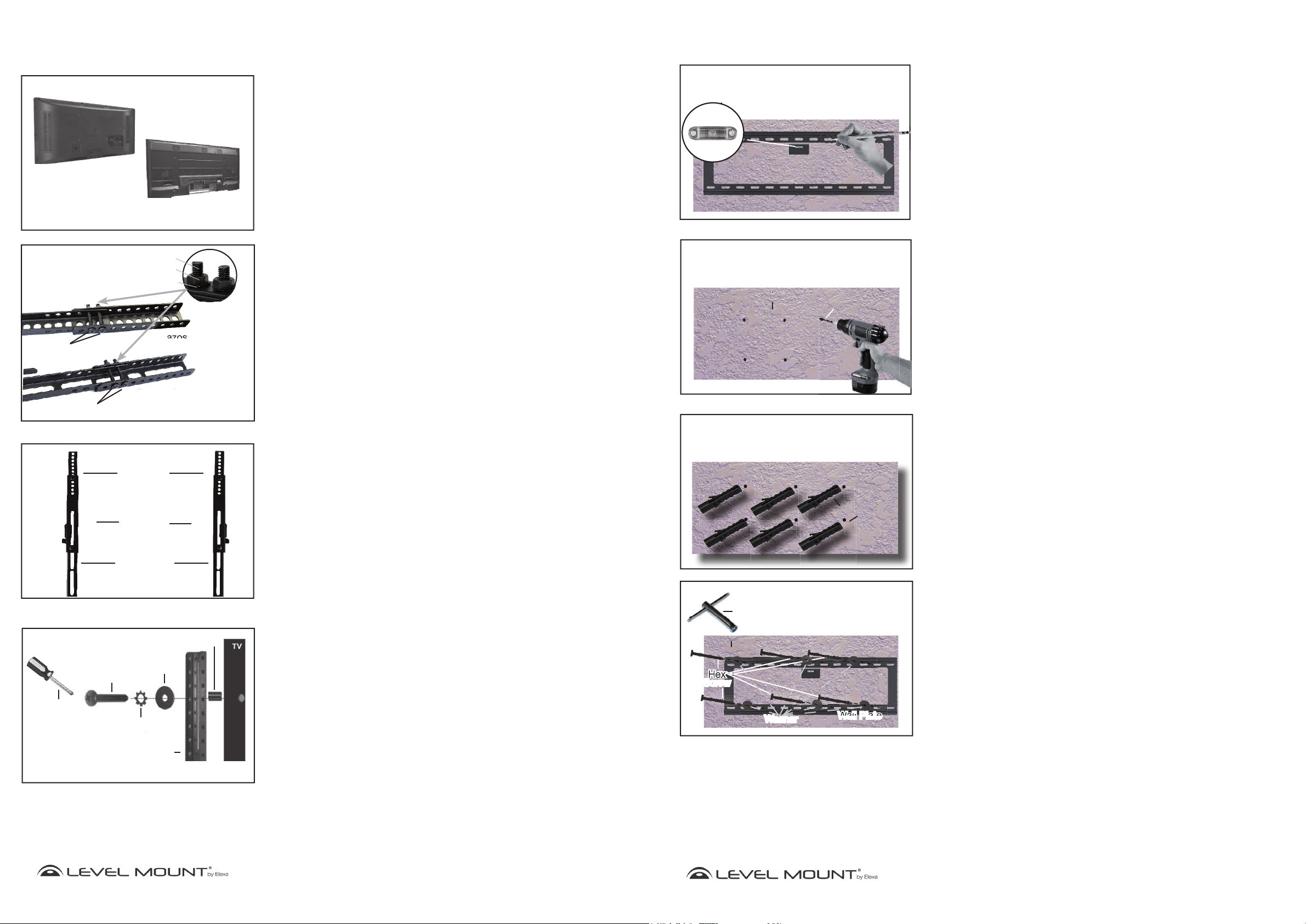

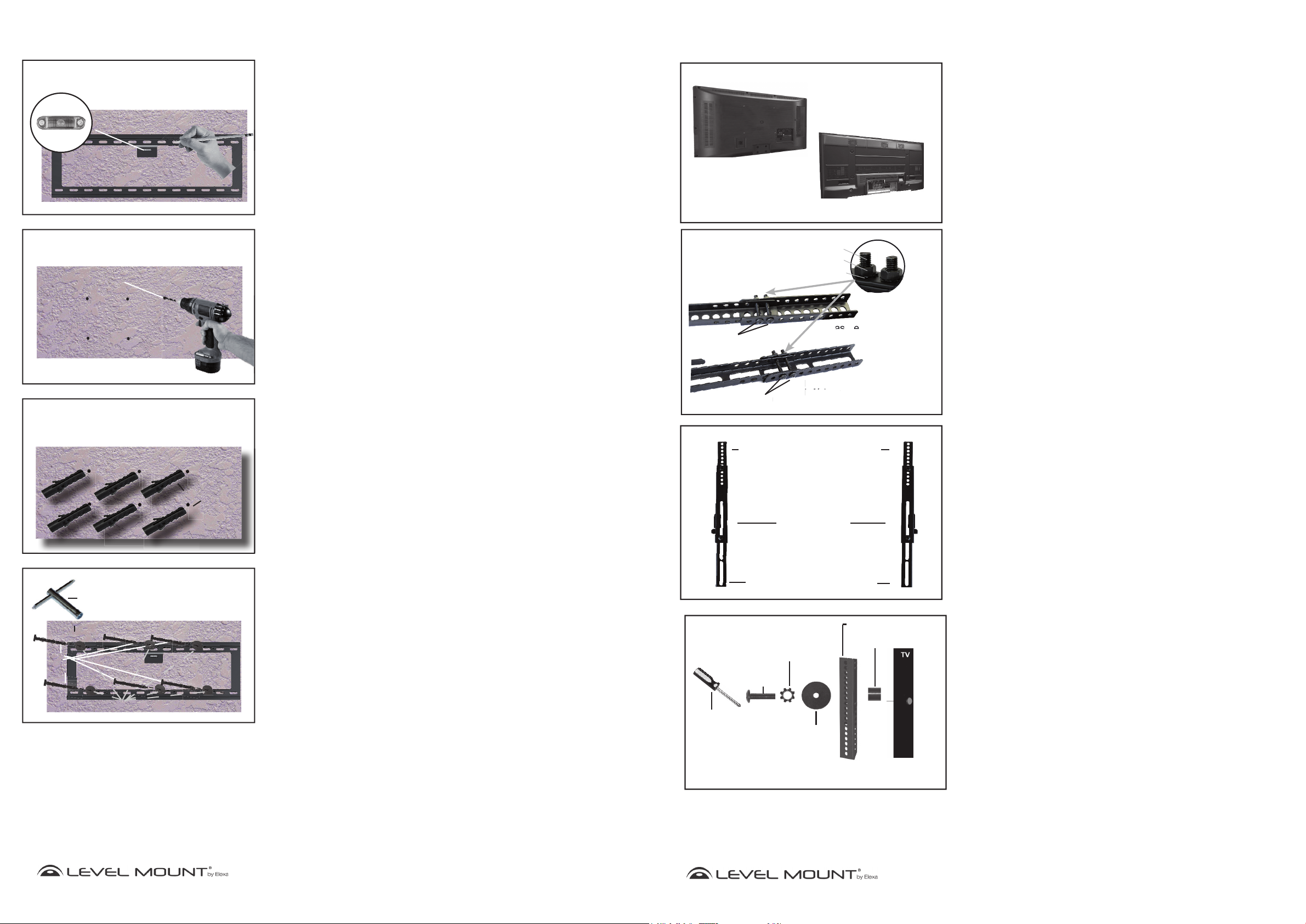

Getting Started

Imagen 17

Brazo fijo o giratorio bloqueado

Imagen 18

Brazos fijos o posterior de la televisión

giratorio

en la pared

Brazo fijo o giratorio desbloqueado

Placa de soporte Pegado a la Pared

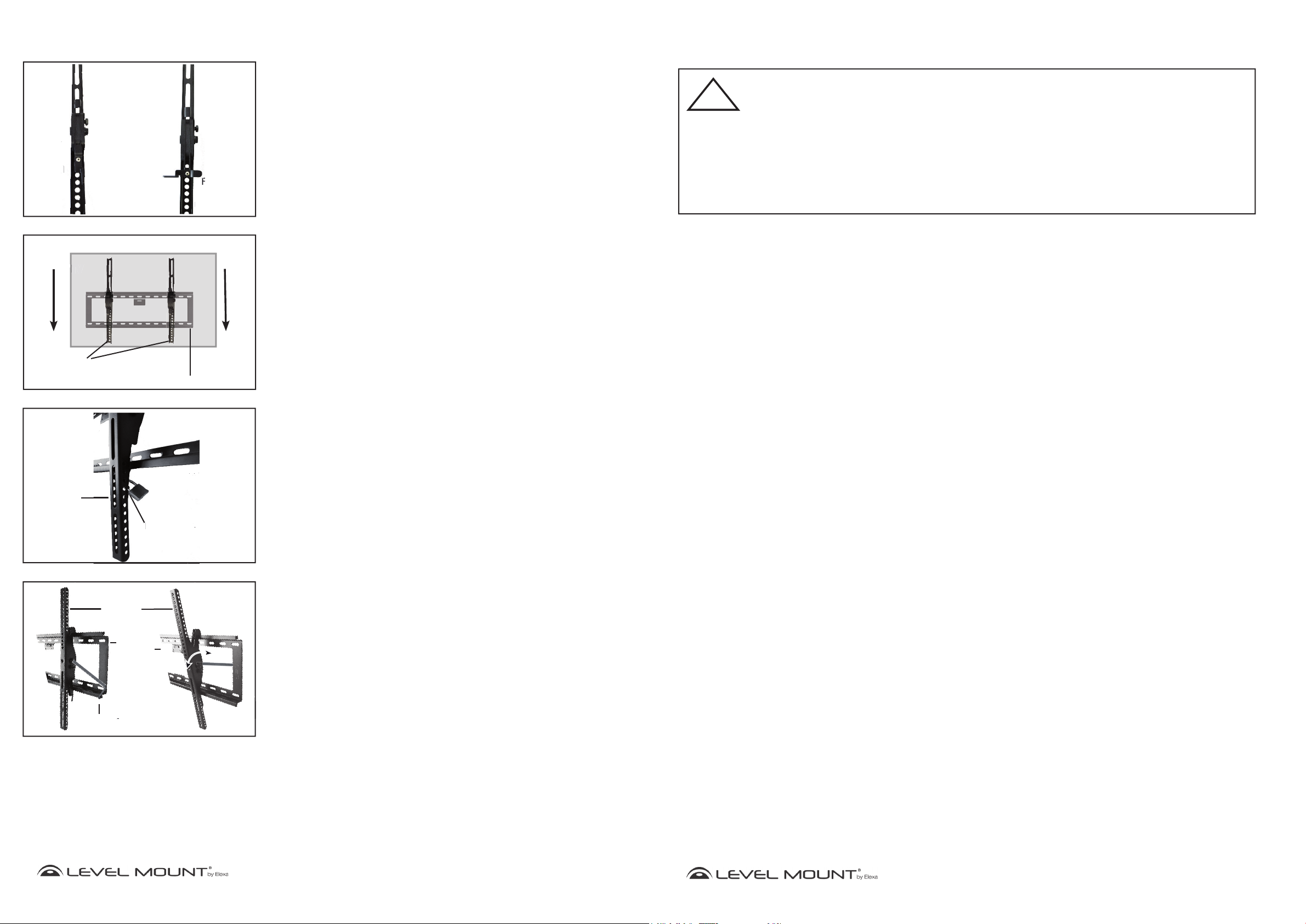

Paso 5 – Montar el televisor de pantalla plana en la placa de soporte

Antes de montar el televisor de pantalla plana en la Placa de soporte (previamente fijada a la pared, tal y como se especifica más arriba), primero deberá desbloquear los brazos fijos o giratorios (que estarán ahora fijos sobre el televisor de pantalla plana). Para desbloquear los brazos fijos o giratorios, tire de la cuerda hacia arriba, tal y como muestra la Imagen 17.

Para montar el televisor de pantalla plana en la Placa de soporte, necesitará que 2 personas levanten el televisor de pantalla plana con los brazos fijos o giratorios y los brazos de extensión, en su caso. Deslice los ganchos de los brazos fijos o giratorios por encima de la pestaña superior de la Placa de soporte y bájelos hasta que los brazos fijos o giratorios queden firmemente apoyados a ambos lados de la pestaña de la Placa de soporte, tal y como muestran las Imágenes 18. Los brazos fijos o giratorios deben quedar a ras de la Placa de soporte.

Bloquee los Brazos por debajo de la pestaña de la Placa de soporte tirando de la cuerda, tal y como muestran las Imágenes 17 y 18. Haga lo mismo con el otro brazo fijo.

CAUTION!

These TV Wall Mounts were designed specifically to hold TVs with a maximum weight of up to 200 lbs (90kg) and with the following dimensions: 22” - 47” (558,8 mm - 1194,8 mm) HE400F, HE400FW, HE400T, HE400TW, HE400FT, 26” - 57” (660,4 mm - 1447,8 mm) HE600F, HE600T, HE600FT and 37” - 85” (939,8 mm - 2159 mm) HE800F, HE800T, HE885T, HE800FT, HE800FTW. Using this product with a TV heavier than the maximum weight, or that exceeds these dimensions, may result in serious personal injury and damage to equipment and property.

1. Do not begin the installation of the TV Wall Mount until you have read and understood the instructions and warnings contained in these Installation Instructions. Failure to read, thoroughly understand and follow the instructions can result in serious personal injury and damage to equipment and property. It is the installer’s responsibility to make sure all components are properly assembled and installed using the instructions provided.

2. If you have questions that do not appear to be covered in these Installation Instructions, please refer to the “Helpful Hints” section of the detail page for the TV Wall Mount or contact us as described under the “Need Help” section. If you are at all unsure about any step in these instructions or your ability to install the TV Wall Mount safely and securely, you should seek professional help from a qualified contractor.

3. This TV Wall Mount contains small items that could be a hazard if swallowed. Keep these items away from children.

4. The TV Wall Mount must be attached to wood studs or to properly installed anchors in concrete. Do not install the TV Wall Mount only to drywall or plasterboard. If mounting to wood studs, make sure that mounting screws are anchored into the center of the studs. See Stud Finder Instructions, included below. Do not use the TV Wall Mount for devices other than as specified in these instructions.

Imagen 19

Brazos

giratorio

Imagen 20

Llave Allen

Brazos giratorio

Placa de soporte

Tornillo

Allen

Placa de soporte

Bloqueo

oqueo

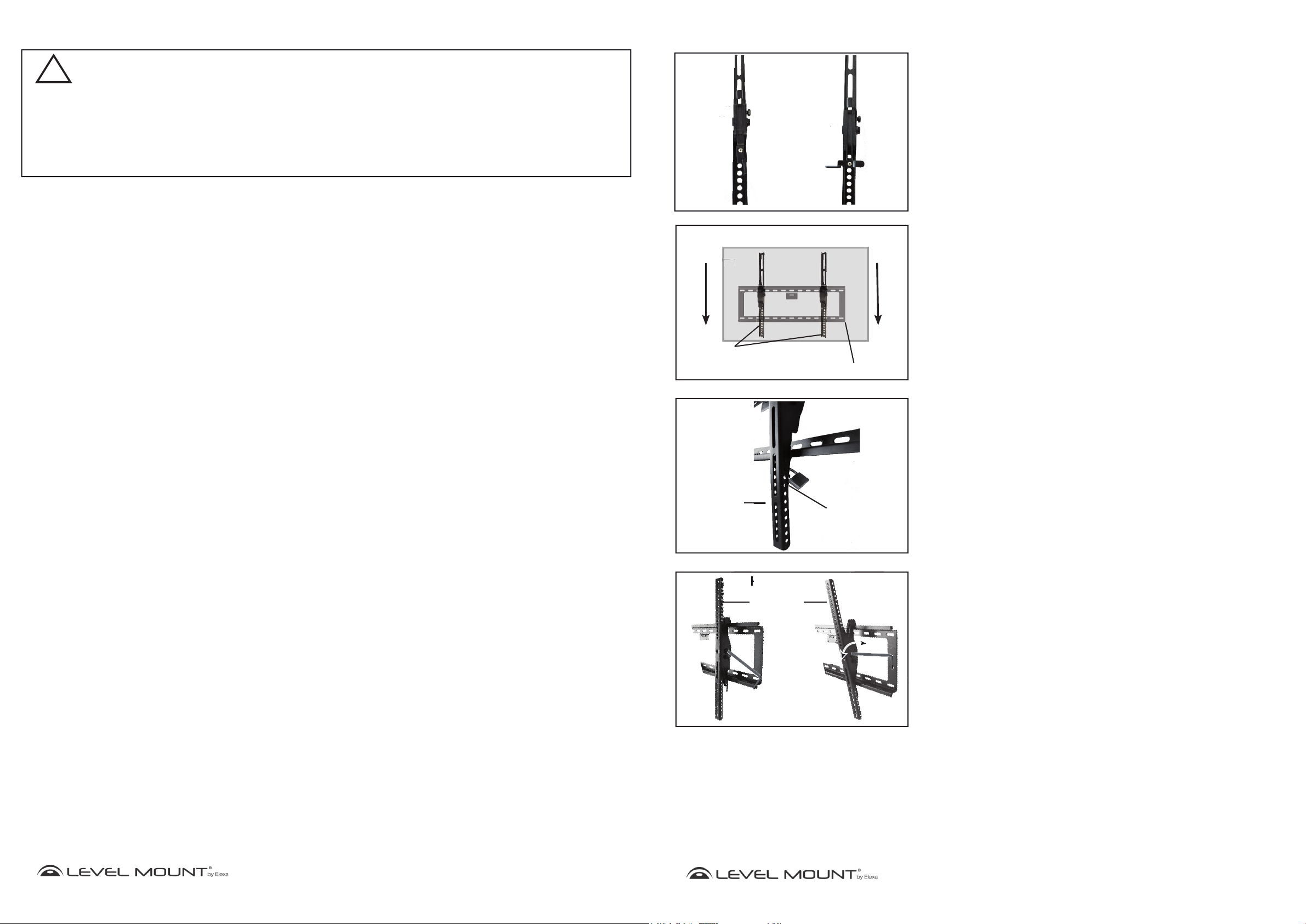

Paso 6-Bloqueo de la TV en el soporte de pared (opcional)

Opcional: Para bloquear el televisor a la placa de pared, inserte un candado en el pestillo de bloqueo como se muestra en la Figura 19. Esto evitará que el televisor se despegó de la placa de pared.

Nota: El bloqueo no está incluido.

Paso 7 – Usar el modo giratorio (HE400T, HE400FT, HE600T, HE600FT, HE800T, HE885T, HE800FT)

Para utilizar la función giratoria o voladiza del brazo, agarre suavemente el televisor y tire hacia delante de él. El soporte de pared voladizo para televisor se extiende hasta salir unos 15° de la pared. Después, mueva el televisor hacia arriba o hacia abajo, tal y como indica la Imagen 20.

5. Make sure all screws and bolts are tightened before allowing the TV Wall Mount to bear the full weight of the TV. Tighten screws and bolts firmly but do not over-tighten them. Once the screw is flush against the TV and the screwdriver is more difficult to turn and will not turn further, stop; otherwise there is a risk of over-tightening the bolt. Over-tightening the screws or bolts could damage the TV Wall Mount, greatly reducing its holding power. Periodic tightening may be required.

6. Screws should easily and completely thread into the TV mounting holes. If any of the screws provided are not suitable for the TV Wall Mount system, the installer must not under any circumstances drill holes into the TV or into the TV Wall Mount components. Using screws of improper size can damage the TV.

7. Do not lift more weight than you can handle. Use at least two people when lifting and positioning the TV on the TV Wall Mount.

8. Before installing, check to make sure all parts of the TV Wall Mount indicated in these Installation Instructions are included and undamaged. Never use damaged parts or try to install the TV Wall Mount if you do not have all needed parts.

9. It is the installer’s responsibility to select the appropriate installation location and the supporting surface on which to mount this TV Wall Mount and to ensure that the TV Wall Mount is anchored properly to the wall. It is also the installer’s responsibility to ensure that the TV is properly and securely attached to the TV Wall Mount using only the enclosed fasteners and components and to verify that the screws and power cords do not touch wires, pipes, or metal parts within the wall (since this could cause damage to these items or cause electrical shock).

10. Level Mount has made every effort to make these Installation Instructions accurate and complete. However, Level Mount makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation, assembly or use of this product. Level Mount makes no representation or warranty, express or implied, regarding the accuracy, completeness or sufficiency of the information contained in this document. Level Mount is not responsible for any damage or injury caused by incorrect mounting, assembly, installation or use.

www.levelmount.com

1-888-229-1459

EU: +0044 844 567 2657

UK: 0844 567 2657

www.levelmount.com

1-888-229-1459

EU: +0044 844 567 2657

UK: 0844 567 2657
