Leuze 53800101 Data Sheet

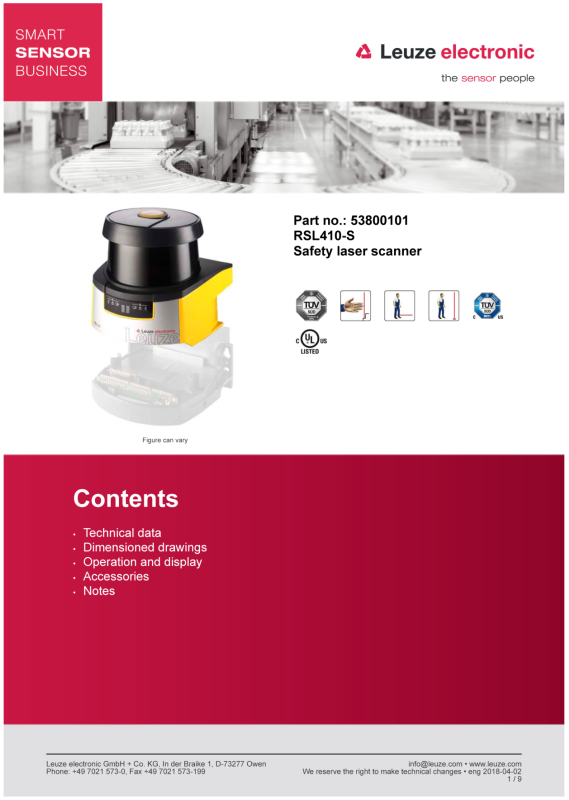

Part no.: 53800101 – RSL410-S – Safety laser scanner

Technical data

Basic data

Series RSL 400

Functions

Functions Four-field mode

Characteristic parameters

Type 3, IEC/EN 61496

SIL 2, IEC 61508

SILCL 2, IEC/EN 62061

Performance Level (PL) d, EN ISO 13849-1

PFH

D

Mission time T

Category 3, EN ISO 13849

M

Resolution, selectable
Dynamic contactor monitoring (EDM), selectable

9E-08 per hour

20 years, EN ISO 13849-1

Protective field data

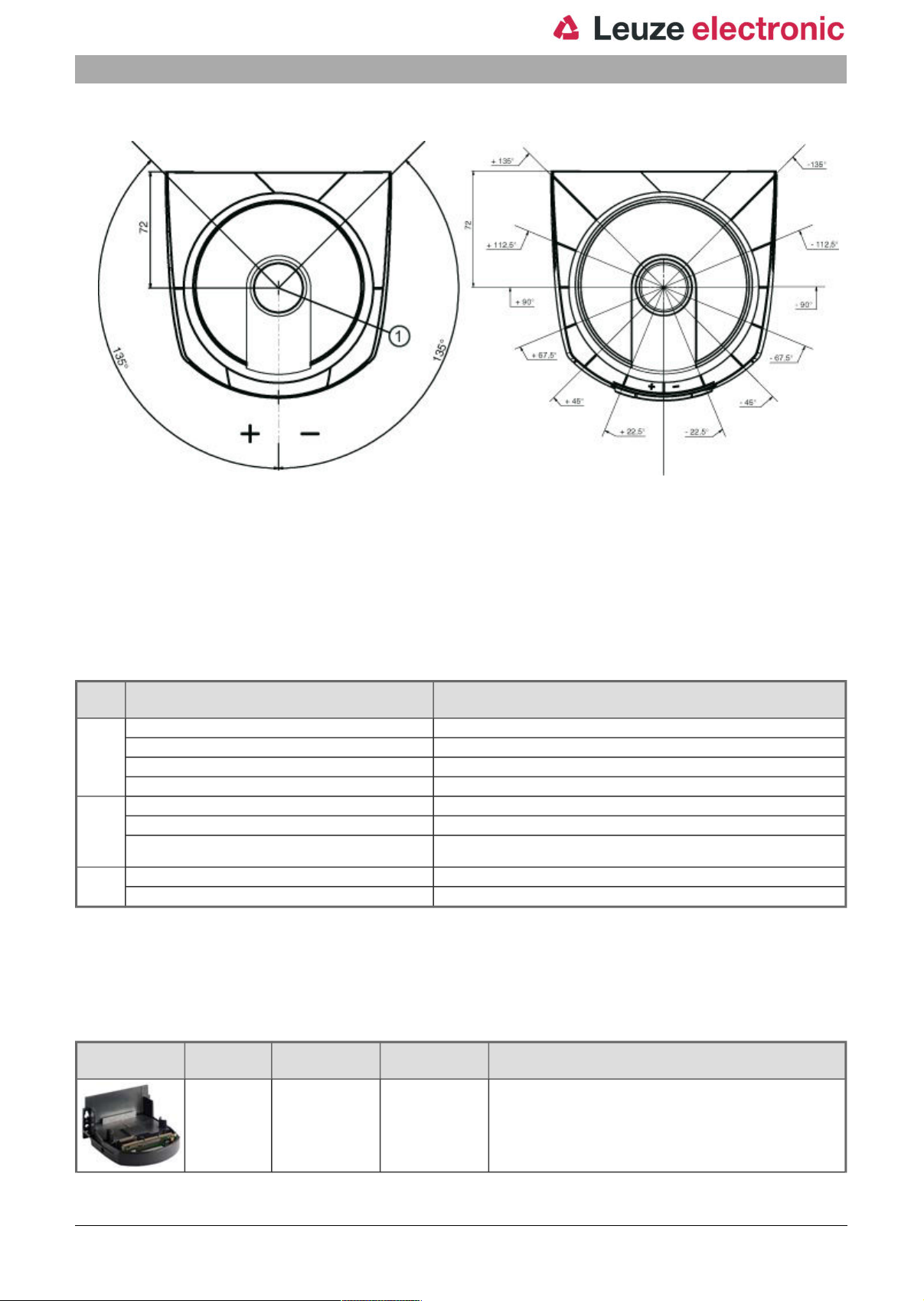

Scanning angle 270 °

Minimum adjustable range 200 mm

Number of field pairs, reversible 1

Number of quads, reversible 1

Number of protective functions 1 Piece(s)

Number of independent sensor configurations 1

Diffuse reflection, min. 1.8 %

Operating range 0 ... 3 m

Warning field data

Number of field pairs 1

Operating range 0 ... 20 m

Object size 150 mm x 150 mm

Diffuse reflection, min. 1.8 %

Optical data

Light source Laser, Infrared

Laser light wavelength 905 nm

Laser class 1, IEC/EN 60825-1:2007

Transmitted-signal shape Pulsed

Repetition frequency 90 kHz

Measurement data

Radial resolution 5 mm

Detection range 0 ... 50 m

Angular resolution 0.1 °

Electrical data

Protective circuit Overvoltage protection

eng 2018-04-02

2 / 9

Part no.: 53800101 – RSL410-S – Safety laser scanner

Performance data

Supply voltage 24 V, DC, -30 ... 20 %

Current consumption (without load), max. 700 mA, (use power supply unit with 3 A)

Power consumption, max. 17 W, For 24 V, plus output load

Outputs

Number of safety-related switching outputs (OSSDs) 2 Piece(s)

Safety-related switching outputs

Type Safety-related switching output OSSD

Switching voltage high, min. 20.8 V

Switching voltage low, max. 2 V

Voltage type DC

Safety-related switching output 1

Switching element Transistor, PNP

Safety-related switching output 2

Switching element Transistor, PNP

Interface

Type Bluetooth

Bluetooth

Function Configuration/parametering

Frequency band 2,400 ... 2,483.5 MHz

Radiated transmitting power Max. 4.5 dBm (2.82 mW), class 2

Connection

Cable properties

Cable resistance, max. 15 Ω

Mechanical data

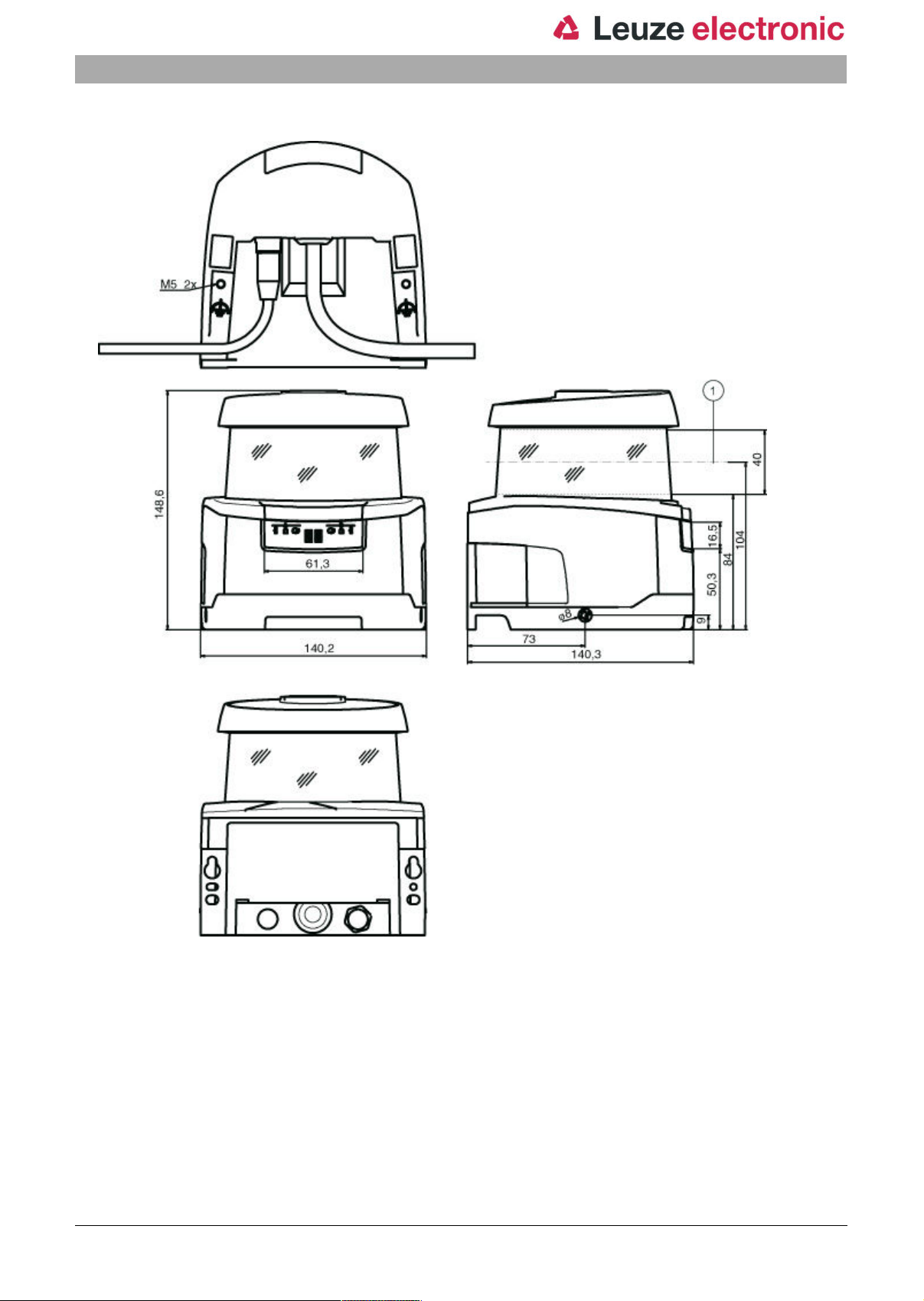

Dimension (W x H x L) 140 mm x 149 mm x 140 mm

Housing material Plastic

Lens cover material Plastic/PC

Net weight 2,000 g

Housing color Yellow, RAL 1021

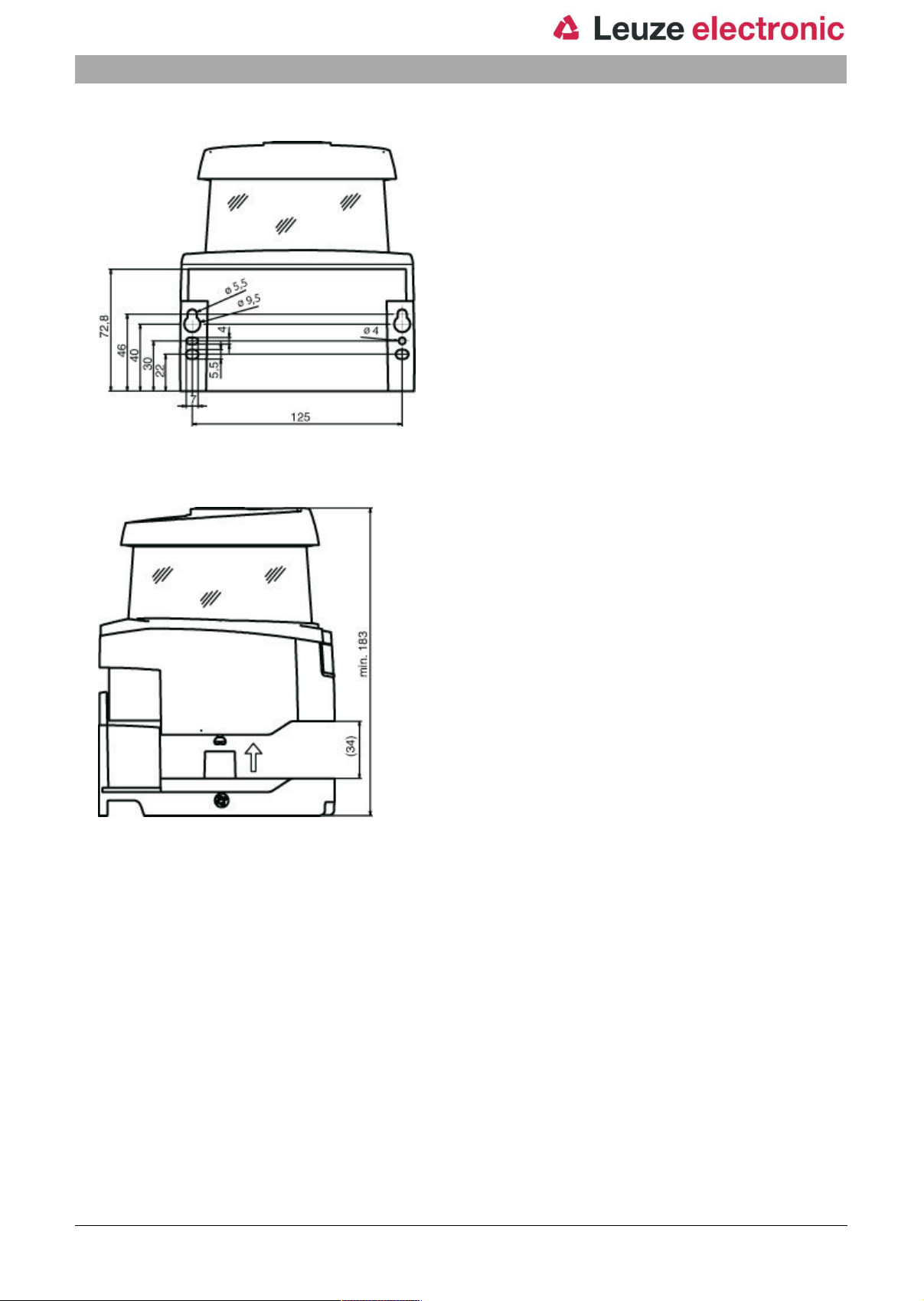

Type of fastening Mounting plate

Operation and display

Type of display LED indicator

Number of LEDs 3 Piece(s)

Type of configuration Software Sensor Studio

Operational controls Software Sensor Studio

Metal, Diecast zinc,

Via optional mounting device
Through-hole mounting

Alphanumerical display

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 60 °C

Certifications

Degree of protection IP 65
