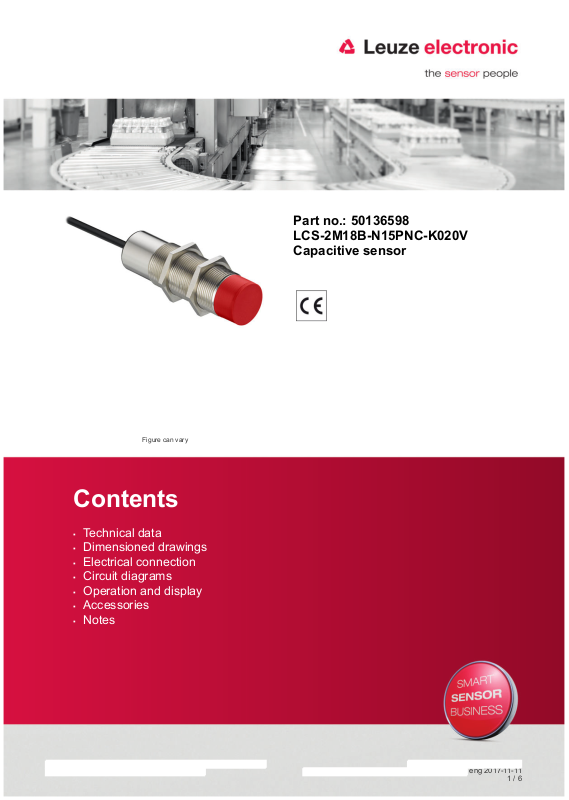

![](/html/9f/9fb4/9fb4df99feaa266559549fbe6a2f377a42bfb306178b53aa086c42408bfb781e/bg1.png)
Figure can vary
Part no.: 50136598
LCS-2M18B-N15PNC-K020V
Capacitive sensor
Contents
▪ Technical data

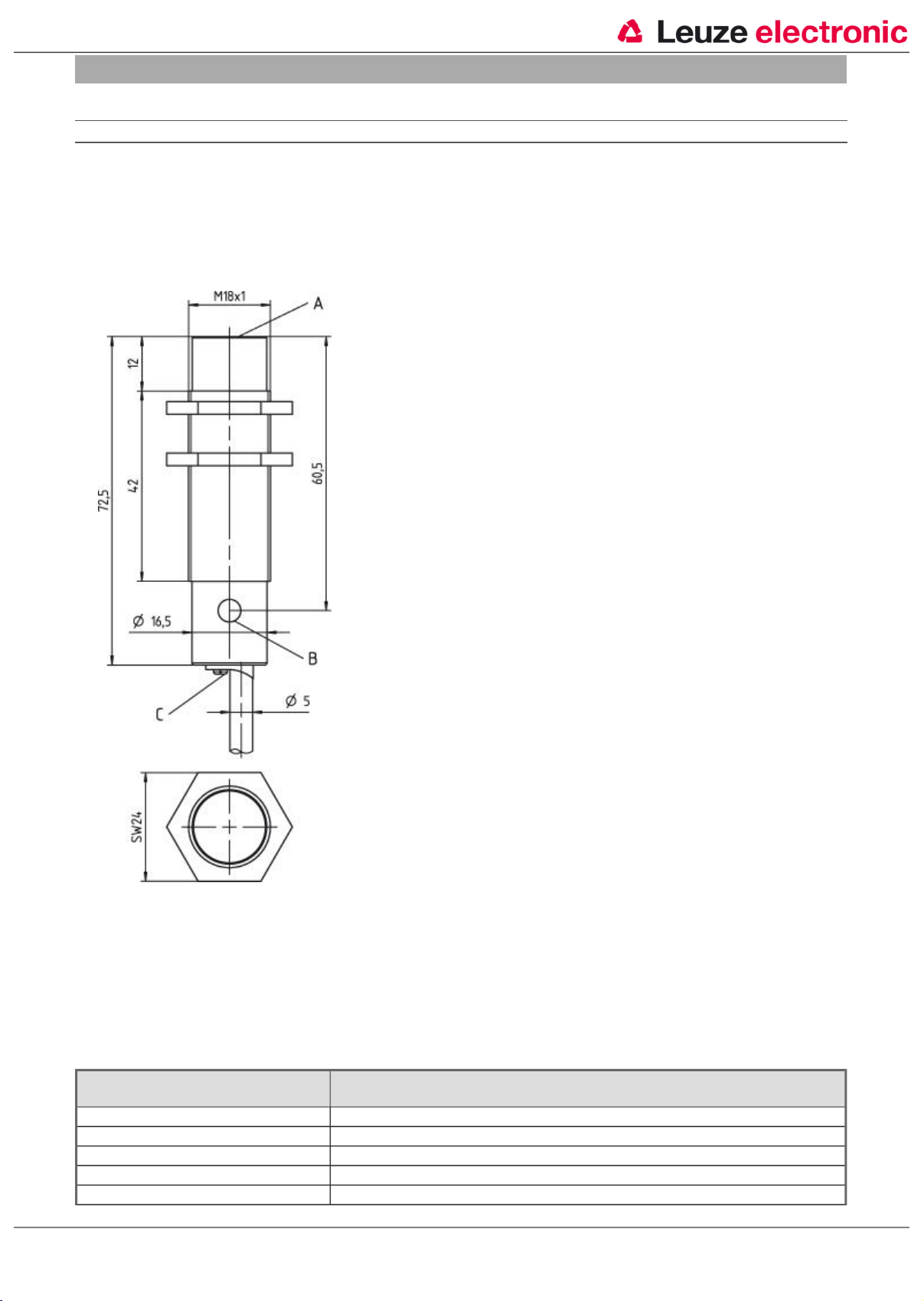

▪ Dimensioned drawings
▪ Electrical connection

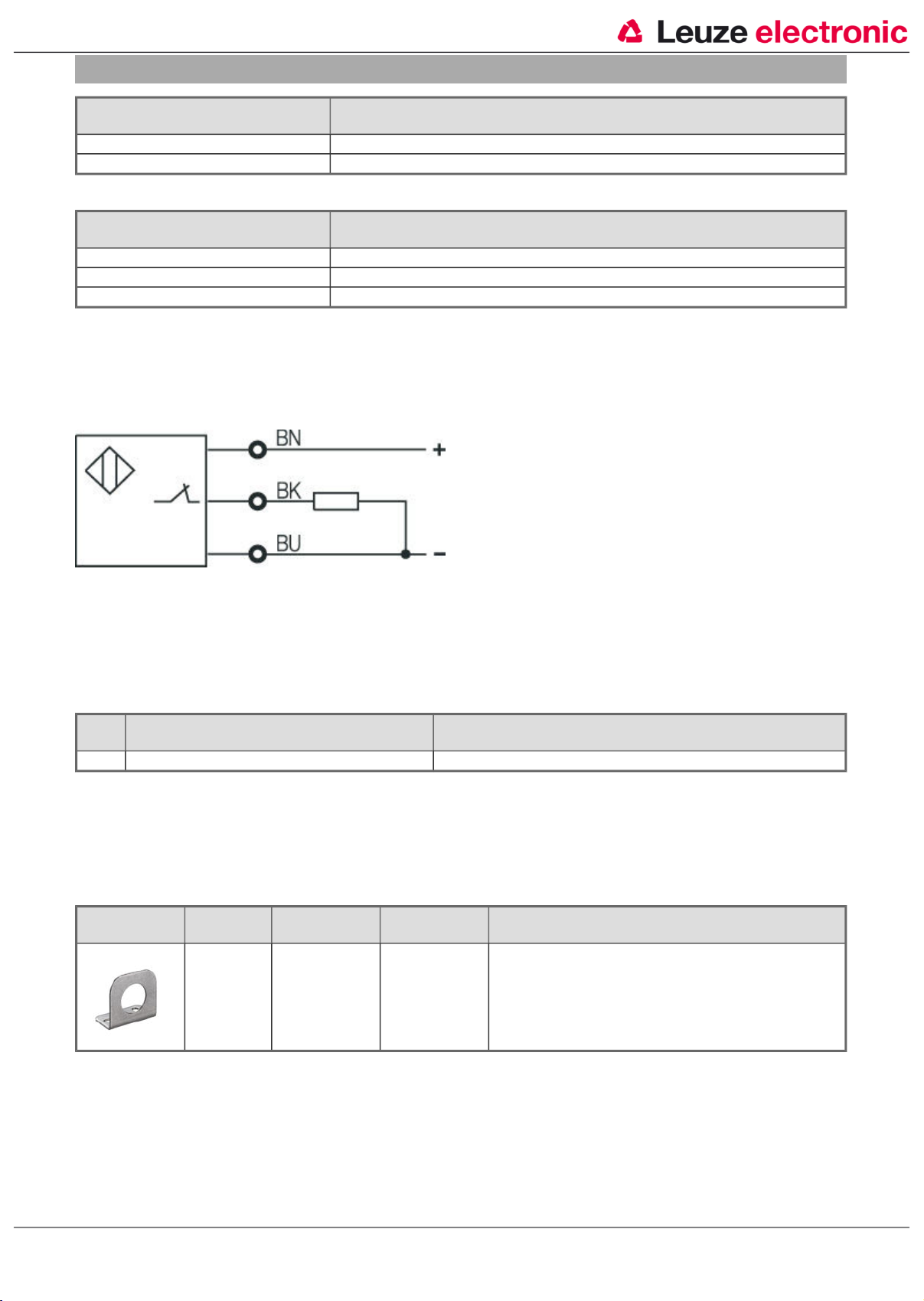

▪ Circuit diagrams
▪ Operation and display

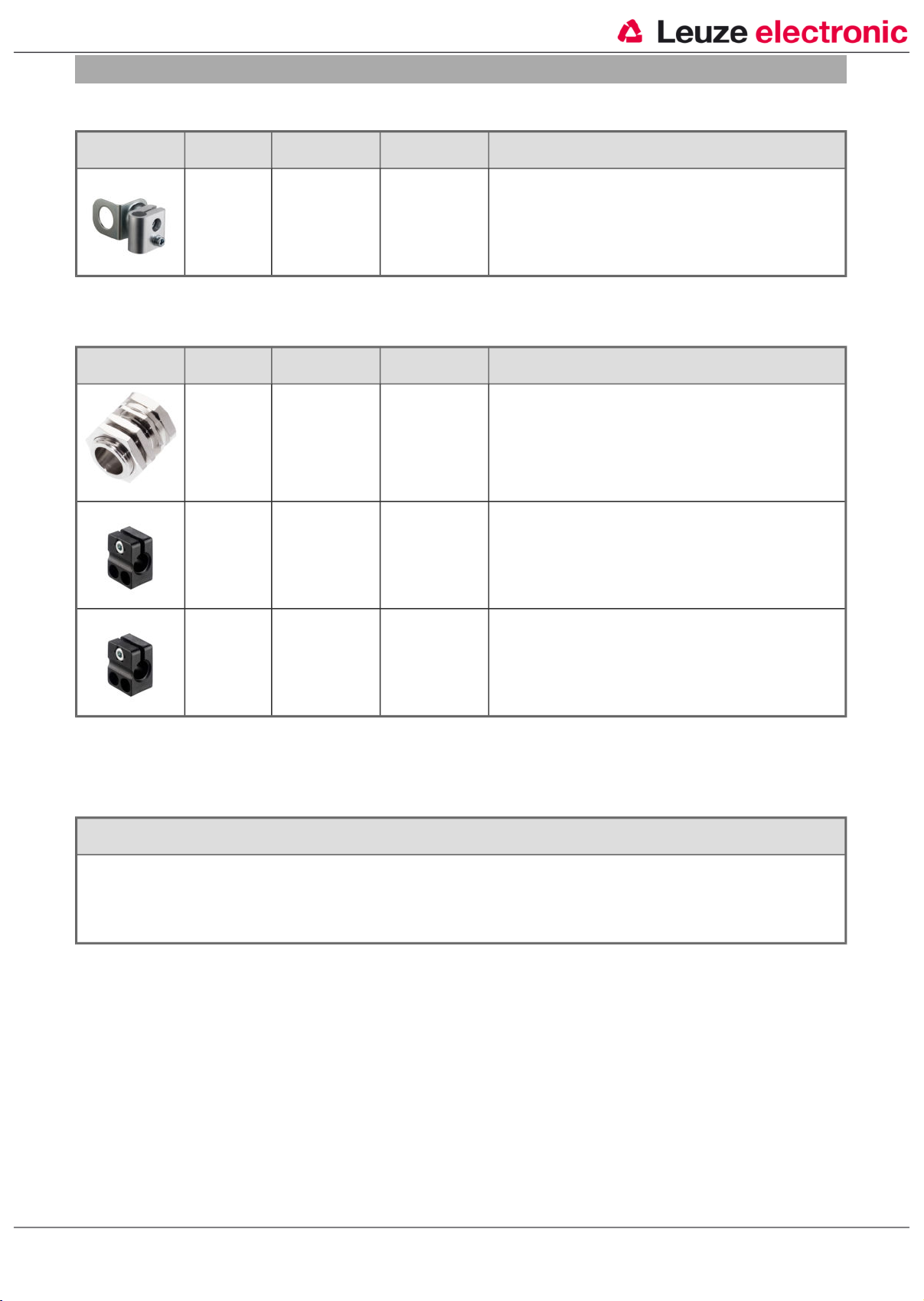

▪ Accessories
▪ Notes
![](/html/9f/9fb4/9fb4df99feaa266559549fbe6a2f377a42bfb306178b53aa086c42408bfb781e/bg2.png)
Part no.: 50136598 – LCS-2M18B-N15PNC-K020V – Capacitive sensor
Technical data
Basic data
Series LCS-2
Switching distance S
Assured switching distance 12.1 mm
Electrical data
Protective circuit Polarity reversal protection
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 10 %
Open-circuit current 10 mA
Rated operating current 300 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching output 1
Assignment Connection 1, conductor 2
Switching element Transistor, PNP
Switching principle NC (normally closed)
n
2 ... 15 mm
Short circuit protected
Timing
Switching frequency 100 Hz
Connection
Number of connections 1 Piece(s)
Connection 1
Type of connection Cable
Cable length 2,000 mm
Sheathing material PVC
Number of conductors 3 -wire
Wire cross section 0.35 mm²
Mechanical data
Design Cylindrical
Thread size M18 x 1 mm
Dimension (Ø x L) 18 mm x 70 mm
Type of installation Non-embedded
Housing material Metal
Sensing face material Plastic, Polybutylene (PBT)
Cover material Plastic, Polybutylene (PBT)
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Switching distance, adjustable Yes
eng 2017-11-11
2 / 6
