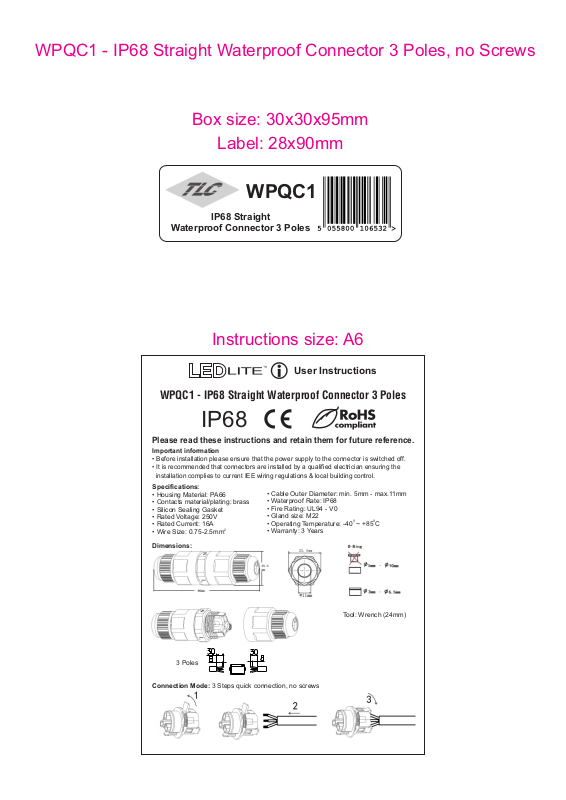

WPQC1 - IP68 Straight Waterproof Connector 3 Poles, no Screws
Box size: 30x30x95mm
Label: 28x90mm
WPQC1
IP68 Straight
Waterproof Connector 3 Poles
Instructions size: A6
User Instructions
WPQC1 - IP68 Straight Waterproof Connector 3 Poles
IP68
Please read these instructions and retain them for future reference.
Important information
• Before installation please ensure that the power supply to the connector is switched off.
• It is recommended that connectors are installed by a qualified electrician ensuring the
installation complies to current IEE wiring regulations & local building control.
Specifications:
• Housing Material: PA66
• Contacts material/plating: brass
• Silicon Sealing Gasket
• Rated Voltage: 250V
• Rated Current: 16A
• Wire Size: 0.75-2.5mm
Dimensions:
2
• Cable Outer Diameter: min. 5mm - max.11mm
• Waterproof Rate: IP68
• Fire Rating: UL94 - V0
• Gland size: M22
• Operating Temperature: -40 ~ +85 C
• Warranty: 3 Years
25.5mm
0 0
Tool: Wrench (24mm)
3 Poles
Connection Mode: 3 Steps quick connection, no screws
