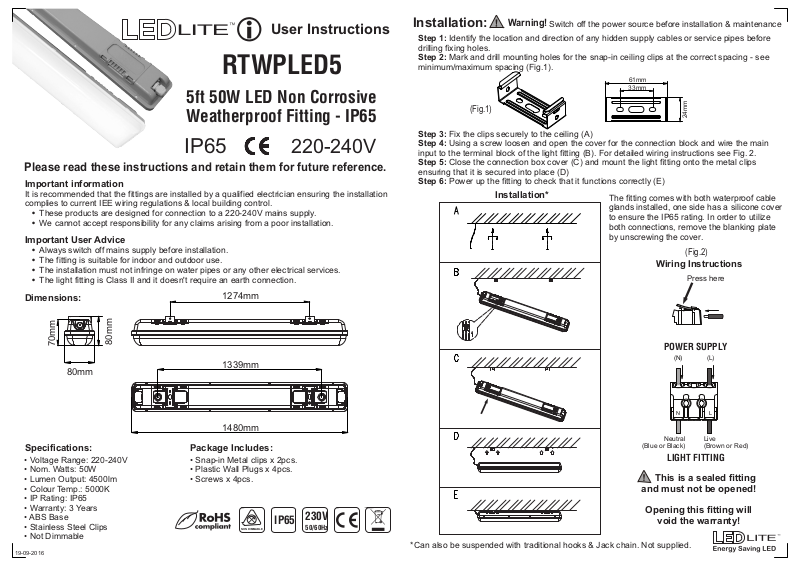

User Instructions
RTWPLED5
5ft 50W LED Non Corrosive
Weatherproof Fitting - IP65
IP65
Please read these instructions and retain them for future reference.
Important information
It is recommended that the fittings are installed by a qualified electrician ensuring the installation
complies to current IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• We cannot accept responsibility for any claims arising from a poor installation.
Important User Advice
• Always switch off mains supply before installation.
• The fitting is suitable for indoor and outdoor use.
• The installation must not infringe on water pipes or any other electrical services.
• The light fitting is Class II and it doesn't require an earth connection.
220-240V

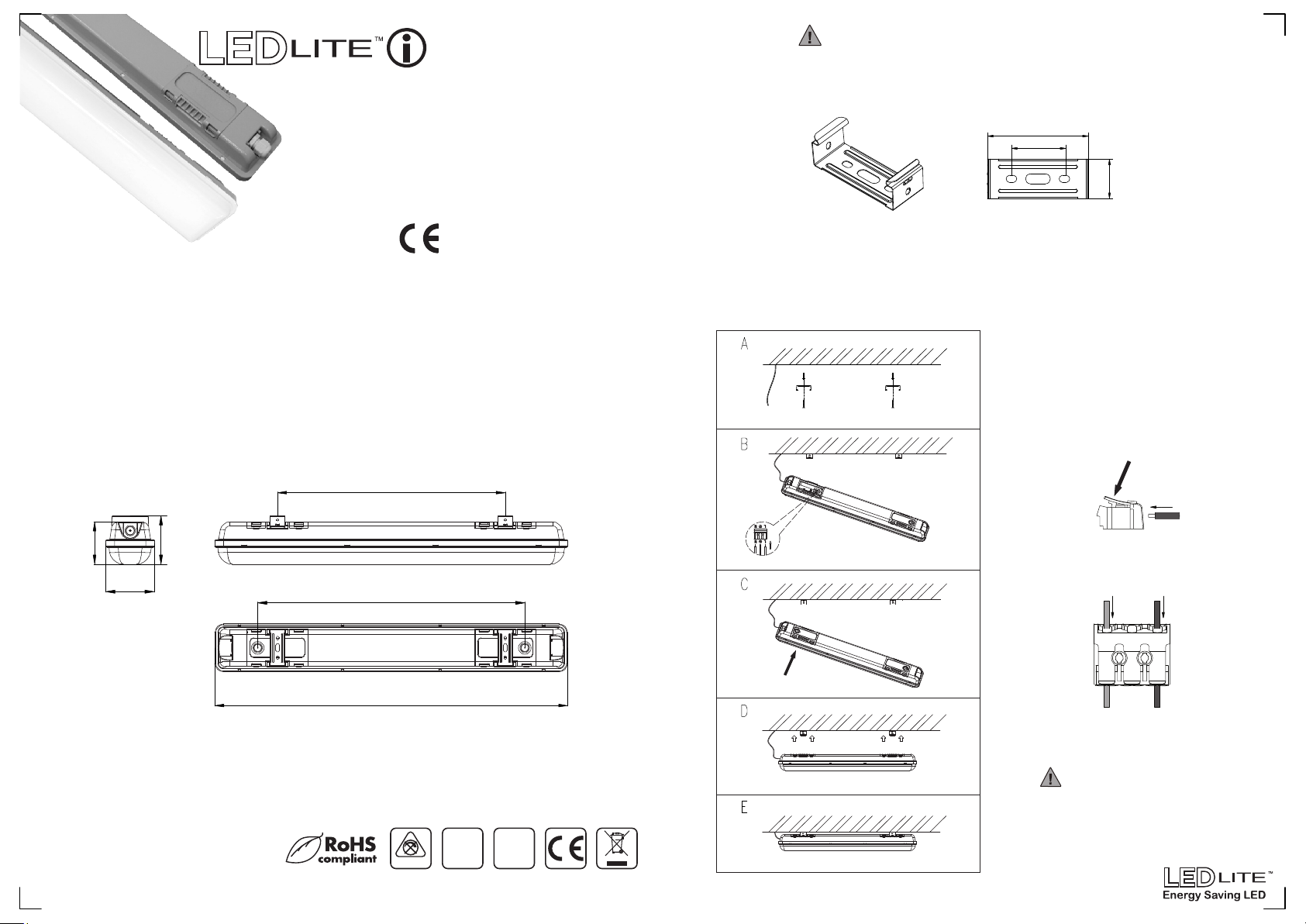

Installation:
Step 1: Identify the location and direction of any hidden supply cables or service pipes before
drilling fixing holes.
Step 2: Mark and drill mounting holes for the snap-in ceiling clips at the correct spacing - see
minimum/maximum spacing (Fig.1).
Warning!
(Fig.1)
Step 3: Fix the clips securely to the ceiling (A)
Step 4: Using a screw loosen and open the cover for the connection block and wire the main
input to the terminal block of the light fitting (B). For detailed wiring instructions see Fig. 2.
Step 5: Close the connection box cover (C) and mount the light fitting onto the metal clips
ensuring that it is secured into place (D)
Step 6: Power up the fitting to check that it functions correctly (E)
Installation*
Switch off the power source before installation & maintenance
61mm
33mm
24mm
The fitting comes with both waterproof cable
glands installed, one side has a silicone cover
to ensure the IP65 rating. In order to utilize
both connections, remove the blanking plate
by unscrewing the cover.
(Fig.2)
Wiring Instructions
Press here
Dimensions:
70mm
80mm
Specifications:
• Voltage Range: 220-240V
• Nom. Watts: 50W
• Lumen Output: 4500lm
• Colour Temp.: 5000K
• IP Rating: IP65
• Warranty: 3 Years
• ABS Base
• Stainless Steel Clips
• Not Dimmable
19-09-2016
80mm
1274mm
1339mm
1480mm
Package Includes:
• Snap-in Metal clips x 2pcs.
• Plastic Wall Plugs x 4pcs.
• Screws x 4pcs.
NON DIMMABLE
IP65
230V
50/60Hz
POWER SUPPLY
(N)
N
Neutral
(Blue or Black)
LIGHT FITTING
This is a sealed fitting
and must not be opened!
Opening this fitting will
void the warranty!
*Can also be suspended with traditional hooks & Jack chain. Not supplied.
(L)
L
Live
(Brown or Red)
