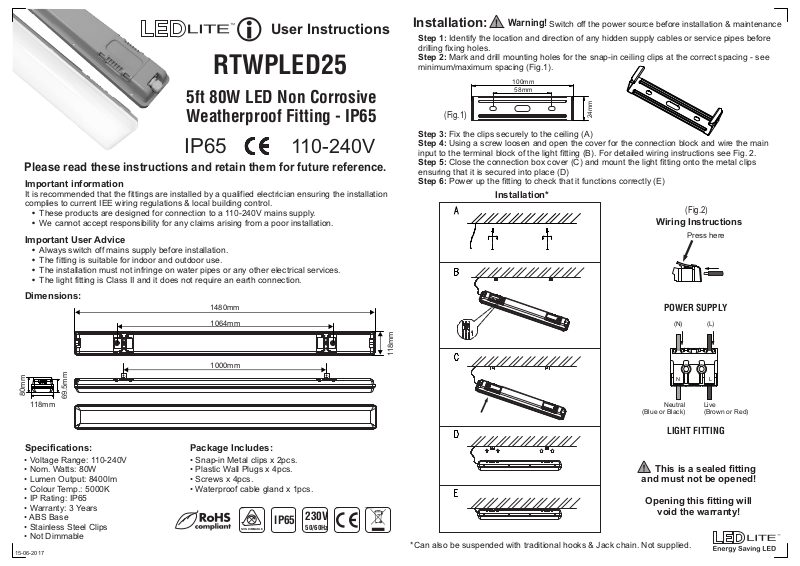

User Instructions
RTWPLED25
5ft 80W LED Non Corrosive
Weatherproof Fitting - IP65
IP65
Please read these instructions and retain them for future reference.
Important information
It is recommended that the fittings are installed by a qualified electrician ensuring the installation
complies to current IEE wiring regulations & local building control.
• These products are designed for connection to a 110-240V mains supply.
• We cannot accept responsibility for any claims arising from a poor installation.
Important User Advice
• Always switch off mains supply before installation.
• The fitting is suitable for indoor and outdoor use.
• The installation must not infringe on water pipes or any other electrical services.
• The light fitting is Class II and it does not require an earth connection.

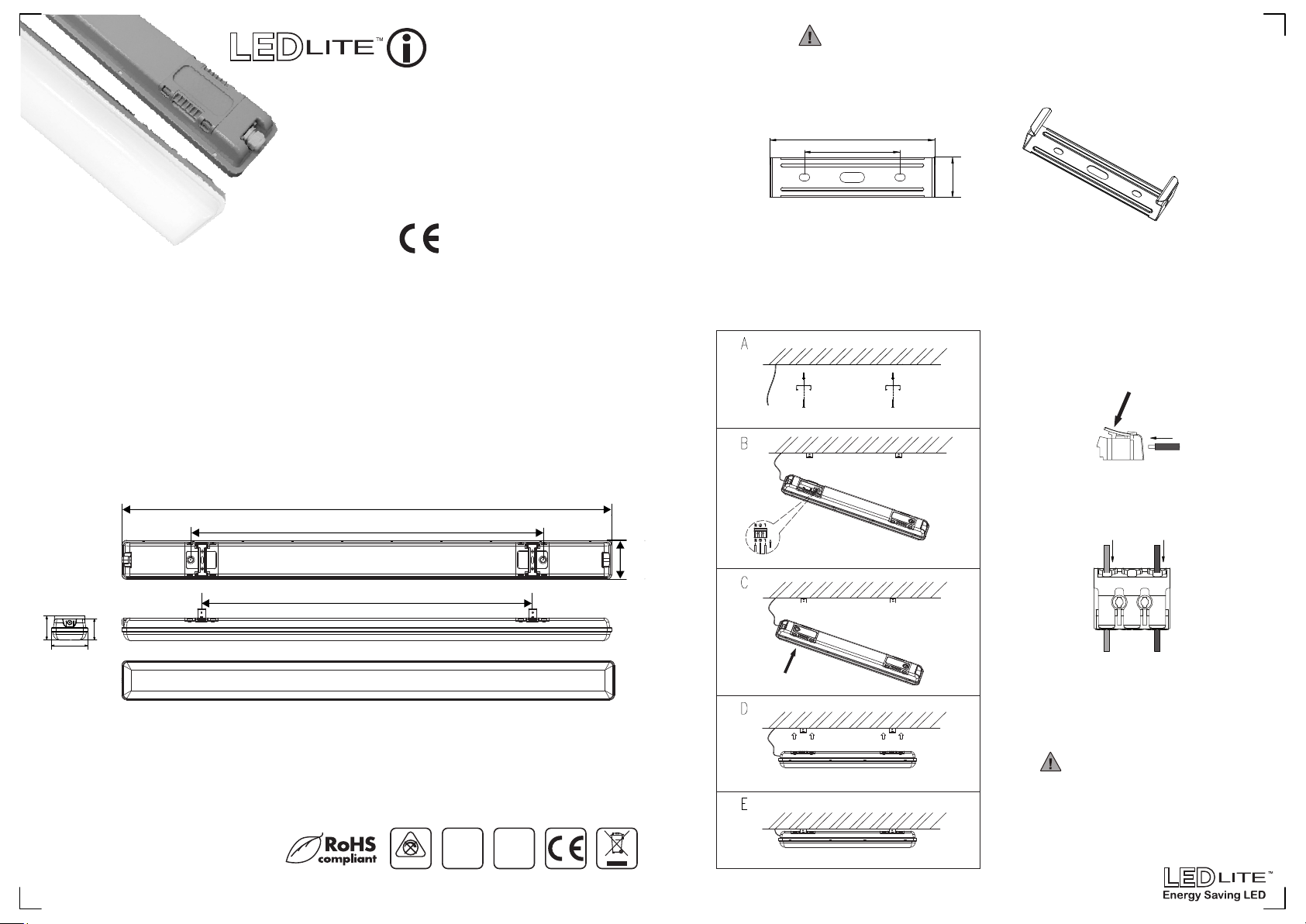

Dimensions:
1480mm
1064mm
110-240V
Installation:
Step 1: Identify the location and direction of any hidden supply cables or service pipes before
drilling fixing holes.
Step 2: Mark and drill mounting holes for the snap-in ceiling clips at the correct spacing - see
minimum/maximum spacing (Fig.1).
Warning!
100mm
58mm
(Fig.1)
Step 3: Fix the clips securely to the ceiling (A)
Step 4: Using a screw loosen and open the cover for the connection block and wire the main
input to the terminal block of the light fitting (B). For detailed wiring instructions see Fig. 2.
Step 5: Close the connection box cover (C) and mount the light fitting onto the metal clips
ensuring that it is secured into place (D)
Step 6: Power up the fitting to check that it functions correctly (E)
Switch off the power source before installation & maintenance
24mm
Installation*
(Fig.2)
Wiring Instructions
Press here
POWER SUPPLY
(N)
(L)
80mm
118mm
69.5mm
Specifications:
• Voltage Range: 110-240V
• Nom. Watts: 80W
• Lumen Output: 8400lm
• Colour Temp.: 5000K
• IP Rating: IP65
• Warranty: 3 Years
• ABS Base
• Stainless Steel Clips
• Not Dimmable
15-06-2017
1000mm
Package Includes:
• Snap-in Metal clips x 2pcs.
• Plastic Wall Plugs x 4pcs.
• Screws x 4pcs.
• Waterproof cable gland x 1pcs.
230V
50/60Hz
NON DIMMABLE
IP65
118mm
(Blue or Black)
This is a sealed fitting
and must not be opened!
Opening this fitting will
*Can also be suspended with traditional hooks & Jack chain. Not supplied.
N
Neutral
L
Live
(Brown or Red)
LIGHT FITTING
void the warranty!
