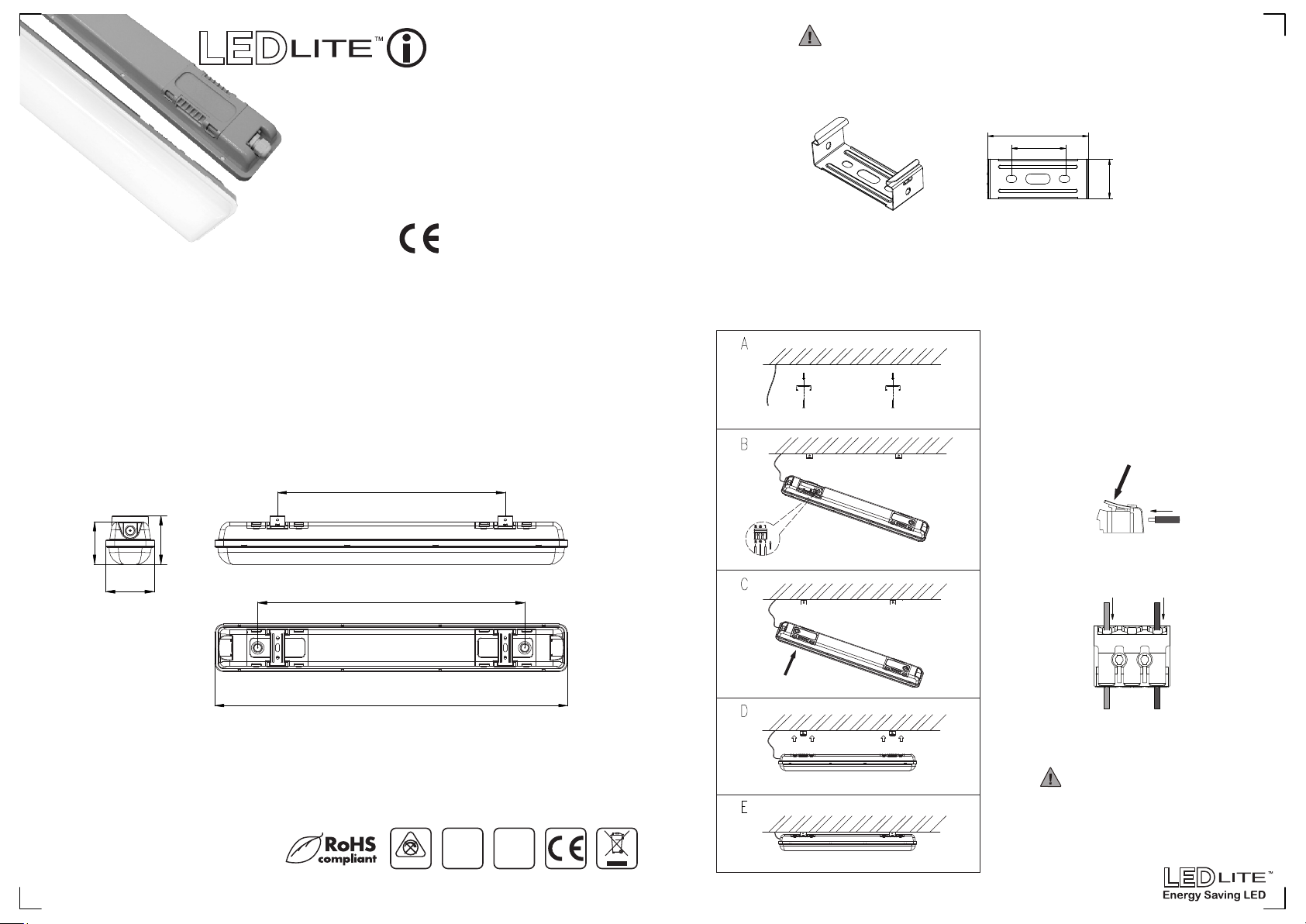

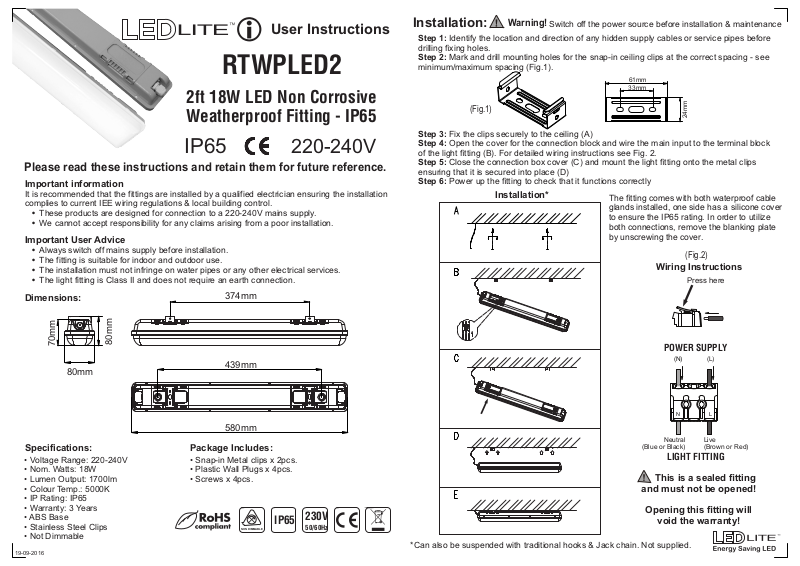

User Instructions
RTWPLED2
2ft 18W LED Non Corrosive
Weatherproof Fitting - IP65
IP65
Please read these instructions and retain them for future reference.
Important information
It is recommended that the fittings are installed by a qualified electrician ensuring the installation
complies to current IEE wiring regulations & local building control.
• These products are designed for connection to a 220-240V mains supply.
• We cannot accept responsibility for any claims arising from a poor installation.
Important User Advice
• Always switch off mains supply before installation.
• The fitting is suitable for indoor and outdoor use.
• The installation must not infringe on water pipes or any other electrical services.
• The light fitting is Class II and does not require an earth connection.
Dimensions:
374mm
220-240V
Installation:
Step 1: Identify the location and direction of any hidden supply cables or service pipes before
drilling fixing holes.
Step 2: Mark and drill mounting holes for the snap-in ceiling clips at the correct spacing - see
minimum/maximum spacing (Fig.1).
Warning!
(Fig.1)
Step 3: Fix the clips securely to the ceiling (A)
Step 4: Open the cover for the connection block and wire the main input to the terminal block
of the light fitting (B). For detailed wiring instructions see Fig. 2.
Step 5: Close the connection box cover (C) and mount the light fitting onto the metal clips
ensuring that it is secured into place (D)
Step 6: Power up the fitting to check that it functions correctly
Installation*
Switch off the power source before installation & maintenance
61mm
33mm
24mm
The fitting comes with both waterproof cable
glands installed, one side has a silicone cover
to ensure the IP65 rating. In order to utilize
both connections, remove the blanking plate
by unscrewing the cover.
(Fig.2)
Wiring Instructions
Press here
70mm
80mm
Specifications:
• Voltage Range: 220-240V
• Nom. Watts: 18W
• Lumen Output: 1700lm
• Colour Temp.: 5000K
• IP Rating: IP65
• Warranty: 3 Years
• ABS Base
• Stainless Steel Clips
• Not Dimmable
19-09-2016
80mm
439mm
580mm
Package Includes:
• Snap-in Metal clips x 2pcs.
• Plastic Wall Plugs x 4pcs.
• Screws x 4pcs.
NON DIMMABLE
IP65
230V
50/60Hz
POWER SUPPLY
(N)
N
Neutral
(Blue or Black)
LIGHT FITTING
This is a sealed fitting
and must not be opened!
Opening this fitting will
void the warranty!
*Can also be suspended with traditional hooks & Jack chain. Not supplied.
(L)
L
Live
(Brown or Red)
